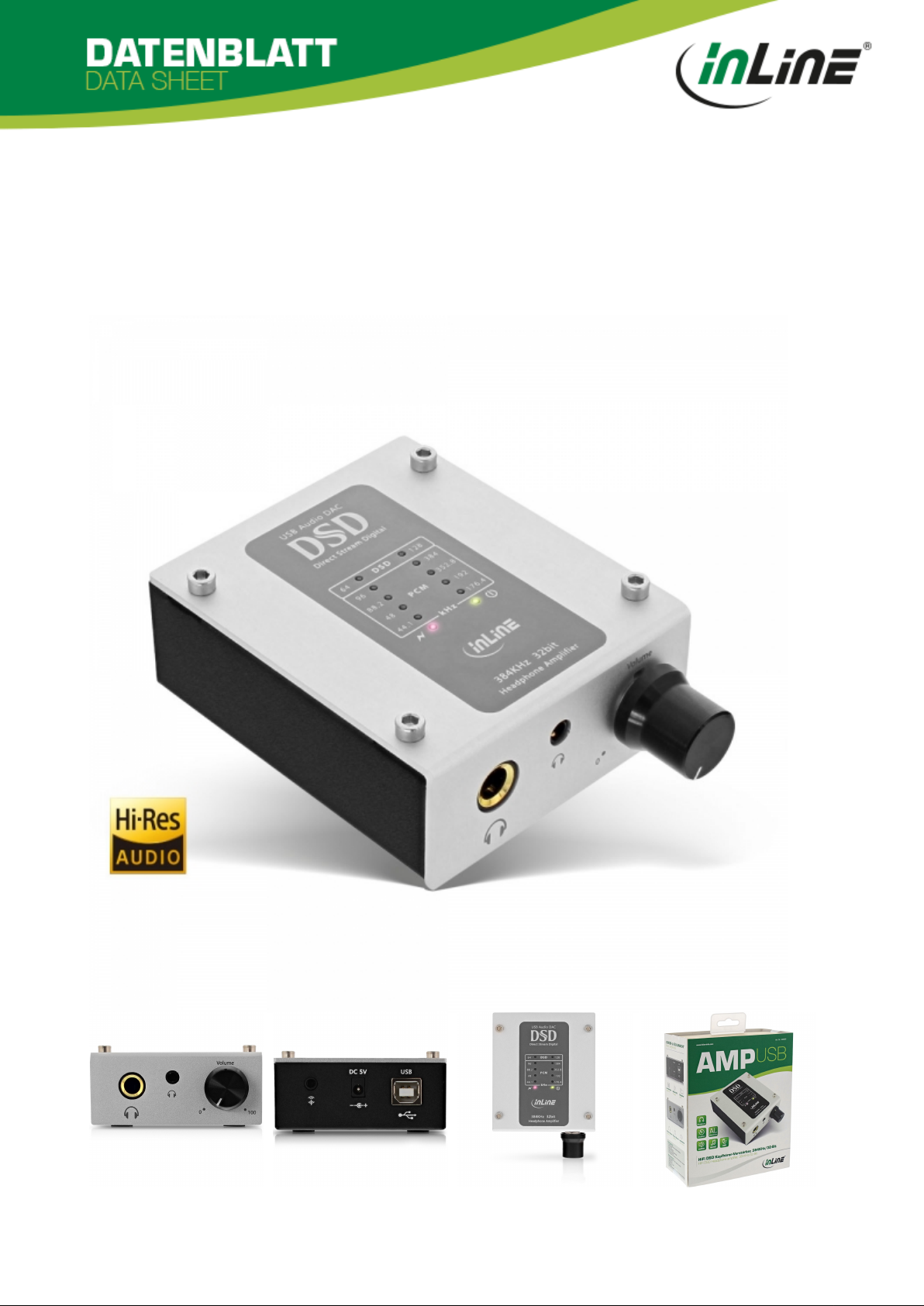

InLine® AmpUSB HiRes Audio HiFi DSD
Headphone Amplifier USB DAC
384kHz/32bit
Artikel 99202I
InLine® AmpUSB HiRes Audio HiFi DSD Headphone Amplifier USB
DAC 384kHz/32bit
Artikel 99202I
The InLine® AmpUSB 384KHz/32bit DSD USB Audio DAC is an ultra-mastering grade digital audio playback system. It is
capable of converting high resolution PCM audio (up to 384 kHz) and DSD audio (up to 128x DSD). The DAC allows you to
bypass your computer's soundcard or headphone output and send digital audio signal through the USB interface. With this
perfect digital interface between your computer and the music system, the sound quality is pushed to another higher level in
your overall music environment.
- Supports DSD128 5.6M playback
- Supports PCM 384KHz/32bit playback
- Supports DSD native or DoP
- Asynchronous transfer mode
- SNR : around 110dB (A-weighting)
- Max. Headphone Output power (at 1KHz and single channel): around 210mW / 16ohm and around 190mW /
32ohm
- Headphone Drive Ability: 16 - 600 ohm
- High Quality DAC-Cirrus Logic CS4392
- High Quality Headphone Amplifier
- Opamp are +/-12V powered by internal power boosting circuitry
- 6.3mm & 3.5mm headphone outputs
- Toslink S/PDIF Digital output
- Analog Volume Control
- Supports ASIO and WASAPI
- Integrated de-pop function
- Powered by 5V, optional from USB/AC Adapter (5V/0,5A)
- LED indicators for DSD and PCM playback
- Very fine finishing metallic case
- Supported Operating systems: Windows 10, 8.1, 8, 7, Vista, XP 32/64-bit and MAC OS X (10.6 or above), works
with Apple (with camera kit) and Android portable devices (with OTG adapter). Compatible Apps with DSD audio
playback are available in the app stores and possibly connected with full functionality with additional costs (in-app
purchases, such as App "Onkyo HF Player")
- Content: InLine® AmpUSB 384KHz/32bit DSD USB Audio DAC, User Manual, USB cable, Driver and Software CD
with JRiver Media Center License Key, USB to DC 5V cable
Caution: First please connect and turn on the amplifier, then install the Via driver, afterwards restart your PC.
