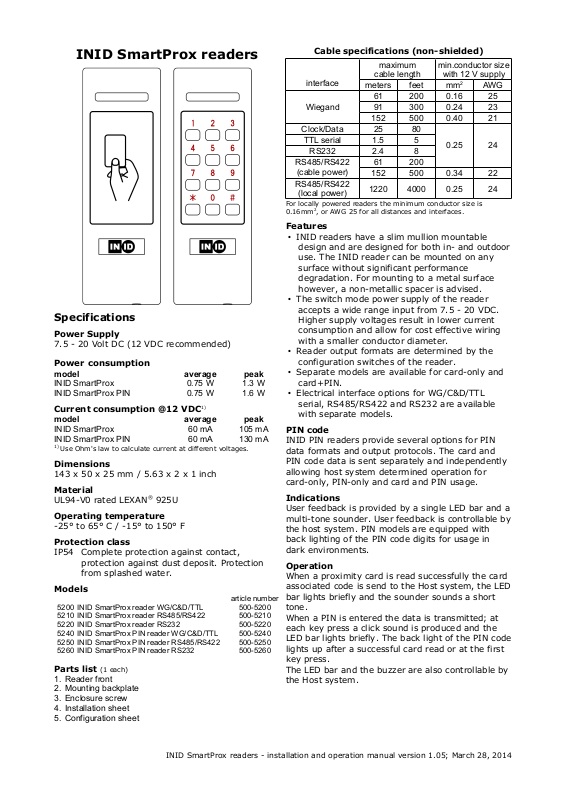

INID SmartProx readers
Specifications
Power Supply
7.5 - 20 Volt DC (12 VDC recommended)
Power consumption
model average peak
INID SmartProx 0.75 W 1.3 W
INID SmartProx PIN 0.75 W 1.6 W
Current consumption @12 VDC
model average peak
INID SmartProx 60 mA 105 mA
INID SmartProx PIN 60 mA 130 mA
1)
Use Ohm's law to calculate current at different voltages.
Dimensions
143 x 50 x 25 mm / 5.63 x 2 x 1 inch
Material
UL94-V0 rated LEXAN® 925U
Operating temperature
-25° to 65° C / -15° to 150° F
Protection class
IP54 Complete protection against contact,
protection against dust deposit. Protection
from splashed water.
Models
5200 INID SmartProx reader WG/C&D/TTL 500-5200
5210 INID SmartProx reader RS485/RS422 500-5210
5220 INID SmartProx reader RS232 500-5220
5240 INID SmartProx PIN reader WG/C&D/TTL 500-5240
5250 INID SmartProx PIN reader RS485/RS422 500-5250
5260 INID SmartProx PIN reader RS232 500-5260
Parts list (1 each)
1. Reader front
2. Mounting backplate
3. Enclosure screw
4. Installation sheet
5. Configuration sheet
1)
article number
Cable specifications (non-shielded)
interface
maximum
cable length
meters feet mm
min.conductor size
with 12 V supply
2
AWG
61 200 0.16 25
Wiegand
91 300 0.24 23
152 500 0.40 21
Clock/Data 25 80
TTL serial 1.5 5
RS232 2.4 8
RS485/RS422
(cable power)
RS485/RS422
(local power)
For locally powered readers the minimum conductor size is
0.16mm2, or AWG 25 for all distances and interfaces.
61 200
152 500 0.34 22
1220 4000 0.25 24
0.25 24
Features
• INID readers have a slim mullion mountable
design and are designed for both in- and outdoor
use. The INID reader can be mounted on any
surface without significant performance
degradation. For mounting to a metal surface
however, a non-metallic spacer is advised.
• The switch mode power supply of the reader
accepts a wide range input from 7.5 - 20 VDC.
Higher supply voltages result in lower current
consumption and allow for cost effective wiring
with a smaller conductor diameter.
• Reader output formats are determined by the
configuration switches of the reader.
• Separate models are available for card-only and
card+PIN.
• Electrical interface options for WG/C&D/TTL
serial, RS485/RS422 and RS232 are available
with separate models.
PIN code
INID PIN readers provide several options for PIN
data formats and output protocols. The card and
PIN code data is sent separately and independently
allowing host system determined operation for
card-only, PIN-only and card and PIN usage.
Indications
User feedback is provided by a single LED bar and a
multi-tone sounder. User feedback is controllable by
the host system. PIN models are equipped with
back lighting of the PIN code digits for usage in
dark environments.
Operation
When a proximity card is read successfully the card
associated code is send to the Host system, the LED
bar lights briefly and the sounder sounds a short
tone.
When a PIN is entered the data is transmitted; at
each key press a click sound is produced and the
LED bar lights briefly. The back light of the PIN code
lights up after a successful card read or at the first
key press.
The LED bar and the buzzer are also controllable by
the Host system.
INID SmartProx readers - installation and operation manual version 1.05; March 28, 2014
Connector Assignments
Wiegand / Clock & Data / TTL serial
D1 / DATA
1
TXD
D0 / CLOCK
2
BUZZER
3
RXD
LED
4
GND
5
POWER
6
RS485 / RS422
RS485 TRX-
1
RS422 TXRS485 TRX+
2
RS422 TX+
Caution:
Ensure all communication lines are properly biased and terminated.
floating communication lines may cause spurious emissions.
RS485 N.C.
3
RS422 RX+
RS485 N.C.
4
RS422 RX-
GND
5
POWER
6
RS232
TXD
1
CTS
2
RTS
3
RXD
4
GND
5
POWER
6
Installation instructions
1 Determine an appropriate position for the reader
and drill two holes for mounting the backplate
and one hole for the cable, see diagram for
measurements. Do not mount readers less than
20 cm (8 inches) apart.
2 Pull the cable trough the hole in the backplate
and mount the backplate. Protect the cable
against sharp edges and any damage from
chafing.
3 Prepare the end of the cable and wires, eliminate
any loose or frayed strands. Keep the wire ends
as short as practical.
4 Connect the wires to the connector according to
the reader type. Wire ends and optional
permanent links shall be kept as short as
possible.
5 Place the reader front over the hinge of the
backplate and close the reader (see diagram),
keeping the wiring in the lower part of the reader
housing. DO NOT use excessive force, retract the
cable if necessary.
6 Test the reader: apply power and present a valid
card. The LED bar should flash and the sounder
should produce a short tone indicating a
successful read. If the Host system is connected
to LED bar and sounder inputs these should
follow the functionality of the Host system.
7 The reader front should now be secured to the
backplate using the supplied enclosure screw.
Configuration
The reader is factory configured to read H-PX cards.
For other cards and output formats, refer to the
enclosed SmartProx quick reference guide Card and
output selection configuration sheet.
Certifications
FCC, IC
For mounting, use only flat head screws with a maximum
shank size of 4 mm (5/32”, #7)
Compliance statement (part 15.19)
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including
interference that may cause undesired operation.
Le présent appareil est conforme aux CNR d’Industrie Canada
applicables aux appareils radio exempts de licence. L’exploitation
est autorisée aux deux conditions suivantes :
(1) l’appareil ne doit pas produire de brouillage, et
(2) l’utilisateur de l’appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d’en
compromettre le fonctionnement.
Information to the User (Part 15.105 (b))
Note: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of
the following measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
— Consult the dealer or an experienced radio/TV technician for help.
Complies with: CAN ICES-3 (B)/NMB-3(B)
FCC ID: YAB-NGRPSPX
IC: 8908A-NGRPSPX
Warning (part 15.21)
Changes or modifications not expressly approved by the
party responsible for compliance could void the user’s
authority to operate the equipment.
INID SmartProx readers - installation and operation manual version 1.05; March 28, 2014
INID BV
Mariëttahof 27
2033 WS Haarlem
The Netherlands
Phone: +31 (0)23 5335 420
Web: www.inid-readers.com
