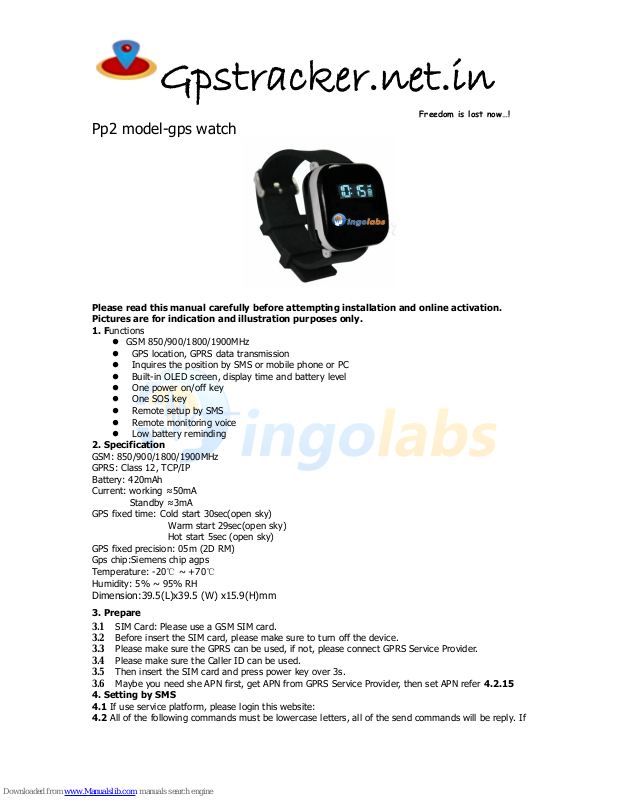

Pp2 model-gps watch
Please read this manual carefully before attempting installation and online activation.
Pictures are for indication and illustration purposes only.
1. Functions
GSM 850/900/1800/1900MHz
GPS location, GPRS data transmission
Inquires the position by SMS or mobile phone or PC
Built-in OLED screen, display time and battery level
One power on/off key
One SOS key
Remote setup by SMS
Remote monitoring voice
Low battery reminding
2. Specification
GSM: 850/900/1800/1900MHz
GPRS: Class 12, TCP/IP
Battery: 420mAh
Current: working ≈50mA
Standby ≈3mA
GPS fixed time: Cold start 30sec(open sky)
Warm start 29sec(open sky)
Hot start 5sec (open sky)
GPS fixed precision: 05m (2D RM)
Gps chip:Siemens chip agps
Temperature: -20℃ ~ +70℃
Humidity: 5% ~ 95% RH
Dimension:39.5(L)x39.5 (W) x15.9(H)mm
3. Prepare
3.1 SIM Card: Please use a GSM SIM card.
3.2 Before insert the SIM card, please make sure to turn off the device.
3.3 Please make sure the GPRS can be used, if not, please connect GPRS Service Provider.
3.4 Please make sure the Caller ID can be used.
3.5 Then insert the SIM card and press power key over 3s.
3.6 Maybe you need she APN first, get APN from GPRS Service Provider, then set APN refer 4.2.15
4. Setting by SMS
4.1 If use service platform, please login this website:
4.2 All of the following commands must be lowercase letters, all of the send commands will be reply. If
Gpstracker.net.in
Freedom is lost now…!
set successful it will reply "set success!” otherwise need to set again. Send the corresponding commands
the device will reply the corresponding results.
4.2.1 Set the center number:
If you want to use SMS to set device’s working parameter or control the device, you must set the center
number first. Device only accept SMS commands of the center number, you can set your mobile phone
number as the center number. In order to ensure the safety of users, you must use the password to set
the center number. The initial password is “123456”. Password can be modified.
The center number set command:
pw,123456,center,00000000000#
Example: pw,123456,center,9700025002#
If the service center number is set successful, the device will reply: Master command set successfully!
If the password is incorrect, the device will reply: "The password is wrong!"
Note: you can only set one service center number.
4.2.2 Set slave center number
Slave center number only can set parameters by SMS.
Command: pw,123456,slave,00000000000#
4.2.3 Delete the service center number
Command: pw,123456,center,d#
If the command is set successful, the device will reply “Center number has been deleted!”
4.2.4 Modify password
The default password is 123456
Command: pw: new password (6 digits)#
Example: pw,888888#
If the password is modified successful, the device will reply: "password success! Password for 888888".
If the setting is incorrect, then reply "Password format error!"
4.2.5 Add SOS number
Can set five SOS number, Command:
sos1,,11111111111#
sos2,22222222222#
sos3,33333333333#
Example: sos1,9700025002#
If the setting is successful, then reply "SOS set success!".
4.2.6 Delete the SOS number
Command:
sos1#
sos2#
sos3#
If the command is set successful, the device will reply “SOS delete success!”
4.2.7 Inquire the parameter setting
Command: test#
Example: test #
Reply Message:
ver:TQ-v0.1-2013/07/0422:51;ID:7893267561;ip:37.59.232.31;port:11701;center:13640927062;slave:13682431464;upload:6553
5s;work mode:1;bat level:3;GPS:OK(7);GPRS:OK(100);LED:OFF;
ver: firmware version
ID: 7893267561– device ID Number
ip: 37.59.232.31, PORT:11701 -- Server IP and port
center: Center number
slave: Slave center number
upload: GPRS Data upload interval
workmode: working mode
bat level: battery power
Gpstracker.net.in
Freedom is lost now…!
GPS: GPS fixed or not, and the number of received GSP satellite
GPRS: connected server or not, and the GSM signal level
LED: soft switch of LED twinkle or off
4.2.8 time zone setting
The different areas use different time zone setting.
Command: lang,0,zone,n#
Time zone n: n= -12 to +12
Anyways time gets automaticallyupdated when watch receives gps position
4.2.9 Working mode setting
Command: m1,20# or m2, 20# or m3,600# or m4#
The default working mode is mode 1,
m1,20#: mode 1, GSM and GSP always working, every 20 seconds send GPS data to server. (Range:
10~65535S, default 60S)
m2, 600#: mode 2, power saving mode, every 600 seconds turn on GPS, and send GPS data to
server once, then enter sleep. (Range: 300~65535S)
m3,20#: mode 3, GPS not work, every 20 seconds send GSM’s cell ID to server, some commands
can wakeup GPS once. (Range: 10~65535S)
m4#: mode 4, no server, always sleeps, only wakeup by SMS or call, can get google map link by
SMS.
4.2.10 Modify the interval time of GPRS data upload
Command: upload, time (in seconds) #
Example: upload,15#
Reply Message:” Set success! Upload time is 15s”
4.2.12 Restart device
Command: reset#
Example: reset#
When the device received the command, it will restart device after 1 min.
4.2.13 Restore factory settings
Command: factory #
Example: factory #
When the device received the command, it will restore factory settings and auto restart.
4.2.14 Monitoring voice number setting
Command: monitor,00000000000#
Example: monitor,9700025002#
If the command is set successful, the device will reply “monitor set success!”
4.2.15 Server IP setting
Command: ip,***.***.***.***,port,****#
Example: ip,37.59.232.31,port,11701#
If the command is set successful, the device will reply “Surl set successfully!”
4.2.17 APN setting for GPRS
Command: apn,,,apnname#
Example: apn,,,aircelgprs#
If the command is set successful, the device will reply “APN set successfully!”
4.2.18 Firmware upgrade
Command: upgrade,address#
address: Link URL of firmware
5、Device user manual
5.1 LED and Screen Status Description
Gpstracker.net.in
Freedom is lost now…!
Screen Status Description
Patterning
Description
Means GPS model is working, and not fix
（If the position no display, means GPS not working）
Means GPS model is working, and fixed
（If the position no display, means GPS not working）
Means GSM signal level, five levels(0, 1、2、3、4)
Means no SIM card
Means battery level
Means device power on and charging
Means device power off and charging
Means device power off and battery charged full
SOS
Means sos calling
LED Twinkle Description
Working State
Twinkle Description
GPS Off
GPS LED off
GPS working,not fix
GPS LED Twinkle every second
GPS working and fixed
GPS LED light on
GSM not register
GSM LED Twinkle every second
GSM registered
GSM LED Twinkle every 5 seconds
GPRS connected to server
GSM LED off
GPRS send data to server
GSM LED Twinkle every 0.05 seconds
Charging
GPS and GSM LED Twinkle alternately, it will restore when
charged full
Device power off
GPS and GSM LED both light on and both off after a few seconds
Firmware remote upgrade
GPS and GSM LED both light on and both off after upgrade
success
5.2 Power on/off
Power on: Before power on, please insert the effective SlM card. Then long press the power key for over
5 seconds, the device will power on, then you will see screen display.
Power off: When the device power on, long press key for over 5 seconds, the device will power off, then
you will see screen off.
5.3 Location inquires
5.3.1 Get address by SMS from server
Command: where#
Gpstracker.net.in
Freedom is lost now…!
This function needs server support. If server not support, please ignore it.
If GPS fixed, the device replies address.
If GPS not fixed, the device replies: "unable to get the correct GPS data, please try again!"
5.3.2 Get location by Google map by SMS
Command: url#
If GPS fixed, the device reply: Google map’s location link
If GPS not fixed, the device replies: "Not fixed, the last fixed location is Google map’s location link"
If your mobile phone can connect to the Internet, you can open the Google map link to get the address
of the device; also can get the address by the browser of computer for input the Google map link.
5.3.3 Tracker management by server
User can login in server’s website to manage tracker. You can get the account and password form
vendors.
5.4 Send SOS and alarm clear
Long press SOS key over 3 seconds, the device will call the 3 SOS number one by one. User can send
command to clear alarm by server or SMS.
5.5 Low Battery reminding
When battery level is level 1, the device will send low battery message to center number by SMS.
5.6 Monitoring voice
If the phone’s number of monitoring voice call the device, the device will auto answer it, then will hear
voice nearby the device.
Note:
1. to know additional features of server plz click on this link. http://www.gpstracker.net.in/premiumserversupport.html
2.for quick setup manual download from below link http://www.gpstracker.net.in/QuickSetup_Downloads/pp2.pdf
3.. download android gps settings application : http://gpstracker.net.in/download/Gps%20Settings.apk
4.Download desktop application from http://www.gpstracker.net.in/download/pwebtrack.rar
5. Download android monitor application from http://gpstracker.net.in/download/Gps%20Live%20Track_3.0.apk
6.for other network sim card apn names: http://www.gpstracker.net.in/download/apnnames.pdf
If you have any more queries regarding installation please can call us on 09700025002 or 040 64559002 or mail us at
contactus@gpstracker.net.in website: www.gpstracker.net.in 13-100 meerpet, Hyderabad 97
