Info Peripherals ScanPro, ImageReader ScanPro User Manual

Model FB935
ImageReader ScanPro
Color Flatbed Scanner
User's Manual
Version 1.0
Info Peripherals, Inc. 1997
Microsoft is a U.S. registered trademark of Microsoft Corpora­tion.
Windows and MS-DOS are trademarks of Microsoft Corpora­tion.
IBM, PC, AT, XT are registered trademarks of International Business Machines Corp.
Other brands and product names herein are trademarks or registered trademarks of their respective holders.
Copyright
All rights reserved. No part of this publication may be repro­duced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual, or otherwise, without the prior written permission of Info Peripherals.
Material scanned by this product may be protected by govern­mental laws and other regulations, such as copyright laws, the customer is solely responsible for complying with all such laws and regulations.
Warranty
The information contained in this document is subject to change without notice.
Info Peripherals makes no warranty of any kind with regard to this material, including, but not limited to, the implied warran­ties of fitness for a particular purpose.
Info Peripherals shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.
i
FCC Radio Frequency Interference Statement
This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential instal­lation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or televi­sion reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
* Reorient or relocate the receiving antenna. * Increase the separation between the equipment
and receiver.
* Connect the equipment into an outlet on a
circuit different from that to which the receiver is connected.
* Consult the dealer or an experienced radio/TV
technician for help.
CAUTION: Any changes or modifications not expressly approved by the manufacture of this device could void the user's authority to operate the equipment.
ii
Table of Contents
1. INTRODUCTION...........................................................1-1
2. SCANNER INSTALLATION.
......................................
.2-1
2.1 PRECAUTIONS 2-1
2.2 CONNECTING THE CABLE 2-2
2.3 AUT O INST ALLA TION 2-3
3. USING YOUR SCANNER........
..........................
...........
3-1
3.1 TWAIN SETTING
S.............................................
3-1
3.2 SCANNER OPERATION AND DOCUMENT
PRINTING .........................................................3-5
3.3 DOCUMENT PLACEMENT
.............................
.3-6
3.4 USING T OUCHSCAN........................................3-8
3.5 PRINTING
........................................................
3-13
4. MAINTENANCE..
..........................................................
4-1
APPENDIX A
Glossary of T erms......................................................A-1
APPENDIX B
TROUBLESHOOTING...........................................B-1
B.1 QUESTIONS AND ANSWERS
......................
.B
-1
B-2 SPECIFICATIONS
............................................
B-5
iii
Chapter 1
1-1 Introduction
Welcome
Thank you for purchasing an Info ImageReader Scanner. This product is the result of our efforts to develop high technology computer peripherals that are easy to use, affordably priced, and that enhance your computing experience. The FB9 is designed in an exact A4 size and less weight in an aim to save the most space possible while maintaining the highest quality scanning results as well as quality optical resolution at 300 x 600 dpi.
Using this manual
This manual includes complete instructions for scanner installation, use, and maintenance. Note that “use,” in this context, refers to scanner operation independent of the task performed with the application software. This guide is orga­nized in a “do as you read” format. For best results, perform the tasks as they are presented. This manual assumes that you have a basic understanding of the DOS and Windows operating system. As a convention, this guide presents all references to guide names or sections in italics, and commands you must type at a command line are presented in a different typeface.
Assistance
If you experience difficulties and cannot find solutions within this guide, please contact Info’s Technical Support Depart­ment at (800) 313-3300, Monday through Friday, between 8:00 AM and 4:30 PM, Pacific time. If you wish, you may fax questions to (408) 538-2577, or email questions to tech@infoconnection.com. Provide a fax number or email
1-1
address for return contact. We maintain a BBS at (408) 538­2580 that contains the latest updates to our software, as well as a web site at www.infoconnection.com, and fax on demand system at (408) 538-2585.
What is TWAIN?
TWAIN is the interface that links the scanner with scanning software applications. TWAIN is an industry standard that enables you to use the ImageReader with any TWAIN-compli­ant software application.
With the introduction of Windows 95, the TWAIN specification has been overhauled to take advantage of the 32-bit architec­ture. Your scanner installation software contains two TWAIN sources — one for using your scanner with 16-bit applications (i.e. InfoCenter Lite) and one for using your scanner with 32­bit applications (i.e. ImageDock). Use the following as a guide to select the appropriate source.
16-bit applications are legacy Windows 3.x programs that you are running under Windows 95.
32-bit applications are programs specifically designed for Windows 95, to take advantage of performance enhance­ments provided by the new architecture.
Please Note: Windows 3.1x does not support 32-bit applica­tions, therefore the 16-bit scanning source should always be selected when running Windows 3.1x. You may experience scanning problems if you do not use the appropriate source.
A note about application software
The scanner hardware by itself is not very useful. It takes a combination of the scanner hardware and application soft­ware to perform any task. Before scanning, you need to choose the appropriate application(s) to use for the task at hand. Please read this section to gain an understanding of the types of scanning software there are.
1-2
Scanning software generally falls into two groups, Graphics (image editing), or OCR (Optical Character Recognition). Each type has specific features designed to address the technical challenges faced in the scanning of graphics or of text.
Graphics software provides the user with image editing tools for performing extensive modifications to art, photographs, or other continuous tone images. While having the ability to scan text, unlike OCR software it is not designed to specifically identify individual characters. Any image scanned using a graphics program can only be saved in a graphics file format (i.e. Tiff or Gif). It cannot be saved as an editable text file. Your system software CD includes iPhoto Express image editing software to facilitate your image editing requirements.
OCR: Software in this category is designed to recognize alphanumeric characters in preparation for export to word processing and desktop publishing applications. In other terms, it creates text files. OCR software will not provide image editing capabilities. If there is no intention of editing a given piece of text (with or without graphics), it may be simpler to scan and save it as a graphic. OCR is one of many scan­ning control features included in the InfoCenter application software included on your system software CD.
Additional types of applications are available that offer solu­tions for special or unique tasks. These include document storage, form scanning, fax utilities, copy utilities, custom screen saver creation, photo album creation, and so on. If applications are intended to link directly to the scanning device, look for the TWAIN-compliant specification. If compli­ant, you may use these application to scan with your ImageReader scanner.
1-3
1-2 System Requirements
System requirements are largely dependent on the “wor k” performed. By work, we are referring to the task or operation performed using the scanner in conjunction with application software.
Because scanners are capable of inputting large amounts of data in relatively short periods of time, they commonly push computer systems to the limits of their capabilities. Before beginning any scanning task or operation, carefully consider your system’s processing capabilities, especially processor speed, RAM, and available hard disk space. OCR processes, fax operations, and the processing of simple black & white graphics are least demanding. High resolution scanning of large images in full color creates an extreme demand for processor time and memory.
When you are scanning with the TWAIN interface, the number labeled image size (calculated in bytes) provides the working file size that is the result of the selected scanning mode, resolution, and image size. Take careful note of this informa­tion. Minimum and recommended system requirements are:
* IBM compatible PC 486, Pentium or later; * Microsoft Windows 3.1,Windows 95; * One printer port available (enhanced parallel port
required);
* 20 Megabytes of available hard disk space for installa-
tion;
* 8 Megabytes of RAM (16 Megabytes or higher recom-
mended); * A video graphics array (VGA) monitor; * A Microsoft Windows-compatible pointing device (e.g.,
mouse); * A CD ROM drive.
1-4
1-3 Scanner Contents
Please check that your scanner package contains all the following items. If there are any missing or damaged parts, please contact your nearest dealer immediately for replace­ment or repair.
1. Power Adapter
2. Cushion
3. Manual, Driver Kit, CD
4. D25P Cable, etc
5. Scanner
6. Carton
1-5
Chapter 2
Scanner Installation
2.1 Precautions
• Keep the scanner out of direct sunlight. Direct expo-
sure to the sun or excessive heat may cause damage
to the unit.
• Do not install the scanner in a humid or dusty place.
• Be sure to use the proper AC power source.
• Place the scanner securely on an even, flat surface .
Tilted or uneven surfaces may cause mechanical or
paper-feeding problems.
• Retain the scanner box and packing materials for
shipping purposes.
2-1
2.2 Connecting the Cable
Connect the power cable and signal cable as shown below.
1. Scanner 2. Power Supply 3. Scanner Interface Cable 4. PC Parallel Port 5. Your Printer Cable
Figure 2-2 ImageReader ScanPro scanner cable connection
2-2
2.3 A uto-Installation Program
The FB9 scanner software installation is automatic and will detect if you are running a Win 95 or Win 3.1 platform and install one of the included software programs accordingly. Installation procedures of FB9 Scanner driver with Info Pe­ripherals Auto-installation Program are as follows:
1. Insert the System Software CD-ROM into your computer’s CD-ROM drive. The installation should begin automatically, if not:
Win 95 users select
Start > Run
Win 3.1x users select
File > Run
2. At the
Run
command Line type D:\setup.exe (fig 2-
2) substitute appropriate drive letter if your CD­ROM drive is designated another letter.
Tip: Windows 95 users- if unsure about your CD-ROM
drive letter designation, select My Computer from your desktop to view your computer’s drives.
3. The installation should now be running. When finished, restart your computer.
2-3
Fig. 2.1
Fig. 2.2
2-4
Chapter 3
Using Y our Scanner
When using your ImageReader ScanPro scanner with any application program, all scans will be performed using the TWAIN interface (except when using the Touchscan - two button feature). The TWAIN interface is a screen that allows you to tell the scanner what settings or scanning modes you would like to use for each scan. The following chapter de­scribes each of the TWAIN scanning options available when using your ImageReader ScanPro.
FB9 TWAIN user interface:
Figure 3.1 TWAIN interface
1
2
6
4
5
3
7
10
11
12
13
14
9
8
1516
3-1
3.1 TWAIN Settings
The FB9 TWAIN interface allows you to make numerous adjustments to the scan settings and then preview the scanned image before performing your final scan. Please note: Resolution settings are only applied to final scan, pre­view scans are performed at a default resolution setting of 72 dots per inch (dpi). The following section describes the options available in the TWAIN interface. Please refer to figure
4.1 when reading these descriptions.
1. Basic scan settings
Prompts basic scan setting dialog box in which user may select to Flip the scan, invert it’s colors or make adjustments to the scan mode and resolution.
2. Brightness/Contrast settings
Allows user to adjust the brightness and/or contrast settings of the scan. Reset button allows user to return to the brightness/contrast default settings.
3. Job Manager
Allows user to apply different scan settings to seperate
- user defined areas of the same image and perform multiple scan jobs of the same image during one scanning job .
4. Shadow/Highlight setting
Allows user to adjust the foreground and background information of an image.
5. Resolution setting
Allows user to enter desired scanning resolution indicated by the number of dpi (dots (pixels) per square inch) that the FB9 uses for a scan. Generally, denser pixel coverage per square inch (higher resolu­tion) results in sharper images. Please note: Scanning
3-2
resolution has a direct impact on the scanned image resolution settings for your scanning task (refer to the scanning software User Guide for reccommended resolution settings).
6. Preview
Performs a “prescan” allowing user to preview scanned image for any neccessary adjustment to scanning size before performing final scan.
7. Scan
Performs final scan in which image is captured and transferred from the TWAIN interface to TWAIN com­pliant application being used.
8. Close
Exits the TWAIN interface.
9. About
Displays information about the scanner driver in use.
10. Image Information
Displays information regarding current previewed image.
11. Auto Settings
Defines the default settings for different types of image scanning i.e. color photograph, gray photograph, user defined setting, text document and business card.
12. Gamma Curve
Activates the gamma curve dialog box in which the user can adjust the gamma curves. An images gamma setting is defined as the contrast affecting the mid­level grays or midtones of an image. Adjusting the gamma of an image allows you to change brightness values of the middle range of gray tones without dramatically altering the shadows and highlights.
3-3
13. Paper size
Allows user to select from a set of predefined paper sizes representing the size of the document to be scanned: 2” x 3”, 3” x 5”, 4” x 6”, maximum size and custom size - in which user can define their own scanning siz e.
14. Zoom - Out
Allows user to zoom out (view larger area) of pre­viewed image.
15. Zoom - in
Allows user to zoom in (magnify) a previewed image. Zoom does not effect final scan.
16. Frame
Prompts frame dialog box in which user can adjust the scanning size. Tip: smaller scanning size = less scanning time.
3-4
3.2 Scanner Operation & Document Printing
Scanning Images from within any Application (TWAIN)
1. Open your TWAIN compliant application and choose Select Source from the File menu. If the Select Source menu options are not available from the File menu, see the user guide of your application to learn how the TWAIN link is used.
2. A dialog box appears containing the different TWAIN sources that you can choose from to bring an image into your application.
3. If you are scanning from a 16-bit application (i.e. InfoCenter Lite or ImagePals GO!) you need to select the 16-bit scanning source - ImageReader ScanPro\16. If scanning from a 32-bit application (i.e. Adobe Photoshop or iPhoto Express) select the 32-bit scanning source - ImageReader ScanPro\32. Check your application manuals if you are unsure whether you are scanning from a 16 or 32 bit application.
Please note: The 32-bit scanning source is only available
under Windows 95. Windows 3.1 users should always select the 16-bit scanning source.
If the wrong source is selected you will receive a TWAIN scanner driver error message. Repeat steps 1-3 and select the correct source. If the problem persists, restart your com­puter with the correct source selected.
4. If you have previously selected a different source, you will need to select the ImageReader ScanPro source again prior to scanning with the ImageReader ScanPro scanner.
5. Place the image to be scanned face down on the glass (Fig. 3-2).
3-5
3.3 Document Placement
As shown in Figure 3-2, place the document on the glass with the text facing away from you.
Figure 3-2 Document Placement
1. Document Cover 2. Document Pad
3. Reference Frame 4. Glass
5. Document Board 6. Document
6. From the File menu, select Acquire.
7. FB9 TWAIN user interface will pop up on the screen. Click on the Preview (preview allows your to make adjustments to the scan area prior to final scan) or Scan button to scan the image.
3-6
3-4 Using TouchScan - Two Button Scanning
TouchScan is a quick and easy way to scan and Print (Copier Function), scan and Fax and Scan and Email using the two buttons on the front of your scanner.
TouchScan is is automatically installed on your system with your
System Software
CD-ROM installation.
How T ouchScan W orks
TouchScan is activated by clicking either of the two buttons on the front of your scanner. Note: Your computer must be on for TouchScan to be activated.
The scanner’s Shift button (left button) allows you to cycle through the main screen or any list of options.
The scanner’s Enter button (right button) allows you to select an option on the TouchScan screen or from a drop-down list of options. Press enter when the desired option is high­lighted.
3-7
TouchScan Options
Place Document As Sho wn (There are no
submenu choices) To ensure your image always comes out right­side up and not sideways, be sure to put it into the scanner with the top edge aligned with the front right edge of the scanner (the edge closest to you when you open the cover).
Select Document Size Match your scanning area to the size that is the closest to the size of your original. If you choose a smaller size than the original, you will not get a complete scan.
• 3" x 5": standard index cards
• 4" x 6": large index cards and photos
• 5" x 7": photos
• Letter, 8 1/2" x 11": standard docu­ments
• A4, 8 1/2" x 11 3/4" : A4 documents
Select Resolution
Match the resolution to your intended destina­tion.
Economic - 150 dpi: Desktop, Mail, Printer
Normal - 300 dpi: Desktop, Mail, Fax,
Printer
Fine - 600 dpi: Desktop, Mail, Printer
Went printing a scanned image, choose the resolution that most closely matches the resolution of your printer.
3-8
Select Image Mode
Match the mode to your intended destination.
Color: Desktop, Mail, Printer
Gray (Grayscale): Desktop, Mail, Fax, Printer
Black & White (LineArt): Desktop, Mail, Fax, Printer
If your printer is not a color printer, your color scans will be printed in grayscale .
Select Destination
Select from one of the following final destina­tions for your scanned image/text:
Desktop When the scan is completed, the
image is saved as a Bitmap file (BMP) in the TouchScan\Temp folder or directory. The exact path and name of the file is shown on screen after it has been created. To view the file, you can open it in a graphics program that supports Bitmaps, such as Windows Paint or Paintbrush.
Mail When the scan is completed,
TouchScan will open your email client software (such as MS-Exchange, Eudora, Netscape Mail, etc) and begin a new email message. The image will be attached as a Bitmap file (BMP). Follow your email client’s directions to mail the item. To view the file, after downloading it, the recepiant can open it in a graphics program that supports Bitmaps, such as Windows
3-9
TouchScan Interface
Paint or Paintbrush.
Fax When the scan is completed,
Tcouchscan will open your faxing software (such as MS-Fax, MS­Exchange, FaxWorks, etc) with the image setup as the document to be faxed. Follow your fax program’s directions to fax the item.
Printer When the scan is completed, the
image will be processed by your printer driver and sent to your printer. Note: Higher resolution or color images may take a few moments to process before they begin printing.
Ready to Scan
Begins the scanning process. The lights on the front of the scanner display the scanning progress. When the scan is completed, TouchScan will process it according to your chosen destination.
• Additional Settings
Opens the TWAIN interface window so you can make further adjustments to the scan settings: brightness, contrast, scanning area, resolution, etc. Refer to the User’s Guide for these settings.
• Default Settings
Resets the defaults for the scanner.
• Cancel
Cancels your current TouchScan
settings
3-10
Minimize TouchScan
Minimizes the TouchScan window to the task bar.
About TouchScan
Information sheet including the version num­ber.
Exit T ouchScan
Close the TouchScan window.
3-11
3.5 Printing

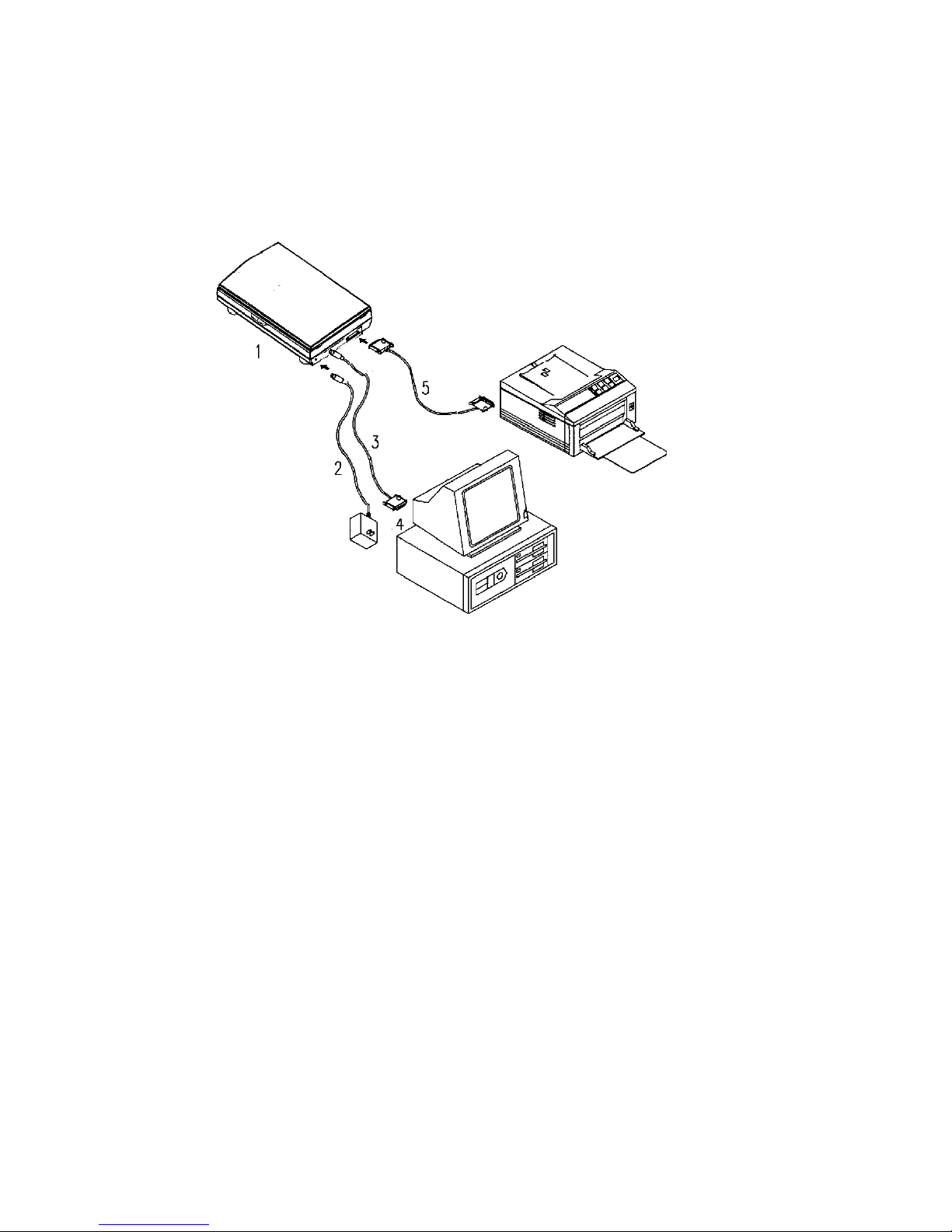

Connect the printer cable as shown below.
1. Scanner 2. Power Supply 3. D25P Cable
4. PC Parallel port 5. Printer Cable
Caution:
1. Be sure to power on the scanner if you want to do pass-through printing.
2. Do not scan and print at the same time.
3. If your PC does not support EPP mode or have pass­through compatibility problem, please contact your authorized local computer dealer or Info Peripherals, Inc. at (800) 313-3300 to order an EPP interface card.
3-12
Chapter 4
4.1 Maintenance
Clean the Document Board Glass: As shown in Figure 4-1, wipe the scanner glass with a piece
of soft clean cloth to rid the glass of dust or toner particles.
1. Document Board Glass
Figure 4-1 Cleaning the document board glass.
3-13
Appendix A
Glossary of Terms
16-bit & 32-bit
This refers to the operating system or an application written for a specific operating system. Windows 3.x is 16-bit and Windows 95 is 32-bit. Programs that work in both Windows
3.x and Windows 95 are 16-bit (also called Legacy prog rams). Programs written only for Windows 95 are 32-bit and will not work in Windows 3.x. When a you are choosing a source, if you are using a 16-bit application, you should choose a 16-bit source. If you are using a 32-bit application, you should choose a 32-bit source. 3rd party software can be either 16­bit or 32-bit and an appropriate source should be chosen.
Application Software
Any software that manipulates images or text in some man­ner. Different scanning software has different functions: some allow you to manipulate and modify images (see Image Editing) and some allow you to convert a scanned document into editable text (see OCR). Some software, such as ImageDock, is more fully featured providing a broader range of uses, such as OCR and document storage, but also has some limited image editing features.
Image Editing
You can take any image, either scanned or from a file and manipulate the image in a variety of ways. Many image editing softw are applications are also scanning applications. There is a wealth of 3rd party twain-compliant image editing software: Aobe Photoshop, Print Shop Pro, Corel, Fractal Painter, Paint, Paint Brush, etc. With image editing software, it is possible to save your image in a variety of file formats depending on the software you are using, see Graphics Formats.
4-1
Pixel
Represents a single dot of the picture. Pixels are used by the computer to represent image information in digital computer language.
TWAIN
Refers to an industry standard that has been developed for scanning or other external imaging devices to communicate with the computer. ImageDock and InfoCenter Lite are TWAIN compliant applications.
24-bit color
Color images composed of three 8-bit channels: red, green, and blue. With 24-bit color, it is possible to have over 16 million possible color combinations providing for a more photo-realistic image. Also called True Color. 24-bit color has nothing to do with the operating system.
30-bit color
Color images composed of three 10-bit channels: red, green, and blue. Over 50 billion color combinations are possible, providing for more vivid color reproductions with subtle gradiations of hue. 30-bit color has nothing to do with the operating system.
Brightness
The balance of dark and light shades determine the intesity of an image.
Contrast
The range between the darkest and the lightest shades determine the number of shades in an image. An image with low contrast can look dull and flat.
Gamma
Changing the gamma allows you to alter the brightness of the middle range tones without affecting the shadows or high­lights.
A-1
Grayscale
An image made up of shades of gray, like a black and white photo. Generally, grayscale is either 4-bit, allowing 16 shades, or 8-bit, allowing 256 shades and providing a more photo-realistic quality.
Halftone
Halftone images are composed of a pattern of black dots that simulate grayscale, such as many newspaper photos.
Hue
Hue provides the contrast between colors, what distinguishes one color from antother.
Interpolated Resolution
The resolution of an image is enhanced by the software of the scanner driver.
Invert
Reversting the color values in an image. Inverting a color image will yield something that has the appearance of a negative. Inverting a black and white image will reverse the black with the white.
Line Art
Images that are purely black and white, such as black type writing on white paper or many line drawings.
Optical Resolution
The true resolution of the scanner determined by its hardware optics. Optical resolution is often enhanced by the scanner driver yielding an interpolated resolution.
Saturation
The amount of color or intensity in a single hue.
Zoom
A-2
Changes the view of an image without changing its actual size.
Appendix B
Troubleshooting
If you experience an operational problem, please check the follo wing troubleshooting hints.
6.1 Questions and Answers Question: Why do I receive the error message “Scanner
Test Failed” when attempting to scan? The following steps should also be followed if your scanner connection test (described in step 3 of Quick Start Guide) is unsuccesful.
Answer 1: Verify that the correct scanning source was
selected. Open “Select Source” from the File menu. If you are using a 16 bit application to scan (i.e. InfoCenter Lite) select the 16-bit scanning source (ImageReader ScanPro 16) If you are scanning from a 32-bit application (i.e. ImageDock) select the 32-bit scanning source (ImageReader ScanPro 32). Then attempt to scan - if the problem persists - restart your computer.
Please note: The 32-bit source is only available under Win­dows 95. Windows 3.1 users should always select the 16-bit scanning source.
Answer 2: Check that your scanner is connected and tightly
screwed in to the computer’s port
Answer 3: Check that the AC power cord is connected to
the scanner and power outlet.
Answer 4: Follow instructions below to adjust your
A-3
computer’s BIOS printer port setting to EPP, ECP or SPP (according to what your computer supports)
A-4
Changing your BIOS Setting
The FB935 - ImageReader ScanPro requires that your com­puter is a PC System with a 486 or Pentium Processor with PCI slots, it must have a motherboard that supports EPP, ECP or SPP parallel port. EPP is recommended in order to achieve the fastest scans. After installing the scanner, you may need to change Printer Port (LPT type) in your BIOS or CMOS settings to accommodate desired (EPP, ECP or SPP) connection. Please consult your computer’s hardware manual for instructions if you are unsure about how to accomplish this. If your system does not support EPP, SPP or ECP call (800) 777-3208 ext. 2534 to order an EPP interface card.
Caution!
Changing your BIOS or CMOS settings can render your computer system inoperable. Use caution to ensure that only the Parallel mode is changed. Please consult your computer hardware manual for instructions specific to your system. To Change Your Parallel Port Mode Setting (in most systems):
1. Restart your computer and when in start-up mode press your delete key, this will take you to the BIOS or CMOS menu.
2. locate the Parallel Port option, it will tell you what address the parallel port is set for and the mode of the port.
3. Read your screen for instructions on how to change settings, and change your LPT setting to EPP or ECP.
4. Save changes and e xit.
Question: Why do my scanning results seem dark? Answer: 1) Modify the Gamma setting to 1.8 for your moni-
tor and, when printing, set Gamma to 2.2 for your printer (refer to your monitor/printer manuals for instructions on performing gamma adjustments).
2) Prior to scanning, increase the Brightness setting of the TWAIN user interface.
B-1
Question: The scanning speed of my scanner is much
slower than that of those installed at other computers. Can I speed it up?
Answer: Set your PC printer port to the EPP mode in your
BIOS setup. EPP is the fastest and most recommended mode to use. If you do not have this option, you may need topurchase an EPP Interface card. Call Info Peripherals at (800) 313-3300.
Question: How long does it take for the scanner to initial-
ize?
Answer: If your printer port supports SPP mode only, it
takes about two minutes for the scanner to initialize. If your printer port supports EPP mode, the initialization speed is much faster, about 20 seconds.
Printer Questions
Question: What is the function of the Pass-Through Port? Answer: The ImageReader ScanPro is conveniently
equipped with a pass-through port. This port allows you to connect any other parallel port device such as a printer to the scanner so that they can share the same port from your com­puter.
Question: How do I use the pass-through port? Answer: Connect the printer’s cable to the port labeled
Printer on the back of the scanner. Both the scanner and the printer are now sharing the same parallel port and can be used at any time, except in tandem.
Question: Sometimes my pass-through printing does not
B-2
work at all, why?
Answer: Your scanner may be off. When performing
pass-through printing, be sure the scanner is on (indicated by the power light on scanner front).
Question: After installing Works for Windows, my overall
printing speed has slowed dramatically. Why?
Answer: Works for Windows adds entries into your win.ini
file for the Windo ws Printing System (WPS). This entry will slow your printing speed consid­erably. To correct the problem, perform the following adjustments:
1. Edit your
win.ini
file. From Windows 3.x,
click
File.
Select
Run
. Type
sysedit.
Click
OK
. In Windows 95, click
Start
, select
Run
.
Type
sysedit
. Click
OK
.
2. Close all windows except the
C:\windows\win.ini
window (title may be different if you have windows on different drive or different directory name. In either case you will see
win.ini
at the end of it)
3. Click
Search
then
Find
. Type in the text:
MS
Text Converters
and click
Find
.
4. You should see 2 lines, one that starts with MSWorksWin. The line below it starts with Works for Dos 2.0.At the end of both lines delete the entry ,wps .
5. Now click
File
then
Exit
. When prompted to save changes, do so. After a restart of your computer, your printing should be back to normal
If you are experiencing any printer problems check the following:
B-3
1) Check scanner cable connection. Be sure the cable is plugged into the port marked Printer on the back of the scanner
2) Adjust your printer spooler. Occasionally there may be a conflict between ImageReader ScanPro scanner and specific printers. An indication of this occurs when an attempt to print prompts the error message “Printer not found” or “Printer not recognized” (assuming your computer’s BIOS or CMOS is already set to EPP). In this case, you need to adjust your printer spooler to print directly to your printer:
To modify the printer spooler:
1. Click on START> SETTINGS> PRINTERS .
2. Right click with your mouse on your default printer, then select Properties from the drop-down menu
3. Click on the Details tab
4. Click on the Spool settings button.
5. In the spool settings window select the option to Print Directly To The Printer.
6. Click on OK then OK once again.
7. If prompted to reboot please do so.
If the problem persists, you will need to disable the Bi-
Directional printing option.
To disable the Bi-Directional printing option:
The process of disabling the bi-directional printing option is different for individual printers. Please consult your printer manual or contact the printer manufacturer for instructions specific to your printer.
Please note: Pass-through printing may pose a problem for some printers. In this case, you may need to add a
B-4
B-2. Specifications
All specifications are subject to change without notice.
Model: FB9
Scanner Type: Flatbed Scanner Optical Resolution: Up to 300 dpi * 600 dpi (H*V) Maximum Resolution: 9600 dpi Scanning Modes: Black & White mode
Halftone mode (64-step) Error diffusion 10-bit gray scale 30-bit color
Document Size A4, B5, A5, business card Interface: Printer port (supports SPP/EPP
for PC)
Power Source: 100Vac~240Vac, 50~60Hz, exter
nal Power Consumption: 12 watts (12Vdc,1A) Dimensions: (WxDxH) 399 x 260 x 73 (mm) Weight: 2.7kg (5.96lbs)
B-5
EC Declaration of Conformity
According to EN45014
Manuf acturer’ s Name:
Info Peripherals
Model Number
: FB9 conforms to the following Product Specifications: Emission: EN 50081-1 (1992)
EN 55022 (Class B) (Conducted Radiated) (1994) EN 60555-2 (Harmonics) (1987) EN 60555-3 (Flicker) (1987)
Immunity:
EN50082-1 (1992) IEC 1000-4-2 (ESD) (1995) IEC 1000-4-3 (RS) (1995) IEC 1000-4-4 (EFT/Burst) (1995) IEC 1000-4-5 (SURGE) (1995)
Date: December 1995
B-6
Loading...
