Introduction 3

Introduction

Projector features

The projector integrates high-performance optical engine projection and a userfriendly design to deliver high reliability and ease of use.

The projector offers the following features.

• Wall color correction allowing projection on surfaces of several predefined colors

• Quick auto search speeding up the signal detecting process

• Selectable password protected function

• Up to 11 sets of picture modes provid ing multipl e choices for diffe rent project ion purposes

• 3D color management allowing color adjustments to your liking

• Selectable quick cooling function makes the projector cool in a shorter time

• Presentation timer for better control of time du ring presentations

• One-key auto-adjustment to display the best picture quality

• Digital keystone correction to correct distorted images

• Adjustable color balance control for data/video display

• High brightness projection lamp

• Ability to display 16.7 million colors

• Multi-language On-Screen Display (OSD) menus

• Switchable normal and economic modes to reduce the power consu mption

• Component HDTV compatibility (YP

bPr)

• High quality manual zoom lens

• The apparent brightness of the projected image will vary depending on the ambient lighting conditions, selected input signal contrast/brightness settings, and is directly proportional to projection distance.

• The lamp brightness will decline over time and may vary within the lamp manufacturer's specifications. This is normal and expected behavior.

Introduction4

Shipping contents

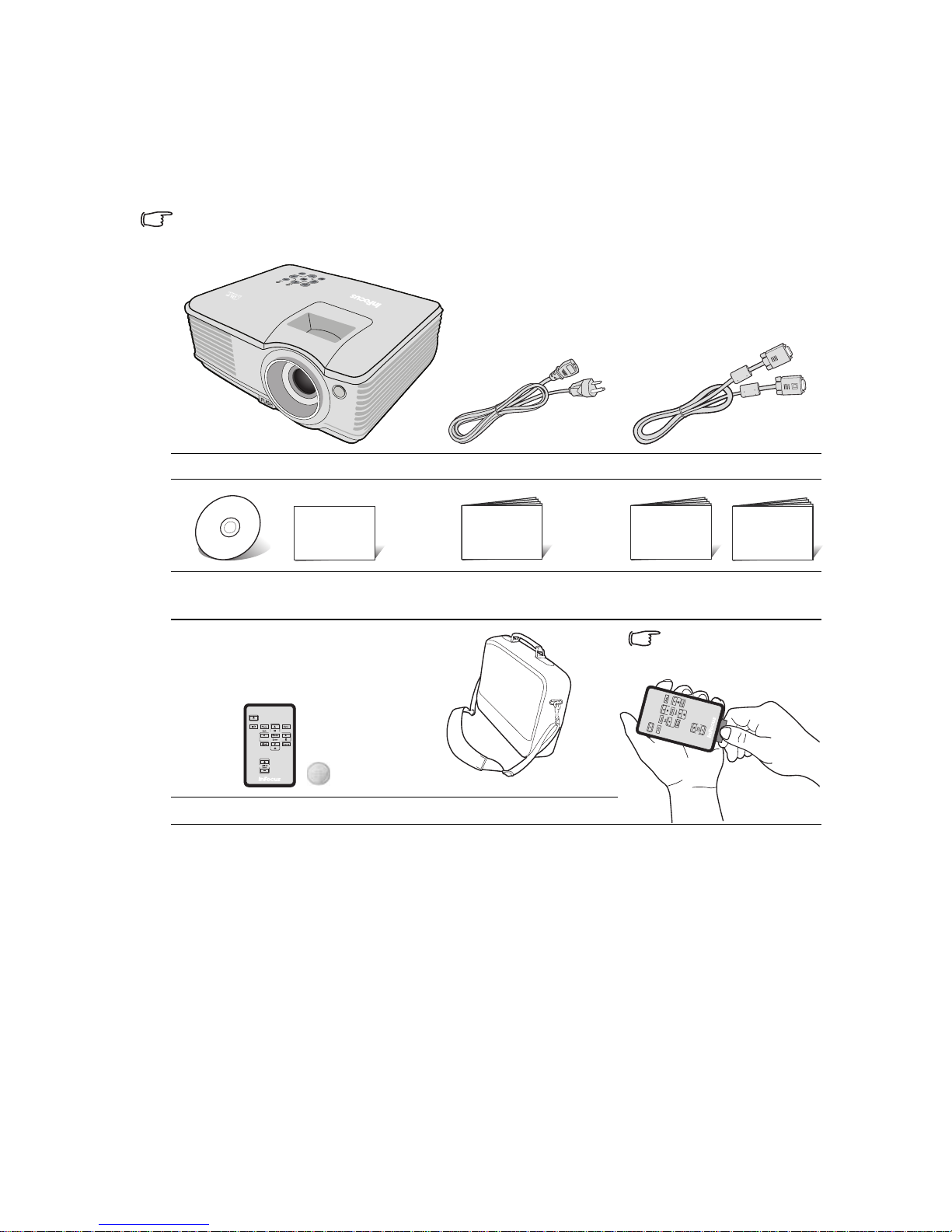

Carefully unpack and verify that you have all of the items shown below. If any of these items are missing, please contact your place of purchase.

Standard accessories

The supplied accessories will be suitable for your region, and may differ from those illustrated.

Optional accessories

1. Ceiling mount, wall mount

2. LiteShow II wireless presentation adaptor

3. Pull down and pull up 4:3 screens

4. Cables and adaptors

5. Replacement lamp

6. Optional remote

7. Projector lock system

Projector Power Cord VGA Cable

Reference

Guide CD

Registration

Card

Quick Start Guide

Warranty

Booklet

Safety

Booklet

Pull the tab before using the remote control.

Remote Control & Battery Carry case

Introduction 5

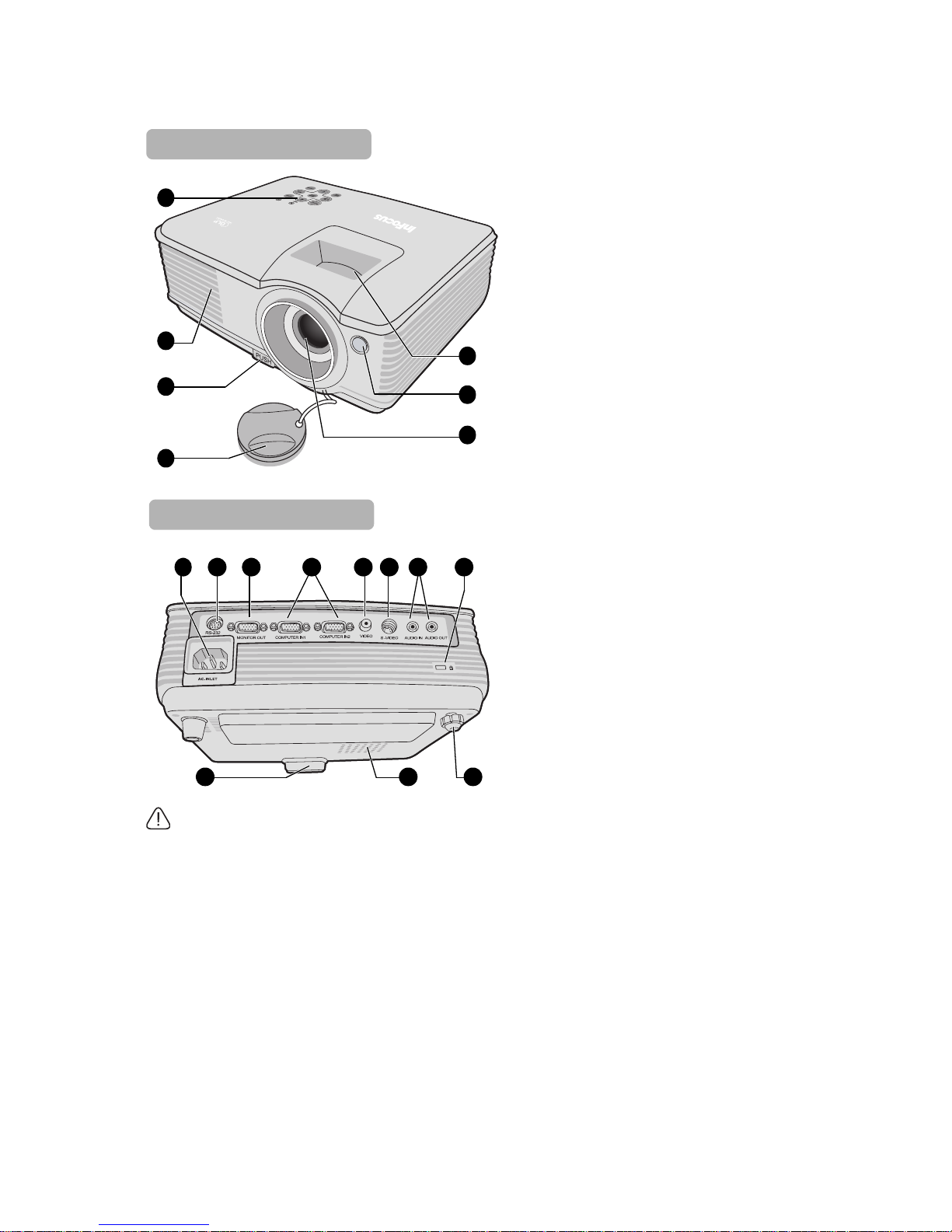

Projector exterior view

1. External control panel (See "Projector and remote

control" on page 6 for details.)

2. Vent (heated air exhaust)

3. Quick-release button

4. Lens cover

5. Focus ring and Zoom ring

6. Front IR remote sensor

7. Projection lens

8. AC power cord inlet

9. RS-232 control port

10. RGB signal output socket

11. RGB (PC)/Component video (YPbPr/YCbCr) signal input socket

12. Video input socket

13. S-Video input socket

14. Audio signal input socket Audio signal output socket

15. Kensington anti-theft lock slot

16. Quick-release foot

17. Lamp cover

18. Rear adjuster foot

Warning

• THIS APPARATUS MUST BE GROUNDED.

• When installing the unit, make certain that the associated wall switch or AC power outlet is easily accessible, so that the unit can be quickly disconnected if needed.

Front/upper side

Rear/lower side

16 18

151210

1411 13

Introduction6

Controls and functions

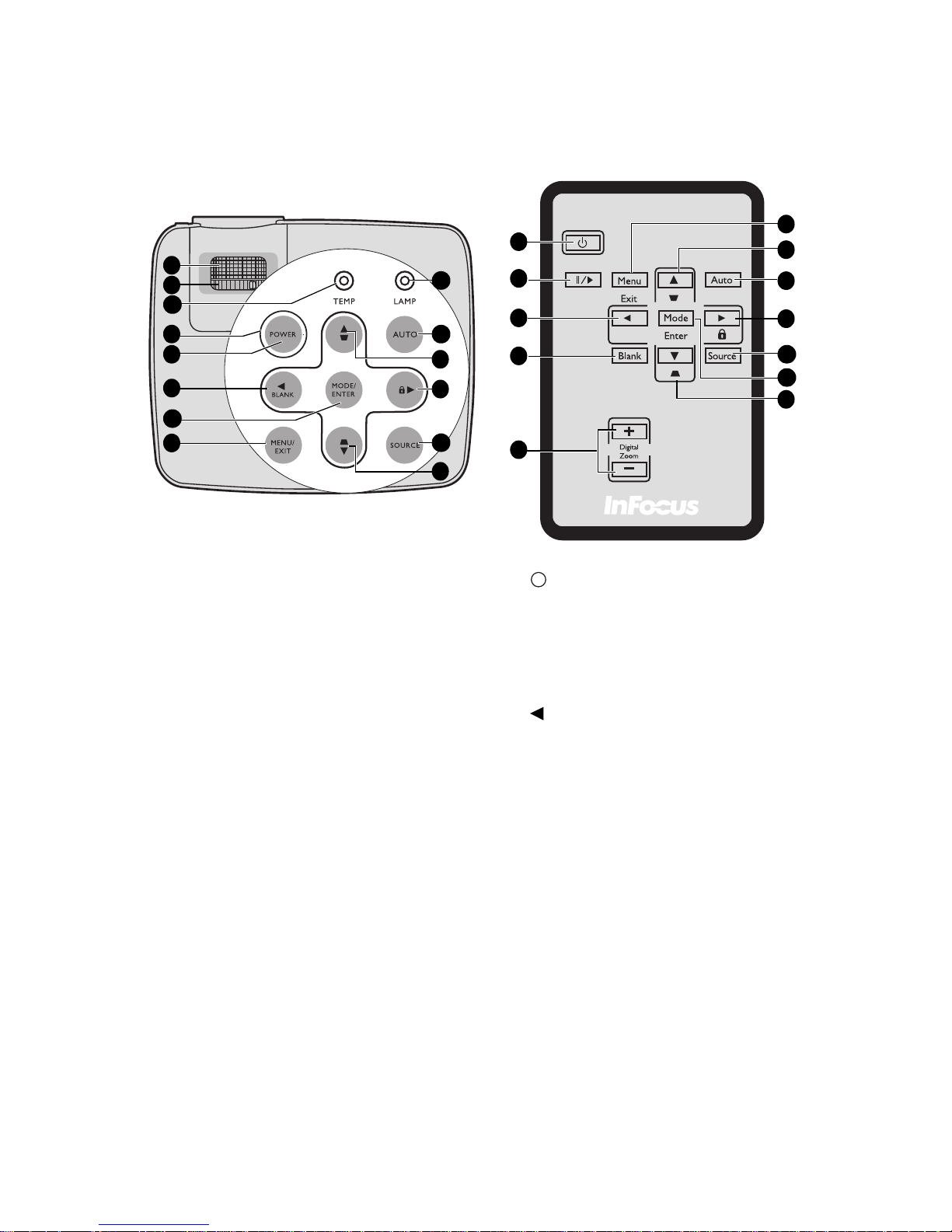

Projector and remote control

1. Focus ring

Adjusts the focus of the projected image. See "Fine-tuning the image size

and clarity" on page 26 for details.

2. Zoom ring

Adjusts the size of the image. See

"Fine-tuning the image size and clarity" on page 26 for details.

3. TEMPerature indicator light

Lights up red if the projector's temperature becomes too high. See

"Indicators" on page 50 for details.

4. POWER indicator light

Lights up or flashes when the p roje cto r is under operation. See "Indicators" on

page 50 for details.

5. POWER

Toggles the projector between standby mode and on. See "Starting

up the projector" on page 20 and "Shutting down the projector" on page 36 for details.

6. Left/BLANK

Used to hide the screen picture. See

"Hiding the image" on page 34 for

details.

7. MODE/ENTER

Selects an available picture s e tup mode. See "Selecting a picture mode "

on page 29 for details.

Enacts the selected On-Screen Display (OSD) menu item.

Introduction 7

8. MENU/EXIT

Turns on the On-Screen Display (OSD) menu. Goes back to previous OSD menu, exits and saves menu settings. See "Using the menus" on

page 21 for details.

9. LAMP indicator light

Indicates the status of the lamp. Lights up or flashes when the lamp has developed a problem. See "Indicators"

on page 50 for details.

10. AUTO

Automatically determines the best picture timings for the displayed image. See "Auto-adjusting the

image" on page 25 for details.

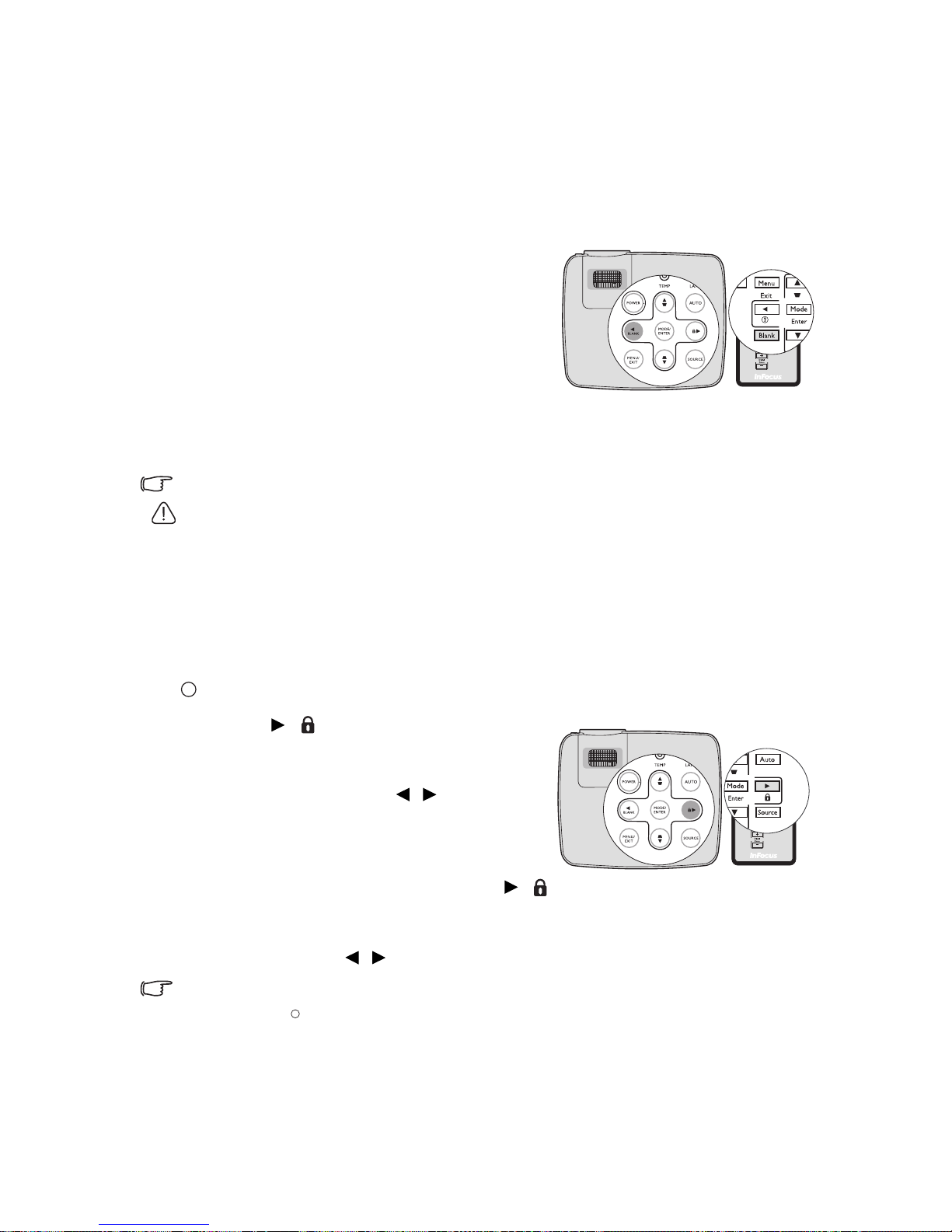

11. Keystone/Arrow keys ( / Up,

/Down)

Manually corrects distorted images resulting from an angled projection. See "Correc ting keystone" on page 26 for details.

12. Right/

Activates panel key lock. See "Locking

control keys" on page 34 for details.

When the On-Screen Display (OSD) menu is activated, the #6, #11, and #12 keys are used as directional arrows to select the desired menu items and to make adjustments. See

"Using the menus" on page 21 for

details.

13. SOURCE

Displays the source selection bar. See "Switching input signal" on page

24 for details.

14. Freeze

Freezes the projected image. See

"Freezing the image" on page 35 for

details.

15. Left

Selects the desired menu items and makes adjustments. See "Using th e

menus" on page 21 for details.

16. BLANK

Used to hide the screen picture. See

"Hiding the image" on page 34 for

details.

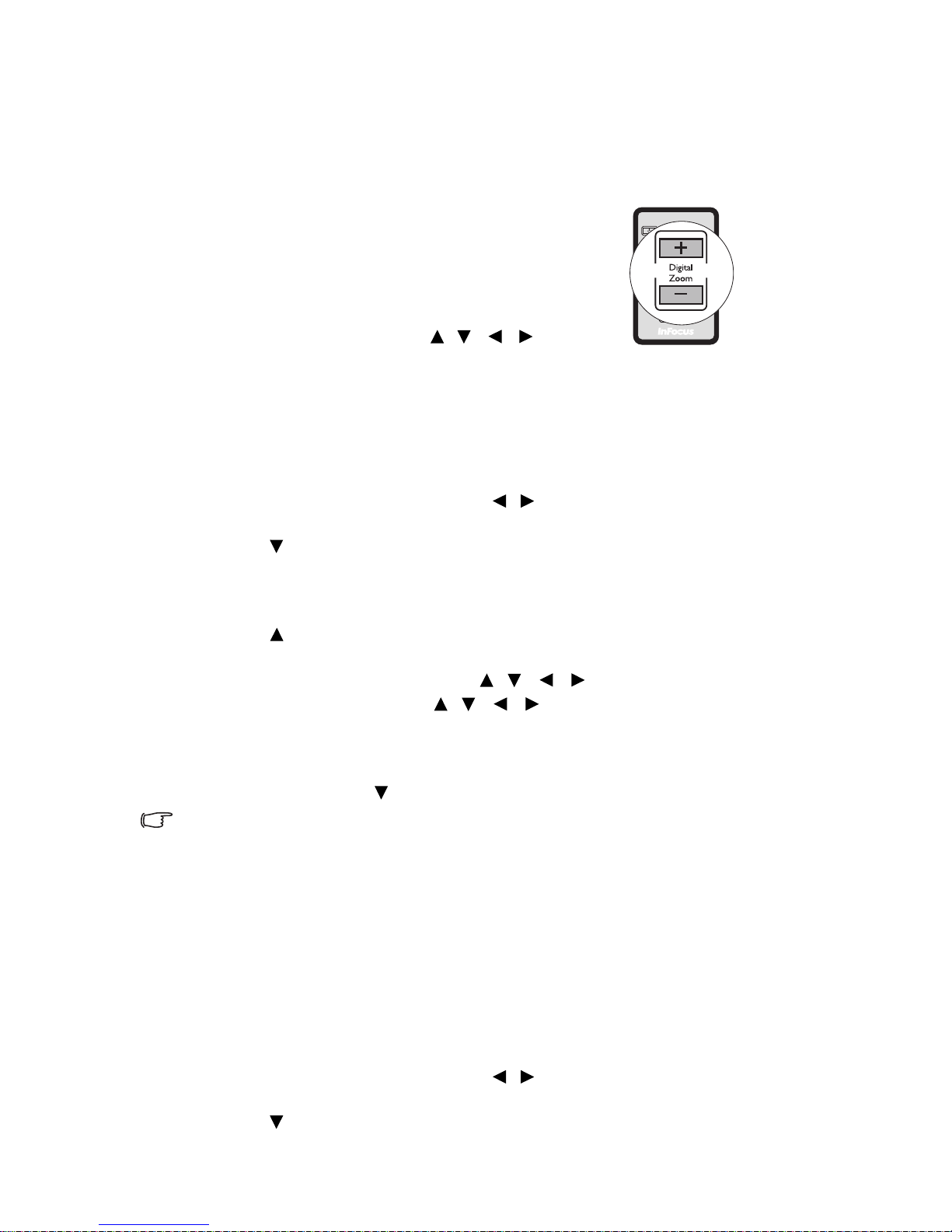

17. Digital Zoom keys (+, -)

Magnifies or reduces the projected picture size. Se e "Magnifying and

searching for details" on page 27 for

details.

Introduction8

Remote control effective range

Infra-Red (IR) remote control sensor is located on the front of the projector. The remote control must be held at an angle within 30 degrees perpendicular to the projector's IR remote control sensor to function correctly. The distance between the remote control and the sensor should not exceed 8 meters (~ 26 feet).

Make sure that there are no obstacles between the remote control and the IR sensor on the projector that might obstruct the infra-red beam.

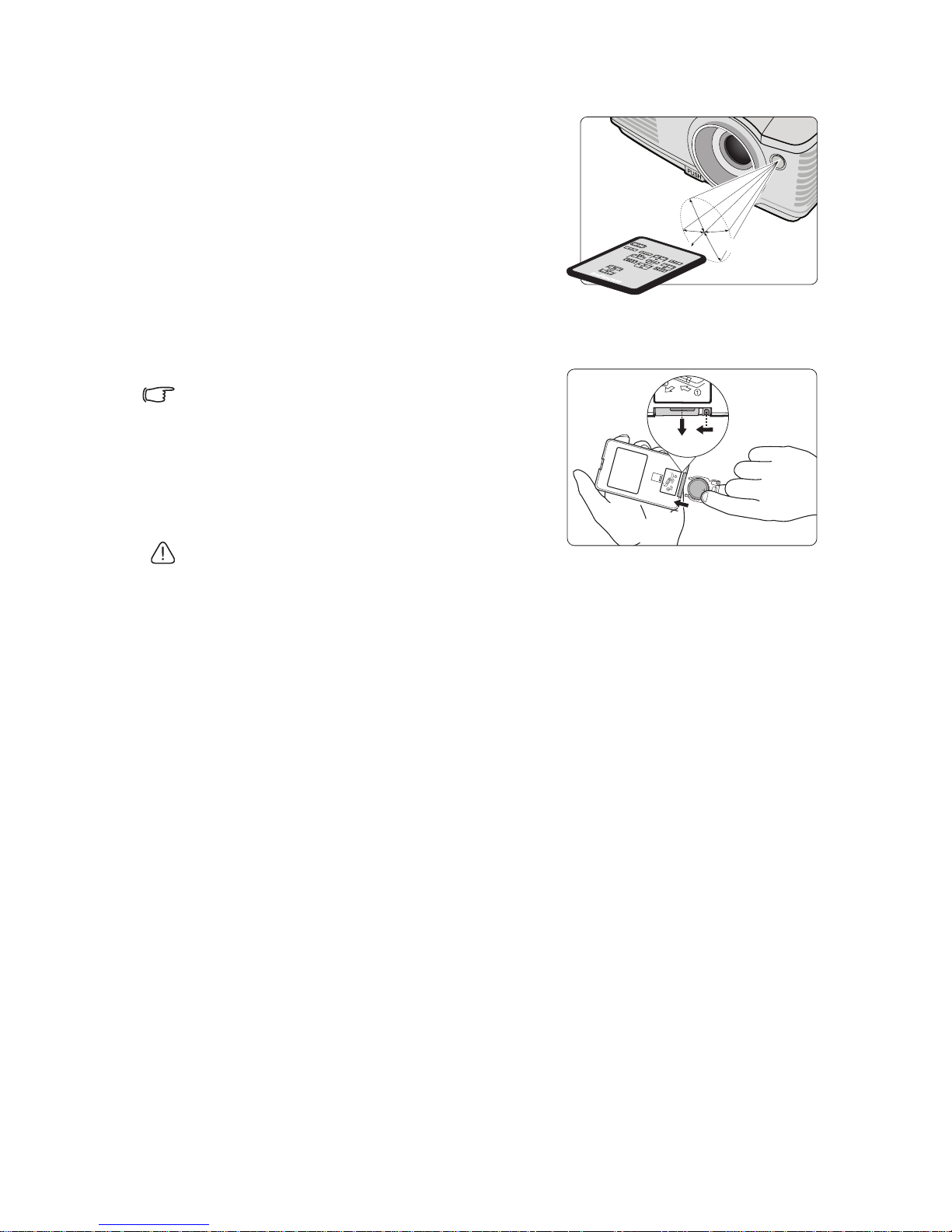

Replacing the remote control battery

1. Pull out the battery holder.

Please follow the illustrated instructions. Push and hold the locking arm while pulling out the battery holder.

2. Insert the new battery (Type: CR-2025) in the holder. Note the positive polarity should face outward.

3. Push the holder into the remote control.

CAUTION

• Avoid excessive heat and humidit y.

• There may be battery damage if the battery is incorrectly replaced.

• Replace only with the same or equivalent type recommended by the battery manufacturer.

• Dispose of the used battery according to the battery manufacturer’s instructions.

• Never throw a battery into a fire. There may be danger of an explosion.

• If the battery is dead or if you will not be using the remote control for a long time, remove

the battery to prevent damage to the remote control from possible battery leakage.

Positioning your projector 9

Positioning your projector

Choosing a location

Your room layout or personal preference will dictate which installation location you select. Take into consideration the size and position of your screen, the location of a suitable power outlet, as well as the location and distance between the projector and the rest of your equipment.

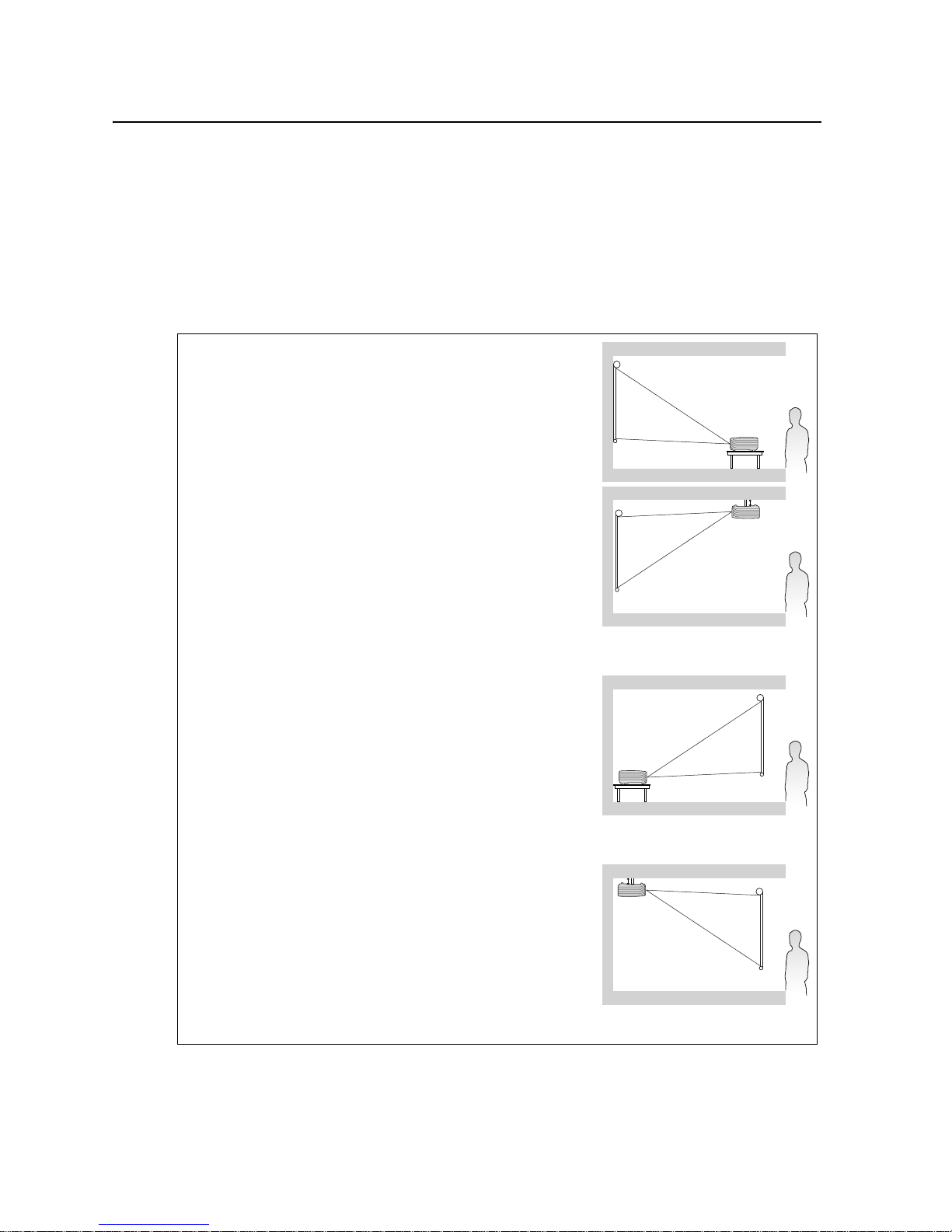

Your projector is designed to be installed in one of four possible installation locations:

1. Front Table

Select this location with the projector placed near the floor in front of the screen. This is the most common way to position the projector for quick setup and portability.

2. Front Ceiling

Select this location with the projector suspen ded upside-down from the ceiling in front of the screen.

Purchase the InFocus ceiling mount, SP-CEILUNIV, from your dealer to mount your projector on the ceiling.

Set Front Ceil ing in the SYSTEM S ETU P: Basi c >

Projector Position menu after you turn the projector on.

3. Rear Table

Select this location with the projector placed near the floor behind the screen.

Note that a special rear projection screen is required.

Set Rear Table in the SYSTEM SETUP: Basic > Projector Position menu after you turn the projector on.

4. Rear Ceiling

Select this location with the projector suspen ded upside-down from the ceiling behind th e screen.

Note that a special rear projection screen and the InFocus ceiling mount, SP-CEIL-UNIV, are required for this installation location.

Set Rear Ceiling in the SYSTEM SETUP: Basic > Projector Position menu after you turn the projector on.

Positioning your projector10

Obtaining a preferred projected image size

The distance from the projector lens to the screen, the zoom setting, and the video format all factor into the resulting projected image size.

4:3 is the native aspect ratio of this projec tor. To be able t o project a c omplete 16: 9 (widescreen) aspect ratio image, the projector can resize and scale a widescreen image to the projector's native aspect width. This will result in a proportionally smaller height equivalent to 75% of the projector's native aspect height.

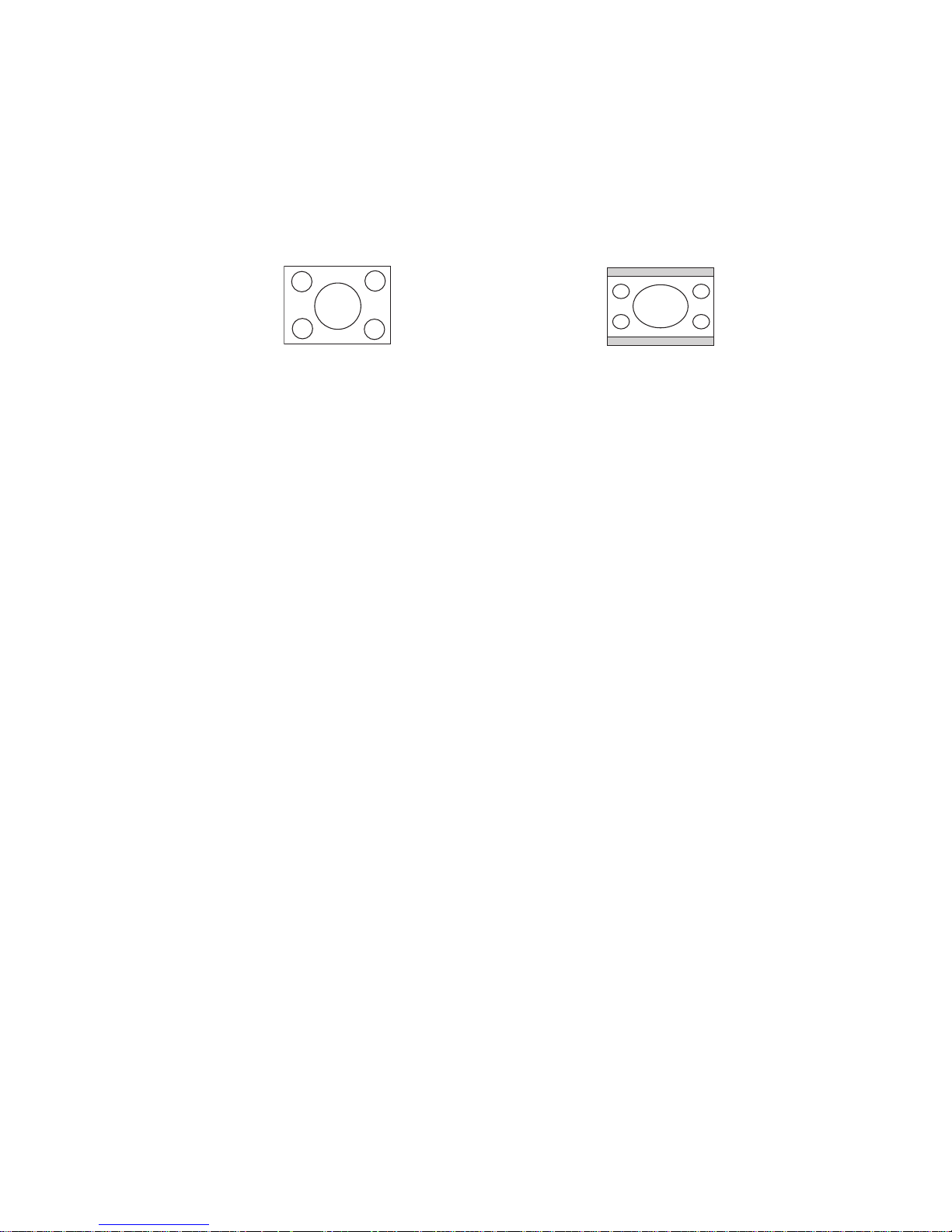

Thus, a 16:9 aspect image will not utilize 25% of the height of a 4:3 aspect image displayed by this projector. This will be seen as darkened (unlit) bars along the top and bottom (vertical 12.5% height respectively) of the 4:3 projection display area whenever displaying a scaled 16:9 aspect image in the vertical center of the 4:3 projection display area.

The projector should always be placed horizontally level (like flat on a table), and positioned directly perpendicular (90° righ t-angle square) to the horizontal center of the screen. This prevents image distortion caused by angled projections (or projecting onto angled surfaces).

The modern digital projector does not project directly forward (like older style reelto-reel film projectors did). Instead, digital projectors are designed to project at a slightly upward angle above the horizontal pl ane of the projector. This is so that they can be readily placed on a table and will project forward and upwards onto a screen positioned so that the bottom edge of the screen is above the level of the table (and everyone in the room can see the screen).

If the projector is mounted on a ceiling, it must be mounted upside-down so that it projects at a slightly downward angle.

You can see from the diagram on page 12, that this type of projection causes the bottom edge of the projected image to be vertically offset from the horizontal plane of the projector. When ceiling mounted, this refers to the top edge of the projected image.

If the projector is positi oned furthe r away fr om the screen, the p rojected image si ze increases, and the vertical offset also increases proportionately.

When determining the position of the screen and projector, you will need to account for both the projected image size and the vertical offset dimension, which are directly proportional to the projection distance.

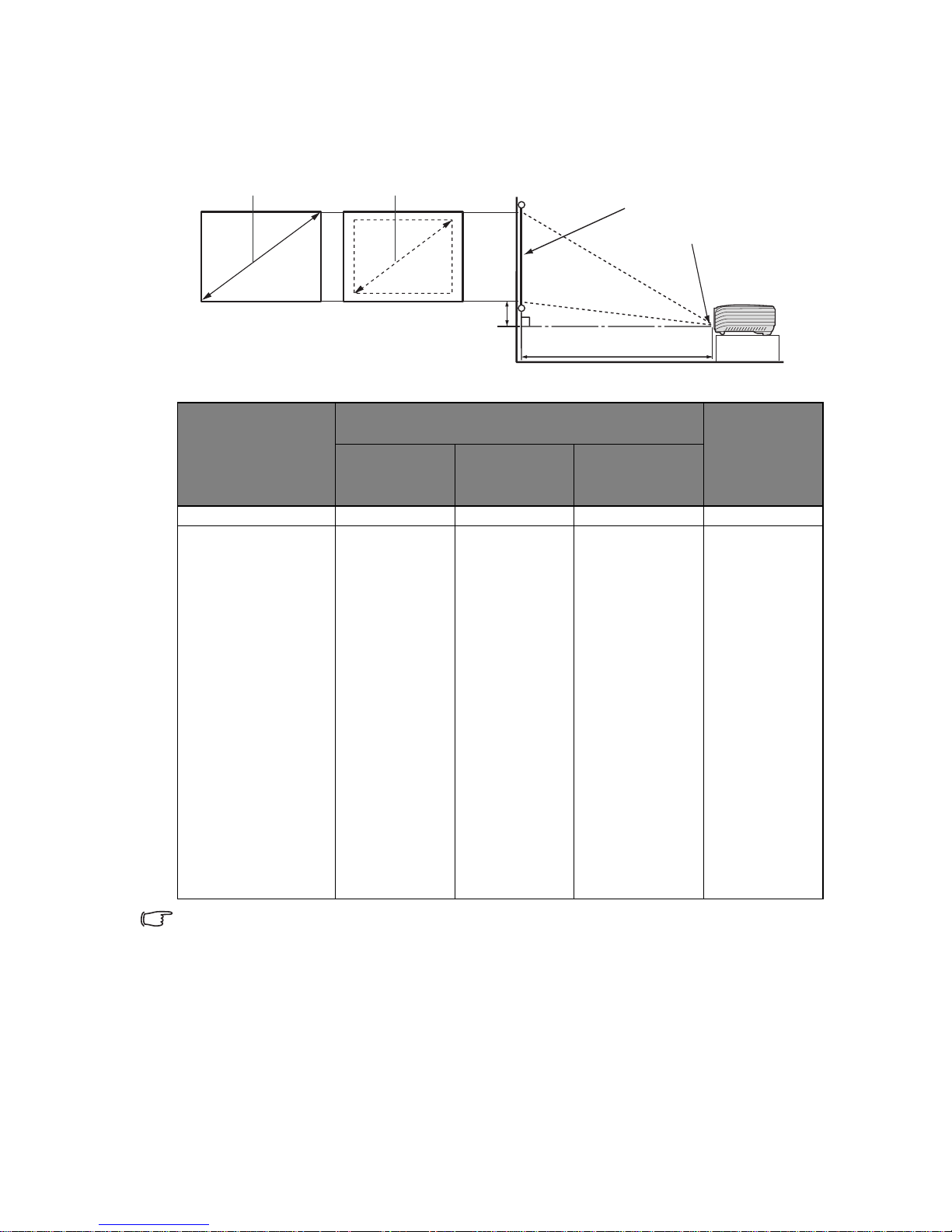

InFocus has provided a table of 4:3-aspect-ratio screen sizes to assist you in determining the ideal location for your projector. There are two dimensions to consider, the perpendicular horizontal distance from the center of the screen (projection distance), and the vertical offse t height of the projector from the horizontal edge of the screen (offset).

4:3 aspect image in a 4:3

aspect display area

16:9 aspect image scaled to a 4:3

aspect display area

Positioning your projector 11

How to determine the position of the projector for a given screen size

1. Select your screen size.

2. Refer to the table and find the closest match to your screen size in the left columns labelled "4:3 screen diagonal". Using this value, look across this row to the right to find the corresponding average distan ce from screen value in the column labelled "Average". This is the projection di stance.

3. On that same row, look across to the right column and make note of the

"Vertical offset" value. This will determine the final vertical offset placement of

the projector in relation to the edge of the screen.

4. The recommended position for the projector is aligned perpendicular to the horizontal center of the screen, at the distance from the screen determined in step 2 above, and offset by the value determined in step 3 above.

For example, if you are using a 108-inch screen, the average projection distance is 4320 mm (170”) and with a vertical offset of 82 mm (3.2”).

If you place the projector in a different position (to that recommended), you will have to tilt it down or up to center the image on the screen. In these situations, some image distortion will occur. Use the Keystone function to correct the distortion. See "Correcting keystone" on page 26 for details.

How to determine the recommended screen size for a given distance

This method can be used for situations where you have purchased this projector and would like to know what screen size will fit in your room.

The maximum screen size is limited by the physical space available in your room.

1. Measure the distance between the projector and where you want to position the screen. This is the projection distance.

2. Refer to the table and find the closest match to your measurement in the average distance from screen column labelled "Average". If the min and max values are available on the table, check that your measured distance is between the min and max distances listed on either side of the average distance value.

3. Using this value, look across that row to the left to find the corresponding screen diagonal listed in that row. That is the projected image size of the projector at that projection distance.

4. On that same row, look across to the right column and make note of the

"Vertical offset" value. This will determine the final plac ement of the screen in

relation to the horizontal plane of the projector.

For example, if your measured projection distance was 4.5 m (177”), the closest match in the "Average" column is 4320 mm (170”). Looking across this row shows that a 108-inch screen is required.

Positioning your projector12

Projection dimensions

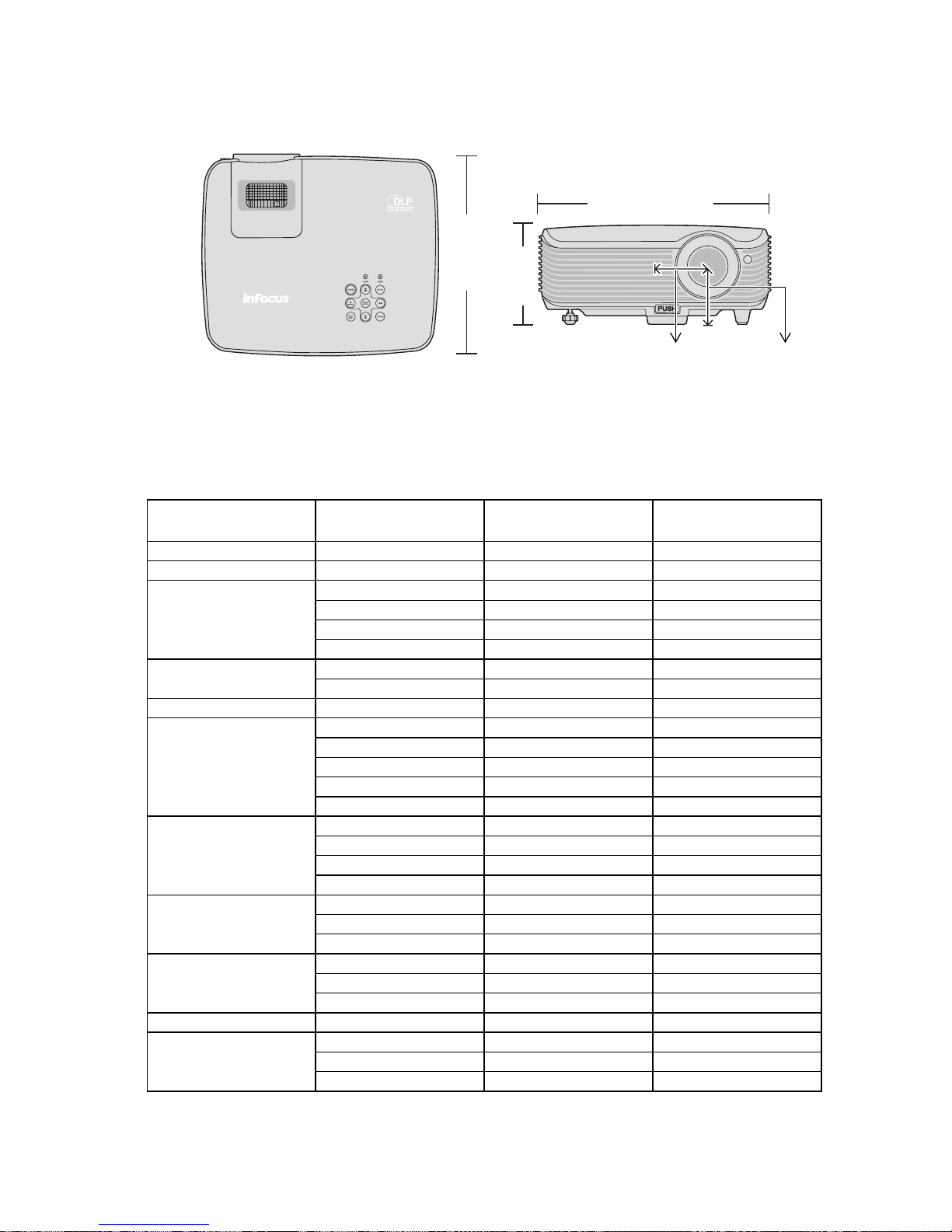

Refer to "Dimensions" on page 53 for the center of lens dimensions of this projector before calculating the appropriate position.

There is 3% tolerance among these numbers due to optical component variations. InFocus recommends that if you intend to permanently install the projector, you should physically test the projection size and distance using the actual projector before you permanently install it, so as to make allowance for this projector's optical characteristics. This will help you determine the exact mounting position so that it best suits your installation location.

4:3 screen diagonal Recommended projection distance from

screen

Vertical offset

Min length (with max.

zoom)

Average Max length

(with min.

zoom)

Feet Inches mm mm Inches mm Inches mm Inches mm Inches

4 48 1219 1829 72 1920 76 2011 79 37 1.4

59 1500 2250 89 2362 93 2475 97 45 1.8 5 60 1524 2286 90 2400 94 2514 99 46 1.8 6 72 1829 2743 108 2880 113 3017 119 55 2.2

79 2000 3000 118 3150 124 3300 130 60 2.4 7 84 2134 3200 126 3360 132 3520 139 64 2.5 8 96 2438 3657 144 3840 151 4023 158 73 2.9

98 2500 3750 148 3937 155 4124 162 75 3.0 9 108 2743 4114 162 4320 170 4526 178 82 3.2

118 3000 4499 177 4724 186 4949 195 90 3.5

10 120 3048 4571 180 4800 189 5029 198 91 3.6

138 3500 5249 207 5512 217 5774 227 105 4.1

12 144 3658 5486 216 5760 227 6034 238 110 4.3

157 4000 5999 236 6299 248 6599 260 120 4.7

15 180 4572 6857 270 7200 283 7543 297 137 5.4

197 5000 7499 295 7874 310 8249 325 150 5.9

18 216 5486 8229 324 8640 340 9051 356 165 6.5

236 6000 8999 354 9449 372 9899 390 180 7.1

25 300 7620 11429 450 12000 472 12571 495 229 9.0

Projection distance

Center of lens

Screen

Vertical offset

Maximum zoom

Minimum zoom

Connection 13

Connection

When connecting a signal source to the projector, be sure to:

1. Turn all equipment off before making any connections.

2. Use the correct signal cables for each source.

3. Ensure the cables are firmly inserted.

In the connections shown below, some cables may not be included with the projector (see

"Shipping contents" on page 4). Additional cables can be purchased from InFocus.com in

select areas, your dealer and/or from a commercial electronics store.

Connection14

Connecting a computer or monitor

Connecting a computer

The projector provides a VGA input socket that allows you to connect it to both IBM® compatibles and Macintosh® comput ers. A Mac adapter is n eeded i f you are connecting legacy version Macintosh computers.

To connect the projector to a notebook or desktop computer:

1. Take the supplied VGA cable and connect one end to the D-Sub output socket of the computer.

2. Connect the other end of the VGA cable to the COMPUTER IN1/COMPUTER IN2 signal input socket on the projector.

3. If you wish to make use of the projector (mixed mono) speaker in your presentations, take a suitable aud io cable and connect one end of the cable to the audio output socket of the device, and the other end to the AUDIO IN socket of the projector.

4. If you wish, you can use another suitable audi o cable and c onnec t on e end of the cable to the AUDIO OUT jack of the projector, and the other end to your external speakers (not supplied).

Once connected, the audio can be controlled by the projector On-Screen Display (OSD) menus. See "Adjusting the sound" on page 35 for details.

The built-in speaker will be muted when the AUDIO OUT jack is connected.

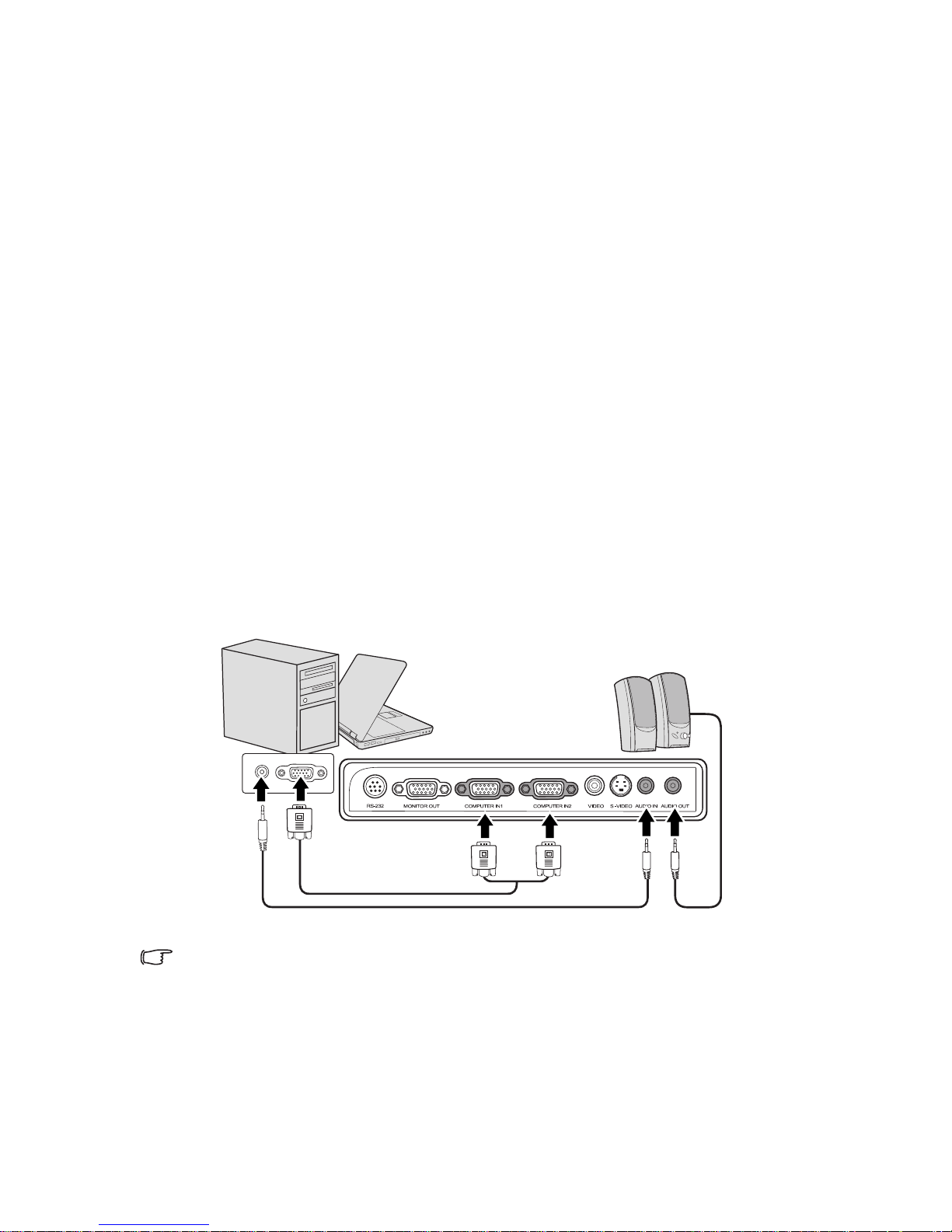

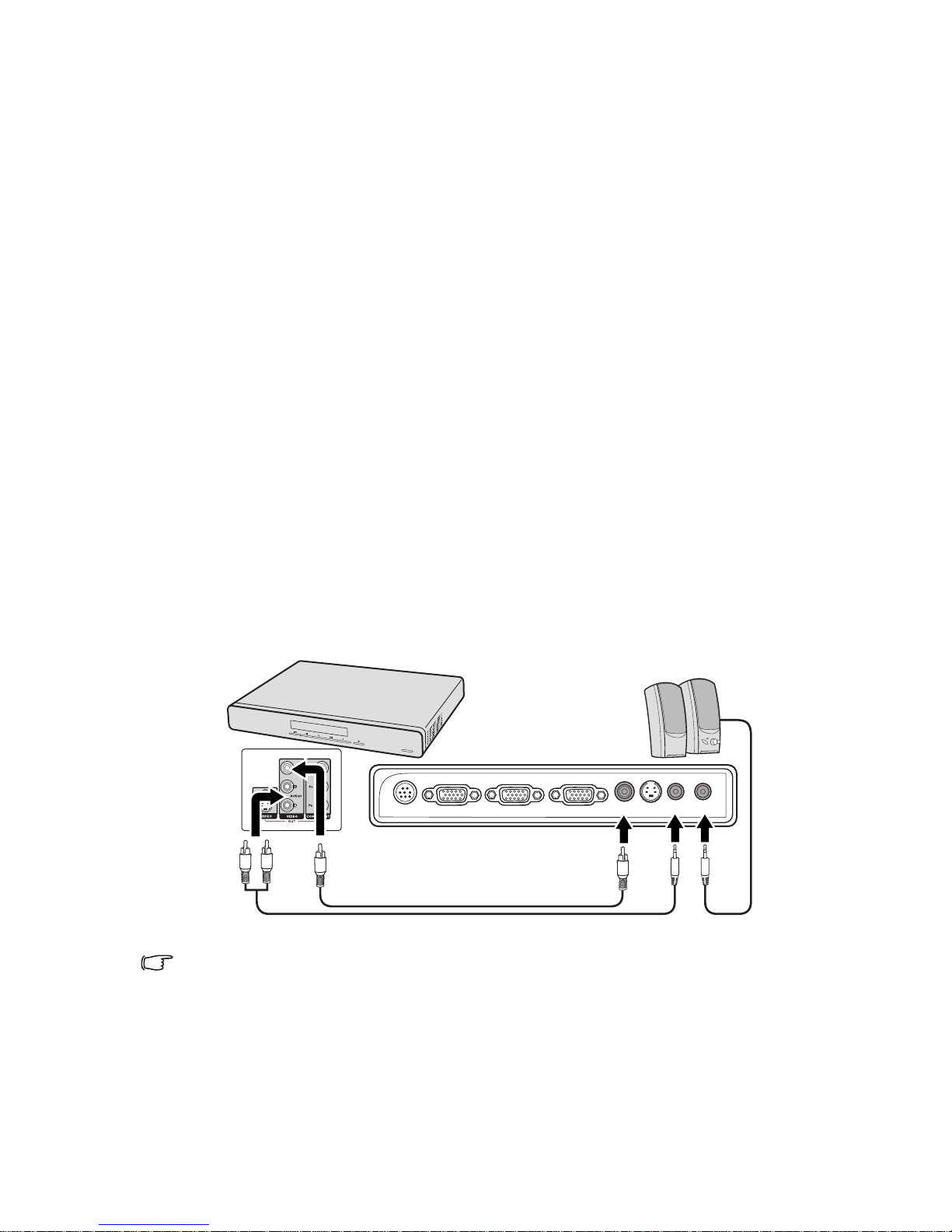

The final connection path should be like that shown in the following diagram:

Many notebooks do not turn on their external video ports when connected to a projector. Usually a key combo like FN + F3 or CRT/LCD key turns the external display on/off. Locate a function key labeled CRT/LCD or a function key with a monitor symbol on the notebook. Press FN and the labeled function key simultaneously. Refer to your notebook's documentation to find your notebook's key combination.

Notebook or desktop computer

Audio cable

VGA cable

Audio cable

Speakers

Connection 15

Connecting a monitor

If you want to view your presentation close-up on a monitor as well as on th e screen, you can connect the MONITOR OUT signal output socket on the projector to an external monitor with a VGA cable following the instructions below:

To connect the projector to a monitor:

1. Connect the projector to a computer as described in "Connecting a compu ter"

on page 14.

2. Take a suitable VGA cable (only one supplied) and connect one end of the cable to the D-Sub input socket of the video monitor.

Or if your monitor is equipped with a DVI input socket, take a VGA to DVI-A cable and connect the DVI end of the cable to the DVI input socket of the video monitor.

3. Connect the other end of the cable to the MONITOR OUT socket on the projector.

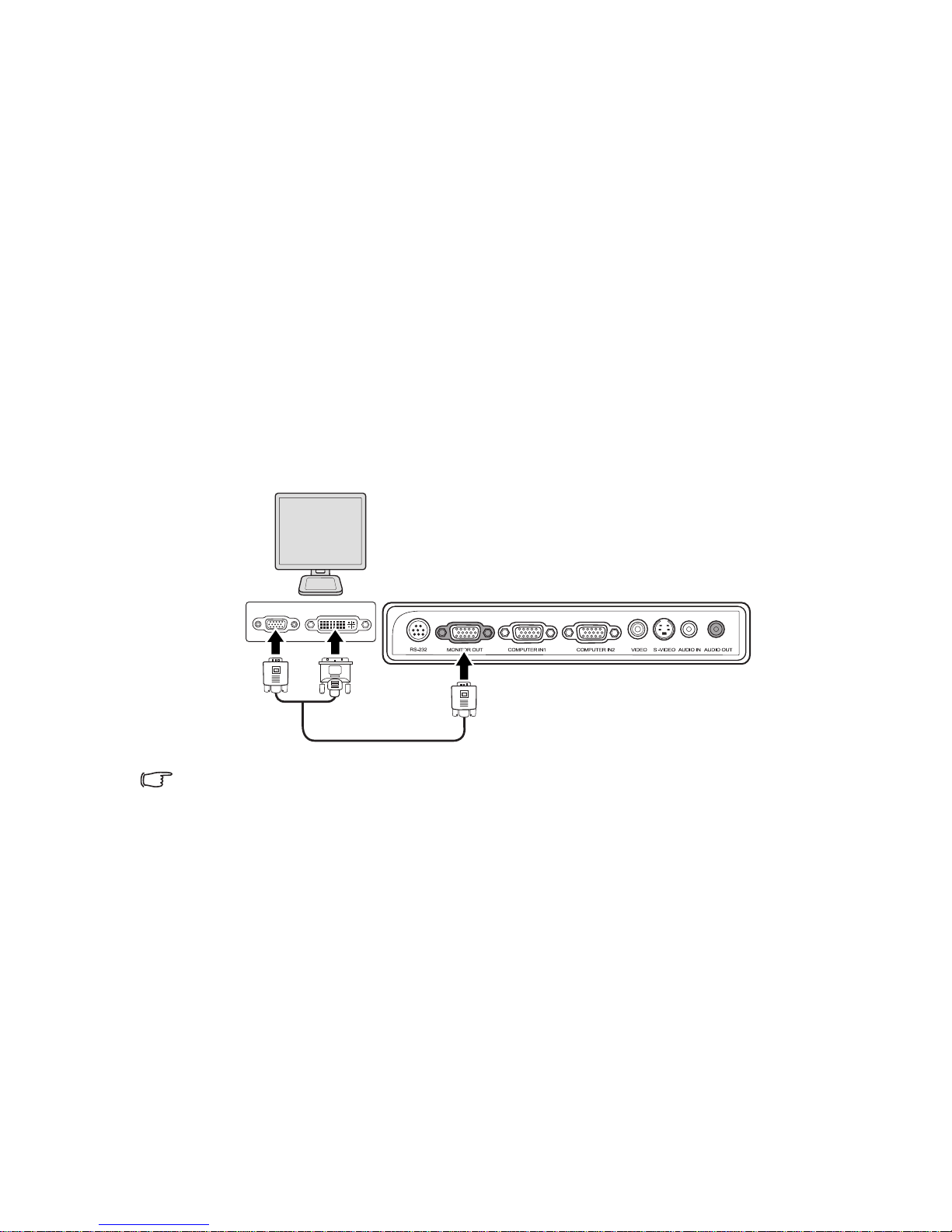

The final connection path should be like that shown in the following diagram:

• The D-Sub output only works when an appropriat e D-Sub input

is made to the COMPUTER IN1 jack.

• If you wish to use this connection method when the projector is in standby mode, make

sure the VGA Out function is turned on in the SYSTEM SETUP: Adva nced menu. See "VGA

Out" on page 43 for details.

Monitor

(VGA) (DVI-A)or

(VGA)

Connection16

Connecting video source devices

You can connect your projector to various video source devices that provide any one of the following output sockets:

• Component video

• S-Video

• Video (composite)

You only need to connect the projector to a single video source device; however each provides a different level of video quality. The method you choose will most likely depend upon the availability of matching terminals on both the projector and the video source device as described below:

Best video quality

The best available video connection method is Component video (not to be confused with composite video). Digital TV tuner and DVD players output Component video natively, so if available on your devices, this should be your connection method of choice in preference to (composite) video.

See "Connecti ng a Component video source device" on page 17 for how to connect the projector to a component video device.

Better video quality

The S-Video method provides a better quality analog video than standard composite video. If you have both compos ite video and S-Video output terminals on your video source device, you should elect to use the S-Video option.

See "Connecting an S-Video source device" on page 18 for how to connect the projector to an S-Video device.

Good video quality

Composite video is analog video and will result in a perfectly acceptable, but less than optimal result from your projector. The other methods described above provide better video quality.

See "Connecting a composite video source device" on page 19 for how to connect the projector to a composite video device.

Connecting audio

The projector has one built-in mono speaker which is designed to provide basic audio functionality accompanying data present ations for business purposes only. It is not designed for, nor intended for stereo audio reproduction use as might be expected in home theater or home cinema applications. Any stereo audio input (if provided), is mixed into a common mono audio output through the projector speaker.

If you have a separate sound system, you will most l ikely want to connect the audi o output of your video source device to that sound system, instead of to the mono audio projector. The audio connections are provided for informational purposes only. You need not connect audio to the projector if there is an alternate sound system available, or if audio is not required.

Connection 17

Connecting a Component video source device

Examine your video source device to determine if it has a set of unused Component video output sockets available:

• If so, you can continue with this procedure.

• If not, you will need to reassess which method you can use to connect to the

device.

To connect the projector to a Component video source device:

1. Take a Component video to VGA (D-Sub) adaptor cable and connect the end with 3 RCA type connectors to the Component video output sockets of the video source device. Match the color of the plugs to the color of the sockets; green to green, blue to blue, and red to red.

2. Connect the other end of the Compo nent video to VGA (D-Sub) adaptor c able (with a D-Sub type connector) to the COMPUTER IN1/COMPUTER IN2 socket on the projector.

4. If you wish, you can use another suitable audi o cable and c onnec t on e end of the cable to the AUDIO OUT jack of the projector, and the other end to your external speakers (not supplied).

Once connected, the audio can be controlled by the projector On-Screen Display (OSD) menus. See "Adjusting the sound" on page 35 for details.

The built-in speaker will be muted when the AUDIO OUT jack is connected.

The final connection path should be like that shown in the following diagram:

• The projector is only capable of playing mixed mono audio, even if a stereo audio input is

connected. See "Connecting audio" on page 16 for details.

• If the selected video image is not displayed af te r the proje ctor is turned on and t he correct

video source has been selected, check that the video source device is turned on and operating correctly. Also check that the signal cables have been connected correctly.

RS-232

MONITOR OUT COMPUTER IN1 COMPUTER IN2 VIDEO S -VIDEO AUDIO IN AUDIO OUT

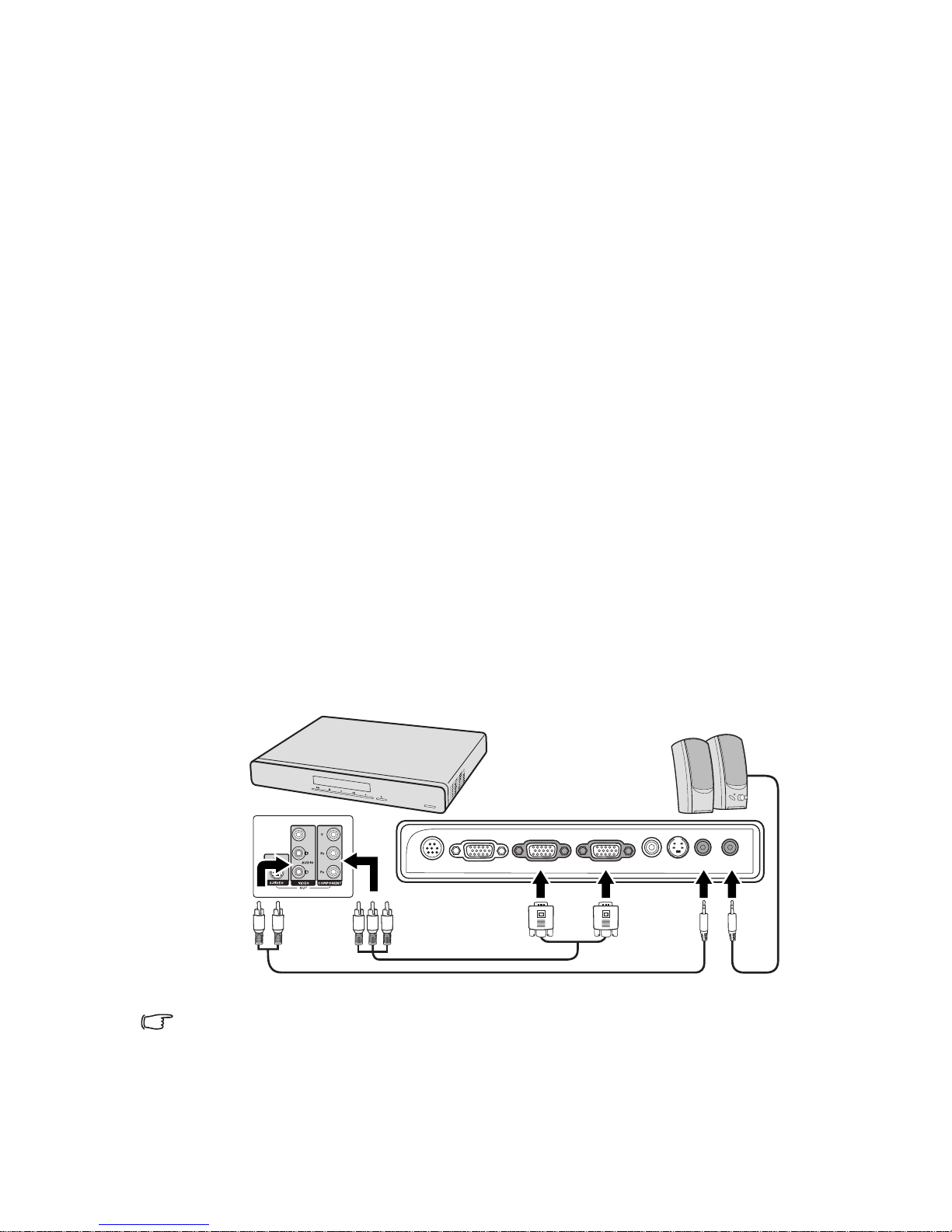

A V device

Component video to VGA (D-Sub) adaptor cable

Audio cable

Speakers

Audio cable

Connection18

Connecting an S-Video source device

Examine your video source device to determine if it has an unused S-Video output socket available:

• If so, you can continue with this procedure.

• If not, you will need to reassess which method you can use to connect to the

device.

To connect the projector to an S-Video source device:

1. Take an S-Video cable and connect one end to the S-Video output socket of the video source device.

2. Connect the other end of the S-Video cable to the S-VIDEO socket on the projector.

4. If you wish, you can use another suitable audi o cable and c onnec t on e end of the cable to the AUDIO OUT jack of the projector, and the other end to your external speakers (not supplied).

Once connected, the audio can be controlled by the projector On-Screen Display (OSD) menus. See "Adjusting the sound" on page 35 for details.

The built-in speaker will be muted when the AUDIO OUT jack is connected.

The final connection path should be like that shown in the following diagram:

• The projector is only capable of playing mixed mono audio, even if a stereo audio input is

connected. See "Connecting audio" on page 16 for details.

• If the selected video image is not displayed af te r the proje ctor is turned on and t he correct

video source has been selected, check that the video source device is turned on and operating correctly. Also check that the signal cables have been connected correctly.

• If you have already made a Component video connection between the projector and this S-

Video source device using Component video connections, you need not connect to this device using an S-Video connection as this makes an unnecessary second connection of poorer picture quality. See "Connecting video source devices" on page 16 for details.

RS-232

MONITOR OUT COMPUTER IN1 COMPUTER IN2 VIDEO S -VIDEO AUDIO IN AUDIO OUT

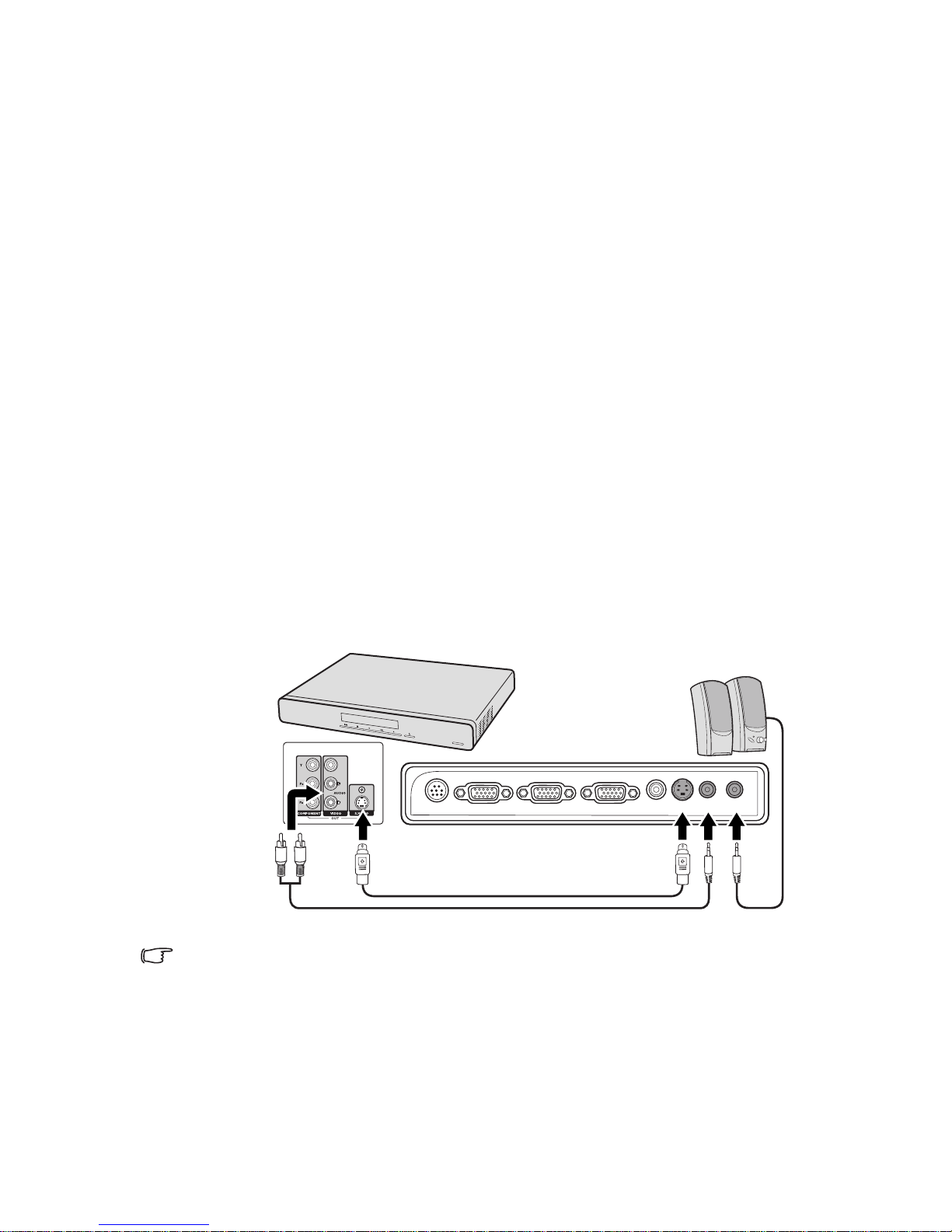

A V device

S-Video cable

Audio cable

Connection 19

Connecting a composite video source device

Examine your video source device to determine if it has a set of unused composite video output sockets available:

• If so, you can continue with this procedure.

• If not, you will need to reassess which method you can use to connect to the

device.

To connect the projector to a composite video source device:

1. Take a video cable and connect one end to t he composite vi deo output socket of the video source device.

2. Connect the other end of the video cable to the VIDEO socket on the projector.

4. If you wish, you can use another suitable audi o cable and c onnec t on e end of the cable to the AUDIO OUT jack of the projector, and the other end to your external speakers (not supplied).

Once connected, the audio can be controlled by the projector On-Screen Display (OSD) menus. See "Adjusting the sound" on page 35 for details.

The built-in speaker will be muted when the AUDIO OUT jack is connected.

The final connection path should be like that shown in the following diagram:

• The projector is only capable of playing mixed mono audio, even if a stereo audio input is

connected. See "Connecting audio" on page 16 for details.

• If the selected video image is not displayed af te r the proje ctor is turned on and t he correct

video source has been selected, check that the video source device is turned on and operating correctly. Also check that the signal cables have been connected correctly.

• You need only connect to this device using a composite video connection if Component

video and S-Video inputs are unavailable for use. See "Connecting video source devices"

on page 16 for details.

RS-232

MONITOR OUT COMPUTER IN1 COMPUTER IN2 VIDEO S -VIDEO AUDIO IN AUDIO OUT

AV device

Video cable Audio cable

Audio cable

Operation20

Operation

Starting up the projector

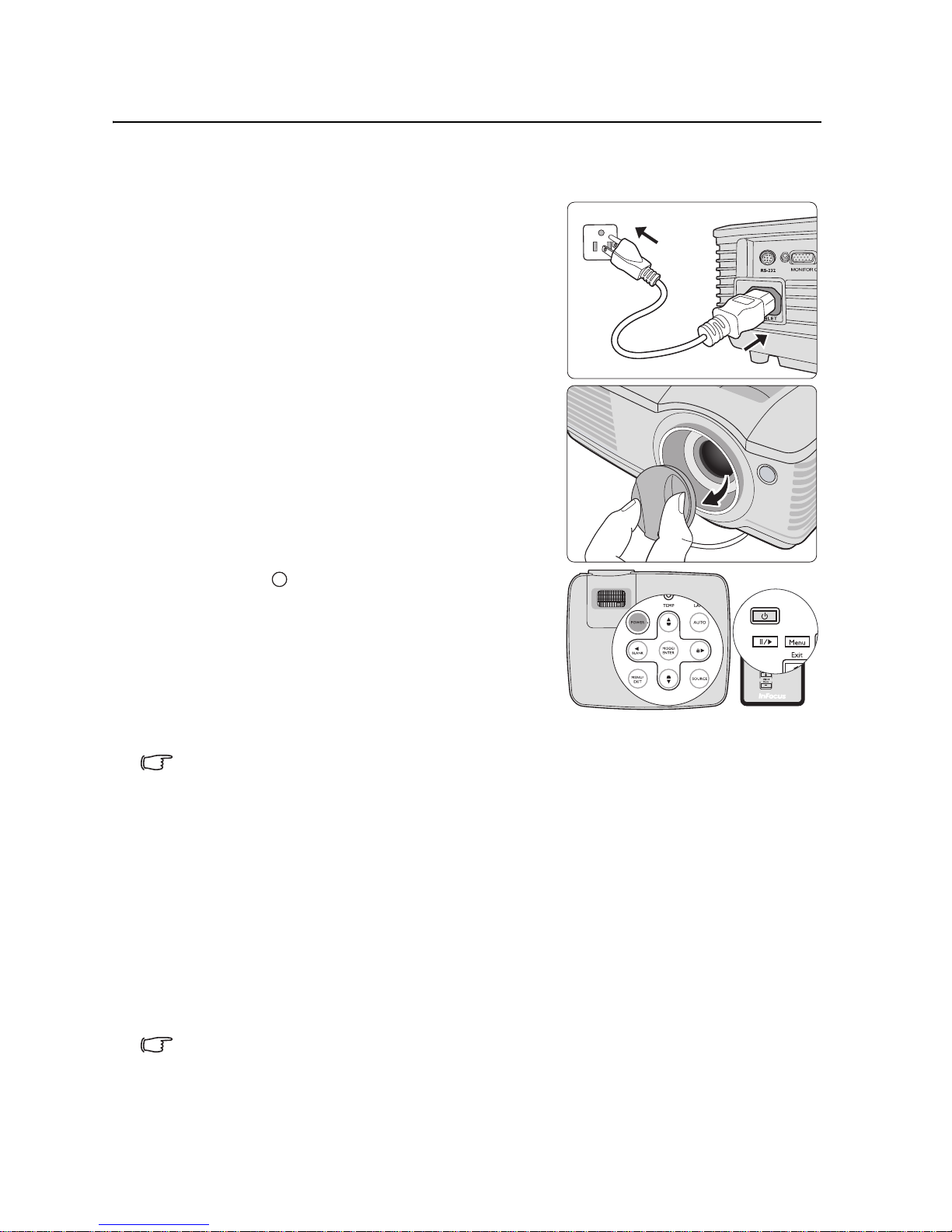

1. Plug the power cord into the projector and into a wall socket. Turn on the wall socket switch, if applicable. Check that the POWER indicator light on the projector lights orange after power has been applied.

2. Remove the lens cap. If it is closed, it could become deformed due to the heat produced by the projection lamp.

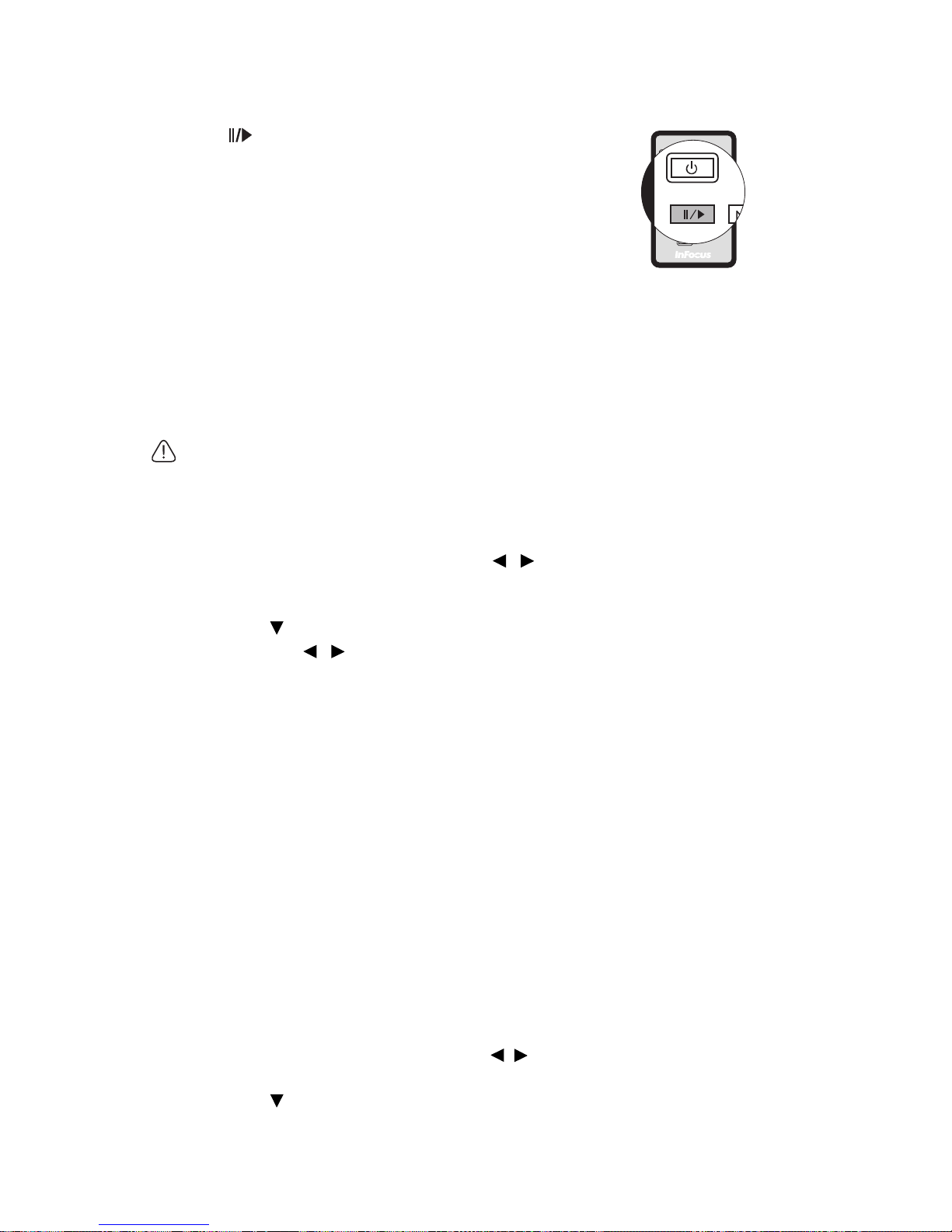

3. Press POWER on the projector or remote control to start the projector. The POWER indicator light flashes green and stays green when the projector is on.

The start up procedure takes about 30 seconds. In the later stage of sta rt up, a startup logo is projected.

(If necessary) Rotate the focus ring to adjust the image clearness.

• If the projector is still hot from previous activity, it will run the cooling fan for

approximately 90 seconds before energizing the lamp.

• To maintain the lamp life, once you turn the projector on, wait at least 5 minutes before

turning it off.

4. If you are prompted for a password, press the arrow keys to enter a six-digit password. See "Utilizing the password function" on page 22 for details.

5. Switch all of the connected equipment on.

6. The projector will start to search for input signals. The current input signal being scanned displays in the upper left corner of the screen. If the projector doesn't detect a valid signal, the me ssage ' No S ignal ' will cont inue di splaying until an input signal is found.

You can also press SOURCE on the projector or remote control to select your desired input signal. See "Switching input signal" on page 24 for details.

If the frequency/resolution of the input signal exceeds the projector's ope rating range, you will see the message 'Out of Range' displayed on a blank screen. Please change to a n input signal which is compatible with the projector's resolution or set the input signal to a lower setting. See "Timing chart" on page 53 for details.

Operation 21

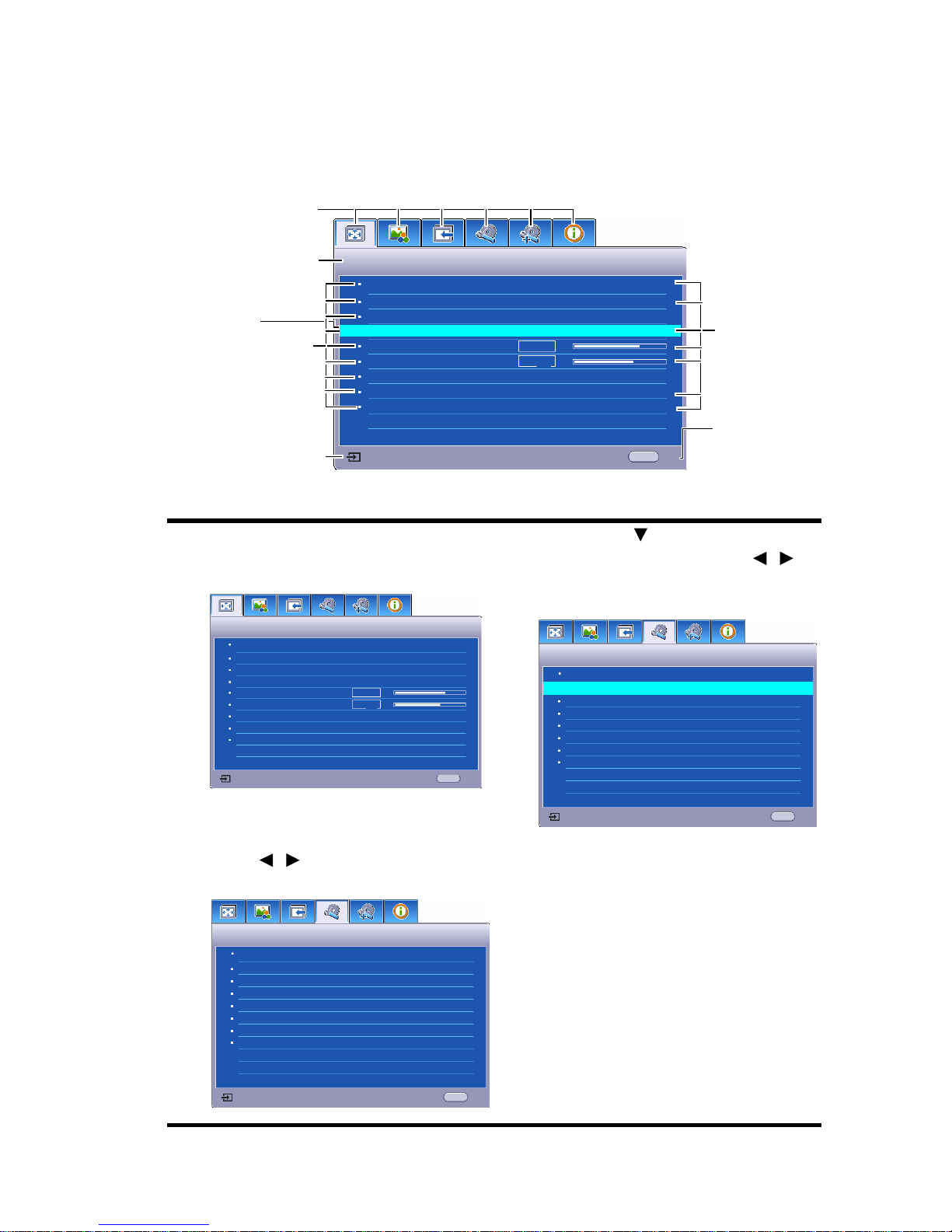

Using the menus

The projector is equipped with On-Screen Display (OSD) menus for making various adjustments and settings.

Below is the overview of the OSD menu.

To use the OSD menus, please set them to your preferred language first.

1. Press MENU/EXIT on the projector or remote control to turn the OSD menu on.

3. Press to highlight Language and press /

to select a preferred language.

2. Use / to highlight the SYSTEM SETUP: Basic menu.

4. Press MENU/EXIT twice* on the projector or remote control to leave and save the settings.

*The first press leads you back to the main menu and the second press closes the OSD menu.

Current input signal

Main menu icon

Main menu

Sub-menu

Highlight

Press MENU/ EXIT to the previous page or to exit.

Status

DISPLAY

Wall Color

Aspect Ratio

Phase

H. Size

Digital Zoom

Off

Auto

MENU Exit

Analog RGB

ENTER

Keystone

Position

3D Sync

3D Sync Invert

Disable

DISPLAY

Wall Color Aspect Ratio

Position Phase H. Size

Digital Zoom

Off

Auto

MENU Exit

Keystone

Analog RGB

3D Sync

3D Sync Invert

Disable

SYSTEM SETUP: Basic

Projector Position Auto Power Off Blank Timer

Timer Controller

Panel Key Lock

Splash Screen

Analog RGB

MENU Exit

Front Table

Disable Disable

Off

Disable

InFocus

Presentation Timer

EnglishLanguage

SYSTEM SETUP: Basic

Projector Position Auto Power Off Blank Timer

Timer Controller

Panel Key Lock

Splash Screen

Analog RGB

MENU Exit

Front Table

Disable Disable

Off

Disable

InFocus

Presentation Timer

EnglishLanguage

Operation22

Utilizing the password function

For security purposes and to help prevent unauthorized use, the proj ect or include s an option for setting up password security. The password can be s et through the On-Screen Display (OSD) menu. For details of the OSD menu operation, please refer to "Using the menus" on page 21.

Y ou will be inconvenienced if you activate the p assword functionality and subsequently forget the password. Print this reference guide (if necessary) and write the password you used in this guide, and keep it in a safe place for later use.

Setting a password

Once a password has been set, the projector cannot be used unless the correct password is entered every time the projector is started.

1. Open the OSD menu and go to the SYSTEM SETUP: Advanced > Security Settings menu. Press MODE/ENTER. The Security Settings page displays.

2. Highlight Power on lock and select On by pressing / .

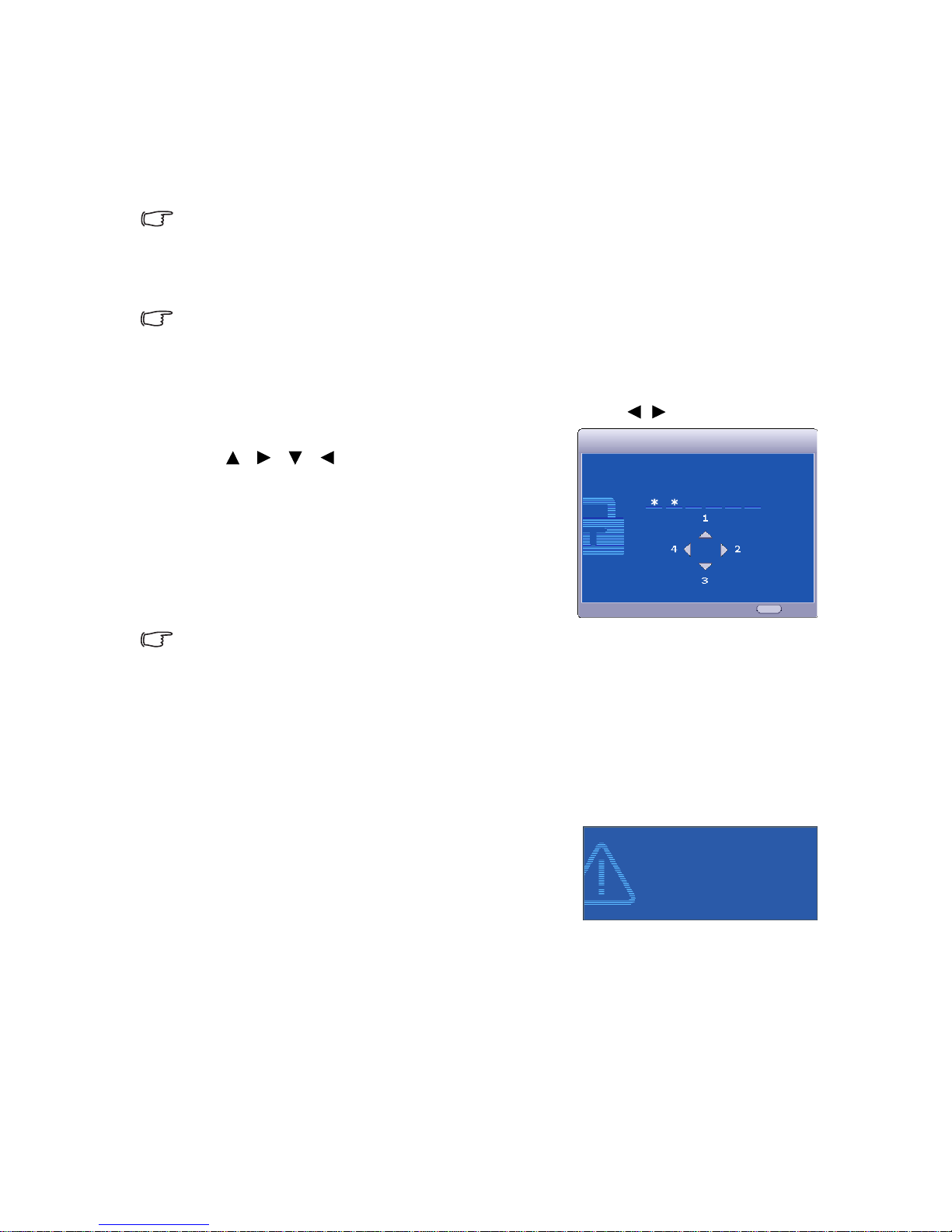

3. As pictured to the right, the four arrow keys ( , , , ) respectively represent 4

digits (1, 2, 3, 4). According t o the passwo rd you desire to set, press the arrow keys to enter six digits for the password.

4. Confirm the new password by re-entering the new password.

Once the password is set, the OSD menu returns to the Security Settings page.

The digits being input will display as asterisks onscreen. Write your selected password down here in this reference guide in advance or right after the password is entered so that it is available to you should you ever forget it.

Password: __ __ __ __ __ __ Keep this reference guide in a safe place.

5. To leave the OSD menu, press MENU/EXIT.

If you forget the password

If the password function is activated, you will be asked to enter the six-digit password every time you turn on the projector. If you enter the wrong password, the password error message as pictured to the right displays lasting for three seconds, and the message 'INPUT PASSWORD' follows. You can retry by entering another six-digit password, or if you did not record the password in this reference guide, and you absolutely do not remember it, you can use the password recall procedure. See

"Entering the password recall procedure" on page 23 for details.

If you enter an incorrect password 5 times in succession, the projector will automatically shut down in a short time.

INPUT NEW PASSWORD

BackMENU

Password Error

Please try again.

Operation 23

Entering the password recall procedure

1. Press and hold AUTO on the projector or remote control for 3 seconds. The projector will display a coded number on the screen.

2. Write down the number and turn off your projector.

3. Seek help from the local service center to decode the number. You may be required t o provide proof of purchase documentation to verify that you are an authorized user of the projector.

Changing the password

1. Open the OSD menu and go to the SYSTEM SETUP: Advanced > Security Settings > Change password menu.

2. Press MODE/ENTER. The message 'INPUT CURRENT PASSWORD' displays.

3. Enter the old password.

• If the password is correct, another message 'INPUT NEW PASSWORD'

displays.

• If the password is incorrect, the password error message displays lasting

for three seconds, and the message 'INPUT CURRENT PASSWORD' displays for your retry. You can press MENU/EXIT to cancel the change or try another password.

4. Enter a new password.

The digits being input will di splay as asterisks on- screen. W rit e your select ed p ass word down here in this reference guide in advance or right after the password is entered so that it is available to you should you ever forget it.

Password: __ __ __ __ __ __ Keep this reference guide in a safe place.

5. Confirm the new password by re-entering the new password.

6. You have successfully assigned a new password to the project or. Remember to enter the new password next time the projector is starte d.

7. To leave the OSD menu, press MENU/EXIT.

Disabling the password function

To disable password protection, go back to the SYSTEM SETUP: Advanced > Security Settings > Power on lock menu after opening the OSD menu system.

Select Off by pressing / . The message 'INPUT PASSWORD' displays. Enter the current password.

• If the password is correct, the OSD menu returns to the Security

Settings page with 'Off' shown in the row of Power on loc k. You will not have to enter the password next time you turn on the projector.

• If the password is incorrect, the password error message displays lasting

for three seconds, and the message 'INPUT PASSWORD' displays for

Please write down the recall code, and contact InFocus Customer Center.

Recall code:

0 2 1 2

RECALL PASSWORD

Exit

Operation24

your retry. You can press MENU/EXIT to cancel the change or try another password.

Though the password function is disabled, you need to keep the old password on hand should you ever need to re-activate the password function by entering the old password.

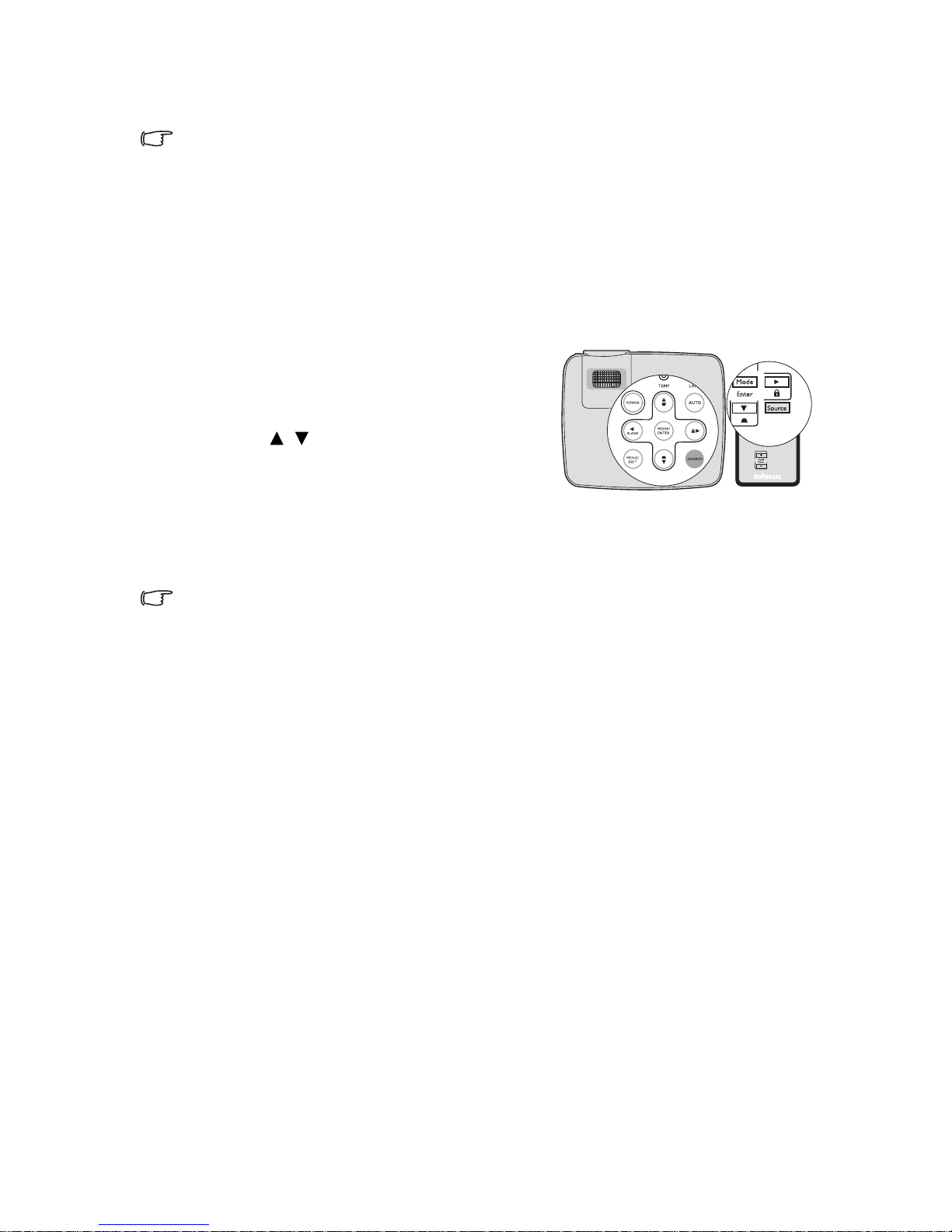

Switching input signal

The projector can be connected to multiple devices at the same time. However, it can only display one full screen at a time.

Be sure the Quick Auto Search function in the SOURCE menu is On (which i s the default of this projector) if you want the projector to automatically search for the signals.

You can also manually cycle through the available input signals.

1. Press SOURCE on the projector or remote control. A source selection bar displays.

2. Press / until your desired signal is selected and press MODE/ENTER.

Once detected, the selected source information will display on the screen for seconds. If there is multiple equipment connected to the projector, repeat steps 12 to search for another signal.

• The brightness level of the projected image will

change accordingly when you switch between different input signals. Data (graphic) "PC" presentations using mostly static images are generally brighter than "video" using mostly moving images (movies).

• The input signal type affects the options available for the Preset Mode. See "Selecting a

picture mode" on page 29 for details.

• The native display resolution of this projector is in a 4:3 aspect ratio. For best display

picture results, you should select and use a n input signal which output s at this resolution. Any other resolutions will be scaled by the projector depending upon the 'aspect ratio' setting, which may cause some image distortion or loss of picture clarity. See "Selecting

the aspect ratio" on page 27 for details.

/OGOL

emaNledoM

aerA

35.0mm

mm0.54

Operation 25

Adjusting the projected image

Adjusting the projection angle

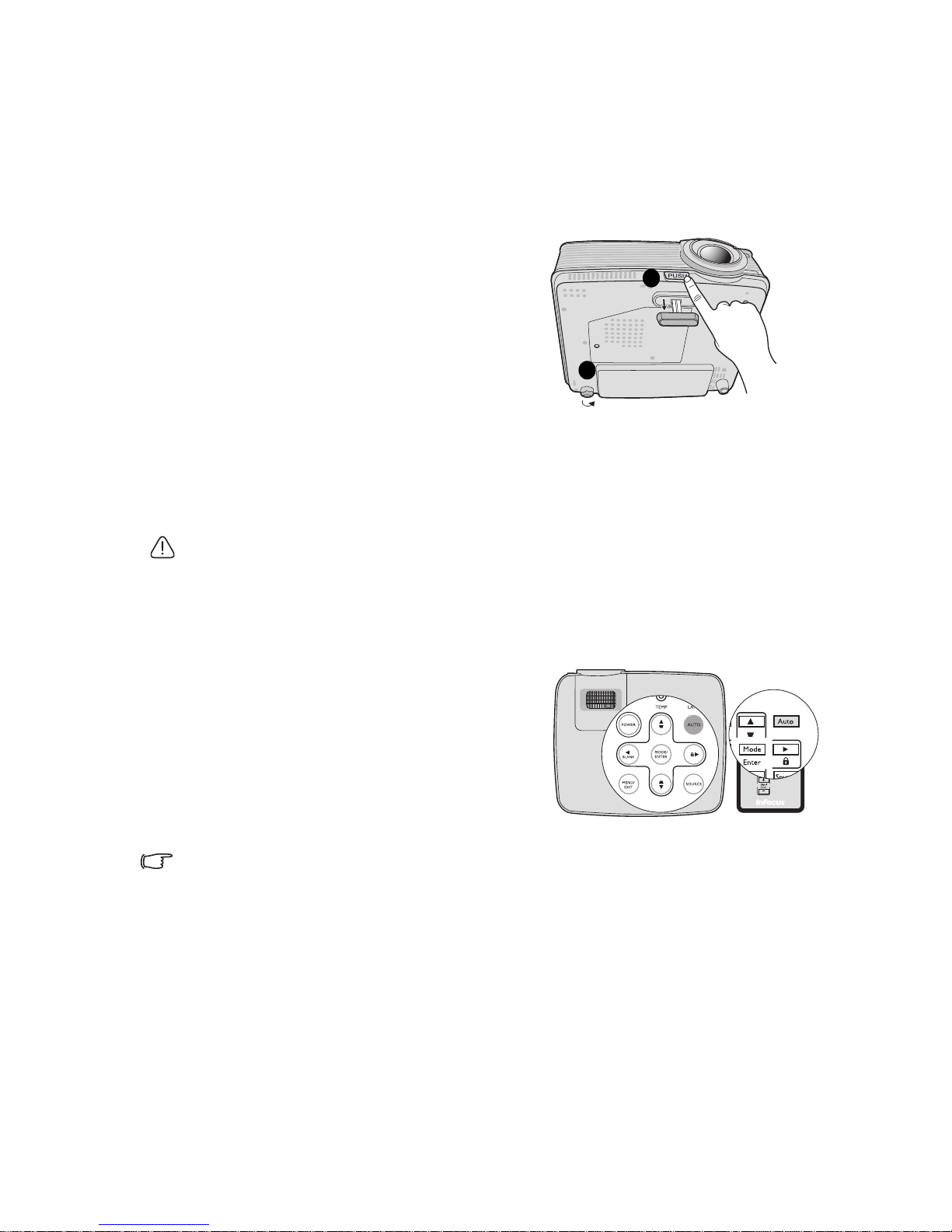

The projector is equipped with 1 quick-release adjuster foot and 1 rear adjuster foot. These adjusters change the image height and projection angle. To adjust the projector:

1. Press the quick-release button and lift the front of the projector. Once the image is positioned where you want it, release the quick-release button to lock the foot in position.

2. Screw the rear adjuster foot to fine tune the horizontal angle.

To retract the foot, hold up the projector while pressing the quick-release button, then slowly lower the projector. Screw the rear ad juster foot in a reverse direction.

If the projector is not placed on a flat surface o r the screen an d the projecto r are not perpendicular to each other, the projected image becomes trapezoidal. To correct this situation, see "Correcting keystone" on page 26 for details.

• Do not look into the lens while the lamp is on. The strong light from the lamp may cause

damage to your eyes.

• Be careful when you press the adjuster button as it is close to the exhaust vent where hot

air comes from.

Auto-adjusting the image

In some cases, you may need to optimize the picture quality. To do this, press AUTO on the projector or remote control. Within 3 seconds, the built-in Intelligent Auto Adjustment function will re-adjust the valu es of Frequency and Clock to provide the best picture quality.

The current source information will be displayed in the upper left corner of the screen for 3 seconds.

• The screen will be blank while AUTO is functioning.

• This function is only available when PC signal (analog RGB) is selected.

Operation26

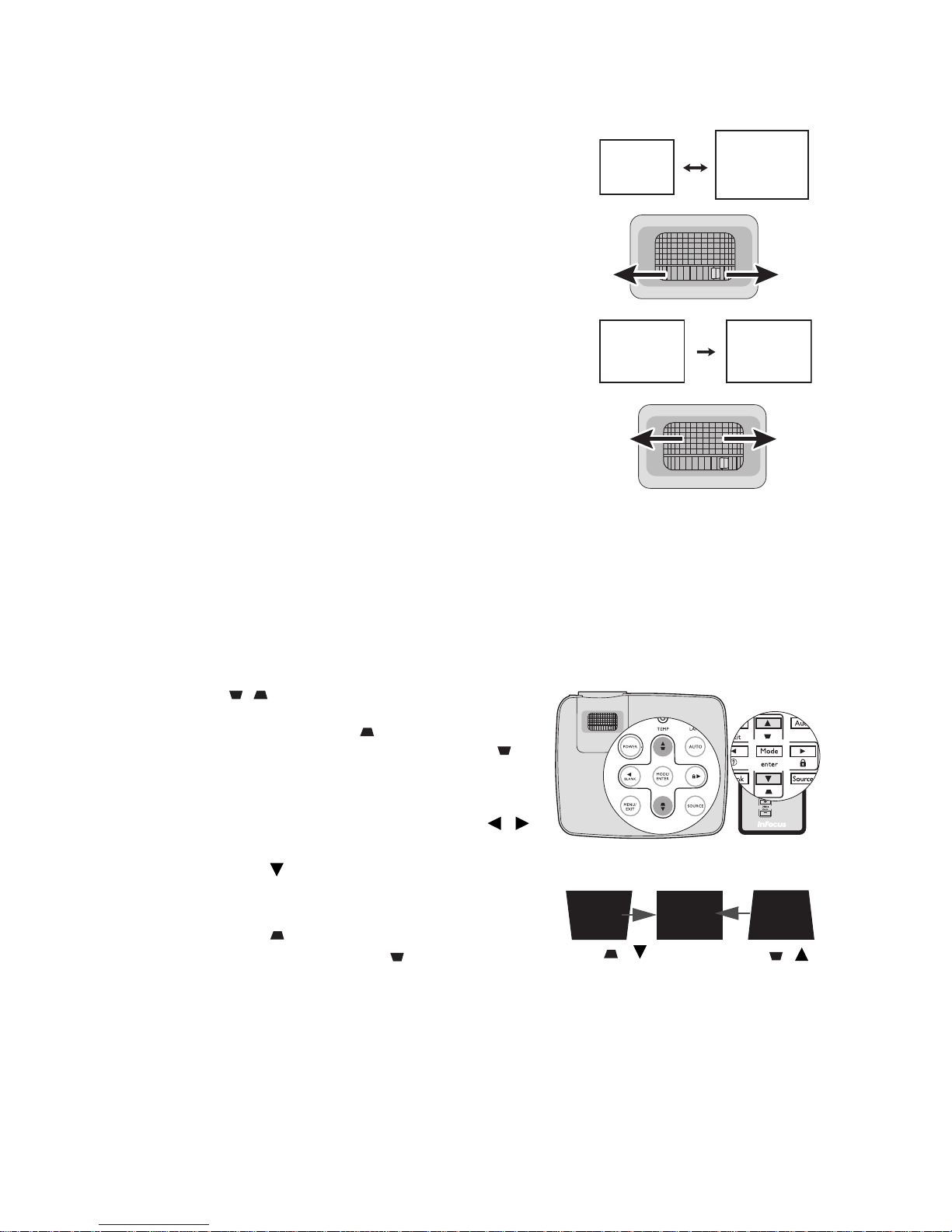

Fine-tuning the image size and clarity

1. Adjust the projected image to the size that you need using the zoom ring.

2. Then sharpen the image by rotating the focus ring.

Correcting keystone

Keystoning refers to the situation where the projected image is noticeably wider at either the top or bottom. It occurs when the projector is not perpendicular to the screen.

Besides adjusting the height of the projector, you may need to follow one of these steps:

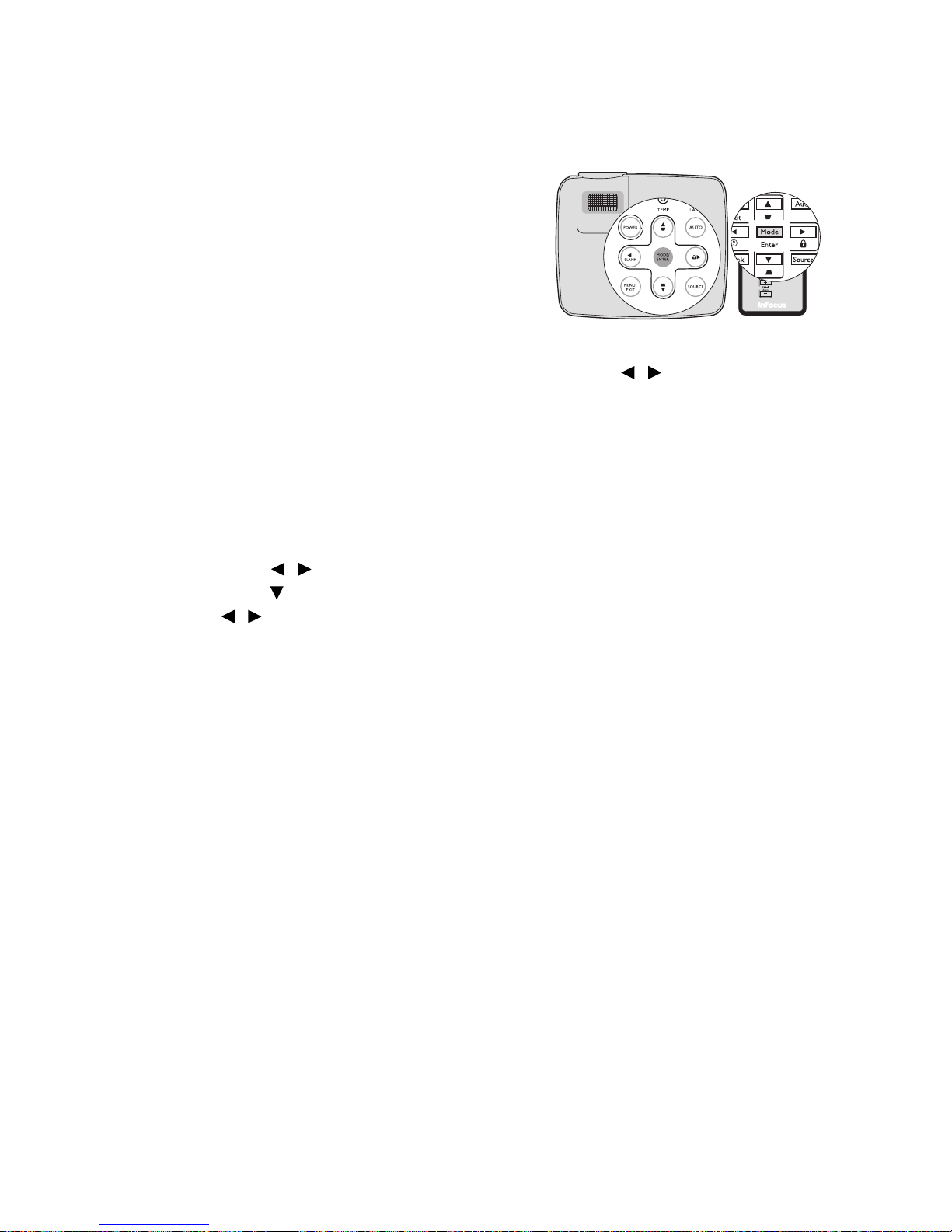

• Using the remote control

Press / on the projector control panel or remote control to display the Keystone correction page. Press to correct keystoning at the top of the image. Press to correct keystoning at the bottom of the image.

• Using the OSD menu

1. Press MENU/EXIT and then press / until the

DISPLAY menu is highlighted.

2. Press to highlight Keystone and press MODE/ENTER. The Keystone correction page displays.

3. Press to correct keystoning at the top of the image or press to correct keystoning at the bottom of the image.

Press /.

Operation 27

Magnifying and searching for details

If you need to look at specific details on the projected picture, magnify the picture. Use the direction arrow keys for navigating the pict ure.

• Using the remote control

1. Press Digital Zoom +/- to display the Zoom bar.

2. Press Digital Zoom + to magnify the center of the picture. Press the key repeatedly until the picture size is suitable for your need.

3. Use the directional arrows ( , , , ) on the projector or remote control to navigate the picture.

4. To restore the picture to its original size, press AUTO. You can also press Digital Zoom -. When the key is pressed again, the picture is further reduced until it is restored to the original size.

• Using the OSD menu

1. Press MENU/EXIT and then press / until the DISPLAY menu is highlighted.

2. Press

to highlight Digital Zoom and press MODE/ENTER. The Zoom bar

displays.

3. Repeat steps 2-4 in the section of "Using the remote control" above. Or if you are using the projector control panel, continue to the following steps.

4. Press on the projector repeatedly to magnify the picture to a desired size.

5. To navigate the picture, press MODE/ENTER to switch to the paning mode and press the directional arrows ( , , , ) to navigate the picture.

6. Use the directional arrows ( , , , ) on the projector or remote control to navigate the picture.

7. To reduce size of the picture, press MODE/ENTER to switch back to the zoom in/out functionality, and press AUTO to restore the picture to its original size.

You can also press repeatedly until it is restored to the original size.

The picture can only be navigated after the picture is magnified. You can further magnify the picture while searching for details.

Selecting the aspect ratio

The 'aspect ratio' is the ratio of the image width to the image height. Most analog TV and computers are in 4:3 ratio, which is the default for this projector, and digital TV and DVDs are usually in 16:9 ratio.

With the advent of digital signal processing, digital dis play devices like this proje ctor can dynamically stretch and scale the image out put to a different aspect tha n that of the image input signal.

To change the projected image ratio (no matter what aspect the source is):

1. Press MENU/EXIT and then press / until the DISPLAY menu is highlighted.

2. Press

to highlight Aspect Ratio.

Operation28

3. Press / to select an aspect ratio to suit the format of the video signal and your display requirements.

About the aspect ratio

In the pictures below, the black portions are inactive areas and the white portions are active areas. OSD menus can be displayed on those unused black areas.

1. Auto: Scales an image proportionally to fit the projector's native resolution in its horizontal width. This is suitable for the incoming image which is neither in 4:3 nor 16:9 and you want to make most use of the screen without altering the image's aspect ratio.

Real: The image is projected as its original

resolution, and resized to fit within the display area. For input signals with lower resolutions, the projected image will display smaller than if resized to full screen. You could adjust the zoom setting or move the projector towards the screen to increase the image size if necessary. You may also need to refocus the projector after making these adjustments.

3. 4:3: Scales an image so that it is displayed in the center of the screen with a 4:3 aspect ratio. This is most suitable for 4:3 images like computer monitors, standard definition TV and 4:3 aspect DVD movies, as it displays them without aspect alteration.

4. 16:9: Scales an image so that it is di splayed in the center of the screen with a 16:9 aspect ratio. This is most suitable for images which are already in a 16:9 aspect, like high definitio n TV, as it displays them without aspect alteration.

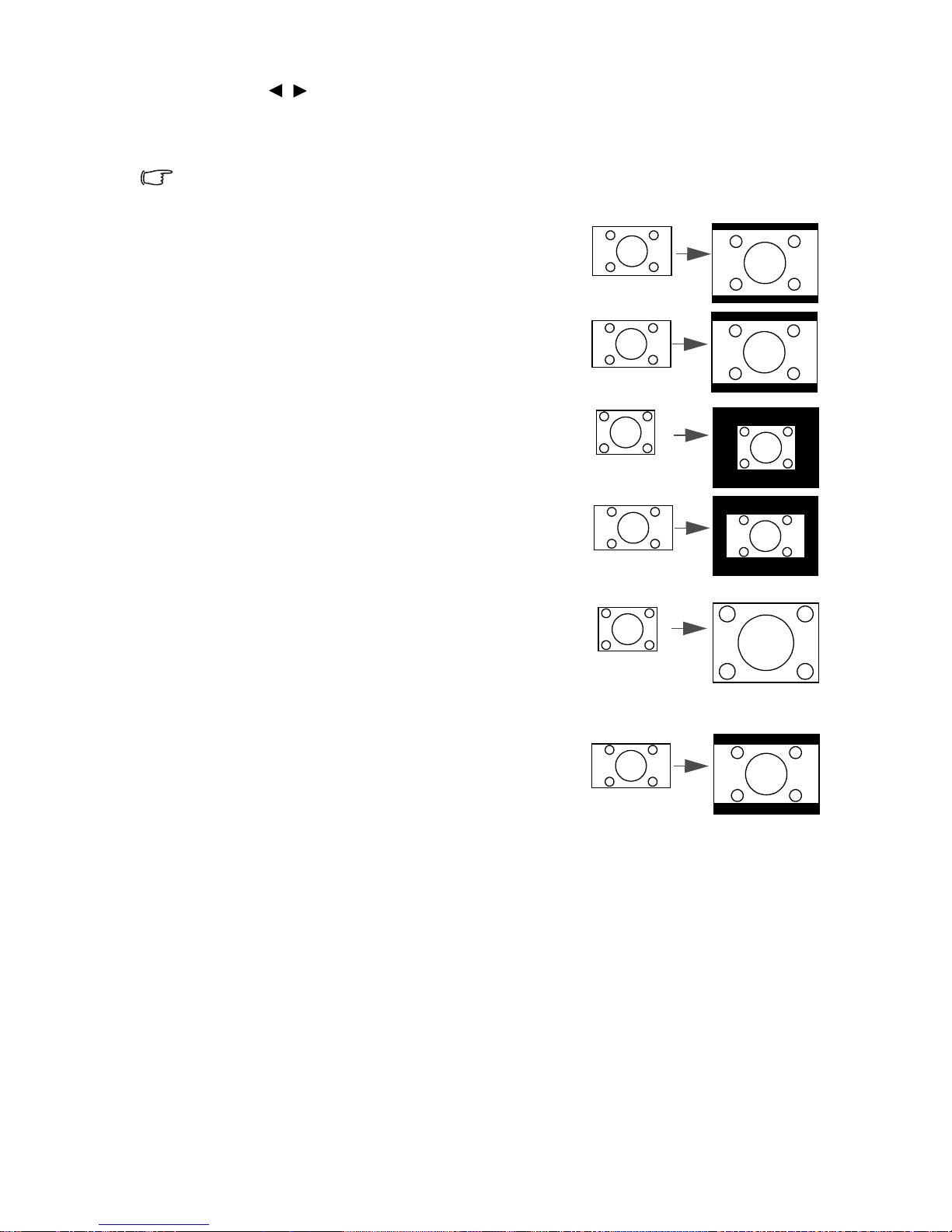

16:10 picture

15:9 picture

4:3 picture

16:9 picture

4:3 picture

16:9 picture

Operation 29

Optimizing the image

Selecting a picture mode

The projector is prese t wi th se ve ra l predefined picture modes so that you can choose one to suit your operating environment and input signal picture type.

To select an operation mode that suits your need, you can follow one of the following steps.

• Press MODE/ENTER on the remote

control or projector repeatedly until your de sired mode is selected.

• Go to the PICTURE > Preset Mode menu and press / to select a desired

mode.

Setting the User mode

There are two user-definable modes if the current available picture modes are not suitable for your need. You can use one of the pict ure modes (except the User) as a starting point and customize the setti ngs.

1. Press MENU/EXIT to open the On-Screen Display (OSD) menu.

2. Go to the PICTURE > Preset Mode menu.

3. Press / to select User.

4. Press to select a sub-menu item to be changed and adjust the value with

/ . See "Fine-tuning the image quality in user modes" below for details.

5. When all settings have been done, highl ig ht Save Settings and press MODE/ ENTER to store the settings.

6. The confirmation message 'Setting Saved' displays.

/OGOL

emaNledoM

aerA

35.0mm

mm0.54

Operation30

Using Wall Color

In the situation where you are projecting onto a colored surface such as a painted wall which may not be white, the Wall Color feature can help correct the projected picture’s color to prevent possible color difference between the source and projected pictures.

To use this function, go to the DISPLAY > Wall Color menu and press / to select a color which is the closest to the color of the projection surface. There are several precalibrated colors to choose from: Light Yellow, Pink, Light Green,

Blue, and Blackboard.

Fine-tuning the image quality in user modes

According to the detected signal type, there are some user-definable functions available when User mode is selected. You can make adjustments to these functions based on your needs.

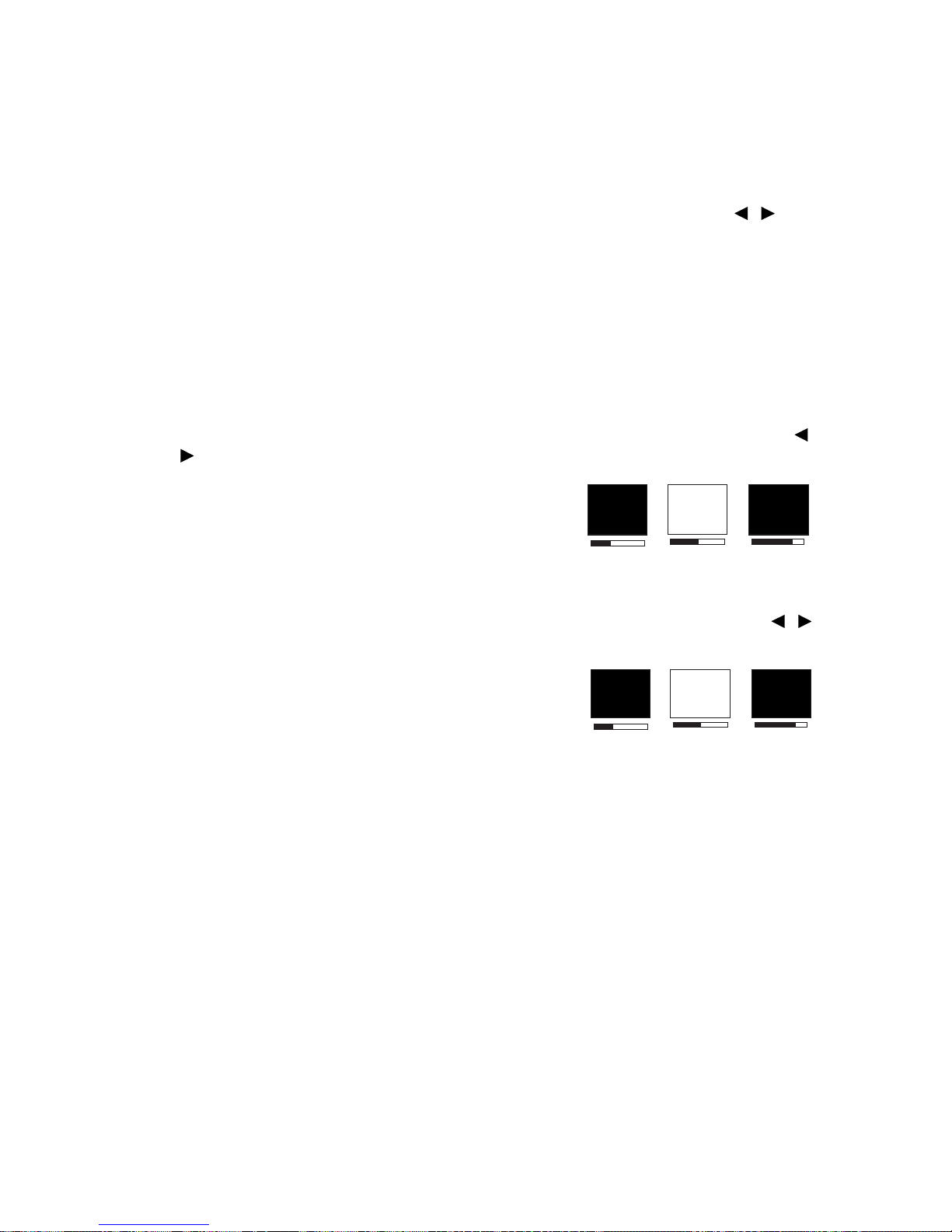

Adjusting Brightness

Highlight Brightness in the PICTURE menu and adjus t th e v al u es by pressing /

on the projector or remote control.

The higher the value, the brighter the image. Likewise, the lower the setting, the darker the image. Adjust this control so the bla ck areas of the image appear just as black and that detail in the dark areas is visible.

Adjusting Contrast

Highlight Contrast i n the PICTURE menu and adjust t he val ues by pressing / on the projector or remote control.

The higher the value, the great er the contrast. Use this to set the peak white level after you have previously adjusted the Brightness setting to suit your selected input and viewing environment.

+50

+30

+70

+30

-30

Operation 31

Adjusting Color

Highlight Color in the PICTURE menu and adjust the valu es by pres sing / on the projector or remote control.

Lower setting produces less saturated colors. If the setting is too high, colors on the image will be overpowering, which makes the image unrealistic.

Adjusting Tint

Highlight Tint in the PICTURE menu and adjust the values by pressing / on the projector or remote control.

The higher the value, the more reddish the picture becomes. The lower the value, the more greenish the picture becomes.

Adjusting Sharpness

Highlight Sharpness in the PICTURE menu and adjust the values by pressing /

on the projector or remote control.

The higher the value, the sharper the picture becomes. The lower the value, the softer the picture becomes.

Adjusting Brilliant Color

Highlight Brilliant Color in the PICTURE menu and select by pressing / on the projector or remote control.

This feature utilizes a new color-processing algorithm and system level enhancements to enable higher brightness while providing truer, more vibrant colors in picture. It enables a greater than 50% brightness increase in mid-tone images, which are common in video and natural scenes, so the projector reproduces images in realistic and true colors. If you prefer ima ges with that quality, select On. If you don’t need it, select Off.

On is the default and recommended selection for this project or. When Off is selected, the Color Temperature function is not available.

Selecting a Color Temperature

Highlight Color Temperature in the PICTURE menu and adjust the values by pressing / on the projector or remote control.

The options available for color temperature* settings vary according to the signal type selected.

1. T1: With the highest color temperature , T1 ma kes t he imag e appear t he mo st bluish white than other settings.

2. T2: Makes images appear bluish white.

3. T3: Maintains normal colorings for white.

4. T4: Makes images appear reddish white.

*About color temperatures:

There are many different shades that are considered to be "white" for various purposes. One of the common methods o f representi ng white co lor is known a s the “color temperature”. A white color with a low color temperature appears to be reddish white. A white color with a high color temperature appears to have more blue in it.

Operation32

3D Color Management

In most installation situations, color management will not be necessary, such as in classroom, meeting room, or lounge room situations where lights remain on, or where building external windows allow daylight into t he room.

Only in permanent installations with controlled lighting levels such as boardrooms, lecture theaters, or home theaters, should colo r management be considered. 3D Color Management provides fine color control adjustment to allow for more accurate color reproduction, should you require it.

Proper color management can only be achieved under controlled and reproducible viewing conditions. You will need to use a colorimeter (color light meter), and provide a set of suitable sour ce image s to measure color reprod uction. These t ools are not provided with the projector, however, your projec tor supplier shoul d be able to provide you with suitable guidance, or even an experienced professional installer.

3D Color Management provides six sets (RGBCMY) of colors to be adjusted. When you select each color, you can ind epen dently adj ust i ts ra nge a nd s atu ra tion according to your preference.

If you have purchased a test disc which contains various col or test patterns and can be used to test the color presentation on monitors, TVs, projectors, etc. You can project any image from the disc on the screen and enter the 3D Color Management menu to make adjustments.

To adjust the settings:

1. Go to the PICTURE menu and highlight 3D Color Management.

2. Press MODE/ENTER and the 3D Color Management page displays.

3. Highlight Primary Color and press / to select a color from among Red, Yellow, Green, Cyan, Blue, or Magenta.

4. Press to highlight Hue and press / to select its range. Increas e i n th e range will include colors consisted of more proportions of its two adjacent colors.

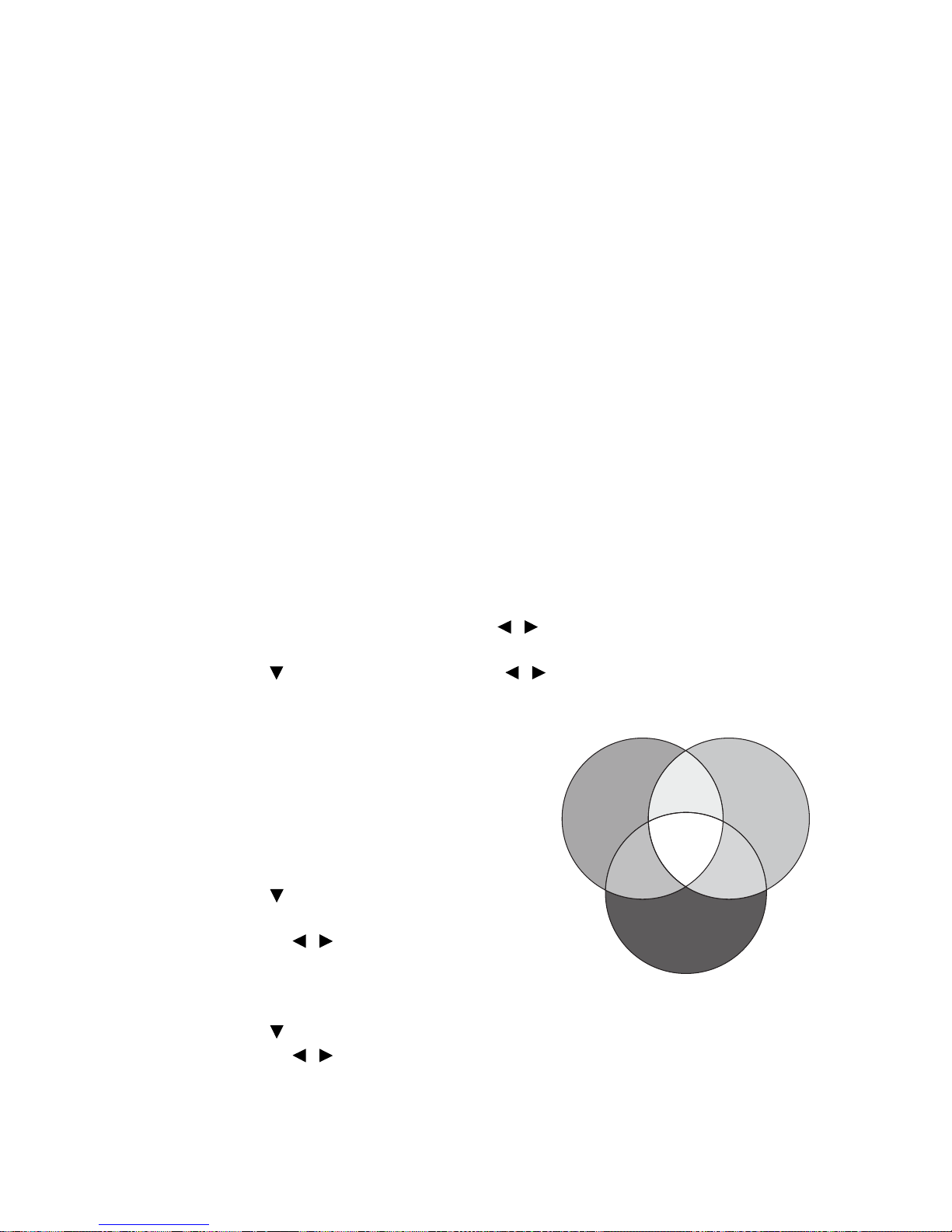

Please refer to the illustration to t he righ t for how the colors relate to each other.

For example, if you select Red and set its range at 0, only pure red in the projected picture will be selected. Increasing its range will include red close t o yellow and red close to magenta.

5. Press to highlight Saturation and adjust its values to your preference by

pressing / . Every adjustment made will reflect to the image immediately.

For example, if you select Red and set its value at 0, only the saturation of pure red will be affe cted.

6. Press to highlight Gain and adjust its values to your preference by pressing / . The contrast level of the primary color you select will be

affected. Every adjustment made will reflect to the image immediately.

7. Repeat steps 3 to 6 for other color adjustments.

8. Make sure you have made all of the desired adjustments.

RED

BLUE

GREEN

Yellow

Cyan

Magenta

Operation 33

9. Press MENU/EXIT to exit and save the settings.

Saturation is the amount of that color in a video picture. Lower settings produce less saturated colors; a setting of “0” removes that color from the image entirely. If the saturation is too high, that color will be overpowering and unrealistic.

Setting the presentation timer

The presentation timer can indicat e the prese ntation ti me on the screen to help you achieve better time management when giving presentations. Follow these steps to utilize this function:

1. Go to the SYSTEM SETUP: Basic >

Presentation Timer menu and press MODE/ENTER to display the Presentation Timer page.

2. Highlight Timer Period and decide the time period by pressing / . The length of time

can be set from 1 to 5 minutes in 1-minute increments and 5 to 240 minutes in 5-minute increments.

If the timer is already on, the timer will restart whenever the Timer Peri od is reset.

3. Press to highlight Timer Display and choose if you want the time r to sh ow up on the screen by press

ing / .

4. Press to highlight Timer Position and set the timer position by pressing

Top-Left Bottom-Left Top-Right Bottom-Right

5. Press to highlight Timer Counting Direction and select your desired counting direction by pressing / .

6. Press to highlight Sound Reminder and decide if you want to activate sound reminder by pressing / . If you select On, a double beep sound will

be heard at the last 30 seconds of counti ng d own /u p, a nd a tr ip le b eep s ound will be produced when the timer is up.

7. To activate the presentation timer, press and press / to highlight On and press MODE/ENTER.

8. A confirmation message displays. Highlight Yes and press MODE/ENTER to confirm. You will see the message “ Timer is On” displaying on the screen. The timer starts counting at the time the timer is on.

Selection Description

Always Displays the timer on screen throughout the presentation time. 1 min/2 min/3 min Displays the timer on screen in the last 1/2/3 minute(s). Never Hides the timer throughout the presentation time.

Selection Description

Count Up Increases from 0 to the preset time. Count Down Decreases from the preset time to 0.

Presentation Timer

Timer Display Timer Position Timer Counting Direction Sound Reminder

Always

Top-Left

Count Down

Off

On Off

MENU Back

Timer Period

Operation34

To cancel the timer, perform the following steps.

1. Enter the SYSTEM SETUP: Basic > Presenta tion Timer menu and hig hlight Off. Press MODE/ENTER. A confirmation message displays.

2. Highlight Yes and press MODE/ENTER to confirm. You will see the message “Timer is Off” displaying on the screen.

Hiding the image

In order to draw the audience's full attention to the presenter, you can use BLANK on the projector or remote control to hide the screen image. Press any key on the projector or remote control to restore the image. The word 'BLANK' appears at the lower right corner of the screen while the image is hidden.

You can set the blank time in the

SYSTEM

SETUP: Basic > Blank Timer

menu to let the projector return the image

automatically after a period of time when there is no action taken on the blank screen.

Once BLANK is pressed, the projector enters Economic mode automatically. CAUTION

Do not block the projection lens from projecting as this could cause the blocking object to become heated and deformed or even cause a fire.

Locking control keys

With the control keys on the projector locked, you can prevent your projector settings from being changed accidentally (by children, for example). When the

Panel Key Lock is on, no control keys on the projector will operate except

POWER.

1. Press / on the projector or remote control or go to the

SYSTEM SETUP:

Basic > Panel Key Lock menu

, and

select On by pressing / on the projector or remote control.

2. A confirmation message displays. Select Yes to confirm.

To release panel key loc k, press and ho ld / for 3 seconds on the projector or remote control.

You can also use the remote control to enter the SYSTEM SETUP: Basic > Panel Key Lock and press / to select Off.

• Keys on the remote control are still in use when panel key lock is ena bled.

• If you press POWER to turn off the projector without disabling panel key lock, the

projector will still be in locked status the next time it is turned on.

/OGOL

emaNledoM

aerA

35.0mm

mm0.54

Operation 35

Freezing the image

Press on the remote control to freeze the image. The word 'FREEZE' will display in the upper left corner of the screen. To release the function, press any key on the projector or remote control.

Even if an image is frozen on the screen, the pictures are running on the video or other device. If the connected devices have active audio output, you will still hear the audio even though the image is frozen on screen.

Operating in a high altitude environment

We recommend you use the High Altitude Mode when your environment is between 1500 m–3000 m (4921'– 9843') above sea level, and temperature is between 0°C–35°C (32°F–95°F).

CAUTION Do not use the High Altitude Mode if your altitude is between 0 m (0') and 1500 m (4921') and

temperature is between 0°C (32°F) and 35°C (95°F). The projector will be over cooled, if you turn the mode on under a such condition.

To activate the High Altitude Mode:

1. Press MENU/EXIT and then press / until the SYSTEM SETUP: Advanced menu is highlighted.

2. Press to highlight High Altitude Mode and press / to select On. A

confirmation message displays.

3. Highlight Yes and press MODE/ENTER.

Operation under "High Alti tude Mode" may cause a higher deci bel operating nois e level because of increased fan speed nece ssary to improve overall system cooling and performance.

If you use this projector under other extreme con ditions exclu ding the above, it ma y display auto shut-down symptoms, which is designed to protect your proj ector from over-heating. In cases like this, you should switch to High Altitude Mode to solve these symptoms. However, this is not to state that this projecto r can operate under any and all harsh or extreme conditions.

Adjusting the sound

The sound adjustments made as below will have an effect on the proj ector speaker. Be sure you have made a correct connection to the projector audio input. See

"Connection" on page 13 for how the audio input is connected.

Muting the sound

To temporarily turn off the sound:

1. Press MENU/EXIT and then press / until the SYSTEM SETUP: Advanced menu is highlighted.

2. Press to highlight Audio Setting s and press MODE/ENTER. The Audio Settings page displays.

We recommend you use the High Altitude Mode by selecting it whenever your environment is higher than 1500 m.

Do you want to turn the High Altitude Mode on?

Yes

WARNING

Operation36

3. Highlight Mute and press / to select On.

Adjusting the sound level

To adjust the sound level:

1. Repeat steps 1-2 above.

2. Press to highlight Volume and press / to select a desired sound level.

Personalizing the projector menu display

The On-Screen Display (OSD) menus can be set according to your preferences. The following settings do not affect the projection settings, operation, or performance.

• Menu display time in the SYSTEM SETUP: Advanced > Menu Settings

menu sets the length of time the OSD will remain active after your last key press. The time length ranges from 5 to 30 seconds in 5-second increments.

Use / to select a suitable time frame.

• Menu position in the SYSTEM SETUP: Advanced > Menu Settings menu

sets the OSD position in five locations . Use / to select a preferred positio n.

• Language in the SYSTEM SET UP: Basi c menu sets your famili ar language for

the OSD menus. Use / to select your language.

• Splash Screen in the SYSTEM SETUP: Basic menu sets a preferred logo

screen to be displayed during projector start-up. Use / to select a screen.

Shutting down the projector

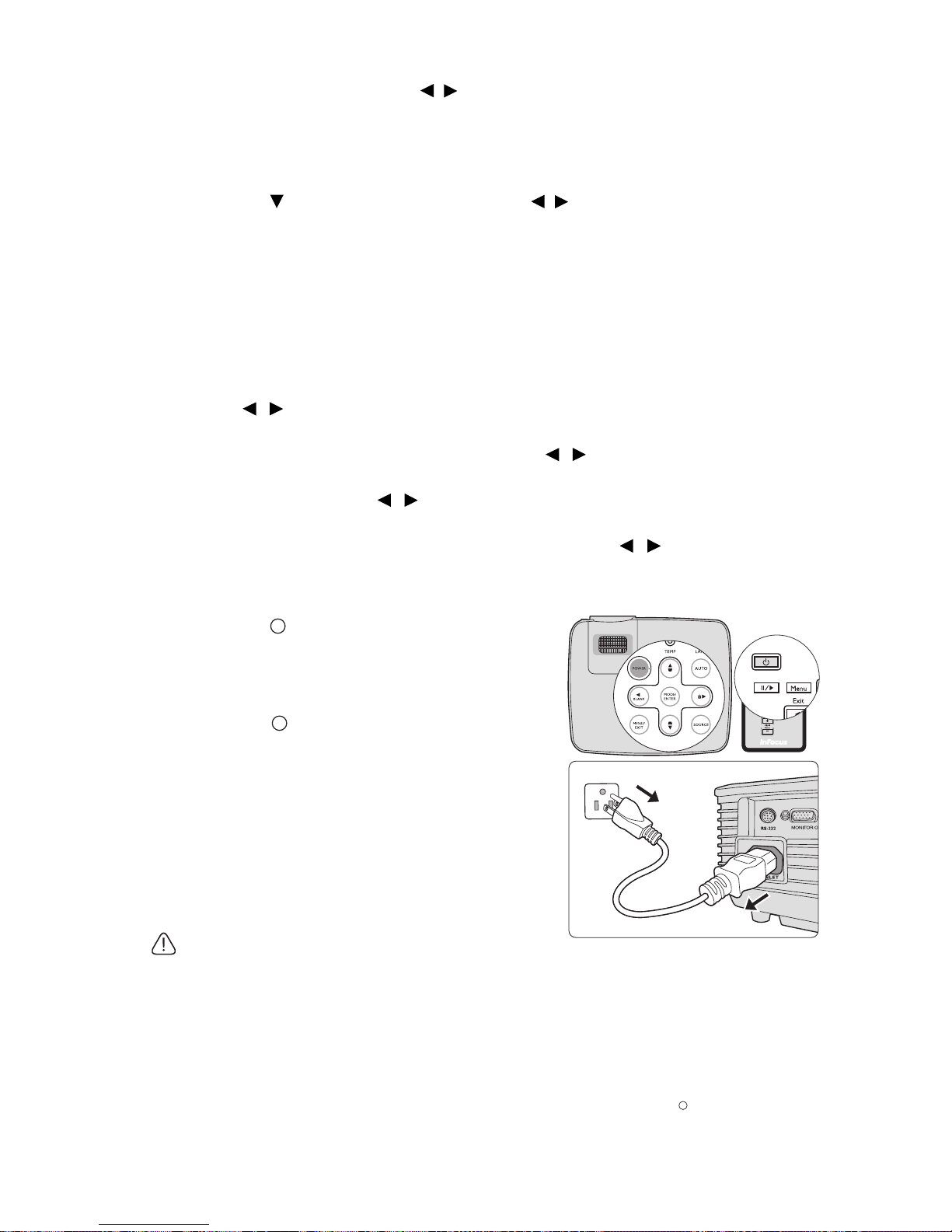

1. Press POWER and a confirmation message displays prompting you.

If you don't respond in a few seconds, the message will disappear.

2. Press POWER a second time. The POWER indicator light flashes orange, the projection lamp shuts down, and the fans will continue to run for approximately 90 seconds to cool down the projector.

3. The POWER indicator light is a steady orange and fans stop.

4. Disconnect the power cord from the wall socket if the projector will not be used for an extended period of time.

CAUTION

• To protect the lamp, the projector will not respond to any commands during the cooling

process.

• T o shorten the cooling time, you can also activate the Quick Cooling function. See "Quick

Cooling" on page 42 for details.

• Do not unplug the power cord before the projector shutdown sequence is complete or

during the 90-second cooling down process.

• If the projector is not properly shut down, to protect the lamp, when you attempt to re-st art

the projector, the fans will run for a few minutes to cool down. Press POWER again to start the projector after the fans stop and the POWER indicator light turns orange.

Operation 37

Menu operation

Menu system

Please note that the on-screen display (OSD) menus vary according to the signal type selected.

The menu items are available when the projector detects at least one valid signal. If there is no equipment connected to the pro jector or no signal detected, limite d menu items are accessible.

Main menu Sub-menu Options

DISPLAY

Wall Color

Off/Light Yellow/Pink/Light Green/Blue/Blackboard

Aspect Ratio Auto/Real/4:3/16:9 Keystone Position Phase H. Size Digital Zoom 3D Sync On/Off 3D Sync Invert Disable/Invert


Preset Mode

Presentation/Video/Bright/Whiteboard/

Blackboard/Beige Wall/User Brightness Contrast Color Tint Sharpness Brilliant Color On/Off Color Temperature T1/T2/T3/T4

3D Color Management

Primary Color R/G/B/Y/C/M

Hue

Saturation

Gain Save Settings

3. SOURCE

Quick Auto Search On/Off

4. SYSTEM SETUP: Basic

Presentation Timer

Timer Period 1~240 minutes

Timer Display Always/1 min/2 min/3 min/Never

Timer Position

Bottom-right/Top-right/Bottomleft/Top-left

Timer Counting

Direction

Count Down/Count Up

Sound Reminder On/Off

On/Off

Operation38

4. SYSTEM SETUP: Basic

Language

Projector Position

Front Table/Rear Table/Rear Ceiling/Front Ceiling

Auto Power Off

Disable/5 min/10 min/15 min/20

min/25 min/30 min

Blank Timer

Disable/5 min/10 min/15 min/20

min/25 min/30 min

Panel Key Lock On/Off Timer Controller

Disable/30 min/1 hr/2 hr/3 hr/4

hr/8 hr/12 hr

Splash Screen Black/Blue/InFocus

5. SYSTEM SETUP: Advanced

Quick Cooling On/Off High Altitude Mode On/Off

Audio Settings

Mute On/Off

Volume

Menu Settings

Menu display

time

5 sec/10 sec/15 sec/20 sec/25 sec/30 sec

Menu position

Center/Top-left/Top-right/Bottomright/Bottom-left

Closed Caption

Enable

On/Off

Caption Version CC1/CC2/CC3/CC4 VGA Out On/Off

Lamp Settings

Lamp mode Normal/Economic

Reset lamp timer

Equivalent lamp hour Security

Settings

Change password

Power on lock On/Off Reset All Settings

INFORMATION

Current System Status

• Source

• Preset Mode

• Resolution

• Color System

• Equivalent Lamp Hour

Operation 39

Description of each menu

FUNCTION DESCRIPTION

Wall Color

Corrects the projected picture’s color when the projection surface is not white. See "Using Wall Color" on page 30 for details.

Aspect Ratio

There are four options to set the image's aspect ratio depending on your input signal source. See "Selecting the

aspect ratio" on page 27 for details.

Keystone

Corrects any keystoning of the image. See "Correcting

keystone" on page 26 for details.

Position

Displays the position adjustment page. To move the projected image, use the directional arrow keys. Th e values shown on the lower position of the page change with every key press you made until they reach their maximum or minimum.

Phase

Adjusts the clock phase to reduce image distortion.

The function is only available when a PC signal (analog RGB) is selected.

H. Size

Adjusts the horizontal width of the image.

The function is only available when a PC signal (analog RGB) is selected.

Digital Zoom

Magnifies or reduces the projected image. See "Magnif ying and

searching for details" on page 27 for details.

3D Sync

This projector features a 3D function which enables you to enjoy 3D movies, videos, and sport ing events in a more realistic way by presenting the depth of the i mages. You need t o wear a pair of 3D glasses to view the 3D images.

• For a PC type signal: When the vertical frequency is 120Hz, and the content being

projected is made with 3D technology, selecti ng On will present the 3D images.

• For a video type signal: When the content being projected is made with 3D technology,

selecting On will present the 3D images.

When the 3D Sync function is on:

•The brightness level of the projected image will decrease.

•The Preset Mode cannot be adjusted.

•The Keystone can only be adjusted within limited degrees.

•The Digital Zoom can only magnify the pictures to limited sizes.

3D Sync Invert

When you discover the inversion of the image depth, enable this function to correct the problem.

1. DISPLAY menu

Operation40

FUNCTION DESCRIPTION

Preset Mode

Pre-defined picture modes are provided so you can optimize your projector image set-up to suit your program type. See

"Selecting a picture mode" on page 29 for details.

Brightness

Adjusts the brightness of the i mage. See "Adjusting Bright ness"

on page 30 for details.

Contrast

Adjusts the degree of difference between dark and light in the image. See "Adjusting Contrast" on page 30 for details.

Color

Adjusts the color saturation level -- the amount of each color in a video image. See "Adjusting Color" on page 31 for details.

Tint

Adjusts the red and green color tones of the image. See

"Adjusting Tint" on page 31 for details.

The function is only available when Video or S-Video with NTSC system is selected.

Sharpness

Adjusts the image to make it look sharper or softer. See

"Adjusting Sharpness" on page 31 for details.

Brilliant Color

Adjusts white peaking while maintaining correct color presentation. See "Adjusting Brilliant Color" on page 31 for details.

Color Temperature

See "Selecting a Color Temperature" on page 31 for details.

3D Color Management

See "3D Color Management" on page 32 for details.

Save Settings

Saves the settings made for User mode.

Quick Auto Search

See "Switching input signal" on page 24 for details.

2. PICTURE menu

3. SOURCE

Operation 41

FUNCTION DESCRIPTION

Presentation Timer

Reminds the presenter to finish the presentation within a certain time frame. See "Setting the presentation timer" on

page 33 for details.

Language

Sets the language for the On-Screen Display (OSD) menus. See "Using the menus" on page 21 for details.

Projector Position

The projector can be installed on a ceiling or behind a screen. See "Choosing a location" on page 9 for details.

Auto Power Off

Allows the projector to tu rn of f aut omati cal ly if no in put si gna l i s detected after a set period of time. See "Setting Auto Power

Off" on page 45 for details.

Blank Timer

Sets the image blank time when the Blank feature is activated, once elapsed the image will return to the screen. See "Hiding

the image" on page 34 for details.

Panel Key Lock

Disables or enables all panel key functions except POWER on the projector and keys on the remote control. See "Locking

control keys" on page 34 for details.

Timer Controller

Sets the auto-shutdown timer. The timer can be set to a value between 30 minutes and 12 hours.

Splash Screen

Allows you to select which logo screen will display during projector start-up. Three options are available: InFocus logo, Black screen, or Blue screen.

4. SYSTEM SETUP: Basic

Operation42

FUNCTION DESCRIPTION

Quick Cooling

Selecting On enables the function and the projector cooling time will be shortened to a few seconds.

If you attempt to restart the projector right after the quick cooling process, it may not be turned on successfully and will rerun its cooling fans.

High Altitude Mode

A mode for operation in high alti tude areas. See "Operat ing in a

high altitude environment" on page 35 for details.

Audio Settings

Mute Volume

See "Adjusting the sound" on page 35 for details.

Menu Settings

Menu display time

Sets the length of time the OSD wil l remain active af ter your last key press. The range is from 5 to 30 seconds in 5-second increments.

Menu position

Sets the On-Screen Display (OSD) menu position.

Closed Caption

Closed Caption Enable

Activates the function by selectin g On when the selected input signal carries closed captions.

• Captions: An on-screen display of the dialogue, narration, and sound effects of TV programs and videos that are closed captioned (usually marked as "CC" in TV listings).

Caption Version

Selects a preferred closed captioning mode. To view captions, select CC1, CC2, CC3, or CC4 (CC1 displays captions in the primary language in your area).

5. SYSTEM SETUP: Advanced menu

Operation 43

FUNCTION DESCRIPTION

VGA Out

Selecting On enables the function. The projector can output a VGA signal when it is in standby mode and the D-SUB IN and D-SUB OUT sockets are correctly connect ed to devices. See

"Connecting a monitor" on page 15 for how to make the

connection.

Enabling this function slightly increases the standby power consumption.

Lamp Settings

Lamp mode

See "Setting Lamp mode as Economic" on page 45 for details.

Reset lamp timer

See "Resetting the lamp timer" on page 49 for details.

Equivalent lamp hour

ee "Getting to know the lamp hour" on page 45 for detai ls

on how the total lamp hour is calculated.

Security Settings

Change password

You will be asked to enter the current password before changing to a new one.

Power on lock

See "Utilizing the password function" on page 22 for details.

Reset All Settings

Returns all settings to the factory preset values.

The following settings will still remain: Position, Phase, H. Size, User, Language, Projector Position, High Altitude Mode, Security Settings.

Current System Status

Source

Shows the current signal source.

Preset Mode Shows the selected mode in the PICTURE menu.

Resolution

Shows the native resolution of the input signal.

Color System

Shows input system format, NTSC, PAL, SECAM, or RGB.

Equivalent Lamp Hour

Displays the number of hours the lamp has been used.

5. SYSTEM SETUP: Advanced menu

6. INFORMATION menu

Maintenance44

Maintenance

Care of the projector

Your projector needs little maintenance. The only thing you need to do on a regul ar basis is to keep the lens clean.

Never remove any parts of the projector except the lamp. If your projector needs service, contact InFocus Corporation (www.infocus.com/support) or your dealer f or assistance.

Cleaning the lens

Clean the lens whenever you notice dirt or dust on the surface.

• Use a canister of compressed air to remove dust.

• If there is dirt or smears, use lens-cleaning paper or moisten a soft cloth with lens cleaner and gently wipe the lens surface.

CAUTION Never rub the lens with abrasive materials.

Cleaning the projector case

Before you clean the case, turn the projector off using the proper shutdown procedure as described in "Shutting down the projector" on page 36 and unplug t he power cord.

• To remove dirt or dust, wipe the case with a soft, lint-free cloth.

• To remove stubborn dirt or stains, moisten a soft cloth with water and a neutral pH detergent. Then wipe the case.

CAUTION Never use wax, alcohol, benzene, thinner or other chemical detergents. These can damage the

case.

Storing the projector

If you need to store the projector for an extended time, please follow the instructions below:

• Make sure the temperature and humidity of the storage area are within the recommended range for the projector. Please refer to "Specifications" on page

52 or consult your dealer about the range.

• Retract the adjuster feet.

• Remove the battery from the remote control.

• Pack the projector in its original packing or equivalent.

Transporting the projector

It is recommended that you ship the projector wit h its origin al packi ng or equivalent .

Maintenance 45

Lamp information

Getting to know the lamp hour

When the projector is in operation, the duration (in hours) of lamp usage is automatically calculated by the built-in ti mer. The timer displays lamp hours used in Normal mode, plus equivalent Economic mode hours. Equivalent Economic mode hours are calculated as follows:

1 lamp hour (in Normal mode) = 1.33 lamp hours (in Economic mode)

See "Setting Lamp mode as Economic" below for more information on Economic mode.

To obtain the lamp hour information:

1. Press MENU/EXIT and then press / until the SYSTEM SETUP:

Advanced menu is highlighted.

2. Press to highlight Lamp Settings and press MODE/ENTER. The Lamp

Settings page displays.

3. You will see the Equivalent lamp hour information displaying on the menu.

4. To leave the menu, press MENU/EXIT.

You can also get the lamp hour information on the INFORMATION menu.

Extending lamp life

The projection lamp is a consumable item. To keep the lamp life as long as possible, you can do the following settings via the OSD menu.

Setting Lamp mode as Economic

Using Economic mode reduces system noise and power consumption by 20%. If the Economic mode is selected, the light output will be reduced and result in darker projected pictures.

Setting the projector in Economic mode also extends the lamp operation life. To set Economic mode, go int o the SYSTEM SETUP: Advanced > Lamp Settings >

Lamp mode menu and press / .

Setting Auto Power Off

This function allows the projector to turn off automatically if no input source is detected after a set period of time to prevent unnecessary waste of lamp life.

To set Auto Power Off, go into the SYSTEM SETUP: Basic > Auto Power Off menu and press / . The time period can be set from 5 to 30 minute s in 5-minute

increments. If the preset time lengths are not suitable for your presentation, select Disable. The projector will not automatically shut down in a certain time period.

Maintenance46

Timing of replacing the lamp

When the Lamp indicator lights up red or a message appears su ggesting it i s time to replace the lamp, please install a new lamp or consult your dealer. An old lamp may cause a malfunction in the projector and in some instances the lamp may explode.

CAUTION The Lamp indicator light and Temperature warning light will light up if the lamp becomes too

hot. Tu rn the power off and let the projector cool for 45 minutes. If the Lamp or Temp indicator still lights up after turni ng the power back on, please contact your dealer. See "Indicators" on

page 50 for details.

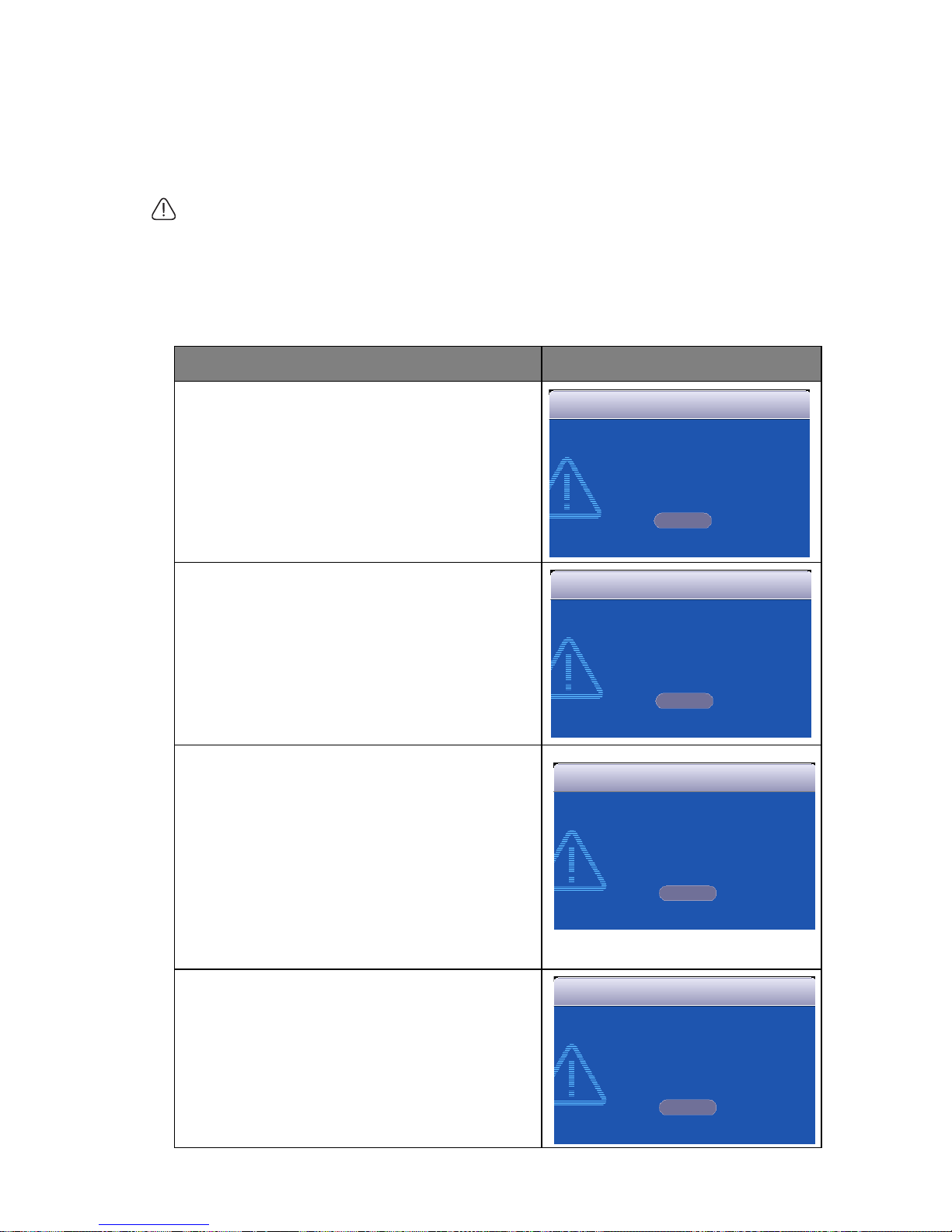

The following lamp warning displays will remind you to change the lamp.

Status Message

The lamp has been in operation for 3500 hours. Install a new lamp for optimal performance. If the projector is normally run with Economic selected (See "Setting Lamp

mode as Economic" on page 45), you may

continue to operate the projector until the 3950 hour lamp warning appears.

The lamp has been in operation for 3950 hours. A new lamp should be fitted to avoid the inconvenience when the projector runs out of lamp time.

The lamp has been in operation for 4000 hours.

It is strongly recommended that you replace the lamp at this age. The lamp is a consumable item. The lamp brightness diminishes with use. This is normal lamp behavior. You can replace the lamp whenever you notice that the brightness level has significantly diminished. If the lamp is not replaced beforehand, it must be replaced after 4000 hours usage.

The lamp MUST be replaced before the projector will operate normally.

Order Replacement Lamp

Lamp > 3500 Hours

Notice

Replace Lamp Soon

Lamp > 3950 Hours

Notice

Replace Lamp Now

Lamp > 4000 Hours Lamp usage time exceeded

Notice

Lamp-usage time exceeded

Replace lamp (refer to Reference Guide) Then reset lamp timer

Notice

Maintenance 47

Replacing the lamp

WARNING

Hg - Lamp contains mercury. Manage in accordance with local disposal laws. See www.lamprecycle.org

• To reduce the risk of electrical shock, always turn the projector off and disconnect the power cord before changing the lamp.

• To reduce the risk of severe burns, allow the projector to cool for at least 45 minutes before replacing the lamp.

• To reduce the risk of injuries to fingers and damage to internal components, use caution when removing lamp glass that has shattered into sharp pieces. Before replacing the lamp, clean the lamp compartment and dispose of cleaning materials. Be careful of sharp edges in the lamp compartment. Wash hands after lamp replacement.

• Only InFocus certified lamps are tested with this projector. Use of other lamps may cause electrical shock and fire.

1. Turn the power off and disconnect

the projector from the wall socket. If the lamp is hot, avoid burns by waiting for approximately 45 minutes until the lamp has cooled.

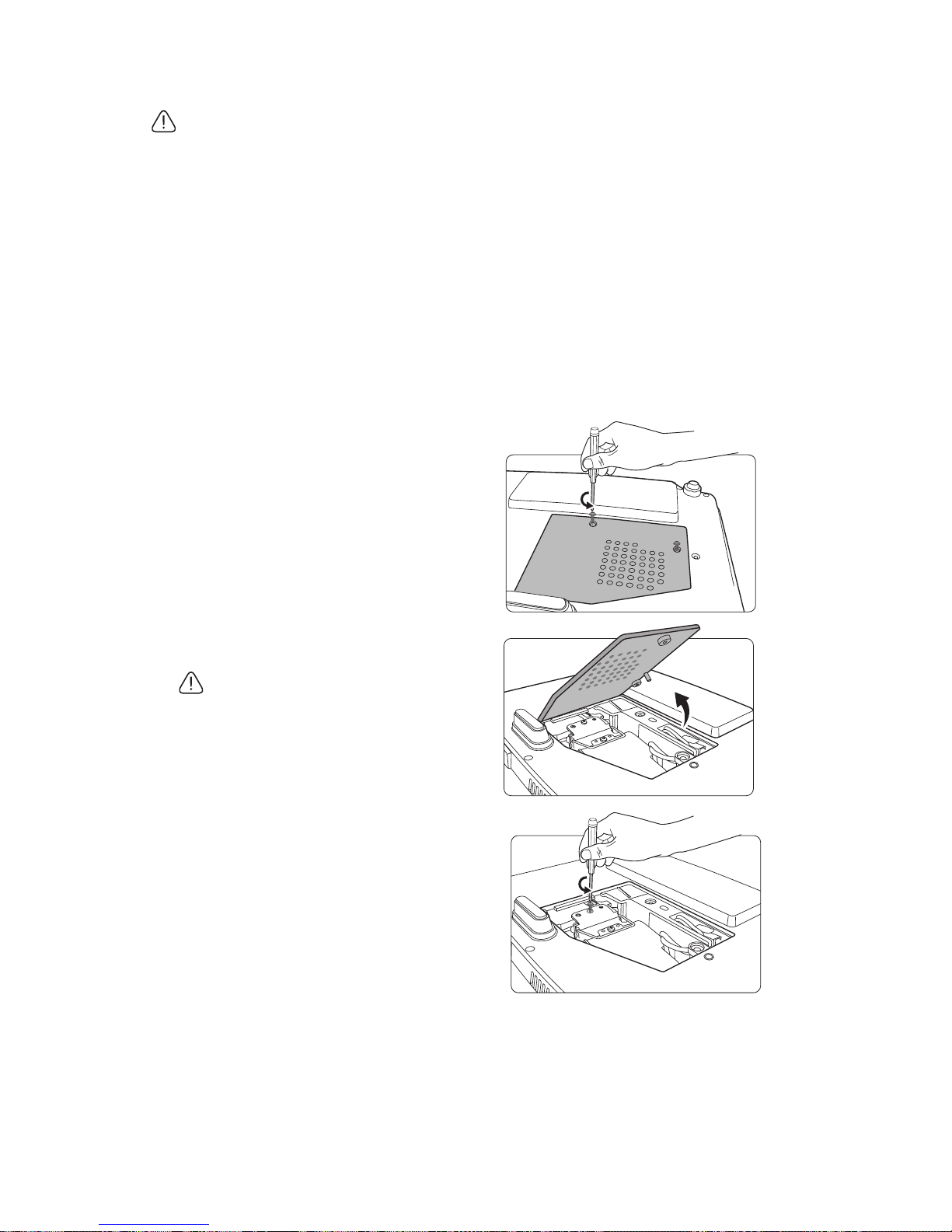

2. Turn the projector over. Then

loosen the screws on the lamp cover.

3. Remove the lamp cover from the

projector.

WARNING

• Do not turn the power on with the lamp cover removed.

• Do not insert your fingers between the lamp and the projector. The sharp edges inside the projector may cause injuries.

4. Loosen the screw that secures the

lamp.

Maintenance48

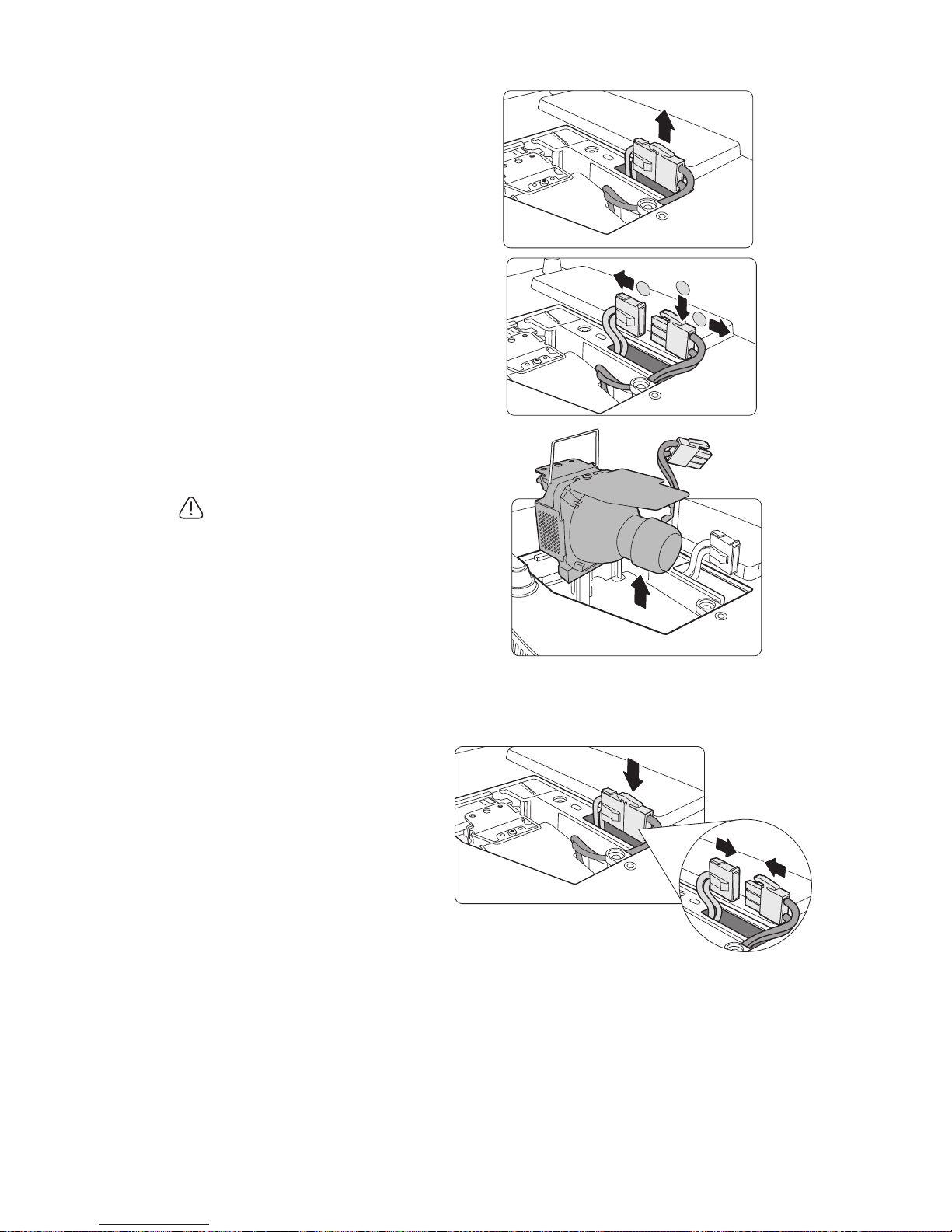

5. Pull out the lamp connector from a

slot in the lamp compartment. Disconnect it from the projector as illustrated.

6. Lift the handle so that it stands up.

Use the handle to slowly pull the lamp out of the projector.

CAUTION

• Pulling it too quickly may cause the lamp to break and scatter broken glass in the projector.

• Do not place the lamp in locations where water might splash on it, children can reach it, or near flammable materials.

• Do not insert your hands into the projector after the lamp is removed. If you touch the optical components inside, it could cause color unevenness and distortion of the projected images.

7. Insert the new lamp into the

lamp compartment and make sure it fits in the projector.

8. Reconnect the lamp

connector and place it back into its slot to be flush with the projector.

Maintenance 49

13. Restart the projector.

CAUTION

Do not turn the power on with the lamp cover removed.

Resetting the lamp timer

14. After the startup logo, open the On-

Screen Display (OSD) menu. Go to the

SYSTEM SETUP: Advanced > Lamp Settings menu. Press MODE/ENTER.

The Lamp Settings page displays. Press to highlight Reset lamp timer and press MODE/ENTER. A warning message displays asking if you want to reset the lamp timer. Highlight Reset and press MODE/ENTER. The lamp time will be reset to '0'.

CAUTION

Do not reset if the lamp is not new or replaced as this could cause damage.

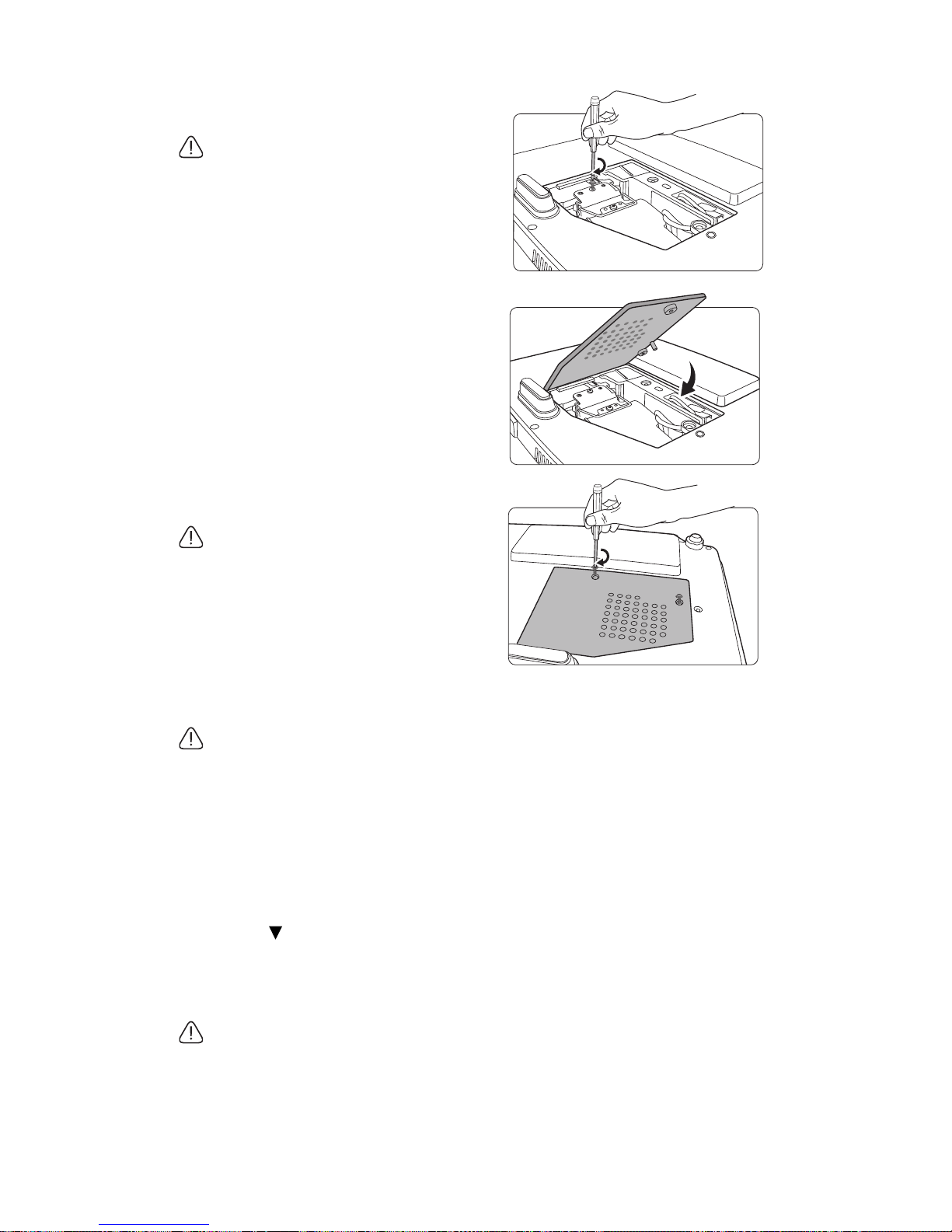

9. Tighten the screw that secures the

lamp.

CAUTION

• Loose screw may cause a bad connection, which could result in malfunction.

• Do not over tighten the screw.

10. Ensure the handle is fully laid flat

and locked in place.

11. Replace the lamp cover on the

projector.

12. Tighten the screws that secure the

lamp cover.

CAUTION

• Loose screw may cause a bad connection, which could result in malfunction.

• Do not over tighten the screws.

Reset Lamp Timer?

Reset

Cancel

Notice

Maintenance50

Indicators

Light Status & Description Power Temp Lamp Power events

Orange Orange Orange

The projector has just been connected to a power outlet.

Orange Off Off

Stand-by mode

Green

Flashing

Off Off

Powering up

Green Off Off

Normal operation

Orange

Flashing

Off Off

1. The projector needs 90 seconds t o cool down as it was abnormally shut down without the normal cooling down process. Or

2. The projector needs to cool for 90 seconds after the power is turned off.

Orange

Flashing

Off Off

The projector has shutdown automatically. If you try to re-start the projector, it will shutdown again. Please contact your dealer for assistance.

Lamp events

Orange

Flashing

Off Red

The projector has shutdown automatically. If you try to re-start the projector, it will shutdown again. Please contact your dealer for assistance.

Off Off Red

1. The projector needs 90 seconds to cool down. Or

2. Please contact your dealer for assistance.

Thermal events

Off Red Off

The projector has shutdown automatically. If you try to re-start the projector, it will shutdown again. Please contact your dealer for assistance.

Off Red Red Off Red Green

Off Red Orange Red Red Red Red Red Green Red Red Orange

Green Red Red Green Red Green

Green Red Orange Orange Red Red Orange Red Green Orange Red Orange

Off Green Red Off Green Green

Troubleshooting 51

Troubleshooting

The projector does not turn on.

No picture

Blurred image

Remote control does not work

The password is incorrect

Cause Remedy

There is no power from the power cable.

Plug the power cord into the AC inlet on the projector, and plug the power cord into the power outlet. If the power outlet has a switch, make sure that it is switched on.

Attempting to turn the projector on again during the cooling process.

Wait until the cooling down process has completed.

Cause Remedy

The video source is not turned on or connected correctly.

Turn the video source on and check that the signal cable is connected correctly.

The projector is not correctly connected to the input signal device.

Check the connection.

The input signal has not been correctly selected.

Select the correct input signal with the SOURCE key on the projector or remote control.

The lens cover is still closed. Open the lens cover.

Cause Remedy

The projection lens is not correctly focused.

Adjust the focus of the lens using the focus ring.

The projector and the screen are not aligned properly.

Adjust the projection angle and direction as well as the height of the unit if necessary.

The lens cover is still closed. Open the lens cover.

Cause Remedy

The battery is out of power. Replace the battery with new one. There is an obstacle between the

remote control and the projector.

Remove the obstacle.

You are too far away from the projector.

Stand within 8 meters (26 feet) of the projector.

Cause Remedy

You do not remember the password.

Please see "Entering the password recall

procedure" on page 23 for details.

Specifications52

Specifications

Projector specifications

All specifications are subject to change without notice.

General

Product name Digital Projector Model name IN102 IN104

Optical

Resolution 800 x 600 SVGA 1024 x 768 XGA Display system 1-CHIP DMD Lens F/Number F = 2.56 to 2.8, f = 21 to 23 mm (0.83” to 0.91”) Lamp SHP 220 W lamp UHP 210 W

Electrical

Power supply AC100–240V, 2.9 A, 50/60 Hz (Automatic) Power consumption 315 W (Max)

Mechanical

Weight 2.4 Kg (5.29 lbs)

Input terminal

Computer input RGB input D-Sub 15-pin (female) x 2 Video signal input S-VIDEO Mini DIN 4-pin port x 1 VIDEO RCA jack x 1 SD/HDTV signal input Analog – D-Sub <–> Component RCA jack x 3

(through RGB input)

Audio signal input PC audio jack x 1

Output terminal

RGB output D-Sub 15-pin (female) x 1 Speaker 2 watt x 1 (Amp 1 W) Audio signal output PC audio jack x 1

Control terminal

RS-232 serial control 8 pin x 1 (male)

Environmental Requirements

Operating temperature 0°C–40°C at sea level Operating relative

humidity

10%–90% (without condensation)

Operating altitude • 0–1499 m at 0°C–35°C

• 1500–3000 m at 0°C–30°C (with High Altitude Mode on)

Specifications 53

Dimensions

264 mm x 96.1 mm x 225 mm (10.4” x 3.8” x 8.9”) (W x H x D)

Timing chart

Supported timing for PC input

264 mm (10.4”)

225 mm (8.9”)

96.1 mm (3.8”)

60 mm (2.4”) 66 mm (2.6”)

Resolution

Horizontal Frequency

(kHz)

Vertical Frequency

(Hz)

Pixel Frequency

(MHz)

640 x 350 37.861 85.08 640 x 350_85 640 x 400 37.861 85.08 640 x 400_85

640 x 480

31.469 60.000 VGA_60

37.861 72.809 VGA_72

37.500 75.000 VGA_75

43.269 85.008 VGA_85

720 x 400

31.469 59.940 720 x 400_60

37.927 85.039 720 x 400_85

720 x 480 31.469 59.940 720 x 480_60

800 x 600

35.156 56.25 SVGA_56

37.879 60.317 SVGA_60

48.077 72.188 SVGA_72

46.875 75.000 SVGA_75

53.674 85.061 SVGA_85

1024 x 768

48.363 60.004 XGA_60

56.476 70.069 XGA_70

60.023 75.029 XGA_75

68.667 84.997 XGA_85

1152 x 864

63.815 70.012 1152 x 864_70

67.5 75 1152 x 864_75

77.094 84.999 1152 x 864_85

1280 x 768

47.776 59.87 1280 x 768_60

60.289 74.893 1280 x 768_75

68.633 84.837 1280 x 768_85

1280 x 800 49.702 59.81 WXGA_60

1280 x 1024

63.981 60.020 SXGA_60

79.976 75.025 SXGA_75

91.146 85.024 SXGA_85

Specifications54

Supported timing for Component-YPbPr input

Displaying a 1080i(1125i)@60Hz or 1080i(1125i)@50Hz signal may result in slight image vibration.

Supported timing for video and S-Video inputs

1280 x 960

60.000 60.000 1280 x 960_60

75.000 75.000 1280 x 960_75

85.938 85.002 1280 x 960_85 1360 x 768 47.712 60.015 1360 x 768_60 1440 x 900 55.935 59.887 WXGA+_60

1400 x 1050 65.317 59.978 SXGA+_60 1600 x 1200 75.000 60.000 UXGA_60 1680 x 1050 65.290 59.954 1680 x 1050_60 1920 x 1200 74.038 59.95 1920 x 1200_60

640 x 480@67Hz 35.000 66.667 MAC13

832 x 624@75HZ 49.722 74.546 MAC16 1024 x 768@75Hz 60.241 75.020 MAC19 1152 x 870@75Hz 68.68 75.06 MAC21

1152 x 900@66HZ 61.796 65.95 SUN1166X 1152 x 900@76HZ 71.713 76.047 SUN1176X 1024 x 576@60HZ 35.820 60.000 D1057660 1024 x 600@60HZ 37.500 60.000 DMT10600

Signal Format Horizontal Frequency (kHz) Vertical Frequency (Hz)

480i(525i)@60Hz 15.73 59.94

480p(525p)@60Hz 31.47 59.94

576i(625i)@50Hz 15.63 50.00 576p(625p)@50Hz 31.25 50.00 720p(750p)@60Hz 45.00 60.00 720p(750p)@50Hz 37.50 50.00

1080i(1125i)@60Hz 33.75 60.00 1080i(1125i)@50Hz 28.13 50.00

1080P@60Hz 67.5 60.00 1080P@50Hz 56.26 50.00

Video mode

Horizontal

Frequency (kHz)

Vertical Frequency

(Hz)

Color sub-carrier

Frequency (MHz)

NTSC-M 15.73 60 3.58

PAL 15.63 50 4.43

SECAM 15.63 50 4.25 or 4.41

PAL-M 15.73 60 3.58

PAL-N 15.63 50 4.43

PAL-60 15.73 60 4.43

NTSC4.43 15.73 60 4.43

Copyright 2010 by InFocus Corporation. Al l rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of InFocus Corporation.

Disclaimer

InFocus Corporation makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties, merchantability or fitness for any particular purpose. Further, InFocus Corporation reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation to notify any person of such revision or changes.

*DLP and Digital Micromirror Device (DMD) are trademarks of Texas Instruments. Others are copyrights of their respective comp anies or organizations.

InFocus IN104, IN100 series, T104 Reference Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
