InFocus SP8602, SP8600 User Manual

Declaration of Conformity

Manufacturer: InFocus Corporation, 13190 SW 68th Parkway, Portland, Oregon 97223-8368 USA

We declare under our sole responsibility that this projector conforms to the following directives and norms:

EMC Directive 2004/108/EC EuP Directive 2005/32/EC EMC: EN 55022

EN 55024 EN 61000-3-2

EN 61000-3-3 Low Voltage Directive 2006/95/EC Safety: IEC 60950-1:2005, MOD

Trademarks

Apple, Macintosh, and PowerBook are trademarks or registered trademarks of Apple Computer, Inc. IBM is a trademark or registered trademark of International Business Machines, Inc. Microsoft, PowerPoint, and Windows are trademarks or registered trademarks of Microsoft Corporation. Adobe and Acrobat are trademarks or registered trademarks of Adobe Systems Incorporated. DLP® and the DLP logo are registered trademarks of Texas Instruments and BrilliantColor™ is a trademark of Texas Instruments. InFocus, In Focus, and INFOCUS (stylized) are either registered trademarks or trademarks of InFocus Corporation in the United States and other countries.

FCC Warning

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interferences, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

--Reorient or relocate the receiving antenna.

--Increase the separation between the equipment and receiver.

--Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

--Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by In Focus Corp oration m ay vo id auth ority

to operate the equipment.

Canada

This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

Agency Approvals

UL, cUL Other specific Country Approvals may apply. Please see product certification label. This document applies to regulatory model H8300. Input ratings: AC 100-240V, 4.3-1.6A,50-60Hz InFocus reserves the right to alter product offerings and specifications at any time without

notice.

Table of Contents

Introduction 5 Positioning the projector 7

Connecting power 10 Connecting a computer source 10 Displaying an image 11

Connecting a video device 13 Video device connections 13 Shutting down the projector 15 Troubleshooting your setup 15 Using the remote control 23 Using the keypad buttons 24 Optimizing computer images 24 Presentation features 24 Optimizing video images 25 Customizing the projector 25 Using the menus 26

Maintenance 32

Appendix 35

Index 44

Ceiling Mount 8 Cable management 9

Adjusting the image 12

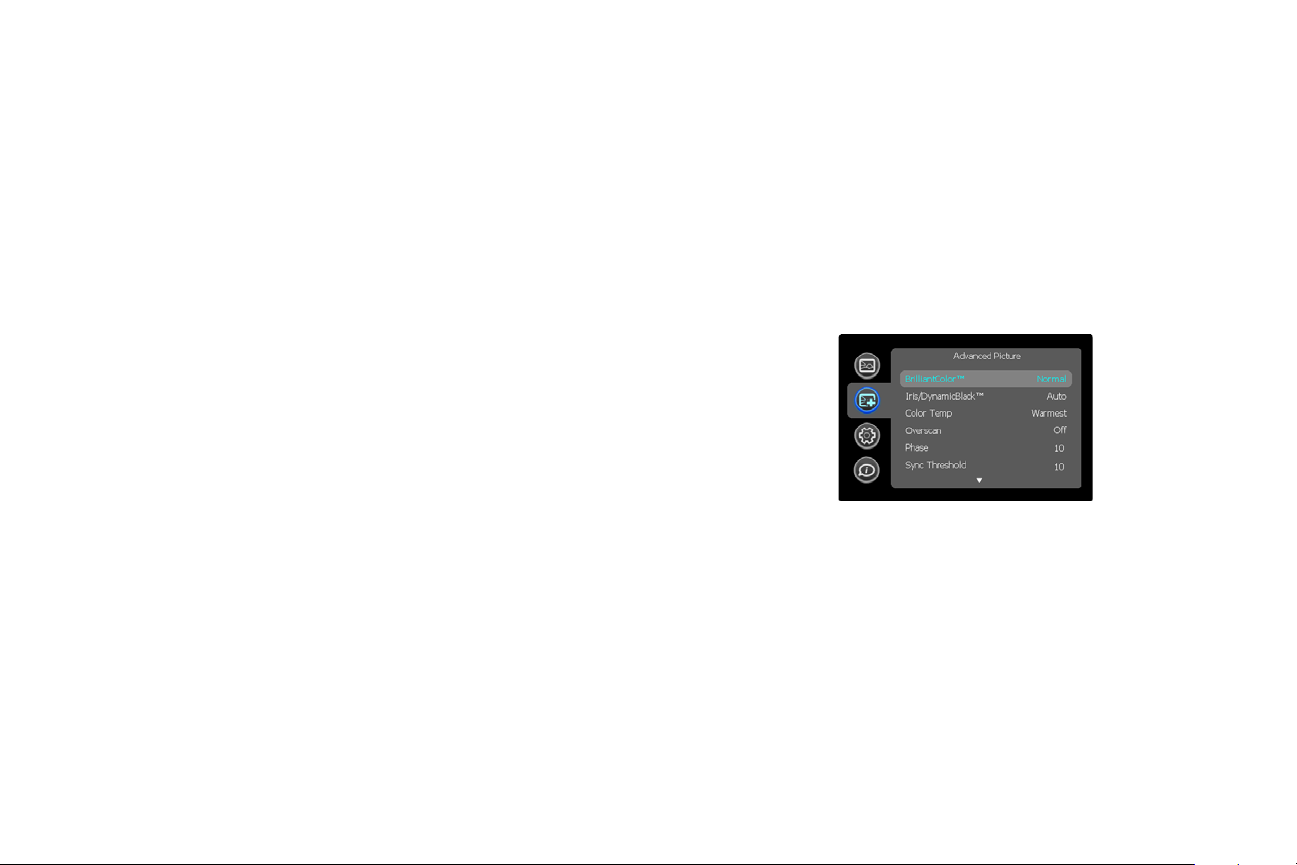

Basic Picture menu 27 Advanced Picture menu 28 Setup menu 29 Status and Service menu 31 Help 31

Cleaning the lens 32 Replacing the projection lamp 33 Using the security lock 34

SplitScreen Compatibility 35 RS-232 commands 36

Important Operating Considerations for Safety

• Refer to this guide for proper startup and shutdown procedures.

• Follow all warnings and cautions in this manual and on the projector.

• Place the projector in a horizontal position no greater than 8 degrees off axis.

• Locate the projector at least 4' (1.2m) away from any heating or cooling vents.

• Do not block ventilation openings. Locate the projector in a well-ventilated area without obstructions to intake or exhaust vents. Do not place the projector on a tablecloth or other soft covering that may block the vents.

• Do not place the projector in direct sunlight, humid, greasy or dusty places or in places where the projector may come into contact with smoke or steam.

• Do not touch the exhaust vents. This area will become hot while the projector is being used. Be sure children are kept away from this area.

• Do not look directly into the lens while the projector is being used. Be especially careful that children do not stare directly into the lens .

• Do not push objects of any kind into this projector through its venting as object may touch dangerous voltage that could result in a fire or electrical shock.

• Do not drop the projector.

• Do not spill liquid on the projector. Spilled liquid may damage the projector.

• Do not place any object on the projector.

• Do not stand or step on the projector.

• Use the power cord provided. Connect the power cord to a receptacle with a protective safety (earth) ground terminal. The AC power cord has a three-pin grounding-type power plug. This plug will only fit a grounding-type power outlet. This is a safety feature. Do not remove the grounding pin on the power plug.

• A surge-protected power strip is recommended. Do not overload wall outlets.

• When disconnecting the power cord, hold the plug, not the cord. Unplug the projector from the wall outlet, if the projector is unused for an extended time.

• Wash hands after handling the cables supplied with this product.

• The projector remote control uses batteries. Make sure the batteries’ polarity (+/-) is aligned correctly. Dispose of used batteries in accordance with local disposal laws.

• Use an InFocus approved ceiling mount kit for proper fitting, ventilation and installation. The projector warranty does not cover any damage caused by use of non-approved ceiling mount kits or by installing in an improper location.

• When the projector is ceiling mounted, wear protective eyewear to prevent eye injury before opening lamp door.

• The projector must be installed by a qualified professional in order to ensure proper operation and reduce the risk of hazards or injury. It is not recommended you install the projector yourself.

• Refer all service to qualified service personnel. Servicing your own projector can be dangerous to you and will void the warranty.

• Only use replacement parts specified by InFocus. Unauthorized substitutions may result in fire, electrical shock, or injury, and may void the warranty

• Only genuine InFocus lamps are tested for use in this projector. Use of non InFocus lamps may cause electrical shock and fire, and may void the projector warranty.

• Hg – Lamp contains mercury. Manage in accordance with local disposal laws. See www.lamprecycle.org.

• The projector uses a high-pressure mercury glass lamp. The lamp may fail prematurely, or it may rupture with a popping sound if jolted, scratched, or handled while hot. The risk of lamp failure or rupture also increases as the lamp age increases; please replace the lamp when you see the “Replace Lamp” message.

• In the unlikely event of a lamp rupture, particles may exit through the projector vents. Keep people, food, and drinks out of the "keep out" area under and around the projector, as indicated by the "X" areas below.

3’ / 1 m

’/1.5m

’

/2.4m

2’ / 0.6 m

Unplug this projector from the wall outlet and refer servicing to qualified service personnel under the following conditions:

• When the power cord or plug is damaged or frayed

• If liquid has been spilled into the projector

• If the projector has been exposed to rain or water

• If the projector does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as improper adjustment of other controls may result in damage and may required extensive work to restore the projector to normal operation

• If the projector has been dropped

• When the projector exhibits a distinct change in performance, this indicates a need for service.

Follow these instructions to help ensure image quality and lamp life over the lif e of the projector . Failure to follow these instructions may affect the warranty. For complete details of the warranty, see the Warranty Booklet.

Introduction

Projector

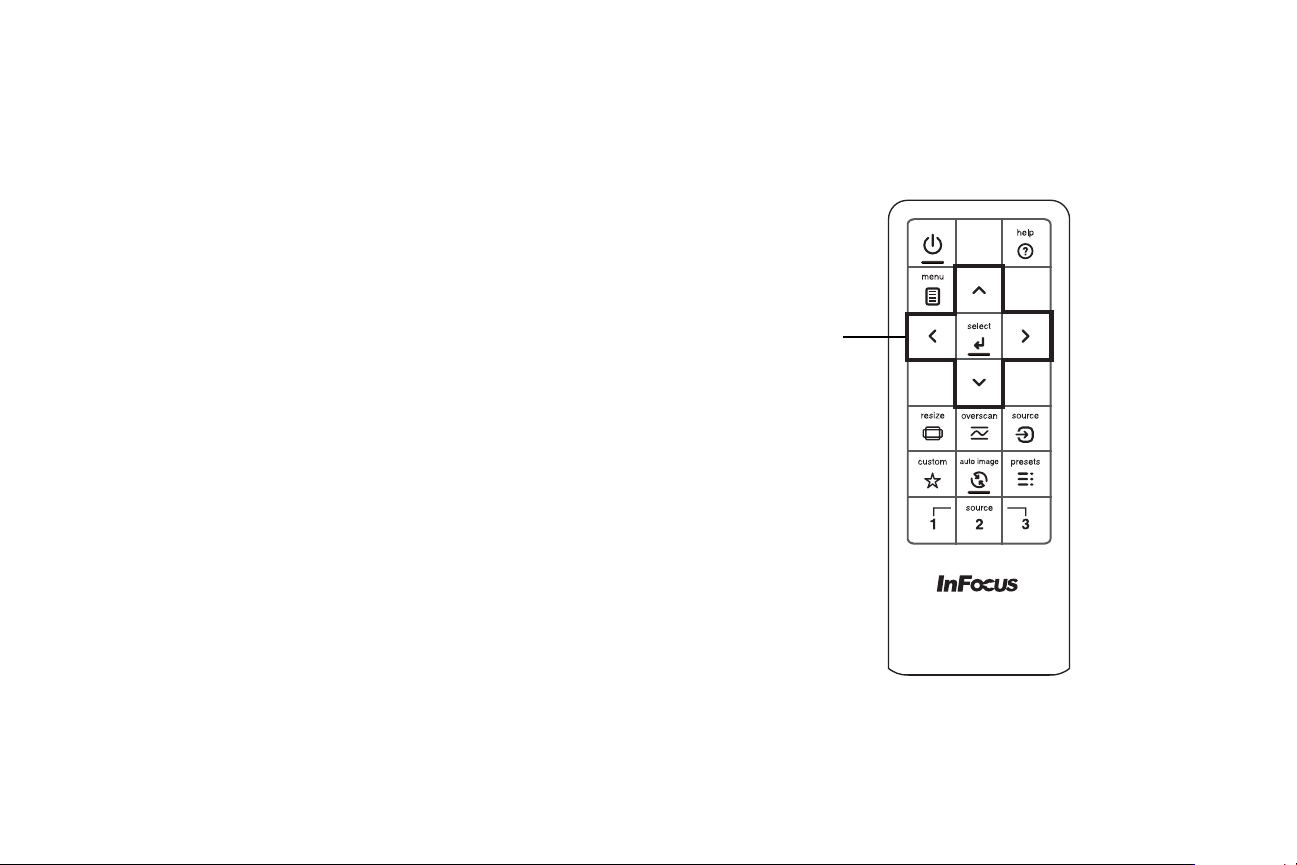

Remote Control

Power Cord

HDMI cable

Documentation

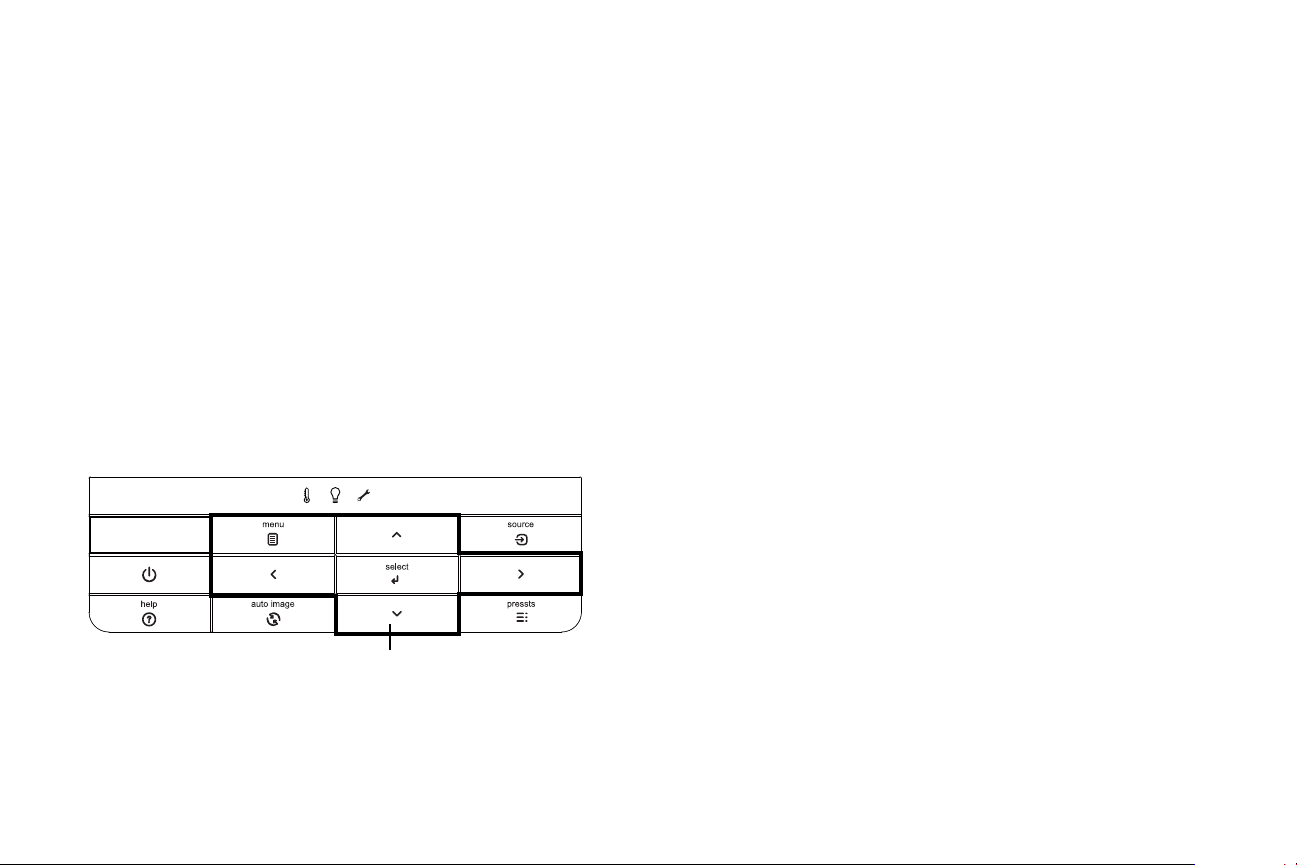

LiteTouch keypad

Lens Remote control

receiver (IR)

Top fr ont cover

Top rear cover

Lamp access panel

Power cord connector

Your new digital projector is simple to connect, easy to use, and straightforward to maintain. It is a versatile projector that is flexible enough for home video viewing and business presentations, too. The SP8602 has native 1920x1080 (1080p) resolution. Y our projector is compatible with a wide var iety of computers and video devices.

Product specifications

To read the latest specifications on your multimedia projector, be sure to visit our support website at www.infocus.com/support, as specifications are subject to change.

Online registration

Register your projector on our website at www.infocus.com/register to activate your warranty and receive product updates, announcements, and registration incentives.

Included Items

Optional Accessories

Optional accessories include optional top covers in a variety of finishes, the Commander-2 remote, ceiling mount, and LiteShow II. These items and other accessories can be found on our website at www.infocus.com or at your local dealer.

Connector panel

Security lock

RS-232

12V External Trigger outputs

Composite

video

HDMI

Component video

Cable cover

S-video

VGA

IR Repeater

USB

The projector provides both computer and video connection options, including:

• VGA computer

• HDMI (2)

•S-video

• Composite video

• Component video (3)

•USB port

The projector also provides the following connectors:

• 12V screen trigger outputs (3)

• IR Repeater input (for use with specification T=Signal, R= GND, S=12VDC)

IR receivers that follow the Xantech connector

• RS-232 connector for serial control. Command control codes are in the Appendix and on our support website at www.infocus.com/support.

12V External Trigger outputs

The three 3.5mm mini-jack 12 volt, 0.25 amp DC outputs are screen/lens triggers:

• The “Lamp” trigger turns on when the

lamp is lighted. If you connect your projection screen to this output using the cable that came with your screen, the screen will move down when the lamp is turned on and the screen will return to its storage position, when the lamp is turned off.

• The Letterbox “1” and “2” triggers are active when the projector is placed in letterbox mode and are utilized for variable masking and anamorphic lens control. (These triggers are off when SplitScreen is active.)

Positioning the projector

20%

100% (H)

Screen Height

Distance (L)

Screen

Maximum Shift

Horizontal Offset +/-15%

To determine where to position the projector, consider the size and shape of your screen, the location of your power outlets, and the distance between the projector and the rest of your equipment. Here are some general guidelines:

• The vertical image offset range is 105%

~130% for the SP8602 (default is 105%). The default horizontal image offset is +/-15%, however at maximum vertical image offset, there is no horizontal lens shift.

• Position the projector on a flat surface a

t a right angle to the screen. The

projector must be at least 4.9’ (1.5m) from the projection screen.

• Position the projector within 10’ (3m) of your power so

urce and within 6’ (1.8m) of your video device (unless you purchase extension cables). T o en sure adequate cable access, do not place the projector within 6” (.15m) of a wall or other object.

• Position the projector to the desired dis

tance from the screen. The distance from the lens of the projector to the screen, the zoom setting, and the video format determine the size of the projected image.

• If the image is square but not centered on the screen or viewing area, adjust it by using the lens shift dials. Use the Horizontal dial to shift the lens left or right. Use the Vertical dial to shift the lens up or down.

NOTE: As the lens is shifted away from the lens centerline, the horizontal shift range is reduced. To adju st lens shift efficiently we suggest you follow these steps:

1 Use vertical lens shift to move the image closer to the lens centerline tha n the

final vertical position.

2 Use horizontal lens shift to determine the center horizontal position, then move

image to the center horizontal position.

3 Use vertical lens shift to move the image away from the lens centerline to the

final vertical position.

4 Use horizontal lens shift to move the image to the final horizontal position. 5 If lens shift is unable to move the image far enough, move the projector

(preferable) or tilt the projector and then use vertical and horizontal keystone to re-position the image.

Range of distance to the screen for a given screen size

Distance to screen

Diagonal Screen Size (inches/m)

Minimum distance (feet/m)

Maximum Distance (feet/m)

60/1.524 6.50/1.98 10.01/3.05 80/2.032 8.73/2.66 13.42/4.09 90/2.286 9.84/3.00 15.12/4.61 150/3.810 16.54/5.04 25.3/7.71

Ceiling Mount

If you wish to install the projector on the ceiling:

• The projector must be installed by a qualified professional in order to ensure proper operation and reduce the risk of hazards or injury. It is not recommended you install the projector yourself.

• We strongly recommend using InFocus approved ceiling mounts for proper fitting, ventilation and installation. Refer to the installation guide that comes with the InFocus Ceiling Mount Kit (p/n SP-CEIL-INSTALL) for more information. The warranty does not cover any damage caused by use of nonapproved ceiling mount kits or by installing in an improper location.

• The ceiling must be strong enough to support the projector and the installation must be in accordance with any local building codes. Consult your dealer for more information.

• Maximum supported physical pitch is +/-8º.

• Maximum supported physical horizontal roll is +/-8º.

• Keep all adjacent surfaces 3” (76mm) from sides, (22mm) from the bottom of projector to preserve required airflow around the projector.

front and rear and .87”

8º

Cable management

cable management system

Using the cable management system provides you with a clean, professional-looking installation.

The integrated cable management system allows you to keep the cables organized. To use the cable management system, thread the cables into the slots as shown in the illustration.

Connecting power

Connect power cord

Connect HDMI cable

Connect computer cable

Connect the black power cord to the Power connector on the rear of the projector and to your electrical outlet. The Power light on the Status Indicator Panel (page 15) turns amber.

NOTE: Always use

the power cord that shipped with the projector.

Connecting a computer source

HDMI 1.3 connection

HDMI is a standard, uncompressed, all-digital audio/video interface. HDMI provides an interface between sources, such as set-top boxes, DVD players, and receivers and your projector. Plug an HDMI cable into the video out connector on the video device and into either the HDMI 1 or HDMI 2 connector on the projector.

To take adv antage of HDMI 1.3 Deep Colo compatible source.

VGA connection

Connect one end of the provided computer cable to the VGA connector on the projector and the other to the VGA connector on your computer. If you are using a desktop computer, you will need to disconnect the monitor cable from the computer’s video port first.

r (30 bit) you must have a 1.3-

Displaying an image

horizontal

vertical

zoom focus

Press Power button

Turn on computer or video device

Activate laptop’s external port

Monitor key or LCD/CRT key

Fn key

Touch the Power button on the keypad or the remote. The Power button blinks green a

start up screen will display and the Power button will become solid green. It can take a minute for the image to achieve full brightness.

No start up screen? Get help

Turn on your computer or video device. The image should appear on the

button on the projector’s keypad or remote.

nd the fans start to run. When the lamp turns on, the

on page 16.

projection screen. If it doesn’t, press the Source

If you are using a VGA cable to connec

If using a laptop, make sure its external video Many laptops do not automatica

lly turn on their external video port when a

t your computer to the projector:

port is active.

projector is connected. Usually a key combination like Fn + F8 or CRT/LCD key turns the external display on and off. Locate a function key labeled CRT/LCD or a function key with a monitor symbol. Press Fn and the labeled function key simultaneously.

Refer to your laptop’s documentation for more information abou

t your laptop’s key

combination or go to the InFocus website at: http://www.infocus.com/Support/

LaptopActivation.aspx.

No laptop image? T

ry pressing the Auto Image button on the keypad or

remote.

Adjusting the image

Adjust distance

Remove cover

horizontal

vertical

zoom

focus

(a)

(b)

(c)

(a)

Adjust zoom, focus and lens shift

Adjust height

Release button

Elevator foot

Position the projector to the desired distance from the screen at a 90 degree angle to the screen. See page 8 for a table listing of screen sizes and distan ce s.

Remove the projector top cover

a. Slide the tabs on the side toward the projector top cover.

b. Slide the top toward the front of the projector to unhook it from the projector

bod c. Lift off.

Adjust the zoom or focus.

If the image is square but not centered on the screen or viewing area, using the lens shift dials. See page 7 for details.

rear of the projector to unlock the

adjust it by

focus

zoom

Rotate the elevator feet for granular adju

stment of the projector’s height. Avoid

placing your hands near the hot exhaust vent at the side of the projector.

Adjust the Contrast or Brightness in the

Basic Picture menu. See page 27 for help

with these menu adjustments.

horizontal

vertical

Connecting a video device

You can connect video devices such as VCRs, DVD players, camcorders, digital cameras, video game consoles, HDTV receivers, and TV tuners to the projector.

You can connect the projector to most video devices that can output video. You cannot directly connect the coaxial cable that enters your house from a cable or satellite company; the signal must pass through a tuner first. Examples of tuners are digital cable boxes, VCRs, digital video recorders, and satellite TV boxes. Basically, any device that can change channels is considered a tuner.

Although the aspect ratio is automatically selected by the projector based on the signal input, you can change the aspect ratio, if desired. The projector’s Aspect Ratio setting is accessed through the Resize button on the remote or through the projector’s Basic Picture Menu. See

page 27 for more information.

Video device connections

You can order cables from InFocus or use your own.

Composite video connection

Plug the composite video cable’s yellow connector into the video out connector on the video device. Plug the other yellow connector into the yellow Composite connector on the projector.

Keep in mind that video output from composite connections is not as high quality as S-video.

HDMI 1.3 connection

To tak e advantage of HDMI 1.3 Deep Color (30 bit) you must have a 1.3compatible source.

S-video connection

If your video device uses a round, four-prong S-video connector, plug an S-video cable into the S-video connector on your video device and into the S-video connector on the projector.

Keep in mind that S-video delivers higher quality video output than composite.

VGA connection

If your video device has a 15-pin VGA output, plug one end of the included computer cable into the VGA connector on your video source. This connector may be labeled “To Monitor” on the video source. Plu g the computer cabl e into the VGA connector on the projector.

Component video connection

Plug the component cable into the video device. Plug the other end of the component cable into the Component 1, Component 2 or Component 3 connectors.

In addition, a Component to VGA adapter can be used in conjunction with the VGA connectors. Plug the component cable into the video device. Plug the other end of the component cable into the adapter and plug the adapter into the VGA connector.

Component offers the highest quality analog video output.

+ 31 hidden pages
