Manufacturer: InFocus Corporation, 13190 SW 68th Parkway, Suite 200, Portland,
Oregon 97223 USA
We declare under our sole responsibility that this projector conform to the following
ctives and norms:
dire
EMC Directive 2004/108/EC
EMC: EN 55022
EN 55024
EN 61000-3-2
EN 61000-3-3
Low Voltage Directive 2006/95/EC
Safety: IEC 60950-1: 1
st
Edition
Trademarks
Apple, Macintosh, and PowerBook are trademarks or registered trademarks of Apple
Computer, Inc. IBM is a trademark or registered trademark of International Business
Machines, Inc. Microsoft, PowerPoint, and Windows are trademarks or registered
trademarks of Microsoft Corporation. Adobe and Acrobat are trademarks or
registered trademarks of Adobe Systems Incorporated. HDMI, the HDMI logo and
High-Definition Multimedia Interface are trademarks or registered trademarks of
HDMI Licensing LLC. InFocus, In Focus, and INFOCUS (stylized) are either
registered trademarks or trademarks of InFocus Corporation in the United States and
other countries.
FCC Warning
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his
own expense. This device complies with part 15 of the FCC Rules.
Operation is subject to the following two co
harmful interference, and (2) this device must accept any interferences received,
including interference that may cause undesired operation.
Changes or modifications not expressly approved by InFocus Corporation may void
hority to operate the equipment.
aut
nditions: (1) This device may not cause
EN 55022 Warning
This is a Class A product. In a domestic environment it may cause radio interference,
in which case the user may be required to take adequate measures. The typical use is
in a conference room, meeting room or auditorium.
EN EMC directive
This product may cause interference if used in re
avoided unless the user takes special measures to reduce electromagnetic emissions
to prevent interference to the reception of radio and television broadcasts.
sidential areas. Such use must be
Canada
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.
Agency Approvals
UL, CUL
Other specific Country Approvals may apply, plea
InFocus reserves the right to alter product offer
without notice.
Laser radiation class II product; wavelength 650nm; maximum output 1mW. Remote
control complies with applicable requirements of 21 CFR 1040.10 and 1040.11.
Remote control complies with applicable requirements of IEC60825-1:1993 +A1:1997
+A2: 2001 or IEC60825-1:2007 EN60825-1:2007.
1
WARNING: Do not look into laser beam emitted from the front of the
remote control.
CAUTION: Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous radiation
exposure. Class 2 Laser product; maximum output 1mW; wavelength
650nm.
[Class 2 Laser Product] Wavelength 650nm; Maximum output 1mW; No
beam divergence.
[Laser Diode] Wave length 650nm; Maximum power 7mW; Beam divergence 33deg (perpendicular)/8deg (parallel).
Location of laser beam warning labels on remote
OR
IEC60825-1:2007 EN60825-1:2007
IEC60825-1:1993 +A1:1997 +A2:2001
2
Table of Contents
Introduction 5
Included Items 5
Positioning the projector 7
Connecting a computer 8
Required computer connections 8
Displaying a computer image 10
Adjusting the image 11
Connecting a video device 12
Displaying a video image 13
Shutting down the projector 15
Troubleshooting your setup 15
Using the keypad buttons 22
Using the remote control 23
Using the audio 24
Optimizing computer images 25
Presentation features 25
Optimizing video images 26
Customizing the projector 26

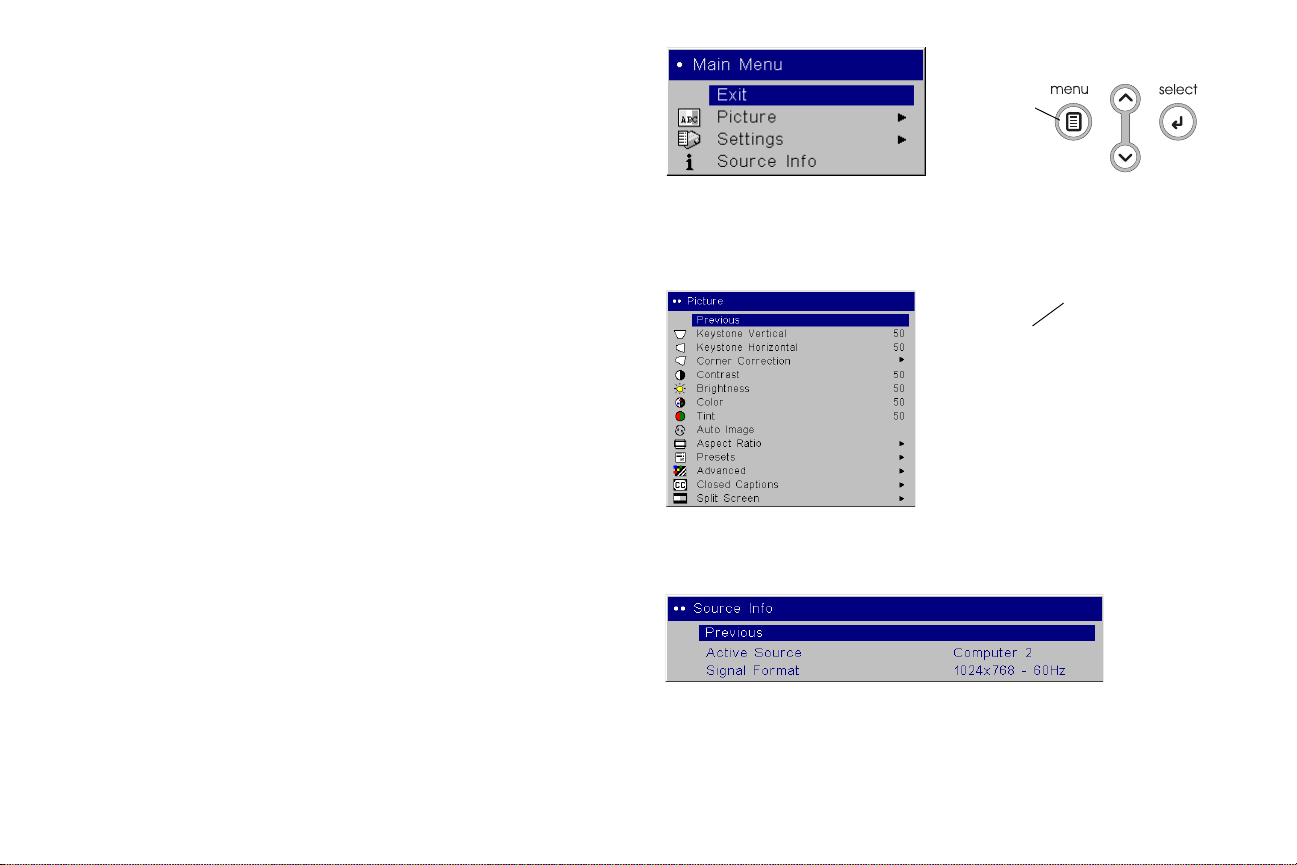

Using the menus 27
Picture menu 28
s menu 33
Setting
For complete details on connecting and ope
User’s Guide.
The website also has technical specifications (an interactive image size calculator, laptop activation commands, connec
product data sheet), a web store to buy accessories, and a page for online
registration.
rating the projector, refer to this
tor pin outs, a glossary, the
Maintenance 37
Cleaning the lens 37
Replacing
Cleaning the dust filter 40
Using the security lock 40
Appendix 41
Projected image size 41
Command Control42
the projection lamp 38
3
Important Operating Considerations for Safety
5
’ /1.5m
8
’
/2.4m
•Place the projector in a horizontal position no greater than 8 degrees off
axis.
•Locate the projector in a well-ventilated area
without any obstructions
to intake or exhaust vents. Do not place the projector on a tablecloth or
other soft covering that may block the vents.
•Locate the projector at least 4' (1.2 m) away from any heating or cooling
vents.
•Use only approved ceiling mounts.
•
Warning: To prevent eye injury if the projector is ceiling mounted,
wear protective eyewear before opening lamp door. A warning sticker
is included with the user documentation. Place this sticker on the lamp
door if the projector is mounted on the ceiling.
•Only genuine InFocus lamps are tested for use in this projector. InFocus is not liable for the performance, safety or certification of any other
lamps. The use of other lamps violates the projector warranty and
voids all certification marks on this projector.
•Use only the power cord provided. A surge-protected power strip is
recommended.
•Refer to this manual for proper startup and shutdown procedures.
•Hg – Lamp contains mercury. Manage in accordance with local
disposal laws. See www.lamprecycle.org.
•In the unlikely event of a lamp rupture, particles may exit through the
projector vents. When the projector is turned on, keep people, food,
and drinks out of the "keep out" area under and around the projector,
as indicated by the "X" areas.
2’ / 0.6 m
3’ / 1 m
Follow these instructions to help ensure image quality and lamp life over
the life of the projector. Failure to follow these instructions may affect the
warranty. For complete details of the warranty, see the Warranty booklet.
4
Introduction
VGA computer cable
A/V cable
documentation
remote
power cable
lens cap*
projector
leveling foot
elevator foot release
remote
control
receiver
air intake
vent
heat vent
zoom/offset door
focus
connectors
lamp door
power switch
power plug
Your new multimedia projector provides three computer, three video, and
four audio inputs, one audio output, and RS-232 and Network control. It
has WUXGA 1920 x 1200 resolution. The projector is easy to connect, easy to
use, and easy to maintain.
Product specifications
To read the latest specifications on your multimedia projector, be sure to
visit our website. Web address information is located on the back inside
cover of this User’s Guide.
Online Registration
Register your projector on our website to receive product updates,
announcements, and registration incentives. See the inside back cover for
the web address.
Included Items
Projector components and features: front
Projector components and features: back
*The lens cap is tethered to the projector.
5
Connector Panel
lock
HDMI
monitor
s-video
composite
audio in 1,2
external
speakers
(audio out)
RJ-45
VGA computer
component video
video
RS232
serial control
audio in 3,4
speaker
power connector and switch
USB
BNC
wired remote
remote
control
receiver
(IR)
The projector provides three computer and three video connection options:
The projector also provides the following connectors:
•one wired remote
•one monitor out
•RS-232 serial connector (for serial control)
•RJ-45 connector (for networked control)
The RS-232 Command Line Interface (CLI) specificat
are available in the Appendix and on our website, www.infocus.com/support.
ions and commands
* HDMI is an industry standard, uncompressed, all-digital audio/video
n
terface that connects between sources, such as set-top boxes, DVD play-
i
ers, and receivers and your projector. To take
advantage of HDMI 1.3 you
must have a 1.3-compatible source. The HDMI, because it is a digital signal,
yields the highest quality image. It is common for these signals to be
encrypted with HDCP (high-bandwidth digital-content protection). Your
new projector ships standard with decryption codes so you can enjoy these
high quality, all digital images.
6
Positioning the projector
r
10’ high image
Projection angle in 16:10 mode (default)
10:0
bottom of image
at lens center
1:1
bottom of image
50% below
lens center
To determine where to position the projector, consider the size and shape of
your screen, the location of your power outlets, and the distance between
the projector and the rest of your equipment. Here are some general guidelines:
ri
•Position the projector on a flat surface at a
projector must be at least 3 feet (0.9m) from the projection screen.
•Position the projector within 10 feet (3m) of your power source and
within 6 feet (1.8m) of your video device (unless you purchase extension cables). To ensure adequate cable access, do not place the projector
within 6 inches (.15m) of a wall or other object.
•If you are installing the projector on the ceiling, refer to the installation
guide that comes with the Ceiling Mount Kit for more information. To
turn the image upside down, see “Ceiling” on page 33. We recommend
using an authorized ceiling mount. The Ceiling Mount Kit is sold separately; visit our website for more infor
•Position the projector the desired distance from the screen. The distance from the lens of the projector to the screen, the zoom setting, and
the video format determine the size of the projected image. For information about image sizes at different di
size” on page 41.
•For the standard lens that comes with the projector,
given angle. However, the lens shift feature makes the image offset
variable. The image offset is 100% at a 10:1 ratio when the projector is in
16:10 mode (default mode). This means that if you have an image 10’
high, the bottom of the image will be at the center of the lens.
•The image offset is 50% when the lens shift is at a
that if you have an image 10’ high, the bottom of the image will be 5’
below the center of the lens.
ght angle to the screen. The
mation.
stances, see “Projected image
the image exits at a
1:1 ratio. This means
10:0
1:1
lens cente
7
Connecting a computer
connect computer cable
connect power cable
connect BNC cable
connect HDMI cable
connect audio cable
Required computer connections
Connect one end of the VGA computer cable to the Computer 2 connector
on the projector. Connect the other end to the video port on your computer.
If you are using a desktop computer, you first need to disconnect the monitor cable from the computer’s video port.
c
Connect the black power cable to the conne
and to your electrical outlet.
NOTE: A
lways use the power cable that shipped with the projector.
Optional computer connections
You can also connect to your computer using optional BNC or HDMI
cables. Connect the BNC connectors on the BNC cable to the appropriate
Computer 3 connectors on the projector. Connect the other end to the video
port on your computer. If you are using a desktop computer, you first need
to disconnect the monitor cable from the computer’s video port.
Or, connect the HDMI cable to the Computer 1 connector.
To
have sound with your presentation, connect the audio cable to your
computer and to the corresponding computer Audio In connector on the projector. You can assign a particular source to a particular audio in connector,
see page 33.
tor on the back of the projector
8
If you are using a desktop computer and want to see the image on your
connect monitor cable
connect RS-232 cable
connect CAT-5 cable
Network
computer screen as well as on the projection screen, plug the monitor cable
to the Monitor out connector on the projector.
You can control the projector from an LCD control panel, touch screen, or
other control device or computer by connecting an RS-232 cable to the projector’s SerialControl connec
tor.Specific RS-232 commands can be found in
the Service and Support section of our website and in the Appendix.
w
The projector can be managed by networking software through its Net
ork
(RJ-45) connector. Detailed instructions on this feature can be found on our
website.
9
Displaying a computer image
remove lens cap
press Power buttonpress Power switch
I
O
2
1
turn on computer
activate laptop’s external port
Remove the lens cap.
Press the power switch on the back of the
projector
to the on (I) position.
The Power light on the Status Indicator Panel (page 15) lights green.
on t
Press the Power button
The Power light blinks green and the fans start to run. When the
he top of the projector or the remote.
lamp
comes on, the startup screen is displayed and the light is steady green. It can
take a minute for the image to achieve full brightness.
h
? No startup screen? Get
elp on page 16.
Turn on your computer.
The computer’s image should appear on the projection screen. If it doesn’t,
press the Source button on the keypad or remote.
Make sure your laptop’s external video port is active.
Many laptops do not automatically turn on
their external video port when a
projector is connected. Usually a key combination like FN + F5 is used to
turn the external display on and off. Refer to your computer’s documentation to learn your computer’s key combination.
h
? No computer image? Get
elp on page 16.
10
Adjusting the image
adjust height
elevator
foot
elevator
foot
release
button
release
button
adjust distance
adjust zoom and focus
adjust lens shift
adjust Contrast or Brightness
contrast
brightness
Adjust the height of the projector, if necessary, by pressing the release buttons on each side of the projector’s fr
Position the projector the desired distance from the screen at a 90 degree
angle (perpendicular) to the screen.
See page 41 for a table listing screen sizes and distances.
Adjust the zoom by rotating the Zoom ring inside the lens door until the
desired image size is produced.
ont to extend the elevator feet.
Adjust the focus by rotating the Focus ring
on the lens until the desired
focus is produced.
If the image is not on the screen or viewing area, adjust it by using the lens
f
t dials inside the lens door.
shi
Use the right dial to shift the lens left or
right. Use the left dial to shift the
lens up or down.
Adjust the Contrast or Brightness in the Picture menu.
See page 27 for help with the menus.
11
Connecting a video device
connect A/V cable
connect S-video and video cables
connect component cables
and video cables
Standard video connections
Plug the audio/video (A/V) cable’s yellow connector into the video-out
connector on the video device. Plug the other yellow connector into the yellow Video 3 connector on the projector. Plug a white connector into the left
audio out connector on the video device and plug a red connector into the
right audio out connector on the video device. Plug the remaining white
connector into a left audio in connector on the projector, and plug the red
connector into a right audio in connector on the projector. You can assign a
particular source to a particular audio in connector, see page 33.
Connect the black power cable to the conne
and to your electrical outlet.
NOTE: Always use the power cable that shipped with the projector.
Optional video connections
If the video device uses a round, four-prong S-video connector, plug an
S-video cable (sold separately) into the S-video connector on the video
device and into the Video 2 connector on the projector. Use the A/V cable’s
audio connectors as described directly above (the yellow connectors on the
A/V cable are not used).
If the video device uses component cable co
the cable’s green connectors into the green component-out connector on the
video device and into the Video 1 green component connector (labeled “Y”)
on the projector. Plug the component cable’s blue connectors into the blue
component-out connector on the video device and into the blue component
connector (labeled “Cb/Pb”) on the projector. Plug the component cable’s
red connectors into the red component-out connector on the video device
and into the red component connector (labeled “Cr/Pr”) on the projector.
Use the A/V cable’s audio connectors as described above (the yellow connectors on the A/V cable are not used). NOTE: The component co
can be used for HDTV sources (480i, 480p, 720p, 576i and 1080i formats).
ctor on the back of the projector
nn
ectors (sold separately), plug
nnectors
12
Displaying a video image
remove lens cap
press Power button
press Power switch
I
O
2
1
turn on video device
adjust height
elevator
foot
elevator
foot
release
button
release
button
adjust distance
Remove the lens cap.
Press the power switch on the back of the projector
to the on (I) position.
The Power light on the Status Indicator Panel (page 15) lights green.
Press the Power button on t
The Power light blinks green and the fans start to run. When the
he top of the projector or the remote.
lamp
comes on, the startup screen is displayed and the light is steady green. It can
take a minute for the image to achieve full brightness.
e
? No startup screen? Get h
lp on page 16.
Plug in and turn on the video device.
The video device’s image should appear on the projection screen. If it
doesn’t, press the Source button on the keypad or remote.
Adjust the height of the projector, if necessary, by pressing the release buttons on each side of the projector’s front to extend the elevator feet. Rotate
the feet, if necessary, to level the projector.
Position the projector the desired distance from the screen at a 90 degree
angle to the screen. See page 41 for a table listing screen sizes and distances
to the screen.
13
Adjust the zoom by rotating the Zoom ring, located inside the lens door,
adjust Zoom and Focus
adjust Lens Shift
adjust volume
adjust Picture menu
until the desired image size is produced.
Adjust the focus by rotating the Focus ring on the lens until the desired
focus is produced.
If the image is not on the screen or viewing area,
adjust it by using the lens
shift dials inside the lens door.
lens
Use the right dial to shift the
left or right. Use the left dial to shift the
lens up or down.
Adjust the volume in the Audio menu.
Adjust the Contrast, Brightness, Color, or Tint i
n the Picture menu.
See page 27 for help with the menus.
14
Shutting down the projector
The projector automatically blanks the screen after no active source is
detected for 5 minutes. This blank screen helps preserve the life of the projector. The image returns when an active source is detected or a remote or
keypad button is pressed.
Screen Save
You can make the blank screen appear afte
r five minutes by turning on
Screen Save in the Settings>System menu. See page 34.
Power Save
The projector also has a Power Save feature that automatically turns the
lamp off after no signals are detected for 20 minutes. After 10 additional
minutes with no signal, the projector powers down. If an active signal is
received before the projector powers down, the image is displayed. You
must press the Power button to display an image after 30 minutes have
passed. When Power Save is enabled, Screen Save is disabled. See page 34.
Turning off the projector
To turn off the projector, press the pow
er button and verify that you want to
turn the projector off by pressing the power button again within 3 seconds.
You can cancel the shutdown by not pressing the power button a second
time. The lamp turns off and the Power light blinks green for over 1 minute
while the fans continue to run to cool the lamp. When the lamp has cooled,
the Power light is solid green and the fans stop. Press the power switch on
the back of the projector and unplug the power cable to completely power
off the projector.
Troubleshooting your setup
If your image appears correctly on the screen, skip to the next section. If it
does not, troubleshoot the setup.
pro
The Status Indicator Panel on top of the
projector and can help you troubleshoot.
jector indicates the state of the
Table 1: Status indicator light behavior and meaning
Status Indicator Panel icons Meaning
Power, solid greenThe power button has been pressed and
the software has initialized or the projector has been powered off.
Power, blinking green
Thermometer
LampTurn off the projector and wait one min-
Wrench/Service
The power button has been pressed and
the software is initializing, or the projector is powering down and the fans are
g to cool the lamp.
runnin
The projector is too hot. Make sure the
vents aren’t blocked (see page 20). Turn
off the projector and wait one minute,
rn the projector on again. Contact
then tu
Technical Support if the problem persists
ute, then turn the projector on again. If
the lamp ligh
lamp and reset the lamp timer.
Turn off the projector and wait one minute, then turn the projector on again. If
the service lam
required. Visit our website to contact Service.
t turns on again, replace the
p turns on again, service is
.
15
Loading...
+ 37 hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
