Page 1
Play Big IN
74
Page 2
Popcorn popping. Children laughing. The sun
slowly descending below the horizon. Family and
friends crowd the couch and oor, silent with
anticipation as you ip the switch on your
InFocus Play Big IN74 projector. That’s the
moment when the real magic unfolds, because
there’s no place like home to watch larger-
than-life, breathtaking entertainment. From
heartwarming movies to pulse-pounding sports
matches to adrenaline-pumping gaming action, you
won’t nd images this clear, vibrant — or simply
spectacular — outside of the movie theater. No
matter what you’re projecting, your IN74 will be
an instant hit on the home front.
You have an image to uphold.
The powerful appeal of the IN74 goes far beyond
the magnicent picture it projects onscreen. Its
sleek, futuristic, low-prole appearance adds a
subtle sophistication to any room. Its unique swivel
base simplies tabletop setup and can be easily
removed for ceiling mounting. Overall, the IN74
clearly displays your discriminating taste in both
home-theater technology and ne design.
Learning curves are for school.
Remember the rst time you programmed a VCR?
Drove a clutch? Used your microwave? Now forget
all those mind-bending experiences. You probably
can’t imagine how easy it is to turn on and use
the IN74 projector. A few examples:
Enjoy setup in a snap with a simple keypad
and a new, full-featured remote control with
patent-pending ashlight feature, direct source
access, programmable presets and more.
An icon-based menu allows you to quickly scroll
and select your settings in your choice of 12
languages — without interrupting the show.
Five user-selectable video sources enable
impressive connectivity with a full range of
devices, including VCRs, DVDs, component
and RGB HDTV, EDTV and your came console
of choice.
A simple to use, icon-based
menu allows you to quickly
scroll and select your
settings.
There’s no place like home.
Play Big IN
74
Get into the game with
edge-of-your-seat, in-your-face
action.
Page 3
The IN74 projector uses Pixelworks’™ DNX™ videoprocessing technology to dramatically improve the
quality of video by combining multiple enhancement
techniques to deliver clear, natural-looking standard
and high-denition images. Here are a few more of
the outstanding features ensuring awe-inspiring
home-theater:
Native 1024 x 576 resolution creates high-denition
reality from any HD source.
The 576p DarkChip2™ DLP® from Texas Instruments®
provides increased depth and picture sharpness,
as well as true blacks and whites.
Thanks to 1000 video-optimized lumens with 3000:1
calibrated contrast ratio, you’ll get brilliant, dramatic
SMPTE (cinema-standard) brightness.
The advanced six-segment color wheel delivers intense,
precise colors that rival any movie theater screen.

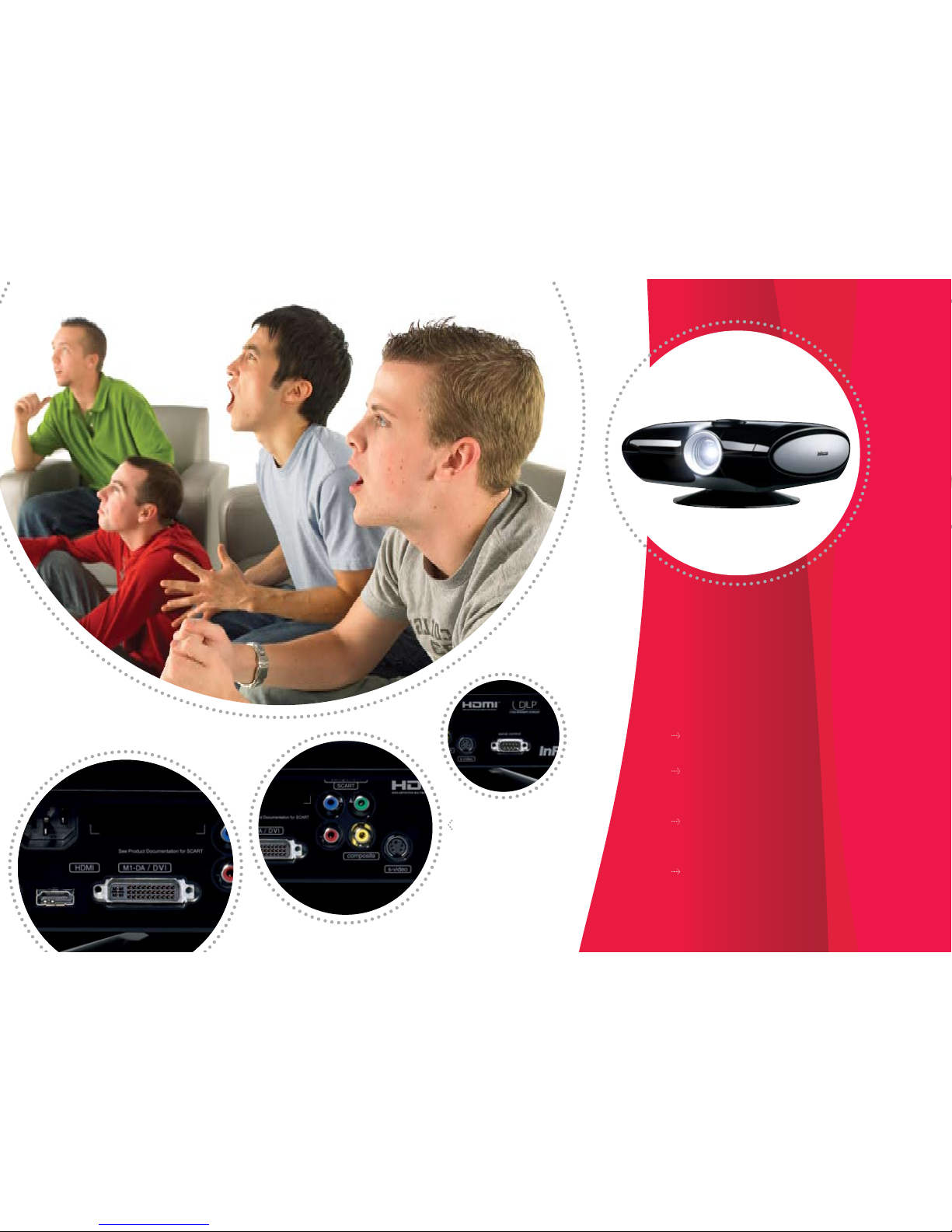

Roll the credits.
Connecting to all your hometheater devices is a snap. You’ll
be plugged in, powered up and
projecting in no time at.
Page 4
Enduring Quality
If you’re happy, InFocus is happy. That’s why every
InFocus projector comes with a standard one-year
limited factory warranty (including parts and labor)
and a 90-day lamp-replacement warranty.
For service program details in your region, please
visit: www.infocus.com/service
Optional Accessories
Ceiling Mount
Projection Screens
Performance Cables for Digital and HDTV
Cable Adapters
For more information about the IN74, any
InFocus home projector, optional accessories, or
service programs, please visit: www.infocus.com
InFocus Corporate Headquarters:
27700B SW Parkway Avenue
Wilsonville, Oregon 97070-9215, USA
Phone: 503-685-8888
1-800-294-6400
Fax: 503-685-8887
In Europe
Strawinskylaan 585
1077 XX Amsterdam
The Netherlands
Phone: (31) 20 5792000
Fax: (31) 20 5792999
Freephone: 008000 4636287 (008000 INFOCUS)
In Asia
#07-01, Tanglin Shopping Centre
19 Tanglin Road
Singapore 247909
Phone: (65) 6334-9005
Fax: (65) 6333-4525
InFocus, In Focus, INFOCUS (stylized), Play Big, Work Big, LP and SP are either registered trademarks or trademarks of InFocus Corporation in the United States and other
countries. DLP, the DLP logo, and the DLP medallion are trademarks of Texas Instruments. All other trademarks are used for identication purposes only and are the
property of their respective owners in this and other countries. ©2006 InFocus Corporation. All rights reserved. Part Number: 805-1092-00. PB_IN74_DS_EMEA_012506.
INFOCUS TECHNICAL SPECIFICATIONS*
COMPATIBILITY
Video: Component and RGB HDTV (720p, 1035i, 1080i, 1080p-24Hz), 24p. DVI/HDMI with HDCP
for digital video and encrypted digital video. Component EDTV (480p, 576p progressive
scan), Component, Composite and S-Video standard video (480i, 576i, 576i RGB SCART
with adapter, NTSC, NTSC M 4.43, PAL: B, G, H, I, M, N; SECAM: M]
Computer:
Digital and analog PC, Macintosh®, up to 1024x768 resolution through intelligent resizing
(Separately available M1-A (for analog sources) or M1-D (for digital sources) cable required.)
Communication:
USB (with separately available M1-A or M1-D cable).
RS-232
INPUTS & OUTPUTS
1 - Component (RCA): HDTV, EDTV (progressive), and Standard TV component video (interlaced)
1 - S-Video:
Standard TV Video
1 - Composite (RCA):
Standard TV Video
1 – DVI:
HDTV RGB, HDTV Component, Digital Visual Interface (DVI) with HDCP decryption,
computer, and USB, HDMI via available adapter
1 - HDMI:
SDTV, EDTV, HDTV Component (4:4:4 or 4:2:2) and RGB digital video, Interface (HDMI)
with HDCP decryption
1 - 3.5mm Mini-Jack:
12v screen drop trigger
SCART RGBS: RGBS through component and composite video connectors with separately
available adapter
1 - 9-pin D-connector: RS-232
DISPLAY
Imaging Technology:
Texas Instruments® DLP® DarkChip2™ 576p 12° DMD
Resolution:
1024 x 576 (16:9 widescreen)
Projection Lens:
Fully recessed 12 element zoom lens, all glass, F/2.4-2.8, 21-27mm focal length (1.3:1
zoom ratio) with rack and pinion focus and zoom control
Color Wheel:
Proprietary, 6-segment color wheel (6500K color temperature), D65 color calibration
Calibrated Contrast Ratio:
3000:1 full on/full off, typical
Lamp (Dual mode):
160/200 Watt SHP, 3000 hours average lifetime**
Video Optimized Lumens:
1000 ANSI max
Projection Modes:
Front/rear/ceiling mode
Focusing Distance:
5' (1.5m) to ∞
Keystone Correction:
Digital, up to +/- 20° vertical
SMPTE Brightness:
Up to 12' (3.7m) wide on a 1.0 gain screen
Video Processing: Pixelworks
™
DNX™ 10 bit video decoder, advanced motion adaptive deinterlacing for
Standard and High Denition sources (including 1080i), 2D comb lter
Throw Ratio:
1.52:1 – 1.92:1 (distance/width)
GENER AL
Product Dimensions:
4.7" (120mm) Height x 14.2"(360mm) Width x 14.2"(360mm) Depth, not including stand
Weight:
9.3 lb (4.2 kg)
Power Supply:
100V – 240V at 50/60 Hz
Operating Temperature:
50° F (10° C) – 95° F (35° C)
Operating Altitude:
0 – 7500' (2300m)
Conformances:
UL, c-UL, TUV GS, GOST, C-Tick, NOM, IRAM, FCC Class B, ICES-003 Class B, CISPR22/
EN55022, EN55024/CISPR 24, CB certied in accordance with IEC60950 1/EN60950 1,
MIC, CE, CCC, VCCI, WEEE
Ships with:
Power cord, home entertainment remote control, composite cable, printed Quick Start
Card, CD-Rom with User’s Guide
Warranty:
1 year parts and labor, 90 days for accessories – Additional extended product
warranties available
Lamp Warranty:
90 days – Additional extended 1 year lamp warranty available
Menu Languages:
English, Spanish, French, German, Japanese, Korean, Portuguese, Italian, Norwegian,
Russian, Chinese Traditional, Chinese Simplied
* InFocus reserves the right to alter product offerings and specications at any time without notice.
** Actual lamp life may vary based on the ambient environment. Conditions that may affect lamp life
include temperature, altitude or rapidly switching the projector on and off.
