InFocus M3100, IN3116 User Manual

IN3114, IN3116

010-0738-02 DISPERINDAG No. 0287/1.824.51/09.0

Regulatory models: M3100

Declaration of Conformity

Manufacturer: InFocus Corporation, 13190 SW 68th Parkway, Portland, Oregon 97223-8368 USA

We declare under our sole responsibility that this pr following directives and norms:

EMC Directive 2004/108/EC EuP Directive 2005/32/EC EMC: EN 55022

EN 55024 EN 61000-3-2

EN 61000-3-3 Low Voltage Directive 2006/95/EC Safety: IEC 60950-1:2005, MOD

ojector conforms to the

Trademarks

DisplayLink is a trademark of DisplayLink Corporation. Apple, Macintosh, and PowerBook are trademarks or registered trademarks of Apple Computer, Inc. IBM is a tra demark or registered trademark of International Business Machines, Inc. Microsoft, PowerPoint, and Windows are trademarks or registered trademarks of Microsoft Corporation. Adobe and Acrobat are trademarks or registered trademarks of Adobe Systems Incorporated. DLP® and the DLP logo are registered trademarks of Texas Instruments and BrilliantColor™ is a trademark of Texas Instruments. InFocus, In Focus, and INFOCUS (stylized) are either registered trademarks or trademarks of InFocus Corporation in the United States and other countries.

FCC Warning

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generat

This equipment has been tested and found to comply with the limits for a

es, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instr uctions , may c ause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of

--Reorient or relocate the receiving antenna.

--Increase the separation between

--Connect the equipment into an outlet on a ci receiver is connected.

--Consult the dealer or an experienced radio/TV technician for help. Changes or modifications to th InFocus Corp. may void the user’s authority to operate the equipment.

the following measures:

the equipment and receiver.

rcuit different from that to which the

is equipment that are not expressly approved by

Canada

This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

Agency Approvals

cMETus Other specific Country Approvals may apply This document applies to regulatory model M3100. Input ratings: AC 100-2 InFocus reserves the right to alter product of

without notice.

40V, 3.7A, 50-60Hz

. Please see product certification label.

ferings and specifications at any time

Table of Contents

Introduction 4 Positioning the projector 6

Connecting power 8 Connecting a computer source 8

Displaying an image 10

Connecting a video device 12 Video device connections 12 Shutting down the projector 14 Troubleshooting your setup 14 Using the remote control 22 Using the audio 23 Using the keypad buttons 24 Optimizing computer images 24 Presentation features 24 Optimizing video images 25 Customizing the projector 25 Dynamic Messaging 25 Using the menus 26

Using Network Functions 33 Using LitePort 37 Maintenance 40

INDEX 43

Ceiling Mount 7

Optional computer connections 9

Adjusting the image 11

Basic Picture menu 27 Advanced Picture menu 28 Setup menu 29 Status and Service menu 32 Help 32

Cleaning the lens 40 Replacing the projection lamp 41 Using the security lock 42

Important Operating Cons

’ / 1.5 m

’

/2.4m

2’ / 0.6 m

iderations for Safety

• Refer to this guide for proper startup and shutdown procedures.

• Follow all warnings and cautions in this manual and on the projector

• Place the projector in a horizontal position no greater than 8 degrees off axis.

• Locate the projector at least 4' (1.2m) away from any heating

• Do not block ventilation opening

s. Locate the projector in a well-ventilated

or cooling vents.

area without obstructions to intake or exhaust vents. Do not place the projector on a tablecloth or other soft covering that may block the vents.

• Do not place the projector in direct sunlight, humid, greasy or dusty places or in places where the projector may come into contact with smoke or steam.

• Do not look directly into the lens while the projector is being used.

• Do not drop the projector.

• Do not spill liquid on the projector. Spilled

• Use the power cord provided. Connect the power

liquid may damage the projector.

cord to a receptacle with a protective safety (earth) ground terminal. A surge-protected power strip is recommended.

• Do not overload wall outlets.

• When disconnecting the power cord, hold

the plug, not the cord.

• Wash hands after handling the cables supplied with this product.

• The projector remote control uses batteries. Make sure the batteries’ polarity (+/-) is aligned correctly

. Dispose of used batteries in accordance with local

disposal laws.

• Use an InFocus approved ceiling mount kit for proper fitting, ventilation and installation. The warranty does not cover any damage caused by use of nonapproved ceiling mount kits or by installing in an improper location.

• When the projector is ceiling mounted, wear protective eyewear to prevent eye injury before opening lamp door.

• Refer all service to qualified service personnel. Servicing your own projector can be dangerous to you and will void the warranty.

• Only use replacement parts specified by In may result in fire, electrical shock, or injury, and may void the warranty

Focus. Unauthorized substitutions

• Only genuine InFocus lamps are tested for use in this projector. Use of non InFocus la

mps may cause electrical shock and fire, and may void the projector

warranty.

Hg – Lamp contains mercury. Manage in accordance with local

•

disposal laws. See www.lamprecycle.org.

• The projector uses a high-pressure mercury glass lamp. The lamp may fail prematurely, or it may rupture with a popping sound if jolted, scratched, or handled while hot. The risk of lamp failure or rupture also increases as the lamp age increases; please replace the lamp when you see the “Replace Lamp” message.

• In the unlikely event of a lamp rupture, particles may exit through the p vents. Keep people, food, and drinks out of the "keep out" area under and around the projector, as indicated by the "X" areas below.

Follow these instructions to help ensure image quality and lamp life over the life of the projector. Failure to follow these instructions may affect the warranty. For complete details of the warranty, see the Warranty Booklet.

rojector

Introduction

LiteTouc h keypad

Lens

Remote control receiver (IR)

Top fr ont cover / Lamp access panel

Top rear cover

Elevator foot release button

Sliding lens cover button

Connector panel

Power cord connector

Your new digital projector is simple to connect, easy to use, and straightforward to maintain. It is a versatile projector that is flexible enough for business presentations and home video viewing, too. The IN3114 has native XGA 1024x768 resolution, and the IN3116 has WXGA 1280x800 resolution. This guide applies to both products. They are compatible with a wide variety of computers and video devices.

Product specifications

To read the latest specifications on your multimedia projector, be sure to visit our support website at www.infocus.com/support, as specifications are subject to change.

Online registration

Register your projector on our website at www.infocus.com/register to activate your warranty and receive product updates, announcements, and registration incentives.

Included Items

The standard accessories which came with your projector are listed in the included Quick Start poster.

Optional Accessories

Optional accessories include the Commander-2 remote, ceiling mount, DisplayLink Extender, DisplayLink Wireless Adapter, and LiteShow II. These items and other accessories can be found on our website at www.infocus.com or at your local dealer.

Connector panel

IR Sensor

S-video

Monitor out

VGA

Displaylink connector

RS-232

Composite video

Security lock

Audio in

HDMI

LAN

Liteport

5V DC output

Audio out

The projector provides both computer and video connection options, including:

• VGA computer (2)

• HDMI (1)

•S-video

• Composite video

• Separate audio inputs for video and computer

• USB DisplayLink connector, for compu

er audio/video input. This USB

t connection also provides power out for the DisplayLink Wireless Adapter (and mouse control when used with the optional Commander 2 remote).

The projector also provides the following connectors:

• Monitor out, to provide an image on your desktop computer projection screen.

• LAN port for network control and web server.

• LitePort, for connecting a USB flash drive containing JPEG imag

as well as on the

es.

• Audio out, to provide sound for external speakers.

• 5 volt DC output

• RS-232 connector for serial control. Command co

codes are available on

ntrol

our support website at www.infocus.com/support.

NOTE: Only VGA video is sent to the Monitor out connector.

5 volt DC output

The coaxial 6.4mm x 2.2mm jack provides a constant 5 volt, 2 amp DC output when the projector is on, and will also provide power when the projector is powered off, if Network and DisplayLink items in the Always-On Functions submenu are set to Y es. It is designed to provide power to an InFocus LiteShow II wireless device or InFocus DisplayLink Extender device.

Positioning the projector

To determine where to position the projector, consider the size and shape of your screen, the location of your power outlets, and the distance between the projector and the rest of your equipment. Here are some general guidelines:

• Position the projector on a flat surface at a right angle to the screen. The projector must be at least 4.9’ (1.5m) from the projection screen.

• Position the projector within 10’ (3m) of your power source (1.8m) of your video device (unless you purchase extension cables). T o en sure adequate cable access, do not place the projector within 6” (.15m) of a wall or other object.

• Position the projector to the desired dist

ance from the screen. The distance from the lens of the projector to the screen, the zoom setting, and the video format determine the size of the projected image.

• The image exits the projector at a given angle. This image offset is 115%. This means that for an image 10’ high, the bottom of the image will be 1.15’ above the center of the lens.

and within 6’

Table 1: IN3114 (XGA)

Range of distance to the screen for a given screen size

Distance to screen

Diagonal Screen Size (inches/m)

Minimum distance (feet/m)

Maximum Distance (feet/m)

60”/1.52m 6.48'/1.98m 7.80'/2.38m 80”/2.03m 8.64'/2.63m 10.40'/3.17m 90”/2.29m 9.72'/2.96m 11.70'/3.57m 150”/3.81m 16.20'/4.94m 19.50'/5.94m

Table 2: IN3116 (WXGA)

dist

Range of

Diagonal Screen Size (inches/m)

ance to the screen for a given screen size

Distance to screen Minimum

distance (feet/m)

Maximum Distance (feet/m)

60”/1.52m 6.21’/1.89m 7.74’/2.36m 80”/2.03m 8.34’/2.54m 10.36’/3.16m 90”/2.29m 9.40’/2.86m 11.68’/3.56m 150”/3.81m 15.77’/4.81m 19.55’/5.96m

Ceiling Mount

8º

If you wish to install the projector on the ceiling:

• W e strongly recommend using InFocus approved ceiling mounts f or p roper fitting, ventilation and installation. Refer to the installation guide that comes with the InFocus Ceiling Mount Kit (p/n SP-CEIL-UNIV) for more information. The warranty does not cover any damage caused by use of non -approved ceiling mount kits or by

• The ceiling must be strong enough to support the p must be in accordance with any local building codes. Consult your dealer for more information.

• Maximum supported physical pitch is +/-8º.

• Maximum supported physical horizontal roll is +/-8º.

• Keep all adjacent surfaces 3” (76mm) from sides, front an (22mm) from the bottom of projector to preserve required airflow around the projector.

installing in an improper location.

rojector and the installation

d rear and .87”

Connecting power

Connect power cord

Connect USB cable Connect computer cable

Connect the black power cord to the Power connector on the rear of the projector and to your electrical outlet. The Power light on the Status Indicator Panel (page 14) turns amber.

NOTE: Always use the power

cord that shipped with the projector.

Connecting a computer source

DisplayLink

If you have a Windows or Macintosh computer, connect the USB cable between your computer's USB port and the projector's DisplayLink connector*. Then to begin installation of the DisplayLink software:

instru

Windows: Follow the Macintosh: A folder

Open that file and follow the instructions on the screen. *For detailed DisplayLink instructions and troubleshooting, and to do

latest DisplayLink software, go to www.infocus.com/support/displaylink.

VGA connection

Connect one end of the provided computer cable to the VGA 1 or VGA 2 connector on the projector and the other to the VGA connector on your computer. If you are using a desktop computer, you will need to disconnect the monitor cable from the computer’s video port first (you can connect this monitor cable to the Monitor Out connector on the projector, see next page).

HDMI 1.3 connection

HDMI is a standard, uncompressed, all-digital audio/video interface. HDMI provides an interface between sources, such as set-top boxes, DVD players, and receivers and your projector. Plug an HDMI cable into the video out connector on the video device and into the HDMI connector on the projector.

To take adv antage of HDMI 1.3 Deep Colo compatible source.

ctions on the screen.

will open containing a file named DisplayLink Installer.pkg.

wnload

the

r (30

bit) you must have a 1.3-

Optional computer connections

Connect audio cable

Connect monitor cable

To get sound from the projector, connect an audio cable (optional cable, not included) to your computer and to the Audio 1 or Audio 2 connector on the projector. (Default settings are as follows: Audio 1 is used with VGA 1 and VGA 2; Audio 2 is used with S-video and composite.) You can also assign a your source to a different audio in connector, see page 23 and page 30 adapter.

If you are using a desktop computer and want to see the image on your computer screen as well as on the projection screen, connect the computer’s monitor cable to the Monitor Out connector on the projector.

. You may also need an

NOTE: Only VGA video is sent to the Monitor out connector

To display a presentation from a USB flash drive, see th e Using LitePort section on page 38. This feature eliminates the need for a computer source and can be integrated with common wall plates and conference

To advance slides in a PowerPoint presentation using the remote con USB cable between the projector’s DisplayLink connector and your computer . Then press the up and down arrow buttons on the remote control to move through your slides.

room input/output panels.

trol, plug the

Displaying an image

Press Power button

Turn on computer or video device

Activate laptop’s external port

Monitor key or LCD/CRT key

Fn key

Touch the Power button on the keypad or the remote. The Power button blinks green and t

start up screen will display and the Power button will become solid green. It can take a minute for the image to achieve full brightness.

No start up screen? Get help

Slide the lens cover to the side, if it is covering the lens. Turn on your computer or video device. The image should appear on the

button on the projector’s keypad or remote.

If you are using a VGA cable to connec (instead of DisplayLink):

he fans start to run. When the lamp turns on, the

n page 15.

projection

screen. If it doesn’t, press the Source

your computer to the projector

If using a laptop, make sure its external video p Many laptops do not automatically turn

ort is active.

on their external video port when a projector is connected. Usually a key combination like Fn + F8 or CR T/LCD key turns the external display on and off. Locate a function key labeled CRT/LCD or a function key with a monitor symbol. Press Fn and the labeled function key simultaneously. Refer to your laptop’s documentation for more information about your laptop’s key combination or go to the InFocus website at: http://www.infocus.com/Support/

LaptopActivation.aspx.

No laptop image? T Is your laptop connected to the projector

the InFocus DisplayLink Software User's Guide (available on the InFocu s website at www.infocus.com/displaylink) for troubleshooting information.

ry pressing the Auto Image button on the keypad.

's DisplayLink connector? See

Adjusting the image

Adjust height

Adjust distance

Adjust zoom and focus

Adjust keystone

If necessary, adjust the height of the projector by pressing the elevator foot release button to extend the foot.

Rotate the elevator feet for granular adju

stment of

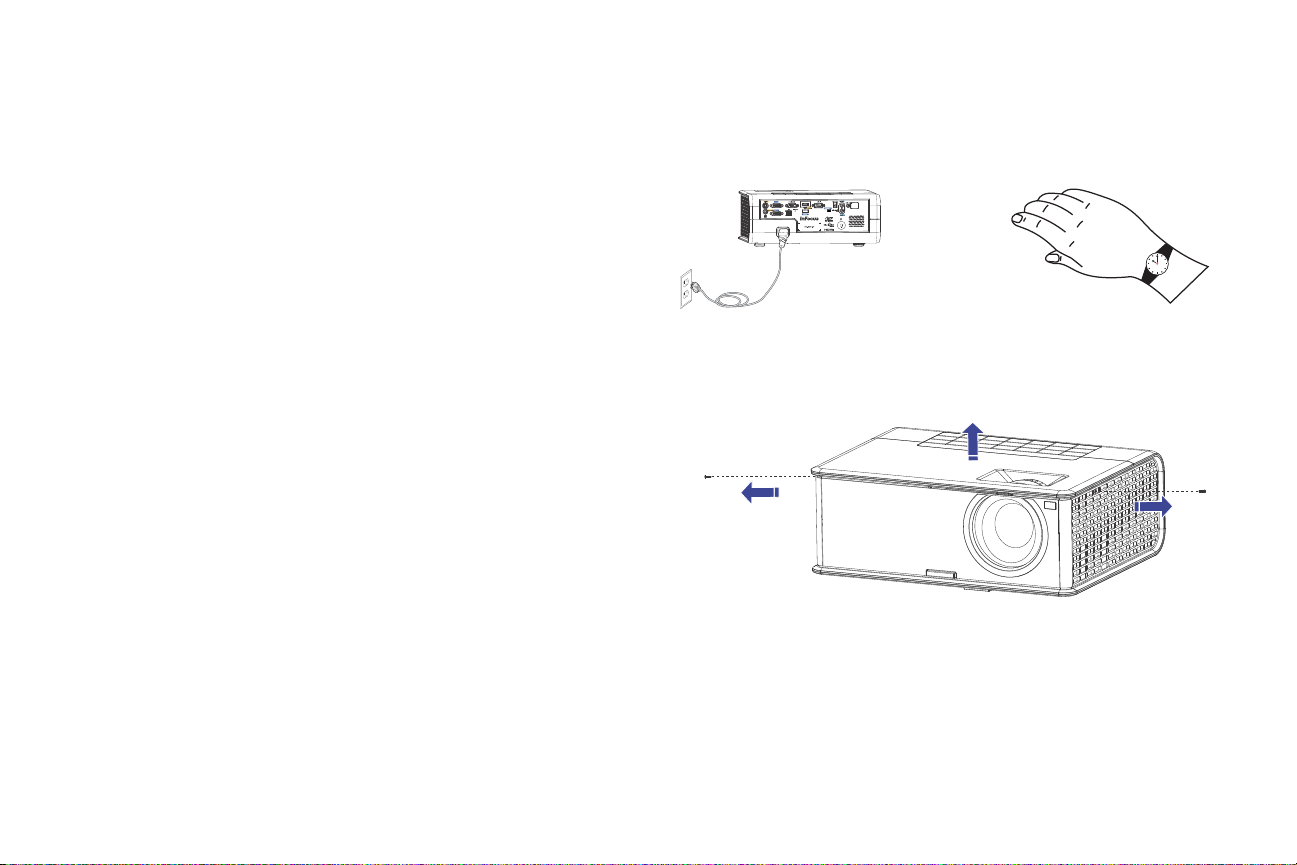

placing your hands near the hot exhaust vent at the side of the projector.

the projector’s height. Avoid

A void placing your hands near the hot exhaust vent

at the side of the projector.

Position the projector to the desired distance from the screen at a 90 degree angle to

e screen. See page 6 for a table listing to screen sizes and distances.

Adjust the zoom or focus.

If the image is not square, first make sure that

the projector is perpendicular to the screen. To reduce the size of the top edge of the image, press the top Keystone button. To reduce the size of the bottom edge of the image, press the bottom Keystone button.

ger

If the left or right side of the screen is lar

or smaller than the other, you can turn the projector to the left or to the right a few degrees to square the ima ge. See page 6 for details.

Adjust the Contrast or Brightness in the with these menu adjustments.

Basic Picture menu. See page 27 for help

Connecting a video device

You can connect video devices such as VCRs, DVD players, camcorders, digital cameras, video game consoles, HDTV receivers, and TV tuners to the projector. You can connect the audio directly to the projector to get sound from the built-in speaker, or you can bypass the projector’s audio system and connect the audio directly from your source to a stereo or home theater system.

You can connect the projector to most video devices cannot directly connect the coaxial cable that enters your house from a cable or satellite company; the signal must pass through a tuner first. Examples of tuners are digital cable boxes, VCRs, digital video recorders, and satellite TV boxes. Basically, any device that can change channels is considered a tuner.

Although the aspect ratio is automatically selected by th signal input, you can change the aspect ratio, if desired. The projector’s Aspect Ratio setting is accessed through the Resize button on the remote or through the projector’s Basic Picture Menu. See page 27 for more information.

that can output video. You

e projector based on the

Composite video connection

Plug the composite video cable’s yellow connector into the video out connector on the video device. Plug the other yellow connector into the yellow Composite connector on the projector.

Plug the white connector of a Mini-plug audio Y connector on the video device and plug the red connector into the right audio out connector on the video device. Plug the other end of the cable into the associated audio in connector on the projector.

Keep in mind that video output from composite S-video.

-cable into the left audio out

connections is not as high quality as

S-video connection

If your video device uses a round, four-prong S-video connector, plug an S-video cable into the S-video connector on your video device and into the S-video connector on the projector. Use the audio cable as described above.

Keep in mind that video output from S-video connections is component.

not as high quality as

Video device connections

No video cables are provided with the projector. You can order cables from InFocus or use your own.

HDMI 1.3 connection

To take adv antage of HDMI 1.3 Deep Color (30 ble source.

bit) you must have a 1.3-compati-

VGA connection

If your video device has a 15-pin VGA output, plug one end of the included computer cable into the VGA connector on your video source. This connector may be labeled “To Monitor” on the video source. Plu g the computer cabl e into the VGA

1 or VGA 2 connector on the projector.

Component video connection

A Component to VGA adapter can be used in conjunction with the VGA connectors. Plug the component cable into the video device. Plug the other end of ponent cable into the adapter and plug the adapter into the VGA 1 or VGA 2 connector.

Component offers the highest

quality analog video output.

the com-

What is Aspect Ratio?

4:3 screen 16:9 screen

4:3 mode

16:9 mode

Native mode

Aspect ratio is the ratio of the image width to image height. Standard TV screens and older laptops are 4:3; HDTV and most DVDs are 16:9; and widescreen computers are 16:10. If you are projecting onto a screen, the size/shape of the screen will influence the aspect ratio you decide to use. If you are projecting onto a blank wall, there are no screen size restrictions. What you plan to project will also help you choose between 4:3, 16:9 or 16:10. Many TV shows are 4:3, while most movies are 16:9.

If you have a 16:9 screen then you should select an aspect widescreen movies or HDTV, and Native for 4:3 content. If you have a 4:3 screen you should still use 16:9 for widescreen movies or HDTV, but you also have the option of using either 4:3 (to fill the screen) or Native (for direct pixel mapping) for 4:3 content. Force Wide can also be enabled to automatically resize le ss common aspect ratios to 16:10.

ratio of 16:9 for
