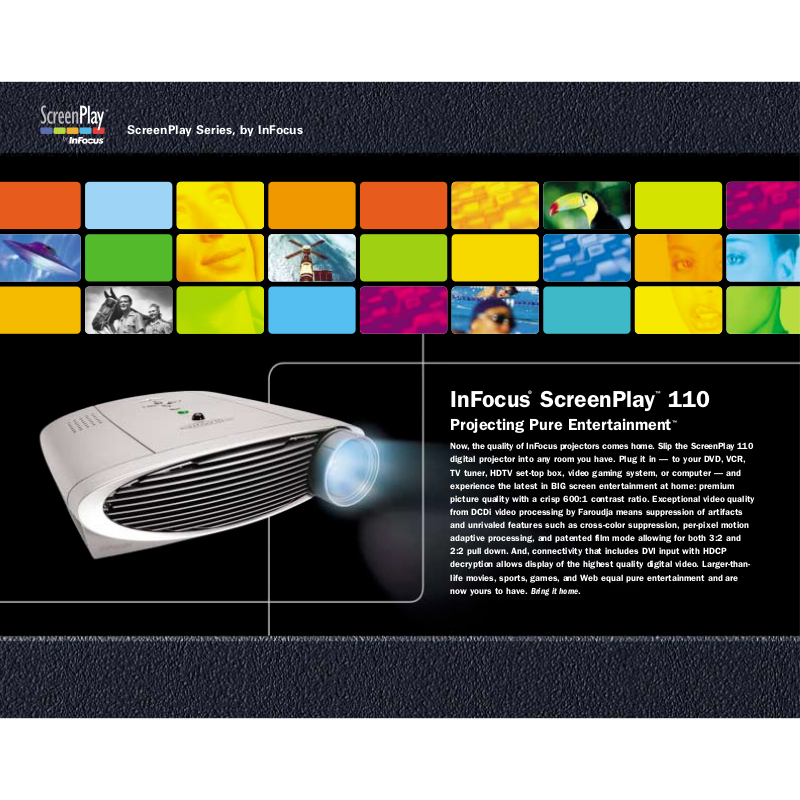

InFocus®ScreenPlay™110

Projecting Pure Entertainment

™

Now, the quality of InFocus projectors comes home. Slip the ScreenPlay 110

digital projector into any room you have. Plug it in — to your DVD, VCR,

TV tuner, HDTV set-top box, video gaming system, or computer — and

experience the latest in BIG screen entertainment at home: premium

picture quality with a crisp 600:1 contrast ratio. Exceptional video quality

from DCDi video processing by Faroudja means suppression of artifacts

and unrivaled features such as cross-color suppression, per-pixel motion

adaptive processing, and patented film mode allowing for both 3:2 and

2:2 pull down. And, connectivity that includes DVI input with HDCP

decryption allows display of the highest quality digital video. Larger-than-

life movies, sports, games, and Web equal pure entertainment and are

now yours to have. Bring it home.

ScreenPlay Series, by InFocus

Movies, Sports, Games, Web. Wide-Screen Cinematic Magic. At Home.

Key Features

• Dual-mode Digital Light Processing™system with true 16:9 and 4:3 video displays.

• HDTV (1080i and 720p) compatible, component video (YPbPr), and standard NTSC, PAL, and SECAM,

plus the ability to display all popular DVD formats.

• Proprietary Directional Correlational Deinterlacing (DCDi

™

) technology from Faroudja provides optimum video

quality, and suppresses artifacts for the clearest images from any video input.

• Exclusive 6-segment, 4-speed color wheel technology delivers natural, saturated colors and sharp contrast.

• Flexible installation and placement (mount it on the ceiling or place it on a table top), with digital keystone

correction, allows placement of the 110 above or below the screen with no image distortion.

• Easy to use with onscreen menus in eight languages, multiple pre-set modes for film, video, and PC, plus

extensive image controls for color saturation, contrast, tint, and brightness.

• Film mode detection with 3:2 and 2:2 pull down, per-pixel motion detection and compensation.

Visit infocushome.com for the complete picture.

InFocus Europe

Olympia 1

NL-1213 NS,

Hilversum, The Netherlands

Phone: (31) 35 6474000

Fax: (31) 35-6423999

Freephone: 00 80004636287

(008000-INFOCUS)

InFocus Asia

238-A Thomson Road

#18-01/04 Novena Square

Singapore

307684

Phone: (65) 334-9005

Fax: (65) 333-4525

InFocus Corporation

Wilsonville, Oregon

97070-9215

Phone: 503-685-8888

Fax: 503-685-8887

© 2001 InFocus Corporation. InFocus is a registered trademark and ScreenPlay and “Projecting Pure Entertainment” are trademarks of InFocus Corporation. All other trademarks are used with permission or are for identification purposes only and are the property of their respective companies. 12/01 DG/805-0503-02

InFocus®ScreenPlay™110 Specifications

COMPATIBILITY

Video: Component and RGB HDTV (720p, 1080i)

DVI/HDCP for digital video and encrypted digital video Component EDTV (480p progressive scan) Component, Composite and S-Video standard video [480i, 576i, NTSC, NTSC 4.43, PAL (M, N, 60)]

Computer: Digital and analog PC, Macintosh

, 1024x768

resolution through intelligent resizing

Communication: USB and RS-232

INPUTS & OUTPUTS

1 - Component (RCAx3): HDTV, EDTV, and Standard TV component 1 - M1-DA VESA: HDTV RGB, Digital video interface (DVI), computer, and USB 1 - HD15 VESA: HDTV RGB, HDTV component, computer 1 - S-Video: Standard video 1 - Composite (RCA): Standard video 2 - 3.5mm mini-jack: Computer audio input 2 - RCA (R/L): Video audio input 1 - 9-pin Dsub male: RS-232 1 - 15-pin Dsub female: HDTV RGB, HDTV component, computer out

DISPLAY

Projection System: Single chip dual-mode DLP

™

system Resolution: 848x480 (16:9) and 800x600 (4:3) Projection Lens: 1.2x zoom lens Color Wheel: 6-segment, 4-speed color wheel

Contrast Ratio: 600:1 full on/full off Lamp: User replaceable 220-Watt high-pressure mercury Lumens: 1000 ANSI Colors: 16.7 million simultaneously displayable Modes: Front/rear and table top/ceiling mode Focusing Distance: 6.5-33 feet (2-10m) Keystone Correction: Digital, up to +/- 20 degrees

Optimal Image Size: 5-12 feet (1.52-3.66m) diagonal image size Throw Ratio: 16:9 = 1.48-1.82; 4:3 = 1.44-1.78 (dist./diag.)

GENERAL

Size: 10.4 inches (W) x 11.1 inches (L) x 3.3 inches (H) or

26.4cm x 28.2cm x 8.38cm Weight: 6.7 pounds (3.0kg) Power Supply: 100-120/200-240 VAC, 5/3A, 50-60Hz Operating Temperature: 10-40 degrees C, 50-104 degrees F Conformances: CE, UL, cUL, IRAM, NOM, C-tick, FCC Class B, and TUV Menu Languages: English, Spanish, French, German, Japanese, Chinese,

Korean, and Portuguese
