InFocus LitePro 210, LitePro 220 User Manual

USER’S

GUIDE

User’s Guide

Copyright © 1996 by In Focus Systems, Inc.

Wilsonville, Oregon. All rights reserved.

FCC Warning

This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of FCC Rules. These limits are d e signed to pro­vide reasonable protection against harmful interference in a resid ential installa­tion.

DOC (Canada)

This Class B digital apparatus meets all requiremen ts of the Canadian Interfer­ence- Causing Equipment Regulations. Cet appareil numerique de la classe B
respecte toutes les exigences du Reglement sur le materiel brouilleur du Canada.

Instructions to User

This equipment generates, uses and can radiate radio frequency energy and, i f not
installed and used in accordance with the instructions, may cause harmful inter­ference to radio communications. However, there is no guarantee that interfer­ence will not occur in a particular installation. If this equipment does cause
harmful interference to radi o or te levision reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.

• Consu lt the dealer or an experienced radio/TV technician for help.

Any and all modifications to this unit other than those made by approved service
personnel are pr ohibited.

Safety Certifications

UL, CUL, and TÜV

Trademarks

Apple, Macintosh, and PowerBook are trademarks or registered trademarks of
Apple Computer, Inc. IBM and PS/2 are trademarks or registered trademarks of
International Business Machines, Inc. MicroSaver and Kensington are trademarks
or registered trademarks of Kensington Microwa re Li mited. JBL is a trade mark or
registered trademark of Harman Interantional. Windows is a trademark or regis­tered trademark of Microsoft Corporation. CableWizard, In Focus Systems and
LitePro are trademarks or registered trademarks of In Focus Systems, Inc.

Icon copyrighted by and used with the permission of Apple Computer, Inc.

All Rights Reserved.

Declaration of Conformity

Manufacturer: In Focus Systems, Inc.
27700B SW Parkway Ave. Wilsonville, Oregon 97070 USA
European Office: Plantenweg 91, 2132 HL Hoofddorp, The Netherlands

We declare under our sole responsibility that the LitePro 210 and 220 LCD Projec­tors conform to the following directives and norms:

Directive 89/336/EEC
EMI: EN 55022 (1992) Class B
EMC: EN 50082-1 (1992)

IEC 801-2, IEC 801-3, IEC 801-4
Directive 73/23/EEC
Safety: EN 60950: 1992 + A1 + A2 + A3: 1995

May, 1996

TABLE OF CO NTENTS

Safety Summary iii

Introduction 1

Image Resolution 1
Compatibility 2
Unpacking the Projector 2
Usage Guidelines 4
If You Need Assistance 4
Warranty 4

Setti ng up the Projector 5

Connecting the CableWizard to the Projector 6
Selecting Connectors on the CableWizard 6

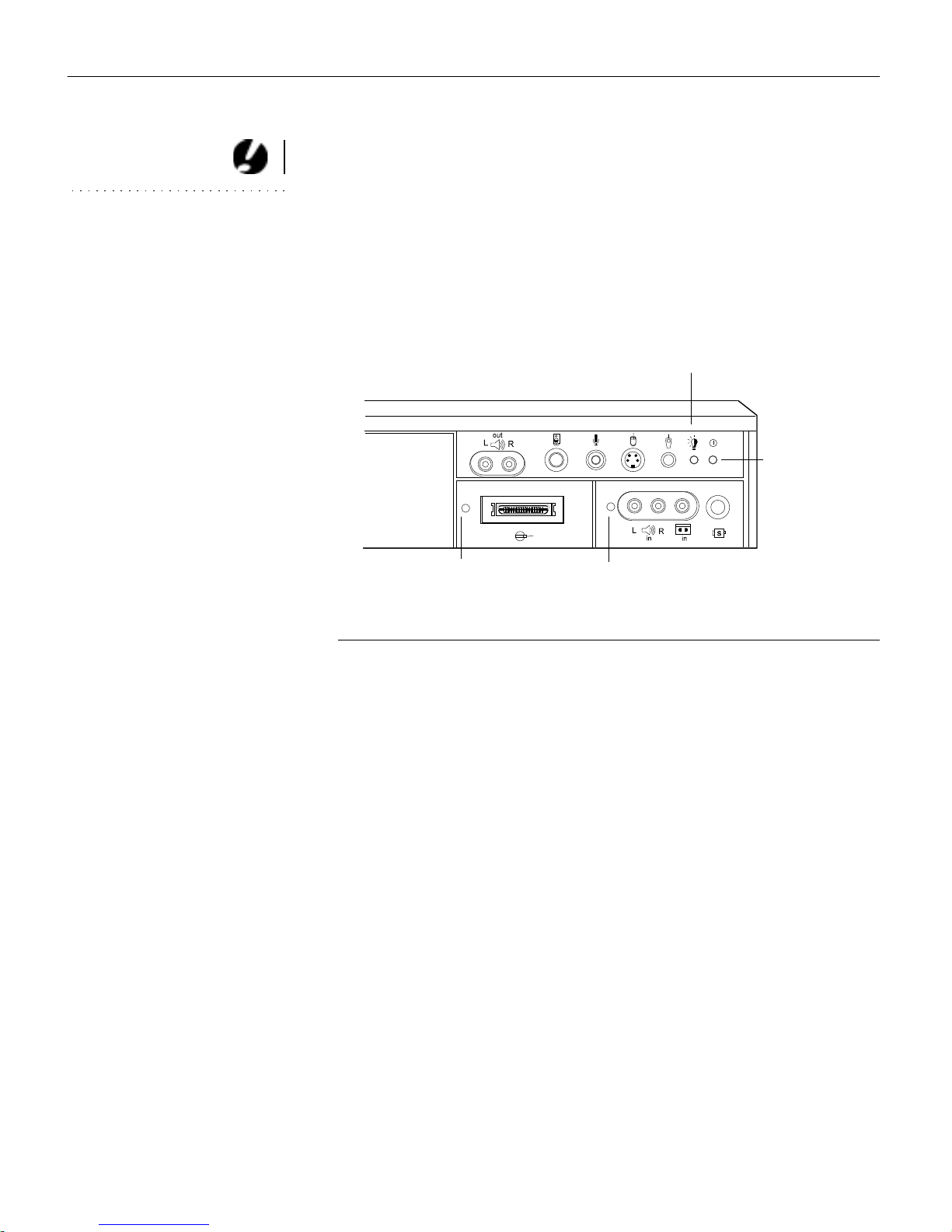

Preparing to Connect Your Equipment to the Projector 8
Connecting an IBM-Compatible Desktop Computer 9
Connecting an IBM-Compatible Laptop Computer 11
Connecting a Macintosh Desktop Computer 13
Connecting an Apple PowerBook Computer 15
Connecting a Video Player 17

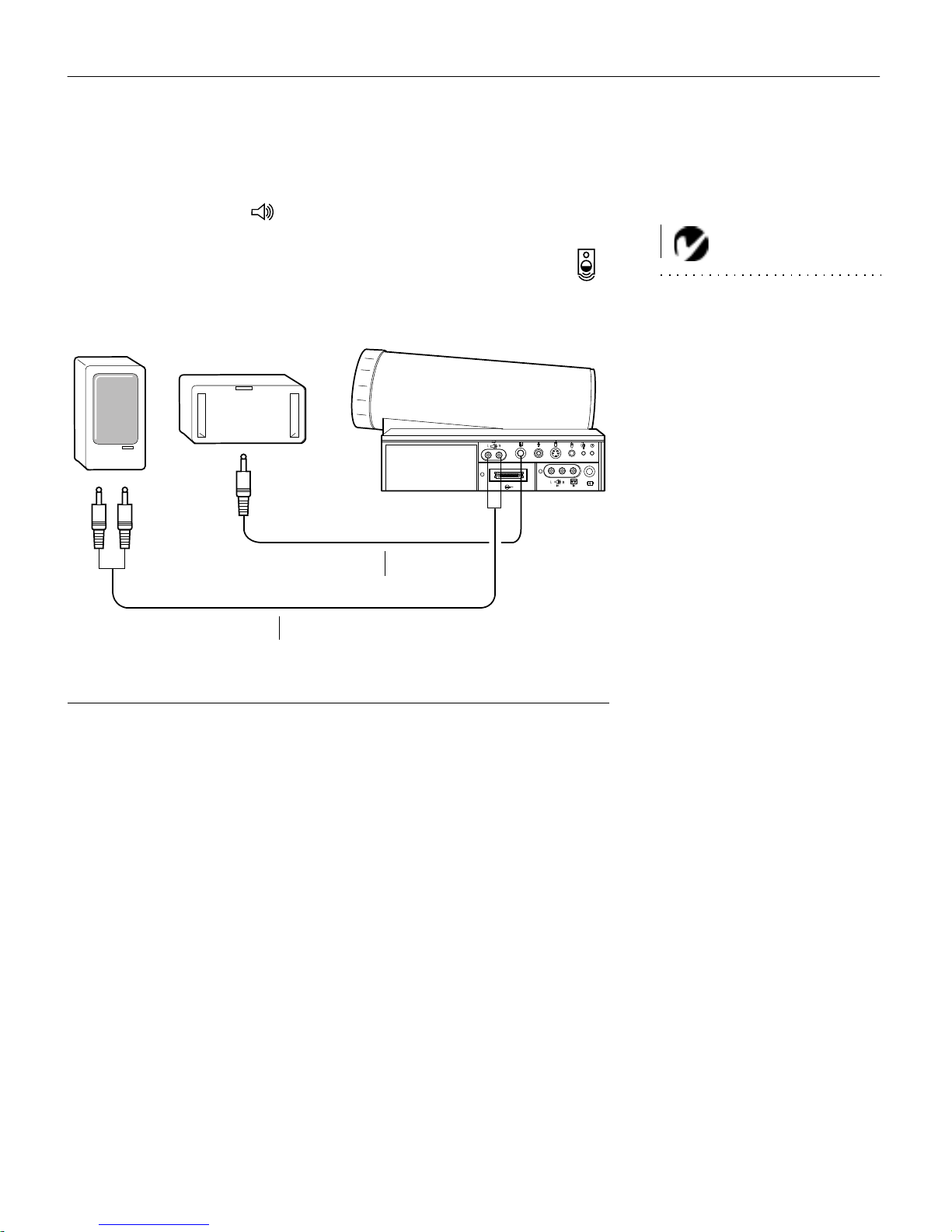

Connecting an External Speaker and a Subwoofer 19
Connecting a Microphone 20
Connecting a PS/2-Compatible Mouse. 20
Connecting the Remote Control Cable 21
Powering up the Projector and Adjusting the Image 21
Turning Off the Projector 23

Using the Projector 25

Basic Image Adjustment 25

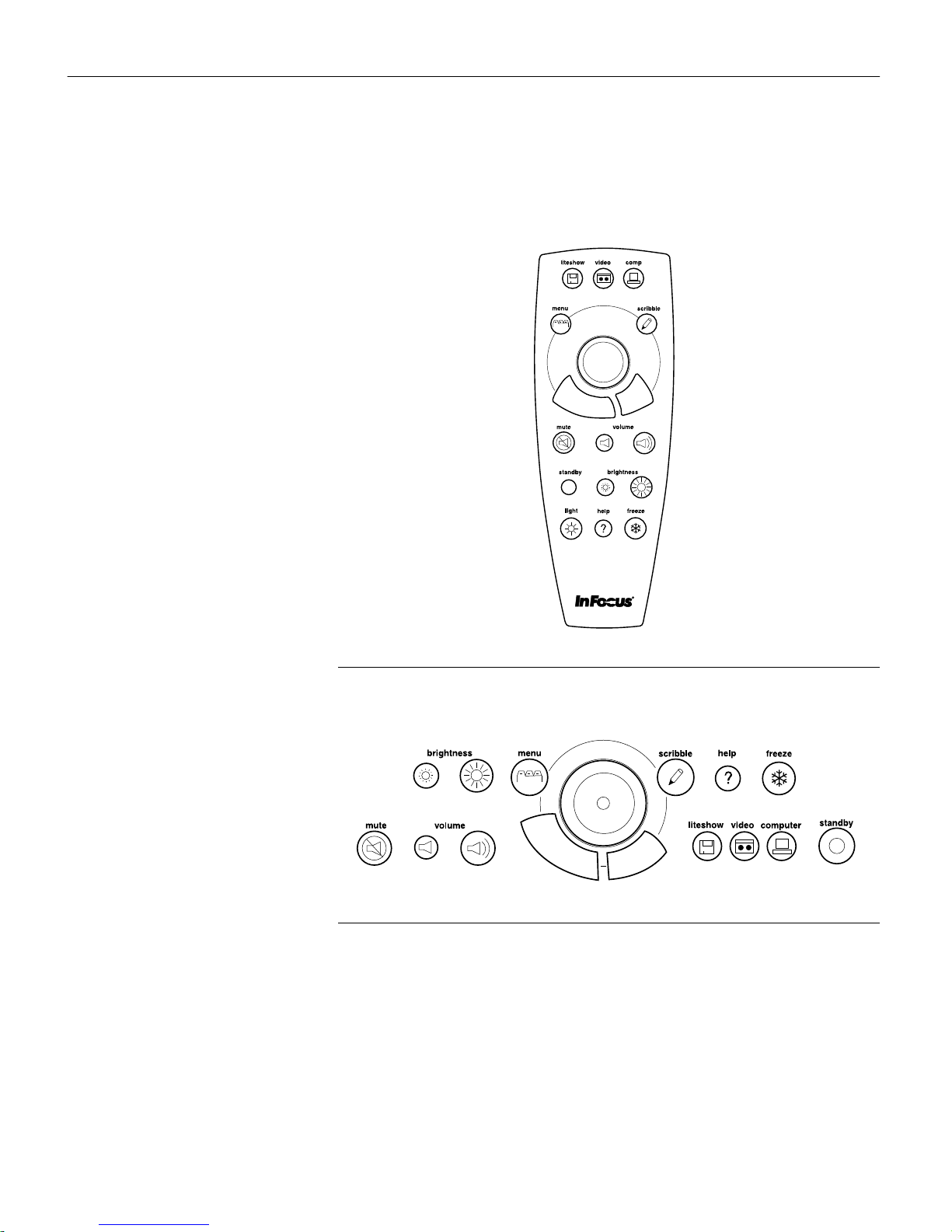

Using the Remote Control 25
Adjusting the Projector 26
Using the R e mo te and Keypad Buttons 28
Using the Disk Mouse 32

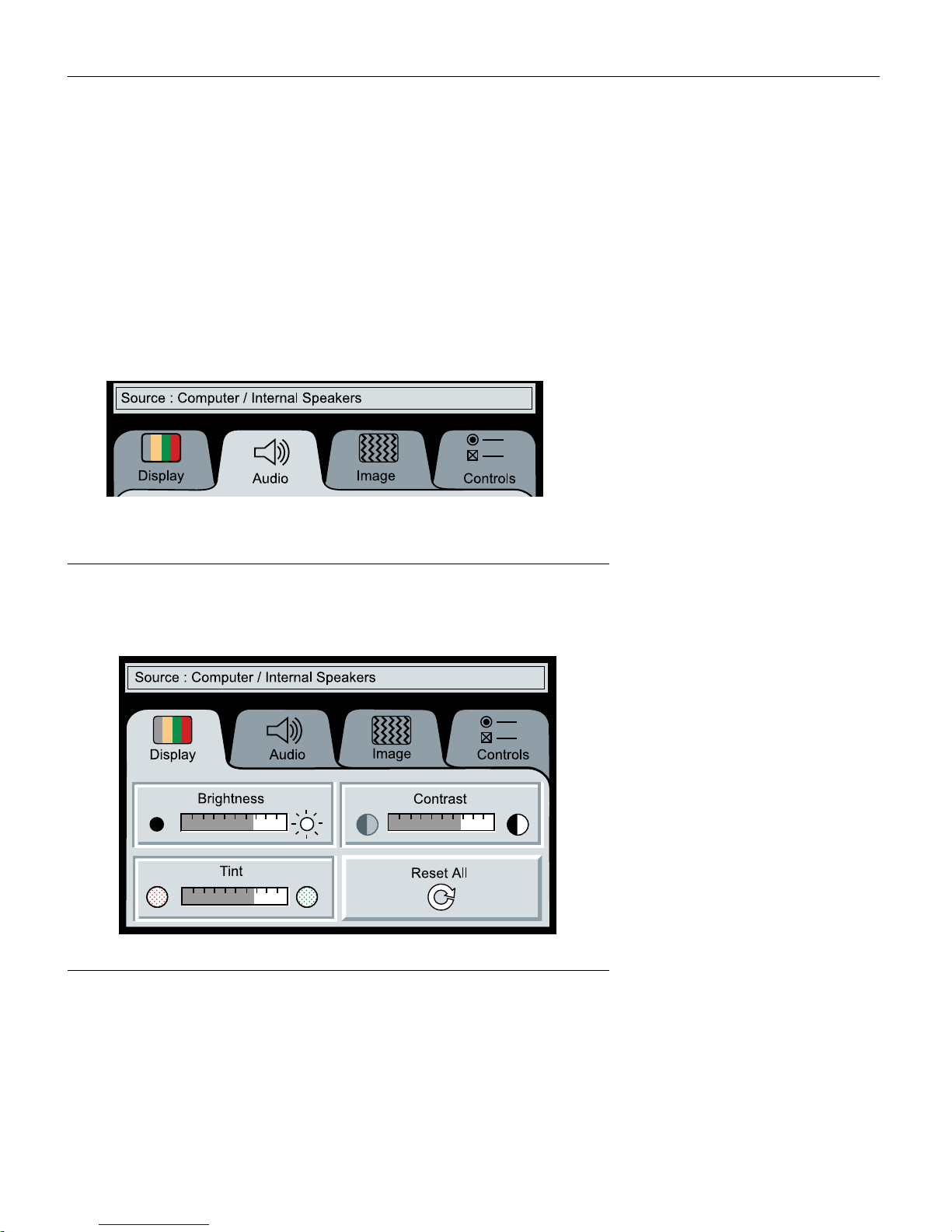

Using the On-Screen Menus 32
Display Menu Functions 33
Audio Menu Functions 35
Image Menu Functions 37
Controls Menu Functions 39

i

Table of Contents

Maintenance 41

Cleaning the Lens 41

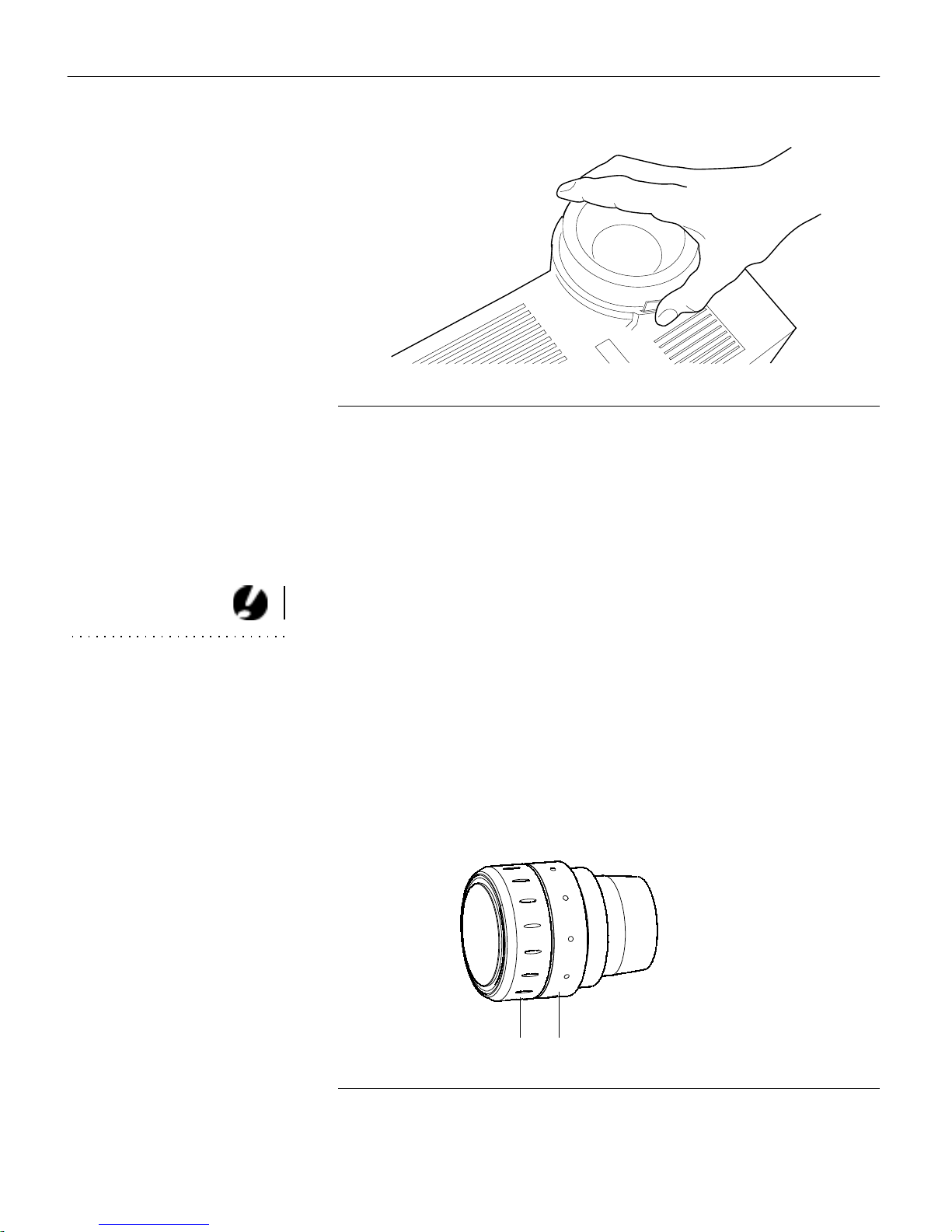

Removing and Replacing a Lens 41
Using the Zoom Lens 42
Replacing the Projection Lamp 43
Resetting t he Lamp Monitor Light 44
Replacing the Batteries in the Remote Control 45
Replacing the Fuse 45
Using the Kensington Lock 47

Troubleshooting 49

Solutions to Common Problems 50

Appendix 55

Specifications 55
Accessories 57
Portable and Laptop Activation Chart 59
Using Video Mirroring with a PowerBook Computer 63
Projected Image Size 64

Index 67

ii

SA FE TY S UM MAR Y

Ple ase read these instruct ion s caref ully be fore usin g your LitePro
210 or 220. Failure to comply with them could result in fire, elec­trical shock, personal injury or damage to equipment.

These graphics are used throughout this manual to draw your
atten t ion to important information about the projectors.

NOTE: Additional useful details or tips.

CAUTION: Steps to take to avoid damage to your equipment.

WARNING: Steps to take to avoid persona l injury.

These graphics are used on LitePro labels.

Attention - Refer to this User’s Guide for important

safety information.

Hot Surfaces - Avoid touching hot surfaces. Do not

touch until the LitePro has cooled.

Lamp Explosion Hazard - If you continue to use the

lamp after the lamp monitor light comes on, it may

explode, severely damaging your LitePro. Be sure to

replace the lamp when the lamp monitor light comes on

as described in this User’s Guide. Refer to the section

titled “Replacing the Projection Lamp” for information

about changing the bulb.

Do Not Look Into The Lens!

Be extr emely careful not to look i nto the pr oject ion le n s when the
LitePro is turned on. The bright light may harm your eyes. Be
especially careful to keep children from looking into the lens.

iii

Safety Summary

Power Source

Use only a three-wire grounding type power source. The power
source should not exceed 250 volts rms between the supply con­ductors or between either conductor and the ground.

Power Cord

Use only the power cord that was shipped with the LitePro.
Although other pow er cords might be similar in appearan ce, they
hav e not been safe ty-tested with the 210 or 220. Do not use a
power cord if it has become damaged or frayed. Contact your In
Focus dealer or call In Focus if you need to replace your power
cord.

Grounding

The projector is grounded through the groundi ng conductor on
the power cord. To avoid el ectric shock, plug the power cord into
a properly wired receptacle. Do not defeat the purpose of the
grounding-type plug.

CAUTION: Be sure to replace

the projection bulb when the lamp

monitor light comes on as

described on page 43. If the lamp

rem ains in use too long, there is a

danger of bulb explosion. If this

happens, your LitePro will be

severely damaged.

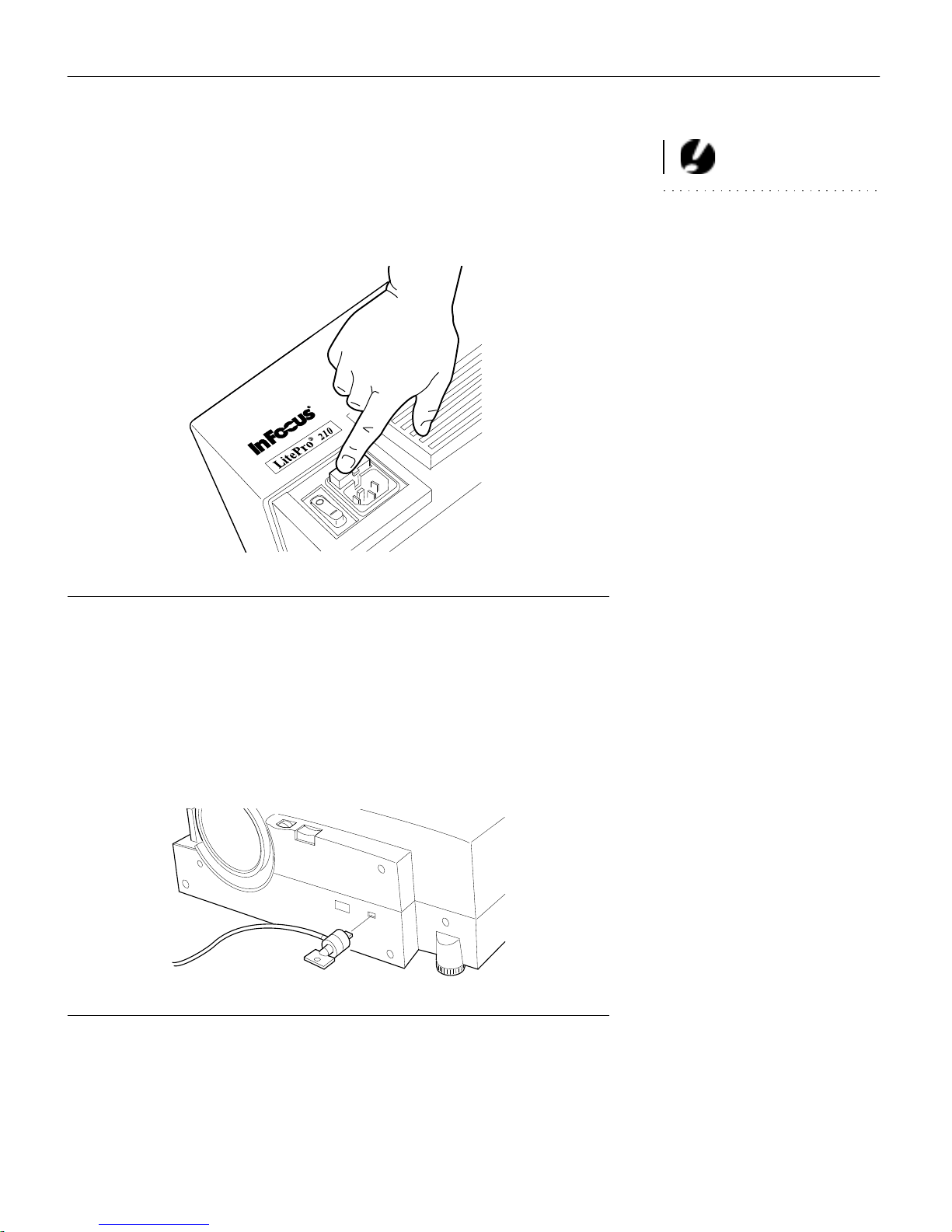

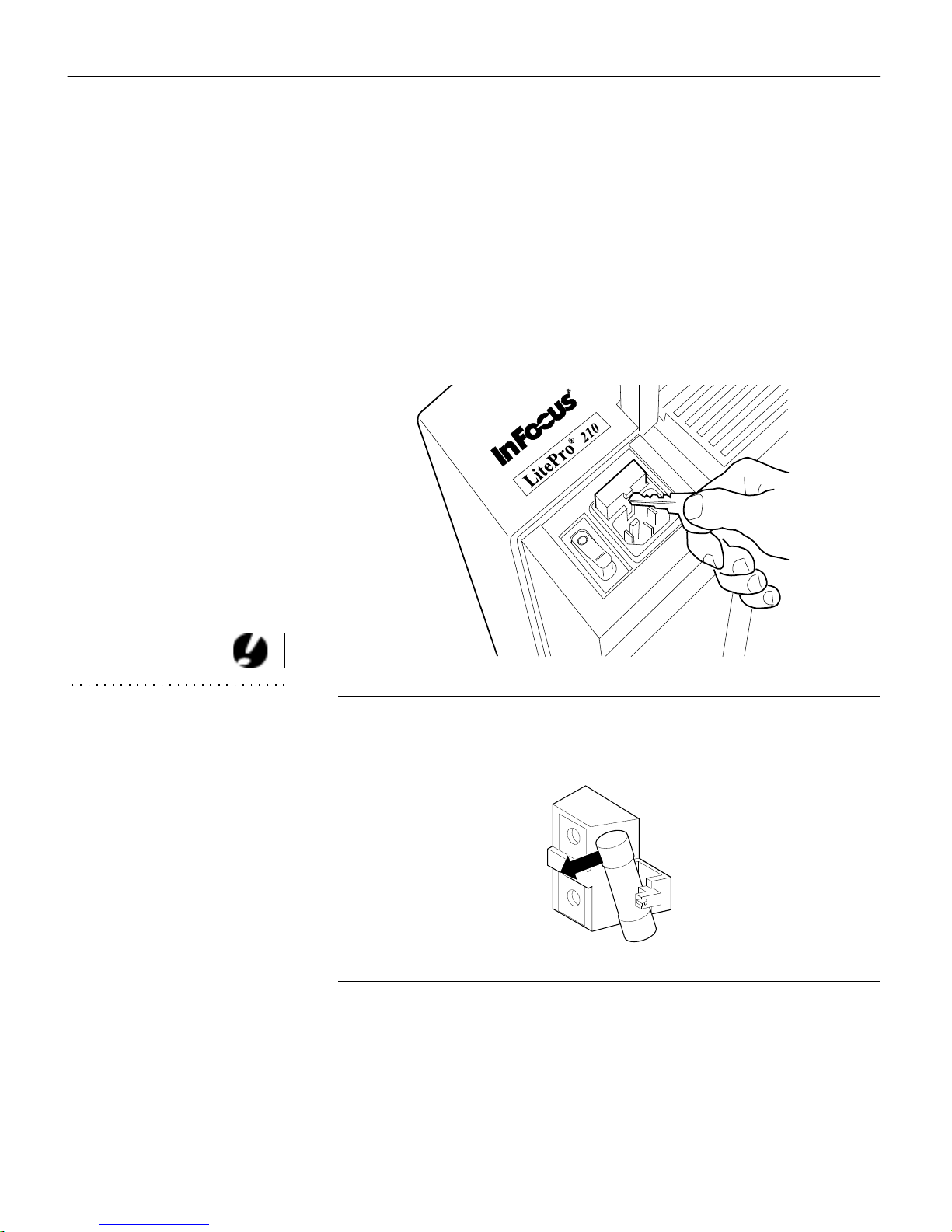

Fuse

For continued protection against the risk of fire, use only t he
specified fuse. It must be a time delay, high breaking capacity
5x20mm fuse with the following amperages: for 6.3amp use
T6.3AH, for 8amp use T8AH. Refer to page 55 for more informa­tion about fuse specifications and to page 45 for instructions on
replacing the fuse.

Lam p

To avoid overheating and unacceptab le image quality, replace
the projection lamp with a lamp of the sp ecified type. Refer to
page 56 for lamp specific ation s and to page 43 for instruct ions on
replacing the lamp.

Lamp Compartment

To avoid burns or an explosion hazard, do not open the lamp
module door until the projector is turned off and the lamp has
cooled. The hot lamp contains high pressure and can explode if
damaged or old. Follow the instructions in this manual for lamp
replaceme nt carefully.

iv

Hot Surfaces

Allow the projector to cool at least 45 minutes before replacing a
lamp. When you open the l a mp housing, be very careful not to
touch th e hot surfaces inside.

Ventilation and Overheating

Openings in the projector case provide ventilation to protect it
from o verhe atin g. K eep loo se paper s and other object s well away
from th e bott om, top an d side grills. Do not place th e proje ctor on
top of or close to a computer or other heat-producing equipment.

Liquid Spills

Do not set dri nks on t op of t he projector. Spilled liquids can flow
inside and cause damage.

Do Not Disassemble

All LitePro service must be performed by an authorized In Focus
service center. The only user-serviceable part in the LitePro i s the
projection lamp, which you can replace by opening the lamp
cover on the bott om of the projector (see page 43). Do not open
any other part of the LitePro. If your LitePro needs repair, call In
Focus Technical Support as described on page 4. Before you call
Technical Support, you may want to refer to “Troubleshooting”
starting on page 49 to see if you can resolve the problem yourself.

NOTE: If you open the LitePro
case, you will void the warranty.

Don’t Set the LitePro on its Lens

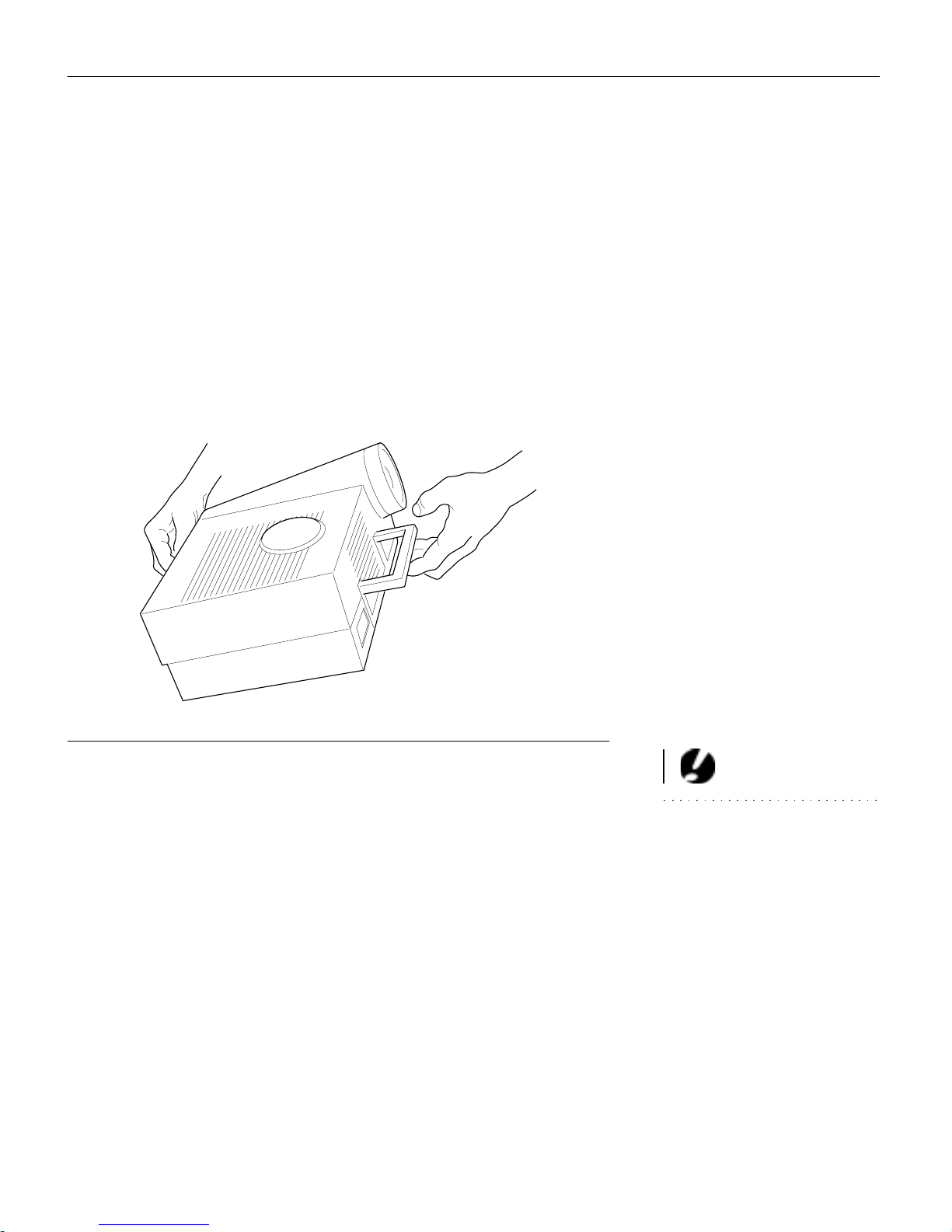

To protect the lens when you are transporting the LitePro, adjust
the l e ns so it is fully retracted (turn it clockwise) before you pack
it.

Place the LitePro in its carrying case with th e lens facing
upwards. You may damage the LitePro if you set it on its lens.

v

Introduction

INTRODUCTION

The In Focu s Systems LitePro® 210 and 220 multimedia projec­tors combine powerful and sophis ticated features with easy-to­use, intuitive con trols. Built- in multim edia fe ature s i nclude audio
by JBL™, a palette of 16.7 million colors and active matrix liquid
crystal display (LCD) tec hnology. The 200 series projectors are
ideal for high-performance business, training and imaging appli­cations that demand exc eptional color quality. The 210 has VGA
graphics, the 220 has SVGA graphics . The user interfaces of the
two products are identical; information in this User’s G uide
applies to both products.

Image Resolution

LitePro 210

The VGA resolution of the 210’s projected image is 640x480. It
displays com puter images just as they appear on your com­puter’s mo nitor. Screen resoluti ons betw een 640x480 and 800x600
are compressed to 640x480. The 210 cannot compress screen reso­lutions above 800x600. If your computer’s screen resolution is
higher than 800x600, reset it to a lower resolution before you con­nect the 210.

LitePro 220

The SVGA resolution of the 220’s projected image is 800x600. It
displays com puter images just as they appear on your com­puter’s monitor. Scre e n resolutions between 800x600 and
1024x768 are compressed to 800x600. The 220 cannot compress
screen resolutions above 1024x768. If your computer’s screen res­olution is higher than 1024x768, reset it to a lower resolution
before you connect the 220.

NOTE: The 220 automatically
expan d s 640x480 images to
800x600. You can display these
images at 640x480 by turning off
the Auto Resize feature. See “Auto
Resize” on page 37 for more
information.

1

Introduction

Compatibility

The pro jector i s com patible w ith a wide variety of comput ers and
video devices, including:

• IBM-compatible computers, including laptops, up to 800x600

resolution (LitePro 210) or 1024x768 resolution (LitePro 220) at
75Hz.

• IBM PS/2 in VGA and MCGA modes.

• Apple Macintosh and PowerBook computers up to 800x600

resolution (LitePro 210) or 1024x768 resolution (LitePro 220).

• Various VCRs, camcorders and laser disc players.

The projector is not compatible with th ese systems :

• IBM-compatible computers in CGA or EGA graphics mode.

NOTE: The contents of your

shipping box may vary depending

on the LitePro configuration you’ve

ordered.

• Macintosh 128, 512, Plus, SE, SE/30 or Classic.

Unpacking the Projector

The projector comes with the it ems shown in Figure 1. Check to
make sure all are included. Contact your In Focus dealer immedi­ately if anything is missing.

If you are experien ced in setting up presentat ion system s, use t he
LitePro 210/220 Quick Start card th at was in cluded in t he shipping
box. For complete details on conne cting and operating the projec­tor, refer to this User’s Guide.

2

1

2

3

7

9

6

4

8

10

FIGURE 1

Shipping box contents

1. LitePro 210 or 220 projector 6. RCA audio/video (A/V) cable

2. LitePr o 210/220 User’s Guide 7. CableWizard

3. power cord 8. Ca bleWizard computer cable

4. remote and batteries 9. CableWizard mouse cable

5. lens cap 10. CableWizard audio cable
Not shown: Quick Start card,

remote cable

5

3

Introduction

Usage Guidelines

• Do not look directly into the project ion lens whe n the proj ector

is turned on. The bright light may harm your eyes.

• The top and bottom of the projector can be very hot to t he

touch after use. Use extreme care or le t it cool before lifting it.
Do not block the grills at the front or top of the projector.

•

NOTE: If t he LitePro overheats

Restricting the air flow can cause it to overheat and turn off.

and turns off, you must wait about

45 seconds before you attempt to

turn it b ack on.

• Handle the projector as you would any product with glass

components. Be especially careful not to drop it.

• Avoid leaving the projector in direct sunlight or extreme cold

for extended periods of time. I f this happens, allow it to reach
room t emperature before use.

• Transport t he proj ector in a vendor-approved hard or soft case.

Part numbers for these cases are listed on page57. Call your In
Focus dealer to order.

If You Need Ass istan c e

The first place to look for help is in this manual. Be sure to check
the guide lines i n “Troubleshooting” on page 49.

If this manual doesn’t answer your question, call your In Focus
dealer. You can also call In Focus Customer Service directly at

1-800-799-9911. Call between 6 a.m. and 5 p.m. PST, Monday

through Frid ay. In Europe, call In Focus in The Netherlands at

(31) 23-5623200. In Singapore, call (65) 334-9005. Or, send us an

e-mail at [e-mail].

4

The In Focus World Wide Web address is http://www.infs.com.
Warranty

These products are backed by a limited one-year warranty. The
details of the warranty are printed at the back of this manual.
Longer term warranties can be purchased from your In Focus
dealer. Refer to page 58 for part numbers.

Setting up the

Projector

SETTING UP THE PROJECTOR

1 Place the projector on a flat surf ace.

• The projector must be within 10 feet o f your power source

and within 10 feet of your computer.
If you want to project from behind a translucent screen, set

•

up the projector behind your screen. See “Rear Projection”
on page 40 to reverse the i mage.

• If you are installing the projector on the c eiling, refer to the

LitePro 200 Series Ceiling Mount Installation Guide for more
informat ion. To t urn the image upside down, see “Ceiling”
on page 39. The Ceiling Mount Kit is sold separately; see
page 58.

2 Position the projector the desired distance from the screen.

• The distance from th e lens of the projector to the screen

determines the size of the projected image. Figure 2 shows
three projected image sizes us ing the varifoca l l e ns or the
zoom lens at minimum focusing distance. For more infor­mation about image size, see “Projected Image Size” on
page 64.

NOTE: An optional extension
cable, sold separately, lets you
increase the distance between the
projector and your computer to 50
feet. See “Accessories” on
page 57.

3 Make sure the projector and your computer are turned off.

4 ft.

Projected image size (varifocal lens, zoom lens at minimum focusing distance)

10 ft.

25 ft .

FIGURE 2

5

Setting up the Projector

Connecting the CableWizard to the Projector

The CableWizard simplifies the connec tion process by providing
a central hub for all the connections b etween the projector and
your computer. The connectors on the CableWizard are labeled
with icons.

Connect the end of the CableWizard cord to the
connector on the projector’s connector panel (Figure 3).

CAUTION: Turn off the

computer, m onitor and projector

whenever you connect or

disconnect cables.

IGURE 3

F

Connecting the CableWizard cable to the projector

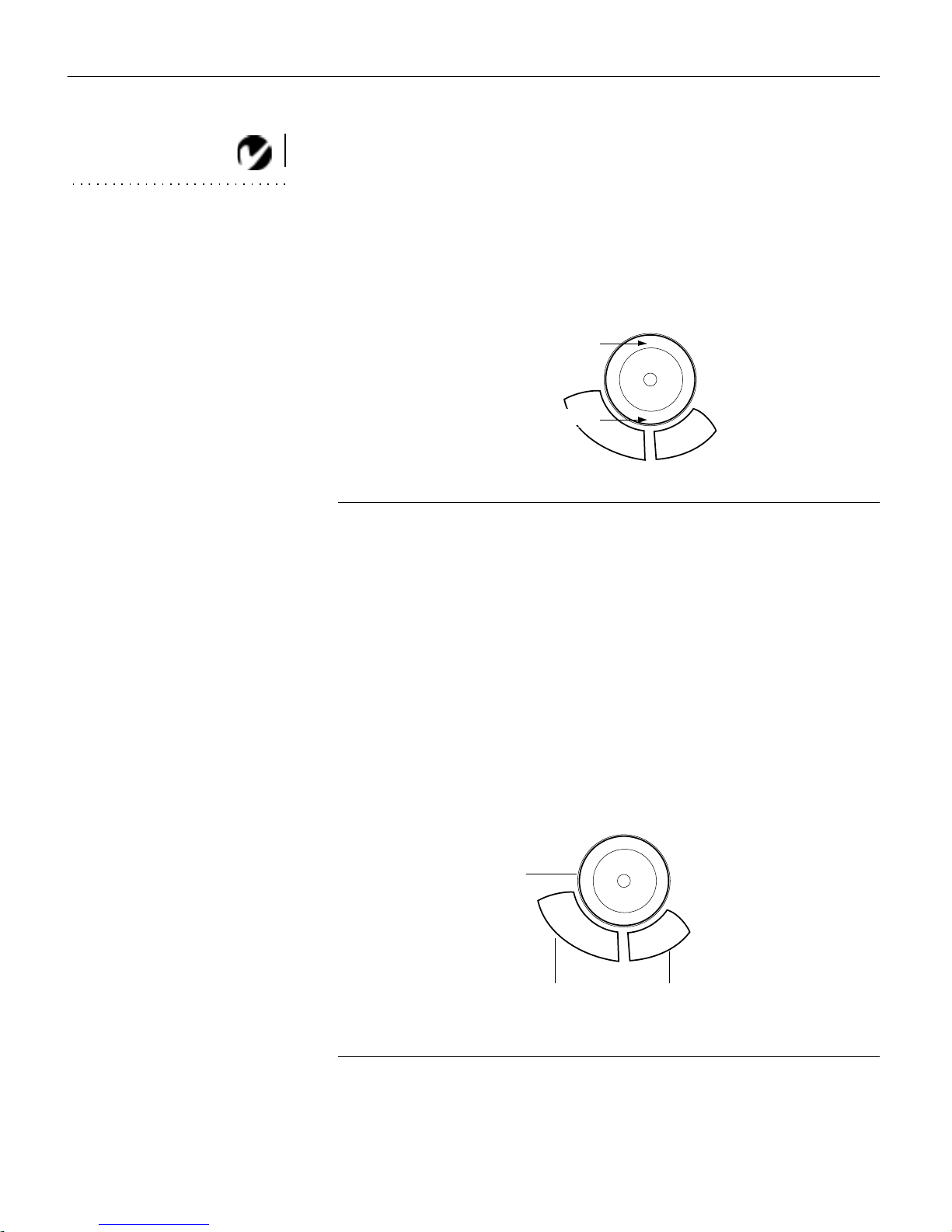

Selecting Conne ctors on the CableWizard

Turn the selector on the top of the CableWizard to reveal the
correct connectors for your computer.

FIGURE 4

Selecting connectors on the CableWizard

6

• If you’re connecting an IBM-compatible desktop or laptop com-

puter

, turn t he selector until the window displays “PC.”

computer

audio

monitor

mouse

IGURE 5

F

Selecting the IBM-compatible connectors on the CableWizard

If you’re c onne cti n g a Macintosh desktop or an Appl e PowerBook

•

computer

, turn t he selector until t he window displays

“Mac™.”

NOTE: You must disconnect all
cables before turning the selector
on the CableWizard.

monitor

mouse

computer

audio

FIGURE 6

Selecting the Macintosh connectors on the CableWizard

7

Setting up the Projector

Preparing to Connect Your E quipmen t to th e Projecto r

Now you’re ready to connect your equipment. Computers are
connected to the C abl e Wizard. Video players and other equip­ment, such as external speakers, are connected directly to the
proj ector.

Steps for connecting the different types of equipment are given

NOTE: Before you continue,

make sure the projector and your

equipment are turned off. If you’re

on the pages listed below.

Eq uipment you want to connect Page

connecting a computer, make sure

the distance between it and the

projector is 10 feet or less and

you’ve selected the appropriate

connec tors on the CableWizard.

IBM-compatible desktop computer page9
IBM-compatible laptop computer page11
Macintosh desktop computer page13
Apple PowerBook page15
Video player page17
External speakers or subwoofer page19
Microphone page20
PS/2-compatible mouse page20
Remote control cable page20

8

Connectin g an IBM-Compatible Desktop Computer

1 Locate the cable that con nects your monitor to your comput er.

Unplug it from the computer.

2 Plug the end of the CableWizard computer cable into the

monitor connector on your computer.

3 Plug the end of t he compute r cable into th e conn ector

on the CableWizard.

computer cable

FIGURE 7

Conne cting the CableWizard computer cable to an IBM- compatible desktop computer

Do you want to display the image on your computer’s monitor as
well as on the projection screen?

1 Plug your monitor’s cable into the connector on the

CableWizard.

Do you want to play your computer’s audio on the projector?

1 Unplug the audi o cable, if present, from your computer.
2 Plug eit her end of the CableWizard audio cabl e into the audio

connector on your computer.

3 Plug the ot her end of the audio cable into the connector

on the CableWizard.

9

Setting up the Projector

Do you want to co ntrol your computer’s mouse from the projector’s
remote or keypad?

1 Unplug the mouse cable from your computer.

2 Plug the end of the CableWizard mouse cable into the

mouse connector on your computer.

3 Plug th e end of t he CableWizar d mouse cable into t he

connector on the CableWi zard.

monitor cable

computer cable

audio cable

FIGURE 8

Connecting the CableWizard monitor, audio and mouse cables to an IBM-compatible
desktop computer

mous e cable

Now you’re ready to power up the projector and your computer.
Skip to “Powering up the Projector and Adjusting the Image” on
page 21.

10

Connecting an IBM-Compatible Laptop Computer

1 Plug the end of the CableWizard computer cable into the

video connector on your computer.

2 Plug the end of the CableWizard computer cable into the

connector on the CableWizard.

computer cable

FIGURE 9

Connecting the CableWizard computer cable to an IBM-compatible laptop computer

Do you want to play your computer’s audio on the projector?

NOTE: Many laptop computers
do not automatically turn on their
external v ideo por t when a second­ary display device such as a p rojec­tor is connected. Refer to your
computer manual for the com­mand that activates the external
video port. Activation commands
for some laptop computers are
listed in the Appendix of this
manual on page 59.

1 Plug eit her end of the CableWizard audio cabl e into t he audio

connector on your computer.

2 Plug the ot her end of the audio cable into the connector

on the CableWizard.

NOTE: If you don’t want a udio or
mouse control, you can use the
CableWizard Lite. CableWiza rd
Lite is ordered separately. See
“Accessories” on page 57.

11

Setting up the Projector

Do you want to control the computer’s mouse from the projector’s
remote or keypad?

1 Locate the mouse cable and unplug it from your computer.

2 Plug the end of the CableWizard mouse cable into the

mouse connector on your computer.

3 Plug the end of the CableWizard mouse cable into the

connector on the CableWi zard.

mouse cable

computer cable

audio cable

FIGURE 10

Connecting the CableWizard audio and mouse cables to an IBM- compatible laptop
computer

Now you’re ready to power up the projector and your laptop.
Skip to “Powering up the Projector and Adjusting the Image” on
page 21.

12

Connecting a Macintosh Desktop Computer

1 Locate the cable that connects the monitor to your computer.

Unplug it from the computer.

2 Plug the end of the CableWizard computer cable into the

monitor connector on your computer.

3 Plug the e nd of the Cable Wizard com puter cable int o the

connector on the CableWizard.

computer cable

FIGURE 11

Connecting the CableWizard computer cable to a Macintosh desktop computer

Do you want to display the image on your computer’s monitor as
well as on the projection screen?

1 Plug th e monitor’s cable i nto the connector on the

CableWizard.

Do you want to play your computer’s audio on the projector?

1 Unplug the audi o cable, if present, from your computer.
2 Plug eit her end of the CableWizard audio cabl e into the audio

connector on your Macintosh.

3 Plug the other end of the audio cable into the connector

on the CableWizard.

13

Setting up the Projector

Do you want to control the computer’s mouse from the projector’s
remote or keypad?

1 Unplug the mouse from your Macintosh or locate an unused

ADB connector.

2 Plug the end of the Cab leWizard mouse cable into the

mouse connector or the (ADB) conne ctor on your
Macintosh.

3 Plug the end of th e CableWizard mouse cable into the

connector on the CableWi zard.

monitor cable

mouse
cable

FIGURE 12

Conne cting the CableWizard monitor, audio and mouse cables to a M acintosh desktop
computer

computer cable

audio cable

Now you’re ready to power up the projector and the Macintosh.
Skip to “Powering up the Projector and Adjusting the Image” on
page 21.

14

Connecting an Apple PowerBook Computer

1 Plug the end of the CableWizard computer cable into the

video connector on your PowerBook.

2 Plug the end of the CableWizard computer cable into the

connector on the CableWizard.

3 If you want the projector display to be the same as the Power-

Book’s screen display, turn on video mirroring. (See “Using
Video Mirrorin g with a PowerBook Comput er” on page 63 for
additional information.)

computer cable

PowerBook

video-out cable

FIGURE 13

NOTE: Some PowerBooks
require the App le-supplied video­out cable for external video. Con­nect it between the PowerBook
and the CableWizard computer
cable as shown in Figure 13.

Connecting the CableW izard computer cable to an Apple PowerBook

Do you want to play your computer’s audio on the projector?

1 Plug eit her end of the CableWizard audio cabl e into t he audio

connector on your PowerBook.

2 Plug the other end of the audio cable int o the connector

on the CableWizard.

15

Setting up the Projector

Do you want to control the computer’s mouse from the projector’s
remote or keypad?

1 Locate the mouse cable and unplug it from your PowerBook.

2 Plug the end of the CableWizard mouse cable into the

(ADB) connector on your PowerBook.

3 Plug the end of the CableWizard mouse cable into the

connector on the CableWi zard.

mouse cable

Power Book
video-out cable

audio cable

computer cable

FIGURE 14

Connecting the CableWizard audio and mouse cables to a PowerBook

Now you’re ready to power up the projector and your Power ­Book. Skip to “Powering up the Projector and Adjusting the
Image” on page 21.

16

Connecting a Vi d eo Player

1 If your video player uses a round, one-prong composit e video

c onnector , you’ll need only the A/V cable that shipped with
the projector.

• If your video player uses a round, four-prong S-video con-

nector, you’ll need an S-video cable in addition to the A/V
cable. The S-video cable is sold separately. (See “Accesso­ries” on page 57.)

2 Plug the A/V cable’s yellow connector into the “video-out”

port on your video player (Figure 15). T his port may be
labeled “To Monitor.”

• If you’re using an S-video cable, connect it to the “s-video

out” connector on the video player (Figure 16).

3 Plug the o ther yellow connector into the composite connector

on the back of the projector.

• If you’re using S-video, plug the other end of th e cable into

the “s-video” connector on the projector (Figure 16).

audio/video cable

Conne cting the pr ojector to a vi deo player using the stand ard A/V cable (with composite

FIGURE 15

video connector)

17

Setting up the Projector

CAUTION: Your video player

may also have a “Video O ut” port

for a coaxial cable connection.

DO NOT use this to connect to the

projector.

A/V cable

IGURE 16

F

Conne cting the projector to a video player using an S-video cable and the audio con­nectors on the standard A/V cable

S-video cable

4 Plu g th e A/V cable’s white con nec tor int o the left “ audio out”

port on your video player. Plug the cable’s red connector into
the right “audio out” port on the video player (Figure 15 and
Figure 16).

If you’re using an S-video cable, the yellow connectors on

•

the A/V cable remain unused (Figure 16).

5 Plug the A/V cable’s oth er white and red connectors to the

left and right “audio in” ports on the projector.

The projector is compatible with the th ree major broadcast video
standards: NTSC, PAL and SECAM. It automatically adjusts to
optimize its performance for t he in comi ng vide o. You can also set
the video standard manually from th e projector’s Controls menu;
see “Video Standard” on page 39.

18

Connecting an External Speaker and a Su bwoofer

• To connect one or two external speakers, plug t he speaker

cables into the two (audio out) connectors on the projector.

•

To connect a subwoofer, plug the subwoofer cable into the
conn ector on the projector.

subwoofer cable

NOTE: The external speakers
must be amplified.

speaker cable

Connecting an external speaker and a subwoofer

FIGURE 17

19

Setting up the Projector

Connecting a Microphone

• To conn ect a micr ophone to the projector, plug the microph one

cable i n to the connector on the projector.

CAUTION: Always keep the

source volume at its lowest level

when installing the microphone.

For information about setting the

micr ophone level, see page 35.

IGURE 18

F

CAUTION: Turn off your
computer, monitor and t he

projector whenever you connect

the mouse. Power on the projector

first, then the computer.

Connecting a microphone

Connecting a PS/2-Compatible Mouse

• To connect a PS/2-compatible mouse to the projector, plug the

mouse cable into th e connector on the projector.

PS/2-compatible

mouse connector

IGURE 19

F

The PS/2- compatible mouse connector on the projector

NOTE: Using a mouse make s

using the Scribble feature easier.

20

Connecting the Remote Control Cable

If the projector cannot rec e ive the r emote’s signal, as may be the
case if you’re using rear project ion, conne ct th e remote dire ctly to
the projector with the remote cable.

1 Plug the end of the remote cable with the cylinder into the

connector on the projector.

2 Plug the other end into the plug on the remote.

cylinder

FIGURE 20

Connecting the remote control cable

Powering up the Projector and Adjusti ng the Image

1 Remove the lens cap.
2 Plug the power cord into the proje ctor (Figure 21), then plug it

into your electrical outlet. A surge-protected power strip is
recommended if power surges are common in your area.

FIGURE 21

NOTE: Always use the power
cord that shipped with the
projector.

Connecting the power cord to the projector

21

Setting up the Projector

3Turn on the pr ojector.

The power indicator and lamp module LEDs (Figure 22)

•

CAUTION: If the lamp LED

remains solidly lit after the LitePro

light solidly whi le the projector initializes. The power LED
blinks green when the projector begins to power up. When
the proje ctor reaches full pow er, the powe r LED lights solid

has powered on, the lamp needs

to be replaced. If the lamp

green and the lamp LED goes out.

remains in use too long, it may

explode and severely damage the

LitePro. Refer to “Replacing the

Projection Lamp” on page 43 for

more information.

lamp module
indicator LED

power/standby
indicator LED

computer source

indicator LED

FIGURE 22

Indicator LEDs

video source
indicator LED

4 If you connected a video player, turn it on.

• Press th e video button on th e remote control or keypad to

display the image f rom your video playe r. The video source
indicat or LED displays a solid green indicating the video
source is active (Figure 22). Press computer to return to
your computer’s image.

22

• Use the vo lume butt o ns to adjust the volume.

• If you don’t wan t to hear th e sound from your video player,

press the mute button.

5 If you connected any external speakers, turn t hem on.
6 If you connected your monitor, turn it on.

7 Turn on your computer.

• The computer image s hould dis play on the projec tion

screen.

• The computer source indicator LED displays a solid green

indicating the computer source is active (Figure 22).
If nec essary, use t he brightness buttons on the remote con-

•

trol or keypad to adjust th e brightness. You can make fur­ther adjustme nts to the image from the projector’s on­screen menus. To open the menus, pres s the menu button
on the remote control or keypad. Then select the Display
menu or the Image menu. For more information about t h e
menus, see page 32.

NOTE: With some computers,
the order in which you power up
the equipment is very important.
We recommend that you always
turn on the computer LAST. Turn

• If you don’t want to hear the sound from your com puter or

video player, press the mute button. (Pressing mute does
not mute t he microphone.)

Turning Off the Projector

If you want to turn off the projector for a short period of time,
press the standby button on the remote control or keypad. This
turns off th e lamp but keeps the projector running. The power/
standby indicator LED (Figure 22) blinks green while t he projec­tor is in standby. To exit standby mode, press the standby button
once. (It takes several seconds for the projection lamp to reach
full power and project the image again.)

To completely power o ff the projector, press the “O” side of the
power switch. If you want to turn the projector back on immedi­ately, you must allow about 45 seconds for the lamp to cool. The
lamp won’t light if it’s too hot.

on all other pieces of equipment
(including the computer’s moni­tor) before you turn on the com­puter.

NOTE: When you d isconnect the
projector after you have switched
it off, always remove t he power
cord from the electrical outlet first,

then remove it from the projector.

23

Using the

Projector

USING THE PROJECTOR

This section describes how to use and make adju stments to the
projector. It also provides a ref erence to the r e mote control but­tons and the options available from the on-screen menus.

Basic Image Adjustment

1 Make sure you have powered up your equipment in t he right

order (page21).

2 If the image doesn’t display completely, adjust the height of

the projector (page 26) or center the image by adjust ing its
horizontal or vertical position (page 38).

3 If the image is out of focus, rotate the lens to focu s it (page 26).
4 If the image appears to shimmer or if it has blurry vertical

bars after you have adjusted the focus, turn Auto Image
(page 37) off and t hen back on to reset the automat i c sync and
tracking. If that doesn’t clear up the image, adjust th e sync
(page 37) and/or the tracking (page 38) manually.

5 If the colors don’t look right, adjust the brightness (page 29).

Using the Remote Control

Poin t the remote control at the project ion screen or at the front or
rear of the projector. The range for optimum operation is about
40 feet. If you point the remote at the projection screen, the dis­tance to the screen and back to the projector must be less than or
equal to 40 fee t. For best results, point the remote directly at the
front or the rear of the projector.

NOTE: If you can’t aim the
remote control at the projector so
that its signal is received
example, when using rear projec-

— connect the remote

tion
directly to the projector with the
remote control cable (page 21).

— for

25

Using the Projector

Adjusting the Projector

To focus the image, rotate t he projec tion lens until the image is
clear. Rotate the lens clockwise for a longer focusing distance;
counterclockwise for a shorter focusing distance.

If the projected image seems wider at the bottom or at the t op,
rotate the keystone adjustment dial on the back of the projector
until th e image is correct (Figure 23).

FIGURE 23

Keystone adj ustment knob

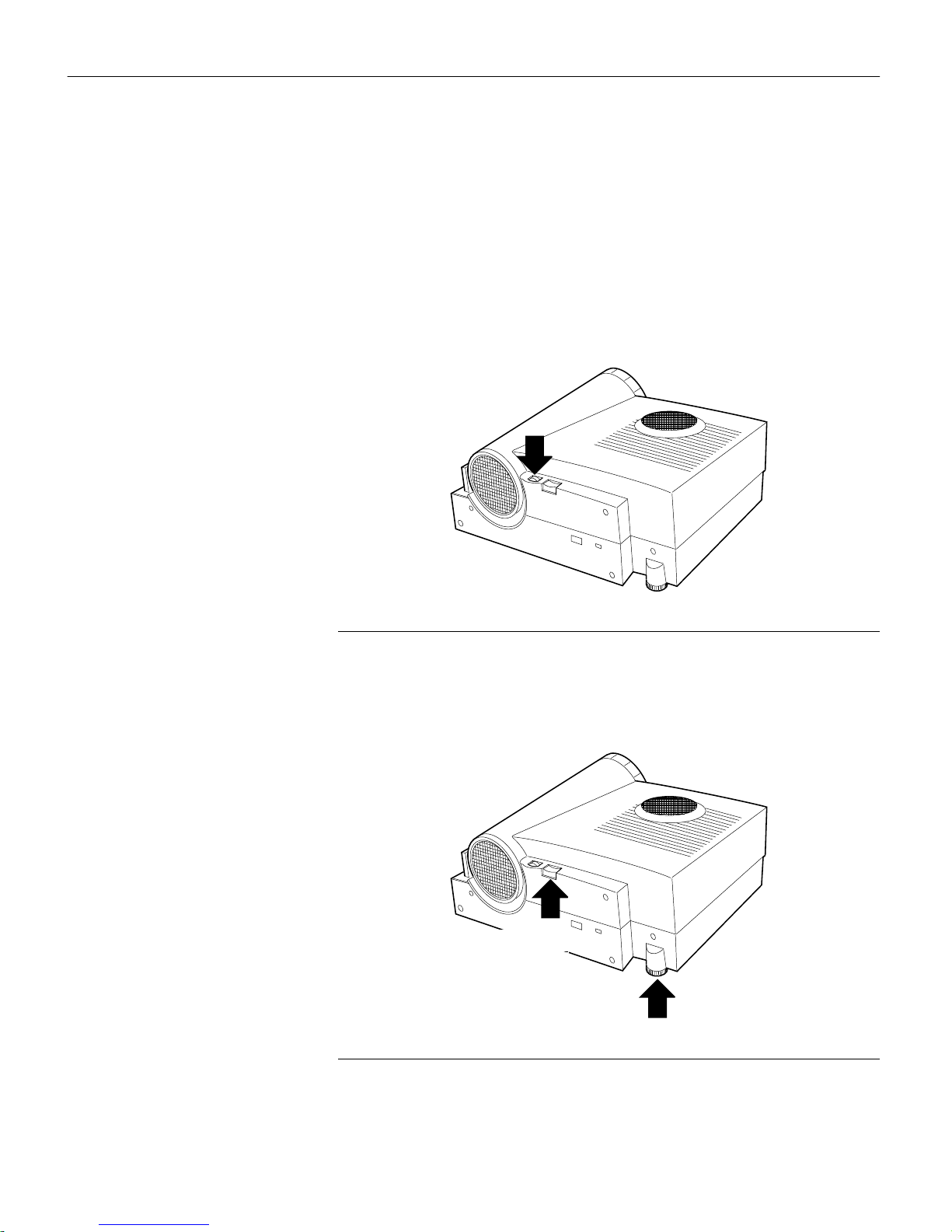

The projector is equipped with a self-locking, quick-release eleva­tor foot and a leveling knob.

quick-release elevator button

leveling knob

FIGURE 24

26

Quick- release elevator foot and leveling knob

To raise the projector:

1 Raise th e front of t he projector off the t able by liftin g up on t he

handle (Figure 25).

2 W hile holding the projector, press and hold the quick-release

button (Figure 25).

3 W hen the projector is the he ight you want, release the button

to lock the elevator foot into position.

4 If necessary, use the leveling knob (Figure 24) to adjust the

angle of the projected image.

FIGURE 25

Adjusting the height of the projector

To lower the projector:

1 Hold the projector’s hand le.
2 Press the elevator’s quick release button.
3 Lower the projector.
4 If n ecessary, use the leveling knob (Figure 24) to readjust the

angle of the projected image.

CAUTION: Always hold the pro­jector’s h andle when you press the
elevator’s quick release button.

27

Using the Projector

Using the R emote and Keypad Buttons

This section provides an alphabetical reference to the remote and
keypad buttons.

FIGURE 26

Remote control

IGURE 27

F

Keypad

28

Brightness

Adjusting the brightness lightens or darkens the image.

• To darken the image, press

• To lighten the image, press

The brightness buttons are au to-repeating; they repeat their func­tion as long as you hold down the button.

Computer

When you have more than one source (computer or video) con­nected to the projector, select between them by pressing the but­ton for the source you want.

Press computer to display the compute r image.

Freeze

The freeze but ton halts, or “freezes” the project ed image. Use this
button to freeze a frame of video (the video continues to run but
the projected image is frozen ). You can al so freeze an image from
a computer source on the screen, allowing you to perform other
operations on the computer without the audience seeing them.
Press freeze again when you want the image to re turn to normal.

Help

Pres s help to display the online help information.

Light

Pres s light to illuminate the buttons on the remote control. The
light goes off automatically 10 seconds after you press any
button.

LiteShow

The liteshow button will be used to display a LiteShow presenta­tion from disk. Call your In Focus dealer for availability.

29

Using the Projector

Menu

Pres s menu to open the on-screen menus. Press menu again to
close the menus . When you close the menus, the projector saves
any changes you made. For more information about the on­screen menus, see page 32.

Mute

Pressing th e mute button silences the internal speakers. It also

NOTE: Pressing mute has no

effect on microphone volume.

silences any external speakers that are connected. It does not
mute the microphone.

To return the volume to its prev ious setting, press mute again or
p ress eith er volume button.

Scribble

The scribble button activates on-s creen ann otation.

NOTE: Scribble functionality is

enhanced by using a PS/2 mouse.

See “Connecting a PS/2-

Compatibl e Mouse” on pag e 20.

1 Pres s the scribble button. The cursor changes to a pencil.
2 Pr ess the right disk mouse button (Figure 29) to display the

color selector. Use the disk mouse to position the cursor on
the des ired color, then press the l eft mouse button. Press the
right button again to close the color selector.

3 Move the pencil to where you want to start t he annotation.
4 Press the left mouse button. The cursor changes to an upright

pencil.

5 Use the disk mouse (or PS/2 mouse, if con nected) to draw

your annotation. Press the left mouse button to complete th e
annotation.

6 To exit Scribble, press the scribble button. The annotation is

automatically del e ted (it cannot be saved).

30

Standby

When you press standby, the display and audio turn off and the
screen becomes black. After 30 seconds the lamp goes out if you
haven’t pressed any other buttons.

• If you press any button again within 30 seconds, the projector

returns to normal operations immediately.

• If you press standby again after 30 seconds, there is about a 30-

second delay before the lamp turns back on.

Video

When you have more than one source (computer or video) con­nected to the projector, select between them by pressing the but­ton for the source you want.

Press video to display the image from your video player.

Volume

•

To increase the volume, press

• To decrease the volume, press

The volume buttons are auto-repeating; they continue to adjust
the volume as long as you hold t hem dow n. Volume a djustmen ts
are saved for each source you have connected.

31

Using the Projector

Using the Disk Mou se

Pre ss anywhe re on t he edge of the disk m ou se t o move th e cursor

NOTE: Using a light touch on the

disk mouse often gets the best

on the screen. For example, if you press the top edge of the disk,
the cursor moves up the screen; if you press the bottom edge, the
cursor moves down (Figure 28). You can move the cursor at any

results.

angle by pressing the corresponding edge of the disk.

press here to move the cursor up

press here to move the cursor down

FIGURE 28

Using the disk mouse

Using the O n- Screen Menus

The projector has four on-screen menus that allow you to make
image adj ustments and chan ge a vari ety of set ting s. Most of the se
adjustments aren’t available directly from the remote or keypad.

To open the on-screen menus, press the menu button on the
remote or keypad. Press menu again when you want to clos e the
menus.

To select a menu, use the disk mouse to move the cursor to the
tab for the menu you want, then click either mouse button.

disk mouse

32

left mouse right mouse

button button

FIGURE 29

Disk mouse and mouse buttons

To change a menu setting, move the cursor to th e setting you
want t o change, th en use one of t he tw o mouse but tons below the
disk to make changes.

The status bar at t he top of the me nu display indic ates the source
that is currently active. For example, if you h a ve bot h a compute r
and a video player connected, “Source: Computer” or “Source:
Video” displays depending on whether you’ve pressed the com-

puter

or the video button on the remote or keypad.

FIGURE 30

On-scr een menu status bar

Disp la y Menu Functions

FIGURE 31

Display menu

33

Using the Projector

Brightness

Adjus ting the brightness changes the intensity of the image.

• Pres s the left mouse button to darken the image.

• Press the right mouse butto n to lighten the image.

NOTE : Cha nging the brightness

using the menu is the same as

changing it using the remote or

keypad.

Contrast

The contrast controls the degree of differ e nce bet wee n the light­est and darkest parts of the picture. Adjusting the contrast
changes the amount of black and white in the image.

• Pres s the left mouse button to d ecrease the contrast.

• Press the right mouse button to increase the contrast, making

the blacks appear blacker and the whites appear whiter.

Tint

The Tint setting adjusts th e red-green color balance in the pro­jected image. Changing the Tint set ting has no effect on PAL or
SECAM video sources.

• Press the left mouse button to increase the amount of green in

the image.

• Press the right mouse button to increase the amount of red in

the image.

Reset All

Click either mouse button to reset all the options (except Lan­guage and Video Standard) in all the menus to their original set­tings. This also returns Freeze and Mute to th eir default (off)
settings.

34

Audio Menu Functions

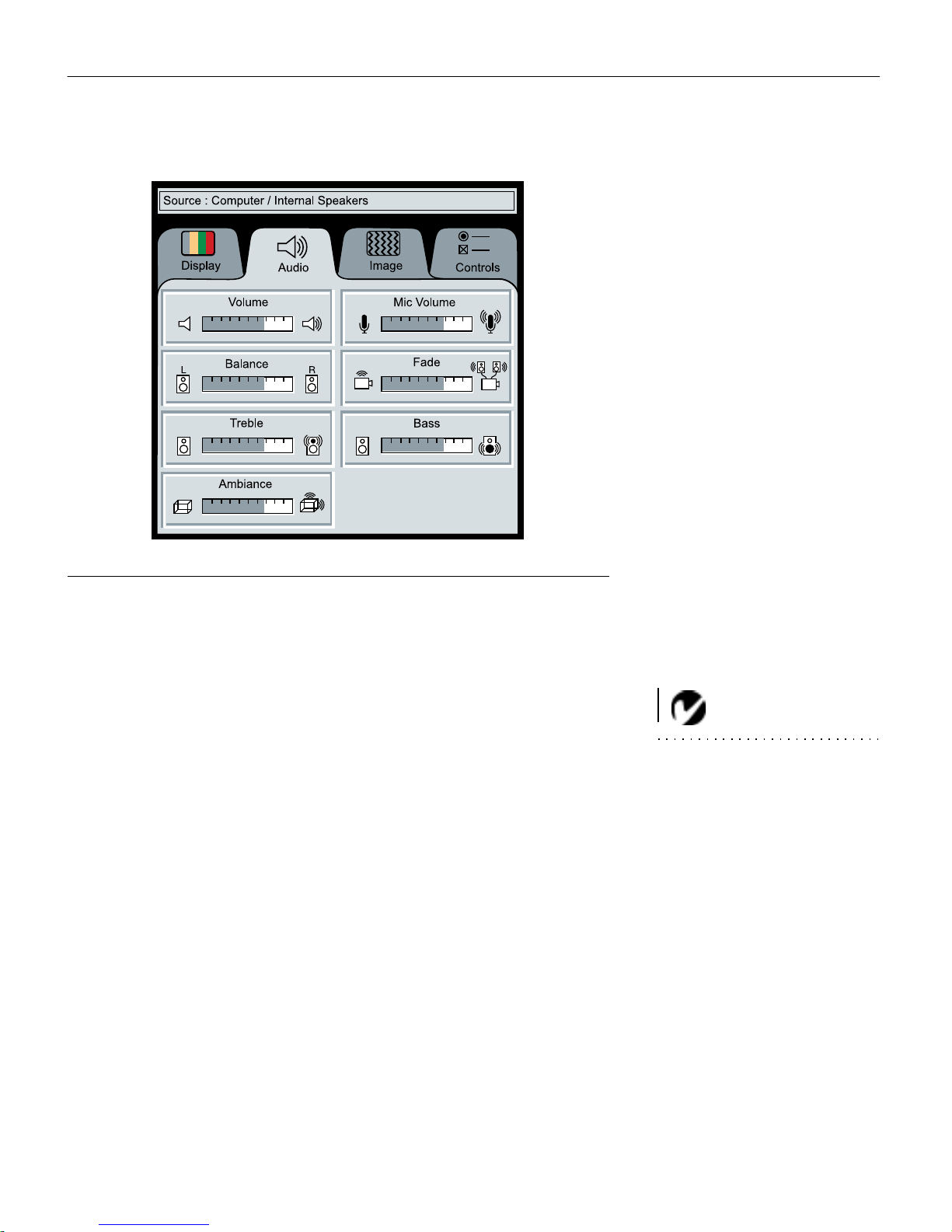

FIGURE 32

Audio menu

Volume

Press the left mous e button to decrease the volume.

•

• Press the right mouse button to increase the volume.

Volume adjustments you make are saved for each source.

Mic Volume

Press the right mouse button to increase the microphone

•

volume.

• Press the left mous e button to decrease the microphone

volume.

Balance

The Balance sett ing controls the balance be tw ee n the left and
right external speakers. It appears gray and won’t highlight if
you haven’t connected external s peakers. The Balance setting
applies to all sources you have connected.

• Pres s the left mouse button to increase the amount of sound

coming from the left external speaker.

NOTE: Changing the volume
from the menu is the same as
changing it using the remote or
keypad.

35

Using the Projector

•

Press the right mouse butto n to increase the amount of sound
coming from the right external speaker.

Fade

The Fade setting cont rols the balance between the internal and
external speakers. The setting appear s gray and won’t highlight if
externa l speakers aren’t connected.

• Pres s the left mouse button to increase the amount of s ound

coming from the internal speakers.

• Press the right mouse butto n to increase the amount of sound

coming from t he external speakers.

Treble

The Treble setting controls the higher frequencies of your audio
source.

NOTE: The Treble and Bass

settings apply only to the

projector’s internal speakers.

External speakers typical ly have

their own tone controls.

Press the left mouse button to decrease the treble.

•

• Press the right mouse button to increase the treble.

Bass

The Bass setting controls the lower frequencies of your audio
source.

• Press the left mouse button to decrease the bass.

• Press the right mouse button to increase the bas s.

Ambiance

The Ambiance setting cont rols the spaci o u sne s s of the sound
quality from the projec t or’s internal s peakers.

• Pres s the left mouse button to increase the amount of sound

coming from the rear inter nal speaker.

• Press the right mouse button to decrease the amount of sound

coming from the top internal speaker.

36

Image Menu Functions

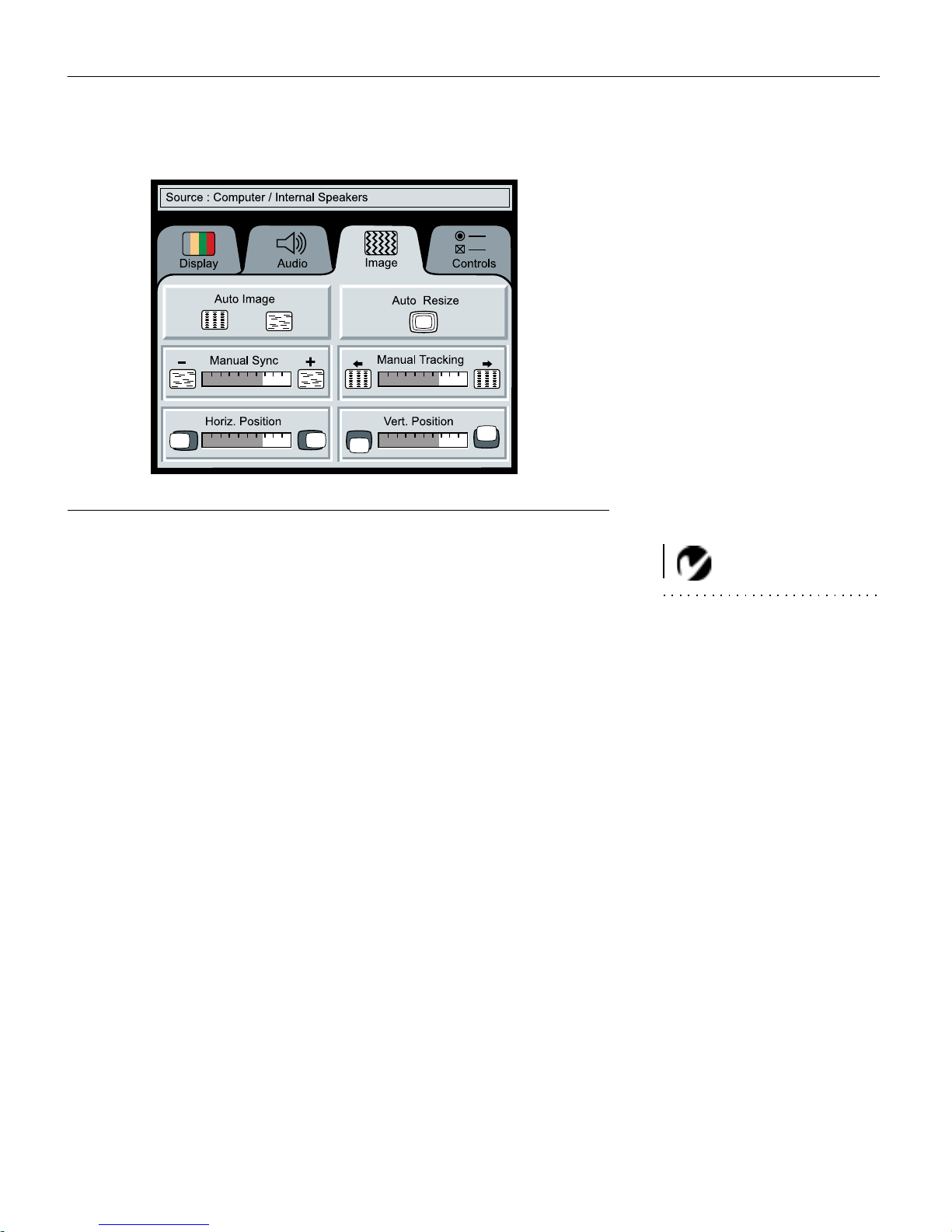

FIGURE 33

Image menu

Auto Image

The projector au tomatically adjusts tracking, signal synchroniza­tion and vertical and horizontal position for most computers. If
you want to adjust these features manually, you must turn off

Auto Image first by clicking it.
Auto Resize

The Au to Resize setting is available only for computer sources.

Auto Resize automatically resizes the image by scaling it up or

down.

NOTE: Some screen savers inter­fere withthe operation of Auto
Image. If you’re experiencing prob­lems , try turning y our screen save r
off, then turning Auto Image off
and back on.

When Auto Resize is on, the projector makes the best fit of the
image to the scree n. If you turn Auto Resize off (by clicking it), the
image may be either cropped or too small for t he screen.

Manual Sync

The projector ad justs signal synchronization automatically for
most computers. But if the project ed computer image looks fuzzy
or streaked, try turning Auto Image o f f then back on again. If the
image still looks bad, try adjusting the signal synchronization
manually as described below.

1 Click the Auto Image button to turn Auto Image off.

37

Using the Projector

2Press the lef t or right mouse buttons repeatedly until t he

image is sharp and free of streaks.

Manual Tracking

NOTE: The Manual Sync,

Manual Tracking, Horiz.

Po sition and Ver t. Posi tion

buttons are availab le only for

computer sources. The projector

sets these options automatically

for a video source so they appear

The tracking function adjusts the projector to match the video
signal from your computer. The projector usually adjusts the
tracking automatically when you connect your computer. How­ever, if the display shows evenly space d, fuzzy, vertical lines or if
the projected image is too wide or too narrow for the s creen, try
turning Auto Image off then back on again. If the image is still
bad, try adjusting the tracking manually as described below.

1 Click the Auto Image button to turn Auto Image off.

gray.

2 Press the left or right mouse buttons repeatedly until the

fuzzy vertical bars are gone.

Horiz. Position

Follow these steps to manually adjust the horizontal position.

1 Click the Auto Image button to turn Auto Image off.
2 Press the left mouse but ton to move th e image right; press th e

right mouse button to move th e image left.

Positioning adjustments are saved when you power off the pro­jector.

Vert. Position

Follow these steps to manually adjust the vertical position.

1 Click the Auto Image button to turn Auto Image off.
2 Press the left mouse button to move the image down; press

the right mouse button to move the image up.

Positioning adjustments are saved when you power off the pro­jector.

38

Contr ols Menu Function s

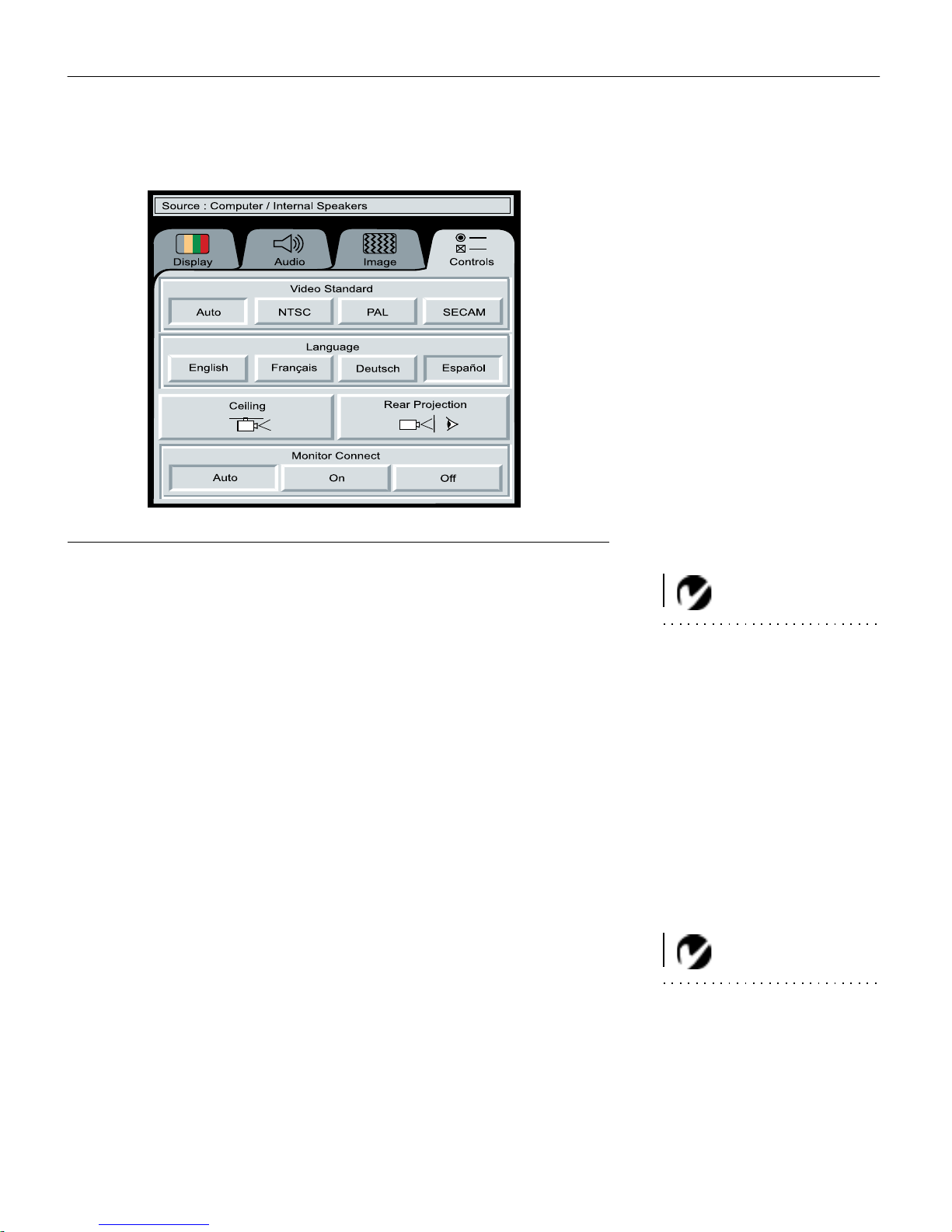

FIGURE 34

Controls menu

Video Standard

When Auto is on, the projector attempts to pick the video stan­dard (NTSC, PAL or SECAM) automatically based on the input
signal it receives. (The video standard options may vary depend­ing on your region of the world.) If the projector is unable t o
detect the standard, the colors might not look right or the image
might appe ar “torn .” I f this happe ns, m anuall y sele ct NTSC, PAL
or SECAM.

NOTE: If you already know the
stand ard used in your geographical
area, it’s often best to manually
select it.

Language

You can display the on-screen menus in English, French, Ger­man, and Spanish. The default is English.

• Click the button for the language you want. The menus redraw

immediately.

Cei ling

Click either mouse button to turn the image upside down for

•

ceiling-mounted projection.

NOTE: To order the ceiling
mount kit, refer to “Accessories”
on page 57.

39

Using the Projector

Rear Projection

When you select Rear Projection, the proje ctor rever ses the image
so you can project from behind a translucent screen.

• Click either mouse button to reverse the image.

Monitor Connect

When Auto is selected, th e projector attempts to pick the correct
monitor connection based on the input signal it r eceives. This set­ting produces the best results in most situations. Select “On” or
“Off” only if the image is very dim or not projected.

NOTE: Do not sele ct “Off” if

your monitor is connected directly

to the CableWizard.

• Select “On” if your monitor is connected directly to the

CableWizard and the images are excessively dim.

• Select “Off” if your monitor is not connected directly to the

CableWizard and the image is not projected. (Some IBM
ThinkPad computers exhibit this problem, especially the
ThinkPad 760.)

40

Maintenance

MAINTENANCE

This section describes how to:

• clean and replace a lens

• install and use the zoom lens

• replace the projection lamp and reset the lamp monitor light

• replace the batteries in the remote control

• replace the fuse

• use the Ke nsington lock feature

Clea ning the Lens

Follo w t hese steps to clean the projec tion lens:

1 Apply a non-abrasive camera lens cleaner to a soft, dry clean-

ing cloth.

• Avoid using an excessive amount of cleaner.

• Abrasive cleaners, solvents or other harsh chemicals might

scratch the lens.

2 Lightly wipe the cleaning cloth over the lens.
3 If you don’t intend to use the projector immediately, replace

the lens cap.

Removing and Replacing a Lens

1 Turn the focus ring counterclockwis e until it reaches a stop.
2 While holding th e lens, squeeze the latch below the lens

(Figure 35) and turn the lens counterclockwise again.

3 Gently pull the lens out of th e lens brack et.

41

Maintenance

IGURE 35

F

Removing the lens

To replace a lens:

1 Make sure the latch is pointing down.

CAU TION: Be sure to fully

retra ct the zoom lens before you

put the lens cap on a nd pack the

projector in its case.

2 Squeeze the latch and gently push the lens in until it stops,

then turn the l ens clockwise until the catch is engaged.

Using the Zo om Lens

The zoom lens enlarges the proje cted image by 40% wi thout
moving the projector. (For more information about image size,
see “Projected Image Size” on page 64.) Follow the previous
instructions to ins tall the zoom lens.

Follo w t hese steps when operating the zoom lens:

1 Turn t he zoom ring (Figure 36) unti l the proje cted im age i s the

size you want, even if it is out of focus.

2 Turn the focus ring as needed to clear up the image.

42

focus ring zoom ring

FIGURE 36

LitePr o 200 Series zoom lens

Replacing the Projection Lamp

The lamp monitor LE D, marked on the c onnector panel, lights
up when 150 hours of lamp life remains. At zero hours, the lamp
switc h es off completely. You can order new lamp modules from
your In Focus dealer. See “Accessories” on page 57 for informa­tion.

Follow these steps to replace the projec tion lamp:

1 Turn off the projector and unplug the power cord.
2 Wait 45 minutes to allow it to cool thoroughly.
3 Using a small, flat-blade screwdriver, remov e the screw on

the outside of the lamp door (Figure 37).

4 Pull the lamp cover up and remove it.

WARNING: To avoid burns and
lamp explosion, allow the projector
to cool for at least 45 minutes
before you open the lamp module
door. Never extract the lamp mod­ule while the lamp is op erating.

CAUTION: Replace the projec­tion l amp as soon as possible after
the lamp monitor light comes on. If
the lamp remains in use too long,

FIGURE 37

Removing the lamp module door

5 Loosen the non-removable screw on the outside of the mod-

ule.

6 Remove th e module (Figure 38).

there is a danger of lamp explo­sion. If this happens, your projector
will be severely damaged.

CAUTION: Never operate the
proje ctor with the l amp cov er open
or removed. This disrupts the air
flow and causes the projector to
overheat.

43

Maintenance

F

IGURE 38

Removing the lamp module

7 Align the module in the correct direction.
8 Gently push the module in as far as it goes (Figure 39).

WARNING: Do not drop the

lamp module or touch the glass

bulb! The glass may shatter and

cause injury.

9 Tighten the screw on the outside of the module.

IGURE 39

F

Installing a new lamp module

10 Reposition the lamp cover.
11 Replace the screw and tighten it.
12 Turn the projector back on.

44

Resetting the Lamp Mon itor Light

After replacing the lamp, you must reset the lamp monitor light.

1 Pre ss and hold the t wo brig ht ness butt ons on the ke ypad for at

least 5 seconds.

NOTE: You must reset the lamp

2 Release the buttons. The lamp monit or l ight goes out aft er it i s

re set.

Replacing the Batteries in the Remote Con trol

The life of th e batteries depends on how often and how long you
use the remote. Symptoms of low battery charge include erratic
responses when us ing t he remote and a reduced range of opera­tion.

Follow these steps to replace the batteries:

1 Turn the remote face down in your hand.
2 Slide the battery cover off the end of the remote by pressing

on it with the he el of your hand.

3 Remove th e o ld batteries.
4 Install two new AA alkaline batteries. Make sure you install

each in the correct direction.

5 Slide the battery cover back on the remote.

monitor light so the projector can
keep track of the u sable life of the
new lamp.

Replacing the Fus e

A power line surge or spike can blow the power supply fuse,
causing the projector to s top working. If th is happens, you’ll need
to replace the fuse.

The projector ships with a 6.3 amp fuse. The correct replacement
fu se depen ds on the power line voltage in the country where you
are operating the projector.

• If your line voltage is 115V to 240V, use a T6.3AH, 250V,

5x20mm fuse.

• If your line voltage is 100V to 115V (as in Japan), use a T8AH,

250V, 5x20mm fuse. You can order the fuse from your In Focus
dealer; the part number is listed on page 58.

CAUTION: Use only the speci­fied power supply fuse. Using a dif­ferent fuse may damage the
projector.

45

Maintenance

After you make sure that the condition tha t mad e the fuse blow
no longer exists, follow these steps to replace the fuse:

1 Turn off the projector by pressing the “O” side of the power

switch.

2 Unplug the power cord.
3 Remove th e fuse holder, located just above the power cord

connector. Pull out the fuse holder with a small, fla t-blade
screwdriver, key or coin (Figure 40).

CAUTION: The 6.3A IEC 127

type fuse is required in Europe. In

countries with low main voltage,

you may need the 8.0A fuse to

avoid repeated (nuis ance) blowing

of the 6.3A fuse. Both fuses

provide protection from risk of fire.

Do not use the projector if
repeated blowing still occ urs after
switching to the 8.0A fuse. Call In

Focus Technical Support for

assistance.

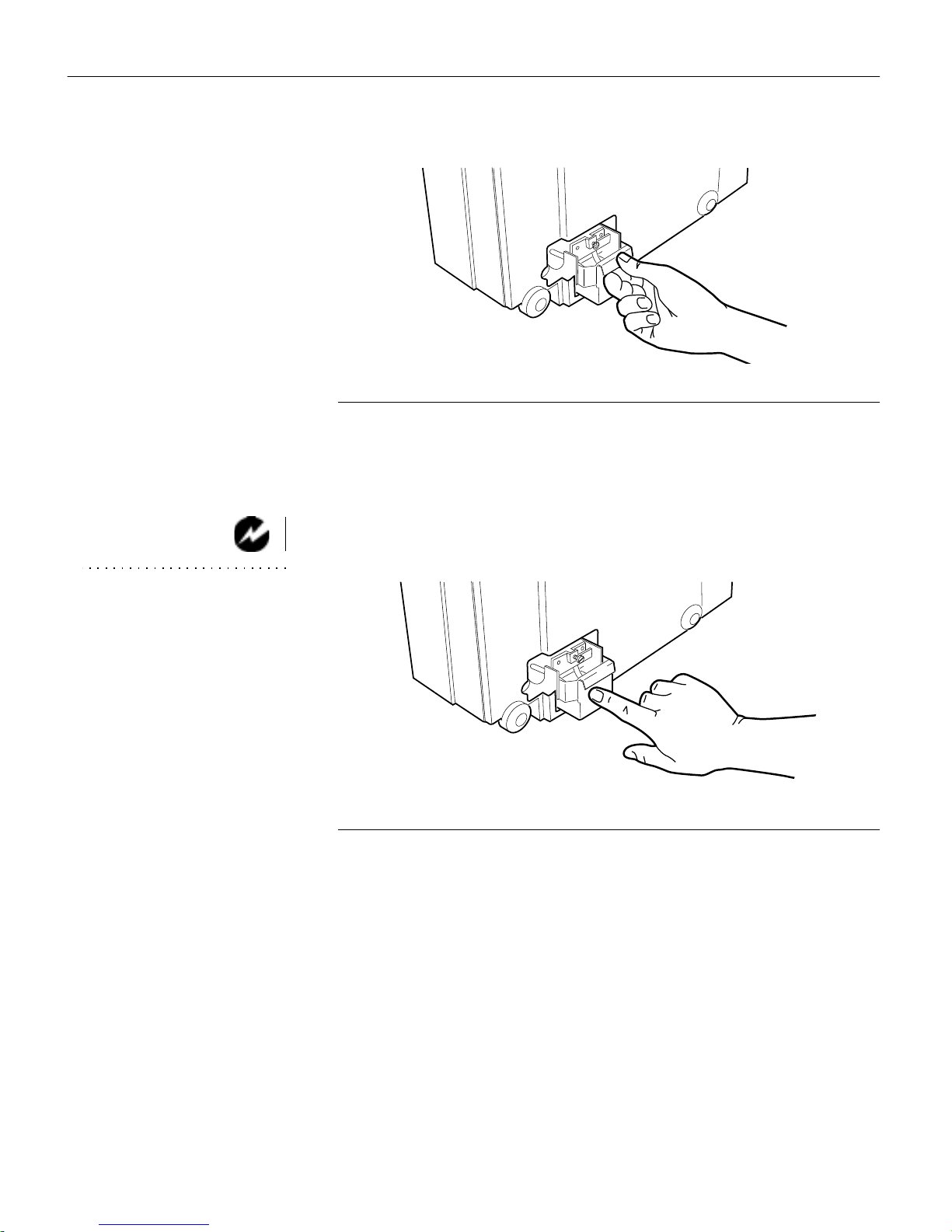

IGURE 40

F

Removing the fuse holder

4 Remove the blow n fuse from the fuse holder (Figure 41).

FIGURE 41

Removing the fuse from the fuse holder

5 Push the spare fuse into the holder until it is securely seated.
6 Place the fuse holder back in position (Figure 42).

46

7 Plug th e power cord back in.
8 Press the “|” side of the power switch to turn the projector

back on.

FIGURE 42

CAUTION: A surge-protected
power strip is recommended if
power s urges are common in your
area.

Replacing the fuse holder

Using the Kensington Lock

The projector has a Kensington Security Standard connector for
use with a K ensington MicroSaver Security System (Figure 43).
Refe r to the information that came with the K e nsington System
for instructions on how to use it to secure the projector.

FIGURE 43

Installing the Kensington lock

47

Troubleshooting

TROUBLESHOOTING

If you’re experiencing trouble wit h th e projector, follow t hese
steps to make sure everything is properly connected before you
call Technical Support for assistance.

1 Check cable connections. Verify that all computer, CableWiz-

ard and p ower cables are properly connected.

2 Verify that all power is switched on.
3 Verify that the projector has not been switched off with the

standby button on the remote or keypad.

4 If the projector still doesn ’t display an image, restart the com-

puter.

5 If the problem still exists, unplug the projector from the com-

puter and check the computer monitor’s display. The maxi­mum resolution tha t the 210 can display is 800x600 pixels,
preferably 640x480; the maximum resolution th at the 220 can
display is 1024x768 pixels, preferably 800x600. The problem
might be wi th th e graphics controller in your computer rather
than wi th the projector. When you reconne ct th e projec t or,
remember to turn the computer and monitor off before you
power up the projector. Power th e equipment back up in this
order: projector, monitor, computer.

NOTE: Macintosh computers
require a specific power-up
sequence: the pr o jector must be
turned on before you turn on the
computer.

6 If you’re using a laptop computer and its monitor is not dis-

playing your presentation, make sure you have re-activated
the computer’s monitor. Most laptop computers de-activate
their own monitor when a second display device, such as the
projector, is connected. Refer to page 59 for more i nformation.

7 If the problem still exists, read through the problems and

solutions in this chapter.

If you call Technical Support for assistance:

• Find out what kind of graphics controller card is installed in

your computer. This is the circuit board in the computer to
which t he projector is conn ect ed. M ost PCs use a VGA graphics
con trol ler.

49

Troubleshooting

Solutions to Common Problems

Problem: Nothing on projection screen

Make sure that the power cord is properly connected to a func-

•

tional AC electrical outlet. Make sure that the power cord is
also properly connected to th e projector.

• If the projector is plugged into a power strip, make sure the

power strip is turned on.

• Make sure you have removed the lens cap on the projection

lens at the front of the projector.

• Make sure the proje ctor is swit che d o n.

• Check the projector’s lamp to ensure t h a t it is securely con-

nected in the lamp module. S ee “Replacing the Projection
Lamp” on page 43.

• Check the fuse. If it has blown, replace it. See “Replacing the

Fuse” on page45.

• Make sure that the CableWizard and the cables do not have

any bent pins. Check the power cord for bent pins also.

Problem: Color or VGA text not being projected

You might need to adjust the brightness up or down until the

•

text is visible. Refer to “Brightness” on page 29 for more infor­mation.

• Verify that the appropriate input source is selec ted. See “Com-

puter” on page29 or “Video” on page 31.

Problem: The screen resolution is not right

Make sure the computer’s graphics card is set for a resolution

•

of no greater than 800x600 for the 210, 1024x768 for the 220.

Problem: Image isn’t centered on the screen

Reposition the image. Refer to “Horiz. Position” on page 38

•

and “Vert. Position” on page38.

50

• If you’re using an extension cable between t he CableWizard

and the projector, make sure it’s In Focus-approved.

Problem: Only the start-up screen displays

Verif y that the cables are connec ted corre ctly. Check to se e t hat

•

the CableWizard computer cable is correctly connected to the
monitor connector on the computer (this is the connector
where your monitor cable usually goes.) See page 6 through
page 15 for connection procedures.

• Verify that the proper input source is connected. See “Com-

puter” on page29 or “Video” on page 31.

• You might need to turn everyth i ng off and power up the

equipment again. Make sure you power up in this order: pro­jector, computer monitor, computer. It is especially important
that you follow this sequence for Macintosh computers.

• Make sure your computer’s graphics board is installed and

configured correctly.
If you’re using Windows 3.x:

1 In the Windows Program Manager, double-click the Win-

dows Setup icon in the Main program group.

2 Verify that the Display setting is 800x600 or less for the

210, 1024x768 or less for the 220.

If you’re using Windows 95:

1 Open “My Computer” icon, t he Control Panel folder and

th en the D isplay icon.

2 Click the Settings tab.
3 Verify that the Desktop area is set to 800x600 o r le ss for the

210, 1024x768 or less for the 220.

Als o check th e following:

• Does your computer have a compatible graphics board? The

projector isn’t CGA or EGA compatible.

• Is your comput er’s graphic s board turn ed on? Thi s is e specially

true for laptop computers. See “Portable and Laptop Activa­tion Chart” on page 59.

51

Troubleshooting

Problem: Image is too wide or narrow for screen

You might need to manually adjust the t racking to reduce or

•

enlarge th e projected image. Refer to “Manual Tracking” on
page 38.

• Adjust the resolution of your monitor if it’s greater than

800x600 pixels for the 210 or 1024x768 for the 220. Only these
resolutions at 75 Hz or less will display on the projector.

• Make sure that your computer has a compatible graphics

board. The projector is not compatible with CGA, EGA, or
1280x1024 graphics modes.

Problem: Image i s out of focus

Make sure the lens is locked in place.

•

• Turn the projection lens to focus the image.

• Make sure the proje ctio n scre en is at least 4 feet (1.2m ) from the

proj ector.

• Check the projection lens to see if it needs cleaning.

Problem: Image and menus are reversed left to right

Rear projection mode is probably turned on. Switch back to

•

forward projection from the Controls me nu. The image should
immediately return to forward projection. See “Rear Projec­tion” on page 40.

Problem: Image and menus are upsi de down

Ceiling mode is probably turned on. Turn off the mode from

•

the Controls menu. The image sh ould immediately return to
forward projection. See “Ceiling” on page 39.

Problem: the projector displays vertical lines, “bleeding” or spots

Adjust the brightness. See “Brightness” on page 29.

•

• Check the projection lens to see if it needs cleaning.

52

Problem: Image is “noisy” or streaked

Try these steps in this order.

1 Deactivate the screen saver on your computer.
2 Turn Auto Image off and then back on again. See “Auto

Image” on page 37.

3 Adjust the s yn chronization and tracking manually to find an

o ptimal setting. See “Manual Sync” on page 37 and “Manual
Tracking” on page38.

• If you’re using an extension cable between the CableWizard

and the projector, make sure it’s In Focus-approved.

• The problem could be with your computer’s graphics board. If

poss ible, co nnect anoth er computer with a different graphics
board.

Problem: Projected colors don’t match the computer or video
player’s colors

•

Adjust the brightness, tint and/or contras t from the Display
menu. Just as there are differences in the displays of different
monitors, there are often differences between the computer
image and the projected image. See “Bright ness” on page 29,
“Tint” on page34 and “Contrast” on page 34.

Problem: Lamp seems to be getting dimmer

The lamp begin s to lose brigh tness when it has been in use for a

•

long time. Replace the lamp as described in “Replacing the Pro­jection Lamp” on page 43.

Problem: Lamp shuts off

A minor power surge may cause the lamp to shut off. Turn the

•

projector off, wait at least 45 seconds, then turn it back on.

Problem: Remote not operating correctly

•

You might n eed to replace the batteries. See “Replacing the
Batte r ies in the Remote Control” on page45.

• Make sure you’re pointing the remote eit her at t h e back or

front of the projector, or at the projec tion screen.

• Make sure t he remote is withi n its operating range of 40 feet.

53

Appendix

APPENDIX

Specifications

The LitePro 210 and 220 must be operated and stored within the
temperature and humidity ranges specified.

Temperature

Operating
Non-operating

Humidity

Operating and non-oper. 10% to 95% relative humidity, non-condensing

Dimens ions

6.6 x 16.25 x 13.25 inches (16.8 x 41.3 x 33.7 cm)

Weight

16 lbs. (7.3 kg) unpacked

10 C to 40° C

-20 to 60

° C

Altitude

Operating 0 to 10,000 feet (3048 meters)
Non-operating 20,000 feet (6096 meters)

Left and Right Audio Outputs

Frequency Response 10 Hz - 20 KHz
Output Impedance 1.2 K ohm nominal
Output Voltage 2 Vrms maximum (open circuit)
Connector Type red and white RCA jacks

Subwoofer Outputs

Frequency Response 10 Hz - 10 KHz
Output Impedance 200 ohms nominal
Output Voltage 2 Vrms maximum (open circuit)
Connector Type black RCA jack

Optics

Focus Range 4 to 25 feet

55

Appendix

Microphone Input

Input Impedance 3.5 K ohm nominal
Maximum Input Voltage 60 mVrms for THD ≤0.3%, main inputs off
Sensitivity 800 Vrms at 1 KHz for 88 dB SPL at 1 meter
Microphone Impedance < 8K ohms
Connector Type 6.3 mm (1/4 inch) monaural phone jack

(unbalanced)

Lam p

Type 270-watt metal halide

Remote Control

Battery Two (2) AA alkaline cells

Input Power Requirements

100-240VAC, 7.0A-3.6A, 50 to 60 Hz.

Video Module Input

Input Impedance 5K ohm DC coupled
Maximum Input Voltage (L

+ RIN)

IN

< 4.5 V for THD ≤ 0.3%, micro-

PEA K

phone off
L

or RIN < 2.0 Vrms for THD ≤ 0.3%, micro-

IN

phone off
Sensitivity 100 mV at 1 KHz for 88 dB SPL at 1 meter
Connector Type RCA jack

Cable Wizard Audio Input

Input Impedance 10K ohm nominal, AC coupled
Maximum Input Voltage (L

+ RIN)

IN

< 4.5 V for THD ≤ 0.3%, micro-

PEA K

phone off

L

or RIN < 2.0 Vrms for THD ≤ 0.3%, micro-

IN

phone off
Sensitivity 100 mV at 1 KHz for 88 dB SPL at 1 meter
Connector Type 3.5 mm (1/8 inch) stereo phone jack

56

Fuse

115 to 240V nominal line T6.3AH, 250V, 5x20mm
100 to 115V nominal line T8AH, 250V, 5x20mm

Accessories

Standard Accessories
(ship with the projector) Part Number

LitePr o 210/220 Quick St a rt card 009-0214-xx
LitePr o 210/220 User’s Guide 010-0102-xx

Shipping Box 110-0098-xx
CableWizard and Cables 591-0182-xx

CableWizard Audio Cable 210-0079-xx
CableWizard Computer Cable 210-0076-xx

CableWizard Mouse Cable 210-0078-xx
Varifocal Lens 505-0148-00
Projection Lamp Module 505-0144-xx
Lens Cap 340-0220-xx
Audio/Video Cable 210-0062-xx
Fuse — 6.3 amp 749-0010-xx
Remote Control with Cable and 2 Batteries 590-0198-xx

Remote Cable (50 ft) 210-0088-xx

Power Cords (one ships with projector, type depends on country)

North American Power Cord 210-0023-xx
Australian Power Cord 210-0027-xx
UK Power Cord 210-0028-xx
European Power Cord 210-0029-xx
Danish Power Cord 210-0030-xx
Swiss Power Cord 210-0031-xx

57

Appendix

Optional Accessories

Soft Carry Case CA-C077
ATA Shipping Case CA-C119
CableWizard Lite SP-CWLITE

Mac Adapter for CableWizard Lite 516-0003-xx

CableWizard Extension Cable, 50 ft

*

210-0077-xx
Zoom Lens HW-LP210-ZM
Kensington MicroSaver Security System SP-KENLOC
JBL Satellite Speakers 591-0203-xx
JBL Subwoofer 591-0204-xx
S-Video Cable 515-0027-xx
Microphone 591-0201-xx
Fuse — 8.0 amp call for part no.

LitePro 200 Series Ceiling Mount Kit

*

591-0208-xx
1 Year Extended Warranty 592-0320-xx

2 Year Extended Warranty 592-0319-xx

*Using the extension cable or ceiling mount reduces FCC

and EMC compliance to Class A.

58

Porta bl e and Laptop Ac ti vat ion Chart

Computer

Key command to
activate port

Key command to
de-activate port

Acer Ctrl-Alt-Esc (for setup) Ctrl-Alt-Esc (for setup)
AST* ** FN-D or Ctrl-D FN-D or Ctrl-D

Ctrl-FN-D Ctrl-FN-D
FN-F5 FN-F5
type from A:/IVGA/CRT type from A:/IVGA/CRT
FN-F12 FN-F12

Advanced Logic

Ctrl-Alt-V Ctrl-Alt-V

Research
Altima Shift-Ctrl-Alt-C Shift-Ctrl-Alt-L

setup VGA/
Conf.Simulscan

setup VGA/
Conf.Simulscan

Ambra** FN-F12 FN-F12

FN-F5 FN-F5
F2/Choose Option/F5 F2/Choose Option/F5

Amrel* ** setup menu setup menu

NOTE: Most laptop computers
de-activate their built-in monitors
when a second display device is
conne cted. The following chart lists
the comm ands that re-activate the
laptop’s monitor. If your computer
is not listed, refer to the com­puter’ s docume ntation.

Shift-Ctrl-D Shift-Ctrl-D
Apple see Mac Portable and Mac PowerBook
Aspen automatic automatic
BCC* automatic reboot computer
Bondwell LCD or CRT options

after bootup

reboot for LCD or CRT
options to appear

Chaplet** setup screen setup screen

FN-F6 FN-F6

FN-F4 FN-F4
Commax Ctrl-Alt-#6 Ctrl-Alt-#5

59

Appendix

Computer

Key command to
activate port

Key command to
de-activate port

Compaq* ** Ctrl-Alt-< Ctrl-Alt->

FN-F4 FN-F4
automatic automatic
mode/? (for setup option) mode/? (for setup option)

Compuadd* ** automatic automatic

Alt-F for screen setup
option

Alt-F for screen setup

option
Data General Ctrl-Alt-Command Ctrl-Alt-Command
Data General

2 CRT/X at DOS prompt reboot

Walkabout
Datavue Ctrl-Shift-M Ctrl-Shift-M
Dell** Ctrl-Alt-< Ctrl-Alt->

Ctrl-Alt-F10 Ctrl-Alt-F10
FN-F8 (CRT/LCD) FN-F8
FN-D FN-D
FN-F12 FN-F12

Digital* automatic reboot

FN-F2 FN-F2
Dolch dip switch to CRT dip switch to LCD
Epson dip switch to CRT dip switch to LC D
Everex* setup screen option setup screen option
For-A Ctrl-Alt-Shift-C Ctrl-Shift-Alt-L
Gateway FN-F1/FN-F1 again simul-

FN-F1

taneous
Grid* ** FN-F2, choose auto or

FN-F2

simultaneous

Ctrl-Alt-Tab Ctrl-Alt-Tab
Hyundai setup screen option setup screen option
IBM 970* automatic warm reboot

60

Computer

Key command to
activate port

Key command to
de-activate port

IBM ThinkPad** reboot, enter setup menu FN-F2

FN-F7, select choice
from setup menu

FN-F1, select choice
FN-F5, select choice
PS/2 SC select choice

(CRT, LCD, etc.)

Kaypro boot up, monitor plugged inunplug monitor

Kris Tech FN-F8 FN-F8
Mac Portable

no video port: not compatible

100
Mac PowerBook
140, 145, 150,

no video port: requires a 3rd-party interface

170
160, 165, 180,

520, 540, 5300

Control Panel folder,
PowerBook Display

warm reboot

folder; Activate Video
Mirroring

210, 230, 250,

requires Apple Docking Station or Mini Dock

270, 280, 2300
Magitronic FN-F4 FN-F4
Mastersport FN-F2 FN-F1
Micro Express* automatic warm reboot
Microslate* automatic warm reboot
Mitsubishi SW2 On-Off-Off-Off SW2 Off-On-On-On
NCR setup screen option setup screen option
NEC* ** setup screen option setup screen option

CRT at the DOS prompt LCD at the DOS prompt
FN-F31 FN-F3

Olivetti* automatic automatic

FN-O/* FN-O/*
FN- | | FN- | |

61

Appendix

Computer

Key command to

activate port

Key command to
de-activate port

Packard Bell** FN-F2 FN-F2

Ctrl-Alt-< Ctrl-Alt->
Panasonic FN-F2 FN-F2
Samsung* setup screen option setup screen option
Sanyo setup screen option setup screen option
Sharp dip switch to CRT dip switch to LCD
Sun SPARC-

Ctrl-Shift-M Ctrl-Shift-M
Dataview

Tandy** Ctrl-Alt-Insert Ctrl -Alt-Insert

setup screen option setup screen option
Texas Instru-

setup screen option setup screen option
ments*

Top-Link* ** setup screen option setup screen option

FN-F6 FN-F6
Toshiba* ** Ctrl-Alt-End Ctrl-Alt-Home

FN-End FN-Home

FN-F5 FN-F5

setup screen option setup screen option
Twinhead* FN-F7 FN-F7

FN-F5 FN-F5

Automatic Automatic
WinBook Ctrl-Alt-F10 Ctrl-Alt-F10
Wyse software driven software driven
Zenith** FN-F10 FN-F10

FN-F2 FN-F2

FN-F1 FN-F1

* These manufacturers have models that automatically send video

to the external CRT port when some type of display device is
attached.

** These manufacturers offer more than one ke y command depend-

ing on the computer model.

62

Using Video Mirroring with a PowerBook Computer

When you turn video mirroring on, the projector displays the
same information that appears on your PowerBook’s built-in
screen. When video mirroring is off, t he projector acts like a sepa­rate display.

To turn on video mirroring for the first ti me:

1 Open the Monitors control panel; click on Monitor 2.
2 Set the number of colors you want.
3 Open the Control Strip; click on th e monitor icon.
4 Select “Turn Vide o Mirroring On.”

Now you can turn video mirroring on and off from the Control
Strip without hav ing to open th e Monitors control panel again.

When using video mirroring and hig h color graphics such as
slide shows, the projected image occasionally might turn black
and whi te. If t his happens, perform the following steps:

1 Turn off video mirroring.
2 Open the Monitors control panel.
3 Move the white m enu bar to Monitor 2 to s et the projector as

the primary monitor.

4 Restart the PowerBook.

63

Appendix

Projected Image Size

Use the chart below and the tables on the n ext page to h elp you
determine projected image sizes for the varifocal and zoom
lenses.

64

FIGURE 44

Projected image size for LitePro 200 series zoom and varifocal lenses

Table 1:

Image Size, Width and Height for Varifocal Lens

and Zoom Lens at Minimum Focusing Distance

Distance to

Screen (feet)

Diag onal

(inches)

Width

(inches)

Height

(inches)

4 34 27 20.4
10 84 67 50.4
15 126 101 75.6
20 168 134 100.8
25 210 168 126.
30 252 202 151.2
35 294 235 176.4
40 336 269 201.6

Table 2:

Image Size, Width and Height for Zoom Lens at

Maximum Focusing* Distance

Distance to

Screen (feet)

Maxi mum

Diag onal

(inches)

Maxi mum

Width

(inches)

Maxi mum

Height

(inches)

4483828.8
10 120 96 72
15 180 144 108
20 240 192 144
25 300 240 180
30 360 288 216
35 420 336 252
40 480 384 288

* The focusing distance of the zoom lens is from 4 feet to infinity.

65

Index

INDEX

A

accessories, ordering 57
activation commands for laptop

computers 59

adjusting

ambiance 36
balance 35
bass 36
brightness 29
contrast 34
fade 36
microphone volume 35
tint 34
treble 36

volume 31, 35
adjusting t he height o f the p rojector 26
altitude limits 55
ambiance, adjusting 36
annotating 30
assistance. See Technical Support
Audio menu 35
Audio menu options

Ambiance 36

Balance 35

Bass 36

Fade 36

Mic volume 35

Treble 36

Volume 35

B

balance, adjusting 35
bass, adjusting 36
Brightness buttons 29
brightness, adjust ing 29, 34
bulb. See lamp

buttons on remote and keypad

Brightness 29
Computer 29
Freeze 29
Help 29
Light 29
LiteShow 29
Menu 30
Mute 30
Scribble 30
Standby 31
Video 31
Volume 31

C

cabl es

A/V 17, 57
CableWizard 3, 9–16, 57
CableWizard extension 58
compo s ite video 17
extension 5, 58
ordering 57
power iv, 57
remote control 21, 57
S-video 17, 58

CableWizard

cables 3, 9–16, 57
connecting to equipment 8
connecting to the projector 6
extension cable 58

selecting connectors 6
CableWizard Lite, ordering 58
cases, ordering 58
ceiling-mounted projection 39, 58
CGA graphics 2
cleaning the projection lens 41
colors

don’t match monitor colors 53

not displayed 50

67

Index

compatibility

IBM-compatible 2
Macintosh 2

composite video cable

connecting 17

ordering (A/V cable) 57
Computer button 29
computers, compatible 2
connecting

Apple PowerBook 15–16

external speakers 19

IBM-compatible desktop

computer 9–10
IBM-compatible laptop 11–12
Macintosh 13–14
microphone 20
power cord 21
PS/ 2-compatible mouse 20
remote control 21
subwoofer 19
video player 17–18

connector panel

audio out 19
LEDs 22
microphone 20
remote cable 21
subwoofer 19
video connectors 17

contrast, adjusting 34
Contro ls menu 39
Contro ls menu options

Ceiling 39
Language 39
Monitor Connect 40
Rear Projection 40

cords . See cables

D

Display menu 33
Display menu option s

Brightness 34
Contrast 34
Reset All 34
Tint 34

displaying

online help information 29
on-screen menus 30

E

EGA graphics 2
extension cable 5, 58
external speakers, connecting 19

F

fade, adjusting 36
Freeze button 29
freezing the display 29
fuse

ordering 6.3 amp 57
ordering 8 amp 58
replacing 45
safety iv
specifications iv, 56

fuzzy lines 38

H

Help button 29
hot surfaces v

I

IBM-compatible computers

compatibility 2, 9
connecting 9–12

icons

on CableWizard 6–16
on projector 17–22
on pr ojector labels iii

68


adjusting 21, 25
centering 25
colors don’t match computer’s 53
focusing 26
fuzzy lines 25, 38
has lines or spots 52
not centered 50
not displayed 50
out of focus 52
quality iv, 50–53
resolution 1
reversed 52
size 5, 64
streaked 53
too dark or too light 29

too wide or too narrow 25, 52
Image menu 37
Image menu options

Auto Image 37

Auto Resize 37

Horiz. Position 38

Manual Sync 37

Manual Tracking 38

Vert. Posit ion 38

K

Kensington lock 47, 58
keypad, description of buttons 28

L

labels on projector iii
lamp

explosion hazard iii

ordering 57

overheating iv

replacing 43

safety iii–iv

turns off unexpectedly 53
language, selecting for menus 39

laptop com puters

activation sequence to allow

secondary display 59
compatibility 11
connecting IBM-compatible 11
connecting PowerBook 15

LEDs

computer source 23
lamp 22
power/standby 22
video source 22

lens

cap 57
cleaning 41
ordering 57
preparing for transportation v
removing 41
safety iii
zoom 42, 58, 64

leveling the pro j ector 26
Light button 29
LitePro 210/220

ATA (hard) case 58
ceiling mounted 5, 39
hot surfaces v
not working 49
project from behind the screen 40
setting up 5
soft case 58
specifications 55
turning off 23
turning on 21
ventilation and overheating v
voiding the warranty v

LiteShow button 29

69

Index

M

Macintosh computers

compatibility 2, 13
connecting desktop

models 13–14

connecting PowerBooks 15–16
Menu button 30, 32
menus. See on-screen menus
microphone

adjusting volume 30, 35

connecting 20

ordering 58
Monitor Connect option 40
monitor, projected colors don’t

match 53
mouse, connecting to LitePro 20
Mute button 30

N

NTSC video 39

O

on-screen menus

Audio menu 35
changing language of 39
Controls menu 39
Display menu 33
displaying 32
Image menu 37
making changes to menu

functions 33

removing from the screen 33

P

PAL video 34, 39
power cord

connecting 21
grounding iv
ordering 57

safety iv
power source, safety iv
power strip 21

power switch 23
power up sequence 23, 51
PowerBook, con necting 15
project from behind the screen 40
PS/2 mouse connection 20

R

rear projection 40
remote control

description of buttons 28
illuminating buttons 29
not working 53
ordering 57
replacing the batteries 45
specifications 56

using 25, 32
repair. See Technical Support
replacing

fuses 45

projection lamp modul e 43
re-positioning the image on the

screen 38
resett ing adjust ments 34
resolution 1

S

safety guidelines iii–v
Scribble button 30
SECAM video 34, 39
security feature 47
service. See Technical Support
speakers

external 30, 58
internal 30
muting 30

subwoofer 58
specifications 55
Stand by button 31
S-video

connecting 17

ordering cable 58

70

T

Technical Support

in Europe 4
in Singapore 4
in USA 4
information to have on hand

before you call 49
things to try before you call 49
voiding the warranty v

temperature limits 55
test pattern 51
text not visible 50
tint, adjusting 34
treble, adjusting 36
troubleshooting 49
turning off

projector 23
sound 30

turning on the projector 21

U

using the remote control 25, 32

V

vertical lines displayed 38, 52
Video button 31
video mirroring on a

PowerBook 15, 63
video standards 34, 39
volume

adjusting 31, 35
muting 30

Volume buttons 31

W

warranty v, 58

Z

zoom lens 42, 58, 64

71

LIMITED WARRANTY

In Focus Systems Inc. (“In Focus”) warrants that each LitePro 210 and 220 (“the Product”) sold hereunder will conform to
and function in accordance with the written specifications of In Focus. Said limited warranty shall apply only to the first
person or entity that purchases the Product for personal or business use and not for the purpose of distribution or resale.
Said warranty shall continue for a period of one (1) year from the date of such purchase. In Focus does not warrant that the
Product will meet the sp ecific requireme nts of the first p erson or e ntity that p urchases the Produ ct for perso nal or busines s
use. In Focus’ liability for the breach of the foregoing limited warranty is limited to the repair or replacement of the Prod­uct or refund of the purchase price of the Product, at In Focus’ sole option. To exercise the Purchaser’s rights under the
foregoing warranty, the Product must be returned at the Purchaser’s sole cost and expense, to In Focus or to any autho­rized In Focus service center provided, however, that the Product must be accompanied by a written letter explaining the
problem and which includes (i) proof of date of purchase; (ii) the dealer’s name; and (iii) the model and serial number of
the Product. A return authorization number, issued by the In Focus customer service department, must also be clearly dis­played on the outside of the shipping carton containing the Product.

WARRANTY LIMITATION AND EXCLUSION

In Focus shall have no further obligation under the foregoing limited warranty if the Product has been damaged due to
abuse, misuse, neglect, accident , unusual physical or electrical stress, una uthorized modif ications, tampering, alteration s,
or service other than by In Focus or its authorized agents, causes other than from ordinary use or failure to prope rl y use t he
Product in the application for which said Product is intended.

DISCLAIMER OR UNSTATED WARRANTIES

THE WARRANTY PRINTED ABOVE IS THE ONLY WARRANTY APPLICABLE TO THIS PURCHASE. ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MER­CHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. THERE ARE NO WARRANTIES
THAT EXTEND BEYOND THE FACE HEREOF AND THE FOREG OING WARRANTY SHALL NOT BE EXTENDED,
ALTERED OR VARIED EXCEP T BY WRITTEN INSTRUMENT SIGNED BY IN FOCUS.

LIMITATION OF LIABILITY

IT IS UNDERSTO OD AND AGREE D THAT IN FOCUS’ LIABILITY WHETHER IN CONTRACT, IN TO RT, UNDER ANY
WARRANTY, IN NEGLIGENCE OR OTHERWISE SHALL NOT EXCEED THE RETURN OF THE AMOUNT OF THE
PURCHASE P RICE PAID BY PURCHASER AND UNDER NO CIRCUMSTANCES SHALL IN FOCUS BE LIABLE FOR
SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES. THE PRICE STATED FOR THE PRODUCT IS A CONSIDER­ATION IN LIMITING IN FOCUS’ LIABILITY. NO ACTION, REGARDLESS OF FORM, ARISING OUT OF THE AGREE­MENT TO PURCHASE THE PRODUCT MAY BE BROUGHT BY PURCHASER MORE THAN ONE YEAR AFTER THE
CAUSE OF ACTION HAS ACCRUED.

Part Number 010-0102-02
