USER’S GUIDE

InFocus LightCast Wireless Adapter

INA-LCKEY

All trade names are registered trademarks of respective manufacturers listed.

This manual may not be copied in any media or form without the written consent of original maker.

1.	Introduction ...............................................		..........……......	1
2.	Wireless LAN Basics ..........................................		......……......	3
3.	IP ADDRESS ..........................................................		…………..	4
4.	Install Driver/Utility ...............................................		…………..	5
	4.1	Windows 7/8/8.1/10...............................................		5

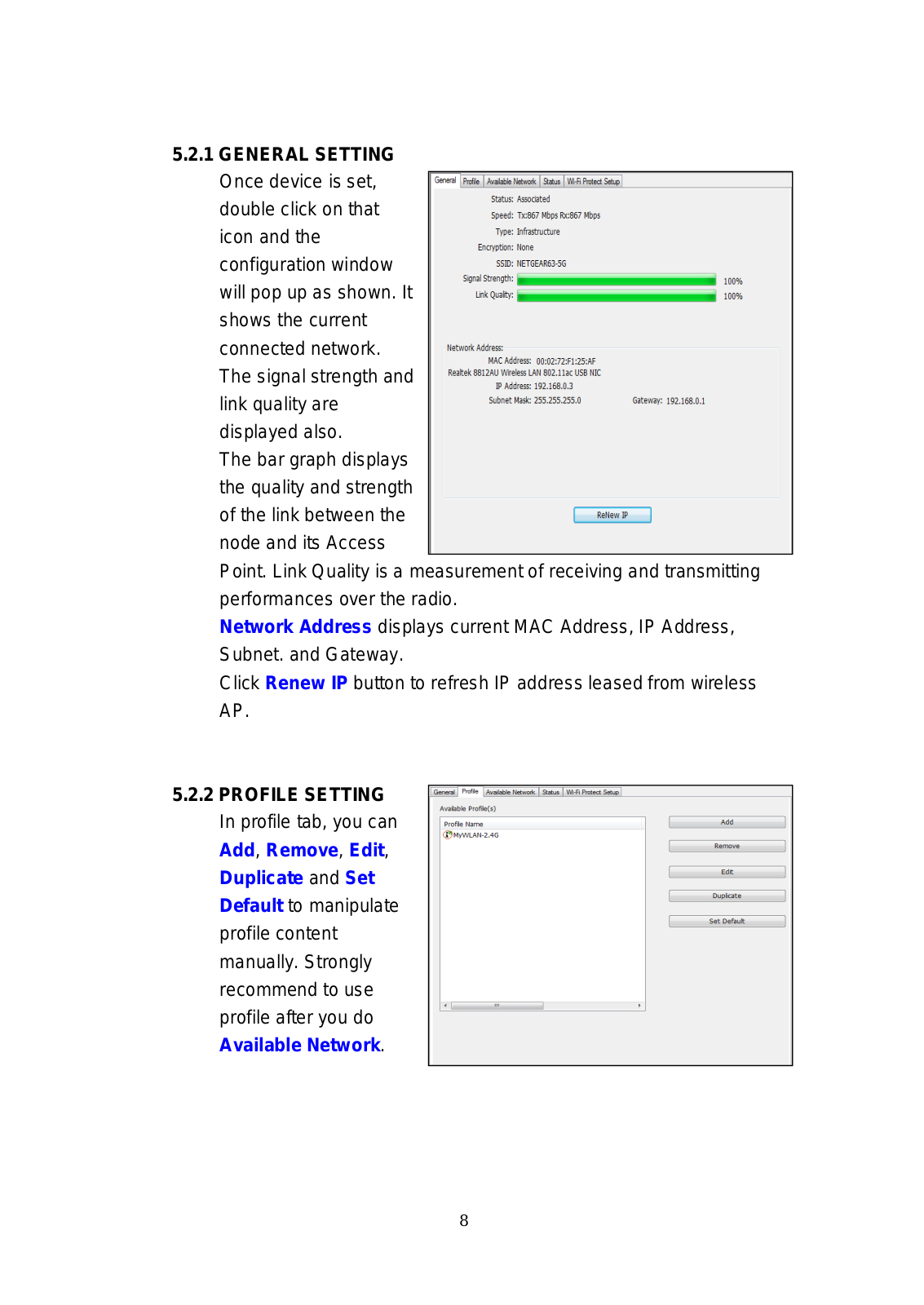

5.	Wireless Network Configuration ............................................			7

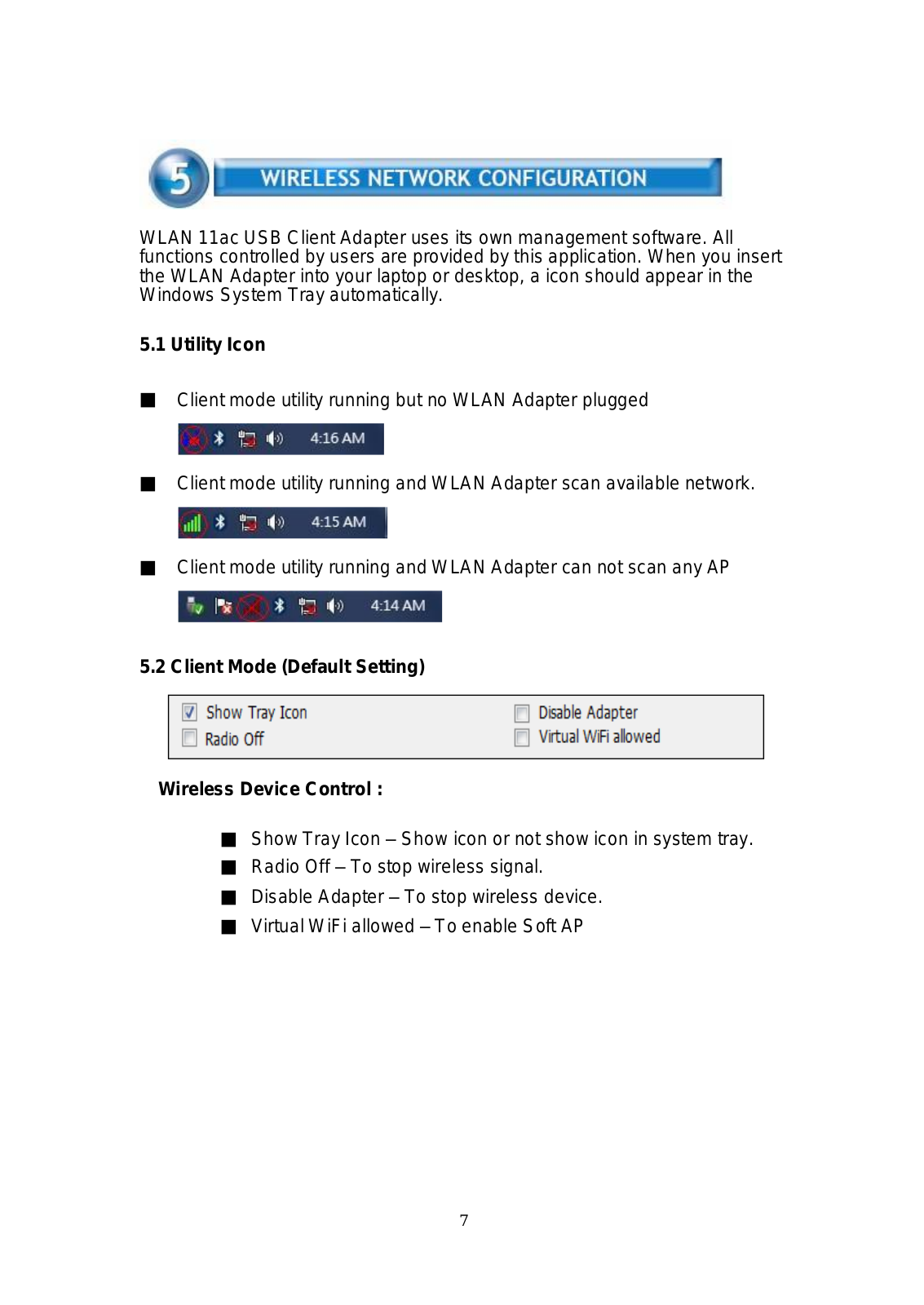

	5.1	Utility Icon ..............................................................		7

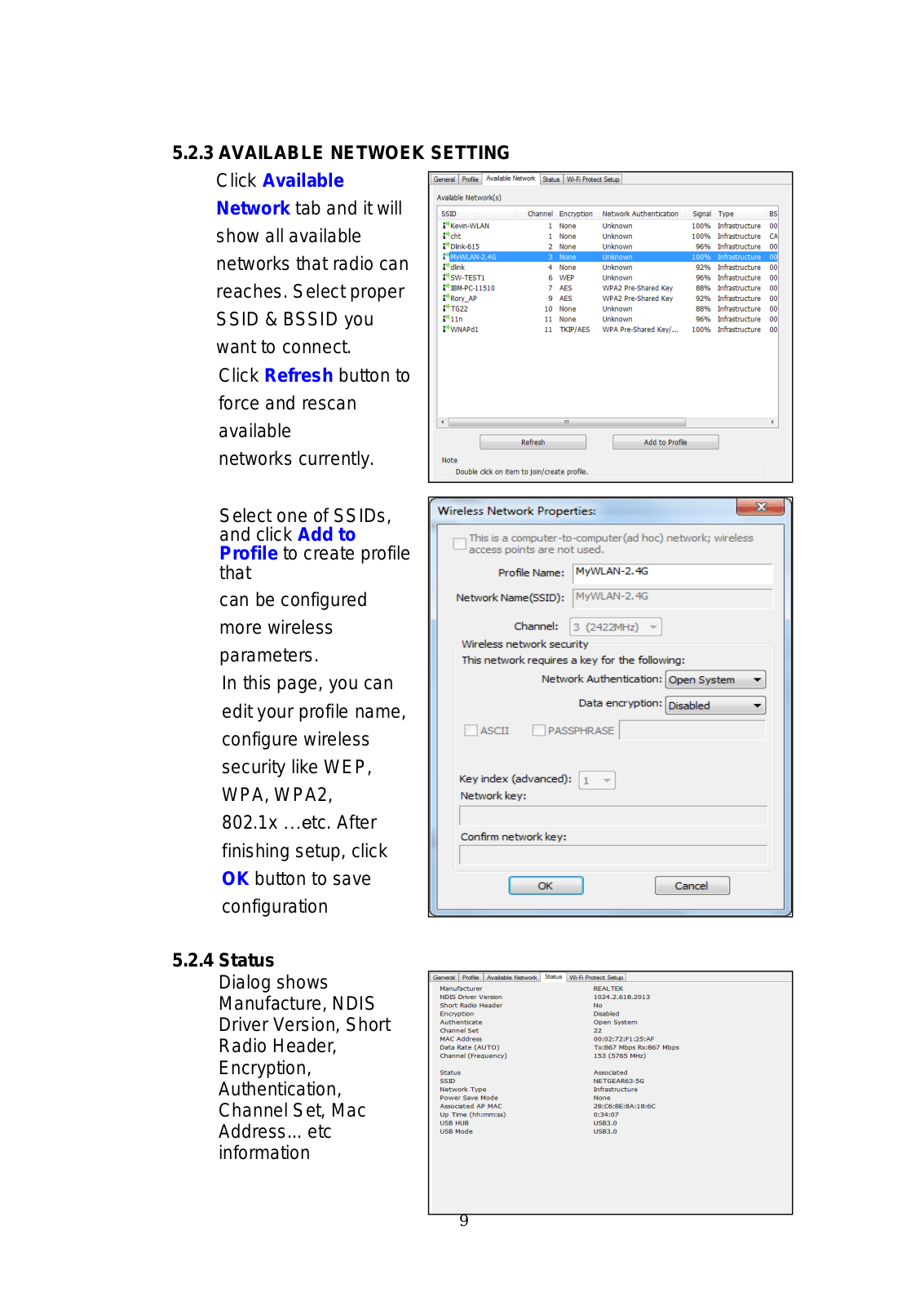

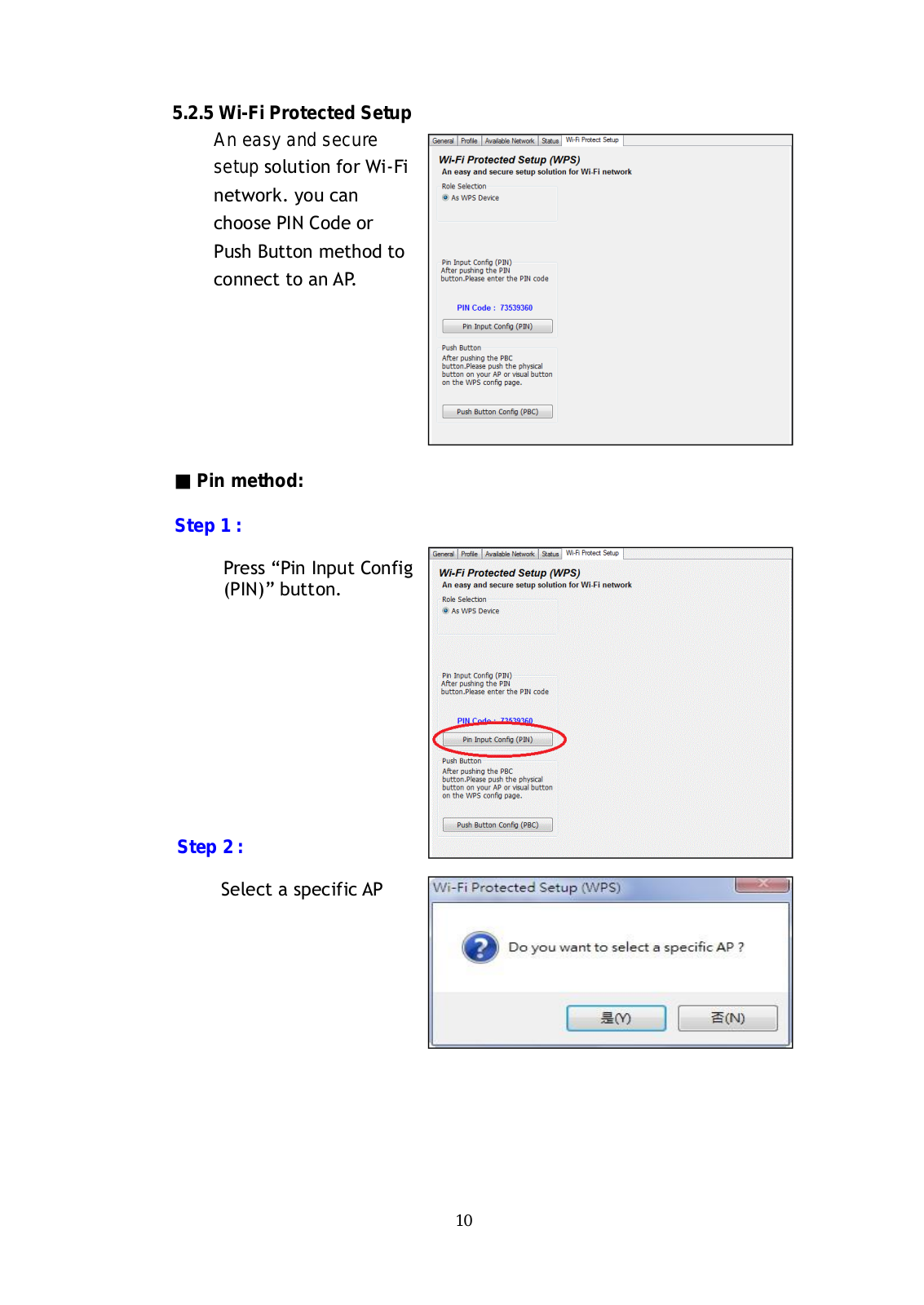

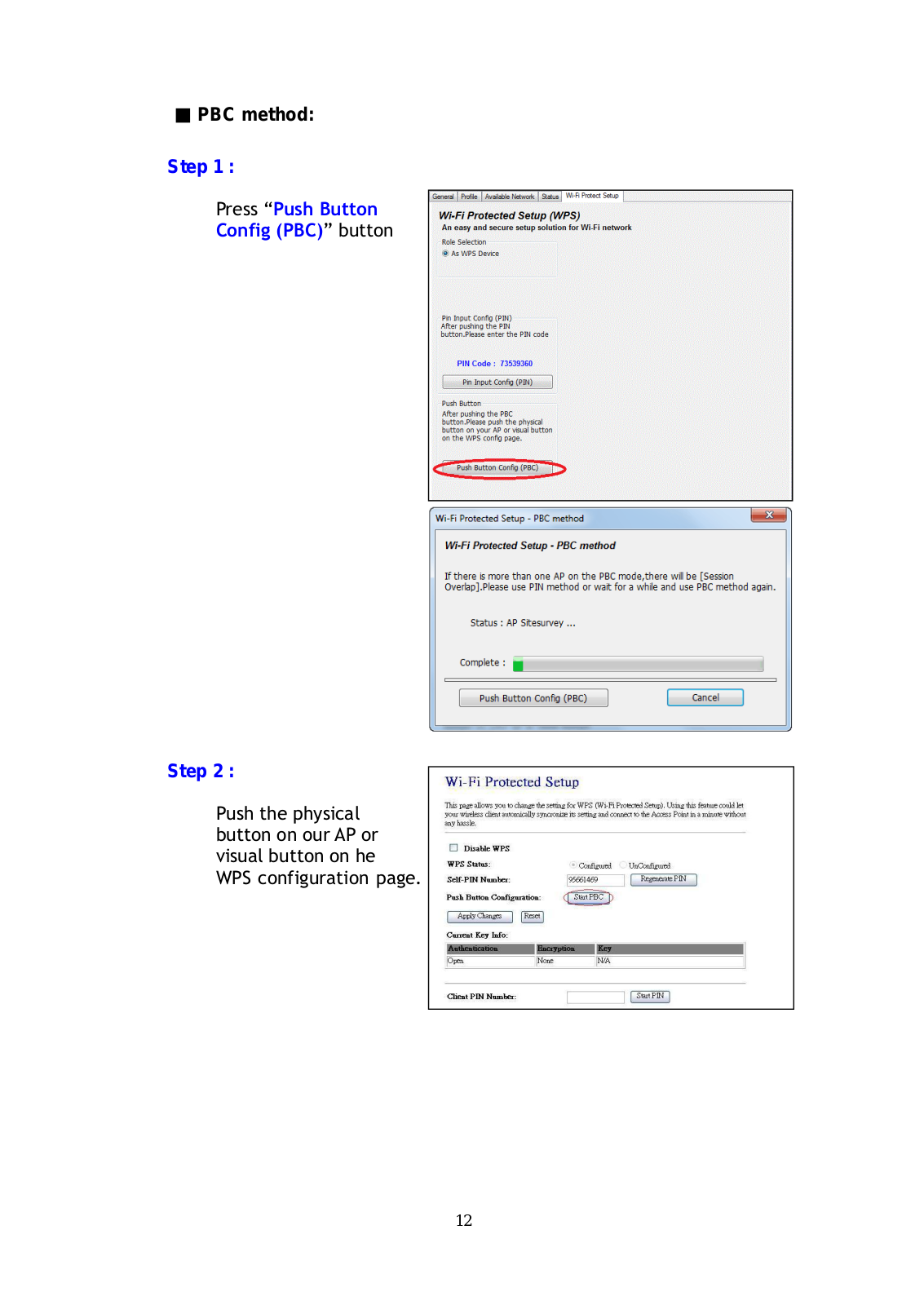

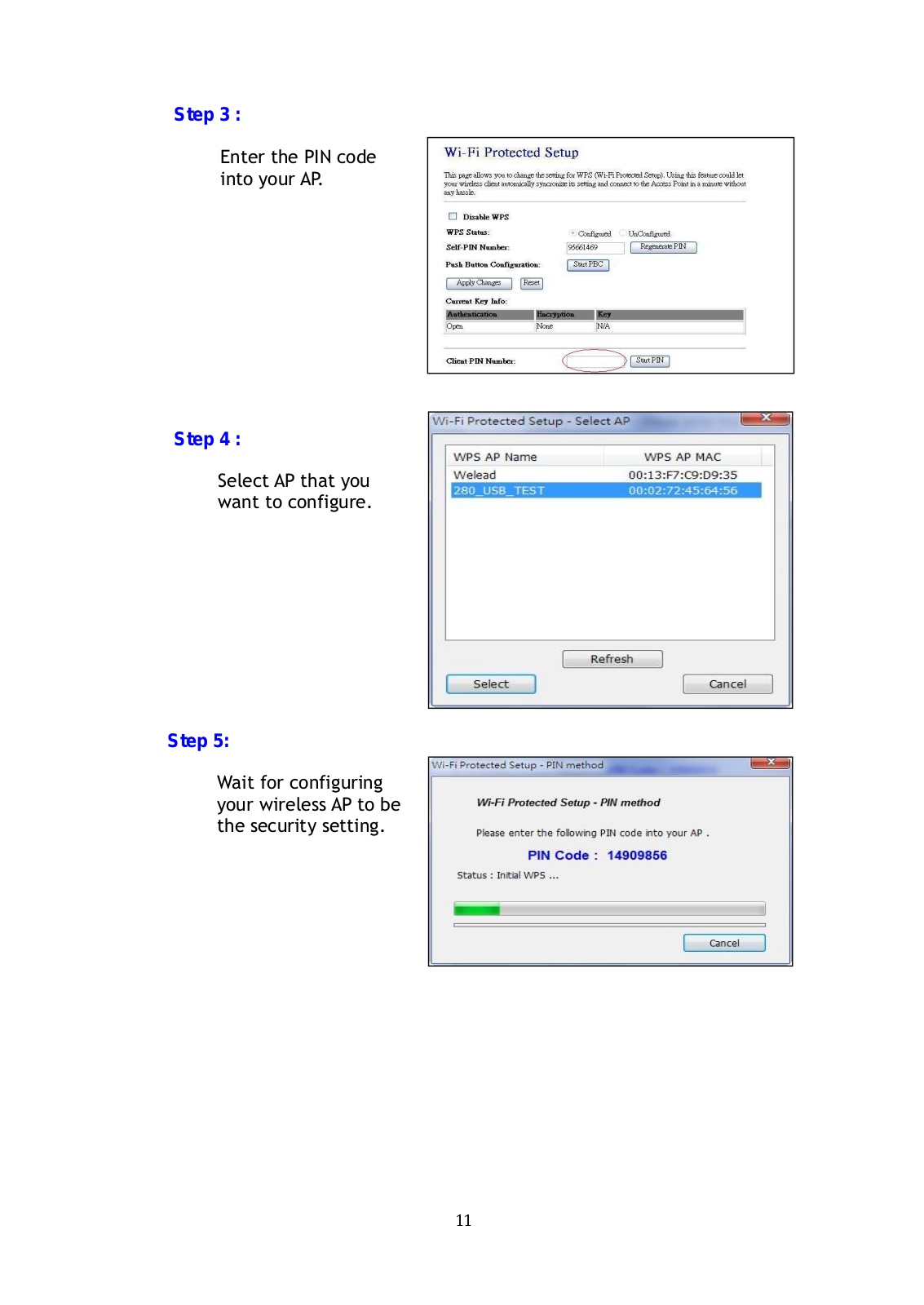

	5.2	Client Mode (Default Setting)........................................		7

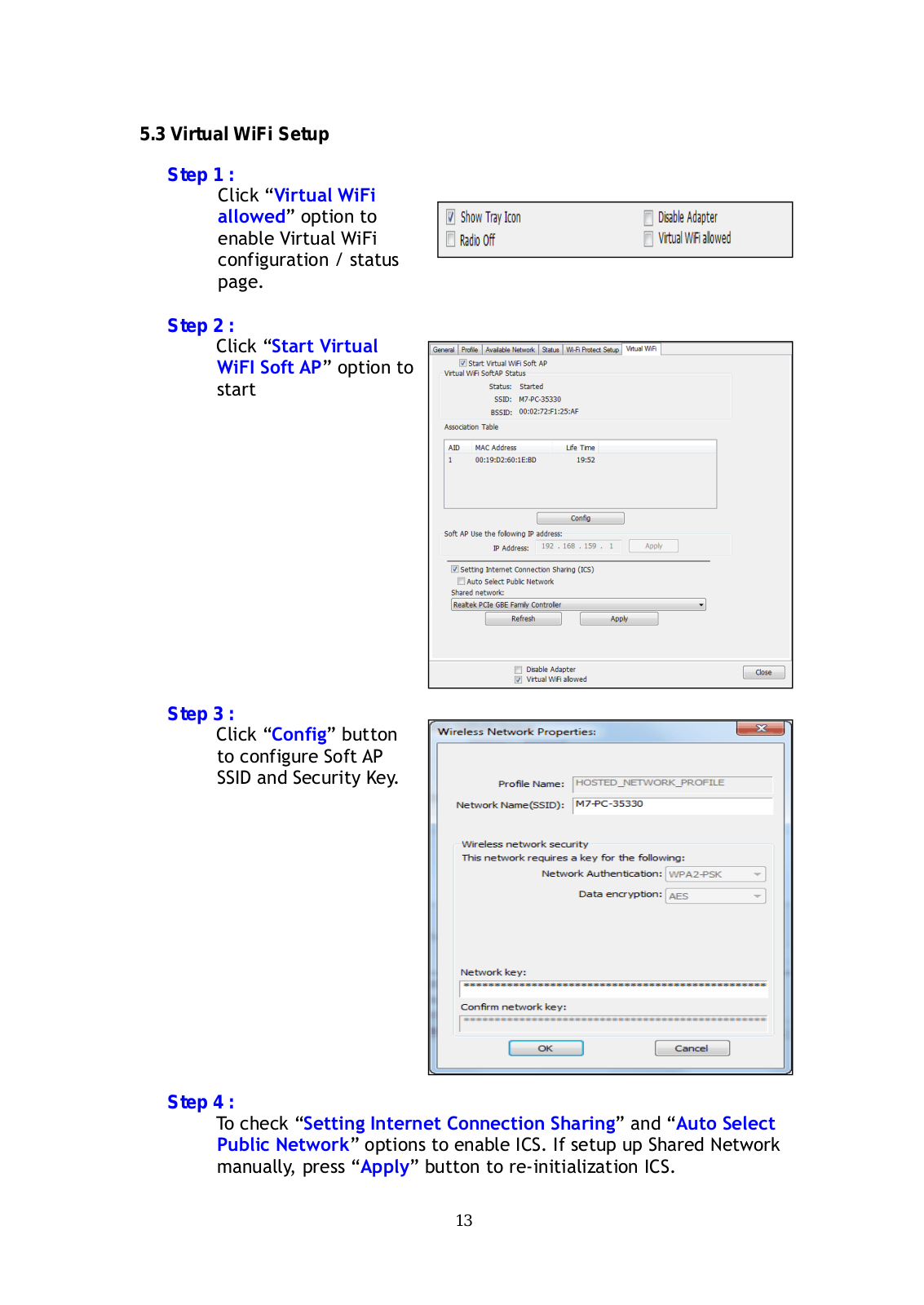

	5.3	Virtual WiFi ............................................................		13

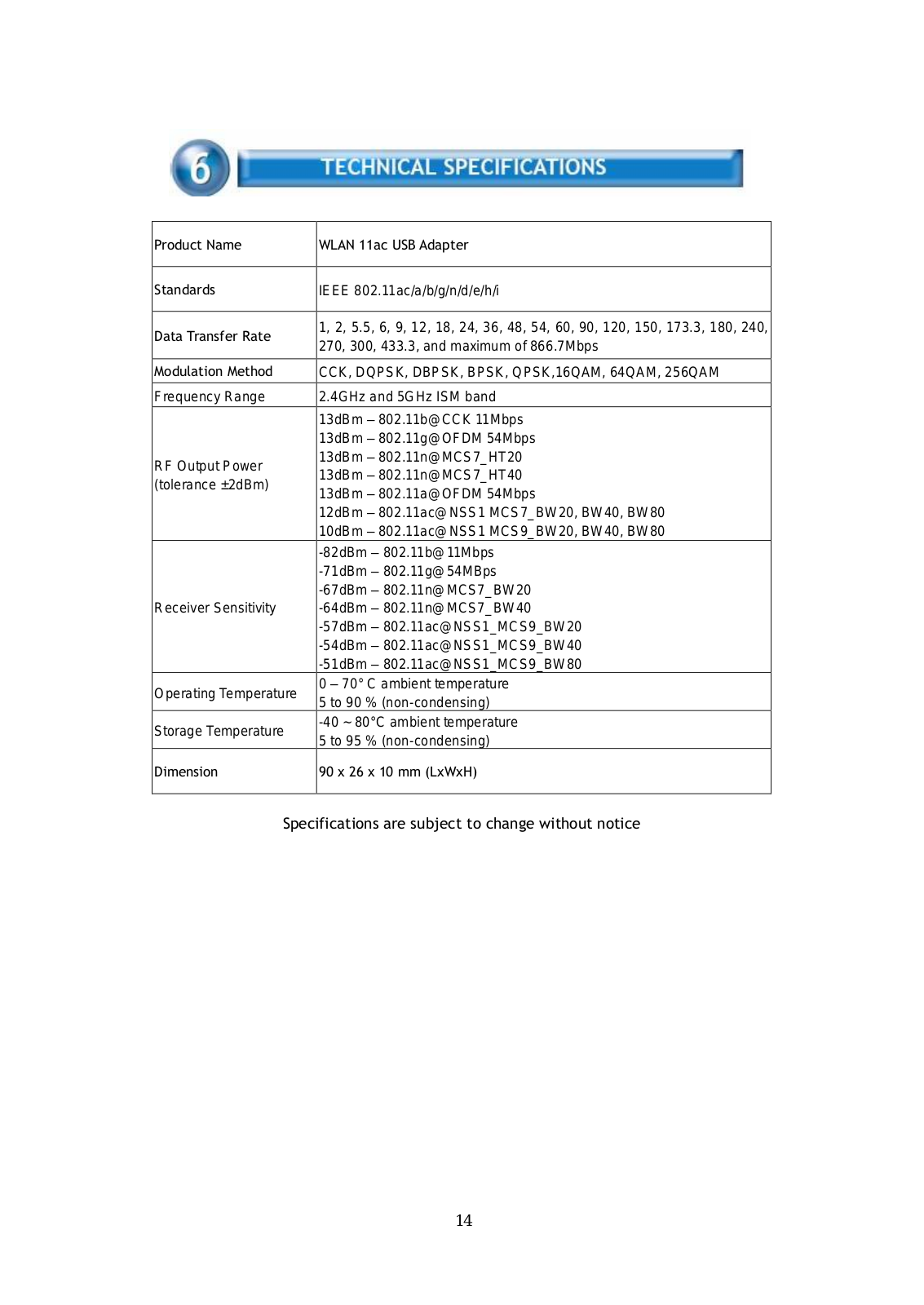

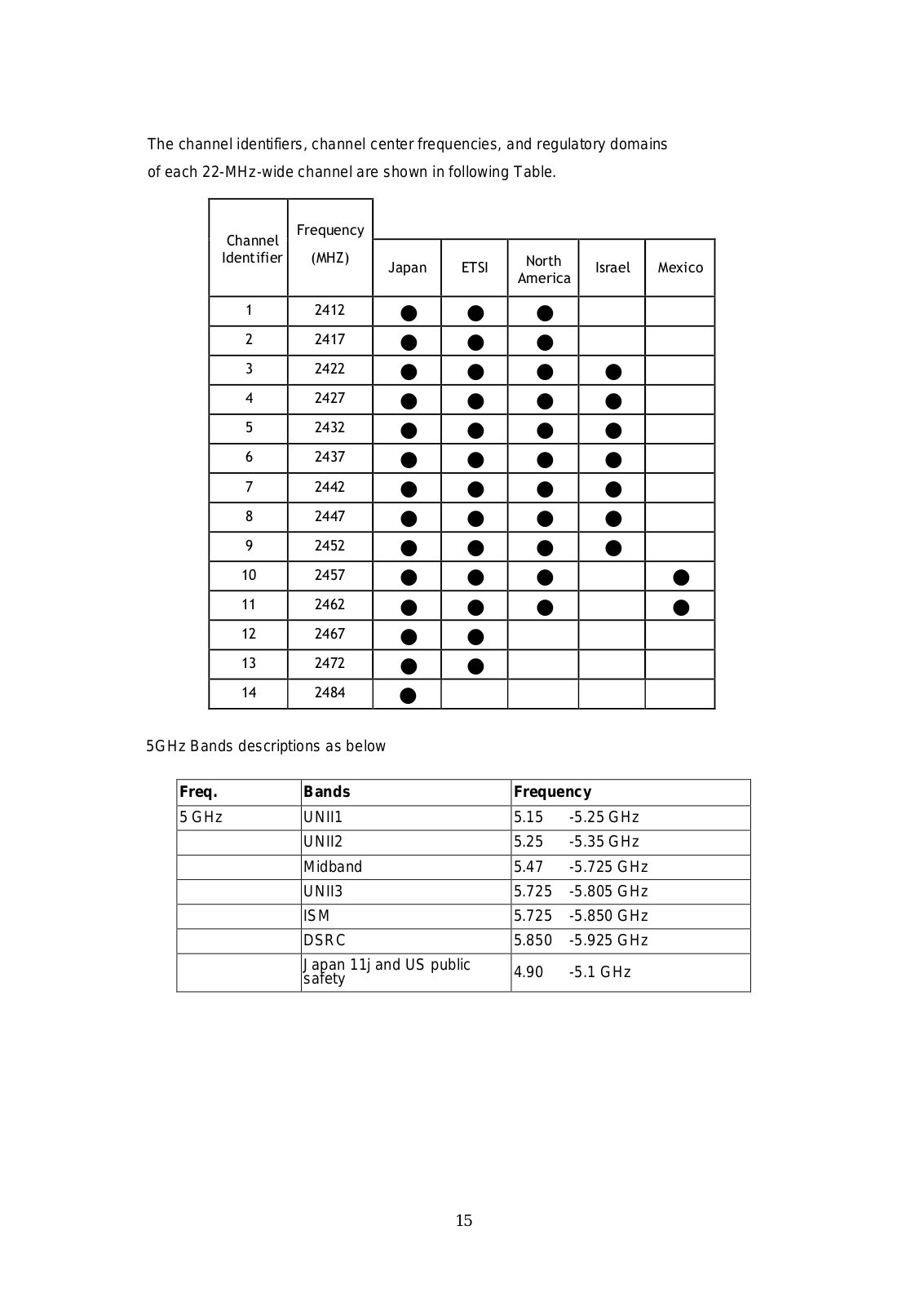

6.	Technical Specifications ................................................		. . .	14

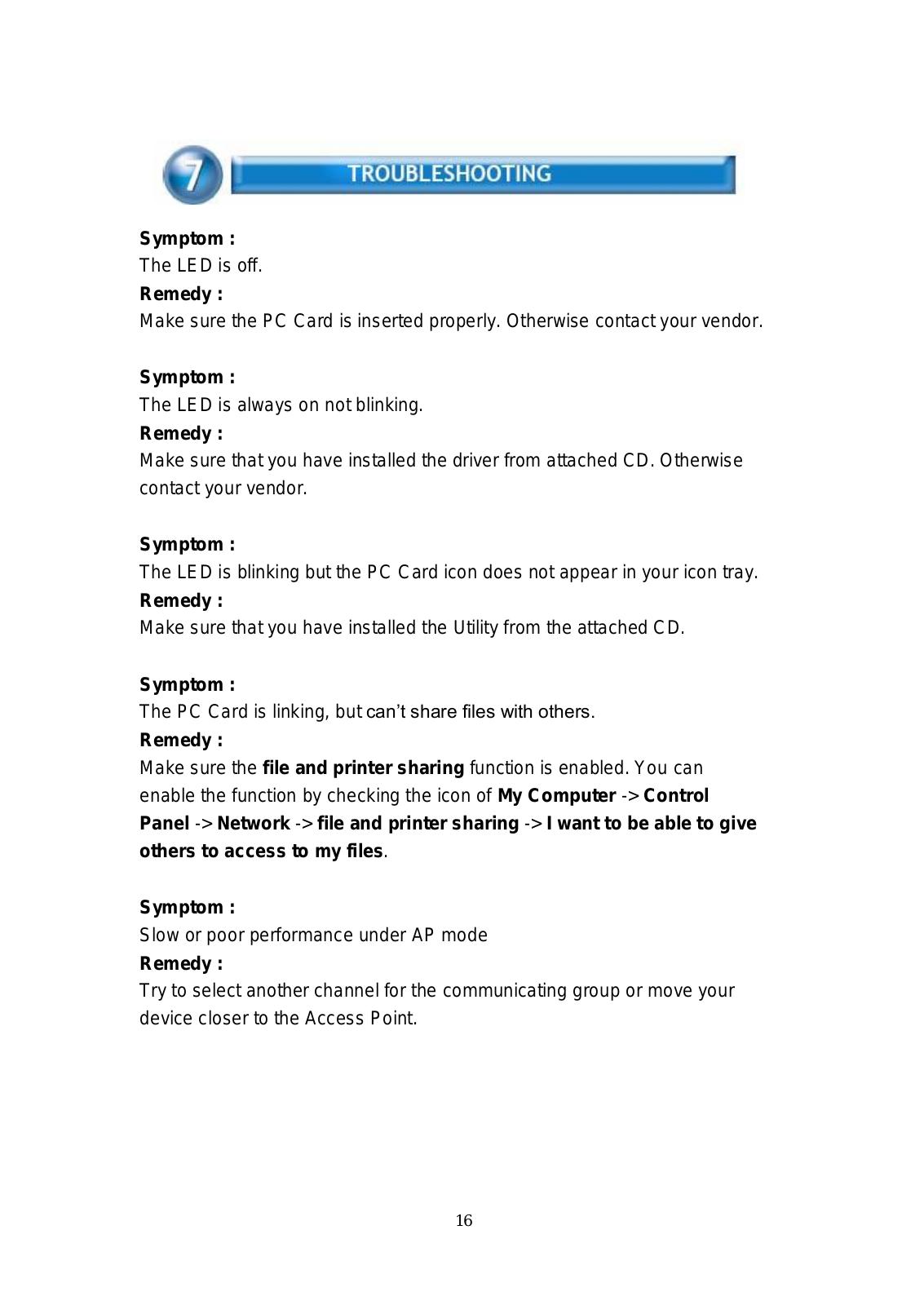

7.	Troubleshooting ..............................................................			16

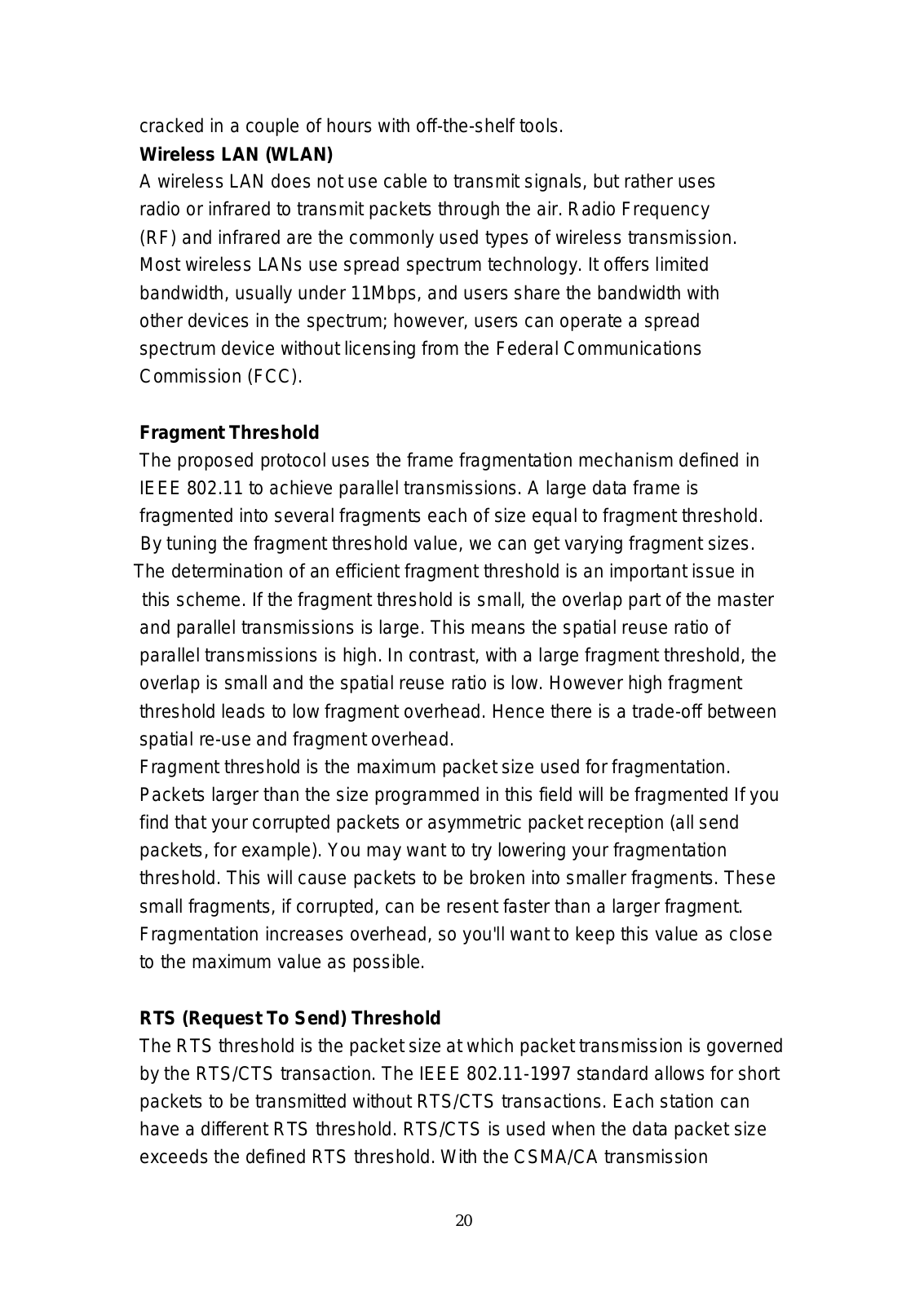

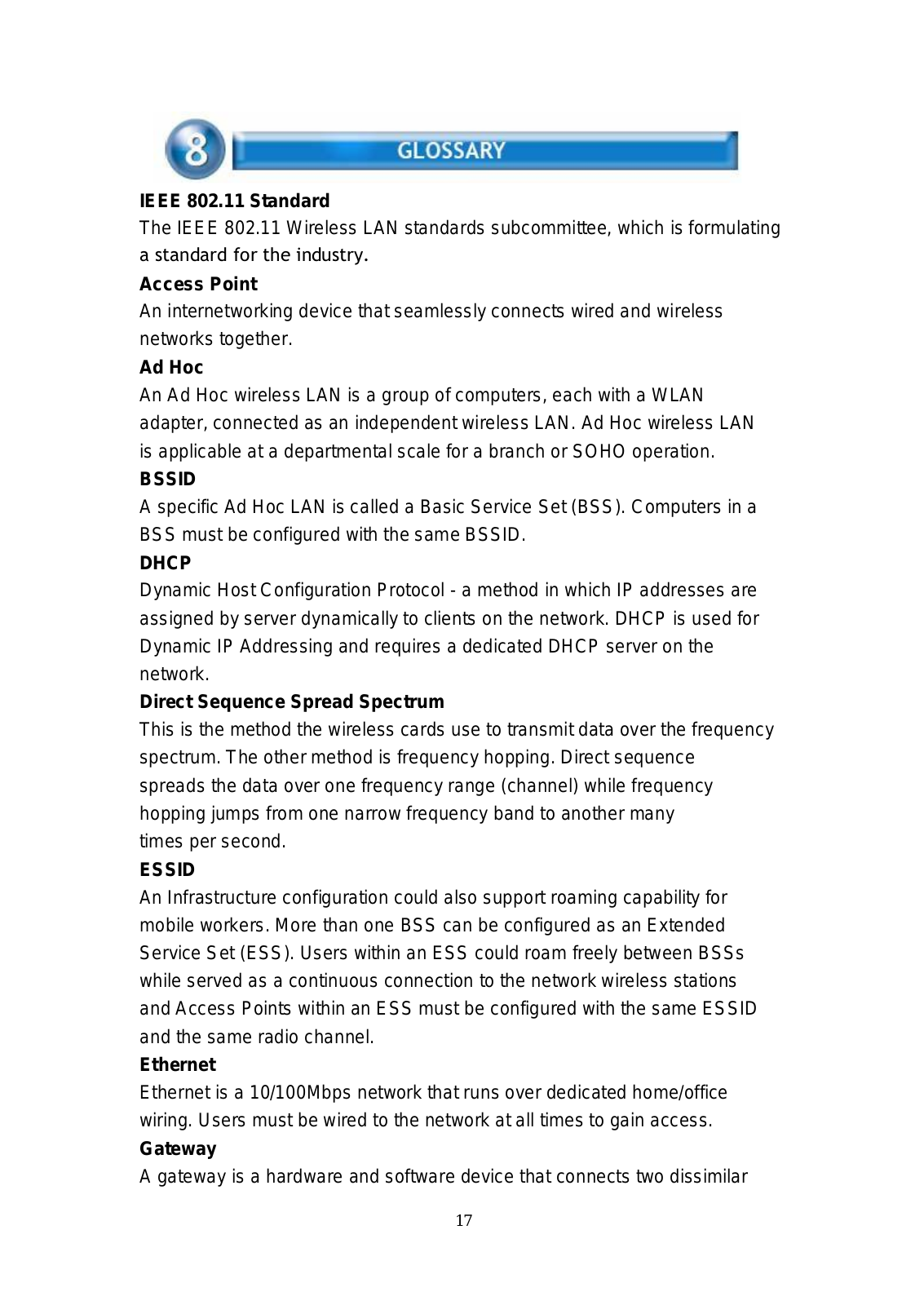

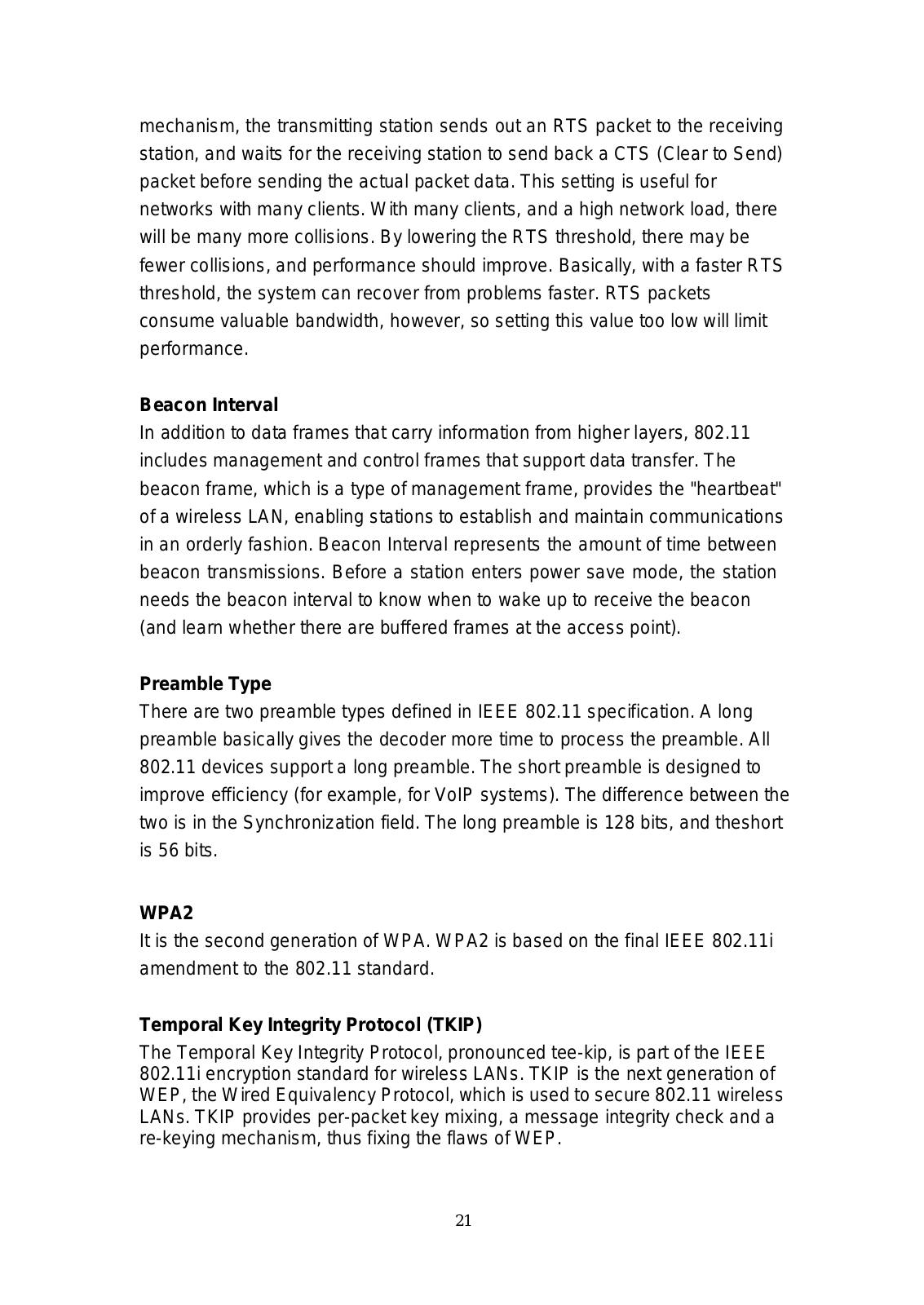

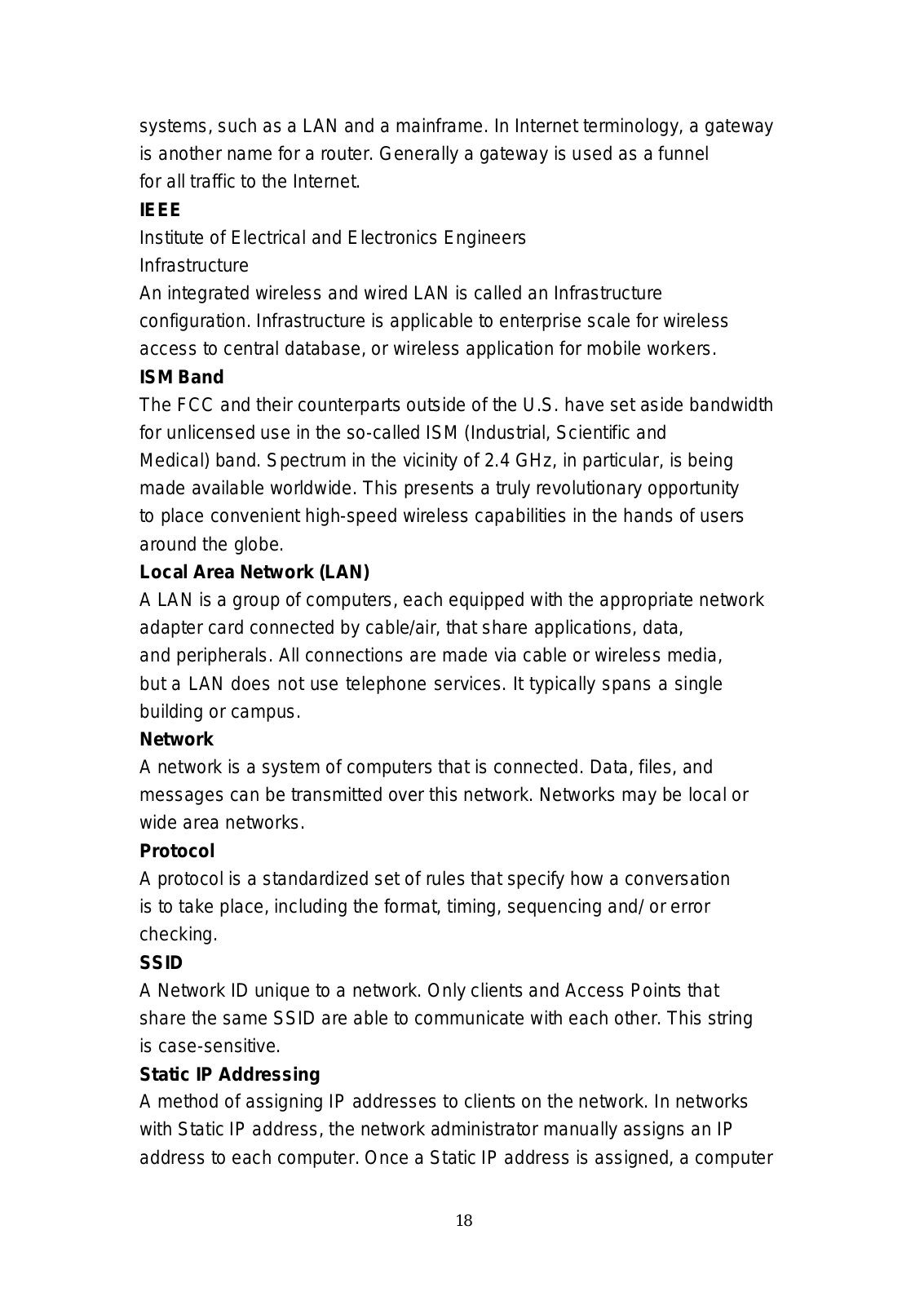

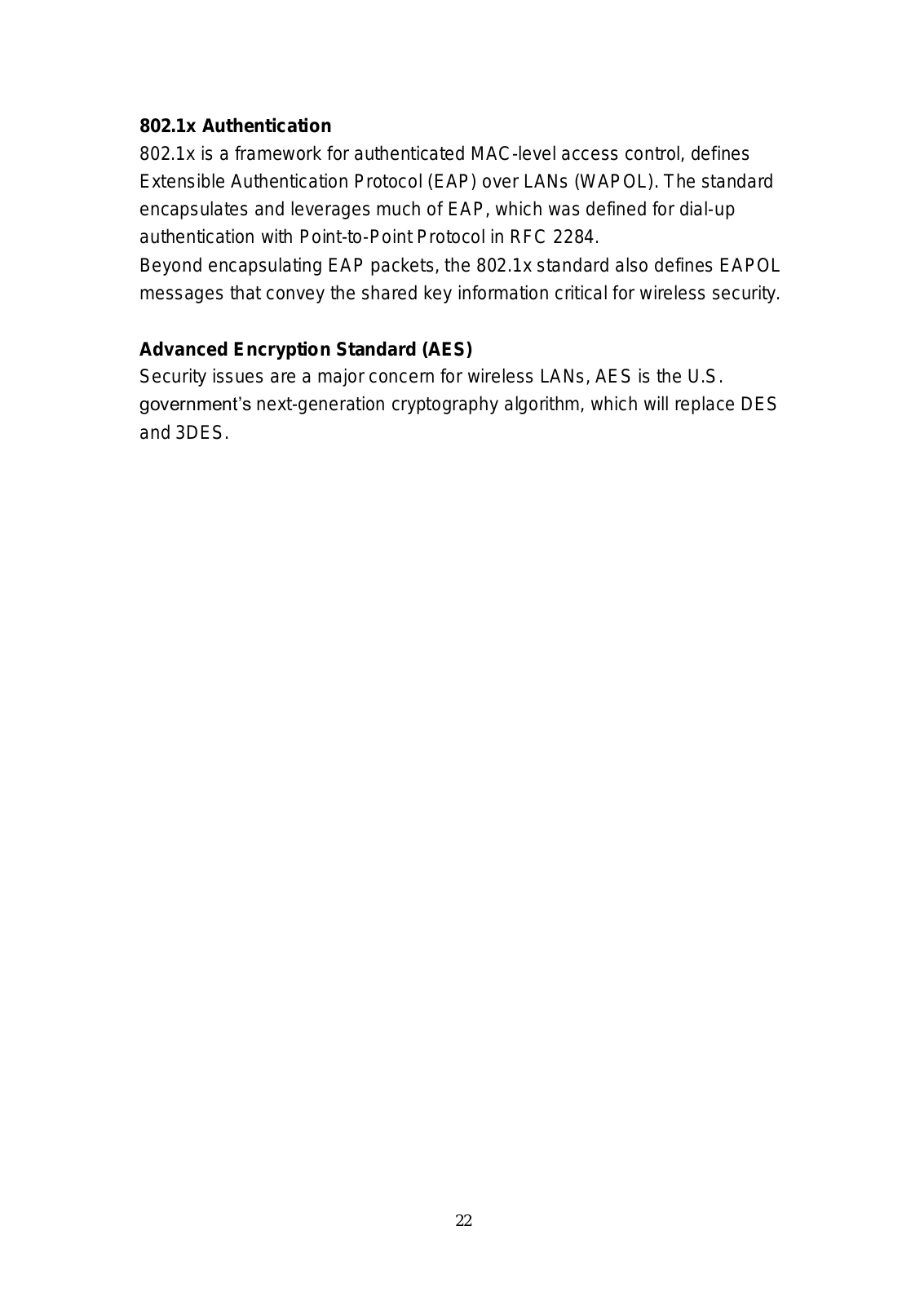

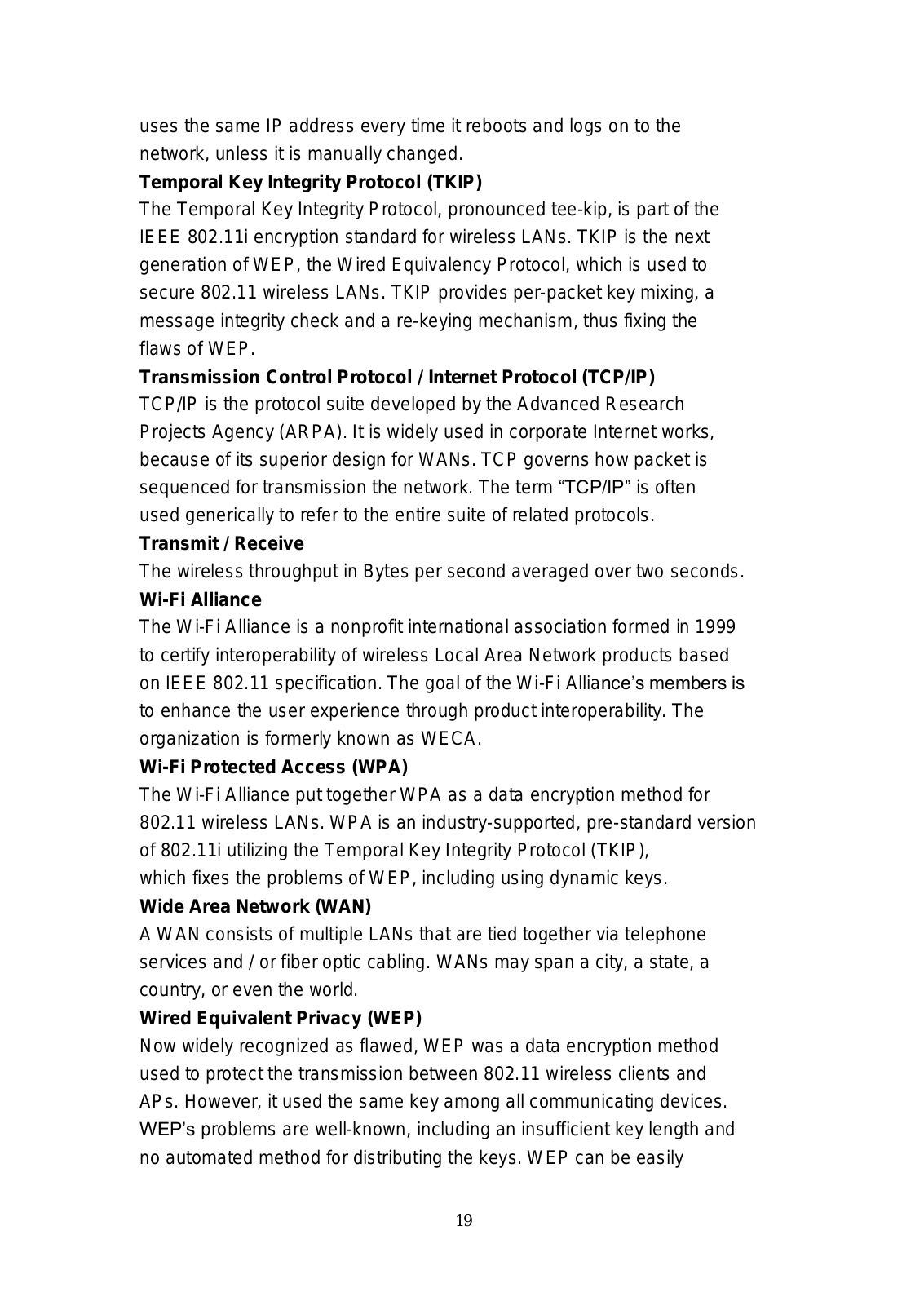

8.	Glossary .......................................................................			17

Thank you for your purchase of the WLAN Adapter. Featuring wireless technology, this wireless networking solution has been designed for both large and small businesses, and it is scalable so that you can easily add more users and new network features depending on your business scale.

FEATURES

Support Microsoft 7 / 8 / 8.1 / 10 (32bit/64bit)

Operating distance of up to 866 meters in free space.

866.7/433.3/300/270/240/180/120/90/60/54/48/36/30/24/22/18/12/11/6 /5.5/2/1 Mbps selectable Data Rate according to client adapter default antennas.

64/128-bit WEP , WPA, WPA2, WPS

2.400GHz ~ 2.4835GHz unlicensed ISM Frequency Band. Modulation Method. 5GHz UNII, Midband, ISM bands.

IEEE 802.11b : DSSS (Direct Sequence Spread Spectrum).

IEEE 802.11 ac/a/g/n : OFDM (Orthogonal Frequency Division Multiplexing).

Easy operation and setting up.

SYSTEM REQUIREMENTS

Windows System : 7 / 8 / 8.1 / 10 (32bit/64bit).PCs must have a device driver installed. It allows you to communicate with WLAN 11ac USB Client Adapter.

BEFORE YOU START

1.Confirm Box Contents

WLAN 11ac USB Client Adapter

Quick Start Guide

Driver CD

CONNECTING YOUR WLAN 11ac USB CLIENT ADAPTER TO PC

Quick Start Guide

Connect your WLAN 11ac USB Client Adapter to your PC. Install driver.

GETTING TO KNOW WIRELESS LAN ADAPTER

LED Status

Quick Blinking – Adapter connects to Access Point.

Steady Blinking – WLAN Adapter is active.

Off – WLAN Adapter is disabled.

Best Performance Requirement

2T2R ac Adapter

USB 3.0

Windows 7 or above

Wireless utility installed

Wireless 802.11ac AC1750 AP/Router with gigabit Ethernet port

Wireless LAN network defined by IEEE 802.11ac/a/b/g/n standard committee Could be configured as:

Ad Hoc wireless LAN. Infrastructure wireless LAN.

Ad Hoc network is a group of PCs installed with wireless LAN cards; this group of PCs is called a BSS (Basic Service Set). PCs in this group can use their wireless LAN cards to communicate with each other, but can not connect to the

Internet.

Ad Hoc Wireless Network

Infrastructure Wireless Network

The most obvious difference between Infrastructure wireless network and Ad Hoc wireless network is that the PCs in Infrastructure wireless network can access the resource in the Internet through Access Point.

Depending on your requirement, you can easily set up your PC’s network to be a “Ad Hoc” or “Infrastructure” wireless network. Generally speaking, if in your network, there is an Access Point in it, we recommend you to set your network as an “Infrastructure”, so it can connect to the Internet.

To use the WLAN 11ac USB Client Adapter with a computing device, the WLAN Adapter must be equipped with a proper Interface. All drivers and supporting software for the WLAN Adapter must be installed and configured first.

Ask your system administrator for the following information, which you may need to provide during driver installation :

Your Wireless Client Name.

Your Wireless SSID.

Your computer’s unique client name and workgroup name. For your network account, your user name and password.

Your IP address, gateway address, and subnet mask if you’re not using a DHCP client.

Any computer on a network is identified by a unique network address. There are two methods to assign a network address to a computer on a TCP/IP network :

Static IP addressing.

Dynamic IP addressing (DHCP Client).

In network with static IP addressing, the network administrator manually assigns an IP address to each computer. Once a static IP address is assigned, a computer uses the same IP address every time it reboots and logs on to the network. You may manually change the IP address in the Network Properties dialog box. Network using static IP address is easy to set up and do not require additional network management software.

In network with dynamic IP addressing, a DHCP server in the network dynamically assigns IP addresses to all clients every time they log on to the network. Network using dynamic IP address requires setting up and running a DHCP Server.

The installation & driver CD will automatically activate the autorun installation program after you insert the disk into your CD drive.

Step 1 : (Win7/8/8.1/10 only)

Insert the installation CD into your CD-

ROM. Win7/8 UAC Dialog is shown.

Click Yes to continue.

Step 2 :

Wizard is ready to install driver and utility. Click Next to begin the installation

Step 3 :

Preparing Setup dialog is shown

Installing & configuring WLAN driver and utility

Installing Cisco 802.1x module

Step 4 :

Click Finish to complete installation. The installation will affect after windows rebooting
