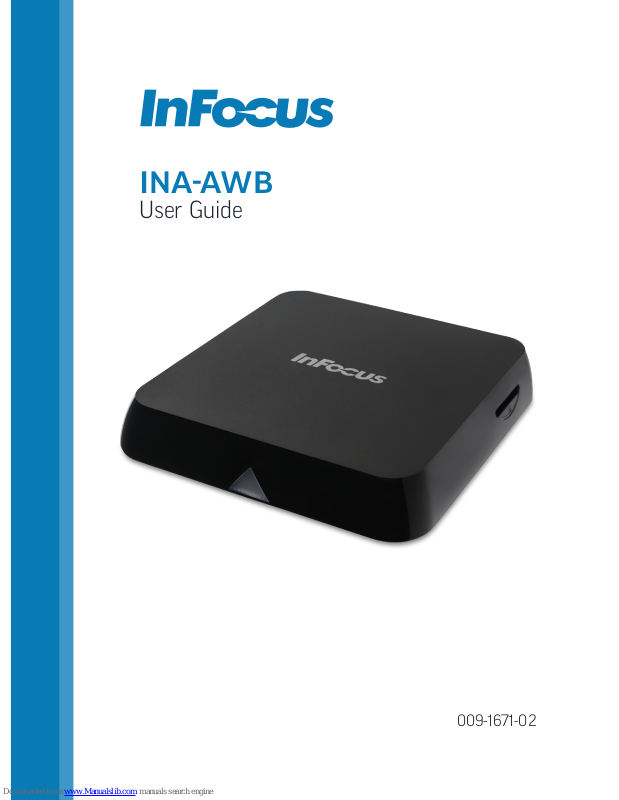

InFocus INA-AWB User Manual

009-1671-02

INA-AWB

User Guide

Contents

Preface 3

Statements 3

Declaration of Conformity 3

System Introduction 5

Key features 5

Environment for system 5

Accessories 6

Remote Control 7

System Connection 9

Mounting 10

Startup 10

Home 11

My Apps 12

Whiteboard 13

Create a drawing 13

Add text 14

Import an image 14

Modify objects 15

Navigate the whiteboard canvas 15

Clear the canvas 16

Save the whiteboard canvas 16

Open a new whiteboard canvas 16

Open a saved whiteboard canvas 17

Whiteboard tools 18

Settings 23

Network 23

Display 25

Advanced 26

Other 27

Troubleshooting 28

Limited Warranty 31

Specications 38

Page 3INA-AWB User Guide

Preface

Thank you for choosing the InFocus Android module. In order to make
it more convenient for you to use prociently, we provide you with this
user manual. Please read it carefully before using and keep it in a safe
place for future reference.

Statements

We have made every eort to provide the most current information
about the product.

We do not grant any guarantees as to the contents of the present
instruction manual and disclaim any implied guarantees concerning
market value or suitability for specic purposes.

The information contained here is an instruction intended to enable
the correct usage and maintenance of the receiver.

We reserve the right to introduce amendments, changes, or transla­tions of the user manual without prior notication thereof. For this
reason, we recommend you regularly visit our website in order to
obtain the latest information.

Declaration of Conformity

FCC Warning

This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment
is operated in a commercial environment. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications.

Operation of the equipment in a residential area is likely to cause harmful interference
in which case the user will be required to correct the interference at his own expense.
Changes or modications not expressly approved by InFocus Corporation may void
authority to operate the equipment.

Page 4

This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference and (2)
this device must accept any interference received, including interference that may
cause undesired operation.

The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modications to this equipment. Such modications could void the user’s
authority to operate the equipment.

ICC

CAN ICES-3 (A)/NMB-3(A). This device complies with Industry Canada licence-exempt
RSS standard(s). Operation is subject to the following two conditions: (1) this device
may not cause interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes
: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit
accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en
compromettre le fonctionnement.

EU/EEC

Warning: This is a class A product. In a domestic environment this product may cause
radio interference in which case the user may be required to take adequate measures.
Warnung: Dieses ist eine Einrichtung der Klasse A. Diese Einrichtung kann im Wohnbe­reich Funk-Störungen verursachen; in diesem Fall kann vom Betreiber verlangt werden,
angemessene Maßnahmen zu ergreifen und dafür aufzukommen.

This product operates at fundamental frequencies of 2.4 and 5 GHz. Each frequency
outputs a maximum of 100 mW of power. Dieses Produkt arbeitet mit Basis Fre­quenzen von 2.4 und 5GHz. Jeder dieser Frequenzbereiche sendet mit einer maximal
Leistung von 100 mW.

Trademarks

HDMI logo and “High Denition Multimedia Interface” are registered trademarks
of HDMI Licensing LLC. InFocus, In Focus, INFOCUS (stylized), MondoCenter,
Mondopad, BigTouch, and JTouch are either registered trademarks or trademarks of
InFocus Corporation in the United States and other countries. All other trademarks
are the property of their respective owners. Any other trademarks, service marks,
personal names or product names are assumed to be the property of their respective
owners and are used only for reference. There is no implied sponsorship, aliation,
certication, approval or endorsement if we use one of these terms.

Page 5INA-AWB User Guide

System Introduction

Key features

• InFocus Whiteboard application

• Android 4.4. operating system with Quad-Core Cortex-A9r4,

2.0GHz

• Support many kinds of IPTV and OTT TV programmes.

• Support three main HD formats: VC-1, H.264, MPEG-2 and many

other normal formats such as MPEG-1, MPEG-2, MPEG-4, DIVX,
REALMEDIA and so on.

• Video formats include avi, mpg, vob, rmvb, mkv, m2ts, tx, and so
on.

• Photo formats include JPEG, BMP, and PNG up to 80M pixels.

• Audio formats include MP3, WMA, AC3, DTS, AAC, and so on.

• Support SD/SDHC/MMC cards.

• Support two USB 2.0 host connectors with maximum output

current of 1.5A/5V.

• Support standard RJ45 cable network connection and wireless
network connection.

• Support infrared remote control operation.

Environment for system

Operation:
Temperature limitation: 0-40° C; Humidity limitation: 20-80%.

Storage:
Temperature limitation: -20-50° C; Humidity limitation: 10-90%.

Page 6

Accessories

• International power cord with country-specic adapters

• Remote control (no batteries are included)

• HDMI cable

• Velcro strips (3)

• User manual

Page 7INA-AWB User Guide

Remote Control

SETU P

APP

Remote key Description

Power: Click to turn on/o.

SET: Not functional on this model.

TV IN: Not functional on this

model.

SE TU P

SETUP: Click to access the
Settings options.

AP P

APP: Not functional on this model.

VOL: Click to decrease/increase

the volume.

Home: Click to get back the main
menu.

Return: Click to return back to
previous menu.

Navigation: Click to navigate
left/right/up/down, and click OK to
conrm your selection.

Page 8

Menu: Click to choose function
menu of corresponding application
in video, music, photo and website.

Mouse: Click to use the navigation
button as a mouse.

Number: Click to select a number.

Mute: Click to turn down the

volume.

Backspace: Click to backspace
the input.

Page 9INA-AWB User Guide

System Connection

Optional:
Connect USB cable
to InFocus touch
display

Router Power adapter

Ethernet cable

Connect to InFocus touch display

Connect to InFocus touch display

HDMI cable AV cable

Page 10

Mounting

If desired, the Android module can be
mounted to the back of the display.
To do so, attach the velcro strips onto
back of module per the illustration.
Then attach it to the back of display
being careful not to block display
vents.

Note: When mounted to the back of
the display, we recommend using the display to control the Android
module instead of the remote.

Startup

Turn on the InFocus Android module when the indicator light is blue.
The main menu appears in about 30 seconds.

Page 11INA-AWB User Guide

Home

From the home page, you can access a number of features using the
shortcuts at the bottom of the screen.

Settings Browser

Whiteboard File Browser Gallery

Calendar

Movie Player

App InstallerMy Apps
