Declaration of Conformity

Manufacturer: InFocus Corporation, 13190 SW 68th Parkway, Portland, Oregon 97223-8368 USA

We declare under our sole responsibility that this projector conforms to the following directives and norms:

EMC Directive 2004/108/EC EuP Directive 2005/32/EC EMC: EN 55022

EN 55024 EN 61000-3-2

EN 61000-3-3 Low Voltage Directive 2006/95/EC Safety: IEC 60950-1:2005, MOD

Trademarks

DisplayLink is a trademark of DisplayLink Corporation. Apple, Macintosh, and PowerBook are trademarks or registered trademarks of Apple Computer, Inc. IBM is a trademark or registered trademark of International Business Machines, Inc. Microsoft, PowerPoint, and Windows are trademarks or registered trademarks of Microsoft Corporation. Adobe and Acrobat are trademarks or registered trademarks of Adobe Systems Incorporated. DLP® and the DLP logo are registered trademarks of Texas Instruments and BrilliantColor™ is a trademark of Texas Instruments. InFocus, In Focus, and INFOCUS (stylized) are either registered trademarks or trademarks of InFocus Corporation in the United States and other countries.

FCC Warning

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is

operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of the equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

Changes or modifications not expressly approved by InFocus Corporation may void authority to operate the equipment.

EN 55022 Warning

This is a Class A product. In a domestic environment it may cause radio interference, in which case the user may be required to take adequate measures. The typical use is in a conference room, meeting room or auditorium.

Canada

This Class A digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.

Agency Approvals

UL, cUL

Other specific Country Approvals may apply. Please see product certification label.

This document applies to regulatory model F5530.

Input ratings: AC 100-240V, 9.5-3.5A, 50-60Hz

InFocus reserves the right to alter product offerings and specifications at any time without notice.

Table of Contents

Introduction 5 Positioning the projector 7

Ceiling Mount 8 Cable management 8 Connecting power 9 Connecting a computer source 9

Optional computer connections 10 Displaying an image 11

Adjusting the image 12 Connecting a video device 13 Video device connections 13 Shutting down the projector 15 Troubleshooting your setup 15 Using the remote control 23 Using the audio 24 Using the keypad buttons 25 Optimizing computer images 25 Presentation features 25 Optimizing video images 26 Customizing the projector 26 Dynamic Messaging 26 Using the menus 27

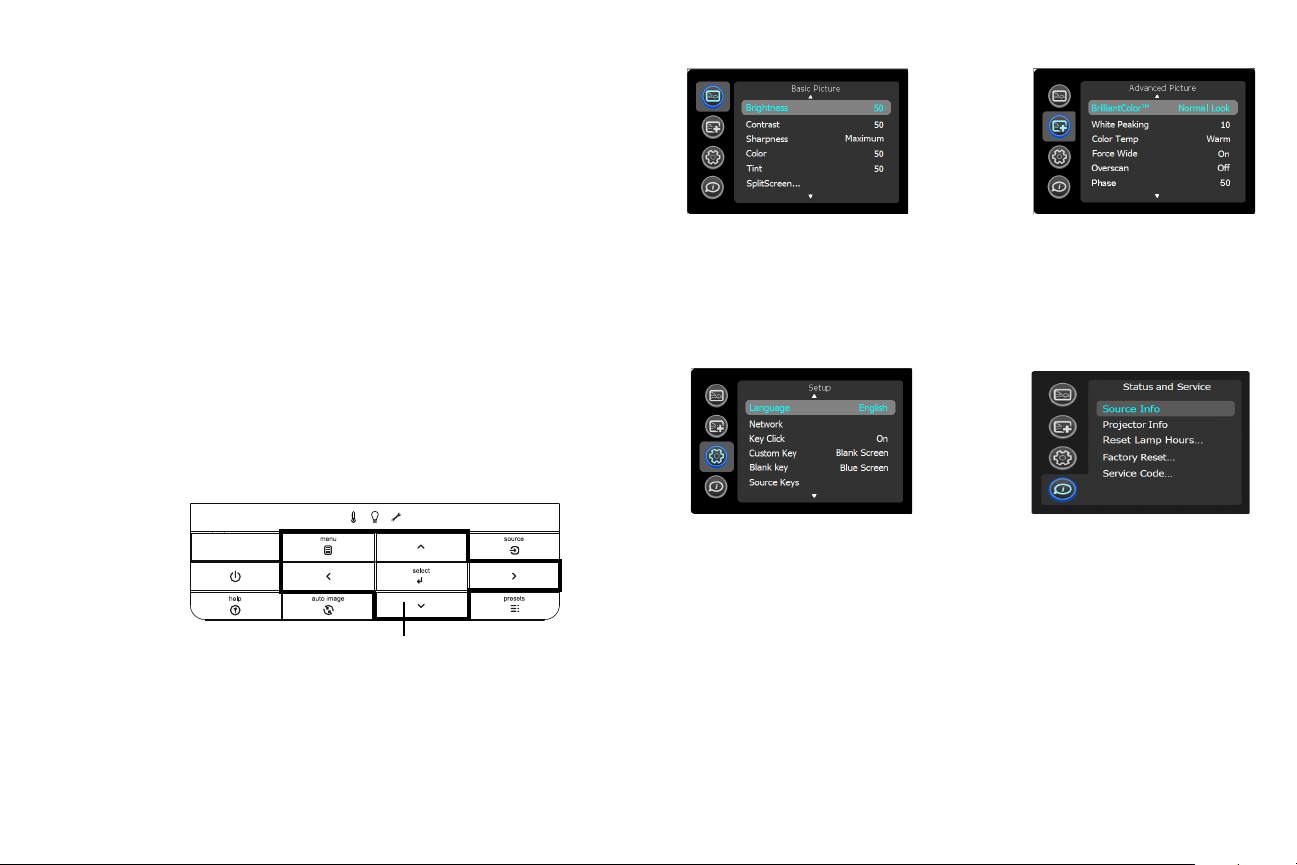

Basic Picture menu 28

Advanced Picture menu 29

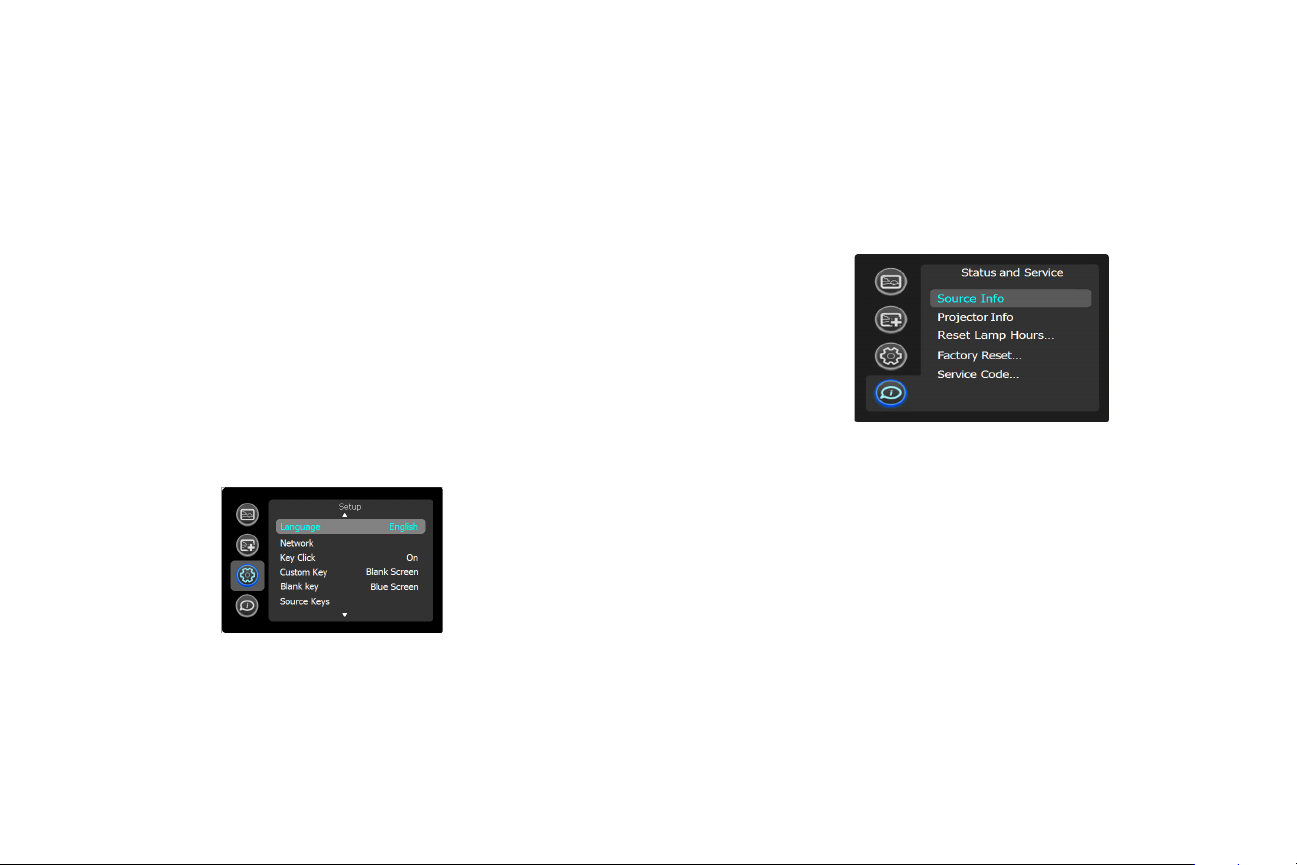

Setup menu 30

Status and Service menu 33

Help 33 Using Network Functions 34 Using LitePort 38 Maintenance 41

Cleaning the lens 42

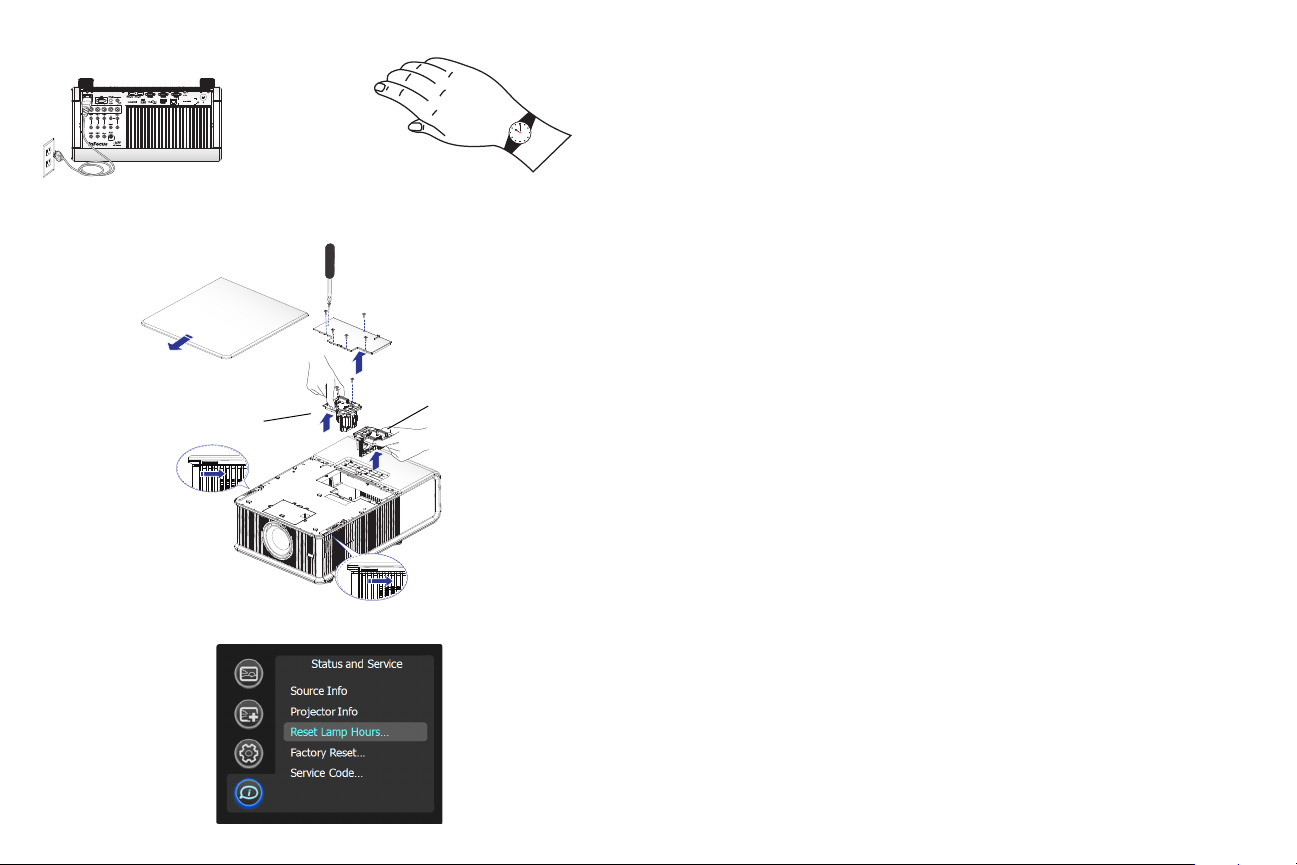

Replacing the projection lamp 43

Using the security lock 46 Appendix 47

Projected Image Size 47

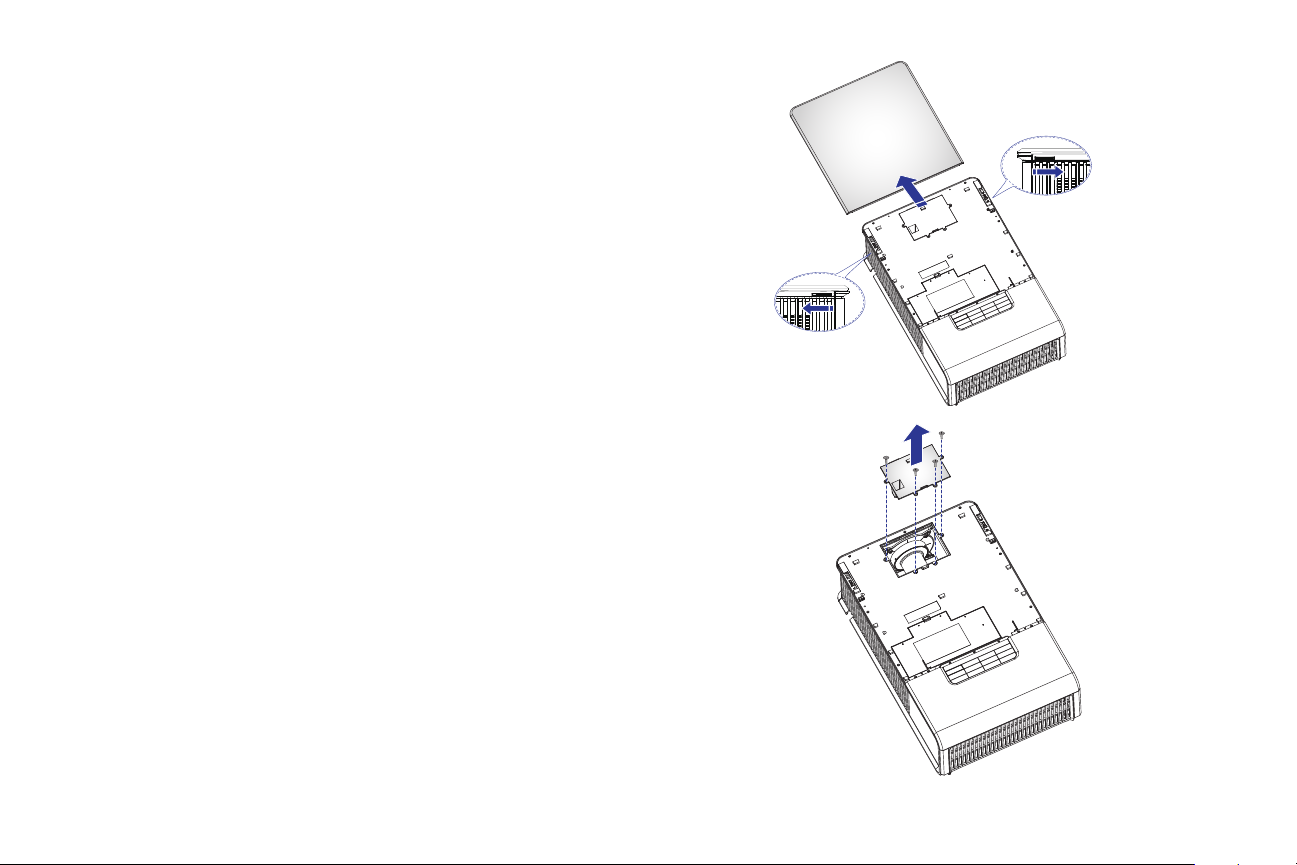

Optional Lenses 48

SplitScreen Compatibility 54

RS-232 commands 44 Index 63

Important Operating Consi

’ / 1.5 m

’

/2.4m

derations for Safety

• Refer to this guide for proper startup and shutdown procedures.

• Follow all warnings and cautions in this manual and on the

projector.

• Do not block the lens with any object while the projector is being used.

Blocking the light path can cause overheating and result in fire.

• Place the projector in a horizontal position no

greater than 8 degrees off axis.

• Locate the projector at least 4' (1.2m) away from any heating or cooling vents.

• Do not block ventilation openin

gs. Locate the projector in a well-ventilated area without obstructions to intake or exhaust vents. Do not place the projector on a tablecloth or other soft covering that may block the vents.

• Do not place the projector in direct sunlight, humid, greasy or dusty places or in places where the projector may come into contact with smoke or steam.

• Do not look directly into the lens while the projector is being used.

• Do not drop the projector.

• Do not spill liquid on the projector. Spilled

liquid may damage the projector.

• Use the power cord provided. Connect the power cord to a receptacle with a protective safety (earth) ground terminal. A surge-protected power strip is recommended.

• Do not overload wall outlets.

• When disconnecting the power cord,

• Wash hands after handling the cables supplied with this produ

hold the plug, not the cord.

ct.

• The projector remote control uses batteries. Make sure the batteries’ polarity (+/-) is aligned correctly. Dispose of used batteries in accordance with local disposal laws.

• Use an InFocus approved ceiling mount kit for proper fitting, ventilation and installation. The warranty does not cover any damage caused by use of nonapproved ceiling mount kits or by installing in an improper location.

• When the projector is ceiling mounted, wear protective eyewear to prevent eye injury before opening lamp door.

• The projector must be installed by a qualified professional in order to ensure proper operation and reduce the risk of hazards or injury. It is not recommended you install the projector yourself.

• Refer all service to qualified service personnel. Servicing your own projector can be dangerous to you and will void the warranty.

• Only use replacement parts specified by InFocus. Unauthorized substitutions may result in fire, electrical shock, or injury, and may void the warranty

• Only genuine InFocus lamps are tested for use in this projector. Use of non InFocus

lamps may cause electrical shock and fire, and may void the projector

warranty.

Hg – Lamp contains mercury. Manage in accordance with local

•

disposal laws. See www.lamprecycle.org.

• The projector uses a high-pressure mercury glass lamp. The lamp may fail prematurely, or it may rupture with a popping sound if jolted, scratched, or handled while hot. The risk of lamp failure or rupture also increases as the lamp age increases; please replace the lamp when you see the “Replace Lamp” message.

• In the unlikely event of a lamp rupture, particles vents. Keep people, food, and drinks out of the "keep out" area under and around the projector, as indicated by the "X" areas below..

Follow these instructions to help ensure image quality and lamp life over the life of the projector. Failure to follow these instructions may affect the warranty. For complete details of the warranty, see the Warranty Booklet.

may exit through the projector

3’ / 1 m

IMPORTANT: Unpacking/Transport Notes for the IN5533 and IN5535

When unpacking your projector, remove the black Lens Protector Ring from around the lens in order to allow full movement of the lens.

KEEP the Lens Protector Ring for future transport purposes. The Lens Protector ring should be re-installed before transporting the projector to prevent damage to the lens shift mechanism.

When preparing the projector for transport, the lens needs to be centered before the Lens Protector Ring can be installed. To do this, access the Lens Shift>Auto Center feature in the Basic Picture menu.

IMPORTANT: Unpacking/Shipping Notes for the IN5533L and IN5535L

When unpacking your projector, remove the clear Optical Engine Cover from the lens area in order to install the optional lens.

KEEP the clear Optical Engine Cover for future shipping purposes. The optional lens should be removed and the Optical Engine Cover replaced when the projector is being shipped for repair and/or other purposes.

Whenever the optional lens is removed, replace the clear Optical Engine Cover in order to minimize contamination from within the engine compartment.

Introduction

Projector

Remote Control

Power Cord

VGA Computer cable

Documentation

USB cable

Top front cover

Lens

Top rear cover

LiteTouch keypad and Remote control receiver

Remote control receiver (IR)

Connector panel

Power cord connector

Your new digital projector is simple to connect, easy to use, and straightforward to maintain. It is a versatile projector that is flexible enough for business presentations and home video viewing, too. The IN5533 and IN5533L have WXGA 1280x800 resolution and the IN5535 and IN5535L have native WUXGA 1920x1200 resolution. This guide applies to all four products. They are compatible with a wide variety of computers and video devices.

Product Specifications

To read the latest specifications on your multimedia projector, be sure to visit our support website at www.infocus.com/support, as specifications are subject to change.

Online Registration

Register your projector on our website at www.infocus.com/register to activate your warranty and receive product updates, announcements, and registration incentives.

Included Items

Optional Accessories

Optional accessories include optional top covers in a variety of finishes, optional lenses, the Commander-2 remote, ceiling mount, DisplayLink Extender, DisplayLink Wireless Adapter, and LiteShow II. These items and other accessories can be found on our website at www.infocus.com or at your local dealer.

Connector Panel

Security lock

RS-232

12V Screen Trigger Output

Composite video

RGBHV YPbPr

HDMI

Monitor out

Component video

Liteport

Cable cover

S-video DisplayLink

connector

VGA

Wired remote

LAN

5V DC Output

Audio in

Audio out

The projector provides both computer and video connection options, including:

• VGA computer (2)

• HDMI (2)

•S-video

• Composite video

• Component video

• BNC RGBHV and YPbPr for RGBHV, EDTV and HDTV

• Separate audio inputs for video and computer

• USB DisplayLink connector, for compu connection also provides power out for the Wireless DisplayLink Projector Adapter.

The projector also provides the following connectors:

• Monitor out, to provide an image on your deskto projection screen.

• LAN port for network control and web server.

• LitePort, for connecting a USB flash drive containing JPEG

• Audio out, to provide sound for external

• 5 volt DC output

• 12V screen trigger output

• Wired remote jack

• RS-232 connector for serial control. Command co Appendix and on our support website at www.infocus.com/support.

NOTE: Only VGA video is sent to the Monitor out connector

ter audio/video input. This USB

speakers.

p computer as well as on the

images.

ntrol codes are in the

12V Screen Trigger output

The 3.5mm mini-jack screen trigger provides a 12 volt, 0.25 amp DC output. It turns on when the lamp is lighted. If you connect your projection screen to this output using the cable that came with your screen, the screen will move down when the lamp is turned on and the screen will return to its storage position, when the lamp is turned off

5 volt DC output

The coaxial 6.4mm x 2.2mm jack provides a constant 5 volt, 2 amp DC output when the projector is on, and will also provide power when the projector is in standby (powered off) if Network and DisplayLink items in the Always-On Functions submenu are set to Yes. It is designed to provide power to an InFocus LiteShow II wireless device or InFocus DisplayLink Extender device.

Positioning the Projector

Vertical Image Offset is 50 - 110%

lens center

110% offset

50% offset

Horizontal Image Offset is +/-10%

To determine where to position the projector, consider the size and shape of your screen, the location of your power outlets, and the distance between the projector and the rest of your equipment. Here are some general guidelines:

• Position the projector on a flat surface a projector (with the standard lens) must be at least 3 feet (0.9m) from the projection screen.

• Position the projector within 10 feet (3m) of your power source and within 6 feet (1.8m) of your video device (unless you purchase extension cables). To ensure adequate cable access, do not place the projector within 6 inches (.15m) of a wall or other object.

• Position the projector to the desired dis from the lens of the projector to the screen, the zoom setting, and the video format determine the size of the projected image.

• For the standard lens that comes with the projector, the image exits at a given angle. However, the lens shift feature makes the image offset variable.

• The vertical image offset range for all 80%), and the horizontal image offset is +/-10% (default 0%). At 110% offset, 10% of the image height resides above the lens center in tabletop configuration. At 50% offset, 50% of the image height resides above the lens center in tabletop configuration.

t a right angle to the screen. The

tance from the screen. The distance

the projectors is 50% - 110% (default

Ceiling Mount

screen trigger

12V DC 250 mA

wireless

ready

audio 5

video 5 video 4

video 3

remote

computer 4

computer 2

computer 3

B G

YPbPr

audio 4 audio 3

audio 2

audio 1

LitePort

computer 1 DisplayLink

audio out

serial

monitor out

LAN

+5V DC; 2A

DisplayLink

certified

8º

cable management system

Using the cable management system provides you with a clean, professional-looking installation.

If you wish to install the projector on the ceiling:

• The projector must be installed by a qualified professional in order to ensure proper operation and reduce the risk of hazards or injury. It is not recommended you install the projector yourself.

• We strongly recommend using InFocus approved ceiling mounts for proper fitting, ventilation and installation. Refer to the installation guide that comes with the InFocus Ceiling Mount Kit (p/n SP-CEIL-INSTALL) for more information. The warranty does not cover any damage caused by use of nonapproved ceiling mount kits or by installing in an improper location.

• The ceiling must be strong enough to support the projector and the installation must be in accordance with any local building codes. Consult your dealer for more information.

• Maximum supported physical pitch is +/-8º.

• Maximum supported physical horizontal roll is +/-8º.

• Keep all adjacent surfaces 3” (76mm) from (22mm) from the bottom of projector to preserve required airflow around the projector.

sides, front and rear and .87”

Cable Management

The integrated cable management system allows you to keep the cables organized. To use the cable management system, thread the cables into the slots as shown in the illustration.

Connecting power

Connect power cord

MOLEX

Connect USB cable

Connect computer cable

Connect the black power cord to the Power connector on the rear of the projector and to your electrical outlet. The Power light on the Status Indicator Panel (page 15) turns amber.

NOTE: Always use

the power cord that shipped with the projector.

Connecting a computer source

DisplayLink

If you have a Windows or Macintosh computer, connect the USB cable between your computer's USB port and the projector's DisplayLink connector*. Then to begin installation of the DisplayLink software:

Windows: Follow the instructions on the screen.

Macintosh: A

Open that file and follow the instructions on the screen.

* For detailed DisplayLink instructions and tro latest DisplayLink software, go to www.infocus.com/support/displaylink.

VGA connection

Connect one end of the provided computer cable to the VGA 1 or VGA 2 connector on the projector and the other to the VGA connector on your computer. If you are using a desktop computer, you will need to disconnect the monitor cable from the computer’s video port first (you can connect this monitor cable to the Monitor Out connector on the projector, see next page).

HDMI 1.3 connection

HDMI is a standard, uncompressed, all-digital audio/video interface. HDMI provides an interface between sources, such as set-top boxes, DVD players, and receivers and your projector. Plug an HDMI cable into the video out connector on the video device and into either the HDMI 1 or HDMI 2 connector on the projector.

To take advantage of HDMI 1.3 Deep Colo compatible source.

folder will open containing a file named DisplayLink Installer.pkg.

ubleshooting, and to download the

r (30 bit) you must have a 1.3-

RGBHV connection

Connect one end of the BNC cable to the computer and the other end of the cable into the BNC connectors on the projector.

Optional computer connections

Connect monitor cable Connect audio cable

To get sound from the projector, connect an audio cable (optional cable, sold separately) to your computer and to the Audio 1 (used with VGA 1) or Audio 2 (used with VGA 2) connector on the projector. You can also assign your source to a different audio in connector, see page 24 and page 31 adapter.

If you are using a desktop computer and want to see the image on your computer scr

een as well as on the projection screen, connect the computer’s monitor cable to

the Monitor Out connector on the projector.

NOTE: Only VGA video is sent to the Monitor out connector

To display a presentation using a USB flash drive, see the Using page 38. This feature converts presentations to need for a computer source. It can also be integrated with common wall plates and conference

To advance slides in a PowerPoint presentation using the USB cable between the projector’s DisplayLink connector and your computer. Then press the up and down arrow buttons on the remote control to move through your slides.

room input/output panels.

. You may also need an

LitePort section on

JPEG images and eliminates the

remote control, plug the

Displaying an image

horizontal

vertical

zoom

focus

Press Power button

Turn on computer or video device

Activate laptop’s external port

Monitor key or LCD/CRT key

Fn key

Touch the Power button on the keypad or the remote.

The Power button blinks green, a beep the lamp turns on, the start up screen will display and the Power button will become solid green. It can take a minute for the image to achieve full brightness.

No start up screen? Get help on page 16.

Turn on your computer or video device.

The image should appear on the button on the projector’s keypad or remote.

If you are using a VGA cable to connect your computer to the projector (instead DisplayLink):

If using a laptop, make sure its external video

Many laptops do not automatica projector is connected. Usually a key combination like Fn + F8 or CRT/LCD key turns the external display on and off. Locate a function key labeled CRT/LCD or a function key with a monitor symbol. Press Fn and the labeled function key simultaneously.

Refer to your laptop’s documentation for more information abou combination or go to the InFocus website at:

http://www.infocus.com/Support

No laptop image? T

ry pressing the Auto Image button on the keypad or

remote. Get help on page 25.

Is your laptop connected to the projec

the InFocus DisplayLink Software User's Guide (available on the InFocus website at www.infocus.com/displaylink) for troubleshooting information.

will sound and the fans start to run. When

projection screen. If it doesn’t, press the Source

port is active.

lly turn on their external video port when a

t your laptop’s key

/LaptopActivation.aspx.

tor's DisplayLink connector? See

Adjusting the image

Adjust distance

Adjust zoom, focus and lens shift. Adjust height

Release button

Elevator foot

Position the projector to the desired distance from the screen at a 90 degree angle to the screen. See the Appendix for screen sizes and distances associated with the various lens options.

If the image is square but not centered on the screen or viewing area,

adjust Zoom or Focus in the Basic Picture menu. (You can also hold down the Select button for 10 seconds to turn the focus control on.) Then adjust Digital Horz Shift and Digital Vert Shift until the image is centered. See page 28 for help with these menu adjustments.

Rotate the elevator feet for granular adju

stment of the projector’s height. Avoid

placing your hands near the hot exhaust vent at the back of the projector.

Adjust the Contrast or Brightness in the

Basic Picture menu. See page 28 for help

with these menu adjustments.

Connecting a video device

You can connect video devices such as VCRs, DVD players, camcorders, digital cameras, video game consoles, HDTV receivers, and TV tuners to the projector. You can connect the audio directly to the projector to get sound from the built-in speakers, or you can bypass the projector’s audio system and connect the audio directly from your source to a stereo or home theater system.

You can connect the projector to most video devices that can output video. You cannot directly connect the coaxial cable that enters your house from a cable or satellite company; the signal must pass through a tuner first. Examples of tuners are digital cable boxes, VCRs, digital video recorders, and satellite TV boxes. Basically, any device that can change channels is considered a tuner.

Although the aspect ratio is automatically selected by the projector based on the signal input, you can change the aspect ratio, if desired. The projector’s Aspect Ratio setting is accessed through the Resize button on the remote or through the projector’s Basic Picture Menu. See

page 28 for more information.

Video device connections

No video cables are provided with the projector. You can order cables from InFocus or use your own.

Composite video connection

Plug the composite video cable’s yellow connector into the video out connector on the video device. Plug the other yellow connector into the yellow Composite connector on the projector.

Plug the white connector of a Mini-plug audio Y-cable into the left audio out connector on the video device and plug the red connector into the right audio out connector on the video device. Plug the other end of the cable into the associated audio in connector on the projector.

Keep in mind that video output from composite connections is not as high quality as S-video.

HDMI 1.3 connection

To take advantage of HDMI 1.3 Deep Color (30 bit) you must have a 1.3compatible source.

S-video connection

If your video device uses a round, four-prong S-video connector, plug an S-video cable into the S-video connector on your video device and into the S-video connector on the projector. Use the audio cable as described above.

Keep in mind that S-video delivers higher quality video output than composite.

VGA connection

If your video device has a 15-pin VGA output, plug one end of the included computer cable into the VGA connector on your video source. This connector may be labeled “To Monitor” on the video source. Plug the computer cable into the VGA

1 or VGA 2 connector on the projector.

Component video connection

Plug the component cable into the video device. Plug the other end of the component cable into the Component connectors (or if using BNC connectors, plug into the RGBHV or YPbPr connectors as appropriate).

In addition, a Component to VGA adapter can be used in conjunction with the VGA connectors. Plug the component cable into the video device. Plug the other end of the component cable into the adapter and plug the adapter into the VGA 1 or VGA 2 connector.

Component offers the highest quality analog video output.

What is Aspect Ratio?

4:3 screen 16:9 screen

4:3 mode

16:9 mode

Native mode

Aspect ratio is the ratio of the image width to image height. Standard TV screens and older laptops are 4:3; HDTV and most DVDs are 16:9; and widescreen computers are 16:10. If you are projecting onto a screen, the size/shape of the screen will influence the aspect ratio you decide to use. If you are projecting onto a blank wall, there are no screen size restrictions. What you plan to project will also help you choose between 4:3, 16:9 or 16:10. Many TV shows are 4:3, while most movies are 16:9.

If you have a 16:9 screen then you should select an aspect widescreen movies or HDTV, and Native for 4:3 content. If you have a 4:3 screen you should still use 16:9 for widescreen movies or HDTV, but you also have the option of using either 4:3 (to fill the screen) or Native (for direct pixel mapping) for 4:3 content. Force Wide can also be enabled to automatically resize less common aspect ratios to 16:10.

ratio of 16:9 for

Shutting down the projector

Troubleshooting your setup

Screen Save Time

You can make the black screen appear after a preset number of minutes by turning on the Screen Save Time feature in the Setup menu. See page 30.

Auto Off Time

The projector has an Auto Off Time feature that automatically turns the projector off if no active sources are detected and no user interaction with the projector is performed for 30 minutes. By default, this feature is off. You can change the length of time, see page 30.

Turning off the projector

To turn the projector off, press the Power button on the remote or keypad. The lamp turns off, a beep sounds and the LED blinks amber for 10 seconds while the fans continue to run to cool the lamp. When the lamp has cooled, the LED lights amber and the fans stop. Unplug the power cable to completely power off the projector.

The Status Indicator Panel on top of the projector indicates the state of the projector and is helpful when troubleshooting

Table 1: Status indicator light behavior and meaning

Icon Meaning

Power, solid amber

Power, blinking green

Power, solid green

Power, blinking amber

Temperature

Lamp

The projector is plugged in.

The power button has been pressed and the software is initializing.

The projector is on and initialized.

The power button has been pressed to turn the projector off and

the fans are running to cool the projector.

The projector is too hot. Make sure the vents aren’t blocked (see page 21). Turn the projector off and wait one minute, then turn the projector on again. the problem persists. Visit www.infocus.com/support to contact service.

Turn the projector off and wait one minute, then turn the projector on again. If the lamp light turns on again, replace the lamp and reset the lamp timer

Contact Technical Support if

(page 43).

Wrench/Service

Note: On with lamp #1; two blinks off every 2 seconds means the problem is with lamp #2.

Turn the projector off and wait one minute, then turn the projector on again. If the service lamp turns on again, service is required. Visit www.infocus.com/support to contact service.

e blink off every 2 seconds means the problem is

Problem Solution Result

Startup Screen

Startup

Screen

Restart laptop

No start up screen.

Plug the power cord into the projector then

Correct image.

press the power button.

If your computer is using the projector's

Only the start up screen appears.

DisplayLink connector, see the DisplayLink Software User's Guide for troubleshooting

Computer image projected.

information.

Press the Source button to activate the laptop’s external port.

Problem Solution Result

Signal out of

the range

Uncheck this option, then click Apply

No computer image, just the words “Signal out of ran

ge.”

Only my laptop’s background appears, not the Desktop icons.

Press the Auto Image button on the keypad or remote. To adjust computer refresh rate, go to Control Panel > Display > Settings > Advanced > Adapter (location varies by operating system).

You may also need to set a different resolution on your computer, as shown in the following problem, “image fuzzy or cropped.”

DisplayLink - Use DisplayLink software to change the display mode from Extended Desktop to Duplicated Desktop. Windows - Disable “Extend my Windows Desktop” in

rol Panel > Display > Settings > Display 2 (location

Cont varies by operating system).

Computer image projected.

Background and Desktop projected.

For a laptop, disable laptop monitor or turnon dual-display mode

Problem Solution Result

Image fuzzy or cropped

Set your computer’s display resolution to the native resolution of the projector (Start > Settings > Control Panel > Display > Settings tab).

Image clear and not cropped.

Image not centered on screen.

Adjust Lens Shift in the Basic Picture menu.

Correct image.

Problem Solution Result

Image not square. Adjust Keystone in the Basic Picture menu. Square image.

Image not sharp. Adjust Sharpness in the Basic Picture menu. Correct image.

Image does not fit 4:3 or 16:9 screen. Change aspect ratio to 4:3 or 16:9 in Basic

Picture>Aspect Ratio menu.

Correct image.

COLOR

Problem Solution Result

Image upside down. Turn off Ceiling Mount in Setup menu. Correct image.

Image reversed left to right.

Projected colors don’t match source. Adjust color, tint, brightness, contrast in the Basic

Turn off Rear Project in Setup menu. Correct image.

Picture menu and/or color space in the Advanced Picture menu.

Correct image.

Temperature light

Startup

Screen

Problem Solution Result

The video embedded in my PowerPoint presentation does not play on the screen

If your computer is using the projector's DisplayLink connector, see the DisplayLink Software User's Guide

Embedded video plays correctly.

for video troubleshooting information. Turn off the internal LCD display on your laptop.

Lamp won’t turn on, Temperature light is on. Make sure vents aren’t blocked, turn the projector off

and allow it to cool for one minute.

Lamp turns on.

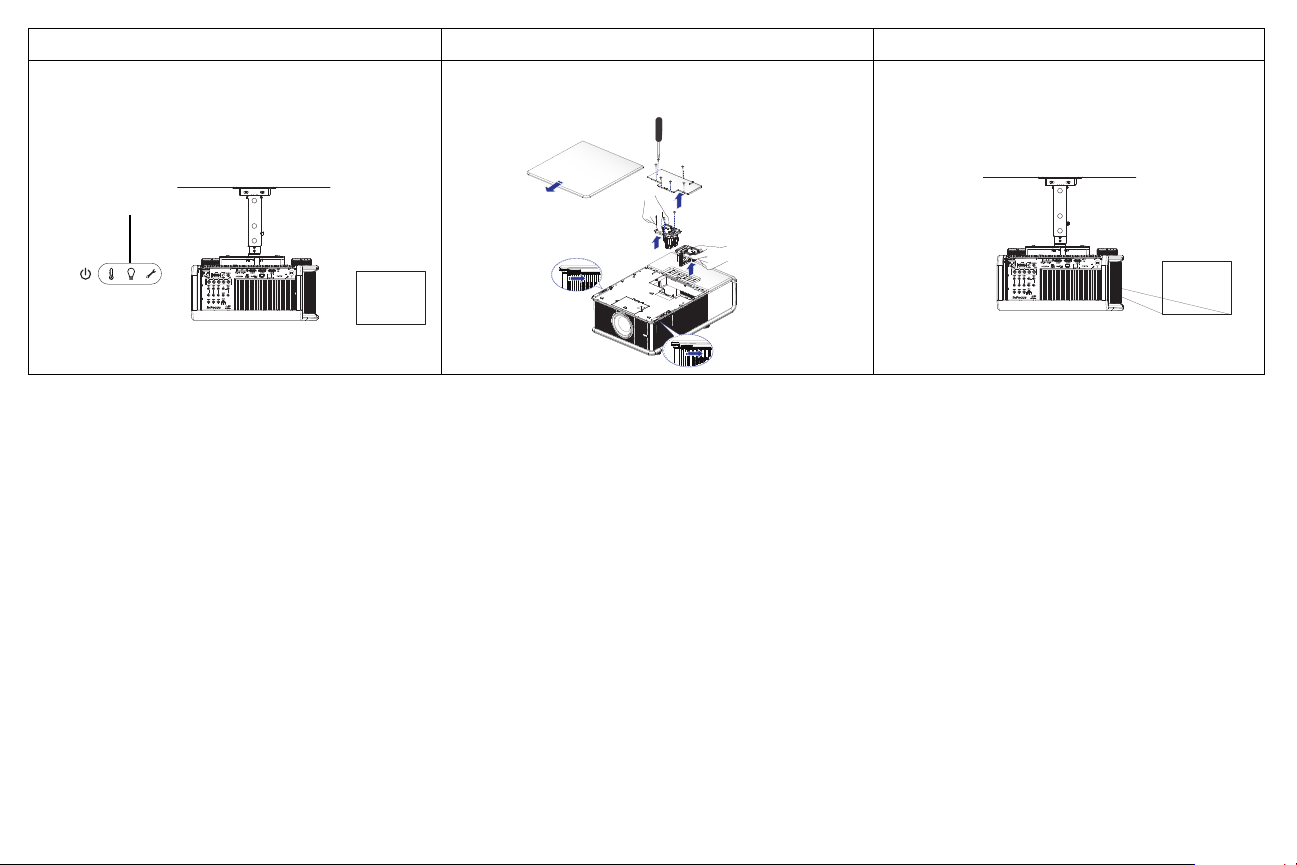

Lamp light

Lamp door

Replace lamp

Startup

Screen

Problem Solution Result

“Replace lamp” message appears at

startup, lamp

won’t turn on, Lamp light is turned on.

Lamp must be replaced (see page 42).

Lamp turns on.

Still need assistance?

If you need assistance, visit our

support website at www.infocus.com/support or call us. Check out the How To section for additional information on using this projector for home theater or gaming applications.

This product is backed by a limited warranty

. An extended warranty plan may be purchased from your dealer. When sending the projector in for repair, we recommend shipping the unit in its original packing material, or having a professional packaging company pack the unit. Please insure your shipment for its full value.

Using the remote control

Navigation buttons

The remote uses two (2) AA batteries. You can install the batteries by removing the cover from the remote’s back, aligning the + and - ends of the batteries, sliding them into place, and then replacing the cover.

Caution:

• When disposing of the batteries, be sure to do so in an en

manner.

• If the remote control gets wet, wipe it dry immediately.

• Avoid excessive heat and humidity.

• Ensure the batteries’ polarity (+/-) is aligned correctly.

• Do not mix new and old batteries together

together.

• Replace the batteries as soon as they run out.

• Remove batteries from the remote control when stor

prolonged period.

To operate, point the remote at the projector optimum operation is about 30’ (9m).

Press the remote’s Power button to turn the projector on and off (see page 15 for shutdown information).

Press the remote’s Menu button to open the projector’s menu system. Use the arrow buttons to navigate, and the Select button to select features and adjust values in the menus. See page 27 for more information on the menus.

The remote also has:

• Sour

• Vo

• Custom button that can be assigned to a special function, like Blank Screen or

• He

• Blank button to blank the screen.

• Pr

ce button to switch between sources.

l um e buttons to adjust the sound.

Freeze (see page 30).

lp button to access the projector’s help feature (see page 33).

esets button to select stored settings (see page 28).

, or different types of batteries

(not at the computer). The range of

vironmentally proper

ing or not in use for a

• Mu

• Auto Image butto

• Resize button to switch among aspect ratios (see page 28).

Wired Remote Option

If the wireless range of the standard remote is not sufficient, an optional Commander remote can be wired directly into the projector’s Wired Remote connector.

Troubleshooting the remote

• Make sure the batteries are installed in the

• Make sure you’re pointing the remote at the

te button to silence the audio.

n to resynchronize the projector to the source.

proper orientation and are not dead.

projector or the screen, not the computer, and are within the remote range of 30’ (9m). For best results, point the remote at the projector.

Using the audio

Connect audio cable

Adjust volume

External speakers with own power source

Speaker cable

Using the projector’s speakers

When the computer is using the DisplayLink or HDMI connectors, both audio and video are sent over the respective cable to the projector and audio will play from the projector's speakers.

NOTE: DisplayLink and HDMI

audio are passed to the Audio Out connector.

For inputs other than DisplayLink and HDMI, con

nect the audio source to the

associated audio connectors in order to use the projector's speakers.

To adjust the volume, press the Vo

l um e buttons on the remote.

Troubleshooting Audio

If you aren’t hearing the audio, check the following:

• If your computer is using the projector's DisplayLink connector, see the InFocus DisplayLink Software User's Guide on the website at www.infocus.com/displaylink for audio troubleshooting information.

• Make sure the audio cable is connected to the correct audio in connector, Computer or Video.

• Make sure the volume is turned up enough. Press the Vo lu me button on the remote.

• Make sure you are connected to the corresponding audio in for your source. By default, Audio 1 corresponds to VGA 1, Audio 2 corresponds to VGA 2 and RGBHV/YPbPr, Audio 3 corresponds to Component, Audio 4 corresponds to S-video, and Audio 5 corresponds to Composite. You can change these assignments, see page 31

• Make sure that you are connected to an audio out connector on the source as opposed to a line in or microphone connector.

• Adjust the audio source.

• If playing a video, make sure the

Connecting external speakers

The projector can be attached to external amplified speakers by connecting a 3.5mm stereo audio cable from the Audio Out connector on the projector to the amplified

playback has not been paused.

speakers. Alternatively, you can bypass the projector’s audio system and connect the audio directly from your source to a stereo or home theater system.

Using the keypad buttons

Menu navigation buttons

Most buttons are described in detail in other sections, but here is an overview of their functions:

Power–turns the

Auto Image–resynchr

Presets–

Menu–opens the

Select–co

Up/Down/Left/Right arrows–n

(page 27).

Source–changes th

Help–bu

cycles through the available preset settings (page 28).

tton to access the projector’s help feature (page 33)

projector on and off (page 9).

onize the projector to the source (page 30).

onscreen menus (page 27).

nfirms choices made in the menus (page 27).

avigates to and adjusts settings in the menus

e active source (page 9).

Optimizing computer images

After the projector is running and the image is on the screen, you can optimize the image using the onscreen menus. For general information on using the menus, see page 27.

• Adjust the Keystone, Contrast, or Brightness in the Basic Picture (page 28).

• Change the Aspect Ratio. Choose the option that best fits your inp (page 28).

• Adjust the Color Temperature in the Advanced Picture menu (page 29).

• Adjust the Phase, Tracking, or Horizontal or V Picture menu (page 29).

• Once you have optimized the image for a particular source, you can save the settings using Presets. This allows you to quickly recall these settings later (page 28).

• If your computer is using the projector's DisplayLink connector, see the InFocus DisplayLink Software User's Guide for information about optimizing images.

ertical position in the Advanced

ut source

Presentation features

Several features are provided to make giving presentations easier. Here is an overview, details are found in the menu section.

• The Custom key allows you to assign various features default effect is Source Info, which displays information about the projector and current source. See page 30 for details.

• The Search Screen option lets you change the appearance of the blank screen and start up screen (page 31).

• Two options, Auto Off and Screen Save Time, are provided to automatically shut down the projector after several minutes of inactivity or display a black screen. This helps preserve lamp life (page 30).

to the button. The

Optimizing video images

After your video device is connected properly and the image is on the screen, you can optimize the image using the onscreen menus. For general information on using the menus, see page 27.

• Adjust the Keystone, Contrast, Brightness, Color, Tint or Sharpness in the Basic Picture menu (

• Change the Aspect Ratio. Choose the option that best fits your input source (page 28).

• Adjust the Color Temperature. Select a listed warmth value (page 29).

• Turn on Overscan to remove noise on the edges of the image (page 29).

page 28).

Customizing the projector

You can customize the projector for your specific setup and needs. See page 30 to page 31 for details on these features.

• For rear projection, turn Rear Project on in the Setup menu.

• For ceiling mounted projection, turn Ceiling Mount on in the Setup menu.

• Specify which source the projector checks first for active video during power-up.

• Specify the function of the Custom key on the remote.

• Turn the projector’s display messages on and off.

• Turn on power saving features.

• Specify appearance of blank screen and startup screen.

• Specify the language viewed on the menus.

Dynamic Messaging

Using command codes, text messages can be sent for display by the projector (and all other InFocus projectors with the Dynamic Messaging feature) over a network or serial connection. Text is shown on top of whatever else is being displayed, and can be shown in ticker tape format or in a box, with optional beep tone alert. This is a great way to display urgent alert messages to employees, and simply requires a connection to the projector’s RS-232 serial control or LAN connector. Command codes for executing Dynamic Messaging are in the Appendix and available on our website at www.infocus.com/support.

Using the menus

Menu navigation buttons

Basic Picture menu Advanced Picture menu

Setup menu Status and Service menu

To open the menus, press the Menu button on the keypad or remote. (The menus automatically close after 60 seconds if no buttons are pressed.) Use the arrow buttons to move up and down to highlight the desired menu, then press the Select button.

To change a menu setting, highlight it, press Se adjust the value or select an option or turn the feature on or off. Press Select to confirm your changes. Use the arrow buttons to navigate to another setting. When your adjustments are complete, press Menu to access a different menu; press the Menu button at any time to navigate to the higher-level menu and ultimately close the menus.

The menus are grouped by usage:

• The Basic Picture menu provides common image

• The Advanced Picture menu provides more complex image adjustments.

• The Setup menu provides set-up type adjustments that are

• The Status and Service menu provides information about the projector and source.

lect, then use the arrow buttons to

adjustments.

not changed often.

Basic Picture menu

Aspect ratio

Increasing keystone

Decreasing keystone

To adjust the following settings, highlight the setting, press Select, use the arrow buttons to adjust the values, then press Select to confirm the changes.

Brightness:

Contrast: Controls the degree of difference between the lightest and darkest parts

of the picture and changes the amount of black and white in the image.

Sharpness: Changes setting.

Color: Adjusts a video image from bla color setting applies to video sources only.

Tint: Adjusts th tint setting applies to NTSC video sources only.

SplitScreen: Al primary sources, make picture adjustments and choose one of multiple display options: either two side by side horizontal or vertical source regions, or a small secondary source image displayed on top of the primary source in one of four placement options. See page 52 for display options.

Auto Image: Forces the projector to reacquire and lock to the input signal. This is useful when signal quality is marginal.

Aspect Ratio: screens are usually 4:3. HDTV and most DVDs are 16:9.

Select Auto to have the projector choose unmodified input with no resizing by the projector. Select 16:9 to watch enhanced widescreen DVDs.

For more information regardin

Apply Preset...: Presets are provided that optimize the projector for displaying computer presentations and video images under certain conditions.

There is also a user-definable preset. To set Save User in the Presets menu. You can recall these settings in the future by selecting the User preset.

Horz Keystone/Vert Keystone: makes a squarer image.

Focus and Zoom: Adjusts the

Changes the intensity of the image.

the clarity of the edges of a video image. Select a sharpness

ck and white to fully saturated color. The

e red-green color balance in the image of NTSC video images. The

lows two distinct sources to be displayed simultaneously. Switch

Aspect ratio is the ratio of the image width to image height. TV

the ratio. Choose Native to see the

g Aspect Ratio, see page 14.

this preset, adjust the image and select

Adjusts the image horizontally or vertically and

focus and zooms the image in or out.

Digital Zoom: Changes the

size of projector’s display area. If the display area has

been resized by this setting, it can be moved by changing the Horz Shift and Ve rt

Shift settings.

Lens Shift...: Shifts the lens to the up and down or left and right. To center the lens

for transport or other purposes, activate the ‘Auto Center’ feature. This process will take a minute or two to complete.

Digital Horz Shift/Vert Shift: Moves th

e display area horizontally or vertically if

its size has been changed by the Digital Zoom setting.

Advanced Picture menu

BrilliantColor™: Produces an expanded onscreen color spectrum that delivers enhanced color saturation for bright, true-to-life images. Choose Normal Look for most video sources and Bright Look for most computer sources.

White Peaking: (video near 100%.

Color Temperature: C warmth value.

Force Wide: Wh mode resolution (4:3) as the preferred default resolution. When this is on, the analog locking algorithms choose wide mode resolution (16:10) as the preferred default resolution.

Overscan: Removes noise

Phase: Adjusts the horizontal phase of a computer source.

Sync Threshold: (progressive signals

player, is not syncing properly with the projector, select this option to help it to sync when connected to the projector.

Tra ck ing: Adjusts the vertical scan of a computer source.

Color Space: This op

allows you to select a color space that has been specifically tuned for the input signal. When Auto is selected, the projector automatically determines the standard. To choose a different setting, turn off Auto, then choose RGB for computer sources or choose either REC709 or REC601 for component video sources.

Noise Reduction: Redu

Flesh Tone Correction:

image.

Set Black Level...: Analyzes the current input imag which is then added to the analog to digital converter black level value. This ensures optimum black level for each analog source.

Detect Film: Contro source of the input video was film or video.

Gamma: Se

Color Gain Settings: Adjusts the

image.

lect the appropriate gamma from among Video, Film, Bright, and CRT.

sources only) Increases the brightness of whites that are

hanges the intensity of the colors. Select a listed relative

en this is off, the analog locking algorithms choose the standard

around the video image.

only) If a hardware device, such as a DVD

tion applies to computer and component video sources. It

ces temporal and/or spatial noise in the image.

Controls the amount of flesh tone correction applied to the

e and calculates an offset value

ls film mode detection, and determines whether the original

gain of the red, green, or blue channel of the

Color Offset Settings: Adjusts the image.

Horizontal/Vertical Position:

Horizontal/Vertical Pincushion: Corrects

Adjusts the position of a computer source.

offset of the red, green, or blue channel of the

optical pincushion distortion.

Setup menu

Language: Allows you to select a language for the onscreen display.

Network: Allows you to setup network settings. See page 34 for details on network

configuration and operation.

• DHCP: Turns the DHCP on or off.

• IP Address: Assign Network IP Address.

• Subnet Mask: Assign Network Subnet Mask.

• Default Gateway: Assign Network Default Gateway.

• WINS Host Name Lookup: Turns WINS Host Name Lookup on or off.

• Host Name: Displays the host name.

• MAC Address: Displays network MAC Address value.

• Show Network Messages: Turns network messages on or off. Network messages display the projector’s IP address (and host name if enabled) when the projector is also displaying source messages.

• Restart Network…: Restarts the network.

• Network Factory Reset…: Performs factory reset.

Key Click: Turns the key click sound on or off. When this setting is on, pressing keys on the keypad causes the projector’s speaker to play a “click” sound.

Custom Key: Allows you to assign a different function to the Custom button, allowing you to quickly and easily use the effect. Highlight an effect and press Select to choose a different one.

• Blank Screen: Displays an empty screen.

• Mute: Turns off all sound.

• Aspect Ratio: Sets the ratio of image width to image height (see page 14 and page 28).

• Source: Cycles through available sources.

• Auto Image: Resynchronizes the projector to the source (page 25).

• Freeze Screen: Pauses the projected image.

• Source Info: The default action. Shows the Source Info menu.

• Projector Info: Shows the Projector Info menu.

• Overscan: Removes noise around the image.

• AV M ut e: Enables or disables AV Mute function.

• Closed Captions: Enables or disables Closed Captions.

• SplitScreen: Enables or disables SplitScreen. Before using this for the first time, configure SplitScreen sources and layouts using the SplitScreen menu

page 28).

(

Blank Key: Select what to display when the blank key on the remote is pressed: your custom snapshot, a solid color screen (blue, black or white), the factory logo screen, a timer, or test patterns. The timer option is useful for classroom tests or break times during meetings.

Source Keys: Enables or disables Source Keys on the optional Commander-2 remote.

AC Power On: When this feature is on, the projector automatically turns on when electrical power is connected. This allows control of ceiling mounted projectors with a wall power switch.

Auto Off Time: Automatically turns the projector off after no signals are detected for a preset number of minutes. If an active signal is received before the projector powers down, the image will be displayed.

Screen Save Time: Automatically blanks the screen with a black color after no signals are detected for a preset number of minutes. The image returns when an active source is detected or a remote or keypad button is pressed.

Sleep Timer: Allows the projector to automatically power off after it has been on for a specified amount of time.

Always-On Functions: Allows you to control which projector functions will work even when the projector is in standby (powered off but connected to AC Power). Press Up or Down to highlight the function you want to change, then press select or left and right to change the function to either Yes or No. Press menu when done. Note that some functions must always have the same value; in this case when you change one value, other values in the submenu may also change automatically. Functions which can be changed include: Network, DisplayLink, 5V DC output, Monitor Out.

Lamp Low Power: Toggles between on and off. Turn it on to lower the light output of the lamp. This also lowers the fan speed, making the projector quieter.

Current Lamp: Controls which lamp(s) is in use.

Lamp Auto Switch: Controls when the projector switches between lamps. Choices

include: upon failure, at power-up, or after a set number of hours.

Power Sounds: Controls whether the projector makes a sound when powered on and off.

Internal Speakers: Allows the user to turn on and off the internal speakers.

Audio Inputs: Assign an audio input to a specific video/computer source input.

(Default settings are as follows: Audio 1 is used with VGA 1; Audio 2 is used with VGA 2 and RGBHV/YPbPr; Audio 3 is used with Component; Audio 4 is used with S-video; Audio 5 is used with composite.)

Press up or down to highlight the source you want to change, then press select or the left and right arrow keys to change that source’s audio input. Press menu when done changing audio inputs.

Auto Source: When this feature is On, the projector automatically finds the active source, checking the selected Power-up Source first. When this feature is Off, the projector defaults to the source selected in Power-up Source. To display another source, you must manually select one by pressing the Source button on the remote or keypad.

Power-up Source: Determines which source the projector checks first for active video during power-up.

Fast Color Refresh: Controls color wheel speed.

Closed Captions: Controls closed caption display while audio is not muted. If this

setting is not off, and audio is not muted, and the source is NTSC and contains captions on the selected channel, then the projector must display caption text overlaid on the image.

Ceiling Mount: Turns the image upside down for ceiling-mounted projection.

Rear Project: Reverses the image so you can project from behind a translucent

screen.

Auto Keystone: Automatically adjusts vertical keystoning.

Prevent PC Screen Saver: Prevents your computer from going into Screen Save

mode. The projector must be connected to the PC via a USB cable for this feature to work.

Search Screen: Allows you to display one of the following options instead of the default screen at startup, and when no source is detected. Options include the factory logo screen, a custom Snapshot, or a blue, black or white screen.

Take Snapshot...: Captures the current image and allows it to be used as the search screen image.

Disable Snapshot: Allows the user to disable the snapshot capability.

Show Messages: Displays status messages (such as “Searching”) in the lower-left

corner of the screen.

Menu Offset: Allows you to change the position of the On Screen Display items.

Menu Transparency: Allows you to change how much of the projected image

behind the menu you can see. As the value increases, more of the image behind the menu is visible.

Magnify Controls: Allows you to change the function of the arrow buttons when the menu is not shown. By default, the arrow buttons allow you to advance slides while in PowerPoint’s SlideShow mode. To make the arrow buttons also adjust magnify settings, choose Magnify Controls to turn magnify controls on. Now when the menu is not shown, you can press the Select button to switch between the magnification settings (Magnify Level, Magnify Horizontal Position and Magnify Vertical Position), then press Select again to turn off magnify controls and use the arrow buttons to advance slides.

Lens Adjust Enable: When turned on, lens shift, zoom, focus, digital keystone, auto keystone and pincushion adjustments can be made. When the product has been mounted, installers can turn this feature off to prevent changes to lens shift, zoom, focus, keystone and pincushion settings.

Keypad Enable: Enables or disables keypad.

Glow Ring: Controls the brightness level of the glow ring status indicator.

PIN Protect: The PIN (personal identification number) feature allows you to

password protect your projector. Once you enable the PIN feature, you must enter the PIN before you can project an image. The default PIN on this projector is Menu-Up-Down-Select-Source. Use the navigation buttons on the remote or keypad to enter the correct 5-button press sequence. When all 5 numbers are entered correctly, press the Select button on the remote or keypad to select OK. If the message “Wrong PIN” appears, verify the code and re-enter it. If you mis-enter a

number, you must enter 5 numbers and press the Select button in order to access the

Setup menu

Status and Service menu

“Wrong PIN” message and re-enter the code.

To enter the PIN at projector startup:

Power up the projector. The “Enter PIN” d Enter the PIN. Use the navigation buttons on the remote or keypad to enter the correct button press sequence. See the description above for instructions.

To change the PIN:

Select “Change PIN...” in the PIN. You can navigate between OK and Cancel by pressing the arrow buttons on the keypad. Select OK or Cancel by pressing the Select button. Verify the new PIN.

If you lose or forget your custom PIN:

Contact InFocus support at www

Serial Port, Baud Rate: Selects the serial port and baud rate.

Serial Port Echo:

Controls whether the serial port echoes characters.

Setup menu. Enter the existing PIN. Enter the new

.infocus.com/support.

ialog box appears after the startup screen.

Status and Service menu

Source Info: Displays current source settings (read-only).

Projector Info: Displays current projector settings (read-only).

Reset Lamp Hours:

to zero. Do this only after changing the lamp.

Factory Reset: Re

Service Code: Only used by

Resets the lamp hours used counter in the Projector Info menu

stores all settings to their default.

authorized service personnel.

Help

Press Help (on the keypad or remote) at any time to get interactive help for solving common, picture, sound, and cabling problems.

NOTE: The projector can be re-programmed to display a custom (non-interactive) screen when Help is pressed. To do this: Create your custom screen on a computer and display it on the projector, then use the Take Snapshot command in the Setup menu. When you see the Snapshot Successful message, hold down the Help button until the message is removed.

To revert a customized Help screen back to the Factory Reset will be needed.

InFocus default Help screen, a

Using Network Functions

IMPORTANT: To enable network functions at all times (even when the projector

is powered off), the Network item in the Always-On Functions submenu in the Setup menu must be set to Yes (not No).

Projector network functions include:

• Configuring and controlling the

• Failure and warning alerts via email.

• Projector Management via

• Controlling the projector via Scheduling.

NOTE: Pro in English language.

For network control, you can access the the same control codes on serial as we do over the network. InFocus network control uses the Telnet packet structure.

jector web pages and emails sent by the projector are always displayed

Before using the network functions

To use the network functions of the projector, the projector must be configured to suit your network. Consult with your network administrator before connecting the projector to your network; incorrect network configuration of the projector may cause problems on your network.

Connect the Network Cable

Properly connect projector to the network, then configure the following settings.

If Using a Network with DHC

1 Use the projector's remote control or keypad to select the Network item in the

projector's Setup menu.

2 If DHCP is off, select it to turn it on.

projector via a web browser.

SNMP.

projector through Port 23 (Telnet). We use

P Enabled:

NOTE: If yo

Network, then turn on Show Network Messages. After exiting the menu press the Source button again..

u still don’t see an IP address, go to the projector’s Setup menu, select

3 Select IP Address. This will highlight the first of the four octets in the IP

address. Press Up or Down to change the value, then press Select or Right when done to move to the next octet. Repeat until you have changed all four octets in the IP address.

4 Repeat the above for Subnet Mask, Default Gateway, and other settings that are

in IP address format (to assign or change the Host Name, see Network Settings Page below).

Configuring and Controlling the Projector via a Web Browser

You can adjust or control the projector via a network from a web browser on a computer that is connected to the same network as the projector.

NOTES:

• To access the projector’s web p network and connected to AC power (and if you want to access the web pages even when the projector is powered off, make sure that the Network item in the Always-On Functions submenu is set to Yes).

• JavaScript must be enabled in your browser to use the projector web pages properly. If JavaScript is disabled, see the Help files for your web browser for details on how to enable it.

• If no operations are performed in the web browser for approximately ten minutes, the system will automatically log you off.

ages, the projector must be connected to the

Logging in

To log into the projector web pages, follow these steps:

1 Make sure the projector is connected to the network and connected to AC

power.

If Using a Network that does

not have DHCP Enabled:

1 Use the projector's remote control or keypad to select the Network item in the

projector's Setup menu.

2 If DHCP is on, select it to turn it off

2 If you don't know the projector's IP address,

turn on the projector. After the projector starts up, if its IP address is not shown, press the

Source button to view the IP address.

3 Start a web browser on your computer.

4 Enter the projector's IP address or host name (preceded by http://) into the web

browser's address bar. Example: If the IP address is 192.168.1.10, enter http://

192.168.1.10 into the browser's address bar.

5 The Log In to Projector Control page will be shown in the browser.

6 Select Access type: Basic User or Administrator.

7 Click Log In.

Navigating Projector Web Pages

The left side of every page shows a navigation bar. Click the links in the navigation bar to go to different projector web pages.

NOTE: If a Basic User is logged in, no links are shown.

The top of the navigation bar shows the projector name, model, and serial number.

The web pages also include the following options:

• Log Off: Logs off and returns to the Log In page (see above).

• Refresh: Reloads the page with current status.

• Defaults: Displays default (factory settings) values (to save these values click Apply).

• Apply: Saves the values that are currently shown on the page.

Projector Controls Page (All users)

This page lets you control the same settings that are available via the projector's main menu and remote control. The Controls tab includes basic remote control functions; other tabs correspond to the projector's menus.

NOTE: If a Basic User is logged in, only the Controls, Basic Picture, and Advanced Picture tabs are shown.

In each tab, the current value of each setting is shown in blue color.

NOTE: Unlike other pages, changes you make to Projector Control settings are applied immediately.

• To change an on/off setting (e.g. Power): Click the corresponding On or Off button.

• To change a multi-value setting (e.g. Sharpness): Select a value from the drop-down menu.

• To change a numeric setting (e.g. Brightness): Click the corresponding + or - button, or select a value from the drop-down menu.

• To perform a command (e.g. Auto Image): Click the corresponding Execute button.

Network Settings Page (administrators only)

This page lets you view and change the projector's network settings. Consult with your network administrator before making any changes on this page; incorrect network configuration of the projector may cause problems on your network.

Projector Name: The name of the projector shown in the projector's web pages.

IP Address: These settings control the projector's network configuration. Enter the

appropriate settings required for your specific network.

Advanced Network Settings: Click this link to show advanced settings:

802.1x Authentication: If your network requires 802.1x authentication, enter the

user name and password that the projector should use, and select the authentication type.

SNMP: If your network uses SNMP, enter necessary SNMP information here.

Command and Control Pass-Through: This setting allows you to send and

receive projector commands over the network. For command codes, see the Appendix or visit the InFocus website at: www.infocus.com/support.

Event Notifications Page (administrators only)

This page lets you configure the projector to automatically send email when specific events occur.

E-Mail Settings tab: In the Account Used… section, enter the information needed for your projector to connect to an email sending (SMTP) server. Then in the Recipient E-Mail Addresses section, enter the email addresses of people who will receive emails, and for each address, select whether that address receives reminders and/or warnings and errors (enter only one address per line). After you have completed this page, click Send Test to make sure that email is correctly set up.

Reminders tab: Select which types of reminders to send. For most reminders, you can adjust the frequency or date/duration associated with the reminder.

Warnings & Errors tab: Select which warnings and errors to send.

Date/Time Settings Page (administrators only)

This page lets you configure the projector to read the time and date from an SNTP server on your network. NOTE: The projector does not have a built-in clock. If the projector is unable to access the SNTP server, or no SNTP server is defined, functions that rely on the time and date may not work correctly.

Current Date and Time: Shows the current date and time read from the SNTP server.

Synchronize the system clock…: Select how often the projector should check the SNTP server to get the time and date. Between checks, the projector will keep track of the amount of time elapsed, allowing it to maintain the correct time and date.

SNTP Server: The address of the time and date server on your network.

Time Zone: The projector's time zone (if you are in a different time zone from the

projector, make sure this is the time zone of the region where the projector is located).

Set Now: Click this to immediately set the time and date based on the above information.

Daylight Savings Settings: Click this link to show daylight savings settings:

Start: Select when daylight savings starts.

End: Select when daylight savings ends.

Automatically adjust…: Check this to have the projector automatically update

time and date when daylight savings starts and ends.

Scheduled Tasks Page (administrators only)

This page lets you configure the projector to perform tasks automatically on specific days and times. You can set up a maximum of three different scheduled tasks; each tab corresponds to a task. Each scheduled task can perform different commands on different days and times. Each tab contains the following items:

On/Off: Select whether or not this scheduled task will run on the days and times shown.

Description: Explanation of what the task does.

Run Every: Select the days of the week when the scheduled task should run.

At Time(s): Select the times of day when the scheduled task should run (the task

will run at the indicated times on every one of the days checked above).

Command Sequence and Available Commands: The Command Sequence list on the left shows commands currently performed by the scheduled task (each task can include up to 20 commands). The Available Commands list on the right shows all commands that can be added to a scheduled task.

<< Add: Adds the command selected in the Available Commands list to the Command Sequence list.

>> Remove: Removes the command selected in the Command Sequence list.

Move Up: Moves up the command selected in the Command Sequence list.

Move Down: Moves down the command selected in the Command Sequence box

list.

Clear All: Erases all commands in the Command Sequence list.

Custom: Click this link to show custom command entry options. With custom

commands, you can perform additional commands not shown in the Available Commands list. The RS-232 command codes are available in the Appendix and on our website at www.infocus.com/support. NOTE: Custom commands you enter here should be in write format (do not include '?'), and should use '<' and '>' instead of '(' and ')'. Example: to turn on the ceiling mount setting, use the custom command <CEL1>.

User Access and Security Page (administrators only)

This page lets you configure security options for the projector, including log in passwords and projector access restrictions.

Web Access - Administrator tab: Select whether or not Administrators must enter a password to log into the projector's web pages. If a password is required, click create or change password to update the administrator password.

Web Access - Basic User tab: Select whether or not Basic Users must enter a password to log into the projector's web pages. If a password is required, click create or change password to update the basic user password.

Projector PIN tab: Allows you to turn projector PIN protection on or off, or change the PIN. When PIN protection is on, the current PIN must be entered when the projector is powered on, otherwise the projector will not operate. NOTE: PIN protection only applies to projector operation via the projector's keypad and remote control; it does not affect the projector's web pages.

System Log Page (administrators only)

This page shows a log of the 100 most recent projector events.

Erase Log…: Click this to erase all events in the log.

Network Utilities Page (administrators only)

This page lets you perform various network-related projector tasks.

Save and Load Projector Configuration: These functions save and load all network-related projector settings into/from a file stored on your computer. This lets you quickly 'clone' network settings from one projector to other projectors.

Upgrade Projector Network Firmware: Upgrades the firmware for the projector's network and LitePort features (this firmware is separate from the regular projector firmware).

Restart Projector Network Subsystem: Restarts the projector network subsystem; does not change any projector settings.

Network Subsystem Factory Reset: Returns all network and LitePort settings to default values and then restarts the projector network subsystem.

Troubleshooting Network Functions

• If network status is shown as Not Connected in the projector's Network menu, or the projector does not display its IP address, check the cable or the network configuration.

• If your web browser displays Page Not Found or a similar error when you try to access the projector's web pages, verify that the projector is connected to the network (select the Network item in the projector's Setup menu and verify that Network Status shows as Connected); if there is no connection refer to the troubleshooting item above for more help.

• Make sure the Network item in the Always-On Functions submenu in the Setup menu is set to Yes (if it is set to No, the projector web pages will only be available when the projector is powered on).

• If scheduled tasks are not performed, check if the SNTP is set up correctly and is online. Also check if the Command sequence is correct.

• If automatic emails are not sent, check if SMTP is set up correctly and is online.

To manually restart the projector network subsystem: Use the projector's remote control or keypad to select the Network item in the projector's Setup menu. Then scroll down and select either Restart Network (to restart the network subsystem without changing any settings), or Network Factory Reset (to return all network settings back to default values, and then restart the network subsystem). If the manual restart procedure does not work: To force the network subsystem to restart, disconnect the projector from AC power, wait 10 seconds, then reconnect AC power.

Using LitePort

LitePort displays a slide show of JPEG images stored on a USB flash drive connected to the projector. This can eliminate the need for a computer source.

Image File Types

LitePort displays image files in JPEG format only (file extensions .JPEG and .JPG). Other file types including PDF, BMP, TIFF, PNG, GIF, etc. are ignored.

Viewing a Slide Show

To view your pictures as a slide show, follow these steps:

1 Connect a USB flash drive to your computer and copy JPEG files from your

computer to the USB flash drive.

2 Turn on your projector if needed.

3 Remove the USB flash drive from your computer and plug it into the LitePort

connector on the rear of the projector.

4 The projector will start a slide show of the images found (if you see image

thumbnails instead, see To Start the Slide Show section below).

5 To go to the next image in the slide show, press the Down or Right arrow button

on the projector keypad or remote. To go to the previous image, press the Up or Left arrow button.

Controlling LitePort

When you plug a USB flash drive into the projector's LitePort connector, the projector will scan the drive and then either start a slide show or show image thumbnails.

To stop the slide show and view thumbnails: Press the Select button during the slide show. In Thumbnails view, the name of the current folder, the current image number, and the total number of images in that folder are shown at the bottom of the screen. While viewing thumbnails, press the arrow buttons to scroll through the thumbnails, or press Select when an image is highlighted to start the slide show, or press Select when a folder is highlighted to open that folder.

To start the slide show: While viewing thumbnails, press the arrow buttons to highlight a thumbnail, then press the Select button to start the slide show at the highlighted image.

To change the image during the slide show: Press the Down or Right button to go to the next image, or press the Up or Left arrow button to go to the previous image (the slide show may also advance automatically depending on the value of the Next Slide setting; see the LitePort Menu section below for details).

To change to a different folder: While viewing thumbnails, press the arrow buttons to highlight the desired folder icon, then press the Select button (to go to the higher-level folder, select the folder icon labeled "Up").

To change LitePort settings: Press the Menu button during the slide show, or while viewing thumbnails (see the LitePort Menu section below for details).

Using the LitePort Menu

To show the LitePort menu, press the Menu button on the keypad or remote during the slide show, or while viewing thumbnails. To highlight a menu item, press arrow buttons. Then to do the action or change the setting, press Select. To remove the menu, press the Menu button again.

Rotate Picture: Rotates the current image by 90 degrees clockwise (rotation is temporary; the image returns to its original orientation when the USB flash drive is removed from the projector or when the projector is turned off).

Stop/Start Slideshow: Stops the slide show, or starts it at the selected thumbnail (when the menu is not visible, you can also stop or start the slide show by pressing the Select button).

Go to Projector Main Menu: Removes the LitePort menu and displays the projector's main menu, where you can adjust the picture or change other projector settings.

(For remaining items below, highlight the setting, then press Select one or more times to change the setting value.)

Auto Start: Select On to have the player start the slide show when the USB flash drive is first connected. Select Off to have the player display thumbnails when the USB flash drive is first connected.

Show All Folders: Select On to have the slide show display all images in all folders. Select Off to have the slide show display images only from the current folder.

Fill Screen: Select On to have the slide show expand small images to fill the screen. Select Off to have the slide show display small images at their original size.

Next Slide: Select Manual to disable automatic slide advance in the slide show. Select other values to make the slide show advance to the next image automatically (regardless of this setting, manual advance is always available by pressing the arrow buttons).

Effect: Select Off to have no transition effect when changing between images during the slideshow. Select Random to use a different random effect for each transition. Select other values to use a specific effect.

Show Info: Select On to show the name of the current file and folder, the current image number, and the total number of images in the slide show at the bottom of the screen. Select Off to hide this information.

Displaying PowerPoint Slides

Follow the steps below to display PowerPoint slides using LitePort (these instructions apply to PowerPoint 2007 in Windows; for other presentation programs refer to the program's instructions or help file for the steps needed to save a presentation as separate JPEG files):

1 Connect the USB flash drive to your computer.

4 Click the Office button in the upper left corner of the PowerPoint document

window.

5 Point to Save As, then click Other Formats.

6 In the Save As dialog box, click the Save as type drop-down menu. Scroll

through the menu and select JPEG File Interchange Format.

7 Make sure the contents of your USB flash drive are visible in the Save As dia-

log box before you continue - to view your USB flash drive in the Save As dialog box, first click My Computer, then double-click the USB flash drive's icon (make sure you do both of these in the Save As dialog box, not on your computer's desktop).

8 Click Save. PowerPoint will ask if you want to export every slide or only the

current slide; click Every Slide. PowerPoint will save each slide in your presentation as a separate JPEG file. These files are saved in a new folder that has the same name as the original document.

9 Remove the USB flash drive from your computer and plug it into the

projector's LitePort connector.

10 On the projector, navigate to the folder created in step 8 and then start the slide

show (for instructions on navigating and controlling the slide show, see the Controlling LitePort section above).

NOTE: PowerPoint embedded videos, transition effects, and animations are not included when saving as JPEG. However, you can select a LitePort slideshow transition effect by changing the Effect in the LitePort menu.

2 Open your PowerPoint document.

3 This step is optional but improves image quality: Click the Design tab near the

top of the PowerPoint document window, then click Page Setup. Click the Slides sized for drop-down menu and select Custom. Change both Width and Height to double their previous values, then click OK.

Troubleshooting LitePort

• If images load slowly: Make sure you are using a newer USB 2.0compatible (high speed) USB flash drive. Larger image file sizes may also slow down the player; to reduce file size, use an image editing program on your computer to resize images smaller; for the best balance between image quality and speed, resize images to be 1024 pixels wide.

• If no images are found, or some images are not shown, or you only see folder thumbnails but no images: Make sure that images are JPEG file type (file extensions .JPEG and .JPG); other file types are not supported and will be ignored.

• If you see a blank screen, or a logo, or the wrong input source (computer, video, etc.) instead of your images: Keep pressing the Source button on the keypad or remote until the LitePort message is displayed (if you still don't see any images, make sure the USB flash drive is correctly and completely plugged into the projector's LitePort connector).

• If nothing happens when you connect your USB flash drive, and you cannot select the LitePort input source as described above: Check the format of your USB storage device. LitePort only supports USB storage devices formatted as FAT32. Devices formatted as NTFS, and non-storage devices (such as cameras) are not supported.

• If images saved by PowerPoint are low quality: Make sure to do step 3 when following the steps in the Displaying PowerPoint Slides section above.

Maintenance

Cleaning the lens

1 Turn the projector off and unplug the power cord.

2 Apply a non-abrasive camera lens cleaner to a soft, dry cloth.

• Avoid using an excessive amount of cleaner directly to the lens. Abrasive cleaners, solvents or other harsh chemicals might scratch the lens.

, and don’t apply the cleaner

3 Lightly wipe the cleaning cloth over the lens in a circular motion.

WARNINGS:

• Turn the projector off and unplug power cord before cleaning an projector.

• Do not open any cover on the projector, except the lamp cover cover.

• Do not attempt to service this product yourself as opening and removing covers may expose you to dangerous voltage and other hazards. Refer all servicing to qualified service personnel.

y part of the

or projector top

Replacing the projection lamp

The lamp hours timer in the Projector Info menu counts the number of hours the lamp has been in use. Twenty hours before the lamp life expires, the message “Replace lamp” appears on the screen at startup.

• NOTE: Be sure to use the InFocus lamp module designed for this projector. You can order new lamps from www.infocus.com (in select areas), your retailer or your dealer. Only genuine InFocus lamps are tested for use in this projector. Use of non InFocus lamps may cause electrical shock and fire, and may void the projector warranty. InFocus is not liable for the performance, safety or certification of any other lamps.

1 Turn the projector off and unplug the power cord.

2 Wait 60 minutes to allow the projector to cool thoroughly.

3 Remove the lamp door:

(a) release the top latches by sliding the release buttons toward the rear of the projector,

WARNINGS:

• To avoid burns, allow the projector to cool for at least 60 minutes before you replace the lamp.

• Unplug the power cord before replacing the lamp.

• Do not drop the lamp module. The glass may shatter and cause injury.

• Do not touch the glass surface of the lamp module. Fingerprints can obscure projection sharpness and may cause the glass to shatter.

• Be extremely careful when removing the lamp housing. In the unlikely event that the lamp ruptures, small glass fragments may be generated. The lamp module is designed to contain most of these fragments, but use caution when removing it.

• Before replacing a ruptured lamp, clean the lamp compartment and dispose of cleaning materials. Wash hands after lamp replacement.

• When replacing the lamp while the projector is ceiling-mounted, wear protective eyewear to prevent eye injury.

• Hg – Lamp contains mercury. Manage in accordance with local disposal laws. See www.lamprecycle.org.

(b) slide the top front cover towards the direction of the lens,

4 Loosen the 2 captive screws that attach the first lamp housing to the projector.

Carefully remove the lamp housing. Do the same for the second lamp housing. Dispose of the lamps in an environmentally proper manner in accordance with local disposal laws.

5 Install the new lamp housings and tighten the 2 screws.

6 Replace the lamp door by securing the 5 screws.

7 Replace the top front cover by sliding it back into place.

8 Plug in the power cord and press the Power button to turn the projector back on.

9 To reset the lamp hour timer, navigate to the Status and Service menu and

select Reset Lamp Hours. See

NOTE: The lamp status indicator will show which lamp needs to be replaced. One

blink off every 2 seconds indicates lamp #1 (part number SP-LAMP-055); two blinks off every 2 seconds indicates lamp #2 (part number SP-LAMP-056).

page 32 for details.

Turn off and unplug projector

Wait 60 minutes

SP-LAMP-055

SP-LAMP-056

(3a)

(3b)

(3c)

(Lamp #1)

(Lamp #2)

Replacing the lens

1 Remove the top cover by:

(a) Releasing the left and right latches on both sides of the projector.

(b) Sliding the top front cover in

2 Loosen the four screws then lift the lens door.

the direction of the lens.

(b)

(a)

Remove the lens by:

(a) Pushing the release lever up to release lock

(b) Removing the lens through the fro

4 Install the new lens by:

nt of the projector

(a)

(b)

(a) Inserting the new lens into the projector

, label side up, through the front of

the projector

(b) Aligning the alignment pins at the top of

the lens retaining frame and insert

into the front of the engine.

k the lens in place.

5 Replace the lens door by securing the 4 screws.

6 Replace the top front cover by sliding it back.

7 The cover latches lock automatically.

(c)

(a)

Using the security lock

Security lock

The projector has a security lock for use with a Cable Lock System. Refer to the information that came with the lock for instructions on how to use it.

Appendix

Projected image size

NOTE: Visit the Service section of our website for interactive image size calcula-

tors for the standard and optional lenses.

Standard Lens Features and Specifications:

• Motorized Zoom and Focus

• Lens Shift Position: 50-110% Vertical; +/-10% Horizontal

• F-Number: 2.0-2.32

• Focal Length: 21.5-28.7

• Screen Size: 30-500 inch

• Zoom Ratio: 1.33:1

• Throw Distance Ratio: 1.45-1.93:1 (WUXGA);

1.52-2.03:1 (WXGA)

Projection Siz

Standard Lens

Screen Size

(inch/m) Minimum

30/0.8 37/0.9 49/1.2 39/1.0 52/1.3

40/1.0 49/1.2 65/1.7 52/1.3 69/1.7

60/1.5 74/1.9 98/2.5 77/2.0 103/2.6

70/1.8 86/2.2 115/2.9 90/2.3 121/3.1

100/2.5 123/3.1 164/4.2 129/3.3 172/4.4

120/3.0 148/3.7 196/5.0 155/3.9 207/5.2

150/3.8 184/4.7 245/6.2 193/4.9 258/6.6

200/5.1 246/6.2 327/8.3 258/6.5 344/8.7

250/6.3 307/7.8 409/10.4 322/8.2 430/10.9

300/7.6 369/9.4 491/12.5 387/9.8 516/13.1

400/10.2 492/12.5 655/16.6 516/13.1 689/17.5

500/12.7 615/15.6 818/20.8 644/16.4 861/21.9

Projection Distance (inch/

WUXGA

m) +/-10%

Projection Distance (inch/

m) +/-10%

Maximu

m Minimum Maximum

WXGA

Formula:

x=diag, y=dist

y=1.230x y=1.637x y=1.289x y=1.721x

Optional lenses

WARNING: When replacing the lens, turn off the projector and unplug the power

cord from the receptacle. Loosen the screws marked with a triangle to remove the lens.

NOTE: You can order optional lenses from www.infocus.com (in select areas), your retailer or your dealer.

Fixed Short Throw Lens Features and Specifications (LENS-050):

• Motorized Focus

• Lens Shift Position: limited

• F-Number: 2.2

• Focal Length: 11.5

• Screen Size: 30-500 inch

• Zoom Ratio: n/a

• Throw Distance Ratio: 0.77:1 (WUXGA); 0.81:1 (WXGA)

Notes on Use: The center of the projected image must be on the centerline of the lens for this lens to work properly. There is very little allowable lens shift before the lens structure begins to cut off the corners of the projected image. When using this optional lens, adjust the projected image position using the following procedure:

Activate the Lens Shift>Auto Center feature in the Basic Picture menu.

Projection Size:

Fixed Short Throw

Lens

Screen Size (inch/m)

WUXGA

Projection Distance

(inch/m) +/-10%

30/0.8 20/0.5 21/0.5

40/1.0 26/0.7 27/0.7

60/1.5 39/1.0 41/1.0

70/1.8 46/1.2 48/1.2

100/2.5 65/1.7 69/1.7

120/3.0 78/2.0 82/2.1

150/3.8 98/2.5 103/2.6

200/5.1 131/3.3 137/3.5

250/6.3 163/4.1 172/4.4

300/7.6 196/5.0 206/5.2

400/10.2 261/6.6 275/7.0

WXGA

Projection Distance

(inch/m) +/-10%

500/12.7 326/8.3 343/8.7

Formula: x=diag, y=dist y=0.653x y=0.687x

Short Throw Lens Features and Specifications (LENS-051):

• Motorized Zoom and Focus

• Lens Shift Position: 50-110% Vertical; +/-10% Horizontal

• F-Number: 2.2-3.33

• Focal Length: 18.1-21.7

• Screen Size: 30-500 inch

• Zoom Ratio: 1.20:1

• Throw Distance Ratio:

• Adds 1.32” (33.61mm) to the tota

1.21-1.45: 1 (WUXGA); 1.27-1.52:1 (WXGA)

l length of the projector.

WUXGA Projection Size: Short Zoom Lens

Screen Size (inch/m) Minimum Maximum Minimum Maximum

30/0.8 31/0.8 37/0.9 32/0.8 39/1.0

40/1.0 41/1.0 49/1.2 43/1.1 52/1.3

60/1.5 62/1.6 74/1.9 65/1.6 77/2.0

70/1.8 72/1.8 86/2.2 75/1.9 90/2.3

100/2.5 103/2.6 123/3.1 108/2.7 129/3.3

120/3.0 123/3.1 148/3.7 129/3.3 155/3.9

150/3.8 154/3.9 184/4.7 162/4.1 193/4.9

200/5.1 205/5.2 246/6.2 215/5.5 258/6.5

250/6.3 257/6.5 307/7.8 269/6.8 322/8.2

300/7.6 308/7.8 369/9.4 323/8.2 387/9.8

400/10.2 410/10.4 492/12.5 431/10.9 516/13.1

500/12.7 513/13.0 615/15.6 538/13.7 644/16.4

ojection Distance (inch/m) +/-

10%

Projection Distance (inch/m) +/-

WXGA

10%

Formula: x=diag, y=dist y=1.026x y=1.230x y=1.077x y=1.289x

Long Throw Lens Features and Specifications (LENS-052):

• Motorized Zoom and Focus

• Lens Shift Position: 50-110% Vertical; +/-10% Horizontal

• F-Number: 2.0-3.0

• Focal Length: 28.6-54.3

• Screen Size: 30-500 inch

• Zoom Ratio: 1.90:1

• Throw Distance Ratio:

• Adds 1.8” (45.81mm) to the tota

1.93-3.67 (WUXGA); 2.03-3.85:1 (WXGA)

l length of the projector.

WUXGA Projection Size: Long Throw Lens

Screen Size (inch/m) Minimum Maximum Minimum Maximum

30/0.8 49/1.2 93/2.4 52/1.3 98/2.5

40/1.0 65/1.7 124/3.2 69/1.7 131/3.3

60/1.5 98/2.5 187/4.7 103/2.6 196/5.0

70/1.8 115/2.9 218/5.5 121/3.1 229/5.8

100/2.5 164/4.2 311/7.9 172/4.4 326/8.3

120/3.0 196/5.0 373/9.5 207/5.2 392/10.0

150/3.8 245/6.2 467/11.9 258/6.6 490/12.4

200/5.1 327/8.3 622/15.8 344/8.7 653/16.6

250/6.3 409/10.4 778/19.8 430/10.9 816/20.7

300/7.6 491/12.5 934/23.7 516/13.1 979/24.9

400/10.2 655/16.6 1245/31.6 689/17.5 1306/33.2

500/12.7 818/20.8 1556/39.5 861/21.9 1632/41.5

Projection Distance (inch/m) +/-

10%

Projection Distance (inch/m) +/-

WXGA

10%

Formula: x=diag, y=dist y=1.637x y=3.112x y=1.721x y=3.265x

Ultra Long Throw Lens Features and Specifications (LENS-053):

• Motorized Zoom and Focus

• Lens Shift Position: 50-110% Vertical; +/-10% Horizontal

• F-Number: 2.3-3.19

• Focal Length: 54.1-102.7

• Screen Size: 30-500 inch

• Zoom Ratio: 1.90:1

• Throw Distance Ratio: 3.67-6.97:1 (WUXGA); 3.85-7.32:1 (WXGA)

• Adds 1.15” (29.11mm) to the total length of the projector.

Projection Size: Ultra Long Throw Lens

Screen Size (inch/m) Minimum Maximum Minimum Maximum

30/0.8 93/2.4 177/4.5 98/2.5 186/4.7

40/1.0 124/3.2 236/6.0 131/3.3 248/6.3

60/1.5 187/4.7 355/9.0 196/5.0 372/9.5

70/1.8 218/5.5 414/10.5 229/5.8 435/11.0

100/2.5 311/7.9 591/15.0 326/8.3 621/15.8

120/3.0 373/9.5 709/18.0 392/10.0 745/18.9

150/3.8 467/11.9 887/22.5 490/12.4 931/23.6

200/5.1 622/15.8 1182/30.0 653/16.6 1241/31.5

250/6.3 778/19.8 1478/37.5 816/20.7 1552/39.4

300/7.6 934/23.7 1773/45.0 979/24.9 1862/47.3

400/10.2 1245/31.6 2364/60.1 1306/33.2 2483/63.1

500/12.7 1556/39.5 2955/75.1 1632/41.5 3104/78.8

ojection Distance (inch/m) +/-

WUXGA

10%

WXGA

Projection Distance (inch/m) +/-

10%

Formula x=diag. y=dist. y=3.112x y=5.911x y=3.265x y=6.207x

SplitScreen Compatibility

Splitscreen allows two distinct sources to be displayed simultaneously. Switch primary sources, make picture adjustments and choose one of multiple display options: either two side by side horizontal or vertical source regions, or a small

HDMI1 HDMI2 VGA1 VGA2 BNC Component S-video Composite

HDMI1 X X X X X

HDMI2 X X X X X

VGA1 X X X X X

VGA2 X X X X X

BNC X X X X X

Component X X X X X

S-video X X X X X

Composite X X X X X

DisplayLink X X X X X

LitePort X X X X X

secondary source image displayed on top of the primary source in one of four placement options. See page 28 for details. The following source combinations are supported:

Table 2:

DisplayLi

LitePort

Control commands

IMPORTANT: When formatting commands sent from a control system or computer, enclose commands in parentheses “(“ and “)”. When entering custom commands into Scheduled Tasks in the projector’s web interface, enclose commands in less than/greater than symbols “<” and “>” instead.

Serial Communication Configuration

Visit our website for additional RS-232 settings and To control this projector via RS-232, connect a null modem cable

serial port settings to match the following communication configuration

RS-232 Port Settings

Setting Va lu e

Bits per second 115,200

Data bits 8

Parity None

Stop bits 1

Flow control None

Emulation VT100

Network Communication Configuration

For network control, you can We use the same control codes on serial as we do over the network. InFocus network control

uses the T

Command Format

All commands consist of 3 alpha char The request can be a read request (indicated by a "?") or a write request (indicated by 1 to 4 ASCII digits).

elnet packet structure.

access the projector through Port 23 (Telnet).

acters followed by a request, all enclosed in parentheses.

information.

and set the control system

A read command returns the range and the

current setting, for example:

Read Command Examples

Function Command Response

Brightness (BRT?) (0-100, 50)

Vo l u m e (VOL?) (0-100, 50)

Lamp Hours (LMP?) (0-32766, 42)

A write request example: (AAA####) where

(starts the command AAA denotes the command #### denotes the value to be written

(leading zeros not necessary) ) ends the command Some commands have ranges, while others are a

maximum range is received, it is automatically set to the maximum number for that function. If a command is received that is not understood, a "?" is returned. With absolute settings, "0" is off, 1-9999 is on. The one exception is the Power command, where 0 is off and 1 is on.

To assure the projector can process a command, command.

bsolute. If a number greater than the

wait 3 seconds before entering the next

Write Command Examples

Function Command Response

Brightness (BRT100) Sets the brightness to

100

Power (PWR0) Turns power off

A read request example: (AAA?) where

(starts the command

AAA denotes the command

? denotes the read request ) ends the command

Power (PWR1) Turns power on

Error Conditions

Not all commands are supported for all projectors. If an unsupported command is issued, the command will be ignored. If a command is received that is not understood, a ‘?’ character will be returned indicating the command was not understood.

Limitations

The projector cannot respond to commands coming in at a high-rate. Therefore, a delay must occur between commands to ensure that the command gets properly executed. To assure the projector can process a command, wait 3 seconds before entering the next command.

The Step column refers to increasing or decreasing the menu bar position since the On-screen Display is not an exact match of values. For example, Step 2 changes the data by 2 through the CLI (Command Line Interface). The menu bar is up (or down) by 1.

Com

Function

AC Power On

mand

RW Min Max Default Ste p

APO RW 0 1 0 1

0: Disable; 1: Enable

Always On Function

SPS RW 0 15 0 1 0: Off 1: Network 2: DisplayLink 4: Monitor Out 8: 5-Volt DC

Aspect Ratio

ARZ RW 0 6 0 1 0: Auto 1: Native 2: 4:3 3: 16:9 4: Letterbox 5: Panorama 6: 16:10

Auto Image

AIM W n/a 1 1 1 1: Enable

Auto Keystone

AV K RW 0 2 0 1 0: Off 1: On 2: Temp. Disabled

Auto Off Time

AOT RW 0 6 6 1 0: Never 1: 5 minutes 2: 10 minutes 3: 15 minutes 4: 20 minutes 5: 25 minutes 6: 30 minutes

Auto Source 0: Disable; 1: Enable

Blank Screen 0: Disable; 1: Enable

Blank Screen Style 0: Blue screen 1: Timer 2: Test patterns 3: Black screen 4: White screen 5: Factory logo 6: Snapshot

Brightness BRT RW 0 100 50 1

BrilliantColorTM 0: Normal; 1: Bright

Ceiling 0: Off; 1: On; 2: Auto

Closed Captions: NonMuted) 0: Off; 1: CC1; 2: CC2

Closed Captions: Muted 0: Off; 1: CC1; 2: CC2

Color CLR RW 0 100 50 1

ASC RW 0 1 1 1

BLK RW 0 1 0 1

BSS RW 0 6 0 1

BCL RW 0 1 1 1

CEL RW 0 2 2 1

CLC RW 0 2 0 1

CLM RW 0 2 1 1

Color Space 0: RGB 1: REC709 2: REC601 3: RGB Video 4: Auto

Color Temp 0: Warmest 1: Warm 2: Cool 4: Bright

Contrast CON RW 0 100 50 1

Current Source 0: DisplayLink 1: VGA 1 2: VGA 2 3: RGBHV 4: LitePort 5: HDMI 1 6: HDMI 2 7: Component 8: S-video 9: Composite

Custom Key 0: Blank screen 1: Mute 3: Aspect ratio 4: Source 5: Auto image 6: Freeze screen 8: Source info 10: Projector info 14: Overscan 15: AV mute 16: Closed captions 17: SplitScreen

CSM RW 0 4 4 1

TMP RW 0 4 Source

Specific

SRC RW 0 9 0 1

EFK RW 0 17 8 1

Detect Film 0: Disable; 1: Enable

Digital Zoom DZM RW 0 100 100 5

Disable Snapshots 1: Disabled

(Flash needed to re-enable.)

DisplayLink Source Enable: 1

Dual Lamp Auto Switch 0: On Failure Only 1: At Power Up 50 & higher; Hours

Dual Lamp Error Identifier 0: No lamp error 1: Lamp #1 error 2: Lamp #2 error 3: Both lamp error

? = Query

Dual Lamp Mode 0: Lamp 1; 1: Lamp 2 2: Both lamps

Error Condition 0: No error 1: Lamp not lit after 5 attempts 3: Lamp went out unexpectedly 4: Fan failure 5: Overtemperature 6: Low voltage

? = Query

TTO RW 0 1 1 1

DCP RW 0 1 0 1

USS W 1

DLA RW 0 2000 0 50

DLE R 0 3 0 1

DLM RW 0 2 2 1

ERR R 0 6 0 1

Factory Reset 1: Reset

RST W n/a 1 1 1

Key Click 0: Disable; 1: Enable

KCL RW 0 1 1 1

Fast Color Refresh 0: Off 1: Video only 2: On (all sources)

Flesh Tone Correction FTC RW 0 100 0 10

Force Wide 0: Disable; 1: Enable

Freeze Screen 0: Disable; 1: Enable

Friendly Name PFN RW string n/a n/a

Gamma 2: Video 3: Film 5: Bright 7: CRT

Glow Ring 0: Disable; 1: Enable

Help 0: Disable; 1: Enable

Help Customization HLC RW 0 1 0 1

Horz. Keystone DKH RW 0 100 50 1

Horz. Pincushion HPC RW 0 100 50 1

Horz. Position HPS RW 0 100 50 1

Horz. Shift DSH RW 0 100 50 1

FCR RW 0 2 0 1

FWM RW 0 1 1 1

FRZ RW 0 1 0 1

GTB RW 0 7 Source

Specific

GLO RW 0 1 1 1

HLP RW 0 1 0 1

Keypad Enable 0: Disable; 1: Enable

Lamp 1 High Power Hours ? = Query

Lamp 1 Low Power Hours ? = Query

Lamp 1 Resets: Total number ? = Query

Lamp 1 Total Hours

? = Query

Lamp 2 High Power Hours ? = Query

Lamp 2 Low Power Hours ? = Query

Lamp 2 Resets: Total number ? = Query

Lamp 2 Total Hours ? = Query

Lamp Life ? = Query

Lamp Low Power 0: Disable; 1: Enable

KPE RW 0 1 1 1

LMO R 0 n/a 1

LME R 0 n/a 1

LMR R 0 n/a 1

LMP R 0 n/a 1

LDN R 0 n/a 1

LDL R 0 n/a 1

LDR R 0 n/a 1

LDH R 0 n/a 1

LIF R n/a 2000

IPM RW 0 1 0 1

Internal Sound Enable 0: Disable; 1: Enable

INT RW 0 1 1 1

Language 0: English 1: French 2: German 3: Italian 5: Korean 6: Norwegian 7: Portuguese 8: Russian 9: Simp Chinese 10: Spanish 11: Trad Chinese 12: Swedish 13: Dutch 14: Polish 15: Turkish 16: Danish 17: Finnish

Lens Adjust Enable 0: Disable; 1: Enable

LitePort Auto Start 0: Disable; 1: Enable

LitePort Effect 0: Off 1: Random 2: Fade 3: Horz Wipe 4: Vert Wipe 5: Diagonal Wipe 6: Horz Split 7: Vert Split 8: Horz Bars 9: Vert Bars 10: Spiral 11: Diam ond 12: Blocks

LitePort Fill Screen 0: Disable; 1: Enable

LAN RW 0 17 0

(9 for China models)

MLL RW 0 1 1 1

LAS RW 0 1 1 1

LTS RW 0 12 0 1

LFS RW 0 1 0 1

LitePort Next Slide 0: Disable; 1: Enable

LitePort Show All Folders 0: Disable; 1: Enable

LitePort Show Info 0: Disable; 1: Enable

LitePort Source Command 0: Disable; 1: Enable

Magnify Controls 0: Disable; 1: Enable

Magnify Horz. Position MGH RW 0 100 50 5

Magnify Level MGL RW 0 100 50 5

Magnify Vertical Position MGV RW 0 100 50 5

Map Source Audio n Val u e s SA0 = DisplayLink SA1 = VGA 1 SA2 = VGA 2 SA3 = RGBHV SA4 = HDMI1 SA5 = HDMI2 SA6 = LitePort SA7 = Component SA8 = S-video SA9 = Composite

x Val u e s 0: Off 1: AOUSB 2: Audio In 1 3: Audio In 2 4: Audio In 3 5: Audio In 4 6: Audio In 5

LAD RW 0 4 0 1

LPA RW 0 1 0 1

LSI RW 0 1 0 1

PPS RW 0 1 0 1

MGC RW 0 1 1 1

SAnx RW 0 9 Source

Specific

Menu 0: Clear; 1: Display

MNU RW 0 1 0 1

Motorized Zoom In 1: Execute

MZI W 1 1

Menu Lockout 1: Basic Picture 2: Adv Picture 4: Setup Menu 8: Status & Service 15: All Menus

Menu Navigation 0: Menu Key 1: Up Key 2: Down Key 3: Select Key 4: Left Key 5: Right Key

Menu Offset OFF RW 0 100 0 10

Menu Transparency 0: Opaque; 90: 90% Trans.

Motorized Focus Further 1: Execute

Motorized Focus Nearer 1: Execute

Motorized Lens Shift Ctr 1: Execute

Motorized Lens Shift Dwn 1: Execute

Motorized Lens Shift Left 1: Execute

Motorized Lens Shift Right 1: Execute

Motorized Lens Shift Up 1: Execute

MNL RW 0 15 0 1

NAV W 0 5 n/a 1

TOE RW 0 90 0 5

MFF W 1 1

MFN W 1 1

MHC W 1 1

MVD W 1 1

MHL W 1 1

MHR W 1 1

MVU W 1 1

Motorized Zoom Out 1: Execute

Mute 0: Disable; 1: Enable

Network Default Gateway GT1 = 1st Octet GT2 = 2nd Octet GT3 = 3rd Octet GT4 = 4th Octet

Network DHCP 0: Disable; 1: Enable

Network DNS DN1 = 1st Octet DN2 = 2nd Octet DN3 = 3rd Octet DN4 = 4th Octet

Network Factory Reset 1: Reset

Network Host Name HSN RW string n/a n/a

Network Host Name Lookup (WINS) 0: Disable; 1: Enable

Network IP Address IP1 = 1st Octet IP2 = 2nd Octet IP3 = 3rd Octet IP4 = 4th Octet

Network MAC Address ? =- Query

MZO W 1 1

MTE RW 0 1 0 1

GTn RW 0 255 0 1

DHP RW 0 1 1 1

DNn RW 0 255 0 1

NFR W 1 1

HNL RW 0 1 0 1

IPn RW 0 255 0 1

MAD R string n/a

Network Restart 1: Restart

Network Subnet Mask NM1 = 1st Octet NM2 = 2nd Octet NM3 = 3rd Octet NM4 = 4th Octet

Noise Reduction NRL RW 0 100 50 1

Overscan 0: Off; 1: Zoom; 2: Crop

Phase MSS RW 0 100 50 1

PIN Change PCG“default,new”

PIN Entry Menu = m Up = u Down = d Select = s Source = i

Default = imuds

PIN Protect Disable: 0; Enable: 1

Power 0: Turn O n; 1: Turn O ff

Power Sounds 0: Disable; 1: Enable

NTR W 1 1

NMn RW 0 255 0 1

OVS RW 0 2 0 1

PCG RW string n/a

PET RW string n/a

PIV RW 0 1 0 1

PWR RW 0 1 0 1

ACE RW 0 1 1 1

Power-up Source 0: DisplayLink 1: VGA 1 2: VGA 2 3: RGBHV 4: LitePort 5: HDMI 1 6: HDMI 2 7: Component 8: S-video 9: Composite

Presets 2: User 5: Presentation 7: Video 8: ISF Day 9: ISF Night 10: Bright 11: Whiteboard 12: Blackboard 13: Beige wall

Prevent PC Screen Saver 0: Disable; 1: Enable

Projector Current Lamp ? = Query

Projector Firmware Ver ? = Query

Projector High Power Hours ? = Query

Projector Info menu 1: Display

DSC RW 0 9 1 1

PST RW 0 13 Source

Specific

NND RW 0 1 1 1

DLI R string

FVS R string

LTO R 0 n/a

PRI W 1 1

Projector Low Power Hours ? = Query

LTE R 0 n/a

Projector Model ? = Query

Projector Resolution ? = Query

Projector Serial No. ? = Query

Projector Total Hours ? = Query

Rear Project 0: Disable; 1: Enable

Reset Lamp Hours 1: reset lamp 1 2: reset lamp 2

Save User Presets 1 1: Save

Screen Save Time 0: never 1: 5 minutes 2: 10 minutes 3: 15 minutes 4: 20 minutes 5: 25 minutes 6: 30 minutes

Search Screen 0: Factory logo 1: Blue 2: Snapshot 3: Black 4: White

MDL R string

NRS R string

USN R string

LMT R 0 n/a

REA RW 0 1 0 1

LRT RW 1 2 n/a 1

USI W 1 1

SSV RW 0 6 0 1

DSU RW 0 4 0 1

Serial Port Baud Rate 0: 2400 1: 4800 2: 9600 3: 14400 4: 19200 5: 38400 6: 57600 7: 115200 8: 1200

Serial Port Echo 0: Disable; 1: Enable

Set Black Level 1: Set

Sharpness 0: Max 1: High 2: Normal 3: Low 4: Minimum

Show Messages 0: Disable; 1: Enable

Show Network Messages 0: Disable; 1: Enable

Sleep Timer 0: Off 1: 2 hours 2: 4 hours 3: 6 hours

Source 1-4 Commands SR1 = Source Key 1 SR2 = Source Key 2

BR1 RW 0 8 7 1

EC1 RW 0 1 0 1

BLC W 1 1

SHP RW 0 4 2 1

DMG RW 0 1 0 1

DNG RW 0 1 1 1

SLT RW 0 3 0 1

SRn RW SR1 = VGA1

SR2 = VGA2 SR3 = HDMI1

Source Advance - PC CAD+ W n/a n/a +

Source Advance - Video VAD+ W n/a n/a +

Source Info menu 1: Display

Source Info Active Source Name ? = Query

Source Info - Aspect Ratio ? = Query

Source Info - Color Gamut ? = Query

Source Info - Color Space ? = Query

Source Info - Horz Refresh ? = Query

Source Info - Pixel Clock ? = Query

Source Info Resolution ? = Query

Source Info - Signal Format ? = Query

ABT W 1 1

QAS R string

QAR R string

QCG R string

QCS R string

QHR R string

QPC R string

RES R string

QSF R string

SplitScreen 2nd Source 0: Off 1: DisplayLink 2: VGA 1 3: VGA 2 4: RGBHV 5: LitePort 6: HDMI 1 7: HDMI 2 8: Component 9: S-video 10: Composite

SplitScreen 2nd Source Location 0: Right 1: Bottom 2: Left 3: Top 4: PiP bottom right 5: PiP bottom left 6: PiP top left 7: PiP top right

SplitScreen 2nd Source Size 0: small; 1: medium; 2: large

SSL RW 0 10 Source Spe-

cific - See User Guide SplitScreen Matrix in Appendix

SSY RW 0 7 0 1

SSZ RW 0 2 2 1

Source Info - Sync Type ? = Query

Source Info - Vert Refresh ? = Query

Source Name (0-9) * = Factory Names

SplitScreen Enable 0: Disable; 1: Enable

QST R string

QVR R string

SNn RW string

SSC RW 0 1 0 1

SplitScreen Swap 1: enable

Sync Threshold STH RW 0 100 50 5

SSS W 1 1

System State 1: Off 2: Start Up 3: PIN 4: Search 7: Source Displayed 9: Blank Screen 12: Cool Down 13: Screen Save 17: Flash Update 18: Error

Take Snapshot 1: Capture

Test Pattern Select TPS RW 0 21 9 1

Tint TNT RW 0 100 50 1

Tracking MTS RW 0 100 50 1

USB Audio Enable 0: Disable; 1: Enable

Vertical Keystone DKV RW 0 100 50 1

SYS R 1 18 7 1

CAP W 1 1

USA RW 0 1 1 1

Dynamic Messaging (max: 53 characters)

Escape codes: \c - Initialize (Box mode) \d -Initialize (Ticker Bottom mode) \u - Initialize ticker top mode \e - Solid background \f - Transparent background \1 - Small font size \2 - Large font size \n - New line \a - Beep \tnnn - Timer \b - Start blink \s - Stop blink \” - Print a double quote character \’ - Print a single quote character \\ - Print a backslash character

PRN RW string n/a n/a

Vertical Pincushion VPC RW 0 100 50 1

Vertical Position VPS RW 0 100 50 1

Vertical Shift DSV RW 0 100 50 1

Video Standard

VSU RW 0 5 0 1 0: Auto 1: NTSC 2: PAL 5: SECAM

Vo l u m e VOL RW 0 100 50 1

White Peaking WPK RW 0 100 100 10

Example: PRN”This is line1\nThis is line 2”

Red Gain Green Gain Blue Gain

Red Offset Green Offset Blue Offset

RCG GCG BCG

RCO GCO BCG

RW 0 100 50 1

INDEX

Numerics

16x9 vs 4x3 14

Aspect Ratio 14 Audio In Computer connector 10 Audio Out connector 24

cable box 13 Computer In connector 9 Connecting

external speakers 24

connecting

computer 9

video device 13 Connecting a computer source 9 contacting InFocus 22 customer service contact information 22

Digital Zoom 28 Displaying an image 11 Dynamic Messaging 26

focus 12

HDTV 14 Help 33

image size matrix 47

keypad buttons 25 Keystone 19

laptop video port activation 11

LitePort

Using LitePort 38

menu usage 27 Monitor Out connector 10

Network

Using Network Functions 34

Optimizing computer image 25 Optimizing video images 26 Optional lenses 48

Position the projector 7 Power connector 9 power cord 9 Presentation features 25 Projected image size 47 Projector

keypad buttons 25 menus 27

projector

connecting computers 9 connecting video devices 13 positioning 7 setting up 7 shutting down 15 troubleshooting problems 15

remote control 23 RS-232 commands 53

Scheduled Tasks Page 36 Screen Aspect 14 Screen Save 15 shutting down the projector 15

speakers, connecting external 24 SplitScreen Compatibility 52 S-video connector 13

Troubleshooting Network Functions 37 TV tuner 13

USB 9 User Access and Security Page 37

Viewing a Slide Show 38 Volume button 24

warranty 22

zoom 12

InFocus IN5533L, IN5535L, IN5535, IN5533 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Introduction

Positioning the Projector

Ceiling Mount

Cable Management

Connecting power

Connecting a computer source

Optional computer connections

Displaying an image

Adjusting the image

Connecting a video device

Video device connections

Shutting down the projector

Troubleshooting your setup

Using the remote control

Using the audio

Using the keypad buttons

Optimizing computer images

Presentation features

Optimizing video images

Customizing the projector

Dynamic Messaging

Using the menus

Basic Picture menu

Advanced Picture menu

Setup menu

Status and Service menu

Help

Using Network Functions

Using LitePort

Maintenance

Cleaning the lens

Replacing the projection lamp

Replacing the lens

Using the security lock

Appendix

Projected image size

Optional lenses

SplitScreen Compatibility

Control commands

INDEX
