InFocus IN5318, IN5316HD, IN5314, IN5312 Product Sheet

in5300

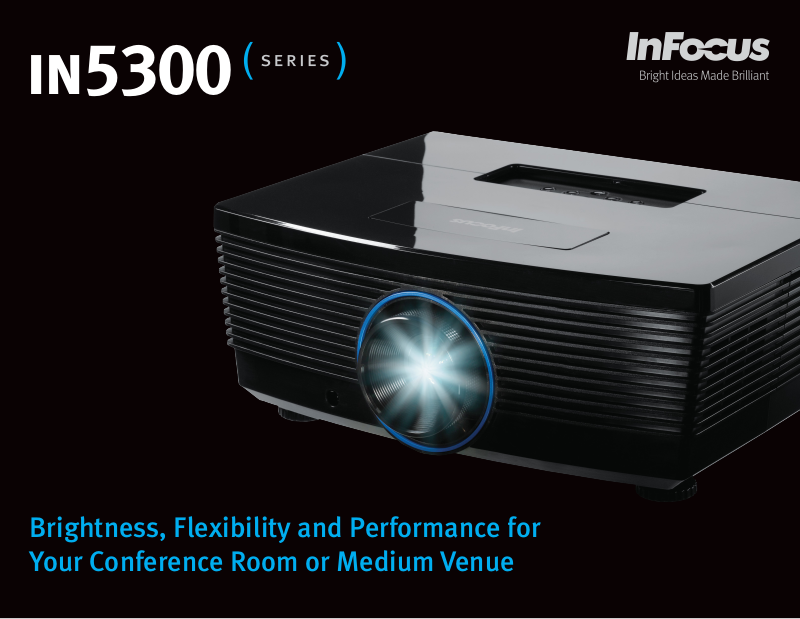

Brightness, Flexibility and Performance for
Your Conference Room or Medium Venue

in5300

Bring Clear Communications to Your Large
Conference Room or Classroom

The InFocus IN5300 Series DLP® projectors are professional display
devices for professional installations – and are also a great value.

Stunning image quality, brightness, and flexibility are all vital and
these large venue projectors have them covered and then some.
A broad range of connectivity, three lens options, and a small form
factor help these projectors fit into a wide variety of venues, such
as large classrooms or conference rooms and houses of worship.

InFocus has been in the display business for about as long as
there’s been such a thing – it’s all we do. Our experience shows in
the quality and flexibility of these projectors as well as in our
service and support.

in5312

XGA
(1024 x 768)
4500 lumens

in5314

WXGA
(1280 x 800)
4000 lumens

in5316HD

1080p
(1920 x 1080)
4000 lumens

in5318

WUXGA
(1920 x 1200)
4000 lumens

Flexibility for Perfect Image and Projector Placement

Why choose the IN5300 Series?

 Up to 4500 lumens display bright, clear images even in rooms

where lighting is still needed

 Full range of resolution options including 1080p and WUXGA
 Three lenses choices: standard lens, short throw, long throw
 DisplayPort on IN5316HD/IN5318 models is the most powerful

digital display connection to date

 HDMI and DVI-D digital inputs on IN5312/IN5314 models
 Lens shift to get your image in the perfect position
 24/7 rated; no filters to clean or replace
 3D capable (IN5312 and IN5314 only)
 5-year limited warranty, plus extended warranty options

Optional Lenses

The IN5300 Series projectors come with a standard zoom lens and offer 2 optional
lenses – short throw and long throw – to fit your unique space or application. It only
takes seconds to swap lenses – just pull one out and snap the other into place.

Lens Shift

Horizontal and vertical lens shift help you get the image exactly where it needs to
be – providing extra flexibility for projector placement.

Resolutions for Any Need

The widest range of resolutions we've ever offered in a product family. This includes
the latest 1080p resolution (1920 x 1080) that brings true high definition out of the
home and into the conference room or classroom.

24/7 Rated

The IN5300 DLP projectors are filter-free and rated for 24/7 fail-safe operation.
Plus, replacing a lamp is easy thanks to the ceiling-accessible lamp door.

Connectivity for Today’s Digital World

HDMI and DVI Digital Inputs

Few projectors offer HDMI and DVI-D digital inputs. The IN5312 and IN5314
provide both to suit the needs of its users now and in the future.

DisplayPort Technology

The IN5316HD and IN5318 up the ante with DisplayPort, the most powerful display
connection to date. It's compatible with a slew of current and emerging connection
types, such as Thunderbolt.

RBGHV/YPbPr BNC Inputs

The IN5300 Series of projectors are compatible with the leading professional
switching and signal processing equipment from leading manufacturers like
EXTRON, KRAMER, IN-LINE, and more.

Control It Your Way

Use the RS232 port to add the IN5300 to your room control system such as
Crestron, AMX, SPcontrols, and others. Or, use the RJ45 port to interface with your
network control system such as Crestnet, AMX Device Discovery, and InFocus
ProjectorNet.

Assignable Audio

Pick which audio input/connector you would like to use with each display input.
Only available on IN5316HD and IN5318 models.

Powerful and Efficient

High and Higher Brightness

The 4000 lumens of the IN5314, IN5316HD and IN5318 display crisp, detailed
images even in bright rooms. But if even more brightness is needed, you can bump
it up to 4500 lumens with the IN5312. Plus, their single-lamp design makes it
economical and easy to maintain.

IN5312/IN5314 Back Panel

Comprehensive Connectivity Options

HDMI 1.3 DVI-D (IN5312/IN5314 only)
VGA x 2 DisplayPort (IN5316HD/IN5318 only)
S-Video 5 BNC (RGBHV/YPbPr)
Component Video Composite Video

3D Capable

The IN5312 and IN5314 are the first InFocus installation projectors to be 3D
capable. Display 3D content – such as visualizations and virtual walkthroughs in
medicine, architecture and engineering – created in the top emerging 3D standards.

Control and Monitor Over Your Network

Network administrators can remotely access and control the projector over
standard LAN/WAN, including scheduling start-up and shut-down times to save
energy and lamp life.

Wireless Ready

Free yourself from cables and speed your set-up
time with the optional InFocus LiteShow III
wireless adapter. Switch presenters in seconds
and transmit data, audio, and video over
a 300-foot (91m) range.

LiteShow III

Specifications

in5312

Native Resolution
Display Technology
Brightness
Lamp Life**
Lamp Power
Contrast Ratio
Lens Type
Lens Shift - Vertical

- Horizontal
Standard Lens - Throw Ratio

- Zoom Ratio
Short Throw Lens - Throw Ratio

- Zoom Ratio
Long Throw Lens - Throw Ratio

- Zoom Ratio
Aspect Ratio (Native)
Aspect Ratio (Supported)
Synch - Horizontal Scan Freq

- Vertical Scan Freq
Connections (Input)

Connections (Output)
Control
Network
Audio
Video Compatibility
Audible Noise (Eco/Normal)
3D Capable
Computer Compatibility
Number of Colors
Product Weight
Product Dimensions
Shipping Weight
Shipping Dimensions
Maximum Altitude
Operating Temperature
Projector Warranty
Lamp Warranty
Accessories Warranty
Standard Accessories
Menu Languages

Approvals

* Product speci fications, terms , and offerings are subject to ch ange at any time without notice.

** Actual lam p life may vary b ased on the am bient environmen t and projector u sage. Conditions th at may affect lamp life include temperature, alt itude, and rapi dly switching the projector on an d off.

XGA (1024 x 768)

.7” DC3 DLP

4500 lumens

-40% ~ 0%

1.6 ~ 2.0

0.8

VGA x 2, HDMI x 1, DVI-D x 1, Composite video x 1,

S-Video x 1, Component RCA x 3, RGBHV 5 BNC x 1,

Mini Jack x 3, RCA R&L x 2

Projector keypad, IR remote, RS232, RJ45, USB Type B for mouse, Wired remote (optional)

Power Cord, RGB Cable, A/V cable, Safety Instructions, User Manual, Remote Control, Lens Cap

17 languages (English, French, German, Italian, Korean, Norwegian, Portuguese, Russian, Simplified Chinese,

*

in5314 in5318in5316HD

WXGA (1280 x 800)

.65” DC2 DLP

2000 hours Eco Mode (1500 hours Normal)

Manual zoom, focus and shift

1.62 ~ 2.03

0.81

2.02 ~ 3.03 1.93 ~ 2.892.0 ~ 3.0

16:10 16:9 16:104:3

4:3, 16:10, 16:9, Auto

15 - 106 kHz

Monitor out, Audio out

10 BASE-T, 100 BASE-TX

SDTV (NTSC, PAL, SECAM, 480i, 576i), ED/HDTV (480p, 576p, 720p, 1080i, 1080p)

31 dB / 34 dB

Yes No

PC, Mac, Linux

16.7 Million

10.56 lbs / 4.8 kg

16.9 x 13.3 x 6.9 in / 430 x 338 x 175 mm
18 lbs / 8.2 kg

22 x 16.5 x 7.8 in / 560 x 420 x 197 mm

7500 feet / 2286 meters

41 - 95° F / 5 - 35° C

5 years (extended warranties available)

Spanish, Traditional Chinese, Swedish, Dutch, Polish, Turkish, Danish and Finnish)

UL and c-UL (US/Canada), FCC (US/Canada), CE (Europe)

1080p (1920 x 1080)

.65" DC3 DLP

4000 lumens

330 W UHP

2000:1

-35% ~ 5%

+5%

1.25:1

Fixed

1.6x

50 - 120 Hz

VGA x 2, HDMI x 1, DisplayPort x 1, Composite Video x 1,

S-Video x 1, Component RCA x 3, RGBHV 5 BNC x 1

3W X2

6 months

90 days

WUXGA (1920 x 1200)

1.54 ~ 1.93

0.77

.67" DC3 DMD

Optional Accessories

Replacement Lamp (SP-LAMP-073)
Short Throw Fixed Lens (LENS-060)
Long Throw Zoom Lens (LENS-061)
Universal Ceiling Mount (PRJ-MNT-UNIV)
LiteShow III Wireless Adapter (INLITESHOW3)
Mount for LiteShow (PRJ-MNT-LS3)
Cables and adapters
Screens
Extended warranties

For more information, please visit:
www.infocus.com/accessories

Warranty

The IN5300 Series projectors come standard with a 5-year
limited factory warranty (including parts
a 6-month limited lamp replacement warranty. Extended
product and lamp warranty programs are also available.

For more information, please visit:
www.infocus.com/support/warranty

13.3 in
338 mm

6.9 in
175 mm

16.9 in

430 mm

©2011 InFocus Corporation. All rights reserved. Specifications are subject to change without further notice.

InFocus and InFocus Bright Ideas Made Brilliant are either trademarks or registered trademarks of

InFocus Corporation in the United States and other countries. DLP, the DLP logo, and the DLP medallion

are trademarks of Texas Instruments. All trademarks are used with permission or are for identification purposes

only and are the property of their respective companies. 1Excludes power supply, fans, color wheel and light tunnel

which are covered for two (2) years. 2Labor is covered for two (2) years from date of proof of purchase.

InFocus_IN5300_NewSeries_4Models_DS_EN_10MAY12. Part Number: MMINFOCUS-0204
