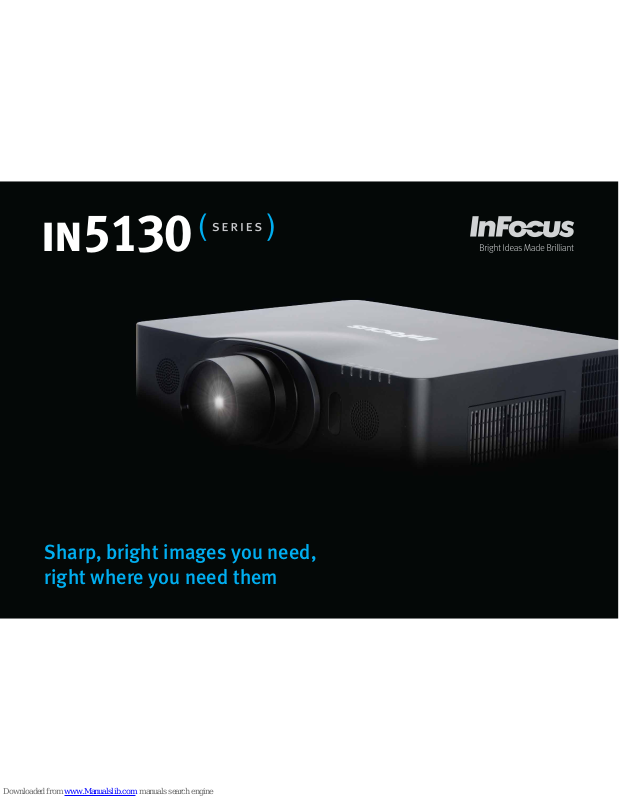

Page 1
Sharp, bright images you need,
right where you need them
in5130
Page 2
The InFocus IN5130 Series of 3LCD projectors are easy to install,
easy to use and provide stunning performance for a great price.
Three resolution choices, high brightness, four optional lenses,
and motorised lens shift, focus and zoom are all packed into
this projector’s slim frame. Plus, you get a wealth of connectivity
options and great features such as motorised lens shift, lens
shift memory, and instant stack, which makes it easy to either
double the brightness or add a fail-safe backup.
Large venue LCD projectors with high
performance, versatility and value
Why choose the IN5130 Series?
¡ Up to 5000 lumens for sharp, seamless images in high
ambient light
¡ Full range of resolutions including WUXGA
¡ Four optional lenses to fine-tune projection
¡ Comprehensive connectivity and control
¡ Latest inorganic LCD technology for years of worry-free use
without image degradation
¡ SplitScreen (except IN5132) and Instant Stack features
¡ Full motorised lens shift and focus/zoom
¡ Up to 4000-hour lamp and 15,000-hour filter for extra long life
Captivate Audiences with Powerful Images
Up to 5000 Lumens Bright
The IN5130 projectors send sharp, seamless, film-like images to screens over long
distances or in high ambient light. You can keep the lights on to encourage
interaction and collaboration and make note-taking easy. And with a lamp life of
up to 4000 hours, you won’t need to see the inside of the projector for a long time.
Durable Inorganic Optics
The IN5130 Series’ long-life inorganic LCDs provide accurate colours and a depth
of greyscale details that brings life to every image you project. Plus the inorganic
layer greatly enhances reliability.
Performance High Resolution
The IN5130 Series provides a full range of native XGA, WXGA and WUXGA
resolution. High-performance WUXGA means you’ll see nearly any source as it was
meant to be seen without scaling or manual adjustments, including widescreen
notebooks and HD 1080p video sources.
DICOM Simulation Mode
To display X-rays and medical images, the IN5130 projectors provide DICOM
(Digital Imaging and Communications in Medicine) mode. By outputting grayscale
with greater precision, DICOM makes the IN5130 ideal for medical training and
education.
in5130
XGA
(1024 x 768)
5000 lumens
1.5-2.2 lens included
in5132
WUXGA
(1920 x 1200)
4200 lumens
1.5-3.0 lens included
in5135
WXGA
(1280 x 800)
4000 lumens
1.5-2.2 lens included
in5134
Page 3
Achieve the Perfect Image and Projector Placement
Four Optional Lenses
Enjoy additional flexibility in projector placement from small conference rooms to
large auditoriums with the IN5130 projectors’ four optional lenses. From
ultra-short throw to ultra-long throw, changing lenses is fast and easy.
Lens Shift Memory
Store lens shift settings to eliminate delays when alternating between sources
with different aspect ratios or when switching screens such as in an auditorium
with multiple viewing configurations.
Wide Standard Throw Ratio
The IN5135 projector’s standard lens (LENS-071) with 1.5–3.0 throw ratio
provides flexible projector placement and lets you compensate for
distance-from-screen miscalculations during installation.
Instant Stack
Easily stack, align and control two IN5130 projectors at once using the Instant
Stack feature. Double the luminosity for an even brighter image. Or let the
projectors work separately for 24/7 fail-safe operation—if one fails, the other will
automatically take over.
Customise Your Presentation with Projection Options
Network Projection
Connect and operate your IN5130 projector remotely over a network connection.
Let presenters from around the world deliver from any location with networked
access, from conference rooms to home offices.
SplitScreen Projection
The IN5134 and IN5135 can project images from two sources at the same time and
eliminate the need for multiple displays when video conferencing, using white
boards or collaborating.
PC-Less Presentation
Display presentations on the IN5130 Series directly from a USB drive.
No PC needed.
Connect, Control and Manage with Digital Ease
Crestron and AMX Ready
The IN5130 projectors are Crestron RoomView Connected to instantly integrate
with Crestron systems with no need for a control processor or custom
programming. They also incorporate AMX Device Discovery, which lets an AMX
controller dynamically detect the projector and automatically configure it with the
correct driver for remote control.
Wireless Ready
Plug in our optional wireless dongle into the back of the projector to wirelessly
connect to your network. Display presentations wirelessly and even monitor and
control over your network without cables.
ProjectorNet 3.1 Software
Manage and support your IN5130 projector remotely from a single computer via
your existing network. Schedule remote maintenance, monitor lamp hours and
projector status, and set ON/OFF times to save on administrative and maintenance
costs.
Comprehensive Connectivity
HDMI 1.4 x 2 Component Video (RCA)
VGA Composite Video
USB Type A x 2 3.5mm stereo audio in x 2
5BNC RCA stereo audio in and out
S-Video RJ45/LAN
RS232C
Page 4
www.infocus.com
InFocus Corporate Headquarters
13190 SW 68th Parkway
Portland, Oregon 97223-8368, USA
Phone: (1) 503-207-4700
Toll Free: (1) 877-388-8385
Fax: (1) 503-207-4707
Optional Accessories
Replacement Lamp (SP-LAMP-080)
Lenses (see spec table above)
Universal Ceiling Mount (PRJ-MNT-INST)
Wireless USB Module (SP-DONGLE-USB)
Shipping Case (CA-ATA-INST)
Extended warranties
(PROJ-EW1YR-I, PROJ-EW2YR-I)
Cables and adapters
Screens
For more information, please visit:
www.infocus.com/accessories
Specifications
*
Native Resolution
Maximum Resolution
Display Technology
Brightness
Lamp Life
**
Lamp Power
Contrast Ratio
Standard Lens - Throw Ratio
- Zoom Ratio
Lens Shift (of Standard Lens)
- Vertical
- Horizontal
Aspect Ratio (Native)
Aspect Ratio (Supported)
Image Width
Keystone (Auto)
Synch - Horizontal Scan Freq
- Vertical Scan Freq
Connections (Input)
Connections (Output)
Control
Audio
Video Compatibility
Audible Noise (Typical)
Computer Compatibility
Number of Colours
Filter Life
SplitScreen
Other Features
Security Features
Product Dimensions -
W×D×H
Product Weight
Shipping Dimensions -
W×D×H
Shipping Weight
Maximum Altitude
Operating Temperature
Remote Control
Power Consumption
Warranty
Standard Accessories
Menu Languages
Approvals
XGA (1024 x 768)
5000 lumens (4000 Eco Mode)
+12.5%, -50%
4:3
0.6 – 12.2 m
No
1.5 – 2.2
1.5x
WXGA (1280 x 800)
4000 lumens (3200 Eco Mode)
WUXGA (1920 x 1200)
3LCD
2500 hours (4000 hours Eco Mode)
245 w (170 w Eco Mode)
3000:1
+25%, -50%
± 10%
4:3. 16:10, 16:9, Auto
± 35° vertical / ± 35° horizontal
31.5 - 106kHz
56 - 120Hz
HDMI 1.4 x 2, VGA, BNC, USB Type A x 2, USB Type B, Composite, S-Video, Component, RJ45/LAN,
3.5 mm stereo input x 2, RCA stereo input
Monitor out (VGA), RCA stereo audio out, Wired remote output
RS232C, RJ45/LAN, Wired remote, AMX Device Discovery, Crestron RoomView Connected
16 W (8 W x 2)
Standard (NTSC, NYSC 4.43, PAL/M/N, SECAM), SD (480i, 480p, 576i), HD (720p, 1080i, 1080p)
35 dB Normal Mode (29 dB Eco Mode)
PC, Mac
1.07 billion
15,000 hours
Filter Timer, PJImage, PJMessenger, Active Iris, PerfectFit, Lens Shift Memory, DICOM Mode,
PJ-Link, Shutter, Installation Template Screen
Kensington Slot, Security Bar, User PIN
498 x 476 x 147 mm
683 x 552 x 229 mm
12.8 kg
3,068 m
0 – 45° C
Full Function
375W at 120V / 355W at 240 V
3-year product warranty, 1-year lamp warranty, 90-day accessories warranty
Standard lens, Lens cover, VGA cable, Remote control (no batteries), Adapter cover, Power cord,
User Manual, Safety Card
English, French, German, Spanish, Italian, Norwegian, Dutch, Japanese, Simplified Chinese,
Traditional Chinese, Korean, Swedish, Russian, Finnish, Polish, Turkish, Portuguese
UL, c-UL, FCC (US/Canada), CE (Europe), C-Tick (Australia)
WUXGA (1920 x 1200)
4200 lumens (3360 Eco Mode)
1.5 – 3.0
2.0x
+11.1%, -50%
8.4 kg 8.6 kg
in5132 in5134 in5135
* Product specifications, terms, and offerings are subject to change at any time without notice.
** Actual lamp life may vary based on the ambient environment and projector usage. Conditions that may affect lamp life include temperature, altitude, and rapidly switching the projector on and off.
©2013 InFocus Corporation. All rights reserved. Specifications are subject to change without further notice. InFocus and InFocus Bright Ideas Made Brilliant are either trademarks or registered trademarks of InFocus
Corporation in the United States and other countries. All trademarks are used with permission or are for identification purposes only and are the property of their respective companies.
InFocus_IN5130_Series_DS_EU_25FEB13. Part Number: MMINFOCUS-0204
16:10
0.6 – 12.9 m
Yes
Optional Lenses
Ultra Short
Throw Lens
Standard Lens
(included with
IN5132/IN5134)
Standard Lens
(included with
IN5135)
Long Throw
Lens
Ultra Long
Throw Lens
Part #
LENS-069
LENS-070
LENS-071
LENS-072
LENS-073
F-S top
F1.8 (f=13mm)
F1.6~2.0
(f=19~29mm)
F1.6~2.9
(f=24~48mm)
F1.7~2.0
(f=46~79mm)
F1.7~2.0
(f=77~133mm)
Zoom
Ratio
Fixed
x 1.5
x 2.0
x 1.7
x 1.7
Throw
Ratio
IN5132: 1.0
IN5134: 1.0
IN5135: 0.8
1.5~2.2
1.5~3.0
2.8~4.9
4.9~8.3
Lens
Shift (H)
Fixed
centre
±10%
±10%
±10%
±10%
Lens
Shift (V)
Fixed
centre
IN5132: +12.5%, -50%
IN5134: +25%, -50%
IN5135: +0%, -50%
IN5132: +12.5%, -50%
IN5134: +25%, -50%
IN5135: +11.1%, -50%
IN5132: +12.5%, -50%
IN5134: +25%, -50%
IN5135: +0%, -50%
IN5132: +12.5%, -50%
IN5134: +25%, -50%
IN5135: +0%, -50%
Throw
Distance
0.7~12.4m
Wide: 0.9~18.2m
Tele: 1.4~27.5m
Wide: 1.2~23.2m
Tele: 2.3~46.0m
Wide: 2.2~43.8m
Tele: 3.7~75.0m
Wide: 3.9~72.9m
Tele: 6.5~125.3m
