IN5102/IN5104/IN5106
Regulatory models W50, W55
User’s Guide
Declaration of Conformity
Manufacturer: InFocus Corporation, 27500 SW Parkway Ave. Wilsonville, Oregon
97070 USA
European Office: Louis Armstrongweg 110, 1311 RL Almere, The Netherlands
We declare under our sole responsibility that this projector conform to the following
directives and norms:
EMC Directive 2004/108/EC
EMC: EN 55022
EN 55024
EN 61000-3-2
EN 61000-3-3
Low Voltage Directive 2006/95/EC
Safety: IEC 60950-1: 1
st
Edition
Trademarks
Apple, Macintosh, and PowerBook are trademarks or registered trademarks of Apple
Computer, Inc. IBM is a trademark or registered trademark of International Business
Machines, Inc. Microsoft, PowerPoint, and Windows are trademarks or registered
trademarks of Microsoft Corporation. Adobe and Acrobat are trademarks or
registered trademarks of Adobe Systems Incorporated. HDMI, the HDMI logo and
High-Definition Multimedia Interface are trademarks or registered trademarks of
HDMI Licensing LLC. InFocus, In Focus, and INFOCUS (stylized) are either
registered trademarks or trademarks of InFocus Corporation in the United States and
other countries.
FCC Warning
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his
own expense. This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interferences received,
including interference that may cause undesired operation.
Changes or modifications not expressly approved by InFocus Corporation may void
authority to operate the equipment.
EN 55022 Warning
This is a Class A product. In a domestic environment it may cause radio interference,
in which case the user may be required to take adequate measures. The typical use is
in a conference room, meeting room or auditorium.
Canada
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.
Agency Approvals
UL, CUL
Other specific Country Approvals may apply, see please product certification label.
InFocus reserves the right to alter product offerings and specifications at any time
without notice.
This document applies to model W50: IN5106, C500, IN5102, C447.
Input ratings: 100-120/220-240Vac, 5.0/2.1A, 50/60Hz
Battery Safety Information
CAUTION: Risk of explosion if the battery in this projector is replaced with the
incorrect type of battery. See page 35 for battery replacement instructions.
Remote Control Warning
Laser radiation class II product; wavelength 650nm; maximum output 1mW. Remote
control complies with applicable requirements of 21 CFR 1040.10 and 1040.11. Remote
control complies with applicable requirements of EN 60825: 1994+A11+A2.
1
Do not look into laser beam emitted from the front of the remote control
Do not look into laser beam emitted from the front of the remote control

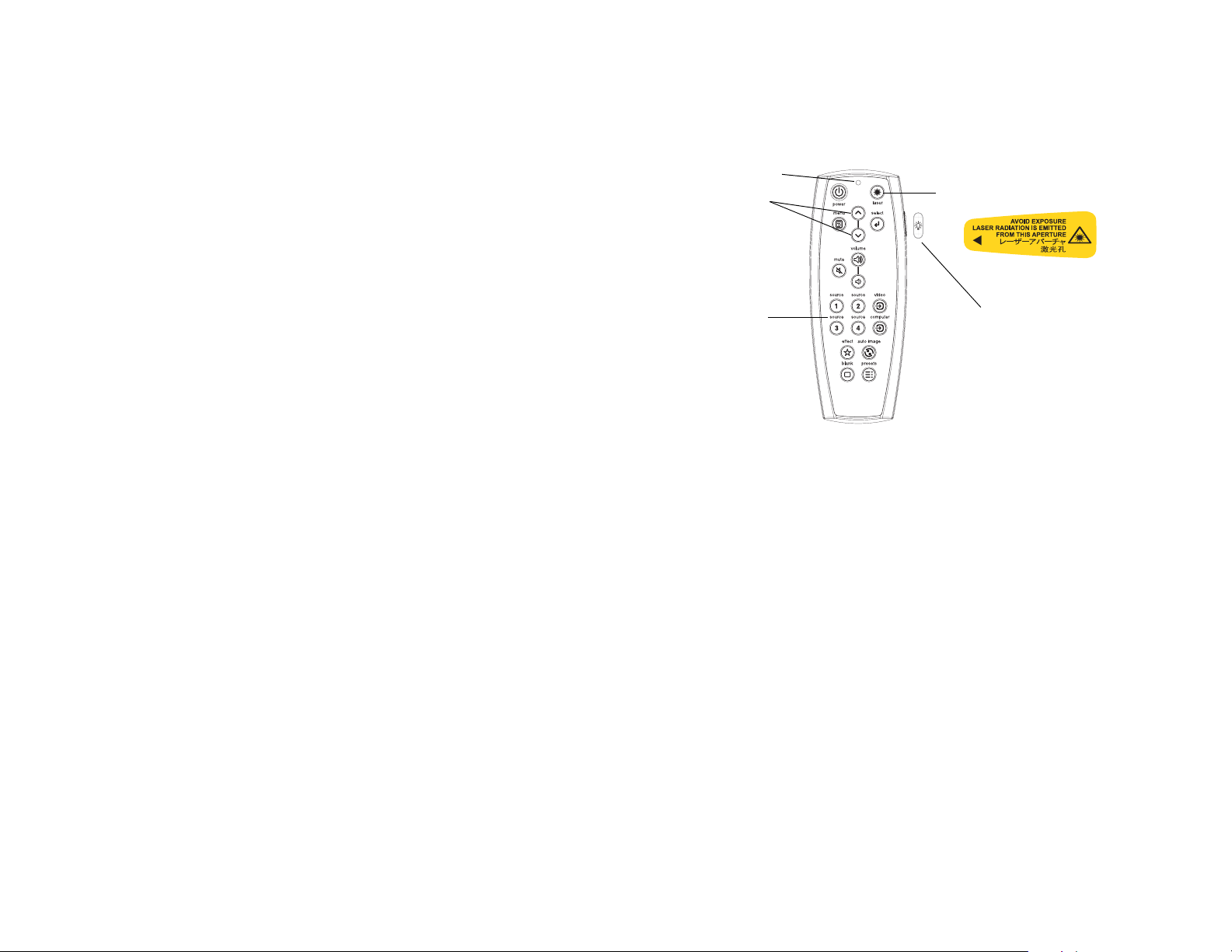

Location of laser beam warning labels on remote
OR this label
Location of laser beam warning labels on remote
Location of laser beam warning labels on remote
OR this label
Location of laser beam warning labels on remote
2
Table of Contents
Introduction 5
Included Items 5
Positioning the projector 7
Connecting a computer 8
Required computer connections 8
Displaying a computer image 10
Adjusting the image 11
Connecting a video device 12
Displaying a video image 13
Shutting down the projector 15
Troubleshooting your setup 15
Using the keypad buttons 22
Using the remote control 23
Using the audio 24
Optimizing computer images 25
Presentation features 25
Optimizing video images 26
Customizing the projector 26
Using the menus 27
Picture menu 28
Settings menu 31
For complete details on connecting and operating the projector, refer to this
User’s Guide. Electronic versions of this User’s Guide in multiple languages
are available on our website.
The website also has technical specifications (an interactive image size calculator, laptop activation commands, connector pin outs, a glossary, the
product data sheet), a web store to buy accessories, and a page for online
registration. See the inside of the back cover for a list of all relevant web
addresses.
Maintenance 35
Cleaning the lens 35
Replacing the clock batteries 35
Replacing the projection lamp 36
Cleaning the dust filter 38
Using the security lock 38
Appendix 39
Projected image size 39
RS-232 commands 42
3
Important Operating Considerations for Safety
• Place the projector in a horizontal position no greater than 8 degrees off
axis.
• Locate the projector in a well-ventilated area without any obstructions
to intake or exhaust vents. Do not place the projector on a tablecloth or
other soft covering that may block the vents.
• Locate the projector at least 4' (1.2 m) away from any heating or cooling
vents.
• Use only approved ceiling mounts.
•
War ning: To prevent eye injury if the projector is ceiling mounted,
wear protective eyewear before opening lamp door. A warning sticker
is included with the user documentation. Place this sticker on the lamp
door if the projector is mounted on the ceiling.
• Only genuine InFocus lamps are tested for use in this projector. InFocus
is not liable for the performance, safety or certification of any other
lamps. The use of other lamps violates the projector warranty and
voids all certification marks on this projector.
• Use only the power cord provided. A surge-protected power strip is
recommended.
• Refer to this manual for proper startup and shutdown procedures.
• Hg – Lamp contains mercury. Manage in accordance with local
disposal laws. See www.lamprecycle.org.
• In the unlikely event of a lamp rupture, particles may exit through the
projector vents. When the projector is turned on, keep people, food,
and drinks out of the "keep out" area under and around the projector, as
indicated by the "X" areas.
8
’
/2.4m
’
5
2’ / 0.6 m
/1.5m
3’ / 1 m
Follow these instructions to help ensure image quality and lamp life over
the life of the projector. Failure to follow these instructions may affect the
warranty. For complete details of the warranty, see the Warranty booklet.
4
Introduction
Projector components and features: front
Your new multimedia projector provides three computer, three video, and
four audio inputs, one audio output, and RS-232 and Network control. It
has XGA 1024x768 resolution. Optional user-changeable short, fixed short,
long and ultra long throw lenses make this a flexible product suitable for
many different uses. The projector is easy to connect, easy to use, and easy
to maintain.
Product specifications
To read the latest specifications on your multimedia projector, be sure to
visit our website. Web address information is located on the back inside
cover of this User’s Guide.
Online Registration
Register your projector on our website to receive product updates,
announcements, and registration incentives. See the inside back cover for
the web address.
Included Items
projector
lens cap*
remote
zoom/focus/offset door
heat vent
Projector components and features: back
remote
control
receiver
air intake
vent
elevator foot release
leveling foot
lamp door
power cable
A/V cable
documentation
*the lens cap tether can attach the lens cap to the projector if desired.
VESA computer cable
5
connectors
power switch
power plug
Connector Panel
The projector provides three computer and three video connection options:
• one VESA computer
• one HDMI™ (High Definition Multimedia Interface)*
• one component BNC (G/Y, B/CB/PB, R/CR/PR, H, V)
• one component RCA video (Pr, Pb, Y)
• one S-video
• one composite RCA video
remote
control
receiver
(IR)
audio in 1,2
monitor
component video
VESA computer
BNC
RJ-45
HDMI
USB
lock
RS232
serial control
The projector provides computer and video connectors for audio support:
• two composite RCA stereo audio (L, R)
• one audio out
• two audio ins
The projector also provides the following connectors:
• one wired remote
• one monitor out
• RS-232 serial connector (for serial control)
• RJ-45 connector (for networked control)
The RS-232 Command Line Interface (CLI) specifications and commands
are available in the Appendix and on our website. See the back inside cover
of this User’s Guide for website information.
* HDMI is an industry standard, uncompressed, all-digital audio/video
interface that connects between sources, such as set-top boxes, DVD players, and receivers and your projector. To take advantage of HDMI 1.3 you
must have a 1.3-compatible source. The HDMI, because it is a digital signal,
yields the highest quality image. It is common for these signals to be
encrypted with HDCP (high-bandwidth digital-content protection). Your
new projector ships standard with decryption codes so you can enjoy these
high quality, all digital images.
speaker
s-video
composite
video
audio in 3,4
external
speakers
(audio out)
power connector and switch
wired remote
6
Positioning the projector
To determine where to position the projector, consider the size and shape of
your screen, the location of your power outlets, and the distance between
the projector and the rest of your equipment. Here are some general guidelines:
• Position the projector on a flat surface at a right angle to the screen. The
projector (with the standard lens) must be at least 3 feet (0.9m) from the
projection screen.
• Position the projector within 10 feet (3m) of your power source and
within 6 feet (1.8m) of your video device (unless you purchase extension cables). To ensure adequate cable access, do not place the projector
within 6 inches (.15m) of a wall or other object.
• If you are installing the projector on the ceiling, refer to the installation
guide that comes with the Ceiling Mount Kit for more information. To
turn the image upside down, see “Ceiling” on page 31. We recommends using an authorized ceiling mount. The Ceiling Mount Kit is
sold separately; visit our website for more information.
• Position the projector the desired distance from the screen. The distance
from the lens of the projector to the screen, the zoom setting, and the
video format determine the size of the projected image. For information
about image sizes at different distances, see “Projected image size” on
page 39.
• For the standard lens that comes with the projector, the image exits at a
given angle. However, the lens shift feature makes the image offset
variable. The image offset is 90% at a 9:1 ratio when the projector is in
4:3 mode (default mode). This means that if you have an image 10’
high, the bottom of the image will be 1’ below the center of the lens.
• The image offset is 50% when the lens shift is at a 1:1 ratio. This means
that if you have an image 10’ high, the bottom of the image will be 5’
below the center of the lens.
• For information about the optional lenses image offsets, see “Projected
image size” on page 39.
10 ft high image
9:1
bottom of image
10% below
lens center
1:1
bottom of image
50% below
lens center
Projection angle in 4:3 mode (default)
9:1
1:1
lens center
7
Connecting a computer
Required computer connections
Connect one end of the VESA computer cable to the Computer 2 connector
on the projector. Connect the other end to the video port on your computer.
If you are using a desktop computer, you first need to disconnect the monitor cable from the computer’s video port.
Connect the black power cable to the connector on the back of the projector
and to your electrical outlet.
NOTE: Always use the power cable that shipped with the projector.
Optional computer connections
You can also connect to your computer using optional BNC or HDMI cables.
Connect the BNC connectors on the BNC cable to the appropriate Com-
puter 3 connectors on the projector. Connect the other end to the video port
on your computer. If you are using a desktop computer, you first need to
disconnect the monitor cable from the computer’s video port.
Or, connect the HDMI cable to the Computer 1 connector.
connect computer cable
connect power cable
connect BNC cable
connect HDMI cable
To have sound with your presentation, connect the audio cable to your computer and to the corresponding computer Audio In connector on the projector. You can assign a particular source to a particular audio in connector, see
page 31.
connect audio cable
8
If you are using a desktop computer and want to see the image on your
computer screen as well as on the projection screen, plug the monitor cable
to the Monitor out connector on the projector.
connect monitor cable
You can control the projector from an LCD control panel, touch screen, or
other control device or computer by connecting an RS-232 cable to the projector’s Serial Control connector. Specific RS-232 commands can be found
in the Service and Support section of our website and in the Appendix.
The projector can be managed by networking software through its Network
(RJ-45) connector. Detailed instructions on this feature can be found on our
website.
connect RS-232 cable
connect CAT-5 cable
Network
9
Displaying a computer image
Remove the lens cap.
Press the power switch on the back of the projector to the on (I) position.
The Power light on the Status Indicator Panel (page 15) lights green.
Press the Power button on the top of the projector or the remote.
The Power light blinks green and the fans start to run. When the lamp
comes on, the startup screen is displayed and the light is steady green. It can
take a minute for the image to achieve full brightness.
? No startup screen? Get help on page 16.
Turn on your computer.
The computer’s image should appear on the projection screen. If it doesn’t,
press the Source button on the keypad or remote.
remove lens cap
I
O
turn on computer
press Power buttonpress Power switch
2
1
Make sure your laptop’s external video port is active.
Many laptops do not automatically turn on their external video port when a
projector is connected. Usually a key combination like FN + F5 is used to
turn the external display on and off. Refer to your computer’s documentation to learn your computer’s key combination.
? No computer image? Get help on page 16.
activate laptop’s external port
10
Adjusting the image
Adjust the height of the projector, if necessary, by pressing the release buttons on each side of the projector’s front to extend the elevator feet.
adjust height
release
button
elevator
foot
release
button
elevator
foot
Position the projector the desired distance from the screen at a 90 degree
angle (perpendicular) to the screen.
See page 39 for a table listing screen sizes and distances.
Adjust the zoom or focus by rotating the Zoom or Focus rings inside the
lens door until the desired image size and focus are produced.
If the image is not on the screen or viewing area, adjust it by using the lens
shift dials inside the lens door.
Use the right dial to shift the lens left or right. Use the left dial to shift the
lens up or down.
Adjust the Contrast or Brightness in the Picture menu.
See page 27 for help with the menus.
adjust distance
adjust zoom and focus
adjust lens shift
adjust Contrast or Brightness
contrast
brightness
11
Connecting a video device
Standard video connections
Plug the audio/video (A/V) cable’s yellow connector into the video-out
connector on the video device. Plug the other yellow connector into the yellow Video 3 connector on the projector. Plug a white connector into the left
audio out connector on the video device and plug a red connector into the
right audio out connector on the video device. Plug the remaining white
connector into a left audio in connector on the projector, and plug the red
connector into a right audio in connector on the projector. You can assign a
particular source to a particular audio in connector, see page 31.
Connect the black power cable to the connector on the back of the projector
and to your electrical outlet.
NOTE: Always use the power cable that shipped with the projector.
Optional video connections
If the video device uses a round, four-prong S-video connector, plug an
S-video cable (sold separately) into the S-video connector on the video
device and into the Video 2 connector on the projector. Use the A/V cable’s
audio connectors as described directly above (the yellow connectors on the
A/V cable are not used).
If the video device uses component cable connectors (sold separately), plug
the cable’s green connectors into the green component-out connector on the
video device and into the Video 1 green component connector (labeled “Y”)
on the projector. Plug the component cable’s blue connectors into the blue
component-out connector on the video device and into the blue component
connector (labeled “Cb/Pb”) on the projector. Plug the component cable’s
red connectors into the red component-out connector on the video device
and into the red component connector (labeled “Cr/Pr”) on the projector.
Use the A/V cable’s audio connectors as described above (the yellow connectors on the A/V cable are not used). NOTE: The component connectors
can be used for HDTV sources (480i, 480p, 720p, 576i and 1080i formats).
connect A/V cable
connect power cable
connect S-video and video cables
connect component cables
and video cables
12
Displaying a video image
Remove the lens cap.
Press the power switch on the back of the projector to the on (I) position.
The Power light on the Status Indicator Panel (page 15) lights green.
Press the Power button on the top of the projector or the remote.
The Power light blinks green and the fans start to run. When the lamp
comes on, the startup screen is displayed and the light is steady green. It can
take a minute for the image to achieve full brightness.
? No startup screen? Get help on page 16.
Plug in and turn on the video device.
The video device’s image should appear on the projection screen. If it
doesn’t, press the Source button on the keypad or remote.
remove lens cap
press Power switch
I
O
turn on video device
press Power button
2
1
Adjust the height of the projector, if necessary, by pressing the release buttons on each side of the projector’s front to extend the elevator feet. Rotate
the feet, if necessary, to level the projector.
Position the projector the desired distance from the screen at a 90 degree
angle to the screen. See page 39 for a table listing screen sizes and distances
to the screen.
13
adjust height
adjust distance
release
button
elevator
foot
release
button
elevator
foot
Adjust the zoom or focus by rotating the Zoom or Focus rings inside the
lens door until the desired image size and focus are produced.
adjust Zoom and Focus
If the image is not on the screen or viewing area, adjust it by using the lens
shift dials inside the lens door.
Use the right dial to shift the lens left or right. Use the left dial to shift the
lens up or down.
Adjust the volume in the Audio menu.
Adjust the Contrast, Brightness, Color, or Tint in the Picture menu.
See page 27 for help with the menus.
adjust Lens Shift
adjust volume
adjust Picture menu
14
Shutting down the projector
The projector automatically blanks the screen after no active source is
detected for 5 minutes. This blank screen helps preserve the life of the projector. The image returns when an active source is detected or a remote or
keypad button is pressed.
Screen Save
You can make the blank screen appear after five minutes by turning on
Screen Save in the Settings>System menu. See page 32.
Power Save
The projector also has a Power Save feature that automatically turns the
lamp off after no signals are detected for 20 minutes. After 10 additional
minutes with no signal, the projector powers down. If an active signal is
received before the projector powers down, the image is displayed. You
must press the Power button to display an image after 30 minutes have
passed. When Power Save is enabled, Screen Save is disabled. See page 32.
Turning off the projector
To turn off the projector, press the power button and verify that you want to
turn the projector off by pressing the power button again within 3 seconds.
You can cancel the shutdown by not pressing the power button a second
time. The lamp turns off and the Power light blinks green for over 1 minute
while the fans continue to run to cool the lamp. When the lamp has cooled,
the Power light is solid green and the fans stop. Press the power switch on
the back of the projector and unplug the power cable to completely power
off the projector.
Troubleshooting your setup
If your image appears correctly on the screen, skip to the next section. If it
does not, troubleshoot the setup.
The Status Indicator Panel on top of the projector indicates the state of the
projector and can help you troubleshoot.
Table 1: Status indicator light behavior and meaning
Status Indicator Panel icons Meaning
Power, solid green The power button has been pressed and
the software has initialized or the projector has been powered off.
Power, blinking green The power button has been pressed and
the software is initializing, or the projector is powering down and the fans are
running to cool the lamp.
Thermometer The projector is too hot. Make sure the
vents aren’t blocked (see page 20). Turn
off the projector and wait one minute,
then turn the projector on again. Contact
Technical Support if the problem persists
Lamp Turn off the projector and wait one
minute, then turn the projector on again.
If the lamp light turns on again, replace the
lamp and reset the lamp timer.
Wrench/Service Turn off the projector and wait one
minute, then turn the projector on again.
If the service lamp turns on again, service
is required. Visit our website to contact
Service.
.
15

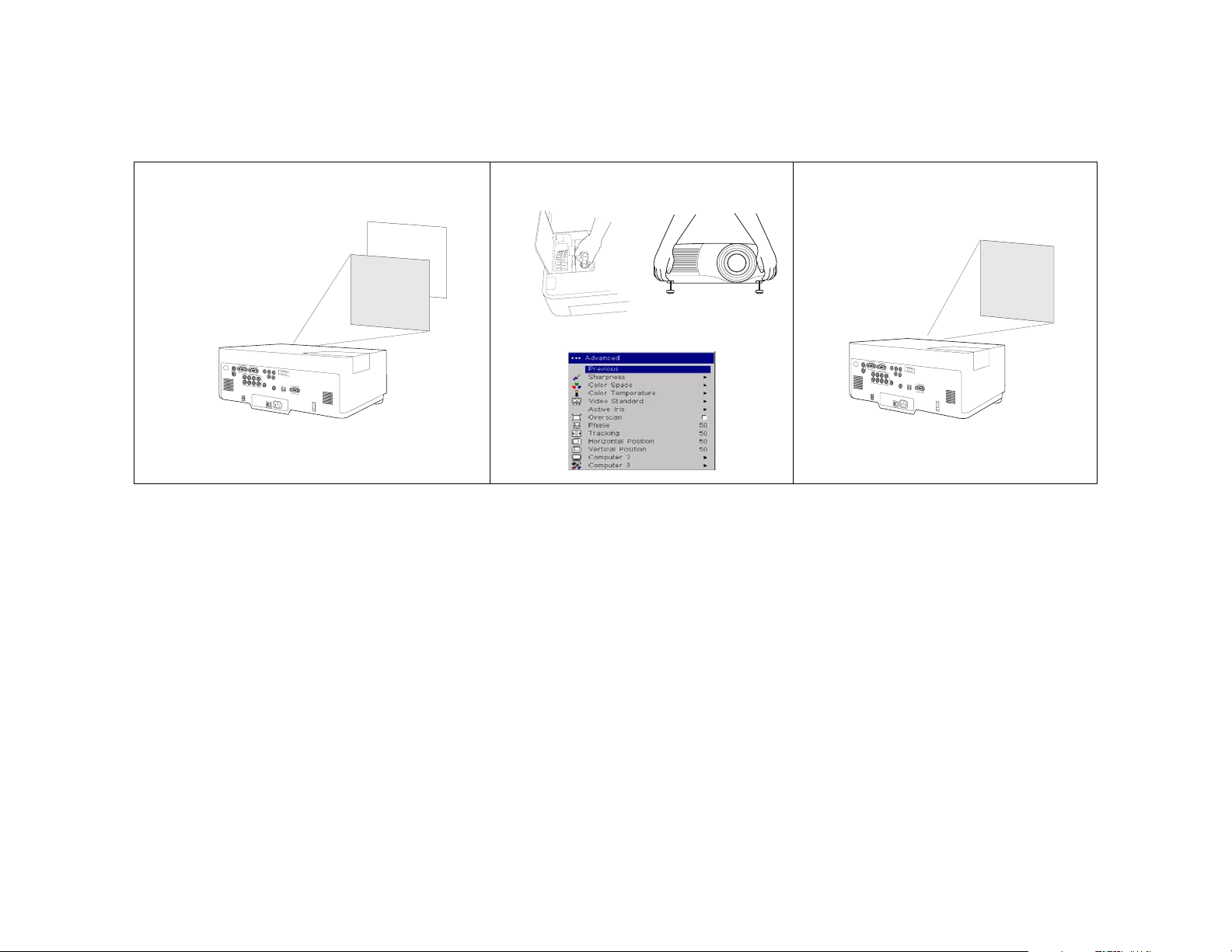

Problem Solution Result
Plug power cable in, press power switch and
No startup screen
power button. Remove lens cap.
Correct image
Only startup screen appears/no computer image
startup
A
screen
3
2
1
Press the Source button
Activate laptop’s external port
or restart
laptop
Computer image projected
A
startup
screen
A
16
No computer image, just the words “Signal out of
range”
Signal out of
A
range
Adjust computer refresh rate in Control
Panel>Display>Settings>Advanced>
Adapter (location varies by operating
system)
You may also need to set a different
resolution on your computer, as shown
in the following problem, “Image fuzzy
or cropped”
Computer image projected
A
A
Image fuzzy or cropped
A
A
Set your computer’s display resolution to
the native resolution of the projector
(Start>Settings>Control
Panel>Display>Settings tab,
select1024x768)
For a laptop,
disable laptop
monitor
or turn-on dualdisplay mode
17
Image clear and not cropped
A
Projector troubleshooting

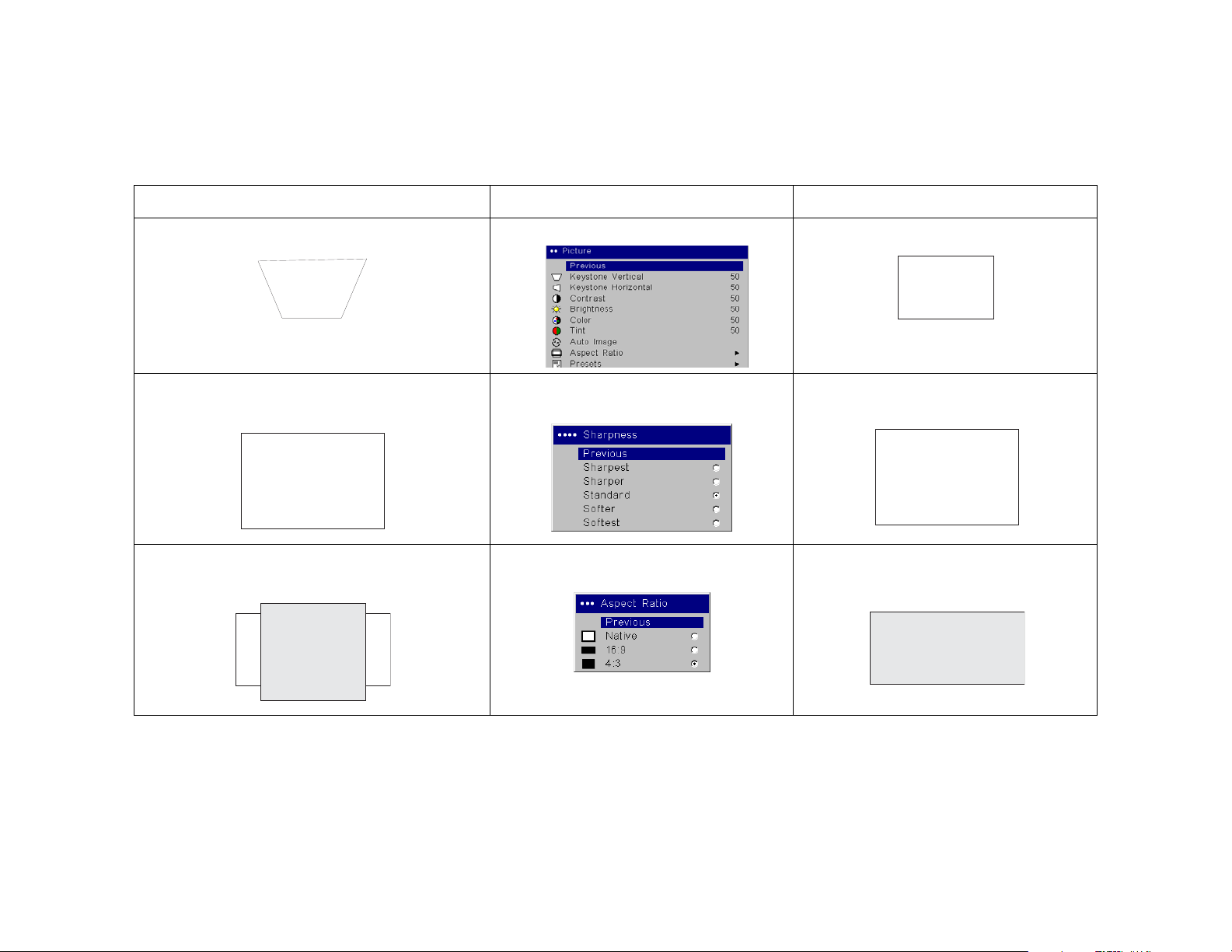

Problem Solution Result
Image not square Adjust keystone the Picture menu
Image not sharp
Adjust the focus ring or Sharpness in the
Picture>Advanced menu
ABAB
Image does not fit 16:9 screen
Change aspect ratio to 16:9 in
Picture>Aspect ratio menu
Square image
Correct image
AB
Correct image
18
Image upside down
Turn on/off Ceiling in Settings>System
menu
Correct image
A
Image reversed left to right
B
A
Projected colors don’t match source
COLOR
Turn on/off Rear in Settings>System menu
Adjust color, tint, color temperature,
brightness, contrast in the menus
AB
Correct image
AB
Correct image
COLOR
19
Lamp won’t turn on, Temp light is lit (page 15)
Make sure vents aren’t blocked; allow
projector to cool for one minute
Unplug projector; wait 20 minutes; plug in
projector and turn it on: lamp lights
Temperature light
Lamp won’t turn on, Lamp light is lit (page 15)
Lamp light
Lamp may need to be replaced (page 36)
startup
screen
Lamp turns on
startup
screen
20
Image not centered on screen
Move projector, adjust zoom or lens shift,
adjust height
Adjust horizontal or vertical position in
Picture>Advanced menu
Correct image
Still having problems?
If you need assistance, visit our website or call us. See the inside of the back cover for a list of all relevant web addresses.
This product is backed by a limited warranty. An extended warranty plan may be purchased from your dealer. When sending the projector in for repair, we
recommend shipping the unit in its original packing material, or having a professional packaging company pack the unit. Please insure your shipment for its
full value.
21
Using the keypad buttons
power–turns the projector on (page 10) and off (page 15).
menu–opens the on-screen menus (page 27).
up/down arrows–navigates to and adjusts settings in the menus (page 27).
select–confirms choices made in the menus (page 27).
source–switches among active sources
22
Using the remote control
The remote uses two (2) provided AAA batteries (Hitachi Maxell, part number LR03). They are easily installed by sliding the cover off the remote's
back, aligning the + and - ends of the batteries, sliding them into place, and
then replacing the cover.
To operate, point the remote at the projection screen or at the projector (not
at the computer). The range of optimum operation is about 16 feet (5m).For
best results, aim the remote directly at the projector.
To use the laser pointer, press and hold the Laser button. The laser turns off
when the button is released, or times out after two (2) minutes of continuous operation.
WARN IN G: Do not look into the laser beam emitted from the top of the
remote control.
The remote contains four Source buttons that allow you to assign a particular input to a specific source. Simply press the numbered Source buttons to
travel to whatever four sources you wish to have available.
Press the remote's Menu button to open the projector's menu system. Use
the arrow buttons to navigate, and the Select button to select features and
adjust values in the menus.
The remote also has a power button to turn the projector on and off, volume
buttons and a mute button to control the sound, a backlight button to light
the remote's buttons in the dark, and a video and computer button to switch
between those two sources.
Two presentation-specific features are also provided. Use the blank button
to display a blank screen instead of the current slide; use the effect button to
invoke a user-definable action, such as freeze, PiP, or magnify.
The Auto Image button reacquires the computer image and the Presets button lets you customize the settings for each source. Up to three Preset settings can be customized and saved.
LED
navigation buttons
source buttons
laser
button
backlight button
Troubleshooting the remote
• Make sure the batteries are installed in the proper orientation and are
not dead. The LED at the top of the remote lights when any button is
pressed when the battery power is adequate.
• Make sure you’re pointing the remote at the projector, not the computer, and are within the remote range of 16 feet (5m).
23
Using the audio
To play sound from the projector, connect your source to an Audio In connector on the projector.
To adjust the volume, mute, or loudness, use the Audio menu (see page 31).
Troubleshooting audio
If there is no sound, check the following:
• Make sure the audio cable is connected.
• Make sure mute isn’t active.
• Make sure the volume is turned up enough.
• Make sure you are connected to the corresponding audio in for your
source. By default, Audio 1 corresponds to Computer 2, Audio 2 corresponds to Computer 3, Audio 3 corresponds to Video 2 and 3, and
Audio 4 corresponds to Video 1. You can change these assignments,
see page 31.
• Adjust the audio source.
• If playing a video, make sure the playback has not been paused.
Connecting external speakers
The projector can be attached to external speakers that have their own
power source by plugging a speaker cable into the projector’s Audio Out
connector.
connect audio cable
adjust volume
external speakers
24
speaker
cable
Optimizing computer images
Presentation features
After your computer is connected properly and the computer’s image is on
the screen, you can optimize the image using the onscreen menus. For general information on using the menus, see page 27.
• Adjust the Keystone, Contrast, or Brightness in the Picture menu.
• Change the Aspect Ratio. Aspect Ratio is the ratio of the image width to
image height. TV screens are usually 1.33:1, also known as 4:3. HDTV
and most DVDs are 1.78:1, or 16:9. Choose the option that best fits your
input source. See page 28 for details.
• Adjust the Color Temperature in the Advanced menu.
• Adjust the Phase, Tracking, or Horizontal or Vertical position in the
Advanced menu.
• Once you have optimized the image for a particular source, you can
save the settings using Presets. This allows you to quickly recall these
settings later. See page 29.
Several features are provided to make giving presentation easier. The following is an overview, details are found in the menu section on page 27.
•The Custom key, available on several optional remotes only, allows
you to assign various features to the key. The default effect is Source
Info. You can select from Blank, Mute, AV Mute, Aspect Ratio, Source,
Auto Image, Freeze, Magnify, Source Info, and Service Info. See page 33
for details.
• The Freeze effect allows you to freeze the displayed image. This is useful if you want to make changes on your computer without your audience seeing them.
• The Startup Logo menu option lets you change the default startup
screen to a black, white, blue, or a custom logo screen via Capture New.
See page 32.
• Two menu options, Power Save and Screen Save, are provided to automatically shut down the projector after several minutes of inactivity or
display a blank screen. This helps preserve lamp life. See page 32.
• A Low Power menu option is also available to help lower the projector’s fan sound volume. See page 31.
25
Optimizing video images
Customizing the projector
After the video device is connected properly and the image is on the screen,
you can optimize the image using the onscreen menus. For general information on using the menus, see page 27.
• Adjust the Keystone, Contrast, Brightness, Color, or Tint in the Picture
menu. See page 28.
• Change the Aspect ratio. Aspect ratio is the ratio of the image width to
image height. TV screens are usually 1.33:1, also known as 4:3. HDTV
and most DVDs are 1.78:1, or 16:9. Choose the option that best fits your
input source. See page 28.
• Select a Sharpness setting. See page 29.
• Adjust the Color Temperature. Select a listed value, or select User and
individually adjust the intensity of the red, green, and blue color. See
page 29.
You can customize the projector for your specific setup and needs. See
page 31 to page 34 for details on these features.
• For rear projection, turn Rear mode on in the Settings>System menu.
• For ceiling mounted projection, turn Ceiling mode on in the Set-
tings>System menu.
• Specify which source the projector checks first for an active signal during power-up.
• Turn the projector’s on-screen display messages on and off.
• Turn on power saving features.
• Specify blank screen colors and startup logos.
• Specify the menu language.
• Control your projector using RS232 commands. See page 9 and page 42.
• Customize the projector for your specific installation using optional
long or short throw lenses. See the inside back cover of this User’s
Guide for ordering information.
26
Using the menus
To open the menus, press the menu button on the keypad or remote. (The
menus automatically close after 60 seconds if no buttons are pressed.) The
Main menu appears. Use the arrow buttons to move up and down to highlight the desired submenu, then press the Select button.
To change a menu setting, highlight it, press Select, then use the up and
down arrow buttons to adjust the value, select an option using radio buttons, or turn the feature on or off using check boxes. Press Select to confirm
your changes. Use the arrows to navigate to another setting. When your
adjustments are complete, navigate to Previous, then press Select to go to
the previous menu; press the Menu button at any time to close the menus.
Dots appear before the menu name. The number of dots indicate the menu’s
level, ranging from one (the Main menu) to five (the most nested menus).
The menus are grouped by usage:
• The Picture menu provides image adjustments.
• The Settings menu provides set-up type adjustments that are not
changed often.
• The Source Info menu provides a read-only display of information
about the projector and source.
Certain menu items may be grayed out until a particular source is connected. For example, Tint is only available for video sources and will be hidden when a computer source is active. Other menu items may be grayed out
when they are not available. For example, Brightness is grayed out until an
image is active.
Main menu
menu
Menu
button
Keypad navigation
buttons
Dots
Settings
menu
27
Source Info menu
Picture menu
To adjust the following six settings, highlight the setting, press Select, use
the up and down arrows to adjust the values, then press select to confirm
the changes.
Key ston e Ver t ical : adjusts the image vertically and makes a squarer image
by using an adjustable scale band.
Key ston e Hor i zon tal: adjusts the image horizontally and makes a squarer
image by using an adjustable scale band.
Contrast: controls the degree of difference between the lightest and darkest
parts of the picture and changes the amount of black and white in the
image.
Brightness: changes the intensity of the image.
Color: (Computer 1 and video sources only) adjusts a video image from
black and white to fully saturated color.
Tint: (Computer 1 and NTSC video sources only) adjusts the red-green
color balance in the image.
Auto Image: resynchs the projector to the source.
Aspect Ratio: Aspect ratio is the ratio of the image width to image height.
TV screens are usually 1.33:1, also known as 4:3. HDTV and most DVDs are
1.78:1, or 16:9. The default is 4:3, which displays the input resized up or
down to fill the display area.
Aspect Ratio
Keystone Vertical
increasing keystone
Keystone Horizontal
decreasing keystone
28
Presets: Presets are provided that optimize the projector for displaying
computer presentations and video images in different lighting conditions
and on different backgrounds.
There are also user-definable presets. To set a preset for the current source,
adjust the image, select Save Settings in the Presets menu, then select Save
User Presets 1 (or 2 or 3). You can recall these settings in the future by selecting the User 1 preset. If you select User Presets then further adjust the
image, Presets Off will automatically be selected in the Preset menu to indicate changes have been made.
To restore the factory default settings, choose Factory Reset in the Set-
tings>Service menu.
Advanced settings
Sharpness: changes the clarity of the edges of a video image. Select a sharp-
ness setting.
Color Space: This option applies to computer and component video
sources (except 480i/576i). It allows you to select a color space that has been
specifically tuned for the input signal. When Auto is selected, the projector
automatically determines the standard. To choose a different setting, turn
off Auto, then choose RGB for computer sources, RGB Video for HDMI
computer sources, and either REC709 or REC601 for component video
sources.
Color Temperature: changes the intensity of the colors. Select a listed
value, or select User and individually adjust the intensity of the red, green,
and blue colors.
Save Settings
Presets
Sharpness
29
Color Space
Color Temperature
Video Standard: when set to Auto, the projector attempts to automatically
pick the video standard based on the input signal it receives. (The video
standard options may vary depending on your region of the world.) If the
projector is unable to detect the correct standard, the colors may not look
right or the image may appear “torn.” If this happens, manually select a
video standard by selecting NTSC, PAL, or SECAM from the Video Standard menu.
Active Iris: when on, the projector monitors the image brightness and modifies the light output if the image is dark, which improves black levels. In
Presentation mode, it looks at peak brightness, in Theater mode it looks at
average brightness.
Overscan: (Computer 1 and video sources only) removes noise around the
video image.
The following 4 options are for computer sources only:
Phase: adjusts the horizontal phase of computer 2, 3 and component (except
480i and 576i) sources.
Tr a ck i n g : adjusts the horizontal scan of a computer source (except Computer 1).
Horizontal / Vertical Position: adjusts the position of a computer source
(except Computer 1) and Video 1 source (except 480i and 576i).
Computer 2: allows you to turn Sync on Green on for this source.
Computer 3: allows you to turn Sync on Green on for this source.
.
Video Standard
Active Iris
Computer 2
Computer 3
30
Settings menu
Audio: allows adjustments to the volume. Also allows you to turn on and
off the Internal speakers and assign a particular source to a specific audio
input. If your HDMI source has problems with its audio stream, you can
mute it by selecting HDMI Noise Cancel.
Sources
when using the remote. Also allows selection of a default Startup Source
and enables or disables Autosource.
Sources>Power-up Source: this determines which source the projector
checks first for active signal during power-up.
Sources>Autosource: When Autosource is not checked, the projector
defaults to the source selected in Powerup Source. If no source is found, a
blank screen displays. When Autosource is checked, Powerup Source determines which source the projector defaults to at power-up. If no signal is
present, the projector checks the sources in order until a source is found or
until power down.
: allows you to assign a particular input to a specific source key
System>Rear: reverses the image so you can project from behind a
translucent screen.
Ceiling: turns the image upside down for ceiling-mounted projection.
WARNING: To prevent eye injury if the projector is ceiling mounted,
wear protective eyewear before opening lamp door. A warning sticker is
included with the user documentation. Place this sticker on the lamp
door if the projector is mounted on the ceiling.
IR Receivers: turns individual IR receivers off or on to avoid environ-
mental interference.
PC Screen Saver Off: prevents your notebook computer from going into
Screen Save mode. The projector must be connected to the PC via a USB
cable for this feature to work.
Settings
menu
Audio
Sources
Powerup
Source
Auto Power: When Auto Power is checked, the projector automatically
goes into the startup state after the projector is powered on. This allows
control of ceiling mounted projectors with a wall power switch.
Display Messages: displays status messages (such as “Searching”) in the
lower-left corner of the screen.
Low Power: toggles between on and off. Turn it on to lower the light output of the lamp. This also lowers the fan speed, making the projector quieter.
System
IR Receivers
31
Power Save: automatically turns the lamp off after no signals are
detected for 20 minutes. After 10 additional minutes with no signal, the
projector powers down. If an active signal is received before the projector powers down, the image will be displayed.
Screen Save: automatically blanks the screen after no signals are
detected for five minutes. The image returns when an active source is
detected or a remote or keypad button is pressed. Screen Save is disabled
when Power Save is enabled.
Startup Logo: allows you to display a blank Black, White, or Blue screen
instead of the default screen when no source is detected at startup. It also
allows you to capture and display a custom startup screen.
To capture a custom logo, display the image you want to capture on your
computer and select the Capture New option. From the Capture New
menu, use the Capture Position X and Capture Position Y adjustments to
frame the logo to be captured. Press Capture Start in the Capture New
menu. The projector will let you know if the capture was a success or a
failure.
The next time you start the projector, the custom logo you captured displays.
Blank Screen: determines what color is displayed when you press the
Blank button on an optional remote.
Startup Logo
Screen Save
Capture New
Blank Screen
32
Custom Key (for use with optional remote only): allows you to assign a dif-
ferent function to the Custom key on the optional remote to quickly and
easily use the effect. Only one effect can be enabled at a time. The default is
Source Info; highlight an effect and press Select to choose a different one.
Blank: shows an empty screen.
Mute: turns off all sound.
AV Mut e : turns off all sound and displays a blank screen.
Aspect Ratio: sets the ratio of the image width to image height.
Source: cycles through the available sources.
Auto Image: causes all sources to be reacquired.
Freeze: pauses the projected image.
Magnify: allows you to enlarge a section of the projected image.
Source Info: displays the Source Info menu.
Service Info: displays the Service Info menu.
Network Restart: Disconnects the projector from the network, gets a
new IP address, and reconnects.
Network Info: Provides information on the network configuration.
Custom Key
Network: The projector has an RJ45 Ethernet connector that supports net-
work connections and TCP/IP protocols. This will allow for the control and
management of the projector over a corporate network. Visit our website for
complete details on using the networking functionality. The following fields
are accessible when DHCP is not checked and available for manual entry of
data.
IP Address: Identifies the projector on the network.
Subnet Mask: Separates the network address part of the IP address.
Default Gateway: The IP address of the local router.
DNS Server: Shows the address of the DNS server.
DHCP: Select this to automatically obtain an IP address, Subnet mask,
and Default gateway.
Network
Network
Info
33
Language: allows you to select a language for the onscreen display of
menus and messages.
Service: to use these features, highlight them and press Select.
Factory Reset: restores all settings (except Lamp and Filter Hours and Net-
work settings) to their default after displaying a confirmation dialog box.
Reset Lamp Hours: resets the lamp hours counter in the Service Info menu
to zero. Do this only after changing the lamp. It displays a confirmation dialog box.
Reset Filter Hours: resets the filter counter in the Service Info menu to
zero. Do this only after cleaning the filter. It displays a confirmation dialog
box.
Lens Type: change this setting only if you purchase an optional lens. The
projector customizes its keystone settings based on the lens used. Select
your optional lens from the menu. A sticker containing a number between 1
and 5 is attached to the lens to help you identify which type of lens you purchased.
Service Info: provides information for service.
Language
Lens Type
Service menu
Service Code: only used by authorized service personnel.
Service Info
34
Maintenance
Cleaning the lens

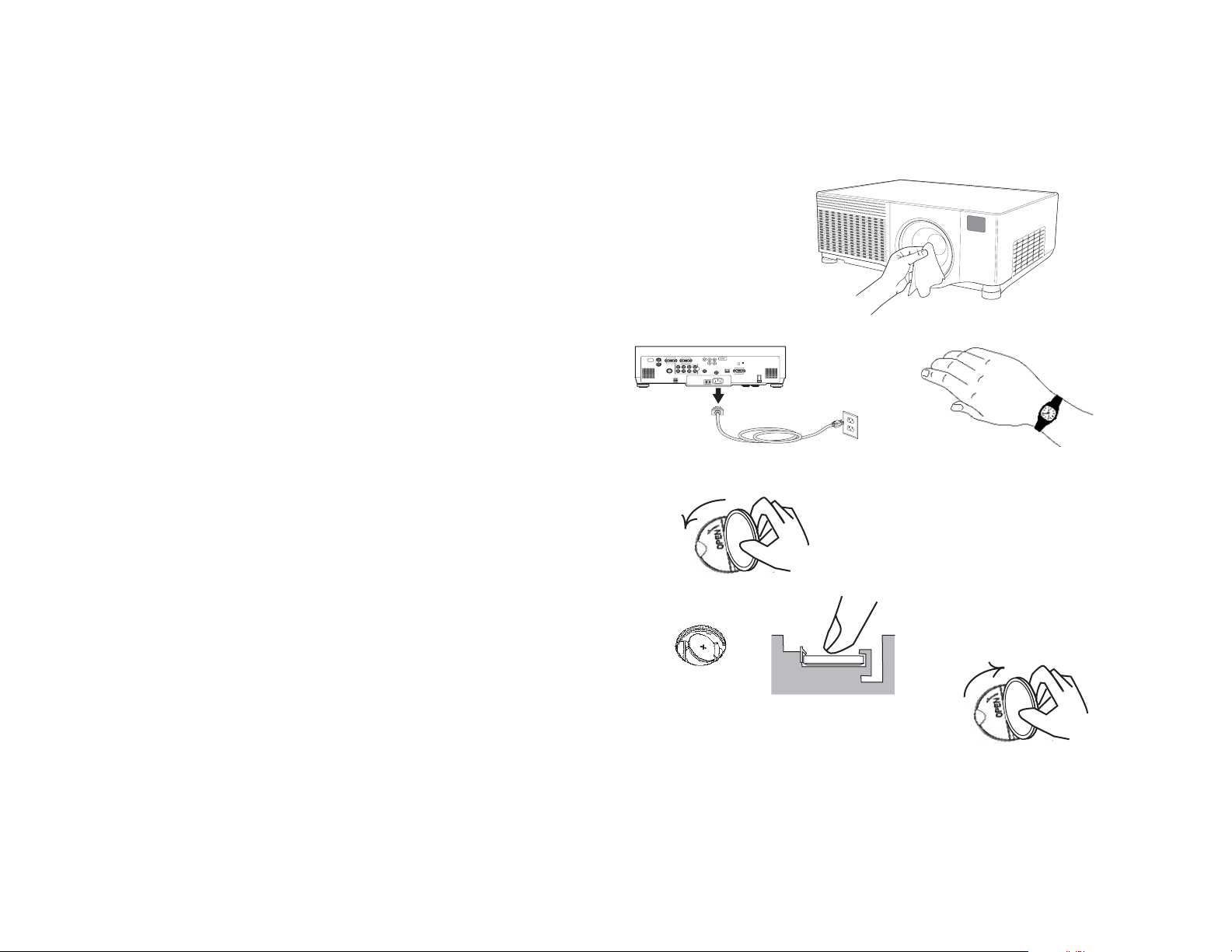

1 Apply a non-abrasive camera lens cleaner to a soft, dry cloth.
Avoid using an excessive amount of cleaner, and don’t apply the
cleaner directly to the lens. Abrasive cleaners, solvents or other harsh
chemicals might scratch the lens.
2 Lightly wipe the cleaning cloth over the lens in a circular motion. If you
don’t intend to use the projector immediately, replace the lens cap.
Replacing the clock batteries
The projector has a lithium Hitachi Maxell battery (part number CR2032) on
the bottom that is used to power the clock used for networking applications.
Visit our website for complete details on using the networking functionality.
1 Turn off the projector and unplug the power cable.
2 Wait 45 minutes to allow the projector to cool thoroughly.
3 Turn the projector upside down and use a coin to turn the battery cover
to the “Open” position.
4 Remove the battery and dispose of in an environmentally proper man-
ner.
5 Install a new battery with the “+” side facing up.
6 Press the battery into place, then replace the battery cover.
NOTE: The clock time will need to be reset in the web browser application
after replacing the battery.
clean the lens
with a soft dry cloth
and non-abrasive
cleaner
turn off and unplug
the projector
wait 45 minutes
open battery cover
12'0
%.15'
install new battery,
+ side up
press battery into position
35
close battery cover
Replacing the projection lamp

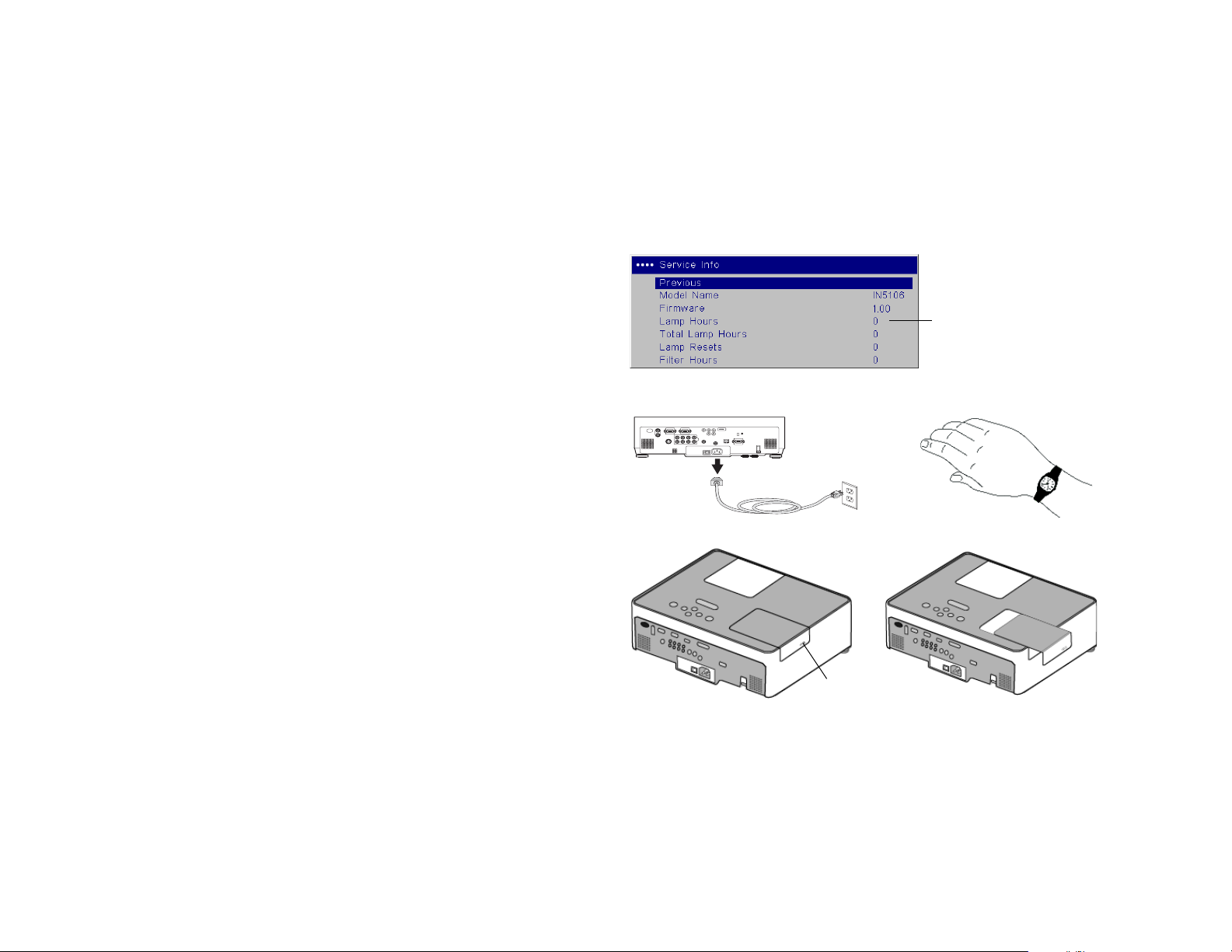

The lamp hour timer in the Service Info menu counts the number of hours
the lamp has been in use. Twenty hours before the specified end of the
lamp’s life, the message “Change lamp” briefly appears on the projected
screen.
NOTE: You can order new lamp housings from www.infocus.com (in select
areas), your retailer or your dealer. Only genuine InFocus lamps are tested
for use in this projector. InFocus is not liable for the performance, safety or
certification of any other lamps. The use of other lamps violates the projector warranty and voids all certification marks on this projector.
1 Turn off the projector and unplug the power cable.
the lamp compartment and dispose of cleaning materials. Wash hands
after lamp replacement.
Hg – Lamp contains mercury. Manage in accordance with local
disposal laws. See www.lamprecycle.org.
lamp hours
2 Wait 45 minutes to allow the projector to cool thoroughly.
3 Loosen the lamp cover screw on the right side of the projector (marked
by the arrow) then slide and lift the lamp cover off.
WARNINGS:
• To avoid burns, allow the projector to cool for at least 45 minutes before
you replace the lamp.
• Only genuine InFocus lamps are tested with this projector. Use of other
lamps may cause electrical shock and fire.
• To prevent eye injury if the projector is ceiling mounted, wear protective eyewear before opening lamp door. A warning sticker is included
with the user documentation. Place this sticker on the lamp door if the
projector is mounted on the ceiling.
• Do not drop the lamp module. The glass may shatter and cause injury.
Do not touch the glass lamp screen. Fingerprints can obscure projection
sharpness.
• Be extremely careful when removing the lamp housing. In the unlikely
event that the bulb ruptures, small glass fragments may be generated.
The lamp housing is designed to contain these fragments, but use caution when removing the lamp housing. Before replacing the lamp, clean
turn off and unplug
the projector
wait 45 minutes
lamp cover screw
36
Loosen the three captive screws (marked by the arrows) on the lamp
4
module. When replacing the lamp, never touch any screws without the
arrow mark.
loosen the captive screws on lamp module
5 Carefully remove the lamp module by grasping and lifting the handle.
Dispose of the lamp in an environmentally proper manner.
6 Install the new lamp module, making sure that it is properly seated, and
tighten the three captive screws.
7 Replace the cover over the lamp module by sliding it back into place and
tightening the screw.
8 Plug in the power cable, press the power switch then press the Powe r
button to turn the projector back on. Reset the lamp hour timer by navigating to the Settings>Service menu and selecting Reset Lamp Hours.
lamp module handle
reset lamp hours in Service menu
37
Cleaning the dust filter
1 Turn off the projector and unplug the power cable.
2 Wait 45 minutes to allow the projector to cool thoroughly.
WARN IN G: To avoid burns, allow the projector to cool for at least 45
minutes before you clean or replace the dust filter.
3 Remove the dust filter cover on the side of the projector by pressing up
on the two tabs at the cover’s bottom.
4 Pull the tab on the center of the black dust filter bracket and lift it off.
5 Clean the filter, cover, and vent using a vacuum set on low power.
Replace the filter if it is damaged or too dirty to clean.
6 Replace the dust filter and the bracket on the cover, then replace the dust
filter cover.
turn off and unplug
the projector
wait 45 minutes
7 Reset the filter hour timer by navigating to the Settings>Service menu
and selecting Reset Filter Hours.
Using the security lock
The projector has a security lock for use with a cable lock system. See the
Accessories catalog that came with the projector, or visit our website, for
ordering information. Refer to the information that came with the lock for
instructions on how to use it.
38
tabs
dust filter cover
reset filter hours in Service menu
security lock
Appendix
Projected image size
NOTE: Visit the Service section of our website for interactive image size cal-
culators for the standard and optional lenses.
Table 2: Projection sizes: Standard lens (1.5 - 1.8:1 throw ratio)
Minimum Image Maximum Image
Distance
(feet/m)
Diagonal
(feet/m)
Width
(feet/m)
Diagonal
(feet/m)
Width
(feet/m)
Optional lenses
WARNING: When replacing the lens, turn off the projector and pull out the
power cord from the receptacle. Loosen the screws marked with a triangle
to remove the lens.
NOTE: You can order optional lenses from www.infocus.com (in select
areas), your retailer or your dealer.
Table 3: Projection sizes: Short Fixed lens (0.8:1 throw ratio)
Projection Distance
(inch/m)
Screen Size (inch/m) Minimum
Min Distance
3/0.9
5/1.5 3.5/1.1 2.8/0.86 4.2/1.3 3.4/1.0
10/3.0 7.0/2.1 5.6 1.7 8.3/2.5
15/4.6 10.4/3.2 8.3/2.5 12.5/3.8 10/3
20/6.1 13.8/4.2 11/3.4 16.6/5.1 13.3/4
25/7.6 17.2/7.6 13.8/4.2 20.7/6.3 16.6/5
Max Distance
30/9.1
The image offset range for the standard lens is 9:1 (90%) to 1:1 (50%).
2.1/0.66 1.7/0.53 2.6/0.79 2.1/0.63
20.6/6.3 16.5/5 24.8/7.6 19.8/6.1
40/1 24/0.6
60/1.5 35/0.9
70/1.8 43/1.1
100/2.5 63/1.6
120/3 75/1.9
150/3.8 94/2.4
200/5.1 130/3.3
250/6.4 161/4.1
300/7.6 193/4.9
350/8.9 224/5.7
39
Table 4: Projection sizes: Short Zoom lens (1.2 -2.0:1 throw ratio range) Table 5: Projection sizes: Long Throw lens (1.9 - 3.9:1 throw ratio range
Projection Distance (inch/m)
Screen Size
(inch/m)
Minimum Maximum
40/1 39/1.0 63/1.6
60/1.5 59/1.5 94/2.4
70/1.8 67/1.7 110/2.8
100/2.5 98/2.5 157/4.0
120/3 118/3.0 189/4.8
150/3.8 150/3.8 240/6.1
200/5.1 197/5.0 319/8.1
250/6.4 248/6.3 402/10.2
300/7.6 299/7.6 480/12.2
350/8.9 350/8.9 559/14.2
Projection Distance (inch/m)
Screen Size
(inch/m)
Minimum Maximum
40/1 59/1.5 122/3.1
60/1.5 94/2.4 185/4.7
70/1.8 110/2.8 217/5.5
100/2.5 157/4.0 311/7.9
120/3 189/4.8 374/9.5
150/3.8 236/6.0 467/11.9
200/5.1 319/8.1 630/16.0
250/6.4 402/12.2 787/23.9
300/7.6 480/16.3 94532.0
400/10.2 642/20.4 126040.1
500/12.7 803/20.4 1579/40.1
40
Table 6: Projection sizes: Ultra Long Throw lens (3.9 - 7.4:1 throw ratio
range
Projection Distance (inch/m)
Screen Size
(inch/m) Minimum Maximum
40/1 122/3.1 236/6.0
60/1.5 189/4.8 354/9.0
70/1.8 220/5.6 513/10.5
100/2.5 315/8.0 594/15.1
120/3 382/9.7 717/18.2
150/3.8 476/12.1 898/22.8
200/5.1 638/16.2 1197/30.4
250/6.4 799/24.4 1496/45.6
300/7.6 961/28.5 1795/53.3
400/10.2 1283/32.6 2398/60.9
500/12.7 1602/40.7 3000/76.2
41
RS-232 commands
Communication Configuration
Visit our website for additional RS-232 settings and information.
To control this projector via RS-232, connect a null modem cable and set the
control system serial port settings to match the following communication
configuration:
RS-232 Port Settings
Setting Value
Bits per second 19,200
Data bits 8
Parity None
Stop bits 1
Flow control None
Emulation VT100
Command Format
All commands consist of 3 alpha characters followed by a request, all
enclosed in parentheses. The request can be a read request (indicated by a
"?") or a write request (indicated by 1 to 4 ASCII digits).
A read request example:
(AAA?) where
(starts the command
AAA denotes the command
A read command returns the range and the current setting, for example:
Read Command Examples
Function Command Response
Brightness (BRT?) (96-160,128)
Volume (VOL?) (0-32, 0)
Lamp Hours (LMP?) (0-32766, 42)
A write request example:
(AAA####) where
(starts the command
AAA denotes the command
#### denotes the value to be written
(leading zeros not necessary)
) ends the command
Some commands have ranges, while others are absolute. If a number greater
than the maximum range is received, it is automatically set to the maximum
number for that function. If a command is received that is not understood, a
"?" is returned. With absolute settings, "0" is off, 1-9999 is on. The one exception is the Power command, where 0 is off and 1 is on.
To assure the projector can process a command, wait 3 seconds before entering the next command.
? denotes the read request
) ends the command
42
Write Command Examples
Function Command Response
Brightness (BRT140) Sets the brightness to 140
Power (PWR0) Turns power off
Power (PWR1) Turns power on
Error Conditions
Not all commands are supported for all projectors. If an unsupported command is issued, the command will be ignored. If a command is received that
is not understood, a ‘?’ character will be returned indicating the command
was not understood.
Limitations
The projector cannot respond to commands coming in at a high-rate. Therefore, a delay must occur between commands to ensure that the command
gets properly executed. To assure the projector can process a command,
wait 3 seconds before entering the next command.
Function
About (Source Info)
0: n/a
1: enable
Active Iris
0: Off
1: Presentation
2: Film
Aspect Ratio
0: Native
1: 16:9
2: 4:3
Auto Image
0: n/a
1: enable
Command
ABT at W 0 1 n/a
IRI at RW 0 2 1
ARZ at RW 0 2 2
AIM at W 0 1 n/a
Min Max Default
St
e
p
The Step column refers to increasing or decreasing the menu bar position
since the On-screen Display is not an exact match of values. For example,
Step 2 changes the data by 2 through the CLI (Command Line Interface).
The menu bar is up (or down) by 1.
Auto Power
0: disable
1: enable
Auto Source
0: disable
1: enable
Blank
0: off
1: on
43
APO at RW 0 1 0
ASC at RW 0 1 1
BLK at RW 0 1 0
Blank Screen
0: black
1: blue
2: white
Blue Gain BCG at RW 64 192 128 1
Brightness BRT at RW 96 160 128 1
Ceiling
0: disable
1: enable
Color CLR at RW 96 160 128 1
Color Space
0: Auto
1: RGB
2: REC709
3: REC601
4: RGB Video
Color Temp
0: 9300K
1: 6500K
2: 7200K
3: User
Contrast CON at RW 96 160 128 1
BSC at RW 0 2 1
CEL at RW 0 1 0
CSM at RW 0 4 0
TMP at RW 0 3 2 (computer
2,3)
0 (other)
Custom Key (Effect)
0: blank
1: mute
2: aspect ratio
3: source
4: auto image
5: freeze
6: zoom
7: Source Info
8: Service Info
15: AV Mute
Display Messages
0: disable
1: enable
Factory Reset
0: not reset
1: reset
Freeze
0: disable
1: enable
Green Gain GCG at RW 64 192 128 1
Horizontal Keystone DKH at RW 38 218 128 1
HDMI Noise Cancel HNC at RW 0 1 1
EFK at RW 0 15 7
DMG at RW 0 1 1
RST at W 0 1 n/a
FRZ at RW 0 1 0
Horizontal Position HPS at RW def:-
Internal Sound Enable
0: disable
1: enable
INT at RW 0 1 1
44
128
def:+1
28
auto 1
IR Receiver front
0: disable
1: enable
IRF at RW 0 1 1
Lamp Lit
0: not lit
1: lit
LML at R 0 1
IR Receiver rear
0: disable
1: enable
IR Receiver top
0: disable
1: enable
Language
0 = English
1 = French
2 = German
3 = Italian
5 = Korean
6 = Norwegian
7 = Portuguese
8 = Russian
9 = Simplified
Chinese
10 = Spanish
11 = Traditional
Chinese
12 = Swedish
13 = Dutch
14 = Polish
15 = Turkish
16 = Danish
17 = Finnish
Lamp Hours LMP at R 0 32766 0 1
IRR at RW 0 1 1
IRT at RW 0 1 0
LAN at RW 0 17 0
Reset Lamp Hours
0: not reset
1: reset
Number of Lamp
Resets
Lamp Total On Time
(All Bulbs)
Time In Hours Last
Bulb1 Lasted
Time In Hours Last
Bulb2 Lasted
Time In Hours Last
Bulb3 Lasted
Low Power
0: disable
1: enable
Magnify MAG at RW 0 48 0 1
Magnify Enable
0: disable
1: enable
Magnify Position Horizontal
Magnify Position Vertical
LRT at W 0 1 n/a
LMR at R 0 32766 0
LMT at R 0 21474
83646
LB1 at R 0 32766 0
LB2 at R 0 32766 0
LB3 at R 0 32766 0
LPE at RW 0 1 0
MGE at RW 0 1 0
MPH at RW 0 64 32 1
MPV at RW 0 64 32 1
0
45
Menu
0: disable
1: enable
Menu Navigation
0: up
1: down
4: select
Mute
0: disable
1: enable
Network Restart
0: not restart
1: restart
NND (PC Screen
Saver Off)
0: disable
1: enable
Overscan
0: disable
1: enable
Phase MSS at RW 0 31 0 1
Power
0: disable
1: enable
Power Save
0: disable
1: enable
MNU at RW 0 1 0
NAV at W 0 4 n/a
MTE at RW 0 1 0
NTR at W 0 1 n/a
NND at RW 0 1 1
OVS at RW 0 1 0
PWR at RW 0 1 0
PSV at RW 0 1 0
Power-up Source
0: computer 1
1: computer 2
2: computer 3
3: video 1
4: video 2
5: video 3
Presets
0: user 1
1: user 2
2: user 3
3: Presets Off
5: presentation
7: video
10: bright
11: whiteboard
Rear
0: disable
1: enable
Red Gain RCG at RW 64 192 128 1
Reset Filter Hours
0: not reset
1: reset
Save User Presets 1
0: not saved
1: saved
Save User Presets 2
0: not saved
1: saved
DSC at RW 0 5 1
PST at RW 0 11 computer
2,3:5
computer 1,
video:7
REA at RW 0 1 0
FRT at W 0 1 n/a
US1 at W 0 1 n/a
US2 at W 0 1 n/a
46
Save User Presets 3
0: not saved
1: saved
Screen Save
0: 5 minutes
1: 10 minutes
2: 15 minutes
3: 20 minutes
4: 25 minutes
5: 30 minutes
Sharpness
5 = Sharpest
6 = Sharper
7 = Standard
8 = Softer
9 = Softest
Source
0: computer1
1: computer2
2: computer 3
3: video 1
4: video 2
5: video 3
Source 1
0: computer 1
1: computer 2
2: computer 3
3: video 1
4: video 2
5: video 3
US3 at W 0 1 n/a
SSV at RW 0 5 0
SHP at RW 5 9 7 (computer
and video 1)
6 (video 2
and 3)
SRC at RW 0 5 0
SR1 at RW
Source 2:SR2
Source 3:SR3
Source 4:SR4
05 0
1
3
4
Audio for Source 0
0: audio 1
1: audio 2
2: audio 3
3: audio 4
4: HDMI Internal
5: mute
Audio for Source 1
0: audio 1
1: audio 2
2: audio 3
3: audio 4
5: mute
Startup Logo
0: blank screen
1: default
2: captured
Sync on Green
0: Sunc on G off
1: Auto
Tint TNT at RW 96 160 128 1
Tracking MTS at RW def:
Unit Total Time On ONL at R 0 21474
SA0 at RW 0 5 4
SA1 at RW
Source 2:SA2
Source 3:SA3
Source 4:SA4
Source 5:SA5
DSU at RW 0 2 1
SOG at RW 0 1 1
05 0
def:
-384
+384
83646
1
3
2
2
auto 1
0
Vertical Keystone DKC at RW 38 218 128 1
47
Vertical Position VPS at RW if
def<
128:
0
else:
def 128
def
+128
auto 1
Video Standard
0: Auto
1: NTSC
2: PAL
3: SECAM
Volu m e VO L at RW 0 32 16 1
VSU at RW 0 3 0
48
INDEX
Numerics
1024x768 resolution 5
A
Aspect Ratio 33
audio 24
Audio In connector 8, 12
Auto Image 33
Auto Power 31
Autosource 31
B
Blank 33
BNC 8
Brightness 11
C
Capture Position 32
Capture Start 32
cleaning the dust filter 38
cleaning the lens 35
clock batteries 35
Color 14
colors are incorrect 19
component cable connector 12
computer connections
optional 8
required 8
computer image
displaying 10
optimize 25
connector panel 6
contacting service 21
Contrast 11, 14
custom logo startup screen 32
customer service contact information 21
D
Default gateway 33
DHCP 33
Display Messages 31
displaying
computer image 10
video images 13
dust filter, cleaning 38
E
elevator foot 11, 13
F
Factory Reset 34
filter, resetting hours 34
focus 11, 14
Freeze 33
fuzzy image 17
H
HDMI 6
HDTV sources 12
I
display computer 10
display video 13
size 7
image does not fit screen 18
image not centered 21
image not sharp 18
image not square 18
image reversed 19
image size matrix 39
image upside down 19
IP Address 33
IR Receivers 31
L
lamp hours, resetting 37
lamp replacement 36
lamp won’t turn on 20
Language 34
laptop
connecting 8
external video port 10
49
lens, cleaning 35
Low Power 31
M
Magnify 33
Main menu 27
menu system 27
Monitor connector 9
Mute 33
N
Network 33
Network connector 9
Network Info 33
no computer image 17
no startup screen 16
O
only startup screen appears 16
Overscan 30
P
PC Screen Saver Off 31
Picture menu 28
power cable 8, 12
Power Save 32
Power-up Source 31
presentation features 25
projection distance 7
projector
connector panel 6
customizing 26
height 11, 13
positioning 7, 11, 13
setting up 7
shutdown 15
troubleshooting problems 15
R
Rear 31
remote control 23
replacing the clock batteries 35
replacing the lamp 36
Reset Filter Hours 34
resetting lamp hours 37
RS-232
cable 9
connecting 6
S
screen saver, turning off 31
security lock 38
serial connection 6, 9
Service 34
Service Code 34
Service Info 34
Settings menu 31
shutting down projector 15
Source 33
Source troubleshooting 16
Sources 31
Subnet mask 33
S-video connector 12
T
Tint 14
troubleshooting 15, 16
V
video connections
optional 12
standard 12
Video connector 12
video image
displaying 13
video images
optimizing 26
Video Standard 30
volume adjustment 14
W
warranty 21
X
XGA 5
Z
zoom 11, 14
50
Loading...
