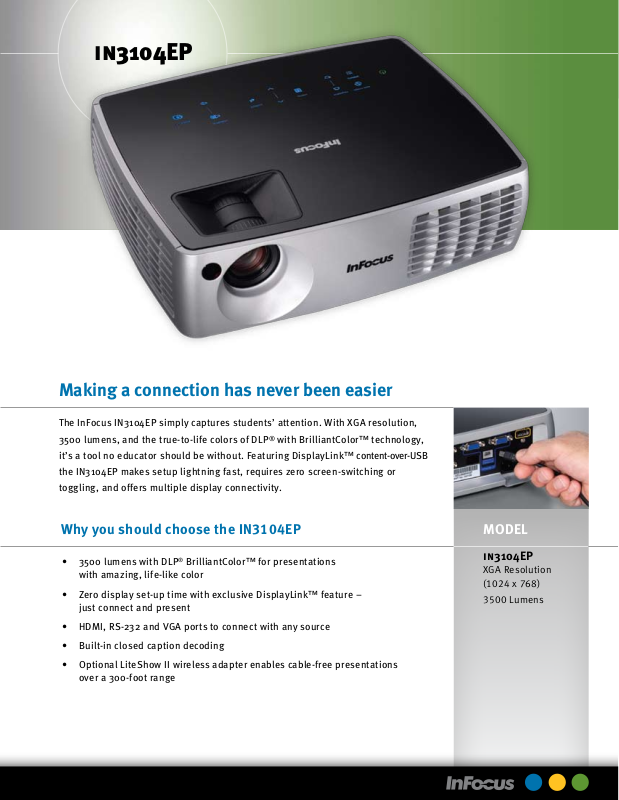

Page 1
in3104EP
Making a connection has never been easier
The InFocus IN3104EP simply captures students’ attention. With XGA resolution,
3500 lumens, and the true-to-life colors of DLP® with BrilliantColor™ technology,
it’s a tool no educator should be without. Featuring DisplayLink™ content-over-USB
the IN3104EP makes setup lightning fast, requires zero screen-switching or
toggling, and offers multiple display connectivity.
Why you should choose the IN3104EP
• 3500 lumens with DLP® BrilliantColor™ for presentations
with amazing, life-like color
• Zero display set-up time with exclusive DisplayLink™ feature –
just connect and present
• HDMI, RS-232 and VGA ports to connect with any source
• Built-in closed caption decoding
• Optional LiteShow II wireless adapter enables cable-free presentations
over a 300-foot range
MODEL
in3104EP
XGA Resolution
(1024 x 768)
3500 Lumens
Page 2
9.8” / 24.9cm
Outstanding performance
in any venue
12.4” / 33cm
3.75” / 9.5cm
Total Control
LiteTouch™ Control
The top surface of the IN3104EP features the
LiteTouch™ control panel. Devoid of buttons, this
sleek glossy case is backlit to reveal a full array of
functionality. When not in use the keypad subtly
blends in to any conference table and automatically
dims when ceiling mounted.
The Right Connections
With wireless, USB 2.0, HDMI, RS-232, and composite
video all available, the InFocus IN3104EP features
advanced connectivity and flexibility you just won’t
find on other digital projectors.
Auto Keystone Correction
The IN3104EP automatically responds to any vertical
angle changes, making the necessary adjustments
to optimize the viewing area.
Page 3
With 6 inputs and wireless connectivity, the power of control is yours
Composite video
Wireless Ready
Simply Powerful
True Plug-and-Play Projection
DisplayLink™ technology transmits audio and video
content over mini-USB, offering the simplicity of
zero display setup. Easy to carry and simple to use,
DisplayLink™ eliminates the need to toggle screens.
The on-screen remote provides complete control of
your InFocus projector from your PC thanks to the
DisplayLink™ software.
S-video
D-sub HD15
DisplayLink™ USB
InFocus with DLP®
BrilliantColor™ Technology
HDMI 1.3
Standard DLP
®
Always Brilliant
Enjoy true-to-life color with BrilliantColor™ technology,
perfecting midrange color, clarity, and brightness for
unrivaled color accuracy and improved detail.
The IN3104EP features a state-of-the-art optical system
with high-efficiency lamps that deliver as
many as 3500 Lumens, providing bright, clear
pictures in nearly all lighting environments.
Connect to Any HDMI Source
Our HDMI 1.3 connection is compatible with any
HDMI-enabled video source for high-definition video
playback. No more configuration hassles or separate
cables for audio and video.
Wireless Ready
Pair the IN3104EP with the InFocus LiteShow II to
experience true wireless freedom when presenting from
your laptop, tablet PC, or other wireless device.
Page 4
Specifications
Brightness 3500 max A NSI Lumens / 2800 Eco
Native Re solution XGA 1024 x 7 68
Max Resolution UXGA 1600 x 1200
Contrast Ratio 2000:1
Aspect Ra tio 4:3 (defa ult), 5:4,16:9, 16:10
Display Technology Texas Instruments DLP 0.55” LVDS DDP2230 w/Brilliant Color™
Input Sources 2 x D-sub HD15, S video, Composite Video, DisplayLink, HDMI
4 x Audio i n (3.5mm & R/L, H DMI, DisplayLink)
Output Sources Monitor Loop-thru (HD15), Audio Out, Wireless Ready Port
Computer Comp atibility PC, Macin tosh
Video Compatibility NTSC / NTSC4.43 / PAL / PAL-M / PAL-N / SECAM and SDTV (480i/576i),
EDTV (480p/576p), HDTV (720p/1080i/1080p)
Number of Colors 16.7 million, True Color
Digital Key stone Correction Au to Keystone Vertical -30 / +30 degrees
Zoom Ratio 1.1:1
Throw Ratio 1.95-2.15
Image Size (diagonal) 3.9” - 200” / 1 - 5.13 m
Projectio n Distance 6.39 ft - 36 .15 ft / 1.95 m - 11 m
5.11 ft - 36.15 ft / 1.5 m - 11 m
Image Offset 115%
Synch H-Synch Range 15 .75 - 100 kHz; V-Synch Range 50 - 85 Hz
Projection Methods Front, rear, ceiling front, ceiling rear
Audio Output 3w + 3w Stereo
Control Projector Keypad, IR Remote Control, USB, RS23 2
Lamp Lif e 2000 hrs Normal / 3000 hrs Eco*
Lamp Power 280w
Power Consum ption 288w Normal / 22 8w Eco / 7w Standby
Power Supply 100 - 240 Volts at 50 - 60 Hz
Closed Caption CC1, CC2
Audible N oise 35 dBA Typical : Normal / 30 dBA Typical : E co
Product D imensions 3.7” H x 12.4 ” W x 9.8” D / 9.5cm-H x 3 1.6cm-W x 24.9cm-D
Product Col or Black with Silv er
Product Weight 7 lbs / 3.1 kg
Shipping Weight 14.3 lbs / 6. 4 kg
Shipping Dimensions 13.1” H x 18. 8” L x 8.8” W / 33.3 cm-H x 4 7.8 cm-L x 22.4 cm-W
Max Altitude 10,000 ft
Security Kensington slot, Pin code
Lamp conta inment Projector is designed to con tain particles la rger than 0.8mm**
Ships With Power Cord, USB Cable (A-B mini), VGA Cable, Carry Case, Remote
w/batteries
Menu Languages Simplified Chinese, Traditional Chinese, Danish, Dutch, English,
Finnish, French, German, Italian, Korean, Norwegian, Polish,
Portugese, Russian, Spanish, Swedish, Turkish
Warranty 3 years wit h 24x7 operation compatible
24 x 7 Operation Yes
Lamp Warranty 1 year
Accessories Warranty 90 days
Approvals C-Tick (Australia) , NOM (Mexico), CE (Europe), UL & CUL (USA & Canada),
FCC (USA), IR AM (Argentina), G OST (Russia), MIC & eK (South Korea),
CCC (China), PSB (Singapore)
Product spec ifications, terms, and offerings a re subject to change at any time witho ut notice.
* Actual lamp life may vary based on the amb ient environment a nd projector usage . Conditions that may affect lamp life
include temperature, altitude, and rapidly switching the projector on and off.
** Complies with standard IEC 62368 for Audio/Video/ITE equipment.
LiteShow II
LiteShow II
Eliminate cables and speed set-up time with
LiteShow II. This wireless adapter enables cable-free
presentations. Switch presenters in seconds and
transmit data, audio and stunning video over a 300’
(95m) range.
Optional Accessories
Projection Screens (4:3, 16:10 & 16:9)
Cables & Adaptors
Security Lock (SEC-LOCK-01)
Replacement Lamp (SP-LAMP-042)
LiteShow II Wireless Adapter (IN-LITESHOW2)
Warranty
Providing the highest quality products and support is very
important to InFocus. The IN3104EP digital projector comes
standard with a 3 year limited factory warranty (including parts and
labor) and a 1-year limited lamp-replacement warranty. Extended
product and lamp warranty programs are also available. For more
information, please visit: www.infocus.com/service
InFocus Corporate Headquarters
27500 SW Parkway Avenue • Wilsonville, Oregon 97070-9215, USA
Phone: (1) 503-685-8888 • Toll Free: (1) 800-294-6400
Fax: (1) 503-685-8887
Europe
InFocus International BV
Louis Armstrongweg 110 • 1311 RL Almere, The Netherlands
Phone: (31) 36 5392000 • Freephone: 008000 4636287 (008000 INFOCUS)
Fax: (31) 36 5392999
Asia
19 Tanglin Road, 7th Floor • Singapore 247909
Phone: (65) 6334-9005 • Fax: (65) 6333-4525
©2008 InFocus Cor poration. All rights reserved . Specifica tions are subject to change with out furth er notice .
InFocus and InFoc us The Big Picture a re either trademark s or regist ered trade marks of I nFocus Corpo ration
in the United States and other countries. DLP, the DLP logo, and the DLP medallion are trademarks of Texas
Instru ments. All trademarks are used with perm ission or are for id entificat ion purpos es only an d are the
property of their respective companies. IN3104EP.
www.InFocus.com
