InFocus IN224, IN220 User Manual

1

English

Table of Contents ............................1

Usage Notice ...................................2

Safety Information ...............................2

Precautions .........................................3

Product Features ................................5

Introduction ......................................6

Package Overview ..............................6

Product Overview ...............................7

Main Unit .............................................. 7

Control Panel ....................................... 9

Input/Output Connections .................. 10

Remote Control .................................. 11

Installation .....................................12

Connecting the Projector ..................12

Connect to Computer/Notebook ........ 12

Connect to Video Sources ................. 13

Powering the Projector On / Off ........14

Powering On the Projector ................. 14

Powering off the projector .................. 16

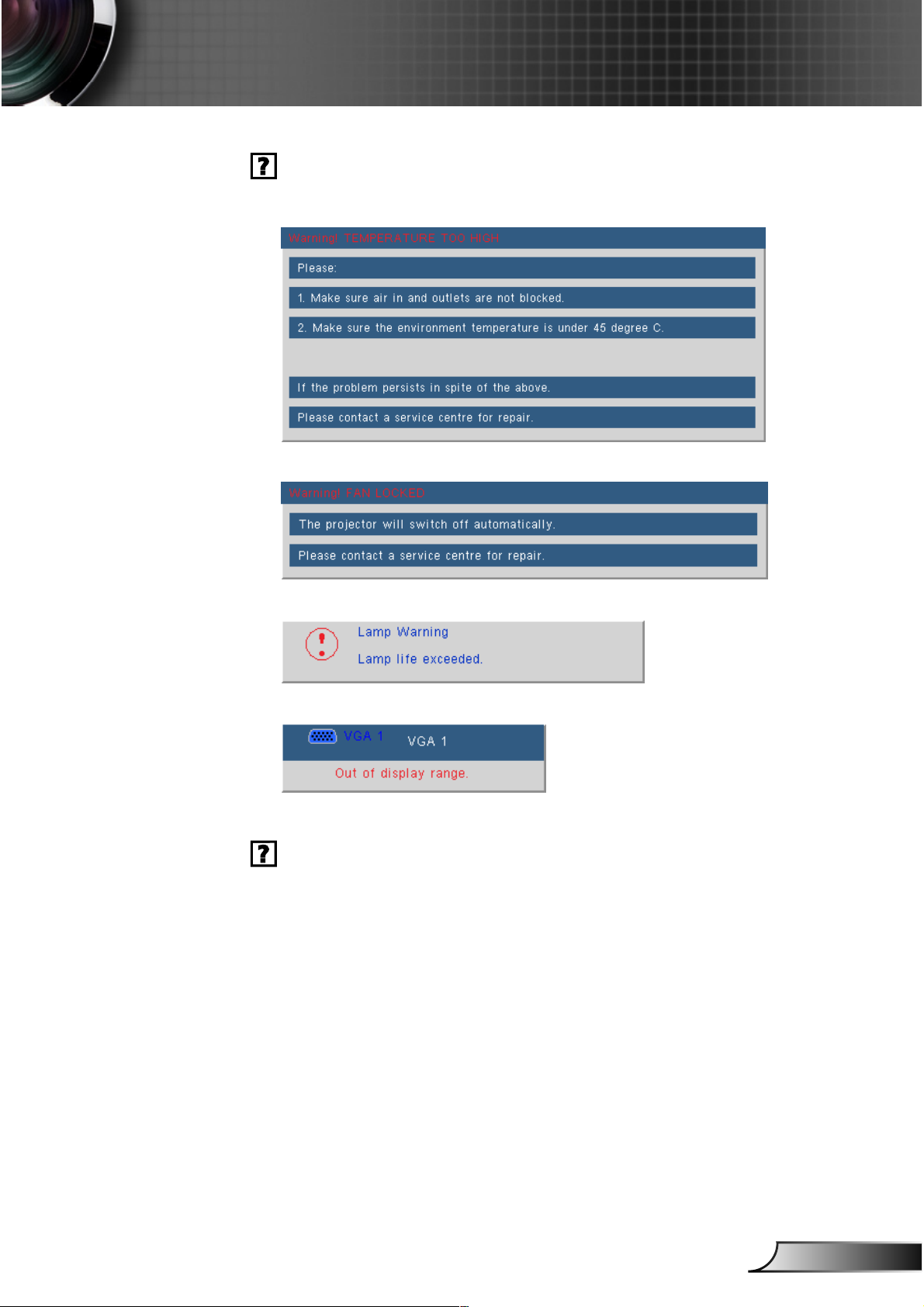

Warning Indicator ............................... 16

Adjusting the Projected Image ..........17

Adjusting the Projector’s Height ........ 17

Adjusting the Projector’s Zoom /

Focus ................................................. 18

Adjusting Projection Image Size ........ 18

User Controls ................................21

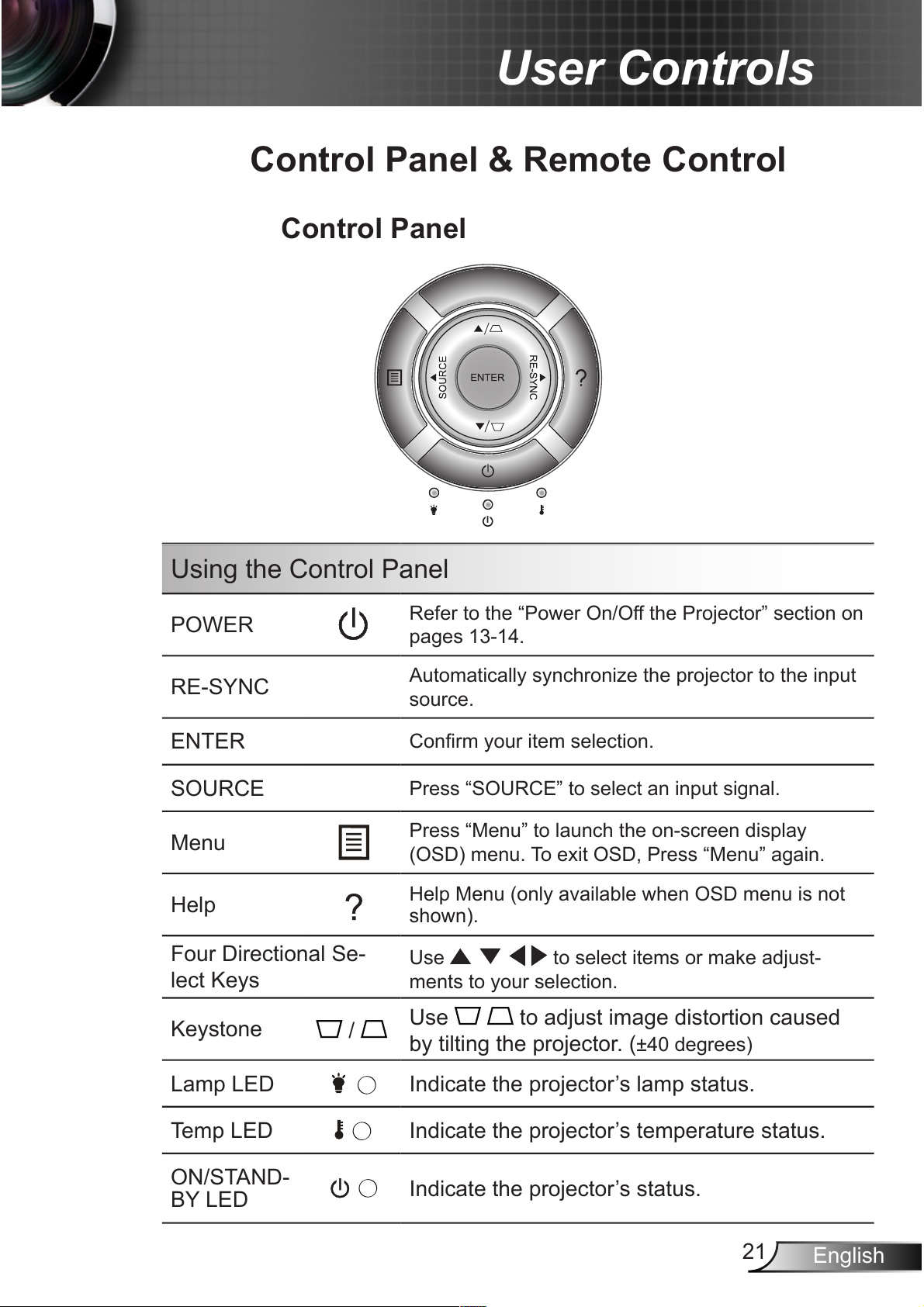

Control Panel & Remote Control ......21

Control Panel ..................................... 21

Remote Control Battery Installation ... 22

Remote Control .................................. 23

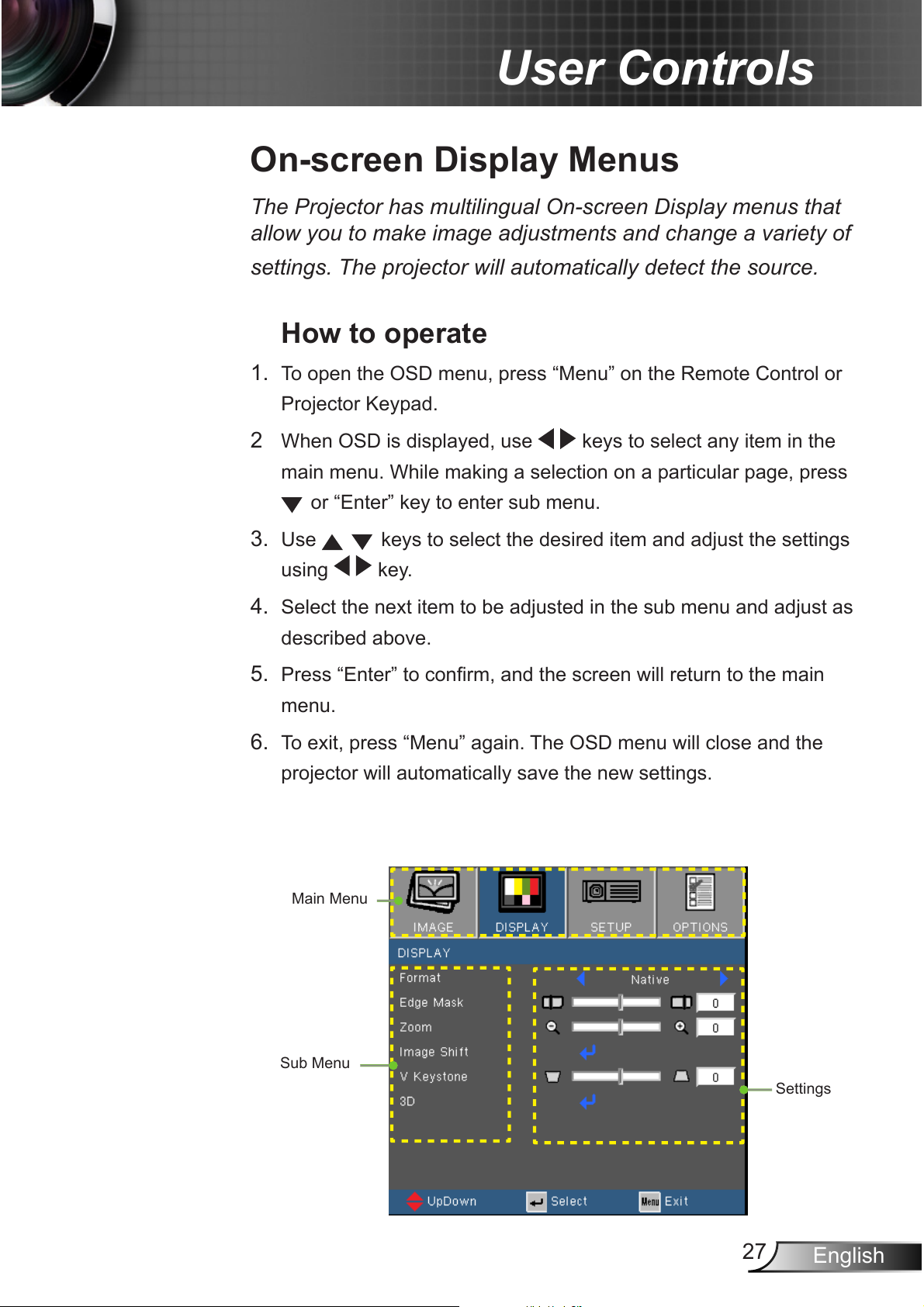

On-screen Display Menus ................27

How to operate ..................................27

Menu Tree .......................................... 28

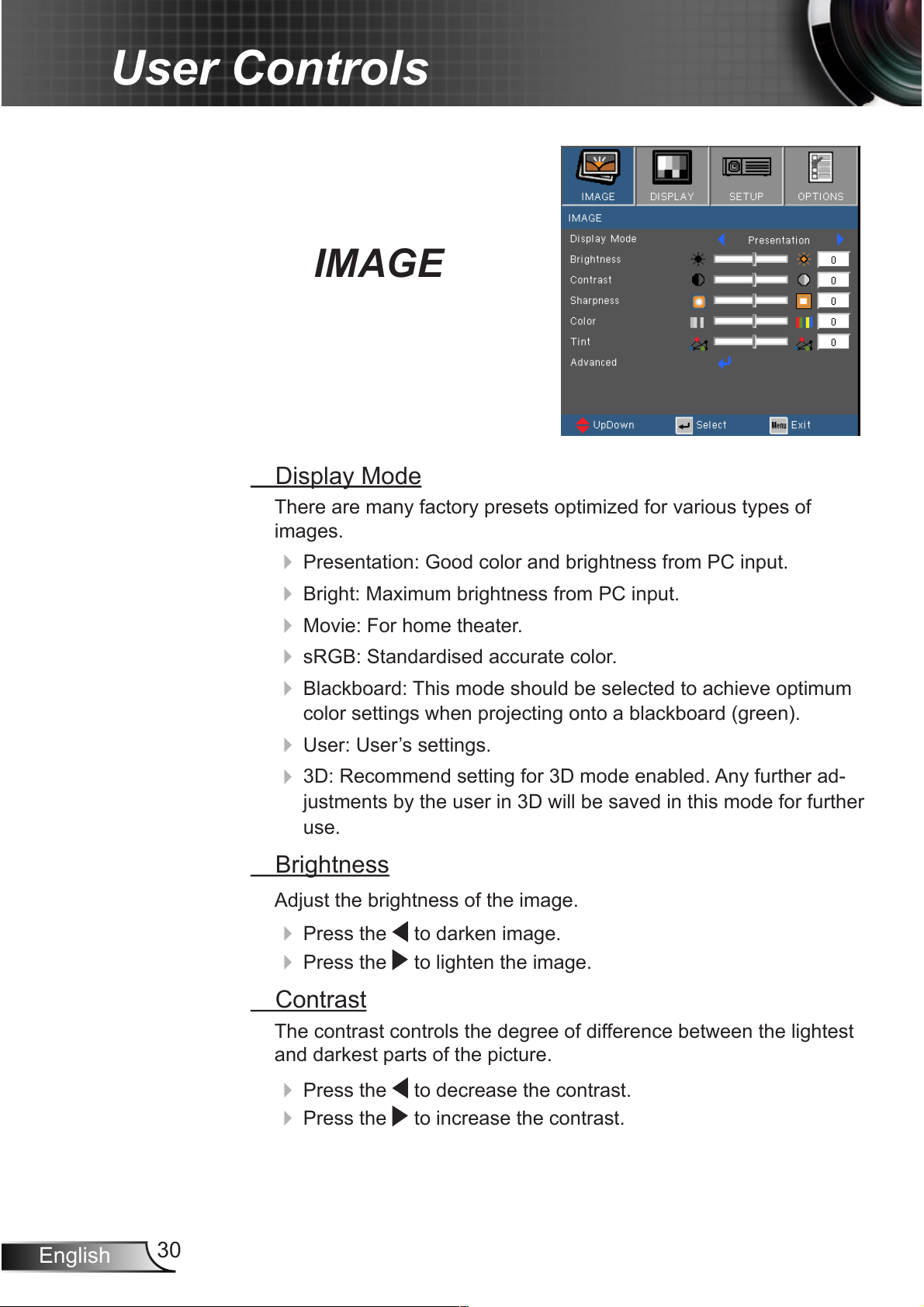

IMAGE ............................................... 30

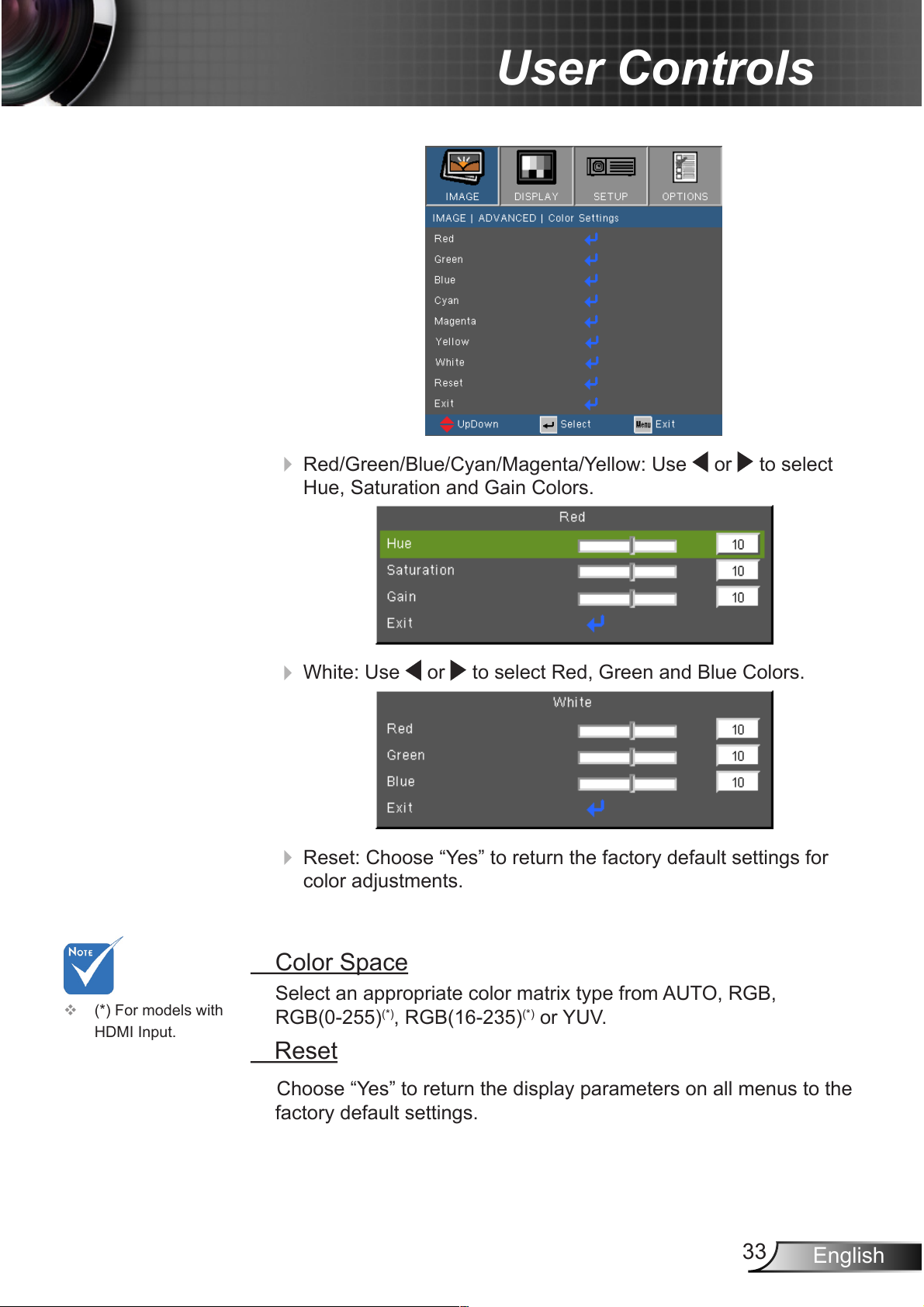

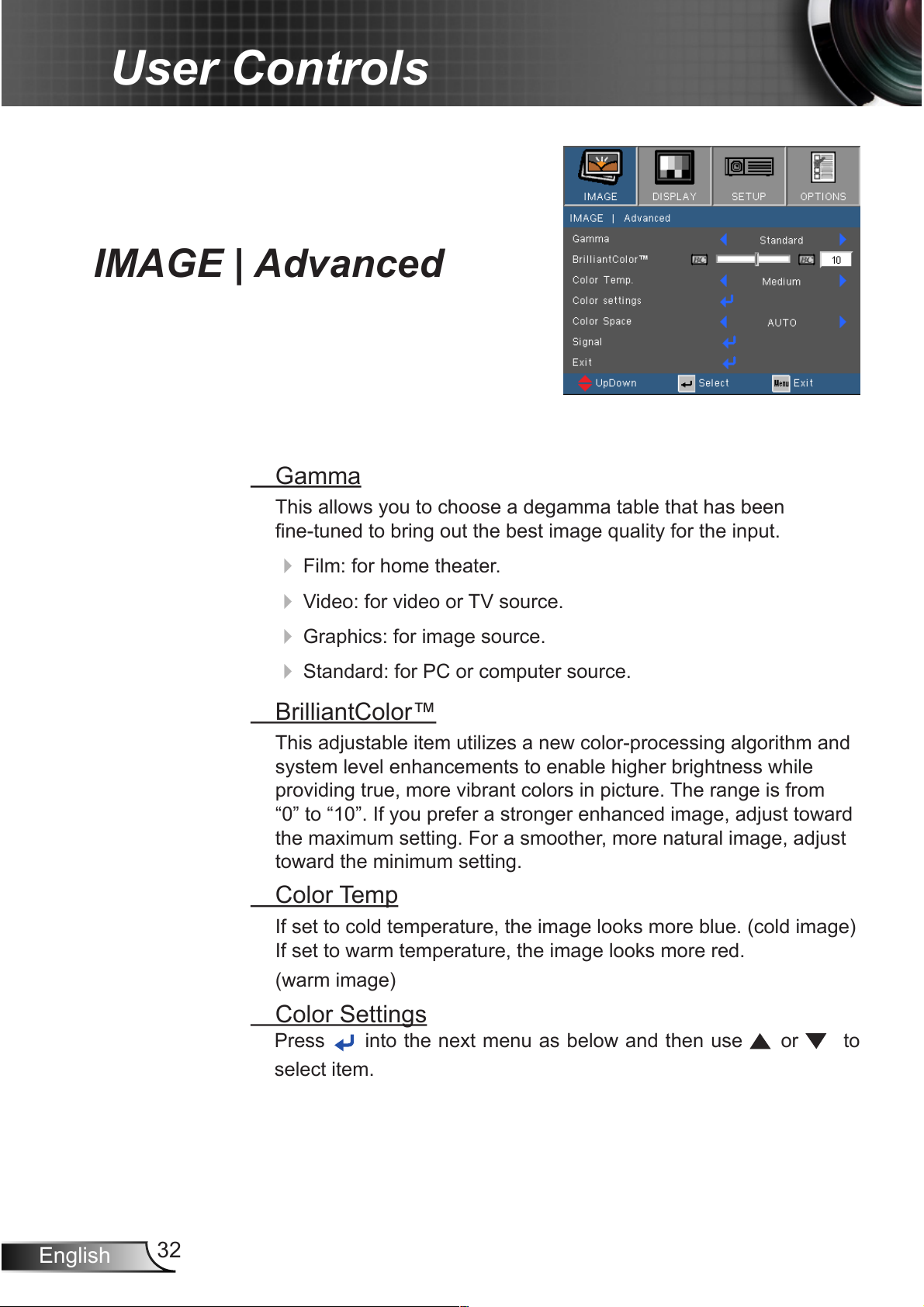

IMAGE | Advanced ............................ 32

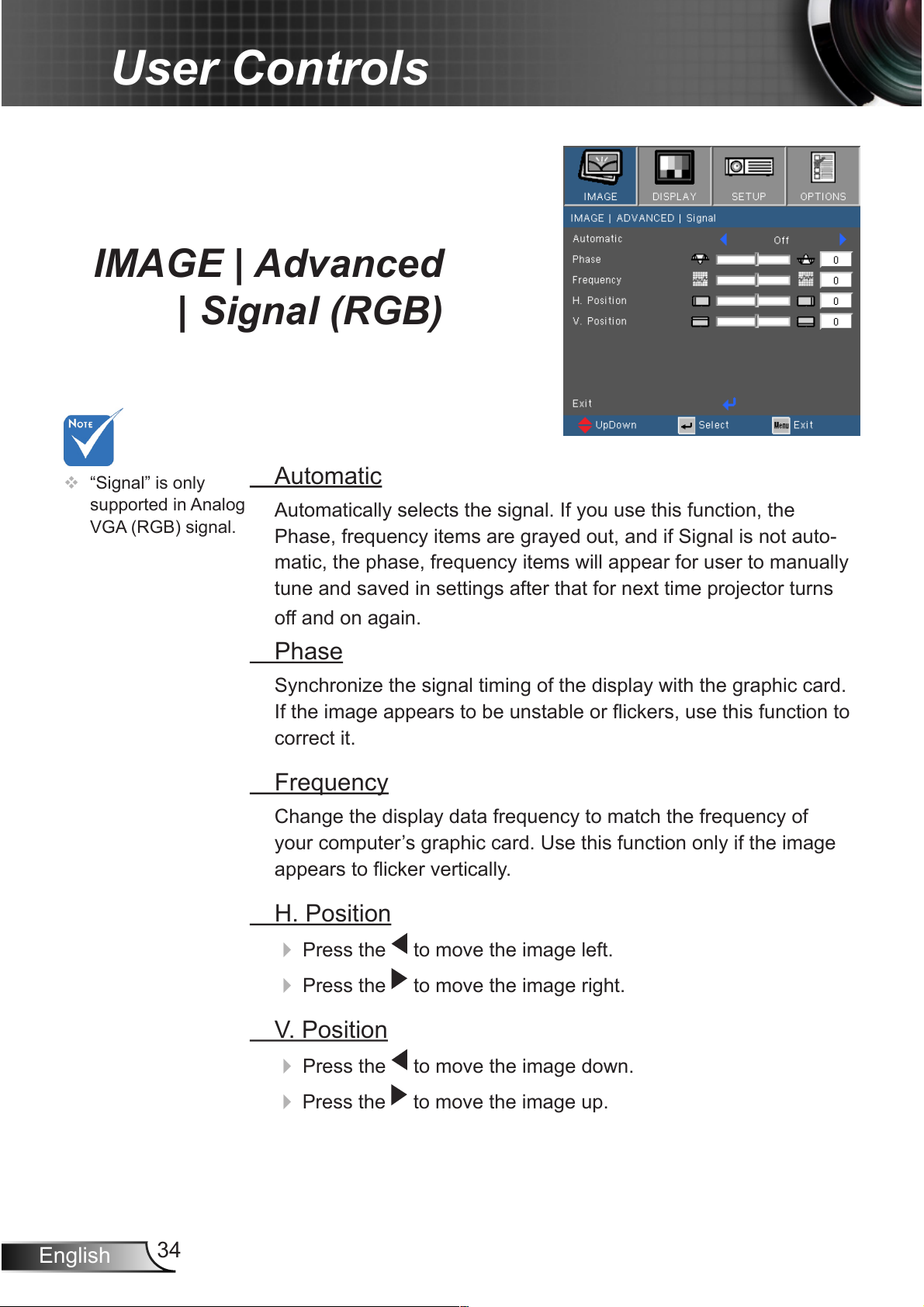

IMAGE | Advanced | Signal (RGB) ... 34

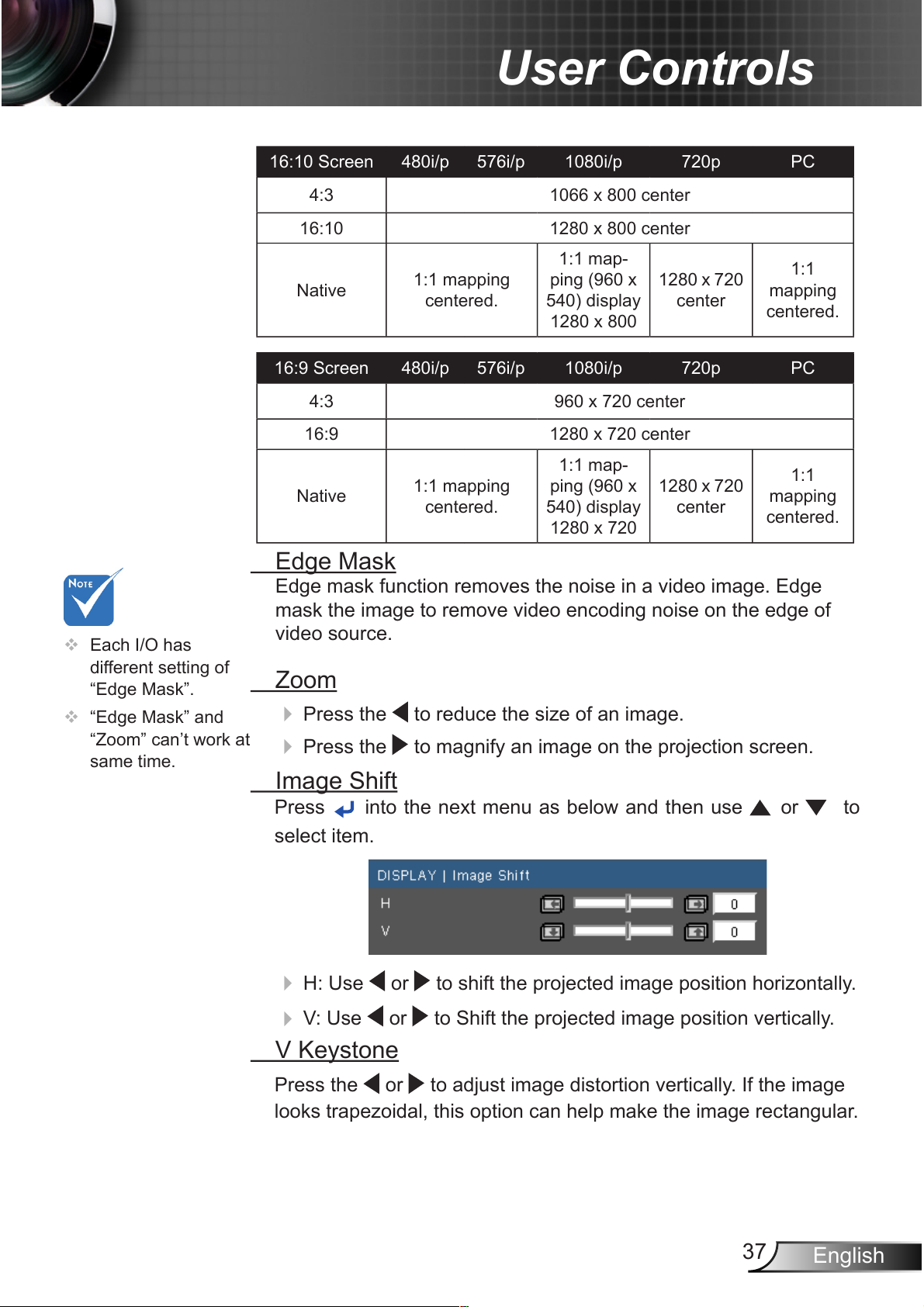

DISPLAY ............................................ 35

DISPLAY | 3D ................................... 38

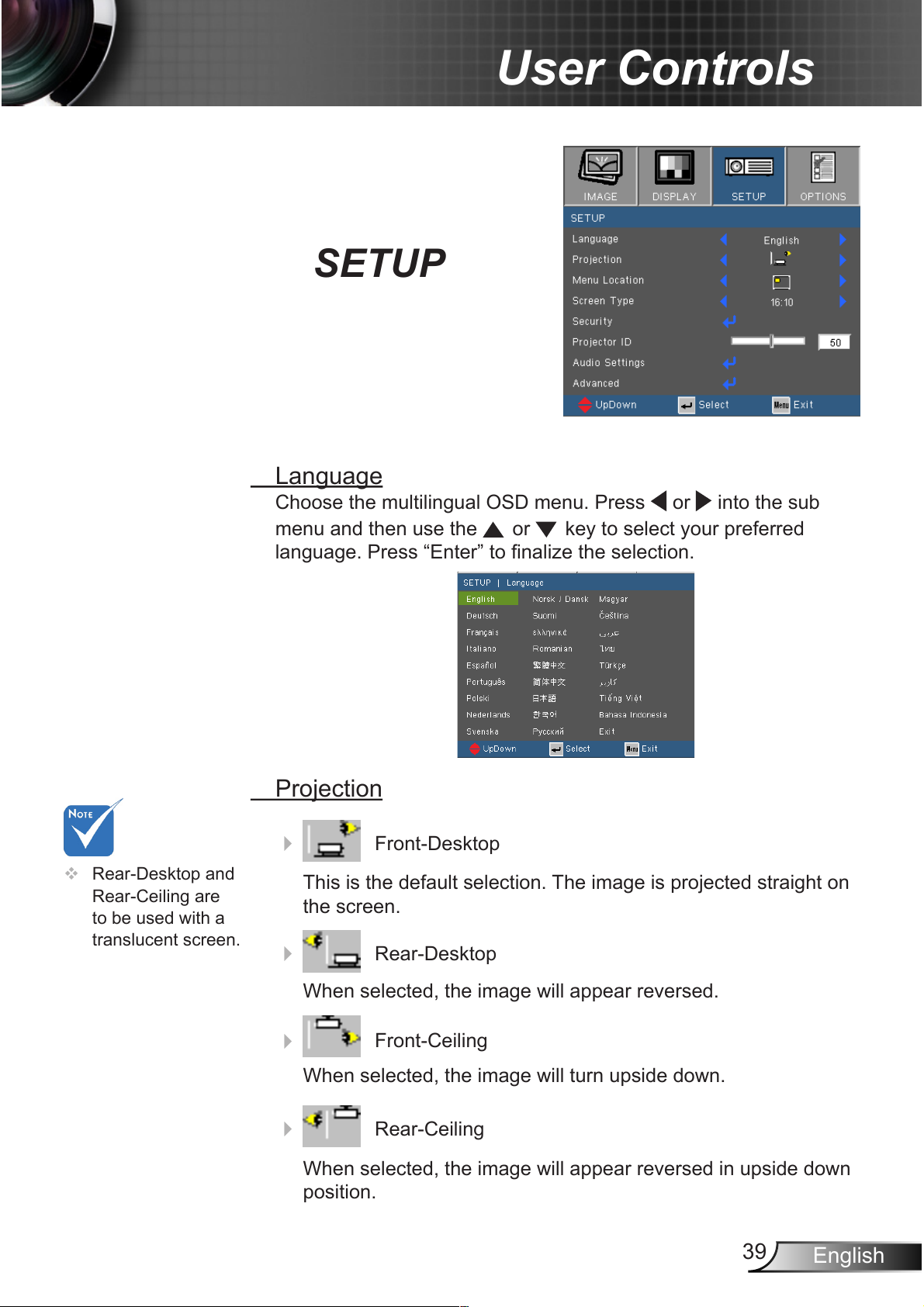

SETUP ............................................... 39

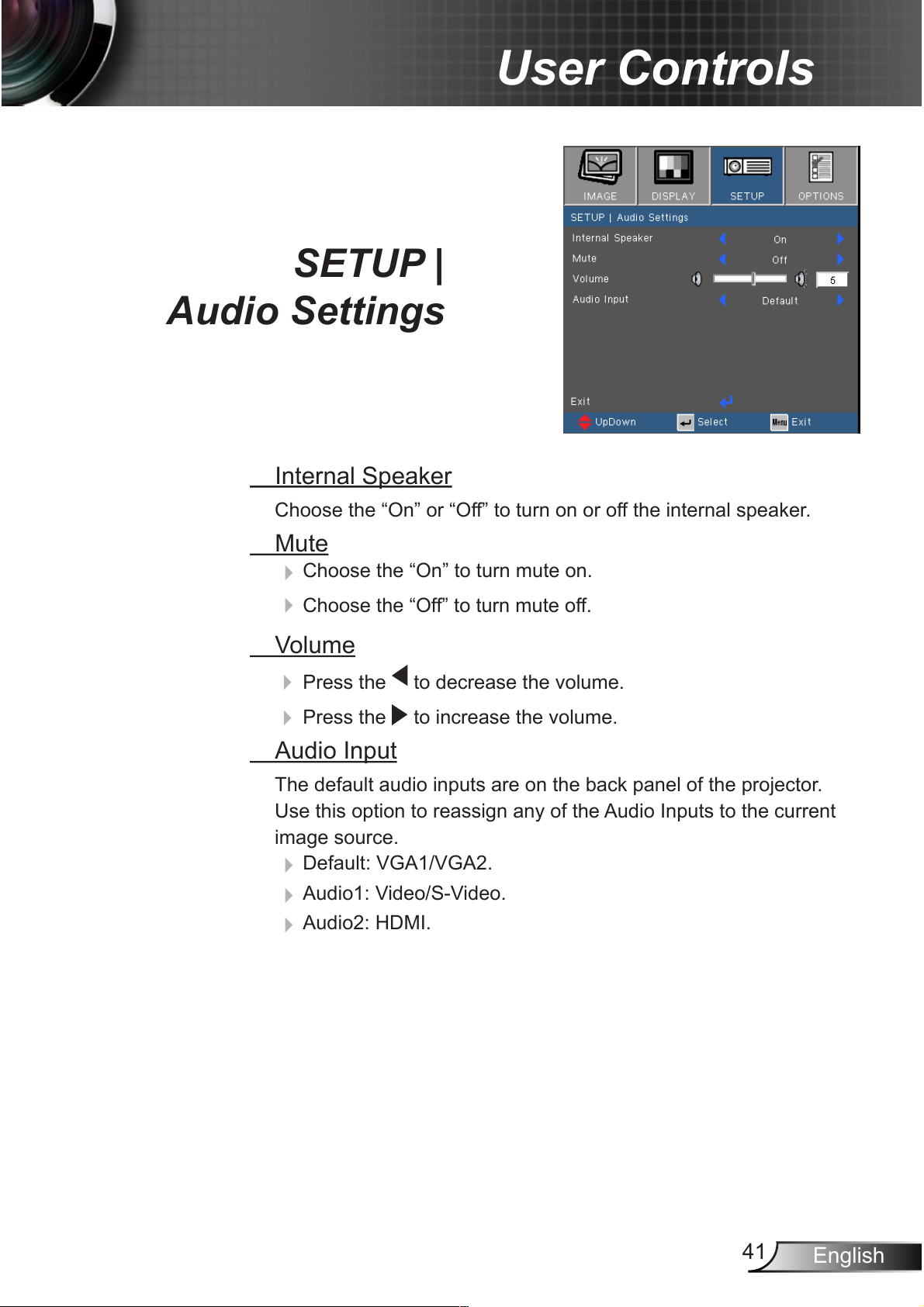

SETUP | Audio Settings ..................... 41

SETUP | Advanced ............................ 42

OPTIONS ........................................... 43

OPTIONS | Advanced ........................ 45

OPTIONS | Lamp Settings ................. 46

OPTIONS | Optional Filter Settings ... 47

Appendices ....................................48

Troubleshooting ................................48

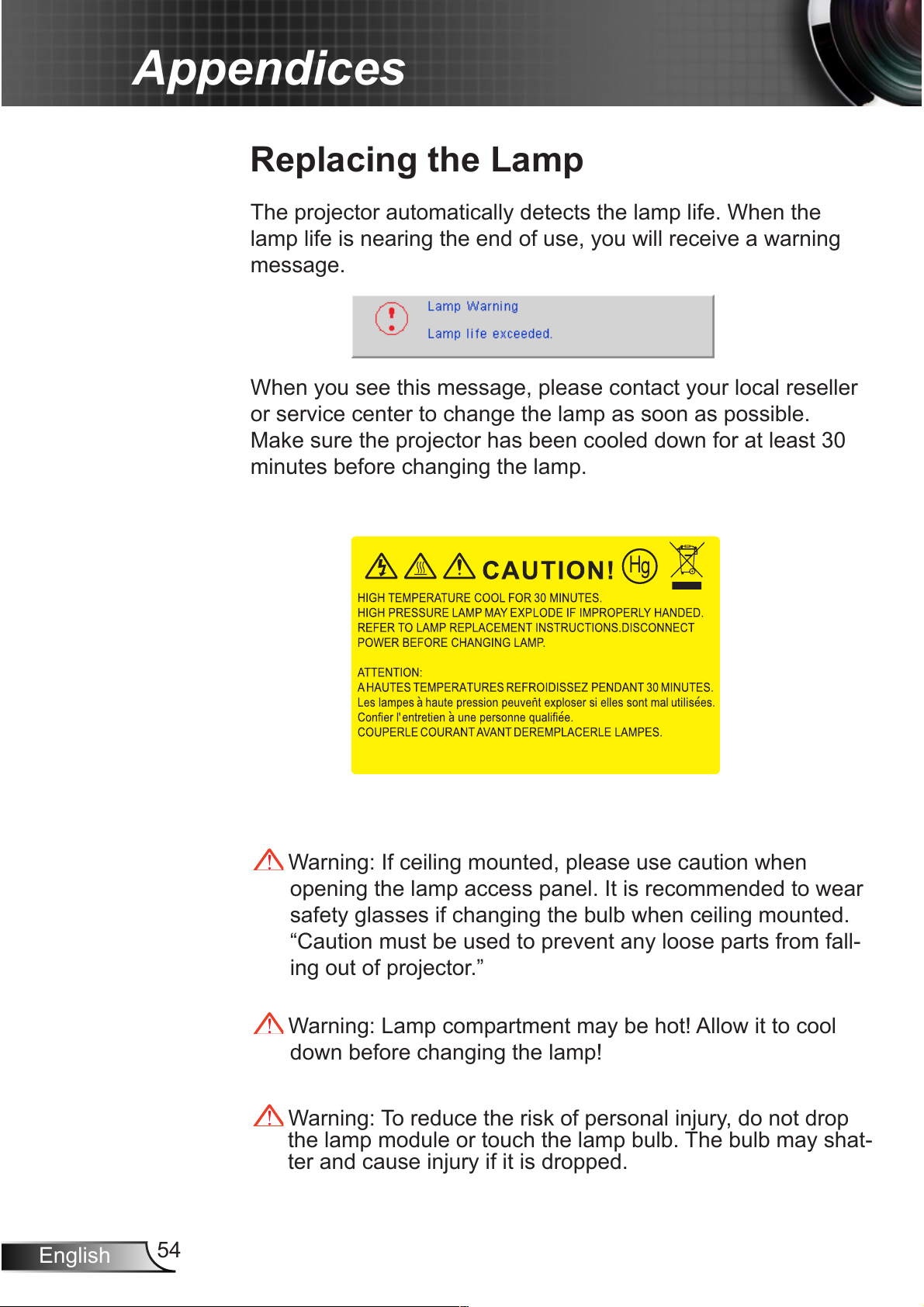

Replacing the Lamp ..........................54

Installing and Cleaning the Dust

Filter ..................................................56

Compatibility Modes .........................57

Computer/Video/HDMI/Mac

Compatibility ...................................... 57

3D Input Video Compatibility .............58

RS232 Commands and Protocol Func-

tion List .............................................59

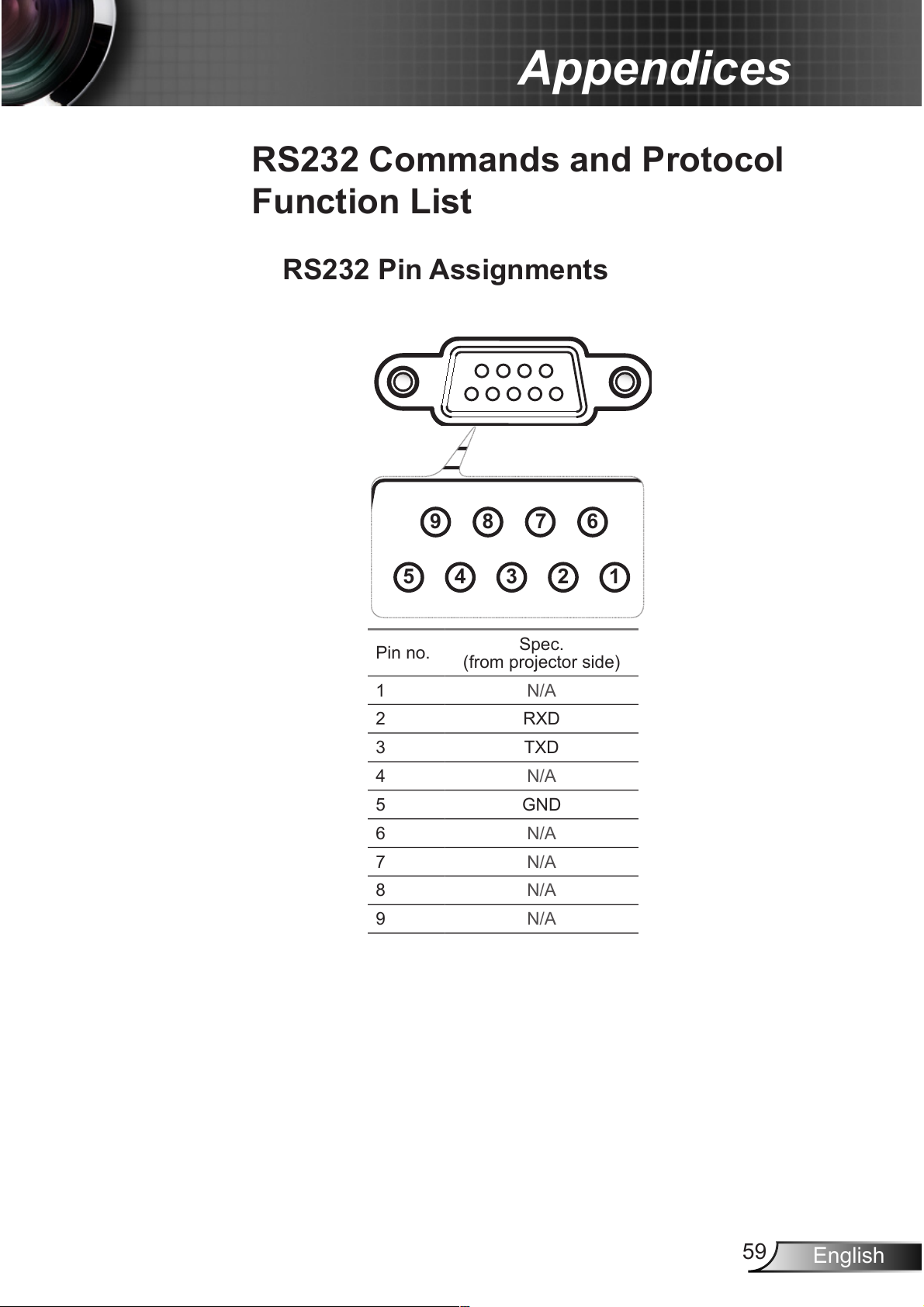

RS232 Pin Assignments .................... 59

RS232 Protocol Function List ............ 60

Ceiling Mount Installation ..................64

Regulation & Safety Notices .............65

Table of Contents

2

English

Usage Notice

Safety Information

The lightning ash with arrow head within an equilateral triangle is

intended to alert the user to the presence of uninsulated “dangerous

voltage” within the product’s enclosure that may be of sufcient
magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT

EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. DANGEROUS HIGH
VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE
CABINET. REFER SERVICING TO QUALIFIED PERSONNEL ONLY.

Class B emissions limits

This Class B digital apparatus meets all requirements of the Canadian
Interference-Causing Equipment Regulations.

Important Safety Instruction

1. Do not block any ventilation openings. To ensure reliable operation of
the projector and to protect from over heating, it is recommended to
install the projector in a location that does not block ventilation. As an
example, do not place the projector on a crowded coffee table, sofa,
bed, etc. Do not put the projector in an enclosure such as a book case
or a cabinet that restricts air ow.

2. Do not use the projector near water or moisture. To reduce the risk
of re and/or electric shock, do not expose the projector to rain or
moisture.

3. Do not install near heat sources such as radiators, heaters, stoves or

any other apparatus such as ampliers that emits heat.

4. Clean only with dry cloth.

5. Only use attachments/accessories specied by the manufacturer.

6. Do not use the unit if it has been physically damaged or abused.
Physical damage/abuse would be (but not limited to):

 Unit has been dropped.
 Power supply cord or plug has been damaged.
 Liquid has been spilled on to the projector.
 Projector has been exposed to rain or moisture.
 Something has fallen in the projector or something is loose inside.

Do not attempt to service the unit yourself. Opening or removing covers
may expose you to dangerous voltages or other hazards. Please call
InFocus before you send the unit for repair.

7. Do not let objects or liquids enter the projector. They may touch
dangerous voltage points and short out parts that could result in re or
electric shock.

8. See projector enclosure for safety related markings.

9. The unit should only be repaired by appropriate service personnel.

3

English

Usage Notice

Precautions

Please follow all warnings, precautions and
maintenance as recommended in this user’s
guide.

▀■ Warning- Do not look into the projector’s lens when the lamp is

on. The bright light may hurt and damage your eyes.

▀■ Warning- To reduce the risk of re or electric shock, do not

expose this projector to rain or moisture.

▀■ Warning- Please do not open or disassemble the projector as

this may cause electric shock.

▀■ Warning- When replacing the lamp, please allow the unit to

cool down. Follow instructions as described on pages

54-55.

▀■ Warning- This projector will detect the life of the lamp itself.

Please be sure to change the lamp when it shows
warning messages.

▀■ Warning- Reset the “Lamp Reset” function from the on-screen

display “OPTIONS | Lamp Settings” menu after
replacing the lamp module (refer to page 46).

▀■ Warning- When switching the projector off, please ensure

the cooling cycle has been completed before
disconnecting power. Allow 90 seconds for the
projector to cool down.

▀■ Warning- Do not use lens cap when projector is in operation.

▀■ Warning- When the lamp is approaching the end of its lifetime,

the message “Lamp Warning: Lamp life exceeded.”
will show on the screen. Please contact your local
reseller or service center to change the lamp as soon

as possible.

When the lamp

reaches the end
of its life, the pro-

jector will not turn
back on until the
lamp module has

been replaced.
To replace the

lamp, follow the

procedures listed
under “Replacing

the Lamp” section

on pages 54-55.

4

English

Usage Notice

Do:

  Turn off and unplug the power plug from the AC outlet before

cleaning the product.

  Use a soft dry cloth with mild detergent to clean the display

housing.

  Disconnect the power plug from AC outlet if the product is

not being used for a long period of time.

Do not:

  Block the slots and openings on the unit provided for

ventilation.

 Use abrasive cleaners, waxes or solvents to clean the unit.

 Use under the following conditions:

- In extremely hot, cold or humid environments.

4

Ensure that the ambient room temperature is within

5 - 40°C.

4

Relative Humidity is 5 - 40°C, 80% (Max.),

non-condensing.

- In areas susceptible to excessive dust and dirt.

- Near any appliance generating a strong magnetic eld.

- In direct sunlight.

5

English

Usage Notice

Product Features

▀■ SVGA (800x600) / XGA (1024x768) / WXGA

(1280X800) Native resolution

▀■ HD compatible – 720p and 1080p supported

▀■ BrilliantColorTM Technology

▀■ Kensington Lock

▀■ RS232 control

▀■ Rapid shutdown

▀■ Full 3D

(*)

(See page 58)

▀■ The Product Features shall be congured by the manu-

facturer as per practical conditions.

(*) For models with 

HDMI Input.

Product features may 
vary depending on
model.

6

English

Introduction

Documentation :



User’s Manual



Quick Start Card

Due to different

applications in

each Country,
some regions
may have

different
accessories.

Power Cord

IR Remote Control

Package Overview

Unpack and inspect the box contents to ensure
all parts listed below are in the box. If something
is missing, please contact your nearest customer
service center.

Battery

Projector

VGA Cable

(*)

VGA

Enter

Menu

Zoom

Carrying case

(*)

CR2025

3V

(*) The acces-

sory depends on
model’s specica-

tions.

(*) Soft bag is an

optional service
part.

7

English

Introduction

Product Overview

Main Unit

Focus Ring1.
Zoom Lever2.
IR Receiver3.
Control Panel4.
Input / Output Connections5.
Kensington6.

TM

Lock Port

Ventilation (inlet)7.
Speaker8.
Lens Cap*9.

Tilt-Adjustment Feet10.

Ventilation (outlet)11.

9

The interface

is subject to
model’s speci­cations.

Do not block

projector in/out

air vents.

(*) Lens cap

comes with
IN226ST/

IN227ST

7

11

5

21

3

10

8

4

6

8

English

Introduction

Focus Ring1.
Zoom Lever2.
IR Receiver3.
Control Panel4.
Input / Output Connections5.
Kensington6.

TM

Lock Port

Ventilation (inlet)7.

Speaker8.
Tilt-Adjustment Feet9.

Ventilation (outlet)10.

1

The interface

is subject to
model’s speci­cations.

Do not block

projector in/out

air vents.

7

10

5

21

3

9

8

4

6

9

English

Introduction

6

1 2

78

11

Source1.
Keystone Correction2.
Enter3.
Re-Sync4.
Help5.

Four Directional Select Keys6.
Temp LED7.
Power8.
On/Standby LED 9.
Lamp LED 10.

Menu11.

Control Panel

5

10

3 4

9

10

English

Introduction

Input/Output Connections

Composite Video Input Connector1.
S-Video Input Connector2.
VGA-Out Connector (Monitor Loop-through Output)3.

VGA2-IN/YPbPr Connector 4.
(PC Analog Signal/Component Video Input/HDTV/YPbPr)
VGA1-IN/YPbPr Connector 5.
(PC Analog Signal/Component Video Input/HDTV/YPbPr)

HDMI Connector6.
Security Lock Slot7.
Audio2 Input 8. Connector (3.5mm mini jack)

Audio Output Connector ( 3.5mm mini jack)9.
Audio1 Input Connector (3.5mm mini jack)10.

RS-232 Connector (9-pin)11.

USB Connector (Connect to PC for Remote Mouse func-12.
tion/USB Service for rmware upgrade)
Power Socket13.

Monitor loop 

through only sup­port in VGA2-IN/

YPbPr.
The interface is 

subject to model’s
specications.

USB

VGA1-IN/YPbPr

VIDEO

VGA-OUT

VGA2-IN/YPbPr

HDMI

AUDIO1-IN

AUDIO-OUT

AUDIO2-IN

S-VIDEO

RS-232C

7 9 10 11 12 138

2 3 4 51 6

11

English

Introduction

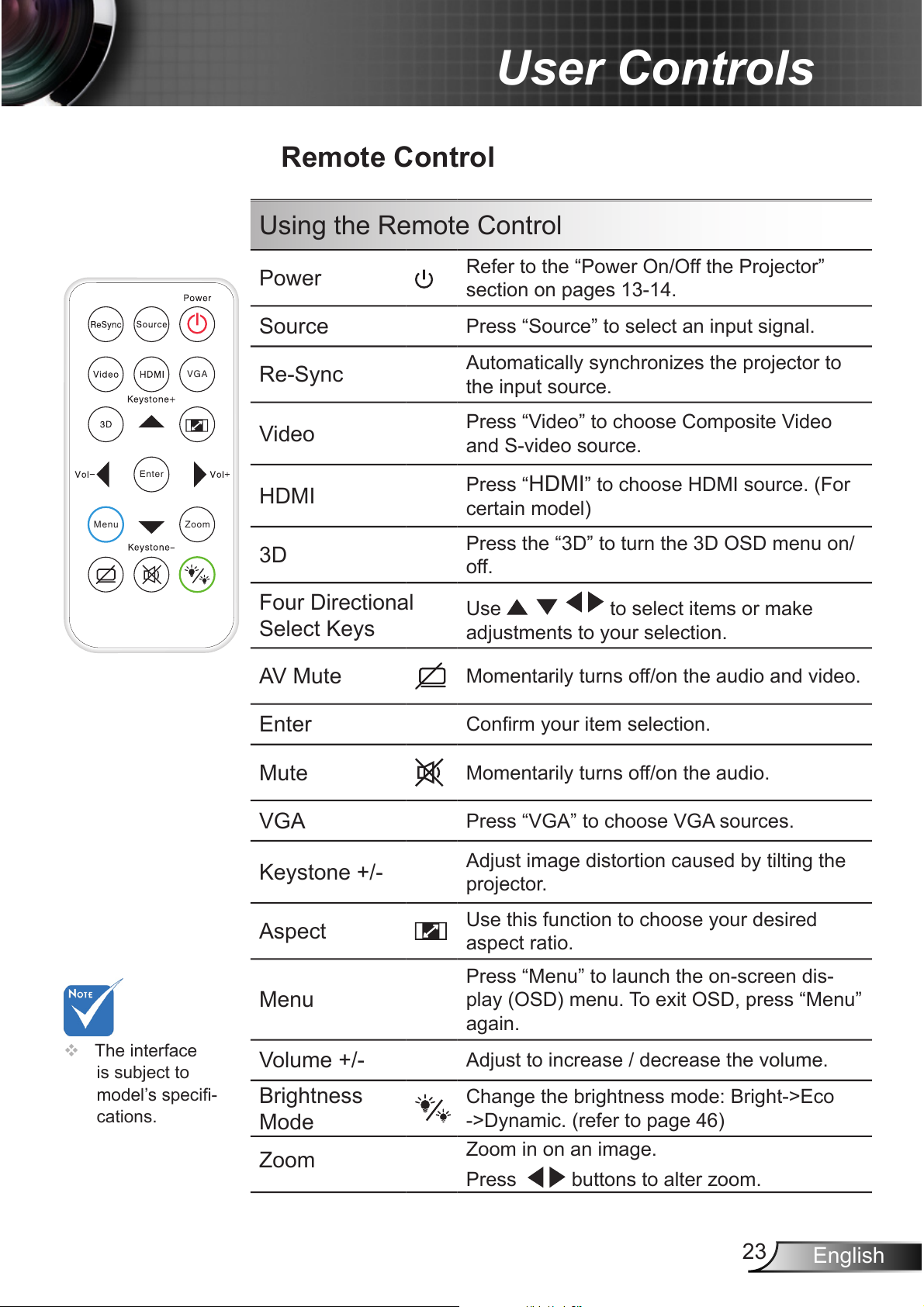

Remote Control

The interface is

subject to model’s
specications.

Source1.
Re-Sync2.
Video and S-Video 3.
HDMI4.
3D5.
Volume +/-6.
Four Directional Select 7.

Keys

Menu8.
AV Mute9.
Mute10.
IR LED Indicator11.
Power On/Off12.
VGA13.
Keystone +/-14.
Aspect15.
Enter16.
Zoom17.
Brightness Mode18.

VG A

En ter

Me nu

Zo om

3

V

O

L

T

S

CR2025

Before using the 

remote control
for the rst time,
remove the trans-

parent insulation
tape. See page

19 for battery

installation.

12

13

15

14

7

10

9

8

4

5

3

2

1

11

6

6

17

16

18

14

12

English

Installation

Connect to Computer/Notebook

Connecting the Projector

Due to the

difference in
applications for

each country,
some regions may

have different
accessories.

(*) Optional

accessory

The interface is

subject to model’s
specications .

1......................................................................................*Audio Output Cable

2.............................................................................................*VGA Out Cable

3.....................................................................................................VGA Cable

2..................................................................................................*HDMI Cable

5....................................................................................................Power Cord

6....................................................................................................*USB Cable

7................................................................................................*RS232 Cable

8.........................................................................................*Audio Input Cable

USB

VGA1-IN/YPbPr

VIDEO

VGA-OUT

VGA2-IN/YPbPr

HDMI

AUDIO1-IN

AUDIO-OUT

AUDIO2-IN

S-VIDEO

RS-232C

molex

MOLEX

1

2 3

Audio Output

Monitor Output

4

5

7

8

6

13

English

Installation

Connect to Video Sources

1................................................................................*Composite Video Cable

2.............................................................................................. *S-Video Cable

3..................................................................................................*HDMI Cable

4....................................................................................................Power Cord

5......................................................................................*Audio Output Cable

6.........................................................................................*Audio Input Cable

7...........................................................................................*VGA/RCA Cable

8................................................*15-Pin to 3 RCA Component/HDTV Adaptor

9.............................................................................*3 RCA Component Cable

USB

VGA1-IN/YPbPr

VIDEO

VGA-OUT

VGA2-IN/YPbPr

HDMI

AUDIO1-IN

AUDIO-OUT

AUDIO2-IN

S-VIDEO

RS-232C

1

765

2

3

S-Video Output

Composite Video Output

Due to the

difference in
applications for

each country,
some regions may

have different
accessories.

(*) Optional

accessory

The interface is

subject to model’s
specications .

DVD Player, Set-top Box,

HDTV receiver

Audio Output

4

9

DVD Player, Set-top Box,

HDTV receiver

8

14

English

Installation

Powering the Projector On / Off

Turn on the

projector rst and

then select the
signal sources.

Powering On the Projector

1. Remove the lens cap. 

2. Securely connect the power cord and signal cable. When

connected, the ON/STANDBY LED will turn Amber.

3. Turn on the lamp by pressing “ ” button either on the top of
the projector or on the remote. The ON/STANDBY LED will
now turn Green. 

The startup screen will display in approximately 10 seconds.

The rst time you use the projector, you will be asked to
select the preferred language and power saving mode.

4. Turn on and connect the source that you want to display
on the screen (computer, notebook, video player, etc). The
projector will detect the source automatically. If not, push
menu button and go to “OPTIONS”.
Make sure that the “Source Lock” has been set to “Off”.

If you connect multiple sources at the same time, press the

“SOURCE” button on the control panel or direct source keys
on the remote control to switch between inputs.

When Power mode

(Standby) is set to
Eco (<0.5W), the

VGA output and
Audio pass-through

will be deactivated
when the projector is
in standby.

Lens Cap

1

Power

2

15

English

Installation

Turn on the

projector rst and

then select the
signal sources.

Powering On the Projector

1. Securely connect the power cord and signal cable. When
connected, the ON/STANDBY LED will turn Amber.

2. Turn on the lamp by pressing “ ” button either on the top of
the projector or on the remote. The ON/STANDBY LED will
now turn Green. 

The startup screen will display in approximately 10 seconds.

The rst time you use the projector, you will be asked to
select the preferred language and power saving mode.

3. Turn on and connect the source that you want to display
on the screen (computer, notebook, video player, etc). The
projector will detect the source automatically. If not, push
menu button and go to “OPTIONS”.
Make sure that the “Source Lock” has been set to “Off”.

If you connect multiple sources at the same time, press the

“SOURCE” button on the control panel or direct source keys
on the remote control to switch between inputs.

When Power mode

(Standby) is set to
Eco (<0.5W), the

VGA output and
Audio pass-through

will be deactivated
when the projector is
in standby.

Power

1

16

English

Installation



Contact the

nearest service
center if the

projector displays
these symptoms.

Powering off the projector

1. Press the “ ” button on the remote control or on the
control panel to turn off the projector.

The following message will be displayed on the screen.

Press the “ ” button again to conrm otherwise the

message will disappear after 15 seconds. When you press­ing for the second time, the projector will shut down.

2. The cooling fans continue to operate for about 10 seconds
for cooling cycle and the ON/STANDBY LED will Flash
Green. When the ON/STANDBY LED lights solid Amber,
the projector has entered standby mode.

If you wish to turn the projector back on, you must wait until

the projector has completed the cooling cycle and has en­tered standby mode. Once in standby mode, simply press “

” button to restart the projector.

3. Disconnect the power cord from the electrical outlet and the

projector.

4. Do not turn on the projector immediately following a power

off procedure.

Warning Indicator

When the warning indicators (see below) come on, the
projector will automatically shutdown:

 “LAMP” LED indicator is lit red and if “On/Standby” indicator

ashes amber.

 “TEMP” LED indicator is lit red and if “On/Standby”

indicator ashes amber. This indicates the projector has
overheated. Under normal conditions, the projector can be
switched back on.

 “TEMP” LED indicator ashes red and if “On/Standby”

indicator ashes amber.

Unplug the power cord from the projector, wait for 30 seconds

and try again. If the warning indicator light up again, please
contact your nearest service center for assistance.

17

English

Installation

Adjusting the Projected Image

Adjusting the Projector’s Height

The projector is equipped with elevator feet for adjusting
the image height.

1. Locate the adjustable foot you wish to modify on the

underside of the projector.

2. Rotate the adjustable ring clockwise to raise the projector
or counter clockwise to lower it. Repeat with the remaining

feet as needed.

Tilt-Adjustment Feet

Tilt-Adjustment Ring

18

English

Installation

Adjusting the Projector’s Zoom / Focus

You may turn the zoom ring to zoom in or out. To focus the im­age, rotate the focus ring until the image is clear.

4

XGA short throw: The projector will focus at distances from

1.31 to 32.8 feet (0.4 to 10 meters).

4

SVGA/XGA series: The projector will focus at distances from

3.94 to 39.36 feet (1.2 to 12.0 meters).

4

WXGA series: The projector will focus at distances from 3.28
to 32.8 feet (1 to 10 meters).

Adjusting Projection Image Size

4

XGA short throw: Projection Image Size from 31.9” to 300.0”
(0.81 to 7.62 meters).

4

SVGA/XGA series: Projection Image Size from 27.5” to

302.8” (0.7 to 7.69 meters).

4

WXGA series: Projection Image Size from 27.3” to 299.5”
(0.69 to 7.61 meters).

Width

Height

Diagonal

Top View

Side View

Projection Distance (D)

Projection Distance (D)

Screen

Screen

Screen (W)

Screen (H)

Offset (Hd)

Focus Ring

Zoom Lever

19

English

Installation

 This table is for user’s reference only.

SVGA/XGA

Diagonal length

(inch) size of

4:3 Screen

Screen Size W x H Projection Distance (D)

Offset (Hd)

(m) (inch) (m) (feet)

Width Height Width Height wide tele wide tele (m) (inch)

30.00 0.61 0.46 24.00 18.00 1.19 1.31 3.90 4.30 0.07 2.70

40.00 0.81 0.61 32.00 24.00 1.58 1.75 5.20 5.73 0.09 3.60

60.00 1.22 0.91 48.00 36.00 2.38 2.62 7.80 8.60 0.14 5.40

70.00 1.42 1.07 56.00 42.00 2.77 3.06 9.10 10.03 0.16 6.30

80.00 1.63 1.22 64.00 48.00 3.17 3.50 10.40 11.46 0.18 7.20

90.00 1.83 1.37 72.00 54.00 3.57 3.93 11.70 12.90 0.21 8.10

100.00 2.03 1.52 80.00 60.00 3.96 4.37 13.00 14.33 0.23 9.00

120.00 2.44 1.83 96.00 72.00 4.75 5.24 15.60 17.20 0.27 10.80

150.00 3.05 2.29 120.00 90.00 5.94 6.55 19.50 21.49 0.34 13.50

180.00 3.66 2.74 160.00 120.00 7.92 8.74 25.99 28.66 0.46 18.00

250.00 5.08 3.81 200.00 150.00 9.91 10.92 32.49 35.82 0.57 22.49

300.00 6.10 4.57 240.00 180.00 11.89 13.11 38.99 42.99 0.69 26.99

WXGA

Diagonal length

(inch) size of

16:10 Screen

Screen Size W x H Projection Distance (D)

Offset (Hd)

(m) (inch) (m) (feet)

Width Height Width Height wide tele wide tele (m) (inch)

30.00 0.65 0.40 25.43 15.90 1.00 1.10 3.26 3.62 0.05 1.99

40.00 0.86 0.54 33.91 21.19 1.33 1.47 4.35 4.83 0.07 2.65

60.00 1.29 0.81 50.87 31.79 1.99 2.21 6.53 7.25 0.10 3.97

70.00 1.51 0.94 59.34 37.09 2.32 2.58 7.62 8.46 0.12 4.64

80.00 1.72 1.08 67.82 42.39 2.65 2.95 8.70 9.66 0.13 5.30

90.00 1.94 1.21 76.30 47.69 2.99 3.31 9.79 10.87 0.15 5.96

100.00 2.15 1.35 84.78 52.99 3.32 3.68 10.88 12.08 0.17 6.62

120.00 2.58 1.62 101.73 63.58 3.98 4.42 13.06 14.50 0.20 7.95

150.00 3.23 2.02 127.17 79.48 4.98 5.52 16.32 18.12 0.25 9.93

180.00 3.88 2.42 152.60 95.38 5.97 6.63 19.58 21.75 0.30 11.92

250.00 5.38 3.37 211.95 132.47 8.29 9.21 27.20 30.20 0.42 16.56

300.00 6.46 4.04 254.33 158.96 9.95 11.05 32.64 36.24 0.50 19.87

20

English

Installation

XGA SHORT THROW

Diagonal length

(inch) size of

4:3 Screen

Screen Size W x H Projection Distance (D)

Offset (Hd)

(m) (inch) (m) (feet)

Width Height Width Height wide tele wide tele (m) (inch)

40 0.81 0.61 31.89 24.02 0.5 0.5 19.69 19.69 0.09 3.60

50 1.01 0.76 39.76 29.92 0.63 0.63 24.80 24.80 0.11 4.49

60 1.22 0.91 48.03 35.83 0.75 0.75 29.53 29.53 0.14 5.37

70 1.42 1.07 55.91 42.13 0.88 0.88 34.65 34.65 0.16 6.32

80 1.63 1.22 64.17 48.03 1 1 39.37 39.37 0.18 7.20

90 1.83 1.37 72.05 53.94 1.13 1.13 44.49 44.49 0.21 8.09

100 2.03 1.52 79.92 59.84 1.25 1.25 49.21 49.21 0.23 8.98

120 2.44 1.83 96.06 72.05 1.5 1.5 59.06 59.06 0.27 10.81

150 3.05 2.29 120.08 90.16 1.88 1.88 74.02 74.02 0.34 13.52

200 4.06 3.05 159.84 120.08 2.51 2.51 98.82 98.82 0.46 18.01

250 5.08 3.81 200.00 150.00 3.13 3.13 123.23 123.23 0.57 22.50

300 6.1 4.57 240.16 179.92 3.76 3.76 148.03 148.03 0.69 26.99

 This table is for user’s reference only.

21

English

User Controls

Control Panel

Using the Control Panel

POWER

Refer to the “Power On/Off the Projector” section on

pages 13-14.

RE-SYNC

Automatically synchronize the projector to the input

source.

ENTER

Conrm your item selection.

SOURCE

Press “SOURCE” to select an input signal.

Menu

Press “Menu” to launch the on-screen display
(OSD) menu. To exit OSD, Press “Menu” again.

Help

Help Menu (only available when OSD menu is not
shown).

Four Directional Se-

lect Keys

Use to select items or make adjust-
ments to your selection.

Keystone

/

Use to adjust image distortion caused
by tilting the projector. (±40 degrees)

Lamp LED Indicate the projector’s lamp status.

Temp LED Indicate the projector’s temperature status.

ON/STAND-

BY LED

Indicate the projector’s status.

Control Panel & Remote Control

22

English

User Controls

Remote Control Battery Installation

Press rmly and slide the 1.
battery cover off.

Put the cover back.3.

Install new battery into the 2.
compartment. Remove the
old battery and install new
one (CR2025). Ensure that
the side with a “+” is facing

up.

3

V

O

L

T

S

CR2025

M

3

V

O

L

T

S

CR2025

To ensure safe operation, please observe the following pre­cautions :

Use CR2025 type battery. `
Avoid contact with water or liquid. `
Do not expose the remote control to moisture or heat. `
Do not drop the remote control. `
If the battery has leaked in the remote control, carefully wipe `
the case clean and install new battery.
Risk of an explosion if battery is replaced by an incorrect type. `
Dispose of used battery according to the instructions. `

23

English

User Controls

The interface

is subject to
model’s speci-
cations.

Using the Remote Control

Power

Refer to the “Power On/Off the Projector”

section on pages 13-14.

Source

Press “Source” to select an input signal.

Re-Sync

Automatically synchronizes the projector to

the input source.

Video

Press “Video” to choose Composite Video

and S-video source.

HDMI

Press “HDMI” to choose HDMI source. (For

certain model)

3D

Press the “3D” to turn the 3D OSD menu on/

off.

Four Directional

Select Keys

Use to select items or make
adjustments to your selection.

AV Mute

Momentarily turns off/on the audio and video.

Enter

Conrm your item selection.

Mute

Momentarily turns off/on the audio.

VGA

Press “VGA” to choose VGA sources.

Keystone +/-

Adjust image distortion caused by tilting the

projector.

Aspect

Use this function to choose your desired

aspect ratio.

Menu

Press “Menu” to launch the on-screen dis-

play (OSD) menu. To exit OSD, press “Menu”

again.

Volume +/-

Adjust to increase / decrease the volume.

Brightness
Mode

Change the brightness mode: Bright->Eco

->Dynamic. (refer to page 46)

Zoom

Zoom in on an image.

Press buttons to alter zoom.

VGA

Ent er

Men u

Zoo m

Remote Control

24

English

User Controls

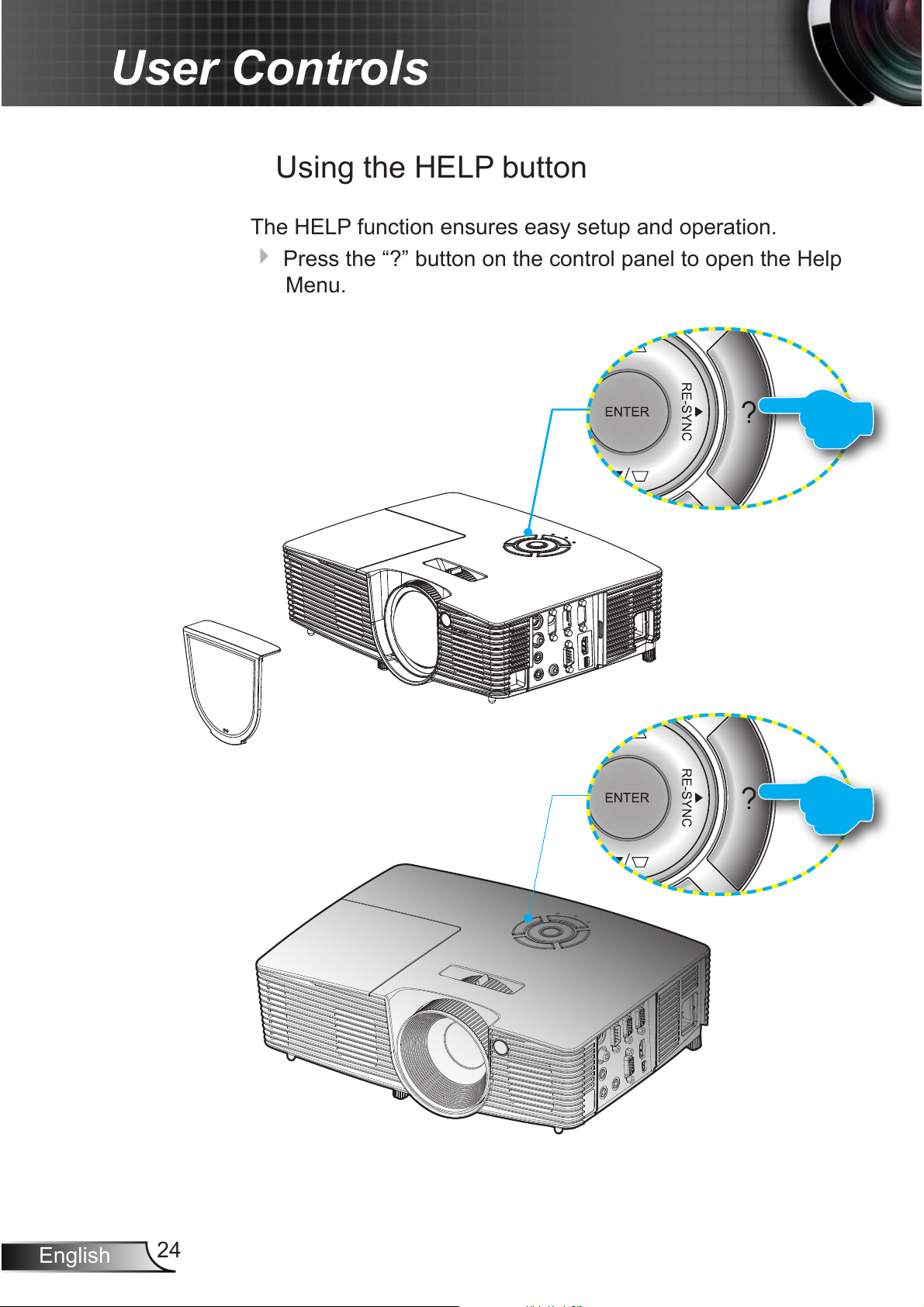

Using the HELP button

The HELP function ensures easy setup and operation.

4

Press the “?” button on the control panel to open the Help

Menu.

25

English

User Controls

Please refer to the

“Troubleshooting”

section on pages

48-53 for more

details.

4

Help menu button functions only when no input source

is detected.

4

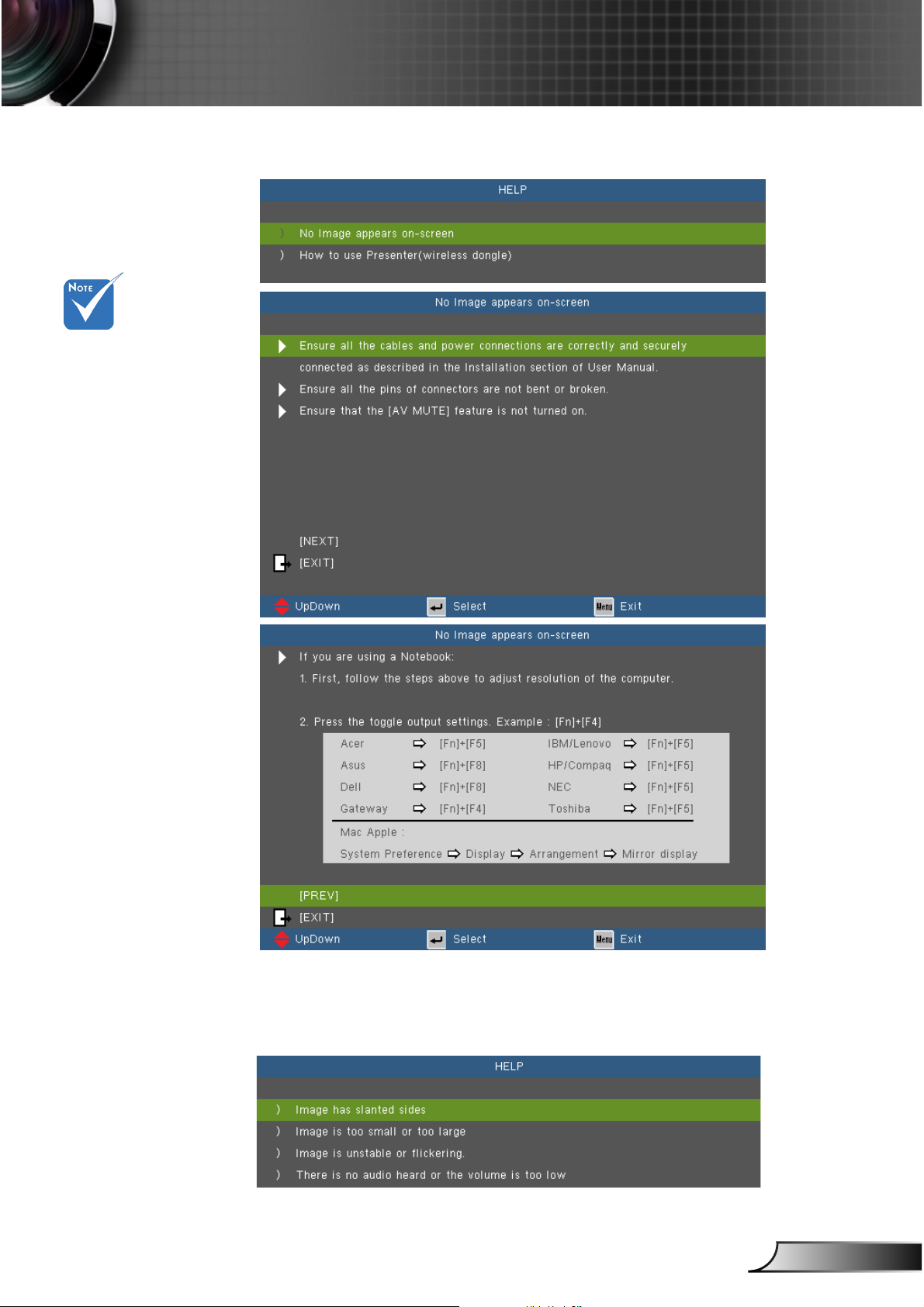

If input source is detected and help button is pressed, the

following pages will appear to help diagnose any problems.

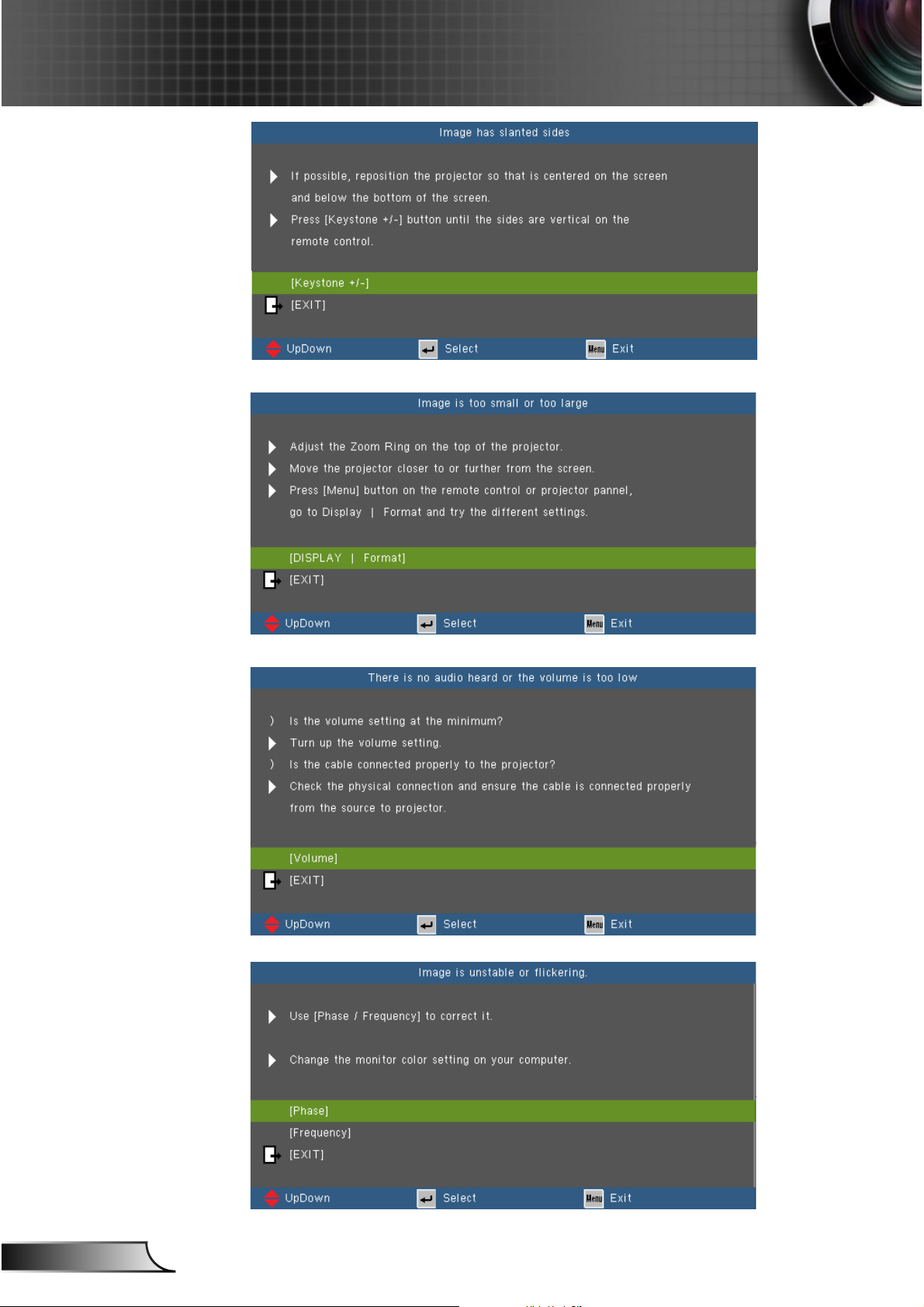

26

English

User Controls

27

English

User Controls

The Projector has multilingual On-screen Display menus that
allow you to make image adjustments and change a variety of

settings. The projector will automatically detect the source.

How to operate

1. To open the OSD menu, press “Menu” on the Remote Control or

Projector Keypad.

2 When OSD is displayed, use

keys to select any item in the

main menu. While making a selection on a particular page, press

or “Enter” key to enter sub menu.

3. Use

keys to select the desired item and adjust the settings

using

key.

4. Select the next item to be adjusted in the sub menu and adjust as

described above.

5. Press “Enter” to conrm, and the screen will return to the main

menu.

6. To exit, press “Menu” again. The OSD menu will close and the

projector will automatically save the new settings.

On-screen Display Menus

Main Menu

Sub Menu

Settings

28

English

User Controls

Main Menu Sub Menu

Display Mode Presentation / Bright / Movie / sRGB /

Blackboard / User / 3D

Brightness -50~50
Contrast -50~50
Sharpness 1~15

#1

Color -50~50

#1

Tint -50~50
Advanced Gamma Film / Video / Graphics / Standard

BrilliantColorTM 1~10
Color Temp. Warm / Medium / Cold
Color settings Red / Green / Blue /

Cyan / Magenta /
Yellow

Hue / Saturation / Gain

White Red / Green / Blue

Reset

Exit

Color Space AUTO / RGB / YUV

#3

AUTO / RGB (0-255) / RGB (16-235) /
YU

V

#2

Signal Automatic On / Off

Phase (VGA) 0~31
Frequency (VGA) -5~5
H. Position (VGA) -5~5
V. Position (VGA) -5~5
Exit

Exit
Reset
Format

#4

4:3 / 16:9 / Native / AUTO

#5

4:3 / 16:9 or 16:10 / Native / AUTO
Edge Mask 0~10
Zoom -5~25 (80%~200%)
Image Shift H -100~100

V -100~100
V Keystone -40~40
3D 3D Mode Off / DLP-Link

3D->2D 3D / L / R

#6

3D Format AUTO / SBS / Top and Bottom / Frame

Sequential

#6

3D Sync. Invert On / Off

Exit
Language English / Deutsch / Français / Italiano /

Español / Português / Svenska /
Nederlands / Norsk/Dansk / Polski /
Suomi /  /  / Magyar /
eština /  /  /󷃯

󷨯󷤇󷁌 /

󳫉

󷤇󷁌 / 󷜵󷅊󷒔 /󳝓󰽤󲞫 /  /

Türkçe / Vit / Bahasa Indonesia / Româ
nå

Projection

Menu Location

#5

Screen Type 16:10 / 16:9

#7

Security Security On / Off

Security Timer Month / Day / Hour

Change Password

Exit

Settings


DISPLAY

SETUP

Menu Tree

29

English

User Controls

Main Menu Sub Menu

Settings

Projector ID 0~99

Audio Settings Internal Speaker On / Off

Mute On / Off

Volume 0~10

Audio Input Default / AUDIO1 / AUDIO2
Advanced Logo Default / Neutral

Closed Captioning Off / CC1 / CC2

Exit
Input Source

#3

VGA1 / VGA2 / Video / S-Video / HDMI
Source Lock On / Off
High Altitude On / Off
Information Hide On / Off
Keypad Lock On / Off
Test Pattern None / Grid / White Pattern

#7

IR Function On / Off
Background Color Black / Red / Blue / Green / White
Advanced Direct Power On On / Off

Auto Power Off (min) 0~180
Quick Resume On / Off

0~990

Active / Eco.

Exit

Lamp Settings Lamp Hours

Lamp Reminder On / Off
Brightness Mode Bright / Eco. / Dynamic
Lamp Reset Yes / No
Dynamic Dimming On / Off
Exit

Optional Filter Settings

Yes / No

Filter Usage Hours 0~9999
Filter Reminder Off / 300hr / 500hr / 800hr / 1000hr
Filter Reset Yes / No
Exit

Reset Yes / No

OPTIONS

SETUP

Optional Filter Installed

Power Mode (Standby)

Sleep Timer (min)

Please note that the on-screen display (OSD) menus vary according to the

signal type selected and the projector model you are using.

(#1) “Color” and “Tint” are only supported in Video mode.

(#2) “Signal” is only supported in Analog VGA (RGB) signal.

(#3) For HDMI Source only.

(#4) For XGA model only.

(#5) For WXGA model only. 16:9 or 16:10 depend on “Screen Type” setting.

(#6) “3D Sync Invert” is only available when 3D is enabled and this mode

3D is for DLP link glass only.

(#7) The function depends on model’s specications.

30

English

User Controls


Display Mode

There are many factory presets optimized for various types of
images.

4

Presentation: Good color and brightness from PC input.

4

Bright: Maximum brightness from PC input.

4

Movie: For home theater.

4

sRGB: Standardised accurate color.

4

Blackboard: This mode should be selected to achieve optimum

color settings when projecting onto a blackboard (green).

4

User: User’s settings.

4

3D: Recommend setting for 3D mode enabled. Any further ad-

justments by the user in 3D will be saved in this mode for further

use.

Brightness

Adjust the brightness of the image.

4

Press the to darken image.

4

Press the to lighten the image.

Contrast

The contrast controls the degree of difference between the lightest
and darkest parts of the picture.

4

Press the to decrease the contrast.

4

Press the to increase the contrast.

31

English

User Controls

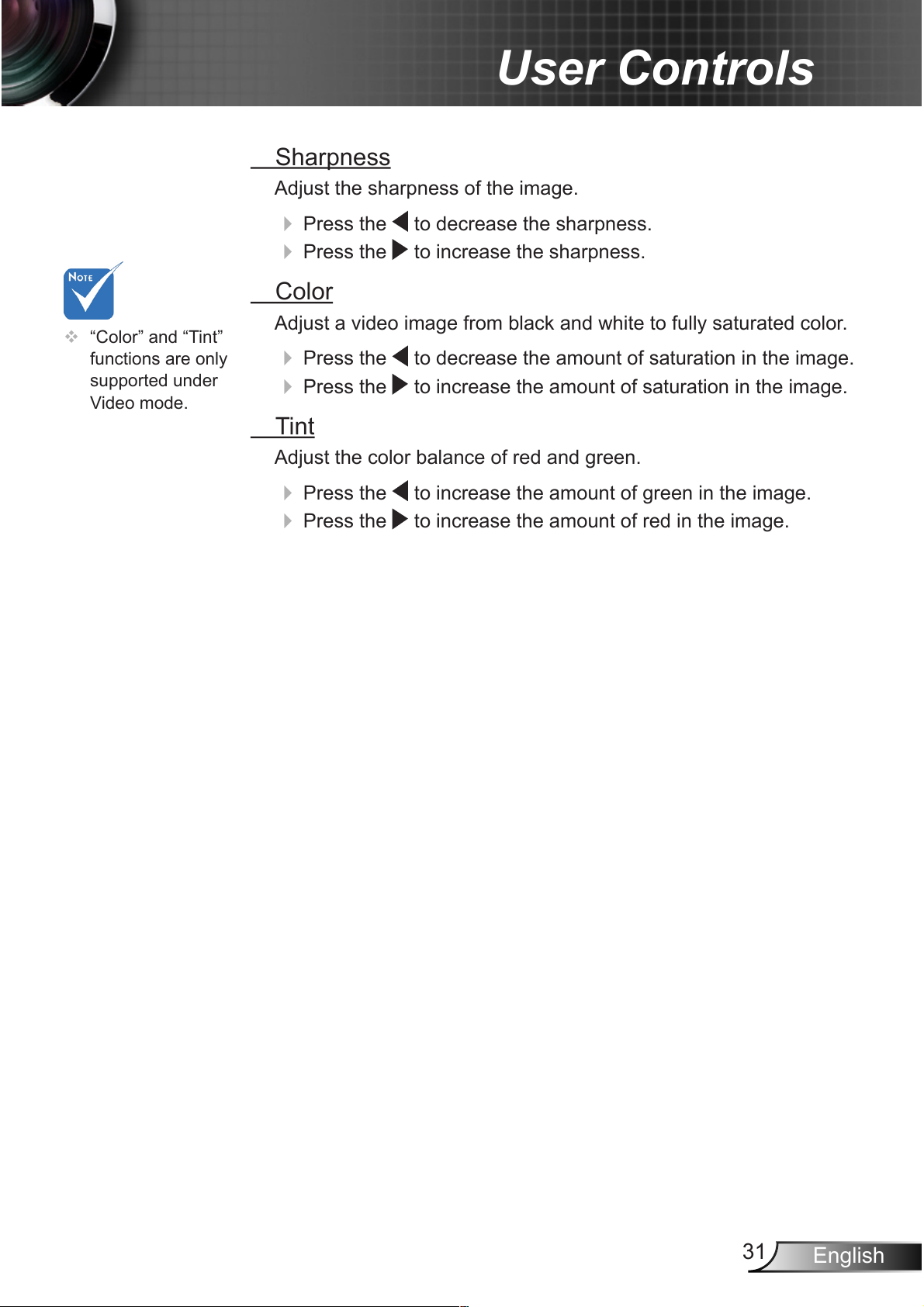

Sharpness

Adjust the sharpness of the image.

4

Press the to decrease the sharpness.

4

Press the to increase the sharpness.

Color

Adjust a video image from black and white to fully saturated color.

4

Press the to decrease the amount of saturation in the image.

4

Press the to increase the amount of saturation in the image.

Tint

Adjust the color balance of red and green.

4

Press the to increase the amount of green in the image.

4

Press the to increase the amount of red in the image.

“Color” and “Tint”

functions are only

supported under

Video mode.

32

English

User Controls

IMAGE | Advanced

Gamma

This allows you to choose a degamma table that has been
ne-tuned to bring out the best image quality for the input.

4

Film: for home theater.

4

Video: for video or TV source.

4

Graphics: for image source.

4

Standard: for PC or computer source.

BrilliantColor™

This adjustable item utilizes a new color-processing algorithm and
system level enhancements to enable higher brightness while
providing true, more vibrant colors in picture. The range is from
“0” to “10”. If you prefer a stronger enhanced image, adjust toward
the maximum setting. For a smoother, more natural image, adjust
toward the minimum setting.

Color Temp

If set to cold temperature, the image looks more blue. (cold image)
If set to warm temperature, the image looks more red.

(warm image)

Color Settings

Press into the next menu as below and then use

or to

select item.

33

English

User Controls

4

Red/Green/Blue/Cyan/Magenta/Yellow: Use or to select

Hue, Saturation and Gain Colors.

4

White: Use or to select Red, Green and Blue Colors.

4

Reset: Choose “Yes” to return the factory default settings for

color adjustments.

Color Space

Select an appropriate color matrix type from AUTO, RGB,
RGB(0-255)

(*)

, RGB(16-235)

(*)

or YUV.

Reset

Choose “Yes” to return the display parameters on all menus to the

factory default settings.

(*) For models with 

HDMI Input.

34

English

User Controls

IMAGE | Advanced

| Signal (RGB)

Automatic

Automatically selects the signal. If you use this function, the
Phase, frequency items are grayed out, and if Signal is not auto-
matic, the phase, frequency items will appear for user to manually
tune and saved in settings after that for next time projector turns

off and on again.

Phase

Synchronize the signal timing of the display with the graphic card.
If the image appears to be unstable or ickers, use this function to

correct it.

Frequency

Change the display data frequency to match the frequency of
your computer’s graphic card. Use this function only if the image
appears to icker vertically.

H. Position

4

Press the to move the image left.

4

Press the to move the image right.

V. Position

4

Press the to move the image down.

4

Press the to move the image up.

“Signal” is only

supported in Analog
VGA (RGB) signal.

35

English

User Controls

DISPLAY

Format

Use this function to choose your desired aspect ratio.

SVGA/XGA

4

4:3: This format is for 4×3 input sources.

4

16:9: This format is for 16×9 input sources, like HDTV and DVD
enhanced for Wide screen TV.

4

Native: This format displays the original image without any

scaling.

4

AUTO: Automatically selects the appropriate display format.

Auto

Input resolution

Auto/Scale

(SVGA)

Auto/Scale

(XGA)

H V H V H V

4:3

640 480 800 600 1024 768

800 600 800 600 1024 768

1024 768 800 600 1024 768

1280 1024 800 600 1024 768

1400 1050 800 600 1024 768

1600 1200 800 600 1024 768

Wide

Laptop

1280 720 800 450 1024 576

1280 768 800 480 1024 614

1280 800 800 500 1024 640

SDTV

720 576 800 450 1024 576

720 480 800 450 1024 576

HDTV

1280 720 800 450 1024 576

1920 1080 800 450 1024 576

36

English

User Controls

Aspect ratio

(source detected)

Resize image (SVGA) Resize image (XGA)

4:3 800 x 600 center 1024 x 768 center

16:9 800 x 450 center 1024 x 576 center

Native

No resize image, 1:1 mapping and

centered. This format shows the

original image without scaling.

WXGA

4

4:3: This format is for 4×3 input sources.

4

16:9: This format is for 16×9 input sources, like HDTV and DVD
enhanced for Wide screen TV.

4

16:10: This format is for 16×10 input sources, like widescreen

laptops.

4

Native: This format displays the original image without any

scaling.

4

AUTO: Automatically selects the appropriate display format.

Auto

Input resolution

Screen Type = 16:10 Screen Type = 16:9

Auto/Scale Auto/Scale

H V H V H V

4:3

640 480 1066 800 960 720

800 600 1066 800 960 720

1024 768 1066 800 960 720

1280 1024 1066 800 960 720

1400 1050 1066 800 960 720

1600 1200 1066 800 960 720

Wide

Laptop

1280 720 1280 720 1280 720

1280 768 1280 768 1200 768

1280 800 1280 800 1152 800

SDTV

720 576 1280 720 1280 720

720 480 1280 720 1280 720

HDTV

1280 720 1280 720 1280 720

1920 1080 1280 720 1280 720

16:9 or 16:10

depend on “Screen

Type” setting.

37

English

User Controls

16:10 Screen 480i/p 576i/p 1080i/p 720p PC

4:3 1066 x 800 center

16:10 1280 x 800 center

Native

1:1 mapping

centered.

1:1 map-

ping (960 x

540) display
1280 x 800

1280 x 720

center

1:1

mapping

centered.

16:9 Screen 480i/p 576i/p 1080i/p 720p PC

4:3 960 x 720 center

16:9 1280 x 720 center

Native

1:1 mapping

centered.

1:1 map-

ping (960 x

540) display
1280 x 720

1280 x 720

center

1:1

mapping

centered.

Edge Mask

Edge mask function removes the noise in a video image. Edge
mask the image to remove video encoding noise on the edge of

video source.

Zoom

4

Press the to reduce the size of an image.

4

Press the to magnify an image on the projection screen.

Image Shift

Press into the next menu as below and then use

or to

select item.

4

H: Use or to shift the projected image position horizontally.

4

V: Use or to Shift the projected image position vertically.

V Keystone

Press the or to adjust image distortion vertically. If the image
looks trapezoidal, this option can help make the image rectangular.

Each I/O has

different setting of

“Edge Mask”.

“Edge Mask” and

“Zoom” can’t work at
same time.

38

English

User Controls

3D Mode

4

Off: Select “Off” to turn 3D settings off for 3D images.

4

DLP Link: Select “DLP Link” to use optimized settings for DLP

Link 3D images.

3D -> 2D

4

3D: Display 3D signal.

4

L (Left): Display the left frame of 3D content.

4

R (Right): Display the right frame of 3D content.

3D Format

4

Auto : When a 3D identication signal is detected, the 3D

format is selected automatically.

4

SBS: Use this mode for “Side-by-side” format 3D content.

4

Top and Bottom: Use this mode for “Top and Bottom” format 3D

content.

4

Frame Sequential: Use this mode for “Frame Sequential”

format 3D content.

3D Sync. Invert

4

Press the “On” to invert left and right frame contents.

4

Press the “Off” for default frame contents.

“3D Sync Invert” is

only available when

3D is enabled and

this mode 3D is for
DLP link glass only.

Compatible 3D

source, 3D content
and active shutter

glasses are required
for 3D viewing.

See page 55 for

supported 3D

formats.

DISPLAY | 3D

39

English

User Controls

SETUP

Language

Choose the multilingual OSD menu. Press or into the sub
menu and then use the or key to select your preferred

language. Press “Enter” to nalize the selection.

Projection

4

Front-Desktop

This is the default selection. The image is projected straight on

the screen.

4

Rear-Desktop

When selected, the image will appear reversed.

4

Front-Ceiling

When selected, the image will turn upside down.

4

Rear-Ceiling

When selected, the image will appear reversed in upside down

position.

Rear-Desktop and

Rear-Ceiling are

to be used with a

translucent screen.

40

English

User Controls

Menu Location

Choose the menu location on the display screen.

Screen Type

Choose the screen type from16:10 or 16:9.

Projector ID

ID denition can be set up by menu (range 0-99), and allow user
control an individual projector by RS232. Refer to pages 59-63. for
the complete list of RS232 commands.

“Screen Type” is for

WXGA only.

41

English

User Controls

SETUP |

Audio Settings

Internal Speaker

Choose the “On” or “Off” to turn on or off the internal speaker.

Mute

4

Choose the “On” to turn mute on.

4

Choose the “Off” to turn mute off.

Volume

4

Press the to decrease the volume.

4

Press the to increase the volume.

Audio Input

The default audio inputs are on the back panel of the projector.
Use this option to reassign any of the Audio Inputs to the current
image source.

4

Default: VGA1/VGA2.

4

Audio1: Video/S-Video.

4

Audio2: HDMI.

42

English

User Controls

SETUP | Advanced

Logo

Press to capture an image of the picture currently displayed

on screen. If changes are made they will take effect the next time
the projector is powered on.

4

Default: The default startup screen.

4

Neutral: Logo is not displayed on startup screen.

Closed Captioning

Use this function to set the desired startup screen. If changes are

made they will take effect the next time the projector is powered

on.

4

Off: select “Off” to turn off the closed captioning feature.

4

CC1:CC1 language: American English.

4

CC2:CC2 language (depending on the TV channel of the

user):Spanish, French, Portuguese, German, Danish.

43

English

User Controls

Input Source

Use this option to enable / disable input sources. Press to enter
the sub menu and select which sources you require. Press “Enter”
to finalize the selection. The projector will not search for inputs that

are not selected.

Source Lock

4

On: The projector will only search current input connection.

4

Off: The projector will search for other signals if the current

input signal is lost.

High Altitude

When “On” is selected, the fans will spin faster. This feature is
useful in high altitude areas where the air is thin.

Information Hide

4

On: Choose “On” to hide the info message.

4

Off: Choose “Off” to show the “searching” message.

Keypad Lock

When the keypad lock function is “On”, the control panel will be
locked however, the projector can be operated by the remote con­trol. By selecting “Off”, you will be able to reuse the control panel.

Test Pattern

Display a test pattern. There are Grid, White pattern and None.

OPTIONS

To turn off the key-

pad lock, press and
hold “Enter” key on

top of the projector
for 5 seconds.

44

English

User Controls

IR Function

(*)

4

On: Choose “On”, the projector can be operated by the remote
control. When you change the setting from “Off” to “On”, it will
display a warning message:

4

Off: Choose “Off”, you will only be able to use the control panel
keys. When you change the setting from “On” to “Off”, it will
display a warning message:

Background Color

Use this feature to display a “Black”, “Red”, “Blue”, “Green” or

“White”, screen when no signal is available.

Reset

Choose “Yes” to return the display parameters on all menus to the

factory default settings.

(*) The function de-

pends on model’s
specications.

45

English

User Controls

OPTIONS |

Advanced

Direct Power On

Choose “On” to activate Direct Power mode. The projector will
automatically power on when AC power is supplied, without
pressing the “ ” key on the projector control panel or on the
remote control.

Auto Power Off (min)

Sets the countdown timer interval. The countdown timer will start,
when there is no signal being sent to the projector. The projector
will automatically power off when the countdown has nished (in
minutes).

Sleep Timer (min)

Sets the countdown timer interval. The countdown timer will start,
with or without a signal being sent to the projector. The projector
will automatically power off when the countdown has nished (in
minutes).

Quick Resume

4

On: If the projector is accidentally turned off, this feature allows

the projector to be instantly powered on again, if selected
within a period of 100 seconds.

4

Off: The fan will start cooling the system immediately when user

turns off the projector.

Power Mode (Standby)

4

Eco.: Choose “Eco.” to save power dissipation further < 0.5W.

4

Active: Choose “Active” to return to normal standby and the

VGA out port will be enabled.

When Power mode

(Standby) is set to
Eco (<0.5W), the

VGA output and
Audio pass-through

will be deactivated
when the projector is
in standby.

The value of sleep

timer will be reset to
zero after the projec­tor power off.

46

English

User Controls

OPTIONS |

Lamp Settings

Lamp Hours

Display the projection time.

Lamp Reminder

Choose this function to show or to hide the warning message
when the changing lamp message is displayed.
The message will appear 30 hours before suggested replacement

of lamp.

Brightness Mode

4

BRIGHT: Choose “BRIGHT” to increase the brightness.

4

Eco.: Choose “Eco.” to dim the projector lamp which will lower

power consumption and extend the lamp life.

Dynamic: Choose “Dynamic ` ” to dim the lamp power which

will be based on brightness level of the content and
adjust lamp power consumption between 100% and
30% dynamically. The lamp life will be extended.

Lamp Reset

Reset the lamp hour counter after replacing the lamp.

When ambient tem-

perature is over 40°C
in operating, the

projector will switch
to Eco automatically.

47

English

User Controls

OPTIONS |

Optional Filter

Settings

Optional Filter Installed

Select “Yes” to display warning message after 500 hours of use.

Select “No” to turn off warning message.

The default setting for Filter is “No”. After assembling lter, please

turn on the projector then press “Menu”, go to “OPTIONS -> Op-

tional Filter Settings -> Optional Filter Installed” and select “Yes”.

Filter Usage Hours

Display the lter time.

Filter Reminder

Choose this function to show or hide the warning massage when
the changing lter message is displayed. (Factory default setting:
500 hours)

Filter Reset

Reset the dust lter counter after replacing or cleaning the dust
lter.

48

English

Appendices

No image appears on-screen

4

Ensure all the cables and power connections are correctly and

securely connected as described in the “Installation” section.

4

Ensure all the pins of connectors are not bent or broken.

4

Check if the projection lamp has been securely installed. Please

refer to the “Replacing the lamp” section.

4

Make sure you have removed the lens cap and the projector is

switched on.

4

Ensure that the “AV Mute” feature is not turned on.

Partial, scrolling or incorrectly displayed image

4

Press “Re-SYNC” on the remote control or control panel.

4

If you are using a PC:

For Windows 95, 98, 2000, XP, Windows 7:

1. Open the “My Computer” icon, the “Control Panel” folder, and
then double click on the “Display” icon.

2. Select the “Settings” tab.

3. Verify that your display resolution setting is lower than or equal
to UXGA (1600 × 1200).

4. Click on the “Advanced Properties” button.

If the projector is still not projecting the whole image, you will also
need to change the monitor display you are using. Refer to the
following steps.

5. Verify the resolution setting is lower than or equal to UXGA
(1600 × 1200).

6. Select the “Change” button under the “Monitor” tab.

Troubleshooting

If you experience a problem with your projector,

please refer to the following information. If a
problem persists, please contact your local
reseller or service center.

49

English

Appendices

7. Click on “Show all devices”. Next, select “Standard monitor
types” under the SP box; choose the resolution mode you need

under the “Models” box.

8. Verify that the resolution setting of the monitor display is lower
than or equal to UXGA (1600 × 1200).

4

If you are using a Notebook:

1. First, follow the steps above to adjust resolution of the
computer.

2. Press the appropriate keys listed below for your notebook
manufacturer to send signal out from notebook to projector.
Example: [Fn]+[F4]

4

If you experience difculty changing resolutions or your monitor

freezes, restart all equipment including the projector.

The screen of the Notebook or PowerBook computer is not
displaying your presentation

4

If you are using a Notebook PC

Some Notebook PCs may deactivate their own screens when a
second display device is in use. Each has a different way to be
reactivated. Refer to your computer’s manual for detailed
information.

Image is unstable or ickering

4

Use “Phase” to correct it. See page 31 for more information.

4

Change the monitor color setting on your computer.

Image has vertical ickering bar

4

Use “Frequency” to make an adjustment. See page 31 for more

information.

4

Check and re-congure the display mode of your graphic card to

make it compatible with the projector.

Acer  [Fn]+[F5]
Asus  [Fn]+[F8]
Dell  [Fn]+[F8]

Gateway  [Fn]+[F4]

Mac Apple:
System Preference  Display  Arrangement  Mirror
display

IBM/Lenovo  [Fn]+[F7]
HP/Compaq  [Fn]+[F4]

NEC  [Fn]+[F3]
Toshiba  [Fn]+[F5]

50

English

Appendices

Image is out of focus

4

Make sure the Lens cap is removed.

4

Adjust the Focus Ring on the projector lens.

4

Make sure the projection screen is between the required distance.

See pages 16-17.

The image is stretched when displaying 16:9 DVD title

4

When you play anamorphic DVD or 16:9 DVD, the projector will

show the best image when the projector display mode is set to
16:9 in the OSD.

4

If you play 4:3 format DVD titles, please change the format to 4:3

in the projector OSD.

4

If the image is still stretched, you will also need to adjust the

aspect ratio by referring to the following:

4

Please setup the display format as 16:9 (wide) aspect ratio type

on your DVD player.

Image is too small or too large

4

Adjust the Zoom Ring on the top of the projector.

4

Move the projector closer to or further from the screen.

4

Press “Menu” button on the remote control, go to “Display 

Format” and try the different settings.

Image has slanted sides

4

If possible, reposition the projector so that it is horizontally

centered on the screen and below the bottom of the screen.

4

Press “Keystone +/-” button on the remote control until the sides

are vertical.

4

Use “Display  V Keystone” from the OSD to make an adjust-

ment.

Image is reversed

4

Select “SETUP  Projection” from the OSD and adjust the

projection direction.

Use of Keystone

is not recom­mended.

51

English

Appendices

The projector stops responding to all controls

4

If possible, turn off the projector, then unplug the power cord and

wait at least 60 seconds before reconnecting power.

4

Check that “Keypad Lock” is not activated by trying to control the

projector with the remote control.

Blurry double image

4

Press “3D Format” button and switch to “Off” to avoid normal 2D

image is blurry double image.

Two images, side-by-side format

4

Press “3D Format” button and switch to “SBS” for input signal is

HDMI 1.3 2D 1080i side-by-side.

Image does not display in 3D

4

Check if the battery of 3D glasses is drained.

4

Check if the 3D glasses is turned on.

4

When the input signal is HDMI 1.3 2D (1080i side-by-side half),

press “3D Format” button and switch to “SBS”.

Lamp burns out or makes a popping sound

4

When the lamp reaches its end of life, it will burn out and may

make a loud popping sound. If this happens, the projector will not
turn on until the lamp module has been replaced. To replace the
lamp, follow the procedures in the “Replacing the Lamp” section on

pages 54-55.

52

English

Appendices

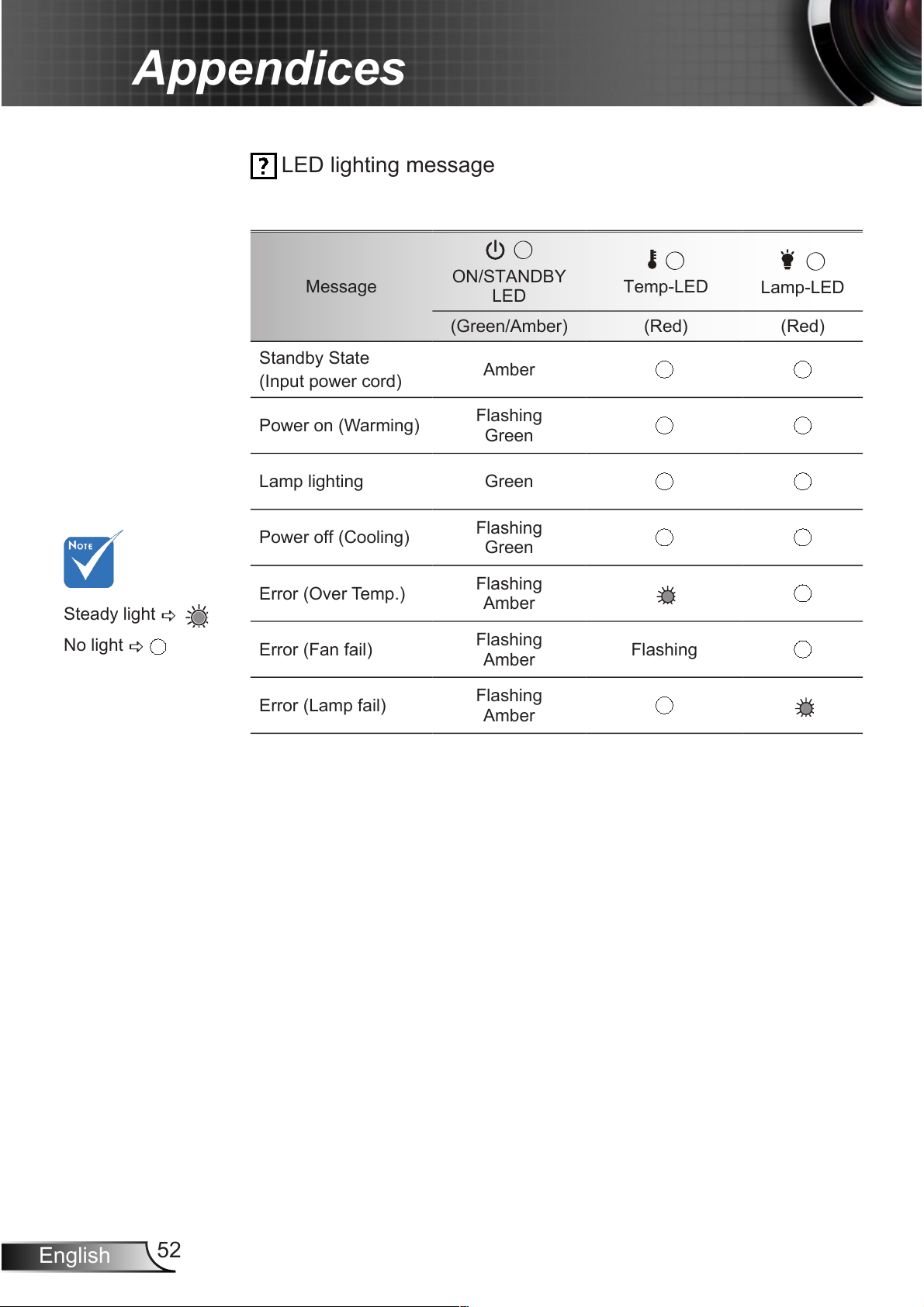

Steady light 

No light 

LED lighting message

Message

ON/STANDBY

LED

Temp-LED

Lamp-LED

(Green/Amber) (Red) (Red)

Standby State
(Input power cord)

Amber

Power on (Warming)

Flashing

Green

Lamp lighting Green

Power off (Cooling)

Flashing

Green

Error (Over Temp.)

Flashing

Amber

Error (Fan fail)

Flashing

Amber

Flashing

Error (Lamp fail)

Flashing

Amber

53

English

Appendices

On Screen Messages

4

Temperature warning:

4

Fan failed:

4

Lamp warning:

4

Out of display range:

If the remote control does not work

4

Check the operating angle of the remote control is within ±20°

both horizontally and vertically of one of the IR receivers on the

projector.

4

Make sure there are not any obstructions between the remote

control and the projector. Move to within 7 m (±0°) of the projector.

4

Make sure the batteries are inserted correctly.

4

Replace batteries if they are exhausted.

54

English

Appendices

Replacing the Lamp

The projector automatically detects the lamp life. When the
lamp life is nearing the end of use, you will receive a warning
message.

When you see this message, please contact your local reseller
or service center to change the lamp as soon as possible.
Make sure the projector has been cooled down for at least 30
minutes before changing the lamp.

Warning: Lamp compartment may be hot! Allow it to cool

down before changing the lamp!

Warning: To reduce the risk of personal injury, do not drop

the lamp module or touch the lamp bulb. The bulb may shat-
ter and cause injury if it is dropped.

Warning: If ceiling mounted, please use caution when

opening the lamp access panel. It is recommended to wear
safety glasses if changing the bulb when ceiling mounted.
“Caution must be used to prevent any loose parts from fall-

ing out of projector.”

55

English

Appendices

Lamp Replacement Procedure:

1. Switch off the power to the projector by pressing the “ ” button.

2. Allow the projector to cool down for at least 30 minutes.

3. Disconnect the power cord.

4. Unscrew the one screw on the cover. 1

5. Lift up and remove the cover. 2

6. Lift up the lamp handle. 3

7. Press on the both sides then lift up and remove the lamp cord. 4

8. Unscrew the one screw on the lamp module. 5

9. Lift up the lamp handle 6 and remove the lamp module slowly and carefully.

7

To replace the lamp module, reverse the previous steps.

10. Turn on the projector and reset the lamp timer.
Lamp Reset: (i) Press “Menu”  (ii) Select “OPTIONS”  (iii) Select

“Lamp Settings”  (iv) Select “Lamp Reset”  (v) Select “Yes”.

The screws on the

lamp cover and the
lamp cannot be
removed.

The projector

cannot be turned

on if the lamp

cover has not been

placed back on the

projector.

Do not touch the

glass area of the

lamp. Hand oil can
cause the lamp to
shatter. Use a dry

cloth to clean the

lamp module if it
was accidentally

touched.

5

1

2

3

6

7

4

56

English

Appendices

Installing and Cleaning the Dust
Filter

Dust lters are

only required/sup­plied in selected
regions with ex­cessive dust.

Dust Filter is an

optional service
part.

Installing the Dust Filter

Procedure:

Install two lters.1.
Turn on the projector then press “Menu”, go to “OPTIONS -> Op-2.

tional Filter Settings -> Optional Filter Installed” and select “Yes”.

1

Cleaning the Dust Filter

We recommends cleaning the dust lter every three
months; clean it more often if the projector is used in a
dusty environment.

Procedure:

Switch off the power to the projector by pressing the “1. ” button.
Disconnect the power cord.2.
Remove the dust lter slowly and carefully.3.
Clean or replace the dust lter.4.
To install the dust lter, reverse the previous steps.5.
Reset the dust lter counter after replacing or cleaning the dust 6.

lter. Press “Menu”, go to “OPTIONS -> Optional Filter Settings ->

Filter Reset”

Turn on the projector, then press “Menu”, “OPTIONS -> Optional
Filter Settings -> Optional Filter Installed” and select “No” when
you pull out the dust lter and would not install it again.

1

2

57

English

Appendices

Computer/Video/HDMI/Mac Compatibility

Compatibility Modes

For widescreen 

resolution (WXGA),

the compatibility

support is depen-

dent on Notebook/
PC models.

Please note that us- 
ing resolutions other

than native 800 x
600 (SVGA model),
1024 x 768 (XGA
model), 1280 x 800
(WXGA model) may
result in some loss
of image clarity.
(*1) 1920 x1200 
@60Hz only support
RB (reduced blank-

ing).

(*2) 3D timing for 

True 3D projector.
(*3) is not supported 
HDMI input signal
for Mac.
(*4) Proscene and 

Data Projector >
4,000 Lumens only,

Native resolution

must support.
(*5) Window 8 
standard timing.
120Hz input signals 
may be dependent

on graphics cards
support.

Signal Resolution

Refresh Rate

(Hz)

Video Analog HDMI Mac

NTSC 720 x 480 60 O - - -

PAL/SECAM 720 x 576 50 O - - -

VGA

640 x 480 60 - O O O

640 x 480 67 - O - -

640 x 480 72.8 - O - O

640 x 480 85 - O - O

SVGA

800 x 600 56.3 - O - -

800 x 600 60.3

(*2)

- O O O

800 x 600 72.2 - O O O

800 x 600 85.1 - O O O

800 x 600 120

(*2)

- O O -

XGA

1024 x 768 48 - O O

1024 x 768 50 - O

(*4)

O

(*4)

1024 x 768 60

(*2)

- O O O

1024 x 768 70.1 - O O O

1024 x 768 75 - O O O

1024 x 768 85 - O O O

1024 x 768 120

(*2)

- O O -

WSVGA 1024 x 600 60 - - O -

HDTV (720p)

1280 x 720 50 O O O -

1280 x 720 60

(*2)

O O O O

1280 x 720 120

(*2)

- O O -

WXGA

1280 x 768 60 - O O O

(*3)

1280 x 768 75 - O O O

1280 x 768 85 - O O O

(*3)

1280 x 800 48 - O O

(*4)

1280 x 800 50 - O

(*4)

O

1280 x 800 60 - O O O

1366 x 768 60

(*5)

- O O -

SXGA

1280 x 1024 60 - O O O

1280 x 1024 75 - O O O

1280 x 1024 85 - O O -

SXGA+ 1400 x 1050 60 - O O -

4

58

English

Appendices

3D Input Video Compatibility

Input

Resolution

HDMI 1.4a 3D

Input

Input Timing

1280 x 720p @ 50Hz Top-and-Bottom

1280 x 720p @ 60Hz Top-and-Bottom

1280 x 720p @ 50Hz Frame packing

1280 x 720p @ 60Hz Frame packing

1920 x 1080i @ 50 Hz Side-by-Side (Half)

1920 x 1080i @ 60 Hz Side-by-Side (Half)

1920 x 1080p @ 24 Hz Top-and-Bottom

1920 x 1080p @ 24 Hz Frame packing

HDMI 1.3 3D

Content

1920 x 1080i @ 50Hz

Side-by-Side (Half)

While 3D Format is

“SBS”

1920 x 1080i @ 60Hz

1280 x 720p @ 50Hz

1280 x 720p @ 60Hz

1920 x 1080i @ 50Hz

Top-and-Bottom

While 3D Format is

“Top and Bottom”

1920 x 1080i @ 60Hz

1280 x 720p @ 50Hz

1280 x 720p @ 60Hz

480i HQFS

While 3D Format is

“Frame sequential”

Signal Resolution

Refresh Rate

(Hz)

Video Analog HDMI Mac

UXGA 1600 x1200 60 - O O -

HDTV (1080p)

1920 x 1080 24 O O O -

1920 x 1080 30 - - O -

1920 x 1080 50 O O O -

1920 x 1080 60 O O O O

HDTV (1080i)

1920 x 1080 50 O - O -

1920 x 1080 60 O - O -

WUXGA

(*1)

1920 x 1200 50 - O

(*4)

O

(*4)

-

1920 x 1200 60 - O O O

SDTV (576i) 720 x 576 50 O - O -

SDTV (576p) 720 x 576 50 O - O -

SDTV (480i) 720 x 480 60 O - O -

SDTV (480p) 720 x 480 60 O - O -

4

59

English

Appendices

RS232 Pin Assignments

RS232 Commands and Protocol
Function List

Pin no.

Spec.

(from projector side)

1 N/A

2 RXD

3 TXD

4 N/A

5 GND

6 N/A

7 N/A

8 N/A

9 N/A

12345

6789

60

English

Appendices

RS232 Protocol Function List

Baud Rate : 9600
Data Bits: 8
Parity: None
Stop Bits: 1
Flow Control : None
UART16550 FIFO: Disable
Projector Return (Pass): P
Projector Return (Fail): F

1. There is a <CR> after
all ASCII commands.

2. 0D is the HEX code
for <CR> in ASCII
code.

XX=00-99, projector's ID,
XX=00 is for all projectors

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

SEND to projector

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

232 ASCII Code HEX Code noi tpi rcse D noi tcnuF

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------­~XX00 1 7E 30 30 30 30 20 31 0D Power ON
~XX00 0 7E 30 30 30 30 20 30 0D Power OFF (0/2 for backward compatible)

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------­~XX01 1 7E 30 30 30 31 20 31 0D Resync
~XX02 1 7E 30 30 30 32 20 31 0D AV Mute On
~XX02 0 7E 30 30 30 32 20 30 0D Off (0/2 for backward compatible)
~XX03 1 7E 30 30 30 33 20 31 0D Mute On
~XX03 0 7E 30 30 30 33 20 30 0D Off (0/2 for backward compatible)
~XX04 1 7E 30 30 30 34 20 31 0D Freeze
~XX04 0 7E 30 30 30 34 20 30 0D Unfreeze (0/2 for backward compatible)
~XX05 1 7E 30 30 30 35 20 31 0D Zoom Plus
~XX06 1 7E 30 30 30 36 20 31 0D Zoom Minus
~XX12 5 7E 30 30 31 32 20 35 0D Direct Source Commands VGA

t nenopmoC AGV D 0 8 3 0 2 2 3 1 3 0 3 0 3 E 7 8 2 1 X X ~

oediV-S D 0 9 3 0 2 2 3 1 3 0 3 0 3 E 7 9 2 1 X X ~

oediV D 0 0 3 1 3 0 2 2 3 1 3 0 3 0 3 E 7 0 1 2 1 X X ~

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------­~XX20 1 7E 30 30 32 30 20 31 0D Display Mode Presentation

t hg irB D 0 2 3 0 2 0 3 2 3 0 3 0 3 E 7 2 0 2 X X ~
eiv oM D 0

33 02 03 23 03 03 E7 3 02XX~

BGRs D 0 4 3 0 2 0 3 2 3 0 3 0 3 E 7 4 0 2 X X ~
resU D 0 5 3 0 2 0 3 2 3 0 3 0 3 E 7 5 0 2 X X ~

draobkcalB D 0 7 3 0 2 0 3 2 3 0 3 0 3 E 7 7 0 2 X X ~

D3 D 0 9 3 0 2 0 3 2 3 0 3 0 3 E 7 9 0 2 X X ~

-------

---------

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

~XX21 n 7E 30 30 32 31 20 a 0D Brightness n = -50 (a=2D 35 30) ~ 50 (a=35 30)

) 0 3 53= a ( 0 5 ~ )0 3 5 3 D2= a( 0 5 - = n ts a rt noC D0 a 02 23 23 03 03 E

7 n 2 2 X X ~

~XX23 n 7E 30 30 32 33 20 a 0D Sharpness n = 1 (a=31) ~ 15 (a=31 35)

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------­~XX24 n 7E 30 30 32 34 20 a 0D Color Settings/White Red n = -50 (a=2D 35 30) ~ 50 (a=35 30)

) 0 3 5 3=a( 05 ~ ) 0 3 53 D2= a ( 05 - = n neerG D 0 a 0 2 5 3 2 3 0 3 0 3 E 7 n 5 2 X X ~
) 0 3 5 3=a( 05 ~ ) 0 3 53 D2= a ( 05 - = n eu lB D 0 a 0 2 6 3 2 3 0 3 0 3 E 7 n 6 2 X X ~

t e s eR D 0 1 3 02 33 33 03 03 E7 1 33X X ~

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------­~XX34 n 7E 30 30 33 34 20 a 0D BrilliantColor

TM

n = 1 (a=30) ~ 10 (a=31 30)

ml iF a mma G D 0 13 0 2 53 33 03 03 E 7 1 53 XX ~
oediV D 0 2 3 0 2 5 3 3 3 0 3 0 3 E 7 2 5 3 X X ~
scih p arG D 0 3 3 0 2 5 3 3 3 0 3 0 3 E 7 3 5 3 X X ~
dradnatS D 0 4 3 0 2 5 3 3 3 0 3 0 3 E 7 4 5 3 X X ~

----------------------------------------------------------------------------------------------------------------------------------

-----------------------------------------------------------------------------------

~XX36 1 7E 30 30 33 36 20 31 0D Warm

mu i d eM D 0 2 3 0 2 6 3 3 3 0 3 0 3 E 7 2 6 3 X X ~

dlo C D 0 3 3 0 2 6 3 3 3 0 3 0 3 E 7 3 6 3 X X ~

~XX37 1 7E 30 30 33 37 20 31 0D Color Space Auto

) 5 5 2 - 0 ( B G R \ B G R D 0 2 3 0 2 7 3 3 3 0 3 0 3 E 7 2 7 3 X X ~
VUY D 0 3 3 0 2 7 3 3 3 0 3 0 3 E 7 3 7 3 X X ~

~XX37 4 7E 30 30 33 37 20 34 0D RGB(16 - 235)

l a ng is yB )

53=a ( 5 ~ ) 53 D2=a ( 5 - = n yc neuq e r F l ang iS D0 a 02 33 73 03 03 E7 n 37XX~

~XX91 n 7E 30 30 39 31 20 a 0D

Auto

matic n = 0 disable; n = 1 enable

l a ng is yB )13 33=a ( 13 ~ ) 03=a ( 0 = n e s a hP D 0 a 0 2 4 3 7 3 0 3 0 3 E 7 n 4 7 X X ~
gnimi t yB )53=a( 5 ~ )53 D 2=a( 5- = n noi t i soP .H D 0 a 0 2 5 3 7 3 0 3 0 3 E 7 n 5 7 X X ~

gn imi t yB ) 53=a (

5 ~ )53 D 2=a( 5- = n noi t i soP .V D 0 a 0 2 6 3 7 3 0 3 0 3 E 7 n 6 7 X X ~

2

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
) 0 3 5 3=a( 0 5 ~ ) 0 3 5 3 D2=a( 0 5 - = n ) n oitarutaS ( r oloC D0 a 0 2 4 3 4 3 03 0 3 E7 n 5 4XX~

)) 0 3 5 3= a ( 0 5 ~ )0 3 5 3 D2= a( 0 5 - = n t n i T D0 a 02 53 43 0 3 03 E7 n 44XX~

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

3:4 tamr oF D0 1 3 0 2 03 6 3 0 3 03 E7 1 0 6XX~
9:61 D 0 2 3 0 2 0 3 6 3 0 3 03 E7 2 06XX~

)AGXW(0 1:6 1 D 0 3 3 0 2 0 3 6 3 0 3 0 3 E 7 3 0 6 X X ~

XBL D 0 5 3 0 2 0 3 6 3 0 3 0 3 E 7 5 0 6 X X ~

evita N D 0 6 3 0 2 0 3 6 3 0 3 0 3 E 7 6 0 6 X X ~

otu A D 0 7 3 0 2 0 3 6 3 0 3 0 3 E 7 7 0 6 X X ~

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

~XX61 n 7E 30 30 36 31 20 a 0D Edge mask n = 0 (a=30) ~ 10 (a=31 30)

)53 23=a ( 52 ~ )53 D2=a ( 5- = n mooZ D0 a 02 23 63 03 03 E7 n 26XX~

~XX63 n 7E 30 30

36 33 20 a 0D H Image Shift n = -100 (a=2D 31 30 30) ~ 100 (a=31 30 30)
~XX64 n 7E 30 30 36 34 20 a 0D V Image Shift n = -100 (a=2D 31 30 30) ~ 100 (a=31 30 30)
~XX66 n 7E 30 30 36 36 20 a 0D V Keystone n = -40 (a=2D 34 30) ~ 40 (a=34 30)

FFO edoM D 3 D 0 03 0 2 03 3 3 2 3 0 3 0 3 E7 0 032 XX ~

kniL-P L D edoM D3 D 0 1 3 0 2 03 3 3 2 3 0 3 0 3 E7 1 032 XX ~
~XX400 0 7E 30 30 34 30 30 20 30 0D 3D2D 3D
~XX400 1

7E 30 30 34 30 30 20 31 0D L
~XX400 2 7E 30 30 34 30 30 20 32 0D R
~XX405 0 7E 30 30 34 30 35 20 30 0D 3D Format Auto
~XX405 1 7E 30 30 34 30 35 20 31 0D SBS
~XX405 2 7E 30 30 34 30 35 20 32 0D Top and Bottom
~XX405 3 7E 30 30 34 30 35 20 33 0D

Frame sequential
~XX231 0 7E 30 30 32 33 31 20 30 0D 3D Sync Invert On
~XX231 1 7E 30 30 32 33 31 20 31 0D 3D Sync Invert Off

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
~XX70 1 7E 30 30 37 30 20 31 0D Language English

namr eG D 0 2 3 0 2 0 3 7 3 0 3 0 3 E 7 2 0 7 X X ~
hcne r F D 0 3 3 0 2 0 3 7 3 0 3 0 3 E 7 3 0 7 X X ~
na il a tI D 0 4 3 0 2 0 3 7 3 0 3 0 3 E 7 4 0 7 X X ~
hs i napS D 0 5 3 0 2 0 3 7 3 0 3 0 3 E 7 5 0 7 X X ~
e seugu t

roP D 0 6 3 0 2 0 3 7 3 0 3 0 3 E 7 6 0 7 X X ~

hsil oP D 0 7 3 0 2 0 3 7 3 0 3 0 3 E 7 7 0 7 X X ~
hc t uD D 0 8 3 0 2 0 3 7 3 0 3 0 3 E 7 8 0 7 X X ~
hs ide w S D 0 9 3 0 2 0 3 7 3 0 3 0 3 E 7 9 0 7 X X ~
h s i n a D / n a i g e w r o N D 0 0 3 1 3 0 2 0 3 7 3 0 3 0 3 E 7 0 1 0 7 X X ~
hsinn iF D 0 1 3 1 3 0 2 0 3 7 3 0 3 0 3 E 7 1 1 0 7 X X ~
kee rG D 0 2 3 1 3 0 2 0 3 7 3 0 3 0 3 E 7 2 1 0 7 X X ~
e s e n i h C l a n o i t i d a r T D 0 3 3 1 3 0 2 0 3 7 3 0 3 0 3 E 7 3 1 0 7 X X ~
e s e n i h C d e i f i l p m i S D 0 43 13 02 03 73 03 03 E 7 41 07 XX ~
es enapa J D 0 5 3 1 3 0 2 0 3 7 3 0 3 0 3 E 7 5 1 0 7 X X ~
nae r oK D 0 6 3 1 3 0 2 0 3 7 3 0 3 0 3 E 7 6 1 0 7 X X ~
na is suR D 0 7 3 1 3 0 2 0 3 7 3 0 3 0 3 E 7 7 1 0 7 X X ~
nai ragnu H D 0 8 3 1 3 0 2 0 3 7 3 0 3 0 3 E 7 8 1 0 7 X X ~
kavolsohcezC D 0 9 3 1 3 0 2 0 3 7 3 0 3 0 3 E 7 9 1 0 7 X X ~
cib ar A D 0 0 3 2 3 0 2 0 3 7 3 0 3 0 3 E 7 0 2 0 7 X X ~

i a hT D 0 1 3 2 3 0 2 0 3 7 3 0 3 0 3 E 7 1 2 0 7 X X ~

hs ikruT D 0 2 3 2 3 0 2 0 3 7 3 0 3 0 3

E7 2 2 0 7XX~

isr aF D 0 3 3 2 3 0 2 0 3 7 3 0 3 0 3 E 7 3 2 0 7 X X ~

esem anteiV D 0 3 3 2 3 0 2 0 3 7 3 0 3 0 3 E 7 5 2 0 7 X X ~

nai senodnI D 0 3 3 2 3 0 2 0 3 7 3 0 3 0 3 E 7 6 2 0 7 X X ~

na i namoR D 0 3 3 2 3 0 2 0 3 7 3 0 3 0 3 E 7 7 2 0 7 X X ~

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
~XX71 1 7E 30 30 37 31 20 31 0D Projection Front-Desktop

potkseD-raeR D 0 2 3 0 2 1 3 7 3 0 3 0 3 E 7 2 1 7 X X ~
g n i l i e C - t n o r F D 0

33 02 13 73 03 03 E 7 3 17 XX ~

gni l ieC- raeR D 0 4 3 0 2 1 3 7 3 0 3 0 3 E 7 4 1 7 X X ~

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
~XX72 1 7E 30 30 37 32 20 31 0D Menu Location Top Left

t hg i R poT D 0 2 3 0 2 2 3 7 3 0 3 0 3 E 7 2 2 7 X X ~
ertne C D 0 3 3 0 2 2 3 7 3 0 3 0 3 E 7 3 2 7 X X ~
tf eL mottoB D 0 4 3 0 2 2 3 7 3 0 3 0 3 E 7 4 2 7 X X ~
t h g i R m o t t o B D 0 5 3 0 2 2 3 7 3 0 3 0 3 E 7 5 2 7 X X ~

-------------------------------------

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
(WXGA only)
~XX90 1 7E 30 30 39 31 20 31 0D Screen Type 16:10
~XX90 0 7E 30 30 39 31 20 30 0D 16:9

-------

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

61

English

Appendices

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

) 0 3 5 3=a( 0 5 ~ ) 0 3 5 3 D2=a( 0 5 - = n ) n oitarutaS ( r oloC D0 a 0 2 4 3 4 3 03 0 3 E7 n 5 4XX~

)) 0 3 5 3= a ( 0 5 ~ )0 3 5 3 D2= a( 0 5 - = n t n i T D0 a 02 53 43 0 3 03 E7 n 44XX~

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

3:4 tamr oF D0 1 3 0 2 03 6 3 0 3 03 E7 1 0 6XX~
9:61 D 0 2 3 0 2 0 3 6 3 0 3 03 E7 2 06XX~

)AGXW(0 1:6 1 D 0 3 3 0 2 0 3 6 3 0 3 0 3 E 7 3 0 6 X X ~

XBL D 0 5 3 0 2 0 3 6 3 0 3 0 3 E 7 5 0 6 X X ~

evita N D 0 6 3 0 2 0 3 6 3 0 3 0 3 E 7 6 0 6 X X ~

otu A D 0 7 3 0 2 0 3 6 3 0 3 0 3 E 7 7 0 6 X X ~

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------­~XX61 n 7E 30 30 36 31 20 a 0D Edge mask n = 0 (a=30) ~ 10 (a=31 30)

)53 23=a ( 52 ~ )53 D2=a ( 5- = n mooZ D0 a 02 23 63 03 03 E7 n 26XX~

~XX63 n 7E 30 30

36 33 20 a 0D H Image Shift n = -100 (a=2D 31 30 30) ~ 100 (a=31 30 30)
~XX64 n 7E 30 30 36 34 20 a 0D V Image Shift n = -100 (a=2D 31 30 30) ~ 100 (a=31 30 30)
~XX66 n 7E 30 30 36 36 20 a 0D V Keystone n = -40 (a=2D 34 30) ~ 40 (a=34 30)

FFO edoM D 3 D 0 03 0 2 03 3 3 2 3 0 3 0 3 E7 0 032 XX ~

kniL-P L D edoM D3 D 0 1 3 0 2 03 3 3 2 3 0 3 0 3 E7 1 032 XX ~
~XX400 0 7E 30 30 34 30 30 20 30 0D 3D2D 3D
~XX400 1

7E 30 30 34 30 30 20 31 0D L
~XX400 2 7E 30 30 34 30 30 20 32 0D R
~XX405 0 7E 30 30 34 30 35 20 30 0D 3D Format Auto
~XX405 1 7E 30 30 34 30 35 20 31 0D SBS
~XX405 2 7E 30 30 34 30 35 20 32 0D Top and Bottom
~XX405 3 7E 30 30 34 30 35 20 33 0D

Frame sequential
~XX231 0 7E 30 30 32 33 31 20 30 0D 3D Sync Invert On
~XX231 1 7E 30 30 32 33 31 20 31 0D 3D Sync Invert Off

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------­~XX70 1 7E 30 30 37 30 20 31 0D Language English

namr eG D 0 2 3 0 2 0 3 7 3 0 3 0 3 E 7 2 0 7 X X ~
hcne r F D 0 3 3 0 2 0 3 7 3 0 3 0 3 E 7 3 0 7 X X ~
na il a tI D 0 4 3 0 2 0 3 7 3 0 3 0 3 E 7 4 0 7 X X ~
hs i napS D 0 5 3 0 2 0 3 7 3 0 3 0 3 E 7 5 0 7 X X ~
e seugu t

roP D 0 6 3 0 2 0 3 7 3 0 3 0 3 E 7 6 0 7 X X ~

h s il oP D 0 7 3 0 2 0 3 7 3 0 3 0 3 E 7 7 0 7 X X ~
hc t uD D 0 8 3 0 2 0 3 7 3 0 3 0 3 E 7 8 0 7 X X ~
hs ide w S D 0 9 3 0 2 0 3 7 3 0 3 0 3 E 7 9 0 7 X X ~
h s i n a D / n a i g e w r o N D 0 0 3 1 3 0 2 0 3 7 3 0 3 0 3 E 7 0 1 0 7 X X ~
hsinn iF D 0 1 3 1 3 0 2 0 3 7 3 0 3 0 3 E 7 1 1 0 7 X X ~
kee rG D 0 2 3 1 3 0 2 0 3 7 3 0 3 0 3 E 7 2 1 0 7 X X ~
e s e n i h C l a n o i t i d a r T D 0 3 3 1 3 0 2 0 3 7 3 0 3 0 3 E 7 3 1 0 7 X X ~
e s e n i h C d e i f i l p m i S D 0 43 13 02 03 73 03 03 E 7 41 07 XX ~
es enapa J D 0 5 3 1 3 0 2 0 3 7 3 0 3 0 3 E 7 5 1 0 7 X X ~
nae r oK D 0 6 3 1 3 0 2 0 3 7 3 0 3 0 3 E 7 6 1 0 7 X X ~
na is suR D 0 7 3 1 3 0 2 0 3 7 3 0 3 0 3 E 7 7 1 0 7 X X ~
nai ragnu H D 0 8 3 1 3 0 2 0 3 7 3 0 3 0 3 E 7 8 1 0 7 X X ~
kavolsohcezC D 0 9 3 1 3 0 2 0 3 7 3 0 3 0 3 E 7 9 1 0 7 X X ~
cib ar A D 0 0 3 2 3 0 2 0 3 7 3 0 3 0 3 E 7 0 2 0 7 X X ~

i a hT D 0 1 3 2 3 0 2 0 3 7 3 0 3 0 3 E 7 1 2 0 7 X X ~

hs ikruT D 0 2 3 2 3 0 2 0 3 7 3 0 3 0 3

E7 2 2 0 7XX~

isr aF D 0 3 3 2 3 0 2 0 3 7 3 0 3 0 3 E 7 3 2 0 7 X X ~

esem anteiV D 0 3 3 2 3 0 2 0 3 7 3 0 3 0 3 E 7 5 2 0 7 X X ~

nai senodnI D 0 3 3 2 3 0 2 0 3 7 3 0 3 0 3 E 7 6 2 0 7 X X ~

na i namoR D 0 3 3 2 3 0 2 0 3 7 3 0 3 0 3 E 7 7 2 0 7 X X ~

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------­~XX71 1 7E 30 30 37 31 20 31 0D Projection Front-Desktop

potkseD-raeR D 0 2 3 0 2 1 3 7 3 0 3 0 3 E 7 2 1 7 X X ~
g n i l i e C - t n o r F D 0

33 02 13 73 03 03 E 7 3 17 XX ~

gni l ieC- raeR D 0 4 3 0 2 1 3 7 3 0 3 0 3 E 7 4 1 7 X X ~

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------­~XX72 1 7E 30 30 37 32 20 31 0D Menu Location Top Left

t hg i R poT D 0 2 3 0 2 2 3 7 3 0 3 0 3 E 7 2 2 7 X X ~
ertne C D 0 3 3 0 2 2 3 7 3 0 3 0 3 E 7 3 2 7 X X ~
tf eL mottoB D 0 4 3 0 2 2 3 7 3 0 3 0 3 E 7 4 2 7 X X ~
t h g i R m o t t o B D 0 5 3 0 2 2 3 7 3 0 3 0 3 E 7 5 2 7 X X ~

-------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------­ (WXGA only)
~XX90 1 7E 30 30 39 31 20 31 0D Screen Type 16:10
~XX90 0 7E 30 30 39 31 20 30 0D 16:9

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

62

English

Appendices

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------­~XX79 n 7E 30 30 37 39 20 a 0D Projector ID n = 00 (a=30 30) ~ 99 (a=39 39)

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

~XX82 1 7E 30 30 38 32 20 31 0D Logo Default
~XX82 3 7E 30 30 38 32 20 33 0D Neutral
~XX88 0 7E 30 30 38 38 20 30 0D Closed Captioning Off
~XX88 1 7E 30 30 38 38 20 31 0D cc1
~XX88 2 7E 30 30 38 38 20 32 0D cc2

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------­~XX100 1 7E 30 30 31 30 30 20 31 0D Source Lock On
~XX100 0 7E 30 30 31 30 30 20 30 0D Off (0/2 for backward compatible)
~XX101 1 7E 30 30 31 30 31 20 31 0D High Altitude On
~XX101 0 7E 30 30 31 30 31 20 30 0D Off (0/2 for backward compatible)
~XX102 1 7E 30 30 31 30 32 20 31 0D Information Hide On
~XX102 0 7E 30 30 31 30 32 20 30 0D Off (0/2 for backward compatible)
~XX103 1 7E 30 30 31 30 33 20 31 0D Keypad Lock On
~XX103 0 7E 30 30 31 30 33 20 30 0D Off (0/2 for backward compatible)
~XX195 0 7E 30 30 31 39 35 20 30 0D Test Pattern None
~XX195 1 7E 30 30 31 39 35 20 31 0D Grid
~XX195 2 7E 30 30 31 39 35 20 32 0D White Pattern

~XX11 0 7E 30 30 31 31 20 30 0D IR Function Off
~XX11 1 7E 30 30 31 31 20 31 0D On

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------­~XX104 1 7E 30 30 31 30 34 20 31 0D Background Color Blue
~XX104 2 7E 30 30 31 30 34 20 32 0D Black
~XX104 3 7E 30 30 31 30 34 20 33 0D Red
~XX104 4 7E 30 30 31 30 34 20 34 0D Green
~XX104 5 7E 30 30 31 30 34 20 35 0D White

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------­~XX105 1 7E 30 30 31 30 35 20 31 0D Advanced Direct Power On On
~XX105 0 7E 30 30 31 30 35 20 30 0D Off (0/2 for backward compatible)
~XX106 n 7E 30 30 31 30 36 20 a 0D Auto Power Off (min) n = 0 (a=30) ~ 180 (a=31 38 30) ~XX107 n 7E 30 30 31
30 37 20 a 0D Sleep Timer (min) n = 0 (a=30) ~ 990 (a=39 39 39)
~XX115 1 7E 30 30 31 31 35 20 31 0D Quick Resume On
~XX115 0 7E 30 30 31 31 35 20 30 0D Off (0/2 for backward compatible)
~XX114 1 7E 30 30 31 31 34 20 31 0D Power Mode(Standby) Eco.(<=0.5W)
~XX114 0 7E 30 30 31 31 34 20 30 0D Active (0/2 for backward compatible)

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------­~XX109 1 7E 30 30 31 30 39 20 31 0D Lamp Reminder On
~XX109 0 7E 30 30 31 30 39 20 30 0D Off (0/2 for backward compatible)
~XX110 1 7E 30 30 31 31 30 20 31 0D Brightness Mode Bright
~XX110 2 7E 30 30 31 31 30 20 32 0D Eco
~XX110 4 7E 30 30 31 31 30 20 34 0D Dynamic
~XX111 1 7E 30 30 31 31 31 20 31 0D Lamp Reset Yes
~XX111 0 7E 30 30 31 31 31 20 30 0D No (0/2 for backward compatible)

~XX322 0 7E 30 30 33 32 32 20 30 0D Filter Reminder Off
~XX322 1 7E 30 30 33 32 32 20 31 0D 300 hr
~XX322 2 7E 30 30 33 32 32 20 32 0D 500 hr
~XX322 3 7E 30 30 33 32 32 20 33 0D 800 hr
~XX322 4 7E 30 30 33 32 32 20 34 0D 1000 hr
~XX323 1 7E 30 30 33 32 33 20 31 0D Filter Reset Yes
~XX323 0 7E 30 30 33 32 33 20 30 0D No

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------­~XX112 1 7E 30 30 31 31 32 20 31 0D Reset Yes

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------­~XX99 1 7E 30 30 39 39 20 31 0D RS232 Alert Reset Reset System Alert
~XX210 n 7E 30 30 32 30 30 20 n 0D Display message on the OSD n: 1-30 characters

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

SEND to emulate Remote

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------­~XX140 10 7E 30 30 31 34 30 20 31 30 0D Up
~XX140 11 7E 30 30 31 34 30 20 31 31 0D Left
~XX140 12 7E 30 30 31 34 30 20 31 32 0D Enter (for projection MENU)
~XX140 13 7E 30 30 31 34 30 20 31 33 0D Right
~XX140 14 7E 30 30 31 34 30 20 31 34 0D Down
~XX140 15 7E 30 30 31 34 30 20 31 35 0D Keystone +
~XX140 16 7E 30 30 31 34 30 20 31 36 0D Keystone –
~XX140 17 7E 30 30 31 34 30 20 31 37 0D Vo l u m e –
~XX140 18 7E 30 30 31 34 30 20 31 38 0D Vo l u m e +
~XX140 19 7E 30 30 31 34 30 20 31 39 0D Brightness
~XX140 20 7E 30 30 31 34 30 20 32 30 0D Menu
~XX140 21 7E 30 30 31 34 30 20 32 31 0D Zoom
~XX140 28 7E 30 30 31 34 30 20 32 38 0D Contrast
~XX140 47 7E 30 30 31 34 30 20 34 37 0D Source

63

English

Appendices

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

SEND from projector automatically

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

232 ASCII Code HEX Code

Function Projector Return Description

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------­when Standby/Warming/Cooling/Out of
Range/Lamp fail/Fan Lock/Over Temperature/
Lamp Hours Running Out/Cover Open

INFOn

Standby/Warming/Cooling/Out
of Range/Lamp fail/Fan
Lock/Over Temperature/Lamp Hours Running Out/Cover
Open

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

READ from projector

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

232 ASCII Code HEX Code Function Projector Return Description

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------­~XX121 1 7E 30 30 31 32 31 20 31 0D Input Source Commands OKn n: 0/1/3/4= None/VGA /Video/S-Video
~XX122 1 7E 30 30 31 32 32 20 31 0D Software Version OKdddd dddd: FW version
~XX123 1 7E 30 30 31 32 33 20 31 0D Display Mode OKn n : 0/1/2/3/4/5/6/7/
None/Presentation/Bright/Movie/sRGB/User/Blackboard./3D
~XX124 1 7E 30 30 31 32 34 20 31 0D Power State OKn n : 0/1 = Off/On
~XX125 1 7E 30 30 31 32 35 20 31 0D Brightness OKn
~XX126 1 7E 30 30 31 32 36 20 31 0D Contrast OKn
~XX127 1 7E 30 30 31 32 37 20 31 0D Aspect Ratio OKn (WXGA) n: 0/1/2/3/4 = 4:3/16:9 or 16:10/LBX/Native/AUTO
(SVGA/XGA) n: 0/1/2/3/4 = 4:3/16:9/LBX/Native/AUTO
*16:9 or 16:10 depend on Screen Type setting
~XX128 1 7E 30 30 31 32 38 20 31 0D Color Temperature OKn n : 0/1/2 = Warm/Medium/Cold
~XX129 1 7E 30 30 31 32 39 20 31 0D Projection Mode OKn n : 0/1/2/3 = Front-Desktop/ Rear-Desktop/ Front-Ceiling/
Rear-Ceiling
~XX150 1 7E 30 30 31 35 30 20 31 0D Information OKabbbbccdddde
a : 0/1 = Off/On
bbbb: LampHour
cc: source
00/01/03/04/ = None/VGA /Video/S-Video
dddd: FW version
e : Display mode 0/1/2/3/4/5/6/7
None/Presentation/Bright/Movie/sRGB/User/Blackboard/3D
~XX151 1 7E 30 30 31 35 31 20 31 0D Model name OKn n:1/2/3= SVGA/ XGA/ WXGA
~XX108 1 7E 30 30 31 30 38 20 31 0D Lamp Hours OKbbbb bbbb: LampHour
~XX108 2 7E 30 30 31 30 38 20 31 0D Cumulative Lamp Hours OKbbbbb bbbbb: (5 digits) Total Lamp Hours
~XX321 1 7E 30 30 33 32 31 20 31 0D Filter Usage Hours OKbbbb bbbb: Filter Usage Hours

64

English

Appendices

Please note that

damage resulting
from incorrect
installation will void
the warranty.

Ceiling Mount Installation

1. To prevent damage to your projector, please use the
InFocus ceiling mount.

2. If you wish to use a third party ceiling mount kit, please
ensure the screws used to attach a mount to the projector

meet the following specifications:

4

Screw type: M4*3

4

Minimum screw length: 10mm

Warning:

1. If you buy a ceiling
mount from another
company, please

be sure to use the

correct screw size.
Screw size will vary

depending on the

thickness of the
mounting plate.

2. Be sure to keep
at least 10 cm gap
between the ceiling
and the bottom of the

projector.

3. Avoid installing the
projector near a heat
source.

63.90

77.30

82.30

314.10

85.00

55.00

223.50

8.00

127.45

186.65127.45

47.95 39.88

13.50

Unit: mm

Lens

65

English

Appendices

Regulation & Safety Notices

This appendix lists the general notices of your projector.

FCC notice

This device has been tested and found to comply with the
limits for a Class B digital device pursuant to Part 15 of the
FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential

installation. This device generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications.

However, there is no guarantee that interference will not

occur in a particular installation. If this device does cause

harmful interference to radio or television reception, which can
be determined by turning the device off and on, the user is
encouraged to try to correct the interference by one or more of
the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the device and receiver.

• Connect the device into an outlet on a circuit different
from that to which the receiver is connected.

• Consult the dealer or an experienced radio/television

technician for help.

Notice: Shielded cables

All connections to other computing devices must be
made using shielded cables to maintain compliance with

FCC regulations.

Caution

Changes or modications not expressly approved by the
manufacturer could void the user’s authority, which is
granted by the Federal Communications Commission, to

operate this projector.

66

English

Appendices

Disposal instructions

Do not throw this electronic device into the
trash when discarding. To minimize pollution
and ensure utmost protection of the global
environment, please recycle it.

Operation conditions

This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions:

1. This device may not cause harmful interference and

2. This device must accept any interference received,
including interference that may cause undesired

operation.

Notice: Canadian users

This Class B digital apparatus complies with Canadian
ICES-003.

Remarque à l’intention des utilisateurs
canadiens

Cet appareil numerique de la classe B est conforme a la
norme

NMB-003 du Canada.

Declaration of Conformity for EU
countries

• EMC Directive 2004/108/EC (including amendments)

• Low Voltage Directive 2006/95/EC

• R & TTE Directive 1999/5/EC (if product has RF function)
