InFocus FCC User Manual

FCC Warning

This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment
is operated in a commercial environment. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance
with the instruction manual, may cause harmful interference to radio communi­cations. Operation of this equipment in a residential area is likely to cause harm­ful interference in which case the user will be required to correct the interference
at his own expense.

Canada

This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Can­ada.

Safety Certifications

UL, CUL, TÜV, NOM, IRAM

EN 55022 Warning

This is a Class A product. In a domestic environment it may cause radio interfer­ence, in which case the user may be required to take adequate measures. The typ­ical use is in a conference room, meeting room or auditorium.

Declaration of Conformity

Manufacturer: InFocus Corporation
27700B SW Parkway Ave. Wilsonville, Oregon 97070 USA
European Office: Olympia 1, NL-1213 NS Hilversum, The Netherlands

We declare under our sole responsibility that the LP340B and LP350 projectors
conform to the following directives and norms:

EMC Directive 89/336/EEC, Amended by 93/68/EEC
EMC: EN 55022
EN 55024

EN 61000-3-2

EN 61000-3-3
Low Voltage Directive 73/23/EEC, Amended by 93/68/EEC
Safety: EN 60950: 1992 + A1 + A2 + A3 + A4: 1997

April, 2001

Australian Certification C-tick mark

Trademarks

Apple, Macintosh, and PowerBook are trademarks or registered trademarks of
Apple Computer, Inc. IBM and PS/2 are trademarks or registered trademarks of
International Business Machines, Inc. Microsoft, PowerPoint, and Windows are
trademarks or registered trademarks of Microsoft Corporation. Digital Light Pro­cessing is a trademark or registered trademark of Texas Instruments. InFocus and
LP are trademarks or registered trademarks of InFocus Corporation.

TABLE OF CONTENTS

Safety Instructions iii

Introduction 1

Image Resolution 1
Compatibility 2
Unpacking the Projector 2
Usage Guidelines 4
If You Need Assistance 5
Warranty 5

Setting up the Projector 7

Connecting a Computer 9
Connecting a Video Player 11
Powering up the Projector and Adjusting the Image 13
Turning Off the Projector 14

Using the Projector 15

Basic Image Adjustment 15

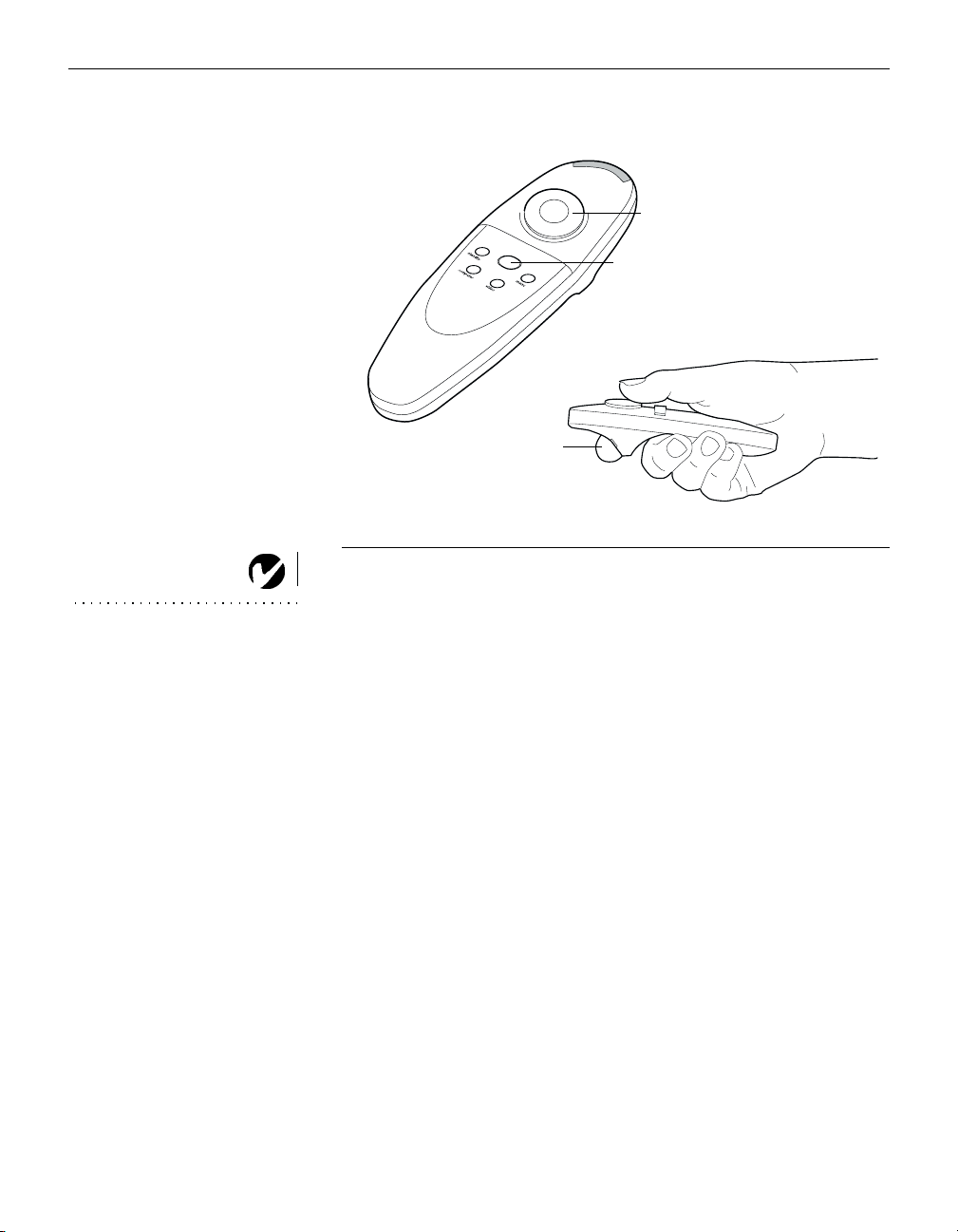

Using the Remote Control 15
Adjusting the Projector 17

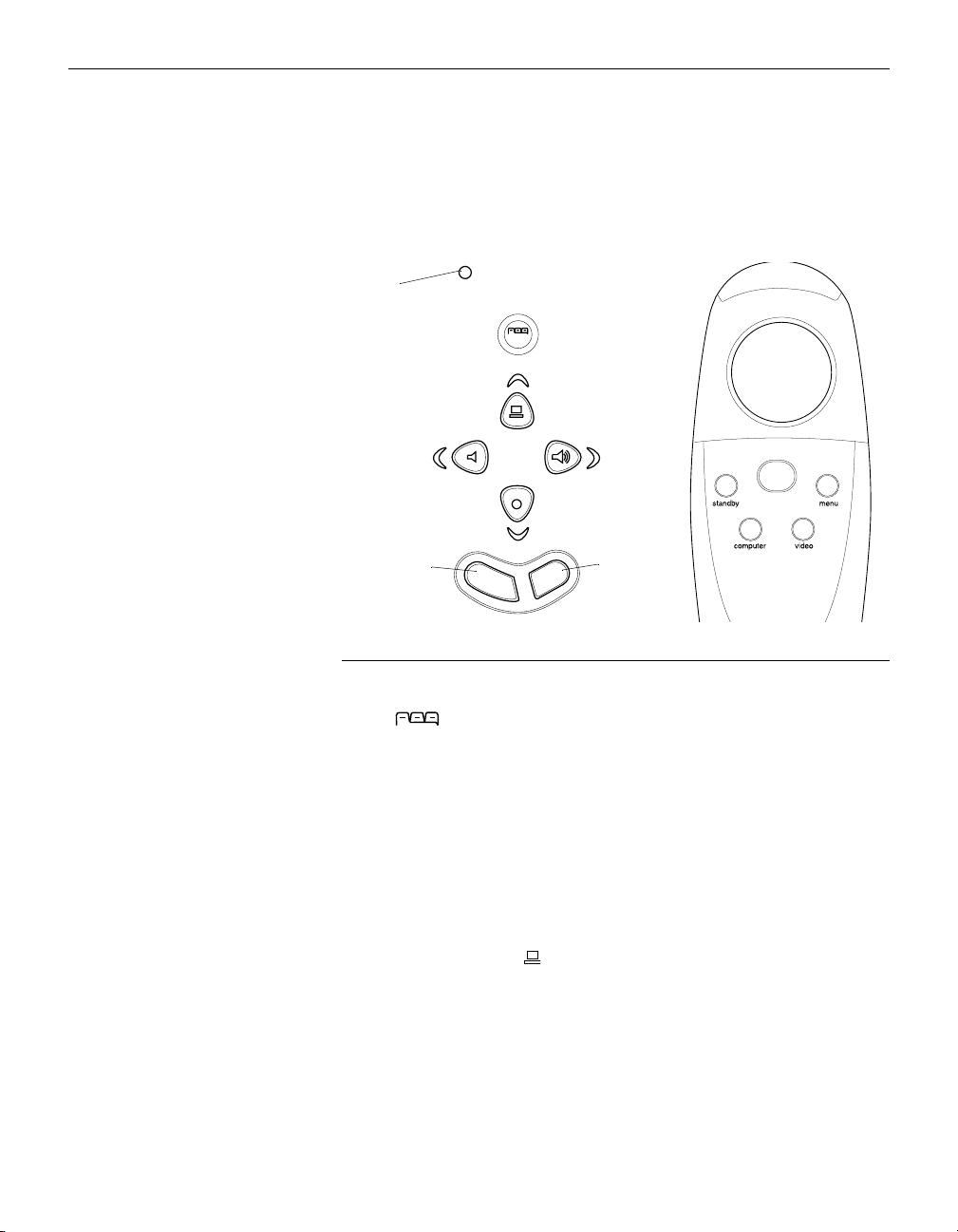

Using the Keypad and Remote Buttons 18

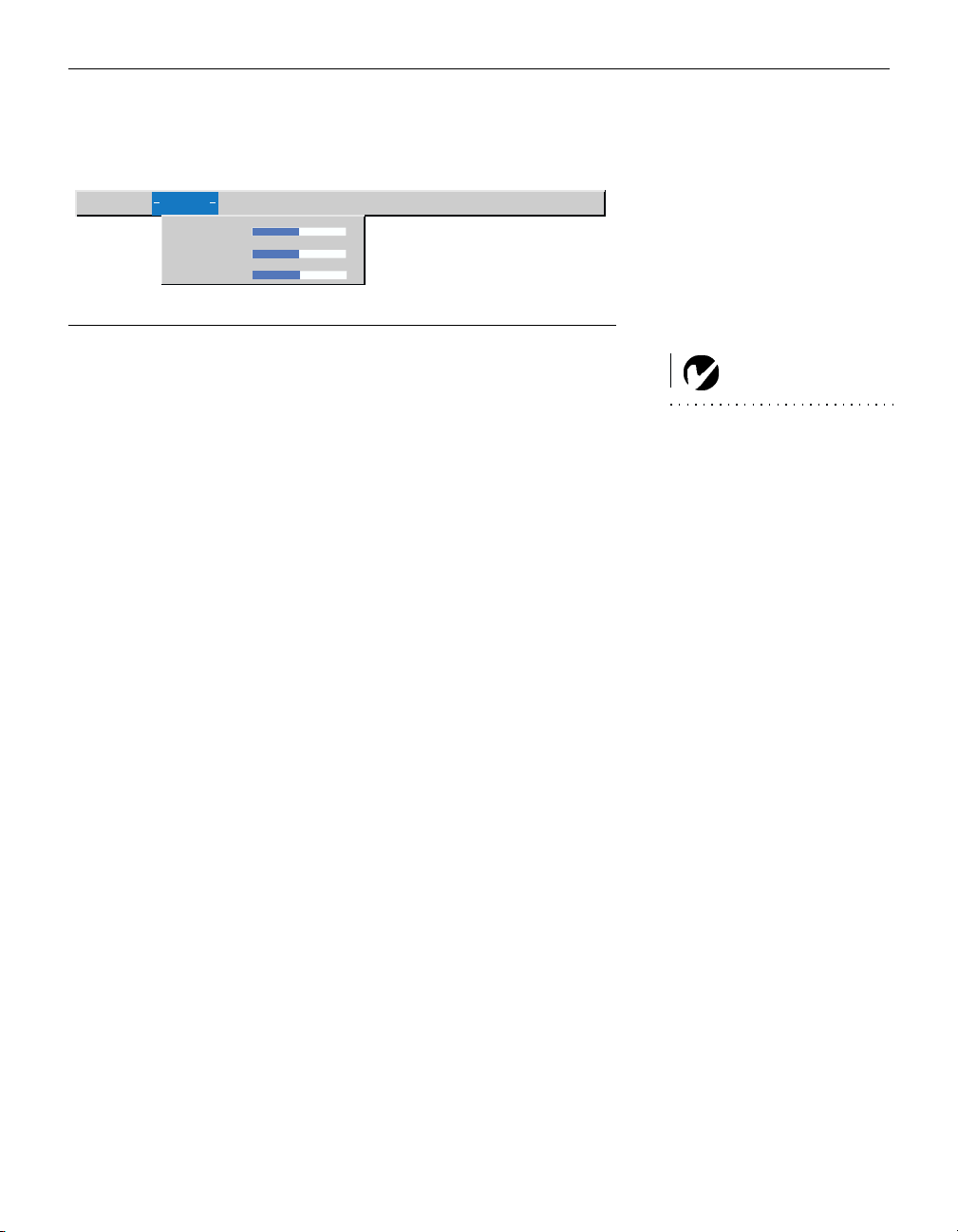

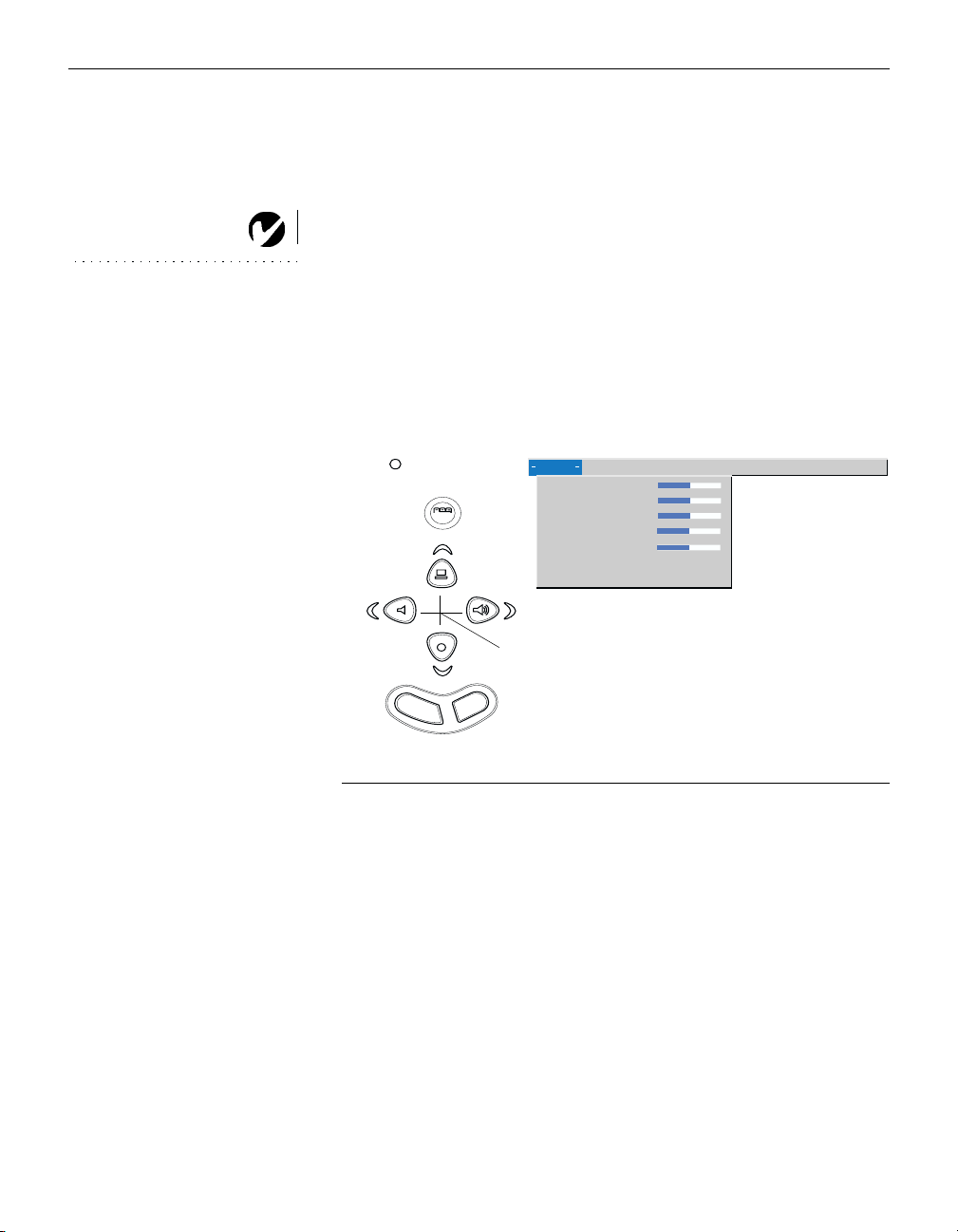

Using the On-Screen Menus 20
Display Menu 21
Audio Menu 23
Image Menu 24
Controls Menu 27

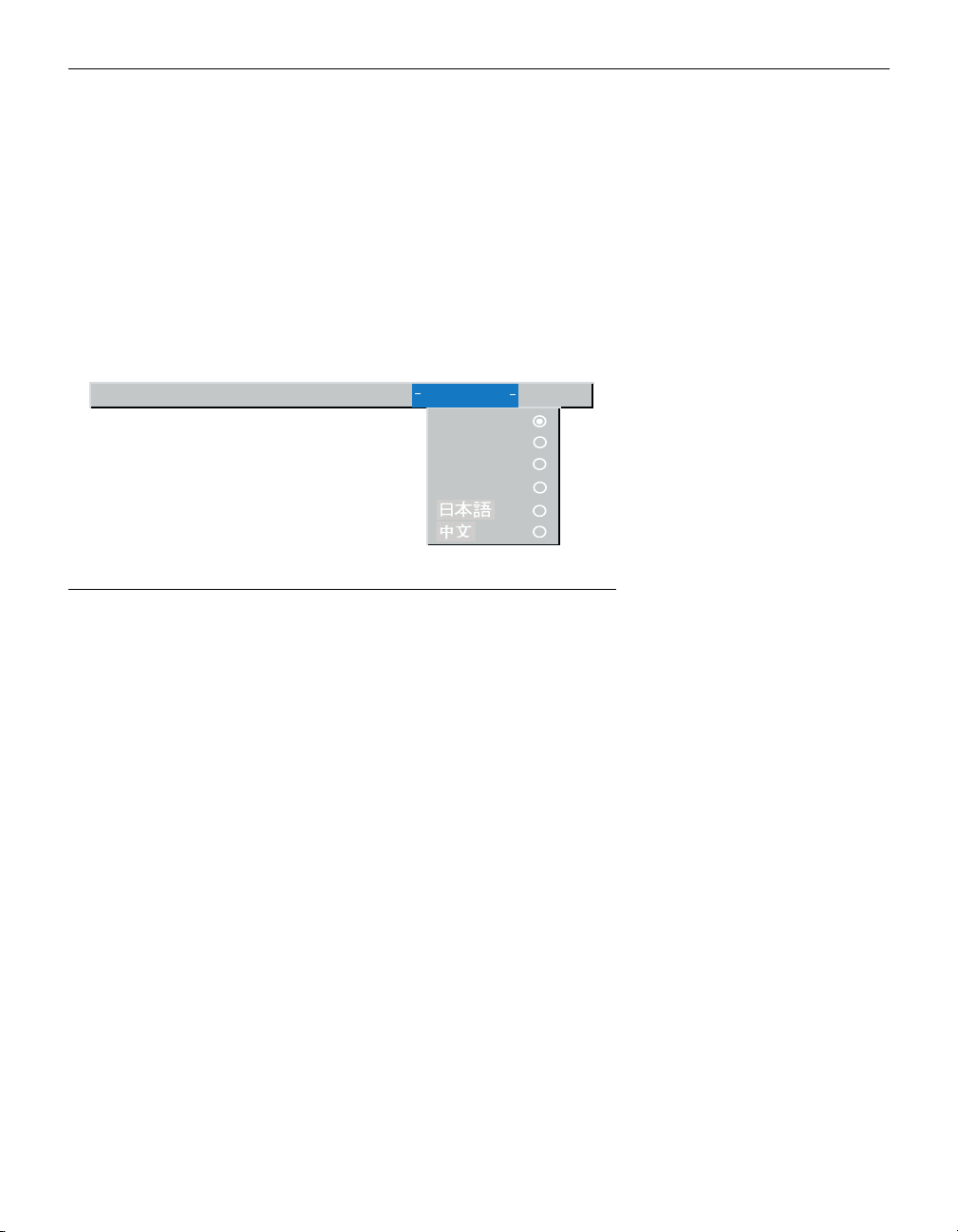

Language Menu
Status Menu 30

29

Maintenance & Troubleshooting 33

Cleaning the Lens 33

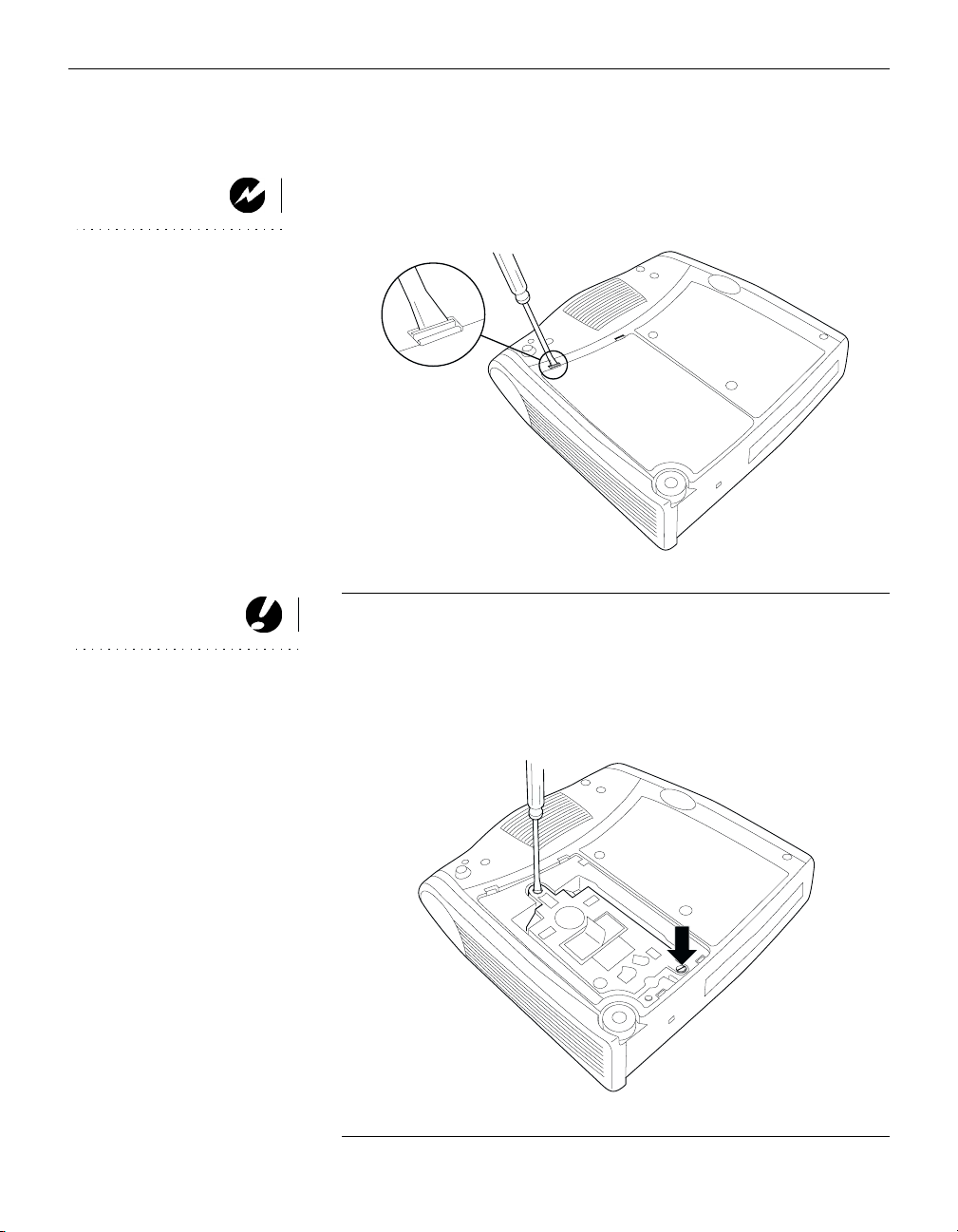

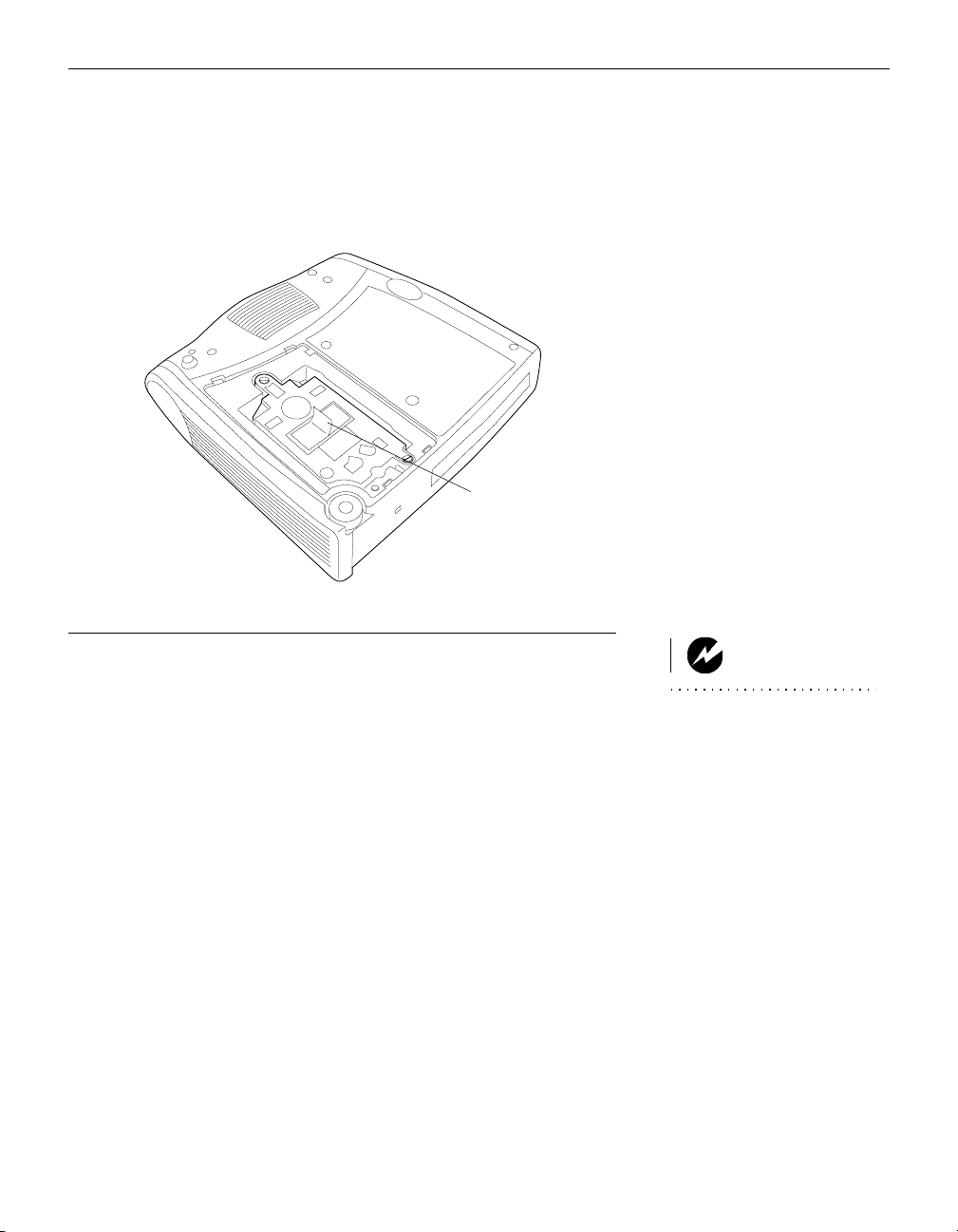

Replacing the Projection Lamp 33
Replacing the Batteries in the Remote Control 36
Using the Security Lock 36
Troubleshooting 37

i

Ta b l e o f C o n t e n t s

Appendix 41

Specifications 41
Accessories 42
Portable and Laptop Activation Chart 44
Using Video Mirroring with a PowerBook Computer 49

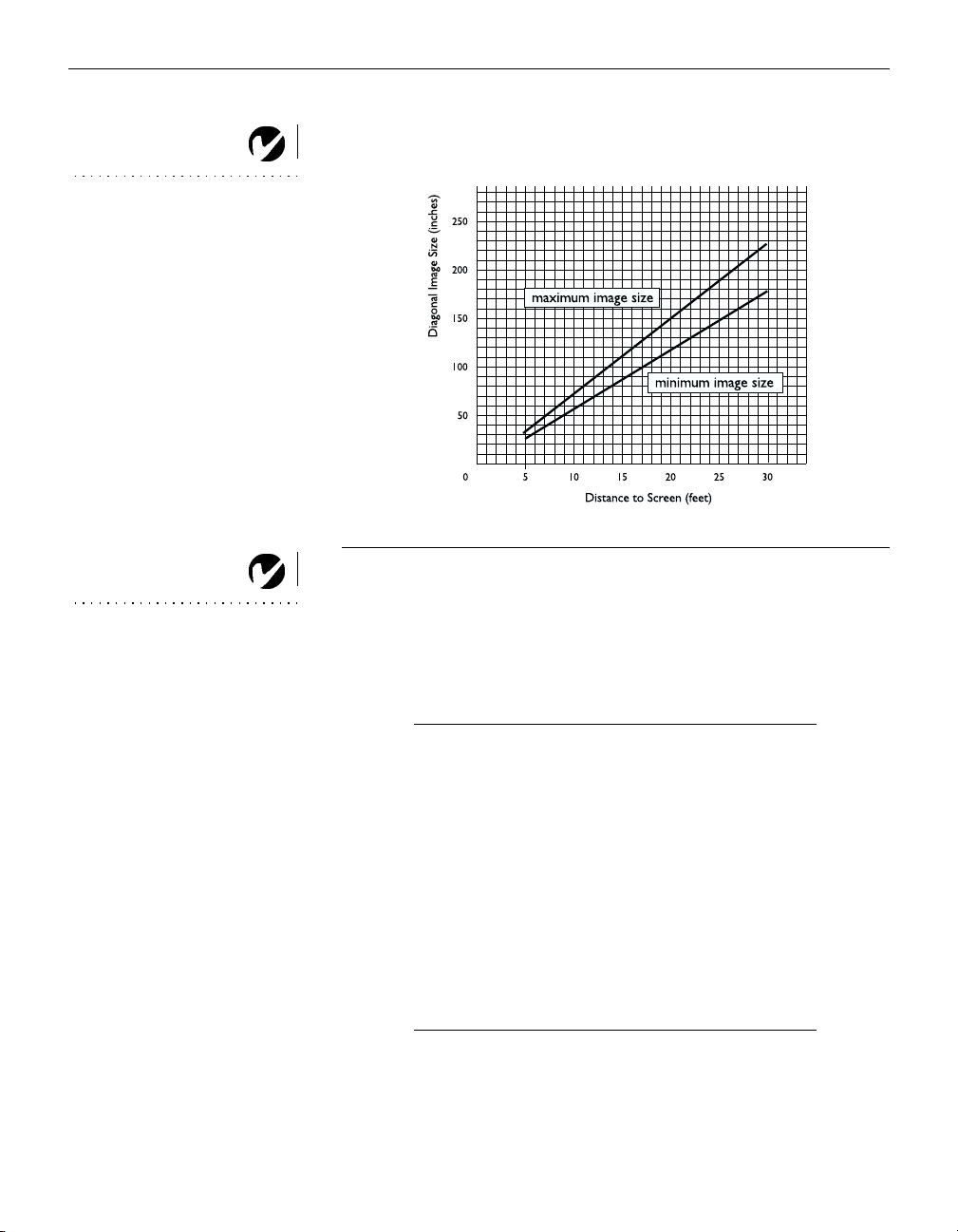

Projected Image Size 50

Index 51

ii

SAFETY INSTRUCTIONS

Please read and follow all safety instructions provided BEFORE
using your new projector. Failure to comply with safety instruc­tions may result in fire, electrical shock, or personal injury and
may damage or impair protection provided by equipment. Please
save all safety instructions.

Safety Definitions:

•

Warn i ng:

Statements identify conditions or practices that

could result in personal injury.

•

Caution:

Statements identify conditions or practices that could

result in damage to your equipment.

Safety Symbols:

Attention:

For information about usage of a feature, please

refer to the User’s Guide.

Hot surface. Do not touch.

Warn ing:

An arrow pointing to the lamp door on the projector.

Safety Terms:

•

Warn i ng:

Don’t look directly into the lens when the lamp is

turned on.

•

Warni ng:

To replace the lamp, turn off the projector

and unplug the power cord. To avoid burns, wait 30 min­utes before opening the lamp door. Follow all instructions pro­vided in this User’s Guide.

•

Warni ng:

Please use the power cord provided. Connect

the power cord to a receptacle with a protective safety
(earth) ground terminal.

•

Warn i ng:

Refer all service to qualified service personnel. Ser­vicing your own projector will void the warranty. See the fol­lowing page for the customer service contact information.

•

Caution:

Don’t block ventilation openings.

iii

Safety Instructions

•

Caution:

Don’t set liquids on the projector. Spilled liquids may

damage your projector.

•

Caution:

Don’t place the projector on a hot surface or in direct

sunlight.

•

Caution:

Do not drop the projector. Transport the projector in

an InFocus-approved case; see page 43 for a list of cases.

Important Operating Considerations

Do not place the projector on a tablecloth or other soft covering
that may block the vents. In the unlikely event of the bulb ruptur­ing, thoroughly clean the area behind the projector and discard
any edible items placed in that area.

)

m

6

.

(

t

f

2

Do not place objects in
this area behind the projector

Customer Service

If you need assistance, call InFocus Customer Service directly at

1-800-799-9911

. Support is free between 6 a.m. and 6 p.m. PST,
Monday through Friday. Support is available in North America
after hours and weekends for a fee at 1-888-592-6800.

Or, send us an e-mail at

[e-mail]

In Europe, call InFocus in The Netherlands at

In Asia, call InFocus in Singapore at

(65) 353-9449

.

(31) 35-6474010

.

.

iv

INTRODUCTION

®

The InFocus

LP340B™ and LP350™ multimedia projectors are
specifically designed for multipurpose use. They generate crisp,
clear images using Digital Light Processing™ (DLP) technology.
They are easy to connect, easy to use, easy to transport, and easy
to maintain. The LP340B has native SVGA 800x600 resolution, the
LP350 has XGA 1024x768 resolution. The user interfaces of the
two products are identical except where noted; information in
this user’s guide applies to both products.

Image Resolution

LP340B

The SVGA resolution of the LP340B’s projected image is 800x600.
The projector is compatible with screen resolutions up to
1024x768. If your computer’s screen resolution is higher than
1024x768, reset it to a lower resolution before you connect the
projector

LP350

.

The XGA resolution of the LP350’s projected image is 1024x768.
The projector is compatible with screen resolutions up to
1024x768. If your computer’s screen resolution is higher than
1024x768, reset it to a lower resolution before you connect the
projector

.

NOTE: The LP340B automati-

cally expands 640x480 images to

800x600. You can display these

images at their native resolutions

by turning off the Auto Resize fea-

ture. See “Resize” on page 24 for

more information.

NOTE: The LP350 automatically

expands 640x480 and 800x600

images to 1024x768. You can dis-

play these images at their native

resolutions by turning off the Auto

Resize feature. See “Resize” on

page 24 for more information.

1

Introduction

Compatibility

The projector is compatible with a wide variety of computers and
video devices, including:

•

IBM-compatible computers, including laptops, up to 1024x768
resolution.

•

Apple® Macintosh® and PowerBook® computers up to
1024x768 resolution.

•

Most standard VCRs, DVD players, HDTV sources, camcord-

NOTE: The projector is

compatible with 1080i and 720P

HDTV formats.

ers and laser disc players.

Unpacking the Projector

The projector comes with the items shown in Figure 1. Check to
make sure all are included.

diately if anything is missing

If you are experienced in setting up presentation systems, use the

Quick Start

plete details on connecting and operating the projector, refer to
this User’s Guide. User’s Guides are also available for download
from our website at www.infocus.com.

Contact your InFocus dealer imme-

.

card that was included in the shipping box. For com-

A registration card is included in the box. Register to receive
product updates, announcements, and special offers from
InFocus. Or, register online at www.infocus.com/service/register
and you will be automatically entered to win free merchandise.

2

1

2

3

5

6

7

1. Projector + lens cap 6. Computer cable

2. Soft carry case 7. Audio cable adapter

3. User’s Guide, quick start
card and User Guide CD

4. Power cord 9. Composite video cable

5. Remote control

4

9

8

Shipping box contents

8. Audio cable

FIGURE 1

3

Introduction

zoom ring

IGURE 2

F

Side view of projector

focus ring

keypad

speaker

power
button

power
cord
connector

Security
lock

connector panel

Usage Guidelines

•

Do not look directly into the projection lens when the lamp is
turned on. The bright light may harm your eyes.

•

Do not block the grills on the projector. Restricting the air flow
can cause it to overheat and turn off. If this happens, you must
wait a minute before attempting to turn it back on.

•

Handle the projector as you would any product with glass
components. Be especially careful not to drop it.

•

Avoid leaving the projector in direct sunlight or extreme cold
for extended periods of time. If this happens, allow it to reach
room temperature before use.

•

Transport the projector in a vendor-approved hard or soft case.
Part numbers for these cases are listed on page 43.

4

If You Need Assistance

The first place to look for help is in this manual. Be sure to check
the guidelines in “Troubleshooting” on page 37. Or, check the
Service and Support section of our website at

http://www.infocus.com/service.

You’ll find a Technical Library,
FAQs, and support contacts including a technical support e-mail
form.

If those sources don’t answer your question, call your InFocus
dealer. You can also call InFocus Customer Service directly at

1-800-799-9911

. Call between 6 a.m. and 6 p.m. PST, Monday
through Friday. Service is available in North America after hours
and on weekends for a fee at 1-888-592-6800.

In Europe, call InFocus in The Netherlands at
In Asia, call InFocus in Singapore at

Or, send us an e-mail at

[e-mail]

Our World Wide Web address is

(65) 353-9449

http://www.infocus.com

(31) 35-6474010

.

.

.

Warranty

This product is backed by a limited two-year warranty. The
details of the warranty are printed at the back of this manual. A
longer term warranty can be purchased from your InFocus
dealer. Refer to page 43 for the part number.

When sending your projector in for repair, InFocus recommends
shipping the unit in its original packing material, or having a pro­fessional packaging company pack the unit for shipping. Do not
ship your projector in the enclosed soft case. Please insure your
shipment for its full value.

5

Introduction

6

SETTING UP THE PROJECTOR

Place the projector on a flat surface.

1

•

The projector must be within 10 feet (3 m) of your power
source and within 6 feet (1.8 m) of your computer.

•

If you want to project from behind a translucent screen, set
up the projector behind your screen. See “Rear Projection”
on page 28 to reverse the image.

•

If you are installing the projector on the ceiling, refer to the
installation guide that comes with the Ceiling Mount Kit for
more information. To turn the image upside down, see
“Ceiling Projection” on page 27. The Ceiling Mount Kit is
sold separately, see “Optional Accessories” on page 43.

Position the projector the desired distance from the screen.

2

•

The distance from the lens of the projector to the screen and
the zoom setting determine the size of the projected image.
Figure 3 shows three projected image sizes. For more infor­mation about image size, see “Projected Image Size” on
page 50.

NOTE: The projector must be at

least 5 feet (1.5 m) from the pro-

jection screen.

1

0

f

t

.

6

f

t

2

.

.

5

f

t

.

5 ft

12 ft.

.

20 ft.

Projected image size at minimum zoom

Make sure the projector and the computer are turned off.

3

F

IGURE

3

7

Setting up the Projector

in

in

NOTE: Before you continue,

make sure the projector and all

other equipment is turned off. If

you’re connecting a computer,

make sure the distance between it

and the projector is 6 feet or less.

NOTE: The CableWizard

connector is used with the optional

CableWizard, a connection hub

containing mouse, audio, monitor

and computer connectors. It is

optimized for ceiling -mounted

installations. See “Optional

Accessories” on page 43.

composite
video

F

IGURE 4

Connector panel

to USB mouse

F

IGURE 5

Computer cable

S-video

to computer

Audio in

to computer video

M1
data interface

CableWizard
data interface

to projector

8

Connecting a Computer

The projector ships with an analog computer cable. If your com­puter has a digital output, you can order the optional digital com­puter cable for use with the LP350 only.

Plug the end of the computer cable with one cable into the

1

connector on the projector.

Plug the blue end of the computer cable into the video connec-

2

tor on your computer.

in

in

audio cable

USB mouse

computer cable

FIGURE 6

Connecting the projector to a computer

NOTE: Many laptop computers

do not automatically turn on their

external video port when a sec-

ondary display device such as a

projector is connected. Refer to

your computer manual for the

command that activates the exter-

nal video port. Activation com-

mands for some laptop computers

are listed in the Appendix of this

manual on page 44 and in the

Service section of our website.

NOTE: If you are connecting an

older Macintosh computer that

does not have a 15-pin connector,

you must use a Mac adaptor

between the computer and the

projector. See “Optional Accesso-

ries” on page 43.

9

Setting up the Projector

Do you want to control the computer’s mouse from the projector’s
remote?

Plug the USB cable into the USB mouse connector on your

1

NOTE: The USB mouse is

supported for use with

Windows 98, Windows 2000, and

Apple OS 8.5 and higher only.

computer. If your computer has a PS/2 mouse connector and
not a USB mouse connector, you can purchase the optional
CableWizard3 which has a PS/2 mouse connector or the Exec­utive Remote IR Receiver. See “Optional Accessories” on
page 43.

Do you want to play your computer’s audio on the projector?

Plug either end of the audio cable into the audio connector on

1

your computer.

Plug the other end of the audio cable into the connector

2

NOTE: You do not need to restart

your computer after connecting a

USB mouse to use it (it is hot-

pluggable).

on the projector.

Now you’re ready to power up the projector and your laptop.
Skip to “Powering up the Projector and Adjusting the Image” on
page 13.

10

Connecting a Video Player

If your video player uses a round, one-prong composite video

1

connector, you’ll need only the audio cable, audio adapter,
and composite video cable that shipped with the projector.

•

If your video player uses a round, four-prong S-video con­nector, you’ll need an S-video cable in addition to the audio
cable and audio adapter. The S-video cable is sold sepa­rately. (See “Optional Accessories” on page 43.)

Plug the composite video cable’s yellow connector into the

2

“video-out” connector on your video player (Figure 7). This
connector may be labeled “To Monitor.”

•

If you’re using an S-video cable, connect it to the “S-video
out” connector on the video player (Figure 8).

Plug the other yellow connector into the composite video con-

3

nector

•

If you’re using S-video, plug the other end of the cable into
the “S-video” connector

on the projector.

on the projector (Figure 8).

NOTE: HDTV sources must be

connected to the projector using

the computer cable (not a com-

posite or S-video cable). See the

previous pages for details on con-

necting this cable.

in

in

audio

adapter

composite video
cable

audio cable

F

IGURE

Connecting the projector to a video player using the standard video cable (with com-

posite video connector) and the audio cable and adapter

7

11

Setting up the Projector

in

in

NOTE: The audio adapter is

provided so that the same audio

cable used to connect a computer

can be used with the adapter to

connect a VCR.

CAUTION: Your video player

may also have a “Video Out”

connector for a coaxial cable

connection. DO NOT use this to

connect to the projector.

audio
adapter

F

IGURE 8

audio cable

S-video
cable

Connecting the projector to a video player using an S-video cable and the audio cable
and adapter

Plug the audio adapter’s white connector into the left “audio

4

out” connector on your video player. Plug the adapter’s red
connector into the right “audio out” connector on the video
player (Figure 7 and Figure 8).

Plug the audio adapter’s other end into the audio cable.

5

Plug the audio cable into the “audio in” connector on the

6

projector.

The projector is compatible with these major broadcast video
standards: NTSC, NTSC 4.43, PAL, PAL-M, PAL-N, PAL-60, and
SECAM. It automatically adjusts to optimize its performance for
the incoming video.

12

Powering up the Projector and Adjusting the Image

Remove the lens cap.

1

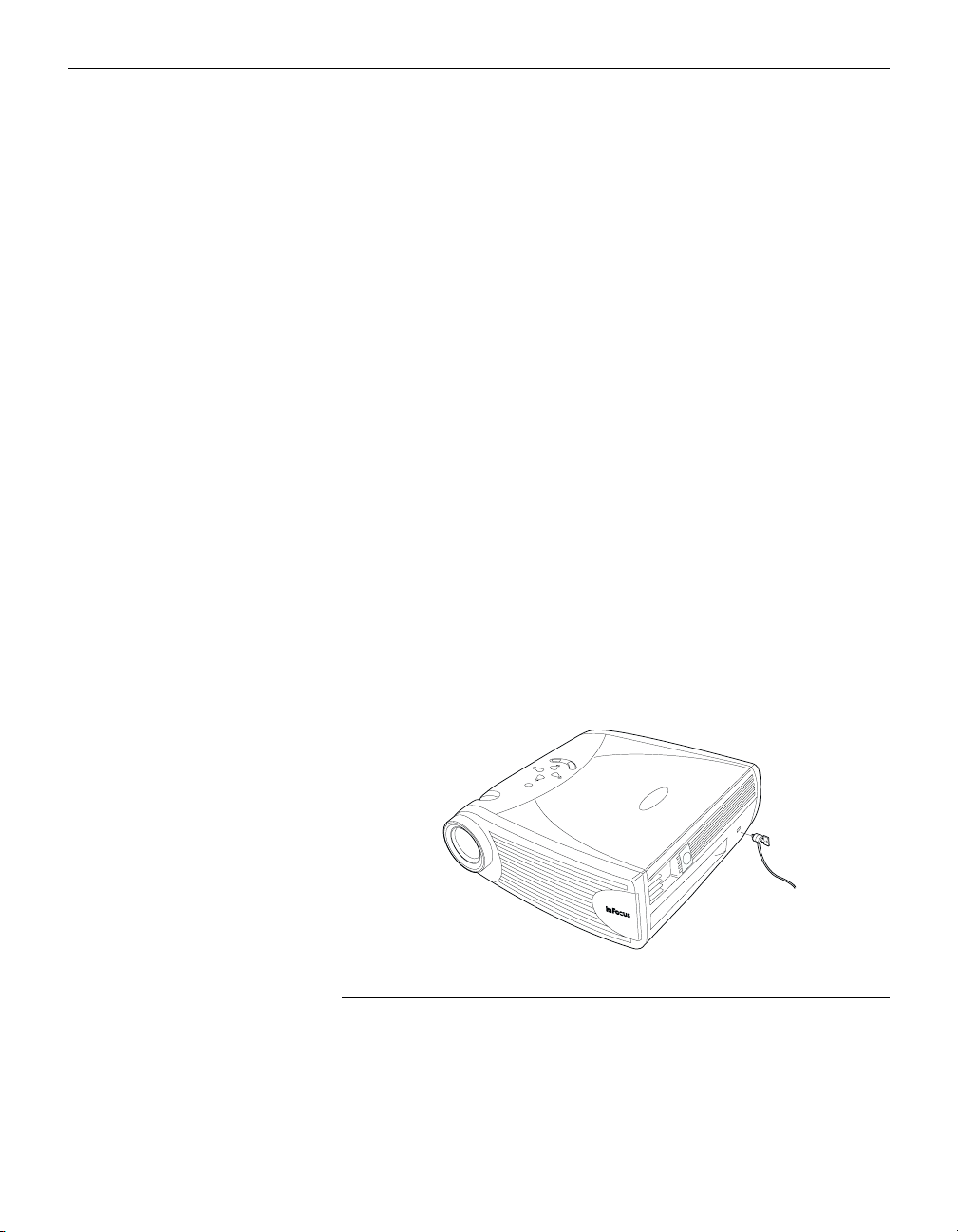

Plug the power cord into the side of the projector, then plug it

2

into your electrical outlet. A surge-protected power strip is
recommended.

Press the Power button on the side of the projector.

3

•

The fans start to run, the LED on the top of the projector
(Figure 12 on page 18) lights green, and the InFocus startup
screen appears. It takes about one minute for the image to
achieve full brightness.

If you connected a video player, turn it on.

4

•

The video image should display on the projection screen. If
it doesn’t, press the
or the

button on the remote to display your video

video

button on the keypad (page 18)

source

image. You can select a default source to determine which
source the projector examines first during power-up for
active video; see “Default Source” on page 28.

•

Use the

Turn on your computer.

5

volume

buttons to adjust the volume.

NOTE: Always use the power cord

that shipped with the projector.

NOTE: The first time you connect

your computer to the projector, the

computer may display a message

stating that new hardware was

found. The Add New Hardware

Wizard may appear. Use the Wiz-

ard to load the correct driver (the

computer considers the projector a

Plug and Play Monitor).

•

The computer image should display on the projection
screen. If it doesn’t, press the
or the

computer

button on the remote to display your com-

button on the keypad

source

puter’s image. Make sure your laptop’s external video port
is activated; see “Portable and Laptop Activation Chart” on
page 44 for details.

•

If necessary, make adjustments to the image using the pro­jector’s on-screen menus. To open the menus, press the

button on the keypad or remote, then select the Dis-

menu

play or Image menu. For more information about the
menus, see page 20.

NOTE: With some computers,

the order in which you power up

the equipment is very important.

Most computers should be turned

on last, after all other peripherals

have been turned on. Refer to your

computer’s documentation to

determine the correct order.

13

Setting up the Projector

Turning Off the Projector

If you want to turn off the projector for a short period of time,
press the

standby

button on the keypad or remote. This blanks the
screen for fifteen minutes, but keeps the projector running. (You
can change the amount of time the projector stays in standby
mode; see “Standby Time” on page 27 for details.) After 15 min­utes, the lamp goes out (the projector keeps running). To exit
standby mode, press the

standby

button again. (It may take sev­eral seconds for the projection lamp to reach full power and
project the image again.)

To completely power off the projector, press the Power button. If

NOTE: To maximize lamp life,

allow the projector to run for at

least five minutes before turning

it off.

you want to turn the lamp back on immediately, you must allow
about a minute for the lamp to cool. The lamp won’t light if it’s
too hot.

14

USING THE PROJECTOR

This section describes how to use and make adjustments to the
projector. It also provides a reference to the keypad and remote
buttons and the options available from the on-screen menus.

Basic Image Adjustment

Make sure you have powered up your equipment in the right

1

order (page 13).

If the image doesn’t display completely, zoom the image

2

(page 17), adjust the height of the projector (page 17) or center
the image by adjusting its horizontal or vertical position
(page 26). Be sure the projector is at a 90 degree angle to the
screen.

If the image is out of focus, rotate the focus lens (page 17).

3

If the image appears to shimmer or if it has blurry vertical

4

bars after you have adjusted the focus, turn Auto Image
(page 24) off and then back on to reset the automatic sync and
tracking. If that doesn’t clear up the image, turn Auto Image
off and adjust the sync (page 25) and/or the tracking
(page 25) manually.

If the colors don’t look right, adjust the brightness (page 21).

5

Using the Remote Control

To control the computer’s mouse from the projector’s remote,
you must connect the USB mouse connector on the computer
cable to the computer. See page 10 for details.

The projector ships with a remote that has four function buttons,
a disk mouse and two mouse buttons, one on the top of the
remote and one on the bottom.

Point the remote control at the projection screen or at the front of
the projector (not at the computer). The range for optimum oper­ation is about 25 feet. If you point the remote at the projection
screen, the distance to the screen and back to the projector must
be less than or equal to 25 feet. For best results, point the remote
directly at the projector.

15

Using the Projector

left mouse button

(on underside of remote)

FIGURE 9

Remote control

disk mouse

right mouse button

NOTE: If the remote is inactive

for several minutes, it “sleeps” to

conserve battery life. Press any

button except the disk mouse to

re-activate the remote.

Press anywhere on the edge of the disk mouse to move the cursor
on the screen. You can move the cursor at any angle by pressing
the corresponding edge of the disk. The mouse button on the top
of the remote simulates your computer’s right mouse button; the
button on the bottom simulates your computer’s left mouse but­ton. See “Using the Keypad and Remote Buttons” starting on
page 18 for a description of the four function buttons.

®

If you are creating presentations in Microsoft

PowerPoint®, you
can use the remote’s mouse buttons to navigate through your
presentation while in Slide Show mode. To configure PowerPoint
for this, choose Options from the Tools menu, click the View Tab,
de-select the “Popup Menu on Right Mouse Click” option in the
Slide Show section, then click OK. Then, when you’re in Power­Point’s Slide Show mode, a left click advances to the next slide
and a right click returns to the previous slide (other PowerPoint
modes are not affected).

16

Adjusting the Projector

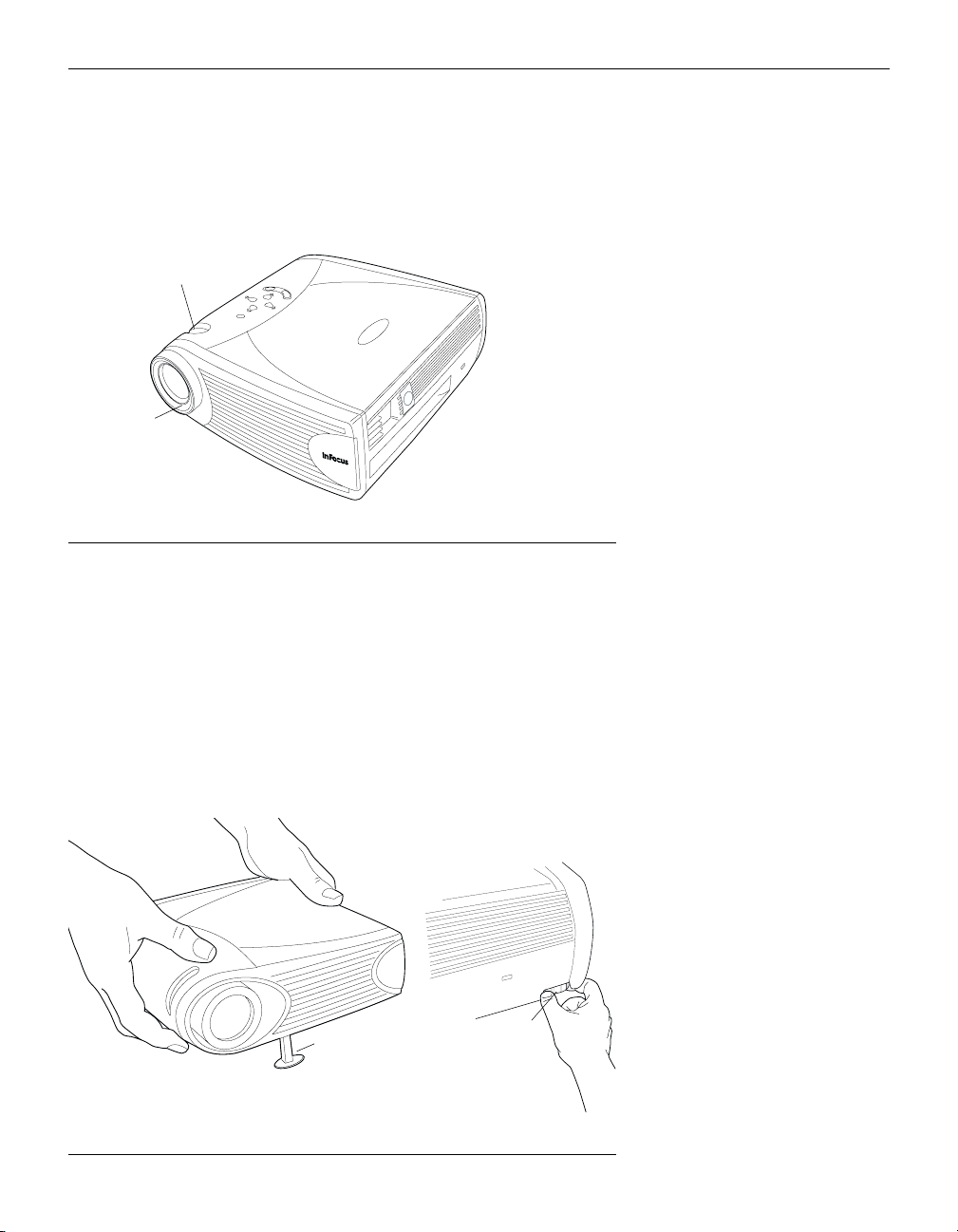

To focus the image, rotate the focus ring (Figure 10) until the
image is clear. To zoom the image, rotate the zoom ring. This
adjusts the image size without affecting focus.

zoom ring

focus ring

FIGURE 10

Focus ring and zoom ring

The projector is equipped with a self-locking, quick-release eleva­tor foot and button and a leveling knob (Figure 11).

To raise the projector:

Press and hold the elevator button (Figure 11).

1

Raise the projector to the height you want, then release the

2

button to lock the elevator foot into position. If necessary, turn
the leveling knob at the rear of the projector to adjust the
angle of the projected image.

elevator button

elevator foot

(under finger)

Adjusting the height of the projector

leveling
knob

FIGURE 11

17

Using the Projector

Using the Keypad and Remote Buttons

While the menus are displayed, the volume, source, and standby
buttons on the keypad act as menu navigation buttons. See
“Using the On-Screen Menus” on page 20 for details.

LED

menu

source

volume -

left mouse
button

standby

volume +

right mouse
button

FIGURE 12

Keypad and remote buttons

Menu

Press the

button to open the on-screen menus. Press

menu

menu

again to close the menus. When you close the menus, the projec­tor saves any changes you made. For more information about the
on-screen menus, see page 20.

Mouse buttons

Use the mouse buttons to adjust settings in the menus. See
“Using the On-Screen Menus” on page 20.

Source (keypad only) or Computer and Video (remote only)

When you have more than one source (computer and video) con­nected to the projector, select between them by pressing the

button on the keypad or the

source

computer

or

video

button on

the remote.

18

Standby

When you press

standby

, the display and audio turn off and a
blank screen is displayed for 15 minutes. You can change the
amount of time the projector stays in standby mode; see
“Standby Time” on page 27 for details. The LED lights orange
while the projector is in standby.

•

If you press

standby

again within 15 minutes, the projector
returns to normal operations immediately. The LED changes
from orange to green.

•

If you press

standby

again after 15 minutes, there is about a
60 second delay before the lamp turns back on. The LED
flashes green while the lamp is re-lighting.

•

If you don’t press

standby

again, the lamp turns off after 15
minutes. The LED lights orange while the projector is in
standby.

Volume (keypad only)

To increase the volume, press
ume, press

volume - .

volume + .

To decrease the vol-

Volume adjustments are saved for each source you have con­nected.

19

Using the Projector

Using the On-Screen Menus

The projector

has six drop-down menus that allow you to make
image adjustments and change a variety of settings. Most of these
adjustments aren’t available directly from the keypad.

NOTE: Some menu items may be

grayed out (dimmed) at certain

times. This indicates the item is

not applicable to your setup (for

example, video standards do not

apply to computer sources) or the

item is not enabled until another

selection is made (for example,

Manual Tracking is not available

until Auto Image is turned off).

To open the on-screen menus, press the

button on the

menu

keypad or remote. This changes the volume, source, and standby
buttons on the keypad to menu navigation buttons. Press the
corresponding buttons to move the cursor up, down, left, or
right, or use the disk mouse on the remote. To select a menu,
move the cursor left or right to highlight the menu you want. The
drop-down menu appears.

>

>

Display Audio Image Controls Language Status

menu

source

volume -

volume +

standby

FIGURE 13

Keypad navigation buttons and drop-down menu

Brightness
Contrast
Tint
Color
Sharpness
Blank screen blue
Reset all

use these four buttons to navigate
through the menus

20

To change a menu setting, use the up and down navigation but­tons on the keypad or the disk mouse on the remote to move the
cursor up and down to the item you want to change (the selected
item is highlighted), then use the left and right mouse buttons to
adjust a setting. Some submenus, such as Brightness, consist of a
slider bar you use to increase or decrease a value; some sub­menus, such as Standby Time, consist of options you scroll
through to select the desired one. All changes are saved when
you close the menus.

To access another menu, use the left and right navigation buttons
to move to the desired menu.

Display Menu

>

Display Audio Image Controls Language Status

Brightness

>

Brightness
Contrast
Tint
Color
Sharpness
Blank screen blue
Reset all

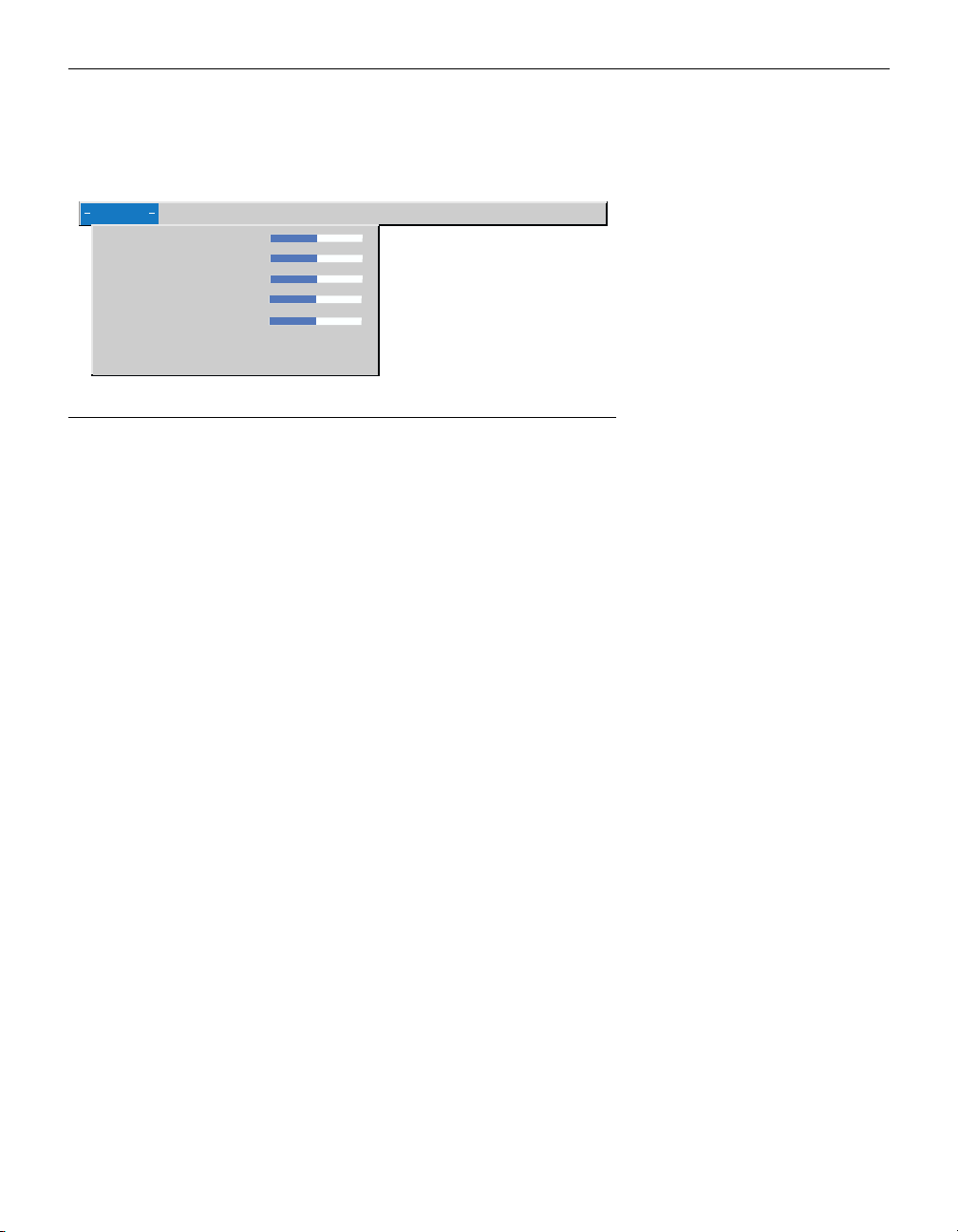

FIGURE 14

Display menu

Adjusting the brightness changes the intensity of the image.

•

Press the left mouse button to darken the image.

•

Press the right mouse button to lighten the image.

Contrast

The contrast controls the degree of difference between the lightest
and darkest parts of the picture. Adjusting the contrast changes
the amount of black and white in the image.

•

Press the left mouse button to decrease the contrast.

•

Press the right mouse button to increase the contrast, making
the blacks appear blacker and the whites appear whiter.

Tint

The tint adjusts the red-green color balance in the projected
image.

•

Press the left mouse button to increase the amount of green in
the image.

•

Press the right mouse button to increase the amount of red in
the image.

21

Using the Projector

Color

The color setting adjusts a video image from black and white to
fully saturated color.

•

Press the left mouse button to decrease the amount of color in
the image.

•

Press the right mouse button to increase the amount of color in
the image.

Sharpness

This setting adjusts the sharpness of a video image and is avail­able on the LP350 only.

•

Press the left mouse button to decrease the sharpness.

•

Press the right mouse button to increase the sharpness.

Blank Screen

Blank Screen determines what color is displayed when there is no
active source and when the projector is in standby. Click the left
or right mouse button to toggle between blue and black.

22

Reset All

Click the left or right mouse button to reset all the options (except
Language, Video Standard, Rear and Ceiling Projection, Plug and
Play, and Standby Time) in all the menus to their original settings.

Audio Menu

Display Audio Image Controls Language Status

>

>

Volume
Tr e b l e
Bass

FIGURE 15

Audio menu

Vo lu me

•

Press the left mouse button to decrease the volume.

•

Press the right mouse button to increase the volume.

Volume adjustments you make are saved for each source.

Tr e b l e

The treble setting controls the high frequencies of your audio
source.

•

Press the left mouse button to decrease the treble.

•

Press the right mouse button to increase the treble.

Treble adjustments you make are saved for each source.

NOTE: Changing the volume

using the menu is the same as

changing it using the keypad.

Bass

The bass setting controls the low frequencies of your audio
source.

•

Press the left mouse button to decrease the bass.

•

Press the right mouse button to increase the bass.

Bass adjustments you make are saved for each source.

23

Using the Projector

Image Menu

Display Audio Image Controls Language Status

>

>

Keystone
Overscan
Auto image on

Resize on

Manual sync
Manual tracking
Horizontal position
Vertical position

FIGURE 16

Image menu

Key stone

This option helps to keep the image square as the angle of projec­tion is changed. To adjust the keystone, highlight Keystone, then
click the left or right mouse button. This option is available for
computer sources displaying their native resolutions only, SVGA
800x600 for the LP340B and XGA 1024x768 for the LP350.

on

NOTE: Some screen savers

interfere with the operation of

Auto Image. If you’re experiencing

problems, try turning your screen

saver off, then turning Auto Image

off and back on.

NOTE: When you connect an

HDTV source, the projector

automatically displays the image

from an LP350 in 16x9 format.

With the LP340B, you must turn

Resize off to display 16x9 format.

24

Overscan

This option crops all the edges of the image to remove noise gen­erated on the edges by your source. This option is available for
video sources only.

Auto Image

The projector automatically adjusts tracking, signal synchroniza­tion and vertical and horizontal position for most analog comput­ers (Auto Image does not apply to video sources or digital
computer sources). If you want to adjust these features manually,
you must turn off

Auto Image

first by highlighting Auto Image in
the Image menu and clicking the left or right mouse button to
select “off”.

Resize

This option works differently for computer and video sources.
For computer sources,

automatically resizes the image by

Resize

scaling it up or down. It only affects computer images that are not
the projector’s native resolution. When

is on, the projector

Resize

makes the best fit of the image to the computer screen. If you turn

off (by highlighting it in the Image menu and clicking the

Resize

left or right mouse button to select “off”), the image may be either
cropped or too small for the screen.

For video sources,
different re-sizing options. The default is

allows you to select from among four

Resize

Standard

, which resizes
the image from its original version to fit a standard 4x3 aspect
ratio screen.

Widescreen Letterbox

preserves the 16x9 aspect ratio
of the original theater version, but the image is placed in a 4x3
space, so black bars appear at the top and bottom of the image.

Enhanced Widescreen

also preserves the aspect ratio of the origi­nal theater version and is designed to be used with content that is
Enhanced for Widescreen TVs. This option yields more detail
than Widescreen Letterbox.

reduces the Standard size to

Native

match the height of Enhanced Widescreen.

Manual Sync

The projector adjusts signal synchronization automatically for
most computers. But if the projected computer image looks fuzzy
or streaked, try turning

Auto Image

off then back on again. If the
image still looks bad, try adjusting the signal synchronization
manually:

Turn Au to Im ag e o ff.

1

Highlight Manual sync, then press the left or right mouse but-

2

ton repeatedly until the image is sharp and free of streaks.

Manual Tracking

The projector adjusts tracking automatically to match the video
signal from your computer. However, if the display shows evenly
spaced, fuzzy, vertical lines or if the projected image is too wide
or too narrow for the screen, try turning

Auto Image

off then back
on again. If the image is still bad, try adjusting the tracking man­ually:

Turn Au to Im ag e o ff.

1

Highlight Manual tracking, then press the left or right mouse

2

button repeatedly until the fuzzy vertical bars are gone.

NOTE: The Manual Sync ,

Manual Tracking, Horiz. Posi-

tion and Vert. Pos i tion options

are available only for analog com-

puter sources. The projector sets

these options automatically for dig-

ital computer and video sources.

25

Using the Projector

Horizontal position

Follow these steps to manually adjust the horizontal position:

Turn Au to Im ag e o ff.

1

Highlight Horizontal position, then press the left mouse but-

2

ton to move the image right or press the right mouse button to
move the image left.

Positioning adjustments are saved when you power off the pro­jector.

Ver t i c a l p o s i t i o n

Follow these steps to manually adjust the vertical position.

Turn Au to Im ag e o ff.

1

Highlight Vertical position, then press the left mouse button to

2

move the image down or press the right mouse button to
move the image up.

Positioning adjustments are saved when you power off the pro­jector.

26

Controls Menu

Display Audio Image Controls Language Status

>

>

Video standard

Standby time 1 minute
Ceiling projection off
Rear projection off
Default source computer 1 analog
Auto source select off
Plug and Play off
Display messages on
Display startup screen on

FIGURE 17

Controls menu

Video Standard

When Video standard is set to Auto, the projector attempts to
pick the video standard (NTSC, NTSC 4.43, PAL, PAL-M, PAL-N,
PAL-60, or SECAM) automatically based on the input signal it
receives. (The video standard options may vary depending on
your region of the world.) If the projector is unable to detect the
correct standard, the colors might not look right or the image
might appear “torn.” If this happens, manually select a standard
by clicking the left or right mouse button and cycling through the
standards.

NOTE: If you already know the

video standard used in your geo-

graphical area, it’s often best to

manually select it.

Standby Time

This option lets you select how long the lamp stays on and the
blank screen is displayed when the projector enters standby
mode before the projector turns off. Select among instant, 1, 5, 10,
15 and 30 minutes and 1 and 2 hours by clicking the left or right
mouse button and cycling through the options.

Ceiling Projection

When you turn

Ceiling Projection

on, the projector turns the
image upside down for ceiling-mounted projection. Highlight
Ceiling Projection, then click the left or right mouse button to
turn this feature on and off.

27

Using the Projector

Rear Projection

When you turn

Rear Projection

image so you can project from behind a translucent screen. High­light Rear Projection, then click the left or right mouse button to
turn this feature on and off.

Default Source

Default Source toggles among Computer 1 analog, Computer 1
digital, Computer 2, and Video. This determines which source the
projector checks first for active video during power-up. Highlight
Default Source and click the left or right mouse button to toggle
among the options.

Auto Source Select

This setting toggles between On and Off. When this feature is Off,
the projector defaults to the source selected in Default Source. To
display another source, you must manually select one by press­ing the

button on the keypad or the

source

ton on the remote. When this feature is On, the projector
automatically finds the active source, checking the default source
first. Highlight Auto Source Select and click the left or right
mouse button to turn this feature on and off.

on, the projector reverses the

computer

or

video

but-

28

Plug and Play

This setting toggles between On and Off. When it is On, most
new computers will automatically recognize the projector, then
set the monitor resolution and refresh rate accordingly. You need
to set the Plug and Play setting to Off for the projector to display
properly on some older computers. The Plug and Play setting
does not affect video images.
If the projector’s display constantly changes between the com­puter image and the message, “Perfecting the image”, you may
need to turn Plug and Play Off.

Display Messages

This setting toggles between On and Off. When this feature is On,
status messages such as “No signal detected” or “Standby
Active” appear in the lower-right corner of the screen. Click the
left or right mouse button to turn this feature off and not see sta­tus messages.

Display Startup Screen

This setting toggles between On and Off. When this feature is On,
the InFocus startup screen appears when the projector starts up
and remains until an active source is detected. The startup screen
contains information on contacting InFocus. Click the left or right
mouse button to turn this feature off and display a plain black or
blue screen instead of the startup screen.

Language Menu

Display Audio Image Controls Language Status

>

>

English
Francais
Deutsch

~

Espanol

FIGURE 18

Language menu

You can display the on-screen menus in English, French, German,
Spanish, Chinese or Japanese.

•

Move the cursor to the language you want, then click the left or
right mouse button. The menus redraw immediately.

29

Using the Projector

Status Menu

This is a read-only window for informational purposes. To dis­play the status window, select Show status from the menu, then
click the left or right mouse button. To remove the window, click
the left or right mouse button.

Display Audio Image Controls Language Status

>

Show status

Lamp hours used
Computer resolution
Horizontal refresh rate
Vertical refresh rate
Mute status
Source
Software version
Startup screen version
Boot version

0039
1024x768

60.03 KHz

75.04 Hz
off
computer 1 analog

1.0

1.0

1.0

CableWizard version 1.0

FIGURE 19

Status menu

Lamp hours used

Indicates how many hours the current lamp has been in use. The
counter starts at zero hours and counts each hour the lamp is in
use. After 2,000 hours of use, the message “Change Lamp” tem­porarily appears on the screen when the projector is turned on.
Change the lamp within the next 50 hours. After 2,050 hours, the
LED flashes orange and the lamp will not light. See “Replacing
the Projection Lamp” on page 33 for details.

Computer resolution

Shows your computer’s resolution setting. To change this, go to
your computer’s Control Panel and adjust the resolution in the
Display tab. See your computer’s user’s guide for details.

30

Horizontal refresh rate

The time period that one horizontal line is displayed.

Ver t i c a l r e fr e s h r a t e

The time period that one video frame is displayed.

Mute status

Indicates if the audio is muted.

Source

Indicates the active source, Computer 1 analog, Computer 1 digi­tal, Computer 2, and Video.

Software version

Indicates the projector’s software version. This information is
useful when contacting Technical Support.

Startup screen version

Indicates the projector’s startup screen version. This information
is useful when contacting Technical Support.

Boot version

Indicates the projector’s boot software version. This information
is useful when contacting Technical Support.

CableWizard version

Indicates the CableWizard’s software version. This information is
useful when contacting Technical Support.

31

Using the Projector

32

MAINTENANCE & TROUBLESHOOTING

This section describes how to:

•

clean the lens

•

replace the projection lamp

•

replace the batteries in the remote

•

use the security lock feature

•

troubleshoot the projector

Cleaning the Lens

Follow these steps to clean the projection lens:

Apply a non-abrasive camera lens cleaner to a soft, dry cloth.

1

•

Avoid using an excessive amount of cleaner, and don’t
apply the cleaner directly to the lens.

•

Abrasive cleaners, solvents or other harsh chemicals might
scratch the lens.

Lightly wipe the cleaning cloth over the lens in a circular

2

motion.

If you don’t intend to use the projector immediately, replace

3

the lens cap.

Replacing the Projection Lamp

The lamp hour counter in the Status menu counts the number of
hours the lamp has been in use. After 2,000 hours of use, the mes­sage “Change Lamp” temporarily appears on the screen when
the projector is turned on. Change the lamp within the next 50
hours. After 2,050 hours, the LED flashes orange and the lamp
will not light. You can order new lamp modules from your InFo­cus dealer. See “Accessories” on page 42 for information.

Follow these steps to replace the projection lamp:

Turn off the projector and unplug the power cord.

1

Wait 30 minutes to allow the projector to cool thoroughly.

2

WARNING: To avoid burns,

allow the projector to cool for at

least 30 minutes before you open

the lamp module door. Never

extract the lamp module while the

projector is operating.

33

Maintenance & Troubleshooting

Invert the projector on a soft flat surface, then insert a small

3

screwdriver or other flat object into the tabs on the lamp mod­ule door (Figure 20) and gently pry the door up.

WARNING: Be extremely careful

when removing the lamp module.

In the unlikely event that the bulb

ruptures, small glass fragments

may be generated. The lamp

module is designed to contain

these fragments, but use caution

when removing the lamp module.

F

IGURE 20

Removing the lamp door

CAUTION: Never operate the

projector with the lamp door open

or removed. This disrupts the air

flow and causes the projector to

overheat.

34

Pull the lamp door up and remove it.

4

Loosen the two non-removable screws on the outside of the

5

module (Figure 21).

FIGURE 21

Loosening the screws on the lamp module

Lift and grasp the pull tab and lift the module out (Figure 22).

6

Dispose of the lamp module in an environmentally proper
manner.

pull tab

FIGURE 22

Removing the lamp module

Install the new lamp module, being sure to align the connec-

7

tors properly.

Push the module in until it is flush with the bottom case of the

8

projector.

Tighten the screws on the outside of the module.

9

WARNING: Do not drop the

lamp module or touch the glass

bulb! The glass may shatter and

cause injury.

Replace the lamp door by inserting the hooks on the lamp

10

door into the slots on the projector and pressing the lamp door
into place. If the lamp door does not fit properly or bulges out,
remove the door and re-seat the lamp module.

Plug in the power cord and press the Power button to turn the

11

projector back on.

To reset the lamp hour counter in the Status window, press

12

and hold the

volume -

(while still holding down the

button, then press the

volume -

button) for 5 seconds.

Verify that the counter was reset by pressing the

menu

button

menu

and viewing the counter in the Status window.

button

35

Maintenance & Troubleshooting

Replacing the Batteries in the Remote Control

The life of the batteries depends on how often and how long you
use the remote. Symptoms of low battery charge include erratic
responses when using the remote and a reduced range of opera­tion.

Follow these steps to replace the batteries:

Turn the remote face down in your hand.

1

Slide the battery cover off the end of the remote.

2

Remove the old batteries and dispose of them in an environ-

3

mentally proper manner.

Install two new AAA alkaline batteries. Make sure you install

4

each in the correct direction.

Slide the battery cover back on the remote.

5

Using the Security Lock

The projector has a security connector for use with a PC Guardian
Cable Lock System (Figure 23). See “Optional Accessories” on
page 43 for ordering information. Refer to the information that
came with the lock for instructions on how to use it to secure the
projector.

36

F

23

IGURE

Installing the security lock

Troubleshooting

Problem: The projector is not running

•

Make sure that the power cord is properly connected to a fully

functional AC electrical outlet. Make sure that the power cord
is also properly connected to the projector.

•

If the projector is plugged into a power strip, make sure the

power strip is turned on.

•

Make sure the projector is turned on.

Problem: Projector is running, but nothing appears on projec­tion screen

•

Make sure you have removed the lens cap on the projection

lens at the front of the projector.

•

Make sure the lamp has not been in use for over 2,050 hours.

The lamp automatically shuts off at 2,050 hours and the LED
blinks orange. See “Replacing the Projection Lamp” on
page 33.

•

Check the projector’s lamp to ensure that it is securely con-

nected in the lamp module. Make sure the lamp door is
installed. See “Replacing the Projection Lamp” on page 33.

Problem: Only the start-up screen displays

•

Verify that the cables are connected correctly. See page 9

through page 10 for connection procedures.

•

Make sure that the cables do not have any bent pins.

•

Verify that the proper input source is connected. See “Source

(keypad only) or Computer and Video (remote only)” on
page 18.

•

You might need to turn everything off and power up the

equipment again in the proper order. Refer to your com­puter’s documentation to determine the correct order.

•

Make sure your laptop’s external video port is turned on. See

the “Portable and Laptop Activation Chart” on page 44 or
your computer’s manual for details.

37

Maintenance & Troubleshooting

•

Make sure your computer’s video board is installed and con-

figured correctly.

•

Make sure your computer has a compatible video board. The

projector isn’t CGA, EGA or SXGA compatible.

If you’re using Windows 98:

Open “My Computer” icon, the Control Panel folder and

1

then the Display icon.

Click the Settings tab.

2

Verify that the Desktop area is set to 1024x768 or less.

3

Problem: Color or text not being projected

•

You might need to adjust the brightness up or down until the

text is visible. Refer to “Brightness” on page 21 for more infor­mation.

Problem: The screen resolution is not right

•

Make sure the computer’s video card is set for a resolution of

no greater than 1024x768.

38

Problem: Image isn’t centered on the screen

•

Move the projector to reposition the image.

•

Reposition the image using the menu. Refer to “Horizontal

position” on page 26 and “Vertical position” on page 26.

•

Be sure the projector is at a 90 degree angle to the screen.

Problem: Image is too wide or narrow for screen

•

Adjust the zoom or projector placement.

•

Adjust the resolution of your video card if it’s greater than

1024x768.

Problem: Image is out of focus

•

Turn the projection lens to focus the image.

•

Make sure the projection screen is at least 5 feet (1.5 m) from

the projector.

•

Check the projection lens to see if it needs cleaning.

Problem: Image and menus are reversed left to right

•

Rear projection mode is probably turned on. Turn Rear Projec-

tion off in the Controls menu. The image should immediately
return to forward projection. See “Rear Projection” on
page 28.

Problem: the projector displays vertical lines, “bleeding” or
spots

•

Adjust the brightness. See “Brightness” on page 21.

•

Check the projection lens to see if it needs cleaning.

Problem: no sound

•

Adjust volume.

•

Verify audio/input connections.

•

Adjust audio source.

Problem: Image is “noisy” or streaked

Try these steps in this order.

Deactivate the screen saver on your computer.

1

2

Tu rn

Auto Image

off and then back on again. See “Auto

Image” on page 24.

3

Tu rn

Auto Image

off and adjust the synchronization and track­ing manually to find an optimal setting. See “Manual Sync”
on page 25 and “Manual Tracking” on page 25.

•

The problem could be with your computer’s video card. If

possible, connect a different computer.

Problem: Projected colors don’t match the computer or video
player’s colors

•

Just as there are differences in the displays of different moni-

tors, there are often differences between the computer image
and the projected image. Adjust the brightness, tint and/or
contrast from the Display menu. See “Brightness” on page 21,
“Tint” on page 21 and “Contrast” on page 21.

Problem: Lamp seems to be getting dimmer

•

The lamp begins to lose brightness when it has been in use for

a long time. Replace the lamp as described in “Replacing the
Projection Lamp” on page 33.

39

Maintenance & Troubleshooting

Problem: Lamp shuts off

•

A minor power surge may cause the lamp to shut off. Unplug

the projector, wait at least a minute, then plug it back in.

•

Make sure the vents are not blocked.

•

Make sure the lamp has not been in use for over 2,050 hours.

The lamp automatically shuts off at 2,050 hours. See “Replac­ing the Projection Lamp” on page 33.

The most current troubleshooting information can be found in
the Service and Support section of our website at

http://www.infocus.com/service.

You’ll also find a Technical
Library, FAQs, and support contacts including a technical sup­port e-mail form.

Before calling your dealer or InFocus Technical Support for assis­tance, please have the following information available:

•

the projector’s serial number (located on the bottom label)

•

the resolution of your computer.

Call InFocus Technical Support at

1-800-799-9911

between 6 a.m.
and 6 p.m. PST, Monday through Friday. Service is available in
North America after hours and on weekends for a fee at
1-888-592-6800.

In Europe, call InFocus in The Netherlands at

(31) 35-6474010

between 8 a.m. and 6 p.m. Central European Time.

In Asia, call

(65) 353-9449

Or, send us an e-mail at

between 9 a.m. and 6 p.m.

[e-mail]

40

APPENDIX

Specifications

The projector must be operated and stored within the tempera­ture and humidity ranges specified.

Te m p e r a t u r e

Operating

Non-operating

Humidity

Operating and non-oper. 10% to 95% relative humidity, non-condensing

Dimensions

3.9 x 10.9 x 11.2 inches (9.9 x 27.7 x 28.6 cm)

We ig h t

6.7 lbs. (3 kg) unpacked

Altitude

Operating 0 to 10,000 feet (3,048 meters)
Non-operating 0 to 20,000 feet (6,096 meters)

50 to 104
50 to 95

-4 to 158

°

F (10 to 40° C) at sea level

°

F (10 to 35° C) at 10,000 feet

°

F (-20 to 70° C)

Optics

Focus Range 4.9 - 16 feet (1.5-5 m)

Lamp

Type 270-watt SHP lamp

Input Power Requirements

100-120VAC 5A;50/60Hz
200-240VAC 3A; 50Hz

Audio Input

Input Impedance 10K ohm nominal, AC coupled
Maximum Input Voltage (L

Sensitivity 100 mV at 1 KHz for 88 dB SPL at 1 meter
Connector Type 3.5 mm (1/8 inch) stereo phone mini

+ RIN)

IN

L

or RIN < 2.0 Vrms for THD ≤ 0.3%

IN

< 4.5 V for THD ≤ 0.3%

PEAK

41

Appendix

Accessories

Standard Accessories
(ship with the projector) Part Number

Quick Start card 009-0571-xx

User’s Guide 010-0276-xx

Soft Case for LP350 110-0299-xx

Soft Case for LP340B 110-0414-xx

Shipping Box 110-0300-xx

Analog Computer Cable 6 ft (1.8 m) 210-0185-xx

Composite Video Cable 6 ft (1.8 m) 210-0176-xx

Computer Audio Cable 6 ft (1.8 m) 210-0118-xx

Audio Adapter (RCA to 3.5mm) 210-0177-xx

Executive Plus Remote HW-EXPLUS

Projection Lamp Module SP-LAMP-LP3E

Lens Cap 340-0686-xx

Online User’s Guide CD-ROM 010-0116-xx

NOTE: Use only InFocus-

approved accessories. Other

products have not been tested with

the projector.

NOTE: You can purchase these

items by contacting your dealer or

InFocus Catalog Sales at

1-800-660-0024.

42

Power Cords (one ships with projector, type depends on country)

North American Power Cord 210-0023-xx

Australian Power Cord 210-0027-xx

UK Power Cord 210-0028-xx

European Power Cord 210-0029-xx

Danish Power Cord 210-0030-xx

Swiss Power Cord 210-0031-xx

Optional Accessories

Deluxe Carry Case CA-C132

Shipping Case (ATA approved) CA-C194

Deluxe Travel Case CA-C141

Deluxe Travel Case with detachable pocket CA-C182

Digital Computer Cable (LP350 only) SP-DVI-D

Digital/Analog Interface Card (LP350 only) SP-DVI-CARD

Ceiling Mount Kit SP-CEIL-LM3X

Ceiling Mount Plate SP-CEIL-P3

CableWizard2 SP-CW2

CableWizard2 Serial Cable 210-0107-xx

CableWizard3 SP-CW3

CableWizard Lite, 6.5 ft SP-CW2LITE

CableWizard Extension Cable, non-plenum rated,

SP-CW2EXT

60.7 ft

CableWizard Extension Cable, plenum-rated,

SP-CW2EXTP

60.7 ft

Macintosh Adaptor SP-MACADPT

CableWizard RS232 Adaptor SP-CWRS232

Full-Feature LaserPro Remote Control HW-LASERPRO

Wired LaserPro Cable SP-WIREM

GyroMouse RF Remote (US, Mexico, Canada, UK

HW-RF-GPRO

only)

Executive Remote IR Receiver HW-EXRCVR

Remote Point RF Remote with LaserPointer (US,

HW-RF-REMLSR

Mexico, Canada only)

PC Guardian Projector Cable Lock SP-LOCK

S-Video Cable SP-SVIDEO

40” Portable Projection Screen HW-PORTSCR40

50” Portable Projection Screen HW-PORTSCR50

60” Deluxe Insta-Theatre Screen HW-DLXSCRN

Replacement Projection Lamp Module SP-LAMP-LP3E

rd

Year Extended Warranty (1 year extension)

3

th

4

Year Extended Warranty (2 year extension)

EW-1YEAR

EW-2YEAR

NOTE: You can purchase these

items by contacting your dealer or

InFocus Catalog Sales at

1-800-660-0024.

43

Appendix

NOTE: Visit our website at

www.infocus.com for the most

current activation chart. It is

located in the Technical Library in

the Service and Support section.

Portable and Laptop Activation Chart

Many laptop computers do not automatically turn on their exter­nal video port when a projector is connected. Activation com­mands for some laptop computers are listed in the following
table. (If your computer is not listed or the given command does
not work, refer to the computer’s documentation for the appro­priate command.) On many laptops, the activation function key

is labeled with an icon, for example or the text CRT/LCD.

NOTE: Usually, pressing the key

commands once activates the

external video port, pressing it

again activates both the external

and internal ports, and pressing it

a third time activates the internal

port. Refer to your computer’s

documentation for details on your

specific model.

Key command to

Computer

Acer Ctrl-Alt-Esc (for setup) Ctrl-Alt-Esc (for setup)

AST* ** FN-D or Ctrl-D FN-D or Ctrl-D

AMS FN-F2 FN-F2

AMT setup screen setup screen

AT &T FN - F 3

Advanced Logic
Research

Altima Shift-Ctrl-Alt-C Shift-Ctrl-Alt-L

Ambra** FN-F12 FN-F12

Amrel* ** setup menu setup menu

Apple see Mac Portable and Mac PowerBook

Aspen automatic automatic

Award FN-F6 FN-F6

BCC* automatic reboot computer

activate port

Ctrl-FN-D Ctrl-FN-D

FN-F5 FN-F5

type from A:/IVGA/CRT type from A:/IVGA/CRT

FN-F12 FN-F12

FN-F6

Ctrl-Alt-V Ctrl-Alt-V

setup VGA/
Conf.Simulscan

FN-F5 FN-F5

F2/Choose Option/F5 F2/Choose Option/F5

Shift-Ctrl-D Shift-Ctrl-D

Key command to
de-activate port

FN-F3
FN-F6

setup VGA/
Conf.Simulscan

44

Key command to

Computer

Bondwell LCD or CRT options after

Chaplet** setup screen setup screen

Chembook FN-F6 FN-F6

Commax Ctrl-Alt-#6 Ctrl-Alt-#5

Compaq* ** Ctrl-Alt-< Ctrl-Alt->

Compuadd* ** automatic automatic

Data General Ctrl-Alt-Command Ctrl-Alt-Command

Data General
Wal kabou t

Datavue Ctrl-Shift-M Ctrl-Shift-M

DEC** FN-F5 FN-F5

Dell** Ctrl-Alt-< Ctrl-Alt->

Digital* automatic reboot

Dolch dip switch to CRT dip switch to LCD

Epson dip switch to CRT dip switch to LCD

Everex* setup screen option setup screen option

For-A Ctrl-Alt-Shift-C Ctrl-Shift-Alt-L

Fujitsu FN-F10

Gateway FN-F3

activate port

bootup

FN-F6 FN-F6

FN-F4 FN-F4

FN-F4 FN-F4

automatic automatic

mode/? (for setup option) mode/? (for setup option)

Alt-F for screen setup
option

2 CRT/X at DOS prompt reboot

FN-F4 FN-F4

Ctrl-Alt-F10 Ctrl-Alt-F10

FN-F8 (CRT/LCD) FN-F8

FN-D FN-D

FN-F12 FN-F12

FN-F2 FN-F2

FN-F1/FN-F1 again simul­taneous

Key command to
de-activate port

reboot for LCD or CRT
options to appear

Alt-F for screen setup
option

FN-F3
FN-F1

45

Appendix

Key command to

Computer

Grid* ** FN-F2, choose auto or

Hitachi FN-F7 FN-F7

Honeywell FN-F10 FN-F10

Hyundai setup screen option setup screen option

IBM 970* automatic warm reboot

IBM ThinkPad** reboot, enter setup menu FN-F2

Infotel FN-F12 FN-F12

Kaypro boot up, monitor plugged inunplug monitor

Kris Tech FN-F8 FN-F8

Leading Edge FN-T FN-T

Mac Portable
100

Mac PowerBook

140, 145, 150,
170

160, 165, 180,
520, 540, 5300

210, 230, 250,
270, 280, 2300

Magitronic FN-F4 FN-F4

Mastersport FN-F2 FN-F1

Micro Express* automatic warm reboot

Micron FN-F2 FN-F2

Microslate* automatic warm reboot

activate port

simultaneous

Ctrl-Alt-Tab Ctrl-Alt-Tab

FN-F7, select choice from
setup menu

FN-F1, select choice

FN-F5, select choice

PS/2 SC select choice
(CRT, LCD, etc.)

no video port: not compatible

no video port: requires a 3rd-party interface

Control Panel folder, Pow­erBook Display folder;
Activate Video Mirroring

requires Apple Docking Station or Mini Dock

Key command to
de-activate port

FN-F2

warm reboot

46

Key command to

Computer

Mitsubishi SW2 On-Off-Off-Off SW2 Off-On-On-On

NCR setup screen option setup screen option

NEC* ** setup screen option setup screen option

Olivetti* automatic automatic

Packard Bell* ** FN-F0 FN-F0

Panasonic FN-F2 FN-F2

Prostar Ctrl-Alt-S at bootup Ctrl-Alt-S at bootup

Samsung* setup screen option setup screen option

Sanyo setup screen option setup screen option

Sharp dip switch to CRT dip switch to LCD

Sun SPARC­Dataview

Tandy** Ctrl-Alt-Insert Ctrl-Alt-Insert

Tangent FN-F5 FN-F5

Texas Instru­ments*

Top-Link* ** setup screen option setup screen option

Toshiba* ** Ctrl-Alt-End Ctrl-Alt-Home

Twinhead* FN-F7 FN-F7

WinBook Ctrl-Alt-F10 Ctrl-Alt-F10

Wyse software driven software driven

Zenith** FN-F10 FN-F10

activate port

CRT at the DOS prompt LCD at the DOS prompt

FN-F3 FN-F3

FN-O/* FN-O/*

Ctrl-Alt-< Ctrl-Alt->

Ctrl-Shift-M Ctrl-Shift-M

setup screen option setup screen option

setup screen option setup screen option

FN-F6 FN-F6

FN-End FN-Home

FN-F5 FN-F5

setup screen option setup screen option

FN-F5 FN-F5

Automatic Automatic

FN-F2 FN-F2

Key command to
de-activate port

47

Appendix

Key command to

Computer

Zeos** Ctrl-Shift-D

* These manufacturers have models that automatically send video

to the external CRT port when some type of display device is
attached.

** These manufacturers offer more than one key command depend-

ing on the computer model.

activate port

FN-F1 FN-F1

FN-F1

Key command to
de-activate port

Ctrl-Shift-D
FN-F1

48

Using Video Mirroring with a PowerBook Computer

When you turn video mirroring (called SimulScan in newer Pow­erBooks—see below) on, the projector displays the same informa­tion that appears on your PowerBook’s built-in screen. When
video mirroring is off, the projector acts like a separate display.

To turn on video mirroring for the first time:

Open the Monitors control panel; click on Monitor 2.

1

Set the number of colors you want.

2

Open the Control Strip, then click on the monitor icon.

3

Select “Turn Video Mirroring On.”

4

Now you can turn video mirroring on and off from the Control
Strip without having to open the Monitors control panel again.

When using video mirroring and high color graphics such as
slide shows, the projected image occasionally might turn black
and white. If this happens, perform the following steps:

Turn off video mirroring.

1

Open the Monitors control panel.

2

Move the white menu bar to Monitor 2 to set the projector as

3

the primary monitor.

Restart the PowerBook.

4

Using SimulScan

Some newer PowerBooks display images on an external monitor
or projector differently than previous ones. When using
SimulScan, the projector displays the same information that
appears on your PowerBook

To select SimulScan:

Open the Control Panel, then double-click Monitors and

1

Sound.

In the Resolution list, choose the SimulScan mode, then click

2

OK.

If this changes your display settings, a dialog box appears.

3

Click OK to confirm the change.

49

Appendix

NOTE: Use the graph and tables

to help you determine projected

image sizes.

Projected Image Size

F

IGURE 24

Projected image size

NOTE: Visit our website at

www.infocus.com for an interactive

image size calculator. It is located

in the Technical Library in the

Service and Support section.

50

Ta b l e 1:

Image Size, Width and Height-maximum image size

Distance to

Screen (feet)

4.9 3.0 2.4 1.8

85.04.03.0
12 7.4 6.0 4.5
16 9.9 7.9 6.0

20 12.4 9.9 7.4
30 18.6 14.9 11.2

Image Size, Width and Height-minimum image size

Distance to

Screen (feet)

4.9 2.5 2.0 1.5

84.03.22.4

12 6.0 4.8 3.6
16 8.0 6.4 4.8

20 10.0 8.0 6.0
30 15.0 12.0 9.0

Diagonal

(feet)

Ta b l e 2:

Diagonal

(feet)

Width

(feet)

Width

(feet)

Height

(feet)

Height

(feet)

INDEX

A

accessories, ordering 42, 43
activation commands for laptop com-

puters 44

adjusting

brightness 21
color 22
contrast 21
height of the projector 17
tint 21

volume 19, 23
altitude limits 41
assistance. See Technical Support
audio adapter, connecting 12
audio cable, connecting 10
Audio menu 23
Audio menu options

Bass 23

Treble 23

Volume 23
Auto Source Select 28

B

bass 23
Blank Screen 22
brightness, adjusting 21
buttons on keypad

Menu 18

Source 18

Standby 19

Volume 19

C

cables

audio 10

audio adapter 12

CableWizard extension 43

composite video 11

extension 43

M1-DA analog computer cable 3,

8, 9
ordering 42
power 42
S-video 11, 43

CableWizard 8

extension cable 43
CableWizard Lite, ordering 43
cases, ordering 42
ceiling-mounted projection 27, 43
centering the image 17, 26
cleaning the projection lens 33
color, adjusting 22
colors

don’t match monitor colors 39

not displayed 38
compatibility

IBM-compatible 2

Macintosh 2
composite video cable

connecting 11
computers

connecting 9
computers, compatible 2
connecting

audio adapter 12

audio cable 10

computers 9

power cord 13

remote 10

USB mouse 10

video player 11–12
contrast, adjusting 21
Controls menu 27
Controls menu options

Auto Source Select 28

Ceiling Projection 27

Default Source 28

Display Messages 28

Display Startup Screen 29

Plug and Play 28

Rear Projection 28

Standby Time 27

Video Standard 27

51

Index

D

Default Source 28
Display menu 21
Display menu options

Blank Screen 22
Brightness 21
Color 22
Contrast 21
Reset All 22
Sharpness 22

Tint 21
Display Messages 28
Display Startup Screen 29
displaying

on-screen menus 18

startup screen 29

status messages 28

E

elevator button/foot 17
extension cable 43

F

focusing the image 17
fuzzy lines 25

H

HDTV 2, 11, 24
height adjustment 17

I

IBM-compatible computers

compatibility 2


adjusting 13, 15
centering 26
colors don’t match computer’s 39
focusing 17
fuzzy lines 25
has lines or spots 39
not centered 38
not displayed 37
out of focus 38
quality 38–39
resolution 1
reversed 28, 39
size 7, 50
streaked 39
too wide or too narrow 38

zooming 17
Image menu 24
Image menu options

Auto Image 24

Horiz. Position 26

Keystone 24

Manual Sync 25

Manual Tracking 25

Overscan 24

Resize 24

Vert. Position 26

52

K

keypad 18
keystone correction 24

L

lamp

ordering 42
replacing 33

turns off unexpectedly 40
lamp hour counter 30, 33, 35
Language menu 29
language, selecting for menus 29
laptop computers

activation sequence to allow

secondary display 44
compatibility 9
connecting 9

LED 13, 18, 19, 30, 33
lens

cap 42
cleaning 33

leveling knob 17
leveling the projector 17
LP340B/350

cases 42
project from behind the screen

27, 28
setting up 7
specifications 41
turning off 14
turning on 13

N

NTSC video 27

O

on-screen menus

Audio menu 23
changing language of 29
Controls menu 27
Display menu 21
displaying 20
Image menu 24
Language menu 29
making changes to menu

functions 20

Status menu 30

overscan 24

P

PAL video 27
Plug and Play 28
power cord

connecting 13

ordering 42
power up sequence 13, 37
PowerPoint slides, advancing with the

remote 10, 16

project from behind the screen 28

M

M1-DA analog computer cable 3, 8, 9
Macintosh computers

compatibility 2

connecting 9
Menu button 20
menus. See on-screen menus
monitor, projected colors don’t match

39

mouse

buttons on keypad 18, 20

buttons on remote 15, 20

connecting USB 10

53

Index

R

rear projection 28
remote control

advancing PowerPoint slides

with 10, 16
connecting 10
controlling t he computer with 10,

15
replacing the batteries 36
using 15, 18

replacing projection lamp module 33
re-positioning the image on the screen

26
resetting adjustments 22
resetting the lamp hour counter 35
resizing video 24
resolution 1

S

safety guidelines iii
SECAM video 27
security lock 36, 43
sharpness 22
SimulScan, using with PowerBooks 49
Source button 18
specifications 41
Standby button 19
Standby Time 27
startup screen 29
Status menu 30
S-video

connecting 11
ordering cable 43

T

Technical Support

in Europe 5
in Singapore 5
in USA 5
information to have on hand

before you call 40
temperature limits 41
test pattern 37
text not visible 38
tint, adjusting 21
treble 23
troubleshooting 37
turning off the projector 14
turning on the projector 13

U

USB mouse 10

V

vertical lines displayed 25, 39
video mirroring on a PowerBook 49
video resizing 24
video standards 27
Volume buttons 19
volume, adjusting 19, 23

W

widescreen video 25

Z

zooming the image 17

54

LIMITED WARRANTY

InFocus-Branded Products

InFocus Corporation (“InFocus”) warrants that the InFocus-branded product (“Product”) purchased from
InFocus or an InFocus reseller will conform to the manufacturers specifications and be free from defects in
material or workmanship for the Warranty period provided below. InFocus does not warrant that the Prod­uct will meet the specific requirements of the end-user customer. The Warranty period commences on the
date of purchase by the end-user customer. Said Limited Warranty shall apply only to the end-user purchaser
(first person or entity that purchases a new Product for personal or business use and not for the purpose of
distribution or resale). Any person exercising a claim under this Limited Warranty must establish to the sat­isfaction of InFocus both the date of purchase and that the Product was purchased new. The sales receipt,
showing the date of purchase of the Product is the proof of the date of purchase.

From the date of such purchase, said Limited Warranty shall continue for a period of two (2) years for Projec­tor Products, for one (1) year for Accessory Products, and for ninety (90) days or 500 hours, whichever comes
first, for Lamp Products (whether purchased in projectors or separately as replacements). During the War­ranty period for the Product, Replacement lamps, which are purchased at the time of projector purchase, will
have a 90-day or 500 hour Warranty, whichever comes first, from the date the spare lamp is put into service.

At the sole option of InFocus, the Product will either be repaired or replaced. All exchanged parts and Prod­ucts replaced under this Warranty will become property of InFocus. InFocus’ sole obligation is to supply (or
pay for) all labor necessary to repair the Product found to be defective within the Warranty period and to
repair or replace defective parts with new parts or, at the option of InFocus, serviceable used parts that are
equivalent or superior to new parts performance.

During the Warranty period, to exercise this Limited Warranty, the purchaser must first contact either InFo­cus, a service facility authorized by InFocus or the place of original purchase. For Warranty service, the pur­chaser will be advised to return or deliver the defective Product freight and all fees prepaid, to an InFocus
Service Center or to a service facility authorized by InFocus. When returning Product to InFocus, a Return
Material Authorization Number (RMA #) is required and must be clearly displayed on the outside of the
shipping carton containing the Product. The Product is to be fully insured and packed in either its original
carton or a similar package affording an equal degree of protection. InFocus or the service facility authorized
by InFocus will return the repaired/replaced Product freight prepaid to the purchaser. Products returned for
Warranty service must be accompanied by a written letter that: i.) explains the problem; ii) provides proof of
date of purchase; iii) provides the dealer’s name; and iv.) provides the model and serial number of the Prod­uct. For Product purchased outside the United States, proof of legal importation must accompany the war­ranty repair Product, otherwise the Product must be returned to the place of original purchase, to the
manufacturer (Purchaser must bear all tax, duty and freight), or the Purchaser must bear charges for the war­ranty repair.

No repair or replacement of Product or part thereof shall extend the Warranty period as to the entire Product.
Warranty on the repaired part shall only be effective for a period of ninety (90) days following the repair or
replacement of that part or the remaining period of the Product Warranty whichever is greater.

WARRANTY LIMITATION AND EXCLUSION

This Limited Warranty extends only to Products purchased from InFocus or an InFocus authorized reseller.
InFocus shall have no further obligation under the foregoing Limited Warranty if the Product has been dam­aged due to abuse, misuse, neglect, accident, unusual physical or electrical stress, unauthorized modifica­tions, tampering, alterations, or service other than by InFocus or its authorized agents, causes other than from
ordinary use or failure to properly use the Product in the application for which said Product is intended.

Limited Warranty excludes Product or accessory cleaning repair or replacement of plastics due to cosmetic
damage and damage as a result of normal wear. Product repair outside of the terms of the Limited Warranty
will be on a time and materials basis. Prolonged Product “demonstration” causes unusual Product wear and
is not considered normal use under the terms of this Limited Warranty.

Accessory Warranty covers the accessory item only and excludes normal wear. Lamp Product Warranty
excludes expected lamp life degradation.

Remanufactured Products and Software Products are exempt from the foregoing Limited Warranty. Please
refer to the appropriate Remanufactured Product Limited Warranty or Software Product Limited Warranty
for applicable Warranty information.

DISCLAIMER OF UNSTATED WARRANTIES

THE WARRANTY PRINTED ABOVE IS THE ONLY WARRANTY APPLICABLE TO THIS PURCHASE. ALL
OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DIS­CLAIMED. THERE ARE NO WARRANTIES THAT EXTEND BEYOND THE FACE HEREOF AND THE
FOREGOING WARRANTY SHALL NOT BE EXTENDED, ALTERED OR VARIED EXCEPT BY WRITTEN
INSTRUMENT SIGNED BY INFOCUS. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG
AN IMPLIED WARRANTY MAY LAST, SO SUCH LIMITATIONS MAY NOT APPLY TO YOU.

LIMITATION OF LIABILITY

IT IS UNDERSTOOD AND AGREED THAT INFOCUS’ LIABILITY WHETHER IN CONTRACT, IN TORT,
UNDER ANY WARRANTY, IN NEGLIGENCE OR OTHERWISE SHALL NOT EXCEED THE RETURN OF
THE AMOUNT OF THE PURCHASE PRICE PAID BY PURCHASER AND UNDER NO CIRCUMSTANCES
SHALL INFOCUS BE LIABLE FOR SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAM­AGES OR LOST PROFITS, LOST REVENUES OR LOST SAVINGS. THE PRICE STATED FOR THE PROD­UCT IS A CONSIDERATION IN LIMITING INFOCUS’ LIABILITY. NO ACTION, REGARDLESS OF FORM,
ARISING OUT OF THE AGREEMENT TO PURCHASE THE PRODUCT MAY BE BROUGHT BY PUR­CHASER MORE THAN ONE YEAR AFTER THE CAUSE OF ACTION HAS ACCRUED. SOME STATES DO
NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES
SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. THIS LIMITED WARRANTY
GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY
FROM STATE TO STATE.

Part Number 010-0276-00
