Quick Start Guide
8
10
Page 2
1
Introduction
Thank you for choosing InFocus IN810
phone.The first time you use this phone, it is
recommended that you first read the Quick Start
Guide to understand the basic operation of the
phone.
Content
Your Phone ...............................................................2
Installing SIM Card, Memory Card, and Battery .......3
Charging the Battery .................................................4
First Start Up ............................................................. 4
Home Screen ............................................................4
Making Your First Call ..............................................5
People .......................................................................6
Sending a Text Message ..........................................7
Setting up Wi-Fi ........................................................7
Setting up Email Account ..........................................8
Sending and Receiving Emails ................................. 8
Using Browser ..........................................................9
Using Bluetooth ......................................................10
Taking Photos and Videos ......................................10
Viewing Photos and Videos .................................... 12
Changing Basic Phone Settings .............................13
Troubleshooting ...............................
.......................14
Important Safety Information .....................................i
Compliance Information ........................................... iii
Warranty Statement .................................................. v
For more detailed information, see the User Guide.
www.infocusphone.com
Page 3
2
Your Phone
MicrophoneHeadset jack
Status LED
Front camera
Touch screen
Earpiece
USB port
Flash
Volume (+/-)
button
Rear camera
Microphone
Speaker
Power
button
Page 4
3
Installing SIM Card,
Memory Card, and Battery
1. Hook your fingertip
under the back cover
and then pry to open
the back cover.
2. Insert the SIM card into
the card slot as shown.
3. Insert the memory card
with the gold contacts
facing down.
4. Insert the battery.
Make sure the contacts
of the battery are
aligned with the
connectors on the
battery slot.
5. Secure the hooks on the back cover with the
designated holes on the device and close the
back cover.
Notice: Micro SIM only
Page 5
4
Charging the Battery
The battery is only partially charged.
1. Connect the USB cable to
the USB port of the device.
2. Connect the other end of
the USB cable to the AC
adapter.
3. Plug the AC adapter to a
wall outlet to start charging.
Warning
• Please use indoors and in dry places.
• Overheat protection mechanism is activated, the
device will temporarily stop charging:
When the system temperature reaches the
maximum operating temperature, the device will
automatically activate the overheat protection
mechanism and temporarily stops battery
charging. When the system temperature drops,
the system will automatically restart the battery
charging.
First Start Up
After installing the SIM card and charging the
battery, the device is ready to be turned on.
Home Screen
From the Home screen, you
can quickly access common
features and view
notifications of missed calls,
received messages, check
battery and connection
status.
Tap to access all the
applications and settings of
the device.
Page 6
5
Making Your First Call
From the Home screen, tap or > Phone .
To make a call
1. Tap the phone number
on the keypad.
2. Tap to erase a
wrong number. Tap and
hold to erase the
entire number.
NOTE:
To call a contact,
tap the contact from the
list.
3. Tap to make a call.
4. To end the call, tap
.
To answer a call
To answer a call, tap and drag it to the right
( ).
NOTE:
When you tap , it automatically changes to .
Page 7
6

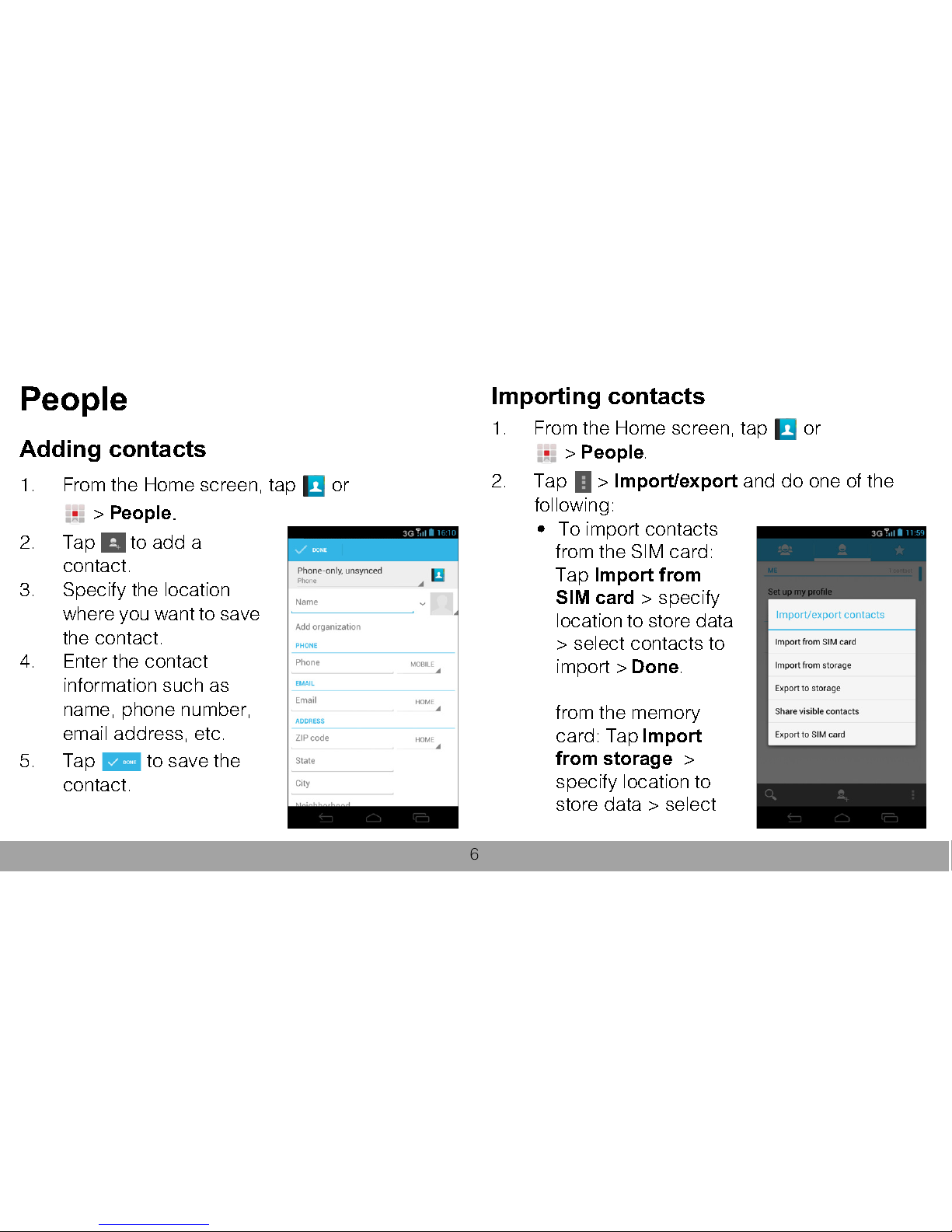

People
Adding contacts
1. From the Home screen, tap or
>
People
.
2. Tap to add a
contact.
3. Specify the location
where you want to save
the contact.
4. Enter the contact
information such as
name, phone number,
email address, etc.
5. Tap to save the
contact.
Importing contacts
1. From the Home screen, tap or
>
People
.
2. Tap >
Import/export
and do one of the
following:
• To import contacts
from the SIM card:
Tap
Import from
SIM card
> specify
location to store data
> select contacts to
import >
Done
.
• To import contacts
from the memory
card: Tap
Import
from storage
>
specify location to
store data > select
• To import contacts
Page 8
7
the storage type > select vCard file selection
type > select vCard file to import > OK.
Sending a Text Message
1. From the Home screen,
tap or >
Messaging.
2. Tap .
3. In the To field, enter the
recipient’s phone
number.
4. Compose your message.
5. Tap to send your
message.
Setting up Wi-Fi
1. From the Home screen, tap or >
Settings.
2. In WIRELESS &
NETWORKS, tap
Wi-Fi and set it to ON.
3. Available networks are
listed. Tap a network to
connect to or tap to
manually add a
connection.
NOTE:
Connecting to a
secured network will
prompt for a password.
Enter the password, then
tap Connect .
Page 9
8
Setting up Email Account
1. From the Home screen, tap > Email.
2. Enter your Email
address and Password
and tap Next.
3. Set the Inbox checking
frequency settings and
tap Next.
4. Enter Name and
Account display name.
5. Tap Next. Once the
account setup is
complete, the device will
automatically retrieve
your emails.
Sending and Receiving
Emails
Composing and sending emails
1. From the Home screen,
tap > Email, then
tap an email account.
2. Tap .
3. In the To field, enter the
recipient’s email
address.
4. Enter the Subject.
5. Compose your email.
• Tap >
Attach file
and select the item to
attach.
Page 10
9
6. Tap .
Receiving emails
Emails are automatically received in the Inbox
folder when the device connects to a network. To
manually retrieve new emails, tap .
Using Browser
To open a web page
1. From the Home screen, tap > Browser.
2. Tap the address bar.
3. Type the URL then tap
Go.
4. Tap to access more
functions.
Page 11
10
Using Bluetooth
1. From the Home screen, tap or >
Settings.
2. In WIRELESS & NETWORKS, tap Bluetooth
and set it to ON.
3. Available devices are listed. To search for a
new device, tap SEARCH FOR DEVICES.
4. Tap a detected device.
5. To start pairing, enter the PIN then tap OK.
NOTE:
• The PIN of the device must be the same PIN on the
other bluetooth device.
• On some devices, tap Pair to start pairing.
6. The paired bluetooth device name is
displayed.
Taking Photos and Videos
This device is equipped with rear and front cameras
to take photos and videos.
1. From the Home screen, tap > Camera.
NOTE:
To switch
between front and rear
cameras, tap .
2. Aim the device at the
subject.
Drag to the up/down
to zoom in/out on the
subject.
3. Tap to take the
shot.
Page 12
11
To record video
1. From the Home screen, tap > Camera.
2. Tap to enter video
mode.
NOTE:
To switch
between front and rear
cameras, tap .
3. Aim the device at the
subject.
4. Tap to start
recording.
Drag to the up/down
to zoom in/out on the
subject.
5. Tap to stop recording.
To take a panorama shot
1. From the Home screen, tap > Camera.
2. Tap > Shooting mode > Panorama to
enter panorama mode.
3. Aim the device at the subject.
4. Tap to take the shot.
5. Move the device in one direction, pan the
device horizontally and follow the shooting
direction shown on the screen.
Page 13
12
6. When the shooting guide reaches the end of
the shooting point, the shooting ends. You can
also manually stop recording by tapping .
Viewing Photos and Videos
1. From the Home screen, tap > Gallery.
2. Tap a folder to view the recorded files in
thumbnails.
3. Tap an image or a video to view in full screen.
4. Swipe your finger to the left/right to view the
previous/next file.
• To share the photo,
tap , then tap an
application for
sharing.
• To send the photo to
a Bluetooth device,
tap .
• To delete a photo,
tap > OK.
• To play the video,
tap .
• To play the
slideshow, edit an
image, or show more options, tap .
Page 14
13
Changing Basic Phone
Settings
Adjusting the volume
There are two ways to adjust
the volume:
• Press the volume (+/-)
button repeatedly to
adjust the volume.
• Press the volume button
once.
Drag the volume slider to
adjust the volume.
Setting an alarm
1. From the Home screen, tap > Clock.
2. Tap .
3. To add an alarm, tap .
4. Set the alarm time, and tap OK.
5. To customize an alarm label, tap Label. Enter
the alarm label and tap OK.
6. To set repeat mode, tap Repeat. Tap one or
more options.
7. To set the ringtone, tap . Tap Sounds or
My files folder and select the desired ringtone,
then tap OK.
8. To vibrate when the alarm sounds, check
Vibrate.
Page 15
14
Troubleshooting
Problem Solutions
My device hangs or
gives no response.
When the system hangs, press both Power and Volume Down buttons at
the same time for 15 seconds and then release the buttons. The system will
automatically reboot and the device is ready to use.
Page 16
i
Important Safety Information
Please read before proceeding
• DO NOT place objects on top of the device, as they may scratch
the screen.
• DO NOT drop your device or subject it to severe impacts.
Bending the body and pushing the display or keys with extreme
force could damage the device.
• DO NOT use a pen or any sharp object to tap the screen.
• DO NOT expose the device to dirty or dusty environments.
• DO NOT place the device on an uneven or unstable surface.
• DO NOT insert any foreign objects into the device.
• DO NOT expose the device to strong magnetic or electrical field.
• DO NOT use or store this equipment in a place where it will be
exposed to high temperatures, such as near an open flame or
heat-emitting equipment.
• DO NOT use it or store it where fluids such as water can splash
onto it. Raindrops, water spray, juice, coffee, steam, or other
types of liquids will also cause malfunctions.
• Using this device for long periods of time may cause the device
to get warm. If you feel the device is too warm, avoid sustained
contact with exposed skin otherwise this might cause discomfort,
or eventually a burn.
• Refer to the rating label on the device and be sure that the power
adapter complies with the rating. Only use accessories specified
by the manufacturer.
• Disconnect the device from an electrical outlet and power off
before cleaning the device.
• NEVER attempt to connect or disconnect the power adapter with
wet hands.
• Clean the touch screen with a soft cloth. If needed, dampen the
cloth slightly before cleaning. Never use abrasives or cleaning
solutions.
• DO NOT disassemble the device. Only a certified service
technician should perform repair.
• Please check with your Local Authority or retailer for proper
disposal of electronic products.
• For USB connection, users must use a USB 2.0 (or higher
version) cable.
• Please make sure the temperature for adapter will not be higher
than 50°C.
• D o n o t s t o r e y o u r p h o n e i n t e m p e r a t u r e s h i g h e r t h a n 5 0 ° C .
• The operating temperature for this device is from 0°C to 40°C.
• The adapter shall be installed near the equipment and shall be
easily accessible.
Page 17
ii
• The temperature of the device might increase while the CPU is
busy handling resource consuming activities such as high
resolution video decoding. The SW protection mechanism will
ensure stop charging whenever the temperature is over the
predefined threshold and prepare for shut down if necessary.
Please worry not.
Safety Precautions for Battery Use
• Keep the battery dry and away from any liquid since this may
cause a short circuit.
• Keep the battery away from metal objects since this may cause a
short circuit.
• Do not use damaged or deformed batteries.
• If the battery emits a foul odor, discontinue use.
• Keep the battery away from babies and small children.
• If the battery leaks:
• Do not allow the leaking fluid to come in contact with your skin,
eyes or clothing. If already in contact, rinse with clean water
immediately and seek medical advice.
• Keep the battery away from fire since this may cause the
battery to explode.
• Do not attempt to open or service the battery yourself.
• Do not dispose battery in fire or water.
• Recycle or dispose used batteries according to the local
regulations.
Road and Environmental Safety
• Turn off the phone in areas with a potentially explosive
atmosphere or where flammable objects exist such as gas
stations, fuel depots, and chemical plants among others. Sparks
from these areas could cause explosion or fire and result in
injury or even death.
• Do not use hand-held phones while driving a vehicle. Use handsfree devices as an alternative.
Safety in Aircraft
Do not use the phone on board an aircraft. The phone’s network
signals may cause interference to the navigation system. As a safety
measurement, it is against the law in most countries to use the ph
one
on board an aircraft.
Copyright Information
Copyright © InFocus Corporation, 2013. All rights reserved.
This product has an Android™ platform based on Linux, which can
be expanded by a variety of JME-based application SW.
Page 18
iii
Android, Google, YouTube and other marks are trademarks of
Google Inc.
microSD™ is a trademark of SD Card Association.
Bluetooth and the Bluetooth logo are trademarks owned by Bluetooth
SIG, Inc.
All products use in this device and trademarks mentioned herein are
trademarks or registered trademarks of their respective owners.
Intellectual Property Right Information
Right to all technologies and products that comprise this device are
the property of their respective owners:
This product has an Android platform based on Linux, which can be
expanded by a variety of Java-Script-based application SW.
Bluetooth and the Bluetooth logo are trademarks owned by Bluetooth
SIG, Inc.
Compliance Information
SAR Information
THIS MOBILE DEVICE MEETS GUIDELINES FOR EXPOSURE TO
RADIO WAVES. Your mobile device is a radio transmitter and
receiver. It is designed not to exceed the limits for exposure to radio
waves recommended by international guidelines. These guidelines
were developed by the independent scientific organization ICNIRP
and include safety margins designed to assure the protection of all
persons, regardless of age and health.
The exposure guidelines for mobile devices employ a unit of
measurement known as the Specific Absorption Rate or SAR. The
SAR limit stated in the ICNIRP guidelines is 2.0 W/kg averaged over
10 grams of tissue. Tests for SAR are conducted using standard
operating positions with the device transmitting at its highest certified
power level in all tested frequency bands. The actual SAR level of an
operating device can be below the maximum value because the
device is designed to use only the power required to reach the
network. That amount changes depending on a number of factors
such as how
close you are to a network base station. The highest
SAR value under the ICNIRP guidelines for use of the device at the
ear is 0.602 W/kg and at the body is 0.595 W/kg (The measure
distance of 1.5 cm). Use of device accessories and enhancements
may result in different SAR values. SAR values may vary depending
on national reporting and testing requirements and the network band.
Page 19
iv
WEEE Notice
The WEEE logo on the product or on its box indicates that this
product must not be disposed of or dumped with your other
household waste. You are liable to dispose of all your electronic or
electrical waste equipment by relocating over to the specified
collection point for recycling of such hazardous waste. Isolated
collection and proper recovery of your electronic and electrical waste
equipment at the time of disposal will allow us to help conserve
natural resources. Moreover, proper recycling of the electronic and
electrical waste equipment will ensure safety of human health and
environment. For more information about electronic and electrical
waste equipment disposal, recovery, and collection points, please
contact your local city center, household waste disposal service,
shop from where you purchased the equipment, or manufacturer of
the equipment.
RoHS Compliance
This product is in compliance with Directive 2002/95/EC of the
European Parliament and of the Council of 27 January 2003, on the
restriction of the use of certain hazardous substances in electrical
and electronic equipment (RoHS) and its amendments.
European Union Regulatory Conformance
The equipment complies with the RF Exposure Requirement
1999/519/EC, Council Recommendation of 12 July 1999 on the
limitation of exposure of the general public to electromagnetic fields
(0–300 GHz). This equipment meets the following conformance
standards: EN50360, EN62209-1/-2, EN62311, EN62479, EN50364,
EN60950-1, EN50332-1/-2, , EN301489-1, EN301489-1/-3/-7/-17/24, EN55022, EN55024, EN61000-3-2/-3-3, EN301511, EN3019081/2/-13, EN300328, EN301893, EN300440-1/2, EN302291-1-2,
EN55013, EN55020, EN50581.
For the device which tests accordance to EN60950-1:2006, it is
mandatory to perform audio tests for EN50332.
This device have been tested to comply with the Sound Pressure
Level requirement laid down in the applicable EN 50332-1 and/or
EN 50332-2 standards. Permanent hearing loss may occur if
earphones or headphones are used at high volume for prolonged
periods of time.
Prevention of Hearing Loss
Warning statement requirement under EN 60950-1:A12.
To prevent hearing damage, do not listen at high volume levels for long
periods.
Page 20
v
Note: For France, headphones/earphones for this device are
compliant with the sound pressure level requirement laid down
in the applicable EN50332-1:2000 and/or EN50332-2:2003
standard as required by French Article L.5232-1.
The conformity assessment procedure has been followed with the
involvement of the following Notified Body:
Cetecom TESTLAB
Identification mark: CE0682
(Notified Body) CE
Changes or modifications to this product not authorized by the
manufacturer could void the EMC compliance and negate your
authority to operate the product. This product has demonstrated EMC
compliance under conditions that included the use of compliant
peripheral devices and shielded cables between system
components. It is important that you use compliant peripheral devices
and shielded cables between system components to reduce the
possibility of causing interference to radios, televisions, and other
electronic devices.
We, hereby, declare that this cellular, Bluetooth radio is in
compliance with the essential requirements and other relevant
provisions of Directive 1999/5/EC.
This device is restricted to indoor use only when operating in the
5150 to 5350 MHz frequency range.
DFS controls related to radar detection shall not be accessible to the
user.
Warranty Statement
Limited warranty
InFocus provides “Product Warranty Statement”, at the time of its
original purchase, from the InFocus or its authorized distributor,
describing the product warranty service.
Notes: InFocus does not provide global
cross border warranty.
A pleine puissance, l’écoute prolongée du baladeur
peut endommager l’oreille de l’utilisateur.
0682
This equipment may be operated in:
AT BE BG CH CY CZ DE DK
EE ES FI FR GB GR HU IE
IT IS LI LT LU LV MT NL
NO PL PT RO SE SI SK TR
Page 21
vi
This limited warranty (free of defects in materials and workmanship
causing malfunction and defective) shall last for twelve (12) months
for the device and six (6) months for the battery from the purchase
date. Other than battery, the in-box accessories, including cosmetic
parts, button, cables, earphone, AC ... etc. if applied; six (6) month
open-box functional failure warranty is provided. The customer shall
present the PROOF OF PURCHASE upon claiming the warranty.
Throughout the warranty period InFocus or its authorized agent will,
at own discretion and subject to section Non-Warranty below repair
or replace a defective product. All replaced defective parts or
components will become the property of InFocus after returning the
repaired/replaced product in good working condition. This repair on
the same symptom, one (1) month repair warranty is provided.
Non-Warranty
No warranty may be asserted or claimed if (1) the product serial
number, date code, IM
EI, water indicator or the warranty seal has
been removed, erased, defaced or altered; or (2) the defect is found
to be caused by:
(1) By engineering judgement, the product is mishandled/misused
carelessly or accidentally. Unauthorized disassembling or repair,
repair by use if unauthorized spare parts, or other actions beyond
the reasonable control of InFocus.
(2) Improper shipping and packing.
(3) Forces of nature of willful misconduct.
(4) Rough handling, exposure to moisture, dampness or extreme
thermal or environmental conditions or a rapid change in such
conditions, corrosion, oxidation, unauthorized modifications or
connections.
(5) Deterioration of the product due to normal wear and tear.
Products installed or integrated with software or applications
which are not made or authorized by InFocus.
Be sure to back up data and remove any confidential, proprietary or
personal information from the product when asking service. InFocus
is not responsible for the damage to or loss of any programs, data, or
removable storage media inside or sent with the products. As to Nonwarranty product, InFocus will check if a repair is economical/
available and provide a chargeable service to customer’s
consideration.
IN NO EVENT SHALL InFocus BE LIABLE UNDER THIS LIMITED
WARRANTY FOR LOSS OF PROFIT. LOSS OF ANTICIPATED
SAVINGS, LOSS OF DATA OR INDIRECT LOSS, LOSS OF THE
PRODUCT OR ANY ASSOCIATED EQUIPMENT, INCIDENTAL OR
CONSEQUENTAL LOSSES OR DAMAGES OF ANY NATURE
WHATSOEVER TO THE FULLEST EXTENT THAT THOSE
LOSSES OR DAMAGES CAN BE DISCLAIMED BY LAW.
Page 22
Loading...
