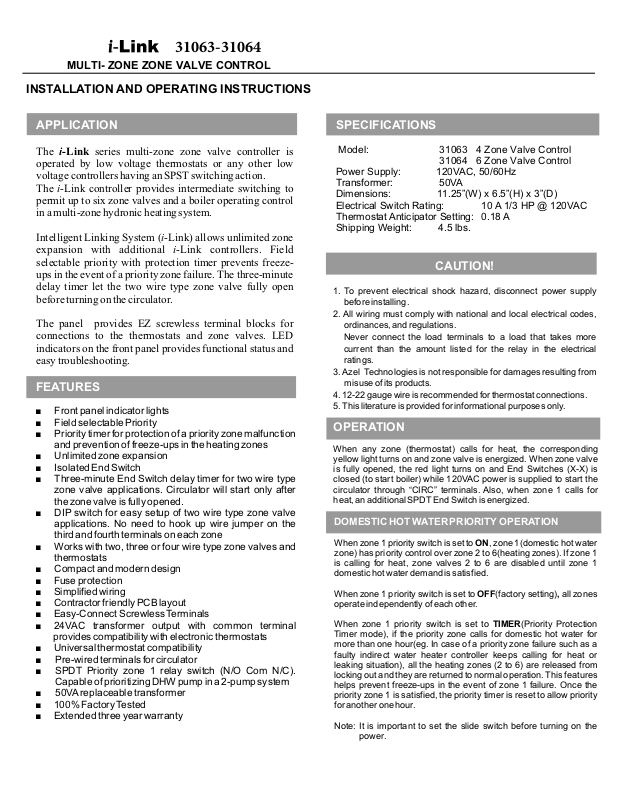

Page 1
31063-31064
MULTI- ZONE ZONE VALVE CONTROL
INSTALLATION AND OPERATING INSTRUCTIONS
APPLICATION
i
-Link
The series multi-zone zone valve controller is
operated
by low voltage thermostats or any other low
voltage controllers having an SPST switching action.
i
The -Link controller provides intermediate switching to
permit up to six zone valves and a boiler operating control
in a multi-zone hydronic heating system.
Intelligent Linking System ( -Link) allows unlimited zone
expansion with additional -Link controllers.
selectable
priority with protection timer prevents freeze-
i
i
Field
ups in the event of a priority zone failure. The three-minute
delay timer let the two wire type zone valve fully open
before turning on the circulator.
The panel provides EZ screwless terminal blocks for
connections to the thermostats and zone valves. LED
indicators on the front panel provides functional status and
easy troubleshooting.
FEATURES
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
panel indicator lights
Front
Field selectable Priority
Priority timer for protection of a priority zone malfunction
and prevention of freeze-ups in the heating zones
Unlimited zone expansion
Isolated End Switch
Three-minute End Switch delay timer for two wire type
zone valve applications. Circulator will start only after
the zone valve is fully opened.
DIP switch for easy setup of two wire type zone valve
applications. No need to hook up wire jumper on the
third and fourth terminals on each zone
Works with two, three or four wire type zone valves and
thermostats
Compact and modern design
Fuse protection
Simplified wiring
Contractor friendly PCB layout
Easy-Connect Screwless Terminals
24VAC transformer output with common terminal
provides compatibility with electronic thermostats
Universal thermostat compatibility
Pre-wired terminals for circulator
SPDT Priority zone 1 relay switch (N/O Com N/C).
Capable of prioritizing DHW pump in a 2-pump system
50VA replaceable transformer
100% Factory Tested
Extended three year warranty
SPECIFICATIONS
Model: 31063 4 Zone Valve Control
31064 6 Zone Valve Control
Power Supply: 120VAC, 50/60Hz
Transformer: 50VA
Dimensions: 11.25”(W) x 6.5”(H) x 3”(D)
Electrical Switch Rating: 10 A 1/3 HP @ 120VAC
Thermostat Anticipator Setting: 0.18 A
Shipping Weight: 4.5 lbs.
CAUTION!
1.
To prevent electrical shock hazard, disconnect power supply
before installing.
2. All wiring must comply with national and local electrical codes,
ordinances, and regulations.
Never connect the load terminals to a load that takes more
current than the amount listed for the relay in the electrical
ratings.
3. Azel Technologies is not responsible for damages resulting from
misuse of its products.
4. 12-22 gauge wire is recommendedfor thermostat connections.
5. This literature is providedfor informational purposes only.
OPERATION
When
any zone (thermostat) calls for heat, the corresponding
yellow light turns on and zone valve is energized. When zone valve
is fully opened, the red light turns on and End Switches (X-X) is
closed (to start boiler) while 120VAC power is supplied to start the
circulator through “CIRC” terminals. Also, when zone 1 calls for
heat, an additional SPDTEnd Switch is energized.
DOMESTIC HOT WATER PRIORITY OPERATION
When
zone 1 priority switch is set to , zone 1(domestic hot water
zone) has priority control over zone 2 to 6(heating zones). If zone 1
is calling for heat, zone valves 2 to 6 are disabled until zone 1
domestic hot water demand is satisfied.
When zone 1 priority switch is set to (factory setting) all zones
operate independently of each other.
When zone 1 priority switch is set to (Priority Protection
Timer mode), if the priority zone calls for domestic hot water for
more than one hour(eg. In case of a priority zone failure such as a
faulty indirect water heater controller keeps calling for heat or
leaking situation), all the heating zones (2 to 6) are released from
locking out and they are returned tonormal operation. This features
helps prevent freeze-ups in the event of zone 1 failure. Once the
priority zone 1 is satisfied, the priority timer is reset to allow priority
for another one hour.
Note: It is important to set the slide switch before turning on the
power.
ON
OFF ,
TIMER
Page 2
i-Link Zone Expansion
ii-Link zone valve
zones with additional zone valve controllers. Simply connect
terminals “1 2 3 ” of the “Master” unit to terminals “1 2 3 ” of the “Slave”
unit with 18AWG wires. More units can be connected in the similar
manner. Use the Master/Slave Switch to define the unit as “Master” or
“Slave”. The priority zone of the “Master” unit(if
set to
ON or Timer)
After expansion, all the units will act as a single unit. This means only
one set of X-X(End Switch) terminal is needed to connect to the “TT”
on the boiler control. Also, only one circulator connection is needed.
Factory default setting “Master”.
Note: It is important to setthe slide switch before turning onthe power.
controller can be expanded to unlimited number of
-Link
zone 1 priority switch is
will turn off all other zones of the “Slave” units.
L.E.D. SYSTEM STATUSINDICATION LIGHTS
YELLOW light (T1-T6) indicates that the thermostat is calling for
heat and the corresponding zone valveis energized.
RED light (Z1-Z6) indicates zone valve (with an end switch) is fully
opened and End Switch (X-X) is closed. In case of two wire type
zone valve, the zone valve is energized. If the 3-minute XX delay
timer is set to OFF,End Switchis closed. If the XX delay timeris set
to ON, End Switch is closed three minutes after thermostat calls for
heat.
GREEN Power light indicates presence ofpower supply.
GREEN solid Priority Timer light indicates that the one-hour timer is
started. GREEN flashing light indicates one hour priority timer is
expired and all heating zones are released from locking out. All
zones can operate independently.
TWO WIRE TYPE ZONE VALVE
When two wire type zone valve is used, JUMPER 3&4 DIP switch
can be set to ON for each corresponding zone so that there is no
need to put a wire jumper across terminal R-R. Also, XX (End
Switch) Delay Timer can be set to ON. This allows a delay of
three minutes on closing the X-X End Switches after thermostat
calls for heat which gives sufficient time for zone valve to fully
open.
ELECTRONIC THERMOSTATS
i Link
ALL - controls are compatible with 2, 3 or 4 wire type
thermostats. 24VAC Out can be used to supply power to the
thermostat. For thermostats requiring the 24VAC Common, simply
connect C terminal from the thermostat to C terminal on the 24VAC
output.
Infloor 29019 thermostat is
i-Controls.
recommended for use with
Link
NOTE ON WIRING INSTRUCTIONS
31064 units are used as examples on the wiring diagrams. 31063
units can be wired in the same manner.
If Infloor 29019 digital thermostat is used, it can be powered by
connecting terminal 4 & 5 of 29019 to 24VAC Out (R & C) of i-Link
controls. For simplicity, this connection is not shown in all example.
ATTENTION!
PLEASE PEEL OFF
PROTECTIVE FILM ON THE
CLEAR LED WINDOW
TERMINAL DESCRIPTION
Dry Contact Terminals
X X /End Switch Dry Contact End Switch
NO COM NC/Zone 1 ZONE 1 Dry Contact End Switch
Line VoltageTerminals
N 120 VAC Neutral TerminalInput
L 120 VAC Hot TerminalInput
L N/CIRC 120VAC Circulator Power
Low VoltageTerminals
24VACOUT/R 24 VACtransformer hot output
24VACOUT/C 24 VACtransformer common output
ZONE EXPANSION/1 2 3 ZONE expansion to additional
zone valve controls
i-Link
THERMOSTATS
R/T1 Zone 1 24VAC Thermostat HotTerminal
W/T1 Zone 1 Thermostat SwitchingTerminal
R/T2 Zone 2 24VAC Thermostat HotTerminal
W/T2 Zone 2 Thermostat SwitchingTerminal
R/T3 Zone 3 24VAC Thermostat HotTerminal
W/T3 Zone 3 Thermostat SwitchingTerminal
R/T4 Zone 4 24VAC Thermostat HotTerminal
W/T4 Zone 4 Thermostat SwitchingTerminal
R/T5 Zone 5 24VAC Thermostat HotTerminal
W/T5 Zone 5 Thermostat SwitchingTerminal
R/T6 Zone 6 24VAC Thermostat HotTerminal
W/T6 Zone 6 Thermostat SwitchingTerminal
ZONE VALVES (ZONE 1 - 6)
1 2 Terminals for zone valve motor connections
3 4 Terminals for zone valve end switch connections
TROUBLE SHOOTING
i
When 120VAC is supplied to controllers, the green
power light should be on.
!
If the thermostat is closedand yellowzone light is on, the
power should be supplied to the zone valve. If the zone
valve is not actuated or if the zone valveend switch is not
closed (red light is not turning on), check the zone valve
for functionality.
!!If yellow zone (1-6) light is on all the time
thermostat for functionality. Remove the thermostat from
controller
i
-Link
the and put a piece of wire across T
and T terminal to simulate the thermostat calling for
W/
heat. If everything works properly, then the thermostat is
faulty.
f the green power light is off
I , check the fuse and the
presence of 120VAC power supply.
-Link
, check the
R/
Page 3
TYPICAL WIRING DIAGRAMS
TYPICAL
JUMPER 3&4
1 2 3 4 5 6
ON
NC COM NO
Zone 1
ON
OFF
ON
XX Delay Timer
X X
END SWITCH
1 2 3 4
1 2 3 4
FUSE 6 AMP MAX
N L
120 VAC
MASTER SLAVE
TIMER
OFF
ZONE 1 PRIORITY
L N
CIRC
Zone 1 Zone 2 Zone 3 Zone 4 Zone 5 Zone 6
Do Not Use
APPLICATION OF TWO 30064 CONTROLS CONNECTED TOGETHER
24Vac Out
R
POWER
PRIORITY
THERMOSTATS
R W R W R W R W R W R W
T1 T1 T2 T2 T3 T3 T4 T4 T5 T5 T6 T6
C
ZONE EXPANSION
1 2 3
THERMOSTATS
T2 T3 T4 T5 T6T1
Z1 Z2 Z3 Z4 Z5 Z6
ZONE VALVES
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4
* Set DIP Switch
Jumper3&4 to ON
SET TO MASTER
L N
CIRC
OFF
ON
NC COM NO
Zone 1
JUMPER 3&4
ON
1 2 3 4 5 6
ON
XX Delay Timer
ZONE EXPANSION
24Vac Out
R W R W R W R W R W R W
1 2 3
T1 T1 T2 T2 T3 T3 T4 T4 T5 T5 T6 T6
C
R
OFF
PRIORITY
X X
END SWITCH
1 2 3 4
1 2 3 4
Zone 1 Zone 2 Zone 3 Zone 4 Zone 5 Zone 6
Do Not Use
POWER
Z1 Z2 Z3 Z4 Z5 Z6
1 2 3 4
THERMOSTATS
T2 T3 T4 T5 T6T1
ZONE VALVES
THERMOSTATS
1 2 3 4
1 2 3 4
FUSE 6AMP MAX
N L
120 VAC
MASTER SLAVE
TIMER
ZONE 1 PRIORITY
Infloor Sales & Service
www.infloor.com
Please visit our website for other products
1 2 3 4
* Set DIP Switch
Jumper3&4 to ON
SET TO SLAVE
FUSE 6AMP MAX
N L
120 VAC
L N
CIRC
OFF
ON
NC COM NO
Zone 1
JUMPER 3&4
ON
1 2 3 4 5 6
ON
XX Delay Timer
ZONE EXPANSION
24Vac Out
R W R W R W R W R W R W
1 2 3
T1 T1 T2 T2 T3 T3 T4 T4 T5 T5 T6 T6
C
R
OFF
PRIORITY
X X
END SWITCH
1 2 3 4
1 2 3 4
Zone 1 Zone 2 Zone 3 Zone 4 Zone 5 Zone 6
P.O. Box
POWER
Z1 Z2 Z3 Z4 Z5 Z6
1 2 3 4
4945
THERMOSTATS
T2 T3 T4 T5 T6T1
ZONE VALVES
THERMOSTATS
1 2 3 4
MASTER SLAVE
TIMER
ZONE 1 PRIORITY
503 Gregg Drive.
Buena Vista,
CO, 81211
Ph: 800-608-0562 Fax: 719-395-3555
Email: info@
infloor.com
1 2 3 4
1 2 3 4
