Infinity Drain WW 5-2 User Manual

WW 5 Series

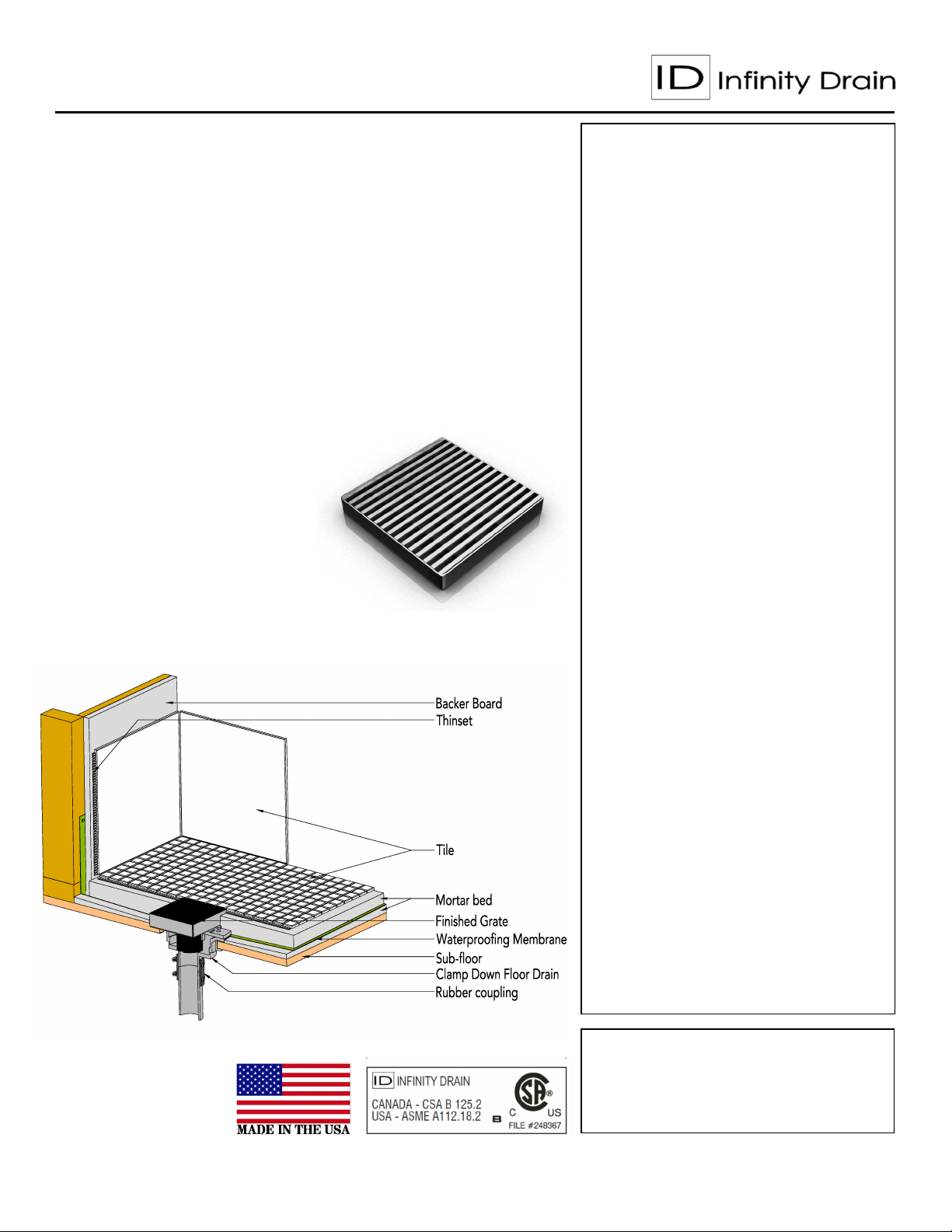

WW 5│Tile Drain Series

- 12 gauge 316 Stainless Steel Wedge Wire Frame and Body

- Indoor or outdoor use

- Works with 2″ clamp down floor drain with 2″ throat (strainer size)

- Uses Hot Mop, Lead Pan, PVC Vinyl Liner, Rubber Liner (Chloraloy™)

Copper Pan or Fiberglass waterproofing

- Grate can be removed completely for cleaning

- Flow rate 9 GPM per outlet*

Finishes:

Satin Stainless

_____

Polished Stainless

_____

Complete Kits:

WW 5-2I SS Clamp Down Drain Cast Iron
WW 5-2I PS Clamp Down Drain Cast Iron
WW 5-2A SS Clamp Down Drain ABS
WW 5-2A PS Clamp Down Drain ABS
WW 5-2P SS Clamp Down Drain PVC
WW 5-2P PS Clamp Down Drain PVC

Components:

W5-2 SS 5” x 5” Strainer Only
W5-2 PS 5” x 5” Strainer Only

CDI 22 Clamp Down Drain Cast Iron
CDA 22 Clamp Down Drain ABS
CDP 22 Clamp Down Drain PVC

Installation (TD) Center Drain

Infinity Drain

18 Secatoag Avenue
Port Washington, NY 11050
Phone: [phone]
Fax: [phone]
www.InfinityDrain.com

Dimension are subject to Manufacturers tolerance and change without notice. We can assume no responsibility for use of superseded or void data.

Note: Installer must verify all rough-in

dimensions prior to installation and consult
local and national codes. Conformity and
compliance to local and national codes
are the responsibility of the installer.

Page 1 of 2

REV. 08.01.2013

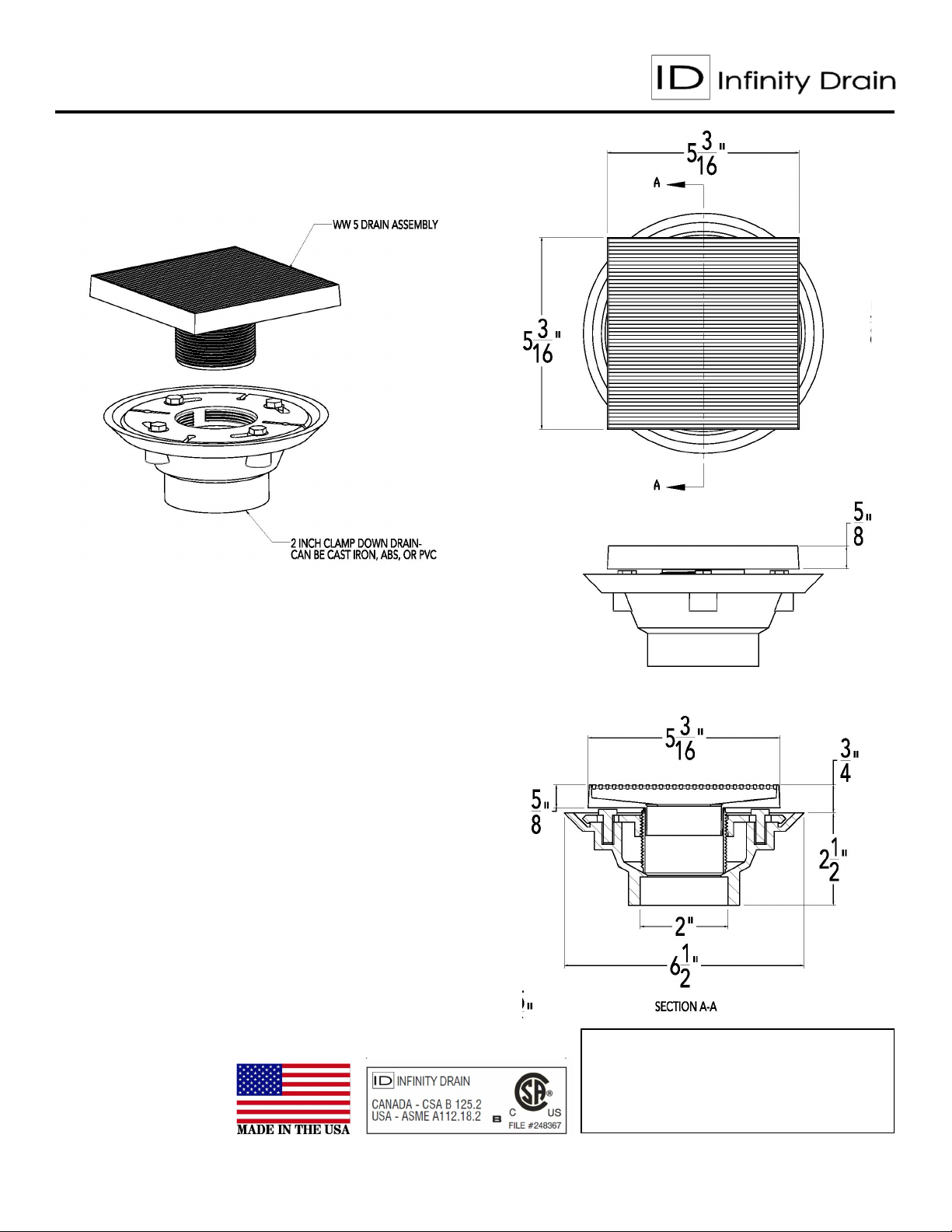

WW 5 Specifications

WW 5-2I

5” x 5” Kit with PVC Drain Body
2” Outlet

(5” L x 5” W x 1” H)
1 - WW 5 Tile Drain Strainer
1 - CDI 22 Clamp Down Drain

WW 5-2A

5” x 5” Kit with PVC Drain Body
2” Outlet

(5” L x 5” W x 1” H)
1 - WW 5 Tile Drain Strainer
1 - CDA 22 Clamp Down Drain

WW 5-2P

5” x 5” Kit with PVC Drain Body
2” Outlet

(5” L x 5” W x 1” H)
1 - WW 5 Tile Drain Strainer
1 - CDP 22 Clamp Down Drain
