Infinity Drain TD 15-3 User Manual

TD 15 Series

TD 15│Tile Drain Series

- 12 gauge 316 Stainless Steel Frame and Body

- ¾” depth inside frame for material

- ¼” drainage gap

- Indoor or outdoor use

- Commercial grade large drain body (Cast Iron, PVC or ABS) with 4” throat

- Grate can be removed completely for cleaning

- Requires traditional 4-way floor pitch

- Flow rate 9 GPM with 2” outlet

- Flow rate 21 GPM with 3” outlet

Finishes:

Satin Stainless

_____

Polished Stainless

_____

Complete Kits:

TD 15-2I SS Clamp Down Drain Cast Iron
TD 15-3I PS Clamp Down Drain Cast Iron
TD 15-2A SS Clamp Down Drain ABS
TD 15-3A PS Clamp Down Drain ABS
TD 15-2P SS Clamp Down Drain PVC
TD 15-3P PS Clamp Down Drain PVC

Components:

T 15 A 5” x 5” Tile Drain Strainer

CDI 42 Clamp Down Drain Cast Iron
CDI 43 Clamp Down Drain Cast Iron
CDA 42 Clamp Down Drain ABS
CDA 43 Clamp Down Drain ABS
CDP 42 Clamp Down Drain PVC
CDP 43 Clamp Down Drain PVC
TKEY Lift Out Key

Optional Components:

UCP 4 Universal 4” Clamping Plate

Installation (TD) Center Drain

Infinity Drain

18 Secatoag Avenue
Port Washington, NY 11050
Phone: [phone]
Fax: [phone]
www.InfinityDrain.com

Dimension are subject to Manufacturers tolerance and change without notice. We can assume no responsibility for use of superseded or void data.

Note: Installer must verify all rough-in

dimensions prior to installation and consult
local and national codes. Conformity and
compliance to local and national codes
are the responsibility of the installer.

Page 1 of 2

REV. 08.01.2013

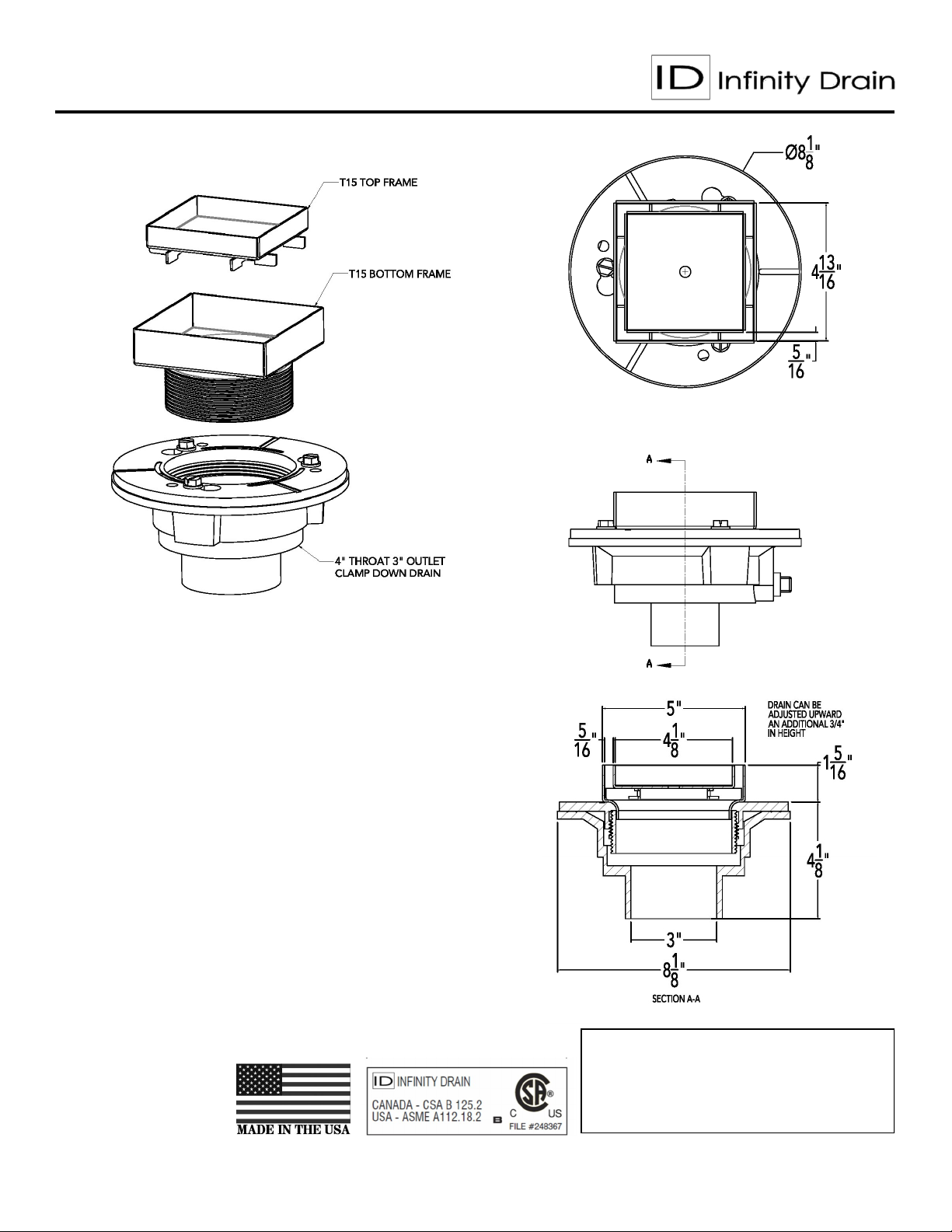

TD 15-3 Specifications

TD 15-3I
5” x 5” Kit with Cast Iron Drain Body
No Hub Outlet

(5” L x 5” W x 1 5/16” H)
1 - T 15 A Tile Drain Strainer
1 - CDI 43 Clamp Down Drain Cast Iron

TD 15-3A
5” x 5” Kit with ABS Drain Body
No Hub Outlet

(5” L x 5” W x 1 5/16” H)
1 - T 15 A Tile Drain Strainer
1 - CDA 43 Clamp Down ABS

TD 15-3P
5” x 5” Kit with PVC Drain Body
No Hub Outlet

(5” L x 5” W x 1 5/16” H)
1 - T 15 A Tile Drain Strainer
1 - PVC 43 Clamp Down ABS

Infinity Drain

18 Secatoag Avenue
Port Washington, NY 11050
Phone: [phone]
Fax: [phone]
www.InfinityDrain.com

Dimension are subject to Manufacturers tolerance and change without notice. We can assume no responsibility for use of superseded or void data.

Note: Installer must verify all rough-in

dimensions prior to installation and consult
local and national codes. Conformity and
compliance to local and national codes
are the responsibility of the installer.

Page 2 of 2

REV. 08.01.2013
