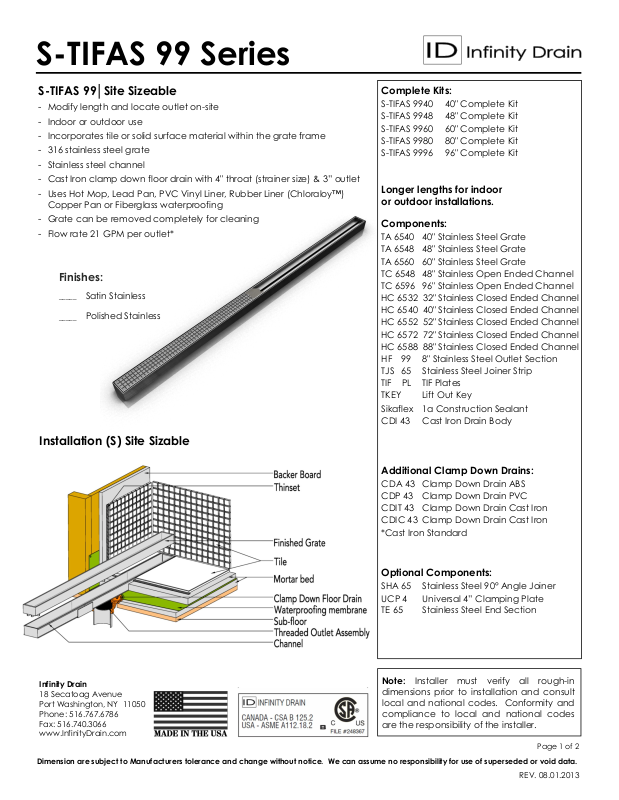

S-TIFAS 99 Series
S-TIFAS 99│Site Sizeable
- Modify length and locate outlet on-site
- Indoor or outdoor use
- Incorporates tile or solid surface material within the grate frame
- 316 stainless steel grate
- Stainless steel channel
- Cast Iron clamp down floor drain with 4″ throat (strainer size) & 3” outlet
- Uses Hot Mop, Lead Pan, PVC Vinyl Liner, Rubber Liner (Chloraloy™)
Copper Pan or Fiberglass waterproofing
- Grate can be removed completely for cleaning
- Flow rate 21 GPM per outlet*
Finishes:
Satin Stainless
_____
Polished Stainless
_____
Complete Kits:
S-TIFAS 9940 40″ Complete Kit
S-TIFAS 9948 48″ Complete Kit
S-TIFAS 9960 60″ Complete Kit
S-TIFAS 9980 80″ Complete Kit
S-TIFAS 9996 96″ Complete Kit
Longer lengths for indoor
or outdoor installations.
Components:
TA 6540 40″ Stainless Steel Grate
TA 6548 48″ Stainless Steel Grate
TA 6560 60″ Stainless Steel Grate
TC 6548 48″ Stainless Open Ended Channel
TC 6596 96″ Stainless Open Ended Channel
HC 6532 32″ Stainless Closed Ended Channel
HC 6540 40″ Stainless Closed Ended Channel
HC 6552 52″ Stainless Closed Ended Channel
HC 6572 72″ Stainless Closed Ended Channel
HC 6588 88″ Stainless Closed Ended Channel
HF 99
TJS 65
TIF PL
TKEY
Sikaflex 1a Construction Sealant
CDI 43 Cast Iron Drain Body
8″ Stainless Steel Outlet Section
Stainless Steel Joiner Strip
TIF Plates
Lift Out Key

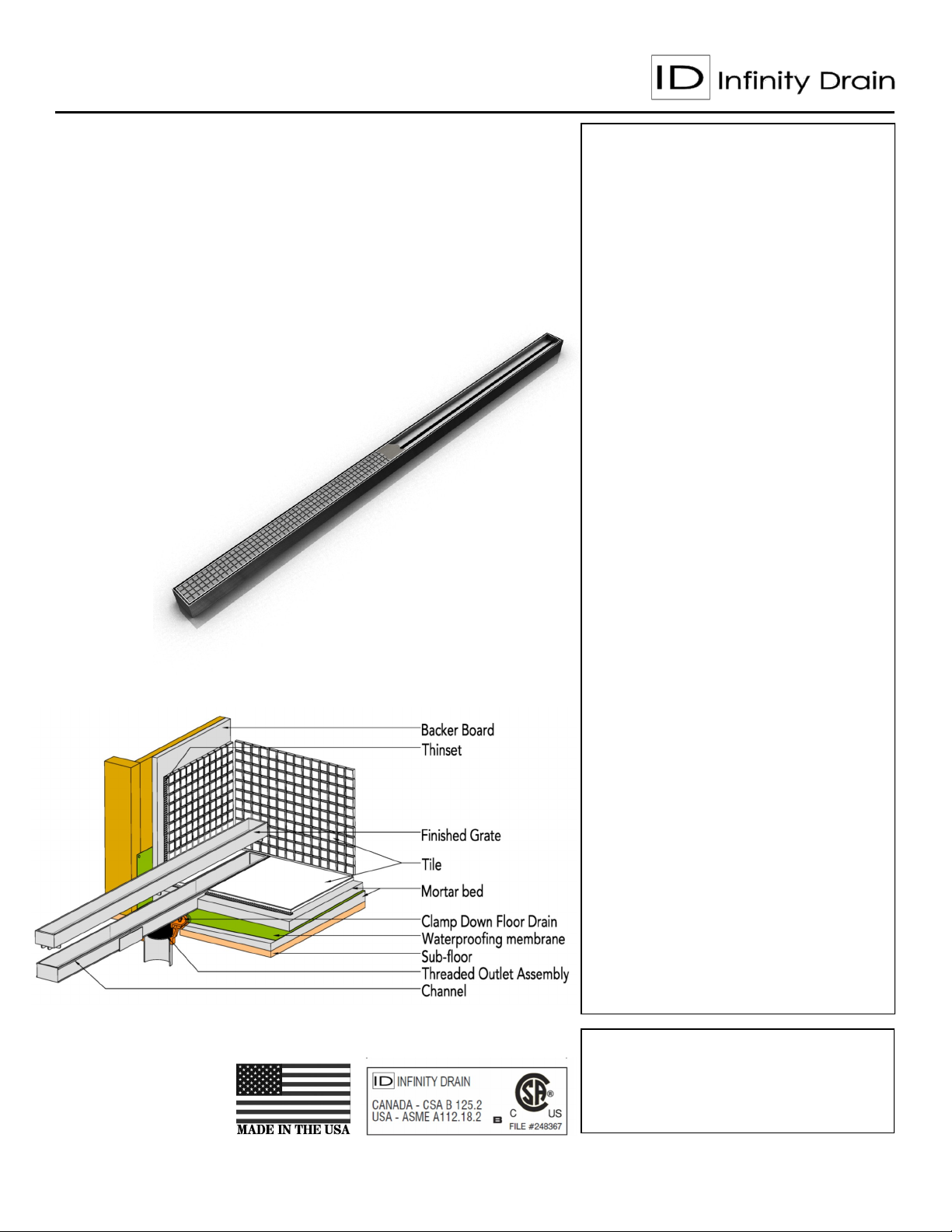

Installation (S) Site Sizable
Additional Clamp Down Drains:
CDA 43 Clamp Down Drain ABS
CDP 43 Clamp Down Drain PVC
CDIT 43 Clamp Down Drain Cast Iron
CDIC 43 Clamp Down Drain Cast Iron
*Cast Iron Standard
Optional Components:
SHA 65 Stainless Steel 90° Angle Joiner
UCP 4 Universal 4” Clamping Plate
TE 65
Stainless Steel End Section
Infinity Drain
18 Secatoag Avenue
Port Washington, NY 11050
Phone: 516.767.6786
Fax: 516.740.3066
www.InfinityDrain.com
Dimension are subject to Manufacturers tolerance and change without notice. We can assume no responsibility for use of superseded or void data.
Note: Installer must verify all rough-in
dimensions prior to installation and consult
local and national codes. Conformity and
compliance to local and national codes
are the responsibility of the installer.
Page 1 of 2
REV. 08.01.2013
Page 2

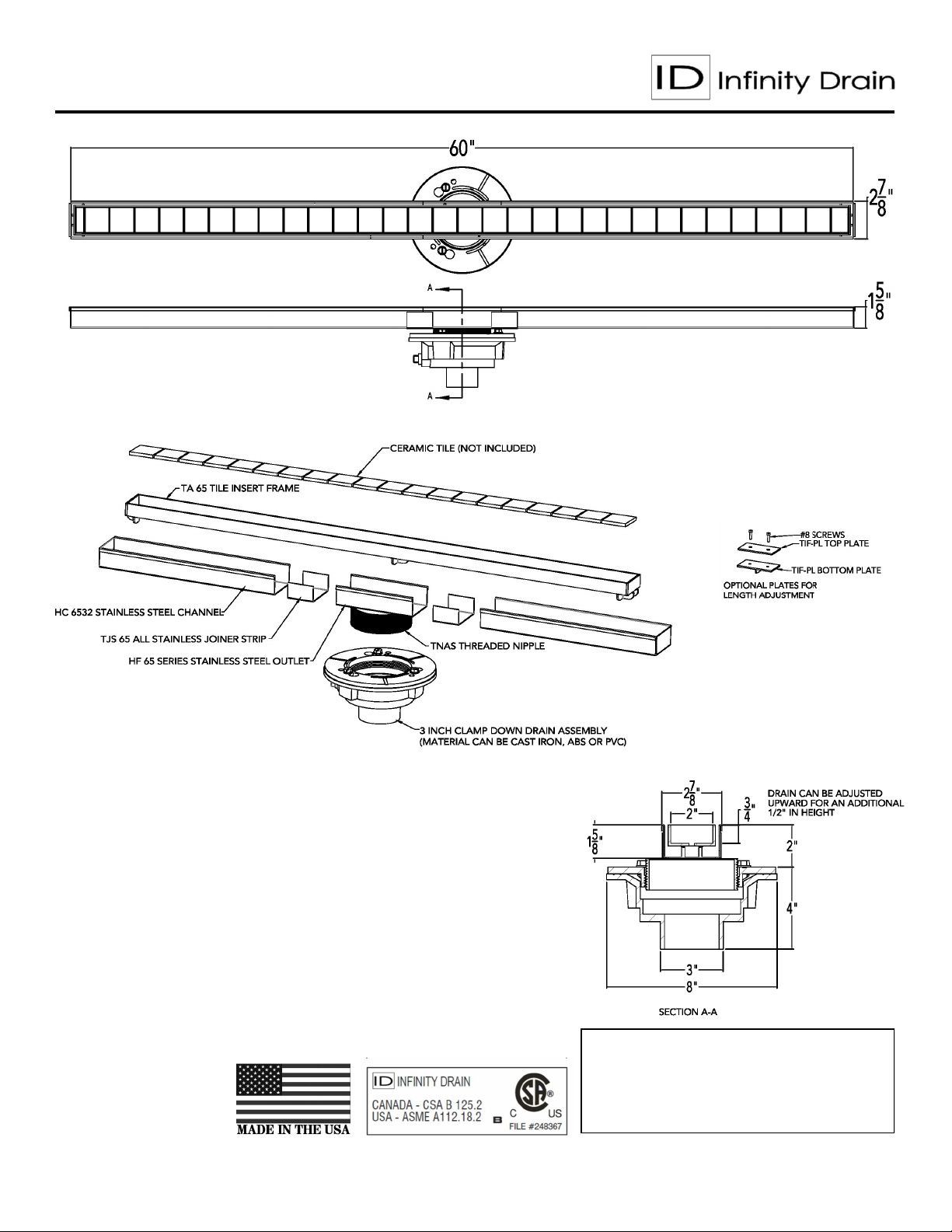

S-TIFAS 9960 Specifications
S-TIFAS 9960 SS
60″ Complete Kit Includes:
(60 ⅛" l x 2 ⅞" w x 1⅝" h)
1 - TA 6560 Tile Insert Frame
1 - HC 6552 Stainless Steel Channel
1 - HF 99 8” Outlet Section Stainless Steel
2 - TJS 65 Stainless Steel Joiner Strip
1- TKEY Lift Out Key
1- Sikaflex 1a Construction Sealant
1 - CDI 43 Cast Iron Drain Body
