Infinity Drain RTDB 15 User Manual

RTDB 15 Series

RTDB 15│Tile Drain Series

- Cast Brass Frame and Body– overall dimension 4¾″

- Tile Pan Diameter 3¾″ inside dimension x ⅜″ inside depth

- 3/4” depth inside frame for material

- ¼″ drainage gap

- Indoor or outdoor use

- Residential grade bonded flange (PVC or ABS) with 4” throat

- Connects to 2”, 3” or 4” waste line

- Uses liquid and fabric sheet membrane waterproofing (not Hot Mop)

- Grate can be removed completely for cleaning

- Requires traditional 4-way floor pitch

- Flow rate 9 GPM with 2” outlet

Finishes:

_____

Polished Stainless

Complete Kits:

RTDB 15-A PS Bonded Flange ABS Drain
RTDB 15-P PS Bonded Flange PVC Drain

Components:

R 15B 5” Round Tile Drain Strainer Only

BFA 42 Bonded Flange ABS
BFP 42 Bonded Flange PVC

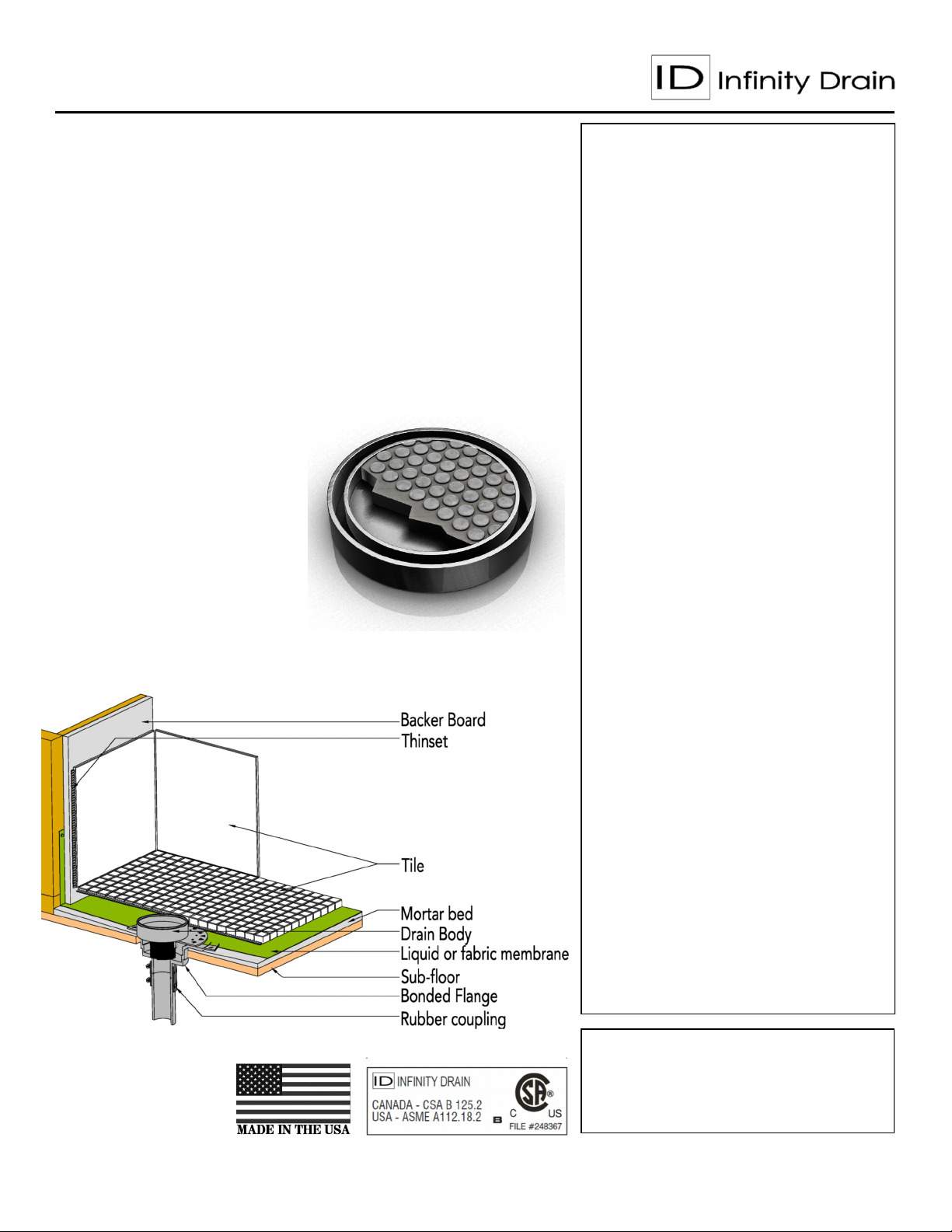

Installation (TD) Center Drain

Infinity Drain

18 Secatoag Avenue
Port Washington, NY 11050
Phone: [phone]
Fax: [phone]
www.InfinityDrain.com

Dimension are subject to Manufacturers tolerance and change without notice. We can assume no responsibility for use of superseded or void data.

Note: Installer must verify all rough-in

dimensions prior to installation and consult
local and national codes. Conformity and
compliance to local and national codes
are the responsibility of the installer.

Page 1 of 2

REV. 08.01.2013

RTDB 15 Specifications

RTDB 15-A

5” RTDB 15 with ABS Bonded Flange
Drain body, fits 2”, 3” and 4” Outlet

(4¾″ diameter x ¾” H))
1 - R 15 B Tile Drain Strainer
1 - BFA 42 Bonded Flange ABS Drain

RTDB 15-P

5” RTDB 15 with PVC Bonded Flange
Drain body, fits 2”, 3” and 4” Outlet

(4¾″ diameter x ¾” H))
1 - R 15 B Tile Drain Strainer
1 - BFP 42 Bonded Flange PVC Drain

Infinity Drain

18 Secatoag Avenue
Port Washington, NY 11050
Phone: [phone]
Fax: [phone]
www.InfinityDrain.com

Dimension are subject to Manufacturers tolerance and change without notice. We can assume no responsibility for use of superseded or void data.

Note: Installer must verify all rough-in

dimensions prior to installation and consult
local and national codes. Conformity and
compliance to local and national codes
are the responsibility of the installer.

Page 2 of 2

REV. 08.01.2013
