Infinity Drain LTDB 5 User Manual

LTDB 5 Series

LTDB 5│Tile Drain Series

- 16 gauge 304 Stainless Steel top with ABS Base

- Indoor or outdoor use

- Residential grade bonded flange (PVC or ABS) with 2” throat

- Bonded Flange connects to 2”, 3” or 4” waste line

- Uses Liquid and Fabric Sheet Membrane waterproofing (not hot mop)

- Grate can be removed completely for cleaning

- Accepts flooring material up to 3/8” thick

- Requires traditional 4-way floor pitch

- Integral hair strainer

- Flow rate 8 GPM

Finishes:

Satin Stainless

_____

Polished Stainless

_____

Complete Kits:

LTD5 BA SS Bonded Flange ABS Drain
LTD5 BA PS Bonded Flange ABS Drain
LTD5 BP SS Bonded Flange PVC Drain
LTD5 BP PS Bonded Flange PVC Drain

Components:

LT5-2 SS 5” x 5” Strainer Only
LT5-2 PS 5” x 5” Strainer Only

BFA 22 Bonded Flange ABS
BFP 22 Bonded Flange PVC

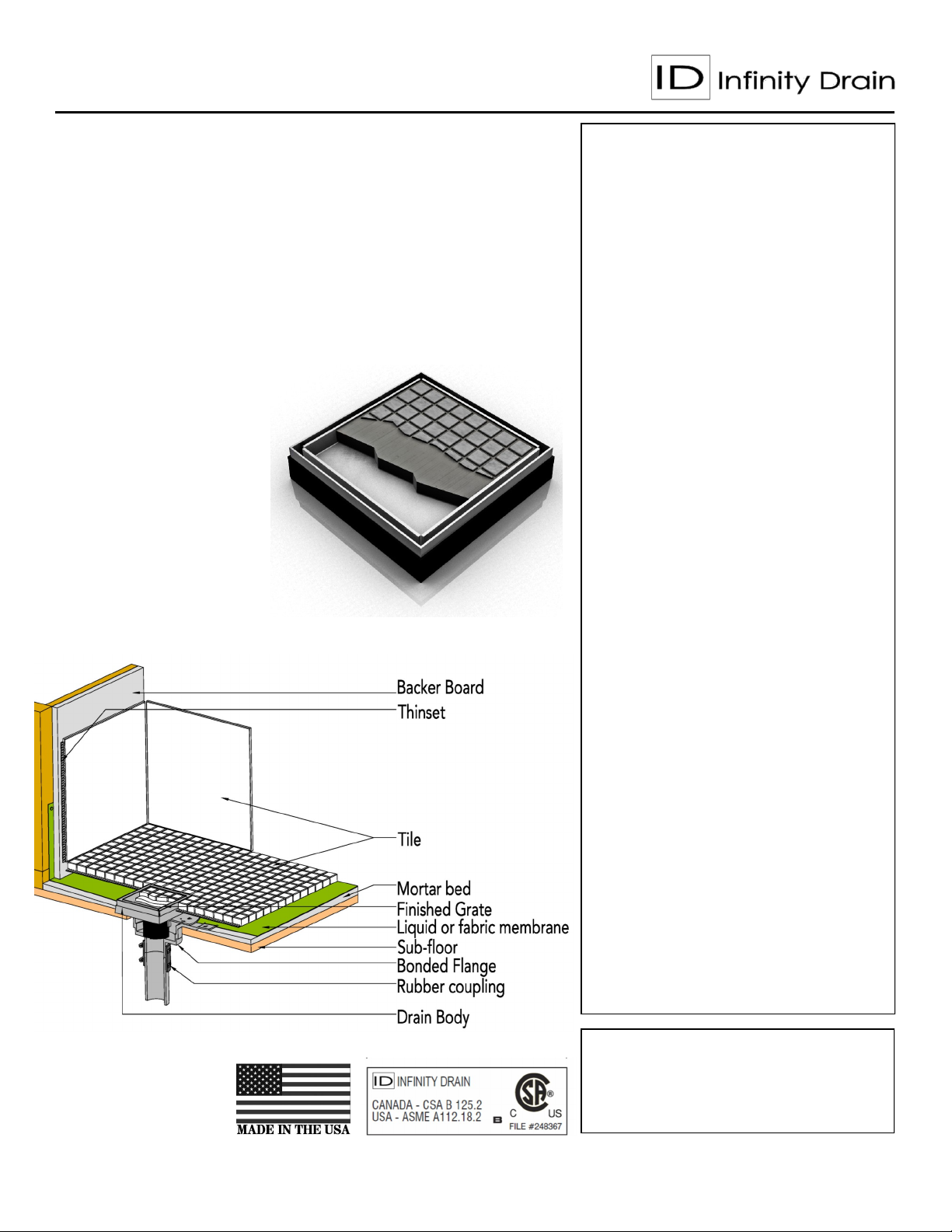

Installation (TD) Center Drain

Infinity Drain

18 Secatoag Avenue
Port Washington, NY 11050
Phone: [phone]
Fax: [phone]
www.InfinityDrain.com

Dimension are subject to Manufacturers tolerance and change without notice. We can assume no responsibility for use of superseded or void data.

Note: Installer must verify all rough-in

dimensions prior to installation and consult
local and national codes. Conformity and
compliance to local and national codes
are the responsibility of the installer.

Page 1 of 2

REV. 08.01.2013

LTDB 5 Specifications

LTD5-BA

5” x 5” Kit with PVC Drain Body
2” Outlet

(5” L x 5” W x 1” H)
1 - LT5-2 Tile Drain Strainer
1 - BFA 22 Bonded Flange ABS Drain

LTD5-BP

5” x 5” Kit with PVC Drain Body
2” Outlet

(5” L x 5” W x 1” H)
1 - LT5-2 Tile Drain Strainer
1 - BFP 22 Bonded Flange PVC Drain

Infinity Drain

18 Secatoag Avenue
Port Washington, NY 11050
Phone: [phone]
Fax: [phone]
www.InfinityDrain.com

Dimension are subject to Manufacturers tolerance and change without notice. We can assume no responsibility for use of superseded or void data.

Note: Installer must verify all rough-in

dimensions prior to installation and consult
local and national codes. Conformity and
compliance to local and national codes
are the responsibility of the installer.

Page 2 of 2

REV. 08.01.2013
