Infinity iS-250 V1
Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands
Ordercode: 41502
MANUAL
ENGLISH
Page 2
Ordercode: 41502
Infinity iS-250
Table of contents
Warning ............................................................................................................................................................................... 2
Safety Instructions ......................................................................................................................................................... 2
Operating Determinations .......................................................................................................................................... 4
Rigging ............................................................................................................................................................................ 4
Return Procedure .......................................................................................................................................................... 6
Claims .............................................................................................................................................................................. 6
Description of the device ................................................................................................................................................. 7
Frontside .......................................................................................................................................................................... 8
Backside ......................................................................................................................................................................... 9
Installation .........................................................................................................................................................................10
Set Up and Operation .....................................................................................................................................................10
Control Modes .............................................................................................................................................................10
One Infinity (Built-in Programs)...............................................................................................................................10
Multiple Infinitys (Master/Slave control) ...............................................................................................................10
Multiple Infinitys (DMX Control) .............................................................................................................................11
Fixture Linking ...............................................................................................................................................................12
Data Cabling ...............................................................................................................................................................12
Control Panel ...............................................................................................................................................................13
Control Mode ..............................................................................................................................................................13
DMX Addressing ..........................................................................................................................................................13
Menu Overview ...........................................................................................................................................................14
Main Menu Options ....................................................................................................................................................15
1. DMX Addressing ...................................................................................................................................................15
2. Edit Mode ..............................................................................................................................................................16
3. Settings Menu .......................................................................................................................................................16
3.1. Life Time ..............................................................................................................................................................17
3.1.1. Set Password ..................................................................................................................................................17
3.2. Reset ...................................................................................................................................................................18
3.3. Factory Settings .................................................................................................................................................18
4. Built-in Programs ...................................................................................................................................................18
5. Test Menu ..............................................................................................................................................................19
6. System information ..............................................................................................................................................20
DMX Channels .............................................................................................................................................................21
27 channels ...............................................................................................................................................................21
21 channels ...............................................................................................................................................................25
Channel settings .........................................................................................................................................................29
Maintenance ....................................................................................................................................................................30
Replacing a Fuse ........................................................................................................................................................30
Replacing a Gobo From the Rotating Gobo Wheel ...........................................................................................30
Troubleshooting ...............................................................................................................................................................33
Product Specifications ....................................................................................................................................................35
Dimensions ........................................................................................................................................................................36
Notes ..................................................................................................................................................................................37
1
Page 3
Ordercode: 41502
Infinity iS-250
Your shipment includes:
Infinity iS-250 with PowerCON power cable (1,5 m)
2 brackets for truss mounting
Safety cable
User manual
Warning
Unpacking Instructions
Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure
that all parts are present, and have been received in good condition. Notify the dealer immediately and
retain packing material for inspection if any parts appear damaged from shipping or the carton itself
shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be
returned to the factory, it is important that the fixture be returned in the original factory box and packing.
LED Expected Lifespan
LEDs gradually decline in brightness over time. HEAT is the dominant factor that leads to the acceleration
of this decline. Packaged in clusters, LEDs exhibit higher operating temperatures than in ideal or singular
optimum conditions. For this reason when all color LEDs are used at their fullest intensity, life of the LEDs is
significantly reduced. If improving your lifespan expectancy is of a higher priority, place care in providing
for lower operational temperatures. This may include climatic-environmental and the reduction of overall
projection intensity.
Safety Instructions
Every person involved with the installation, operation and maintenance of this device has to:
be qualified
follow the instructions of this manual
Before your initial start-up, please make sure that there is no damage caused by transportation. Should
there be any, consult your dealer and do not use the device.
To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to
follow the safety instructions and warning notes written in this manual.
2
Page 4
Ordercode: 41502
Infinity iS-250
Please consider that damages caused by manual modifications to the device are not subject to
warranty.
This device contains no user-serviceable parts. Refer servicing to qualified technicians only.
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused by the non-observance of
this manual or any unauthorized modification to the device.
Never let the power cord come into contact with other cables! Handle the power cord and all
connections with the mains with particular caution!
Never remove warning or informative labels from the unit.
Never use anything to cover the ground contact.
Never lift the fixture by holding it at the projector-head, as the mechanics may be damaged. Always
hold the fixture at the transport handles.
Never place any material over the lens.
Never look directly into the light source.
Never leave any cables lying around.
Never unscrew the screws of the rotating gobo, as the ball bearing will otherwise be opened.
Do not insert objects into air vents.
Do not connect this device to a dimmer pack.
Do not switch the device on and off in short intervals, as this would reduce the device’s life.
Do not touch the device’s housing bare-handed during its operation (housing becomes very hot).
Allow the fixture to cool for at least 5 minutes before handling.
Do not shake the device. Avoid brute force when installing or operating the device.
Only use device indoors, avoid contact with water or other liquids.
Only operate the fixture after having checked that the housing is firmly closed and all screws are
tightly fastened.
Only operate the device after having familiarized with its functions.
Avoid flames and do not put close to flammable liquids or gases.
Always keep case closed while operating.
Always allow free air space of at least 50 cm around the unit for ventilation.
Always disconnect power from the mains, when device is not used or before cleaning! Only handle
the power cord by the plug. Never pull out the plug by tugging the power cord.
Make sure that the device is not exposed to extreme heat, moisture or dust.
Make sure that the available voltage is not higher than stated on the rear panel.
Make sure that the power cord is never crimped or damaged. Check the device and the power
cord from time to time.
If the lens is obviously damaged, it has to be replaced so that its functions are not impaired due to
cracks or deep scratches.
If device is dropped or struck, disconnect mains power supply immediately. Have a qualified
engineer inspect for safety before operating.
If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not
switch it on immediately. The arising condensation water might damage your device. Leave the
device switched off until it has reached room temperature.
If your Infinity device fails to work properly, discontinue use immediately. Pack the unit securely
(preferably in the original packing material), and return it to your Infinity dealer for service.
For adult use only. Moving head must be installed out of the reach of children. Never leave the unit
running unattended.
Never attempt to bypass the thermostatic switch or fuses.
For replacement use fuses of same type and rating only.
The user is responsible for correct positioning and operating of the Infinity. The manufacturer will not
accept liability for damages caused by the misuse or incorrect installation of this device.
This device falls under protection class I. Therefore it is essential to connect the yellow/green
conductor to earth.
Repairs, servicing and electric connection must be carried out by a qualified technician.
WARRANTY: Till one year after date of purchase.
3
Page 5
Ordercode: 41502
Infinity iS-250
Operating Determinations
This device is not designed for permanent operation. Consistent operation breaks will ensure that the
device will serve you for a long time without defects.
The minimum distance between light output and the illuminated surface must be bigger than 1
meter.
To eliminate wear and improve lifespan, during periods of non-use, completely disconnect from
power via breaker or by unplugging.
The maximum ambient temperature ta = 40°C must never be exceeded.
The relative humidity must not exceed 50 % with an ambient temperature of 40° C.
If this device is operated in any other way, than the one described in this manual, the product may
suffer damages and the warranty becomes void.
Any other operation may lead to dangers like short-circuit, burns, electric shock, crash etc.
You endanger your own safety and the safety of others!
Rigging
Please follow the European and national guidelines concerning rigging, trussing and all
other safety issues.
Do not attempt the installation yourself !
Always let the installation be carried out by an authorized dealer !
Procedure:
If the Infinity is lowered from the ceiling or high joists, professional trussing systems have to be used.
Use a clamp to mount the Infinity, with the mounting-bracket, to the trussing system.
The Infinity must never be fixed swinging freely in the room.
The installation must always be secured with a safety attachment, e.g. an appropriate safety net or
safety cable.
When rigging, derigging or servicing the Infinity, always make sure, that the area below the
installation place is blocked and staying in the area is forbidden.
The Infinity can be placed on a flat stage floor or mounted to any kind of truss with a clamp.
4
Page 6
Ordercode: 41502
Infinity iS-250
Mounting a clamp to the underside of the Infinity moving head
Improper installation can cause serious injuries to people and/or damage of property !
5
Page 7
Ordercode: 41502
Infinity iS-250
International
EU Cable
UK Cable
US Cable
Pin
L
BROWN
RED
YELLOW/COPPER
FASE
N
BLUE
BLACK
SILVER
NULL
YELLOW/GREEN
GREEN
GREEN
EARTH
Return Procedure
Connection with the mains
Connect the device to the mains with the power-plug.
Always pay attention, that the right color cable is connected to the right place.
Make sure that the device is always connected properly to the earth!
Improper installation can cause serious damage to people and property!
Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.
Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned
without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.
Call Highlite 0031-455667723 or mail [email protected] and request an RMA prior to shipping the fixture.
Be prepared to provide the model number, serial number and a brief description of the cause for the
return. Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is the
customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace
product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.
Note: If you are given an RMA number, please include the following information on a piece of paper
inside the box:
01) Your name
02) Your address
03) Your phone number
04) A brief description of the symptoms
Claims
The client has the obligation to check the delivered goods immediately upon delivery for any shortcomings and/or visible defects, or perform this check after our announcement that the goods are at their
disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be
reported to the carrier upon receipt of merchandise.
It is the customer's responsibility to notify and submit claims with the shipper in the event that a fixture is
damaged due to shipping. Transportation damage has to be reported to us within one day after receipt
of the delivery.
Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with
a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless
otherwise agreed in writing.
Complaints against us must be made known in writing or by fax within 10 working days after receipt of the
invoice. After this period complaints will not be handled anymore.
Complaints will only then be considered if the client has so far complied with all parts of the agreement,
regardless of the agreement of which the obligation is resulting.
6
Page 8
Ordercode: 41502
Infinity iS-250
The Wireless DMX upgrade kit should be installed ONLY by a qualified technician.
Do not attempt installation yourself!
Description of the device
Features
The Infinity iS-250 is a moving head with high output and great effects.
Input voltage: 100-240V AC, 50/60Hz
Power consumption: 430W
Light source: 1 x 250W White LED (LumiEngin)
Lux @1m: 102400 (12°)
Beam angle: 12° - 27°
Onboard: Battery-powered full color display including gravity sensor
Battery lifetime: max 30 days (full charge)
Control modes: Built-in programs, Master/Slave, DMX-512
Control protocol: DMX512
DMX control: 21, 27 channels
Wireless DMX: available (optional)
Dimmer: 0-100%
Strobe: 0-20Hz
Focus: Motorized
Iris: Motorized
Prism: 3-facet rotating prism
Pan: 540°
Tilt: 270°
Pan/Tilt resolution: 16 bit
Special: Pan/ Tilt, Color, Gobo change blackout, User-selectable Pan & Tilt ranges, 540°/360°/180°,
Reverse Pan / Tilt movement
Rotating gobo wheel: 2 glass + 5 metal gobos (replaceable)
Static gobo wheel: 8 metal gobos
Gobo functions: Gobo-flow effect, gobo shake
Rotation: Bi-directional
Color wheel 1: 7 dichroic-filters + white
Color wheel 2: 7 dichroic-filters + white
Color functions: Split colors, Rainbow-flow effect
Color: Black
Housing: Metal & flame-retardant plastic
Connection: 3-pin/5-pin XLR data IN/OUT, PowerCON IN/OUT
Fuse: F7AL/250V

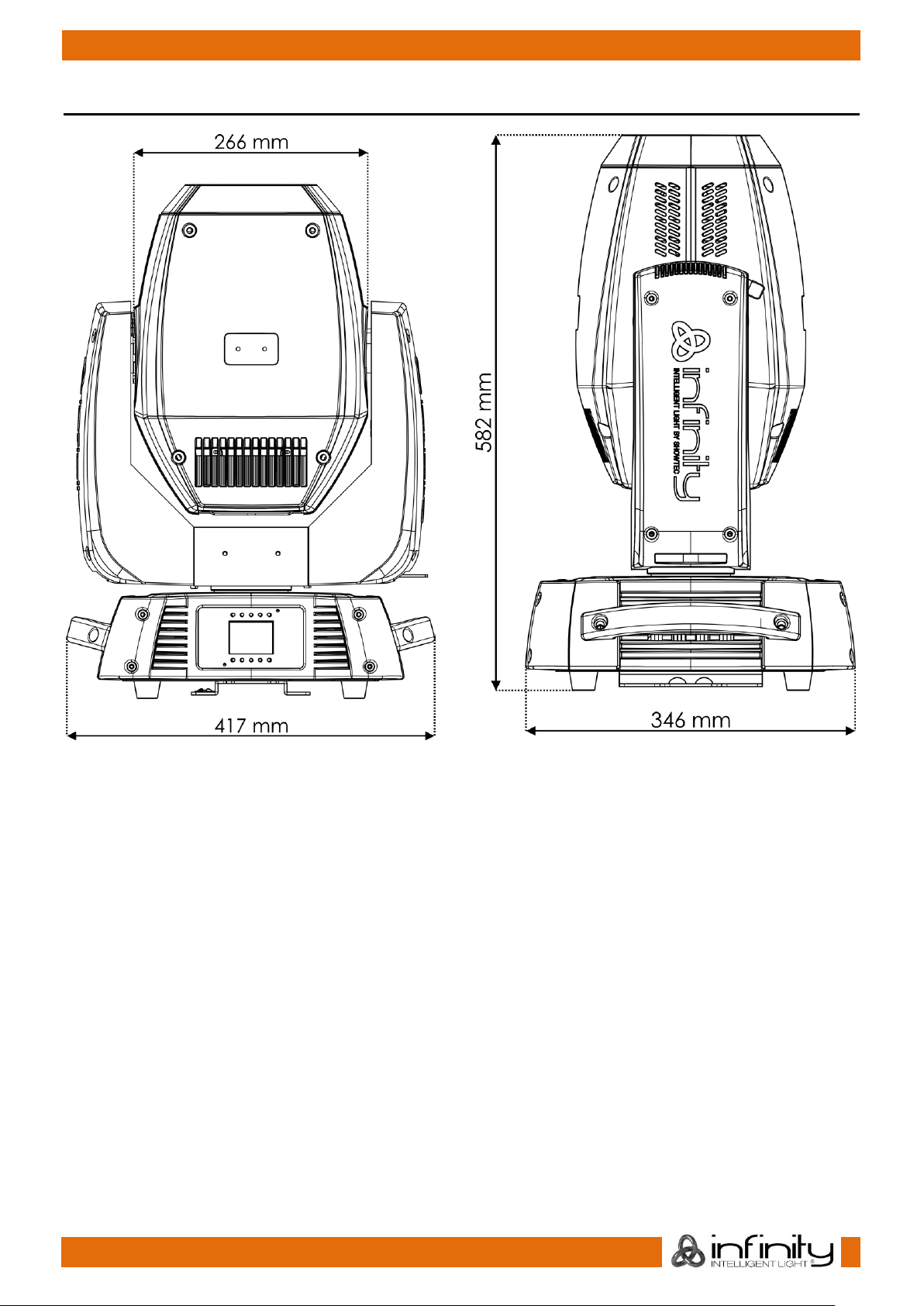

Dimensions: 346 x 417 x 582 mm (LxWxH)
Weight: 25,4 kg
Optional accessories
MOD41502 – Wireless DMX upgrade kit
7
Page 9
Ordercode: 41502
Infinity iS-250
Fig. 01
Frontside
01) Lens
02) LCD display + control buttons
8
Page 10
Ordercode: 41502
Infinity iS-250
Fig. 02
Backside
03) 5-pin DMX signal connector IN
04) 5-pin DMX signal connector OUT
05) 3-pin DMX signal connector IN
06) 3-pin DMX signal connector OUT
07) 100-240V Neutrik PowerCON IN
08) 100-240V Neutrik PowerCON OUT
09) Power switch ON/OFF
10) Fuse F7AL 250V
NOTE: Knowledge of DMX is required to fully utilize this unit.
9
Page 11
Ordercode: 41502
Infinity iS-250
There are 3 modes:
Stand-alone (built-in programs)
Master/Slave
DMX512 (21CH, 27CH)
The pins:
1. Earth
2. Signal (-)
3. Signal (+)
Fig. 03
Installation
Remove all packing materials from the Infinity iS-250. Check that all foam and plastic padding is
removed. Connect all cables.
Do not supply power before the whole system is set up and connected properly.
Always disconnect from electric mains power supply before cleaning or servicing.
Damages caused by non-observance are not subject to warranty.
Set Up and Operation
Follow the directions below, as they pertain to your preferred operation mode.
Before plugging the unit in, always make sure that the power supply matches the product specification
voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.
Control Modes
One Infinity (Built-in Programs)
01) Fasten the effect light onto firm trussing. Leave at least 1 meter on all sides for air circulation.
02) Always use a safety cable (ordercode 70140 / 70141).
03) Plug the end of the electric mains power cord into a proper electric power supply socket.
04) When the Infinity is not connected by a DMX cable, it functions as a stand-alone device.
05) Please see page 18 for more information about the built-in programs.
Multiple Infinitys (Master/Slave control)
01) Fasten the effect light onto firm trussing. Leave at least 1 meter on all sides for air circulation.
02) Always use a safety cable (ordercode 70140 / 70141).
03) Plug the end of the electric mains power cord into a proper electric power supply socket.
04) Use a 3-pin/5-pin XLR cable to connect the Infinity.
05) Link the units as shown in fig. 03. Connect a DMX signal cable from the first unit's DMX "out" socket to
the second unit's "in" socket. Repeat this process to link the second, third, and fourth units. You can
use the same functions on the master device as described on page 18 (Built-in programs). This means
that you can set your desired operation mode on the master device and all slave devices will react
the same as the master device.
Multiple Infinitys (Master/Slave control)
10
Page 12
Ordercode: 41502
Infinity iS-250
Fig. 04
Multiple Infinitys (DMX Control)
01) Fasten the effect light onto firm trussing. Leave at least 1 meter on all sides for air circulation.
02) Always use a safety cable (ordercode 70140 / 70141).
03) Plug the end of the electric mains power cord into a proper electric power supply socket.
04) Use a 3-pin/5-pin XLR cable to connect the Infinitys and other devices.
05) Link the units as shown in fig. 04. Connect a DMX signal cable from the first unit's DMX "out" socket to
the second unit's "in" socket. Repeat this process to link the second, third, and fourth units.
06) Supply electric power: Plug electric mains power cords into each unit's PowerCON socket, then plug
the other end of the mains power cord into proper electric power supply sockets, starting with the
first unit. Do not supply power before the whole system is set up and connected properly.
Multiple Infinitys DMX Set Up
11
Note : Link all cables before connecting electric power
Page 13
Ordercode: 41502
Infinity iS-250
Important:
Fixtures on a serial data link must be daisy chained in one single line. To comply with the
EIA-485 standard no more than 30 devices should be connected on one data link.
Connecting more than 30 fixtures on one serial data link without the use of a DMX optically
isolated splitter may result in deterioration of the digital DMX signal.
Maximum recommended DMX data link distance: 100 meters
Maximum recommended number of fixtures on a DMX data link: 30 fixtures
Maximum recommended number of fixtures on a power link @120V: 2 fixtures
Maximum recommended number of fixtures on a power link @230V: 4 fixtures
Fixture Linking
You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to
run synchronized shows on two or more fixtures set to a master/slave operating mode. The combined
number of channels required by all the fixtures on a serial data link determines the number of fixtures the
data link can support.
Data Cabling
To link fixtures together you must obtain data cables. You can purchase DAP Audio certified DMX cables
directly from a dealer/distributor or construct your own cable. If you choose to create your own cable
please use data-grade cables that can carry a high quality signal and are less prone to electromagnetic
interference.
DAP Audio Certified DMX Data Cables
• DAP Audio Basic microphone cable for allround use. bal. XLR/M 3-pin > XLR/F 3-pin.
Ordercode FL01150 (1,5 m), FL013 (3 m), FL016 (6 m), FL0110 (10 m), FL0115 (15 m), FL0120 (20 m).
• DAP Audio X-type data cable XLR/M 3-pin > XLR/F 3-pin. Ordercode FLX0175 (0,75 m),
FLX01150 (1,5 m), FLX013 (3 m), FLX016 (6 m), FLX0110 (10 m).
• DAP Audio cable for the demanding user with exceptional audio-qualities and connector made by
Neutrik®. Ordercode FL71150 (1,5 m), FL713 (3 m), FL716 (6 m), FL7110 (10 m).
• DAP Audio cable for the demanding user with exceptional audio-qualities and connector made by
Neutrik®. Ordercode FL7275 (0,75 m), FL72150 (1,5 m), FL723 (3 m), FL726 (6 m), FL7210 (10 m).
• DAP Audio 110 Ohm cable with digital signal transmission. Ordercode FL0975 (0,75 m),
FL09150 (1,5 m), FL093 (3 m), FL096 (6 m), FL0910 (10 m), FL0915 (15 m), FL0920 (20 m).
The Infinity iS-250 can be operated with a controller in control mode or without the controller in stand-
alone mode.
12
Page 14
Ordercode: 41502
Infinity iS-250
A)
B)
C)
D)
E)
F)
G)
H)
I)
J)
K)

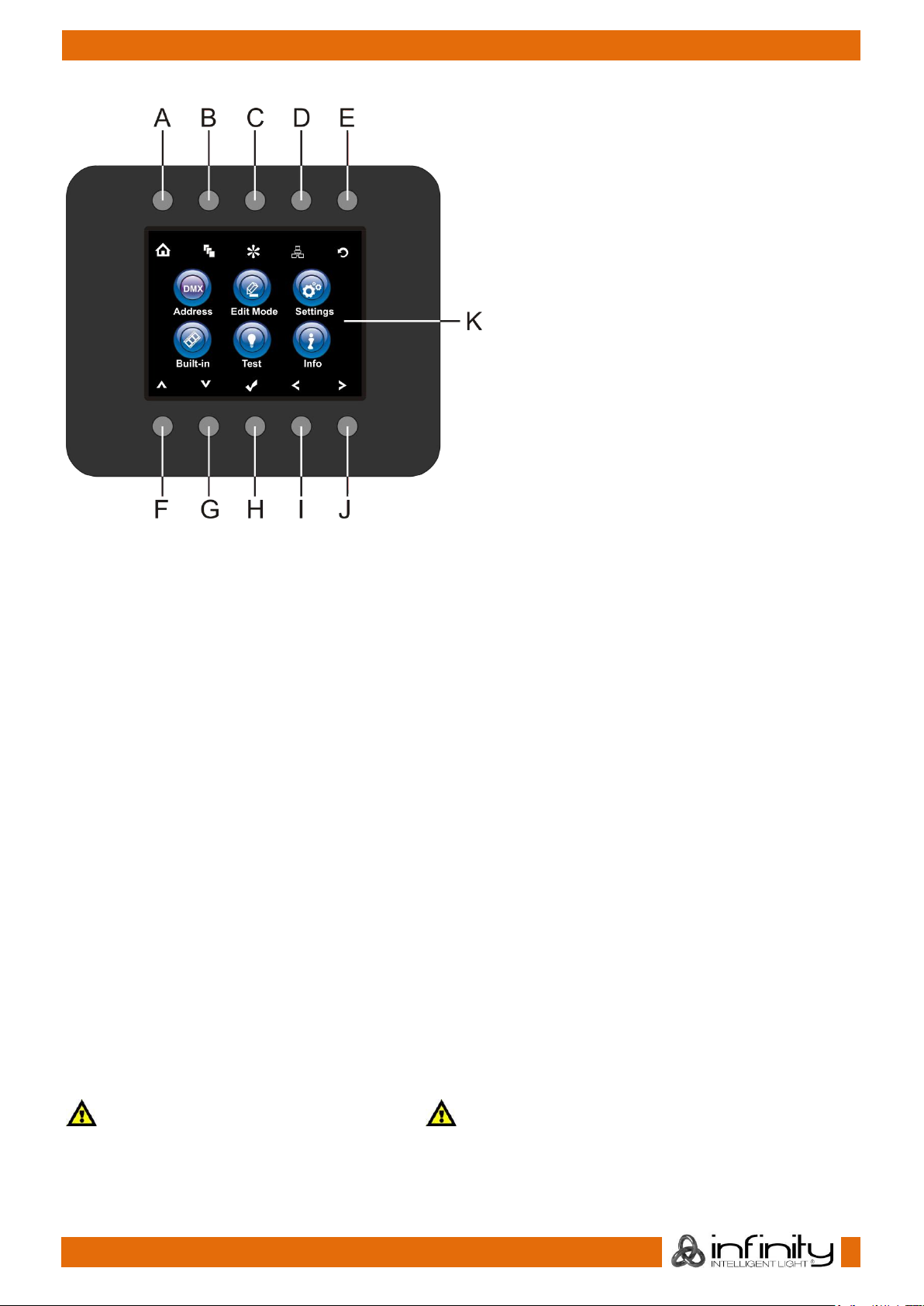

Home button
Edit Menu button
Settings Mode button
Address Setting button
Infinity Logo button
Up button
Down button
OK/ENTER
Left button
Right button
LCD display
Fig. 05
Display Off after 40 seconds
Control Panel
Control Mode
The fixtures are individually addressed on a data-link and connected to the controller.
The fixtures respond to the DMX signal from the controller. (When you select the DMX address and save it,
the controller will display the saved DMX address the next time.)
DMX Addressing
The control panel on the front side of the base allows you to assign the DMX fixture address, which is the
first channel from which the Infinity will respond to the controller.
Please note when you use the controller, the unit has 27 channels.
When using multiple Infinity’s, make sure you set the DMX addresses right.
Therefore, the DMX address of the first Infinity should be 1(001); the DMX address of the second Infinity
should be 1+27=28 (028); the DMX address of the third Infinity should be 28+27=55 (055), etc.
Please, be sure that you do not have any overlapping channels in order to control each Infinity correctly.
If two or more Infinity’s are addressed similarly, they will work similarly. For address settings, please refer to
the instructions under ”Addressing’.
Controlling:
After having addressed all Infinity fixtures, you may now start operating these via your lighting controller.
Note: After switching on, the Infinity will automatically detect whether DMX 512 data is received or not. If
there is no data received at the DMX-input, the “LED“ on the control panel will not flash.
The problem may be:
The XLR cable from the controller is not connected with the input of the Infinity.
The controller is switched off or defective, the cable or connector is detective, or the signal wires are
swapped in the input connector.
Note: It’s necessary to insert a XLR termination plug (with 120 Ohm) in the last fixture in order to ensure
proper transmission on the DMX data link.
When no button is pressed for 40 seconds, the display will turn off.
To light up the display, you have to press any of the buttons on the control panel.
Once you have pressed the button, the display will light up.
13
Page 15
Ordercode: 41502
Infinity iS-250

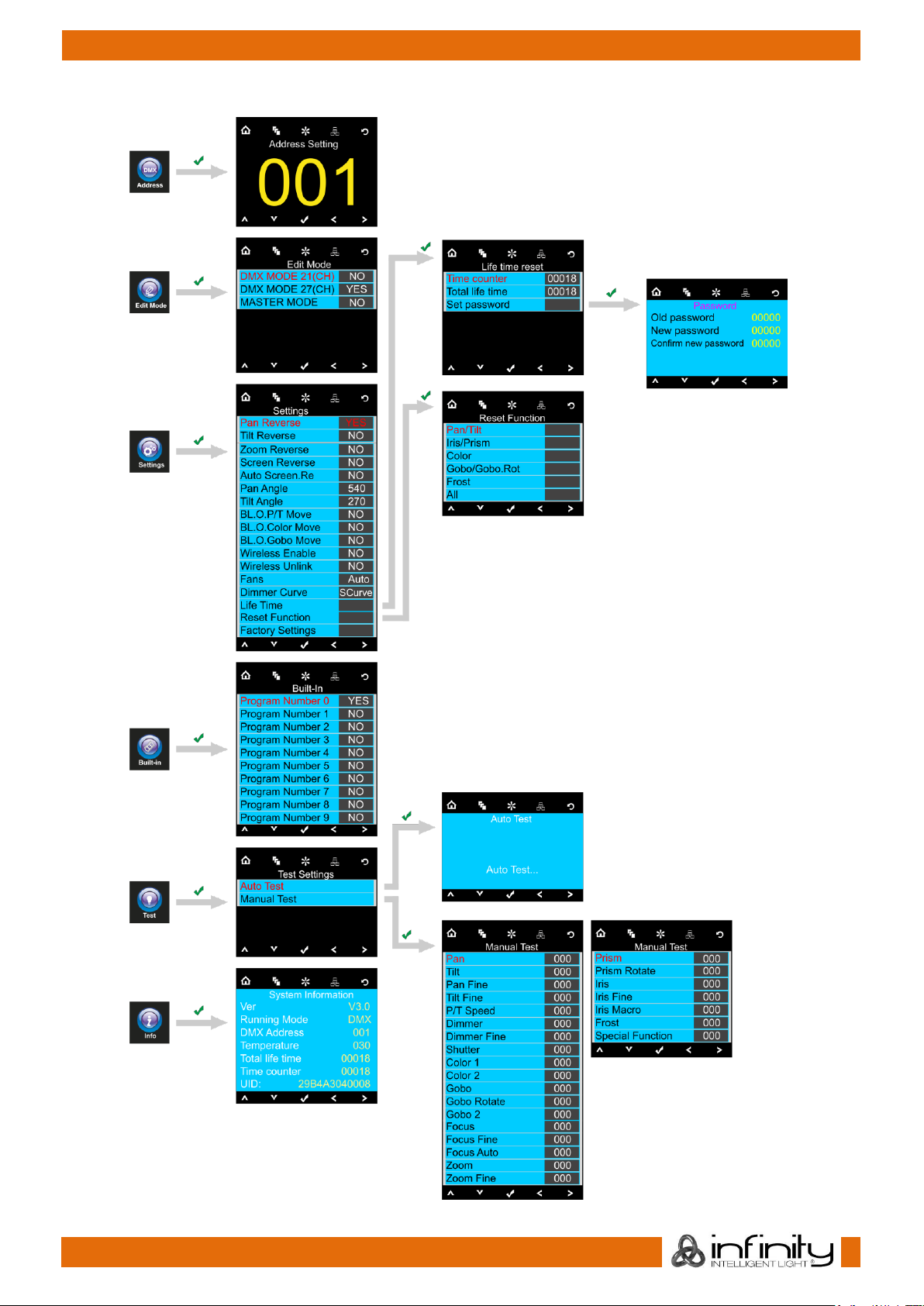

Menu Overview
14
Page 16
Ordercode: 41502
Infinity iS-250

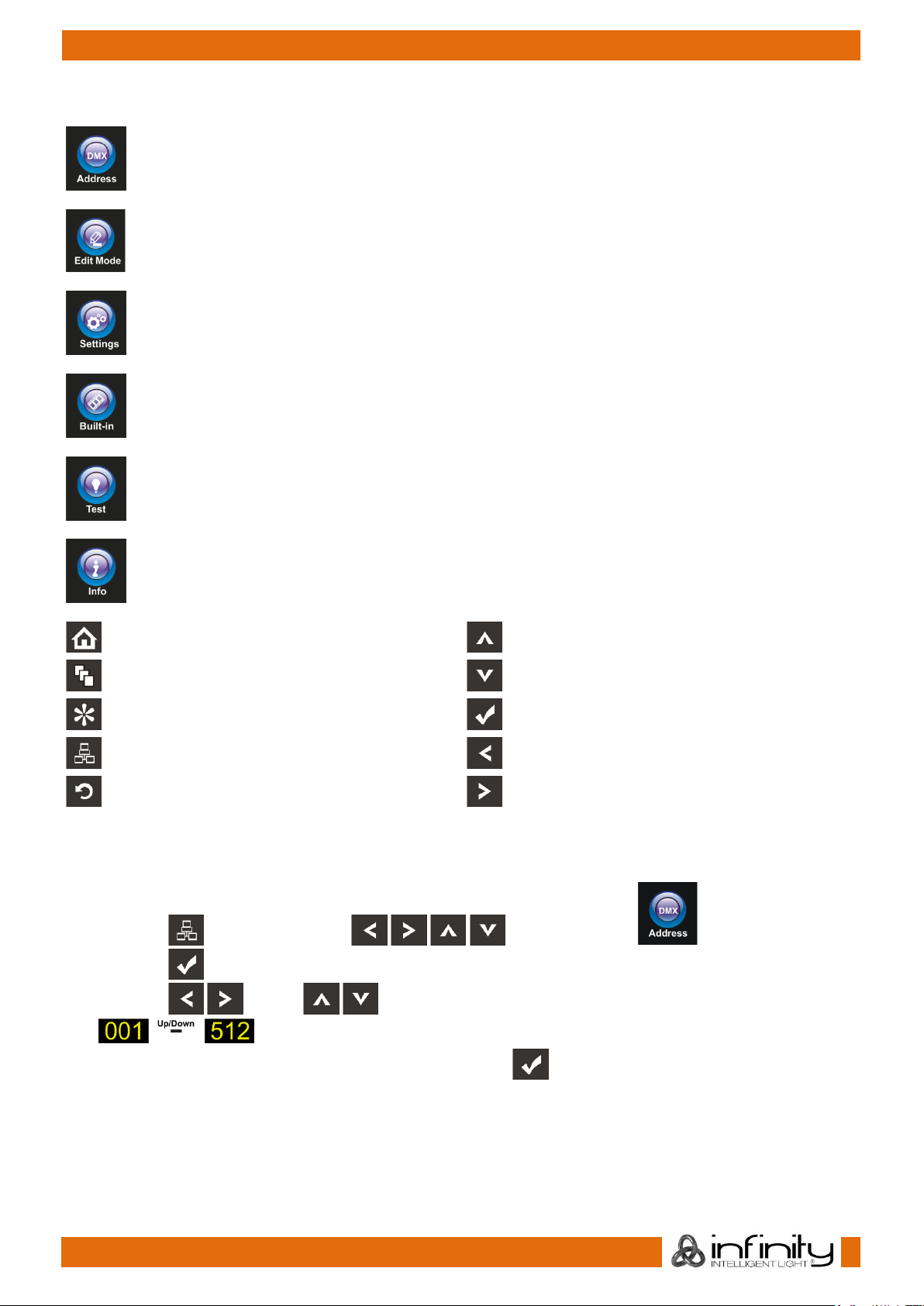

DMX address
Edit Mode
Settings Menu
Built-in Programs
Test Mode
Info
Home
Up
Edit Menu
Down
Setting Mode
OK
Address Setting
Left
Infinity Logo
Right
Main Menu Options
1. DMX Addressing
With this menu you can set the DMX address.
01) Press the button or press the buttons to select .
02) Press the button, to confirm. You can choose from 512 different DMX addresses.
Press the and/or buttons to select the required address from
.
03) Once you have set the desired DMX address, press the button to store.
15
Page 17
Ordercode: 41502
Infinity iS-250

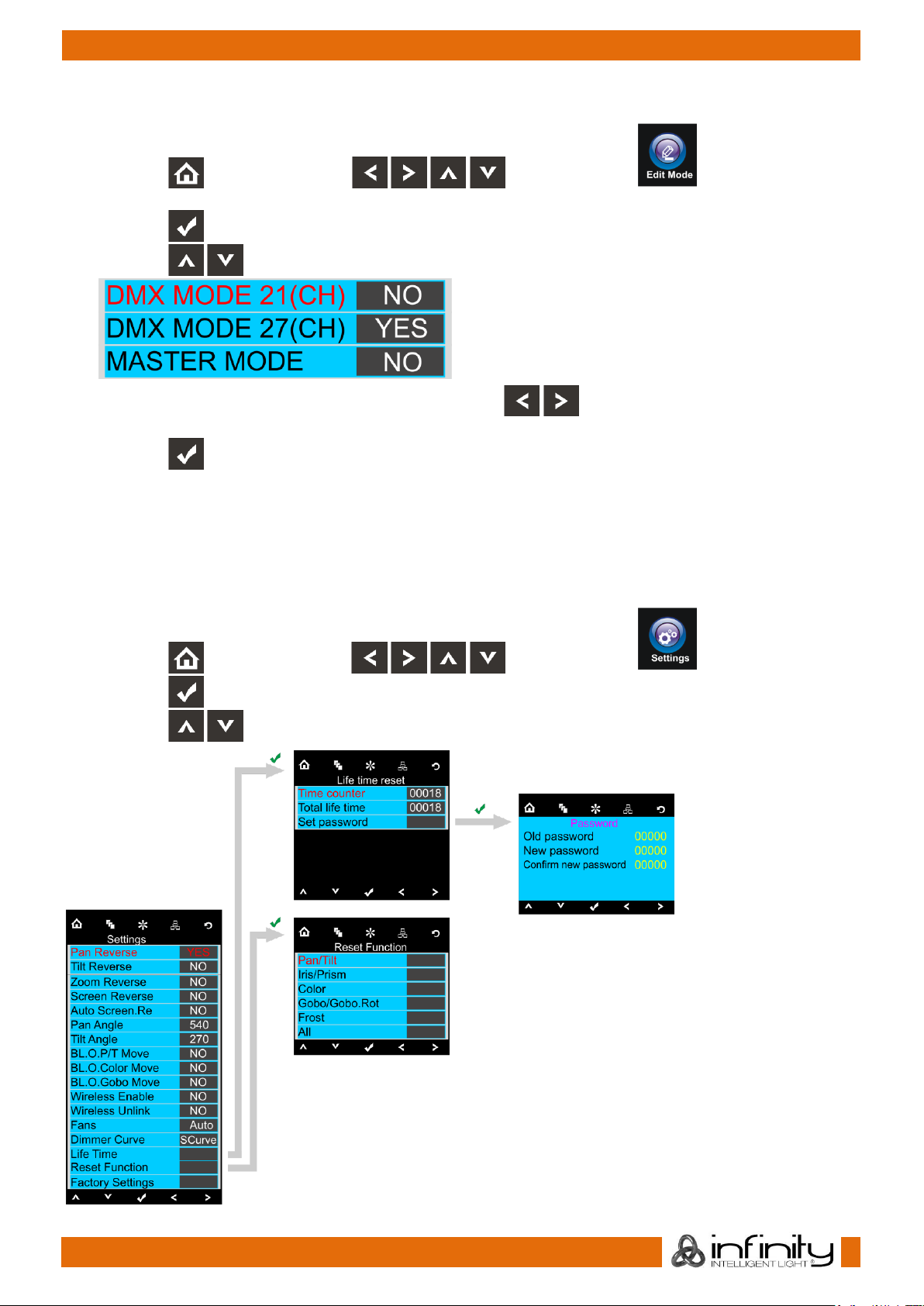

2. Edit Mode
With this menu you can set your desired mode.
01) Press the button or press the buttons to select .
02) Press the button, to confirm. You can choose from 3 different modes.
03) Press the buttons to select the required channel mode:
04) Once you have selected the desired mode, press the buttons to change the value from
NO to YES.
05) Press the button to confirm your choice.
06) If the device has been set to Master mode, all the connected slave devices will act the same as the
master device.
07) If the device has been set to slave, it will react the same as its master device.
3. Settings Menu
With this menu you can set your desired mode.
01) Press the button or press the buttons to select .
02) Press the button, to enter the menu. You can choose from 17 different modes.
03) Press the buttons to select the required mode:
16
Page 18
Ordercode: 41502
Infinity iS-250
04) Once you have selected the desired mode, press the button to proceed to edition.
05) Press the buttons to change the value from NO to YES.
06) Some of the available menus have different options to the regular YES or NO function:
Pan Angle: 540°, 360°, 180°
Tilt Angle: 270°, 180°, 90°
Fans: Auto, Silent, Full
Dimmer Curve: SCurve, I Square, Square, Linear
3.1. Life Time
With this menu you can reset the device’s counters.
01) Press the buttons to select Life Time and press the button to open the menu.
02) Press the buttons to choose one of the 3 reset options:
Time Counter (the time counter will be reset)
Total Life Time (the device’s operation time counter will be reset)
Set Password
03) If you select Time Counter or Total Life Time, press the button to open the choice selection.
04) Press the buttons to choose either YES or NO. Press the button to confirm.

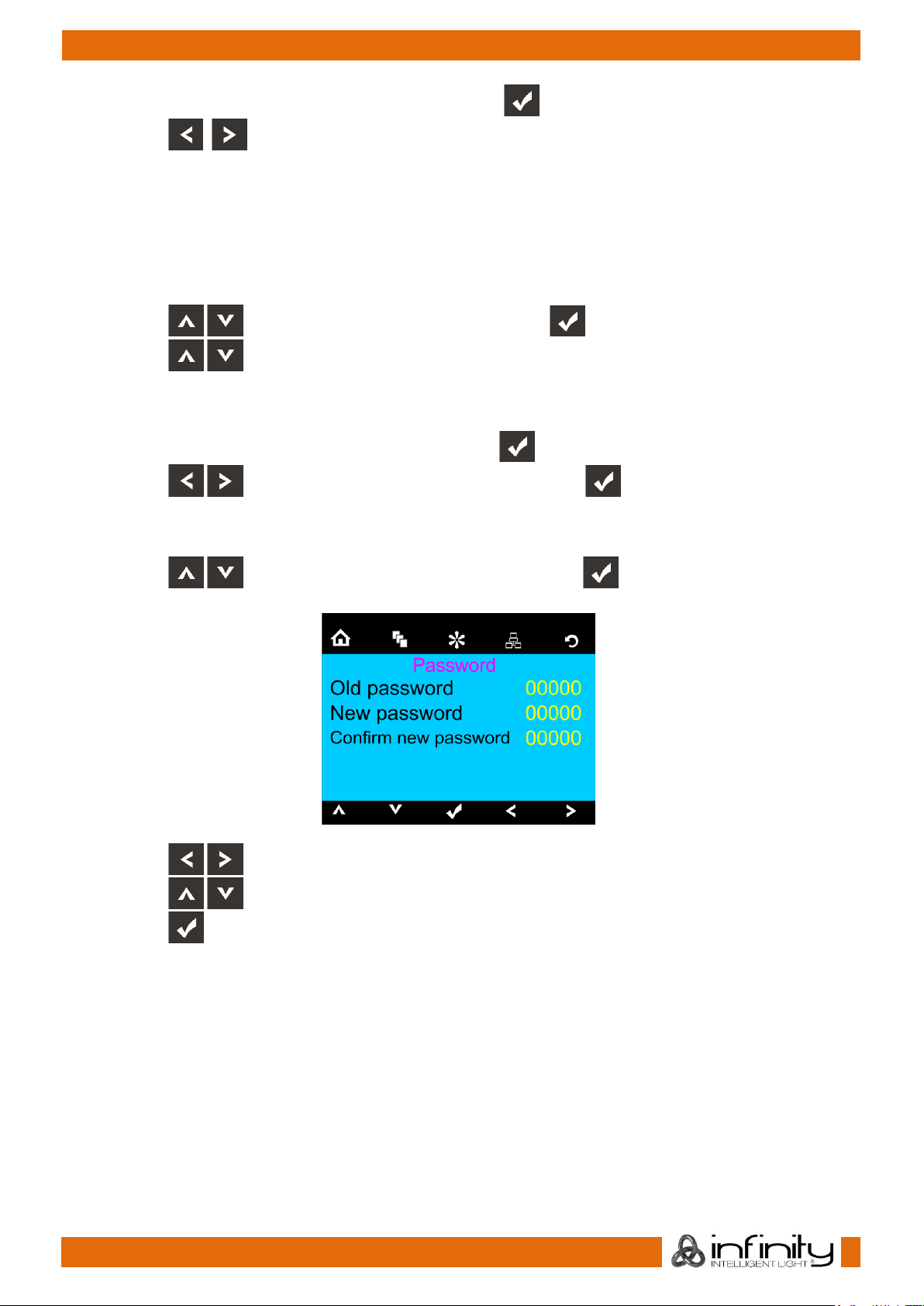

3.1.1. Set Password
With this menu you can set the new password for the device.
01) Press the buttons to select Set Password and press the button to open the menu.
02) The following screen will pop up:
03) Press the buttons to select the digit which you want to edit.
04) Press the buttons to adjust the values.
05) Press the button to confirm.
17
Page 19
Ordercode: 41502
Infinity iS-250
3.2. Reset
With this menu you can reset the device’s settings.
01) In Settings menu, press the buttons to select Reset Function and press the button to
open the menu.
02) Press the buttons to choose one of the 2 options:
Pan/Tilt (reset Pan/Tilt)
Iris/Prism (reset iris/prism)
Color (reset colors)
Gobo/Gobo.Rot (reset gobos)
Frost (reset frost effect)
All (restore default settings)
03) Once you have chosen the desired option, press the button to proceed to edition.
04) Press the buttons to choose between YES or NO.
05) Press the button to confirm your choice.
3.3. Factory Settings
With this menu you can perform a complete reset of the device’s settings.
01) In Settings menu, press the buttons to select Factory Settings and press the button to
open the menu.
02) Press the buttons to choose either YES or NO.
03) Press the button to confirm.

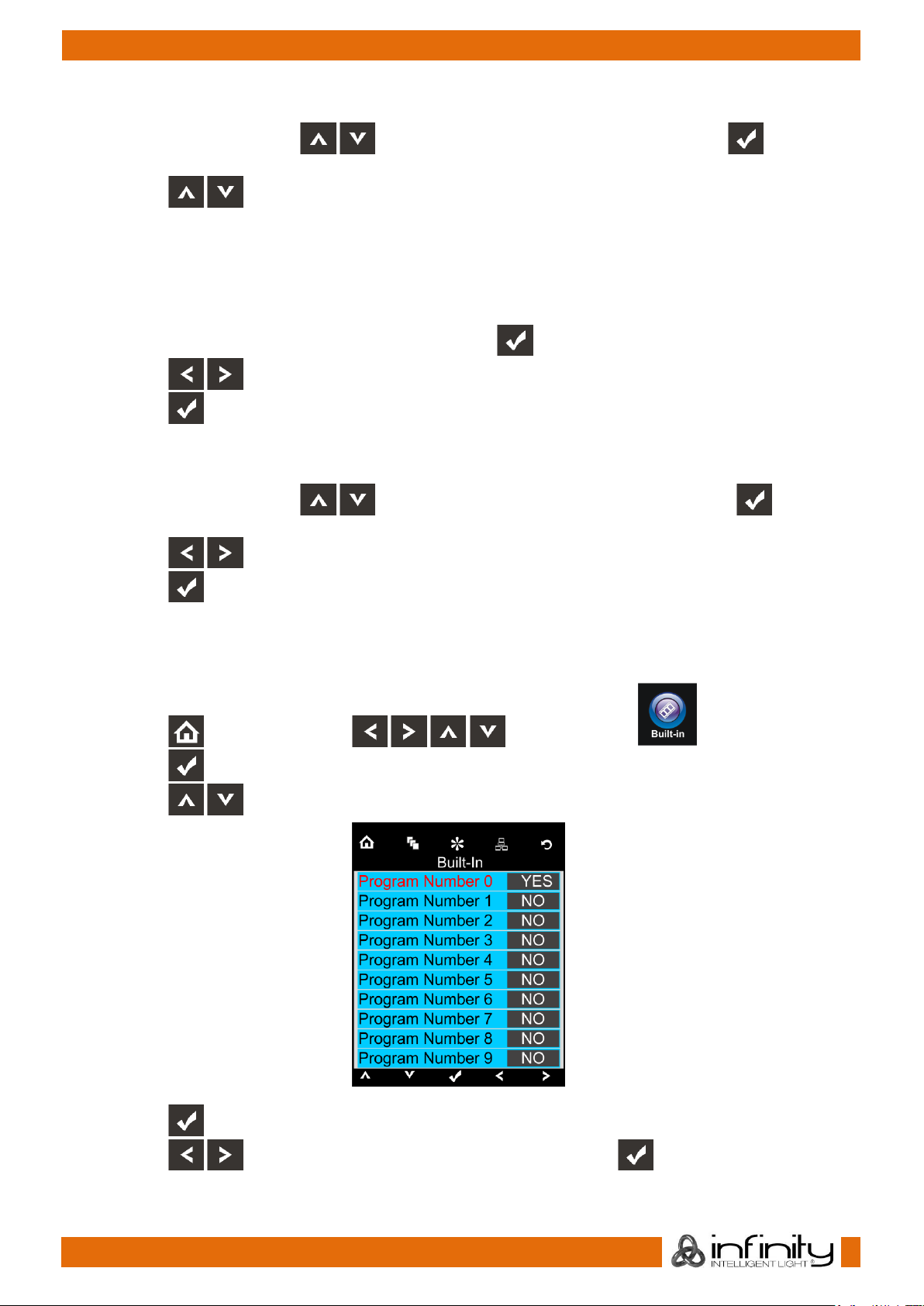

4. Built-in Programs
With this menu you can set your desired built-in program.
01) Press the button or press the buttons to select .
02) Press the button to enter the menu.
03) Press the buttons to select the desired built-in program.
04) Press the button to confirm your choice.
05) Press the buttons to choose either YES or NO and press the button to confirm your
choice.
06) The device will now run the chosen built-in program.
18
Page 20
Ordercode: 41502
Infinity iS-250

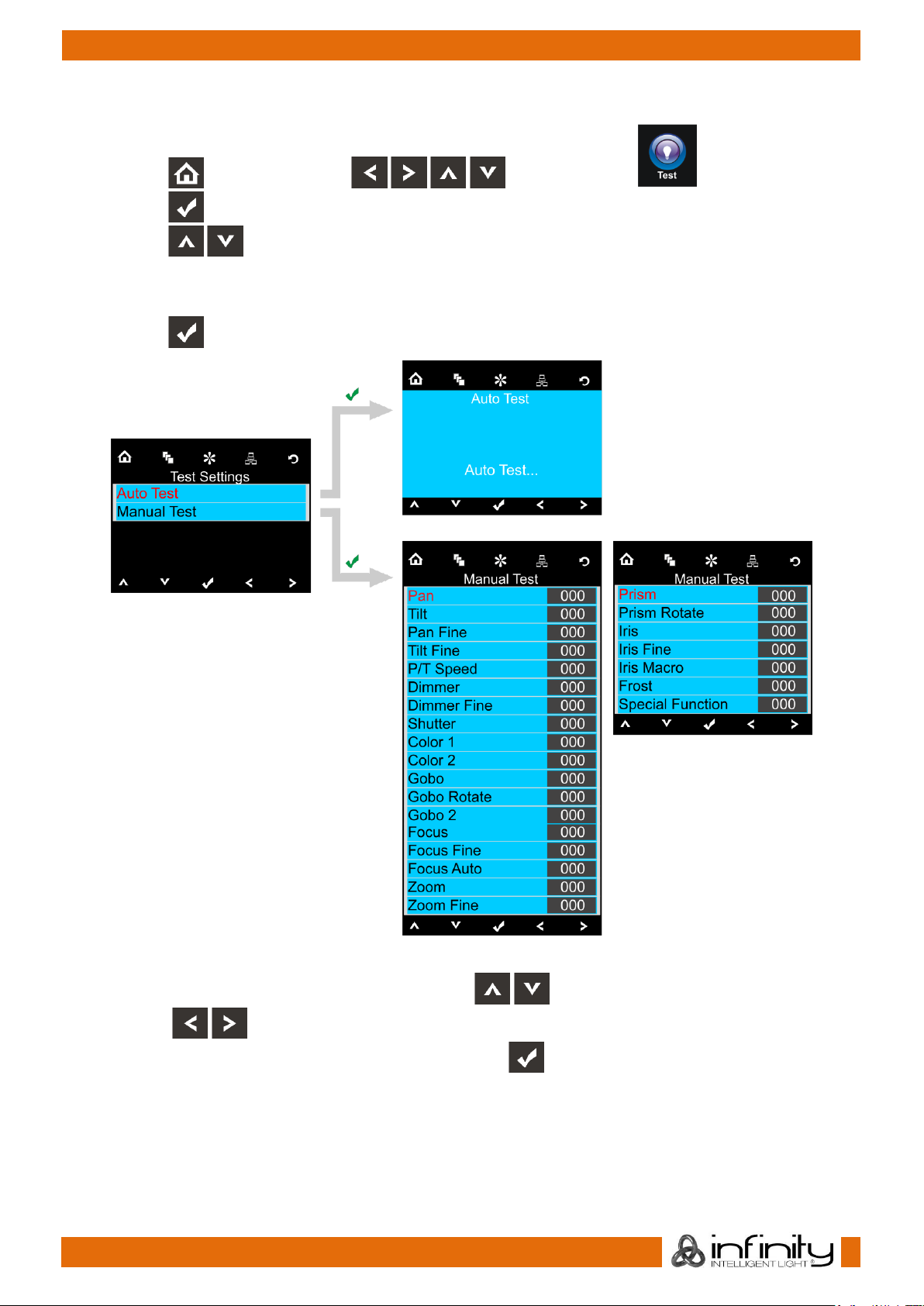

5. Test Menu
With this menu you can test the device’s functions.
01) Press the button or press the buttons to select .
02) Press the button to enter the menu.
03) Press the buttons to choose one of the 2 modes:
Auto Test
Manual Test
04) Press the to confirm your choice.
05) If you have selected Auto Test mode, the device will automatically test all its functions.
06) If you have selected Manual Test mode, press the buttons to select the desired option.
07) Press the buttons to change the values from 0 to 255.
08) Once you have adjusted the desired setting, press the button to store changes.
19
Page 21
Ordercode: 41502
Infinity iS-250

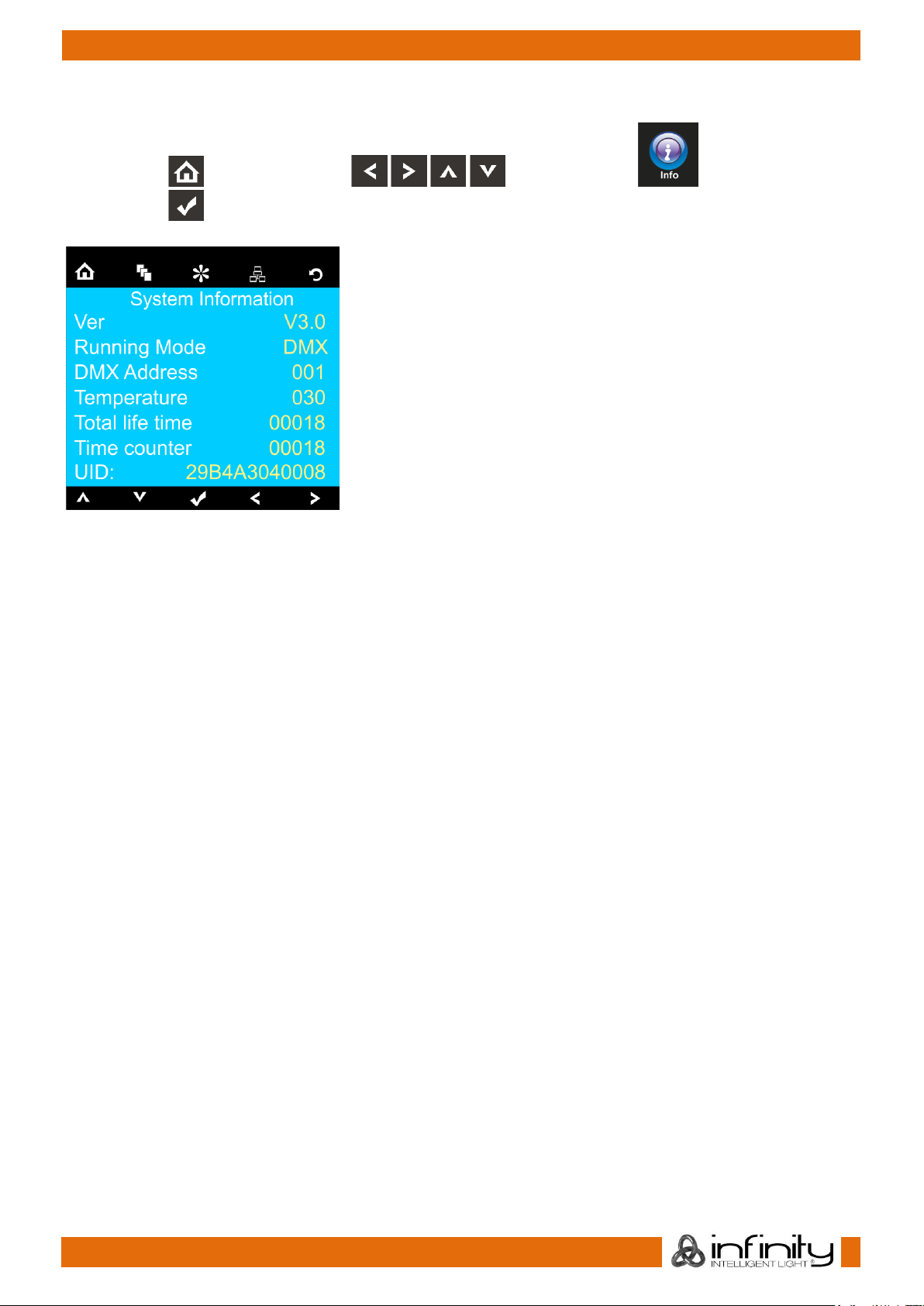

6. System information
With this menu you can set your desired mode.
01) Press the button or press the buttons to select .
02) Press the button to enter the menu.
03) The display will show:
04) You can now view the device’s current software version, current active mode, current DMX starting
address, device’s temperature, total life time counter, time counter and the UID number.
20
Page 22
Ordercode: 41502
Infinity iS-250
Channel 5 – PAN/TILT Speed
0-255
From fast to slow
Channel 6 – Dimmer
0-255
Dimmer intensity, from dark to brightest
Channel 7 – Dimmer fine
0-255
Dimmer intensity, from dark to brightest
Channel 8 – Shutter/Strobe Dimmer must be open
0-7
Shutter closed
8-15
Shutter open
16-131
Synchronized strobe, from low to high frequency
132-167
Fast off/slow on, from low to high frequency
168-203
Slow off/fast on, from low to high frequency
204-239
Pulse strobe, from low to high frequency
240-250
Random strobe, from low to high frequency
251-255
Shutter open

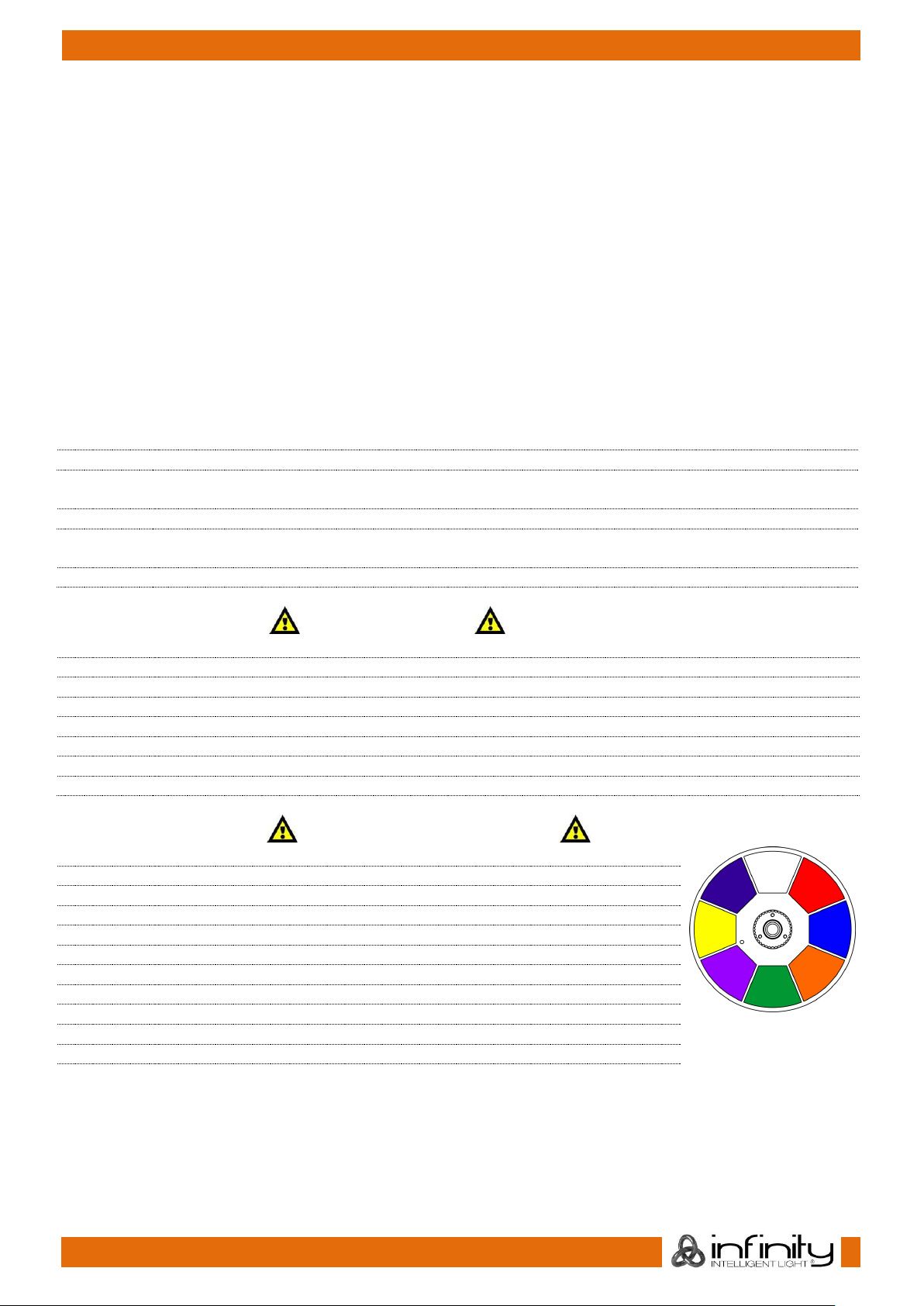

Channel 9 – Color wheel 1 Dimmer and shutter must be open
0-6
Open/White
7-13
Color 1
14-20
Color 2
21-27
Color 3
28-34
Color 4
35-41
Color 5
42-48
Color 6
49-59
Color 7
60-187
Split colors (gradual color wheel adjustment)
188-219
Counterclockwise rotation, from slow to fast
220-255
Clockwise rotation, from slow to fast

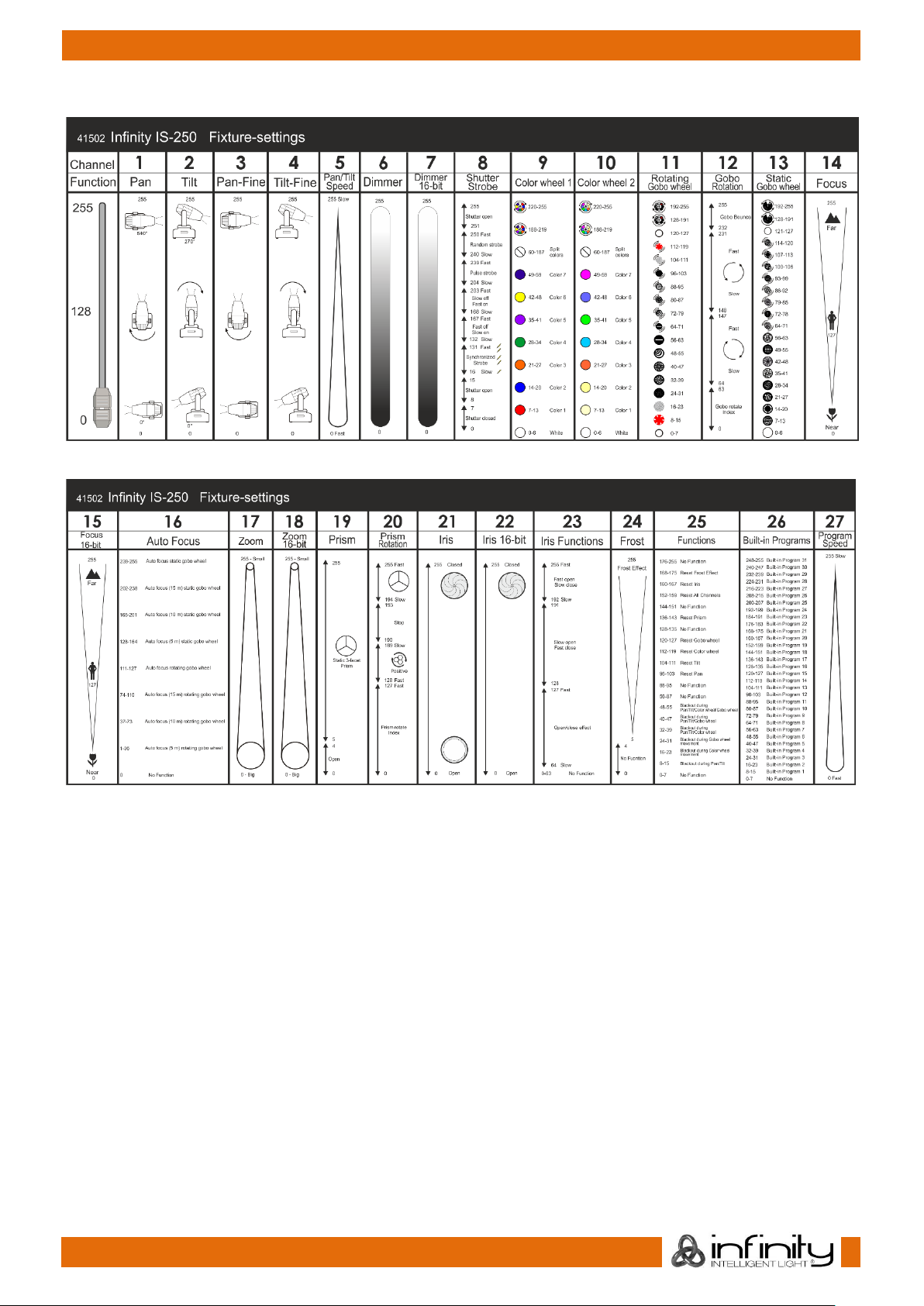

DMX Channels
27 channels
Channel 1 – Horizontal movement (Pan)
Move the slider up, in order to move head horizontally (PAN).
Gradual head adjustment from one end of the slider to the other (0-255, 128-center).
The head can be turned by 540° and stopped at any position you wish.
Channel 2 – Vertical movement (Tilt)
Move the slider up, in order to move head vertically (TILT).
Gradual head adjustment from one end of the slider to the other (0-255, 128-center).
The head can be turned by 270° and stopped at any position you wish.
Channel 3 – Pan fine 16-bit
Channel 4 – Tilt fine 16-bit
21
Page 23
Ordercode: 41502
Infinity iS-250

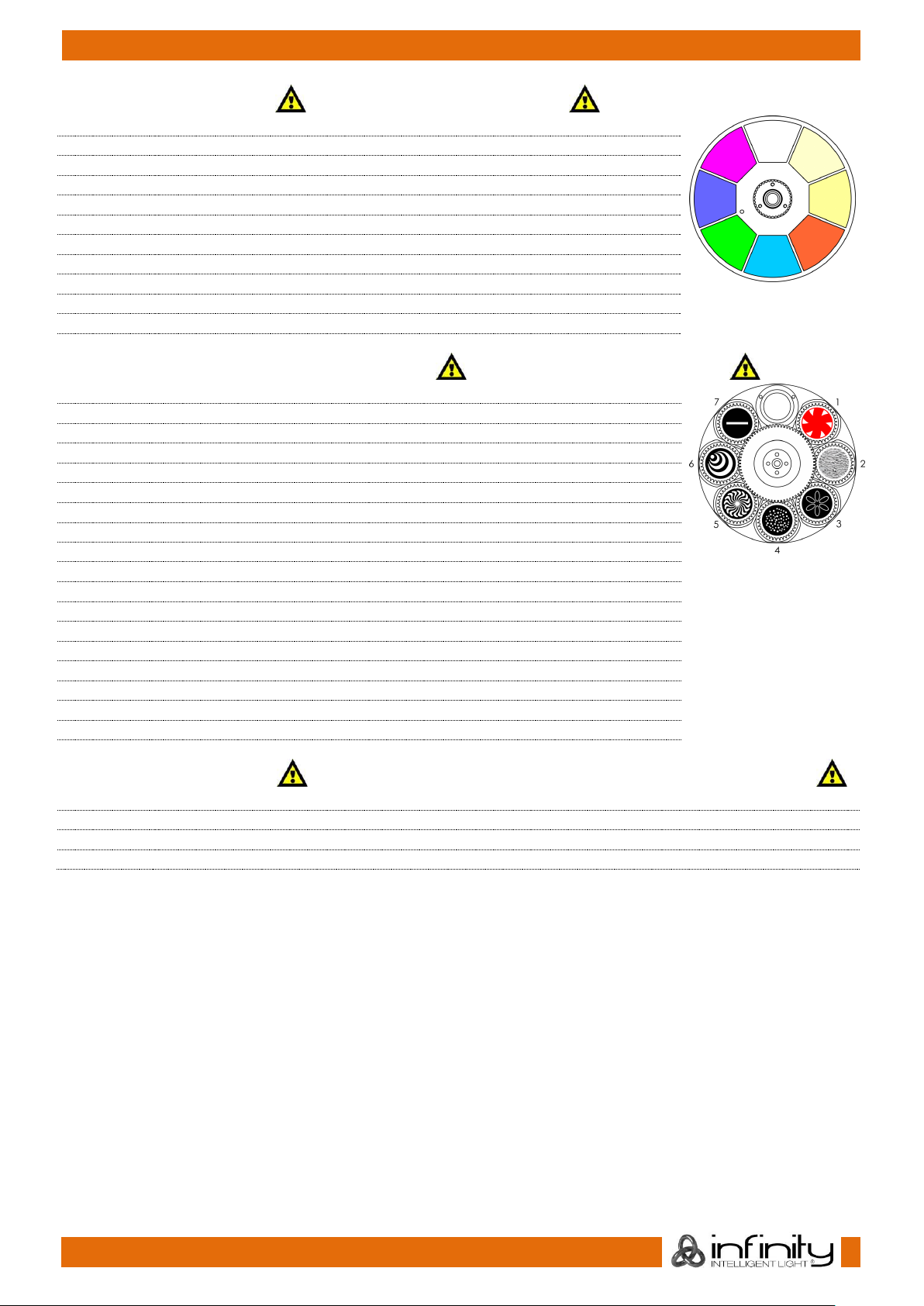

Channel 10 – Color wheel 2 Dimmer and shutter must be open
0-6
Open/White
7-13
Color 1 (½ CTO)
14-20
Color 2 (Full CTO)
21-27
Color 3
28-34
Color 4
35-41
Color 5
42-48
Color 6
49-59
Color 7
60-187
Split colors (gradual color wheel adjustment)
188-219
Counterclockwise rotation, from slow to fast
220-255
Clockwise rotation, from slow to fast
Channel 11 – Rotating gobo wheel + gobo shake Dimmer and shutter must be open
0-7
Open / White
8-15
Gobo 1
16-23
Gobo 2
24-31
Gobo 3
32-39
Gobo 4
40-47
Gobo 5
48-55
Gobo 6
56-63
Gobo 7
64-71
Gobo 7 shake effect, from slow to fast
72-79
Gobo 6 shake effect, from slow to fast
80-87
Gobo 5 shake effect, from slow to fast
88-95
Gobo 4 shake effect, from slow to fast
96-103
Gobo 3 shake effect, from slow to fast
104-111
Gobo 2 shake effect, from slow to fast
112-119
Gobo 1 shake effect, from slow to fast
120-127
Open / White
128-191
Counterclockwise rotation rainbow effect, from slow to fast
192-255
Clockwise rotation rainbow effect, from slow to fast
Channel 12 – Gobo rotation Dimmer and shutter must be open, CH11 must be set between 8-63
0-63
Gobo indexing
64-147
Clockwise rotation, from slow to fast
148-231
Counterclockwise rotation, from slow to fast
232-255
Gobo wheel bounce effect, from small to big amplitude
22
Page 24
Ordercode: 41502
Infinity iS-250

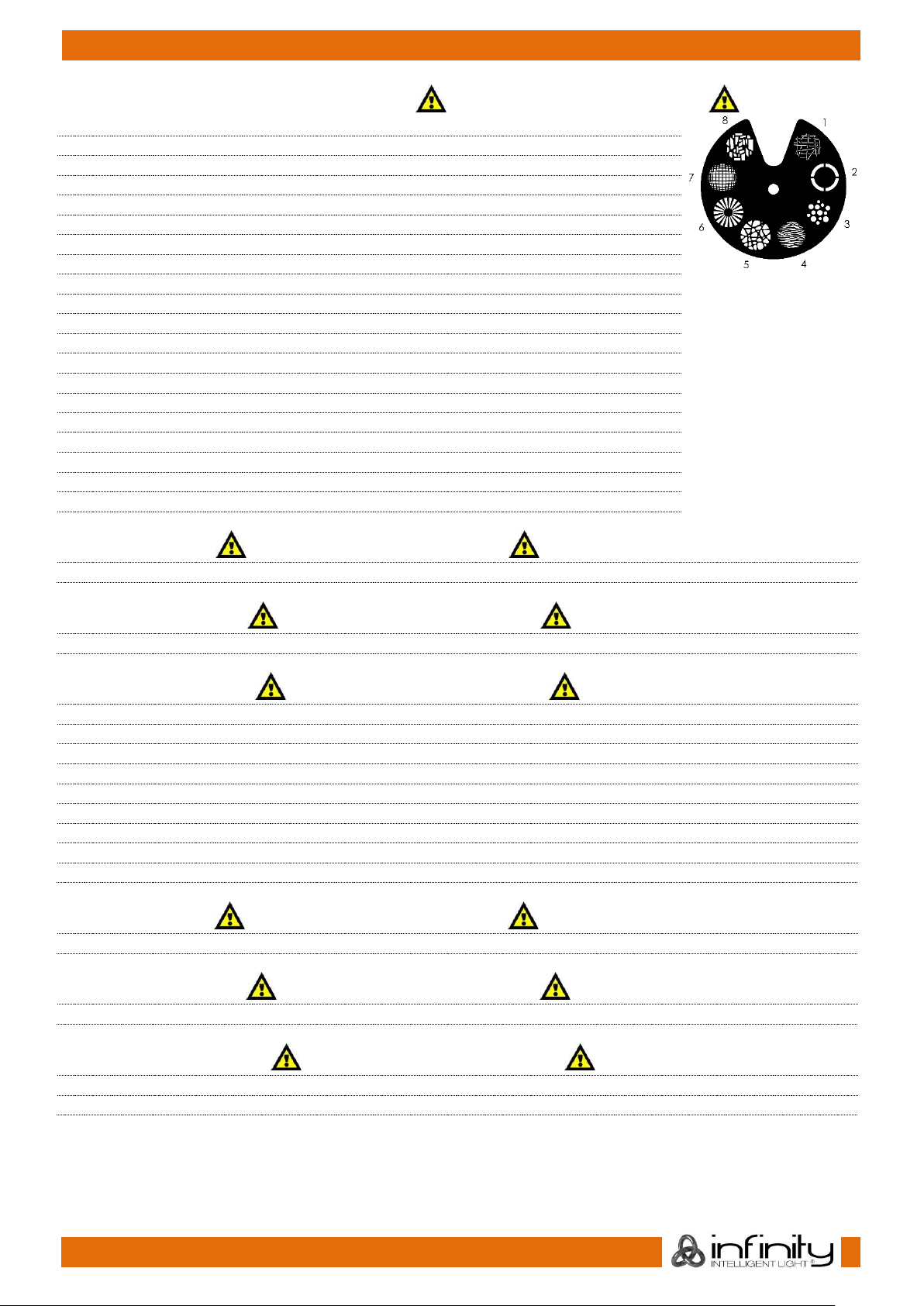

Channel 13 – Static gobo wheel + gobo shake Dimmer and shutter must be open
0-6
Open / White
7-13
Gobo 1
14-20
Gobo 2
21-27
Gobo 3
28-34
Gobo 4
35-41
Gobo 5
42-48
Gobo 6
49-55
Gobo 7
56-63
Gobo 8
64-71
Gobo 8 shake effect, from slow to fast
72-78
Gobo 7 shake effect, from slow to fast
79-85
Gobo 6 shake effect, from slow to fast
86-92
Gobo 5 shake effect, from slow to fast
93-99
Gobo 4 shake effect, from slow to fast
100-106
Gobo 3 shake effect, from slow to fast
107-113
Gobo 2 shake effect, from slow to fast
114-120
Gobo 1 shake effect, from slow to fast
121-127
Open / White
128-191
Counterclockwise rotation rainbow effect, from slow to fast
192-255
Clockwise rotation rainbow effect, from slow to fast
Channel 14 – Focus Dimmer and shutter must be open
0-255
Continuous adjustment
Channel 15 – Focus fine Dimmer and shutter must be open
0-255
Fine adjustment
Channel 16 – Auto Focus Dimmer and shutter must be open
0
Not functional
1-36
Auto focus (5 m) rotating gobo wheel
37-73
Auto focus (10 m) rotating gobo wheel
74-110
Auto focus (15 m) rotating gobo wheel
111-127
Auto focus rotating gobo wheel
128-164
Auto focus (5 m) static gobo wheel
165-201
Auto focus (10 m) static gobo wheel
202-238
Auto focus (15 m) static gobo wheel
239-255
Auto focus static gobo wheel
Channel 17 – Zoom Dimmer and shutter must be open
0-255
Gradual adjustment, from big to small
Channel 18 – Zoom fine Dimmer and shutter must be open
0-255
Fine adjustment, from big to small
Channel 19 – 3-facet prism Dimmer and shutter must be open
0-4
Not functional
5-255
3-facet prism ON
23
Page 25
Ordercode: 41502
Infinity iS-250
Channel 20 – Prism rotation Dimmer and shutter must be open and CH19 set between 5-255
0-127
Prism indexing
128-189
Clockwise rotation, from fast to slow
190-193
Not functional
194-255
Counterclockwise rotation, from slow to fast
Channel 21 – Iris Dimmer and shutter must be open
0-255
Gradual adjustment, from open to closed
Channel 22 – Iris fine Dimmer and shutter must be open
0-255
Fine adjustment
Channel 23 – Iris functions Dimmer and shutter must be open
0-63
Not functional
64-127
Open/close effect, from slow to fast
128-191
Slow open/fast close effect, from slow to fast
192-255
Fast open/slow close effect, from slow to fast
Channel 24 – Frost Dimmer and shutter must be open
0-4
Not functional
5-255
Frost effect, from 0-100%
Channel 25 – Functions
0-7
Not functional
8-15
Blackout during Pan/Tilt movement
16-23
Blackout during color wheel movement
24-31
Blackout during gobo wheel movement
32-39
Blackout during Pan/Tilt/color wheel movement
40-47
Blackout during Pan/Tilt/gobo wheel movement
48-55
Blackout during Pan/Tilt/color wheel movement/gobo wheel movement
56-87
Not functional
88-95
Not functional
96-103
Reset pan
104-111
Reset tilt
112-119
Reset color wheel
120-127
Gobo wheel reset
128-135
Not functional
136-143
Reset prism
144-151
Not functional
152-159
Reset all channels
160-167
Reset iris
168-175
Reset frost
176-255
Not functional
Channel 26 – Built-in programs Dimmer and shutter must be open
0-7
Not functional
8-15
Built-in program 1
16-23
Built-in program 2
24-31
Built-in program 3
32-39
Built-in program 4
40-47
Built-in program 5
48-55
Built-in program 6
56-63
Built-in program 7
64-71
Built-in program 8
24
Page 26
Ordercode: 41502
Infinity iS-250
72-79
Built-in program 9
80-87
Built-in program 10
88-95
Built-in program 11
96-103
Built-in program 12
104-111
Built-in program 13
112-119
Built-in program 14
120-127
Built-in program 15
128-135
Built-in program 16
136-143
Built-in program 17
144-151
Built-in program 18
152-159
Built-in program 19
160-167
Built-in program 20
168-175
Built-in program 21
176-183
Built-in program 22
184-191
Built-in program 23
192-199
Built-in program 24
200-207
Built-in program 25
208-215
Built-in program 26
216-223
Built-in program 27
224-231
Built-in program 28
232-239
Built-in program 29
240-247
Built-in program 30
248-255
Built-in program 31
Channel 27 – Built-in program speed CH26 must be set between 8-255
0-255
Program speed adjustment, from fast to slow
Channel 5 – PAN/TILT Speed
0-255
From fast to slow
Channel 6 – Dimmer
0-255
Dimmer intensity, from dark to brightest
21 channels
Channel 1 – Horizontal movement (Pan)
Move the slider up, in order to move head horizontally (PAN).
Gradual head adjustment from one end of the slider to the other (0-255, 128-center).
The head can be turned by 540° and stopped at any position you wish.
Channel 2 – Vertical movement (Tilt)
Move the slider up, in order to move head vertically (TILT).
Gradual head adjustment from one end of the slider to the other (0-255, 128-center).
The head can be turned by 270° and stopped at any position you wish.
Channel 3 – Pan fine 16-bit
Channel 4 – Tilt fine 16-bit
25
Page 27
Ordercode: 41502
Infinity iS-250

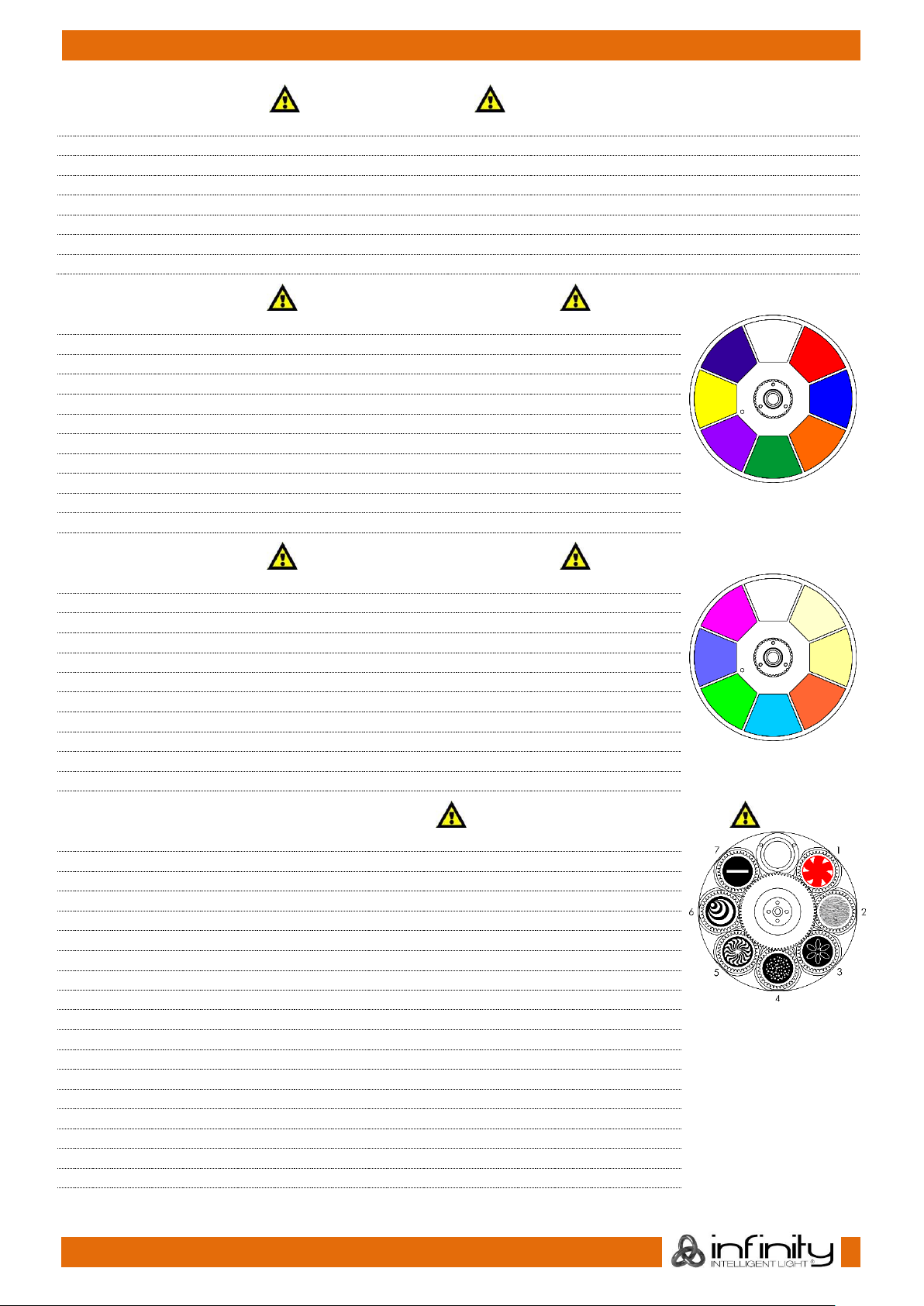

Channel 7 – Shutter/Strobe Dimmer must be open
0-7
Shutter closed
8-15
Shutter open
16-131
Synchronized strobe, from low to high frequency
132-167
Fast off/slow on, from low to high frequency
168-203
Slow off/fast on, from low to high frequency
204-239
Pulse strobe, from low to high frequency
240-250
Random strobe, from low to high frequency
251-255
Shutter open
Channel 8 – Color wheel 1 Dimmer and shutter must be open
0-6
Open/White
7-13
Color 1
14-20
Color 2
21-27
Color 3
28-34
Color 4
35-41
Color 5
42-48
Color 6
49-59
Color 7
60-187
Split colors (gradual color wheel adjustment)
188-219
Counterclockwise rotation, from slow to fast
220-255
Clockwise rotation, from slow to fast
Channel 9 – Color wheel 2 Dimmer and shutter must be open
0-6
Open/White
7-13
Color 1 (½ CTO)
14-20
Color 2 (Full CTO)
21-27
Color 3
28-34
Color 4
35-41
Color 5
42-48
Color 6
49-59
Color 7
60-187
Split colors (gradual color wheel adjustment)
188-219
Counterclockwise rotation, from slow to fast
220-255
Clockwise rotation, from slow to fast
Channel 10 – Rotating gobo wheel + gobo shake Dimmer and shutter must be open
0-7
Open / White
8-15
Gobo 1
16-23
Gobo 2
24-31
Gobo 3
32-39
Gobo 4
40-47
Gobo 5
48-55
Gobo 6
56-63
Gobo 7
64-71
Gobo 7 shake effect, from slow to fast
72-79
Gobo 6 shake effect, from slow to fast
80-87
Gobo 5 shake effect, from slow to fast
88-95
Gobo 4 shake effect, from slow to fast
96-103
Gobo 3 shake effect, from slow to fast
104-111
Gobo 2 shake effect, from slow to fast
112-119
Gobo 1 shake effect, from slow to fast
120-127
Open / White
128-191
Counterclockwise rotation rainbow effect, from slow to fast
192-255
Clockwise rotation rainbow effect, from slow to fast
26
Page 28
Ordercode: 41502
Infinity iS-250
Channel 11 – Gobo rotation Dimmer and shutter must be open, CH10 must be set between 8-63
0-63
Gobo indexing
64-147
Clockwise rotation, from slow to fast
148-231
Counterclockwise rotation, from slow to fast
232-255
Gobo wheel bounce effect, from small to big amplitude

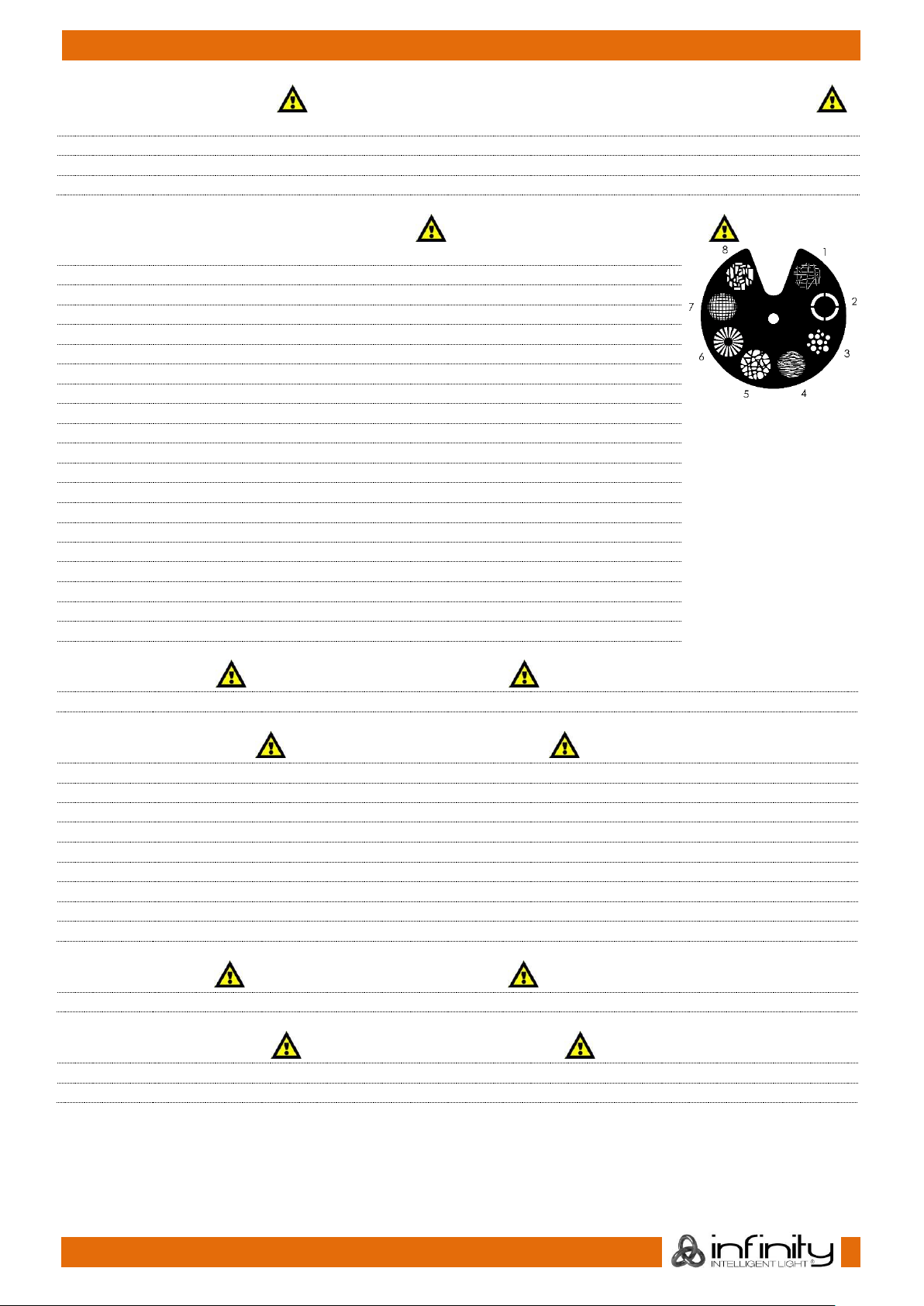

Channel 12 – Static gobo wheel + gobo shake Dimmer and shutter must be open
0-6
Open / White
7-13
Gobo 1
14-20
Gobo 2
21-27
Gobo 3
28-34
Gobo 4
35-41
Gobo 5
42-48
Gobo 6
49-55
Gobo 7
56-63
Gobo 8
64-71
Gobo 8 shake effect, from slow to fast
72-78
Gobo 7 shake effect, from slow to fast
79-85
Gobo 6 shake effect, from slow to fast
86-92
Gobo 5 shake effect, from slow to fast
93-99
Gobo 4 shake effect, from slow to fast
100-106
Gobo 3 shake effect, from slow to fast
107-113
Gobo 2 shake effect, from slow to fast
114-120
Gobo 1 shake effect, from slow to fast
121-127
Open / White
128-191
Counterclockwise rotation rainbow effect, from slow to fast
192-255
Clockwise rotation rainbow effect, from slow to fast
Channel 13 – Focus Dimmer and shutter must be open
0-255
Continuous adjustment
Channel 14 – Auto Focus Dimmer and shutter must be open
0
Not functional
1-36
Auto focus (5 m) rotating gobo wheel
37-73
Auto focus (10 m) rotating gobo wheel
74-110
Auto focus (15 m) rotating gobo wheel
111-127
Auto focus rotating gobo wheel
128-164
Auto focus (5 m) static gobo wheel
165-201
Auto focus (10 m) static gobo wheel
202-238
Auto focus (15 m) static gobo wheel
239-255
Auto focus static gobo wheel
Channel 15 – Zoom Dimmer and shutter must be open
0-255
Gradual adjustment, from big to small
Channel 16 – 3-facet prism Dimmer and shutter must be open
0-4
Not functional
5-255
3-facet prism ON
27
Page 29
Ordercode: 41502
Infinity iS-250
Channel 17 – Prism rotation Dimmer and shutter must be open and CH16 set between 5-255
0-127
Prism indexing
128-189
Clockwise rotation, from fast to slow
190-193
Not functional
194-255
Counterclockwise rotation, from slow to fast
Channel 18 – Iris Dimmer and shutter must be open
0-255
Gradual adjustment, from open to closed
Channel 19 – Iris functions Dimmer and shutter must be open
0-63
Not functional
64-127
Open/close effect, from slow to fast
128-191
Slow open/fast close effect, from slow to fast
192-255
Fast open/slow close effect, from slow to fast
Channel 20 – Frost Dimmer and shutter must be open
0-4
Not functional
5-255
Frost effect, from 0-100%
Channel 21 – Functions
0-7
Not functional
8-15
Blackout during Pan/Tilt movement
16-23
Blackout during color wheel movement
24-31
Blackout during gobo wheel movement
32-39
Blackout during Pan/Tilt/color wheel movement
40-47
Blackout during Pan/Tilt/gobo wheel movement
48-55
Blackout during Pan/Tilt/color wheel movement/gobo wheel movement
56-87
Not functional
88-95
Not functional
96-103
Reset pan
104-111
Reset tilt
112-119
Reset color wheel
120-127
Gobo wheel reset
128-135
Not functional
136-143
Reset prism
144-151
Not functional
152-159
Reset all channels
160-167
Reset iris
168-175
Reset frost
176-255
Not functional
28
Page 30
Ordercode: 41502
Infinity iS-250
Fig. 06
Channel settings
29
Page 31
Ordercode: 41502
Infinity iS-250
Fig. 07
Maintenance
The Infinity iS-250 requires almost no maintenance. However, you should keep the unit clean. Otherwise,
the fixture’s light output will be significantly reduced. Disconnect the mains power supply and then wipe
the cover with a damp cloth. Wipe the front glass panel clean with glass cleaner and a soft cloth. Do not
use alcohol or solvents. The front glass panel will require weekly cleaning, as smoke-fluid tends to build up
residues, reducing the light output very quickly. Do not immerse in liquid.
The cooling fans, color wheel, the gobo wheel, the gobos and the internal lenses should be cleaned
monthly with a soft brush.
Please clean internal components once a year with a light brush and vacuum cleaner.
Keep connections clean. Disconnect electric power, and then wipe the DMX and audio connections
with a damp cloth. Make sure connections are thoroughly dry before linking equipment or supplying
electric power.
The operator has to make sure that safety-related and machine-technical installations are to be
inspected by an expert after every year in the course of an acceptance test.
The operator has to make sure that safety-related and machine-technical installations are to be
inspected by a skilled person once a year.
The following points have to be considered during the inspection:
01) All screws used for installing the device or parts of the device have to be tightly connected and must
not be corroded.
02) There may not be any deformations on housings, fixations and installation spots.
03) Mechanically moving parts like axles, eyes and others may not show any traces of wearing.
04) The electric power supply cables must not show any damages or material fatigue.
Replacing a Fuse
Power surges, short-circuit or inappropriate electrical power supply may cause a fuse to burn out. If the
fuse burns out, the product will not function whatsoever. If this happens, follow the directions below.
01) Unplug the unit from electric power source.
02) Insert a screwdriver into the slot in the fuse cover. Turn the screwdriver to the left, at the same time
gently push a bit (Turn and Push). The fuse will come out.
03) Remove the used fuse. If brown or unclear, it is burned out.
04) Insert the replacement fuse into the holder where the old fuse was. Reinsert the fuse cover. Be sure to
use a fuse of the same type and specification. See the product specification label for details.
Replacing a Gobo From the Rotating Gobo Wheel
01) Disconnect mains power supply and set the switch to OFF.
02) Make sure that the gobo you want to insert has the same size. For the right size, see below.
30
Page 32
Ordercode: 41502
Infinity iS-250

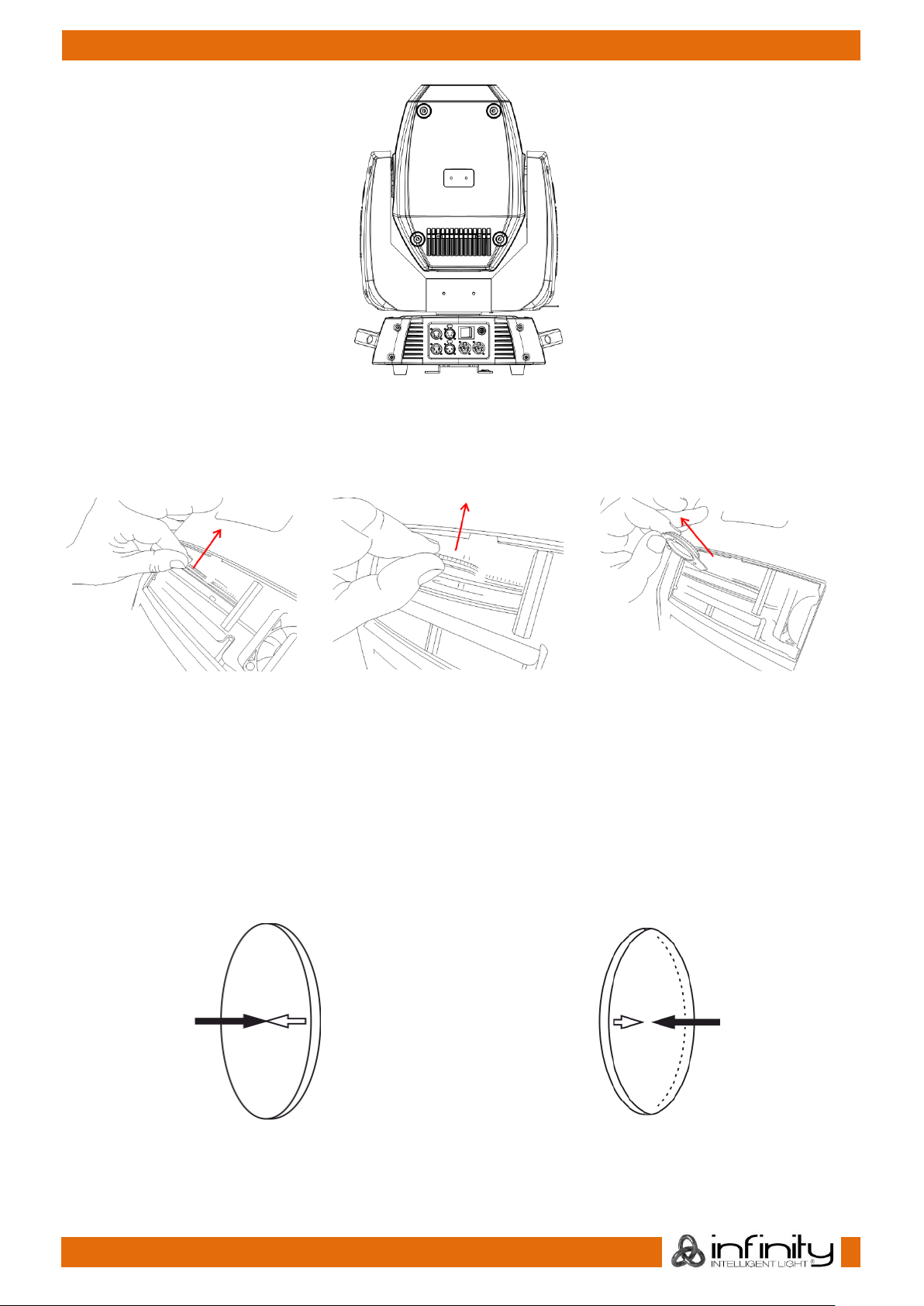

Fig. 08
Fig. 09
Coated side
Uncoated side
When an object is held up to the coated side
there is no space between the object and its
reflection. The back edge of the gobo cannot be
seen when looking through the coated side.
When an object is held up to the uncoated side
there is a space between the object and its
reflection. The back edge of the gobo can be
seen when looking through the uncoated side.
03) Remove the lamp cover by removing the 4 screws (see fig. 08).
04) Gently tilt the head so the small metal housing will slide out more easy.
05) Turn the gobo wheel, with the gobo you want to remove, to the upside.
06) Gently lift up the gobo holder 10º and then gently pull out the gobo from its position.
07) Very carefully take the gobo out of the gobo holder with a pair of pliers.
08) Place the new gobo in the gobo holder. Carefully put the pinchcock back, gently press the
pinchcock a little bit together. Possibly use a pair of pliers to press the pinchcock a little bit together.
09) Put the gobo holder back under the pressing snap and push it back.
10) Replace the maintenance caps and fasten all screws.

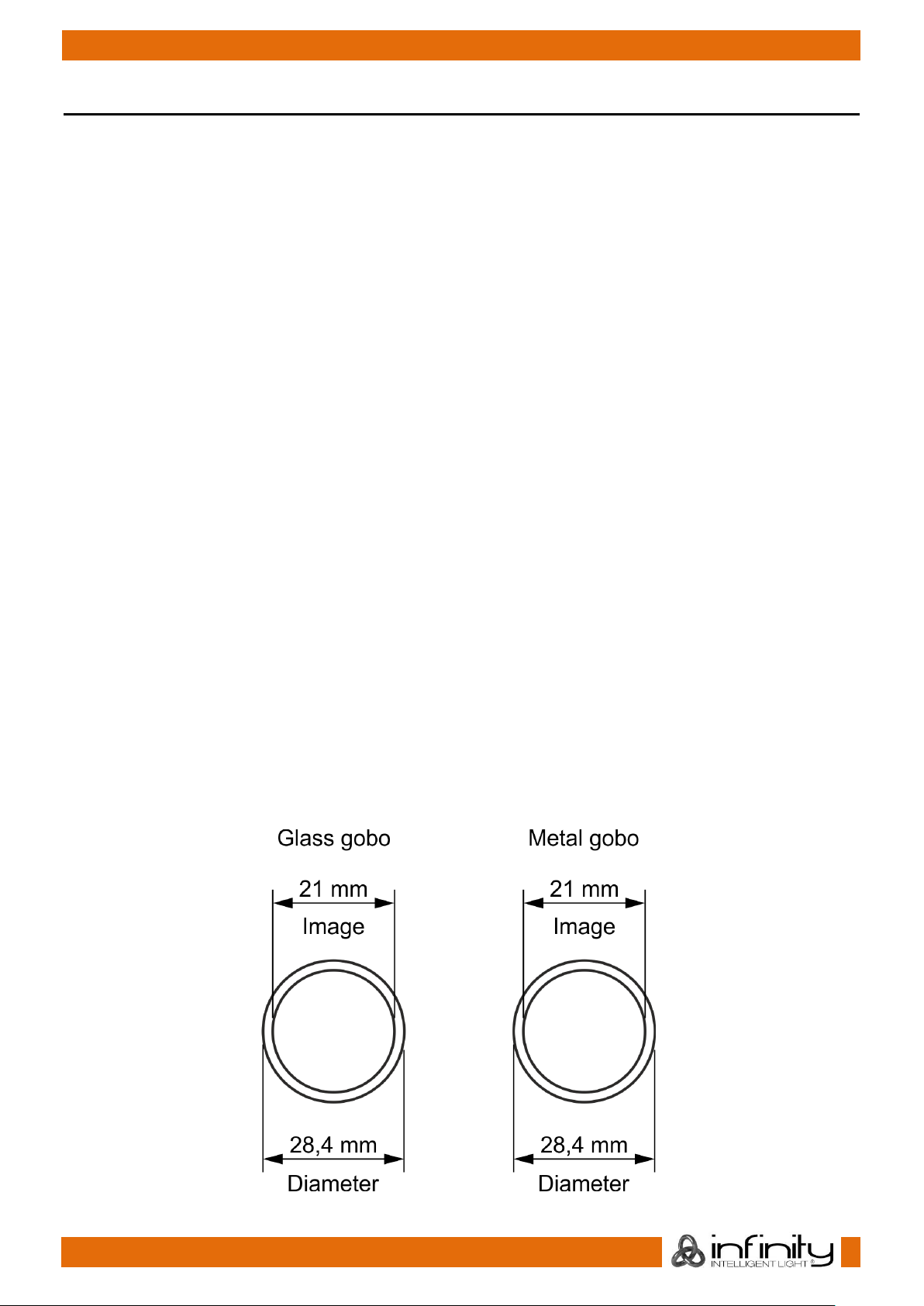

Glass Gobo Orientation
Coated glass gobos are inserted with the coating against the rim of the holder (away from the spring).
Textured gobos are inserted with the smooth side against the spring. This provides the best results when
combining rotating gobos.
31
Page 33
Ordercode: 41502
Infinity iS-250

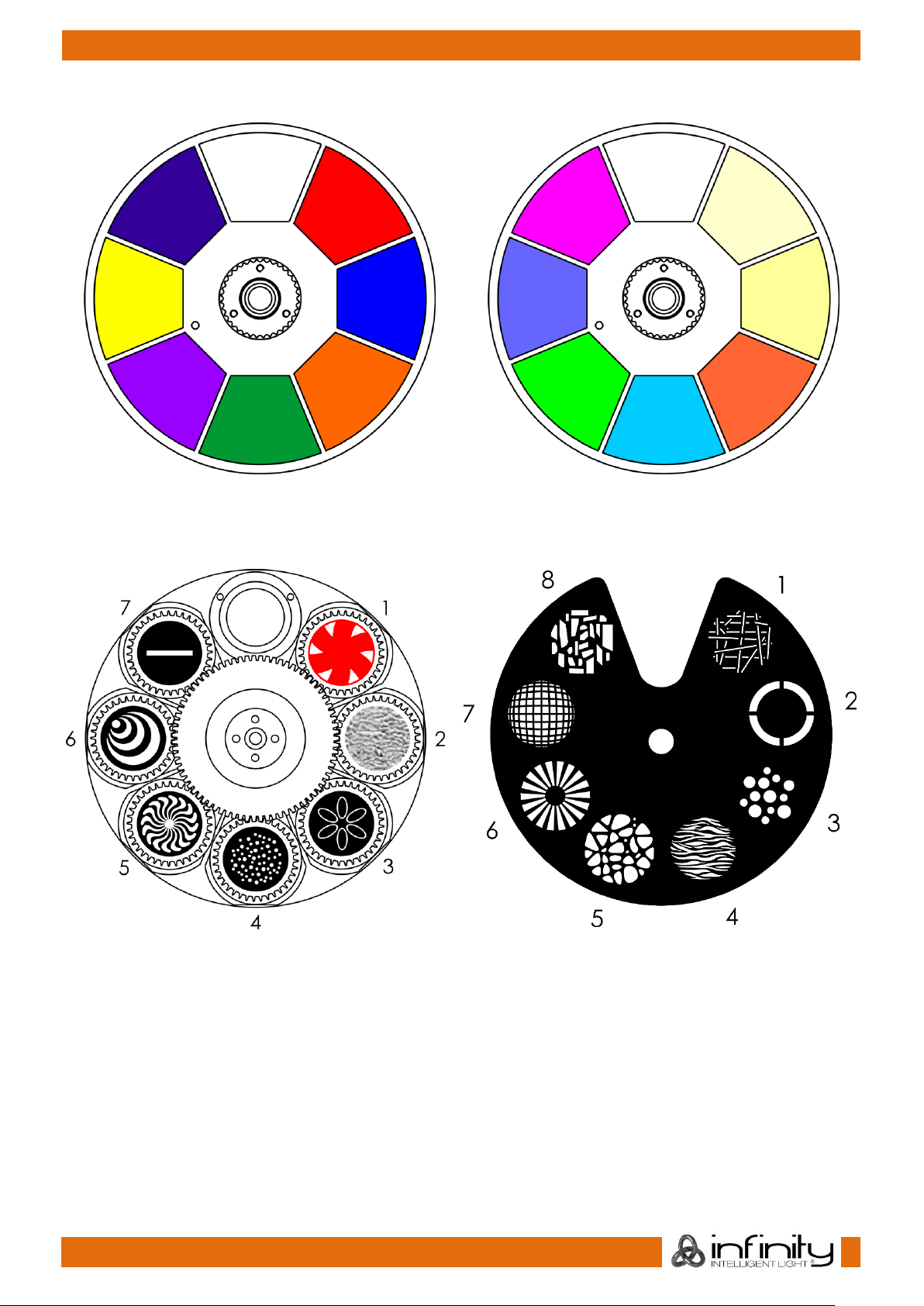

Color wheel 1
Color wheel 2
Fig. 10
Fig. 11
Rotating gobo wheel
Static gobo wheel
Fig. 12
Fig. 13
32
Page 34
Ordercode: 41502
Infinity iS-250
Troubleshooting
No Light
This troubleshooting guide is meant to help solve simple problems.
If a problem occurs, carry out the steps below in sequence until a solution is found. Once the unit
operates properly, do not carry out following steps.
If the light effect does not operate properly, refer servicing to a technician.
Suspect four potential problem areas as: factory reset, the power supply, the LED, the fuse.
01) First try to reset the device to its original factory default settings (3. Settings Menu see page 16).
02) Power supply. Check that the unit is plugged into an appropriate power supply.
03) The LEDs. Return the Infinity to your Infinity dealer.
04) The fuse. Replace the fuse. See page 30 for replacing the fuse.
05) If all of the above appears to be O.K., plug the unit in again.
06) If you are unable to determine the cause of the problem, do not open the Infinity, as this may
damage the unit and the warranty will become void.
07) Return the device to your Infinity dealer.
No Response to DMX
Suspect the DMX cable or connectors, a controller malfunction, a light effect DMX card malfunction.
01) Check the DMX setting. Make sure that DMX addresses are correct.
02) Check the DMX cable: Unplug the unit; change the DMX cable; then reconnect to electrical power.
Try your DMX control again.
03) Determine whether the controller or light effect is at fault. Does the controller operate properly with
other DMX products ? If not, take the controller in for repair. If so, take the DMX cable and the light
effect to a qualified technician.
See next page for more problem solving.
33
Page 35
Ordercode: 41502
Infinity iS-250
Problem
Probable cause(s)
Solution
One or more
fixtures do not
function at all
No power to the fixture
• Check if power is switched on and
cables are plugged in
Primary fuse blown
• Replace fuse
Fixtures reset
correctly, but all
respond
erratically or not
at all to the
controller
The controller is not connected.
• Connect controller.
3-pin/5-pin XLR Out of the
controller does not match XLR Out
of the first fixture on the link (i.e.
signal is reversed)
• Install a phase reversing cable
between the controller and the
first fixture on the link
Fixtures reset
correctly, but
some respond
erratically or not
at all to the
controller
Poor data quality
• Check data quality. If much lower
than 100 percent, the problem
may be a bad data link
connection, poor quality or
broken cables, missing termination
plug, or a defective fixture
disturbing the link
Bad data link connection
• Inspect connections and cables.
Correct poor connections. Repair
or replace damaged cables
Data link not terminated with 120
Ohm termination plug
• Insert termination plug in output
jack of the last fixture on the link
Incorrect addressing of the fixtures
• Check address setting
One of the fixtures is defective and
disturbs data transmission on the
link
• Bypass one fixture at a time until
normal operation is restored:
unplug both connectors and
connect them directly together.
• Have the defective fixture
serviced by a qualified technician
3-pin/5-pin XLR Out on the fixtures
does not match (pins 2 and 3
reversed)
• Install a phase-reversing cable
between the fixtures or swap pin 2
and 3 in the fixture that behaves
erratically
Shutter closes
suddenly
The color wheel, gobo wheel or a
gobo has lost its index position and
the fixture is resetting the effect
• Contact a technician for servicing
if the problem persists
No light or LEDs
cuts out
intermittently
Fixture is too hot
• Allow the fixture to cool down
• Clean the fan
• Make sure air vents and the front
lens are not blocked
• Turn up the air conditioning
LEDs damaged
• Disconnect the fixture and return it
to your dealer
The power supply settings do not
match local AC voltage and
frequency
• Disconnect fixture. Check settings
and correct if necessary
34
Page 36
Ordercode: 41502
Infinity iS-250
Model:
Infinity iS-250
Input voltage:
100-240V AC, 50/60Hz
Power consumption:
430W
DMX linking:
30pcs
Fuse:
F7AL/250V
Dimensions:
346 x 417 x 582 mm (LxWxH)
Weight:
25,4 kg
Operating and Programming:
Signal pin OUT:
Pin 1 (earth), pin 2 (-), pin 3 (+)
DMX Mode:
21, 27 channels
Signal input:
3-pin/5-pin XLR IN
Signal output:
3-pin/5-pin XLR OUT
Electro-mechanical effects:
Light source:
1 x 250W White LED (LumiEngin)
Lux @1m:
102400 (12°)
Rotating gobo wheel:
2 glass + 5 metal gobos (replaceable)
Static gobo wheel:
8 metal gobos
Gobo functions:
Gobo-flow effect, gobo shake
Color wheel 1:
7 dichroic-filters + white
Color wheel 2:
7 dichroic-filters + white
Color functions:
Split colors, Rainbow-flow effect
Beam angle:
12° - 27°
Dimmer:
0-100%
Strobe:
0-20Hz
Pan:
540°
Tilt:
270°
Focus:
Motorized
Iris:
Motorized
Prism:
3-facet rotating prism
Special:
Pan/ Tilt, Color, Gobo change blackout, User-selectable
Pan & Tilt ranges, 540°/360°/180°, Reverse Pan / Tilt
movement
Housing:
Metal & flame retardant plastic
IP rating:
IP20
DMX control:
via standard DMX-controller
Onboard:
Battery-powered full color display including gravity sensor
Battery lifetime:
max 30 days (full charge)
Control:
Built-in programs, Master/Slave, DMX-512
Color:
Black
Connections:
Dedicated PowerCON to Schuko & data connector
IP rating:
IP20
Max. ambient temperature ta:
40°C
Max. housing temperature tB:
80°C
Minimum distance:
Minimum distance from flammable surfaces:
0,5 m
Minimum distance to lighted object:
1 m
Product Specifications
Design and product specifications are subject to change without prior notice.
Website: www.highlite.nl/
35
Email: [email protected]
Page 37
Ordercode: 41502
Infinity iS-250
Dimensions
36
Page 38
Ordercode: 41502
Infinity iS-250
Notes
37
Page 39
Ordercode: 41502
Infinity iS-250
38
Page 40
©2017 Infinity
Loading...
