FOREWORD READ FIRST—THEN DRIVE SAFELY

Welcome to the growing family of new INFINITI owners. This vehicle is delivered to you with confidence. It was produced using the latest techniques and strict quality control.

This manual was prepared to help you understand the operation and maintenance of your vehicle sothat youmay enjoymany miles(kilometers) ofdriving pleasure. Please read through this manual before operating your vehicle.

A separate Warranty Information Booklet explains details about the warranties covering your vehicle. The “INFINITI Service and Maintenance Guide” explains details about maintaining and servicing your vehicle. Additionally, a separate Customer Care/Lemon Law Booklet (U.S. only) will explain how to resolve any concerns you may have with your vehicle, as well as clarify your rights under your state’s lemon law.

Your INFINITI dealership knows your vehicle best. When you require any service or have any questions, they will be glad to assist you with the extensive resources available to them.

Additionally , a separate Customer Care and Lemon Law Information Booklet will explain how to resolve any concerns you may have with your vehicle, as well as clarify your rights under your state’s lemon law.

INFINITI is dedicated to providing a satisfying ownership experience for as long as you own your car. Should you have any questions regarding your INFINITI or your INFINITI dealer, please contact our Consumer Affairs department at 1–800–662–6200. In Canada 1–800–361–4792. Thank you.

Before driving your vehicle please read this Owner’s Manual carefully. This will ensure familiarity with controls and maintenance requirements, assisting you in the safe operation of your vehicle.

WARNING

IMPORTANT SAFETY INFORMATION REMINDERS FOR SAFETY!

Follow these important driving rules to help ensure a safe and comfortable trip for you and your passengers!

● NEVER drive under the influence of alcohol or drugs.

● ALWAYS observe posted speed limits and never drive too fast for conditions.

●

ALWAYS give your full attention to driving and avoidusing vehicle features or taking other actions that could distract you.

●

ALWAYS use your seat belts and appropriate child restraint systems. Pre-teen children should be seated in the rear seat.

● ALWAYS provide information about the proper use of vehicle safety features to all occupants of the vehicle.

● ALWAYS review this Owner’s Manual for important safety information.

WHEN READING THE MANUAL

For descriptions specified for four-wheel drive models, a ning of the applicable sections/items.

As with other vehicles with features for off-road use, failure to operate four-wheel drive models correctly may result in loss of control or an accident. Be sure to read “Driving safety precautions” in the “Starting and driving” section of this manual.

ON-PAVEMENT AND OFF-ROAD DRIVING

This vehicle will handle and maneuver differently from an ordinary passenger car because it has a higher center of gravity for off-road use. As with other vehicles with features of this type, failure to operate this vehicle correctly may result in loss of control or an accident.

Be sure to read “On-pavement and offroad driving precautions”, and “Avoiding collision and rollover”, and “Driving safety precautions”, in the “Starting and driving” section of this manual.

mark is placed at the begin-

MODIFICATION OF YOUR VEHICLE This vehicle should not be modified.

Modification could affect its performance, safety or durability, and may even violate governmental regulations. In addition, damage or performance problems resulting from modifications may not be covered under INFINITI warranties.

This manual includes information for all options available on this model. Therefore, you may find some information that does not apply to your vehicle.

All information, specifications and illustrations in this manual are those in effect at the time of printing. INFINITI reserves the right to change specifications or design without notice and without obligation.

IMPORTANT INFORMATION ABOUT THIS MANUAL

You will see various symbols in this manual. They are used in the following ways:

WARNING

This is used to indicate the presence of a hazard that could cause death or serious personal injury. To avoid or reduce the risk, the procedures must be followed precisely.

CAUTION

This is used to indicate the presence of a hazard that could cause minor or moderate personal injury or damage to your vehicle. To avoid or reduce the risk, the procedures must be followed carefully.

APD1005

If you see this symbol, it means “Do not do this” or “Do not let this happen.”

If you see a symbol similar to these in an illustration, it means the arrow points to the front of the vehicle.

Arrows in an illustration that are similar to these indicate movement or action.

Arrows in an illustration that are similar to these call attention to an item in the illustration.

CALIFORNIA PROPOSITION 65 WARNING

WARNING

Engine exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

CALIFORNIA PERCHLORATE ADVISORY

Some vehicle parts, such as lithium batteries, may contain perchlorate material. The following advisory is provided: “Perchlorate Material – special handling may apply, See www.dtsc.ca.gov/hazardouswaste/ perchlorate.”

BLUETOOTHt is a trademark owned by Bluetooth SIG, Inc., U.S.A. and licensed to Xanavi Informatics Corporation.

Gracenotet is a registered trademark of Gracenote, Inc. The Gracenote logo and logo type, and the “Powered by Gracenote” logo are trademarks of Gracenote.

Manual may be reproduced orstored ina retrieval system, or transmitted in any form, or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of Nissan North America, Inc.

Table of

Illustrated table of contents

Contents

Safety—Seats, seat belts and supplemental restraint system

Instruments and controls

Pre-driving checks and adjustments

Monitor, climate, audio, phone and voice recognition systems

Starting and driving

In case of emergency

Appearance and care

Maintenance and do-it-yourself

Technical and consumer information

Index

0 Illustrated table of contents

Air bags, seat belts and child restraints ..............0-2

Exterior front ......................................0-3

Exterior rear.......................................0-4

Passenger compartment ...........................0-5

Instrument panel...................................0-6

Engine compartment check locations ................0-8

Warning/indicator lights ............................0-9

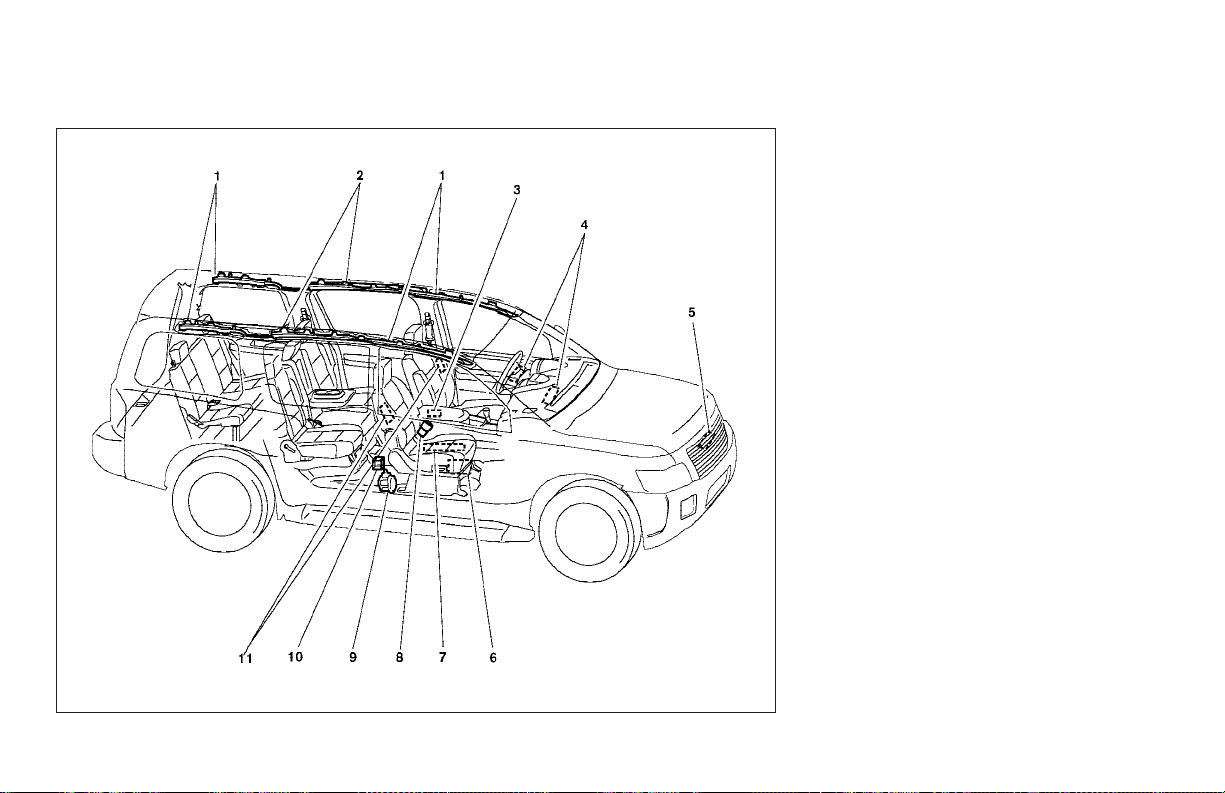

AIR BAGS, SEAT BELTS AND CHILD RESTRAINTS

1. 3rd row bench seat belts (P. 1-15)

2. 2nd row seat belts (P. 1-15)

3. Roof-mounted curtain side-impact and rollover supplemental air bag (P. 1-48)

4. Front seat belts (P. 1-15)

5. Front-seat Active Head Restraints (P. 1-8)

6. Supplemental front-impact air bags (P.1-48)

7. Seats (P. 1-2)

8. Occupant classification sensor (pressure sensor) (P.1-56)

9. Seat belt with pretensioner (P. 1-61)

10. Front seat-mounted side-impact supplemental air bag (P. 1-48)

11. LATCH (Lower Anchors and Tethers for CHildren) (P. 1-28)

12. 2nd row seat top tether strap anchor (P. 1-30)

13. 3rd row seat top tether strap anchor (P. 1-30)

See the page number indicated in parentheses for operating details.

0-2 Illustrated table of contents

WII0154

EXTERIOR FRONT

1. Engine hood (P. 3-16)

2. Windshield wiper and washer switch (P. 2-23)

3. Windshield (P. 8-19)

4. Power windows (P. 2-48)

5. Door locks, keyfob, keys (P. 3-3, 3-6, 3-2)

6. Mirrors (P. 3-24)

7. Tire pressure (P. 9-11)

8. Flat tire (P. 6-2)

9. Tire chains (P. 8-39)

10. Replacing bulbs (P. 8-29)

11. Headlight switch (P. 2-25)

12. Fog light switch and turn signal switch (P. 2-30, P. 2-25)

13. Tow hooks (P. 6-13)

See the page number indicated in parentheses for operating details.

WII0121

Illustrated table of contents 0-3

EXTERIOR REAR

1. Roof rack (P. 2-47)

2. Rear window defroster (P. 2-25)

3. Glass hatch (P. 3-20)

4. Rear window washer (P.2-24)

5. Glass hatch release (P. 3-20)

6. Rearview monitor (P.4-18)

7. Towing/Trailer hitch (P.9-16)

8. Lift gate release (P. 3-16)

9. Rear sonar system (P.2-33)

10. Replacing bulbs (P. 8-29)

11. Power vent windows (P.2-51)

12. Fuel-filler cap, fuel recommendation (P. 3-21, P. 9-3)

13. Fuel-filler door (P. 3-21)

14. Child safety rear door locks (P. 3-6)

See the page number indicated in parentheses for operating details.

0-4 Illustrated table of contents

WII0122

PASSENGER COMPARTMENT

1. Rear ventilators (P. 4-21)

2. Storage (P. 2-37)

3. DVD entertainment system (if so equipped) (P. 4-53)

4. Moonroof (P. 2-51)

5. Map lights (P. 2-55)

6. Sun visors (P. 3-23)

7. HomeLinkT (P. 2-55)

8. Glove box (P. 2-37)

9. Seats (P. 1-2)

10. Cup holders (P. 2-41)

11. Luggage storage (P. 2-44)

See the page number indicated in parentheses for operating details.

LII0041

Illustrated table of contents 0-5

INSTRUMENT PANEL

WIC1379

1. Vents (P. 4-21)

2. Headlight/fog light/turn signal switch

(P. 2-25)

3. Steering wheel switch for audio control

and BluetoothT Hands-Free Phone System (if so equipped) (P. 4-50, 4-69)

4. Driver supplemental air bag/horn

(P. 1-48, P. 2-31)

5. Meters, gauges and warning/indicator

lights (P. 2-3, 2-10)

6. Instrument brightness control (P. 2-29)

7. Cruise control main/set switches and

Intelligent cruise control main/set switches (if so equipped) (P. 5-17, P.5-19)

8. Windshield wiper/washer switch and

rear window wiper/washer switch (P. 2-23, P. 2-24)

9. Ignition switch (P. 5-9)

10. Navigation system* (P. 4-2)

11. Navigation system* controls (P. 4-2)

12. Audio system controls (P. 4-25)

13. Front passenger supplemental air bag

(P. 1-48)

14. Glove box (P. 2-38)

15. Hazard lights (P. 2-30)

16. Climate controls (P. 4-22)

0-6 Illustrated table of contents

17. Power outlet (P. 2-35)

18. Heated seat switch (P. 2-31)

19. Tow mode switch (P. 2-34)

20. Vehicle dynamic control (VDC) off switch (P. 2-32)

21. Shift selector lever (P. 5-12)

22. Heated steering wheel (P.2-32)

23. Clock (P. 2-35)

24. Power outlet (P. 2-35)

25. Front passenger air bag status light (P. 1-57)

26. Auxiliary jack (P. 4-38

27. 4WD shift switch (if so equipped) (P. 5-41)

28. Tilt steering wheel control (P. 3-22)

29.. Rear or front and rear sonar system off switch (P. 2-33)

30. Pedal position adjustment switch (P. 3-23)

31. Headlight aiming control (P. 2-28)

32. Power vent windows (P. 2-51)

33. Lift gate open/close switch (P. 3-16)

*: Refer to the separate Navigation System Owner’s Manual.

See the page number indicated in parentheses for operating details.

Illustrated table of contents 0-7

ENGINE COMPARTMENT CHECK LOCATIONS

1. Battery (P. 8-13)

2. Fuse/fusible link box (P. 8-22)

3. Transmission dipstick (P. 8-11)

4. Engine oil filler cap (P. 8-8)

5. Brake fluid reservoir (P. 8-12)

6. Windshield washer fluid reservoir (P. 8-12)

7. Air cleaner (P. 8-17)

8. Drive belt location (P.8-15)

9. Radiator cap (P. 8-7)

10. Power steering fluid reservoir (P. 8-11)

11. Engine oil dipstick (P. 8-8)

12. Engine coolant reservoir (P. 8-7)

See the page number indicated in parentheses for operating details.

0-8 Illustrated table of contents

WDI0630

WARNING/INDICATOR LIGHTS

Warning

light

Name Page

Anti-lock Braking System (ABS) warning light

Automatic transmission check warning light

Automatic transmission park warning light ( model)

Brake warning light 2-11

Charge warning light

Check suspension warning light

2-11

2-12

Warning

light

Name Page

Engine oil pressure low/engine coolant temperature high warning light

4WD warning light (

Low fuel warning light

Low tire pressure warning light

Master warning light 2-14

Seat belt warning light and chime

Supplemental air bag warning light

model)

2-12

2-13

2-15

Indicator

light

Name Page

Front passenger air bag status light

High beam indicator light (Blue)

Malfunction indicator lamp (MIL)

Security indicator light

Slip indicator light 2-16

Turn signal/hazard indicator lights

Vehicle Dynamic Control (VDC) off indicator light

2-15

2-16

2-17

Illustrated table of contents 0-9

MEMO

0-10 Illustrated table of contents

1 Safety—Seats, seat belts and supplemental restraint system

Seats ............................................1-2

Front power seat adjustment.....................1-3

2nd row captain’s chair adjustment ...............1-4

2nd row bench seat adjustment

(if so equipped) ................................1-5

Head restraint adjustment .......................1-7

Front-seat Active Head Restraints ................1-8

Armrests ......................................1-8

Flexible seating.................................1-9

3rd row power folding seats ....................1-14

Seat belts .......................................1-15

Precautions on seat belt usage..................1-15

Child safety...................................1-18

Pregnant women ..............................1-19

Injured persons................................1-19

Three-point type seat belt with retractor..........1-19

Seat belt extenders ............................1-25

Seat belt maintenance .........................1-26

Child restraints...................................1-26

Precautions on child restraints ..................1-26

Lower Anchors and Tethers for CHildren

system (LATCH) ...............................1-28

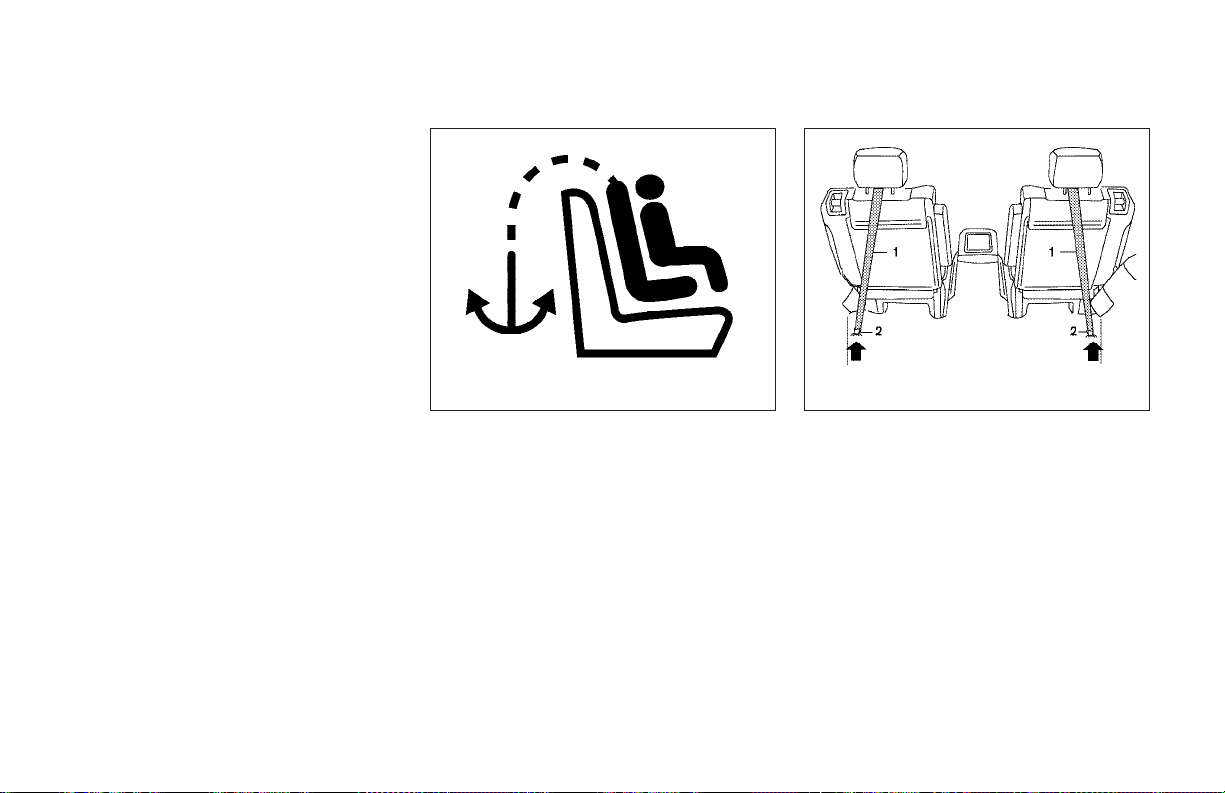

Top tether strap child restraint ..................1-30

Child restraint installation using LATCH ..........1-33

Child restraint installation using the seat

belts .........................................1-37

Booster seats ....................................1-43

Precautions on booster seats ...................1-43

Booster seat installation ........................1-45

Supplemental restraint system .....................1-48

Precautions on supplemental restraint

system .......................................1-48

Supplemental air bag warning labels.............1-63

Supplemental air bag warning light ..............1-63

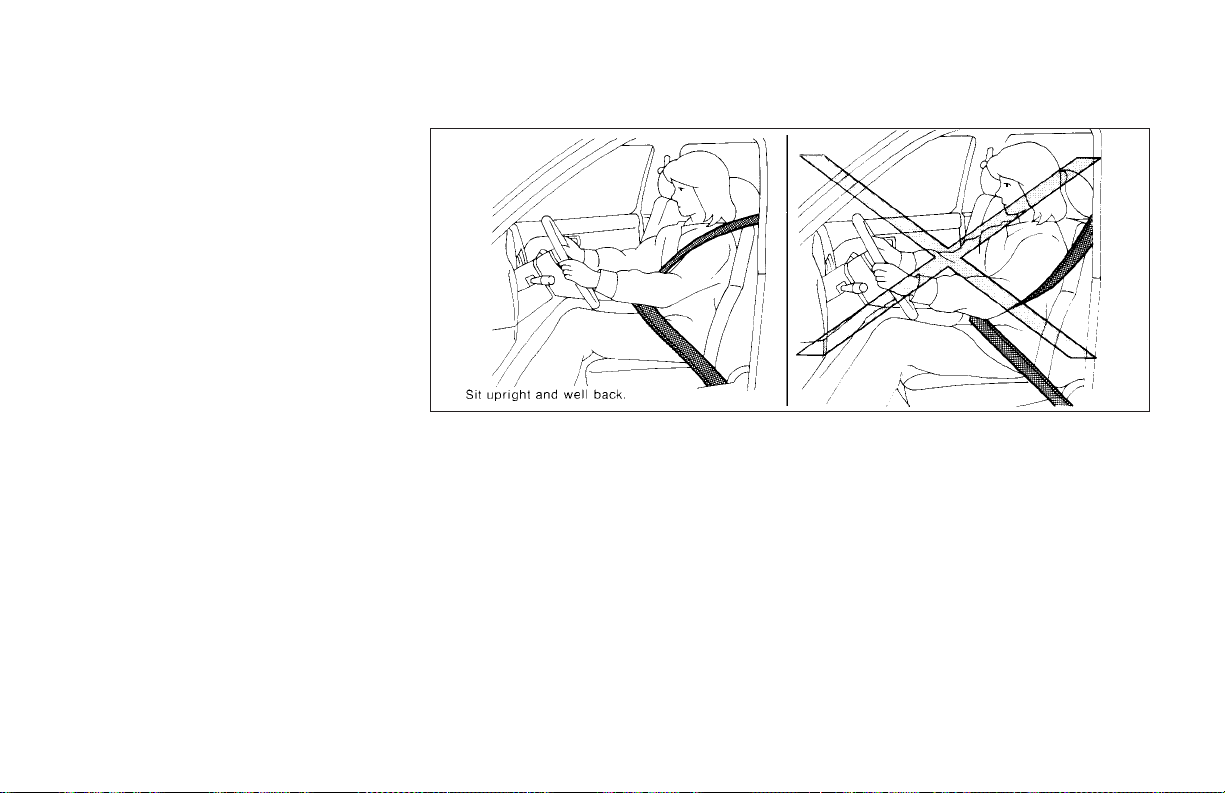

SEATS

WARNING

● Do not ride in a moving vehicle when the seatback is reclined. This can be dangerous. The shoulder belt will not be against your body. In an accident, you could be thrown into it and receive neck or other serious injuries. You could also slide under the lap belt and receive serious internal injuries.

● The seatback should not be reclined anymore than needed for comfort. Seat belts are most effective when the passenger sits well back and straight up in the seat. If the seatback is reclined, the risk of sliding under the lap belt and being injured is increased.

CAUTION

When adjusting the seat positions, be sure not to contact any moving parts to avoid possible injuries and/or damage.

ARS1152

● For the most effective protection when the vehicle is in motion, the seat should be upright. Always sit well back in the seat with both feet on the floor and adjust the seat properly. See “Precautions on Seat Belt Usage” later in this section.

● After adjustment,gently rockin theseat to make sure it is securely locked.

● Do not leave children unattended inside the vehicle.They could unknowingly activate switches or controls. Unattended children could become involved in serious accidents.

1-2 Safety—Seats, seat belts and supplemental restraint system

FRONT POWER SEAT ADJUSTMENT

Operating tips

● The power seat motor has an auto-reset overload protection circuit. If the motor stops during operation, wait 30 seconds, then reactivate the switch.

● Do not operate the power seat switch for a long period of time when the engine is off. This will discharge the battery.

See “Automatic drive positioner” in the “Predriving checks and adjustments” section for automatic drive positioner operation.

belt fit(see “Precautions on seat belt usage”later in this section). Also, the seatback can be reclined to allow occupants to rest when the vehicle is stopped and the transmission is in P (Park).

WRS0163

Forward and backward

Moving the switch forward or backward will slide the seat forward or backward to the desired position.

Reclining

Move the recline switch backward until the desired angle is obtained. To bring the seatback forward again, move the switch forward and move your body forward. The seatback will move forward.

The reclining feature allows adjustment of the seatback for occupants of different sizes for added comfort and to help obtain proper seat

Safety—Seats, seat belts and supplemental restraint system 1-3

WRS0164 LRS0238 WRS0369

Seat lifter

Push the front or rear end of the switch up or down to adjust the angle and height of the seat cushion.

Lumbar support (driver’s seat)

The lumbar support feature provides lower back support to the driver. Move the switch forward or backward to adjust the seatback lumbar area.

1-4 Safety—Seats, seat belts and supplemental restraint system

2ND ROW CAPTAIN’S CHAIR ADJUSTMENT

Reclining

To recline the seatback, pull up on the lever and lean back.

The reclinefeature allows adjustment of the seatback for occupants of different sizes for added comfort and to help obtain proper seat belt fit (see “Precautions on seat belt usage” later in this section). Also, the seatback can be reclined to allow occupants to rest when the vehicle is stopped and the transmission is in P (Park).

WRS0415 LRS0372

Tip up for easy entry to the 3rd row

The 2nd row captain’s chairs can be tipped forward foreasy entryor exitfrom the3rd rowbench seat. To enter the3rd row it is parallel to the seatback and in the stowed position, then lift up on the latch located on the upper corner of the seatback on the 2nd row captain’s chair and fold the seatback forward at an angle over the seat base. This will release the back of the seat so it may be tipped forward.

, raise the armrest so

Then base and tip the 2nd row captain’s chair forward. Toexit the3rd row bench seat, lift up on the same latch and fold the seatback forward onto the seat base. Then lift up on the seat base and tip it forward.

lift up on the lower corner of the seat

Safety—Seats, seat belts and supplemental restraint system 1-5

WRS0369

Outboard seats

2ND ROW BENCH SEAT ADJUSTMENT (if so equipped)

Reclining

To recline the seatback, pull up on the lever and lean back.

WARNING

● After adjustment,gently rockin theseat to make sure it is securely locked.

● For the most effective protection when the vehicle is in motion, the seat should be upright. Always sit well back in the seat and adjust the seat belt properly. See “Precautions on seat belt usage” later in this section.

WRS0414 LRS0331

Tip up for easy entry to the 3rd row

The outboard seating positions on the 2nd row bench seat can be tipped forward for easy entry or exit from the 3rd row bench seat. To enter the 3rd row upper corner of the seatback on the 2nd row bench seat and fold the seatback forward at an angle over the seat base. This will release the back of the seat so it may be tipped forward.

, lift up on the latch located on the

Then base and tip the outboard seating position of the 2nd row bench seat forward. To exit the 3rd row bench seat, lift up on the same latch and fold the seatback forward onto the seat base. Then lift up on the seat base and tip it forward.

lift up on the lower corner of the seat

1-6 Safety—Seats, seat belts and supplemental restraint system

LRS0286 WRS0134

HEAD RESTRAINT ADJUSTMENT

To raise the head restraint, pull it up. To lower, push and hold the lock knob and push the head restraint down.

The headrestraints on the 2nd and 3rd row seats are removable. The front seat head restraints are not removable.

WARNING

Head restraints should be adjusted properly as they may provide significant protection against injury in an accident. Do not remove them. Check the adjustment after someone else uses the seat.

Adjust the head restraint so the center is level with the center of your ears.

Safety—Seats, seat belts and supplemental restraint system 1-7

SPA1025 WRS0368

FRONT-SEAT ACTIVE HEAD RESTRAINTS

WARNING

● Always adjust the head restraints properly as specified in this section. Failure to doso can reduce the effectiveness of the Active Head Restraint.

● Active Head Restraints are designed to supplement other safety systems. Always wear seat belts. No system can prevent all injuries in any accident.

● Do not attach anything to the head restraint stalks. Doing so could impair Active Head Restraint function.

The Active Head Restraint moves forward utilizing the force that the seatback receives from the occupant in a rear-end collision. The movement of the head restraint helps support the occupant’s head by reducing its backward movement and helping absorb some of the forces that may lead to whiplash-type injuries.

Active HeadRestraints are effective for collisions at low to medium speeds in which it is said that whiplash injury occurs most.

Active Head Restraints operate only in certain rear-end collisions. After the collision, the head restraints return to their original positions.

Properly adjust the Active Head Restraints as described earlier in this section.

ARMRESTS

To use the armrests, pull them down to the resting position.

Stowed position

Resting position

1-8 Safety—Seats, seat belts and supplemental restraint system

FLEXIBLE SEATING

WARNING

● Never allow anyone to ride in the cargo area or on the rear seats when they are in the fold-down position. In a collision, people riding in these areas without proper restraints are more likely to be seriously injured or killed.

● Do not allow people to ride in any area of your vehiclethat is not equipped with seats and seat belts. Be sure everyone in your vehicle is in a seat and using a seat belt properly.

● Do not fold down the rear seats when occupants are in the rear seat area or any luggage is on the rear seats.

● Head restraints should be adjusted properly as theymay provide significant protection against injury in an accident. Always replace and adjust them properly if they have been removed for any reason.

● If the head restraints are removed for any reason, they should be securely stored to prevent them from causing injury to passengers or damage to the vehicle in case of sudden braking or an accident.

● When returning the seatbacks to the upright position, be certain they are completely secured in the latched position. If they are not completely secured, passengers may be injured in an accident or sudden stop.

● Properly secure all cargo to help prevent it from sliding or shifting. Do not place cargo higher than the seatbacks. In asudden stop or collision, unsecured cargo could cause personal injury.

LRS0341

Folding the front passenger’s seatback

To fold the front passenger’s seatback flat for extra storage length when transporting long items:

Move the seat to the rearmost position by

pushing the switch backward until the seat comes to a stop. Then recline the seatback as far forward as possible using the recline switch. Lift up on the latch located on the upper corner of the seatback to release the back of the seat.

Safety—Seats, seat belts and supplemental restraint system 1-9

Once the seatback is released it will enable

you to fold the front passenger seatback flat over the seat cushion.

3. To return the front passenger’s seat to a seating position, move the recline switch backward until the desired angleis obtained.

WARNING

● If you fold the front passenger’s seatback flat forward to carry longer objects, be sure this cargo is properly secured and not near an air bag. In a crash, an inflating air bag might force that object toward a person. This could cause severe injury or even death. Secure objects away from the area in

LRS0342 LRS0332

which an air bag would inflate. See “Precautions on supplemental restraint system” later in this section.

● Never allow anyone to ride in the cargo area or on the front passenger’s seat when it is in the fold-down position. Use of these areas by passengers could result in serious injury in an accident or sudden stop.

Folding the 2nd row captain’s chairs

To fold the 2nd row captain’s chairs flat for maximum cargo hauling:

Raise the armrest to the stowed position.

Remove the 2nd row center console, see “2nd row center console” inthe “Instruments and controls” section of this Owner’s Manual.

Pull the strap forward, located in the center

of the seat cushion, and fold the seat cushion toward the front of the vehicle.

1-10 Safety—Seats, seat belts and supplemental restraint system

Then lift up on the recline lever to fold the

seatback flat forward.

LRS0333 LRS0334 LRS0641

There is a carpet panel flap that can be

folded toward the back of the vehicle.

The carpet panel flaps provide a level cargo

floor when the 3rd row seats are also folded flat. Reverse this process to return the 2nd row captain’s chairs to a seating position.

Make sure to properly raise the seatback to an upright position and push the seat cushion down into place.

Safety—Seats, seat belts and supplemental restraint system 1-11

LRS0336 LRS0337 LRS0338

Folding the 2nd row bench seat (if so equipped)

To fold the 2nd row bench seat flat for maximum cargo hauling:

Pull the strap forward, located in the center

of each seat cushion, and fold each seat cushion toward the front of the vehicle.

Then lift up on therecline lever on the side of

the outboard seats to fold the outboardseatbacks flat. To fold the center seatback flat, pull upon thestrap onthe edgeof the center seat cushion and fold the seatback toward the front of the vehicle.

1-12 Safety—Seats, seat belts and supplemental restraint system

There is a carpet panel flap on the back of

each seat that can be folded toward the back of the vehicle.

LRS0636 LRS0637

The carpet panel flap provides a level cargo

floor when the 3rd row seats are also folded flat.

5. To return the outboard 2nd row bench seats to a seating position reverse the process for the outboard seats.

6. To return the center seat to a seating position, lift up on the pull strap on the back of the seat base while lifting on the seatback. Then push the seat cushion back into place.

Make sure to hold the seat belts above the seat cushion and properly raise the seatback to an upright position. Then push the seat cushion down into place.

Folding the 3rd row split bench seat

To fold the 3rd row split bench seat flat for maximum cargo capacity:

1. Disconnect and secure the center seat belt and tongues into the retractor base. See “Stowing the 3rd row center seat belt” later in this section.

2. Lower the head restraints to the full down position.

3. Then pull up on the latch located on the outside cornerof each seatback and fold the seatback forward over the seat base.

Toreturn the3rd rowsplit bench seat to a seating position, unfold the seatback and push it back until it latches into position.

WARNING

● When returning the seatbacks, be sure to attach the rear center seat belt connector.

● Do not unfasten the rear center seat belt connector except when folding down the rear seat.

● When attaching the rear center seat belt connector, be certain that the seatbacks are completely secured in the latched position and the rear center seat belt connector is completely secured.

● If the rear center seat belt connector and the seatbacks are not secured in the correct position, serious personal injury may result in an accident or sudden stop.

Safety—Seats, seat belts and supplemental restraint system 1-13

● Disconnect and secure the center seat belt and tongues into the retractor base. See “Stowing the 3rd row center seat belt” later in this section.

– Always reconnect the center seat belt

when the seat is returned to the upright position

● Make sure that there are no objects on the seatback cushion.

CAUTION

Make sure the seat(s) is returned to the

LRS0792 LRS0793

3RD ROW POWER FOLDING SEATS

The 3rd row power folding seat controls are located behind the 2nd row seat (passenger’s side) on the 3rd row cup holder console There are also controls located on the rear quarter trim panel behind the 3rd row seats (passenger’s side)

Before operating the 3rd row seats:

● Make sure the 2nd row seatback isn’t re-

● Lower the 3rd row headrest to the full down

clined.

position.

full upright position before a passenger sits in the seat(s).

When folding or returning the seat(s) to the upright position, to avoid injury to yourself and others:

● Make sure that the seat path is clear

before moving the seat.

● Be careful not to allow hands or feet to get caught or pinched in the seat.

1-14 Safety—Seats, seat belts and supplemental restraint system

To fold down the 3rd row seats, press and hold the bottom portion of the switch.

Toraise the3rd rowseats, press and hold the top portion of the switch.

A chime will sound three times to indicate the start of the operation.

A warningbeep will sound 5 times if the seat isn’t in the full upright or folded position when the ignition is put in the ON position. If the warning beep is still present after one complete cycleand if the seats are in the full upright or folded position, bring your vehicle in for service.

+ 408 hidden pages
