Infineon Technologies TLE9879QX, TLE987x, TLE9869QX, TLE986x Getting Started

Download

Evaluation Board

Getting Started

Toolchain Setup for:

• TLE9879_EVALKIT

• TLE9869_EVALKIT

• TLE987x_EVALB_JLINK

• TLE986x_EVALB_JLINK

Content

Evaluation Kit Overview

Product Information links

Toolchain installation

Getting Started

Content

Evaluation Kit Overview

Product Information links

Toolchain installation

Getting Started

Infineon® Embedded Power IC:

Evaluation Board Overview

› 3-Phase N-MOS Bridge

› integrated LIN › external LIN Trx › RS232 › Debug LEDs › Debug Connector SWD

› J_link Lite debugger

TLE987x EVALB_JLINK :SP001253680

TLE987x – 3-Phase Board with Socket

TLE9879QX – Evaluation Kit

› 3-Phase N-MOS Bridge › Single Shunt in GND path › integrated LIN (inside device) › Virtual ComPort via J-Link

› Debug LEDs

› Onboard Segger J-Link Debugger

TLE9879 EVALKIT :SP001389172

Infineon® Embedded Power IC:

Evaluation Board Overview

› H-Bridge N-MOS Bridge

› integrated LIN › external LIN Trx › RS232 › Debug LEDs › Debug Connector SWD

› J_link Lite debugger

TLE986x EVALB_JLINK :SP001253678

TLE986x – 2-Phase Board with Socket

TLE9869QX – Evaluation Kit

› 2-Phase N-MOS Bridge › Single Shunt in GND path › integrated LIN (inside device) › Virtual ComPort via J-Link

› Debug LEDs

› Onboard Segger J-Link Debugger

TLE9869 EVALKIT :SP001388252

Content

Evaluation Kit Overview

Product Information links

Toolchain installation

Getting Started

Product Information links

Link

Description

www.infineon.com/embeddedpower

Infineon

Embedded Power IC

overview Page

www.infineon.com/TLE987x

www.infineon.com/TLE986x

TLE987xQX/TLE986xQX Overview

Page with general information

TLE987xQX_Documents

TLE986xQX_Documents

Datasheets

and User Manuals for

all TLE987x and TLE986x ICs

www.infineon.com/ePower_Tools

Development Tools: Kits and Boards for all

Infineon®

Embedded Power ICs

TLE9879_Evalkit

Information

about

TLE9879_Evalkit

TLE986X

EVALB_JLINK

Information

about

TLE9869_Evalkit

Content

Evaluation Kit Overview

Product Information links

Toolchain installation

Getting Started

Toolchain installation: 1/4

Main Window Pack Installer

Keil µVision5

› Download from:

https://www.keil.com/download

› Code Editor & Online

Debugger

› Evaluation version

can handle up to 32K

Text

Toolchain installation: 2/4

Infineon IFXConfigWizard

Configuration of chip modules

Infineon homepage: IFXConfigWizard

Latest version: V1.8.6

Device description for TLE986x/TLE987x included

TLE984x supported with Keil µVision 5

Toolchain installation: 3/4

› Driver for “on-board” or

“stand-alone” debugger

› Install driver from:

https://www.segger.com/jlinksoftware.html

› TLE984x support is included

from V5.10 upwards

Segger JLINK-Lite driver:

Toolchain installation: 4/4

› Device database for all

TLE98xx ICs

› Device support for

flashing/erasing

› SFR description for register

debugging

› Device description for

IFX Config Wizard (XML)

› Includes SDK

(Software Development Kit)

› Code examples included

PACK-file TLE987x and TLE986x for µVision5:

Content

Evaluation Kit Overview

Product Information links

Toolchain installation

Getting Started

Getting Started: Infineon ePower SDK

› Creating new project with

Infineon SDK

› Writing code

› Initialize modules

› Timers

› GPIOs

› Connect device

› Program flash

› Using debug window

J-Link Configuration

Keil µVision5 Template

Infineon Config Wizard

Getting Started: Infineon ePower SDK

Keil µVision5 Template

› Select Device

› i.e. TLE9879QXA40

1) Create new Project

› Open Keil mdk

› Go to ->Project

->new µVision Project

› Name project:

(“TIMER2_BLINK”)

Getting Started: Infineon ePower SDK

Keil µVision5 Template

› Expand: “Device”

› Check: ConfigWizard

› Check: Startup

› “Sel.” window

background is orange

› Press: “Resolve”

› “Sel.” window

background is now green

› Continue with “OK”

2) Configuration of Run-Time Environment

Getting Started: Infineon ePower SDK

Keil µVision5 Template

› Expand: “Target 1”

› Right click on:

“Source Group 1”

› Choose “Add New Item to

Group ‘Source Group 1’”

› Choose “User Code

Template”

› Expand “Device”

› Choose:

“Startup with full SDK”

› Continue with “Add”

3) Using easy “Main” template

Getting Started: Infineon ePower SDK

Keil µVision5 Template

› Compile Project:

› Press “Build” Button

or press “F7”

› Project “Build Output”

window shows

0 Error(s) , 0 Warning(s)

4) Compile Project

Getting Started: Infineon ePower SDK

Keil µVision5 Template

› Go to:

› Enter “Device-> SDK”

Section

› Select “PORT”

› Select “Timer2x”

› Press “OK”

› Add Code to main.c:

› Include Libraries

› Initialize Modules

5) Adding Modules from Run-Time Environment

Getting Started: Infineon ePower SDK

Keil µVision5 Template

6) Using IFXConfigWizard

› Open IFXConfigWizard by

choosing: “Tools->IFXConfigWizard”

› IFXConfigWizard will open in

a separate window

› orange status bar indicates

an new project

› red status bar indicates

unsaved changes

› white status bar indicates

saved project

Getting Started: Infineon ePower SDK

Keil µVision5 Template

6) Using IFXConfigWizard: Port Configuration

› Select: “PORT” Chapter

› Expand “Port0”

› Expand “PIN2”

› Configure pin to

“Output” mode

› Save with

“File” -> “Save Project”

› After Saving, status bar turns

to white color

Getting Started: Infineon ePower SDK

Keil µVision5 Template

› Open “Timer 2x” section

› Enable “Configure Timer”

checkbox

› Go to:

“Reload / Capture Register”

› Enter “1000” µs

› Go to: “Interrupt Enable”

› Enable Overflow

Interrupt

› Type “task_1ms” in

“Call Back” line

› Press “Enter” and “Save”

6) Using IFXConfigWizard: Timer2 Configuration

Getting Started: Infineon ePower SDK

Keil µVision5 Template

› Go to Keil MDK

› Start Timer2 before the

“while(1)” loop

› Write function definiton of

Interrupt call back

› Use API function

“PORT_ChangePin()”

› “Save” and “Build” project

7) Finish Code in “main.c”

9) Connect Debugger

Getting Started: Infineon ePower SDK

Keil µVision5 Template

› Go to

› Choose:

› Debug->use: J-Link

› Go to “Settings”

› SWD connection established when

“IDCODE” is visible

8) Power up Evaluationboard

› Connect micro USB cable

› Supply board via banana jacks (VBAT,

GND)

› Debug LED lights up

Getting Started: Infineon ePower SDK

Keil µVision5 Template

10) Download and run code

› Press: “Load”- button or Press:

“F8”

› “Flash Load finished” is shown

in “Build Output” window

› Press: “Reset” button on

Evaluation Board

› LED on Port “P0.2” will light up

› Port toggle every 1ms

1ms

Getting Started: Infineon ePower SDK

Keil µVision5 Template

11) Use Runtime Debug

› Enter “Debug Session”

› Left click at the dark grey area

left of the code, to place a “breakpoint”

› Hit “Run” or press “F5” to start

execution

› Code execution stops at

breakpoint

› In this example:

› Every time “Run” is

pressed: “P0.2” toggles

Getting Started: Infineon ePower SDK

Example Code

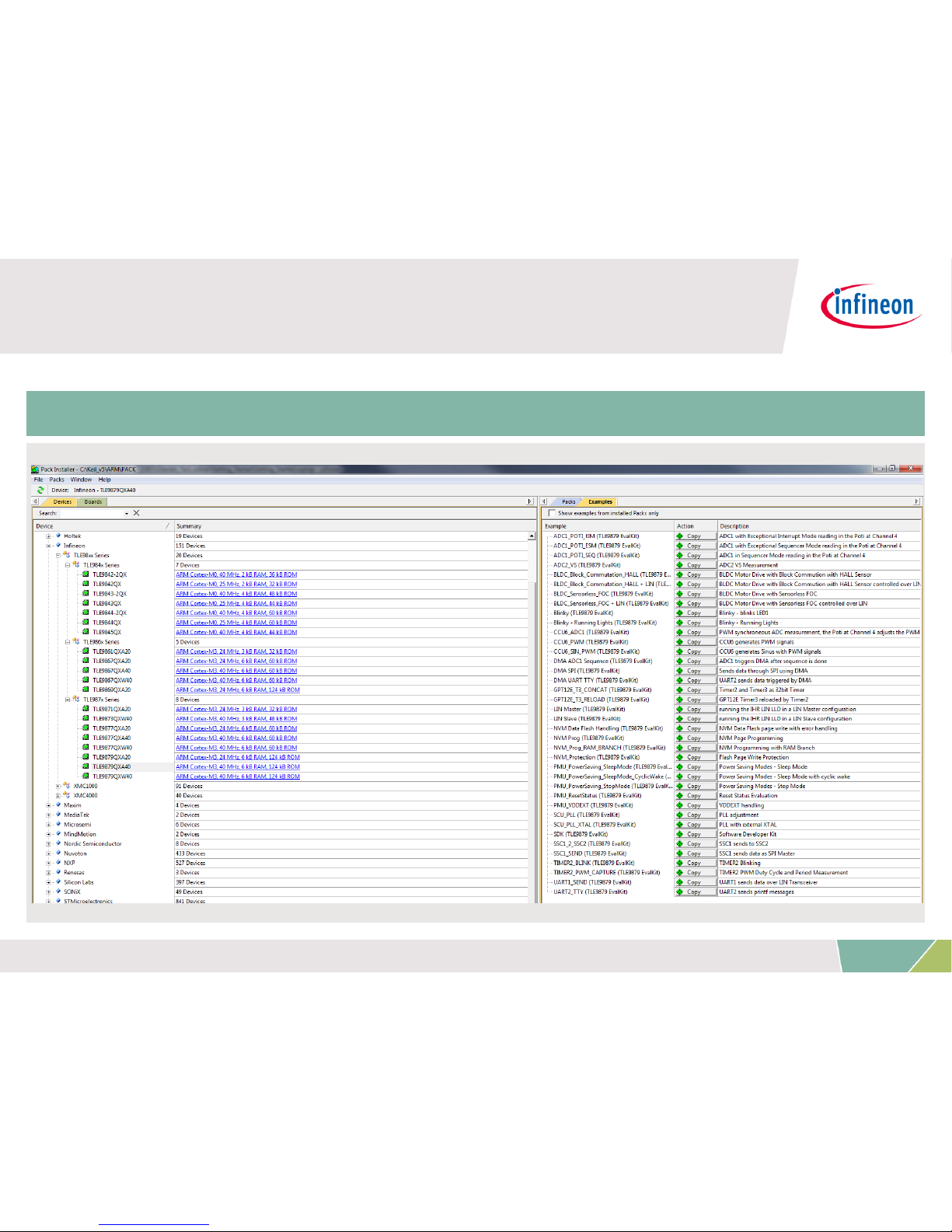

Infineon Example Code available in “Pack Installer”
