Data Sheet, V1.2, March 2007

XC164KM

16-Bit Single-Chip Microcontroller with C166SV2 Core

Microcontrollers

Edition 2007-03

Published by Infineon Technologies AG 81726 Munich, Germany

Legal Disclaimer

The information given in this document shall in no event be regarded as a guarantee of conditions or characteristics. With respect to any examples or hints given herein, any typical values stated herein and/or any information regarding the application of the device, Infineon Technologies hereby disclaims any and all warranties and liabilities of any kind, including without limitation, warranties of non-infringement of intellectual property rights of any third party.

Information

For further information on technology, delivery terms and conditions and prices, please contact the nearest Infineon Technologies Office (www.infineon.com).

Warnings

Due to technical requirements, components may contain dangerous substances. For information on the types in question, please contact the nearest Infineon Technologies Office.

Infineon Technologies components may be used in life-support devices or systems only with the express written approval of Infineon Technologies, if a failure of such components can reasonably be expected to cause the failure of that life-support device or system or to affect the safety or effectiveness of that device or system. Life support devices or systems are intended to be implanted in the human body or to support and/or maintain and sustain and/or protect human life. If they fail, it is reasonable to assume that the health of the user or other persons may be endangered.

Data Sheet, V1.2, March 2007

XC164KM

16-Bit Single-Chip Microcontroller with C166SV2 Core

Microcontrollers

XC164KM Revision History: V1.2, 2007-03

Previous Version(s): V1.1, 2006-08 V1.0, 2005-11

Page Subjects (major changes since last revision)

6 Design steps of the derivatives differentiated. 50 Power consumption of the derivatives differentiated. 51 Figure 10 adapted. 52 Figure 12 adapted. 59 Packages of the derivatives differentiated.

XC164KM

Derivatives

60 Thermal resistances of the derivatives differentiated.

all “Preliminary” removed

We Listen to Your Comments

Any information within this document that you feel is wrong, unclear or missing at all? Your feedback will help us to continuously improve the quality of this document. Please send your proposal (including a reference to this document) to:

mcdocu.comments@infineon.com

Data Sheet V1.2, 2007-03

XC164KM

Derivatives

Table of Contents

1 Summary of Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

2 General Device Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.1 Pin Configuration and Definition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

3 Functional Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

3.1 Memory Subsystem and Organization . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

3.2 Central Processing Unit (CPU) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

3.3 Interrupt System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

3.4 On-Chip Debug Support (OCDS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

3.5 Capture/Compare Unit (CAPCOM2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

3.6 General Purpose Timer (GPT12E) Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

3.7 Real Time Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

3.8 Asynchronous/Synchronous Serial Interfaces (ASC0/ASC1) . . . . . . . . . . 34

3.9 High Speed Synchronous Serial Channels (SSC0/SSC1) . . . . . . . . . . . . 35

3.10 TwinCAN Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

3.11 LXBus Controller (EBC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

3.12 Watchdog Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

3.13 Clock Generation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

3.14 Parallel Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

3.15 Power Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

3.16 Instruction Set Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

4 Electrical Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

4.1 General Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

4.2 DC Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

4.3 AC Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

4.3.1 Definition of Internal Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

4.3.2 On-chip Flash Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

4.3.3 External Clock Drive XTAL1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

5 Package and Reliability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

5.1 Packaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

5.2 Flash Memory Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Data Sheet 3 V1.2, 2007-03

XC164KM16-Bit Single-Chip Microcontroller with C166SV2 Core

XC166 Family

1 Summary of Features

For a quick overview or reference, the XC164KM’s properties are listed here in a condensed way.

• High Performance 16-bit CPU with 5-Stage Pipeline – 25 ns Instruction Cycle Time at 40 MHz CPU Clock (Single-Cycle Execution) – 1-Cycle Multiplication (16 × 16 bit), Background Division (32 / 16 bit) in 21 Cycles – 1-Cycle Multiply-and-Accumulate (MAC) Instructions – Enhanced Boolean Bit Manipulation Facilities – Zero-Cycle Jump Execution – Additional Instructions to Support HLL and Operating Systems – Register-Based Design with Multiple Variable Register Banks – Fast Context Switching Support with Two Additional Local Register Banks – 16 Mbytes Total Linear Address Space for Code and Data – 1024 Bytes On-Chip Special Function Register Area (C166 Family Compatible)

• 16-Priority-Level Interrupt System with up to 63 Sources, Sample-Rate down to 50 ns

• 8-Channel Interrupt-Driven Single-Cycle Data Transfer Facilities via Peripheral Event Controller (PEC), 24-Bit Pointers Cover Total Address Space

• Clock Generation via on-chip PLL (factors 1:0.15 … 1:10), or via Prescaler (factors 1:1 … 60:1)

• On-Chip Memory Modules – 2 Kbytes On-Chip Dual-Port RAM (DPRAM) – 0/2/4 Kbytes – 2 Kbytes On-Chip Program/Data SRAM (PSRAM) – 32/64/128

• On-Chip Peripheral Modules – 16-Channel General Purpose Capture/Compare Unit (CAPCOM2) – Multi-Functional General Purpose Timer Unit with 5 Timers – Two Synchronous/Asynchronous Serial Channels (USARTs) – Two High-Speed-Synchronous Serial Channels – On-Chip TwinCAN Interface (Rev. 2.0B active) with 32 Message Objects

(Full CAN/Basic CAN) on Two CAN Nodes, and Gateway Functionality

– On-Chip Real Time Clock, Driven by the Main Oscillator

• Idle, Sleep, and Power Down Modes with Flexible Power Management

• Programmable Watchdog Timer and Oscillator Watchdog

On-Chip Data SRAM (DSRAM)

Kbytes On-Chip Program Memory (Flash Memory)

1) Depends on the respective derivative. See Table 1 “XC164KM Derivative Synopsis” on Page 6.

Data Sheet 4 V1.2, 2007-03

XC164KM

Derivatives

Summary of Features

• Up to 47 General Purpose I/O Lines, partly with Selectable Input Thresholds and Hysteresis

• On-Chip Bootstrap Loader

• On-Chip Debug Support via JTAG Interface

• 64-Pin Green LQFP Package for the -16F derivatives, 0.5 mm (19.7 mil) pitch (RoHS compliant)

• 64-Pin TQFP Package for the -4F/8F derivatives, 0.5 mm (19.7 mil) pitch (RoHS compliant)

Ordering Information

The ordering code for Infineon microcontrollers provides an exact reference to the required product. This ordering code identifies:

• the derivative itself, i.e. its function set, the temperature range, and the supply voltage

• the package and the type of delivery.

For the available ordering codes for the XC164KM please refer to your responsible sales representative or your local distributor.

This document describes several derivatives of the XC164KM group. Table 1 enumerates these derivatives and summarizes the differences. As this document refers to all of these derivatives, some descriptions may not apply to a specific product.

For simplicity all versions are referred to by the term XC164KM throughout this document.

Data Sheet 5 V1.2, 2007-03

Table 1 XC164KM Derivative Synopsis Derivative

Temp. Range

Program Memory

XC164KM

Derivatives

Summary of Features

On-Chip RAM Interfaces

SAF-XC164KM-16F40F SAF-XC164KM-16F20F

-40 to 85 °C

128 Kbytes Flash

2 Kbytes DPRAM, 4 Kbytes DSRAM, 2 Kbytes PSRAM

SAF-XC164KM-8F40F SAF-XC164KM-8F20F

-40 to 85 °C

64 Kbytes Flash

2 Kbytes DPRAM, 2 Kbytes DSRAM, 2 Kbytes PSRAM

SAF-XC164KM-4F40F SAF-XC164KM-4F20F

1) This Data Sheet is valid for:

devices starting with and including design step BA for the -16F derivatives, and for devices starting with and including design step AA for -4F/8F derivatives.

-40 to 85 °C

32 Kbytes Flash

2 Kbytes DPRAM, 2 Kbytes PSRAM

ASC0, ASC1, SSC0, SSC1, CAN0, CAN1

Data Sheet 6 V1.2, 2007-03

XC164KM

Derivatives

General Device Information

2 General Device Information

The XC164KM derivatives are high-performance members of the Infineon XC166 Family of full featured single-chip CMOS microcontrollers. These devices extend the functionality and performance of the C166 Family in terms of instructions (MAC unit), peripherals, and speed. They combine high CPU performance (up to 40 million instructions per second) with high peripheral functionality and enhanced IO-capabilities. They also provide clock generation via PLL and various on-chip memory modules such as program Flash, program RAM, and data RAM.

DDI/P

XTAL1 XTAL2 NMI RSTIN

Port 5 14 bit

Figure 1 Logic Symbol

XC164KM

PORT1 14 bit

Port 3 15 bit

Port 9 6 bit

TRST

MCA05554_XC164KM

Data Sheet 7 V1.2, 2007-03

XC164KM

Derivatives

General Device Information

2.1 Pin Configuration and Definition

The pins of the XC164KM are described in detail in Table 2, including all their alternate functions. Figure 2 summarizes all pins in a condensed way, showing their location on the 4 sides of the package. E* marks pins to be used as alternate external interrupt inputs.

DDP

DDI

TRST

RSTIN

NMI

XTAL1

XTAL2

P1 L.6

P1L.7/CC22IO

P1L.3

P1L.4

P1L.5

P1L.0

P1L.1

P1L.2

P1 H. 0/ EX0I N/ CC 23 IO

P1 H. 1/ EX1I N/ MR ST1 P1 H. 2/ EX2I N/ MT RS1

P1 H. 3/ EX3I N/ T7I N/ SCL K1

P1H.4/CC24IO/EX4IN

DDP

P5 .0 P5 .1 P5 .2 P5 .3 P5 .4

P5 .5 P5 .1 0/T6 EUD P5 .1 1/T5 EUD

49505152535455565758596061626364

P9.5/CC21IO

1 2 3

4 5

6 7 8 9

XC164KM

10 11

12 13 14 15 16

P9.4/CC20IO

47 46

P9.3/CC19IO/CAN1_TxD P9.2/CC18IO/CAN1_RxD/E

P9.1/CC17IO/CAN2_TxD

44 43

P9.0/CC16IO/CAN2_RxD/E

P3.15/CLKOUT/FOUT

DDP

P3 .1 3/SC LK0 /E* P3.11/RxD0/E*

P3.10/TxD0/E*

P3 .9 /M TSR 0

P3 .8 /M RST0

35 34

P3 .7 /T 2I N/ BRKIN

P3 .6 /T 3I N

32313029282726252423222120191817

P5.6

P5.7

P5 .12 /T6 IN

P5 .13 /T5 IN

DDI

DDP

P5.14/T4EUD

P5.15/T2EUD

P3.2/CAPIN/TDI

P3.3/T3OUT/TDO

P3.4/T3EUD/TMS

P3.1/T6OUT/RxD1/TCK/E*

P3.5/T4IN/TxD1/BRKOUT

mc_xc164km_pinout.vsd

Figure 2 Pin Configuration (top view)

Data Sheet 8 V1.2, 2007-03

Table 2 Pin Definitions and Functions

XC164KM

Derivatives

General Device Information

Symbol

Pin Num.

Input Outp.

Function

RSTIN 63 I Reset Input with Schmitt-Trigger characteristics. A low-level

at this pin while the oscillator is running resets the XC164KM. A spike filter suppresses input pulses < 10 ns. Input pulses > 100 ns safely pass the filter. The minimum duration for a safe recognition should be 100 ns + 2 CPU clock cycles.

Note: The reset duration must be sufficient to let the

hardware configuration signals settle. External circuitry must guarantee low-level at the RSTIN

pin at least until both power supply voltages

have reached the operating range.

NMI

64 I Non-Maskable Interrupt Input. A high to low transition at this

pin causes the CPU to vector to the NMI trap routine. When the PWRDN (power down) instruction is executed, the NMI pin must be low in order to force the XC164KM into power down mode. If NMI

is high, when PWRDN is executed, the part will continue to run in normal mode. If not used, pin NMI

should be pulled high externally.

Port 9

P9.0

P9.1

P9.2

P9.3

P9.4 P9.5

43-48

47 48

I/O I I I/O O I/O I I I/O O I/O I/O

Port 9 is a 6-bit bidirectional I/O port. Each pin can be programmed for input (output driver in high-impedance state) or output (configurable as push/pull or open drain driver). The input threshold of Port 9 is selectable (standard or special). The following Port 9 pins also serve for alternate functions: CC16IO: (CAPCOM2) CC16 Capture Inp./Compare Outp., CAN2_RxD: (CAN Node 2) Receive Data Input

, EX5IN: (Fast External Interrupt 5) Input (alternate pin A) CC17IO: (CAPCOM2) CC17 Capture Inp./Compare Outp., CAN2_TxD: (CAN Node 2) Transmit Data Output, CC18IO: (CAPCOM2) CC18 Capture Inp./Compare Outp., CAN1_RxD: (CAN Node 1) Receive Data Input

, EX4IN: (Fast External Interrupt 4) Input (alternate pin A) CC19IO: (CAPCOM2) CC19 Capture Inp./Compare Outp., CAN1_TxD: (CAN Node 1) Transmit Data Output, CC20IO: (CAPCOM2) CC20 Capture Inp./Compare Outp. CC21IO: (CAPCOM2) CC21 Capture Inp./Compare Outp.

Note: At the end of an external reset P9.4 and P9.5 also may

input startup configuration values.

Data Sheet 9 V1.2, 2007-03

Table 2 Pin Definitions and Functions (cont’d)

XC164KM

Derivatives

General Device Information

Symbol

Port 5

P5.10 P5.11 P5.12 P5.13 P5.14 P5.15

TRST

Pin Num.

9-18, 21-24 15 16 21 22 23 24

Input Outp.

I I I I I I

Function

Port 5 is a 14-bit input-only port. Some pins of Port 5 also serve as timer inputs: T6EUD: GPT2 Timer T6 Ext. Up/Down Control Input T5EUD: GPT2 Timer T5 Ext. Up/Down Control Input T6IN: GPT2 Timer T6 Count/Gate Input T5IN: GPT2 Timer T5 Count/Gate Input T4EUD: GPT1 Timer T4 Ext. Up/Down Control Input T2EUD: GPT1 Timer T2 Ext. Up/Down Control Input

62 I Test-System Reset Input. For normal system operation, pin

TRST edge of RSTIN

should be held low. A high level at this pin at the rising

enables the hardware configuration and activates the XC164KM’s debug system. In this case, pin TRST

must be driven low once to reset the debug system.

Data Sheet 10 V1.2, 2007-03

Table 2 Pin Definitions and Functions (cont’d)

XC164KM

Derivatives

General Device Information

Symbol

Port 3

P3.1

P3.2

P3.3

P3.4

P3.5

P3.6 P3.7

P3.8 P3.9 P3.10

P3.11

P3.13

P3.15

Pin Num.

28-39, 42

33 34

35 36 37

Input Outp.

O I/O I I I I O O I I I O O I I I I/O I/O O I I/O I I/O I O O

Function

Port 3 is a 13-bit bidirectional I/O port. Each pin can be programmed for input (output driver in high-impedance state) or output (configurable as push/pull or open drain driver). The input threshold of Port 3 is selectable (standard or special).The following Port 3 pins also serve for alternate functions: T6OUT: [GPT2] Timer T6 Toggle Latch Output, RxD1: [ASC1] Data Input (Async.) or Inp./Outp. (Sync.), EX1IN: [Fast External Interrupt 1] Input (alternate pin A), TCK: [Debug System] JTAG Clock Input CAPIN: [GPT2] Register CAPREL Capture Input, TDI: [Debug System] JTAG Data In T3OUT: [GPT1] Timer T3 Toggle Latch Output, TDO: [Debug System] JTAG Data Out T3EUD: [GPT1] Timer T3 External Up/Down Control Input, TMS: [Debug System] JTAG Test Mode Selection T4IN: [GPT1] Timer T4 Count/Gate/Reload/Capture Inp. TxD1: [ASC0] Clock/Data Output (Async./Sync.), BRKOUT

: [Debug System] Break Out T3IN: [GPT1] Timer T3 Count/Gate Input T2IN: [GPT1] Timer T2 Count/Gate/Reload/Capture Inp. BRKIN

: [Debug System] Break In MRST0: [SSC0] Master-Receive/Slave-Transmit In/Out. MTSR0: [SSC0] Master-Transmit/Slave-Receive Out/In. TxD0: [ASC0] Clock/Data Output (Async./Sync.), EX2IN: [Fast External Interrupt 2] Input (alternate pin B) RxD0: [ASC0] Data Input (Async.) or Inp./Outp. (Sync.), EX2IN: [Fast External Interrupt 2] Input (alternate pin A) SCLK0: [SSC0] Master Clock Output / Slave Clock Input., EX3IN: [Fast External Interrupt 3] Input (alternate pin A) CLKOUT: System Clock Output (= CPU Clock), FOUT: Programmable Frequency Output

Data Sheet 11 V1.2, 2007-03

Table 2 Pin Definitions and Functions (cont’d)

XC164KM

Derivatives

General Device Information

Symbol

PORT1

P1L.7 P1H.0

P1H.1

P1H.2

P1H.3

P1H.4

P1H.5

Pin Num.

1-6, 49-56

56 1

Input Outp.

I/O I I/O I I/O I I/O I I/O I I/O I I/O I

Function

PORT1 consists of one 8-bit and one 6-bit bidirectional I/O port P1L and P1H. Each pin can be programmed for input (output driver in high-impedance state) or output. The following PORT1 pins also serve for alt. functions: CC22IO: [CAPCOM2] CC22 Capture Inp./Compare Outp. EX0IN: [Fast External Interrupt 0] Input (default pin), CC23IO: [CAPCOM2] CC23 Capture Inp./Compare Outp. EX1IN: [Fast External Interrupt 1] Input (default pin), MRST1: [SSC1] Master-Receive/Slave-Transmit In/Out. EX2IN: [Fast External Interrupt 2] Input (default pin), MTSR1: [SSC1] Master-Transmit/Slave-Receive Out/Inp. T7IN: [CAPCOM2] Timer T7 Count Input, SCLK1: [SSC1] Master Clock Output / Slave Clock Input, EX3IN: [Fast External Interrupt 3] Input (default pin), CC24IO: [CAPCOM2] CC24 Capture Inp./Compare Outp., EX4IN: [Fast External Interrupt 4] Input (default pin) CC25IO: [CAPCOM2] CC25 Capture Inp./Compare Outp., EX5IN: [Fast External Interrupt 5] Input (default pin)

XTAL2 XTAL16160

DDI

26, 58 – Digital Core Supply Voltage (On-Chip Modules):

O I

Note: At the end of an external reset P1H.4 and P1H.5 also

may input startup configuration values

XTAL2: Output of the oscillator amplifier circuit XTAL1: Input to the oscillator amplifier and input to the internal clock generator To clock the device from an external source, drive XTAL1, while leaving XTAL2 unconnected. Minimum and maximum high/low and rise/fall times specified in the AC Characteristics must be observed.

Note: Input pin XTAL1 belongs to the core voltage domain.

Therefore, input voltages must be within the range defined for

DDI

+2.5 V during normal operation and idle mode. Please refer to the Operating Condition Parameters

Data Sheet 12 V1.2, 2007-03

Table 2 Pin Definitions and Functions (cont’d)

XC164KM

Derivatives

General Device Information

Symbol

DDP

Pin Num.

8, 27, 40, 57

Input

Function

Outp.

– Digital Pad Supply Voltage (Pin Output Drivers):

+5 V during normal operation and idle mode. Please refer to the Operating Condition Parameters

7, 25, 41, 59

– Digital Ground

Connect decoupling capacitors to adjacent as close as possible to the pins. All

pins must be connected to the ground-line or ground-

plane.

1) The CAN interface lines are assigned to port P9 under software control.

DD/VSS

pin pairs

Data Sheet 13 V1.2, 2007-03

XC164KM

Derivatives

Functional Description

3 Functional Description

The architecture of the XC164KM combines advantages of RISC, CISC, and DSP processors with an advanced peripheral subsystem in a very well-balanced way. In addition, the on-chip memory blocks allow the design of compact systems-on-silicon with maximum performance (computing, control, communication).

The on-chip memory blocks (program code-memory and SRAM, dual-port RAM, data SRAM) and the set of generic peripherals are connected to the CPU via separate buses. Another bus, the LXBus, connects additional on-chip resources (see Figure 3).

This bus structure enhances the overall system performance by enabling the concurrent operation of several subsystems of the XC164KM.

The following block diagram gives an overview of the different on-chip components and of the advanced, high bandwidth internal bus structure of the XC164KM.

XTAL

PSRAM

2 Kbytes

ProgMem

Flash

32/64/128 Kbytes

OCDS

Debug Support

Osc / PLL

Clock Generation

GPT

T2 T3

T5 T6

RTC WDT

ASC0

(USART)

BRGen

ASC1

(USART)

BRGen

PMU

SSC0

(SPI)

BRGen

DPRAM

2 Kbytes

CPU

C166SV2-Core

Interrupt & PEC

SSC1

(SPI)

BRGen

DMU

Interrupt B us

P eripheral Dat a Bus

CC2

T7 T8

DSRAM

0/2/4 Kbytes

reduced

LXBus

EBC

Control

Twin

LXBus

CAN

A B

Port 5

POR T1Port 3Port 9

Mc_xc164km_block1.vsd

Figure 3 Block Diagram

Data Sheet 14 V1.2, 2007-03

XC164KM

Derivatives

Functional Description

3.1 Memory Subsystem and Organization

The memory space of the XC164KM is configured in a von Neumann architecture, which means that all internal and external resources, such as code memory, data memory, registers and I/O ports, are organized within the same linear address space. This common memory space includes 16 Mbytes and is arranged as 256 segments of 64 Kbytes each, where each segment consists of four data pages of 16 Kbytes each. The entire memory space can be accessed byte wise or word wise. Portions of the on-chip DPRAM and the register spaces (E/SFR) have additionally been made directly bit addressable.

The internal data memory areas and the Special Function Register areas (SFR and ESFR) are mapped into segment 0, the system segment.

The Program Management Unit (PMU) handles all code fetches and, therefore, controls accesses to the program memories, such as Flash memory and PSRAM.

The Data Management Unit (DMU) handles all data transfers and, therefore, controls accesses to the DSRAM and the on-chip peripherals.

Both units (PMU and DMU) are connected via the high-speed system bus to exchange data. This is required if operands are read from program memory, code or data is written to the PSRAM, or data is read from or written to peripherals on the LXBus (such as TwinCAN). The system bus allows concurrent two-way communication for maximum transfer performance.

32/64/128 Kbytes of on-chip Flash memory

store code or constant data. The on-chip Flash memory is organized as four 8-Kbyte sectors and up to three 32-Kbyte sectors. Each sector can be separately write protected

, erased and programmed (in blocks of 128 Bytes). The complete Flash area can be read-protected. A password sequence temporarily unlocks protected areas. The Flash module combines very fast 64-bit onecycle read accesses with protected and efficient writing algorithms for programming and erasing. Thus, program execution out of the internal Flash results in maximum performance. Dynamic error correction provides extremely high read data security for all read accesses. Programming typically takes 2 ms per 128-byte block (5 ms max.), erasing a sector typically takes 200 ms (500 ms max.).

2 Kbytes of on-chip Program SRAM (PSRAM) are provided to store user code or data. The PSRAM is accessed via the PMU and is therefore optimized for code fetches.

0/2/4 Kbytes

of on-chip Data SRAM (DSRAM) are provided as a storage for general

user data. The DSRAM is accessed via the DMU and is therefore optimized for data accesses. DSRAM is not available in the XC164KM-4F derivatives.

1) Depends on the respective derivative. See Table 1 “XC164KM Derivative Synopsis” on Page 6.

2) Each two 8-Kbyte sectors are combined for write-protection purposes.

Data Sheet 15 V1.2, 2007-03

XC164KM

Derivatives

Functional Description

2 Kbytes of on-chip Dual-Port RAM (DPRAM) are provided as a storage for user

defined variables, for the system stack, general purpose register banks. A register bank can consist of up to 16 word wide (R0 to R15) and/or byte wide (RL0, RH0, …, RL7, RH7) so-called General Purpose Registers (GPRs). The upper 256 bytes of the DPRAM are directly bit addressable. When used by a GPR, any location in the DPRAM is bit addressable.

1024 bytes (2 × 512 bytes) of the address space are reserved for the Special Function Register areas (SFR space and ESFR space). SFRs are word wide registers which are used for controlling and monitoring functions of the different on-chip units. Unused SFR addresses are reserved for future members of the XC166 Family. Therefore, they should either not be accessed, or written with zeros, to ensure upward compatibility.

Table 3 XC164KM Memory Map Address Area Start Loc. End Loc. Area Size

Flash register space FF’F000

FF’FFFF

4 Kbytes

Notes

Reserved (Acc. trap) F8’0000 Reserved for PSRAM E0’0800 Program SRAM E0’0000 Reserved for pr. mem. C2’0000 Program Flash C0’0000

C0’0000

C0’0000 Reserved 20’0800 TwinCAN registers 20’0000 Reserved 01’0000 SFR area 00’FE00 Dual-Port RAM 00’F600 Reserved for DPRAM 00’F200 ESFR area 00’F000 XSFR area 00’E000

FF’FFFF F7’FFFF E0’07FF DF’FFFF C1’FFFF C0’FFFF C0’7FFF BF’FFFF 20’07FF 1F’FFFF 00’FFFF 00’FDFF 00’F5FF 00’F1FF 00’EFFF

508 Kbytes –

< 1.5 Mbytes Minus PSRAM

2 Kbytes –

< 2 Mbytes Minus Flash

128 Kbytes XC164KM-16F

64 Kbytes XC164KM-8F

32 Kbytes XC164KM-4F

< 10 Mbytes Minus TwinCAN

2 Kbytes Accessed via EBC

< 2 Mbytes Minus segment 0

0.5 Kbyte –

2 Kbytes –

1 Kbyte –

0.5 Kbyte –

4 Kbytes –

Reserved 00’D000 Data SRAM 00’C000 Reserved for DSRAM 00’8000 Reserved 00’0000

1) The areas marked with “<” are slightly smaller than indicated, see column “Notes”.

00’DFFF 00’CFFF 00’BFFF 00’7FFF

6 Kbytes –

4 Kbytes

16 Kbytes –

32 Kbytes –

Data Sheet 16 V1.2, 2007-03

XC164KM

Derivatives

Functional Description

2) Not defined register locations return a trap code (1E9BH).

3) Depends on the respective derivative. See Table 1 “XC164KM Derivative Synopsis” on Page 6.

Data Sheet 17 V1.2, 2007-03

XC164KM

Derivatives

Functional Description

3.2 Central Processing Unit (CPU)

The main core of the CPU consists of a 5-stage execution pipeline with a 2-stage instruction-fetch pipeline, a 16-bit arithmetic and logic unit (ALU), a 32-bit/40-bit multiply and accumulate unit (MAC), a register-file providing three register banks, and dedicated SFRs. The ALU features a multiply and divide unit, a bit-mask generator, and a barrel shifter.

CPU

Prefetch

Branch

Multiply

Unit

FIFO

IDX0 IDX1

QX0 QX1

+/-

Unit

+/-

CSP IP CPUCON1

CPUCON2

Return

Stack

QR0 QR1

+/-

MRW

MCW MSW

IFU

DPP0 DPP1 DPP2 DPP3

Division Unit M u ltiply U n it

MDC PSW

VECSEG

TFR

Injection/

Exception

Handler

SPSEG

SP STKOV STKUN

Bit-Mask-Gen.

Barrel-Shifter

+/-

ADU

PMU

2-Stage

5-Stage

R15 R14

GPRs

Prefetch

Pipeline

R15

R14

GPRs

PSRAM

Flash/ROM

DPRAM

IPIP

R15 R14

GPRs

R1 R0

MAC

MAH

MAL

MDH

ZEROS

MDL

ONES

ALU

Buffer

DMU

DSRAM

EBC

Peripherals

mca04917_x.vsd

Figure 4 CPU Block Diagram

Based on these hardware provisions, most of the XC164KM’s instructions can be executed in just one machine cycle which requires 25 ns at 40 MHz CPU clock. For

Data Sheet 18 V1.2, 2007-03

XC164KM

Derivatives

Functional Description

example, shift and rotate instructions are always processed during one machine cycle independent of the number of bits to be shifted. Also multiplication and most MAC instructions execute in one single cycle. All multiple-cycle instructions have been optimized so that they can be executed very fast as well: for example, a 32-/16-bit division is started within 4 cycles, while the remaining 15 cycles are executed in the background. Another pipeline optimization, the branch target prediction, allows eliminating the execution time of branch instructions if the prediction was correct.

The CPU has a register context consisting of up to three register banks with 16 word wide GPRs each at its disposal. One of these register banks is physically allocated within the on-chip DPRAM area. A Context Pointer (CP) register determines the base address of the active register bank to be accessed by the CPU at any time. The number of register banks is only restricted by the available internal RAM space. For easy parameter passing, a register bank may overlap others.

A system stack of up to 32 Kwords is provided as a storage for temporary data. The system stack can be allocated to any location within the address space (preferably in the on-chip RAM area), and it is accessed by the CPU via the stack pointer (SP) register. Two separate SFRs, STKOV and STKUN, are implicitly compared against the stack pointer value upon each stack access for the detection of a stack overflow or underflow.

The high performance offered by the hardware implementation of the CPU can efficiently be utilized by a programmer via the highly efficient XC164KM instruction set which includes the following instruction classes:

• Standard Arithmetic Instructions

• DSP-Oriented Arithmetic Instructions

• Logical Instructions

• Boolean Bit Manipulation Instructions

• Compare and Loop Control Instructions

• Shift and Rotate Instructions

• Prioritize Instruction

• Data Movement Instructions

• System Stack Instructions

• Jump and Call Instructions

• Return Instructions

• System Control Instructions

• Miscellaneous Instructions The basic instruction length is either 2 or 4 bytes. Possible operand types are bits, bytes

and words. A variety of direct, indirect or immediate addressing modes are provided to specify the required operands.

Data Sheet 19 V1.2, 2007-03

XC164KM

Derivatives

Functional Description

3.3 Interrupt System

With an interrupt response time of typically 8 CPU clocks (in case of internal program execution), the XC164KM is capable of reacting very fast to the occurrence of nondeterministic events.

The architecture of the XC164KM supports several mechanisms for fast and flexible response to service requests that can be generated from various sources internal or external to the microcontroller. Any of these interrupt requests can be programmed to being serviced by the Interrupt Controller or by the Peripheral Event Controller (PEC).

In contrast to a standard interrupt service where the current program execution is suspended and a branch to the interrupt vector table is performed, just one cycle is ‘stolen’ from the current CPU activity to perform a PEC service. A PEC service implies a single byte or word data transfer between any two memory locations with an additional increment of either the PEC source, or the destination pointer, or both. An individual PEC transfer counter is implicitly decremented for each PEC service except when performing in the continuous transfer mode. When this counter reaches zero, a standard interrupt is performed to the corresponding source related vector location. PEC services are very well suited, for example, for supporting the transmission or reception of blocks of data. The XC164KM has 8 PEC channels each of which offers such fast interrupt-driven data transfer capabilities.

A separate control register which contains an interrupt request flag, an interrupt enable flag and an interrupt priority bit field exists for each of the possible interrupt nodes. Via its related register, each node can be programmed to one of sixteen interrupt priority levels. Once having been accepted by the CPU, an interrupt service can only be interrupted by a higher prioritized service request. For the standard interrupt processing, each of the possible interrupt nodes has a dedicated vector location.

Fast external interrupt inputs are provided to service external interrupts with high precision requirements. These fast interrupt inputs feature programmable edge detection (rising edge, falling edge, or both edges).

Software interrupts are supported by means of the ‘TRAP’ instruction in combination with an individual trap (interrupt) number.

Table 4 shows all of the possible XC164KM interrupt sources and the corresponding

hardware-related interrupt flags, vectors, vector locations and trap (interrupt) numbers.

Note: Interrupt nodes which are not assigned to peripherals (unassigned nodes), may

be used to generate software controlled interrupt requests by setting the respective interrupt request bit (xIR).

Data Sheet 20 V1.2, 2007-03

Table 4 XC164KM Interrupt Nodes

XC164KM

Derivatives

Functional Description

Source of Interrupt or PEC Service Request

Control Register

Vector Location

EX0IN CC1_CC8IC xx’0060 EX1IN CC1_CC9IC xx’0064 EX2IN CC1_CC10IC xx’0068 EX3IN CC1_CC11IC xx’006C EX4IN CC1_CC12IC xx’0070 EX5IN CC1_CC13IC xx’0074 CAPCOM Register 16 CC2_CC16IC xx’00C0 CAPCOM Register 17 CC2_CC17IC xx’00C4 CAPCOM Register 18 CC2_CC18IC xx’00C8 CAPCOM Register 19 CC2_CC19IC xx’00CC CAPCOM Register 20 CC2_CC20IC xx’00D0 CAPCOM Register 21 CC2_CC21IC xx’00D4 CAPCOM Register 22 CC2_CC22IC xx’00D8

Trap

Number

18H / 24 19H / 25 1AH / 26 1BH / 27 1CH / 28 1DH / 29 30H / 48 31H / 49 32H / 50 33H / 51 34H / 52 35H / 53 36H / 54

CAPCOM Register 23 CC2_CC23IC xx’00DC CAPCOM Register 24 CC2_CC24IC xx’00E0 CAPCOM Register 25 CC2_CC25IC xx’00E4 CAPCOM Register 26 CC2_CC26IC xx’00E8 CAPCOM Register 27 CC2_CC27IC xx’00EC CAPCOM Register 28 CC2_CC28IC xx’00F0 CAPCOM Register 29 CC2_CC29IC xx’0110 CAPCOM Register 30 CC2_CC30IC xx’0114 CAPCOM Register 31 CC2_CC31IC xx’0118 CAPCOM Timer 7 CC2_T7IC xx’00F4 CAPCOM Timer 8 CC2_T8IC xx’00F8 GPT1 Timer 2 GPT12E_T2IC xx’0088 GPT1 Timer 3 GPT12E_T3IC xx’008C GPT1 Timer 4 GPT12E_T4IC xx’0090 GPT2 Timer 5 GPT12E_T5IC xx’0094

37H / 55 38H / 56 39H / 57 3AH / 58 3BH / 59 3CH / 60 44H / 68 45H / 69 46H / 70 3DH / 61 3EH / 62 22H / 34 23H / 35 24H / 36 25H / 37

GPT2 Timer 6 GPT12E_T6IC xx’0098

26H / 38

Data Sheet 21 V1.2, 2007-03

Table 4 XC164KM Interrupt Nodes (cont’d)

XC164KM

Derivatives

Functional Description

Source of Interrupt or PEC Service Request

Control Register

Vector Location

GPT2 CAPREL Register GPT12E_CRIC xx’009C ASC0 Transmit ASC0_TIC xx’00A8 ASC0 Transmit Buffer ASC0_TBIC xx’011C ASC0 Receive ASC0_RIC xx’00AC ASC0 Error ASC0_EIC xx’00B0 ASC0 Autobaud ASC0_ABIC xx’017C SSC0 Transmit SSC0_TIC xx’00B4 SSC0 Receive SSC0_RIC xx’00B8 SSC0 Error SSC0_EIC xx’00BC PLL/OWD PLLIC xx’010C ASC1 Transmit ASC1_TIC xx’0120 ASC1 Transmit Buffer ASC1_TBIC xx’0178 ASC1 Receive ASC1_RIC xx’0124

Trap

Number

27H / 39 2AH / 42 47H / 71 2BH / 43 2CH / 44 5FH / 95 2DH / 45 2EH / 46 2FH / 47 43H / 67 48H / 72 5EH / 94 49H / 73

ASC1 Error ASC1_EIC xx’0128 ASC1 Autobaud ASC1_ABIC xx’0108 End of PEC Subchannel EOPIC xx’0130 SSC1 Transmit SSC1_TIC xx’0144 SSC1 Receive SSC1_RIC xx’0148 SSC1 Error SSC1_EIC xx’014C CAN0 CAN_0IC xx’0150 CAN1 CAN_1IC xx’0154 CAN2 CAN_2IC xx’0158 CAN3 CAN_3IC xx’015C CAN4 CAN_4IC xx’0164 CAN5 CAN_5IC xx’0168 CAN6 CAN_6IC xx’016C CAN7 CAN_7IC xx’0170 RTC RTC_IC xx’0174

4AH / 74 42H / 66 4CH / 76 51H / 81 52H / 82 53H / 83 54H / 84 55H / 85 56H / 86 57H / 87 59H / 89 5AH / 90 5BH / 91 5CH / 92 5DH / 93

Unassigned node – xx’0040 Unassigned node – xx’0044

10H / 16 11H / 17

Data Sheet 22 V1.2, 2007-03

Table 4 XC164KM Interrupt Nodes (cont’d)

XC164KM

Derivatives

Functional Description

Source of Interrupt or PEC Service Request

Control Register

Vector Location

Unassigned node – xx’0048 Unassigned node – xx’004C Unassigned node – xx’0050 Unassigned node – xx’0054 Unassigned node – xx’0058 Unassigned node – xx’005C Unassigned node – xx’0078 Unassigned node – xx’007C Unassigned node – xx’0080 Unassigned node – xx’0084 Unassigned node – xx’00A0 Unassigned node – xx’00A4 Unassigned node – xx’00FC

Trap

Number

12H / 18 13H / 19 14H / 20 15H / 21 16H / 22 17H / 23 1EH / 30 1FH / 31 20H / 32 21H / 33 28H / 40 29H / 41 3FH / 63

Unassigned node – xx’0100 Unassigned node – xx’0104 Unassigned node – xx’012C Unassigned node – xx’0134 Unassigned node – xx’0138 Unassigned node – xx’013C Unassigned node – xx’0140 Unassigned node – xx’0160

1) Register VECSEG defines the segment where the vector table is located to. Bitfield VECSC in register CPUCON1 defines the distance between two adjacent vectors. This table represents the default setting, with a distance of 4 (two words) between two vectors.

40H / 64 41H / 65 4BH / 75 4DH / 77 4EH / 78 4FH / 79 50H / 80 58H / 88

Data Sheet 23 V1.2, 2007-03

XC164KM

Derivatives

Functional Description

The XC164KM also provides an excellent mechanism to identify and to process exceptions or error conditions that arise during run-time, so-called ‘Hardware Traps’. Hardware traps cause immediate non-maskable system reaction which is similar to a standard interrupt service (branching to a dedicated vector table location). The occurrence of a hardware trap is additionally signified by an individual bit in the trap flag register (TFR). Except when another higher prioritized trap service is in progress, a hardware trap will interrupt any actual program execution. In turn, hardware trap services can normally not be interrupted by standard or PEC interrupts.

Table 5 shows all of the possible exceptions or error conditions that can arise during run-

time:

Table 5 Hardware Trap Summary Exception Condition Trap

Flag

Reset Functions:

–

• Hardware Reset

• Software Reset

• W-dog Timer Overflow

Class A Hardware Traps:

• Non-Maskable Interrupt

• Stack Overflow

• Stack Underflow

• Software Break

NMI STKOF STKUF SOFTBRK

Class B Hardware Traps:

• Undefined Opcode

• PMI Access Error

• Protected Instruction

UNDOPC PACER PRTFLT

Fault

• Illegal Word Operand

ILLOPA

Access

Trap Vector

RESET RESET RESET

NMITRAP STOTRAP STUTRAP SBRKTRAP

BTRAP BTRAP BTRAP

BTRAP

Vector Location

xx’0000 xx’0000 xx’0000

xx’0008 xx’0010 xx’0018 xx’0020

xx’0028 xx’0028 xx’0028

xx’0028

Trap

Number

00 00 00

02 04 06 08

0A 0A 0A

Trap Priority

III III III

II II II II

I I I

Reserved – – [2C

Software Traps

–– Any

• TRAP Instruction

- 3CH][0BH -

[xx’0000 xx’01FC

]

0F Any

[00 7F

–

]

Current

]

CPU

Priority in steps of 4

Data Sheet 24 V1.2, 2007-03

XC164KM

Derivatives

Functional Description

3.4 On-Chip Debug Support (OCDS)

The On-Chip Debug Support system provides a broad range of debug and emulation features built into the XC164KM. The user software running on the XC164KM can thus be debugged within the target system environment.

The OCDS is controlled by an external debugging device via the debug interface, consisting of the IEEE-1149-conforming JTAG port and a break interface. The debugger controls the OCDS via a set of dedicated registers accessible via the JTAG interface. Additionally, the OCDS system can be controlled by the CPU, e.g. by a monitor program. An injection interface allows the execution of OCDS-generated instructions by the CPU.

Multiple breakpoints can be triggered by on-chip hardware, by software, or by an external trigger input. Single stepping is supported as well as the injection of arbitrary instructions and read/write access to the complete internal address space. A breakpoint trigger can be answered with a CPU-halt, a monitor call, a data transfer, or/and the activation of an external signal.

Tracing data can be obtained via the JTAG interface. The debug interface uses a set of 6 interface signals (4 JTAG lines, 2 break lines) to

communicate with external circuitry. These interface signals are realized as alternate functions on Port 3 pins.

Data Sheet 25 V1.2, 2007-03

XC164KM

Derivatives

Functional Description

3.5 Capture/Compare Unit (CAPCOM2)

The CAPCOM unit supports generation and control of timing sequences on up to 16 channels with a maximum resolution of 1 system clock cycle (8 cycles in staggered mode). The CAPCOM unit is typically used to handle high speed I/O tasks such as pulse and waveform generation, pulse width modulation (PWM), Digital to Analog (D/A) conversion, software timing, or time recording relative to external events.

Two 16-bit timers (T7/T8) with reload registers provide two independent time bases for the capture/compare register array.

The input clock for the timers is programmable to several prescaled values of the internal system clock, or may be derived from an overflow/underflow of timer T6 in module GPT2. This provides a wide range of variation for the timer period and resolution and allows precise adjustments to the application specific requirements. In addition, an external count input for CAPCOM timer T7 allows event scheduling for the capture/compare registers relative to external events.

The capture/compare register array contains 16 dual purpose capture/compare registers, each of which may be individually allocated to either CAPCOM timer (T7 or T8, respectively), and programmed for capture or compare function. 10 registers of the CAPCOM2 module have each one port pin associated with it which serves as an input pin for triggering the capture function, or as an output pin to indicate the occurrence of a compare event.

Table 6 Compare Modes (CAPCOM2) Compare Modes Function

Mode 0 Interrupt-only compare mode;

Several compare interrupts per timer period are possible

Mode 1 Pin toggles on each compare match;

Several compare events per timer period are possible

Mode 2 Interrupt-only compare mode;

Only one compare interrupt per timer period is generated

Mode 3 Pin set ‘1’ on match; pin reset ‘0’ on compare timer overflow;

Only one compare event per timer period is generated

Double Register Mode

Single Event Mode Generates single edges or pulses;

When a capture/compare register has been selected for capture mode, the current contents of the allocated timer will be latched (‘captured’) into the capture/compare

Data Sheet 26 V1.2, 2007-03

Two registers operate on one pin; Pin toggles on each compare match; Several compare events per timer period are possible

Can be used with any compare mode

XC164KM

Derivatives

Functional Description

register in response to an external event at the port pin which is associated with this register. In addition, a specific interrupt request for this capture/compare register is generated. Either a positive, a negative, or both a positive and a negative external signal transition at the pin can be selected as the triggering event.

The contents of all registers which have been selected for one of the five compare modes are continuously compared with the contents of the allocated timers.

When a match occurs between the timer value and the value in a capture/compare register, specific actions will be taken based on the selected compare mode.

Data Sheet 27 V1.2, 2007-03

Reload Reg.

T7REL

XC164KM

Derivatives

Functional Description

T7IN T6OUF

CCxIO CCxIO

Input

Control

Mode

Control

(Capture

Compare)

Timer T7

Sixteen

16-bit

Capture/

Compare Registers

T7IRQ

CCxIRQ CCxIRQ

CCxIO

T6OUF

Input

Control

Timer T8

CCxIRQ

T8IRQ

Reload Reg.

T8REL

CAPCOM2 provides channels x = 16 … 31. (see signals CCxIO and CCxIRQ)

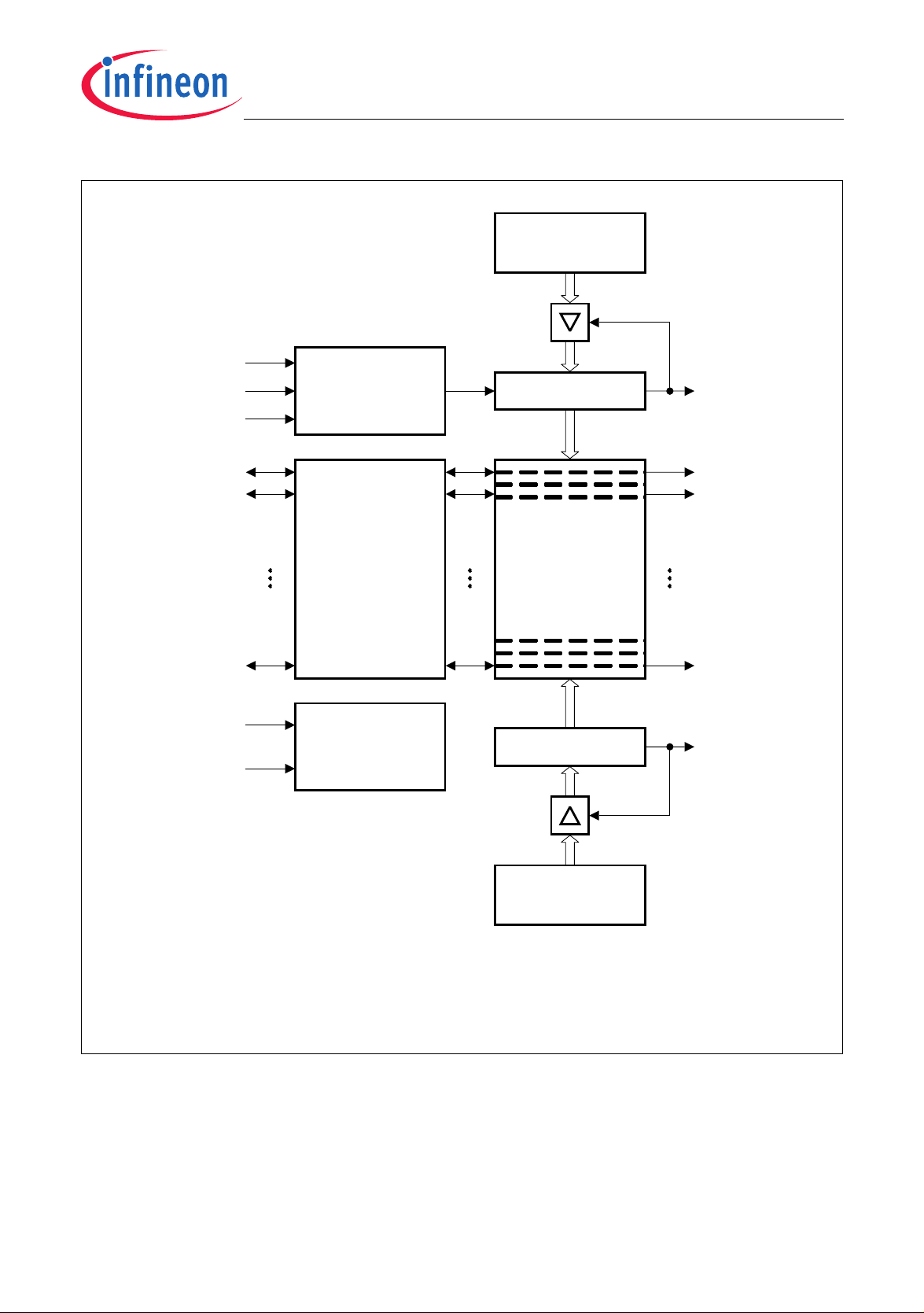

Figure 5 CAPCOM2 Unit Block Diagram

Data Sheet 28 V1.2, 2007-03

MCB05569_2

XC164KM

Derivatives

Functional Description

3.6 General Purpose Timer (GPT12E) Unit

The GPT12E unit represents a very flexible multifunctional timer/counter structure which may be used for many different time related tasks such as event timing and counting, pulse width and duty cycle measurements, pulse generation, or pulse multiplication.

The GPT12E unit incorporates five 16-bit timers which are organized in two separate modules, GPT1 and GPT2. Each timer in each module may operate independently in a number of different modes, or may be concatenated with another timer of the same module.

Each of the three timers T2, T3, T4 of module GPT1 can be configured individually for one of four basic modes of operation, which are Timer, Gated Timer, Counter, and Incremental Interface Mode. In Timer Mode, the input clock for a timer is derived from the system clock, divided by a programmable prescaler, while Counter Mode allows a timer to be clocked in reference to external events. Pulse width or duty cycle measurement is supported in Gated Timer Mode, where the operation of a timer is controlled by the ‘gate’ level on an external input pin. For these purposes, each timer has one associated port pin (TxIN) which serves as gate or clock input. The maximum resolution of the timers in module GPT1 is 4 system clock cycles.

The count direction (up/down) for each timer is programmable by software or may additionally be altered dynamically by an external signal on a port pin (TxEUD) to facilitate e.g. position tracking.

In Incremental Interface Mode the GPT1 timers (T2, T3, T4) can be directly connected to the incremental position sensor signals A and B via their respective inputs TxIN and TxEUD. Direction and count signals are internally derived from these two input signals, so the contents of the respective timer Tx corresponds to the sensor position. The third position sensor signal TOP0 can be connected to an interrupt input.

Timer T3 has an output toggle latch (T3OTL) which changes its state on each timer overflow/underflow. The state of this latch may be output on pin T3OUT e.g. for time out monitoring of external hardware components. It may also be used internally to clock timers T2 and T4 for measuring long time periods with high resolution.

In addition to their basic operating modes, timers T2 and T4 may be configured as reload or capture registers for timer T3. When used as capture or reload registers, timers T2 and T4 are stopped. The contents of timer T3 is captured into T2 or T4 in response to a signal at their associated input pins (TxIN). Timer T3 is reloaded with the contents of T2 or T4 triggered either by an external signal or by a selectable state transition of its toggle latch T3OTL. When both T2 and T4 are configured to alternately reload T3 on opposite state transitions of T3OTL with the low and high times of a PWM signal, this signal can be constantly generated without software intervention.

Data Sheet 29 V1.2, 2007-03

T3CON.BPS1

XC164KM

Derivatives

Functional Description

GPT

2n:1

Basic Clock

Interrupt

T2IN

T2EUD

Mode

Control

Aux. Timer T2

U/D

Reload

Request (T2IRQ)

Capture

Interrupt Request

(T3IRQ)

T3IN

T3EUD

Mode

Control

Core Timer T3

U/D

T3OTL

Toggle Latch

T3OUT

Capture

Reload

T4IN

T4EUD

Mode

Control

Aux. Timer T4

U/D

Interrupt Request

(T4IRQ)

MCA05563

Figure 6 Block Diagram of GPT1

With its maximum resolution of 2 system clock cycles, the GPT2 module provides precise event control and time measurement. It includes two timers (T5, T6) and a capture/reload register (CAPREL). Both timers can be clocked with an input clock which is derived from the CPU clock via a programmable prescaler or with external signals. The

Data Sheet 30 V1.2, 2007-03

XC164KM

Derivatives

Functional Description

count direction (up/down) for each timer is programmable by software or may additionally be altered dynamically by an external signal on a port pin (TxEUD). Concatenation of the timers is supported via the output toggle latch (T6OTL) of timer T6, which changes its state on each timer overflow/underflow.

The state of this latch may be used to clock timer T5, and/or it may be output on pin T6OUT. The overflows/underflows of timer T6 can additionally be used to clock the CAPCOM2 timers, and to cause a reload from the CAPREL register.

The CAPREL register may capture the contents of timer T5 based on an external signal transition on the corresponding port pin (CAPIN), and timer T5 may optionally be cleared after the capture procedure. This allows the XC164KM to measure absolute time differences or to perform pulse multiplication without software overhead.

The capture trigger (timer T5 to CAPREL) may also be generated upon transitions of GPT1 timer T3’s inputs T3IN and/or T3EUD. This is especially advantageous when T3 operates in Incremental Interface Mode.

Data Sheet 31 V1.2, 2007-03

T6CON.BPS2

XC164KM

Derivatives

Functional Description

GPT

T5IN

CAPIN

T3IN/ T3EUD

2n:1

Mode

Control

CAPREL

Mode

Control

Basic Clock

U/D

Clear

Capture

Reload

Clear

GPT2 Timer T5

GPT2 CAPREL

Interrupt Request (T5IRQ)

Interrupt Request (CRIRQ)

Interrupt Request (T6IRQ)

Toggle FF

GPT2 Timer T6 T6OTL

T6OUT

Mode

Control

U/D

T6OUF

T6IN

MCA05564

Figure 7 Block Diagram of GPT2

Data Sheet 32 V1.2, 2007-03

XC164KM

Derivatives

Functional Description

3.7 Real Time Clock

The Real Time Clock (RTC) module of the XC164KM is directly clocked via a separate clock driver with the prescaled on-chip main oscillator frequency ( therefore independent from the selected clock generation mode of the XC164KM.

The RTC basically consists of a chain of divider blocks:

• A selectable 8:1 divider (on - off)

• The reloadable 16-bit timer T14

• The 32-bit RTC timer block (accessible via registers RTCH and RTCL), made of:

– a reloadable 10-bit timer – a reloadable 6-bit timer – a reloadable 6-bit timer – a reloadable 10-bit timer

All timers count up. Each timer can generate an interrupt request. All requests are combined to a common node request.

RTC

= f

OSCm

/32). It is

RT C

MUX

RTCINT

Interrupt Sub Node

RUN

PRE

CNT INT0

CNT INT1

CNT INT2

CNT INT3

REL-Register

T14REL 10 Bits6 Bits6 Bits10 Bits

CNT

T14-Register

CNT-Register

10 Bits6 Bits6 Bits10 BitsT14

MCB05568

Figure 8 RTC Block Diagram

Note: The registers associated with the RTC are not affected by a reset in order to

maintain the correct system time even when intermediate resets are executed.

Data Sheet 33 V1.2, 2007-03

XC164KM

Derivatives

Functional Description

The RTC module can be used for different purposes:

• System clock to determine the current time and date,

optionally during idle mode, sleep mode, and power down mode

• Cyclic time based interrupt, to provide a system time tick independent of CPU

frequency and other resources, e.g. to wake up regularly from idle mode

• 48-bit timer for long term measurements (maximum timespan is > 100 years)

• Alarm interrupt for wake-up on a defined time

3.8 Asynchronous/Synchronous Serial Interfaces (ASC0/ASC1)

The Asynchronous/Synchronous Serial Interfaces ASC0/ASC1 (USARTs) provide serial communication with other microcontrollers, processors, terminals or external peripheral components. They are upward compatible with the serial ports of the Infineon 8-bit microcontroller families and support full-duplex asynchronous communication and halfduplex synchronous communication. A dedicated baudrate generator with a fractional divider precisely generates all standard baud rates without oscillator tuning. For transmission, reception, error handling, and baud rate detection 5 separate interrupt vectors are provided.

In asynchronous mode, 8- or 9-bit data frames (with optional parity bit) are transmitted or received, preceded by a start bit and terminated by one or two stop bits. For multiprocessor communication, a mechanism to distinguish address from data bytes has been included (8-bit data plus wake-up bit mode). IrDA data transmissions up to

115.2 kbit/s with fixed or programmable IrDA pulse width are supported.

In synchronous mode, bytes (8 bits) are transmitted or received synchronously to a shift clock which is generated by the ASC0/1. The LSB is always shifted first.

In both modes, transmission and reception of data is FIFO-buffered. An autobaud detection unit allows to detect asynchronous data frames with its baudrate and mode with automatic initialization of the baudrate generator and the mode control bits.

A number of optional hardware error detection capabilities has been included to increase the reliability of data transfers. A parity bit can automatically be generated on transmission or be checked on reception. Framing error detection allows to recognize data frames with missing stop bits. An overrun error will be generated, if the last character received has not been read out of the receive buffer register at the time the reception of a new character is complete.

Summary of Features

• Full-duplex asynchronous operating modes

– 8- or 9-bit data frames, LSB first, one or two stop bits, parity generation/checking – Baudrate from 2.5 Mbit/s to 0.6 bit/s (@ 40 MHz) – Multiprocessor mode for automatic address/data byte detection – Support for IrDA data transmission/reception up to max. 115.2 kbit/s (@ 40 MHz)

Data Sheet 34 V1.2, 2007-03

XC164KM

Derivatives

Functional Description

– Auto baudrate detection

• Half-duplex 8-bit synchronous operating mode at 5 Mbit/s to 406.9 bit/s (@ 40 MHz)

• Buffered transmitter/receiver with FIFO support (8 entries per direction)

• Loop-back option available for testing purposes

• Interrupt generation on transmitter buffer empty condition, last bit transmitted

condition, receive buffer full condition, error condition (frame, parity, overrun error), start and end of an autobaud detection

3.9 High Speed Synchronous Serial Channels (SSC0/SSC1)

The High Speed Synchronous Serial Channels SSC0/SSC1 support full-duplex and halfduplex synchronous communication. It may be configured so it interfaces with serially linked peripheral components, full SPI functionality is supported.

A dedicated baud rate generator allows to set up all standard baud rates without oscillator tuning. For transmission, reception and error handling three separate interrupt vectors are provided.

The SSC transmits or receives characters of 2 … 16 bits length synchronously to a shift clock which can be generated by the SSC (master mode) or by an external master (slave mode). The SSC can start shifting with the LSB or with the MSB and allows the selection of shifting and latching clock edges as well as the clock polarity.

A number of optional hardware error detection capabilities has been included to increase the reliability of data transfers. Transmit error and receive error supervise the correct handling of the data buffer. Phase error and baudrate error detect incorrect serial data.

Summary of Features

• Master or Slave mode operation

• Full-duplex or Half-duplex transfers

• Baudrate generation from 20 Mbit/s to 305.18 bit/s (@ 40 MHz)

• Flexible data format

– Programmable number of data bits: 2 to 16 bits – Programmable shift direction: LSB-first or MSB-first – Programmable clock polarity: idle low or idle high – Programmable clock/data phase: data shift with leading or trailing clock edge

• Loop back option available for testing purposes

• Interrupt generation on transmitter buffer empty condition, receive buffer full

condition, error condition (receive, phase, baudrate, transmit error)

• Three pin interface with flexible SSC pin configuration

Data Sheet 35 V1.2, 2007-03

XC164KM

Derivatives

Functional Description

3.10 TwinCAN Module

The integrated TwinCAN module handles the completely autonomous transmission and reception of CAN frames in accordance with the CAN specification V2.0 part B (active), i.e. the on-chip TwinCAN module can receive and transmit standard frames with 11-bit identifiers as well as extended frames with 29-bit identifiers.

Two Full-CAN nodes share the TwinCAN module’s resources to optimize the CAN bus traffic handling and to minimize the CPU load. The module provides up to 32 message objects, which can be assigned to one of the CAN nodes and can be combined to FIFOstructures. Each object provides separate masks for acceptance filtering.

The flexible combination of Full-CAN functionality and FIFO architecture reduces the efforts to fulfill the real-time requirements of complex embedded control applications. Improved CAN bus monitoring functionality as well as the number of message objects permit precise and comfortable CAN bus traffic handling.

Gateway functionality allows automatic data exchange between two separate CAN bus systems, which reduces CPU load and improves the real time behavior of the entire system.

The bit timing for both CAN nodes is derived from the master clock and is programmable up to a data rate of 1 Mbit/s. Each CAN node uses two pins of Port 9 to interface to an external bus transceiver. The interface pins are assigned via software.

TwinCAN Module Kernel

Clock

Control

Address

Decoder

CAN

Node A

Message

CAN

Node B

Object

Buffer

TxDCA

RxDCA

Port

Control

TxDCB

Interrupt

Control

TwinCAN Control

RxDCB

MCB05567

Figure 9 TwinCAN Module Block Diagram

Data Sheet 36 V1.2, 2007-03

XC164KM

Derivatives

Functional Description

Summary of Features

• CAN functionality according to CAN specification V2.0 B active

• Data transfer rate up to 1 Mbit/s

• Flexible and powerful message transfer control and error handling capabilities

• Full-CAN functionality and Basic CAN functionality for each message object

• 32 flexible message objects

– Assignment to one of the two CAN nodes – Configuration as transmit object or receive object – Concatenation to a 2-, 4-, 8-, 16-, or 32-message buffer with FIFO algorithm – Handling of frames with 11-bit or 29-bit identifiers – Individual programmable acceptance mask register for filtering for each object – Monitoring via a frame counter – Configuration for Remote Monitoring Mode

• Up to eight individually programmable interrupt nodes can be used

• CAN Analyzer Mode for bus monitoring is implemented

3.11 LXBus Controller (EBC)

The EBC only controls accesses to resources connected to the on-chip LXBus. The LXBus is an internal representation of the external bus and allows accessing integrated peripherals and modules in the same way as external components.

The TwinCAN module is connected and accessed via the LXBus.

Data Sheet 37 V1.2, 2007-03

XC164KM

Derivatives

Functional Description

3.12 Watchdog Timer

The Watchdog Timer represents one of the fail-safe mechanisms which have been implemented to prevent the controller from malfunctioning for longer periods of time.

The Watchdog Timer is always enabled after a reset of the chip, and can be disabled until the EINIT instruction has been executed (compatible mode), or it can be disabled and enabled at any time by executing instructions DISWDT and ENWDT (enhanced mode). Thus, the chip’s start-up procedure is always monitored. The software has to be designed to restart the Watchdog Timer before it overflows. If, due to hardware or software related failures, the software fails to do so, the Watchdog Timer overflows and generates an internal hardware reset.

The Watchdog Timer is a 16-bit timer, clocked with the system clock divided by 2/4/128/256. The high byte of the Watchdog Timer register can be set to a prespecified reload value (stored in WDTREL) in order to allow further variation of the monitored time interval. Each time it is serviced by the application software, the high byte of the Watchdog Timer is reloaded and the low byte is cleared. Thus, time intervals between 13 μs and 419 ms can be monitored (@ 40 MHz). The default Watchdog Timer interval after reset is 3.28 ms (@ 40 MHz).

Data Sheet 38 V1.2, 2007-03

XC164KM

Derivatives

Functional Description

3.13 Clock Generation

The Clock Generation Unit uses a programmable on-chip PLL with multiple prescalers to generate the clock signals for the XC164KM with high flexibility. The master clock is the reference clock signal, and is used for TwinCAN and is output to the external system. The CPU clock either directly (1:1) or via a 2:1 prescaler (

and the system clock f

CPU

SYS

= f

are derived from the master clock

SYS

= fMC / 2). See also Section 4.3.1.

CPU

The on-chip oscillator can drive an external crystal or accepts an external clock signal. The oscillator clock frequency can be multiplied by the on-chip PLL (by a programmable factor) or can be divided by a programmable prescaler factor.

If the bypass mode is used (direct drive or prescaler) the PLL can deliver an independent clock to monitor the clock signal generated by the on-chip oscillator. This PLL clock is independent from the XTAL1 clock. When the expected oscillator clock transitions are missing the Oscillator Watchdog (OWD) activates the PLL Unlock/OWD interrupt node and supplies the CPU with an emergency clock, the PLL clock signal. Under these circumstances the PLL will oscillate with its basic frequency.

The oscillator watchdog can be disabled by switching the PLL off. This reduces power consumption, but also no interrupt request will be generated in case of a missing oscillator clock.

Data Sheet 39 V1.2, 2007-03

XC164KM

Derivatives

Functional Description

3.14 Parallel Ports

The XC164KM provides up to 47 I/O lines which are organized into three input/output ports and one input port. All port lines are bit-addressable, and all input/output lines are individually (bit-wise) programmable as inputs or outputs via direction registers. The I/O ports are true bidirectional ports which are switched to high impedance state when configured as inputs. The output drivers of some I/O ports can be configured (pin by pin) for push/pull operation or open-drain operation via control registers. During the internal reset, all port pins are configured as inputs.

The edge characteristics (shape) and driver characteristics (output current) of the port drivers can be selected via registers POCONx.

The input threshold of some ports is selectable (TTL or CMOS like), where the special CMOS like input threshold reduces noise sensitivity due to the input hysteresis. The input threshold may be selected individually for each byte of the respective ports.

All port lines have programmable alternate input or output functions associated with them. All port lines that are not used for these alternate functions may be used as general purpose IO lines.

Table 7 Summary of the XC164KM’s Parallel Ports Port Control Alternate Functions PORT1 Pad drivers Capture inputs or compare outputs,

Serial interface lines

Port 3 Pad drivers,

Open drain,

Timer control signals, serial interface lines, System clock output CLKOUT (or FOUT)

Input threshold

Port 5 – Timer control signals Port 9 Pad drivers,

Open drain,

Capture inputs or compare outputs CAN interface lines

Input threshold

1) Can be assigned by software.

Data Sheet 40 V1.2, 2007-03

XC164KM

Derivatives

Functional Description

3.15 Power Management

The XC164KM provides several means to control the power it consumes either at a given time or averaged over a certain timespan. Three mechanisms can be used (partly in parallel):

• Power Saving Modes switch the XC164KM into a special operating mode (control

via instructions). Idle Mode stops the CPU while the peripherals can continue to operate. Sleep Mode and Power Down Mode stop all clock signals and all operation (RTC may optionally continue running). Sleep Mode can be terminated by external interrupt signals.

• Clock Generation Management controls the distribution and the frequency of

internal and external clock signals. While the clock signals for currently inactive parts of logic are disabled automatically, the user can reduce the XC164KM’s CPU clock frequency which drastically reduces the consumed power. External circuitry can be controlled via the programmable frequency output FOUT.

• Peripheral Management permits temporary disabling of peripheral modules (control

via register SYSCON3). Each peripheral can separately be disabled/enabled.

The on-chip RTC supports intermittent operation of the XC164KM by generating cyclic wake-up signals. This offers full performance to quickly react on action requests while the intermittent sleep phases greatly reduce the average power consumption of the system.

Data Sheet 41 V1.2, 2007-03

XC164KM

Derivatives

Functional Description

3.16 Instruction Set Summary

Table 8 lists the instructions of the XC164KM in a condensed way.

The various addressing modes that can be used with a specific instruction, the operation of the instructions, parameters for conditional execution of instructions, and the opcodes for each instruction can be found in the “Instruction Set Manual”.

This document also provides a detailed description of each instruction.

Table 8 Instruction Set Summary Mnemonic Description Bytes

ADD(B) Add word (byte) operands 2 / 4 ADDC(B) Add word (byte) operands with Carry 2 / 4 SUB(B) Subtract word (byte) operands 2 / 4 SUBC(B) Subtract word (byte) operands with Carry 2 / 4 MUL(U) (Un)Signed multiply direct GPR by direct GPR

(16- × 16-bit) DIV(U) (Un)Signed divide register MDL by direct GPR (16-/16-bit) 2 DIVL(U) (Un)Signed long divide reg. MD by direct GPR (32-/16-bit) 2 CPL(B) Complement direct word (byte) GPR 2 NEG(B) Negate direct word (byte) GPR 2 AND(B) Bitwise AND, (word/byte operands) 2 / 4 OR(B) Bitwise OR, (word/byte operands) 2 / 4 XOR(B) Bitwise exclusive OR, (word/byte operands) 2 / 4 BCLR/BSET Clear/Set direct bit 2 BMOV(N) Move (negated) direct bit to direct bit 4 BAND/BOR/BXOR AND/OR/XOR direct bit with direct bit 4 BCMP Compare direct bit to direct bit 4 BFLDH/BFLDL Bitwise modify masked high/low byte of bit-addressable

direct word memory with immediate data

CMP(B) Compare word (byte) operands 2 / 4 CMPD1/2 Compare word data to GPR and decrement GPR by 1/2 2 / 4 CMPI1/2 Compare word data to GPR and increment GPR by 1/2 2 / 4 PRIOR Determine number of shift cycles to normalize direct

word GPR and store result in direct word GPR SHL/SHR Shift left/right direct word GPR 2

Data Sheet 42 V1.2, 2007-03

XC164KM

Derivatives

Functional Description

Table 8 Instruction Set Summary (cont’d) Mnemonic Description Bytes

ROL/ROR Rotate left/right direct word GPR 2 ASHR Arithmetic (sign bit) shift right direct word GPR 2 MOV(B) Move word (byte) data 2 / 4 MOVBS/Z Move byte operand to word op. with sign/zero extension 2 / 4 JMPA/I/R Jump absolute/indirect/relative if condition is met 4 JMPS Jump absolute to a code segment 4 JB(C) Jump relative if direct bit is set (and clear bit) 4 JNB(S) Jump relative if direct bit is not set (and set bit) 4 CALLA/I/R Call absolute/indirect/relative subroutine if condition is met 4 CALLS Call absolute subroutine in any code segment 4 PCALL Push direct word register onto system stack and call

absolute subroutine TRAP Call interrupt service routine via immediate trap number 2 PUSH/POP Push/pop direct word register onto/from system stack 2 SCXT Push direct word register onto system stack and update

(and pop direct word register from system stack) RETS Return from inter-segment subroutine 2 RETI Return from interrupt service subroutine 2 SBRK Software Break 2 SRST Software Reset 4 IDLE Enter Idle Mode 4 PWRDN Enter Power Down Mode (supposes NMI

-pin being low) 4

SRVWDT Service Watchdog Timer 4

DISWDT/ENWDT Disable/Enable Watchdog Timer 4 EINIT End-of-Initialization Register Lock 4 ATOMIC Begin ATOMIC sequence 2 EXTR Begin EXTended Register sequence 2 EXTP(R) Begin EXTended Page (and Register) sequence 2 / 4 EXTS(R) Begin EXTended Segment (and Register) sequence 2 / 4

Data Sheet 43 V1.2, 2007-03

XC164KM

Derivatives

Functional Description

Table 8 Instruction Set Summary (cont’d) Mnemonic Description Bytes

NOP Null operation 2 CoMUL/CoMAC Multiply (and accumulate) 4 CoADD/CoSUB Add/Subtract 4 Co(A)SHR (Arithmetic) Shift right 4 CoSHL Shift left 4 CoLOAD/STORE Load accumulator/Store MAC register 4 CoCMP Compare 4 CoMAX/MIN Maximum/Minimum 4 CoABS/CoRND Absolute value/Round accumulator 4 CoMOV Data move 4 CoNEG/NOP Negate accumulator/Null operation 4

Data Sheet 44 V1.2, 2007-03

XC164KM

Derivatives

Electrical Parameters

4 Electrical Parameters

The operating range for the XC164KM is defined by its electrical parameters. For proper operation the indicated limitations must be respected when designing a system.

4.1 General Parameters

These parameters are valid for all subsequent descriptions, unless otherwise noted.

Table 9 Absolute Maximum Ratings Parameter Symbol Limit Values Unit Notes

Min. Max.

Storage temperature

-65 150 °C

Junction temperature T Voltage on

respect to ground ( Voltage on

respect to ground (

pins with

DDI

DDP

)

pins with

)

Voltage on any pin with respect to ground (

)

Input current on any pin

DDI

DDP

–-1010mA–

-40 150 °C Under bias

-0.5 3.25 V –

-0.5 6.2 V –

-0.5 V

DDP

0.5

during overload condition Absolute sum of all input

– – |100| mA – currents during overload condition

1) Moisture Sensitivity Level (MSL) 3, conforming to Jedec J-STD-020C for 260 °C.

2) Input pin XTAL1 belongs to the core voltage domain. Therefore, input voltages must be within the range

defined for VDDI.

Note: Stresses above those listed under “Absolute Maximum Ratings” may cause

permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. During absolute maximum rating overload conditions ( voltage on

pins with respect to ground (VSS) must not exceed the values

DDP

> V

or VIN < VSS) the

DDP

defined by the absolute maximum ratings.

Data Sheet 45 V1.2, 2007-03

XC164KM

Derivatives

Electrical Parameters

Operating Conditions

The following operating conditions must not be exceeded to ensure correct operation of the XC164KM. All parameters specified in the following sections refer to these operating conditions, unless otherwise noticed.

Table 10 Operating Condition Parameters Parameter Symbol Limit Values Unit Notes

Min. Max.

Digital supply voltage for

the core Digital supply voltage for

IO pads Supply Voltage Difference ΔV Digital ground voltage V Overload current Overload current coupling

factor for digital I/O pins

Absolute sum of overload

Σ|

currents External Load

Capacitance Ambient temperature T

DDI

DDP

2.35 2.7 V Active mode,

4.4 5.5 V Active mode

-0.5 – V V 0 V Reference voltage

-5 5 mA Per IO pin

OVD

–5.0 × 10-3– IOV > 0 –1.0 × 10

-2

|– 50 mA

– 50 pF Pin drivers in

070°C SAB-XC164…

-40 85 °C SAF-XC164…

-40 125 °C SAK-XC164…

= f

CPU

- V

DDP

– IOV < 0

default mode

CPUmax

2)3)

DDI

5)6)

1) f

2) External circuitry must guarantee low-level at the RSTIN pin at least until both power supply voltages have

3) The specified voltage range is allowed for operation. The range limits may be reached under extreme

4) This limitation must be fulfilled under all operating conditions including power-ramp-up, power-ramp-down,

5) Overload conditions occur if the standard operating conditions are exceeded, i.e. the voltage on any pin

6) Not subject to production test - verified by design/characterization.

= 40 MHz for devices marked … 40F, f

CPUmax

reached the operating range.

operating conditions. However, specified parameters, such as leakage currents, refer to the standard operating voltage range of

and power-save modes.

exceeds the specified range: input overload currents on all pins may not exceed 50 mA. The supply voltages must remain within the specified limits. Proper operation is not guaranteed if overload conditions occur on functional pins such as XTAL1.

= 4.75 V to 5.25 V.

DDP

> V

DDP

+ 0.5 V (IOV > 0) or VOV < VSS - 0.5 V (IOV < 0). The absolute sum of

= 20 MHz for devices marked … 20F.

CPUmax

Data Sheet 46 V1.2, 2007-03

XC164KM

Derivatives

Electrical Parameters

7) An overload current (IOV) through a pin injects a certain error current (I

current adds to the respective pin’s leakage current ( current and is defined by the overload coupling factor compared to the polarity of the overload current that produces it. The total current through a pin is | voltage on analog inputs.

8) The timing is valid for pin drivers operating in default current mode (selected after reset). Reducing the output

current may lead to increased delays or reduced driving capability (

| = |IOZ| + (|IOV| × KOV). The additional error current may distort the input

TOT

). The amount of error current depends on the overload

. The polarity of the injected error current is inverse

) into the adjacent pins. This error

INJ

Parameter Interpretation

The parameters listed in the following partly represent the characteristics of the XC164KM and partly its demands on the system. To aid in interpreting the parameters right, when evaluating them for a design, they are marked in column “Symbol”:

CC (Controller Characteristics): The logic of the XC164KM will provide signals with the respective characteristics.

SR (System Requirement): The external system must provide signals with the respective characteristics to the XC164KM.

Data Sheet 47 V1.2, 2007-03

XC164KM

Derivatives

Electrical Parameters

4.2 DC Parameters

These parameters are static or average values, which may be exceeded during switching transitions (e.g. output current).

Table 11 DC Characteristics (Operating Conditions apply)

Parameter Symbol Limit Values Unit Test Condition

Min. Max.

Input low voltage TTL (all except XTAL1)

Input low voltage XTAL1

Input low voltage (Special Threshold)

Input high voltage TTL (all except XTAL1)

Input high voltage XTAL1

Input high voltage (Special Threshold)

Input Hysteresis (Special Threshold)

Output low voltage V

Output high voltage

ILC

ILS

IHC

IHS

SR -0.5 0.2 × V

SR -0.5 0.3 × V

SR -0.5 0.45 ×

SR 0.2 × V

SR 0.7 × V

SR 0.8 × V

HYS 0.04 ×

CC – 1.0 V IOL ≤ I

CC V

V–

DDP

- 0.1 V–

DDI

DDP

+ 0.5 V –

DDP

+ 0.9

DDI

DDP

+ 0.5 V –

DDI

+ 0.5 V

DDP

- 0.2

–VV

DDP

Series resistance = 0 Ω

–0.45VIOL ≤ I

- 1.0 – V IOH ≥ I

DDP

–VIOH ≥ I

in [V],

OLmax

4)5)

OLnom

OHmax

4)5)

OHnom

0.45

Input leakage current (Port 5)

Input leakage current (all other

8))7)

Configuration pull-up current

Data Sheet 48 V1.2, 2007-03

OZ1

OZ2

CPUH

CPUL

CC – ±300 nA 0 V < VIN < V

≤ 125 °C

±200 nA 0 V <

≤ 85 °C

CC – ±500 nA 0.45 V < VIN <

DDP

10)

11)

–-10μA VIN = V

-100 – μA VIN = V

< V

IHmin

ILmax

12)

DDP

XC164KM

Derivatives

Electrical Parameters

Table 11 DC Characteristics (Operating Conditions apply)

(cont’d)

Parameter Symbol Limit Values Unit Test Condition

Min. Max.

XTAL1 input current I Pin capacitance

12)

CC – ±20 μA0 V < VIN < V CC – 10 pF –

DDI

(digital inputs/outputs)

1) Keeping signal levels within the limits specified in this table, ensures operation without overload conditions. For signal levels outside these specifications, also refer to the specification of the overload current

2) If XTAL1 is driven by a crystal, reaching an amplitude (peak to peak) of 0.4 ×

3) This parameter is tested for P3, P9.

4) The maximum deliverable output current of a port driver depends on the selected output driver mode, see

Table 12, Current Limits for Port Output Drivers. The limit for pin groups must be respected.

5) As a rule, with decreasing output current the output levels approach the respective supply level (

→ V

6) This specification is not valid for outputs which are switched to open drain mode. In this case the respective output will float and the voltage results from the external circuitry.

7) An additional error current ( the definition of the overload coupling factor

8) The driver of P3.15 is designed for faster switching, because this pin can deliver the system clock (CLKOUT). The maximum leakage current for P3.15 is, therefore, increased to 1 μA.

9) During a hardware reset this specification is valid for configuration on P1H.4, P1H.5, P9.4 and P9.5. After a hardware reset this specification is valid for NMI

10) The maximum current may be drawn while the respective signal line remains inactive.

11) The minimum current must be drawn to drive the respective signal line active.

12) Not subject to production test - verified by design/characterization.

). However, only the levels for nominal output currents are guaranteed.

DDP

) will flow if an overload current flows through an adjacent pin. Please refer to

INJ

is sufficient.

DDI

→ VSS,

Table 12 Current Limits for Port Output Drivers Port Output Driver

Mode

Maximum Output Current

(

OLmax

, -I

OHmax

)

Nominal Output Current (

OLnom

, -I

OHnom

) Strong driver 10 mA 2.5 mA Medium driver 4.0 mA 1.0 mA Weak driver 0.5 mA 0.1 mA

1) An output current above |I

For any group of 16 neighboring port output pins the total output current in each direction (Σ remain below 50 mA.

Data Sheet 49 V1.2, 2007-03

| may be drawn from up to three pins at the same time.

OXnom

and Σ-IOH) must

Derivatives

Electrical Parameters

Table 13 Power Consumption XC164KM (Operating Conditions apply)

XC164KM

Parameter Sym-

bol

Power supply current (active)

DDI

with all peripherals active

Pad supply current Idle mode supply current with

DDP

IDX

all peripherals active

Sleep and Power down mode

PDL

supply current caused by leakage

Sleep and Power down mode

PDM

supply current caused by leakage and the RTC running, clocked by the main oscillator

Limit Values Unit Test Condition

Min. Max.

–15 +

2.6 ×

CPU

– 10 +

2.6 ×

CPU

mA f

–5 mA –15 +

1.2 ×

–10 +

1.2 ×

– 84,000

× e

– 128,000

× e

– 0.6 +

0.02 × +

-α

PDL

CPU

mA f

mA V

mA α = 4670 / (273 + TJ)

mA V

OSC

in [MHz]

CPU

1)2)

-16F derivatives in [MHz]

CPU

1)2)

-4F/8F derivatives

in [MHz]2),

CPU

-16F derivatives in [MHz]2),

CPU

-4F/8F derivatives

DDI

in [°C]

= V

DDImax

α = 4380 / (273 +

-16F derivatives

-4F/8F derivatives

= V

OSC

DDI

DDImax

in [MHz]

)

1) During Flash programming or erase operations the supply current is increased by max. 5 mA.

2) The supply current is a function of the operating frequency. This dependency is illustrated in Figure 10.

These parameters are tested at all inputs at

3) The pad supply voltage pins (V

amount of current is consumed even though no outputs are driven, because the drivers’ input stages are switched and also the Flash module draws some power from the

4) The total supply current in Sleep and Power down mode is the sum of the temperature dependent leakage current and the frequency dependent current for RTC and main oscillator.

5) This parameter is determined mainly by the transistor leakage currents. This current heavily depends on the junction temperature (see Figure 12). The junction temperature if no current flows through the port output drivers. Otherwise, the resulting temperature difference must be taken into account.

6) All inputs (including pins configured as inputs) at 0 V to 0.1 V or at V pins configured as outputs) disconnected. This parameter is tested at 25 °C and is valid for

7) This parameter is determined mainly by the current consumed by the oscillator switched to low gain mode (see

Figure 11). This current, however, is influenced by the external oscillator circuitry (crystal, capacitors). The

given values refer to a typical circuitry and may change in case of a not optimized external oscillator circuitry.

or VIH.

DDP

and maximum CPU clock frequency with all outputs disconnected and

DDImax

) mainly provides the current consumed by the pin output drivers. A small

supply.

DDP

is the same as the ambient temperature T

- 0.1 V to V

DDP

, all outputs (including

DDP

≥ 25 °C.

Data Sheet 50 V1.2, 2007-03

I [mA]

140

XC164KM

Derivatives

Electrical Parameters

-16F

DDImax

-4F/8F

120

100

-16F

DDItyp

-4F/8F

-16F

IDXmax

-4F/8F

-16F

IDXtyp

-4F/8F

10 20 30 40

CPU

[MHz]

Figure 10 Supply/Idle Current as a Function of Operating Frequency

Data Sheet 51 V1.2, 2007-03

I [mA]

3.0

2.0

1.0

XC164KM

Derivatives

Electrical Parameters

PDMmax

PDMtyp

4 8 12 16

OSC

[MHz]

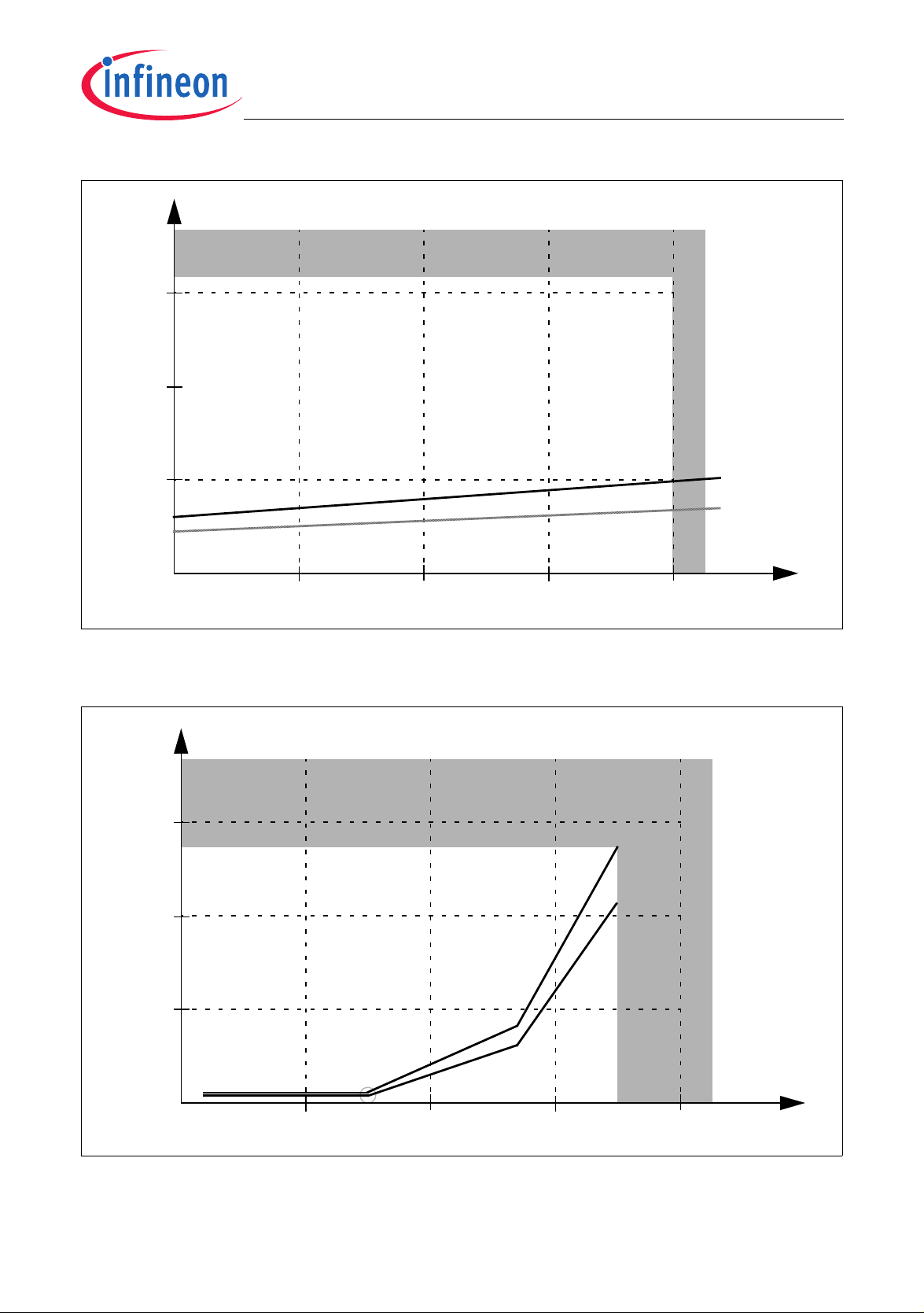

Figure 11 Sleep and Power Down Supply Current due to RTC and Oscillator

Running, as a Function of Oscillator Frequency

PDL

[mA]

1.5

-16F

1.0

0.5

-4F/8F

-50

0 50 100 150

[°C]

Figure 12 Sleep and Power Down Leakage Supply Current as a Function of

Temperature

Data Sheet 52 V1.2, 2007-03

XC164KM

Derivatives

Electrical Parameters

4.3 AC Parameters

These parameters describe the dynamic behavior of the XC164KM.

4.3.1 Definition of Internal Timing

The internal operation of the XC164KM is controlled by the internal master clock fMC. The master clock signal

can be generated from the oscillator clock signal f

OSC

via different mechanisms. The duration of master clock periods (TCMs) and their variation (and also the derived external timing) depend on the used mechanism to generate

This influence must be regarded when calculating the timings for the XC164KM.

Phase Locked Loop Operation (1:N)

OSC

TCM

Direct Clock Drive (1:1)

OSC

TCM

Prescaler Operation (N:1)

OSC

TCM

MCT05555

Figure 13 Generation Mechanisms for the Master Clock

Note: The example for PLL operation shown in Figure 13 refers to a PLL factor of 1:4,

the example for prescaler operation refers to a divider factor of 2:1.

Data Sheet 53 V1.2, 2007-03

XC164KM

Derivatives

Electrical Parameters

The used mechanism to generate the master clock is selected by register PLLCON. CPU and EBC are clocked with the CPU clock signal

same frequency as the master clock ( two:

= fMC / 2. This factor is selected by bit CPSYS in register SYSCON1.

CPU

= fMC) or can be the master clock divided by

CPU

. The CPU clock can have the

CPU

The specification of the external timing (AC Characteristics) depends on the period of the CPU clock, called “TCP”.

The other peripherals are supplied with the system clock signal frequency as the CPU clock signal

CPU

which has the same

SYS

Bypass Operation

When bypass operation is configured (PLLCTRL = 0x

) the master clock is derived from

the internal oscillator (input clock signal XTAL1) through the input- and outputprescalers:

= f

If both divider factors are selected as ‘1’ (PLLIDIV = PLLODIV = ‘0’) the frequency of directly follows the frequency of f cycle of the input clock

/ ((PLLIDIV + 1) × (PLLODIV + 1)).

OSC

so the high and low time of fMC is defined by the duty

OSC

The lowest master clock frequency is achieved by selecting the maximum values for both divider factors:

= f

/ ((3 + 1) × (14 + 1)) = f

OSC

/ 60.

Phase Locked Loop (PLL)

When PLL operation is configured (PLLCTRL = 11

) the on-chip phase locked loop is

enabled and provides the master clock. The PLL multiplies the input frequency by the factor F (

= f

× F) which results from the input divider, the multiplication factor, and

OSC

the output divider (F = PLLMUL+1 / (PLLIDIV+1 × PLLODIV+1)). The PLL circuit synchronizes the master clock to the input clock. This synchronization is done smoothly, i.e. the master clock frequency does not change abruptly.

Due to this adaptation to the input clock the frequency of is locked to

. The slight variation causes a jitter of fMC which also affects the duration

OSC

is constantly adjusted so it

of individual TCMs. The timing listed in the AC Characteristics refers to TCPs. Because

, the timing must be calculated using the minimum TCP possible under the respective

is derived from

CPU

circumstances. The actual minimum value for TCP depends on the jitter of the PLL. As the PLL is constantly adjusting its output frequency so it corresponds to the applied input frequency (crystal or oscillator) the relative deviation for periods of more than one TCP is lower than for one single TCP (see formula and Figure 14).

Data Sheet 54 V1.2, 2007-03

XC164KM

Derivatives

Electrical Parameters

This is especially important for bus cycles using waitstates and e.g. for the operation of timers, serial interfaces, etc. For all slower operations and longer periods (e.g. pulse train generation or measurement, lower baudrates, etc.) the deviation caused by the PLL jitter is negligible.

The value of the accumulated PLL jitter depends on the number of consecutive VCO output cycles within the respective timeframe. The VCO output clock is divided by the output prescaler (K = PLLODIV+1) to generate the master clock signal the number of VCO cycles can be represented as K × N, where N is the number of consecutive

cycles (TCM).

For a period of N × TCM the accumulated PLL jitter is defined by the deviation D

[ns] = ±(1.5 + 6.32 × N / fMC); fMC in [MHz], N = number of consecutive TCMs.

So, for a period of 3 TCMs @ 20 MHz and K = 12: D

= ±(1.5 + 6.32 × 3 / 20) = 2.448 ns.

This formula is applicable for K × N < 95. For longer periods the K × N = 95 value can be used. This steady value can be approximated by: D

[ns] = ±(1.5 + 600 / (K × fMC)).

Nmax

. Therefore,

Acc. jitter

ns ±8

±7

±6

±5

±4

±3

±2

±1

051015 20 25

10 MHz

40 MHz

K = 12

K = 15

20 MHz

K = 8

K = 10

K = 6 K = 5

MCD05566

Figure 14 Approximated Accumulated PLL Jitter

Note: The bold lines indicate the minimum accumulated jitter which can be achieved by

selecting the maximum possible output prescaler factor K.

Data Sheet 55 V1.2, 2007-03

XC164KM

Derivatives

Electrical Parameters

Different frequency bands can be selected for the VCO, so the operation of the PLL can be adjusted to a wide range of input and output frequencies:

Table 14 VCO Bands for PLL Operation

PLLCON.PLLVB VCO Frequency Range Base Frequency Range

00 100 … 150 MHz 20 … 80 MHz 01 150 … 200 MHz 40 … 130 MHz 10 200 … 250 MHz 60 … 180 MHz 11 Reserved

1) Not subject to production test - verified by design/characterization.

Data Sheet 56 V1.2, 2007-03

XC164KM

Derivatives

Electrical Parameters

4.3.2 On-chip Flash Operation

The XC164KM’s Flash module delivers data within a fixed access time (see Table 15). Accesses to the Flash module are controlled by the PMI and take 1+WS clock cycles,

where WS is the number of Flash access waitstates selected via bitfield WSFLASH in register IMBCTRL. The resulting duration of the access phase must cover the access time frequency.

The Flash access waitstates only affect non-sequential accesses. Due to prefetching mechanisms, the performance for sequential accesses (depending on the software structure) is only partially influenced by waitstates. In typical applications, eliminating one waitstate increases the average performance by 5% … 15%.

Table 15 Flash Characteristics (Operating Conditions apply)

of the Flash array. The required Flash waitstates depend on the actual system

ACC

Parameter Symbol Limit Values Unit

Min. Typ. Max.

Flash module access time Programming time per 128-byte block Erase time per sector

1) The actual access time is influenced by the system frequency, see Table 16.

2) Programming and erase time depends on the system frequency. Typical values are valid for 40 MHz.

ACC

CC––50 CC – 2 CC – 200

ns 5ms 500 ms

Example: For an operating frequency of 40 MHz (clock cycle = 25 ns), the Flash accesses must be executed with 1 waitstate: ((1+1) × 25 ns) ≥ 50 ns.

Table 16 indicates the interrelation of waitstates and system frequency.

Table 16 Flash Access Waitstates Required Waitstates Frequency Range

0 WS (WSFLASH = 00 1 WS (WSFLASH = 01

) f

≤ 20 MHz

CPU

≤ 40 MHz

CPU

Note: The maximum achievable system frequency is limited by the properties of the

respective derivative, i.e. 40 MHz (or 20 MHz for XC164KM-xF20F devices).

Data Sheet 57 V1.2, 2007-03

XC164KM

Derivatives

Electrical Parameters

4.3.3 External Clock Drive XTAL1

These parameters define the external clock supply for the XC164KM.

Table 17 External Clock Drive Characteristics (Operating Conditions apply) Parameter Symbol Limit Values Unit

Min. Max.

Oscillator period High time Low time Rise time Fall time

1) The maximum limit is only relevant for PLL operation to ensure the minimum input frequency for the PLL.

2) The clock input signal must reach the defined levels V

OSC

SR 25 250 SR6–ns SR6–ns SR–8ns SR–8ns

ILC

and V

IHC

0.5

DDI

OSC

IHC

ILC

MCT05572

Figure 15 External Clock Drive XTAL1

Note: If the on-chip oscillator is used together with a crystal or a ceramic resonator, the

oscillator frequency is limited to a range of 4 MHz to 16 MHz. It is strongly recommended to measure the oscillation allowance (negative resistance) in the final target system (layout) to determine the optimum parameters for the oscillator operation. Please refer to the limits specified by the crystal supplier. When driven by an external clock signal it will accept the specified frequency range. Operation at lower input frequencies is possible but is verified by design only (not subject to production test).

Data Sheet 58 V1.2, 2007-03

XC164KM

Derivatives

Package and Reliability

5 Package and Reliability

In addition to the electrical parameters, the following information ensures proper integration of the XC164KM into the target system.

5.1 Packaging

These parameters describe the housing rather than the silicon.

Package Outlines

Figure 16 PG-LQFP-64-4 (Plastic Green Low profile Quad Flat Package),

valid for the -16F derivatives

Data Sheet 59 V1.2, 2007-03

0.2

0.5

+0.07

-0.03

XC164KM

Derivatives

Package and Reliability

±0.05

0.1

A-B D 64xC

0.2

7.5

0.08

1.4

0.08

A-B

1.6 MAX.

DDH

±0.15

0.6

-0.06

+0.03

0.15

7˚ MAX.

Index Marking

1) Does not include plastic or metal protrusion of 0.25 max. per side

2) Does not include dambar protrusion of 0.08 max. per side

Figure 17 PG-TQFP-64-8 (Plastic Thin Quad Flat Package),

valid for the -4F/8F derivatives

You can find all of our packages, sorts of packing and others in our Infineon Internet Page “Products”: http://www.infineon.com/products

Dimensions in mm.

Table 18 Package Parameters Parameter Symbol Limit Values Unit Notes

Min. Max.

PG-LQFP-64-4

Thermal resistance

ΘJC

–8K/W–

junction to case Thermal resistance

ΘJL

–23K/W–

junction to leads

PG-TQFP-64-8

Thermal resistance

ΘJC

–9K/W–

junction to case Thermal resistance

ΘJL

–19K/W–

junction to leads

Data Sheet 60 V1.2, 2007-03

XC164KM

Derivatives

Package and Reliability

5.2 Flash Memory Parameters

The data retention time of the XC164KM’s Flash memory (i.e. the time after which stored data can still be retrieved) depends on the number of times the Flash memory has been erased and programmed.

Table 19 Flash Parameters Parameter Symbol Limit Values Unit Notes

Min. Max.

Data retention time

Flash Erase Endurance

RET

15 – years 103 erase/program

cycles

20 × 10

– cycles Data retention time

5years

Data Sheet 61 V1.2, 2007-03

www.infineon.com

Published by Infineon Technologies AG

B158-H8888-G1-X-7600

INFINEON XC164KM User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Table of Contents

1 Summary of Features

2 General Device Information

2.1 Pin Configuration and Definition

3 Functional Description

3.1 Memory Subsystem and Organization

3.2 Central Processing Unit (CPU)

3.3 Interrupt System

3.4 On-Chip Debug Support (OCDS)

3.5 Capture/Compare Unit (CAPCOM2)

3.6 General Purpose Timer (GPT12E) Unit

3.7 Real Time Clock

3.8 Asynchronous/Synchronous Serial Interfaces (ASC0/ASC1)

3.9 High Speed Synchronous Serial Channels (SSC0/SSC1)

3.10 TwinCAN Module

3.11 LXBus Controller (EBC)

3.12 Watchdog Timer

3.13 Clock Generation

3.14 Parallel Ports

3.15 Power Management

3.16 Instruction Set Summary

4 Electrical Parameters

4.1 General Parameters

4.2 DC Parameters

4.3 AC Parameters

4.3.1 Definition of Internal Timing

4.3.2 On-chip Flash Operation

4.3.3 External Clock Drive XTAL1

5 Package and Reliability

5.1 Packaging

5.2 Flash Memory Parameters
