TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0 2020-02

TriBoard TC3X7 ADAS

TriBoard Manual TC3X7 ADAS

Hardware: TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0

About this document

Scope and purpose

The User Manual provide information about using, configuration and connecting the TriBoard with Infineon
AURIX™ TC3X7 ADAS device. The manual provide information for different hardware types. There exist different
hardware with Through Hole socket (TriBoard TC3X7 ADAS TH) and soldered devices (TriBoard TC3X7 ADAS). The
schematic is identically for the all boards if not other mentioned in chapter schematic. The placing on the boards
is slightly different around the TC3X7 ADAS itself dependent of the space (socket need more space and has
through hole), but the most components are on the same location. All figures are valid for each board if not
differently mentioned.

Intended audience

Design, verfication, test and software engineers will use this document to get an understanding of the
functionality and connections of the TriBoard.

TriBoard Manual TC3X7 ADAS

Hardware: TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0

Table of Contents

Table of Contents

About this document. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Preface-1

Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . TOC-2

1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

2 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

2.1 Summary of Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

2.2 Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

2.3 Placement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

3 TriBoard Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

3.1 Soldered board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

3.2 Socketed board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

3.2.1 Usable devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

3.2.2 Restricted usable devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

3.3 Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

3.3.1 Failsafe handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

3.4 LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6

3.5 MMIC / RIF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6

3.5.1 Measurement RIF signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6

3.6 Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7

3.7 USB Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7

3.7.1 Serial Connection to PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7

3.7.2 miniWiggler JDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8

3.8 FlexRay™ (E-RAY) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8

3.9 Serial Eeprom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9

3.10 MultiCAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9

3.11 LIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9

3.12 Ethernet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10

3.13 HSCT (optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10

3.13.1 High speed with HSCT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-11

3.14 ADC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-11

3.15 Other peripherals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-13

3.16 Toggle LED’s . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-13

3.17 Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-13

3.18 Debug System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-13

3.18.1 OCDS1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-13

3.18.2 DAP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-13

3.18.3 DAPE (only Emulation Device) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-13

3.18.4 DAP_SCR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-14

3.19 High speed with DAP/DAPE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-14

3.19.1 AGBT (optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-15

3.19.2 ETK connector (optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-15

3.19.3 EmW Power (optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-16

4 TriBoard Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

4.1 HW Boot Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

4.1.1 Default Pad State . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

4.1.2 Bootmode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

4.2 Assembly Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2

User Manual TOC-2 V2.4
TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0 2020-02

TriBoard Manual TC3X7 ADAS

Hardware: TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0

Table of Contents

4.2.1 General optional resistors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2

4.2.2 Resistors for peripherals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4

4.2.3 Resistors for MMIC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6

5 Signal (on board used) Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

5.1 Power Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

5.2 Reset Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

5.3 Config Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2

5.4 Clock Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2

5.5 Debug Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2

5.6 Peripheral Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3

5.7 MMIC / RIF Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4

6 Connector Pin Assignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1

6.1 On Board only used signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1

6.2 TC397 ADAS Connector / Top View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2

6.3 TC357/TC3A7 Connector / Top View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-4

6.4 TC337 ADAS Connector / Top View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-6

6.5 Power connector pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-8

6.6 USB connector pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-8

6.7 FlexRay™ (ERAY) connector pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-8

6.8 CAN connector pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-8

6.9 LIN connector pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-9

6.10 HSCT connector pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-9

6.11 Ethernet connector pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-9

6.12 MMIC / RIF connector pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-10

6.13 OCDS1 connector pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-10

6.14 DAP connector pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-10

6.15 ETK connector pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-11

6.16 Ethernet miniWiggler power connector pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-11

6.17 AGBT connector pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-12

7 Schematic and Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1

7.1 Known problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1

7.1.1 Known problems (TriBoard TC3X7 ADAS TH V2.0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1

7.1.2 Known problems (TriBoard TC3X7 ADAS V2.0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1

7.2 Schematic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1

7.2.1 Hint about used TLF30682 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1

7.3 Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-10

7.4 Layout with Dimensioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-12

User Manual TOC-3 V2.4
TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0 2020-02

TriBoard Manual TC3X7 ADAS

Hardware: TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0

Introduction

1Introduction

We congratulate you on your purchase of the TriCore Evaluation Board. This kit is a versatile tool, providing quick
access to the capabilities of TriCore's powerful architecture.

Applications can be developed easily. The Evaluation Board is equipped with a variety of memories and
peripherals for connection to the environment. There is also an interface for the On Chip Debugging Features
(OCDS1 and DAP).

The Evaluation Board allows easily the development of TriCore applications with the corresponding tools.

Subsequently, the applications can be downloaded and can be tested with the powerful debugger software.

This TriBoard Hardware Manual familiarizes you with the TriCore Evaluation Board and guides you through the
initial configuration of the TriBoard.

For detailed technical information about the TC3X7 ADAS (e.g. TC397 ADAS, TC357, TC337 ADAS, TC3A7) please
refer to the User Manual of the used device.

User Manual 1-1 V2.4
TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0 2020-02

TriBoard Manual TC3X7 ADAS

Hardware: TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0

Features

2Features

2.1 Summary of Features

– Infineon’s TC3X7 ADAS (TC397 ADAS, TC357, TC337 ADAS, TC3A7)1) AURIX™ 2G Controller in LFBGA-

292_ADAS Package
–FlexRay™
– High Speed CAN Transceivers (CAN-FD capable)
– USB to UART bridge
– Ethernet Gigabit PHY
–Serial Eeprom
–LIN Transceiver
– Crystal 20MHz (default) or External Clock
– USB miniWiggler JDS for easy debugging
– 8 Low Power Status LEDs
– 8-DIP switches for configuration
– access to all pins of controller
– 100mm x 160mm (EURO-Board)

2)

Transceivers

Connectors

The TC3X7 ADAS TriBoard offers a wide variety of connectors:

– Standard power connector
– Micro USB connector for ASC Interface (ASC0) and miniWiggler
– RJ45 connector for Ethernet
– 16-pin header for JTAG interface (OCDS)
– 3 x 10-pin header for DAP, DAPE and DAP_SCR (DAPE only usable on Emulation Device)
– 10pin (2x5) Header for LIN Transceiver (LIN)
– 2 x 10pin (2x5) Header for CAN High Speed Transceiver (CAN0 and CAN1)
– 2 x 10pin (2x5) Header for FlexRay™ (ERAY-A and ERAY-B)
– 2 x 60pin (2x30) high speed connector for MMIC/RIF
– four 80-pin connectors (male) + four 80-pin connectors (female) with all I/O signals
– optional ETK connector
– optional 6pin (IEEE1394) Socket for HSCT
– optional Aurora connector (only with Emulation Device)

Components

– Infineon’s Multi Voltage System Supply TLF30682QVS01
– Three LEDs to validate power supply (5Volt / 3,3 Volt / 1,25 Volt)
– LED indicating /HDRST (ESR0) active state
– LED indicating activ miniWiggler JDS
– LED switched via DAS software
– 2 x Infineon’s FlexRay™ Transceiver TLE9221SX
– 2 x Infineon’s High Speed CAN-Transceiver TLE9251VSJ
– Infineon’s LIN-Transceiver TLE 7259-3GE
– USB to UART bridge FT2232HL (FTDI)

1) Please see Chapter 3.2.1 for usable and Chapter 3.2.2 for restrict usable devices in the socketed board.

2) FlexRay™ is a trademark of FlexRay Consortium.

User Manual 2-1 V2.4
TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0 2020-02

Micro

USB

miniWiggler

OCDS1

USB

FlexRay

Transceiver

Transceiver

TxCAN0

TxCAN1

RxCAN0

RxCAN1

PLL

CAN0

CAN1

E

R

A

Y

B

E

R

A

Y

A

TX0

RX0

8 LED s

(P33.4 up to P33.7,

P20.11 up to P20.14)

Serial EEPROM

with EUI-48

RGMII

PHY

Twisted Pair

RJ45

L

I

N

LIN

Transceiver

TX1

RX1

H

S

C

T

o

p

t

i

o

n

a

l

HSCT - TX/RX

RIF0 / IOs

RIF1 / IOs

I

²

C

QSPI2

Multi Voltage System

Supply TLF30682QVS01

ENA

M

M

I

C

0

/

R

I

F

0

M

M

I

C

1

/

R

I

F

1

ERAY not with TC337/TC3A7

CAN1 not with TC337/TC3A7

TriBoard Manual TC3X7 ADAS

Hardware: TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0

Features

– Integrated 10/100/1000M Ethernet Precision Transceiver RTL8211FI-CG (Realtek)
– 8 general purpose LEDs
–2K I2C Serial Eeprom with EUI-48™
–Reset switch
– Wakeup switch
– Generic switch
– 4-pin Dip switch

Zero Ohm Bridges

Zero Ohm resistors give the flexibility to configure the systems functionality.

2.2 Block Diagram

1)

Node Identity (MICROCHIP)

Figure 2-1 TriBoard Block Schematic

1) EUI-48™ is trademarked by IEEE

User Manual 2-2 V2.4
TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0 2020-02

JP501

D508

S502

Y401

U401

R401

BU40 1

X306

U3 07

Y301

X406

R457

X602

X601

X402

L503

S201

X201

X3 0 5 X304 X303

C303

D401 D402

Y201

T301

T302

X30 1X30 2

X703

X701

D302 D303 D304 D305 D306 D307 D308 D309

D505

D506

D507D504

X40 1

X501

S5 0 1

U501

L502

L501

C502

C5 01

S202

X403

X502

X704

X702

U201

X404

TriBoard-TC3X7 (TH)

V2. 0

TriBoard Manual TC3X7 ADAS

Hardware: TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0

Features

2.3 Placement

Figure 2-2

User Manual 2-3 V2.4
TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0 2020-02

TriBoard TC3X7 ADAS (TH) V2.0 Placement

TriBoard Manual TC3X7 ADAS

Hardware: TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0

TriBoard Information

3 TriBoard Information

3.1 Soldered board

TriBoard TC3X7 ADAS V2.0 is the soldered board and will be available only with usable devices. Please see also
chapter Usable devices.

3.2 Socketed board

TriBoard TC3X7 TH V2.0 is the socketed board.

3.2.1 Usable devices

Note: Note: Please check always the latest manual for complete list of usable/tested devices.

The board can be used with the following devices:

• TC397 A-Step (only TC397XR and TC397XA)

• TC397 B-Step (only TC397XA, TC397XT and TC397QA)

•TC357

• TC337 (only TC337DA, TC337DT, TC337DH and TC337DZ)

• TC3A7 (planned, not yet tested)

3.2.2 Restricted usable devices

• TC397 A-Step (except TC397XR and TC397XA)

• TC397 B-Step (except TC397XA, TC397XT and TC397QA)

•TC387

•TC377

•TC367

• TC337 (except TC337DA, TC337DT, TC337DH and TC337DZ)

•TC327

•TC3E7
– RIF / MMIC not usable
– Ethernet will not work
– Select bootmode via DIP switch will not work
– different pinning therefore following signals are different connected

Board signal name TC397/ TC387/ TC377/

TC3E7 signal name

P00.0 P00.12 P00.12 P00.12

P00.1 AN47 AN47 NC

P00.2 AN46 AN46 NC

P00.3 AN41 AN41 NC

P00.4 AN40 AN40 NC

P00.5 AN38 AN38 AN38

P00.6 AN36 AN36 AN36

P00.7 AN45 AN45 NC

P00.8 AN44 AN44 NC

User Manual 3-1 V2.4
TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0 2020-02

TC367 signal name TC327/ TC337 LP signal

name

TriBoard Manual TC3X7 ADAS

Hardware: TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0

TriBoard Information

Board signal name TC397/ TC387/ TC377/

TC3E7 signal name

P00.9 AN37 AN37 AN37

P00.10 AN39 AN39 AN39

P00.11 AN33 AN33 AN33

P00.12 AN35 AN35 AN35

P02.0 P00.4 P00.4 P00.4

P02.1 P00.5 P00.5 P00.5

P02.2 P00.7 P00.7 P00.7

P02.3 P00.9 P00.9 P00.9

P02.4 P00.8 P00.8 P00.8

P02.5 P00.10 P00.10 P00.10

P02.6 P00.11 P00.11 P00.11

P02.7 AN43 AN43 NC

P02.8 AN42 AN42 NC

P10.0 P02.9 NC NC

P10.1 P02.11 NC NC

TC367 signal name TC327/ TC337 LP signal

name

P10.2 P02.10 NC NC

P10.3 P01.4 NC NC

P10.4 P01.3 NC NC

P10.5 P01.6 NC NC

P10.6 P01.5 NC NC

P10.7 P01.7 NC NC

P10.8 P00.6 P00.6 P00.6

P11.2 P13.1 P13.1 P13.1

P11.3 P13.0 P13.0 P13.0

P11.9 P13.3 P13.3 P13.3

P11.10 P13.2 P13.2 P13.2

P11.11 P11.2 P11.2 P11.2

P11.12 P11.3 P11.3 P11.3

P50.0 P02.1 P02.1 P02.1

P50.1 P02.2 P02.2 P02.2

P50.2 P02.3 P02.3 P02.3

P50.3 P02.4 P02.4 P02.4

P50.4 P02.5 P02.5 P02.5

P50.5 P02.6 P02.6 P02.6

P50.6 P02.7 P02.7 P02.7

P50.7 P02.8 P02.8 P02.8

P50.8 P00.1 P00.1 P00.1

P50.9 P00.0 P00.0 P00.0

User Manual 3-2 V2.4
TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0 2020-02

TriBoard Manual TC3X7 ADAS

Hardware: TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0

TriBoard Information

Board signal name TC397/ TC387/ TC377/

TC3E7 signal name

P50.10 P00.3 P00.3 P00.3

P50.11 P00.2 P00.2 P00.2

P51.0 P11.10 P11.10 P11.10

P51.1 P11.9 P11.9 P11.9

P51.2 P11.12 P11.12 P11.12

P51.3 P11.11 P11.11 P11.11

P51.4 P10.1 P10.1 P10.1

P51.5 P10.0 P10.0 P10.0

P51.6 P10.4 P10.4 P10.4

P51.7 P10.3 P10.3 P10.3

P51.8 P10.5 P10.5 P10.5

P51.9 P10.2 P10.2 P10.2

P51.10 P10.8 P10.8 P10.8

P51.11 P10.6 P10.6 P10.6

AN24 AN30 AN30 NC

TC367 signal name TC327/ TC337 LP signal

name

AN25 AN31 AN31 NC

AN36 AN25 AN25 NC

AN37 AN26 AN26 NC

AN38 AN24 AN24 NC

AN39 AN27 AN27 NC

AN46 AN28 AN28 NC

AN44 AN29 AN29 NC

AN45 AN34 AN34 AN34

AN47 AN32 AN32 AN32

– Additional on TC377TX following signals are different connected

Board signal name TC377TX signal name

P22.0 P22.10

P22.1 P22.11

P22.10 P22.0

P22.11 P22.1

P23.0 P23.2

P23.2 P23.3

P23.3 P22.12

VEXT (ball V19) VFLEX2

User Manual 3-3 V2.4
TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0 2020-02

TriBoard Manual TC3X7 ADAS

Hardware: TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0

TriBoard Information

3.3 Power Supply

All needed voltages are generated via Infineon’s Multi Voltage System Micro Processor Supply TLF30682QVS01.

The TLF30682QVS01 provide the following voltages:

+3,3V for TriCore (connected to VEXT and VEVRSB) and Ethernet Phy

+5V supply (used by CAN and FlexRay™ transceivers and is connected to VDDM and VAREFx)

+1,25V for TriCore (connected to VDD)

Applying a stable supply voltage causes the power on reset after a short period. The three LED's (+5V, +3.3V,
+1V25) indicate the status of the on board generated voltages.

A manual power on reset is executed by pressing the reset button.

The Board has to be connected to a +3,5V to +40V DC power supply.

The power consumption is not specified yet but a supply with 12V and 500mA is recommended. The pinout for
the supply connector is shown in Figure 6-7. There can be used any standard power pack with a connector where
the positive line is surrounded by the ground line.

Note: The TLF30682QVS01 has a programmable voltage for the core supply. The default value for core supply

is 1,20V. This can and must be changed to 1,25 V by software to avoid problems with undervoltage on
VDD. For more information please see the corresponding Target Datasheet of TLF30682.

3.3.1 Failsafe handling

In case that the device don’t contains a program which disable or service the window watchdog of the TLF30682
then the TLF30682 is going to a FAILSAFE state where all supplies are switched off. This state can be left via
reconnect the power plug or via the ENA button (S502). In this case you must connect a debugger which is able to
disable the window watchdog to reprogram the microcontroller.

In the default state of the board the switching to FAILSAFE state is switched off via resistor R508 (0R).

If you will use/evaluate all safety features of the TLF30682 remove assembled R508. Make sure that you have a
proper initialization of TLF30682 in your software. If needed you can assembled a 2,54mm jumper on JP501. With
this jumper you can then enable the safety features (jumper open) or disable the safety features (jumper closed).

Resistor R508 and jumper JP501 are red marked in the following Figure 3-1 and Figure 3-2:

User Manual 3-4 V2.4
TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0 2020-02

X804

R378

R3111

R3110

R3107

R3106

R3105

R3 10

C319

C317

C316

C315

C31 4

C313

C312

R417

R437

R438

R372

CB404

R405

R440

CB409

R416

R418

R41 9

R414

R420

C406

Q402

Q403

C404

C405

CB410

CB411

CB412

R441

R442

C4 0 1

R404

C403

CB413

L402

U405

C305

C3 07

C308

R388

R389

R384

R385

R371

R370

CB311

CB312

CB313

CB314

CB315

CB316

RN301

R246

R245

L504

L201

CB209

CB208

C208

C207

C205

C204

C203

R620

R619

R618

R617

R616

R615

R614

R613

R612

R611

R6 10

R609

R6 08

R6 07

R606

R6 05

R604

R603

R602

R6 01

R433

R523

RN3 02

C518

R431

R314

R252R250

R251

R253

R254

R208

R408

R2 15

R2 14

X405

U306

R521

R238

R223

R365

R364

R363

R362

R360

R211

CB206

CB310

C304

R449

R44 8

R447

R445

R443

R413

D403

R450

R422

R421

U403

Q401

R412

R415

R410

R409

CB407

R407

U402

R406

CB406

R305

R306

R308

R309

R3 15

R316

R318

R319

R301

R311

R341

R340

R321

R322

R222

R220

R221

R524

R533

R323

R343

CB301

CB302

CB205

CB512

CB513

CB515

CB516

CB517CB518

CB519

CB520

R537

R307

R317

R538

R534

R51 3

CB204

R535

R536

C515

R511

R512

R510

Q502

Q504

Q503

X802 X803

X801

U301U302

R302

R342

CB303

CB304

CB305

CB306

CB307

CB308

R303

R304

R338

R330

R331

R358

R350

R351

U303

U304

R332

R334

R33 3

R352

R353

C5 19

CB203

C407

C408

R320

R216

R209

CB510

R520

D503

R505

R504

R506

D501

C509

D502

C504

R508

R509

R503

R218

R219

R231

R233

R235

R237

R239

R31 2

R326

R328

R436

R313

R327

R325

R373

R374

CB403

JP501

D508

S502

R379

R383

R3 109

R3108

R3104

R3103

R3102

R3101

R3100

C320

R402

R403

CB408

Y401

U401

CB401

R401

L401

BU4 0 1

C402

CB405

C306

C310

X306

CB317

C311

C309

C318

CB318

CB319

L301

R382

U3 07

Y301

X406

R457

R249

R2 4 8

R244

C506

X602

X601

R621

R622

R623

R624

R625

R626

R627

R628R629

R630

R631

R632

R633

R634

R635

R636

R637

R638

R639

R640

R6 41

R642

R643

R644

X402

R226

R225

L503

S201

R377

CB202

R204

R205

X201

X3 0 5 X304 X303

R240

R236

R234

R232

R230

R361

R359

R212

D3 01

C303

U408U407

U406

R451

R4 55

R456

R454

R446

R444

CB419

CB418

CB417 CB416

CB415

CB414

D401

R430

R429

R423

R411

D402

U404

CB402

R344

R424

R425

R426

R427

R428

R20 1

R203

R202

C201

C202

R206

R2 07

Y201

R3 3 7R357

R324

R399

R391

R392 R393 R394

R395 R396 R397

CB309

R532

C301C302

R439

R531

R335

R336

R355

R356

U305

T30 1T302

X30 1X302

X703

X701

D302

D303

D304 D305 D306 D307 D308 D309

D505

D506

D507D504

X4 0 1

X501

S5 0 1

R354

R45 2

R213

CB201

R398

C505

C510

U501

L502

L501

C502

C507

C508

C5 01

C503

CB502

R217

R241

R255

R256

R390

R329

R375

R376

R348

R349

R453

S202

X403

X502

X704

R346

R347

X702

U201

X404

CB501

TriBoard Manual TC3X7 ADAS

Hardware: TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0

TriBoard Information

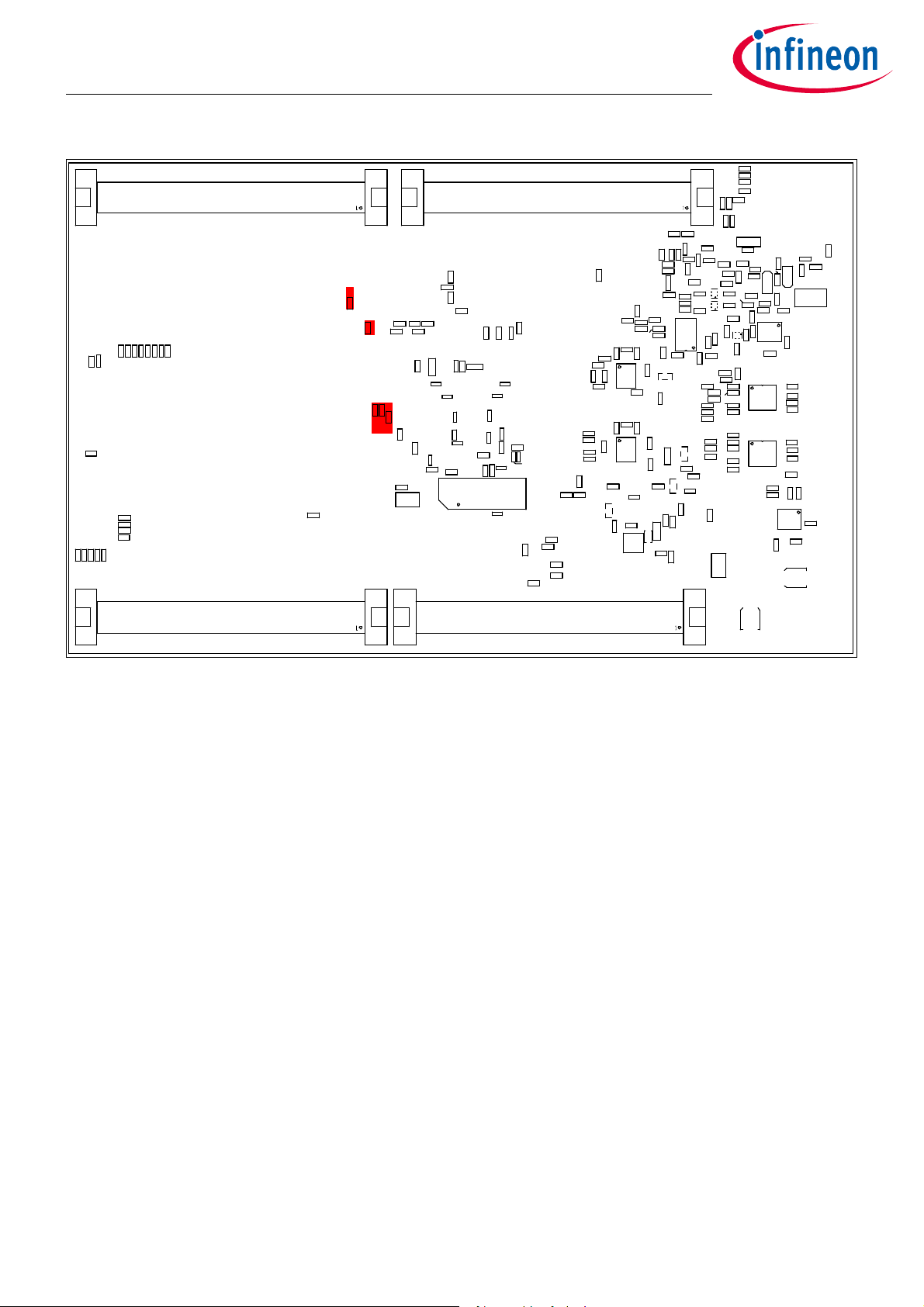

Figure 3-1 Resistor for TLF30682 Safety feature handling with switch on

Figure 3-2 Jumper for TLF30682 Safety feature handling with switch on

User Manual 3-5 V2.4
TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0 2020-02

TriBoard Manual TC3X7 ADAS

Hardware: TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0

TriBoard Information

3.4 LEDs

There are 15 LEDs on board:

– D302 up to D305 (blue) -> toogle LEDs connected to P33.4 ... P33.7
– D306 up to D309 (blue) -> toogle LEDs connected to P20.11 ... P20.14
– D504 RST (red) -> RESET LED indicate the reset state of the board (/ESR0)
– D505 +1V25 (green) -> +1V25 power supply indication
– D506 +3V3 (green) -> +3,3V power supply indication
– D507 +5V (green) -> +5V power supply indication
– D508 SSO (green) -> not usable, please ignore
– D402 ACT (green) -> on board miniWiggler JDS is ACTIV
– D401 RUN (blue) -> Debug RUN mode (switched by DAS Server)

3.5 MMIC / RIF

The board has 2 High Speed Samtec QSH-030 connectors where you can connect a MMIC board. For the pinout
of the connectors see Figure 6-14. The description of the used port for aech conenctor you can find in Table 5-7.

Note: TC337 don’t support P51/RIF1.

3.5.1 Measurement RIF signals

The RIF signales (P50 and P51) are also connected to X701 and X801. If they make problems (e.g. many reflections
on the lines) then you can disconnect the X701 and X801 and the signals are only usable/available on the
MMIC/RIF connector.

On the TC3X7 ADAS Triboard this resistors are R621 up to R632 for P50 (RIF0) and R633 up to R644 for P51 (RIF1)
(red marked in Figure 3-3). This resistors needs to be removed.

User Manual 3-6 V2.4
TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0 2020-02

JP501

D508

S502

R379

R383

R3 109

R3108

R3104

R3103

R3102

R3101

R3100

C320

R402

R403

CB408

Y401

U401

CB401

R401

L401

BU4 0 1

C402

CB405

C306

C310

X306

CB317

C311

C309

C318

CB318

CB319

L301

R382

U3 0 7

Y301

X406

R457

R249

R2 48

R244

C506

X602

X601

R621

R622

R623

R624

R625

R626

R627

R628R629

R630

R631

R632

R633

R634

R635

R636

R637

R638

R639

R640

R6 4 1

R642

R643

R644

X402

R226

R225

L503

S201

R377

CB202

R204

R205

X201

X3 0 5 X304 X303

R240

R236

R234

R232

R230

R361

R359

R212

D3 01

C303

U408U407

U406

R451

R4 55

R456

R454

R446

R444

CB419

CB418

CB417 CB416

CB415

CB414

D401

R430

R429

R423

R411

D402

U404

CB402

R344

R424

R425

R426

R427

R428

R201

R203

R202

C201

C202

R206

R2 07

Y201

R3 37R357

R324

R399

R391

R392 R393 R394

R395 R396 R397

CB309

R532

C301C30 2

R43 9

R531

R335

R336

R355

R356

U305

T30 1T30 2

X30 1X30 2

X703

X701

D302

D303

D304 D305 D306 D307 D308 D309

D505

D506

D507D504

X4 0 1

X501

S5 0 1

R354

R452

R213

CB201

R398

C505

C510

U501

L502

L501

C502

C507

C508

C5 01

C503

CB502

R217

R241

R255

R256

R390

R329

R375

R376

R348

R349

R453

S202

X403

X502

X704

R346

R347

X702

U201

X404

CB501

TriBoard Manual TC3X7 ADAS

Hardware: TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0

TriBoard Information

Figure 3-3 Resistors for measurement RIF signals on TriBoard TC3X7 ADAS (TH) V2.0

3.6 Clock

On the board is a fixed crystal with 20MHz assembled. You can change this by replacing Y101 (soldered).

3.7 USB Connector

The USB connector is used for connection to a PC. Via the USB it is possible to power the board, using the ASCLIN0
as serial connection via USB and Debugging via DAS. For the pinout of USB socket see Figure 6-8.

NOTE: Before connecting the board to the PC, make sure that the actual DAS software is installed on the PC. For
actual DAS software please contact your local FAE.

The software can also be found on:

3.7.1 Serial Connection to PC

After the first connection of USB to a PC the needed driver will be installed automatically. During this there will
be created a new COM port on PC. This COM port can be used to communicate with the board via ASCLIN0 of the
device. Per default the ASCLIN0 is used on P14.0 and P14.1 (e.g. Generic Bootstrap Loader) . In case you will use
the Generic Bootstrap Loader via CAN or ASCLIN0 via P15.2 and P15.3 you must:

User Manual 3-7 V2.4
TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0 2020-02

– remove R436 and R437 (this disconnect the serial connection from P14.0 and P14.1)
– remove R301 and R302 (this disconnect the CAN0 transceiver from P20.7 and P20.8)
– assemble R438 and R440 with 0R resistor (size 0603) to connect P15.2 and P15.3 to serial connection
– assemble R303 and R304 with 0R resistor (size 0603) to connect P14.0 and P14.1 to CAN0 transceiver

DAS website

X804

R378

R3111

R3110

R3107

R3106

R3105

R3 10

C319

C317

C316

C315

C31 4

C313

C312

R417

R437

R438

R372

CB404

R405

R440

CB409

R416

R418

R41 9

R414

R420

C406

Q402

Q403

C404

C405

CB410

CB411

CB412

R441

R442

C4 0 1

R404

C403

CB413

L402

U405

C305

C3 07

C308

R388

R389

R384

R385

R371

R370

CB311

CB312

CB313

CB314

CB315

CB316

RN301

R246

R245

L504

L201

CB209

CB208

C208

C207

C205

C204

C203

R620

R619

R618

R617

R616

R615

R614

R613

R612

R611

R6 10

R609

R6 08

R6 07

R606

R6 05

R604

R603

R602

R6 01

R433

R523

RN3 02

C518

R431

R314

R252R250

R251

R253

R254

R208

R408

R2 15

R2 14

X405

U306

R521

R238

R223

R365

R364

R363

R362

R360

R211

CB206

CB310

C304

R449

R44 8

R447

R445

R443

R413

D403

R450

R422

R421

U403

Q401

R412

R415

R410

R409

CB407

R407

U402

R406

CB406

R305

R306

R308

R309

R3 15

R316

R318

R319

R301

R311

R341

R340

R321

R322

R222

R220

R221

R524

R533

R323

R343

CB301

CB302

CB205

CB512

CB513

CB515

CB516

CB517CB518

CB519

CB520

R537

R307

R317

R538

R534

R51 3

CB204

R535

R536

C515

R511

R512

R510

Q502

Q504

Q503

X802 X803

X801

U301U302

R302

R342

CB303

CB304

CB305

CB306

CB307

CB308

R303

R304

R338

R330

R331

R358

R350

R351

U303

U304

R332

R334

R33 3

R352

R353

C5 19

CB203

C407

C408

R320

R216

R209

CB510

R520

D503

R505

R504

R506

D501

C509

D502

C504

R508

R509

R503

R218

R219

R231

R233

R235

R237

R239

R31 2

R326

R328

R436

R313

R327

R325

R373

R374

CB403

TriBoard Manual TC3X7 ADAS

Hardware: TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0

TriBoard Information

The mentioned resistors are red marked in Figure 3-4.

Figure 3-4 Resistors for ASC connection (ASC0)

3.7.2 miniWiggler JDS

The miniWiggler JDS is a low cost debug tool which allows you access to the JTAG of the device. Make sure that
you have the latest DAS release. Debugging is possible via the DAS Server ‘UDAS‘. Please contact your prefered
debug vendor for support of DAS.

If you have connected the board to the PC and there runs the DAS server, then a working connection is visible via
the green ACTIV LED.

The status RUN LED is switched on/off through the DAS Server, depending on the used debugger (client).

IMPORTANT: Make sure that there is no or a tristated connection on X401 (OCDS1) and X402 (DAP) if the
ACTIV LED is on.

Per default the miniWiggler is connected to the DAP. It is possible to change the connection to DAPE (DAP of
emulation device if available). If resistors R214, R215 and R216 assembled (default) then the standard DAP is
connected to miniWiggler otherwise if R217, R218 and R219 are assembled the the DAPE of emulation device is
connected to miniWiggler. Please note that there should be connected only standard DAP or DAPE. If all this
resistors are not assembled then the miniWiggler can’t be used. In this case only the DAP connectors X402 and
X403 can be used. See Table 3-9 and Table 3-10.

3.8 FlexRay™ (E-RAY)

The board has 2 IDC10 plugs for FlexRay™ Communication (channel A and B) with up to 10 Mbit/s. For the pinout
of the plugs see Figure 6-9. You can use a IDC female connector with crimpconnector, flat cable and SUB-D 9 plug
with crimpconnector to have a 1:1 adapter to SUB-D 9.

User Manual 3-8 V2.4
TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0 2020-02

TriBoard Manual TC3X7 ADAS

Hardware: TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0

TriBoard Information

The transceiver are connected to the TriCore device via zero ohm resistors (R325 up to R329 and R340 up to R344)
which must be removed to use the ports outside.

ERAY-A can be connected to P14.8, P14.9 and P14.10 (default, usable with ERAY0 and ERAY1) and to P02.0, P02.1
and P02.4 (only usable with ERAY0). Transceiver for channel A can be enabled/disabled via P32.3 (default) or via
P10.2. The error state of transceiver channel A can be read out via P32.2 (default) or via P10.1.

ERAY-B is connected to P14.5, P14.6 and P14.7 (default, usable with ERAY0 and ERAY1). Transceiver for channel A
can be enabled/disabled via P20.10 (default). The error state of transceiver channel A can be read out via P20.9
(default).

For more information look in the user manual for TC3X7.

Note: TC337 and TC3A7 don’t support FlexRay™.

3.9 Serial Eeprom

Note: TC337 don’t have I2C module. Access to the eeprom only with simulation of I2C protocol via bit banging

possible.

The I2C via P15.4 and P15.5 of the TC3X7 is connected to a serial EEPROM with a size of 2KBit (2 x 128 x 8). The slave
address of this EEPROM is 0x50. The upper half of the array (80h-FFh) is permanently write-protected. Write
operations to this address range are inhibited. Read operations are not affected. This upper half contains a pre­programmed EUI-48™ node address which can be used as MAC ID for Ethernet. The other 128 bytes are writable
by customer.

To disconnect (disable) the EEPROM remove resistor R348 and R349.

3.10 MultiCAN

On the board are two CAN transceiver connected to the CAN0 and CAN1 of TC3X7. The transceivers are connected
to two IDC10 plug. For the pinout of IDC10 plug see Figure 6-10. You can use a IDC female connector with
crimpconnector, flat cable and SUB-D 9 plug with crimpconnector to have a 1:1 adapter to SUB-D 9.

The transceiver are connected to the TriCore device via zero ohm resistors (R301 up to R304 and R311 up to R314)
which must be removed to use the ports outside.

CAN0 can be used via P20.7 and P20.8 (node 0, default) or P14.0 and P14.1 (node 1). CAN1 can be used via P23.0
and P23.1 (node 0, default) or P00.0 and P00.1 (node 0).

Note: CAN1 is not usable with TC337 and TC3A7.

3.11 LIN

On the board is one LIN transceiver connected to the ASCLIN1 on TC3X7 (P15.0 and P15.1). The transceiver are
connected to one IDC10 plug. For the pinout of IDC10 plug see Figure 6-11. You can use a IDC female connector
with crimpconnector, flat cable and SUB-D 9 plug with crimpconnector to have a 1:1 adapter to SUB-D 9.

To disconnect the LIN remove resistor R364 and R365.

The LIN can be used in master and in slave mode. For the master mode there is per default a pull-up of 1K (R360)
and a capacitor of 1nF (C304) on the BUS assembled. For using the LIN in slave mode the pull-up resistor R360
must be removed and maybe the capacitor changed to a smaller value (e.g. 220pF).

The mentioned resistor and capacitor are red marked in Figure 3-5

User Manual 3-9 V2.4
TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0 2020-02

X804

R378

R

3

1

1

1

R

3

1

1

0

R3107

R

3

1

0

6

R

3

1

0

5

R

3

1

0

C319

C317

C316

C315

C314

C313

C312

R417

R437

R438

R372

C

B

4

0

4

R405

R440

CB409

R416

R418

R419

R414

R420

C406

Q402

Q403

C404

C405

C

B

4

1

0

CB411

C

B

4

1

2

R441

R442

C

4

0

1

R404

C

4

0

3

C

B

4

1

3

L402

U405

C305

C

3

0

7

C308

R

3

8

8

R389

R

3

8

4

R

3

8

5

R371

R370

CB311

CB312

CB313

CB314

CB315

CB316

RN301

R246

R245

L504

L

2

0

1

CB209

CB208

C

2

0

8

C207

C205

C204

C203

R

6

2

0

R

6

1

9

R618

R617

R

6

1

6

R

6

1

5

R614

R613

R612

R

6

1

1

R

6

1

0

R

6

0

9

R

6

0

8

R

6

0

7

R

6

0

6

R

6

0

5

R

6

0

4

R

6

0

3

R

6

0

2

R

6

0

1

R433

R523

R

N

3

0

2

C518

R

4

3

1

R314

R252R250

R251

R253

R254

R

2

0

8

R

4

0

8

R

2

1

5

R

2

1

4

X405

U306

R521

R238

R223

R365

R364

R363

R362

R

3

6

0

R

2

1

1

C

B

2

0

6

CB310

C304

R

4

4

9

R448

R447

R445

R443

R

4

1

3

D403

R

4

5

0

R422

R

4

2

1

U403

Q401

R

4

1

2

R415

R

4

1

0

R409

C

B

4

0

7

R407

U402

R

4

0

6

CB406

R

3

0

5

R306

R

3

0

8

R

3

0

9

R

3

1

5

R

3

1

6

R

3

1

8

R

3

1

9

R301

R311

R341

R340

R321

R322

R

2

2

2

R220

R221

R

5

2

4

R533

R323

R343

C

B

3

0

1

C

B

3

0

2

CB205

CB512

CB513

C

B

5

1

5

C

B

5

1

6

C

B

5

1

7

C

B

5

1

8

CB519

CB520

R537

R307

R317

R538

R

5

3

4

R513

CB204

R535

R536

C

5

1

5

R511

R512

R

5

1

0

Q502

Q

5

0

4

Q503

X802 X803

X801

U

3

0

1

U

3

0

2

R302

R342

CB303

CB304

CB305

CB306

CB307

CB308

R

3

0

3

R304

R

3

3

8

R330

R331

R358

R

3

5

0

R351

U

3

0

3

U

3

0

4

R332

R

3

3

4

R333

R352

R353

C

5

1

9

CB203

C

4

0

7

C408

R320

R

2

1

6

R

2

0

9

CB510

R520

D503

R505

R

5

0

4

R

5

0

6

D

5

0

1

C509

D

5

0

2

C504

R

5

0

8

R

5

0

9

R

5

0

3

R

2

1

8

R

2

1

9

R

2

3

1

R

2

3

3

R

2

3

5

R

2

3

7

R239

R312

R326

R328

R436

R313

R327

R325

R

3

7

3

R

3

7

4

C

B

4

0

3

TriBoard Manual TC3X7 ADAS

Hardware: TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0

TriBoard Information

Figure 3-5 Components for LIN Master Mode

3.12 Ethernet

The TriBoard provide a RJ45 connector (X306) for twisted pair ethernet connections.The TriBoard use a Realtek
Integrated 10/100/1000M Ethernet Precision Transceiver RTL8211FI-CG as physical interface device. For more
information about the ethernet modul see TC3X9 User’s Manual, about the PHY see the RTL8211F datasheet. For
the pinout of RJ45 see Figure 6-13.

The PHY is connected to the TriCore device via resistors and resistor arrays (R370 up to R374 and RN301 up to
RN302).

For the connection between TriCore and PHY is used RGMII.

Note: Please note that the used signals for RGMII (P11.0 up to P11.12) are not connected to any connector.

3.13 HSCT (optional)

The TriBoard provide a footprint of IEEE 1394 socket (X201) for connection to other TC3XX via HSCT.

Note: Don’t use X201 for connection to any IEEE 1394 device,

For connect two TriBoards you need to assemble this socket (Lumberg 2415 01) on each board and connect the
boards with a standard 6 pin IEEE 1394 cable. For the pinout of socket see Figure 6-12.

this can destroy the board and/or the connected device.

Note: TC357 and TC337 don’t support HSCT.

User Manual 3-10 V2.4
TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0 2020-02

X804

R378

R3111

R3110

R3107

R3106

R3105

R3 10

C319

C317

C316

C315

C31 4

C313

C312

R417

R437

R438

R372

CB404

R405

R440

CB409

R416

R418

R41 9

R414

R420

C406

Q402

Q403

C404

C405

CB410

CB411

CB412

R441

R442

C4 0 1

R404

C403

CB413

L402

U405

C305

C3 07

C308

R388

R389

R384

R385

R371

R370

CB311

CB312

CB313

CB314

CB315

CB316

RN301

R246

R245

L504

L201

CB209

CB208

C208

C207

C205

C204

C203

R620

R619

R618

R617

R616

R615

R614

R613

R612

R611

R6 10

R609

R6 08

R6 07

R606

R6 05

R604

R603

R602

R6 01

R433

R523

RN3 02

C518

R431

R314

R252R250

R251

R253

R254

R208

R408

R2 15

R2 14

X405

U306

R521

R238

R223

R365

R364

R363

R362

R360

R211

CB206

CB310

C304

R449

R44 8

R447

R445

R443

R413

D403

R450

R422

R421

U403

Q401

R412

R415

R410

R409

CB407

R407

U402

R406

CB406

R305

R306

R308

R309

R3 15

R316

R318

R319

R301

R311

R341

R340

R321

R322

R222

R220

R221

R524

R533

R323

R343

CB301

CB302

CB205

CB512

CB513

CB515

CB516

CB517CB518

CB519

CB520

R537

R307

R317

R538

R534

R51 3

CB204

R535

R536

C515

R511

R512

R510

Q502

Q504

Q503

X802 X803

X801

U301U302

R302

R342

CB303

CB304

CB305

CB306

CB307

CB308

R303

R304

R338

R330

R331

R358

R350

R351

U303

U304

R332

R334

R33 3

R352

R353

C5 19

CB203

C407

C408

R320

R216

R209

CB510

R520

D503

R505

R504

R506

D501

C509

D502

C504

R508

R509

R503

R218

R219

R231

R233

R235

R237

R239

R31 2

R326

R328

R436

R313

R327

R325

R373

R374

CB403

TriBoard Manual TC3X7 ADAS

Hardware: TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0

TriBoard Information

Note: HSCT1 of TC397B and TC3A7 is not connected to special socket.

3.13.1 High speed with HSCT

For use the HSCT connection between two board you need to remove 5 resistors to have a very short connection
between device and connector. On the TC3X7 ADAS Triboard this 5 resistors are R250, R251, R252, R253 and R254
(red marked in Figure 3-6). This resistors needs to be removed.

mportant: When the resistors are removed then the port signals P20.0, P21.2, P21.3, P21.4 and P21.5 are no
longer available on the 80 pin samtec connectors.

Figure 3-6 Resistors for high speed HSCT

3.14 ADC

On this boards are 5 ADC channels prepared with a low pass filter. On pin AN7, AN20, AN21, AN44 and AN45 is
assembled a capacitor of 47nF and a serial resistor of 4,7K. The filter components are red marked in the following
figures (Figure 3-7 and Figure 3-8).

Note: On TC357 is only AN7 available. AN20, AN21, AN44 and AN45 are not available

User Manual 3-11 V2.4
TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0 2020-02

JP501

D508

S502

R379

R383

R3 109

R3108

R3104

R3103

R3102

R3101

R3100

C320

R402

R403

CB408

Y401

U401

CB401

R401

L401

BU4 0 1

C402

CB405

C306

C310

X306

CB317

C311

C309

C318

CB318

CB319

L301

R382

U3 07

Y301

X406

R457

R249

R2 4 8

R244

C506

X602

X601

R621

R622

R623

R624

R625

R626

R627

R628R629

R630

R631

R632

R633

R634

R635

R636

R637

R638

R639

R640

R6 41

R642

R643

R644

X402

R226

R225

L503

S201

R377

CB202

R204

R205

X201

X3 0 5 X304 X303

R240

R236

R234

R232

R230

R361

R359

R212

D3 01

C303

U408U407

U406

R451

R4 55

R456

R454

R446

R444

CB419

CB418

CB417 CB416

CB415

CB414

D401

R430

R429

R423

R411

D402

U404

CB402

R344

R424

R425

R426

R427

R428

R20 1

R203

R202

C201

C202

R206

R2 07

Y201

R3 3 7R357

R324

R399

R391

R392 R393 R394

R395 R396 R397

CB309

R532

C301C302

R439

R531

R335

R336

R355

R356

U305

T30 1T302

X30 1X302

X703

X701

D302

D303

D304 D305 D306 D307 D 308 D309

D505

D506

D507D504

X4 0 1

X501

S5 0 1

R354

R45 2

R213

CB201

R398

C505

C510

U501

L502

L501

C502

C507

C508

C5 01

C503

CB502

R217

R241

R255

R256

R390

R329

R375

R376

R348

R349

R453

S202

X403

X502

X704

R346

R347

X702

U201

X404

CB501

X804

R378

R3111

R3110

R3107

R3106

R3105

R3 10

C319

C317

C316

C315

C31 4

C313

C312

R417

R437

R438

R372

CB404

R405

R440

CB409

R416

R418

R41 9

R414

R420

C406

Q402

Q403

C404

C405

CB410

CB411

CB412

R441

R442

C4 0 1

R404

C403

CB413

L402

U405

C305

C3 07

C308

R388

R389

R384

R385

R371

R370

CB311

CB312

CB313

CB314

CB315

CB316

RN301

R246

R245

L504

L201

CB209

CB208

C208

C207

C205

C204

C203

R620

R619

R618

R617

R616

R615

R614

R613

R612

R611

R6 10

R609

R6 08

R6 07

R606

R6 05

R604

R603

R602

R6 01

R433

R523

RN3 02

C518

R431

R314

R252R250

R251

R253

R254

R208

R408

R2 15

R2 14

X405

U306

R521

R238

R223

R365

R364

R363

R362

R360

R211

CB206

CB310

C304

R449

R44 8

R447

R445

R443

R413

D403

R450

R422

R421

U403

Q401

R412

R415

R410

R409

CB407

R407

U402

R406

CB406

R305

R306

R308

R309

R3 15

R316

R318

R319

R301

R311

R341

R340

R321

R322

R222

R220

R221

R524

R533

R323

R343

CB301

CB302

CB205

CB512

CB513

CB515

CB516

CB517CB518

CB519

CB520

R537

R307

R317

R538

R534

R51 3

CB204

R535

R536

C515

R511

R512

R510

Q502

Q504

Q503

X802 X803

X801

U301U302

R302

R342

CB303

CB304

CB305

CB306

CB307

CB308

R303

R304

R338

R330

R331

R358

R350

R351

U303

U304

R332

R334

R33 3

R352

R353

C5 19

CB203

C407

C408

R320

R216

R209

CB510

R520

D503

R505

R504

R506

D501

C509

D502

C504

R508

R509

R503

R218

R219

R231

R233

R235

R237

R239

R31 2

R326

R328

R436

R313

R327

R325

R373

R374

CB403

TriBoard Manual TC3X7 ADAS

Hardware: TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0

TriBoard Information

Figure 3-7 Filter components of ADC channels on Top Side

Figure 3-8 Filter components of ADC channels on Bottom Side

User Manual 3-12 V2.4
TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0 2020-02

TriBoard Manual TC3X7 ADAS

Hardware: TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0

TriBoard Information

3.15 Other peripherals

For all other peripherals there are no special plugs on the board. The peripheral signals are available on the
different connectors. See

3.16 Toggle LED’s

The status LED’s are low active and can be controlled by Software.

Port 20 pin 11 up to pin 14 are connected to single LED’s (D306... D309) and powered by the normal
microcontroller voltage.

Port 33 pin 4 up to pin 7 are connected to single LED’s (D302... D305) and also powered by the normal
microcontroller voltage because VEVRSB is connected to 3,3V (port 33 is powered by VEVRSB pin which is
connected to 3,3V of TLF30682).

3.17 Buttons

“Connector Pin Assignment” on Page 6-1

.

On the board are three buttons.

The reset button (S501) will apply a warm power on reset to the device.

The ENA button (S502) will be used to enable/wakeup the TLF30682.

The P33.11 button (S202) can be used by software as input.

3.18 Debug System

3.18.1 OCDS1

The OCDS1 signals are connected to the IDC16 plug (X401). They work with the port supply of Microcontroller (+5V
default or +3,3V). For pinout of the connector see Figure 6-15. You can connect any debugger to this connector.

The signals /BRKIN and /BRKOUT are not connected per default. If you need this signals in the connector then
assemble R424 and R425 or R426 with a 0R resistor.

If you connect a debug hardware make sure that the miniWiggler JDS (see “miniWiggler JDS” on Page 3-8) is not
activ (ACTIV LED is off) and on the DAP connector (X402) is no hardware connected or the hardware is tristated.

If the ACTIV LED is on, then stop the active DAS Server ’UDAS’ and/or remove the USB connection to the PC.

In case that R217, R218 and R219 are assembled instead of R214, R215 and R216 then the connector can be used
only for DAP connection to DAPE. If R214 up to R219 not assembled then the connector is not usable.

3.18.2 DAP

The board comes with a DAP connector (X402). For pinout of this connector see Figure 6-16. You can connect a
DAP hardware here. If you use this connector make sure that the miniWiggler JDS is not activ (ACTIV LED is off)
and a connected OCDS1 hardware is disconnected or tristated.

3.18.3 DAPE (only Emulation Device)

The board comes also with another DAP connector (X403) which is connected to DAPE in case that an emulation
device is used. For pinout of this connector see Figure 6-16. You can connect a DAP hardware here. If you use this
connector make sure that the miniWiggler JDS is not activ (ACTIV LED is off) and a connected OCDS1 hardware is
disconnected or tristated in case that R217, R218 and R219 are assembled.

User Manual 3-13 V2.4
TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0 2020-02

JP501

D508

S502

R379

R383

R3 109

R3108

R3104

R3103

R3102

R3101

R3100

C320

R402

R403

CB408

Y401

U401

CB401

R401

L401

BU4 0 1

C402

CB405

C306

C310

X306

CB317

C311

C309

C318

CB318

CB319

L301

R382

U3 0 7

Y301

X406

R457

R249

R2 48

R244

C506

X602

X601

R621

R622

R623

R624

R625

R626

R627

R628R629

R630

R631

R632

R633

R634

R635

R636

R637

R638

R639

R640

R6 4 1

R642

R643

R644

X402

R226

R225

L503

S201

R377

CB202

R204

R205

X201

X3 0 5 X304 X303

R240

R236

R234

R232

R230

R361

R359

R212

D3 01

C303

U408U407

U406

R451

R4 55

R456

R454

R446

R444

CB419

CB418

CB417 CB416

CB415

CB414

D401

R430

R429

R423

R411

D402

U404

CB402

R344

R424

R425

R426

R427

R428

R201

R203

R202

C201

C202

R206

R2 07

Y201

R3 37R357

R324

R399

R391

R392 R393 R394

R395 R396 R397

CB309

R532

C301C30 2

R43 9

R531

R335

R336

R355

R356

U305

T30 1T30 2

X30 1X30 2

X703

X701

D302

D303

D304 D305 D306 D307 D308 D309

D505

D506

D507D504

X4 0 1

X501

S5 0 1

R354

R452

R213

CB201

R398

C505

C510

U501

L502

L501

C502

C507

C508

C5 01

C503

CB502

R217

R241

R255

R256

R390

R329

R375

R376

R348

R349

R453

S202

X403

X502

X704

R346

R347

X702

U201

X404

CB501

TriBoard Manual TC3X7 ADAS

Hardware: TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0

TriBoard Information

3.18.4 DAP_SCR

Additional DAP connector (X406) is connected to DAP_SCR. This DAP can be used as private DAP connection to
the standby controller. For pinout of this connector see Figure 6-16. You can connect a DAP hardware here. This
DAP use P33.6 and P33.7 which are connected to LED on the board. Maybe it is necessary to remove R393 and
R394 if the speed of the connection is not fast enough.

3.19 High speed with DAP/DAPE

For use the DAP connection with 160 MHz you need to remove 3 resistors to have a very short connection between
device and connector. On the TC3X7 ADAS Triboard this 3 resistors are R214, R215 and R216 for DAP or R217, R218
and R219 for DAPE (red marked in Figure 3-9 and Figure 3-10). This resistors needs to be removed.

Important: When the resistors are removed then only the DAP and DAPE connector on the board can be used. The

on board wiggler and the OCDS1 connector could n’t be use (are disconnected ) in this case, also the DAP/J TAG
part of AGBT connector and the ETK connector couldn’t be used.

All resistors are red marked in the following figures:

Figure 3-9 Location of DAP resistors on Top Side

User Manual 3-14 V2.4
TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0 2020-02

X804

R378

R3111

R3 11 0

R3107

R3106

R3105

R3 10

C319

C317

C316

C315

C31 4

C313

C312

R417

R437

R438

R372

CB404

R405

R440

CB409

R416

R418

R41 9

R414

R420

C406

Q402

Q403

C404

C405

CB410

CB411

CB412

R441

R442

C4 01

R404

C403

CB413

L402

U405

C305

C3 07

C308

R388

R389

R384

R385

R371

R370

CB311

CB312

CB313

CB314

CB315

CB316

RN301

R246

R245

L504

L201

CB209

CB208

C208

C207

C205

C204

C203

R620

R619

R618

R617

R616

R615

R614

R613

R612

R611

R6 10

R609

R6 08

R6 07

R606

R6 05

R604

R603

R602

R6 01

R433

R523

RN3 02

C518

R431

R314

R252R250

R251

R253

R254

R208

R408

R2 15

R2 14

X405

U306

R521

R238

R223

R365

R364

R363

R362

R360

R211

CB206

CB310

C304

R449

R44 8

R447

R445

R443

R413

D403

R450

R422

R421

U403

Q401

R412

R415

R410

R409

CB407

R407

U402

R406

CB406

R305

R306

R308

R309

R3 15

R316

R318

R319

R301

R311

R341

R340

R321

R322

R222

R220

R221

R524

R533

R323

R343

CB301

CB302

CB205

CB512

CB513

CB515

CB516

CB517CB518

CB519

CB520

R537

R307

R317

R538

R534

R51 3

CB204

R535

R536

C515

R511

R512

R510

Q502

Q504

Q503

X802 X803

X801

U301U302

R302

R342

CB303

CB304

CB305

CB306

CB307

CB308

R303

R304

R338

R330

R331

R358

R350

R351

U303

U304

R332

R334

R333

R352

R353

C5 19

CB203

C407

C408

R320

R216

R209

CB510

R520

D503

R505

R504

R506

D501

C509

D502

C504

R508

R509

R503

R218

R219

R231

R233

R235

R237

R239

R31 2

R326

R328

R436

R313

R327

R325

R373

R374

CB403

TriBoard Manual TC3X7 ADAS

Hardware: TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0

TriBoard Information

Figure 3-10 Location of DAP resistors on Bottom Side

3.19.1 AGBT (optional)

The TriBoard provide a 22 pin high speed samtec connector (X405) for highest speed connection via AGBT. This
connector should be assembled by your self if needed.

The AGBT interface is only available on emulation devices.

For the pinout of connector see Figure 6-19.

The needed Samtec connector is: ASP-137969-01 (serie ERM8, Nexus HS22).

Note: The robustness of AGBT communication depends on the PCB high-speed design quality and the

physical connection of a microcontroller on the board. It is highly recommended to use boards with
properly soldered microcontrollers for the highest reliability of the AGBT in the full operating range.

3.19.2 ETK connector (optional)

The TriBoard provide a 10 pin samtec connector (X404) for connecting to an ETK. This connector should be
assembled by your self if needed.

For the pinout of connector see Figure 6-17.

The needed Samtec connector is: TFM-105-02-A.

User Manual 3-15 V2.4
TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0 2020-02

TriBoard Manual TC3X7 ADAS

Hardware: TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0

TriBoard Information

3.19.3 EmW Power (optional)

The TriBoard provide the 4 pin power connector (X502) for the Ethernet miniWiggler (EmW). This connector
should be assembled by your self if needed.

For the pinout of connector see Figure 6-18.

The needed Samtec connector is the JST B4B-PH-K.

The connector provide the input voltage to the Ethernet miniWiggler and an enable/wakeup signal connected to
TLF30682 and a standby voltage of +1,25V which is not connected to the device on this board.

User Manual 3-16 V2.4
TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0 2020-02

2

on

134

P14

.

4

P10.5

P10

.

6

P14

.

3

TriBoard Manual TC3X7 ADAS

Hardware: TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0

TriBoard Configuration

4 TriBoard Configuration

4.1 HW Boot Configuration

Figure 4-1 HW Configuration DIP-Switches

The picture above shows the definition of the boot HW configuration switch. The meaning of the switches will be
described in the following table (Table 4-1).

Note:

The ON position of the switch is equal to a logical LOW at the dedicated pin.

4.1.1 Default Pad State

P14.4 / HWCFG6 is used to select the Default Pad State. Dipswitch 1 used to select this.

In case that dispswitch1 is set to ON then all I/O pins are in tristate otherwise the internal pull-up devices are
enabled on the I/O pins. Please note that after change Dipswitch 1 you must make a power cycle (switch off ->
switch on) to use the new configuration.

In case that TriState is selected (Dipswitch 1 is set to ON) then the I/O pins are floating. If you need a specific level
on different pins during startup (e.g. driver pins) then you must add the needed pull device (up or down). Some
pins (especially the HWCFG pins) haven always the needed external pull-up and/or pull-down resistor assembled
on the board.

4.1.2 Bootmode

Table 4-1 User Startup Modes

HWCFG[5...3] Type of Boot 2 3 4

1)2)3)

XX1 Start-up mode is selected by Boot Mode Index X X OFF

110 Internal Start from Flash OFF OFF ON

100 Alternate Boot Mode, Generic Bootstrap Loader on fail (P14.0/P14.1) ON OFF ON

010 Alternate Boot Mode, ASC Bootstrap Loader on fail (P15.2/P15.3) OFF ON ON

000 Generic Bootstrap Loader (P14.0/P14.1) ON ON ON

1) The shadowed line indicates the default setting.

2) ’x’ represents the don’t care state.

3) 2 to 4 are the Dip Switch numbers.

User Manual 4-1 V2.4
TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0 2020-02

TriBoard Manual TC3X7 ADAS

Hardware: TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0

TriBoard Configuration

4.2 Assembly Options

4.2.1 General optional resistors

Table 4-2 General optional resistors (default assembly in brackets)

Component Description

R202 Connect P20.2 (/TESTMODE) to GND (not assembled)

R203 XTAL1 Rload (50 Ohm) (not assembled)

R206 XTAL Rparallel (not assembled)

R207 XTAL2 Rserial (assembled)

R238 Switch off EVRC (assembled)

R240 Switch off EVR33 (assembled)

R390 Connect +3V3 to toggle LEDs D302...D305 (assembled)

R399 Connect +3V3 to toggle LEDs D306...D309 (assembled)

R423 Connect P20.0 with miniWiggler JDS (not assembled)

R424 Connect P20.0 with OCDS1 connector (not assembled)

R425 Connect P20.1 with OCDS1 connector (not assembled)

R426 Connect P20.2 with OCDS1 connector (not assembled)

R427 Connect P20.1 with USR1 of miniWiggler JDS (not assembled)

R428 Connect P20.2 with USR1 of miniWiggler JDS (not assembled)

R429 Connect P21.6 (DAP3) with USR1 of DAP (assembled)

R430 Connect P20.2 with USR1 of DAP (not assembled)

R433 Connect P20.1 with ETK connector (not assembled)

R439 Connect P21.7 with ETK connector (not assembled)

R508 Connect pin MPS of TLF30682 to +3V3 (assembled)

R524 Connect VDDP3 to +3V3 (assembled)

Note: All resistors are red marked in the following figures.

User Manual 4-2 V2.4
TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0 2020-02

JP501

D508

S502

R379

R383

R3109

R3108

R3104

R3103

R3102

R3101

R3100

C32 0

R402

R403

CB408

Y401

U401

CB401

R401

L401

BU4 0 1

C402

CB405

C306

C310

X306

CB317

C311

C309

C318

CB318

CB319

L301

R382

U3 07

Y301

X406

R457

R249

R2 4 8

R244

C506

X602

X601

R621

R622

R623

R624

R625

R626

R627

R628R629

R630

R631

R632

R633

R634

R635

R636

R637

R638

R639

R640

R6 41

R642

R643

R644

X402

R226

R225

L503

S201

R377

CB202

R204

R205

X201

X3 0 5 X304 X303

R240

R236

R234

R232

R230

R361

R359

R212

D3 01

C303

U408U407

U406

R451

R4 55

R456

R454

R446

R444

CB419

CB418

CB417 CB416

CB415

CB414

D401

R430

R429

R423

R411

D402

U404

CB402

R344

R424

R425

R426

R427

R428

R201

R203

R202

C201

C202

R206

R2 07

Y201

R3 3 7R357

R324

R399

R391

R392 R393 R394

R395 R396 R397

CB309

R532

C301C302

R439

R531

R335

R336

R355

R356

U305

T30 1T302

X30 1X302

X703

X701

D302

D303

D304 D305 D 306 D307 D308 D309

D505

D506

D507D504

X4 0 1

X501

S5 0 1

R354

R45 2

R213

CB201

R398

C505

C510

U501

L502

L501

C502

C507

C508

C5 01

C50 3

CB502

R217

R241

R255

R256

R390

R329

R375

R376

R348

R349

R453

S202

X403

X502

X704

R346

R347

X702

U201

X404

CB501

X804

R378

R3111

R3110

R3107

R3106

R3105

R3 10

C319

C317

C316

C315

C31 4

C313

C312

R417

R437

R438

R372

CB404

R405

R440

CB409

R416

R418

R41 9

R414

R420

C406

Q402

Q403

C404

C405

CB410

CB411

CB412

R441

R442

C4 0 1

R404

C403

CB413

L402

U405

C305

C3 07

C308

R388

R389

R384

R385

R371

R370

CB311

CB312

CB313

CB314

CB315

CB316

RN301

R246

R245

L504

L201

CB209

CB208

C208

C207

C205

C204

C203

R620

R619

R618

R617

R616

R615

R614

R613

R612

R611

R6 10

R609

R6 08

R6 07

R606

R6 05

R604

R603

R602

R6 01

R433

R523

RN3 02

C518

R431

R314

R252R250

R251

R253

R254

R208

R408

R2 15

R2 14

X405

U306

R521

R238

R223

R365

R364

R363

R362

R360

R211

CB206

CB310

C304

R449

R44 8

R447

R445

R443

R413

D403

R450

R422

R421

U403

Q401

R412

R415

R410

R409

CB407

R407

U402

R406

CB406

R305

R306

R308

R309

R3 15

R316

R318

R319

R301

R311

R341

R340

R321

R322

R222

R220

R221

R524

R533

R323

R343

CB301

CB302

CB205

CB512

CB513

CB515

CB516

CB517CB518

CB519

CB520

R537

R307

R317

R538

R534

R51 3

CB204

R535

R536

C515

R511

R512

R510

Q502

Q504

Q503

X802 X803

X801

U301U302

R302

R342

CB303

CB304

CB305

CB306

CB307

CB308

R303

R304

R338

R330

R331

R358

R350

R351

U303

U304

R332

R334

R33 3

R352

R353

C5 19

CB203

C407

C408

R320

R216

R209

CB510

R520

D503

R505

R504

R506

D501

C509

D502

C504

R508

R509

R503

R218

R219

R231

R233

R235

R237

R239

R31 2

R326

R328

R436

R313

R327

R325

R373

R374

CB403

TriBoard Manual TC3X7 ADAS

Hardware: TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0

TriBoard Configuration

Figure 4-2 Location of general optional resistors on Top Side

Figure 4-3 Location of general optional resistors on Bottom Side

User Manual 4-3 V2.4
TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0 2020-02

TriBoard Manual TC3X7 ADAS

Hardware: TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0

TriBoard Configuration

4.2.2 Resistors for peripherals

Table 4-3 Resistors for peripherals (default assembly in brackets)

Component Description

R220 Connect +5V with VDDM (assembled)

R221 Connect +3V3 with VDDM (not assembled)

R222 Connect VAREF1 with VDDM (assembled)

R223 Connect VAREF2 with VDDM (assembled)

R301 Connect P20.7 with RXD of CAN0 transceiver (assembled)

R302 Connect P20.8 with TXD of CAN0 transceiver (assembled)

R303 Connect P14.1 with RXD of CAN0 transceiver (not assembled)

R304 Connect P14.0 with TXD of CAN0 transceiver (not assembled)

R311 Connect P23.0 with RXD of CAN1 transceiver (assembled)

R312 Connect P23.1 with TXD of CAN1 transceiver (assembled)

R313 Connect P00.1 with RXD of CAN1 transceiver (not assembled)

R314 Connect P00.0 with TXD of CAN1 transceiver (not assembled)

R320 Connect P14.10 with TXD of ERAY-A transceiver (assembled)

R321 Connect P14.9 with TXDEN of ERAY-A transceiver (assembled)

R322 Connect P14.8 with RXD of ERAY-A transceiver (assembled)

R323 Connect P32.3 with EN of ERAY-A transceiver (assembled)

R324 Connect P32.2 with ERRN of ERAY-A transceiver (assembled)

R325 Connect P02.1 with RXD of ERAY-A transceiver (not assembled)

R326 Connect P02.4 with TXDEN of ERAY-A transceiver (not assembled)

R327 Connect P02.0 with TXD of ERAY-A transceiver (not assembled)

R328 Connect P10.2 with EN of ERAY-A transceiver (not assembled)

R329 Connect P10.1 with ERRN of ERAY-A transceiver (not assembled)

R340 Connect P14.5 with TXD of ERAY-B transceiver (assembled)

R341 Connect P14.6 with TXDEN of ERAY-B transceiver (assembled)

R342 Connect P14.7 with RXD of ERAY-B transceiver (assembled)

R343 Connect P20.10 with EN of ERAY-B transceiver (assembled)

R344 Connect P20.9 with ERRN of ERAY-B transceiver (assembled)

R348 Connect P15.4 with SCL of I2C Eeprom (assembled)

R349 Connect P15.5 with SDA of I2C Eeprom (assembled)

R364 Connect P15.1 with RXD of LIN1 transceiver (assembled)

R365 Connect P15.0 with TXD of LIN1 transceiver (assembled)

R310 Connect P11.5 with CLOCKOUT of Ethernet PHY (assembled)

R370 Connect P11.12 with RXC of Ethernet PHY (assembled)

R371 Connect CLKOUT of Ethernet PHY with TXC of Ethernet PHY (not assembled)

R372 Connect P11.11 with RXCTL of Ethernet PHY (assembled)

R373 Connect P11.4 with TXC of Ethernet PHY (assembled)

User Manual 4-4 V2.4
TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0 2020-02

JP501

D508

S502

R379

R383

R3 109

R3108

R3104

R3103

R3102

R3101

R3100

C32 0

R402

R403

CB408

Y401

U401

CB401

R401

L401

BU4 0 1

C402

CB405

C306

C310

X306

CB317

C311

C309

C318

CB318

CB319

L301

R382

U3 07

Y301

X406

R457

R249

R2 4 8

R244

C506

X602

X601

R621

R622

R623

R624

R625

R626

R627

R628R629

R630

R631

R632

R633

R634

R635

R636

R637

R638

R639

R640

R6 41

R642

R643

R644

X402

R226

R225

L503

S201

R377

CB202

R204

R205

X201

X3 0 5 X304 X303

R240

R236

R234

R232

R230

R361

R359

R212

D3 01

C303

U408U407

U406

R451

R4 55

R456

R454

R446

R444

CB419

CB418

CB417 CB416

CB415

CB414

D401

R430

R429

R423

R411

D402

U404

CB402

R344

R424

R425

R426

R427

R428

R201

R203

R202

C201

C202

R206

R2 07

Y201

R3 3 7R357

R324

R399

R391

R392 R393 R394

R395 R396 R397

CB309

R532

C301C302

R439

R531

R335

R336

R355

R356

U305

T30 1T302

X30 1X302

X703

X701

D302

D303

D304 D305 D 306 D307 D308 D309

D505

D506

D507D504

X4 0 1

X501

S5 0 1

R354

R45 2

R213

CB201

R398

C505

C510

U501

L502

L501

C502

C507

C508

C5 01

C50 3

CB502

R217

R241

R255

R256

R390

R329

R375

R376

R348

R349

R453

S202

X403

X502

X704

R346

R347

X702

U201

X404

CB501

TriBoard Manual TC3X7 ADAS

Hardware: TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0

TriBoard Configuration

Table 4-3 Resistors for peripherals (default assembly in brackets) (continued)

Component Description

R374 Connect P11.6 with TXCTL of Ethernet PHY (assembled)

R375 Connect P12.1 with MDIO of Ethernet PHY (assembled)

R376 Connect P12.0 with MDC of Ethernet PHY (assembled)

R377 Connect P15.8 with MDINT of Ethernet PHY (not assembled)

RN301 Connect P11.7...10 with RDX3...0 of Ethernet PHY (assembled)

RN302 Connect P11.0...3 with TDX3...0 of Ethernet PHY (assembled)

R436 Connect P14.0 with RXD of USB to UART (assembled)

R437 Connect P14.1 with TXD of USB to UART (assembled)

R438 Connect P15.2 with RXD of USB to UART (not assembled)

R440 Connect P15.3 with TXD of USB to UART (not assembled)

Note: All resistors are red marked in the following figures

Figure 4-4 Location of peripheral resistors on Top Side

User Manual 4-5 V2.4
TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0 2020-02

X804

R378

R3111

R3 1 1 0

R3107

R3106

R3105

R3 10

C319

C317

C316

C315

C31 4

C313

C312

R417

R437

R438

R372

CB404

R405

R440

CB409

R416

R418

R41 9

R414

R420

C406

Q402

Q403

C404

C405

CB410

CB411

CB412

R441

R442

C4 0 1

R404

C403

CB413

L402

U405

C305

C3 07

C308

R388

R389

R384

R385

R371

R370

CB311

CB312

CB313

CB314

CB315

CB316

RN301

R246

R245

L504

L201

CB209

CB208

C208

C207

C205

C204

C203

R620

R619

R618

R617

R616

R615

R614

R613

R612

R611

R6 10

R609

R6 08

R6 07

R606

R6 05

R604

R603

R602

R6 01

R433

R523

RN3 02

C518

R431

R314

R252R250

R251

R253

R254

R208

R408

R2 15

R2 14

X405

U306

R521

R238

R223

R365

R364

R363

R362

R360

R211

CB206

CB310

C304

R449

R44 8

R447

R445

R443

R413

D403

R450

R422

R421

U403

Q401

R412

R415

R410

R409

CB407

R407

U402

R406

CB406

R305

R306

R308

R309

R3 15

R316

R318

R319

R301

R311

R341

R340

R321

R322

R222

R220

R221

R524

R533

R323

R343

CB301

CB302

CB205

CB512

CB513

CB515

CB516

CB517CB518

CB519

CB520

R537

R307

R317

R538

R534

R51 3

CB204

R535

R536

C515

R511

R512

R510

Q502

Q504

Q503

X802 X803

X801

U301U302

R302

R342

CB303

CB304

CB305

CB306

CB307

CB308

R303

R304

R338

R330

R331

R358

R350

R351

U303

U304

R332

R334

R33 3

R352

R353

C5 19

CB203

C407

C408

R320

R216

R209

CB510

R520

D503

R505

R504

R506

D501

C509

D502

C504

R508

R509

R503

R218

R219

R231

R233

R235

R237

R239

R31 2

R326

R328

R436

R313

R327

R325

R373

R374

CB403

TriBoard Manual TC3X7 ADAS

Hardware: TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0

TriBoard Configuration

Figure 4-5 Location of peripheral resistors on Bottom Side

4.2.3 Resistors for MMIC

Table 4-4 Resistors for MMIC (default assembly in brackets)

Component Description

R601 Connect P02.2 to MMIC0_IO8 (assembled)

R602 Connect P00.9 to MMIC0_IO7 (assembled)

R603 Connect P00.8 to MMIC0_IO6 (assembled)

R604 Connect /ESR0 to MMIC0_RESET_N (assembled)

R605 Connect P00.7 to MMIC0_IO5 (assembled)

R606 Connect P00.6 to MMIC0_IO4 (assembled)

R607 Connect P00.3 to MMIC0_IO2 (assembled)

R608 Connect P21.2 to MMIC0_OK (assembled)

R609 Connect P00.4 to MMIC0_IO3 (assembled)

R610 Connect P10.3 to MMIC0_IO1 (assembled)

R611 Connect P10.6 to MMIC1_IO8 (assembled)

R612 Connect P10.5 to MMIC1_IO7 (assembled)

R613 Connect P02.3 to MMIC1_IO6 (assembled)

R614 Connect /ESR0 to MMIC1_RESET_N (assembled)

R615 Connect P00.12 to MMIC1_IO5 (assembled)

User Manual 4-6 V2.4
TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0 2020-02

X804

R378

R3111

R3 11 0

R3107

R3106

R3105

R3 10

C319

C317

C316

C315

C314

C313

C312

R417

R437

R438

R372

CB404

R405

R44 0

CB409

R416

R418

R419

R414

R420

C406

Q402

Q403

C404

C405

CB410

CB411

CB412

R441

R442

C4 01

R404

C403

CB413

L402

U405

C305

C3 07

C308

R388

R389

R384

R385

R371

R370

CB311

CB312

CB313

CB314

CB315

CB316

RN301

R246

R245

L504

L201

CB209

CB208

C208

C207

C205

C204

C203

R620

R619

R618

R617

R616

R615

R614

R613

R612

R611

R6 10

R609

R6 08

R6 07

R606

R6 05

R604

R603

R602

R6 01

R433

R523

RN3 02

C518

R431

R314

R252R 250

R25 1

R253

R254

R208

R408

R2 15

R2 14

X405

U306

R521

R238

R223

R365

R364

R363

R362

R360

R211

CB206

CB310

C304

R449

R448

R447

R445

R443

R413

D403

R450

R422

R421

U403

Q401

R412

R415

R410

R409

CB407

R407

U402

R406

CB406

R305

R306

R308

R309

R3 15

R316

R318

R319

R301

R311

R341

R340

R321

R322

R222

R220

R221

R524

R533

R323

R343

CB301

CB302

CB205

CB512

CB513

CB515

CB516

CB517CB518

CB519

CB520

R53 7

R307

R317

R538

R534

R513

CB204

R535

R536

C515

R511

R512

R510

Q 502

Q504

Q503

X802 X803

X801

U301U 302

R302

R342

CB303

CB304

CB305

CB306

CB307

CB308

R303

R304

R338

R330

R331

R358

R350

R351

U303

U304

R332

R334

R33 3

R352

R353

C5 19

CB203

C407

C408

R320

R216

R209

CB510

R520

D503

R505

R504

R506

D501

C509

D502

C504

R508

R509

R503

R218

R219

R231

R233

R235

R237

R239

R312

R326

R328

R436

R313

R327

R325

R373

R374

CB403

TriBoard Manual TC3X7 ADAS

Hardware: TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0

TriBoard Configuration

Table 4-4 Resistors for MMIC (default assembly in brackets) (continued)

Component Description

R616 Connect P00.11 to MMIC1_IO4 (assembled)

R617 Connect P00.10 to MMIC1_IO2 (assembled)

R618 Connect P21.2 to MMIC1_OK (assembled)

R619 Connect P10.7 to MMIC1_IO3 (assembled)

R620 Connect P10.8 to MMIC1_IO1 (assembled)

Note: All resistors are red marked in the following figures

Figure 4-6 Location of MMIC resistors

User Manual 4-7 V2.4
TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0 2020-02

TriBoard Manual TC3X7 ADAS

Hardware: TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0

Signal (on board used) Description

5 Signal (on board used) Description

For more information about the signals please see the user manual/datasheet for TC3X7 ADAS and/or the
schematics of the board.

All not mentioned signals are not used on the board and can be used outside. Optional marked signals are used
only if they are connected (default is that they are not used on the board).

5.1 Power Signals

Table 5-1 Power Signals

Short name Description

VCC_IN Supply Input (3,5V...40V)

VIN Input Voltage of Power Supply Device

GND Ground

+3V3 Microcontroller Supply Voltage (VEXT and VDDP3) and Peripherals Supply

+5V Communication Supply Voltage (CAN, FLEXRAY) and ADC Supply Voltage

VDD Core Supply Voltage (1,25V)

VDDP3 Flash Power Supply Voltage (3,3V)

VFLEX Flexport Supply Voltage (3,3V)

VEXTOSC Oscillator Port Supply Voltage (3,3V)

VDDOSC Oscillator Core Supply Voltage (1,25V)

VSSOSC Oscillator Ground

VDDM ADC Analog Part Supply Voltage (5V or 3,3V selectable via 0R resistors)

VAREF1 ADC Reference Voltage 1 (VDDM)

VAREF2 ADC Reference Voltage 2 (VDDM)

VDD_USB Supply Voltage from USB (5V)

VDD_FT Supply Voltage FT2232HL device (3,3V)

5.2 Reset Signals

Table 5-2 Reset Signals

Short name Description

/PORST Power On Reset

/DBG_PORST Power On Reset from debug connectors

/ESR0 External Service Request 0 (Hardware Reset)

/ESR1 External Service Request 1 (Non Maskable Interrupt)

User Manual 5-1 V2.4
TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0 2020-02

TriBoard Manual TC3X7 ADAS

Hardware: TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0

Signal (on board used) Description

5.3 Config Signals

Table 5-3 Config Signals

Short name Description

P14.5 HWCFG1 (EVR33OFF / EVR33ON)

P14.2 HWCFG2 (EVRCOFF / EVRCON)

P14.4 HWCFG6 (Pins in tristate / Pins with pull-up)

P14.3 HWCFG3 (Boot from pins / Boot from Flash BMI)

P10.5 HWCFG4 (see boot configuration Table 4-1)

P10.6 HWCFG5 (see boot configuration Table 4-1)

5.4 Clock Signals

Table 5-4 Clock Signals

Short name Description

XTAL1 Crystal Oscillator Input

XTAL2 Crystal Oscillator Output

5.5 Debug Signals

Table 5-5 Debug Signals

Short name Description

/TRST Test Reset

DAP0 Device Access Port Line 0 / Test Data Clock (TCK)

DAP1 Device Access Port Line 1 / Test Data Select (TMS)

DAP2 Device Access Port Line 2 / Test Data Output (TDO)

DAPE0 Device Access Port Line 0 (Emulation part)

DAPE1 Device Access Port Line 1 (Emulation part)

DAPE2 Device Access Port Line 2 (Emulation part)

P21.6 Test Data Input (TDI)

DAP0_A DAP0 / DAPE0 / TCK from debug connectors

DAP1_A DAP1 / DAPE1 / TMS from debug connectors

P21.7 DAP2 / DAPE2 / TDO from debug connectors

P20.2 Test Mode Select Input

P20.1 TriCore Breakpoint Input

P20.0 TriCore Breakpoint Output

AGBT_CLK_P/_N AGBT Clock Input

AGBT_TX0_P/_N AGBT Transmit Output

AGBT_ERR AGBT Error Output

User Manual 5-2 V2.4
TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0 2020-02

TriBoard Manual TC3X7 ADAS

Hardware: TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0

Signal (on board used) Description

5.6 Peripheral Signals

Table 5-6 Peripheral Signals

Short name Description

P14.1 ASCLIN0 Receive Input A

CAN01 Receive Input B (optional)

P14.0 ASCLIN0 Transmit Output

CAN01 Transmit Output (optional)

P15.3 ASCLIN0 Receive Input B (optional)

P15.2 ASCLIN0 Transmit Output (optional)

P15.1 ASCLIN1 Receive Input A

P15.0 ASCLIN1 Transmit Output

P15.4 I2C0 Serial Clock

P15.5 I2C0 Serial Data Input C und Output

P20.7 CAN00 Receive Input B

P20.8 CAN00 Transmit Output

P23.0 CAN10 Receive Input C

P23.1 CAN10 Transmit Output

P00.1 CAN10 Receive Input A (optional)

P00.0 CAN10 Transmit Output (optional)

P14.10 E-Ray Channel A Transmit Data Output

P14.9 E-Ray Channel A Transmit Data Output enable

P14.8 E-Ray Channel A Receive Data Input 0

P32.3 E-Ray Channel A Enable Output

P32.2 E-Ray Channel A Error Input

P14.5 E-Ray Channel B Transmit Data Output

P14.6 E-Ray Channel B Transmit Data Output enable

P14.7 E-Ray Channel B Receive Data Input 0

P20.10 E-Ray Channel B Enable Output

P20.9 E-Ray Channel B Error Input

P02.0 E-Ray Channel A Transmit Data Output (optional)

P02.4 E-Ray Channel A Transmit Data Output enable (optional)

P02.1 E-Ray Channel A Receive Data Input 2 (optional)

P10.2 E-Ray Channel A Enable Output (optional)

P10.1 E-Ray Channel A Error Input (optional)

TXD3 Ethernet TXD3 Output (P11.0)

TXD2 Ethernet TXD2 Output (P11.1)

TXD1 Ethernet TXD1 Output (P11.2)

TXD0 Ethernet TXD0 Output (P11.3)

TXCLK Ethernet TXCLK Output (P11.4)

User Manual 5-3 V2.4
TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0 2020-02

TriBoard Manual TC3X7 ADAS

Hardware: TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0

Signal (on board used) Description

Table 5-6 Peripheral Signals (continued)

Short name Description

REFCLK Ethernet GREFCLK Input (P11.5)

TCTL Ethernet TCTL Output (P11.6)

RXD3 Ethernet RXD3 Input A (P11.7)

RXD2 Ethernet RXD2 Input A (P11.8)

RXD1 Ethernet RXD1 Input A (P11.9)

RXD0 Ethernet RXD0 Input A (P11.10)

RCTL Ethernet RCTL Input A (P11.11)

RXCLK Ethernet RXCLK Input A (P11.12)

P12.0 Ethernet Management Data Clock Output (MDC)

P12.1 Ethernet Management Data Input/Output (MDIO)

P15.8 Ethernet MD Interrupt Input (optional)

P14.2 QSPI2 Slave Select Output 1 for SCS of TLF30682

P15.3 QSPI2 Master Clock Output for SCL of TLF30682

P15.6 QSPI2 Master Transmit Output for SDI of TLF30682

P15.7 QSPI2 Master Receive Input B for SDO from TLF30682

P14.3 Output for Watchdog Input of TLF30682

P33.8 Connected to TM2 (pin 44) of TLF30682 (invalid connection)

P33.9 Connected to NC (pin 2) of TLF30682 (invalid connection)

P20.0 HSCT System Clock

P21.2 HSCT Data Negative Input

P21.3 HSCT Data Positive Input

P21.4 HSCT Data Negative Output

P21.5 HSCT Data Positive Output

P20[11...14] On board LED’s

P33[4...7] On board LED’s

5.7 MMIC / RIF Signals

Table 5-7 MMIC / RIF Signals

Short name Description

RIF0_D1_N / P50.0 RIF0 Data Bit Channel 1 Negative Input

RIF0_D1_P / P50.1 RIF0 Data Bit Channel 1 Positive Input

RIF0_D2_N / P50.2 RIF0 Data Bit Channel 2 Negative Input

RIF0_D2_P / P50.3 RIF0 Data Bit Channel 2 Positive Input

RIF0_D3_N / P50.9 RIF0 Data Bit Channel 3 Negative Input

RIF0_D3_P / P50.8 RIF0 Data Bit Channel 3 Positive Input

RIF0_D4_N / P50.11 RIF0 Data Bit Channel 4 Negative Input

RIF0_D4_P / P50.10 RIF0 Data Bit Channel 4 Positive Input

User Manual 5-4 V2.4
TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0 2020-02

TriBoard Manual TC3X7 ADAS

Hardware: TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0

Signal (on board used) Description

Table 5-7 MMIC / RIF Signals (continued)

Short name Description

RIF0_CLK_N / P50.4 RIF0 Serial Clock Negative Input

RIF0_CLK_P / P50.5 RIF0 Serial Clock Positive Input

RIF0_FR_N / P50.7 RIF0 Frameclock Negative Input

RIF0_FR_P / P50.6 RIF0 Frameclock Positive Input

P02.8 QSPI3 Slave Select Output 5

P00.2 QSPI3 Slave Select Output 4

P00.5 QSPI3 Slave Select Output 3

P02.7 QSPI3 Master Clock Output

P02.6 QSPI3 Master Transmit Output

P02.5 QSPI3 Master Receive Input A

RIF1_D1_N / P51.0 RIF1 Data Bit Channel 1 Negative Input

RIF1_D1_P / P51.1 RIF1 Data Bit Channel 1 Positive Input

RIF1_D2_N / P51.2 RIF1 Data Bit Channel 2 Negative Input

RIF1_D2_P / P51.3 RIF1 Data Bit Channel 2 Positive Input

RIF1_D3_N / P51.9 RIF1 Data Bit Channel 3 Negative Input

RIF1_D3_P / P51.8 RIF1 Data Bit Channel 3 Positive Input

RIF1_D4_N / P51.11 RIF1 Data Bit Channel 4 Negative Input

RIF1_D4_P / P51.10 RIF1 Data Bit Channel 4 Positive Input

RIF1_CLK_N / P51.4 RIF1 Serial Clock Negative Input

RIF1_CLK_P / P51.5 RIF1 Serial Clock Positive Input

RIF1_FR_N / P51.7 RIF1 Frameclock Negative Input

RIF1_FR_P / P51.6 RIF1 Frameclock Positive Input

P10.0 QSPI1 Slave Select Output 10

P33.5 QSPI1 Slave Select Output 7

P20.13 QSPI1 Slave Select Output 2

P10.2 QSPI1 Master Clock Output

P10.4 QSPI1 Master Transmit Output

P10.1 QSPI1 Master Receive Input A

User Manual 5-5 V2.4
TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0 2020-02

TriBoard Manual TC3X7 ADAS

Hardware: TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0

Connector Pin Assignment

6 Connector Pin Assignment

The TriBoard will be shipped with four male (plug) connectors on top layer and four female (socket) connectors
on bottom layer. The default connectors are 80-pol. Board to Board connectors from Samtec:

http://www.samtec.com

Plug:

FTSH-140-02-L-DV-ES-A

Socket:

FLE-140-01-G-DV-A

6.1 On Board only used signals

Following port pins are only used on board and are not connected to any connector also not via resistor:

Table 6-1 On Board only used Signals

Short name Description

P32.0 Used as VGATE1N for EVRC

P32.1 Used as VGATE1P for EVRC

P14.2 Used as HWCFG2 and Slave Select Output (SLSO21) to TLF30682

P14.4 Used as HWCFG6

P14.5 Used as HWCFG1 and E-Ray Channel B Transmit Data Output

P14.6 Used as E-Ray Channel B Transmit Data Output enable

P11.0 Used as Gigabit Transmit Data Output 3 for RGMII

P11.1 Used as Gigabit Transmit Data Output 2 for RGMII

P11.2 Used as Gigabit Transmit Data Output 1 for RGMII

P11.3 Used as Gigabit Transmit Data Output 0 for RGMII

P11.4 Used as Gigabit Transmit Clock Output for RGMII

P11.5 Used as Gigabit Reference Clock input for RGMII (125 MHz high precision)

P11.6 Used as Gigabit Transmit Control Output for RGMII

P11.7 Used as Gigabit Receive Data Input 3 for RGMII

P11.8 Used as Gigabit Receive Data Input 2 for RGMII

P11.9 Used as Gigabit Receive Data Input 1 for RGMII

P11.10 Used as Gigabit Receive Data Input 0 for RGMII

P11.11 Used as Gigabit Receive Data Control Input for RGMII

P11.12 Used as Gigabit Receive Clock Input for RGMII

User Manual 6-1 V2.4
TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0 2020-02

GND

12

GND GND

12

GND

GND

34

GND GND

34

GND

56

P21.6 VCC_IN

56

VCC_IN

78

P21.7 VCC_IN

78

VCC_IN

P50.0

910

P51.0 P22.4

910

P22.8

P50.1

11 12

P51.1 P22.5

11 12

P22.9

P50.2

13 14

P51.2 P22.6

13 14

P22.10

P50.3

15 16

P51.3 /ESR1

15 16

/ESR0

P50.4

17 18

P51.4 P22.7

17 18

P22.11

P50.5

19 20

P51.5 GND

19 20

GND

P50.6

21 22

P51.6

21 22

/PORST

P50.7

23 24

P51.7 P10.5

23 24

P23.3

P50.8

25 26

P51.8 P10.4

25 26

P23.4

P50.9

27 28

P51.9 P10.2

27 28

P23.1

P50.10

29 30

P51.10

29 30

P22.1

P50.11

31 32

P51.11

31 32

P22.0

33 34 33 34

P22.3

35 36 35 36

P22.2

37 38

P20.9

37 38

P20.10

39 40

P20.13

39 40

P00.4

41 42

P33.5

41 42

P20.6

43 44

P20.3

43 44

P20.2

45 46

P00.0

45 46

P00.3

47 48

P00.1

47 48

P00.2

49 50

P21.2 GND

49 50

GND

51 52

P21.3 XTAL1

51 52

P32.4

53 54

P21.4 XTAL2

53 54

55 56

P21.5 P15.3

55 56

P15.5

57 58

P15.2

57 58

P15.4

59 60

P14.1

59 60

P15.1

61 62

P14.0

61 62

P15.0

63 64

P20.11

63 64

P00.12

65 66

P20.14

65 66

P00.11

67 68

P20.12

67 68

P00.5

69 70

P20.7

69 70

P20.8

71 72

P20.0 P15.8

71 72

P10.8

73 74

P10.7

73 74

P10.3

75 76 75 76

GND

77 78

+3V3

77 78

+3V3

P21.0

79 80

P21.1 +3V3

79 80

+3V3

BUS EXPANSION (X701,X801) PERIPHERALS (X702,X802)

TriBoard Manual TC3X7 ADAS

Hardware: TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0

Connector Pin Assignment

6.2 TC397 ADAS Connector / Top View

Figure 6-1 Connector for TC397 ADAS - Pinout (Part I, Top View)

User Manual 6-2 V2.4
TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0 2020-02

GND

12

GND GND

12

GND

GND

34

GND GND

34

GND

AN0

56

AN16 P00.9

56

P11.14

AN1

78

AN17 P00.10

78

P11.15

AN2

910

AN18 P02.0

910

AN3

11 12

AN19 P02.1

11 12

AN4

13 14

AN20 P02.2

13 14

AN5

15 16

AN21 P02.3

15 16

AN6

17 18

AN22 P02.4

17 18

P14.7

AN7

19 20

AN23 P02.5

19 20

P14.8

AN8

21 22

AN24

21 22

P14.9

AN9

23 24

AN25

23 24

P14.10

AN10

25 26 25 26

P15.6

AN11

27 28 27 28

P15.7

AN12

29 30 29 30

P20.1

AN13

31 32

P10.0

31 32

AN14

33 34

P10.1

33 34

AN15

35 36

P10.6

35 36

P23.0

GND

37 38

GND P12.0

37 38

P23.2

VDDM

39 40

VAREF1 P12.1

39 40

P23.5

GND

41 42

VAREF2

41 42

P23.6

GND

43 44

GND

43 44

P23.7

45 46 45 46
47 48 47 48
49 50 49 50

P32.2

51 52 51 52

P32.3

AN36

53 54

AN44

53 54

P32.5

AN37

55 56

AN45

55 56

P33.8

AN38

57 58

AN46

57 58

P33.9

AN39

59 60

AN47

59 60

P33.10

GND

61 62

GND

61 62

P33.13

P33.3

63 64

P33.6

63 64

P33.14

P33.2

65 66

P33.0

65 66

P33.15

P33.1

67 68

P33.4 P11.13

67 68

P32.6

+3V3

69 70

+3V3 P34.1

69 70

P32.7

P02.6

71 72

P00.6 P34.2

71 72

P34.4

P02.7

73 74

P00.7 P34.3

73 74

P34.5

P02.8

75 76

P00.8 VFLEX

75 76

P33.7

77 78

P14.3 +3V3

77 78

+3V3

P33.11

79 80

P33.12 +3V3

79 80

+3V3

ADC (X703, X803) GTM / PORTS (X704,X804)

TriBoard Manual TC3X7 ADAS

Hardware: TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0

Connector Pin Assignment

Figure 6-2 Connector for TC397 ADAS - Pinout (Part II, Top View)

User Manual 6-3 V2.4
TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0 2020-02

GND

12

GND GND

12

GND

GND

34

GND GND

34

GND

56

P21.6 VCC_IN

56

VCC_IN

78

P21.7 VCC_IN

78

VCC_IN

P50.0

910

P51.0 P22.4

910

P50.1

11 12

P51.1 P22.5

11 12

P50.2

13 14

P51.2

13 14

P50.3

15 16

P51.3 /ESR1

15 16

/ESR0

P50.4

17 18

P51.4

17 18

P50.5

19 20

P51.5 GND

19 20

GND

P50.6

21 22

P51.6

21 22

/PORST

P50.7

23 24

P51.7 P10.5

23 24

P23.3

P50.8

25 26

P51.8 P10.4

25 26

P23.4

P50.9

27 28

P51.9 P10.2

27 28

P23.1

P50.10

29 30

P51.10

29 30

P22.1

P50.11

31 32

P51.11

31 32

P22.0

33 34 33 34

P22.3

35 36 35 36

P22.2

37 38

P20.9

37 38

P20.10

39 40

P20.13

39 40

P00.4

41 42

P33.5

41 42

P20.6

43 44

P20.3

43 44

P20.2

45 46

P00.0

45 46

P00.3

47 48

P00.1

47 48

P00.2

49 50

P21.2 GND

49 50

GND

51 52

P21.3 XTAL1

51 52

P32.4

53 54

P21.4 XTAL2

53 54

55 56

P21.5 P15.3

55 56

P15.5

57 58

P15.2

57 58

P15.4

59 60

P14.1

59 60

P15.1

61 62

P14.0

61 62

P15.0

63 64

P20.11

63 64

P00.12

65 66

P20.14

65 66

P00.11

67 68

P20.12

67 68

P00.5

69 70

P20.7

69 70

P20.8

71 72

P20.0 P15.8

71 72

P10.8

73 74

P10.7

73 74

P10.3

75 76 75 76

GND

77 78

+3V3

77 78

+3V3

P21.0

79 80

P21.1 +3V3

79 80

+3V3

BUS EXPANS IO N (X701,X801) PERIPHERALS (X702,X802)

TriBoard Manual TC3X7 ADAS

Hardware: TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0

Connector Pin Assignment

6.3 TC357/TC3A7 Connector / Top View

Figure 6-3 Connector for TC357/TC3A7 - Pinout (Part I, Top View)

User Manual 6-4 V2.4
TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0 2020-02

GND

12

GND GND

12

GND

GND

34

GND GND

34

GND

AN0

56

P00.9

56

P11.14

AN1

78

P00.10

78

P11.15

AN2

910

P02.0

910

AN3

11 12

P02.1

11 12

AN4

13 14

P02.2

13 14

AN5

15 16

P02.3

15 16

AN6

17 18

P02.4

17 18

P14.7

AN7

19 20

P02.5

19 20

P14.8

AN8

21 22 21 22

P14.9

AN9

23 24 23 24

P14.10

AN10

25 26 25 26

P15.6

AN11

27 28 27 28

P15.7

AN12

29 30 29 30

P20.1

AN13

31 32

P10.0

31 32

AN14

33 34

P10.1

33 34

AN15

35 36

P10.6

35 36

P23.0

GND

37 38

GND P12.0

37 38

P23.2

VDDM

39 40

VAREF1 P12.1

39 40

P23.5

GND

41 42 41 42

GND

43 44

GND

43 44

45 46 45 46
47 48 47 48
49 50 49 50

P32.2

51 52 51 52

P32.3

53 54 53 54

P32.5

55 56 55 56

P33.8

57 58 57 58

P33.9

59 60 59 60

P33.10

GND

61 62

GND

61 62

P33.13

P33.3

63 64

P33.6

63 64

P33.2

65 66

P33.0

65 66

P33.1

67 68

P33.4 P11.13

67 68

P32.6

+3V3

69 70

+3V3 P34.1

69 70

P02.6

71 72

P00.6 P34.2

71 72

P02.7

73 74

P00.7 P34.3

73 74

P02.8

75 76

P00.8 VFLEX

75 76

P33.7

77 78

P14.3 +3V3

77 78

+3V3

P33.11

79 80

P33.12 +3V3

79 80

+3V3

ADC (X703, X803) PORTS (X704,X804)

TriBoard Manual TC3X7 ADAS

Hardware: TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0

Connector Pin Assignment

Figure 6-4 Connector for TC357/TC3A7 - Pinout (Part II, Top View)

User Manual 6-5 V2.4
TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0 2020-02

GND

12

GND GND

12

GND

GND

34

GND GND

34

GND

56

P21.6 VCC_IN

56

VCC_IN

78

P21.7 VCC_IN

78

VCC_IN

P50.0

910

P22.4

910

P50.1

11 12

P22.5

11 12

P50.2

13 14 13 14

P50.3

15 16

/ESR1

15 16

/ESR0

P50.4

17 18 17 18

P50.5

19 20

GND

19 20

GND

P50.6

21 22 21 22

/PORST

P50.7

23 24

P10.5

23 24

P23.3

P50.8

25 26

P10.4

25 26

P23.4

P50.9

27 28

P10.2

27 28

P23.1

P50.10

29 30 29 30

P22.1

P50.11

31 32 31 32

P22.0

33 34 33 34

P22.3

35 36 35 36

P22.2

37 38

P20.9

37 38

P20.10

39 40

P20.13

39 40

P00.4

41 42

P33.5

41 42

P20.6

43 44

P20.3

43 44

P20.2

45 46

P00.0

45 46

P00.3

47 48

P00.1

47 48

P00.2

49 50

P21.2 GND

49 50

GND

51 52

P21.3 XTAL1

51 52

P32.4

53 54

P21.4 XTAL2

53 54

55 56

P21.5 P15.3

55 56

P15.5

57 58

P15.2

57 58

P15.4

59 60

P14.1

59 60

P15.1

61 62

P14.0

61 62

P15.0

63 64

P20.11

63 64

P00.12

65 66

P20.14

65 66

P00.11

67 68

P20.12

67 68

P00.5

69 70

P20.7

69 70

P20.8

71 72

P20.0 P15.8

71 72

P10.8

73 74

P10.7

73 74

P10.3

75 76 75 76

GND

77 78

+3V3

77 78

+3V3

P21.0

79 80

P21.1 +3V3

79 80

+3V3

BUS EXPANSION (X701,X801) PERIPHERALS (X702,X802)

TriBoard Manual TC3X7 ADAS

Hardware: TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0

Connector Pin Assignment

6.4 TC337 ADAS Connector / Top View

Figure 6-5 Connector for TC337 ADAS - Pinout (Part I, Top View)

User Manual 6-6 V2.4
TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0 2020-02

GND

12

GND GND

12

GND

GND

34

GND GND

34

GND

AN0

56

AN16 P00.9

56

P11.14

AN1

78

AN17 P00.10

78

P11.15

AN2

910

AN18 P02.0

910

AN3

11 12

AN19 P02.1

11 12

AN4

13 14

AN20 P02.2

13 14

AN5

15 16

AN21 P02.3

15 16

AN6

17 18

AN22 P02.4

17 18

P14.7

AN7

19 20

AN23 P02.5

19 20

P14.8

AN8

21 22 21 22

P14.9

AN9

23 24 23 24

P14.10

AN10

25 26 25 26

P15.6

AN11

27 28 27 28

P15.7

AN12

29 30 29 30

P20.1

AN13

31 32

P10.0

31 32

AN14

33 34

P10.1

33 34

AN15

35 36

P10.6

35 36

GND

37 38

GND P12.0

37 38

VDDM

39 40

VAREF1 P12.1

39 40

P23.5

GND

41 42 41 42

GND

43 44

GND

43 44
45 46 45 46

47 48 47 48
49 50 49 50

51 52 51 52
53 54 53 54

55 56 55 56

P33.8

57 58 57 58

P33.9

59 60 59 60

P33.10

GND

61 62

GND

61 62

P33.13

P33.3

63 64

P33.6

63 64

P33.2

65 66

P33.0

65 66

P33.1

67 68

P33.4 P11.13

67 68

+3V3

69 70

+3V3 P34.1

69 70

P02.6

71 72

P00.6 P34.2

71 72

P02.7

73 74

P00.7 P34.3

73 74

P02.8

75 76

P00.8 VFLEX

75 76

P33.7

77 78

P14.3 +3V3

77 78

+3V3

P33.11

79 80

P33.12 +3V3

79 80

+3V3

ADC (X703, X803) PORTS (X704,X804)

TriBoard Manual TC3X7 ADAS

Hardware: TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0

Connector Pin Assignment

Figure 6-6 Connector for TC337 ADAS - Pinout (Part II, Top View)

User Manual 6-7 V2.4
TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0 2020-02

+3,5V...40V

GND

D+

D-

VCC

GND

ID

2 468

GND

BP

BM

13579

1
0

2 468

GND

CANH

CANL

13579

1
0

GND

TriBoard Manual TC3X7 ADAS

Hardware: TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0

Connector Pin Assignment

6.5 Power connector pinout

Figure 6-7 Power connector pinout (Roka 520 2550

6.6 USB connector pinout

Figure 6-8 USB connector pinout (Micro USB B-type)

6.7 FlexRay™ (ERAY) connector pinout

Figure 6-9 FlexRay™ (ERAY) connector pinout (IDC10)

6.8 CAN connector pinout

Figure 6-10 CAN connector pinout (IDC10)

User Manual 6-8 V2.4
TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0 2020-02

2 468

GND

BUS

VIN opt

13579

1
0

GND

3

6

2

TXD_P

RXD_P

15

4

GND

GND

TXD_N

RXD_N

SYSCLK

J2J1J3J4J5

J6J7J8

TriBoard Manual TC3X7 ADAS

Hardware: TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0

Connector Pin Assignment

6.9 LIN connector pinout

Figure 6-11 LIN connector pinout (IDC10)

6.10 HSCT connector pinout

Figure 6-12 HSCT connector pinout (IEE1394 6-conductor)

6.11 Ethernet connector pinout

Figure 6-13 Ethernet connector pinout (RJ45)

User Manual 6-9 V2.4
TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0 2020-02

2468

13579

10 12 14 16

11 13 15

MMIC_IO8

RIF_D1_P

18 20 22

17 19 21

GND

GND

GND

24

23

2625282730293231343336353837403942414443464548475049525154535655585760

59

RIF_D1_N

GND

RIF_D2_P

RIF_D2_N

GND

RIF_D3_P

RIF_D3_N

GND

RIF_D4_P

RIF_D4_N

GND

RIF_CLK_P

RIF_CLK_N

GND

RIF_FR_P

RIF_FR_N

GND

GND

GND

GND

GND

MMIC_IO7

MMIC_IO6

MMIC_RESET_N

MMIC_IO5

MMIC_IO4

MMIC_IO2

MMIC_OK

MMIC_IO3

MMIC_IO1

SPI_CS0

SPI_CS1

SPI_CS2

SPI_SCLK

SPI_SI

SPI_SO

GND

TDO

2 468

13579

10 12 14 16

11 13 15

TDI

/TRST

TCK

/BRKIN

TMS

GND

GND

/PORST

/BRKOUT

GND

+3V3

DAP0

2 468

13579

10

USR1_IO

/PORST

USR0_IO

DAP1

GND

GND

Key

GND

+3V3

TriBoard Manual TC3X7 ADAS

Hardware: TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0

Connector Pin Assignment

6.12 MMIC / RIF connector pinout

Figure 6-14 MMIC / RIF connector pinout (Samtec QSH-030)

6.13 OCDS1 connector pinout

Figure 6-15 OCDS1 connector pinout (IDC16)

6.14 DAP connector pinout

Figure 6-16 DAP connector pinout (Samtec FTSH10)

User Manual 6-10 V2.4
TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0 2020-02

TDO / DAP2

2 468

13579

10

+3V3

/PORST

TDI

TCK / DAP0

/TRST

TMS / DAP1

BRKIO

/ESR0

GND

2

4

1

3

WAKEUP

VDDSB

VCC_IN

GND

TriBoard Manual TC3X7 ADAS

Hardware: TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0

Connector Pin Assignment

6.15 ETK connector pinout

Figure 6-17 ETK connector pinout (Samtec TFM-105)

6.16 Ethernet miniWiggler power connector pinout

Figure 6-18 Ethernet miniWiggler connector pinout (JST B4B-PH)

User Manual 6-11 V2.4
TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0 2020-02

AGBT TX0_N

2468

13579

10 12 14 16

11 13 15

DAP1

/TRST

DAP0

AGBT ERR

AGBT TX0_P

GND

TGIOx

AGBT CLK_P

+3V3

18 20 22

17 19 21

TDI

TDO

AGBT CLK_N

/PORST

GND

GND

GNDGND

TriBoard Manual TC3X7 ADAS

Hardware: TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0

Connector Pin Assignment

6.17 AGBT connector pinout

Figure 6-19 AGBT connector pinout (Samtec ASP-137969-01)

User Manual 6-12 V2.4
TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0 2020-02

TriBoard Manual TC3X7 ADAS

Hardware: TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0

Schematic and Layout

7 Schematic and Layout

7.1 Known problems

7.1.1 Known problems (TriBoard TC3X7 ADAS TH V2.0)

No problems known.

7.1.2 Known problems (TriBoard TC3X7 ADAS V2.0)

No problems known.

7.2 Schematic

7.2.1 Hint about used TLF30682

Schematic was prepared for another device which will not be available. Therefore some names in the symbol of
U501 don’t match with the pin names of TLF30682 and should be changed (no functional issue if not other
mentioned, only name change):

Pin 1 from AGS1 to AG5

Pin 2 from SSO to NC (don’t connect any signal to this pin)

Pin 3 from AGS2 to AG6

Pin 5 from AG1 to NC (don’t connect any signal to this pin)

Pin 17 from AG2 to AG1

Pin 18 from GST to AG2

Pin 30 from R3PG2 to R3PG1

Pin 32 from FRE to TM1

Pin 44 from ERR to TM2 (connect this pin directly to ground)

User Manual 7-1 V2.4
TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0 2020-02

TriBoard Manual TC3X7 ADAS

Hardware: TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0

Schematic and Layout

8

7

/ESR0

XTAL[1..2]

Connector Plug

PORT[00..51] AN[0..47]

NC1[5..80]

6

AN[0..47]

XTAL[1..2]

/ESR0

/PORST

/ESR1

5

Connectm.sch

NC2[5..80]

/PORST

NC3[5..80]

/ESR1

NC4[5..80]

Connectf.sch

NC4[5..80]

NC3[5..80]

NC2[5..80]

NC1[5..80]

PORT[00..51]

AN[0..47]

XTAL[1..2]

Connector Socket

NC4[5..80]

NC3[5..80]

/ESR0

NC2[5..80]

/PORST

NC1[5..80]

/ESR1

TriBoard TC3X7 ADAS Project

PORT[00..51]

8

ATV MC ACE ATV CES

Am Campeon 1-12

D-85579 Neubiberg

Tel.: [phone]

Infineon Technologies AG

7

8

1

21.11.2017

2.0Revision:

G:\Technical_Support\TriCore\TriBoard\EDA_DXP\TriBoard AURIX 2G\TriBoard TC3X7 ADAS\TriBoard TC3X7 ADAS V2.X\TriBoard_TC3X7_ADAS_V20.prj

File:

Sheet: of

Number:

Date:

6

5

GETH..

PORT[00..51]

4

GETH..

XTAL[1..2]

AN[0..47]

Clock, Config, Debug, Ports and ADC

Clk_Cfg_Dbg_Ports_Adc.sch

3

DEBUG..

DEBUG..

DEBUG..

/PORST

PORT[00..51]/ESR0

PORT[00..51]

PORT[00..51]/ESR0

PORT[00..51]

4

3

RIF

2

miniWiggler and Debug Connectors

wiggler_Dbg_con.sch

1

On Board Peripherals

GETH..

Peripherals.sch

/ESR0

Rif.sch

Power Supply

/ESR0

Supply.sch

/PORST

2

/ESR1

1

A A

B B

C C

D D

Figure 7-1 Schematic - Project

User Manual 7-2 V2.4
TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0 2020-02

TriBoard Manual TC3X7 ADAS

Hardware: TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0

Schematic and Layout

GND

8

7

6

5

4

3

2

+3V3

+5V

FOR 5V ADC

R220

+3V3

VEXTOSC

CLOCK & TESTMODE

U201B

R201

R203

XTAL[1..2]

XTAL[1..2]

1R2

R209

N20

VEXTOSC

P20.2 / TESTMODE

H19

10K

P20.2

R202

50R_opt

0R

CB201

100n

VDD

R208

VDDOSC

N19

VDDOSC

XTAL1

M20

opt

GND

12

R2040RR205

VSSOSC

XTAL1

FOR 3,3V ADC

U201E

VSSOSC

0R

GND

CB202

100n

VSSOSC

L20

VSSOSC

JTAG / DAP / OCDS1

TCK / DAP0

XTAL2

TRST

J16

L19

M19

R207

0R

/TRST

DAP0

Y201

20MHz

C202

10pF

R206

opt

C201

10pF

0R

XTAL2

R221

1R2_opt

CB204

470n

GND

VDDM +3V3

Y4

Y5

VSSM

VDDM

EVADC / EDSADC

AN0 / EDS3PA

AN1 / EDS3NA

AN2 / EDS0PA

AN3 / EDS0NA

AN4T9AN5Y9AN6T8AN7U8AN8W8AN10Y8AN11W7AN12 / EDS0PB

U9

W9

T10

U10

R213

33R

H16

P21.7 / TDO / DAP2

P21.6 / TDI

TMS / DAP1

P20.1 / TGI1N / TGO1N

H17

K16

G19

33R

R212

DAP1

DAP0

R214

0R

VSSOSC VSSOSC

R222

6R8

CB205

VAREF1 VDDM

Y6

VAREF1

AN9

U7

R225

G11

K14

NC / DAPE0

DAPE / AGBT (ED only)

VSS / AGBTCLKP

K7

AGBT_CLK_P

AGBT_CLK_N

DAP0_A

2,2μF

GND

Y7

VAGND1

T7

DEBUG..

DAP2

DAPE1
DAPE2

33R

33R

DEBUG..

R226

DAPE0

G10

VSS / DAPE1

VSS / DAPE2

VSS / AGBTTX0N

VSS / AGBTTX0P

VSS / AGBTCLKNL7VSS / AGBTERR

P10

P11

L14

AGBT_ERR

AGBT_TX0_N

AGBT_TX0_P

DAP1

R215

0R

AN13 / EDS0NBW6AN16W5AN17 / P40.10U5AN18 / P40.11W4AN19 / P40.12W3AN20 / EDS2PA

AN14 / EDS3PB

AN15 / EDS3NB

T6

U6

DAPE2

DAP1_A

DAPE1

DAP0_A

TC3X7_ADAS

DAP2

DAP1_A

R255

47K

+3V3

R256

1K5

S202

P33.11

GND

R223

6R8

CB206

2,2μF

GND

VAREF2 VDDM

T1

T2

VAREF2

VAGND2

AN21 / EDS2NAY2AN24 / EDS2PB / P40.0

AN22T5AN23

T4

R5

Y3

R219

R218

R217

R216

PORT[00..34]

PORT[00..34]

R252

0R

P21.7

0R_opt

0R_opt

0R_opt

DAPE0

P20.1
P21.6
P20.2

P21.7

0R

P33.11

AN25 / EDS2NB / P40.1R4AN44 / EDS1PC

P20.0

P14.0

P15.0

B16

B20

P14.0 / ATX0

P15.0 / ATX1

ASCLIN

ON BOARD USED PERIPHERALS / PINS

P14.1 / ARX0A

P15.1 / ARX1A

U201C

A15

A18

P15.1

P14.1

P21.0

K17

P21.0

PORTS

U201D

L2

P00.0

AN45 / EDS1NC

AN46 / EDS1PD

AN36 / EDS1PA / P40.6

V2

W1

AN47 / EDS1ND

AN37 / EDS1NA / P40.7

AN38 / EDS1PB / P40.8

AN39 / EDS1NB / P40.9

P5

P4

U1

U2

V1

W2

R254

0R

R2530RR2500RR251

P21.3

P21.4

P21.2

P23.1

P14.4

P33.8

P15.3

P15.6

F20

U19

W14

B15

A16

B17

P15.6 / MTSR2

P15.3 / SCLK2

P14.4 / HWCFG6

P33.8 / SMU_FSP

P20.8 / TXDCAN0

P23.1 / TXDCAN4

CAN

QSPI / TLF3068X

P20.7 / RXDCAN0B

P23.0 / RXDCAN4C

P15.7 / MRST2B

P14.2 / SLSO21 / HWCFG2

P33.9

F19

E13

V20

D15

Y14

P23.0

P14.2

P20.7 P20.8

P15.7

P33.9

P22.0

P22.1

P22.4

P22.5

P22.6

P22.2

P22.3

P21.1

P20

P19

P16

P17

N16

R19

R20

J17

P22.0

P22.1

P22.4

P22.5

P22.6

P22.3

P22.2

P21.1

P00.9

P00.4M5P00.5

P00.3M4P00.2M1P00.1M2P00.0

P00.8N1P00.7N2P00.6

P2

N5

N4

P00.1

P00.2

P00.3

P00.4

P00.5

P00.6

P00.7

P00.8

P00.9

TC3X7_ADAS

P33.10

W15

P33.10

P22.7

N17

P22.7

P00.10

P1

P00.10

P21.5

P22.8

M16

R1

P00.11

0R

P14.7

P14.6

B13

D13

P14.7 / RXDxB

P14.8 / RXDxA

A13

D12

P14.8

P14.9

P22.9

P22.10

M17

L16

P22.8

P22.9

P00.12R2P00.11

P00.12

S

SYSCLK

TXDP3GND

TXDN

RXDP5RXDN

X201

1

2

4

6

P15.4

P14.5

P20.9

P20.10

A17

A14

E17

E19

P20.9

P20.10

HSCT

P15.4 / SCL

P14.6 / TXENxB

I2C

P14.5 / HWCFG1 / TXDxB

ERAY

HWCFG

P15.5 / SDA0

P14.9 / TXENxA

P14.10 / TXDxA

P32.3

P32.2

E14

D11

Y19

Y18

P32.3

P15.5

P32.2

P14.10

P22.11

P23.2

P23.3

P23.4

P23.5

P23.6

T20

T17

T19

R17

U20

L17

P23.4

P23.5

P23.3

P23.6

P23.2

P22.10

P22.11

P02.0J1P02.1J2P02.2K1P02.3K2P02.4K4P02.5

P02.6L1P02.7L4P02.8

K5

P02.0

P02.1

P02.2

P02.3

P02.4

P02.5

P02.6

HSCT0-opt

RXD0_P

RXD0_N

SYSCLK

TXD0_P

TXD0_N

K19

J20

H20

J19

K20

P21.5 / TXD0P

P21.3 / RXD0P

P21.4 / TXD0N

P21.2 / RXD0N

P14.3 / HWCFG3

P10.5 / HWCFG4

P10.6 / HWCFG5

H4

H5

B14

Y15

P10.5

P10.6

P14.3

P33.11

P23.7

P32.4

P32.5

P32.6

W18

U15

T15

R16

P32.4

P32.5

P23.7

P10.0E4P10.7J5P10.8

F4

L5

P02.7

P02.8

P10.0

P10.1

P14.2

R239

47K_opt

+3V3

R238

P33.6

P33.4

P33.5

Y12

W12

W13

P33.5

P33.4

P33.6

P20.0 / SYSCLK

LEDs

BUTTON

P20.11

P20.12

P20.13

P33.11

E20

D19

D20

P20.12

P20.11

P20.13

P32.7

P33.0

P33.1

W10

Y10

U16

P33.0

P33.1

P32.6

P32.7

P10.4G5P10.3G4P10.2F5P10.1

P10.2

P10.3

P10.4

R241

+3V3

1K5

P33.7

Y13

P33.7

P20.14

C20

P20.14

P33.2

W11

P33.2

P10.7

P33.3

Y11

P33.3

J4

P10.8

P14.5

4K7_opt

R240

P12.0

P12.1

E11

E12

P12.0 / MDC

P12.1 / MDIO

P11.14D7P11.15D6P11.13

E6

P11.15

P11.13

P11.14

P33.12

P33.13

W16

Y16

P33.12

P15.2

C19

P15.2

+3V3

1K5

GND

TXCLK

TDX0

TDX1

TDX2

D10

B12

A12

E9

P11.3 / TXD0

P11.2 / TXD1

P11.1 / TXD2

P11.4 / TXCLK

GIGABIT ETHERNET

P11.12 / RXCLKA

P11.5 / GREFCLK

P11.10 / RXD0A

D8

B11

B10

REFCLK

RXCLK

RDX0

P33.14

P33.15

P34.1

U11

T14

U14

P34.1

P33.13

P33.14

P33.15

P15.8

P20.3

D14

G20

P15.8

P20.3

P14.4

R231

47K

R230

1K5

HWCFG6

+3V3

R211

L201

TDX3

TCTL

VFLEX

D9

D5

E10

VFLEX

P11.6 / TCTL

P11.0 / TXD3

P11.9 / RXD1A

P11.11 / RCTLA

P11.7 / RXD3A

P11.8 / RXD2A

E8

E7

A11

A10

RDX1

RDX2

RDX3

RCTL

P34.2

P34.3

P34.4

P34.5

T12

U12

T13

U13

P34.2

P34.3

P34.4

P34.5

P20.6

F17

P20.6

R233

47K

+3V3

R232

0R

CB209

100n

GND

GETH..

100n

BLM18BB100SN1D

CB208

CB203

100n

GND

GETH..

TC3X7_ADAS

TC3X7_ADAS

P10.5

+3V3

1K5

HWCFG4

123

1

S201

876

8

GND

ATV MC ACE ATV CES

Am Campeon 1-12

D-85579 Neubiberg

Tel.: [phone]

Infineon Technologies AG

7

7

2

21.11.2017

2.0Revision:

G:\Technical_Support\TriCore\TriBoard\EDA_DXP\TriBoard AURIX 2G\TriBoard TC3X7 ADAS\TriBoard TC3X7 ADAS V2.X\Clk_Cfg_Dbg_Ports_Adc.sch

File:

Sheet: of

TriBoard TC3X7 ADAS Clock, Config, Debug, Ports, ADC

Number:

Date:

6

5

4

P10.6

P14.3HWCFG3

R235

47K

R237

4K7

R236

3

1K5

2

+3V3

R234

1K5

HWCFG5

4

DIPSW-4

5

GND

AN0

AN1

AN2

AN3

AN4

AN5

AN6

AN8

AN9

AN10

AN11

AN12

AN13

AN14

AN15

AN16

AN17

AN18

AN19

AN22

AN23

AN24

AN25

AN36

AN37

AN38

AN39

AN46

AN44

GND

R248

AN44_I

4K7

AN45_I

C207

47nF

AN47

GND

R249

AN45

Switch ON means the corresponding signal is low.

Switch OFF means the corresponding signal is high.

(about configuration see the manual of assembled device)

C208

47nF

4K7

GND

C C

NOTE: S201 is for device configuration

D D

1

AN[0..47]

AN7

1

AN[0..47]

R244

A A

Figure 7-2 Schematic -

AN7_I

C203

47nF

4K7

GND

R245

AN20

AN20_I

AN21_I

AN21

C204

47nF

4K7

GND

R246

C205

47nF

4K7

B B

Clock, Config, Debug, Ports and ADC

User Manual 7-3 V2.4
TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0 2020-02

TriBoard Manual TC3X7 ADAS

Hardware: TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0

Schematic and Layout

246

8

X303

13579

10

ERAY-A

8

GND

GND

X304

246

13579

8

10

ERAY-B

8

GND

R336

246

8

10

13579

X301

CAN0

7

6

5

4

3

2

1

R306

+3V3

+5V

CB301

+3V3 +3V3

PORT[00..51]

PORT[00..51]

R3080RR309

0R

5

VIO

U301

3

100n

GND

R301

R347

2K

R346

2K

R398

P20.14

R397

P20.13

R396

P20.12

R395

P20.11

R394

P33.7

R393

P33.6

R392

P33.5

R391

P33.4

R307

120R

6

7

CANH

RXD

4

0R

R302

P20.7

P20.8

P15.4

R3480RR349

1

VCC

U305

4

+3V3

100R

100R

100R

100R

100R

100R

100R

100R

8

CANL

TXD1VCC

2

3

SCL

CB309

0R

STB

GND

R303

0R

SDA

R305

TLE9251VSJ

0R_opt

R304

P14.0

P14.1

P15.5

0R

VSS

24AA02E48-E/OT

2

100n

GND

+3V3

R399

LB T673

D309

LB T673

D308

LB T673

D307

LB T673

D306

LB T673

D305

LB T673

D304

LB T673

D303

LB T673

D302

R390

+3V3

0R_opt

0R

D301

VIN

0R

0R

U306

132

+3V3

GND

GND

5

GND

VS

7

+3V3

R363

VIN

CB310

C303

22μF/50V

R3180RR319

R316

0R

5

VIO

U302

3

+5V

100n

CB302

GND

R311

P15.1

R364

10K

R361

10K

3

1

WK

RXD

INH8BUS

100n

GND

GND

BAT54-04

R360

X305

246

13579

X302

R317

120R

7

CANH

RXD

4

0R

R312

P23.0

R365

0R

+3V3

R362

4

TXD

6

1K

GND

246

13579

6

P23.1

P15.0

2

8

CANL

TXD1VCC

2

EN

C304

R359

GND

0R

STB

GND

R313

0R

P00.1

0R

0R

TLE7259-3GE

1n

VIN

8

8

TLE9251VSJ

0R_opt

10

10

0R_opt

R314

P00.0

GND

LIN1

R315

CAN1

0R_opt

0R

GND

R338

+3V3

R320

0R_opt

R327

0R

0R_opt

P14.10

P02.0

R371

RN302

22R

22R
22R

R374
R373

R326

R325

0R_opt

P02.1

P02.4

REFCLK

GETH..

TDX0
TDX1
TDX2
TDX3
TCTL
TXCLK

RDX0
RDX1
RDX2
RDX3
RCTL
RXCLK

GETH..

51R

R337

0R

R335

51R

34

+3V3

T301

1 2

B82789-C0104

+5V

VIN

BPA

BMA

11

3

14

15

16

BP

BM

VIO

VDD

VBAT

TXD4BGE7TXDEN5RXD6EN2STBN8RXEN9ERRN

U303

R330

4K7

ENA

TXDA

TXENA

RXDA

BGEA

4K7

R321

P14.9

0R

22R_opt

R331

+3V3

R323

0R

R322

0R

R328

P32.3

P14.8

+3V3

GND

+3V3

C320

opt

22R

R370

opt

R3105

+3V3

opt

R3104

4K7

R3103

opt

R3102

opt

R3101

4K7

R3100

P10.2

C301

10nF

GND

100n

CB305

100n

CB304

100n

CB303

GND GND GND

R334

opt

GND

R333

opt

INHA

GND GND

1

12

13

INH

GND

WAKE

TLE9221SX

10

R332

opt

GND

ERRNA

4K7

R324

0R

0R_opt

R329

P32.2

P12.1

P15.8

R377

330R_opt

R375

R379

1K5

R378

4K7

22R

RN301

R372

22R

R3111

R3110

R3109

R3108

R3107

R3106

P10.1

P12.0

R376

0R

0R_opt

0R

R310

4K7

4K7

opt

4K7

4K7

opt

+3V3

22R

U307

RTL8211F

35

13
14
31

18
17
16
15
19
20

25
24
23
22
26
27

C319

opt

GND

22443355668

X306

34

T302

1 2

BPB

BMB

14

15

BP

BM

TXD4BGE7TXDEN5RXD6EN2STBN8RXEN9ERRN

U304

TXDB

TXENB

R358

4K7

R342

R341

0R

R340

0R

P14.6

P14.5

GND

GND

27pF

C310

C311

Y301

13

36

37

CLKOUT

MDC

MDIO

INTB / PMEB

XTAL_IN

XTAL_OUT

TXD0
TXD1
TXD2
TXD3

TXCTL

TXC

RXD0
RXD1

RTL8211F

RXD2
RXD3

RXCTL

RXC

MDIN02MDIP0

MDIN15MDIP14MDIN27MDIP26MDIN310MDIP3

1

MDI0_P

MDI0_N

MDI1_P

MDI1_N

MDI2_P

GND

7

7

GND

R356

51R

R355

51R

+3V3

B82789-C0104

+5V

VIN

11

16

VBAT

ENB

RXDB

BGEB

+3V3

0R

P14.7

/ESR0

27pF

NX3225SA-25MHz

12

PHYRSTB

9

MDI2_N

MDI3_P

MDI3_N /ESR0

+3V3

C317

9

8

9

VDD

R350

R343

R385

3

VIO

P20.10

GND

1

C

R357

39

4K7

10n

0R

4K7

R351

0R

RSET

LED032LED133LED2

LYA

R382

LYA

13

HS

34

R388

LYK

C302

10nF

GND

INHB

1

GND

10

ERRNB

4K7

R344

P20.9

2K49/1%

EPAD

DVDD33

DVDD_RG

AVDD33
AVDD33

REG_OUT / LDO_OUT

AVDD10
AVDD10
AVDD10

DVDD10

GND

R389

510R

LGK

LYK

GND

ATV MC ACE ATV CES

Am Campeon 1-12

D-85579 Neubiberg

100n

CB308

100n

CB307

100n

CB306

GND GND GND

R354

opt

R353

opt

GND GND

12

INH

WAKE

TLE9221SX

R352

opt

GND

0R

+3V3

GNDGND

L301

29

28

11
40

30

3
8

38

21

510R

+3V3

LGA

LGA

LGK

2,2μH/1A

+1V

C308

100p

GND

S

10

Shield

SC

SHIELD

RJ45

Tel.: [phone]

Infineon Technologies AG

7

8

3

21.11.2017

2.0Revision:

G:\Technical_Support\TriCore\TriBoard\EDA_DXP\TriBoard AURIX 2G\TriBoard TC3X7 ADAS\TriBoard TC3X7 ADAS V2.X\Peripherals.sch

File:

Sheet: of

TriBoard TC3X7 ADAS On Board Peripherals

Number:

Date:

6

5

C318

4,7μF

CB319

100n

4

C309

4,7μF

CB318

100n

CB317

100n

CB316

100n

CB315

100n

C305

4,7μF

3

GND GND

CB314

100n

CB313

100n

CB312

100n

CB311

100n

GND GND GND

R383

4K7

C306

100p

2

C307

100p

R384

4K7

GND

C312

1000pF/2KV

GND

C313

100n

C314

100n

C315

C316

1

100n

100n

A A

Figure 7-3 Schematic -

B B

On Board Peripherals

C C

D D

User Manual 7-4 V2.4
TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0 2020-02

TriBoard Manual TC3X7 ADAS

Hardware: TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0

Schematic and Layout

8

7

6

R409

+3V3

R415

+3V3

R410

5

VDD_FT

D402

VDD_FT

VDD_FT

L402

MMZ1608R300A

4

C403

4u7/6V

CB413

VDD_FT

3

CB405

100n

2

C402

4u7/6V

L401

MMZ1608R300A

VDD_FT

1

DEBUG..

P21.6

DEBUG..

DAP1_A

/TRST

DAP0_A

P21.6

0R_opt

0R_opt

100n

10

GND

G

19

Q401B

Q401A

100n

CB409

100n

+1V8

VDD_FT

U405

TLE4274GSV33

VDD_USB

GND

BSD235N

BSD235N

D401

100n

3

1

0R_opt

R447

R448

R449

TMS

/TRST_J

DAP0_A

USR0

TDI

18

16

14

12

1Y1

1Y2

1Y3

1Y4

1A2

1A3

1A4

2

4

6

8

ADBUS0

ADBUS1

ADBUS3

ADBUS6

ACBUS0

LB T673

R450

1K_opt

ADBUS0

ADBUS1

GND

U401

ADBUS016ADBUS117ADBUS218ADBUS319ADBUS421ADBUS522ADBUS623ADBUS7

56
42
31
20

4
9

64
37
12

49

C406

C401

10μ/6V

GND

OUT

GND

2

IN

CB401

100n

GND

/RESET

2Y192Y272Y352Y4

2A1112A2132A3152A4

ACBUS1

ADBUS2

VCCIO
VCCIO
VCCIO
VCCIO

VPHY

VPLL

VCORE
VCORE
VCORE

VREGOUT

GND

FOR USING WIGGLER WITH JTAG:

Assemble R447-R451

Remove R455-R456

CB407

+3V3

20

VCC

G11A1

U403

10K

10K

5

3 4

61

10K

2

ADBUS4

LP T67K

R412

680R

R411

100R

VDD_FT

GND

100n

GND

GND

100n

100n

CB403

CB402

CB404

100n

100n

CB411

CB410

CB412

GND

GND

GND

D403

3,3uF

/PORST

13

ADBUS3

GND

DAP1_A

R454

5K1

BAT54

R422

opt

R421

opt

GND GND

USR8

3

VDD_FT

5

SN74AHC244PW

17

U404

1

R413

10K

ACBUS4

R443

10K

ACBUS5

VDD_FT

ADBUS4

ADBUS5

ADBUS6

ADBUS7

ACBUS0

ACBUS1

24

ACBUS026ACBUS127ACBUS228BDBUS0

DM

VREGIN

7

50

VDD_FT

R402

27R

R403

1

3

4

D-2ID

D+

VBUS

BU401

CB408

100n

3

VCC

GND

/OE

A

Y

2

4

ACBUS2

ACBUS3

ACBUS4

ACBUS329ACBUS430ACBUS532ACBUS633ACBUS7

DP8REF

6

R404

27R

GND

GND

5

GND

Micro USB

CB415

6

U406

1

VDD_FT +3V3

CB414

GND

SN74LVC1G125

ADBUS1

ACBUS5

ADBUS2

ACBUS5

ACBUS7

ACBUS6

34

OSCI

2

12K/1%

13

8pF

C404

GND

VCCB

VCCA

GND

ACBUS3

Y401

C405

DAP1_A

R455

100n

4

B

A

3

100n

ADBUS2

ACBUS7

ACBUS2

BDBUS0

BDBUS1

38

39

OSCO

3

NX3225SA-12MHz

8pF

BDBUS1

P21.7

P21.7

0R

R451

0R_opt

GND

2

GND

DIR

SN74LVC1T45DBV

5

VDD_FT +3V3

ACBUS5

R444

4K7

+3V3

ACBUS6

VDD_FT +3V3

40

BDBUS2

BDBUS341BDBUS443BDBUS544BDBUS645BDBUS7

RESET

14

R401

1K

VDD_FT

R441

VDD_FT

GND

P21.7

P21.7

GND

R456

0R

CB417

100n

6

2

4

B

GND

VCCB

DIR

VCCA

A

U407

5

1

3

CB416

100n

ACBUS3

ACBUS7

GND

GND

R420

4K7

R440

0R_opt

R437

0R

R417

10K

5

Q402B

BSD235N

3 4

61

R416

10K

2

Q402A

BSD235N

BDBUS0

48

52

53

46

BCBUS0

BCBUS1

BCBUS2

BCBUS354BCBUS455BCBUS557BCBUS658BCBUS7

EECS63EECLK62EEDATA61TEST13SUSPEND

GND

R405

10K

R442

10K

VDD_FT

P20.0

R431

+3V3

P20.0

GND

R423

0R_opt

CB419

GND

6

VCCB

VCCA

SN74LVC1T45DBV

U408

1

VDD_FT +3V3

CB418

GND

R445

4K7

GND

R419

10K

5

3 4

61

2

R418

10K

BDBUS1

VDD_FT +3V3

R414

4K7

59

AGND

GND
GND
GND
GND
GND
GND
GND
GND

PWREN

36

60

10K

2

3

1

D

CS

CLK

DNC

VCC

GND5Q

U402

7

8

CB406

100n

GND

100K

USR1

100n

4

B

A

3

100n

ACBUS2

Q403B

Q403A

FT2232HL

10

51
47
35
25
15

11
5
1

VDD_FT

R407

6

ORG

4

P20.1

P20.1

R428

R427

0R_opt

GND

2

GND

DIR

SN74LVC1T45DBV

5

ACBUS6

R446

4K7

R438

0R_opt

R436

0R

BSD235N

BSD235N

GND

opt

R406

2K2

93LC46B-I/SN

P20.2

P20.2

0R_opt

GND

P15.3
P14.1

P15.2

P14.0

P32.6
P21.7
P21.6

+3V3

P33.7
P33.6

P20.2

P21.6

P20.2

P20.1

P21.6
P21.7

P20.0

R457

1

VREF

DAP12DAP04USER18USER06RESET

X406

R430

R429

R426

R425

R424

DAP1_A

P21.6

DAP0_A

DAP1_A

+3V3

246

8

135791113

X405

GND

AGBT_TX0_P

AGBT_TX0_N DAP0_A

0R

7

5

9

KEY

GND3GND

GND

10

0R_opt

0R

DAP1_A

0R_opt

0R_opt

5

3

7

TDI

TMS1TDO

CPUCLOCK

VCC2GND4GND6PORST8BRKOUT10GND12OCDSE14KEY

X401

+3V3

GND

/DBG_PORST

0R_opt

/TRST

AGBT_CLK_P

C407

/TRST

P21.7

C_P

101214

GND

+3V3

GND

X402

DAP_SCR

DAP0_A

/TRST

/BRKIN

13

11

9

TCK

TRST

GND

/BRKOUT

AGBT_CLK_N

100n

100n

C408

C_N

16

182022

15

171921

GND

R452

0R

1

5

GND3GND

VREF

DAP12DAP04USER18USER06RESET

DAP2

DAP0

DAP1

15

N.C.

BRKIN

OCDS1

16

AGBT_ERR

P32.6

L

AGBT_opt

7

9

KEY

GND

10

DAP3_USR1

/DBG_PORST

/DBG_PORST

GND

+3V3

GND

DAP

DAP0_A

X403

X404

R453

1

DAPE1

1

2

DAP0_A

/DBG_PORST

AGBT_TX0_N
AGBT_TX0_P

0R

7

5

GND3GND

VREF

DAP12DAP04USER18USER06RESET

DAPE0

DAPE2

DAP1_A

/TRST

GND

5

7

3

GND

/TRST

TMS / DAP1

TCK / DAP0

TDO / DAP2

TDI / -

4

6

8

22R_opt

R439

P21.6

P21.7

R408

GND

9

KEY

GND

DAPE

10

/DBG_PORST

/ESR0

9

ESR0

BRKIO

VDDsense

/PORST

ETK_CON_opt

10

+3V3

/DBG_PORST /ESR0

/PORST

ATV MC ACE ATV CES

Infineon Technologies AG

0R

8

4

Sheet: of

TriBoard TC3X7 ADAS miniWiggler and Debug connectors

/DBG_PORST

R433

0R_opt

P20.1

PORT[00..51]

PORT[00..51]

8

Am Campeon 1-12

D-85579 Neubiberg

Tel.: [phone]

7

21.11.2017

2.0Revision:

G:\Technical_Support\TriCore\TriBoard\EDA_DXP\TriBoard AURIX 2G\TriBoard TC3X7 ADAS\TriBoard TC3X7 ADAS V2.X\Wiggler_Dbg_con.sch

File:

Number:

Date:

6

5

4

3

2

1

A A

B B

C C

D D

Figure 7-4 Schematic - miniWiggler JDS and Debug connectors

User Manual 7-5 V2.4
TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0 2020-02

TriBoard Manual TC3X7 ADAS

Hardware: TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0

Schematic and Layout

8

U201A

TC3X7_ADAS

B2

T16

U17

W19

Y20

A20

B19

D17

E16

7

CB516

100n

CB517

CB515

GND

+3V3

C509

10μF/10V

30

45

R3PG2

33

R5080RR509

JP501

opt

132

VCC_IN

X502

100n

R520

0R

CB510

46

VM1EN

VM2EN

MPS

GND

GND

GND

48

VM1FB47VM2FB

6

20K

VDDSB

4

PORT[00..51]

100n

R521

100n

+3V3

GND

ENA

GND

EmW_Pwr_opt

+1V25VDD

R523

0R

6

D507

LP T67K

R513

680R

GND

D506

LP T67K

R512

680R

R511

620R

47μF/10V

GND

GND

47μF/10V

C507

+3V3

12

R1PG211R1PG3

R2VS127R2VS2

INT42SDO

SCS

40

/ESR1

P14.2

GND

D505

LP T67K

1

Q504

R510

+1V25

L503

+1V25

4,7μF/10V

XAL4020-222MEC

28

26

R2SW125R2SW2

SCL

SDI38SSO

43

37

39

P14.3

P15.3

P15.6

P15.7

82K

22

WDI

2 3

BC848C

R2FB

ERR

44

P33.8

GND

+3V3

C508

47μF/10V

24

R2PG123R2PG2

2

1K

R503

P33.9

D508

L504

R504

GND

29

R3SW1

SYNCI

36

XAL4030-682MEC

SYNCO

35

470R

+5V

D501

31

+3V3

LP T67K

GND

MSS2P2

R3FB

FRE

32

12

+3V3 +5V

16

R1BTS

7

CB501

R1VS2

8

100n

GND

L502

C506

100n

13

R1SW1

IOVDD

R1VS39R1VS1

C502

GND

SS22_opt

+3V3

XAL4030-472MEC

15

R1SW214R1SW3

R1BTSV

4

C510

GND

100μF/40V

+3V3

C503

C504

10

20

R1FB

R1PG1

ROT

41

1μF/16V

/PORST

5

4

GND

U501

TLF3068xQVS01

CB502

100n

34

+3V3

3

4.7μF/50V

C505

L501

XAL5050-223MEB

C501

47μF/40V

VIN

2

D502

VCC_IN

1

X501

SS26

POWER

2

D503

VDD_USB

GND

CB518

GST
AG4
AG3
AG2
AG1
AGS2
AGS1
GND

0R

S502

CB512

5
3
1

VIN

100n

R505

GND

CB519

100n

100n

CB513

100n

GND

+3V3

18
21
19
17

HS

GND

R506

100K

GND

10K

WAKE

R524

VDDP3

0R

S501

+3V3

R533

R531

Q502

1

D16
E15
G13
H14
N7
N14
P8
P13

H7
G8

T11

A2
B3
V19
W20

B18
A19

0R

BC848C

C515

R532

4K7

RESET

CB520

C519

2 3

100n

1μF

4μ7/10V

10K

VSS

VSSD4VSSE5VSS

VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD

VDD
VDD

VEXT
VEXT
VEXT
VEXT

VDDP3
VDDP3

GND+3V3

GND

GND

GNDGND

VEVRSB

G12

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSSG9VSS

POWER

ESR1

ESR0

PORST

F16

G16

G17

/ESR1

/ESR0

/PORST

/ESR1

/PORST

/ESR0

/PORST

R535

4K7

R534

2K2

+3V3

GND

J13

J14

H10

H11

H12

VSS

J11

VSS

GND

J10

VSS

VSS

VSSH9VSS

VSS

VSS

VSS

J8

VSS

J7

VSS

K13

VSS

K12

VSS

K11

VSS

K10

VSS

K9

VSS

K8

VSS

L13

Y17

P32.0

+3V3

+3V3

P32.0 / VGATE1N

P32.1 / VGATE1P

W17

C518

1μF_opt

Q503

23

R537

R536

4K7

P32.1

BC858C

1

VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS

GND

D504

R538

120R

10K

TriBoard TC3X7 ADAS Power supply

L12
L11

L10
L9
L8

M14
M13
M11

M10
M8
M7

N12
N11
N10

N9

P12

P9

LS T67K

8

ATV MC ACE ATV CES

Am Campeon 1-12

D-85579 Neubiberg

Tel.: [phone]

Infineon Technologies AG

7

8

5

21.11.2017

2.0Revision:

G:\Technical_Support\TriCore\TriBoard\EDA_DXP\TriBoard AURIX 2G\TriBoard TC3X7 ADAS\TriBoard TC3X7 ADAS V2.X\Supply.sch

File:

Sheet: of

Number:

Date:

6

5

4

3

2

/ESR1

/PORST

1

PORT[00..51]

A A

B B

C C

/PORST

/ESR0

/ESR0

/ESR1

D D

1

Figure 7-5 Schematic - Power Supply

User Manual 7-6 V2.4
TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0 2020-02

TriBoard Manual TC3X7 ADAS

Hardware: TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0

Schematic and Layout

8

7

8

ATV MC ACE ATV CES

Am Campeon 1-12

D-85579 Neubiberg

Tel.: [phone]

Infineon Technologies AG

7

8

6

21.11.2017

2.0Revision:

G:\Technical_Support\TriCore\TriBoard\EDA_DXP\TriBoard AURIX 2G\TriBoard TC3X7 ADAS\TriBoard TC3X7 ADAS V2.X\Rif.sch

File:

Sheet: of

TriBoard TC3X7 ADAS RIF connections

Number:

Date:

6

5

P50.0

P50.1

P50.2

P50.3

P50.4

P50.5

P50.6

P50.7

P50.8

P50.9

P50.10

P50.11

R6210RR6220RR6230RR6240RR6250RR6260RR6270RR6280RR6290RR6300RR6310RR632

RIF0_D1_N

RIF0_D1_P

RIF0_D2_N

RIF0_D2_P

RIF0_CLK_N

RIF0_CLK_P

RIF0_FR_P

RIF0_FR_N

RIF0_D3_N

RIF0_D3_P

RIF0_D4_N

RIF0_D4_P

RIF0_D1_N

RIF0_D1_P

RIF0_D2_N

RIF0_D2_P

RIF0_D3_N

RIF0_D3_P

0R

RIF0_D4_N

RIF0_D4_P

RIF0

P50.0 / D1NC2P50.1 / D1PC1P50.2 / D2ND2P50.3 / D2PD1P50.4 / CLKNE2P50.5 / CLKPE1P50.6 / FRPF2P50.7 / FRNF1P50.8 / D3PG2P50.9 / D3NG1P50.10 / D4PH2P50.11 / D4N

U201F

RIF0_D1_N

RIF0_D1_P

RIF0_D2_N

RIF0_D2_P

RIF0_CLK_N

RIF0_CLK_N

RIF0_CLK_P

RIF0_FR_P

RIF0_FR_N

RIF0_CLK_P

RIF0_FR_P

RIF0_FR_N

RIF0_D3_P

RIF1

P51.0 / D1NB9P51.1 / D1PA9P51.2 / D2NB8P51.3 / D2PA8P51.4 / CLKNB7P51.5 / CLKPA7P51.6 / FRPB6P51.7 / FRNA6P51.8 / D3PB5P51.9 / D3NA5P51.10 / D4PB4P51.11 / D4N

H1

RIF0_D3_N

RIF0_D4_N

RIF0_D4_P

RIF1_D1_N

RIF1_D1_P

RIF1_D2_N

RIF1_D2_P

RIF1_CLK_N

RIF1_CLK_P

RIF1_FR_P

RIF1_FR_N

RIF1_D3_P

RIF1_D3_N

RIF1_D4_P

RIF1_D1_P

TC3X7_ADAS

A4

RIF1_D4_N

RIF1_D1_N

RIF1_D2_P

RIF1_D2_N

P51.0

P51.1

P51.2

P51.3

P51.4

P51.5

P51.6

R6330RR6340RR6350RR6360RR6370RR6380RR6390RR6400RR6410RR6420RR6430RR644

RIF1_D1_N

RIF1_D1_P

RIF1_D2_N

RIF1_D2_P

RIF1_CLK_N

RIF1_CLK_P

RIF1_FR_P

RIF1_CLK_N

RIF1_CLK_P

RIF1_D3_N

RIF1_D3_P

RIF1_D4_N

RIF1_D4_P

P51.7

P51.8

P51.9

RIF1_FR_N

RIF1_D3_N

RIF1_D3_P

RIF1_FR_P

RIF1_FR_N

P51.10

P51.11

0R

RIF1_D4_N

RIF1_D4_P

6

5

246

8

101214

16

18202224262830

32

135791113

15

17192123252729

31

35 36

37 38

39 40

41 42

43 44

0R MMIC0_IO3

0R MMIC0_IO1

R609

R610

P00.4

P10.3

33 34

0R

P02.8

P00.2

P00.5

P02.7

P02.6

P02.5

X601

4

3

2

1

PORT[00..51]

PORT[00..51]

QSH-030-01-L-D-A

MMIC0_IO8

0R MMIC0_IO7

0R MMIC0_IO6

R601

R602

R603

P02.2

P00.9

P00.8

0R MMIC0_RESET_N

R604

/ESR0

0R MMIC0_IO5

0R MMIC0_IO4

R605

R606

P00.7

P00.6

0R MMIC0_IO2

0R MMIC0_OK

R607

R608

P00.3

P21.2

GND

45 46

47 48

49 50

51 52

GND

53 54

55 56

57 58

59 60

246

135791113

X602

QSH-030-01-L-D-A

MMIC1_IO8

R611

P10.6

8

0R MMIC1_IO7

0R MMIC1_IO6

R612

R6130RR614

P10.5

P02.3

101214

MMIC1_RESET_N

/ESR0

/ESR0

/ESR0

0R MMIC1_IO5

0R MMIC1_IO4

R615

R616

P00.12

P00.11

16

15

0R MMIC1_IO2

R617

P00.10

18202224262830

17192123252729

0R MMIC1_OK

0R MMIC1_IO3

0R MMIC1_IO1

0R

R618

R619

R620

P10.7

P10.8

P21.2

P10.0

P33.5

32

31

33 34

P20.13

GND

35 36

37 38

39 40

41 42

43 44

45 46

47 48

49 50

51 52

P10.2

P10.4

P10.1

GND

53 54

55 56

57 58

59 60

4

3

2

1

A A

B B

C C

D D

Figure 7-6 Schematic - MMIC / RIF connections

User Manual 7-7 V2.4
TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0 2020-02

TriBoard Manual TC3X7 ADAS

Hardware: TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0

Schematic and Layout

8

8

TOP

PERIPHERALS

7

NC2[5..80]

NC2[5..80]

6

GND

PLUG

X702

5

/ESR0/ESR1

/PORST

P22.8

P22.10

/PORST

P22.9

P22.11

P22.1

P22.0

P22.3

P22.2

P23.4

/ESR0

GNDGND

246

8

1012141618202224262830323436384042444648505254565860626466687072747678

1357911131517192123252729313335373941434547495153555759616365676971737577

VCC_IN VCC_IN

P22.4

P22.7

P22.5

P22.6

/ESR1

NC2.21

P10.5 P23.3

P10.2 P23.1

NC2.29

NC2.31

NC2.33

NC2.35

P10.4

P20.9 P20.10

P20.13 P00.4

P20.6P33.5

P20.2

P20.3

P00.3

P00.0

P00.1 P00.2

P32.4

GND GND

XTAL1

NC2.54

XTAL2

P15.5

P15.3

P15.4

P15.2

P15.1

P14.1

P15.0P14.0

P00.12

P20.11

P00.11

P20.14

P00.5

P20.12

P20.7 P20.8

P10.8

P15.8

P10.3

P10.7

+3V3+3V3

GNDVDDSB

80

79

FTSH-140-02-L-DV-ES-A

NC4[5..80]

NC4[5..80]

NC4.14

NC4.16

P14.7

NC4.12

NC4.10

P11.15

P11.14

GND

246

8

1012141618202224262830323436384042444648505254565860626466687072747678

PLUG

1357911131517192123252729313335373941434547495153555759616365676971737577

X704

P00.9

P00.10

P02.0

P02.1

P02.2

P02.3

P02.4

P14.8

P02.5

P14.9

P14.10

NC4.21

NC4.23

P15.6

P15.7

NC4.25

NC4.27

P20.1

NC4.29

NC4.32

P10.0

PORTS

NC4.34

P23.0

P23.2

P10.1

P10.6

P12.0

P23.5

P12.1

P23.6

NC4.41

P23.7

NC4.46

NC4.43

NC4.45

NC4.48

NC4.47

P32.2

NC4.49

P32.3

NC4.51

P32.5

NC4.53

P33.8

NC4.55

P33.10

P33.9

NC4.57

NC4.59

P33.13

NC4.61

P33.15

P33.14P33.6

NC4.63

NC4.65

P32.6

P11.13

P32.7

P34.1

ATV MC ACE ATV CES

Am Campeon 1-12

D-85579 Neubiberg

Tel.: [phone]

Infineon Technologies AG

8

7

21.11.2017

2.0Revision:

G:\Technical_Support\TriCore\TriBoard\EDA_DXP\TriBoard AURIX 2G\TriBoard TC3X7 ADAS\TriBoard TC3X7 ADAS V2.X\Connectm.sch

File:

Sheet: of

TriBoard TC3X7 ADAS Connectors plug

Number:

Date:

P34.5

P34.4

NC4.76

80

79

FTSH-140-02-L-DV-ES-A

VFLEX

+3V3 +3V3

P34.2

P34.3

7

6

5

XTAL[1..2]

PORT[00..51]

PORT[00..51]

4

3

2

1

4

3

P21.6

P21.7

P51.0

P51.1

P51.2

P51.3

P51.4

P51.5

P51.6

P51.7

P50.1

P50.2

P50.3

P50.4

P50.5

P50.6

P50.7

P51.8

P50.8

GND

246

8

1012141618202224262830323436384042444648505254565860626466687072747678

PLUG

1357911131517192123252729313335373941434547495153555759616365676971737577

X701

2

1

NC1[5..80]

NC1[5..80]

NC1.5

NC1.7

P50.0

P51.9

P50.9

P51.10

P50.10

P51.11

P50.11

NC1.34

NC1.33

NC1.36

NC1.35

NC1.38

NC1.40

NC1.37

NC1.39

XTAL[1..2]

NC1.42

NC1.44

NC1.41

NC1.43

NC1.46

NC1.45

NC1.48

P21.2

NC1.47

NC1.49

P21.3

P21.4

NC1.51

NC1.53

P21.5

NC1.55

NC1.58

NC1.60

NC1.57

NC1.59

NC1.62

NC1.64

NC1.61

NC1.63

NC1.66

NC1.68

NC1.65

NC1.67

NC1.70

NC1.69

P20.0

NC1.71

NC1.74

NC1.73

NC1.78

NC1.76

NC1.75

NC1.77

P21.1

80

79

P21.0

AN[0..47]

AN[0..47]

FTSH-140-02-L-DV-ES-A

NC3[5..80]

NC3[5..80]

GND

AN16

AN17

AN18

AN19

AN20

AN21

AN22

AN23

AN24

AN25

NC3.26

NC3.28

NC3.30

NC3.32

NC3.34

NC3.36

NC3.46

NC3.48

NC3.50

NC3.52

AN44

AN45

AN46

AN47

P33.4P33.1

VAREF1

GND

VAREF2

246

8

1012141618202224262830323436384042444648505254565860626466687072747678

PLUG

1357911131517192123252729313335373941434547495153555759616365676971737577

X703

GND GND

GND

GND

AN0

AN1

AN2

AN3

AN4

AN5

AN6

AN7

AN8

AN9

AN10

AN11

AN12

AN13

AN14

AN15

VDDM

NC3.45

NC3.47

NC3.49

NC3.51

AN36

AN37

AN38

AN39

GND

GND

P33.3

P33.2 P33.0

ADC

P00.6

+3V3 +3V3

P02.6

P00.7

P02.7

P00.8

P02.8

P14.3

P33.7

P33.12

80

79

FTSH-140-02-L-DV-ES-A

P33.11

A A

B B

C C

D D

Figure 7-7 Schematic - Connectors (Plug)

User Manual 7-8 V2.4
TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0 2020-02

TriBoard Manual TC3X7 ADAS

Hardware: TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0

Schematic and Layout

8

BOTTOM

7

NC2[5..80]

NC2[5..80]

6

GND

246

SOCKET

1357911131517192123252729313335373941434547495153555759616365676971737577

X802

VCC_IN VCC_IN

5

PERIPHERALS

/ESR0/ESR1

/PORST

P22.8

P22.10

/PORST

P22.9

P22.11

P22.1

P22.0

P22.3

P22.2

P23.4

/ESR0

GNDGND

8

1012141618202224262830323436384042444648505254565860626466687072747678

P22.4

P22.7

P22.5

P22.6

/ESR1

NC2.21

P10.5 P23.3

P10.2 P23.1

NC2.29

NC2.31

NC2.33

NC2.35

P10.4

P20.9 P20.10

P20.13 P00.4

P20.6P33.5

P20.2

P20.3

P00.3

P00.0

P00.1 P00.2

P32.4

GND GND

XTAL1

NC2.54

XTAL2

P15.5

P15.3

P15.4

P15.2

P15.1

P14.1

P15.0P14.0

P00.12

P20.11

P00.11

P20.14

P00.5

P20.12

P20.7 P20.8

P10.8

P15.8

P10.3

P10.7

GNDVDDSB

+3V3+3V3

80

79

FLE-140-01-G-DV-A

PORTS

NC4[5..80]

NC4[5..80]

P32.2

NC4.14

NC4.16

P14.7

P14.8

NC4.12

NC4.10

P11.15

P11.14

GND

246

SOCKET

1357911131517192123252729313335373941434547495153555759616365676971737577

X804

P00.9

P14.9

P14.10

P15.6

P15.7

P20.1

NC4.32

8

1012141618202224262830323436384042444648505254565860626466687072747678

P00.10

P02.0

P02.1

P02.2

P02.3

P02.4

P02.5

NC4.21

NC4.23

NC4.25

NC4.27

NC4.29

P10.0

NC4.34

P10.1

P23.0

P10.6

P23.2

P12.0

P23.5

P12.1

P23.6

NC4.41

P23.7

NC4.46

NC4.43

NC4.45

NC4.48

NC4.47

NC4.49

P32.3

NC4.51

P32.5

NC4.53

P33.8

NC4.55

P33.10

P33.9

NC4.57

NC4.59

P33.13

NC4.61

P33.15

P33.14P33.6

NC4.63

NC4.65

P32.6

P11.13

P32.7

P34.1

8

ATV MC ACE ATV CES

Am Campeon 1-12

D-85579 Neubiberg

Tel.: [phone]

Infineon Technologies AG

7

8

8

21.11.2017

2.0Revision:

G:\Technical_Support\TriCore\TriBoard\EDA_DXP\TriBoard AURIX 2G\TriBoard TC3X7 ADAS\TriBoard TC3X7 ADAS V2.X\Connectf.sch

File:

Sheet: of

TriBoard TC3X7 ADAS Connectors socket

Number:

Date:

P34.4

P34.2

P34.5

P34.3

NC4.76

VFLEX

80

79

FLE-140-01-G-DV-A

+3V3 +3V3

6

5

XTAL[1..2]

PORT[00..51]

PORT[00..51]

4

3

2

1

4

3

P21.6

P21.7

P51.0

P51.1

P51.2

P51.3

P51.4

P51.5

P51.6

P51.7

P50.1

P50.2

P50.3

P50.4

P50.5

P50.6

P50.7

P51.8

P50.8

GND

246

8

1012141618202224262830323436384042444648505254565860626466687072747678

SOCKET

1357911131517192123252729313335373941434547495153555759616365676971737577

X801

2

1

NC1[5..80]

NC1[5..80]

NC1.5

NC1.7

P50.0

P51.9

P50.9

P51.10

P50.10

P51.11

P50.11

NC1.34

NC1.33

NC1.36

NC1.35

NC1.38

NC1.40

NC1.37

NC1.39

XTAL[1..2]

NC1.42

NC1.44

NC1.41

NC1.43

NC1.46

NC1.45

NC1.48

P21.2

NC1.47

NC1.49

P21.3

P21.4

NC1.51

NC1.53

P21.5

NC1.55

NC1.58

NC1.60

NC1.57

NC1.59

NC1.62

NC1.64

NC1.61

NC1.63

NC1.66

NC1.68

NC1.65

NC1.67

NC1.70

NC1.69

P20.0

NC1.71

NC1.74

NC1.73

NC1.78

NC1.76

NC1.75

NC1.77

P21.1

80

79

FLE-140-01-G-DV-A

P21.0

AN[0..47]

AN[0..47]

GND

AN16

AN17

AN18

AN19

AN20

AN21

AN22

AN23

AN24

AN25

NC3.26

NC3.28

NC3.30

NC3.32

NC3.34

NC3.36

NC3.46

NC3.48

NC3.50

NC3.52

AN44

VAREF1

GND

VAREF2

246

8

1012141618202224262830323436384042444648505254565860626466687072747678

SOCKET

1357911131517192123252729313335373941434547495153555759616365676971737577

X803

GND GND

GND

GND

AN11

AN12

AN13

AN14

AN15

VDDM

NC3.45

NC3.47

NC3.49

NC3.51

AN36

NC3[5..80]

NC3[5..80]

AN0

AN1

AN2

AN3

AN4

AN5

AN6

AN7

AN8

AN9

AN10

ADC

AN45

AN37

AN46

AN38

AN47

AN39

GND

GND

P33.3

P33.2 P33.0

P33.4P33.1

P00.6

P00.7

P00.8

P33.12

P14.3

80

79

FLE-140-01-G-DV-A

+3V3 +3V3

P33.11

P02.6

P02.7

P02.8

P33.7

A A

B B

C C

D D

Figure 7-8 Schematic - Connectors (Socket)

User Manual 7-9 V2.4
TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0 2020-02

JP501

D508

S5 0 2

R379

R383

R3109

R3 108

R3 1 0 4

R3103

R3102

R3101

R3100

C320

R402

R4 0 3

CB408

Y4 01

U401

CB401

R401

L401

BU401

C402

CB 405

C306

C310

X306

CB 317

C311

C309

C318

CB 318

CB319

L301

R382

U307

Y301

X406

R457

R249

R248

R244

C506

X60 2

X601

R621

R622

R623

R624

R625

R626

R627

R628R629

R630

R631

R632

R633

R634

R635

R636

R637

R638

R639

R640

R641

R642

R643

R644

X402

R226

R225

L503

S201

R377

CB 202

R204

R205

X201

X305 X304 X303

R240

R23 6

R234

R232

R230

R361

R359

R212

D301

C303

U408U407

U406

R451

R45 5

R456

R454

R446

R444

CB419

CB 418

CB417

CB 416

CB415

CB414

D401

R430

R429

R423

R411

D402

U404

CB402

R3 4 4

R424

R425

R426

R427

R428

R201

R203

R202

C2 0 1

C202

R206

R207

Y201

R337

R35 7

R324

R399

R391

R392 R39 3 R3 94 R395 R396 R3 97

CB309

R532

C301C302

R439

R531

R33 5

R336

R355

R356

U305

T301T302

X301X302

X703

X701

D302

D303

D304 D3 05 D3 06 D307 D3 08 D309

D505

D506

D507D504

X40 1

X50 1

S501

R354

R452

R213

CB201

R398

C505

C510

U501

L502

L501

C502

C507

C508

C501

C503

CB 50 2

R217

R241

R255

R256

R390

R329

R375

R376

R348

R3 4 9

R453

S202

X403

X502

X704

R346

R347

X702

U201

X404

CB501

TriBoard Manual TC3X7 ADAS

Hardware: TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0

Schematic and Layout

7.3 Layout

Component Plot Top Layer

Figure 7-9

User Manual 7-10 V2.4
TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0 2020-02

X804

R378

R3111

R31 1 0

R3107

R3106

R3105

R31 0

C3 1 9

C317

C316

C315

C314

C313

C312

R417

R437

R438

R372

CB404

R405

R440

CB409

R4 1 6

R418

R419

R414

R420

C406

Q402

Q403

C404

C405

CB410

CB411

CB412

R441

R442

C40 1

R404

C40 3

CB413

L4 02

U405

C305

C30 7

C308

R388

R389

R384

R385

R371

R370

CB311

CB312

CB313

CB314

CB315

CB316

RN301

R246

R245

L504

L201

CB209

CB208

C208

C207

C205

C204

C203

R620

R619

R618

R617

R616

R615

R6 1 4

R613

R6 1 2

R611

R61 0

R609

R608

R60 7

R606

R605

R604

R603

R602

R60 1

R433

R523

RN302

C518

R431

R314

R252R250

R251

R253

R254

R208

R408

R215

R214

X405

U306

R521

R238

R223

R365

R364

R363

R362

R360

R211

CB206

CB310

C3 0 4

R449

R448

R447

R445

R443

R413

D403

R450

R4 2 2

R421

U4 0 3

Q401

R412

R415

R410

R4 0 9

CB407

R407

U402

R406

CB 4 0 6

R305

R306

R308

R309

R315

R316

R318

R319

R301

R311

R3 4 1

R340

R3 2 1

R322

R22 2

R220

R221

R524

R533

R323

R343

CB301

CB302

CB 2 0 5

CB512

CB513

CB515

CB516

CB517CB518

CB519

CB520

R537

R307

R317

R538

R534

R513

CB 2 0 4

R535

R536

C515

R511

R512

R510

Q502

Q504

Q503

X802 X803

X801

U301U302

R302

R342

CB303

CB304

CB305

CB306

CB307

CB308

R303

R3 0 4

R33 8

R330

R331

R358

R350

R351

U303

U304

R332

R334

R333

R352

R3 5 3

C519

CB203

C407

C408

R320

R216

R209

CB510

R520

D5 0 3

R505

R504

R506

D501

C509

D502

C504

R508

R509

R503

R218

R219

R231

R233

R235

R237

R239

R312

R326

R328

R436

R313

R327

R325

R373

R374

CB403

TriBoard Manual TC3X7 ADAS

Hardware: TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0

Schematic and Layout

Figure 7-10

Component Plot Bottom Layer

User Manual 7-11 V2.4
TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0 2020-02

TriBoard-TC3X7 (TH)

V2.0

TriBoard Manual TC3X7 ADAS

Hardware: TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0

Schematic and Layout

7.4 Layout with Dimensioning

The following dimensions should be used for development of extension boards.

Figure 7-11 Dimensioning (mm)

User Manual 7-12 V2.4
TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0 2020-02

TriBoard-TC3X7 (TH)

V2.0

TriBoard Manual TC3X7 ADAS

Hardware: TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0

Schematic and Layout

Figure 7-12 Dimensioning (mil)

The dimensioning is valid for all TriBoards.

User Manual 7-13 V2.4
TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0 2020-02

TriBoard Manual TC3X7 ADAS

Hardware: TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0

Revision History

Page or Item Subjects (major changes since previous revision)

V2.4, 2020-02

all Name of supply IC from TLF3068X to TLF30682 changed and unavailable device (684) removed

chapter 2.1 Unusable safe state LED removed

chapter 2.2 Figure 2-1 corrected (WAKEUP from CPU to power supply removed)

chapter 3.3.1 Error pin monitoring removed (not available on TLF30682QVS01)

chapter 3.3.1
and 3.17

chapter 3.4 Description for SSO chenaged

chapter 5.6 Connection description for P33.8 and P33.9 updated

chapter 6.1 Description of P14.4 corrected

chapter 7.2 Hint about power supply devcice added

V2.3, 2019-08

chapter 3.2.1 hint (planned, not yet tested) removed for TC337

chapter 3.9 add hint that CAN1 is not usable with TC337 and TC3A7

chapter 3.9 add hint for eeprom access with TC337 (no I2C module)

chapter 3.11 add description for LIN master and slave changes

Figure 2-1 add hint ERAY and CAN1 not with TC337 and TC3A7

Revision History add complete history of all previous versions

all add TC3A7 as usable (planned) device and adapt description for this devices.

V2.2, 2019-06

all add TC337 as usable (planned) device and adapt description for this devices. Add some notes

Name of S502 corrected from WAKE to ENA

for peripheral availability on different devices

chapter 6 add separat connector layout for TC337

chapter 3 add detailed description of usable devices/restricted devices

V2.1, 2018-09

all add TC357 as usable device and adapt description for TC357

V2.0, 2017-11

all adapt to new board hardware V2.0 from V1.0

User Manual RevisionHistory-1 V2.4
TriBoard TC3X7 ADAS TH V2.0 and TriBoard TC3X7 ADAS V2.0 2020-02

Please read the Important Notice and Warnings at the end of this document

Trademarks of Infineon Technologies AG

µHVIC™, µIPM™, µPFC™, AU-ConvertIR™, AURIX™, C166™, CanPAK™, CIPOS™, CIPURSE™, CoolDP™, CoolGaN™, COOLiR™, CoolMOS™, CoolSET™, CoolSiC™,
DAVE™, DI-POL™, DirectFET™, DrBlade™, EasyPIM™, EconoBRIDGE™, EconoDUAL™, EconoPACK™, EconoPIM™, EiceDRIVER™, eupec™, FCOS™, GaNpowIR™,
HEXFET™, HITFET™, HybridPACK™, iMOTION™, IRAM™, ISOFACE™, IsoPACK™, LEDrivIR™, LITIX™, MIPAQ™, ModSTACK™, my-d™, NovalithIC™, OPTIGA™,
OptiMOS™, ORIGA™, PowIRaudio™, PowIRStage™, PrimePACK™, PrimeSTACK™, PROFET™, PRO-SIL™, RASIC™, REAL3™, SmartLEWIS™, SOLID FLASH™,
SPOC™, StrongIRFET™, SupIRBuck™, TEMPFET™, TRENCHSTOP™, TriCore™, UHVIC™, XHP™, XMC™.

Trademarks updated November 2015

Other Trademarks

All referenced product or service names and trademarks are the property of their respective owners.

IMPORTANT NOTICE
Edition 2020-02

Published by

Infineon Technologies AG

81726 Munich, Germany

© 2020 Infineon Technologies AG.

All Rights Reserved.

Do you have a question about any
aspect of this document?

Email: [e-mail]

Document reference
Doc_Number

The information given in this document shall in no

event be regarded as a guarantee of conditions or

characteristics ("Beschaffenheitsgarantie").

With respect to any examples, hints or any typical

values stated herein and/or any information regarding

the application of the product, Infineon Technologies

hereby disclaims any and all warranties and liabilities

of any kind, including without limitation warranties of

non-infringement of intellectual property rights of any

third party.

In addition, any information given in this document is

subject to customer's compliance with its obligations

stated in this document and any applicable legal

requirements, norms and standards concerning

customer's products and any use of the product of

Infineon Technologies in customer's applications.

The data contained in this document is exclusively

intended for technically trained staff. It is the

responsibility of customer's technical departments to

evaluate the suitability of the product for the intended

application and the completeness of the product

information given in this document with respect to

such application.

For further information on technology, delivery terms
and conditions and prices, please contact the nearest
Infineon Technologies Office (www.infineon.com).

WARNINGS

Due to technical requirements products may contain
dangerous substances. For information on the types
in question please contact your nearest Infineon
Technologies office.

Except as otherwise explicitly approved by Infineon
Technologies in a written document signed by
authorized representatives of Infineon Technologies,
Infineon Technologies’ products may not be used in
any applications where a failure of the product or any
consequences of the use thereof can reasonably be
expected to result in personal injury.
