User Manual Please read the Important Notice and Warnings at the end of this document V1.2
www.infineon.com
TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0 2020-02
TriBoard TC3X6 ADAS
TriBoard Manual TC3X6 ADAS
Hardware: TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0
About this document
Scope and purpose
The User Manual provide information about using, configuration and connecting the TriBoard with Infineon
AURIX™ TC3X6 ADAS device. The manual provide information for different hardware types. There exist different
hardware with Through Hole socket (TriBoard TC3X6 ADAS TH) and soldered devices (TriBoard TC3X6 ADAS). The
schematic is identically for the all boards if not other mentioned in chapter schematic. The placing on the boards
is slightly different on bottom side around the TC3X6 ADAS itself dependent of the space (socket need more space
and has through hole), but the most components are on the same location (only CB203 and CB520 are rotated
and short shifted). All figures are valid for each board if not differently mentioned.
Intended audience
Design, verfication, test and software engineers will use this document to get an understanding of the
functionality and connections of the TriBoard.
TriBoard Manual TC3X6 ADAS
Hardware: TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0
Table of Contents
Table of Contents
About this document. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Preface-1
Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . TOC-2
1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
2 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
2.1 Summary of Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
2.2 Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
2.3 Placement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
3 TriBoard Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
3.1 Soldered board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
3.2 Socketed board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
3.2.1 Usable devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
3.2.2 Restricted usable devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
3.3 Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
3.3.1 Failsafe handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3
3.4 LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
3.5 MMIC / RIF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
3.5.1 Measurement RIF signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
3.6 Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5
3.7 USB Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5
3.7.1 Serial Connection to PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5
3.7.2 miniWiggler JDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6
3.8 FlexRay™ (E-RAY) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6
3.9 Serial Eeprom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7
3.10 MultiCAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7
3.11 LIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7
3.12 ADC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8
3.13 Other peripherals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10
3.14 Toggle LED’s . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10
3.15 Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10
3.16 Debug System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10
3.16.1 OCDS1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10
3.16.2 DAP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10
3.16.3 DAP_SCR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10
3.17 High speed with DAP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-11
3.17.1 ETK connector (optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-11
3.17.2 EmW Power (optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-11
4 TriBoard Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
4.1 HW Boot Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
4.1.1 Default Pad State . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
4.1.2 Bootmode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
4.2 Assembly Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
4.2.1 General optional resistors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
4.2.2 Resistors for peripherals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
4.2.3 Resistors for MMIC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6
5 Signal (on board used) Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
5.1 Power Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
User Manual TOC-2 V1.2
TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0 2020-02
TriBoard Manual TC3X6 ADAS
Hardware: TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0
Table of Contents
5.2 Reset Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
5.3 Config Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
5.4 Clock Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
5.5 Debug Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
5.6 Peripheral Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
5.7 MMIC / RIF Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4
6 Connector Pin Assignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1
6.1 On Board only used signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1
6.2 TC356 Connector / Top View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2
6.3 TC336DA Connector / Top View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-4
6.4 Power connector pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-6
6.5 USB connector pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-6
6.6 FlexRay™ (ERAY) connector pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-6
6.7 CAN connector pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-6
6.8 LIN connector pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7
6.9 Ethernet connector pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7
6.10 MMIC / RIF connector pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7
6.11 OCDS1 connector pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-8
6.12 DAP connector pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-8
6.13 ETK connector pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-9
6.14 Ethernet miniWiggler power connector pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-9

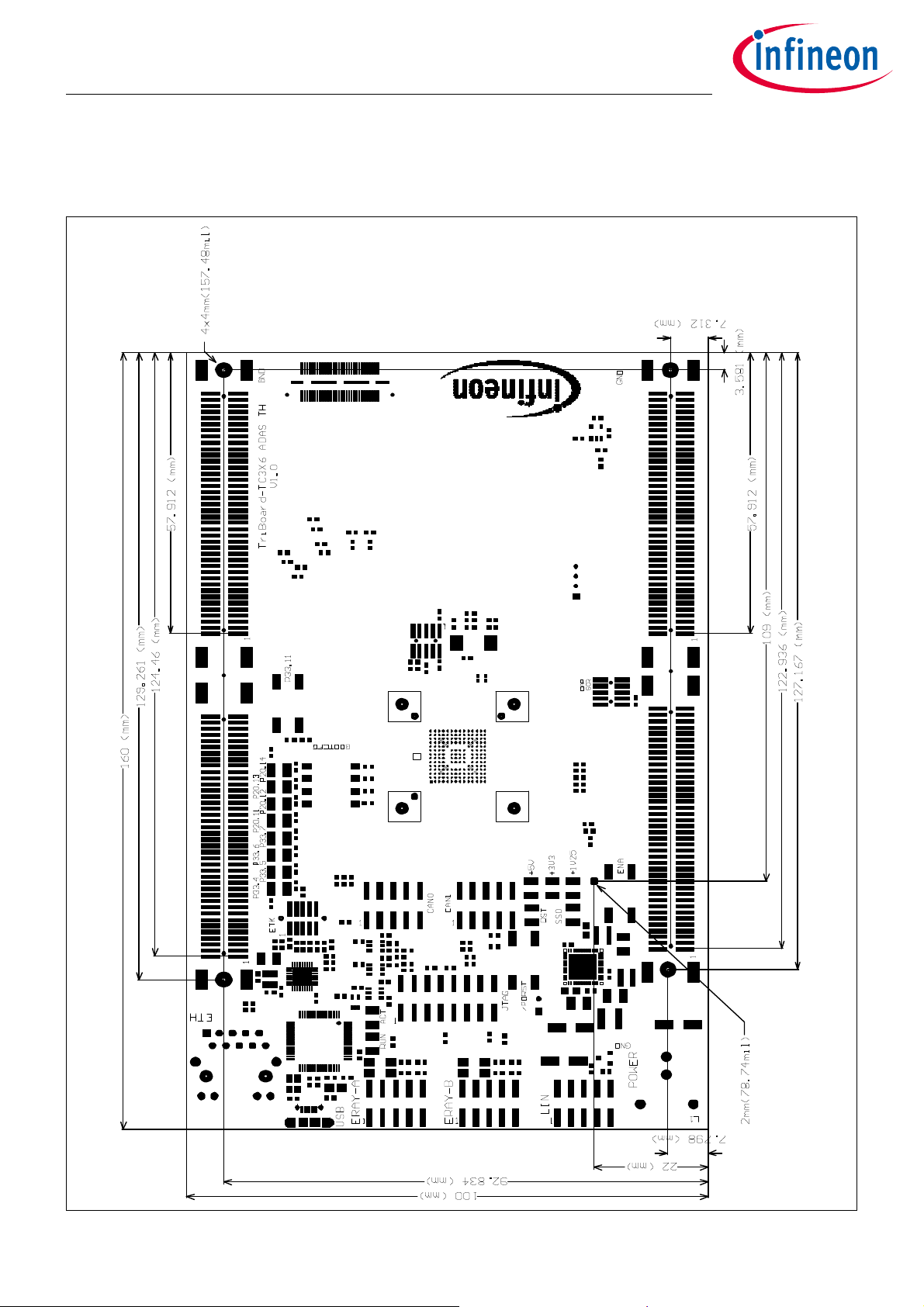

7 Schematic and Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1
7.1 Known problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1
7.1.1 Known problems (TriBoard TC3X6 ADAS TH V1.0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1
7.1.2 Known problems (TriBoard TC3X6 ADAS V1.0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1
7.2 Schematic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1
7.2.1 Hint about used TLF30682 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1
7.3 Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-10
User Manual TOC-3 V1.2
TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0 2020-02
TriBoard Manual TC3X6 ADAS
Hardware: TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0
Introduction
1Introduction
We congratulate you on your purchase of the TriCore Evaluation Board. This kit is a versatile tool, providing quick
access to the capabilities of TriCore's powerful architecture.
Applications can be developed easily. The Evaluation Board is equipped with a variety of memories and
peripherals for connection to the environment. There is also an interface for the On Chip Debugging Features
(OCDS1 and DAP).
The Evaluation Board allows easily the development of TriCore applications with the corresponding tools.
Subsequently, the applications can be downloaded and can be tested with the powerful debugger software.
This TriBoard Hardware Manual familiarizes you with the TriCore Evaluation Board and guides you through the
initial configuration of the TriBoard.
For detailed technical information about the TC3X6 ADAS (e.g. TC356) please refer to the User Manual of the used
device.
User Manual 1-1 V1.2
TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0 2020-02
TriBoard Manual TC3X6 ADAS
Hardware: TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0
Features
2Features
2.1 Summary of Features
– Infineon’s TC3X6 ADAS (TC356, TC336DA) AURIX™ 2G Controller in LFBGA-180_ADAS Package
–FlexRay™
1)
Transceivers
– High Speed CAN Transceivers (CAN-FD capable)
– USB to UART bridge
– Ethernet Gigabit PHY
–Serial Eeprom
–LIN Transceiver
– Crystal 20MHz (default) or External Clock
– USB miniWiggler JDS for easy debugging
– 8 Low Power Status LEDs
– 8-DIP switches for configuration
– access to all pins of controller
– 100mm x 160mm (EURO-Board)
Connectors
The TC3X6 ADAS TriBoard offers a wide variety of connectors:
– Standard power connector
– Micro USB connector for ASC Interface (ASC0) and miniWiggler
– RJ45 connector for Ethernet
– 16-pin header for JTAG interface (OCDS)
– 2 x 10-pin header for DAP and DAP_SCR
– 10pin (2x5) Header for LIN Transceiver (LIN)
– 2 x 10pin (2x5) Header for CAN High Speed Transceiver (CAN0 and CAN1)
– 2 x 10pin (2x5) Header for FlexRay™ (ERAY-A and ERAY-B)
– 1 x 60pin (2x30) high speed connector for MMIC/RIF
– four 80-pin connectors (male) + four 80-pin connectors (female) with all I/O signals
– optional ETK connector
Components
– Infineon’s Multi Voltage System Supply TLF30682QVS01
– Three LEDs to validate power supply (5Volt / 3,3 Volt / 1,25 Volt)
– LED indicating /HDRST (ESR0) active state
– LED indicating activ miniWiggler JDS
– LED switched via DAS software
– 2 x Infineon’s FlexRay™ Transceiver TLE9221SX
– 2 x Infineon’s High Speed CAN-Transceiver TLE9251VSJ
– Infineon’s LIN-Transceiver TLE 7259-3GE
– USB to UART bridge FT2232HL (FTDI)
– Integrated 10/100/1000M Ethernet Precision Transceiver RTL8211FI-CG (Realtek)
– 8 general purpose LEDs
–2K I2C Serial Eeprom with EUI-48™
1) FlexRay™ is a trademark of FlexRay Consortium.
2) EUI-48™ is trademarked by IEEE
User Manual 2-1 V1.2
TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0 2020-02
2)
Node Identity (MICROCHIP)
Micro
USB
miniWiggler
OCDS1
USB
XTAL
FlexRay
Transc eiver
Transc eiver
TxCAN0
TxCAN1
RxCAN0
RxCAN1
TC3X6
ADAS
(e.g.
TC356,
TC336DA)
TriCore
CPU
PLL
CAN0
CAN1
ERAY B ERAY A
TX0
RX0
8 LED s
(P33.4 up t o P33 .7,
P20.11 up to P20.14)
Serial EEPROM
with EUI-48
RGMII
PHY
Twisted Pair
RJ45
LIN
LIN
Transc eiver
TX1
RX1
RIF0 / IOs
I²C
QSPI2
Multi Voltage System
Supply TLF30682QVS01
ENA
MMI C0 / R IF0
ERAY not wit h TC336DA
CAN1 not wit h TC336DA
TriBoard Manual TC3X6 ADAS
Hardware: TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0
Features
–Reset switch
– Wakeup switch
– Generic switch
– 4-pin Dip switch
Zero Ohm Bridges
Zero Ohm resistors give the flexibility to configure the systems functionality.
2.2 Block Diagram
Figure 2-1 TriBoard Block Schematic
User Manual 2-2 V1.2
TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0 2020-02
U201
JP501
D508
S502
Y401
U401
R401
BU40 1
X306
C309
U3 07
Y301
X406
X601
X402
L503
S201
X3 0 5 X304 X303
R236
R234
R2 32
R230
C303
D401 D402
Y2 0 1
T301
T302
X30 1X30 2
X703
X701
D302 D303 D304 D305 D306 D307 D308 D309
D505
D506
D507D504
X40 1
X501
S5 0 1
U501
L502
L501
C502
C501
S202
X502
X704
X702
X404
TriBoard Manual TC3X6 ADAS
Hardware: TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0
Features
2.3 Placement
Figure 2-2
TriBoard TC3X6 ADAS (TH) V1.0 Placement
User Manual 2-3 V1.2
TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0 2020-02
TriBoard Manual TC3X6 ADAS
Hardware: TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0
TriBoard Information
3 TriBoard Information
3.1 Soldered board
TriBoard TC3X6 ADAS V1.0 is the soldered board and will be available only with usable devices. Please see also
chapter Usable devices.
3.2 Socketed board
TriBoard TC3X6 ADAS TH V1.0 is the socketed board.
3.2.1 Usable devices
Note: Note: Please check always the latest manual for complete list of usable/tested devices.
The board can be used with the following devices:
•TC356
•TC336DA
3.2.2 Restricted usable devices
•TC366
•TC336LP
– RIF / MMIC not usable
– Ethernet will not work
– different pinning therefore following signals are different connected
Board signal name TC366 signal name TC336LP signal name
P00.0 AN17 NC
P02.0 AN32 / P40.4 AN32 / P40.4
P02.1 P00.1 P00.1
P02.2 AN38 / P40.8 AN38 / P40.8
P02.3 AN16 NC
P02.4 AN36 / P40.6 AN36 / P40.6
P02.5 AN37 / P40.7 AN37 / P40.7
P02.6 AN25 / P40.1 NC
P02.7 AN33 / P40.5 AN33 / P40.5
P02.8 AN24 / P40.0 NC
P10.1 P02.8 P02.8
P10.2 P00.2 P00.2
P10.3 P00.0 P00.0
P10.7 P00.5 P00.5
P10.8 P00.6 P00.6
P11.0 P13.0 P13.0
P11.1 P13.1 P13.1
User Manual 3-1 V1.2
TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0 2020-02
TriBoard Manual TC3X6 ADAS
Hardware: TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0
TriBoard Information
Board signal name TC366 signal name TC336LP signal name
P11.3 P11.11 P11.11
P11.4 P11.3 P11.3
P11.5 P11.10 P11.10
P11.6 P11.9 P11.9
P11.7 P10.4 P10.4
P11.8 P10.1 P10.1
P11.9 P11.12 P11.12
P11.10 P10.2 P10.2
P11.11 P11.8 P11.8
P11.12 P10.0 NC
P11.13 P14.8 NC
P11.14 P13.3 P13.3
P11.15 P11.6 P11.6
P12.0 P14.10 NC
P12.1 P13.2 P13.2
P50.0 P02.1 P02.1
P50.1 P02.2 P02.2
P50.2 P02.5 P02.5
P50.3 P02.4 P02.4
P50.4 P02.6 P02.6
P50.5 P02.7 P02.7
P50.6 P00.4 P00.4
P50.7 P00.3 P00.3
P50.8 P00.8 P00.8
P50.9 P00.7 P00.7
P50.10 P00.12 P00.12
P50.11 P00.9 P00.9
AN0 AN4 AN4
AN10 AN7 AN7
AN12 AN10 AN10
3.3 Power Supply
All needed voltages are generated via Infineon’s Multi Voltage System Micro Processor Supply TLF30682QVS01.
The TLF30682QVS01 provide the following voltages:
+3,3V for TriCore (connected to VEXT and VEVRSB) and Ethernet Phy
+5V supply (used by CAN and FlexRay™ transceivers and is connected to VDDM and VAREFx)
+1,25V for TriCore (connected to VDD)
Applying a stable supply voltage causes the power on reset after a short period. The three LED's (+5V, +3.3V,
+1V25) indicate the status of the on board generated voltages.
User Manual 3-2 V1.2
TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0 2020-02
CB511
CB203
X804
R378
R3111
R311 0
R3 10 7
R310 6
R3105
R3 10
C319
C317
C316
C315
C314
C313
C31 2
R417
R437
R438
R372
CB404
R405
R440
CB409
R416
R418
R41 9
R414
R420
C406
Q402
Q403
C404
C405
CB410
CB411
CB412
R441
R442
C4 0 1
R404
C403
CB413
L402
U405
C305
C307
C308
R388
R389
R384
R385
R370
CB311
CB312
CB313
CB314
CB315
CB316
RN3 01
L504
L201
CB209
CB208
C208
C207
C2 04
C2 03
R61 0
R609
R608
R607
R606
R60 5
R60 4
R603
R602
R601
R433
R523
RN302
C518
R431
R208
R408
R215
R214
U306
R521
R238
R240
R365
R364
R363
R362
R360
R211
CB310
C304
R449
R448
R447
R445
R443
R413
D403
R450
R422
R421
U403
Q401
R412
R415
R410
R409
CB407
R407
U402
R406
CB406
R305
R306
R3 08
R309
R3 15R316
R3 18
R319
R301
R311
R341
R340
R321
R322
R222
R220
R221
R524
R533
R323
R343
CB301
CB302
CB205
CB512
CB513 CB515
CB516
CB517
CB520
R537
R307
R317
R538
R534
R513
CB204
R535
R536
C515
R511
R512
R510
Q502
Q504
Q503
X802
X801
U301U302
R302
R342
CB303
CB304
CB305
CB306
CB307
CB308
R303
R304
R338
R330
R331
R358
R350
R351
U3 0 3
U304
R332
R334
R333
R352
R353
C519
R320
R2 16
R209
CB510
R520
D503
R505
R504
R506
D5 01
C509
D5 02
C504
R508
R509
R503
R2 3 1
R233
R235
R237
R239
R241
R312
R436
R373
R374
CB4 0 3
C209
C210
C211
CB514
C205
X803
TriBoard Manual TC3X6 ADAS
Hardware: TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0
TriBoard Information
A manual power on reset is executed by pressing the reset button.
The Board has to be connected to a +3,5V to +40V DC power supply.
The power consumption is not specified yet but a supply with 12V and 500mA is recommended. The pinout for
the supply connector is shown in Figure 6-5. There can be used any standard power pack with a connector where
the positive line is surrounded by the ground line.
Note: The TLF30682QVS01 has a programmable voltage for the core supply. The default value for core supply
is 1,20V. This can and must be changed to 1,25 V by software to avoid problems with undervoltage on
VDD. For more information please see the corresponding Target Datasheet of TLF30682.
3.3.1 Failsafe handling
In case that the device don’t contains a program which disable or service the window watchdog of the TLF30682
then the TLF30682 is going to a FAILSAFE state where all supplies are switched off. This state can be left via
reconnect the power plug or via the ENA/WAKE button (S502). In this case you must connect a debugger which is
able to disable the window watchdog and error pin monitor to reprogram the microcontroller.
In the default state of the board the switching to FAILSAFE state is switched off via resistor R508 (0R).
If you will use/evaluate all safety features of the TLF30682 remove assembled R508. Make sure that you have a
proper initialization of TLF30682 in your software. If needed you can assembled a 2,54mm jumper on JP501. With
this jumper you can then enable the safety features (jumper open) or disable the safety features (jumper closed).
Resistor R508 and jumper JP501 are red marked in the following Figure 3-1 and Figure 3-2:
Figure 3-1 Resistor for TLF30682 Safety feature handling with switch on
User Manual 3-3 V1.2
TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0 2020-02
U201
JP501
D508
S502
R379
R3 8 3
R3 109
R3108
R3104
R3103
R3102
R3101
R3100
C320
R402
R403
CB408
Y401
U401
CB401
R401
L401
BU4 0 1
C402
CB405
C306
C310
X306
CB317
C311
C309
C318
CB318
CB319
L301
R382
U3 07
Y301
X406
R457
R249
R248
R246
R245
R2 4 4
C506
X601
R621
R622
R623
R624
R625
R6 26
R627
R628
R629
R630
R631
R632
X402
L503
S201
R377
CB202
R204
R205
X3 0 5 X304 X303
R236
R234
R2 32
R230
R361
R359
R212
D301
C303
U408U407
U406
R451
R455
R456
R4 54
R446
R444
CB419
CB418
CB417
CB416
CB415
CB414
D401
R430
R429
R423
R411
D402
U404
CB402
R344
R424
R425
R426
R427
R428
R201
R203
R202
C201
C202
R206
R2 07
Y201
R337R357
R324
R399
R391 R392 R393
R394
R395
R396 R397
CB309
R532
C301C302
R439
R531
R335
R336
R355
R356
U305
T301T30 2
X30 1X30 2
X703
X701
D302
D303
D304
D305
D306
D307
D308
D309
D505
D506
D507D504
X4 0 1
X501
S5 0 1
R354
R452
R213
CB201
R398
C505
C510
U501
L502
L501
C502
C507
C508
C5 01
C503
CB502
R255 R256
R390
R37 5
R376
R3 48
R349
S202
X502
X704
R346
R347
X702
X404
CB501
R250
R251
R252
TriBoard Manual TC3X6 ADAS
Hardware: TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0
TriBoard Information
Figure 3-2 Jumper for TLF30682 Safety feature handling with switch on
3.4 LEDs
There are 15 LEDs on board:
– D302 up to D305 (blue) -> toogle LEDs connected to P33.4 ... P33.7
– D306 up to D309 (blue) -> toogle LEDs connected to P20.11 ... P20.14
– D504 RST (red) -> RESET LED indicate the reset state of the board (/ESR0)
– D505 +1V25 (green) -> +1V25 power supply indication
– D506 +3V3 (green) -> +3,3V power supply indication
– D507 +5V (green) -> +5V power supply indication
– D508 SSO (green) -> not usable, please ignore
– D402 ACT (green) -> on board miniWiggler JDS is ACTIV
– D401 RUN (blue) -> Debug RUN mode (switched by DAS Server)
3.5 MMIC / RIF
The board has 1High Speed Samtec QSH-030 connectors where you can connect a MMIC board. For the pinout of
the connector see Figure 6-11. The description of the used port for the connector you can find in Table 5-7.
3.5.1 Measurement RIF signals
The RIF signales (P50) are also connected to X701 and X801. If they make problems (e.g. many reflections on the
lines) then you can disconnect the X701 and X801 and the signals are only usable/available on the MMIC/RIF
connector.
On the TC3X6 ADAS Triboard this resistors are R621 up to R632 for P50 (RIF0). This resistors needs to be removed
(red marked in Figure 3-3).
User Manual 3-4 V1.2
TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0 2020-02
U201
JP501
D508
S502
R379
R3 83
R3 109
R3108
R3104
R3103
R3102
R3101
R3100
C320
R402
R403
CB408
Y401
U401
CB401
R401
L401
BU4 0 1
C402
CB405
C306
C310
X306
CB317
C311
C309
C318
CB318
CB319
L301
R382
U3 0 7
Y301
X406
R457
R249
R248
R246
R245
R2 44
C506
X601
R621
R622
R623
R624
R625
R6 26
R627
R628
R629
R630
R631
R632
X402
L503
S201
R377
CB202
R204
R205
X3 0 5 X304 X303
R236
R234
R2 32
R230
R361
R359
R212
D301
C303
U408U407
U406
R451
R455
R456
R4 54
R446
R444
CB419
CB418
CB417
CB416
CB415
CB414
D401
R430
R429
R423
R411
D402
U404
CB402
R344
R424
R425
R426
R427
R428
R201
R203
R202
C201
C202
R206
R2 07
Y201
R337R35 7
R324
R399
R391 R392 R393
R394
R395
R396 R397
CB309
R532
C301C30 2
R439
R531
R335
R336
R355
R356
U305
T301T30 2
X30 1X30 2
X703
X701
D302
D303
D304
D305
D306
D307
D308
D309
D505
D506
D507D504
X4 0 1
X501
S5 0 1
R354
R452
R213
CB201
R398
C505
C510
U501
L502
L501
C502
C507
C508
C5 01
C503
CB502
R255 R256
R390
R375
R376
R3 48
R349
S202
X502
X704
R346
R34 7
X702
X404
CB501
R250
R251
R252
TriBoard Manual TC3X6 ADAS
Hardware: TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0
TriBoard Information
Figure 3-3 Resistors for measurement RIF signals on TriBoard TC3X6 ADAS (TH) V1.0
3.6 Clock
On the board is a fixed crystal with 20MHz assembled. You can change this by replacing Y101 (soldered).
3.7 USB Connector
The USB connector is used for connection to a PC. Via the USB it is possible to power the board, using the ASCLIN0
as serial connection via USB and Debugging via DAS. For the pinout of USB socket see Figure 6-6.
NOTE: Before connecting the board to the PC, make sure that the actual DAS software is installed on the PC. For
actual DAS software please contact your local FAE.
The software can also be found on:
3.7.1 Serial Connection to PC
After the first connection of USB to a PC the needed driver will be installed automatically. During this there will
be created a new COM port on PC. This COM port can be used to communicate with the board via ASCLIN0 of the
device. Per default the ASCLIN0 is used on P14.0 and P14.1 (e.g. Generic Bootstrap Loader) . In case you will use
the Generic Bootstrap Loader via CAN or ASCLIN0 via P15.2 and P15.3 you must:
– remove R436 and R437 (this disconnect the serial connection from P14.0 and P14.1)
– remove R301 and R302 (this disconnect the CAN0 transceiver from P20.7 and P20.8)
– assemble R438 and R440 with 0R resistor (size 0603) to connect P15.2 and P15.3 to serial connection
– assemble R303 and R304 with 0R resistor (size 0603) to connect P14.0 and P14.1 to CAN0 transceiver
DAS website
User Manual 3-5 V1.2
TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0 2020-02
CB511
CB203
X804
R378
R3111
R311 0
R3 10 7
R310 6
R3105
R3 10
C319
C317
C316
C315
C314
C313
C31 2
R417
R437
R438
R372
CB404
R405
R440
CB409
R416
R418
R41 9
R414
R420
C406
Q402
Q403
C404
C405
CB410
CB411
CB412
R441
R442
C4 0 1
R404
C403
CB413
L402
U405
C305
C307
C308
R388
R389
R384
R385
R370
CB311
CB312
CB313
CB314
CB315
CB316
RN3 01
L504
L201
CB209
CB208
C208
C207
C2 04
C2 03
R61 0
R609
R608
R607
R606
R60 5
R60 4
R603
R602
R601
R433
R523
RN302
C518
R431
R208
R408
R215
R214
U306
R521
R238
R240
R365
R364
R363
R362
R360
R211
CB310
C304
R449
R448
R447
R445
R443
R413
D403
R450
R422
R421
U403
Q401
R412
R415
R410
R409
CB407
R407
U402
R406
CB406
R305
R306
R3 08
R309
R3 15R316
R3 18
R319
R301
R311
R341
R340
R321
R322
R222
R220
R221
R524
R533
R323
R343
CB301
CB302
CB205
CB512
CB513 CB515
CB516
CB517
CB520
R537
R307
R317
R538
R534
R513
CB204
R535
R536
C515
R511
R512
R510
Q502
Q504
Q503
X802
X801
U301U302
R302
R342
CB303
CB304
CB305
CB306
CB307
CB308
R303
R304
R338
R330
R331
R358
R350
R351
U3 0 3
U304
R332
R334
R333
R352
R353
C519
R320
R2 16
R209
CB510
R520
D503
R505
R504
R506
D5 01
C509
D5 02
C504
R508
R509
R503
R2 3 1
R233
R235
R237
R239
R241
R312
R436
R373
R374
CB4 0 3
C209
C210
C211
CB514
C205
X803
TriBoard Manual TC3X6 ADAS
Hardware: TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0
TriBoard Information
The mentioned resistors are red marked in Figure 3-4.
Figure 3-4 Resistors for ASC connection (ASC0)
3.7.2 miniWiggler JDS
The miniWiggler JDS is a low cost debug tool which allows you access to the JTAG of the device. Make sure that
you have the latest DAS release. Debugging is possible via the DAS Server ‘UDAS‘. Please contact your prefered
debug vendor for support of DAS.
If you have connected the board to the PC and there runs the DAS server, then a working connection is visible via
the green ACTIV LED.
The status RUN LED is switched on/off through the DAS Server, depending on the used debugger (client).
IMPORTANT: Make sure that there is no or a tristated connection on X401 (OCDS1) and X402 (DAP) if the
ACTIV LED is on.
Per default the miniWiggler is connected to the DAP. It is possible to change the connection to DAPE (DAP of
emulation device if available). If resistors R214, R215 and R216 assembled (default) then the standard DAP is
connected to miniWiggler. If all this resistors are not assembled then the miniWiggler can’t be used. In this case
only the DAP connector X402 can be used. See Figure 3-8.
3.8 FlexRay™ (E-RAY)
The board has 2 IDC10 plugs for FlexRay™ Communication (channel A and B) with up to 10 Mbit/s. For the pinout
of the plugs see Figure 6-7. You can use a IDC female connector with crimpconnector, flat cable and SUB-D 9 plug
with crimpconnector to have a 1:1 adapter to SUB-D 9.
The transceiver are connected to the TriCore device via zero ohm resistors (R325 up to R329 and R340 up to R344)
which must be removed to use the ports outside.
User Manual 3-6 V1.2
TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0 2020-02
TriBoard Manual TC3X6 ADAS
Hardware: TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0
TriBoard Information
ERAY-A can be connected to P02.0, P02.1 and P02.4. Transceiver for channel A can be enabled/disabled via P10.1.
The error state of transceiver channel A can be read out via P10.2.
ERAY-B is connected to P02.2, P02.3 and P02.5. Transceiver for channel A can be enabled/disabled via P20.10. The
error state of transceiver channel A can be read out via P20.9.
For more information look in the user manual for TC3X6.
Note: TC336DA don’t support FlexRay™.
3.9 Serial Eeprom
Note: TC336DA don’t have I2C module. Access to the eeprom only with simulation of I2C protocol via bit
banging possible.
The I2C via P15.4 and P15.5 of the TC3X6 is connected to a serial EEPROM with a size of 2KBit (2 x 128 x 8). The slave
address of this EEPROM is 0x50. The upper half of the array (80h-FFh) is permanently write-protected. Write
operations to this address range are inhibited. Read operations are not affected. This upper half contains a preprogrammed EUI-48™ node address which can be used as MAC ID for Ethernet. The other 128 bytes are writable
by customer.
To disconnect (disable) the EEPROM remove resistor R348 and R349.
3.10 MultiCAN
On the board are two CAN transceiver connected to the CAN0 and CAN1 of TC3X6. The transceivers are connected
to two IDC10 plug. For the pinout of IDC10 plug see Figure 6-8. You can use a IDC female connector with
crimpconnector, flat cable and SUB-D 9 plug with crimpconnector to have a 1:1 adapter to SUB-D 9.
The transceiver are connected to the TriCore device via zero ohm resistors (R301 up to R304 and R311 up to R312)
which must be removed to use the ports outside.
CAN0 can be used via P20.7 and P20.8 (node 0, default) or P14.0 and P14.1 (node 1). CAN1 can be used via P10.7
and P10.8 (node 2).
Note: CAN1 is not usable with TC336DA.
3.11 LIN
On the board is one LIN transceiver connected to the ASCLIN1 on TC3X6 (P15.0 and P15.1). The transceiver are
connected to one IDC10 plug. For the pinout of IDC10 plug see Figure 6-9. You can use a IDC female connector
with crimpconnector, flat cable and SUB-D 9 plug with crimpconnector to have a 1:1 adapter to SUB-D 9.
To disconnect the LIN remove resistor R364 and R365.
The LIN can be used in master and in slave mode. For the master mode there is per default a pull-up of 1K (R360)
and a capacitor of 1nF (C304) on the BUS assembled. For using the LIN in slave mode the pull-up resistor R360
must be removed and maybe the capacitor changed to a smaller value (e.g. 220pF).
The mentioned resistor and capacitor are red marked in Figure 3-5
User Manual 3-7 V1.2
TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0 2020-02
CB511
CB203
X804
R378
R3111
R3110
R3107
R3106
R3105
R31 0
C319
C317
C316
C315
C31 4
C313
C312
R417
R437
R438
R372
CB4 04
R405
R440
CB409
R416
R418
R419
R414
R420
C406
Q402
Q403
C404
C405
CB4 10
CB411
CB412
R44 1
R44 2
C401
R404
C403
CB413
L402
U405
C30 5
C30 7
C30 8
R388
R389
R384
R385
R37 0
CB311
CB312
CB313
CB314
CB315
CB316
RN301
L504
L201
CB209
CB208
C208
C207
C20 4
C203
R61 0
R609
R60 8
R607
R606
R60 5
R60 4
R603
R602
R601
R433
R523
RN302
C518
R431
R208
R408
R215
R214
U306
R521
R238
R240
R36 5
R364
R363
R362
R36 0
R211
CB310
C304
R449
R448
R447
R445
R443
R413
D403
R450
R422
R421
U403
Q40 1
R412
R415
R41 0
R409
CB407
R407
U402
R406
CB406
R305
R306
R308
R30 9
R315
R316
R318
R319
R301
R311
R341
R340
R32 1
R322
R222
R220
R221
R524
R533
R323
R34 3
CB301
CB302
CB205
CB512
CB513 CB515
CB516
CB517
CB520
R53 7
R30 7
R31 7
R538
R534
R51 3
CB204
R535
R536
C515
R511
R51 2
R510
Q50 2
Q504
Q503
X802
X801
U301U302
R30 2
R342
CB303
CB304
CB305
CB306
CB307
CB308
R303
R304
R33 8
R330
R33 1
R358
R350
R351
U303
U304
R33 2
R334
R333
R352
R35 3
C519
R320
R216
R209
CB510
R520
D503
R505
R50 4
R506
D501
C509
D502
C50 4
R508
R509
R503
R231
R233
R23 5
R23 7
R23 9
R241
R312
R436
R373
R374
CB403
C209
C210
C211
CB514
C205
X803
TriBoard Manual TC3X6 ADAS
Hardware: TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0
TriBoard Information
Figure 3-5 Components for LIN Master Mode
Ethernet
The TriBoard provide a RJ45 connector (X306) for twisted pair ethernet connections.The TriBoard use a Realtek
Integrated 10/100/1000M Ethernet Precision Transceiver RTL8211FI-CG as physical interface device. For more
information about the ethernet modul see TC3X9 User’s Manual, about the PHY see the RTL8211F datasheet. For
the pinout of RJ45 see Figure 6-10.
The PHY is connected to the TriCore device via resistors and resistor arrays (R370 up to R374 and RN301 up to
RN302).
For the connection between TriCore and PHY is used RGMII.
Note: Please note that the used signals for RGMII (P11.0 up to P11.12) are not connected to any connector.
3.12 ADC
On this boards are 8 ADC channels prepared with a low pass filter. On pin AN0, AN1, AN2, AN3, AN8, AN10, AN11
and AN12 is assembled a capacitor of 47nF and a serial resistor of 4,7K. The filter components are red marked in
the following figures (Figure 3-6 and Figure 3-7).
User Manual 3-8 V1.2
TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0 2020-02
U201
JP501
D508
S502
R379
R3 8 3
R3 109
R3108
R3104
R3103
R3102
R3101
R3100
C320
R402
R403
CB408
Y401
U401
CB401
R401
L401
BU4 0 1
C402
CB405
C306
C310
X306
CB317
C311
C309
C318
CB318
CB319
L301
R382
U3 07
Y301
X406
R457
R249
R248
R246
R245
R2 4 4
C506
X601
R621
R622
R623
R624
R625
R6 26
R627
R628
R629
R630
R631
R632
X402
L503
S201
R377
CB202
R204
R205
X3 0 5 X304 X303
R236
R234
R2 32
R230
R361
R359
R212
D301
C303
U408U407
U406
R451
R455
R456
R4 54
R446
R444
CB419
CB418
CB417
CB416
CB415
CB414
D401
R430
R429
R423
R411
D402
U404
CB402
R344
R424
R425
R426
R427
R428
R201
R203
R202
C201
C202
R206
R2 07
Y201
R337R357
R324
R399
R391 R392 R393
R394
R395
R396 R397
CB309
R532
C301C302
R439
R531
R335
R336
R355
R356
U305
T301T30 2
X30 1X30 2
X703
X701
D302
D303
D304
D305
D306
D307
D308
D309
D505
D506
D507D504
X4 0 1
X501
S5 0 1
R354
R452
R213
CB201
R398
C505
C510
U501
L502
L501
C502
C507
C508
C5 01
C503
CB502
R255 R256
R390
R37 5
R376
R3 48
R349
S202
X502
X704
R346
R347
X702
X404
CB501
R250
R251
R252
CB511
CB203
X804
R378
R3111
R311 0
R3 10 7
R310 6
R3105
R3 10
C319
C317
C316
C315
C314
C313
C31 2
R417
R437
R438
R372
CB404
R405
R440
CB409
R416
R418
R41 9
R414
R420
C406
Q402
Q403
C404
C405
CB410
CB411
CB412
R441
R442
C4 0 1
R404
C403
CB413
L402
U405
C305
C307
C308
R388
R389
R384
R385
R370
CB311
CB312
CB313
CB314
CB315
CB316
RN3 01
L504
L201
CB209
CB208
C208
C207
C2 04
C2 03
R61 0
R609
R608
R607
R606
R60 5
R60 4
R603
R602
R601
R433
R523
RN302
C518
R431
R208
R408
R215
R214
U306
R521
R238
R240
R365
R364
R363
R362
R360
R211
CB310
C304
R449
R448
R447
R445
R443
R413
D403
R450
R422
R421
U403
Q401
R412
R415
R410
R409
CB407
R407
U402
R406
CB406
R305
R306
R3 08
R309
R3 15R316
R3 18
R319
R301
R311
R341
R340
R321
R322
R222
R220
R221
R524
R533
R323
R343
CB301
CB302
CB205
CB512
CB513 CB515
CB516
CB517
CB520
R537
R307
R317
R538
R534
R513
CB204
R535
R536
C515
R511
R512
R510
Q502
Q504
Q503
X802
X801
U301U302
R302
R342
CB303
CB304
CB305
CB306
CB307
CB308
R303
R304
R338
R330
R331
R358
R350
R351
U3 0 3
U304
R332
R334
R333
R352
R353
C519
R320
R2 16
R209
CB510
R520
D503
R505
R504
R506
D5 01
C509
D5 02
C504
R508
R509
R503
R2 3 1
R233
R235
R237
R239
R241
R312
R436
R373
R374
CB4 0 3
C209
C210
C211
CB514
C205
X803
TriBoard Manual TC3X6 ADAS
Hardware: TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0
TriBoard Information
Figure 3-6 Filter components of ADC channels on Top Side
Figure 3-7 Filter components of ADC channels on Bottom Side
User Manual 3-9 V1.2
TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0 2020-02
TriBoard Manual TC3X6 ADAS
Hardware: TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0
TriBoard Information
3.13 Other peripherals
For all other peripherals there are no special plugs on the board. The peripheral signals are available on the
different connectors. See “Connector Pin Assignment” on Page 6-1.
3.14 Toggle LED’s
The status LED’s are low active and can be controlled by Software.
Port 20 pin 11 up to pin 14 are connected to single LED’s (D306... D309) and powered by the normal
microcontroller voltage.
Port 33 pin 4 up to pin 7 are connected to single LED’s (D302... D305) and also powered by the normal
microcontroller voltage because VEVRSB is connected to 3,3V (port 33 is powered by VEVRSB pin which is
connected to 3,3V of TLF30682).
3.15 Buttons
On the board are three buttons.
The reset button (S501) will apply a warm power on reset to the device.
The ENA/WAKE button (S502) will be used to enable/wakeup the TLF30682.
The P33.11 button (S202) can be used by software as input.
3.16 Debug System
3.16.1 OCDS1
The OCDS1 signals are connected to the IDC16 plug (X401). They work with the port supply of Microcontroller
(+3,3V). For pinout of the connector see Figure 6-12. You can connect any debugger to this connector.
The signals /BRKIN and /BRKOUT are not connected per default. If you need this signals in the connector then
assemble R424 and R425 or R426 with a 0R resistor.
If you connect a debug hardware make sure that the miniWiggler JDS (see “miniWiggler JDS” on Page 3-6) is not
activ (ACTIV LED is off) and on the DAP connector (X402) is no hardware connected or the hardware is tristated.
If the ACTIV LED is on, then stop the active DAS Server ’UDAS’ and/or remove the USB connection to the PC.
If R214 up to R216 not assembled then the connector is not usable.
3.16.2 DAP
The board comes with a DAP connector (X402). For pinout of this connector see Figure 6-13. You can connect a
DAP hardware here. If you use this connector make sure that the miniWiggler JDS is not activ (ACTIV LED is off)
and a connected OCDS1 hardware is disconnected or tristated.
3.16.3 DAP_SCR
Additional DAP connector (X406) is connected to DAP_SCR. This DAP can be used as private DAP connection to
the standby controller. For pinout of this connector see Figure 6-13. You can connect a DAP hardware here. This
DAP use P33.6 and P33.7 which are connected to LED on the board. Maybe it is necessary to remove R393 and
R394 if the speed of the connection is not fast enough.
User Manual 3-10 V1.2
TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0 2020-02
CB511
CB203
X804
R378
R3111
R311 0
R3 10 7
R3106
R3105
R3 10
C319
C317
C316
C315
C314
C313
C31 2
R417
R437
R438
R372
CB404
R405
R440
CB409
R416
R418
R41 9
R41 4
R420
C406
Q402
Q403
C404
C405
CB410
CB411
CB412
R441
R442
C4 0 1
R404
C403
CB413
L402
U405
C305
C307
C308
R388
R389
R384
R385
R370
CB311
CB312
CB313
CB314
CB315
CB316
RN3 01
L504
L201
CB209
CB208
C208
C207
C2 04
C2 03
R61 0
R609
R608
R607
R606
R60 5
R60 4
R603
R602
R601
R433
R523
RN302
C518
R431
R208
R408
R215
R214
U306
R521
R238
R240
R365
R364
R363
R362
R360
R211
CB310
C304
R449
R448
R447
R445
R443
R413
D403
R450
R422
R421
U403
Q401
R412
R415
R410
R409
CB407
R407
U402
R406
CB406
R305
R306
R3 08
R309
R3 15R316
R3 18
R319
R301
R311
R341
R340
R321
R322
R222
R220
R221
R524
R533
R323
R343
CB301
CB302
CB205
CB512
CB513 CB515
CB516
CB517
CB520
R537
R307
R317
R538
R534
R513
CB204
R535
R536
C515
R511
R512
R510
Q502
Q504
Q503
X802
X801
U301U302
R302
R342
CB303
CB304
CB305
CB306
CB307
CB308
R303
R304
R338
R330
R331
R358
R350
R351
U3 0 3
U304
R332
R334
R333
R352
R353
C519
R320
R2 16
R209
CB510
R520
D503
R505
R504
R506
D5 01
C509
D5 02
C504
R508
R509
R503
R2 3 1
R233
R235
R237
R239
R241
R312
R436
R373
R374
CB4 0 3
C209
C210
C211
CB514
C205
X803
TriBoard Manual TC3X6 ADAS
Hardware: TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0
TriBoard Information
3.17 High speed with DAP
For use the DAP connection with 160 MHz you need to remove 3 resistors to have a very short connection between
device and connector. On the TC3X6 ADAS Triboard this 3 resistors are R214, R215 and R216 for DAP (red marked
in Figure 3-8). This resistors needs to be removed.
Important: When the resistors are removed then only the DAP connector on the board can be used. The on
board wiggler and the OCDS1 connector couldn’t be use (are disconnected) in this case, also the ETK
connector couldn’t be used.
All resistors are red marked in the following figures:
Figure 3-8 Location of DAP resistors on Bottom Side
3.17.1 ETK connector (optional)
The TriBoard provide a 10 pin samtec connector (X404) for connecting to an ETK. This connector should be
assembled by your self if needed.
For the pinout of connector see Figure 6-14.
The needed Samtec connector is: TFM-105-02-A.
3.17.2 EmW Power (optional)
The TriBoard provide the 4 pin power connector (X502) for the Ethernet miniWiggler (EmW). This connector
should be assembled by your self if needed.
For the pinout of connector see Figure 6-15.
The needed Samtec connector is the JST B4B-PH-K.
User Manual 3-11 V1.2
TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0 2020-02
TriBoard Manual TC3X6 ADAS
Hardware: TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0
TriBoard Information
The connector provide the input voltage to the Ethernet miniWiggler and an enable/wakeup signal connected to
TLF30682 and a standby voltage of +1,25V which is not connected to the device on this board.
User Manual 3-12 V1.2
TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0 2020-02
2
on
134
P14
.
4
P10.5
P10
.
6
P14
.
3
TriBoard Manual TC3X6 ADAS
Hardware: TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0
TriBoard Configuration
4 TriBoard Configuration
4.1 HW Boot Configuration
Figure 4-1 HW Configuration DIP-Switches
The picture above shows the definition of the boot HW configuration switch. The meaning of the switches will be
described in the following table (Table 4-1).
Note:
The ON position of the switch is equal to a logical LOW at the dedicated pin.
4.1.1 Default Pad State
P14.4 / HWCFG6 is used to select the Default Pad State. Dipswitch 1 used to select this.
In case that dispswitch1 is set to ON then all I/O pins are in tristate otherwise the internal pull-up devices are
enabled on the I/O pins. Please note that after change Dipswitch 1 you must make a power cycle (switch off ->
switch on) to use the new configuration.
In case that TriState is selected (Dipswitch 1 is set to ON) then the I/O pins are floating. If you need a specific level
on different pins during startup (e.g. driver pins) then you must add the needed pull device (up or down). Some
pins (especially the HWCFG pins) haven always the needed external pull-up and/or pull-down resistor assembled
on the board.
4.1.2 Bootmode
Table 4-1 User Startup Modes
HWCFG[5...3] Type of Boot 2 3 4
1)2)3)
XX1 Start-up mode is selected by Boot Mode Index X X OFF
110 Internal Start from Flash OFF OFF ON
100 Alternate Boot Mode, Generic Bootstrap Loader on fail (P14.0/P14.1) ON OFF ON
010 Alternate Boot Mode, ASC Bootstrap Loader on fail (P15.2/P15.3) OFF ON ON
000 Generic Bootstrap Loader (P14.0/P14.1) ON ON ON
1) The shadowed line indicates the default setting.
2) ’x’ represents the don’t care state.
3) 2 to 4 are the Dip Switch numbers.
User Manual 4-1 V1.2
TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0 2020-02
TriBoard Manual TC3X6 ADAS
Hardware: TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0
TriBoard Configuration
4.2 Assembly Options
4.2.1 General optional resistors
Table 4-2 General optional resistors (default assembly in brackets)
Component Description
R202 Connect P20.2 (/TESTMODE) to GND (not assembled)
R203 XTAL1 Rload (50 Ohm) (not assembled)
R206 XTAL Rparallel (not assembled)
R207 XTAL2 Rserial (assembled)
R238 Switch off EVRC (assembled)
R240 Switch off EVR33 (assembled)
R390 Connect +3V3 to toggle LEDs D302...D305 (assembled)
R399 Connect +3V3 to toggle LEDs D306...D309 (assembled)
R423 Connect P20.0 with miniWiggler JDS (not assembled)
R424 Connect P20.0 with OCDS1 connector (not assembled)
R425 Connect P21.7 with OCDS1 connector (not assembled)
R426 Connect P20.2 with OCDS1 connector (not assembled)
R427 Connect P21.7 with USR1 of miniWiggler JDS (not assembled)
R428 Connect P20.2 with USR1 of miniWiggler JDS (not assembled)
R429 Connect P21.6 (DAP3) with USR1 of DAP (assembled)
R430 Connect P20.2 with USR1 of DAP (not assembled)
R433 Connect P21.7 with ETK connector (not assembled)
R439 Connect P21.7 with ETK connector (not assembled)
R508 Connect pin MPS of TLF30682 to +3V3 (assembled)
R524 Connect VDDP3 to +3V3 (assembled)
Note: All resistors are red marked in the following figures.
User Manual 4-2 V1.2
TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0 2020-02
U201
JP501
D508
S502
R379
R3 8 3
R3 109
R3108
R3104
R3103
R3102
R3101
R3100
C320
R402
R403
CB408
Y401
U401
CB401
R401
L401
BU4 0 1
C402
CB405
C306
C310
X306
CB317
C311
C309
C318
CB318
CB319
L301
R382
U3 07
Y301
X406
R457
R249
R248
R246
R245
R2 4 4
C506
X601
R621
R622
R623
R624
R625
R6 26
R627
R628
R629
R630
R631
R632
X402
L503
S201
R377
CB202
R204
R205
X3 0 5 X304 X303
R236
R234
R2 32
R230
R361
R359
R212
D301
C303
U408U407
U406
R451
R455
R456
R4 54
R446
R444
CB419
CB418
CB417
CB416
CB415
CB414
D401
R430
R429
R423
R411
D402
U404
CB402
R344
R424
R425
R426
R427
R428
R201
R203
R202
C201
C20 2
R206
R2 07
Y201
R337R357
R324
R399
R391 R392 R393
R394
R395
R396 R397
CB309
R532
C301C302
R439
R531
R335
R336
R355
R356
U305
T301T30 2
X30 1X30 2
X703
X701
D302
D303
D304
D305
D306
D307
D308
D309
D505
D506
D507D504
X4 0 1
X501
S5 0 1
R354
R452
R213
CB201
R398
C505
C510
U501
L502
L501
C502
C507
C508
C5 01
C503
CB502
R255 R256
R390
R375
R376
R3 48
R349
S202
X502
X704
R346
R347
X702
X404
CB501
R250
R251
R252
CB511
CB203
X804
R378
R3111
R311 0
R3 10 7
R310 6
R3105
R3 10
C319
C317
C316
C315
C314
C313
C31 2
R417
R437
R438
R372
CB404
R405
R440
CB409
R416
R418
R41 9
R414
R420
C406
Q402
Q403
C404
C405
CB410
CB411
CB412
R441
R442
C4 0 1
R404
C403
CB413
L402
U405
C305
C307
C308
R388
R389
R384
R385
R370
CB311
CB312
CB313
CB314
CB315
CB316
RN3 01
L504
L201
CB209
CB208
C208
C207
C2 04
C2 03
R61 0
R609
R608
R607
R606
R60 5
R60 4
R603
R602
R601
R433
R523
RN302
C518
R431
R208
R408
R215
R214
U306
R521
R238
R240
R365
R364
R363
R362
R360
R211
CB310
C304
R449
R448
R447
R445
R443
R413
D403
R450
R422
R421
U403
Q401
R412
R415
R410
R409
CB407
R407
U402
R406
CB406
R305
R306
R3 08
R309
R3 15R316
R3 18
R319
R301
R311
R341
R340
R321
R322
R222
R220
R221
R524
R533
R323
R343
CB301
CB302
CB205
CB512
CB513 CB515
CB516
CB517
CB520
R537
R307
R317
R538
R534
R513
CB204
R535
R536
C515
R511
R512
R510
Q502
Q504
Q503
X802
X801
U301U302
R302
R342
CB303
CB304
CB305
CB306
CB307
CB308
R303
R304
R338
R330
R331
R358
R350
R351
U3 0 3
U304
R332
R334
R333
R352
R353
C519
R320
R2 16
R209
CB510
R520
D503
R505
R504
R506
D5 01
C509
D5 02
C504
R508
R509
R503
R2 3 1
R233
R235
R237
R239
R241
R312
R436
R373
R374
CB4 0 3
C209
C210
C211
CB514
C205
X803
TriBoard Manual TC3X6 ADAS
Hardware: TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0
TriBoard Configuration
Figure 4-2 Location of general optional resistors on Top Side
Figure 4-3 Location of general optional resistors on Bottom Side
User Manual 4-3 V1.2
TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0 2020-02
TriBoard Manual TC3X6 ADAS
Hardware: TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0
TriBoard Configuration
4.2.2 Resistors for peripherals
Table 4-3 Resistors for peripherals (default assembly in brackets)
Component Description
R220 Connect +5V with VDDM (assembled)
R221 Connect +3V3 with VDDM (not assembled)
R222 Connect VAREF1 with VDDM (assembled)
R301 Connect P20.7 with RXD of CAN0 transceiver (assembled)
R302 Connect P20.8 with TXD of CAN0 transceiver (assembled)
R303 Connect P14.1 with RXD of CAN0 transceiver (not assembled)
R304 Connect P14.0 with TXD of CAN0 transceiver (not assembled)
R311 Connect P10.8 with RXD of CAN1 transceiver (assembled)
R312 Connect P10.7 with TXD of CAN1 transceiver (assembled)
R320 Connect P02.0 with TXD of ERAY-A transceiver (assembled)
R321 Connect P02.4 with TXDEN of ERAY-A transceiver (assembled)
R322 Connect P02.1 with RXD of ERAY-A transceiver (assembled)
R323 Connect P10.1 with EN of ERAY-A transceiver (assembled)
R324 Connect P10.2 with ERRN of ERAY-A transceiver (assembled)
R340 Connect P02.2 with TXD of ERAY-B transceiver (assembled)
R341 Connect P02.5 with TXDEN of ERAY-B transceiver (assembled)
R342 Connect P02.3 with RXD of ERAY-B transceiver (assembled)
R343 Connect P20.10 with EN of ERAY-B transceiver (assembled)
R344 Connect P20.9 with ERRN of ERAY-B transceiver (assembled)
R348 Connect P15.4 with SCL of I2C Eeprom (assembled)
R349 Connect P15.5 with SDA of I2C Eeprom (assembled)
R364 Connect P15.1 with RXD of LIN1 transceiver (assembled)
R365 Connect P15.0 with TXD of LIN1 transceiver (assembled)
R310 Connect P11.5 with CLOCKOUT of Ethernet PHY (assembled)
R370 Connect P11.12 with RXC of Ethernet PHY (assembled)
R372 Connect P11.11 with RXCTL of Ethernet PHY (assembled)
R373 Connect P11.4 with TXC of Ethernet PHY (assembled)
R374 Connect P11.6 with TXCTL of Ethernet PHY (assembled)
R375 Connect P12.1 with MDIO of Ethernet PHY (assembled)
R376 Connect P12.0 with MDC of Ethernet PHY (assembled)
R377 Connect P10.3 with MDINT of Ethernet PHY (not assembled)
RN301 Connect P11.7...10 with RDX3...0 of Ethernet PHY (assembled)
RN302 Connect P11.0...3 with TDX3...0 of Ethernet PHY (assembled)
R436 Connect P14.0 with RXD of USB to UART (assembled)
R437 Connect P14.1 with TXD of USB to UART (assembled)
User Manual 4-4 V1.2
TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0 2020-02
U201
JP501
D508
S502
R379
R3 83
R3109
R3108
R3104
R3103
R3102
R3101
R3100
C320
R402
R403
CB408
Y401
U401
CB401
R401
L401
BU4 0 1
C402
CB405
C306
C310
X306
CB317
C311
C309
C318
CB318
CB319
L301
R382
U3 07
Y301
X406
R457
R249
R248
R246
R245
R2 44
C506
X601
R621
R622
R623
R624
R625
R6 26
R627
R628
R629
R630
R631
R632
X402
L503
S201
R377
CB202
R204
R205
X30 5 X304 X303
R236
R234
R2 32
R230
R361
R359
R212
D301
C303
U408U407
U406
R451
R455
R456
R4 54
R446
R444
CB419
CB418
CB417
CB416
CB415
CB414
D401
R430
R429
R423
R411
D402
U404
CB402
R344
R424
R425
R426
R427
R428
R201
R203
R202
C201
C20 2
R206
R2 07
Y201
R337R357
R324
R399
R391 R392 R393
R394
R395
R396 R397
CB309
R532
C301C302
R439
R531
R335
R336
R355
R356
U305
T301T30 2
X30 1X30 2
X703
X701
D302
D303
D304
D305
D306
D307
D308
D309
D505
D506
D507D504
X4 0 1
X501
S5 0 1
R354
R452
R213
CB201
R398
C505
C510
U501
L502
L501
C502
C507
C508
C5 01
C503
CB502
R255 R256
R390
R375
R376
R3 48
R349
S202
X502
X704
R346
R347
X702
X404
CB501
R250
R251
R252
TriBoard Manual TC3X6 ADAS
Hardware: TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0
TriBoard Configuration
Table 4-3 Resistors for peripherals (default assembly in brackets) (continued)
Component Description
R438 Connect P15.2 with RXD of USB to UART (not assembled)
R440 Connect P15.3 with TXD of USB to UART (not assembled)
Note: All resistors are red marked in the following figures
Figure 4-4 Location of peripheral resistors on Top Side
User Manual 4-5 V1.2
TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0 2020-02
CB511
CB203
X804
R378
R3111
R311 0
R3 10 7
R310 6
R3105
R3 10
C319
C317
C316
C315
C314
C313
C31 2
R417
R437
R438
R372
CB404
R405
R440
CB409
R416
R418
R41 9
R414
R420
C406
Q402
Q403
C404
C405
CB410
CB411
CB412
R441
R442
C4 0 1
R404
C403
CB413
L402
U405
C305
C307
C308
R388
R389
R384
R385
R370
CB311
CB312
CB313
CB314
CB315
CB316
RN3 01
L504
L201
CB209
CB208
C208
C207
C2 04
C2 03
R61 0
R609
R608
R607
R606
R60 5
R60 4
R603
R602
R601
R433
R523
RN302
C518
R431
R208
R408
R215
R214
U306
R521
R238
R240
R365
R364
R363
R362
R360
R211
CB310
C304
R449
R448
R447
R445
R443
R413
D403
R450
R422
R421
U403
Q401
R412
R415
R410
R409
CB407
R407
U402
R406
CB406
R305
R306
R3 08
R309
R3 15R316
R3 18
R319
R301
R311
R341
R340
R321
R322
R222
R220
R221
R524
R533
R323
R343
CB301
CB302
CB205
CB512
CB513 CB515
CB516
CB517
CB520
R537
R307
R317
R538
R534
R513
CB204
R535
R536
C515
R511
R512
R510
Q502
Q504
Q503
X802
X801
U301U302
R302
R342
CB303
CB304
CB305
CB306
CB307
CB308
R303
R304
R338
R330
R331
R358
R350
R351
U3 0 3
U304
R332
R334
R333
R352
R353
C519
R320
R2 16
R209
CB510
R520
D503
R505
R504
R506
D5 01
C509
D5 02
C504
R508
R509
R503
R2 3 1
R233
R235
R237
R239
R241
R312
R436
R373
R374
CB4 0 3
C209
C210
C211
CB514
C205
X803
TriBoard Manual TC3X6 ADAS
Hardware: TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0
TriBoard Configuration
Figure 4-5 Location of peripheral resistors on Bottom Side
4.2.3 Resistors for MMIC
Table 4-4 Resistors for MMIC (default assembly in brackets)
Component Description
R601 Connect P33.3 to MMIC0_IO8 (assembled)
R602 Connect P33.2 to MMIC0_IO7 (assembled)
R603 Connect P33.1 to MMIC0_IO6 (assembled)
R604 Connect /ESR0 to MMIC0_RESET_N (assembled)
R605 Connect P21.5 to MMIC0_IO5 (assembled)
R606 Connect P21.4 to MMIC0_IO4 (assembled)
R607 Connect P33.0 to MMIC0_IO2 (assembled)
R608 Connect P21.2 to MMIC0_OK (assembled)
R609 Connect P21.3 to MMIC0_IO3 (assembled)
R610 Connect P20.0 to MMIC0_IO1 (assembled)
Note: All resistors are red marked in the following figures
User Manual 4-6 V1.2
TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0 2020-02
CB511
CB203
X804
R378
R3111
R3110
R3 10 7
R3106
R3105
R3 10
C319
C317
C316
C315
C314
C313
C312
R417
R437
R438
R372
CB404
R405
R440
CB409
R416
R418
R419
R414
R420
C406
Q402
Q403
C404
C405
CB410
CB411
CB412
R441
R442
C4 01
R404
C403
CB413
L402
U405
C305
C307
C308
R388
R389
R384
R385
R370
CB311
CB312
CB313
CB314
CB315
CB316
RN3 0 1
L504
L201
CB209
CB208
C208
C207
C2 04
C2 03
R61 0
R609
R608
R607
R606
R60 5
R60 4
R603
R602
R601
R433
R52 3
RN302
C518
R431
R208
R408
R215
R214
U306
R521
R238
R240
R365
R364
R363
R362
R360
R211
CB310
C304
R449
R448
R447
R44 5
R443
R413
D403
R450
R422
R421
U403
Q401
R412
R415
R410
R409
CB407
R407
U402
R406
CB406
R305
R306
R3 08
R309
R3 15R316
R3 1 8
R319
R301
R311
R341
R34 0
R32 1
R322
R222
R220
R221
R524
R533
R323
R343
CB301
CB302
CB205
CB512
CB513 CB515
CB516
CB517
CB520
R537
R307
R317
R538
R534
R513
CB204
R535
R536
C515
R511
R512
R510
Q502
Q504
Q503
X802
X801
U301U302
R30 2
R34 2
CB303
CB304
CB305
CB306
CB307
CB308
R303
R304
R338
R330
R331
R358
R350
R351
U3 03
U304
R332
R334
R333
R352
R353
C519
R320
R2 1 6
R209
CB510
R520
D503
R505
R504
R506
D5 01
C509
D5 02
C504
R508
R509
R503
R2 31
R233
R235
R237
R239
R241
R312
R436
R373
R374
CB 4 0 3
C209
C210
C211
CB514
C205
X803
TriBoard Manual TC3X6 ADAS
Hardware: TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0
TriBoard Configuration
Figure 4-6 Location of MMIC resistors
User Manual 4-7 V1.2
TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0 2020-02
TriBoard Manual TC3X6 ADAS
Hardware: TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0
Signal (on board used) Description
5 Signal (on board used) Description
For more information about the signals please see the user manual/datasheet for TC3X6 ADAS and/or the
schematics of the board.
All not mentioned signals are not used on the board and can be used outside. Optional marked signals are used
only if they are connected (default is that they are not used on the board).
5.1 Power Signals
Table 5-1 Power Signals
Short name Description
VCC_IN Supply Input (3,5V...40V)
VIN Input Voltage of Power Supply Device
GND Ground
+3V3 Microcontroller Supply Voltage (VEXT and VDDP3) and Peripherals Supply
+5V Communication Supply Voltage (CAN, FLEXRAY) and ADC Supply Voltage
VDD Core Supply Voltage (1,25V)
VDDP3 Flash Power Supply Voltage (3,3V)
VFLEX Flexport Supply Voltage (3,3V)
VEXTOSC Oscillator Port Supply Voltage (3,3V)
VDDOSC Oscillator Core Supply Voltage (1,25V)
VSSOSC Oscillator Ground
VDDM ADC Analog Part Supply Voltage (5V or 3,3V selectable via 0R resistors)
VAREF1 ADC Reference Voltage 1 (VDDM)
VDD_USB Supply Voltage from USB (5V)
VDD_FT Supply Voltage FT2232HL device (3,3V)
5.2 Reset Signals
Table 5-2 Reset Signals
Short name Description
/PORST Power On Reset
/DBG_PORST Power On Reset from debug connectors
/ESR0 External Service Request 0 (Hardware Reset)
/ESR1 External Service Request 1 (Non Maskable Interrupt)
5.3 Config Signals
Table 5-3 Config Signals
Short name Description
P14.5 HWCFG1 (EVR33OFF / EVR33ON)
P14.2 HWCFG2 (EVRCOFF / EVRCON)
User Manual 5-1 V1.2
TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0 2020-02
TriBoard Manual TC3X6 ADAS
Hardware: TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0
Signal (on board used) Description
Table 5-3 Config Signals (continued)
Short name Description
P14.4 HWCFG6 (Pins in tristate / Pins with pull-up)
P14.3 HWCFG3 (Boot from pins / Boot from Flash BMI)
P10.5 HWCFG4 (see boot configuration Table 4-1)
P10.6 HWCFG5 (see boot configuration Table 4-1)
5.4 Clock Signals
Table 5-4 Clock Signals
Short name Description
XTAL1 Crystal Oscillator Input
XTAL2 Crystal Oscillator Output
5.5 Debug Signals
Table 5-5 Debug Signals
Short name Description
/TRST Test Reset
DAP0 Device Access Port Line 0 / Test Data Clock (TCK)
DAP1 Device Access Port Line 1 / Test Data Select (TMS)
DAP2 Device Access Port Line 2 / Test Data Output (TDO)
P21.6 Test Data Input (TDI)
DAP0_A DAP0 / TCK from debug connectors
DAP1_A DAP1 / TMS from debug connectors
P21.7 DAP2 / TDO from debug connectors
P20.2 Test Mode Select Input
P20.0 TriCore Breakpoint Output
5.6 Peripheral Signals
Table 5-6 Peripheral Signals
Short name Description
P14.1 ASCLIN0 Receive Input A
CAN01 Receive Input B (optional)
P14.0 ASCLIN0 Transmit Output
CAN01 Transmit Output (optional)
P15.3 ASCLIN0 Receive Input B (optional)
P15.2 ASCLIN0 Transmit Output (optional)
P15.1 ASCLIN1 Receive Input A
P15.0 ASCLIN1 Transmit Output
P15.4 I2C0 Serial Clock
User Manual 5-2 V1.2
TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0 2020-02
TriBoard Manual TC3X6 ADAS
Hardware: TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0
Signal (on board used) Description
Table 5-6 Peripheral Signals (continued)
Short name Description
P15.5 I2C0 Serial Data Input C und Output
P20.7 CAN00 Receive Input B
P20.8 CAN00 Transmit Output
P10.8 CAN12 Receive Input B
P10.7 CAN12 Transmit Output
P02.0 E-Ray Channel A Transmit Data Output
P02.4 E-Ray Channel A Transmit Data Output enable
P02.1 E-Ray Channel A Receive Data Input 2
P10.1 E-Ray Channel A Enable Output
P10.2 E-Ray Channel A Error Input
P02.2 E-Ray Channel B Transmit Data Output
P02.5 E-Ray Channel B Transmit Data Output enable
P02.2 E-Ray Channel B Receive Data Input 2
P20.10 E-Ray Channel B Enable Output
P20.9 E-Ray Channel B Error Input
TXD3 Ethernet TXD3 Output (P11.0)
TXD2 Ethernet TXD2 Output (P11.1)
TXD1 Ethernet TXD1 Output (P11.2)
TXD0 Ethernet TXD0 Output (P11.3)
TXCLK Ethernet TXCLK Output (P11.4)
REFCLK Ethernet GREFCLK Input (P11.5)
TCTL Ethernet TCTL Output (P11.6)
RXD3 Ethernet RXD3 Input A (P11.7)
RXD2 Ethernet RXD2 Input A (P11.8)
RXD1 Ethernet RXD1 Input A (P11.9)
RXD0 Ethernet RXD0 Input A (P11.10)
RCTL Ethernet RCTL Input A (P11.11)
RXCLK Ethernet RXCLK Input A (P11.12)
P12.0 Ethernet Management Data Clock Output (MDC)
P12.1 Ethernet Management Data Input/Output (MDIO)
P10.3 Ethernet MD Interrupt Input (optional)
P14.6 QSPI2 Slave Select Output 2 for SCS of TLF30682
P15.3 QSPI2 Master Clock Output for SCL of TLF30682
P15.6 QSPI2 Master Transmit Output for SDI of TLF30682
P15.2 QSPI2 Master Receive Input E for SDO from TLF30682
P02.7 Output for Watchdog Input of TLF30682
P33.8 Connected to TM2 (pin 44) of TLF30682 (invalid connection)
P33.9 Connected to NC (pin 2) of TLF30682 (invalid connection)
User Manual 5-3 V1.2
TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0 2020-02
TriBoard Manual TC3X6 ADAS
Hardware: TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0
Signal (on board used) Description
Table 5-6 Peripheral Signals (continued)
Short name Description
P20[11...14] On board LED’s
P33[4...7] On board LED’s
5.7 MMIC / RIF Signals
Table 5-7 MMIC / RIF Signals
Short name Description
RIF0_D1_N / P50.0 RIF0 Data Bit Channel 1 Negative Input
RIF0_D1_P / P50.1 RIF0 Data Bit Channel 1 Positive Input
RIF0_D2_N / P50.2 RIF0 Data Bit Channel 2 Negative Input
RIF0_D2_P / P50.3 RIF0 Data Bit Channel 2 Positive Input
RIF0_D3_N / P50.9 RIF0 Data Bit Channel 3 Negative Input
RIF0_D3_P / P50.8 RIF0 Data Bit Channel 3 Positive Input
RIF0_D4_N / P50.11 RIF0 Data Bit Channel 4 Negative Input
RIF0_D4_P / P50.10 RIF0 Data Bit Channel 4 Positive Input
RIF0_CLK_N / P50.4 RIF0 Serial Clock Negative Input
RIF0_CLK_P / P50.5 RIF0 Serial Clock Positive Input
RIF0_FR_N / P50.7 RIF0 Frameclock Negative Input
RIF0_FR_P / P50.6 RIF0 Frameclock Positive Input
P20.3 QSPI2 Slave Select Output 9
P20.6 QSPI2 Slave Select Output 8
P33.13 QSPI2 Slave Select Output 6
P15.3 QSPI2 Master Clock Output
P15.6 QSPI2 Master Transmit Output
P15.2 QSPI2 Master Receive Input E
User Manual 5-4 V1.2
TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0 2020-02
TriBoard Manual TC3X6 ADAS
Hardware: TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0
Connector Pin Assignment
6 Connector Pin Assignment
The TriBoard will be shipped with four male (plug) connectors on top layer and four female (socket) connectors
on bottom layer. The default connectors are 80-pol. Board to Board connectors from Samtec:
http://www.samtec.com
Plug:
FTSH-140-02-L-DV-ES-A
Socket:
FLE-140-01-G-DV-A
6.1 On Board only used signals
Following port pins are only used on board and are not connected to any connector also not via resistor:
Table 6-1 On Board only used Signals
Short name Description
P32.0 Not yet used
P32.1 Not yet used
P14.2 Used as HWCFG2
P14.4 Used as HWCFG6
P14.5 Used as HWCFG1
P14.6 Used as Slave Select Output (SLSO22) to TLF30682
P11.0 Used as Gigabit Transmit Data Output 3 for RGMII
P11.1 Used as Gigabit Transmit Data Output 2 for RGMII
P11.2 Used as Gigabit Transmit Data Output 1 for RGMII
P11.3 Used as Gigabit Transmit Data Output 0 for RGMII
P11.4 Used as Gigabit Transmit Clock Output for RGMII
P11.5 Used as Gigabit Reference Clock input for RGMII (125 MHz high precision)
P11.6 Used as Gigabit Transmit Control Output for RGMII
P11.7 Used as Gigabit Receive Data Input 3 for RGMII
P11.8 Used as Gigabit Receive Data Input 2 for RGMII
P11.9 Used as Gigabit Receive Data Input 1 for RGMII
P11.10 Used as Gigabit Receive Data Input 0 for RGMII
P11.11 Used as Gigabit Receive Data Control Input for RGMII
P11.12 Used as Gigabit Receive Clock Input for RGMII
User Manual 6-1 V1.2
TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0 2020-02
GND
12
GND GND
12
GND
GND
34
GND GND
34
GND
56
P21.6 VCC_IN
56
VCC_IN
78
P21.7 VCC_IN
78
VCC_IN
P50.0
910 910
P50.1
11 12 11 12
P50.2
13 14 13 14
P50.3
15 16
/ESR1
15 16
/ESR0
P50.4
17 18 17 18
P50.5
19 20
GND
19 20
GND
P50.6
21 22 21 22
/PORST
P50.7
23 24
P10.5
23 24
P50.8
25 26 25 26
P50.9
27 28
P10.2
27 28
P23.1
P50.10
29 30 29 30
P50.11
31 32 31 32
33 34 33 34
35 36 35 36
37 38
P20.9
37 38
P20.10
39 40
P20.13
39 40
41 42
P33.5
41 42
P20.6
43 44
P20.3
43 44
P20.2
45 46
P00.0
45 46
47 48 47 48
49 50
P21.2 GND
49 50
GND
51 52
P21.3 XTAL1
51 52
P32.4
53 54
P21.4 XTAL2
53 54
55 56
P21.5 P15.3
55 56
P15.5
57 58
P15.2
57 58
P15.4
59 60
P14.1
59 60
P15.1
61 62
P14.0
61 62
P15.0
63 64
P20.11
63 64
65 66
P20.14
65 66
67 68
P20.12
67 68
69 70
P20.7
69 70
P20.8
71 72
P20.0
71 72
P10.8
73 74
P10.7
73 74
P10.3
75 76 75 76
GND
77 78
+3V3
77 78
+3V3
P21.0
79 80
+3V3
79 80
+3V3
RIF (X701,X8 01) PERIPHERALS (X702,X80 2)
TriBoard Manual TC3X6 ADAS
Hardware: TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0
Connector Pin Assignment
6.2 TC356 Connector / Top View
Figure 6-1 Connector for TC356 - Pinout (Part I, Top View)
User Manual 6-2 V1.2
TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0 2020-02
GND
12
GND GND
12
GND
GND
34
GND GND
34
GND
AN0
56 56
P11.14
AN1
78 78
P11.15
AN2
910
P02.0
910
AN3
11 12
P02.1
11 12
13 14
P02.2
13 14
15 16
P02.3
15 16
17 18
P02.4
17 18
19 20
P02.5
19 20
AN8
21 22 21 22
23 24 23 24
AN10
25 26 25 26
P15.6
AN11
27 28 27 28
AN12
29 30 29 30
31 32 31 32
33 34
P10.1
33 34
35 36
P10.6
35 36
GND
37 38
GND P12.0
37 38
VDDM
39 40
VAREF1 P12.1
39 40
GND
41 42 41 42
GND
43 44
GND
43 44
45 46 45 46
47 48 47 48
49 50 49 50
51 52 51 52
53 54 53 54
55 56 55 56
P33.8
57 58 57 58
P33.9
59 60 59 60
P33.10
GND
61 62
GND
61 62
P33.13
P33.3
63 64
P33.6
63 64
P33.2
65 66
P33.0
65 66
P33.1
67 68
P33.4 P11.13
67 68
+3V3
69 70
+3V3
69 70
P02.6
71 72 71 72
P02.7
73 74 73 74
P02.8
75 76
VFLEX
75 76
P33.7
77 78
P14.3 +3V3
77 78
+3V3
P33.11
79 80
P33.12 +3V3
79 80
+3V3
ADC (X703, X803) PORTS (X704,X804)
TriBoard Manual TC3X6 ADAS
Hardware: TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0
Connector Pin Assignment
Figure 6-2 Connector for TC356 - Pinout (Part II, Top View)
User Manual 6-3 V1.2
TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0 2020-02
GND
12
GND GND
12
GND
GND
34
GND GND
34
GND
56
P21.6 VCC_IN
56
VCC_IN
78
P21.7 VCC_IN
78
VCC_IN
P50.0
910 910
P50.1
11 12 11 12
P50.2
13 14 13 14
P50.3
15 16
/ESR1
15 16
/ESR0
P50.4
17 18 17 18
P50.5
19 20
GND
19 20
GND
P50.6
21 22 21 22
/PORST
P50.7
23 24
P10.5
23 24
P50.8
25 26 25 26
P50.9
27 28
P10.2
27 28
P23.1
P50.10
29 30 29 30
P50.11
31 32 31 32
33 34 33 34
35 36 35 36
37 38
P20.9
37 38
P20.10
39 40
P20.13
39 40
41 42
P33.5
41 42
P20.6
43 44
P20.3
43 44
P20.2
45 46
P00.0
45 46
47 48 47 48
49 50
P21.2 GND
49 50
GND
51 52
P21.3 XTAL1
51 52
P32.4
53 54
P21.4 XTAL2
53 54
55 56
P21.5 P15.3
55 56
P15.5
57 58
P15.2
57 58
P15.4
59 60
P14.1
59 60
P15.1
61 62
P14.0
61 62
P15.0
63 64
P20.11
63 64
65 66
P20.14
65 66
67 68
P20.12
67 68
69 70
P20.7
69 70
P20.8
71 72
P20.0
71 72
P10.8
73 74
P10.7
73 74
P10.3
75 76 75 76
GND
77 78
+3V3
77 78
+3V3
P21.0
79 80
+3V3
79 80
+3V3
RIF (X701,X801) PERIPHERALS (X702,X802)
TriBoard Manual TC3X6 ADAS
Hardware: TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0
Connector Pin Assignment
6.3 TC336DA Connector / Top View
Figure 6-3 Connector for TC336DA - Pinout (Part I, Top View)
User Manual 6-4 V1.2
TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0 2020-02
GND
12
GND GND
12
GND
GND
34
GND GND
34
GND
AN0
56
AN16
56
P11.14
AN1
78
AN17
78
P11.15
AN2
910
P02.0
910
AN3
11 12
P02.1
11 12
AN4
13 14
AN20 P02.2
13 14
AN5
15 16
AN21 P02.3
15 16
17 18
P02.4
17 18
19 20
P02.5
19 20
AN8
21 22 21 22
AN9
23 24 23 24
AN10
25 26 25 26
P15.6
AN11
27 28 27 28
AN12
29 30 29 30
AN13
31 32 31 32
AN14
33 34
P10.1
33 34
AN15
35 36
P10.6
35 36
GND
37 38
GND P12.0
37 38
VDDM
39 40
VAREF1 P12.1
39 40
GND
41 42 41 42
GND
43 44
GND
43 44
45 46 45 46
47 48 47 48
49 50 49 50
51 52 51 52
53 54 53 54
55 56 55 56
P33.8
57 58 57 58
P33.9
59 60 59 60
P33.10
GND
61 62
GND
61 62
P33.13
P33.3
63 64
P33.6
63 64
P33.2
65 66
P33.0
65 66
P33.1
67 68
P33.4 P11.13
67 68
+3V3
69 70
+3V3
69 70
P02.6
71 72 71 72
P02.7
73 74 73 74
P02.8
75 76
VFLEX
75 76
P33.7
77 78
P14.3 +3V3
77 78
+3V3
P33.11
79 80
P33.12 +3V3
79 80
+3V3
ADC (X703, X803) PORT S (X704,X 804)
TriBoard Manual TC3X6 ADAS
Hardware: TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0
Connector Pin Assignment
Figure 6-4 Connector for TC336DA - Pinout (Part II, Top View)
User Manual 6-5 V1.2
TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0 2020-02
+3,5V...40V
GND
D+
D-
VCC
GND
ID
2 468
GND
BP
BM
13579
1
0
2 468
GND
CANH
CANL
13579
1
0
GND
TriBoard Manual TC3X6 ADAS
Hardware: TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0
Connector Pin Assignment
6.4 Power connector pinout
Figure 6-5 Power connector pinout (Roka 520 2550)
6.5 USB connector pinout
Figure 6-6 USB connector pinout (Micro USB B-type)
6.6 FlexRay™ (ERAY) connector pinout
Figure 6-7 FlexRay™ (ERAY) connector pinout (IDC10)
6.7 CAN connector pinout
Figure 6-8 CAN connector pinout (IDC10)
User Manual 6-6 V1.2
TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0 2020-02
2 468
GND
BUS
VIN opt
13579
1
0
GND
J2J1J3J4J5J6J7
J8
2468
13579
10 12 14 16
11 13 15
MMIC_IO8
RIF_D1_P
18 20 22
17 19 21
GND
GND
GND
24
23
2625282730293231343336353837403942414443464548475049525154535655585760
59
RIF_D1_N
GND
RIF_D2_P
RIF_D2_N
GND
RIF_D3_P
RIF_D3_N
GND
RIF_D4_P
RIF_D4_N
GND
RIF_CLK_P
RIF_CLK_N
GND
RIF_FR_P
RIF_FR_N
GND
GND
GND
GND
GND
MMIC_IO7
MMIC_IO6
MMIC_RESET_N
MMIC_IO5
MMIC_IO4
MMIC_IO2
MMIC_OK
MMIC_IO3
MMIC_IO1
SPI_CS0
SPI_CS1
SPI_CS2
SPI_SCLK
SPI_SI
SPI_SO
GND
TriBoard Manual TC3X6 ADAS
Hardware: TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0
Connector Pin Assignment
6.8 LIN connector pinout
Figure 6-9 LIN connector pinout (IDC10)
6.9 Ethernet connector pinout
Figure 6-10 Ethernet connector pinout (RJ45)
6.10 MMIC / RIF connector pinout
Figure 6-11 MMIC / RIF connector pinout (Samtec QSH-030)
User Manual 6-7 V1.2
TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0 2020-02
TDO
2 468
13579
10 12 14 16
11 13 15
TDI
/TRST
TCK
/BRKIN
TMS
GND
GND
/PORST
/BRKOUT
GND
+3V3
DAP0
2 468
13579
10
USR1_IO
/PORST
USR0_IO
DAP1
GND
GND
Key
GND
+3V3
TriBoard Manual TC3X6 ADAS
Hardware: TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0
Connector Pin Assignment
6.11 OCDS1 connector pinout
Figure 6-12 OCDS1 connector pinout (IDC16)
6.12 DAP connector pinout
Figure 6-13 DAP connector pinout (Samtec FTSH10)
User Manual 6-8 V1.2
TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0 2020-02
TDO / DAP2
2 468
13579
10
+3V3
/PORST
TDI
TCK / DAP0
/TRST
TMS / DAP1
BRKIO
/ESR0
GND
2
4
1
3
WAKEUP
VDDSB
VCC_IN
GND
TriBoard Manual TC3X6 ADAS
Hardware: TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0
Connector Pin Assignment
6.13 ETK connector pinout
Figure 6-14 ETK connector pinout (Samtec TFM-105)
6.14 Ethernet miniWiggler power connector pinout
Figure 6-15 Ethernet miniWiggler connector pinout (JST B4B-PH)
User Manual 6-9 V1.2
TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0 2020-02
TriBoard Manual TC3X6 ADAS
Hardware: TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0
Schematic and Layout
7 Schematic and Layout
7.1 Known problems
7.1.1 Known problems (TriBoard TC3X6 ADAS TH V1.0)
No problems known.
7.1.2 Known problems (TriBoard TC3X6 ADAS V1.0)
No problems known.
7.2 Schematic
7.2.1 Hint about used TLF30682
Schematic was prepared for another device which will not be available. Therefore some names in the symbol of
U501 don’t match with the pin names of TLF30682 and should be changed (no functional issue if not other
mentioned, only name change):
Pin 1 from AGS1 to AG5
Pin 2 from SSO to NC (don’t connect any signal to this pin)
Pin 3 from AGS2 to AG6
Pin 5 from AG1 to NC (don’t connect any signal to this pin)
Pin 17 from AG2 to AG1
Pin 18 from GST to AG2
Pin 30 from R3PG2 to R3PG1
Pin 32 from FRE to TM1
Pin 44 from ERR to TM2 (connect this pin directly to ground)
User Manual 7-1 V1.2
TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0 2020-02
TriBoard Manual TC3X6 ADAS
Hardware: TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0
Schematic and Layout
8
7
/ESR0
XTAL[1..2]
Connector Plug
PORT[00..51] AN[0..21]
NC1[5..80]
6
AN[0..21]
XTAL[1..2]
/ESR0
/PORST
/ESR1
5
Connectm.sch
NC2[5..80]
/PORST
NC3[5..80]
/ESR1
NC4[5..80]
Connectf.sch
NC4[5..80]
NC3[5..80]
NC2[5..80]
NC1[5..80]
PORT[00..51]
AN[0..21]
XTAL[1..2]
Connector Socket
NC4[5..80]
NC3[5..80]
/ESR0
NC2[5..80]
/PORST
NC1[5..80]
/ESR1
TriBoard TC3X6 ADAS Project
PORT[00..51]
8
ATV MC ACE ATV CES
Am Campeon 1-12
D-85579 Neubiberg
Tel.: +49-89-234-0
Infineon Technologies AG
7
8
1
26.10.2018
1.0Revision:
G:\Technical_Support\TriCore\TriBoard\EDA_DXP\TriBoard AURIX 2G\TriBoard TC3X6 ADAS\TriBoard TC3X6 ADAS V1.X\TriBoard_TC3X6_ADAS_V10.prj
File:
Sheet: of
Number:
Date:
6
5
GETH..
PORT[00..51]
4
GETH..
XTAL[1..2]
AN[0..21]
Clock, Config, Debug, Ports and ADC
Clk_Cfg_Dbg_Ports_Adc.sch
3
DEBUG..
DEBUG..
DEBUG..
/PORST
PORT[00..51]/ESR0
PORT[00..51]
PORT[00..51]/ESR0
PORT[00..51]
4
3
RIF
2
miniWiggler and Debug Connectors
wiggler_Dbg_con.sch
1
On Board Peripherals
GETH..
Peripherals.sch
/ESR0
Rif.sch
Power Supply
/ESR0
Supply.sch
/PORST
2
/ESR1
1
A A
B B
C C
D D
Figure 7-1 Schematic - Project
User Manual 7-2 V1.2
TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0 2020-02
TriBoard Manual TC3X6 ADAS
Hardware: TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0
Schematic and Layout
8
7
+3V3
R209
0R
CB201
330n
VSSOSC
VEXTOSC
VDD
R208
0R
GND
R213
M14
VDDOSC
M13
CB202
330n
K14
VSSOSC
33R
F14
DEBUG..
DAP2
DEBUG..
PORT[00..34]
PORT[00..34]
+3V3
R211
L201
0R
CB209
100n
GND
GND
GETH..
100n
BLM18BB100SN1D
CB208
8
ATV MC ACE ATV CES
Am Campeon 1-12
D-85579 Neubiberg
Tel.: +49-89-234-0
Infineon Technologies AG
7
7
VDDOSC
VEXTOSC
VSS (VSSOSC)
P21.7 / TDO / DAP2
opt
GND
VSSOSC
XTAL1
L14
R207
Y201
12
R206
opt
R2040RR205
XTAL1
JTAG / DAP / OCDS1
XTAL2
L13
K12
0R
/TRST
20MHz
C202
C201
0R
XTAL2
TCK / DAP0
TRST
G11
G14
R212
DAP0
DAP1
10pF
10pF
+5V +3V3
P21.6 / TDI
TMS / DAP1
F13
33R
DAP0
VSSOSC VSSOSC
TC3X6_ADAS
DAP0_A
R214
0R
R221
1R2_opt
FOR 3,3V ADC
R220
1R2
FOR 5V ADC
DAP1
DAP1_A
R215
0R
R255
47K
+3V3
R256
S202
CB204
470n
GND
VDDM
R222
6R8
CB205
2,2μF
GND
VAREF1
P4
P2
P3
VDDM
VAREF1
EVADC
U201E
VSSM / VAGND1
AN0N6AN1P6AN2L6AN3
AN8N5AN10P5AN11N4AN12
NC (AN4)L5NC (AN5)M5NC (AN9)L4NC (AN13)N3NC (AN14)N2NC (AN15)N1NC (AN16)K4NC (AN17)K3NC (AN20)L3NC (AN21)
M6
AN4
AN5
AN8_I
AN9
AN3_I
AN2_I
AN1_I
AN0_I
1K5
P33.11
P21.7
R216
DAP2
GND
AN11_I
AN10_I
M4
AN12_I
CLOCK & TESTMODE
P20.2 / TESTMODE
U201B
6
5
4
3
2
G13
R201
10K
+3V3
P20.2
R202
R203
50R_opt
XTAL[1..2]
XTAL[1..2]
P14.0
A9
P14.0 / ATX0
P21.6
P20.2
ON BOARD USED PERIPHERALS / PINS
P14.1 / ARX0A
U201C
B10
0R
P14.1
P33.11
U201D
M3
AN15
AN14
AN13
AN16
AN17
AN20
AN21
P15.0
F12
A13
P15.0 / ATX1
P20.8 / CAN00_TXD
ASCLIN
P15.1 / ARX1A
P20.7 / CAN00_RXDB
E12
A12
P15.1
P20.7 P20.8
P21.5
P21.3
P21.4
J14
J13
H14
P21.3
P21.4
P21.5
PORTS
P00.0
P02.6L2P02.8
M2
P00.0
P02.6
TC3X6_ADAS
P15.3
P15.6
P10.7
P02.7
P33.8
A11
K2
H3
L9
A10
P02.7
P15.6 / MTSR2
P15.3 / SCLK2
P10.7 / CAN12_TXD
CAN
QSPI / TLF35584
P14.6 / SLSO22
P15.2 / MRST2E
P10.8 / CAN12_RXDB
C9
G3
P10
B12
P10.8
P14.6
P15.2
P33.9
P23.1
P32.4
P33.0
P33.1
P13
N14
P32.4
P33.0M9P33.1M8P33.2P8P33.3
P23.1
P20.3
P20.0
L1
G12
H13
P02.8
P20.3
P20.0
P02.2
P02.3
P02.5
P33.10
J2
M1
J3
N11
P33.10
P02.2 / TXD0B
P02.3 / RXD0B2
P02.5 / TXEN0B
P33.8 / SMU_FSP0
P33.9
P02.0 / TXD0A
P02.1 / RXD0A2
P02.4 / TXEN0A
J1
K1
H4
P02.1
P02.4
P02.0
P33.2
P33.3
P33.12
P33.13
M11
N8
M10
P33.12
P33.13 (NC)
P20.6
P21.2
P21.0
F11
K13
H12
P20.6
P21.0
P21.2
P15.4
P20.9
P20.10
B11
D12
C14
P20.10
P15.4 / SCL
P20.9 / REQ7_0
I2C
ERAY
P15.5 / SDA0
P10.2 / REQ2_0
P10.1
F3
E3
D10
P10.1
P15.5
P10.2
TC3X6_ADAS
HWCFG
P14.5 / HWCFG1
P14.2 / HWCFG2
P14.3 / HWCFG3
B9
D9
C11
P14.2
P14.3
P14.5
R239
+3V3
BUTTON
P14.4 / HWCFG6
P10.5 / HWCFG4
P10.6 / HWCFG5
F4
E4
C10
N10
P10.6
P14.4
P10.5
P33.11
P14.2
47K_opt
+3V3
R238
1K5
P33.11
P33.4
P33.5
N9
P33.4L8P33.6
LEDs
P20.11
D14
D13
P20.12
P20.11
P14.5
R241
47K_opt
R240
P33.6
P9
P33.5
P20.12
C13
P20.13
P20.13
1K5
P33.7
L10
P33.7
P20.14
B14
P20.14
+3V3
GND
P12.0
P12.1
A8
C8
P12.0 / MDC
P12.1 / MDIO
GIGABIT ETHERNET
P11.14B8P11.15C6P11.13
C7
P11.13
P11.14
R231
47K
R230
TXCLK
TDX0
B6
C5
P11.3 / TXD0
P11.4 / TXCLK
P11.5 / GREFCLK
P10.3 / REQ3_0
B5
G4
REFCLK
P11.15
P10.3
P14.4
+3V3
1K5
HWCFG6
TDX1
TDX2
TDX3
TCTL
VFLEX
A5
A6
B7
A7
P11.6 / TCTL
P11.2 / TXD1
P11.1 / TXD2
P11.0 / TXD3
P11.12 / RXCLKA
P11.9 / RXD1A
P11.10 / RXD0A
B3
C4
A4
A3
RXCLK
RDX0
RDX1
RDX2
P10.5
R233
47K
R232
HWCFG4
123
1
S201
876
CB203
D5
GND
VFLEX
P11.11 / RCTLA
P11.7 / RXD3A
P11.8 / RXD2A
TC3X6_ADAS
B4
D6
RDX3
RCTL
R235
+3V3
1K5
4
5
100n
2
26.10.2018
1.0Revision:
G:\Technical_Support\TriCore\TriBoard\EDA_DXP\TriBoard AURIX 2G\TriBoard TC3X6 ADAS\TriBoard TC3X6 ADAS V1.X\Clk_Cfg_Dbg_Ports_Adc.sch
File:
Sheet: of
TriBoard TC3X6 ADAS Clock, Config, Debug, Ports, ADC
Number:
Date:
GETH..
P10.6
47K
R234
HWCFG5
DIPSW-4
GND
+3V3
1K5
R237
P14.3HWCFG3
47K
R236
6
5
4
3
1K5
2
AN[0..21]
Switch ON means the corresponding signal is low.
Switch OFF means the corresponding signal is high.
AN0
1
AN[0..21]
R244
A A
Figure 7-2 Schematic -
4K7
AN0_I
C203
AN1
47nF
R245
4K7
GND
AN1_I
C204
AN2
47nF
R246
4K7
GND
AN2_I
C205
AN3
47nF
R248
4K7
GND
B B
C207
AN8
47nF
R249
GND
Clock, Config, Debug, Ports and ADC
AN8_I
4K7
C208
AN10
AN10_I
AN11
AN11_I
AN12
AN12_I
47nF
GND
R250
C209
47nF
4K7
C C
GND
R251
C210
47nF
4K7
GND
R252
C211
47nF
4K7
GND
(about configuration see the manual of assembled device)
NOTE: S201 is for device configuration
D D
1
User Manual 7-3 V1.2
TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0 2020-02
TriBoard Manual TC3X6 ADAS
Hardware: TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0
Schematic and Layout
246
8
13579
X303
10
ERAY-A
8
GND
GND
X304
246
13579
8
10
ERAY-B
8
GND
R336
246
8
10
13579
X301
CAN0
7
6
5
4
3
2
1
R306
+3V3
+5V
+3V3 +3V3
PORT[00..51]
PORT[00..51]
R3080RR309
0R
5
U301
3
CB301
GND
R347
R346
P20.14
P20.13
P20.12
P20.11
P33.7
P33.6
P33.5
P33.4
R307
7
VIO
CANH
RXD
4
100n
R301
P20.7
P15.4
R3480RR349
2K
2K
U305
4
+3V3
R398
100R
R397
100R
R396
100R
R395
100R
R394
100R
R393
100R
R392
100R
R391
100R
120R
6
0R
R302
P20.8
1
VCC
8
CANL
TXD1VCC
2
3
SCL
CB309
0R
STB
GND
R303
0R
SDA
R305
TLE9251VSJ
0R_opt
R304
P14.0
P14.1
P15.5
0R
VSS
24AA02E48-E/OT
2
100n
GND
+3V3
R399
LB T673
D309
LB T673
D308
LB T673
D307
LB T673
D306
LB T673
D305
LB T673
D304
LB T673
D303
LB T673
D302
R390
+3V3
0R_opt
0R
D301
VIN
0R
0R
U306
132
+3V3
GND
5
7
+3V3
GND
GND
VS
R363
VIN
CB310
C303
R316
+5V
R361
3
100n
22μF/50V
BAT54-04
X302
R3180RR319
R317
0R
5
7
VIO
CANH
RXD
U302
4
3
100n
CB302
GND
R311
P10.8
P15.1
R364
0R
10K
10K
4
1
WK
TXD
RXD
INH8BUS
GND
GND
R360
1K
GND
246
13579
X305
246
13579
120R
6
CANL
TXD1VCC
0R
R312
P10.7
P15.0
R365
+3V3
R362
2
EN
6
R359
GND
0R
8
STB
GND
2
0R
0R
0R
C304
VIN
8
8
10
TLE9251VSJ
TLE7259-3GE
1n
0R_opt
10
GND
LIN1
R315
CAN1
0R
GND
+3V3
R3200RR322
P02.0
REFCLK
GETH..
GETH..
RN302
22R
TDX0
TDX1
TDX2
TDX3
22R
22R
TCTL
TXCLK
RDX0
RDX1
RDX2
RDX3
RCTL
RXCLK
R374
R373
51R
R335
51R
34
+3V3
T301
1 2
B82789-C0104
+5V
VIN
BPA
BMA
11
14
15
16
BP
BM
VDD
VBAT
TXD4BGE7TXDEN5RXD6EN2STBN8RXEN9ERRN
U303
R330
ENA
TXDA
TXENA
RXDA
BGEA
R338
4K7
+3V3
R323
R321
0R
0R
P10.1
P02.1
P02.4
GND
C320
opt
opt
R3105
+3V3
opt
R3104
4K7
R3103
opt
R3102
opt
R3101
4K7
R3100
C301
10nF
R337
0R
GND
100n
CB305
100n
CB304
100n
CB303
GND GND GND
R334
opt
GND
R333
opt
INHA
GND GND
1
3
12
13
INH
VIO
GND
WAKE
TLE9221SX
10
R332
opt
ERRNA
R324
P10.2
P10.3
R377
R372
RN301
0R
P12.1
330R_opt
R375
R3111
R3110
R3109
R3108
R3107
R3106
P12.0
R376
0R
4K7
4K7
opt
4K7
4K7
opt
0R
R310
GND
C319
GND
22R
U307
35
13
14
31
18
17
16
15
19
20
25
24
23
22
26
27
opt
X306
+3V3
RTL8211F
22443355668
4K7
R331
4K7
0R
R379
1K5
+3V3
R378
4K7
+3V3
22R
22R
R370
22R
34
T302
1 2
BPB
BMB
14
15
BP
BM
TXD4BGE7TXDEN5RXD6EN2STBN8RXEN9ERRN
U304
TXDB
TXENB
R358
4K7
R342
R341
0R
R340
0R
P02.5
P02.2
GND
GND
27pF
C310
C311
Y301
13
36
37
CLKOUT
MDC
MDIO
INTB / PMEB
XTAL_IN
XTAL_OUT
TXD0
TXD1
TXD2
TXD3
TXCTL
TXC
RXD0
RXD1
RTL8211F
RXD2
RXD3
RXCTL
RXC
MDIN02MDIP0
MDIN15MDIP14MDIN27MDIP26MDIN310MDIP3
1
MDI0_P
MDI0_N
MDI1_P
MDI1_N
MDI2_P
GND
7
7
GND
R356
51R
R355
51R
B82789-C0104
+5V
VIN
11
VBAT
ENB
RXDB
BGEB
0R
P02.3
/ESR0
27pF
NX3225SA-25MHz
12
PHYRSTB
9
MDI2_N
MDI3_P
MDI3_N /ESR0
9
8
9
C302
10nF
R357
0R
GND
ATV MC ACE ATV CES
Am Campeon 1-12
D-85579 Neubiberg
100n
VIO
GND
C
39
4K7
10n
4K7
R351
0R
RSET
LED032LED133LED2
CB308
100n
CB307
100n
CB306
GND GND GND
R354
opt
GND
R353
opt
INHB
GND GND
1
12
13
INH
GND
WAKE
TLE9221SX
10
R352
opt
GND
ERRNB
4K7
R344
0R
P20.9
+3V3
R382
2K49/1%
GNDGND
HS
EPAD
DVDD33
29
DVDD_RG
28
AVDD33
11
AVDD33
40
REG_OUT / LDO_OUT
30
AVDD10
3
AVDD10
8
AVDD10
38
DVDD10
21
34
GND
R389
510R
510R
+3V3
R388
LYK
LYA
LGA
LGK
LYK
LYA
LGA
LGK
L301
2,2μH/1A
+1V
C308
100p
GND
S
10
Shield
SC
SHIELD
RJ45
+3V3
3
16
VDD
R350
+3V3
R343
P20.10
R385
+3V3
C317
1
Tel.: +49-89-234-0
Infineon Technologies AG
7
8
3
26.10.2018
1.0Revision:
G:\Technical_Support\TriCore\TriBoard\EDA_DXP\TriBoard AURIX 2G\TriBoard TC3X6 ADAS\TriBoard TC3X6 ADAS V1.X\Peripherals.sch
File:
Sheet: of
TriBoard TC3X6 ADAS On Board Peripherals
Number:
Date:
6
5
C318
4,7μF
CB319
100n
4
C309
4,7μF
CB318
100n
CB317
100n
CB316
100n
CB315
100n
C305
4,7μF
3
GND GND
CB314
100n
CB313
100n
CB312
100n
CB311
100n
GND GND GND
R383
4K7
C306
100p
2
C307
100p
R384
4K7
GND
C312
1000pF/2KV
GND
C313
100n
C314
100n
C315
C316
1
100n
100n
A A
Figure 7-3 Schematic -
B B
On Board Peripherals
C C
D D
User Manual 7-4 V1.2
TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0 2020-02
TriBoard Manual TC3X6 ADAS
Hardware: TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0
Schematic and Layout
8
7
FOR USING WIGGLER WITH JTAG:
6
R409
+3V3
R415
+3V3
R410
5
VDD_FT
D402
VDD_FT
VDD_FT
L402
MMZ1608R300A
4
C403
4u7/6V
CB413
100n
CB402
VDD_FT
3
CB412
CB405
100n
2
C402
4u7/6V
L401
MMZ1608R300A
VDD_FT
1
Assemble R447-R451
Remove R455-R456
CB407
+3V3
20
VCC
G11A1
U403
10K
10K
5
3 4
61
10K
2
ADBUS4
LP T67K
R412
680R
R411
100R
VDD_FT
GND
GND
GND
100n
100n
CB403
CB404
100n
100n
CB411
CB410
GND
GND
GND
DEBUG..
DEBUG..
100n
10
GND
G
19
Q401B
Q401A
100n
CB409
100n
+1V8
VDD_FT
U405
TLE4274GSV33
VDD_USB
GND
BSD235N
BSD235N
D401
100n
3
1
P21.6
DAP1_A
/TRST
DAP0_A
P21.6
0R_opt
0R_opt
R447
R448
R449
TMS
DAP0_A
USR0
TDI
18
16
14
12
1Y1
1Y2
1Y3
1Y4
1A2
1A3
1A4
2
4
6
8
ADBUS0
ADBUS1
ADBUS3
ADBUS6
LB T673
R450
1K_opt
ADBUS0
GND
U401
ADBUS016ADBUS117ADBUS218ADBUS319ADBUS421ADBUS522ADBUS623ADBUS7
56
42
31
20
4
9
64
37
12
C406
C401
10μ/6V
OUT
GND
2
IN
CB401
100n
/PORST
13
0R_opt
D403
/TRST_J
/RESET
2Y192Y272Y352Y4
2A1112A2132A3152A4
ACBUS0
ACBUS1
ADBUS1
ADBUS2
ADBUS3
VCCIO
VCCIO
VCCIO
VCCIO
VPHY
VPLL
VCORE
VCORE
VCORE
VREGOUT
49
3,3uF
GND
GND
GND
GND
DAP1_A
R454
5K1
BAT54
R422
opt
R421
opt
GND GND
USR8
3
VDD_FT
5
SN74AHC244PW
17
U404
1
R413
10K
ACBUS4
R443
10K
ACBUS5
VDD_FT
ADBUS4
ADBUS5
ADBUS6
ADBUS7
ACBUS0
ACBUS1
24
ACBUS026ACBUS127ACBUS228BDBUS0
DM
VREGIN
7
50
VDD_FT
R402
27R
R403
1
3
4
D-2ID
D+
VBUS
BU401
CB408
100n
3
VCC
GND
/OE
A
Y
2
4
ACBUS2
ACBUS3
ACBUS4
ACBUS329ACBUS430ACBUS532ACBUS633ACBUS7
DP8REF
6
R404
27R
GND
GND
5
GND
Micro USB
GND
CB415
6
VCCB
VCCA
U406
1
VDD_FT +3V3
CB414
GND
GND
SN74LVC1G125
ADBUS1
ACBUS5
ADBUS2
ACBUS5
ACBUS7
ACBUS6
34
OSCI
2
12K/1%
13
8pF
C404
R455
100n
4
B
A
3
100n
ADBUS2
ACBUS7
ACBUS3
BDBUS0
38
OSCO
3
Y401
NX3225SA-12MHz
C405
P21.7
P21.7
DAP1_A
0R
R451
GND
2
GND
DIR
SN74LVC1T45DBV
5
ACBUS5
R444
ACBUS6
ACBUS2
VDD_FT +3V3
BDBUS1
39
40
BDBUS1
BDBUS2
BDBUS341BDBUS443BDBUS544BDBUS645BDBUS7
RESET
14
R401
VDD_FT
8pF
GND
GND
0R_opt
CB417
6
VCCB
VCCA
U407
1
VDD_FT +3V3
CB416
GND
4K7
GND
R420
+3V3
R417
10K
5
R416
10K
2
48
46
EECS63EECLK62EEDATA61TEST13SUSPEND
1K
R441
10K
R442
VDD_FT
P21.7
P21.7
R456
100n
4
B
A
3
100n
ACBUS3
4K7
3 4
61
BDBUS0
52
53
BCBUS0
BCBUS1
10K
R440
R437
BCBUS2
GND
R405
P20.0
+3V3
P20.0
0R
R423
0R_opt
GND
2
GND
DIR
SN74LVC1T45DBV
U408
5
VDD_FT +3V3
ACBUS7
R445
4K7
GND
0R_opt
0R
R419
10K
5
Q402B
BSD235N
2
Q402A
BSD235N
R418
10K
VDD_FT +3V3
R414
4K7
59
BCBUS354BCBUS455BCBUS557BCBUS658BCBUS7
PWREN
36
60
10K
2
3
1
CS
CLK
VCC
GND5Q
U402
8
CB406
100n
VDD_FT
CB419
6
1
CB418
3 4
61
BDBUS1
AGND
GND
GND
GND
GND
GND
GND
GND
GND
D
7
GND
R431
GND
VCCB
VCCA
GND
FT2232HL
VDD_FT
6
DNC
4
100K
USR1
R427
100n
4
B
A
3
100n
ACBUS2
Q403B
BSD235N
Q403A
BSD235N
10
51
47
35
25
15
11
5
1
R407
opt
ORG
93LC46B-I/SN
P21.7
P20.2
P21.7
P20.2
R428
0R_opt
GND
2
GND
DIR
SN74LVC1T45DBV
5
ACBUS6
R446
4K7
R438
0R_opt
R436
0R
GND
R406
2K2
0R_opt
GND
P15.3
P14.1
P15.2
P14.0
+3V3
P33.7
P33.6
P20.2
P21.6
P20.2
P21.7
P21.6
P21.7
P20.0
R457
X406
R430
R429
R426
R425
R424
1
VREF
DAP12DAP04USER18USER06RESET
0R_opt
0R
0R_opt
0R_opt
0R_opt
0R
GND
7
5
9
KEY
GND3GND
GND
DAP_SCR
10
DAP1_A
/TRST
5
9
3
7
TDI
TMS1TDO
TRST
CPUCLOCK
VCC2GND4GND6PORST8BRKOUT10GND12OCDSE14KEY
X401
+3V3
GND
/BRKOUT
/DBG_PORST
+3V3
X402
DAP0_A
/BRKIN
13
11
TCK
BRKIN
GND
R452
0R
1
GND3GND
VREF
DAP12DAP04USER18USER06RESET
DAP0
DAP1
15
N.C.
16
7
5
KEY
DAP2
DAP3_USR1
OCDS1
GND
9
GND
DAP
10
/DBG_PORST
DAP0_A
/DBG_PORST
X404
1
2
DAP0_A
DAP1_A
/TRST
GND
5
3
GND
/TRST
TMS / DAP1
TCK / DAP0
TDO / DAP2
TDI / -
4
6
22R_opt
R439
P21.6
P21.7
/ESR0
7
9
ESR0
BRKIO
VDDsense
/PORST
8
10
+3V3
/DBG_PORST /ESR0
/PORST
R408
0R
TriBoard TC3X6 ADAS miniWiggler and Debug connectors
/DBG_PORST
ETK_CON_opt
R433
0R_opt
P21.7
PORT[00..51]
PORT[00..51]
8
ATV MC ACE ATV CES
Am Campeon 1-12
D-85579 Neubiberg
Tel.: +49-89-234-0
Infineon Technologies AG
7
8
4
26.10.2018
1.0Revision:
G:\Technical_Support\TriCore\TriBoard\EDA_DXP\TriBoard AURIX 2G\TriBoard TC3X6 ADAS\TriBoard TC3X6 ADAS V1.X\Wiggler_Dbg_con.sch
File:
Sheet: of
Number:
Date:
6
5
4
3
2
1
A A
B B
C C
D D
Figure 7-4 Schematic - miniWiggler JDS and Debug connectors
User Manual 7-5 V1.2
TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0 2020-02
TriBoard Manual TC3X6 ADAS
Hardware: TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0
Schematic and Layout
8
7
GND
+1V25VDD
CB515
100n
CB516
100n
CB517
+3V3
48
ENA
6
20K
4
EmW_Pwr_opt
R521
GND
GND
CB511
0R
GST
AG4
AG3
AG2
AG1
AGS2
AGS1
GND
S502
100n
CB512
18
21
19
17
5
3
1
R505
VIN
100n
100n
CB513
100n
CB514
GND
HS
GND
R506
100K
10K
WAKE
R523
0R
6
D507
LP T67K
R513
680R
GND
D506
LP T67K
R512
680R
R511
620R
47μF/10V
GND
47μF/10V
C507
+3V3
12
R1PG211R1PG3
INT42SDO
40
/ESR1
P14.6
GND
D505
LP T67K
1
Q504
R510
+1V25
GND
L503
4,7μF/10V
XAL4020-222MEC
28
26
R2VS127R2VS2
R2SW125R2SW2
SCL
SCS
SDI38SSO
37
39
P15.3
P15.6
P15.2
+1V25
43
P02.7
BC848C
82K
22
WDI
2 3
R2FB
44
P33.8
C508
ERR
2
R503
P33.9
+3V3 +5 V
16
7
CB501
R1BTS
R1VS2
8
100n
GND
L502
C506
100n
13
R1SW1
IOVDD
R1VS39R1VS1
C502
GND
SS22_opt
+3V3
XAL4030-472MEC
15
R1SW214R1SW3
4
C510
100μF/40V
20
R1FB
R1BTSV
1μF/16V
GND
+3V3
C503
C504
10
R1PG1
ROT
41
/PORST
5
4
GND
U501
TLF3068xQVS01
CB502
100n
34
+3V3
3
4.7μF/50V
C505
L501
XAL5050-223MEB
C501
47μF/40V
VIN
2
D502
VCC_IN
1
X501
SS26
POWER
2
D503
VDD_USB
GND
GND
+3V3
47μF/10V
24
R2PG123R2PG2
1K
D508
R520
0R
+3V3
CB510
100n
GND
C509
10μF/10V
+5V
XAL4030-682MEC
SYNCO
35
470R
D501
31
R3FB
+3V3
LP T67K
GND
MSS2P2
30
R3PG2
FRE
32
R5080RR509
JP501
12
VCC_IN
45
33
opt
132
X502
46
VM1EN
VM2EN
MPS
GND
GND
VM1FB47VM2FB
VDDSB
PORT[00..51]
L504
GND
29
R3SW1
SYNCI
36
R504
+3V3
GND
U201A
TC3X6_ADAS
G7
VSS
VSSG8VSSH7VSSH8VSSJ6VSSK5VSS
VDD
F9
VDD
G9
VDD
H6
VDD
J7
VDD
J8
VEVRSB
H9
VEXT
F6
VEXT
G6
VEXT
F8
VEXT
J9
VEXT
P11
VDDP3
F7
CB520
100n
100n
R524
VDDP3
0R
S501
+3V3
R533
R531
Q502
1
0R
BC848C
4K7
RESET
C515
R532
C519
1μF
2 3
4μ7/10V
10K
GND+3V3
GND
/PORST
GND
GNDGND
R534
E10
E13
/PORST
/PORST
2K2
D11
PORST
GND
C12
B13
VSS
VSS
VSS
POWER
ESR1
ESR0
P32.0 / VGATE1N
P12
E11
E14
/ESR1
/ESR0
P32.0
/ESR1
/ESR0
+3V3
R535
4K7
+3V3
+3V3
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
P32.1 / VGATE1P
N12
C518
1μF_opt
Q503
23
R537
R536
4K7
P32.1
1
N13
M12
L11
K10
B2
C3
D4
E5
BC858C
10K
D504
R538
GND
TriBoard TC3X6 ADAS Power supply
GND
LS T67K
120R
8
ATV MC ACE ATV CES
Am Campeon 1-12
D-85579 Neubiberg
Tel.: +49-89-234-0
Infineon Technologies AG
7
8
5
26.10.2018
1.0Revision:
G:\Technical_Support\TriCore\TriBoard\EDA_DXP\TriBoard AURIX 2G\TriBoard TC3X6 ADAS\TriBoard TC3X6 ADAS V1.X\Supply.sch
File:
Sheet: of
Number:
Date:
6
5
4
3
2
/ESR1
/PORST
1
PORT[00..51]
A A
B B
C C
/PORST
/ESR0
/ESR0
/ESR1
D D
1
Figure 7-5 Schematic - Power Supply
User Manual 7-6 V1.2
TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0 2020-02
TriBoard Manual TC3X6 ADAS
Hardware: TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0
Schematic and Layout
8
7
8
ATV MC ACE ATV CES
Am Campeon 1-12
D-85579 Neubiberg
Tel.: +49-89-234-0
Infineon Technologies AG
7
8
6
26.10.2018
1.0Revision:
G:\Technical_Support\TriCore\TriBoard\EDA_DXP\TriBoard AURIX 2G\TriBoard TC3X6 ADAS\TriBoard TC3X6 ADAS V1.X\Rif.sch
File:
Sheet: of
TriBoard TC3X6 ADAS RIF connections
Number:
Date:
6
5
P50.0
P50.1
P50.2
P50.3
P50.4
P50.5
P50.6
P50.7
P50.8
P50.9
P50.10
P50.11
R6210RR6220RR6230RR6240RR6250RR6260RR6270RR6280RR6290RR6300RR6310RR632
RIF0_D1_N
RIF0_D1_P
RIF0_D2_N
RIF0_D2_P
RIF0_CLK_N
RIF0_CLK_P
RIF0_FR_P
RIF0_FR_N
RIF0_D3_N
RIF0_D3_P
RIF0_D4_N
RIF0_D4_P
RIF0_D1_N
RIF0_D1_P
RIF0_D2_N
RIF0_D2_P
RIF0_D3_N
RIF0_D3_P
0R
RIF0_D4_N
RIF0_D4_P
RIF0
P50.0 / D1NC1P50.1 / D1PC2P50.2 / D2ND1P50.3 / D2PD2P50.4 / CLKNE1P50.5 / CLKPE2P50.6 / FRPF1P50.7 / FRNF2P50.8 / D3PG1P50.9 / D3NG2P50.10 / D4PH1P50.11 / D4N
U201F
RIF0_D1_N
RIF0_D1_P
RIF0_D2_N
RIF0_D2_P
RIF0_CLK_N
RIF0_CLK_P
RIF0_CLK_N
RIF0_CLK_P
RIF0_FR_P
RIF0_FR_N
RIF0_FR_P
RIF0_FR_N
RIF0_D3_P
H2
RIF0_D3_N
RIF0_D4_N
RIF0_D4_P
TC3X6_ADAS
6
5
246
8
101214
16
18202224262830
32
135791113
15
17192123252729
31
35 36
37 38
39 40
41 42
43 44
0R MMIC0_IO3
0R MMIC0_IO1
R609
R610
P21.3
P20.0
33 34
0R
P20.3
P20.6
P33.13
P15.3
P15.6
P15.2
X601
4
3
2
1
PORT[00..50]
PORT[00..50]
QSH-030-01-L-D-A
MMIC0_IO8
0R MMIC0_IO7
0R MMIC0_IO6
R601
R602
R603
P33.3
P33.2
P33.1
0R MMIC0_RESET_N
R604
/ESR0
/ESR0
0R MMIC0_IO5
R605
P21.5
/ESR0
0R MMIC0_IO4
0R MMIC0_IO2
R606
R607
P21.4
P33.0
0R MMIC0_OK
R608
P21.2
GND
45 46
47 48
49 50
51 52
GND
53 54
55 56
57 58
59 60
4
3
2
1
A A
B B
C C
D D
Figure 7-6 Schematic - MMIC / RIF connections
User Manual 7-7 V1.2
TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0 2020-02
TriBoard Manual TC3X6 ADAS
Hardware: TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0
Schematic and Layout
8
8
TOP
PERIPHERALS
7
NC2[5..80]
NC2[5..80]
6
GND
PLUG
X702
5
/ESR0/ESR1
/PORST
NC2.10
NC2.14
/PORST
NC2.12
NC2.18
NC2.30
NC2.32
NC2.34
NC2.21
NC2.24
NC2.26
P10.5
NC2.25
P10.2 P23.1
NC2.29
NC2.31
NC2.36
NC2.33
NC2.35
P20.9 P20.10
P20.13 NC2.40
/ESR0
GNDGND
246
8
1012141618202224262830323436384042444648505254565860626466687072747678
1357911131517192123252729313335373941434547495153555759616365676971737577
VCC_IN VCC_IN
NC2.9
NC2.17
NC2.11
NC2.13
/ESR1
P20.6P33.5
P20.2
P20.3
NC2.46
P00.0
NC2.47 NC2.48
GND GND
P32.4
XTAL1
P15.5
NC2.54
P15.3
XTAL2
P15.4
P15.2
P15.1
P14.1
P15.0P14.0
NC2.66
NC2.64
P20.14
P20.11
NC2.68
P20.12
P20.7 P20.8
P10.8
P10.3
NC2.71
P10.7
GNDVDDSB
NC4[5..80]
+3V3+3V3
80
79
FTSH-140-02-L-DV-ES-A
NC4[5..80]
NC4.14
NC4.16
NC4.18
NC4.12
NC4.10
P11.15
P11.14
GND
246
8
1012141618202224262830323436384042444648505254565860626466687072747678
PLUG
1357911131517192123252729313335373941434547495153555759616365676971737577
X704
NC4.5
NC4.7
P02.0
P02.1
P02.2
P02.3
P02.4
NC4.20
NC4.22
P02.5
NC4.21
NC4.24
NC4.23
P15.6
NC4.25
NC4.28
NC4.30
NC4.27
NC4.29
PORTS
NC4.32
NC4.34
NC4.36
NC4.31
P10.1
P10.6
NC4.38
NC4.40
P12.0
P12.1
NC4.42
NC4.41
NC4.44
NC4.43
NC4.48
NC4.46
NC4.45
NC4.47
NC4.50
NC4.49
NC4.52
NC4.51
NC4.54
P33.8
NC4.53
NC4.55
P33.10
P33.9
NC4.57
NC4.59
P33.13
NC4.61
NC4.64P33.6
NC4.63
NC4.66
NC4.68
NC4.65
P11.13
NC4.70
NC4.69
ATV MC ACE ATV CES
Am Campeon 1-12
D-85579 Neubiberg
Tel.: +49-89-234-0
Infineon Technologies AG
8
7
26.10.2018
1.0Revision:
G:\Technical_Support\TriCore\TriBoard\EDA_DXP\TriBoard AURIX 2G\TriBoard TC3X6 ADAS\TriBoard TC3X6 ADAS V1.X\Connectm.sch
File:
Sheet: of
TriBoard TC3X6 ADAS Connectors plug
Number:
Date:
NC4.74
NC4.72
NC4.76
80
79
FTSH-140-02-L-DV-ES-A
VFLEX
+3V3 +3V3
NC4.71
NC4.73
7
6
5
XTAL[1..2]
PORT[00..51]
PORT[00..51]
4
3
2
1
4
3
P21.6
P21.7
NC1.10P50.0
NC1.12
NC1.14
NC1.16
NC1.18
NC1.20
NC1.22
NC1.24
P50.1
P50.2
P50.3
P50.4
P50.5
P50.6
P50.7
NC1.26
P50.8
GND
246
8
1012141618202224262830323436384042444648505254565860626466687072747678
PLUG
1357911131517192123252729313335373941434547495153555759616365676971737577
X701
2
1
NC1[5..80]
NC1[5..80]
NC1.5
NC1.7
NC1.28
P50.9
NC1.30
P50.10
NC1.32
P50.11
NC1.34
NC1.36
NC1.33
NC1.35
NC1.38
NC1.37
XTAL[1..2]
NC1.40
NC1.42
NC1.44
NC1.39
NC1.41
NC1.43
NC1.46
NC1.48
NC1.45
NC1.47
P21.2
NC1.49
P21.3
NC1.51
P21.4
P21.5
NC1.53
NC1.55
NC1.58
NC1.57
NC1.60
NC1.59
NC1.62
NC1.61
NC1.64
NC1.66
NC1.63
NC1.65
NC1.68
NC1.67
NC1.70
NC1.69
P20.0
NC1.71
NC1.74
NC1.73
NC1.76
NC1.75
NC1.78
NC1.77
NC1.80
80
79
FTSH-140-02-L-DV-ES-A
P21.0
AN[0..21]
AN[0..21]
GND
AN16
AN17
NC3.10
NC3.12
AN20
AN21
NC3.18
NC3.20
NC3.22
NC3.24
NC3.26
246
8
1012141618202224262830323436384042444648505254565860626466687072747678
PLUG
1357911131517192123252729313335373941434547495153555759616365676971737577
X703
AN0
AN1
AN2
AN3
NC3.17
NC3.19
AN8
AN10
AN4
AN5
AN9
NC3[5..80]
NC3[5..80]
NC3.28
NC3.30
AN11
AN12
NC3.32
NC3.34
AN14
AN13
NC3.36
AN15
GND
GND
NC3.42
VAREF1
GND
VDDM
GND GND
NC3.46
NC3.48
NC3.45
NC3.47
NC3.50
NC3.49
NC3.52
NC3.51
NC3.54
NC3.53
ADC
NC3.56
NC3.55
NC3.58
NC3.60
NC3.57
NC3.59
GND
GND
P33.3
P33.2 P33.0
P33.4P33.1
NC3.72
+3V3 +3V3
P02.6
NC3.74
P02.7
NC3.76
P02.8
P14.3
P33.7
P33.12
80
79
P33.11
FTSH-140-02-L-DV-ES-A
A A
B B
C C
D D
Figure 7-7 Schematic - Connectors (Plug)
User Manual 7-8 V1.2
TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0 2020-02
TriBoard Manual TC3X6 ADAS
Hardware: TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0
Schematic and Layout
8
BOTTOM
7
NC2[5..80]
NC2[5..80]
6
GND
246
SOCKET
1357911131517192123252729313335373941434547495153555759616365676971737577
X802
VCC_IN VCC_IN
5
PERIPHERALS
/ESR0/ESR1
/PORST
/PORST
NC2.12
NC2.11
NC2.14
NC2.13
NC2.26
NC2.18
NC2.30
NC2.32
NC2.34
NC2.21
P10.5 NC2.24
NC2.25
P10.2 P23.1
NC2.29
NC2.31
NC2.36
NC2.33
NC2.35
P20.9 P20.10
NC2.40
P20.13
/ESR0
GNDGND
/ESR1
NC2.17
/ESR1
NC2.10
8
1012141618202224262830323436384042444648505254565860626466687072747678
NC2.9
P20.6P33.5
P20.2
P20.3
NC2.46
P00.0
NC2.47 NC2.48
GND GND
P32.4
XTAL1
P15.5
NC2.54
P15.3
XTAL2
P15.4
P15.2
P15.1
P14.1
P15.0P14.0
NC2.66
NC2.64
P20.14
P20.11
NC2.68
P20.12
P20.7 P20.8
P10.8
NC2.71
P10.3
P10.7
GNDVDDSB
+3V3+3V3
80
79
FLE-140-01-G-DV-A
PORTS
NC4[5..80]
NC4[5..80]
NC4.14
NC4.16
NC4.18
NC4.20
NC4.12
NC4.10
P11.15
P11.14
GND
246
SOCKET
1357911131517192123252729313335373941434547495153555759616365676971737577
X804
NC4.5
NC4.22
NC4.24
P15.6
NC4.30
NC4.32
NC4.28
8
1012141618202224262830323436384042444648505254565860626466687072747678
P02.0
P02.1
P02.2
P02.3
P02.4
P02.5
NC4.21
NC4.23
NC4.25
NC4.27
NC4.7
NC4.29
NC4.31
NC4.34
P10.1
NC4.36
P10.6
NC4.38
NC4.40
P12.0
P12.1
NC4.42
NC4.41
NC4.44
NC4.43
NC4.48
NC4.46
NC4.46
NC4.45
NC4.47
NC4.50
NC4.49
NC4.52
NC4.51
P33.8
NC4.54
NC4.53
NC4.55
P33.10
P33.9
NC4.57
NC4.59
P33.13
NC4.61
NC4.64
NC4.63
NC4.66
NC4.68
P11.13
NC4.65
NC4.70
NC4.69
8
ATV MC ACE ATV CES
Am Campeon 1-12
D-85579 Neubiberg
Tel.: +49-89-234-0
Infineon Technologies AG
7
8
8
26.10.2018
1.0Revision:
G:\Technical_Support\TriCore\TriBoard\EDA_DXP\TriBoard AURIX 2G\TriBoard TC3X6 ADAS\TriBoard TC3X6 ADAS V1.X\Connectf.sch
File:
Sheet: of
TriBoard TC3X6 ADAS Connectors socket
Number:
Date:
NC4.72
NC4.71
NC4.74
NC4.73
NC4.76
VFLEX
80
79
FLE-140-01-G-DV-A
+3V3 +3V3
6
5
XTAL[1..2]
PORT[00..51]
PORT[00..51]
4
3
2
1
4
3
P21.6
P21.7
NC1.10
NC1.12
NC1.14
NC1.16
NC1.18
NC1.20
NC1.22
NC1.24
P50.1
P50.2
P50.3
P50.4
P50.5
P50.6
P50.7
NC1.26
P50.8
GND
246
8
1012141618202224262830323436384042444648505254565860626466687072747678
SOCKET
1357911131517192123252729313335373941434547495153555759616365676971737577
X801
2
1
NC1[5..80]
NC1[5..80]
NC1.5
NC1.7
P50.0
NC1.28
P50.9
NC1.30
P50.10
NC1.32
P50.11
NC1.36
NC1.34
NC1.33
NC1.35
NC1.38
NC1.37
XTAL[1..2]
NC1.40
NC1.42
NC1.44
NC1.39
NC1.41
NC1.43
NC1.46
NC1.48
NC1.45
NC1.47
P21.2
NC1.49
P21.3
NC1.51
P21.4
P21.5
NC1.53
NC1.55
NC1.58
NC1.57
NC1.60
NC1.59
NC1.62
NC1.61
NC1.64
NC1.66
NC1.63
NC1.65
NC1.68
NC1.67
NC1.70
NC1.69
P20.0
NC1.74
NC1.71
NC1.73
NC1.76
NC1.75
NC1.78
NC1.77
NC1.80
80
79
P21.0
FLE-140-01-G-DV-A
AN[0..21]
AN[0..21]
GND
NC3.10
NC3.12
NC3.18
NC3.20
NC3.22
NC3.24
AN16
AN17
246
8
1012141618202224262830323436384042444648505254565860626466687072747678
SOCKET
1357911131517192123252729313335373941434547495153555759616365676971737577
X803
AN0
AN1
AN2
NC3[5..80]
NC3[5..80]
NC3.26
AN20
AN21
AN3
NC3.17
NC3.19
AN8
AN9
AN10
AN4
AN5
NC3.28
NC3.30
AN11
AN12
NC3.32
NC3.34
AN14
AN13
NC3.36
AN15
GND
GND
NC3.42
VAREF1
GND
VDDM
GND GND
NC3.46
NC3.48
NC3.45
NC3.47
NC3.50
NC3.49
NC3.52
NC3.51
NC3.54
NC3.53
ADC
NC3.56
NC3.55
NC3.58
NC3.60
NC3.57
NC3.59
GND GND
P33.6
P33.3
P33.2 P33.0
P33.4P33.1
NC3.72
+3V3 +3V3
P02.6
NC3.74
P02.7
NC3.76
P02.8
P14.3
P33.7
P33.12
80
79
P33.11
FLE-140-01-G-DV-A
A A
B B
C C
D D
Figure 7-8 Schematic - Connectors (Socket)
User Manual 7-9 V1.2
TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0 2020-02
U201
JP501
D508
S5 0 2
R379
R383
R3109
R3 108
R3 1 0 4
R3103
R3102
R3101
R3100
C320
R402
R4 0 3
CB408
Y40 1
U401
CB401
R401
L401
BU401
C402
CB 405
C306
C310
X306
CB 317
C311
C309
C318
CB 318
CB319
L301
R382
U307
Y301
X40 6
R457
R249
R248
R246
R245
R244
C506
X601
R621
R622
R623
R624
R625
R626
R627
R628
R629
R630
R63 1
R632
X402
L503
S201
R377
CB202
R204
R205
X305 X304 X303
R236
R234
R232
R230
R361
R359
R212
D301
C303
U408
U407
U406
R451
R455
R456
R454
R446
R444
CB419
CB 418
CB417
CB416
CB 415
CB414
D401
R430
R429
R423
R411
D402
U404
CB402
R344
R424
R425
R426
R427
R428
R201
R203
R202
C201
C202
R206
R207
Y201
R33 7R357
R324
R399
R391
R392 R39 3 R394 R395 R396 R 397
CB309
R532
C301C302
R439
R531
R335
R336
R355
R356
U305
T301T302
X301X302
X703
X701
D302
D303
D304
D305
D306
D307
D308
D309
D505
D506
D507D504
X40 1
X50 1
S501
R354
R452
R213
CB201
R398
C505
C510
U501
L502
L501
C502
C507
C508
C501
C503
CB 50 2
R255 R256
R390
R375
R376
R348
R349
S202
X502
X704
R346
R347
X702
X404
CB 50 1
R250
R251
R252
TriBoard Manual TC3X6 ADAS
Hardware: TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0
Schematic and Layout
7.3 Layout
Figure 7-9
User Manual 7-10 V1.2
TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0 2020-02
Component Plot Top Layer TriBoard TC3X6 ADAS TH
CB511
CB203
X804
R378
R3111
R3110
R3107
R3106
R3105
R31 0
C319
C317
C316
C315
C314
C313
C312
R417
R437
R438
R372
CB404
R405
R440
CB409
R416
R418
R419
R414
R420
C406
Q402
Q403
C404
C405
CB410
CB411
CB412
R441
R442
C40 1
R404
C40 3
CB413
L40 2
U405
C305
C307
C308
R388
R389
R384
R385
R370
CB311
CB312
CB313
CB314
CB315
CB316
RN301
L504
L201
CB 2 0 9
CB208
R610
R609
R608
R607
R606
R605
R604
R603
R602
R601
R4 3 3
R523
RN302
C518
R431
R208
R408
R215
R214
U306
R521
R238
R240
R365
R3 6 4
R363
R362
R360
R211
CB310
C304
R449
R4 4 8
R447
R445
R443
R413
D403
R450
R422
R421
U4 0 3
Q4 01
R412
R415
R410
R409
CB407
R407
U402
R406
CB406
R305
R306
R30 8
R309
R315
R316
R318
R31 9
R301
R311
R341
R340
R321
R322
R222
R220
R221
R52 4
R5 3 3
R323
R343
CB301
CB302
CB205
CB512
CB 513 CB515
CB 5 1 6
CB 5 1 7
CB520
R537
R307
R317
R538
R534
R513
CB204
R535
R536
C515
R511
R512
R510
Q502
Q504
Q503
X802
X801
U301U302
R302
R342
CB303
CB304
CB305
CB306
CB307
CB308
R303
R3 0 4
R338
R330
R331
R358
R350
R351
U30 3
U304
R3 3 2
R334
R333
R352
R3 5 3
C519
R320
R216
R209
CB510
R520
D503
R505
R504
R506
D501
C509
D502
C504
R508
R509
R503
R23 1
R233
R235
R237
R239
R241
R312
R436
R373
R374
CB403
CB514
X803
C208
C207
C204
C203
C209
C210
C211
C205
TriBoard Manual TC3X6 ADAS
Hardware: TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0
Schematic and Layout
Figure 7-10
User Manual 7-11 V1.2
TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0 2020-02
Component Plot Bottom Layer TriBoard TC3X6 ADAS TH
JP501
D508
S5 0 2
R379
R383
R3109
R3 108
R3 1 0 4
R3103
R3102
R3101
R3100
C320
R402
R4 0 3
CB408
Y40 1
U401
CB401
R401
L401
BU401
C402
CB 405
C306
C310
X306
CB 317
C311
C309
C318
CB 318
CB319
L301
R382
U307
Y301
X40 6
R457
R249
R248
R246
R245
R244
C506
X601
R621
R622
R623
R624
R625
R626
R627
R628
R629
R630
R63 1
R632
X402
L503
S201
R377
CB202
R204
R205
X305 X304 X303
R236
R234
R232
R230
R361
R359
R212
D301
C303
U408
U407
U406
R451
R455
R456
R454
R446
R444
CB419
CB 418
CB417
CB416
CB 415
CB414
D401
R430
R429
R423
R411
D402
U404
CB402
R344
R424
R425
R426
R427
R428
R201
R203
R202
C201
C202
R206
R207
Y201
R33 7R357
R324
R399
R391
R392 R39 3 R394 R395 R396 R 397
CB309
R532
C301C302
R439
R531
R335
R336
R355
R356
U305
T301T302
X301X302
X703
X701
D302
D303
D304
D305
D306
D307
D308
D309
D505
D506
D507D504
X40 1
X50 1
S501
R354
R452
R213
CB201
R398
C505
C510
U501
L502
L501
C502
C507
C508
C501
C503
CB 50 2
R255 R256
R390
R375
R376
R348
R349
S202
X502
X704
R346
R347
X702
X404
CB 50 1
R250
R251
R252
U201
TriBoard Manual TC3X6 ADAS
Hardware: TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0
Schematic and Layout
Figure 7-11
User Manual 7-12 V1.2
TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0 2020-02
Component Plot Top Layer TriBoard TC3X6 ADAS
CB511
CB203
X804
R378
R3111
R3110
R3107
R3106
R3105
R31 0
C319
C317
C316
C315
C314
C313
C312
R417
R437
R438
R372
CB404
R405
R440
CB409
R416
R418
R419
R414
R420
C406
Q402
Q403
C404
C405
CB410
CB411
CB412
R441
R442
C40 1
R404
C40 3
CB413
L40 2
U405
C305
C307
C308
R388
R389
R384
R385
R370
CB311
CB312
CB313
CB314
CB315
CB316
RN301
L504
L201
CB 2 0 9
CB208
R610
R609
R608
R607
R606
R605
R604
R603
R602
R601
R4 3 3
R523
RN302
C518
R431
R208
R408
R215
R214
U306
R521
R238
R240
R365
R3 6 4
R363
R362
R360
R211
CB310
C304
R449
R4 4 8
R447
R445
R443
R413
D403
R450
R422
R421
U4 0 3
Q4 01
R412
R415
R410
R409
CB407
R407
U402
R406
CB406
R305
R306
R30 8
R309
R315
R316
R318
R31 9
R301
R311
R341
R340
R321
R322
R222
R220
R221
R52 4
R5 3 3
R323
R343
CB301
CB302
CB205
CB512
CB 513 CB515
CB 5 1 6
CB 5 1 7
CB520
R537
R307
R317
R538
R534
R513
CB204
R535
R536
C515
R511
R512
R510
Q502
Q504
Q503
X802
X801
U301U302
R302
R342
CB303
CB304
CB305
CB306
CB307
CB308
R303
R3 0 4
R338
R330
R331
R358
R350
R351
U30 3
U304
R3 3 2
R334
R333
R352
R3 5 3
C519
R320
R216
R209
CB510
R520
D503
R505
R504
R506
D501
C509
D502
C504
R508
R509
R503
R23 1
R233
R235
R237
R239
R241
R312
R436
R373
R374
CB403
CB514
X803
C208
C207
C204
C203
C209
C210
C211
C205
TriBoard Manual TC3X6 ADAS
Hardware: TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0
Schematic and Layout
Figure 7-12
User Manual 7-13 V1.2
TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0 2020-02
Component Plot Bottom Layer TriBoard TC3X6 ADAS
TriBoard Manual TC3X6 ADAS
Hardware: TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0
Schematic and Layout
Layout with Dimensioning
The following dimensions should be used for development of extension boards.
Figure 7-13 Dimensioning (mm)
User Manual 7-14 V1.2
TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0 2020-02
TriBoard Manual TC3X6 ADAS
Hardware: TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0
Schematic and Layout
Figure 7-14 Dimensioning (mil)
The dimensioning is valid for all TriBoards.
User Manual 7-15 V1.2
TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0 2020-02
TriBoard Manual TC3X6 ADAS
Hardware: TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0
Revision History
Page or Item Subjects (major changes since previous revision)
V1.2, 2020-02
all Name of supply IC from TLF3068X to TLF30682 changed and unavailable device (684) removed
chapter 2.1 Unusable safe state LED removed, TC336DA added
chapter 2.2 Figure 2-1 corrected (WAKEUP from CPU to power supply removed), TC336DA added, add hint
ERAY and CAN1 not with TC336DA
chapter 3.2.1 hint (planned, not yet tested) removed for TC336DA
chapter 3.4 Description for SSO changed
chapter 3.3.1
and 3.16
chapter 3.9 add hint for eeprom access with TC336DA (no I2C module)
chapter 3.10 add hint that CAN1 is not usable with TC336DA
chapter 3.11 add description for LIN master and slave changes
chapter 5.6 Connection description for P33.8 and P33.9 updated
chapter 6 add separat connector layout for TC336DA
chapter 7.2 Hint about power supply devcice added
Revision History add complete history of all previous versions
V1.1, 2019-07
chapter 3 add detailed description of usable devices/restricted devices
V1.0, 2019-02
all first version
Name of S502 corrected from WAKE to ENA/WAKE
User Manual RevisionHistory-1 V1.2
TriBoard TC3X6 ADAS TH V1.0 and TriBoard TC3X6 ADAS V1.0 2020-02
Please read the Important Notice and Warnings at the end of this document
Trademarks of Infineon Technologies AG
µHVIC™, µIPM™, µPFC™, AU-ConvertIR™, AURIX™, C166™, CanPAK™, CIPOS™, CIPURSE™, CoolDP™, CoolGaN™, COOLiR™, CoolMOS™, CoolSET™, CoolSiC™,
DAVE™, DI-POL™, DirectFET™, DrBlade™, EasyPIM™, EconoBRIDGE™, EconoDUAL™, EconoPACK™, EconoPIM™, EiceDRIVER™, eupec™, FCOS™, GaNpowIR™,
HEXFET™, HITFET™, HybridPACK™, iMOTION™, IRAM™, ISOFACE™, IsoPACK™, LEDrivIR™, LITIX™, MIPAQ™, ModSTACK™, my-d™, NovalithIC™, OPTIGA™,
OptiMOS™, ORIGA™, PowIRaudio™, PowIRStage™, PrimePACK™, PrimeSTACK™, PROFET™, PRO-SIL™, RASIC™, REAL3™, SmartLEWIS™, SOLID FLASH™,
SPOC™, StrongIRFET™, SupIRBuck™, TEMPFET™, TRENCHSTOP™, TriCore™, UHVIC™, XHP™, XMC™.
Trademarks updated November 2015
Other Trademarks
All referenced product or service names and trademarks are the property of their respective owners.
IMPORTANT NOTICE
Edition 2020-02
Published by
Infineon Technologies AG
81726 Munich, Germany
© 2020 Infineon Technologies AG.
All Rights Reserved.
Do you have a question about any
aspect of this document?
Email: erratum@infineon.com
Document reference
Doc_Number
The information given in this document shall in no
event be regarded as a guarantee of conditions or
characteristics ("Beschaffenheitsgarantie").
With respect to any examples, hints or any typical
values stated herein and/or any information regarding
the application of the product, Infineon Technologies
hereby disclaims any and all warranties and liabilities
of any kind, including without limitation warranties of
non-infringement of intellectual property rights of any
third party.
In addition, any information given in this document is
subject to customer's compliance with its obligations
stated in this document and any applicable legal
requirements, norms and standards concerning
customer's products and any use of the product of
Infineon Technologies in customer's applications.
The data contained in this document is exclusively
intended for technically trained staff. It is the
responsibility of customer's technical departments to
evaluate the suitability of the product for the intended
application and the completeness of the product
information given in this document with respect to
such application.
For further information on technology, delivery terms
and conditions and prices, please contact the nearest
Infineon Technologies Office (www.infineon.com).
WARNINGS
Due to technical requirements products may contain
dangerous substances. For information on the types
in question please contact your nearest Infineon
Technologies office.
Except as otherwise explicitly approved by Infineon
Technologies in a written document signed by
authorized representatives of Infineon Technologies,
Infineon Technologies’ products may not be used in
any applications where a failure of the product or any
consequences of the use thereof can reasonably be
expected to result in personal injury.
Loading...
