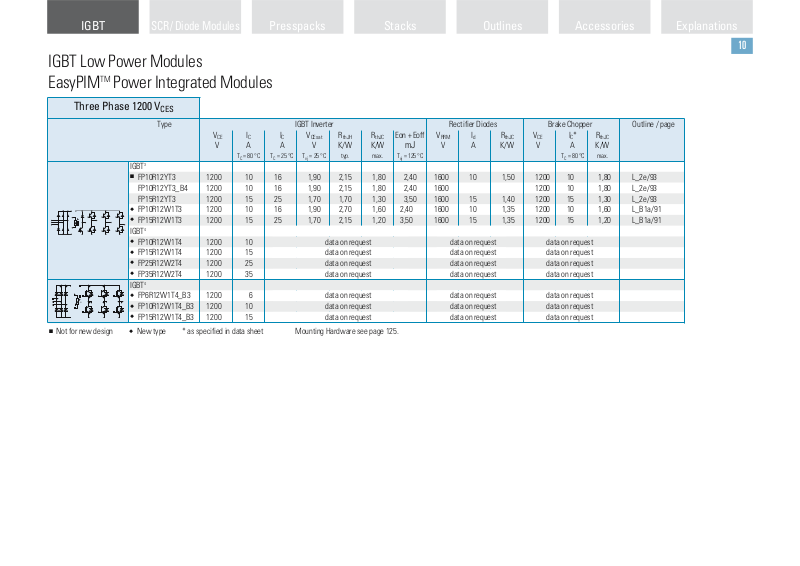

Infineon IGBT Low Power Modules Catalog
10
IGBT
SCR /Diode Modules
Presspacks Stacks Outlines Accessories Explanations
IGBT Low Power Modules
EasyPIM
TM
Power Integrated Modules
■
Not for new design
◆
New type * as specified in data sheet Mounting Hardware see page 125.
Three Phase 1200 V
CES
Type IGBT Inverter Rectifier Diodes Brake Chopper Outline / page
V
CE
I
C
I
C
V
CEsat
R
thJH
R
thJC
Eon + Eoff V
RRM
I
d
R
thJC
V
CE
IC*R
thJC
V A A V K/W K/W mJ V A K/W V A K/W
TC= 80 °C TC= 25 °C Tvj= 25 °C typ. max. Tvj= 125 °C TC= 80 °C max.
IGBT
3
■
FP10R12YT3 1200 10 16 1,90 2,15 1,80 2,40 1600 10 1,50 1200 10 1,80 L_2e/93
FP10R12YT3_B4 1200 10 16 1,90 2,15 1,80 2,40 1600 1200 10 1,80 L_2e/93
FP15R12YT3 1200 15 25 1,70 1,70 1,30 3,50 1600 15 1,40 1200 15 1,30 L_2e/93
◆
FP10R12W1T3 1200 10 16 1,90 2,70 1,60 2,40 1600 10 1,35 1200 10 1,60 L_B1a/91
◆
FP15R12W1T3 1200 15 25 1,70 2,15 1,20 3,50 1600 15 1,35 1200 15 1,20 L_B1a/91
IGBT
4
◆
FP10R12W1T4 1200 10 data on request data on request data on request
◆
FP15R12W1T4 1200 15 data on request data on request data on request
◆
FP25R12W2T4 1200 25 data on request data on request data on request
◆
FP35R12W2T4 1200 35 data on request data on request data on request
IGBT
4
◆
FP6R12W1T4_B3 1200 6 data on request data on request data on request
◆
FP10R12W1T4_B3 1200 10 data on request data on request data on request
◆
FP15R12W1T4_B3 1200 15 data on request data on request data on request
ϑ
ϑ
