Datasheet V4.5, Jan 2004

CoolSET™-F2

ICE2A0565/165/265/365 ICE2B0565/165/265/365 ICE2A0565Z ICE2A180Z/280Z

ICE2A765I/2B765I ICE2A765P2/ICE2B765P2

Off-Line SMPS Current Mode Controller with integrated 650V/800V CoolMOS™

Power Management & Supply

Never stop thinking.

CoolSET™-F2 Revision History: 2004-01-28 Datasheet V4.5

Previous Version: Page Subjects (major changes since last revision)

For questions on technology, delivery and prices please contact the Infineon Technologies Of fices in Germany or the Infineon Technologies Companies and Representatives worldwide: see our webpage at http:// www.infineon.com.

CoolMOS™, CoolSET™ are trademarks of Infineon Technologies AG.

Edition 2004-01-28 Published by Infineon Technologies AG,

St.-Martin-Strasse 53, D-81541 München

Attention please!

The information herein is given to describe certain components and shall not be considered as warr anted characteristics.

Terms of delivery and rights to technical change reserved. We hereby disclaim any and all warranties, including but not limited to warranties of non-infringement, regarding

circuits, descriptions and charts stated herein. Infineon Technologies is an approved CECC manufacturer.

Information

For further information on technology, delivery terms and conditions and prices please contact your nearest Infineon Technologies Office in Germany or our Infineon Technolog ies Representatives worldwide (see address list).

Warnings

Due to technical requirements components may contain dangerous substances. For information on the types in question please contact your nearest Infineon Technologies Office.

Infineon Technologies Components may only be used in life-support devices or systems with the ex press written approval of Infineon Technologies, if a failure of such components can reasona bly be expe cted to cause the f ailure of that life-support device or system, or to aff ect t he safety or effectiveness of that device or system. Life support devices or systems are intended to be implanted in the human body, or to support and/or maintain and sustain and/or protect human life. If they fail, it is reasonable to assume that the health of the user or other persons may be endangered.

Off-Line SMPS Current Mode Controller with integrated 650V/800V

CoolSET™-F2

Product Highlights

• Best in class in DIP8, DIP7, TO220 packages

• No heatsink required for DIP8, DIP7

• Lowest standby power dissipation

• Enhanced protection functions all with

Auto Restart Mode

• Isolated drain package for TO220

• Increased creepage distance for TO220 packages

Features

• 650V/800V avalanche rugged CoolMOS™

• Only few external components required

• Input Vcc Undervoltage Lockout

• 67kHz/100kHz switching frequency

• Max duty cycle 72%

• Low Power Standby Mode to meet European Commission Requirements

• Thermal Shut Down with Auto Restart

• Overload and Open Loop Protection

• Overvoltage Protection during Auto Restart

• Adjustable Peak Current Limitation via external resistor

• Overall tolerance of Current Limiting < ±5%

• Internal Leading Edge Blanking

• User defined Soft Start Soft Switching for low EMI

Typical Application

VCC

Power

Management

Protection Unit

Start-up

PWM Controller

Current Mode

Precise Low Tolerance Peak Current Limitation

85 ... 270 VAC

SoftS

Soft Start

Feedback

Low Power

StandBy

Soft-Start Control

PWM-Controller

CoolSET™-F2

Description

The second generation CoolSET™-F2 provides several special enhancements to satisfy the needs for low power standby and protection features. In standby mode frequency reduction is used to lower the power consumption and support a stable output voltage in this mode. The frequency reduction is limited to 20kHz/21.5 kHz to avoid audible noise. In case of failure modes like open loop, overvoltage or overload due to short circuit the device switches in Auto Restart Mode which is controlled by the internal protection unit. By means of the internal precise peak current limitation the dimension of the transformer and the secondary diode can be lower which leads to more cost efficiency.

Snubber

VCC

Drain

CoolMOS™

Isense

GND

Sense

P-DIP-7-1

P-TO220-6-46

Feedback

P-DIP-7-1

P-DIP-8-6

P-DIP-8-4, -6

P-TO220-6-47P-TO220-6-46

P-TO220-6-47

Converter

DC Output

Datasheet V4.5 3 Jan 2004

CoolSET™-F2

Ordering Codes

Type Ordering Code Package V

DSFOSCRDSon

230VAC ±15%

ICE2A0565 Q67040-S4542 P-DIP-8-6 650V 100kHz 4.7Ω 23W 13W ICE2A165 Q67040-S4426 P-DIP-8-6 650V 100kHz 3.0Ω 31W 18W ICE2A265 Q67040-S4414 P-DIP-8-6 650V 100kHz 0.9Ω 52W 32W ICE2A365 Q67040-S4415 P-DIP-8-6 650V 100kHz 0.45Ω 67W 45W ICE2B0565 Q67040-S4540 P-DIP-8-6 650V 67kHz 4.7Ω 23W 13W ICE2B165 Q67040-S4489 P-DIP-8-6 650V 67kHz 3.0Ω 31W 18W ICE2B265 Q67040-S4478 P-DIP-8-6 650V 67kHz 0.9Ω 52W 32W ICE2B365 Q67040-S4490 P-DIP-8-6 650V 67kHz 0.45Ω 67W 45W ICE2A0565Z Q67040-S4541 P-DIP-7-1 650V 100kHz 4.7Ω 23W 13W ICE2A180Z Q67040-S4546 P-DIP-7-1 800V 100kHz 3.0Ω 29W 17W ICE2A280Z Q67040-84547 P-DIP-7-1 800V 100KHz 0.8Ω 50W 31W

typ @ T=25°C

Maximum power rating at Ta=75°C, Tj=125°C and with copper area on PCB = 6cm²

85-265 VAC

Type Ordering Code Package VDSF

OSCRDSon

230VAC ±15%

85-265 VAC

ICE2A765I Q67040-S4609 P-TO-220-6-46 650V 100kHz 0.45Ω 240W 130W ICE2B765I Q67040-S4607 P-TO-220-6-46 650V 67kHz 0.45Ω 240W 130W ICE2A765P2 Q67040-S4610 P-TO-220-6-47 650V 100kHz 0.45Ω 240W 130W ICE2B765P2 Q67040-S4608 P-TO-220-6-47 650V 67kHz 0.45Ω 240W 130W

typ @ T=25°C

Maximum practical continuous power in an open frame design at Ta=75°C, Tj=125°C and Rth=2.7K/W

Datasheet V4.5 4 Jan 2004

CoolSET™-F2

Table of Contents Page

1 Pin Configuration and Functionality . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

1.1 Pin Configuration with P-DIP-8-6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

1.2 Pin Configuration with P-DIP-7-1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

1.3 Pin Configuration with P-TO220-6-46/47 . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

1.4 Pin Functionality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

2 Representative Blockdiagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

3 Functional Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

3.1 Power Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

3.2 Improved Current Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

3.2.1 PWM-OP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

3.2.2 PWM-Comparator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

3.3 Soft-Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

3.4 Oscillator and Frequency Reduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

3.4.1 Oscillator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

3.4.2 Frequency Reduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

3.5 Current Limiting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

3.5.1 Leading Edge Blanking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

3.5.2 Propagation Delay Compensation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

3.6 PWM-Latch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

3.7 Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

3.8 Protection Unit (Auto Restart Mode) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

3.8.1 Overload / Open Loop with Normal Load . . . . . . . . . . . . . . . . . . . . . . . .14

3.8.2 Overvoltage due to Open Loop with No Load . . . . . . . . . . . . . . . . . . . . .15

3.8.3 Thermal Shut Down . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

4 Electrical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

4.1 Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

4.2 Thermal Impedance (ICE2X765I and ICE2X765P2) . . . . . . . . . . . . . . . . . .18

4.3 Operating Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

4.4 Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

4.4.1 Supply Section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

4.4.2 Internal Voltage Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

4.4.3 Control Section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

4.4.4 Protection Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

4.4.5 Current Limiting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

4.4.6 CoolMOS™ Section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

5 Typical Performance Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . .24

6 Layout Recommendation for C

7 Outline Dimension . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

Datasheet V4.5 5 Jan 2004

Pin Configuration and Functionality

1 Pin Configuration and Functionality

1.1 Pin Configuration with P-DIP-8-6

1.2 Pin Configuration with P-DIP-7-1

CoolSET™-F2

Pin Symbol Function

1 SoftS Soft-Start

2 FB Feedback

3 Isense Controller Current Sense Input,

4 Drain

5 Drain

6 N.C Not connected

7 VCC Controller Supply Voltage

8 GND Controller Ground

at Tj = 110°C

at Tj = 25°C

CoolMOS™ Source Output

650V1)/800V2) CoolMOS™ Drain

Package P-DIP-8-6

Sof tS

GND

VCCFB

Pin Symbol Function

1 SoftS Soft-Start

2 FB Feedback

3 Isense Controller Current Sense Input,

4 N.C. Not connected

5 Drain

7 VCC Controller Supply Voltage

8 GND Controller Ground

at Tj = 110°C

at Tj = 25°C

CoolMOS™ Source Output

650V1)/800V2) CoolMOS™ Drain

Package P-DIP-7-1

Sof tS

GND

VCCFB

Is ens e

Dr ai n

Figure 1 Pin Configuration (top view)

Datasheet V4.5 6 Jan 2004

N.C

Dr ain

Isense

Figure 2 Pin Configuration (top view)

n.c.

Dr ai n

1.3 Pin Conuration with P-TO220-6-46/47

CoolSET™-F2

Pin Configuration and Functionality

1.4 Pin Functionality

Pin Symbol Function

1 Drain 3 Isense 4 GND Controller Ground

5 VCC Controller Supply Voltage 6 SoftS Soft-Start 7 FB Feedback

at Tj = 110°C

650V1) CoolMOS™ Drain 650V1) CoolMOS™ Source

Package P-TO220-6-46/47

234567

SoftS (Soft Start & Auto Restart Control)

This pin combines the function of Soft Start in case of Start Up and Auto Restart Mode and the controlling of the Auto Restart Mode in case of an error detection.

FB (Feedback)

The information about the regulation is provided by the FB Pin to the internal Protection Unit and to t he internal PWM-Comparator to control the duty cycle.

Isense (Current Sense)

The Current Sense pin senses the voltage developed on the series resistor inserted in the source of the integrated CoolMOS™. When Isense reaches the internal threshold of the Current Limit Comparator, the Driver output is disabled. By this means the Over Current Detection is realized.

Furthermore the current information is provided for the PWM-Comparator to realize the Current Mode.

Drain (Drain of integrated CoolMOS™)

Pin Drain is the connection to the Drain of the internal CoolMOS

VCC (Power supply)

This pin is the positiv supply of the IC. The operating range is between 8.5V and 21V.

To provide overvoltage protection the driver gets disabled when the voltage becomes higher than 16.5V during Start Up Phase.

GND (Ground)

This pin is the ground of the primary side of the SMPS.

Drain

Isense

GND

VCC

SoftS

Figure 3 Pin Configuration (top view)

Datasheet V4.5 7 Jan 2004

2 Representative Blockdiagram

OUT

Converter

DC Output

Snubber

Drain

CoolMOS™

Gate

Driver

Q S

Clock

Reset

PWM-Latch

norm

-f

standby

Spike

Blanking

PWM

Comparator

Q R

Error-Latch s 5

Soft-Start

Soft Start

Comparator

0.72

Duty Cycle Max

max

Duty Cycle

Oscillator

6.5V

4.8V

5.3V

4.0V

Voltage

Reference

Internal Bias

Power Management

13.5V

Reset

Lockout

Power-Down

Line

Undervoltage

VCC

Power-Up

8.5V

CoolSET™-F2

Representative Blockdiagram

Sense

Isense

10k

220ns

Blanking

Leading Edge

csth

Comparator

Current-Limit

0.3V

osc

norm

Optocoupler

ICE2Bxxxx

Compensation

Propagation-Delay

Current Limiting

ICE2Axxxx

x3.65

0.8V

Improved Current Mode

PWM OP

standby

Standby Unit

67kHz

20kHz

100kHz

21.5kHz

norm

standby

Start-up

85 ... 270 VAC

VCC

4.0V

16.5V

6.5V

>140°C

Thermal Shutdown

4.8V

5.3V

5.6V

Soft-Start

SoftS

6.5V

Soft-Start

Protection Unit

GND

CoolSET™-F2

Figure 4 Representative Blockdiagram

Datasheet V4.5 8 Jan 2004

3 Functional Description

3.1 Power Management

CoolSET™-F2

Functional Description

3.2 Improved Current Mode

Main Line (100V-380V)

Start-Up

Primary Winding

VCC

Power Management

SoftS

Soft-Start

Undervoltage

Lockout

8.5V

Pow er-D own

Reset

Power-Up

Reset

13.5V

6.5V

Soft-S ta rt

Intern al

Bias

Voltage

Reference

RSQ

Error-Latch

Soft-S ta rt C o m para to r

Error-D ete ction

6.5V

5.3V

4.8V

4.0V

PWM-Latch

Figure 5 Power Management

The Undervoltage Lockout monitors the external supply voltage V current consumption is max. 55µA. When the SMPS is plugged to the main line the current through R charges the external Capacitor C exceeds the on-threshold V circuit and the voltage reference are switched on. After that the internal bandgap generates a reference voltage V avoid uncontrolled ringing at switch-on a hysteresis is implemented which means that switch-off is only after active mode when Vcc falls below 8.5V.

In case of switch-on a Power Up Reset is done by reseting the internal error-latch in the protection unit.

When V internal reference is switched off and the Power Down reset let T1 discharging the soft-start capaci tor C at pin SoftS. Thus it is ensu re d th at at ev ery s wi tch- on the voltage ramp at pin SoftS starts at zero.

REF

falls below the off-threshold V

VCC

. In case the IC is inactive the

VCC

Start-up

. When V

VCC

=13.5V the internal bias

CCon

VCC

=6.5V to supply the internal circuits. To

=8.5V the

CCoff

Soft-Start

Soft-Start Com parator

PW M-Latch

RSQ

Driver

PW M Com parator

0.8V

PWM OP

x3.65

Isense

Improved Current Mode

Figure 6 Current Mode

Current Mode means that the duty cycle is controlled by the slope of the primary current. This is done by comparison the FB signal with the amplified current sense signal.

Amplified Current Signal

0.8V

Driver

Figure 7 Pulse Width Modulation

In case the amplified current sense signal exceeds the FB signal the on-time T reseting the PWM-Latch (see Figure 7).

of the driver is finished by

Datasheet V4.5 9 Jan 2004

The primary current is sensed by the external series resistor R CoolMOS™. By means of Current Mode the regulation of the secondary voltage is insensitive on line variations. Line variation causes varition of the increasing current slope which controls the duty cycle. The external R the maximum source current of the integrated

inserted in the source of the integrated

Sense

allows an individual adjustment of

Sense

CoolMOS™.

Soft-Start Com parator

PWM Comparator

PW M-Latch

OSC

0.3V C5

G a te Drive r

O scillato r

0.8V

10k

Ω

x3.65

20pF

PWM O P

Voltage Ramp

Figure 8 Improved Current Mode

To improve the Current Mode during light load conditions the amplified current ramp of the PWM-OP is superimposed on a voltage ramp, which is built by the switch T low pass filter composed of R Figure 9). Every time the oscillator shuts down for max. duty cycle limitation the switch T2 is closed by V When the oscillator triggers the Gate Driver T2 is opened so that the voltage ramp can start. In case of light load the amplified current ramp is to small to ensure a stable regulation. In that case the Voltage Ramp is a well defined signal for the comparison with the FB-signal. The duty cycle is then controlled by the slope of the Voltage Ramp. By means of the Compa rator C5, the Gate Driver is switched-off until the voltage ramp exceeds 0.3V. It allows the duty cycle to be reduced continously till 0% by decreasing V

, the voltage source V1 and the 1st order

below that threshold.

and C1(see Figure 8,

OSC

CoolSET™-F2

Functional Description

OSC

max.

Duty Cycle

Voltage Ramp

0.8V FB

0.3V

Gate Driver

Figure 9 Light Load Conditions

3.2.1 PWM-OP

The input of the PWM-OP is applied over the internal leading edge blanking to the external sense resistor

connected to pin ISense. R

Sense

source current into a sense voltage. The sense voltage is amplified with a gain of 3.65 by PWM OP. The output of the PWM-OP is connected to the voltage source V1. The voltage ramp with the superimposed amplified current singal is fed into the positive inputs of the PWMComparator, C5 and the Soft-Start-Comparator.

Sense

3.2.2 PWM-Comparator

The PWM-Comparator compares the sensed current signal of the integrated C oolMOS signal V external optocoupler or external transistor in combination with the internal pullup resistor R provides the load information of the feedback circuitry. When the amplified current signal of the integrated CoolMOS™ exceeds the signal V

(see Figure 10). VFB is created by an

Comparator switches off the Gate Driver.

with the feedback

converts the

and

the PWM-

Datasheet V4.5 10 Jan 2004

6.5V

Soft-Start Com parator

PW M-Latch

PW M Com parator

0.8V

Optocoupler

PWM OP

Ise n s e

x3.65

Improved Current Mode

Figure 10 PWM Controlling

3.3 Soft-Start

So ftS

5.6V

5.3V

So ft-Start

G a te Drive r

Figure 11 Soft-Start Phase

The Soft-Start is realized by the internal pullup resistor

and the external Capacitor C

Soft-Start

Figure 2). The Soft-Start voltage V charging the external capacitor C

is generated by

SoftS

Soft-Start

(see

Soft-Start

by the internal

CoolSET™-F2

Functional Description

pullup resistor R compares the voltage at pin SoftS at the negative input with the ramp signal of the PWM-OP at the positive input. When Soft-Start voltage V Feedback voltage V the pulse width by reseting the PWM-Latch (see Figure

11). In addition to Start-Up, Soft-Start is also activated at each restart attempt during Auto Restart. By means of the above mentioned C defined by the user. The Soft-Start is finished when

exceeds 5.3V. At that time the Protection Unit is

SoftS

activated by Comparator C4 and senses the FB by Comparator C3 wether the voltage is below 4.8V which means that the voltage on the secondary side of the SMPS is settled. The internal Zener Diode at SoftS with breaktrough voltage of 5.6V is to prevent the internal circuit from saturation (see Figure 12).

6.5V

5.6V

So ftS

6.5V

5.3V

4.8V

Figure 12 Activation of Protection Unit

The Start-Up time T voltage V Start Phase T

Soft Start–

By means of Soft-Start there is an effective minimization of current and voltage stresses on the integrated CoolMOS™, the clamp circuit and the output overshoot and prevents saturation of the transformer during Start-Up.

is settled must be shorter than the Soft-

OUT

Soft-Start

. The Soft-Start-Comparator

Soft-Start

the Soft-Start-Comparator limits

SoftS

the Soft-Start can be

Soft-Start

Power-Up Reset

Sof t-S ta rt

Erro r-L atc h

Clock

PWM-Latch

within the converter output

Start-Up

(see Figure 13).

Soft Start–

------------------------------------- -=

Soft Start–

1.69×

is less than

RSQ

Gate Driver

Datasheet V4.5 11 Jan 2004

CoolSET™-F2

Functional Description

SoftS

5.3V

So ft-S tart

4.8V

OUT

Start-Up

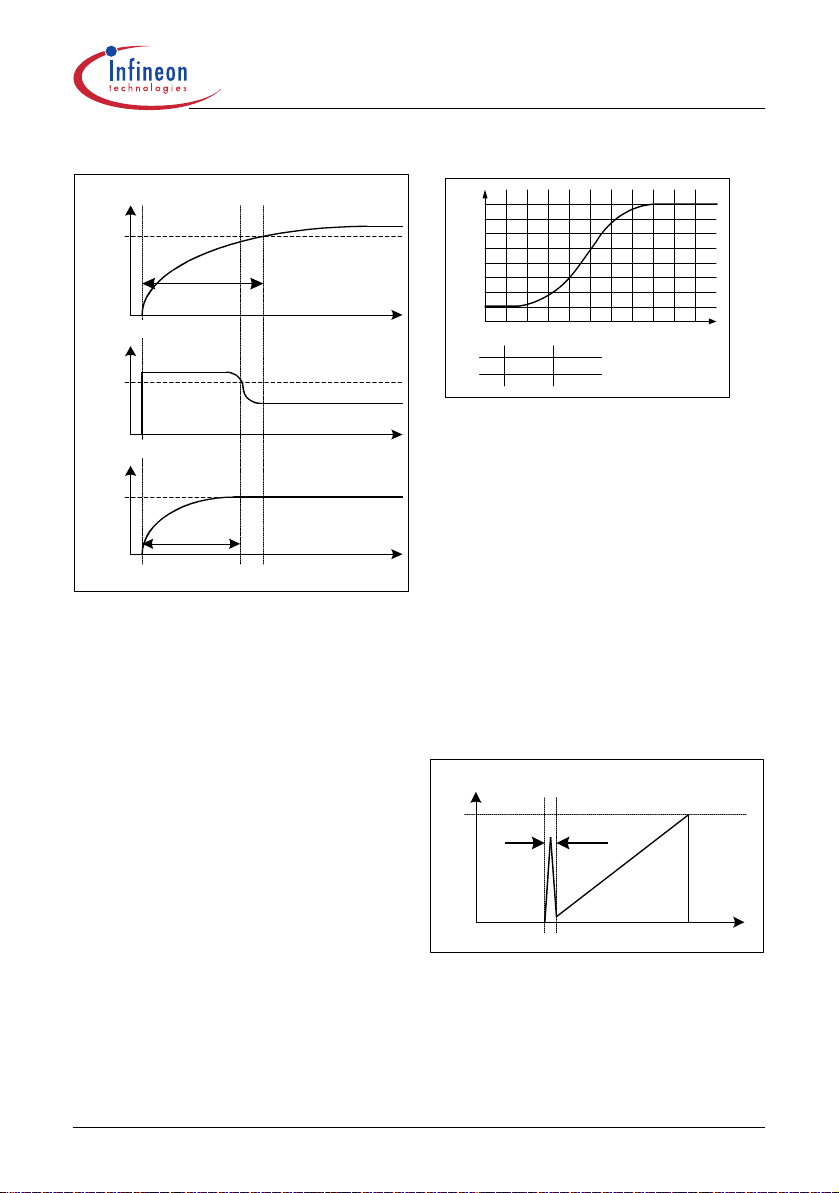

Figure 13 Start Up Phase

3.4 Oscillator and Frequency Reduction

3.4.1 Oscillator

The oscillator generates a frequency f 100kHz. A resistor, a capacitor and a current source and current sink which determine the frequency are integrated. The charging and discharging current of the implemented oscillator capacitor are internally trimmed, in order to achieve a very accurate switching frequency. The ratio of controlled charge to discharge current is adjusted to reach a max. duty cycle limitation of D

=0.72.

max

switch

= 67kHz/

3.4.2 Frequency Reduction

The frequency of the oscillator is depending on the voltage at pin FB. The dependence is shown in Figure

14. This feature allows a power supply to operate at

lower frequency at light loads thus lowering the switching losses while maintaining good cross regulation performance and low output ripple. In case of low power the power consumption of the whole SMPS can now be reduced very effective. The minimal reachable frequency is limited to 20kHz/21.5 kHz to avoid audible noise in any case.

kHz

100

OSC

21.5

1.0

1.1 1. 2 1.3 1.4 1. 5 1.6 1.7 1.8 1. 9 2.0

norm

standby

21.5kHz

67kHz

20kHz

ICE2BxxxxICE2Axxxx

100kHz

Figure 14 Frequency Dependence

3.5 Current Limiting

There is a cycle by cycle current limiting realised by the Current-Limit Comparator to provide an overcurrent detection. The source current of the integrated CoolMOS R transformed to a sense voltage V voltage V V off the gate drive. To prevent the Current Limiting from distortions caused by leading edge spikes a Leading Edge Blanking is integrated at the Current Sense. Furthermore a Propagation Delay Compensation is added to support the immedeate shut down of the CoolMOS™ in case of overcurrent.

is sensed via an external sense resistor

. By means of R

Sense

exceeds the internal threshold voltage

Sense

the Current-Limit-Comparator immediately turns

csth

the source current is

Sense

. When the

Sense

3.5.1 Leading Edge Blanking

Sense

csth

= 220ns

LEB

Figure 15 Leading Edge Blanking

Each time when CoolMOS™ is switched on a leading spike is generated due to the primary-side capacitances and secondary-side rectifier reverse recovery time. To avoid a premature termination of the switching pulse this spike is blanked out with a time constant of t

= 220ns. During that time the output of

LEB

Datasheet V4.5 12 Jan 2004

the Current-Limit Comparator cannot switch off the gate drive.

3.5.2 Propagation Delay Compensation

In case of overcurrent detection by I of CoolMOS™ is delayed due to the propagation delay of the circuit. This delay causes an overshoot of the peak current I the peak current (see Figure 16).

which depends on the ratio of dI/dt of

peak

the shut down

Limit

Signal2Signal1

peak2

peak1

Limit

Sense

Overs hoot2

Propagation Delay

Overshoot1

Figure 16 Current Limiting

The overshoot of Signal2 is bigger than of Signal1 due to the steeper rising waveform.

A propagation delay compensation is integrated to bound the overshoot dependent on dI/dt of the rising primary current. That means the propagation delay time between exceeding the current sense threshold

and the switch off of CoolMOS™ is compensated

csth

over temperature within a range of at least.

0 R

≤≤

So current limiting is n ow capable in a very accura te way (see Figure 18).

OSC

Sense

csth

peak

------------

max. Duty Cycle

Sense

---------------

off time

Propagation Del ay

Signal1 Signal 2

Figure 17 Dynamic Voltage Threshold V

csth

CoolSET™-F2

Functional Description

The propagation delay compensation is done by means of a dynamic threshold voltage V

17). In case of a steeper slope the switch off of the driver is earlier to compensate the delay.

E.g. I

= 0.5A with R

peak

delay compensation the current sense threshold is set to a static voltage level V dI/dt = 0.4A/µs, that means dV propagation delay time of i.e. t leads then to a I propagation delay compensation the overshoot is only about 2% (see Figure 18).

1.3

1.25

1.2

1.15

1.1

Sense

1.05

0.95

0.9

peak

0 0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 1.8 2

= 2 . Without propagation

Sense

=1V. A current ramp of

csth

Sense

overshoot of 12%. By means of

without compensation

Sense

with compensation

Figure 18 Overcurrent Shutdown

3.6 PWM-Latch

The oscillator clock output applies a set pulse to the PWM-Latch when initiating CoolMOS™ conduction. After setting the PWM-Latch can be reset by the PWMOP, the Soft-Start-Comparator, the Current-LimitComparator, Comparator C3 or the Error-Latch of the Protection Unit. In case of reseting the driver is shut down immediately.

3.7 Driver

The driver-stage drives the gate of the CoolMOS™ and is optimized to minimize EMI and to provide high circuit efficiency. This is done by reducing the switch on slope when reaching the CoolMOS™ threshold. This is achieved by a slope control of the rising edge at the driver’s output (see Figure 19).

Thus the leading switch on spike is minimized. When CoolMOS™ is switched off, the falling shape of the driver is slowed down when reaching 2V to prevent an overshoot below ground. Furthermore the driver circuit is designed to eliminate cross conduction of the output stage. At voltages below the undervoltage lockout threshold V

the gate drive is active low.

VCCoff

(see Figure

csth

/dt = 0.8V/µs, and a

Propagation Delay

=180ns

V/us

Datasheet V4.5 13 Jan 2004

CoolSET™-F2

Functional Description

ca. t = 130ns

Gate

Figure 19 Gate Rising Slope

3.8 Protection Unit (Auto Restart Mode)

An overload, open loop and overvoltage detection is integrated within the Protection Unit. These three failure modes are latched by an Error-Latch. Ad ditiona l thermal shutdown is latched by the Error-Latch. In case of those failure modes the Error-Latch is set after a blanking time of 5µs and the CoolMOS™ is shut down. That blanking prevents the Error-Latch f rom distor tions caused by spikes during operation mode.

3.8.1 Overload / Open L oop with Normal Load

Figure 20 shows the Auto Restart Mode in case of overload or open loop with normal load. The detection of open loop or overload is provided by the Comparator C3, C4 and the AND-gate G2 (see Figure 21). The detection is activated by C4 when the voltage at pin SoftS exceeds 5.3V. Till this time the IC operates in the Soft-Start Phase. After this phase the comparator C3 can set the Error-Latch in case of open loop or ove rload which leads the feedback voltage V threshold of 4.8V. After latching VCC decreases till

8.5V and inactivates the IC. At this time the external

Soft-Start capacitor is discharged by the internal transistor T1 due to Power Down Reset. When the IC is inactive V the Capacitor C R

Start-Up

Reset and the external Soft-Start capacitor C charged by the internal pullup resistor R the Soft-Start Phase which ends when the voltage at pin SoftS exceeds 5.3V the detection of overload and open loop by C3 and G2 is inactive. In this way the Start Up Phase is not detected as an overload.

increases till V

VCC

by means of the Start-Up Resistor

VCC

. Then the Error-Latch is reset by Power Up

CCon

to exceed the

= 13.5V by charging

Soft-Start

. During

Soft-Start

Overload / Open Loop wi th Normal Load

5µs Blanking

4.8V

Soft S

5.3V

Dri ver

VCC

13.5V

8.5V

Fail ure

Dete cti on

Soft-St art Phase

Burst1

Figure 20 Auto Restart Mode

So ftS

6.5V

Soft-S ta rt

6.5V

Power Up Reset

5.3V

4.8V C3

Restar t

Error-L a tch

Figure 21 FB-Detection

Datasheet V4.5 14 Jan 2004

But the Soft-Start Phase must be finished within the Start Up Phase to force the voltage at pin FB below the failure detection threshold of 4.8V.

3.8.2 Overvoltage due to Open Loop with No Load

Open loop & no load condition

5µs Blanking

4.8V Failure

Detection

CoolSET™-F2

Functional Description

normal operation mode is prevented from overvoltage detection due to varying of VCC concerning the regulation of the converter output. When the voltage

is above 4.0V the overvoltage detection by C1 is

SoftS

deactivated.

VCC

So ftS

6.5V

16.5V

Soft-Start

4.0V

Error L a tch

So ftS

5.3V

4.0V

Driver

VCC

16.5V

13.5V

8.5V

Soft- S ta rt P h a s e

Overvoltage

Detection Phase

Overvoltage D etection

Burst2

Restart

Figure 22 Auto Restart Mode

Figure 22 shows the Auto Restart Mode for open loop and no load condition. In case of this failure mode the converter output voltage increases and also VCC. An additional protection by the comparators C1, C2 and the AND-gate G1 is implemented to consider this failure mode (see Figure 23).The overvoltage detection is provided by Comparator C1 only in the first time during the Soft-Start Phase till the Soft-Start voltage exceeds the threshold of the Comparator C2 at 4.0V and the voltage at pin FB is above 4.8V. When VCC exceeds 16.5V during the overvoltage detect ion pha se C1 can set the Error-Latch and the Burst Phase during Auto Restart Mode is finished earlier. In that case

is shorter than T

Burst2

. By means of C2 the

Soft-Start

So ft-S tart

Power Up Reset

Figure 23 Overvoltage Detection

3.8.3 Thermal Shut Down

Thermal Shut Down is latched by the Error-Latch when junction temperature T exceeding an internal threshold of 140°C. In that case the IC switches in Auto Restart Mode.

Note: All the values which are mentioned in the

functional description are typical. Please refer to Electrical Characteristics for min/max limit values.

of the pwm controller is

Datasheet V4.5 15 Jan 2004

CoolSET™-F2

Electrical Characteristics

4 Electrical Characteristics

4.1 Absolute Maximum Ratings

Note: Absolute maximum ratings are defined as ratings, which when being exceeded may lead to destruction

of the integrated circuit. For the same reason make sure, that any capacitor that will be connected to pin (VCC) is discharged before assembling the application circuit.

Parameter Symbol Limit Values Unit Remarks

min. max.

Drain Source Voltage ICE2A0565/165/265/365/765I/765P2 ICE2B0565/165/265/365/765I/765P2 ICE2A0565Z

Drain Source Voltage ICE2A180Z/280Z

Avalanche energy, repetitive t max. T

=150°C

limited by

ICE2A0565 E ICE2A165 E ICE2A265 E ICE2A365 E ICE2B0565 E ICE2B165 E ICE2B265 E ICE2B365 E ICE2A0565Z E ICE2A180Z E ICE2A280Z E ICE2A765I E ICE2B765I E ICE2A765P2 E ICE2B765P2 E

Repetitive avalanche causes additional power losses that can be calculated as PAV=EAR* f

AR1

AR2

AR3

AR4

AR5

AR6

AR7

AR8

AR9

AR10

AR11

AR12

AR13

AR14

AR15

- 650 V Tj = 110°C

- 800 V Tj = 25°C

- 0.01 mJ

- 0.07 mJ

- 0.40 mJ

- 0.50 mJ

- 0.01 mJ

- 0.07 mJ

- 0.40 mJ

- 0.50 mJ

- 0.01 mJ

- 0.07 mJ

- 0.40 mJ

- 0.50 mJ

Datasheet V4.5 16 Jan 2004

CoolSET™-F2

Electrical Characteristics

Parameter Symbol Limit Values Unit Remarks

min. max.

Avalanche current, repetitive tAR limited by max. T

=150°C

VCC Supply Voltage V

FB Voltage V SoftS Voltage V I

Sense

Junction Temperature T Storage Temperature T Thermal Resistance

Junction-Ambient ESD Robustness1)

Equivalent to discharging a 100pF capacitor through a 1.5 kΩ series resistor

1kV at pin drain of ICE2x0565, ICE2A0565Z

ICE2A0565 I ICE2A165 I ICE2A265 I ICE2A365 I ICE2B0565 I ICE2B165 I ICE2B265 I ICE2B365 I ICE2A0565Z I ICE2A180Z I ICE2A280Z I ICE2A765I I ICE2B765I I ICE2A765P2 I ICE2B765P2 I

AR1

AR2

AR3

AR4

AR5

AR6

AR7

AR8

AR9

AR10

AR11

AR12

AR13

AR14

AR15

Sense

R R V

SoftS

thJA1

thJA2

ESD

- 0.5 A

- 1 A

- 2 A

- 3 A

- 0.5 A

- 1 A

- 2 A

- 3 A

- 0.5 A

- 1 A

- 2 A

- 7 A

-0.3 22 V

-0.3 6.5 V

-0.3 3 V

-40 150 °C Cont roller & CoolMOS™

-50 150 °C

- 90 K/W P-DIP-8-6

- 96 K/W P-DIP-7-1

- 2

kV Human Body Model

Datasheet V4.5 17 Jan 2004

CoolSET™-F2

Electrical Characteristics

4.2 Thermal Impedance (ICE2X765I and ICE2X765P2)

Parameter Symbol Limit Values Unit Remarks

min. max.

Thermal Resistance Junction-Ambient

Junction-Case ICE2A765I

4.3 Operating Range

Note: Within the operating range the IC operates as described in the functional description.

Parameter Symbol Limit Values Unit Remarks

VCC Supply Voltage V

Junction Temperature of Controller

Junction Temperature of CoolMOS™

ICE2A765I ICE2B765I ICE2A765P2 ICE2B765P2

ICE2B765I ICE2A765P2 ICE2B765P2

JCon

JCoolMOS

thJA3

thJC

- 74 K/W Free standing with no heatsink

- 2.5 K/W

min. max.

CCoff

21 V

-25 130 ° C Limited due to thermal shut down of controller

-25 150 ° C

Datasheet V4.5 18 Jan 2004

CoolSET™-F2

Electrical Characteristics

4.4 Characteristics

Note: The electrical characteristics involve the spread of values given within the specified supply voltage and

junction temperature range T are related to 25°C. If not otherwise stated, a supply voltage of V

4.4.1 Supply Section

Parameter Symbol Limit Values Unit Test Condition

Start Up Current I Supply Current with Inactive

Gate Supply Current

with Active Gate

Supply Current with Activ Gate

VCC Turn-On Threshold VCC Turn-Off Threshold VCC Turn-On/Off Hysteresis

ICE2A0565 I

ICE2A165 I

ICE2A265 I

ICE2A365 I

ICE2B0565 I

ICE2B165 I

ICE2B265 I

ICE2B365 I

ICE2A0565Z I

ICE2A180Z I

ICE2A280Z I

ICE2A765I I

ICE2B765I I

ICE2A765P2 I

ICE2B765P2 I

from – 25 °C to 125 °C.Typical values represent the median values, which

= 15 V is assumed.

min. typ. max.

VCC1

VCC2

VCC3

VCC4

VCC5

VCC6

VCC7

VCC8

VCC9

VCC10

VCC11

VCC12

VCC13

VCC14

VCC15

VCC16

VCC17

VCCon VCCoff VCCHY

- 27 55 µA VCC=V

- 5.0 6.6 mA V

IFB = 0

- 5.3 6.7 mA V

- 6.5 7.8 mA V

IFB = 0

- 6.7 8.0 mA V IFB = 0

- 8.5 9.8 mA V

- 5.2 6.7 mA V

IFB = 0

- 5.5 7.0 mA V IFB = 0

- 6.1 7.3 mA V IFB = 0

- 7.1 8.3 mA V

- 5.3 6.7 mA V

IFB = 0

- 6.5 7.8 mA V IFB = 0

- 7.7 9.0 mA V

- 8.5 9.8 mA V

IFB = 0

- 7.1 8.3 mA V IFB = 0

- 8.5 9.8 mA V

- 7.1 8.3 mA V

4.5

13.5

8.5 5

5.5

V V V

IFB = 0

SoftS

CCon

= 0

= 5V

-0.1V

Datasheet V4.5 19 Jan 2004

CoolSET™-F2

Electrical Characteristics

4.4.2 Internal Voltage Reference

Parameter Symbol Limit Values Unit Test Condition

min. typ. max.

Trimmed Reference Voltage V

REF

4.4.3 Control Section

Parameter Symbol Limit Values Unit Test Condition

Oscillator Frequency ICE2A0565/165/265/365/765I/765P2 ICE2A0565Z/180Z/280Z

Oscillator Frequency ICE2B0565/165/265/365/765I/765P2

Reduced Osc. Frequency ICE2A0565/165/265/365/765I/765P2 ICE2A0565Z/180Z/280Z

Reduced Osc. Frequency ICE2B0565/165/265/365/765I/765P2

Frequency Ratio f ICE2A0565/165/265/365/765I/765P2 ICE2A0565Z/180Z/280Z

Frequency Ratio f ICE2B0565/165/265/365/765I/765P2

Max Duty Cycle D Min Duty Cycle D PWM-OP Gain A VFB Operating Range Min Level V VFB Operating Range Max level V Feedback Resistance R Soft-Start Resistance R

osc1/fosc2

osc3/fosc4

6.37 6.50 6.63 V measured at pin FB

min. typ. max.

OSC1

OSC3

OSC2

OSC4

93 100 107 kHz VFB = 4V

62 67 72 kHz VFB = 4V

- 21.5 - kHz VFB = 1V

- 20 - kHz VFB = 1V

4.5 4.65 4.9

3.18 3.35 3.53

max

min

FBmin

FBmax

Soft-Start

0.67 0.72 0.77 0 - - VFB < 0.3V

3.45 3.65 3.85

0.3 - - V

- - 4.6 V

3.0 3.7 4.9 kΩ 42 50 62 kΩ

Datasheet V4.5 20 Jan 2004

CoolSET™-F2

Electrical Characteristics

4.4.4 Protection Unit

Parameter Symbol Limit Values Unit Test Condition

min. typ. max.

Over Load & Open Loop Detection Limit

Activation Limit of Overload & Open Loop Detection

Deactivation Limit of Overvoltage Detection

Overvoltage Detection Limit V

Latched Thermal Shutdown T Spike Blanking t

The parameter is not subjec t to pr o duction test - varified by design/characterization

4.4.5 Current Limiting

Parameter Symbol Limit Valu es Unit Test Condition

Peak Current Limitation (incl. Propagation Delay Time)

Leading Edge Blanking t

FB2

SoftS1

SoftS2

VCC1

jSD

Spike

LEB

csth

4.65 4.8 4.95 V V

SoftS

> 5.5V

5.15 5.3 5.46 V VFB > 5V

3.88 4.0 4.12 V VFB > 5V

VCC > 17.5V

16 16.5 17.2 V V

130 140 150 °C

< 3.8V

SoftS

VFB > 5V

- 5 - µs

min. typ. max.

0.95 1.0 1.05 V dV

sense

- 220 - ns

/ dt = 0.6V/µs

Datasheet V4.5 21 Jan 2004

CoolSET™-F2

Electrical Characteristics

4.4.6 CoolMOS™ Section

Parameter Symbol Limit Values Unit Test Condition

min. typ. max.

Drain Source Breakdown Voltage ICE2A0565/165/265/365/765I/765P2 ICE2B0565/165/265/365/765I/765P2 ICE2A0565Z

Drain Source Breakdown Voltage ICE2A180Z/280Z

Drain Source On-Resistance

ICE2A0565 R

ICE2A165 R

ICE2A265 R

ICE2A365 R

ICE2B0565 R

ICE2B165 R

ICE2B265 R

ICE2B365 R

ICE2A0565Z R

ICE2A180Z R

ICE2A280Z R

ICE2A765I R

ICE2B765I R

ICE2A765P2 R

ICE2B765P2 R

(BR)DSS

DSon1

DSon2

DSon3

DSon4

DSon5

DSon6

DSon7

DSon8

DSon9

DSon10

DSon11

DSon12

DSon13

DSon14

DSon15

600 650--

800 870--

4.7

10.0 3

6.6

0.9

1.9

0.45

0.95

4.7

10.0 3

6.6

0.9

1.9

0.45

0.95

4.7

10.0 3

6.6

0.8

1.7

0.45

0.95

0.45

0.95

0.45

0.95

0.45

0.95

5.5

12.5ΩΩ

3.3

7.3

1.08

2.28ΩΩ

0.54

1.14ΩΩ

5.5

12.5ΩΩ

3.3

7.3

1.08

2.28ΩΩ

0.54

1.14ΩΩ

5.5

12.5ΩΩ

3.3

7.3

1.06

2.04ΩΩ

0.54

1.14ΩΩ

0.54

1.14ΩΩ

0.54

1.14ΩΩ

0.54

1.14ΩΩ

V V

Ω Ω

Tj=25°C Tj=110°C

Tj=25°C Tj=125°C

Ω Ω

Tj=25°C Tj=125°C

Datasheet V4.5 22 Jan 2004

CoolSET™-F2

Electrical Characteristics

Parameter Symbol Limit Values Unit Test Condition

min. typ. max.

Effective output capacitance, energy related

Zero Gate Voltage Drain Current I Rise Time t Fall Time t

Measured in a Typical Flyback Converter Application

ICE2A0565 C ICE2A165 C ICE2A265 C ICE2A365 C ICE2B0565 C ICE2B165 C ICE2B265 C ICE2B365 C ICE2A0565Z C ICE2A180Z C ICE2A280Z C ICE2A765I C ICE2B765I C ICE2A765P2 C ICE2B765P2 C

o(er)1

o(er)2

o(er)3

o(er)4

o(er)5

o(er)6

o(er)7

o(er)8

o(er)9

o(er)10

o(er)11

o(er)12

o(er)13

o(er)14

o(er)15

DSS

rise

fall

- 4.751 - pF VDS =0V to 480V

- 7 - pF VDS =0V to 480V

- 21 - pF VDS =0V to 480V

- 30 - pF VDS =0V to 480V

- 4.751 - pF VDS =0V to 480V

- 7 - pF VDS =0V to 480V

- 21 - pF VDS =0V to 480V

- 30 - pF VDS =0V to 480V

- 4.751 - pF VDS =0V to 480V

- 7 - pF VDS =0V to 480V

- 22 - pF VDS =0V to 480V

- 30 - pF VDS =0V to 480V

- 0.5 - µA V

- 30

- ns

VCC

=0V

Datasheet V4.5 23 Jan 2004

Typical Performance Charac t er is ti cs

5 Typical Performance Characteristics

CoolSET™-F2

[µA]

VCC1

Start Up Current I

-25-15-5 5 152535455565758595105115125

Figure 24 Start Up Current I

5,9

5,7

5,5

[mA]

VCC2

5,3

5,1

4,9

Supply Current I

4,7

4,5

-25-15-5 5 152535455565758595105115125

Figure 25 Static Supply Current I

8,8

8,4

8,0

7,6

[mA]

7,2

VCCi

6,8

6,4

6,0

5,6

5,2

4,8

Supply Current I

4,4

4,0

-25-15-5 5 152535455565758595105115125

Figure 26 Supply Current I

Junction Temperature [°C]

vs. T

VCC1

Junction Temperature [°C]

VCC2

ICE2A365

ICE2A165

ICE2A0565

Junction Temperature [°C]

vs. T

VCCI

vs. T

ICE2A265

7,1

6,9

6,7

6,5

[mA]

6,3

VCCi

6,1

5,9

5,7

PI-001-190101

5,5

5,3

5,1

Supply Current I

4,9

4,7

4,5

-25-15-5 5 152535455565758595105115125

Figure 27 Supply Current I

8,5

8,3

8,1

7,9

7,7

[mA]

7,5

7,3

VCCi

7,1

6,9

PI-003-190101

6,7

6,5

6,3

6,1

Supply Current I

5,9

5,7

5,5

-25-15-5 5 152535455565758595105115125

Figure 28 Supply Current I

9,0

8,8

8,6

8,4

8,2

[mA]

8,0

VCCi

7,8

7,6

7,4

PI-002-190101

7,2

7,0

6,8

Supply Current I

6,6

6,4

6,2

-25-15-5 5 152535455565758595105115125

Figure 29 Supply Current I

ICE2B365

ICE2B265

ICE2B165

ICE2B0565

Junction Temperature [°C]

vs. T

VCCI

ICE2A180Z

Junction Temperature [°C]

vs. T

VCCI

ICE2A765P2

ICE2B765P2

Junction Temperature [°C]

vs. T

VCCI

PI-002-190101

ICE2A280Z

PI-002-190101

Datasheet V4.5 24 Jan 2004

CoolSET™-F2

Typical Performance Charac t er is ti cs

13,58

13,56

[V]

13,54

CCon

13,52

13,50

13,48

13,46

13,44

VCC Turn-On Threshold V

13,42

-25-15-5 5 152535455565758595105115125

Figure 30 VCC Turn-On Threshold V

8,67

8,64

[V]

8,61

VCCoff

8,58

8,55

8,52

8,49

8,46

8,43

VCC Turn-Off Threshold V

8,40

-25 -15 -5 5 15 25 35 45 55 65 75 85 95 105 115 125

Figure 31 VCC Turn-Off Threshold V

5,10

[V]

5,07

CCHY

5,04

5,01

4,98

4,95

4,92

4,89

4,86

4,83

VCC Turn-On/Off Hysteresis V

-25 -15 -5 5 15 25 35 45 55 65 75 85 95 105 115 125

Junction Temperature [°C]

VCCon

Junction Temperature [°C]

VCCoff

Junction Temperature [°C]

Figure 32 VCC Turn-On/Off HysteresisV

vs. T

VCCHY

vs. T

6,510

[V]

6,505

REF

6,500

6,495

6,490

PI-004-190101

6,485

6,480

6,475

Trimmed Reference Voltage V

6,470

-25-15-5 5 152535455565758595105115125

Junction Temperature [°C]

Figure 33 Trimmed Reference V

102,0

101,5

101,0

[kHz]

100,5

OSC1

100,0

99,5

PI-005-190101

99,0

98,5

98,0

97,5

Oscillator Frequency f

97,0

-25 -15 -5 5 15 25 35 45 55 65 75 85 95 105 115 125

Junction Temperature [°C]

Figure 34 Oscillator Frequency f

70,0

69,5

69,0

[kHz]

68,5

68,0

OSC3

67,5

67,0

PI-006-190101

66,5

66,0

65,5

65,0

64,5

Oscillator Frequency f

64,0

-25-15-5 5 152535455565758595105115125

Figure 35 Oscillator Frequency f

Junction Temperature [°C]

ICE2A0565 ICE2A165 ICE2A265 ICE2A365 ICE2A180Z ICE2A280Z ICE2A765P2

ICE2B0565 ICE2B165 ICE2B265 ICE2B365 ICE2B765P2

REF

OSC1

OSC3

vs. T

PI-007-190101

PI-008-190101

PI-008a-190101

Datasheet V4.5 25 Jan 2004

CoolSET™-F2

Typical Performance Charac t er is ti cs

22,0

21,8

[kHz]

21,6

OSC2

21,4

21,2

21,0

20,8

20,6

20,4

20,2

Reduced Osc. Frequency f

20,0

-25 -15 -5 5 15 25 35 45 55 65 75 85 95 105 115 125

Junction Temperature [°C]

ICE2A0565 ICE2A165 ICE2A265 ICE2A365 ICE2A180Z ICE2A280Z ICE2A765P2

Figure 36 Reduced Osc. Frequency f

21,0

20,8

[kHz]

20,6

OSC4

20,4

20,2

20,0

19,8

19,6

19,4

19,2

Reduced Osc. Frequency f

19,0

-25 -15 -5 5 15 25 35 45 55 65 75 85 95 105 115 125

ICE2B0565 ICE2B165 ICE2B265 ICE2B365 ICE2B765P2

Junction Temperature [°C]

Figure 37 Reduced Osc. Frequency f

4,75

4,73

4,71

OSC2

4,69

OSC1

4,67

4,65

4,63

4,61

4,59

Frequency Ratio f

4,57

4,55

-25 -15 -5 5 15 25 35 45 55 65 75 85 95 105 115 125

Junction Temperature [°C]

Figure 38 Frequency Ratio f

ICE2A0565 ICE2A165 ICE2A265 ICE2A365 ICE2A180Z ICE2A280Z ICE2A765P2

OSC1

/ f

OSC2

OSC4

vs. T

3,45

3,43

3,41

OSC4

3,39

OSC3

3,37

3,35

PI-009-190101

3,33

3,31

3,29

Frequency Ratio f

3,27

3,25

-25 -15 -5 5 15 25 35 45 55 65 75 85 95 105 115 125

Figure 39 Frequency Ratio f

0,730

0,728

0,726

0,724

0,722

0,720

PI-009a-190101

0,718

0,716

Max. Duty Cycle

0,714

0,712

0,710

-25 -15 -5 5 15 25 35 45 55 65 75 85 95 105 115 125

Figure 40 Max. Duty Cycle vs. T

3,70

3,69

3,68

3,67

3,66

3,65

PI-010-190101

3,64

3,63

PWM-OP Gain A

3,62

3,61

3,60

-25 -15 -5 5 15 25 35 45 55 65 75 85 95 105 115 125

Figure 41 PWM-OP Gain AV vs. T

Junction Temperature [°C]

ICE2B0565 ICE2B165 ICE2B265 ICE2B365 ICE2B765P2

OSC3

PI-010a-190101

/ f

vs. T

OSC4

PI-011-190101

PI-012-190101

Datasheet V4.5 26 Jan 2004

CoolSET™-F2

Typical Performance Charac t er is ti cs

4,00

3,95

3,90

[kOhm]

3,85

3,80

3,75

3,70

3,65

3,60

3,55

Feedback Resistance R

3,50

-25 -15 -5 5 15 25 35 45 55 65 75 85 95 105 115 125

Junction Temperature [°C]

Figure 42 Feedback Resistance RFB vs. T

[kOhm]

Soft-Start

Soft-Start Resistance R

-25 -15 -5 5 15 25 35 45 55 65 75 85 95 105 115 125

Figure 43 Soft-Start Resistance R

4,810

4,805

[V]

4,800

FB2

4,795

4,790

Detection Limit V

4,785

4,780

-25-15-5 5 152535455565758595105115125

Figure 44 Detection Limit V

Junction Temperature [°C]

Soft-Start

Junction Temperature [°C]

vs. T

FB2

vs. T

5,320

5,315

5,310

[V]

5,305

5,300

Soft-Start1

5,295

PI-013-190101

5,290

5,285

5,280

Detection Limit V

5,275

5,270

-25-15-5 5 152535455565758595105115125

Figure 45 Detection Limit V

4,05

4,04

4,03

[V]

4,02

4,01

Soft-Start2

4,00

PI-014-190101

3,99

3,98

3,97

Detection Limit V

3,96

3,95

-25 -15 -5 5 15 25 35 45 55 65 75 85 95 105 115 125

Figure 46 Detection Limit V

16,80

16,75

[V]

16,70

VCC1

16,65

16,60

16,55

16,50

PI-015-190101

16,45

16,40

16,35

16,30

16,25

16,20

Overvoltage Detection Limit V

-25-15-5 5 152535455565758595105115125

Figure 47 Overvoltage Detection Limit V

Junction Temperature [°C]

Soft-Start1

Junction Temperature [°C]

Soft-Start2

Junction Temperature [°C]

vs. T

VCC1

vs. T

PI-016-190101

PI-017-190101

PI-018-190101

Datasheet V4.5 27 Jan 2004

CoolSET™-F2

Typical Performance Charac t er is ti cs

1,010

1,008

[V]

1,006

csth

1,004

1,002

1,000

0,998

0,996

0,994

0,992

Peak Current Limitation V

0,990

-25 -15 -5 5 15 25 35 45 55 65 75 85 95 105 115 125

Figure 48 Peak Current Limitation V

280

270

[ns]

260

LEB

250

240

230

220

210

200

190

Leading Edge Blanking t

180

-25 -15 -5 5 15 25 35 45 55 65 75 85 95 105 115 125

Figure 49 Leading Edge Blanking V

1,0

0,9

0,8

[Ohm]

0,7

dson

0,6

0,5

0,4

On-Resistance R

0,3

0,2

-25-15-5 5 152535455565758595105115125

Junction Temperature [°C]

ICE2A365 ICE2B365

Junction Temperature [°C]

csth

VCC1

vs. T

Figure 50 Drain Source On-Resistance R

vs. T

DSon

vs. T

2,2

2,0

1,8

[Ohm]

1,6

dson

1,4

1,2

PI-019-190101

1,0

0,8

On-Resistance R

0,6

0,4

-25-15-5 5 152535455565758595105115125

ICE2A265 ICE2B265

Junction Temperature [°C]

Figure 51 Drain Source On-Resistance R

9,5

8,5

7,5

[Ohm]

6,5

dson

5,5

PI-020-190101

4,5

3,5

On-Resistance R

2,5

1,5

-25-15-5 5 152535455565758595105115125

ICE2A0565

ICE2B0565

Junction Temperature [°C]

Figure 52 Drain Source On-Resistance R

1,0

0,9

0,8

[Ohm]

0,7

dson

0,6

PI-022-190101

0,5

0,4

On-Resistance R

0,3

0,2

-25-15-5 5 152535455565758595105115125

Figure 53 Drain Source On-Resistance R

ICE2A765P2 ICE2B765P2

Junction Temperature [°C]

ICE2A280Z

ICE2A165 ICE2B165 ICE2A180Z

DSon

vs. T

PI-022-190101

Datasheet V4.5 28 Jan 2004

720

700

[V]

680

(BR)DSS

660

640

620

600

580

Breakdown Voltage V

560

-25 -15 -5 5 15 25 35 45 55 65 75 85 95 105 115 125

Junction Temperature [°C]

Figure 54 Breakdown Voltage V

940

[V]

920

900

(BR)DSS

880

860

840

820

800

Breakdown Voltage V

780

-25 -15 -5 5 15 25 35 45 55 65 75 85 95 105 115 125

Junction Temperature [°C]

Figure 55 Breakdown Voltage V

ICE2A0565 ICE2A165 ICE2A265 ICE2A365 ICE2B0565 ICE2B165 ICE2B265 ICE2B365 ICE2A765P2 ICE2B765P2

ICE2A180Z ICE2A280Z

BR(DSS)

vs. T

CoolSET™-F2

Typical Performance Charac t er is ti cs

PI-025-190101

Datasheet V4.5 29 Jan 2004

CoolSET™-F2

Layout Recommendation for C

6 Layout Recommendation for C

Note: Only for ICE2A765I/P2 and ICE2B765I/P2

Soft Start Capacitor Layout Recommendation in Detail

Detail X

Figure 56B Detail X, Soft Start Capacitor C18 Layout

Recommendation

Place Soft Start capacitor C18 in the same way as

shown in Detail X (blue mark).

Figure 56A Layout of Board EVALSF2_ICE2B765P2

To improve the startup behavior of the IC during

startup or auto restart mode, place the soft start

capacitor C

as close as possible to the soft start PIN 6 and

GND PIN 4. More details see Detail X in Figure

56B.

Figure 56 Layout Recommendation for ICE2A765I/P2 and ICE2B765I/P2

Datasheet V4.5 30 Jan 2004

(red section Detail X in Figure 56A)

7 Outline Dimension

P-DIP-8-6 (Plastic Dual In-line Package)

Figure 57 P-DIP-8-6 (Plastic Dual In-line Package)

CoolSET™-F2

Outline Dimension

P-DIP-7-1 (Plastic Dual In-line Package)

1.7 MAX.

4.37 MAX.

0.38 MIN.

2.54

±0.1

0.46

Index Marking

Does not include plastic or metal protrusion of 0.25 max. per side

9.52

±0.25

0.35

3.25 MIN.

Figure 58 P-DIP-7-1 (Plastic Dual In-line Package)

Datasheet V4.5 31 Jan 2004

7.87

8.9

±0.38

±1

+0.1

0.25

±0.25

6.35

Dimensions in mm

CoolSET™-F2

Outline Dimension

P-TO220-6-46 Isodrain Package

±0.3

10.2

12.1

0...0.15

Figure 59 P-TO220-6-46 (Isodrain Package)

P-TO220-6-47 Isodrain Package

±0.3

15.6

17.5

0...0.15

4 x 1.27

1.274 x

7.62

9.9

9.5

7.62

9.9

7.5

6.6

7.5

6.6

±0.2 ±0.2

1.3

+0.1

-0.02

4.4

(0.8)

0.05

±0.3

8.6

0.25 AMB

±0.1

6 x 0.6

1) Shear and punch direction no burrs this surface Back side, heatsink contour

All metal surfaces tin plated, except area of cut.

±0.2

2.8

-0.15

3.7

±0.3

1.3

5.3

0.05

+0.1

-0.02

2.4

±0.3

8.4

4.4

8.6

6 x 0.6

0.25 AMB

±0.1

5.3

2.4

±0.3

8.4

±0.3

±0.2

9.2

±0.2

9.2

0.5

±0.1

1) Shear and punch direction no burrs this surface Back side, heatsink contour All metal surfaces tin plated, except area of cut.

Figure 60 P-TO220-6-47 (Isodrain Package)

Dimensions in mm

Datasheet V4.5 32 Jan 2004

Total Quality Management

Qualität hat für uns eine umfassende Bedeutung. Wir wollen allen Ihren Ansprüchen in der bestmöglichen Weise gerecht werden. Es geht uns also nicht nur um die Produktqualität – unsere Anstrengungen gelten gleichermaßen der Lieferqualität und Logistik, dem Service und Support sowie allen sonstigen Beratungs- und Betreuungsleistungen.

Dazu gehört eine bestimmte Geisteshaltung unserer Mitarbeiter. Total Quality im Denken und Handeln gegenüber Kollegen, Lieferanten und Ihnen, unserem Kunden. Unsere Leitlinie ist jede Aufgabe mit „Null Fehlern“ zu lösen – in offener Sichtweise auch über den eigenen Arbeitsplatz hinaus – und uns ständig zu verbessern.

Unternehmensweit orientieren wir uns dabei auch an „top“ (Time Optimized Processes), um Ihnen durch größere Schnelligkeit den entscheidenden Wettbewerbsvorsprung zu verschaffen.

Geben Sie uns die Chance, hohe Leistung durch umfassende Qualität zu beweisen.

Wir werden Sie überzeugen.

Quality takes on an allencompassing significance at Semiconductor Group. For us it means living up to each and every one of your demands in the best possible way. So we are not only concerned with product quality. We direct our efforts equally at quality of supply and logistics, service and support, as well as all the other ways in which we advise and attend to you.

Part of this is the very special attitude of our staff. Total Quality in thought and deed, towards co-workers, suppliers and you, our customer. Ou r gui del ine i s “do everything with zero defects”, in an open manner that is demonstrated beyond your immediate workplace, and to constantly improve.

Throughout the corporation we also think in terms of Time Optimized Processes (top), greater speed on our part to give you that decisive competitive edge.

Give us the chance to prove the best of performance through the best of quality – you will be convinced.

http://www.infineon.com

Published by Infineon Technologies AG

This datasheet has been download from:

www.datasheetcatalog.com

Datasheets for electronics components.

INFINEON ICE2A0565, ICE2A165, ICE2A265, ICE2A365, ICE2B0565 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

1 Pin Configuration and Functionality

1.1 Pin Configuration with P-DIP-8-6

1.2 Pin Configuration with P-DIP-7-1

1.3 Pin Conuration with P-TO220-6-46/47

1.4 Pin Functionality

2 Representative Blockdiagram

3 Functional Description

3.1 Power Management

3.2 Improved Current Mode

3.2.1 PWM-OP

3.2.2 PWM-Comparator

3.3 Soft-Start

3.4 Oscillator and Frequency Reduction

3.4.1 Oscillator

3.4.2 Frequency Reduction

3.5 Current Limiting

3.5.1 Leading Edge Blanking

3.5.2 Propagation Delay Compensation

3.6 PWM-Latch

3.7 Driver

3.8 Protection Unit (Auto Restart Mode)

3.8.1 Overload / Open L oop with Normal Load

3.8.2 Overvoltage due to Open Loop with No Load

3.8.3 Thermal Shut Down

4 Electrical Characteristics

4.1 Absolute Maximum Ratings

4.2 Thermal Impedance (ICE2X765I and ICE2X765P2)

4.3 Operating Range

4.4 Characteristics

4.4.1 Supply Section

4.4.2 Internal Voltage Reference

4.4.3 Control Section

4.4.4 Protection Unit

4.4.5 Current Limiting

4.4.6 CoolMOS™ Section

5 Typical Performance Characteristics

7 Outline Dimension
