Infiltrator EZflow Installation Manual

Page 1
Oregon
Under Oregon Administrative Rule (OAR) 340-071-0117, (2005
Revised OAR 340-071-0135), Inltrator Water Technologies has received approval from the Oregon Department ronmental Quality (DEQ) to install the EZow 1201P congura­tion in the State of Oregon. The DEQ has also approved vari­ous EZow products for use in Standard Disposal Trenches, Capping Fill Systems, Sand Filter Systems, Seepage Trench Systems, Steep Slope Systems, Curtain Drains, Tile Dewater­ing Systems, and Pressurized Distribution Systems.
Materials & Equipment Needed

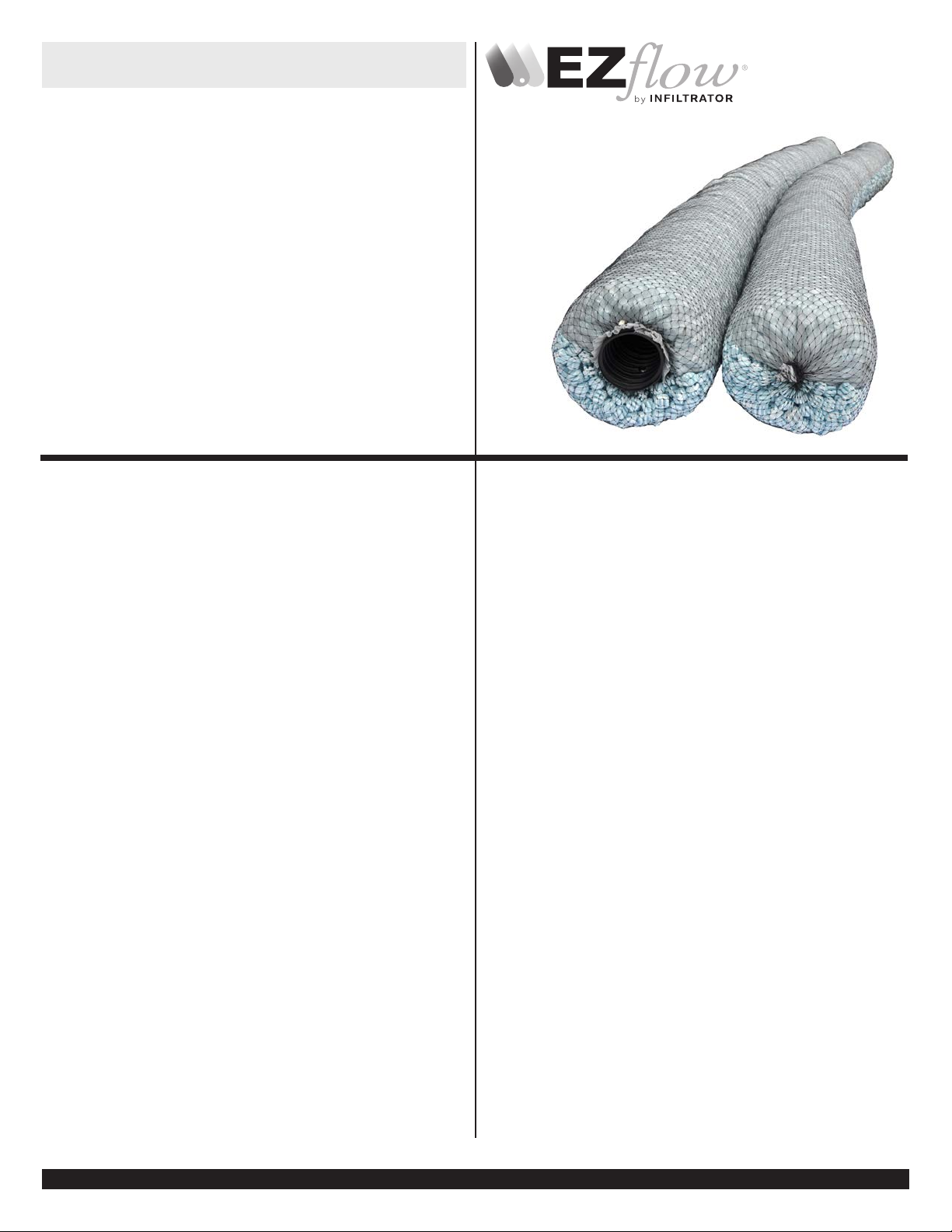

• EZflow Bundles
• EZflow barrier Paper or DEQ approved geotextile on non-GEO products only
• EZflow Internal Pipe Couplers
• Pipe for Header and Inlet
• Backhoe
• Laser, Transiton
of Envi-
August 2018
Installation Instructions for EZflow Systems in Oregon
Installation Instructions
The instructions for installation of EZow products are given below. EZow products must be installed in accordance with OAR Chapter 340, Divisions 071 & 073, as well as the DEQ or local unit of government with jurisdiction.
1. After the DEQ or local unit of government with jurisdiction has determined sizing, conguration, and layout for the EZow system, stake or mark with paint the location of trenches and lines. Set tank, invert pipe, header line or distribution box and trench bottom elevations before installation of pipe bundles.
2. The proper elevation of solid PVC euent pipe going to each trench should be determined to ensure compliance with the required maximum trench bottom depth as shown on the approved permit. This trench depth may vary depending on system height and conguration used.
3. Remove plastic EZow shipping bags prior to placing bundles in the trench(es). Remove any plastic bags in the trench before system is covered.
4. The top of each 1201P-GEO and 1202H-GEO bundle contains a geotextile pre-inserted between the netting and aggregate. The geotextile is present to prevent soil intrusion and shall be placed facing upward. If using the 1202H-GEO, the bundles shall be placed with the geotextile on top and in contact with the geotextile contained in the adjacent bundle before backlling.
6. Place EZow bundle(s) in the EZow conguration per permit. The top or center-most bundles containing pipe are joined end to end with an internal pipe coupler. Any additional aggregate only bundles, should be butted against the other aggregate-only bundles and do not require any type of connection.
7. Header or lead lines from the distribution/drop box or device will be connected to top or center-most pipe bundle in each trench or inserted into pipe.
8. The EZow draineld systems should be installed in a level trench in all directions (both across and along the trench bottom) and should follow the contour of the ground surface elevation (uniform depth), with all continuous, adjoining 10-foot bundles placed end to end, with central bundle distribution pipe connected.
9. EZow bundles are exible and can t in curved trenches as may be necessary to avoid trees, boulders, or other obstacles.
10. Final contours and landscaping should be done in a manner to promote surface water runo.
Repeat steps 1 thru 10 for each required trench.
As required by state or local regulations, be sure to obtain proper installation inspection from the DEQ or local unit of government with jurisdiction prior to covering the system.
5. For EZow products not containing GEO, only the top of the upper bundle should be covered with 60 lb. untreated building paper available from EZow. Other material such as DEQ approved geotextile may be used. A geotextile cover is necessary in sandy soils.
Contact Infiltrator Systems’ Technical Services Department for assistance at 1-800-221-4436
Contact Infiltrator Water Technologies’ Technical Services Department for assistance at 1-800-221-4436
After the system has been completely covered, vehicular trac across or along the trenches shall be avoided.
Page 2
Approved EZow Products
As required by DEQ or local unit of government with jurisdiction, sod or seed the draineld area to control erosion, as may be required by permit or local policy.
EZow is approved in Oregon by the DEQ and the Uniform Building Code Division.
DEQ approvals include:
• Standard disposal trenches
• Capping ll systems
• Sandlter gravel-less absorption trenches
• Seepage trenches
• Steep slope systems
• Curtain drains
• Tile dewatering systems
• Pressure distribution systems
Building Code approvals include:
• Foundation drains
• Roof drain systems
Standard Disposal Trenches
The 1201P/1201P-GEO
A. The 1201P draineld system consists of one, 12-inch di­ameter bundle across the bottom of a trench 12-to-24 inches wide. The 1201P bundle contains aggregate and a four-inch diameter perforated exible plastic pipe as is typically used in septic system drainlines. The pipe shall be certied as com­plying with ASTM F-667. The netting for the central bundle is tied o at both ends of the pipe. The pipe may be connected by an internal coupling device to allow continuous ow from one section to the next.
B. The dierence between 1201P and 1201P-GEO is the GEO lter fabric. The top of the bundle contains a lter fabric pre-manufactured in between the netting and aggreate. The fabric is inserted to prevent soil instrusion. The installer shall make sure the fabric is on top before nal backlling.
C. Site, soil and design requirements of the 1201P system shall be the same as required for the standard stone lled disposal system (containing drain media 12-inches deep) as described in OAR Chapter 340, Divisions 71 & 73.
1201P-GEO
NATIVE BACKFILL
6" MIN. COVER
OR PER CODE
12"
ESTABLISH VEGETATIVE COVER
12" - 24"
TRENCH
WIDTH
Figure 1
FILTER FABRIC
4" PERFORATED PIPE
12" EZflow
BUNDLE (TYP.)
D. EZow 1201P will be sized at the same required linear foot sizing for standard 2-foot wide gravel trench. For example, if the sizing for a 2-foot gravel trench requires 100-linear feet of trench, the 1201P system will be sized at 100-linear feet.
The 1202H/1202H-GEO
The 1202H draineld system (two, 12-inch diameter bundles) may be used in a horizontal conguration within a 24-inch wide disposal trench. The bundles shall be placed side-by-side and in contact with each other. Serial distribution methods limit the maximum euent depth to no more than 6-inches higher than the invert level of the perforated piping within the higher trenches. The minimum backll depth is 6-inches when equal distribution methods are used, and 12-inches with serial distribution methods. The brand 1202H will be sized at the same required linear foot sizing for standard 2-foot wide gravel trench. For example, if the sizing for a 2-foot gravel trench requires 100-linear feet of trench, the 1202H system will be sized at 100-linear feet. The bundle with pipe may be installed on either side within the trench.
1202H-GEO
NATIVE BACKFILL
6" MIN. COVER
OR PER CODE
12"
24" MIN.
TRENCH
WIDTH
Figure 2
ESTABLISH VEGETATIVE COVER
4" PERFORATED PIPE
12" EZflow BUNDLE (TYP.)
The 1003T
The 1003T product (three, 10-inch diameter bundles) may be used in either a triangular or horizontal conguration at all lo­cations where a gravity-fed disposal trench (containing drain media 12-inches deep) would otherwise be allowed. The bundles shall be placed in a triangular conguration when in­stalled within a 24-inch wide trench. One bundle shall contain pipeing and be centered and in contact with the other two bundles. When used in a horizontal conguration, the bun­dles must be placed side-by-side and in contact with each other, within a trench at least 30-inches wide. The center bundle shall contain piping. Serial distribution methods limit the maximum euent depth to no more than 6-inches higher than the invert level of the perforated piping within the higher trenches. The minimum backll depth is 6-inches when equal distribution methods are used, and 12-inches with serial dis­tribution methods. EZow 1003T will be sized at the same required linear foot sizing for standard 2-foot wide gravel
Contact Infiltrator Water Technologies’ Technical Services Department for assistance at 1-800-221-4436
Page 3
Figure 5
Page 3
1003T-GEO
NATIVE BACKFILL 6" MIN. COVER OR PER CODE
24" MIN.
TRENCH
WIDTH
15"
Figure 3
ESTABLISH VEGETATIVE COVER
4" PERFORATED PIPE
FILTER FABRIC
10" EZflow
BUNDLE (TYP.)
trench. For example, if the sizing for a 2-foot gravel trench requires 100-linear feet of trench, the 1003T system will be sized at 100-linear feet.
The Capping Fill System
The 1201P/1201P-GEO
The 1201P-GEO draineld system consists of one, 12-inch diameter bundle installed in a 12-inch wide trench. See gure 1 for example conguration.
The 1202H
The 1202H draineld system may also be installed in a hori­zontal conguration in a capping ll system, within a 24-inch wide trench that is a minimum of 12-inches deep. See gure 2 for example conguration.
The 1003T
The 1003T draineld system may also be installed in a cap­ping ll system. The 1003T in the horizontal conguration is installed in a 30-inch wide trench that is a minimum of 12­inches deep. The 1003T triangular conguration is installed in a 24-inch wide trench that is a minimum of 17- inches deep, with the cap placed in accordance with the requirements of OAR Chapter 340 Division 71. See Figure 3 for example con­guration.
Conventional Sand Filter System Using Gravelless Absorption Trenches – The 1001P/1001P-GEO
The 1001P/1001P-GEO draineld system (10-inch diameter bundles containing 4-inch diameter perforated polyethylene piping, placed end to end within the trench) may be used fol-
1001P-GEO
NATIVE BACKFILL 4" MIN. CAPPING FILL
10"
10" MIN.
TRENCH
WIDTH
Figure 4
ESTABLISH VEGETATIVE COVER
FILTER FABRIC
4" PERFORATED PIPE
10" EZflow
BUNDLE (TYP.)
lowing a sand lter in lieu of the chamber described in OAR Chapter 340 Division 71. Construction shall conform to all requirements described within Chapter 340 Division 71 with the following modications: a. The perforated pressure piping shall be placed within the 4-inch diameter perforated polyethylene piping with orices at the 12 o’clock position.
b. Because the top of the bundle will be at the natural ground surface, a capping ll shall be used to cover the installation. Soil texture from the surface to the trench bottom shall not be ner than silty clay loam.
See the Oregon Chamber Design and Installation Manual for ad­ditional options and information.
Seepage Trench System 1004S/1004S-GEO, 1204S/1204S-GEO
Both the I0-inch and 12-inch diameter bundles may be in­stalled in seepage trenches in lieu of drain media. Four or more bundles can be placed in a 24-inch wide trench. At least one of the top bundles shall contain perforated piping. Serial distribution methods limit the maximum euent depth to no more than 6-inches higher than the invert level of the perfo­rated piping within the higher trenches. The minimum backll depth is 6-inches when equal distribution methods are used, and 12-inches with serial distribution methods. See Figure 5 for example conguration.
1204S-GEO
ESTABLISH VEGETATIVE COVER
NATIVE BACKFILL 6" MIN. COVER OR PER CODE
24"
24" MIN.
TRENCH
WIDTH
FILTER FABRIC
4" PERFORATED PIPE
12" EZflow BUNDLE (TYP.)
Steep Slope Systems I00IA/100IA-GEO, 1001P/1001P-GEO 1201A/1201A-GEO, 1201P/1201P-GEO
Both the 10-inch and 12-inch diameter bundles may be used within seepage trenches in a steep slope system in lieu of drain media. Four bundles can be placed in a 24-inch wide trench. At least one of the top bundles shall contain the perforated piping. Serial distribution methods limit the maximum euent depth to no more than 6 inches higher than the invert level of the perforated piping with the higher trenches. GEO product can only be used at the top of the conguration. See Figure 5 for example conguration.
Contact Infiltrator Systems’ Technical Services Department for assistance at 1-800-221-4436
Page 4
Page 4
Curtain Drains I00IA/1001A-GEO, 1001P/1001P-GEO, 1201A/1201A-GEO, 1201P/1201P-GEO
The 10-inch or 12-inch diameter bundles can be used in a 12-inch minimum width trench in lieu of pipe and drain media in curtain drains. Pipe-containing bundles shall be on the bot­tom, and additional bundles may be stacked so as to provide the equivalent media depth required. GEO product can only be used at the top of the conguration. See Figure 6 for ex­ample conguration.
Tile Dewatering Systems
NATIVE BACKFILL
6" MIN. COVER
OR PER CODE
ESTABLISH VEGETATIVE COVER
FILTER FABRIC
10" or 12" EZflow BUNDLE (TYP.)
4" PERFORATED
PIPE
Non-DEQ Regulated Systems Other Applications
1. Roof Run-o Drain Systems:
The 10-inch or 12-inch diameter bundles can be used.
EZow Roof Drain Systems
EZflow DRAINAGE BUNDLES WITH
PIPESLOPE AT 1% MINIMUM AND
PROVIDE 6 INCHES MINIMUM COVER
ARRANGE AGGREGATE ONLY BUNDLES BELOW MAIN BUNDLE TO THE SEASONAL HIGH GROUNDWATER LEVEL FOR MAXIMUM GROUNDWATER RECHARGE - BUNDLE CONFIGURATIONS MAY VAR Y
SEASONAL HIGH GROUNDWATER LEVEL
(RECOMMENDED)
GUTTER
DOWNSPOUT
CATCH BASIN
ROOF
E-Z DRAIN CB WITH SOLID LID
12" MIN. TRENCH
Figure 6
WIDTH
The 10-inch or 12-inch diameter bundles can be used in a 12-inch minimum width trench in lieu of pipe and drain me­dia within eld collection drainage tile trenches. If there is a concern that the volume of groundwater to be collected and drained exceeds the carrying capacity of the 4-inch diameter corrugated pipe in the bottom cylinder, then two stacks bun­dles (containing piping in both of the base bundles) may be placed, provided the trench is not less than 20-inches wide. See Figure 6 for example conguration.
Pressurized Distribution
Disposal systems using 10-inch or 12-inch diameter bundles in lieu of drain media can utilize pressurized distribution. The perforated pressure piping shall be placed within the 4-inch diameter pipe with orices at the 12 o’clock position. Orice shields shall not be required.
2. Foundation Drain Systems:
The 10-inch or 12-inch diameter bundles can be used.
Foundation Drain Detail
FINISHED GRADE
EXTERIOR
AGGREGATE-ONLY
BUNDLES TO WITHIN
18 IN. OF FINISHED
GRADE (TYPICAL)
LOCATE EZFLOW BUNDLE
WITH PIPE AT FOOTING TOE OR,
AT A MINIMUM, BELOW ELEVATION
OF INTERIOR FINISHED GRADE
OF BASEMENT/ CRAWLSPACE
AND SLOPE TO DISCHARGE PONT
FOUNDATION WALL
INTERIOR
(SEE BASEMENT/CRAWL
SPACE DRAIN DETAIL)
FINISHED GRADE INTERIOR
FOOTING
Contact Infiltrator Systems’ Technical Services Department for assistance at 1-800-221-4436
Page 5
INFILTRATOR WATER TECHNOLOGIES, LLC. STANDARD LIMITED WARRANTY
(a) The structural integrity of each EZow by Inltrator expanded polystyrene draineld system and other acces­sories manufactured by EZow by Inltrator (“Units”), when installed and operated in a leacheld of an onsite septic system in accordance with Inltrator’s instructions, is war­ranted to the original purchaser (“Holder”) against defective materials and workmanship for one year from the date that the septic permit is issued for the septic system containing the Units; provided, however, that if a septic permit is not re­quired by applicable law, the warranty period will begin upon the date that installation of the septic system commences. To exercise its warranty rights, Holder must notify Inltrator in writing at its Corporate Headquarters in Old Saybrook, Connecticut within fteen (15) days of the alleged defect. Inltrator will supply replacement Units for Units determined by EZow by Inltrator to be covered by this Limited War­ranty. EZow by Inltrator’s liability specically excludes the cost of removal and/or installation of the Units.
(b)THE LIMITED WARRANTY AND REMEDIES IN SUB­PARAGRAPH (a) ARE EXCLUSIVE. THERE ARE NO OTHER WARRANTIES WITH RESPECT TO THE UNITS, INCLUDING NO IMPLIED WARRANTIES OF MERCHANTABILITY OR FIT­NESS FOR A PARTICULAR PURPOSE
(c) This Limited Warranty shall be void if any part of the EZ­ow system is manufactured by anyone other than EZow by Inltrator. The Limited Warranty does not extend to inci­dental, consequential, special or indirect damages. Inltra­tor shall not be liable for penalties or liquidated damages, including loss of production and prots, labor and materials, overhead costs, or other losses or expenses incurred by the Holder or any third party. Specically excluded from Limited Warranty coverage are damage to the Units due to ordinary
wear and tear, alteration, accident, misuse, abuse or neglect of the Units; the Units being subjected to vehicle trac or other conditions which are not permitted by the installation instructions; failure to maintain the minimum ground cov­ers set forth in the installation instructions; the placement of improper materials into the system containing the Units; failure of the Units or the septic system due to improper siting or improper sizing, excessive water usage, improper grease disposal, or improper operation; or any other event not caused by Inltrator. This Limited Warranty shall be void if the Holder fails to comply with all of the terms set forth in this Limited Warranty.
Further, in no event shall Inltrator be responsible for any loss or damage to the Holder, the Units, or any third party resulting from installation or shipment, or from any product liability claims of Holder or any third party. For this Limited Warranty to apply, the Units must be installed in accordance with all site conditions required by state and local codes; all other applicable laws; and Inltrator’s installation instruc­tions.
(d) No representative of Inltrator has the authority to change or extend this Limited Warranty. No warranty applies to any party other than the original Holder.
The above represents the Standard Limited Warranty oered by Inltrator. A limited number of states and counties have dierent warranty requirements. Any purchaser of Units should contact Inltrator’s Corporate Headquarters in Old Saybrook, Connecticut, prior to such purchase, to obtain a copy of the applicable warranty, and should carefully read that warranty prior to the purchase of Units.
4 Business Park Road P.O. Box 768 Old Saybrook, CT 06475 860-577-7000 • Fax 860-577-7001
1-800-221-4436 www.infiltratorwater.com • info @infiltratorwater.com
ISO 9001 Reg istere d.
U.S. Paten ts: 4,759,661; 5,017,041; 5,156,488; 5,336,017; 5,401,116; 5,401,459; 5,511,903; 5,716,163; 5,588,778; 5,839,8 44 Canad ian Paten ts: 1,329,959; 2,0 04,564 Other pat ents pen ding. Inf iltrato r, Equali zer, Quick4, an d SideWinder are reg istere d trademarks of Infil trator Wate r Technologies. Infi ltrator i s a registered trade mark in Fra nce. Infil trator Wate r Technologies is a registered tr ademar k in Mexico. Contour, Micr oLeach ing, PolyTuff, Cham berSp acer, Multi Port, Pos iLock, Q uickCut, QuickPlay, SnapLoc k and Strai ghtLoc k are trade marks of Inf iltrato r Water Technolo gies. Pol yLok is a trade mark of Pol yLok, In c. TUF-TITE is a r egiste red trad emark of TUF-TITE, IN C. Ultra- Rib is a trademar k of IPEX In c.
© 2018 Infiltra tor Water Techno logies , LLC. All righ ts reser ved. Prin ted in U.S.A .
Contact Infiltrator Water Technologies’ Technical Services Department for assistance at 1-800-221-4436
EZ38 0818
