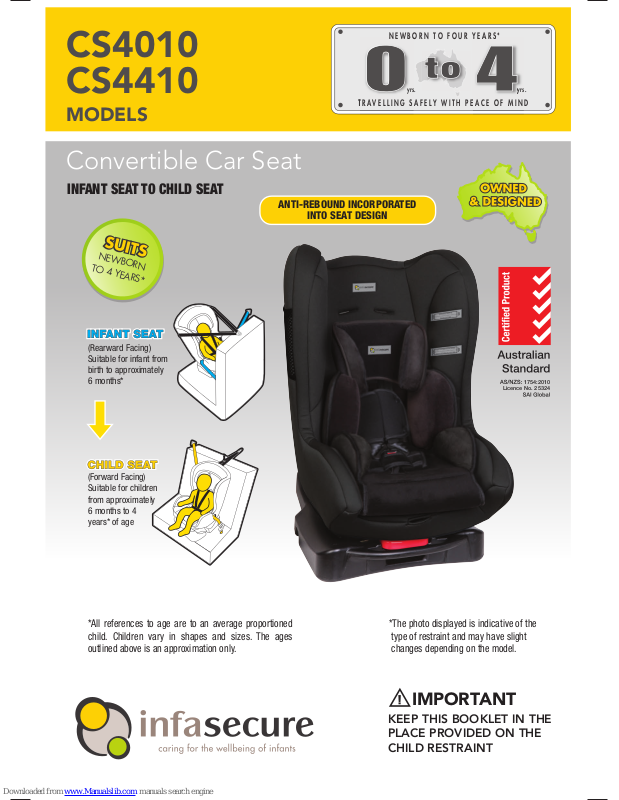

Infasecure CS4010, CS4410 Instructions Manual

KEEP THIS BOOKLET IN THE PLACE PROVIDED ON THE CHILD RESTRAINT

*All references to age are to an average proportioned child. Children vary in shapes and sizes. The ages outlined above is an approximation only.

1754:2010

Licence No. 25324

ANTI-REBOUND INCORPORATED

INTO SEAT DESIGN

IMPORTANT

*The photo displayed is indicative of the type of restraint and may have slight changes depending on the model.

(Rearward Facing) Suitable for infant from birth to approximately 6 months*

(Forward Facing) Suitable for children from approximately 6 months to 4 years* of age

INFANT SEAT TO CHILD SEAT

Convertible Car Seat

CS4010 CS4410

MODELS

NEWBORN

TO 4 YEARS*

SUITSSUITS

NEWBORN TO FOUR YEARS*

yrs. yrs.

TRAVELLING SAFELY WITH PEACE OF MIND

yrs

E OF MI

yrs

RAVELLING

INFASECURE PTY LTD

P.O. Box 487, Emu Plains NSW 2750

Customer Service Phone No: 02 4728 8090

CHILD SEAT (Type B Forward Facing)

Then to be used in forward-facing position until their shoulders reach the upper shoulder height marker (approximately 4 years* of age).

Continue to use this child restraint until the child reaches this limit.

Do not use forward facing until child’s shoulders are above the lower shoulder height marker.

Infants are at risk of serious injury if they face forward too early.

Children are at risk of serious injury if they move to booster seats too early.

Children that have outgrown this restraint are safest in a booster seat until their shoulders reach the upper shoulder height marker of the Booster seat.

INFANT SEAT (Type A2 Rearward Facing)

To be used only in a rearward-facing position for an infant until their shoulders reach the lower shoulder height marker (approximately 12 months* of age).

SUITABILITY OF THE CHILD RESTRAINT TO GROUPS OF CHILDREN

DO NOT LEAVE CHILDREN UNATTENDED IN THE CAR.

WARNING

PLEASE READ AND FOLLOW THESE INSTRUCTIONS EXACTLY

BEFORE INSTALLATION PLEASE READ CAREFULLY THE WHOLE OF THE INSTRUCTIONS FOR INSTALLATION AND IF IN THE EVENT OF DOUBT ABOUT THE METHOD OF INSTALLATION TO CONSULT INFASECURE OR A CHILD RESTRAINT FITTING STATION AUTHORISED BY THE RELEVANT TRANSPORT

AUTHORITY. IN NEW ZEALAND, CONSULT THE AGENT FOR THE VEHICLE.

IMPORTANT

CS4010 CS4410

MODELS

Suitability of the child restraint Contents ANCHORAGE FITTINGS

- For cars tted with anchorage points

- For cars not tted with anchorage points Restraint Guide Padding - Combination Guide

- Information & Warnings

- CS4010/CS4410 Infant Restraint (Itemised List)

- Shoulder Height Marker SET UP

- General

- Selection of Appropriate Padding Combination

- Converting to Infant Seat INSTALLATION

- Correct Shoulder Height

- Shoulder Slot Height Installing in Vehicle USE

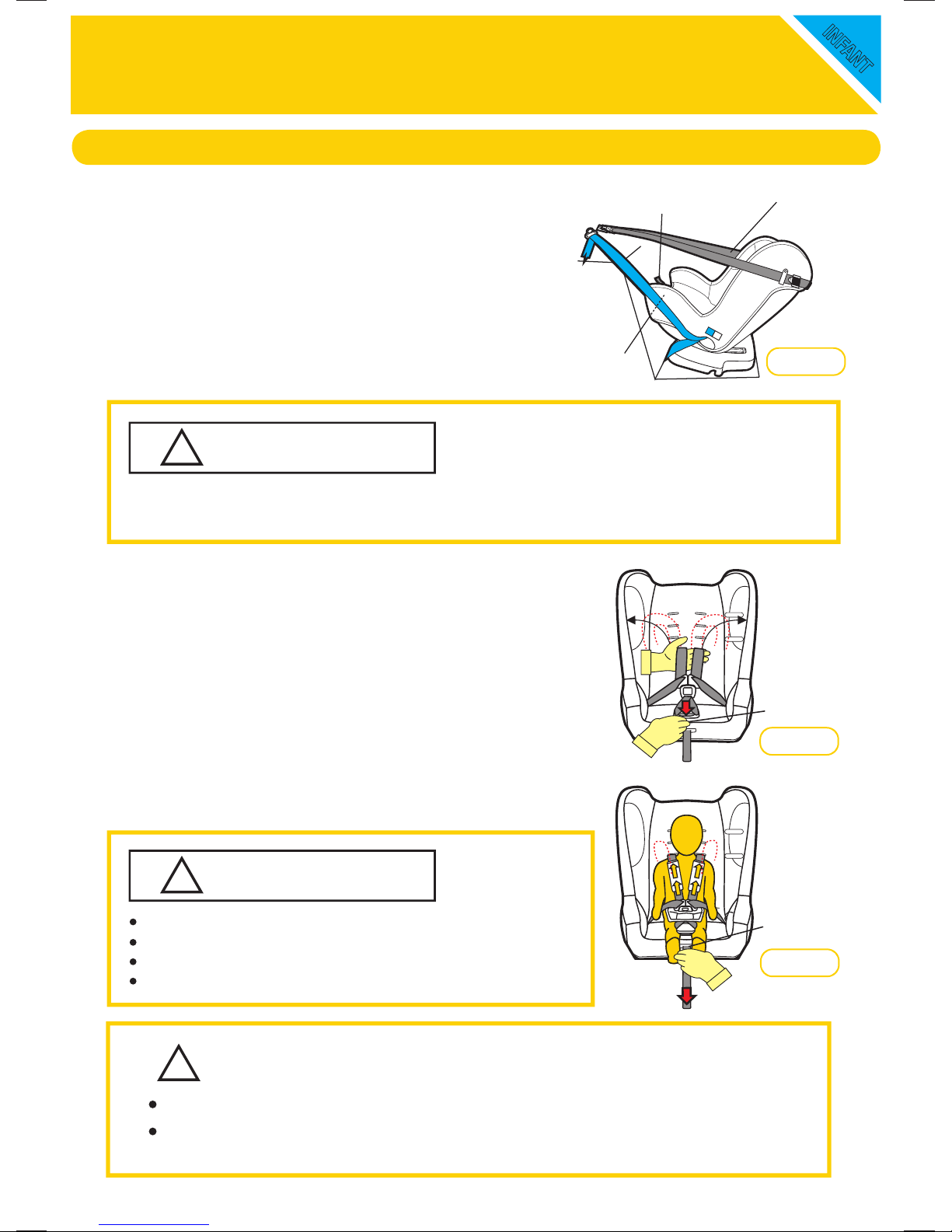

- Using Inbuilt Harness

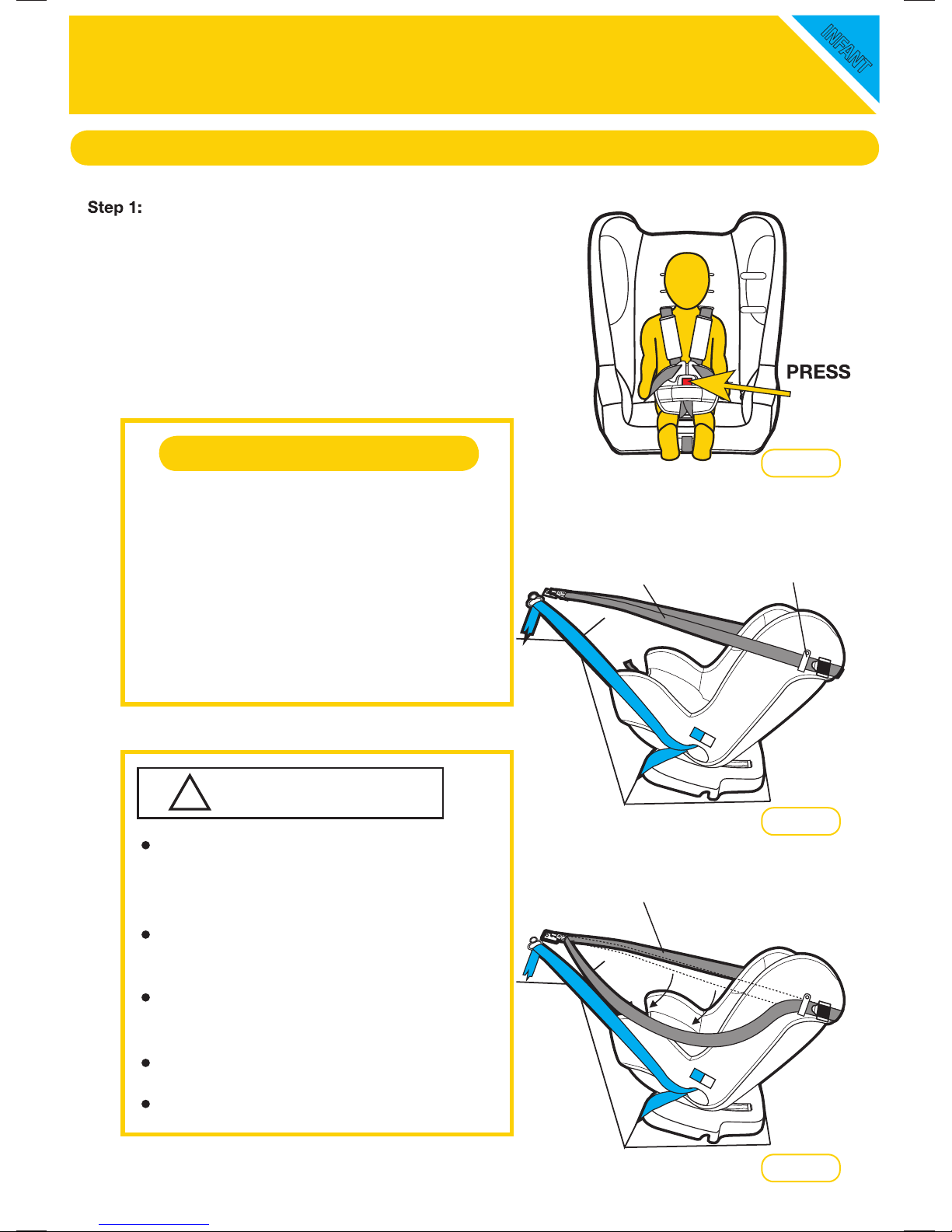

- Release Infant

- Information & Warnings

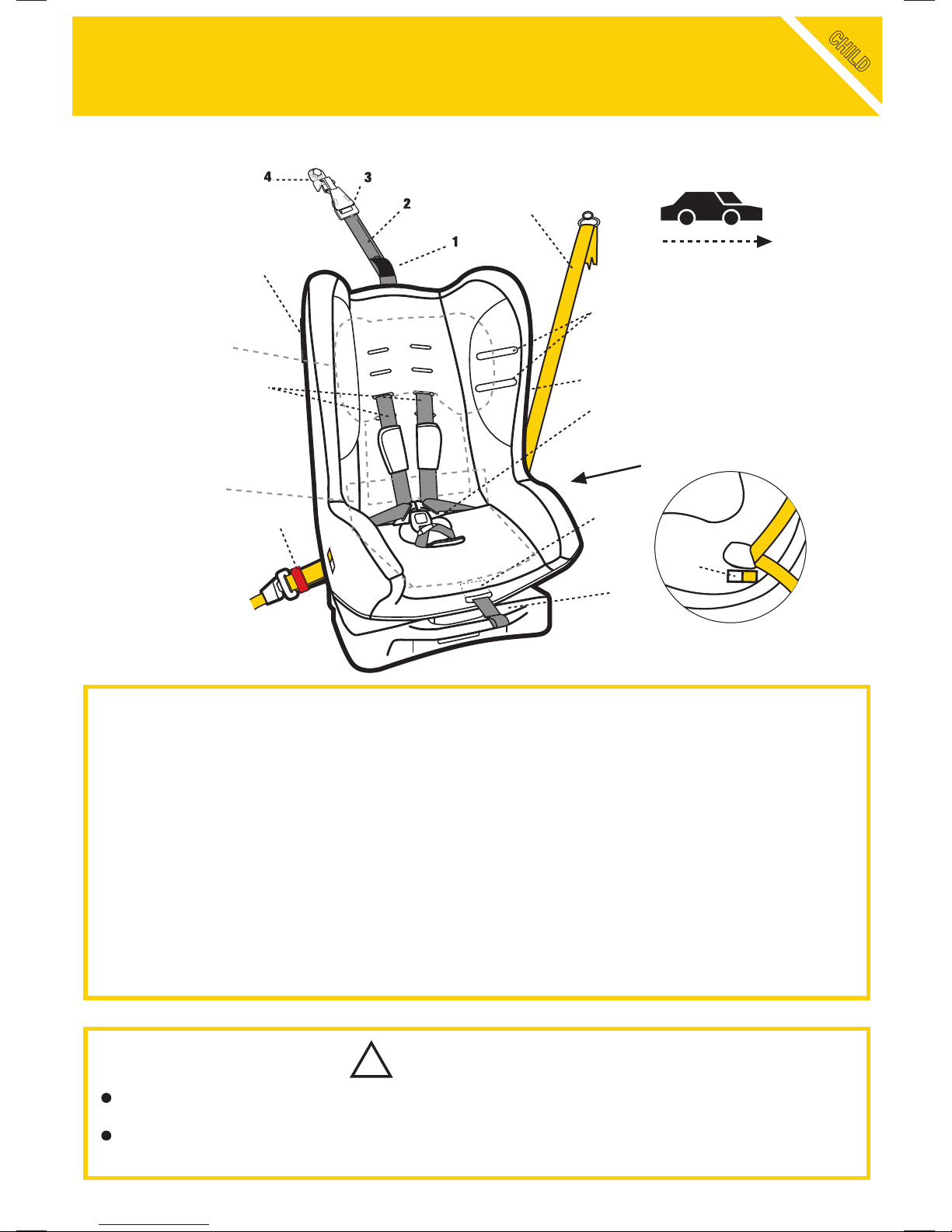

- CS4010/CS4410 Child Restraint (Itemised List)

- Shoulder Height Marker SET UP

- Selection of Appropriate Padding Combination

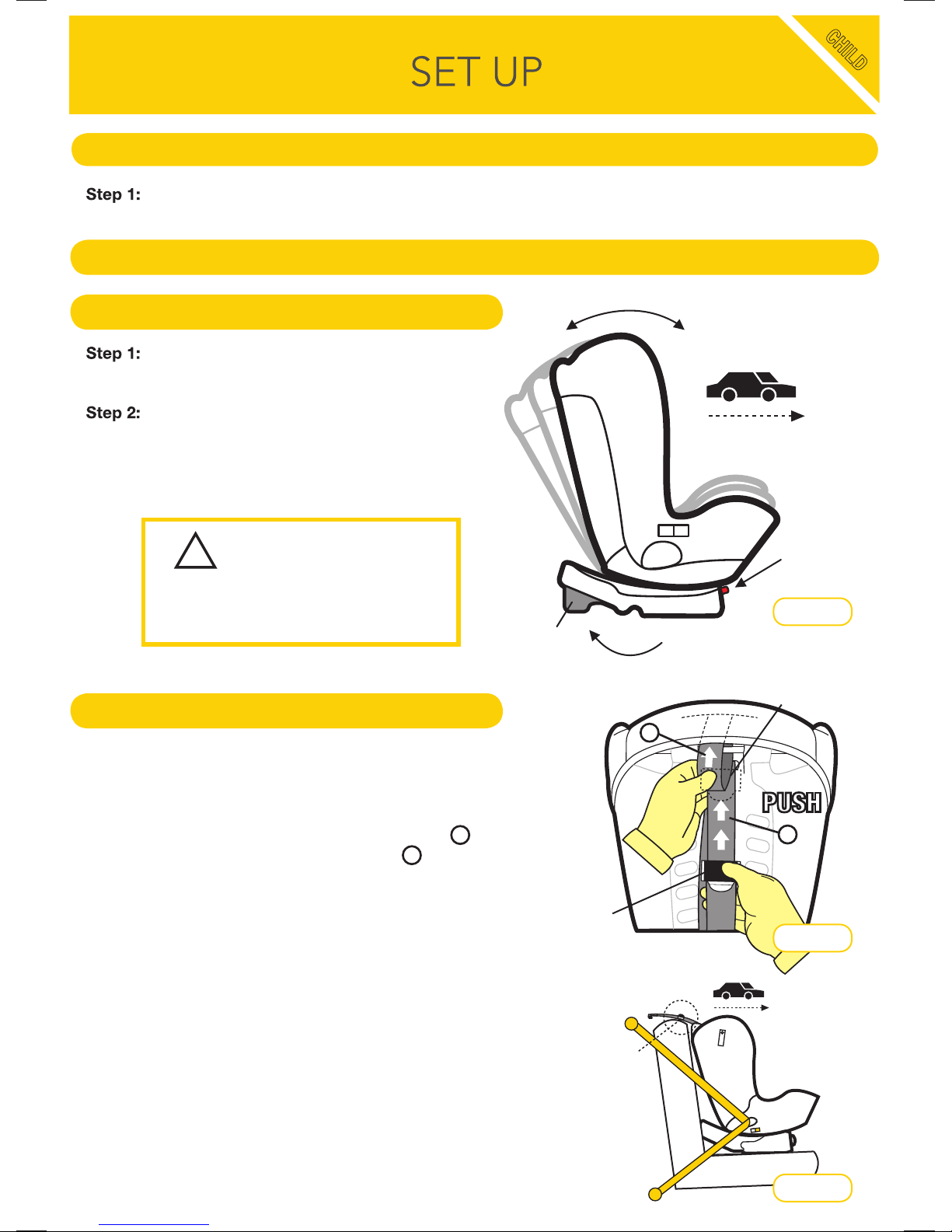

- Converting to Child Seat INSTALLATION

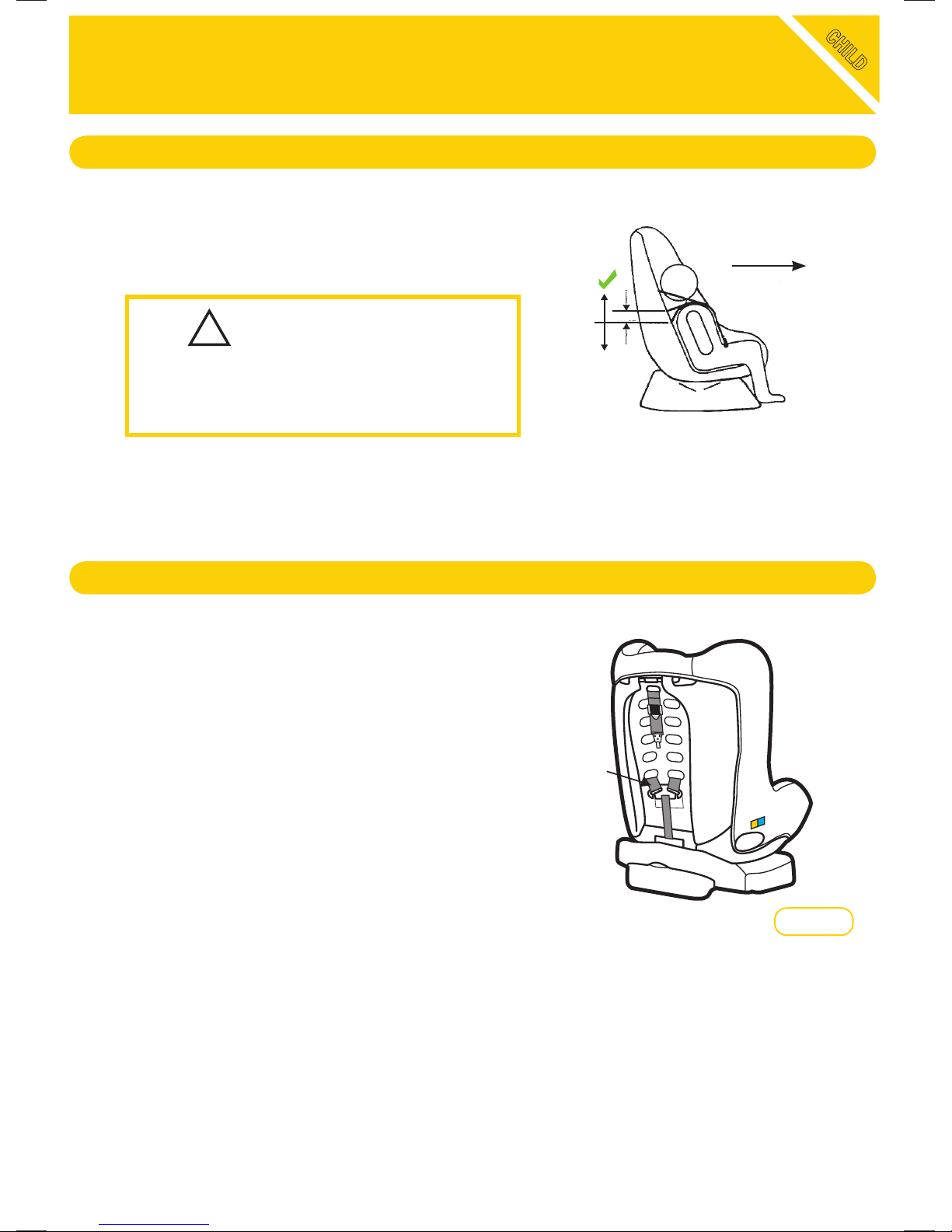

- Correct Shoulder Height

- Shoulder Slot Height

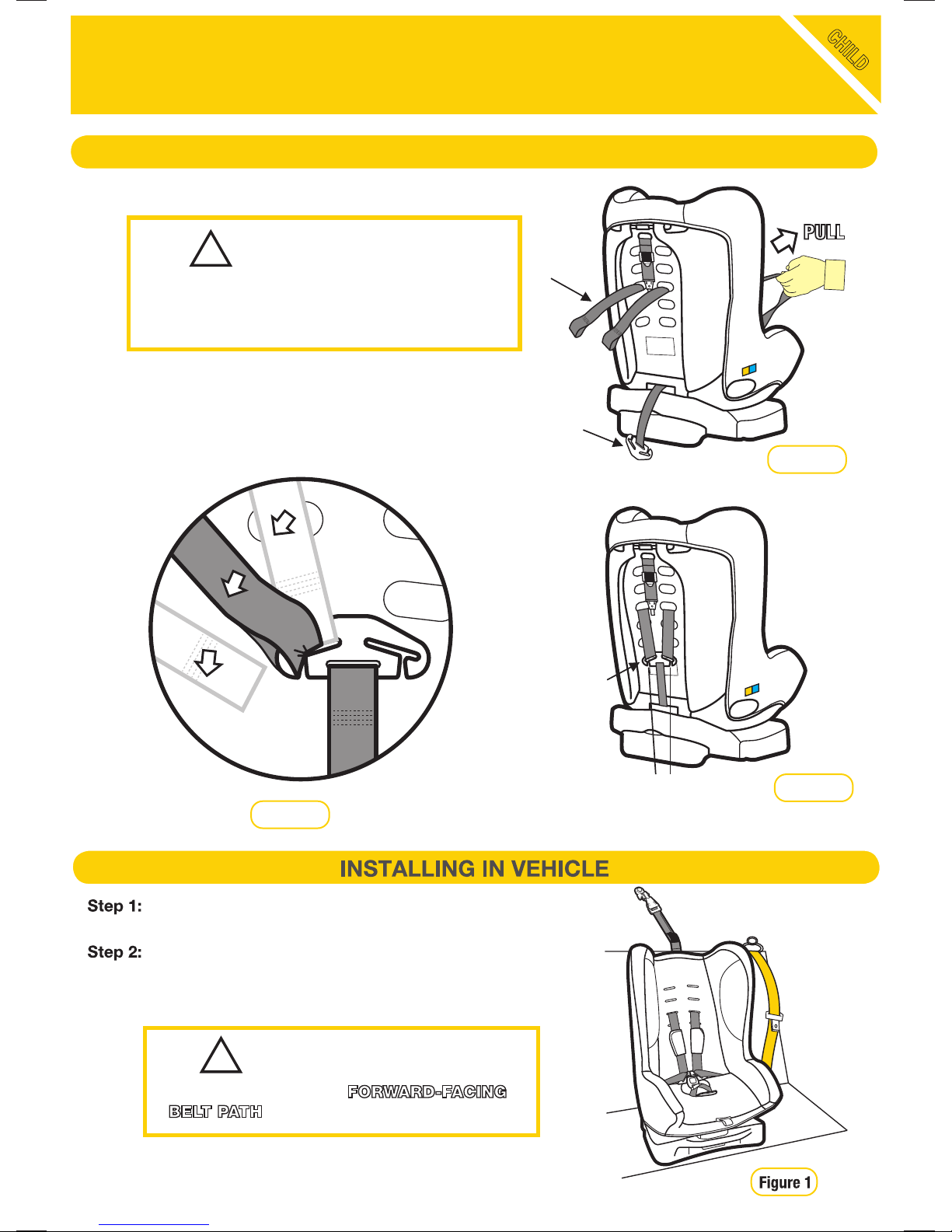

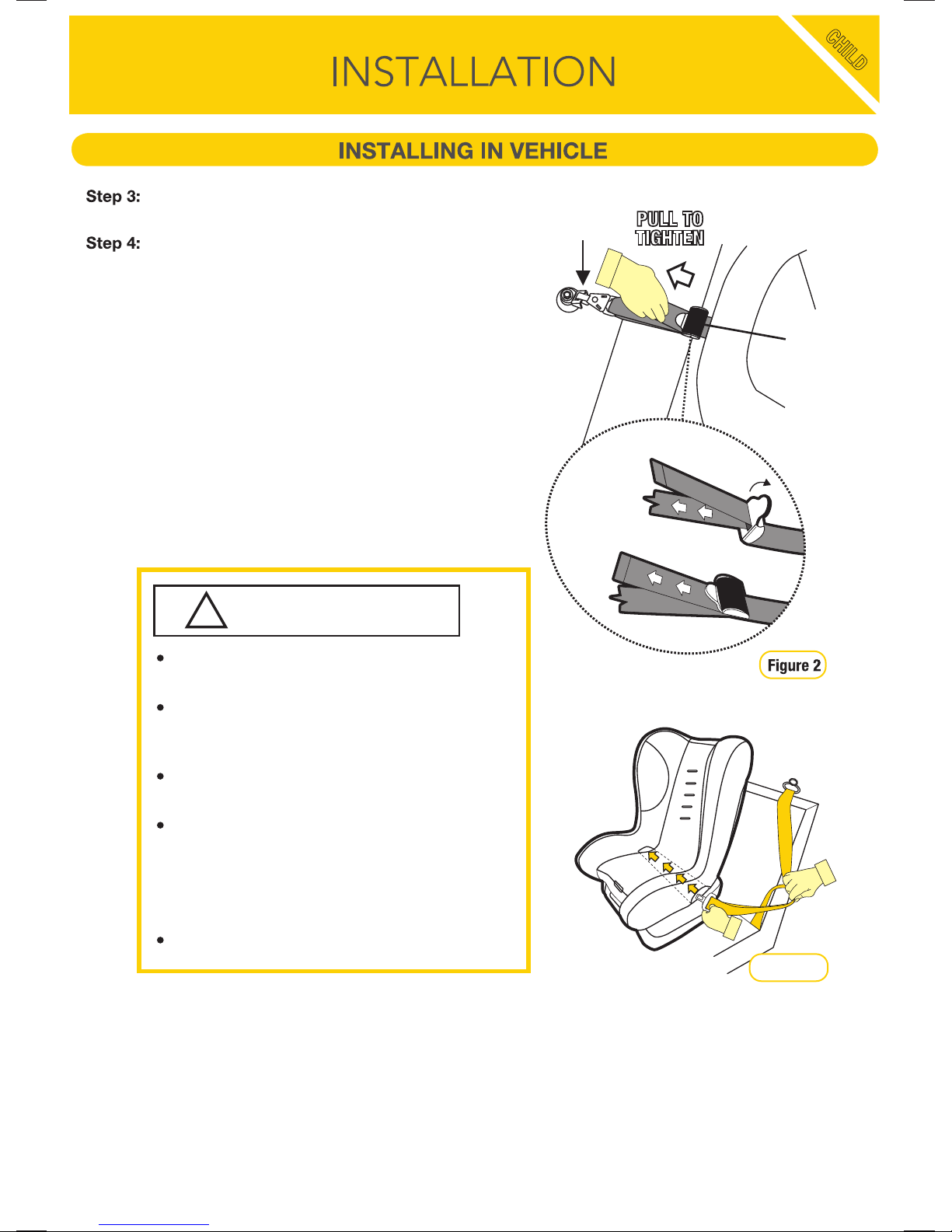

- Installing in Vehicle USE

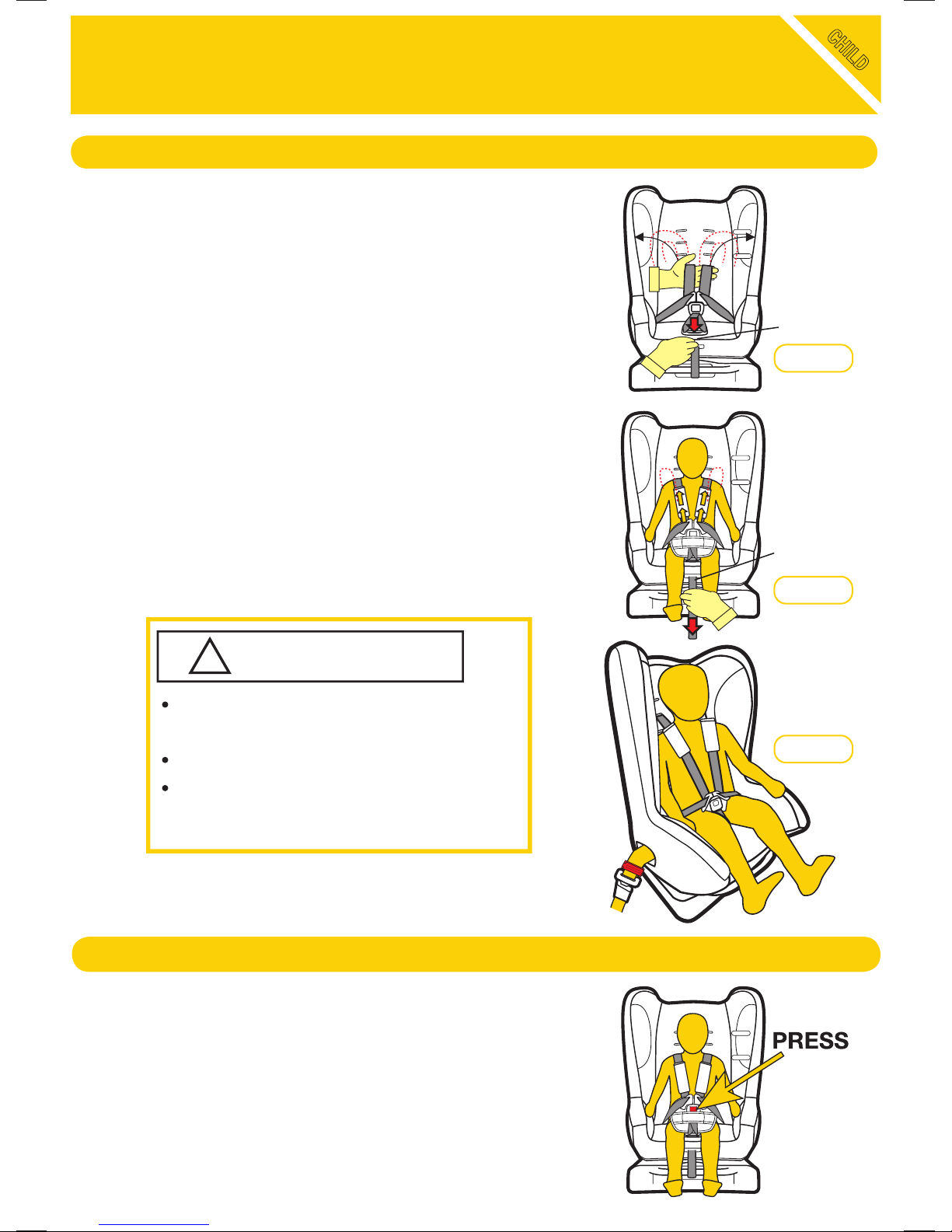

- Using Inbuilt Harness

- Release Child

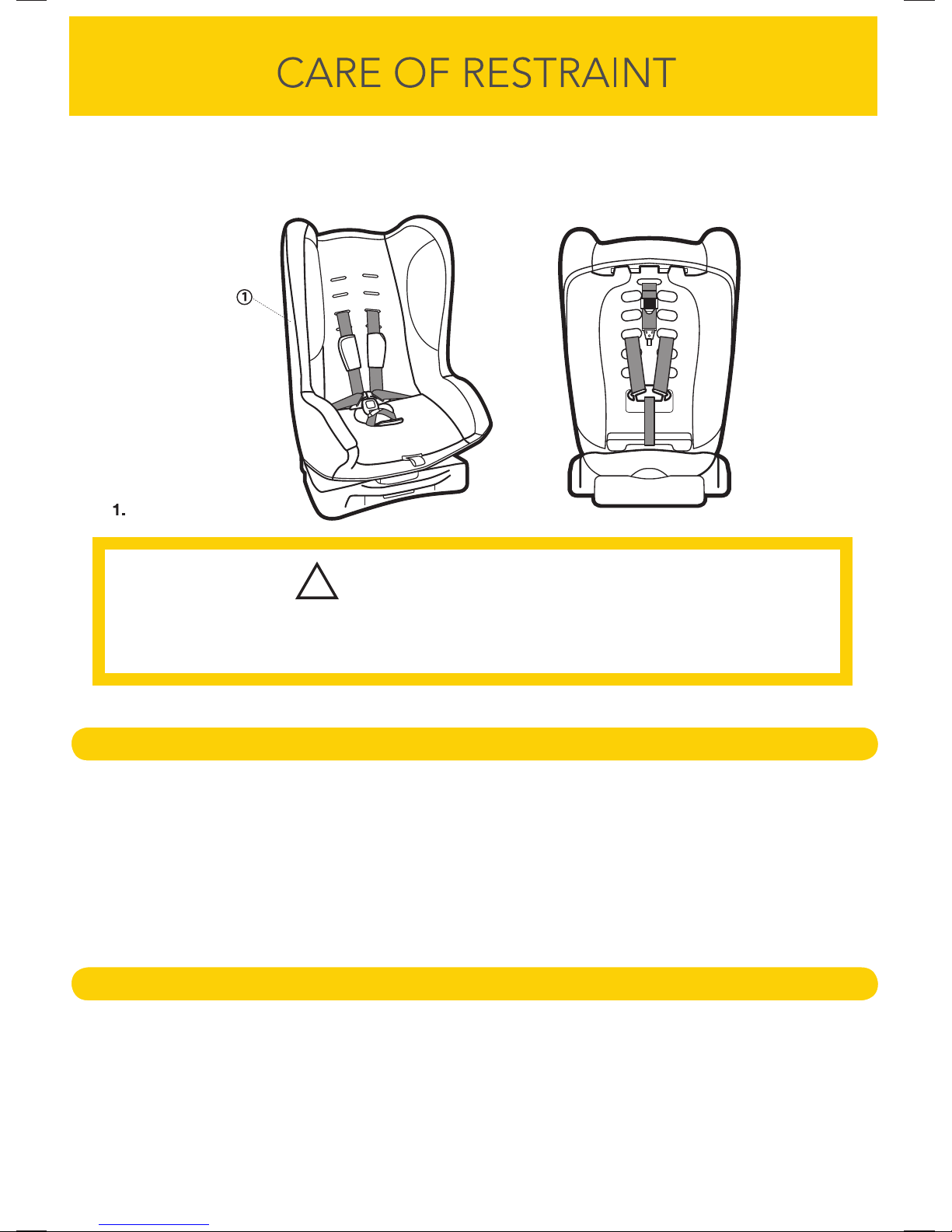

CARE OF RESTRAINT

- To Remove Cover / To Replace Cover

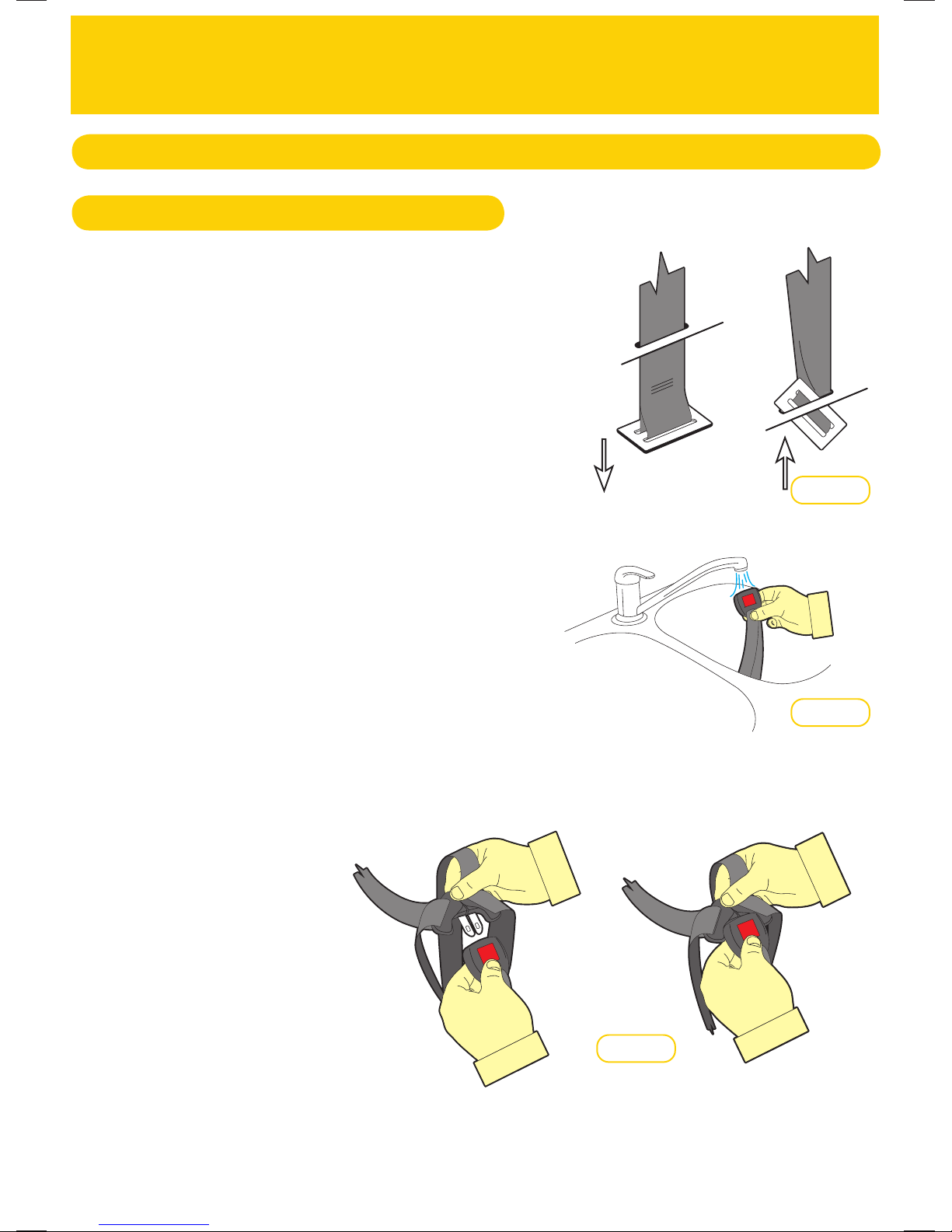

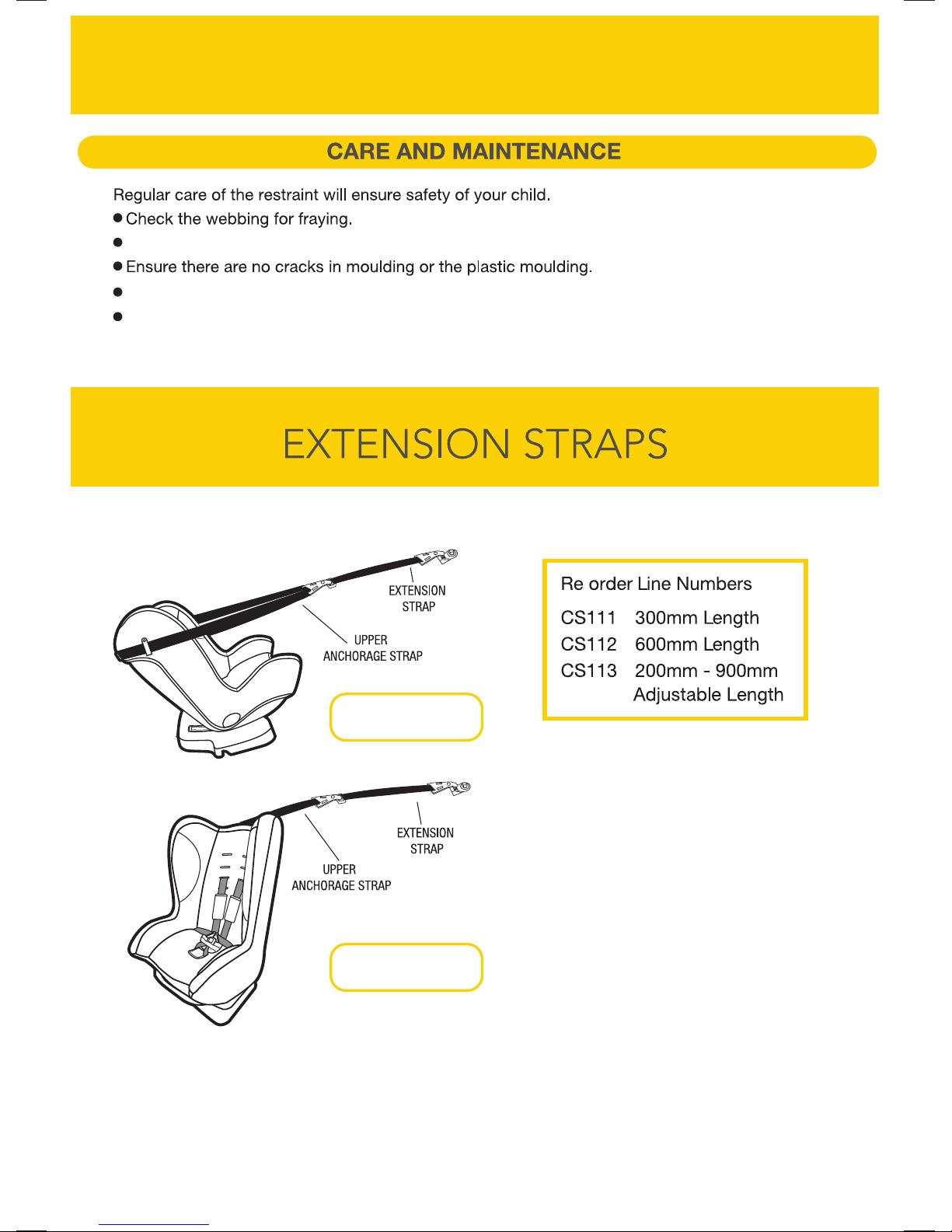

- Cleaning / Care and Maintenance

EXTENSION STRAPS

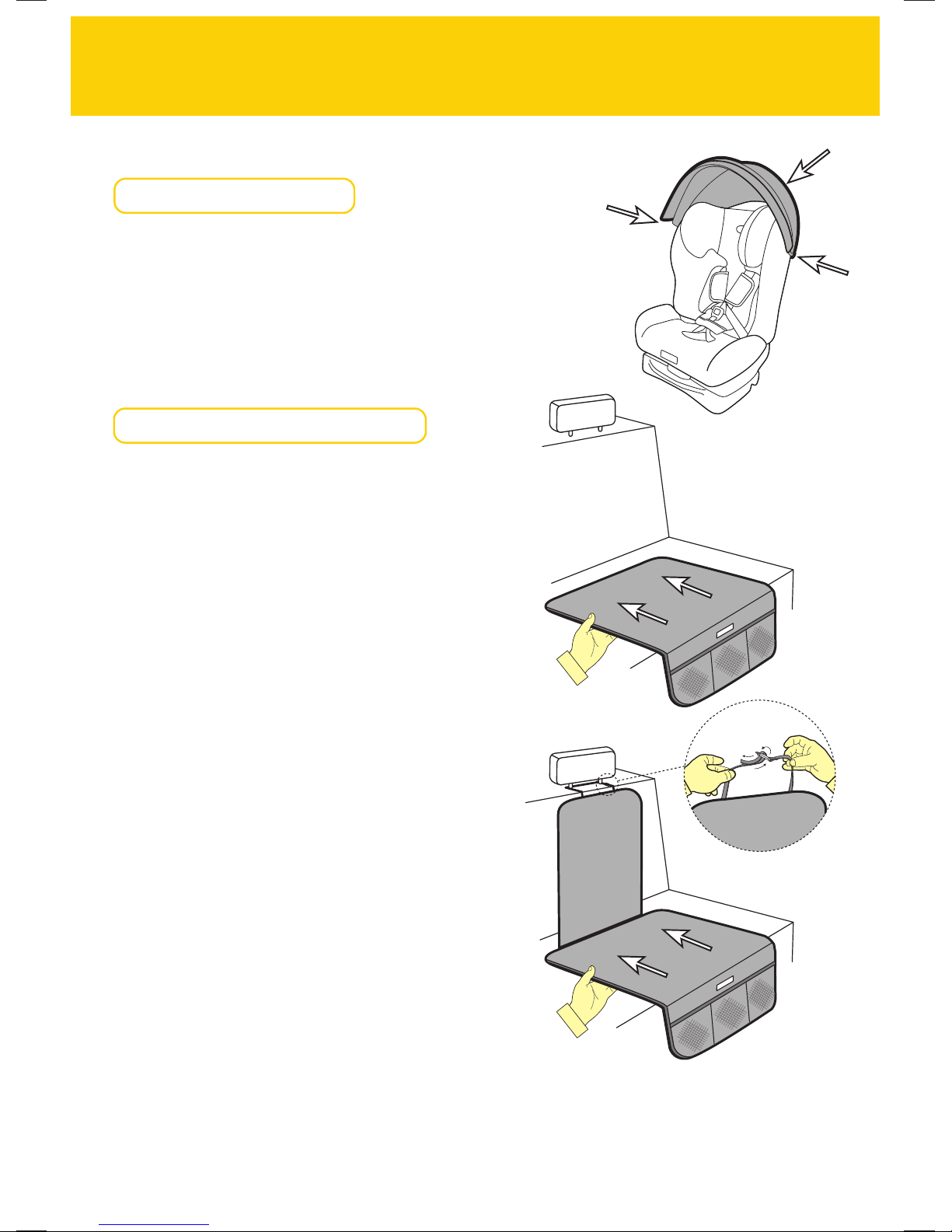

ACCESSORIES

Page 1 Page 2

Page 3 Page 4 Page 5 Page 6

Page 7 Page 8 Page 9

Page 10 Page 11 Page 11-12

Page 12 Page 13 Page 14-16

Page 17 Page 18

Page 19 Page 20 Page 21-22

Page 23 Page 23

Page 24 Page 24-25 Page 25-27

Page 28 Page 28

Page 29 Page 30-32

Page 32

Page 33-34

Upper anchorage strap and attachment clip must always be used

Upper Anchorage strap and attachment clip must only be attached to the correct anchor tting

Always ensure that the upper attachment clip is correctly engaged to the anchor tting

This restraint is not suitable for use in a hatchback or wagon where the anchorage strap may fall into a split in the seat back

Straps may be damaged by unsecured cargo in a collision. Secure or remove hazardous cargo before using this restraint. Hatch-back or wagon: Do not use the child restraint where this strap may fall into a split in the seat back. Always attach hook and remove slack.

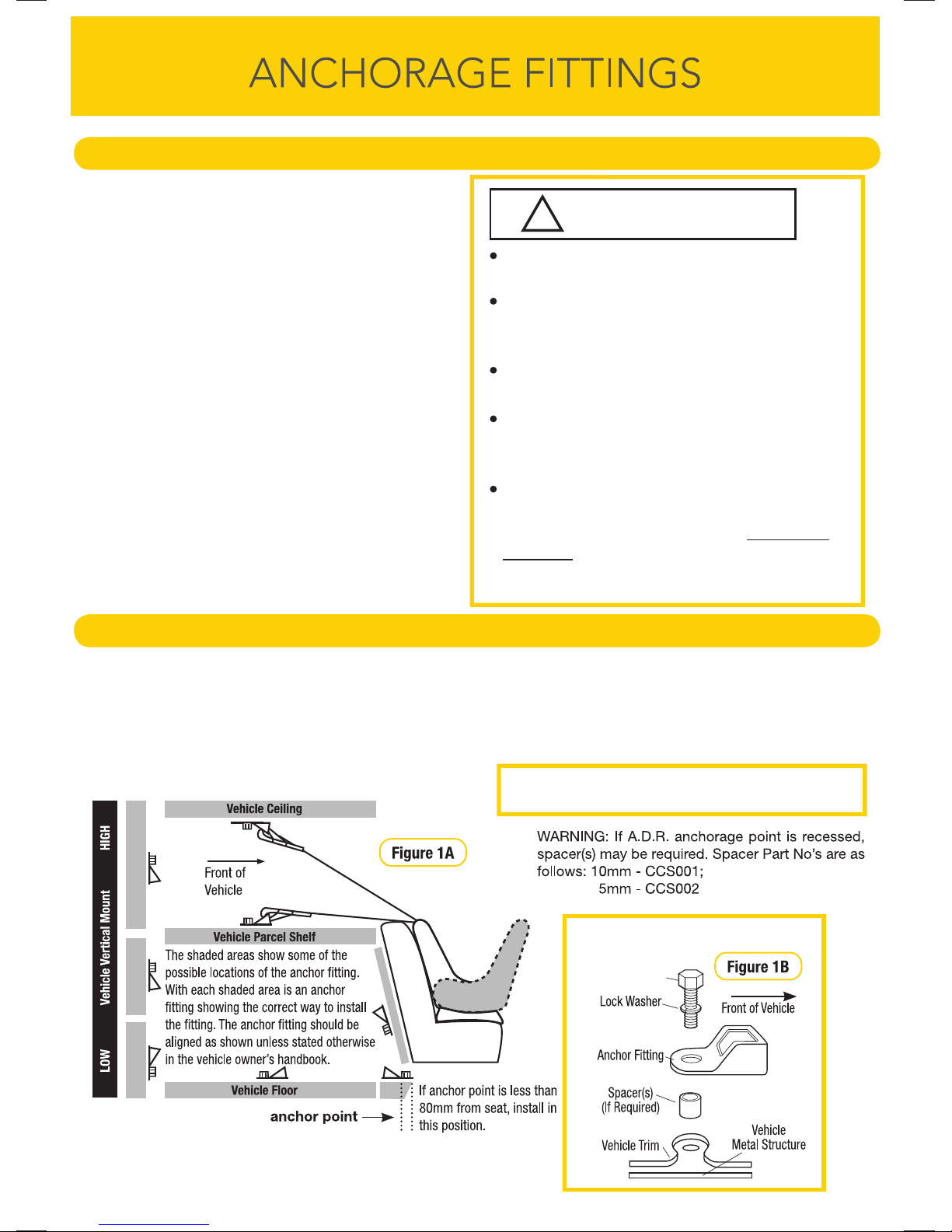

FOR CARS FITTED WITH A CHILD RESTRAINT ANCHORAGE POINT

LOCATE THE ANCHORAGE POINT BEHIND THE REAR SEATING POSITION CONSULT THE CAR OWNER’S HANDBOOK FOR LOCATION OF ANCHORAGE POINTS. REMOVE THE THREAD PLUG FROM THE PARCEL SHELF/FLOOR/ROOF AND INSTALL THE ATTACHMENT BOLT AS SHOWN IN FIGURE 1A & 1B.

UPPER ANCHORAGE FITTINGS

Attachment Bolt

Some vehicles may have an anchor tting already tted by the vehicle manufacturer.

If no anchorage points can be found refer to the vehicle manufacturer, or an authorised child restraint tting station for the best location of an anchorage point.

Refer to the vehicle owners handbook or child restraint tting station for the possible use of spacers.

Some vehicles may require the use of additional extension straps (not supplied with this child restraint)

If so ring InfaSecure on (Aust) (02) 4728 8080 for nearest supply location. CS111 300mm CS112 600mm CS113 200 - 900mm Adjustable

THIS RESTRAINT MUST BE ATTACHED TO A CHILD RESTRAINT ANCHORAGE POINT IN THE CAR.

CAUTION: DO NOT OVERTIGHTEN ATTACHMENT BOLT. MAXIMUM TORQUE IS 20NM.

WARNING

Attachment Bolt

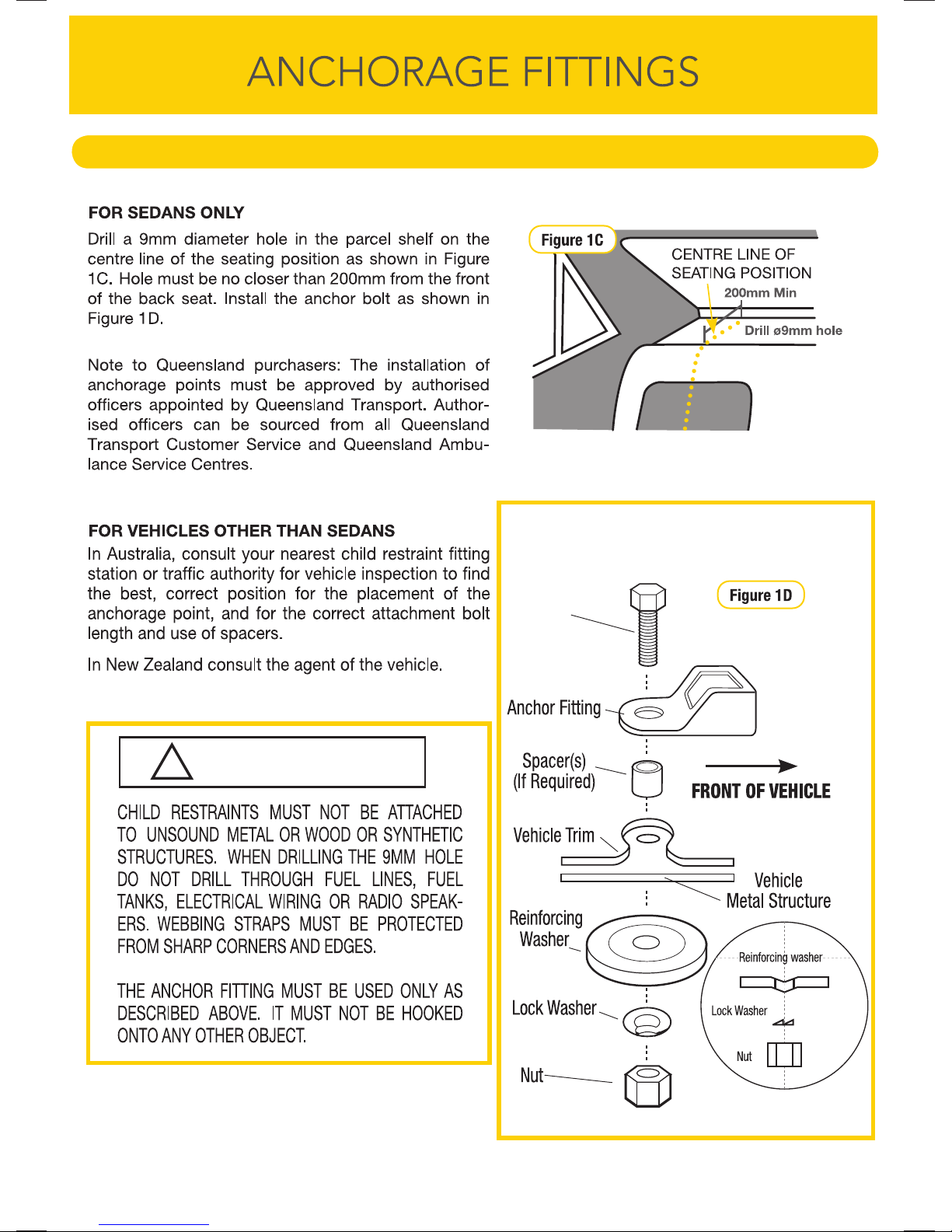

FOR CARS NOT FITTED WITH A CHILD RESTRAINT ANCHORAGE POINT

SIDE VIEW

UPPER ANCHORAGE FITTINGS

FOR SEDANS ONLY

WARNING

BIRTH

MODE

2 4 6 8 10 12+

REARWARD-FACING RESTRAINT (TYPE A1)

BIRTH TO APPROX 6 MONTHS

CONVERTIBLE BOOSTER SEAT (TYPE B/E)

APPROX 6 MONTHS TO 8 YEARS

FORWARD-FACING RESTRAINT (TYPE B)

APPROX 6 MONTHS TO 4 YEARS

BOOSTER SEAT (TYPE E)

FROM APPROX 4 YEARS 8 YEARS

CHILD SAFETY HARNESS (TYPE C)

FROM APPROX 4 TO 7 YEARS

FROM APPROX 7 TO 10 YEARS

SECUREFIT (ACCESSORY)

SAFETY RETAINING DEVICE FROM APPROX 4 TO 7 YEARS

0 to 6 (months)

Approx 0 to 4 years

FORWARD FACINGFORWARD FACINGFORWARD FACING

BOOSTER SEATBOOSTER SEATBOOSTER SEAT

REARWARD FACING

FORWARD FACING

Approx 0 to 8 years

Approx 6 months to 4 years

Approx 4 to 7 years

(with Booster seat and lap-belt only)

CHILD HARNESS

SHOULD ONLY BE USED

IF A LAP ONLY SEAT

BELT IS AVAILABLE

ONLY USE WITH

INFA SECURE

BOOSTER SEATS

Approx 7 to 10 years

(without Booster seat

and lap-belt only)

Approx 4 to 7 years

(with InfaSecure Booster seat)

*Not applicable for 2004 Standard models

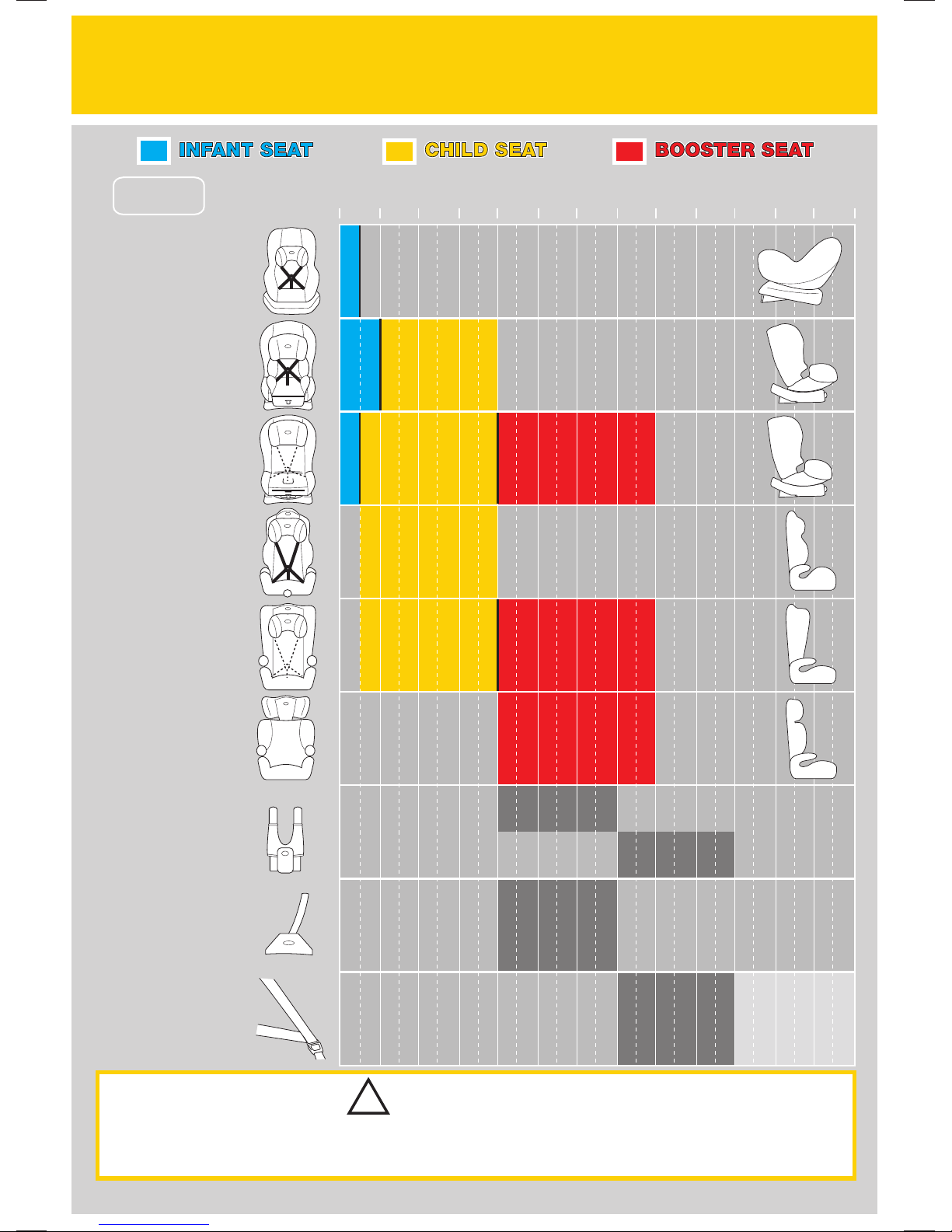

RESTRAINT GUIDE

SEAT BELT

FROM APPROX 7 YEARS AND OVER

10 +7 +

Approx 6 months to 8 years

Approx 4 years to 8 years

Allowable by law More Appropriate

CONVERTIBLE CAR SEAT

(TYPE A2/B)

BIRTH TO 4 YEARS

ZERO TO 8 CONVERTIBLE CAR SEAT

(TYPE A1/B/E)

BIRTH TO 8 YEARS

IMPORTANT

Research has shown that the likelihood of an accessory child safety harness being used incorrectly is very high and the

risk of injuries when incorrectly used is much higher compared to a lap-sash seat belt. InfaSecure recommend that an

accessory child safety harness should only be used if a lap-only seat belt is all that is available.

REARWARD FACING

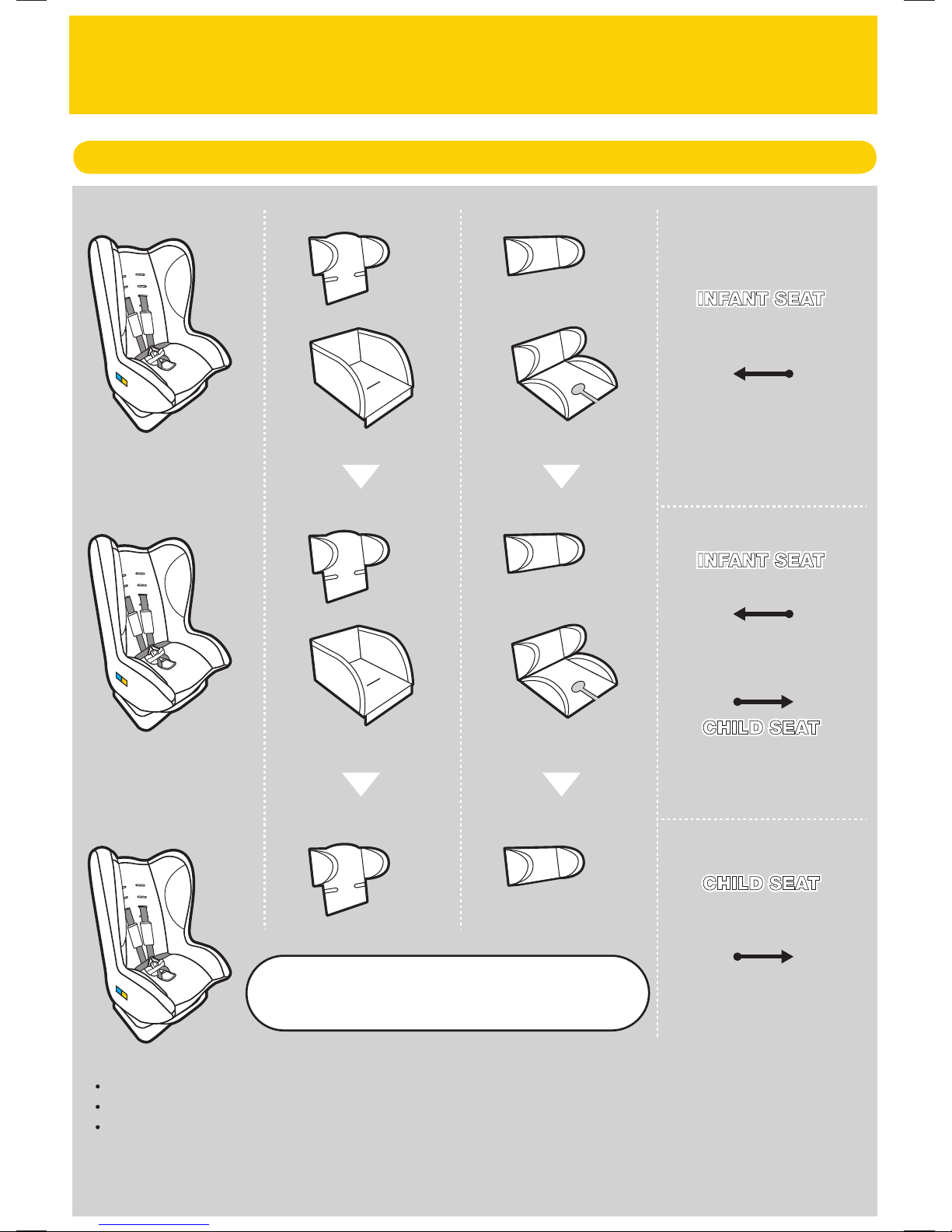

COMBINATION GUIDE

PADDING/INSERTS

*For detailed description and method of attachment for padded accessories refer to Accessories on page 31.

REARWARD FACING

INFANT SEAT

(Small Infant)

INFANT SEAT

(Large Infant)

CHILD SEAT

(Small Child)

CHILD SEAT

(Large Child)

MODE

DELUXE STANDARD

FORWARD FACING

REARWARD FACING

FORWARD FACING

Diagrams are indicative of type of paddings and inserts and may not resemble the actual product.

Padded inserts can vary according to model.

We reserve the right to alter this product without notice.

The Padded Insert/s (if tted) are designed to provide extra

support and comfort for small babies. Discontinue use when the

insert is a tight t or creates discomfort for larger babies/children.

Use the restraint exactly as shown in the instructions.

Supervision of children is needed because they may be able to undo buckles.

DO NOT LEAVE CHILDREN UNATTENDED IN THE CAR.

Do not alter or modify this restraint.

Repairs must only be done by the manufacturer or agent.

Do not allow the restraint to come into contact with polishes, oils, bleach and other chemicals.

Destroy the restraint if it has been in a severe crash, even if no damage is visible.

To ensure Baby’s back is evenly supported do not put more than one nappy on the baby and make

sure the nappy is not thickly folded at the back.

DO NOT USE A REAR-FACING CHILD RESTRAINT WHERE AN AIRBAG IS FITTED IN FRONT OF

THE SEATING POSITION.

Fit the restraint rmly to the car seat.

Fit the harness rmly to the child.

A loose restraint or harness is dangerous.

THIS RESTRAINT IS NOT SUITABLE FOR USE WHERE THE ANCHORAGE STRAP MAY FALL INTO A SPLIT IN THE SEAT BACK. (EG HATCHBACK OR WAGON)

THIS RESTRAINT MUST BE ATTACHED TO A CHILD RESTRAINT ANCHORAGE POINT IN THE CAR. REFER TO CAR OWNER’S HANDBOOK FOR LOCATION OF ANCHORAGE POINTS. REFER TO A CHILD RESTRAINT FITTING STATION IF NO CAR ANCHORAGE POINTS ARE IN THE MOTOR CAR.

INFORMATION & WARNINGS

To be used only in a rearward-facing position until the infant’s shoulders reach the lower shoulder

height marker (approximately 12 months of age).

Continue to use this infant restraint until the child reaches this limit.

Infants are at risk of serious injury if they face forward too early.

TO BE USED WITH A LAP-SASH/LAP-ONLY SEAT BELT IN THE FRONT/BACK OF MOST CARS

WITH FORWARD FACING SEATS.

Refer to page 10 for the as-installed dimensions.

NOTE: Check measurements between the front of the seat back of the rear seat and all front seats

in the car in which the child restraint in intended to be used, to ensure that the space is sufﬁcient.

INFANT

WITH INBUILT HARNESS

WARNING

(Rearward Facing)

INFANT SEATINFANT SEAT

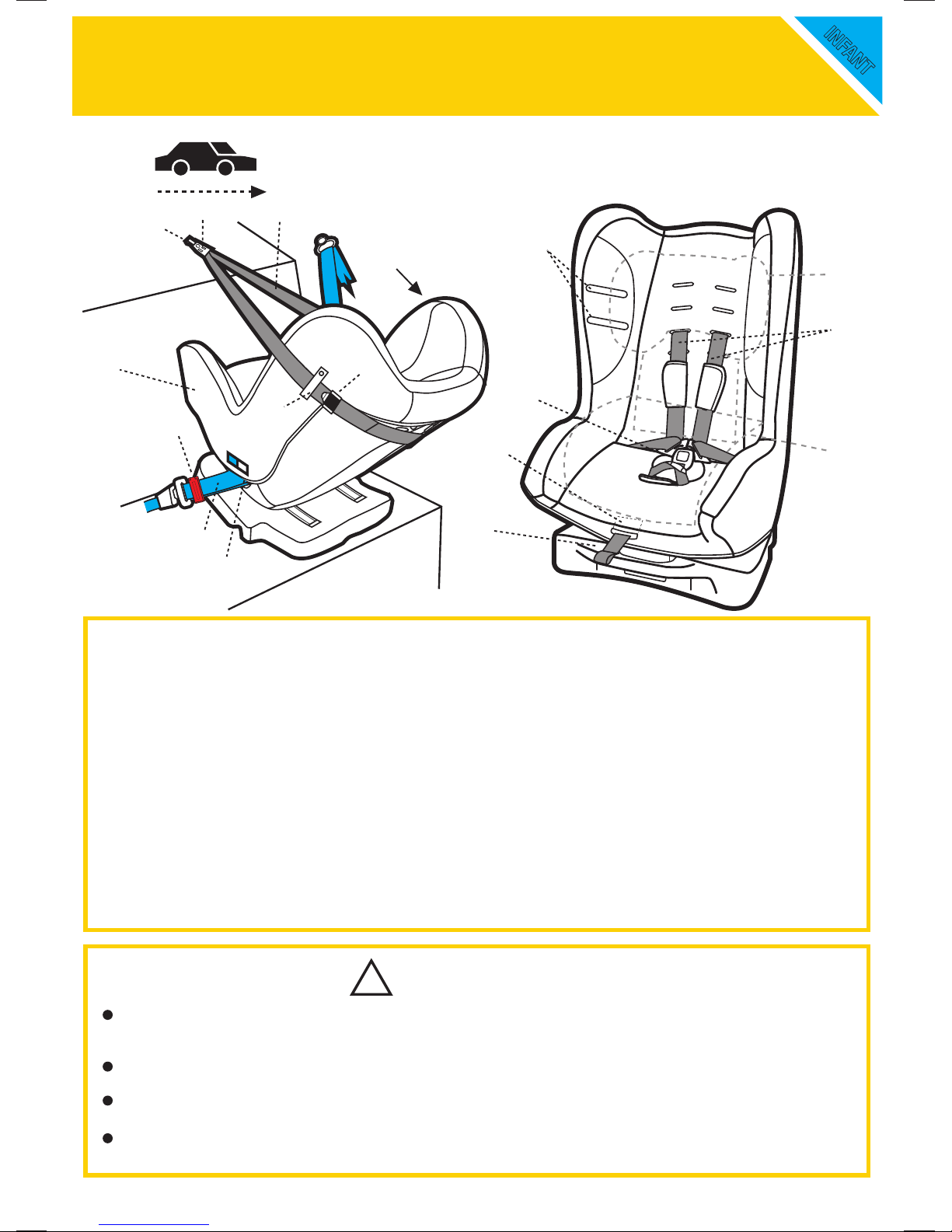

CS4010/CS4410

UPPER ANCHORAGE STRAP ADJUSTER

UPPER ANCHORAGE STRAP

ATTACHMENT CLIP

ANCHOR FITTING + ATTACHMENT HARDWARE

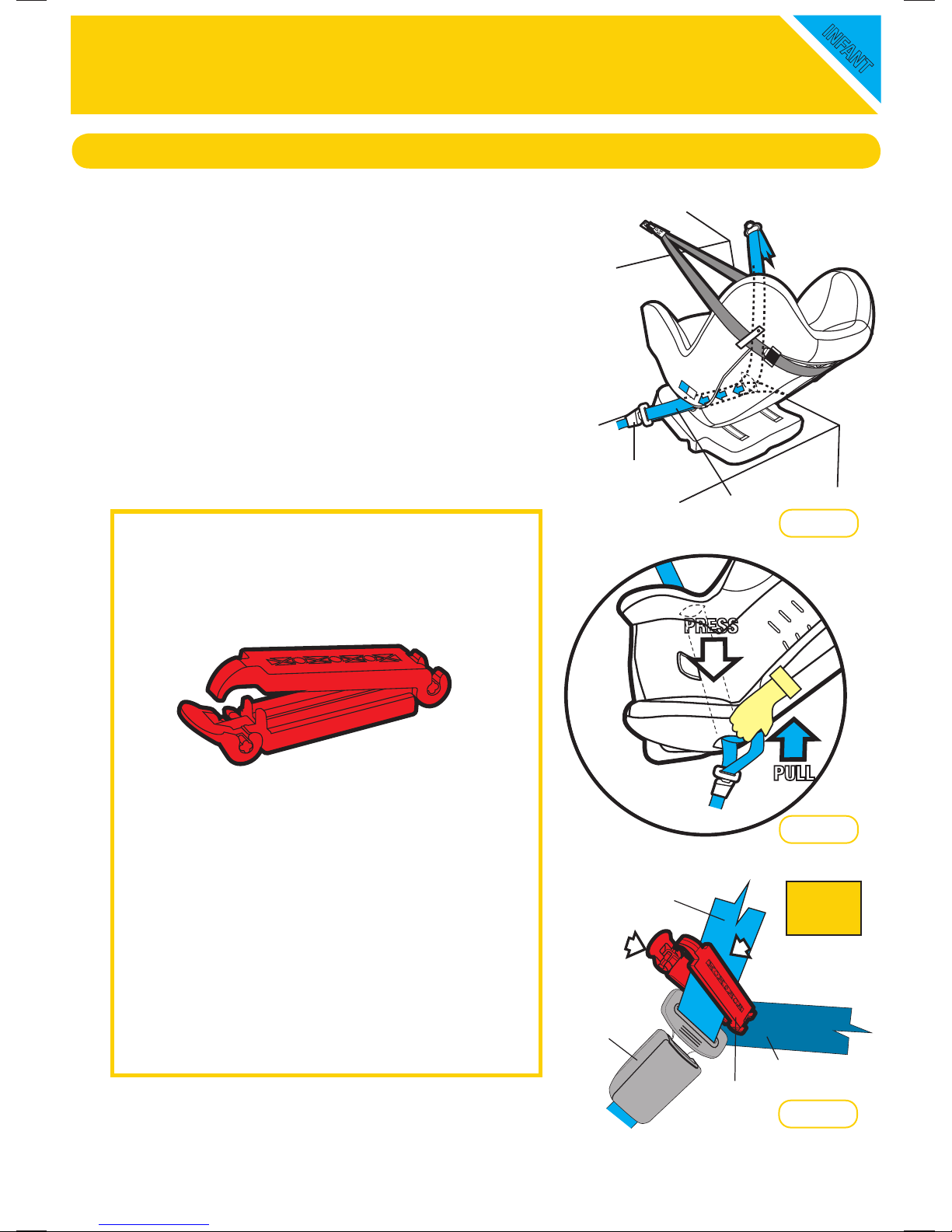

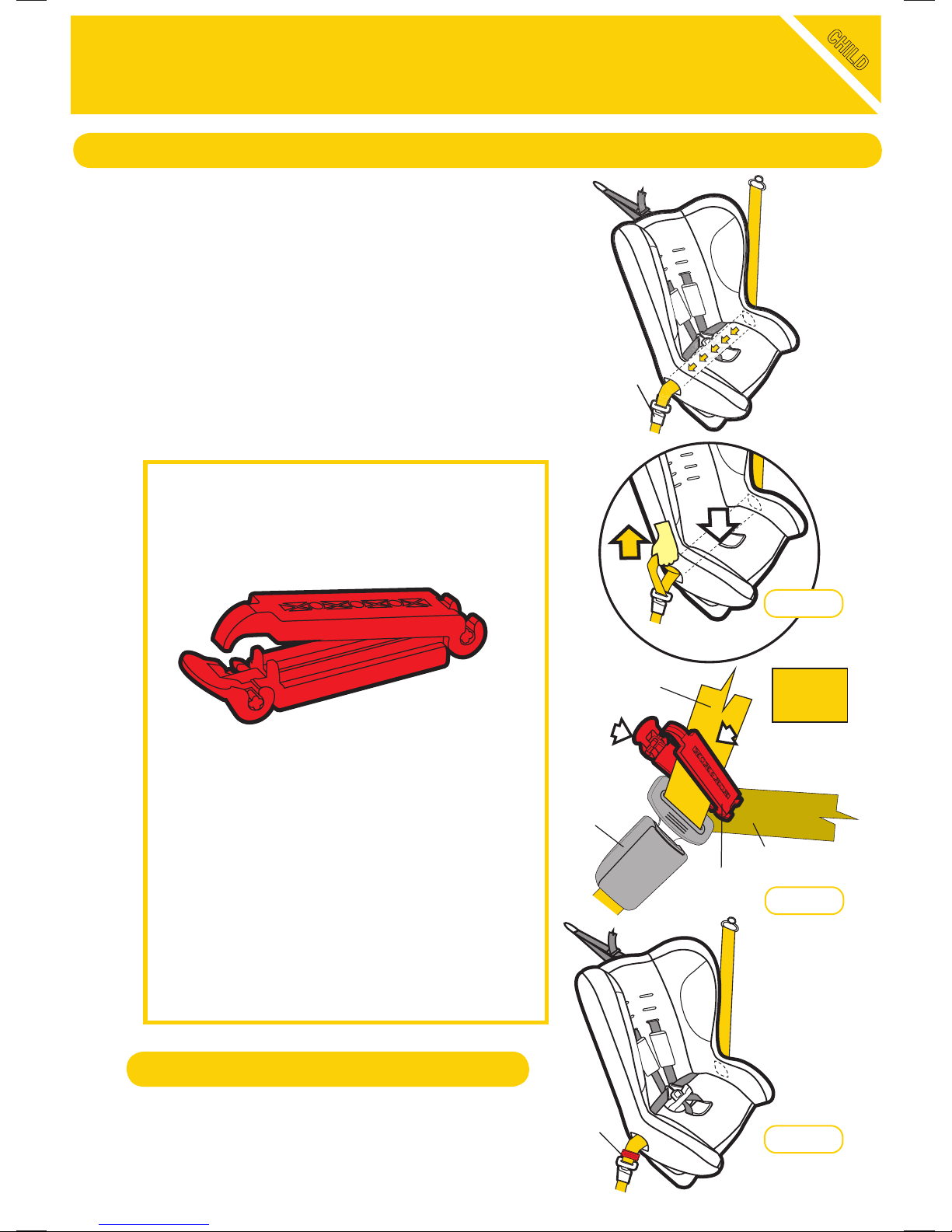

SAFE GRIP RED BELT CLAMP (supplied in pocket)

VEHICLE SEAT BELT

“REARWARD-FACING SEAT BELT PATH” MARKER (EACH SIDE OF RESTRAINT - COLOURED BLUE)

UPPER ANCHORAGE STRAP GUIDE

COMFORT COVER A - SEAT COVER

SHOULDER HEIGHT MARKER

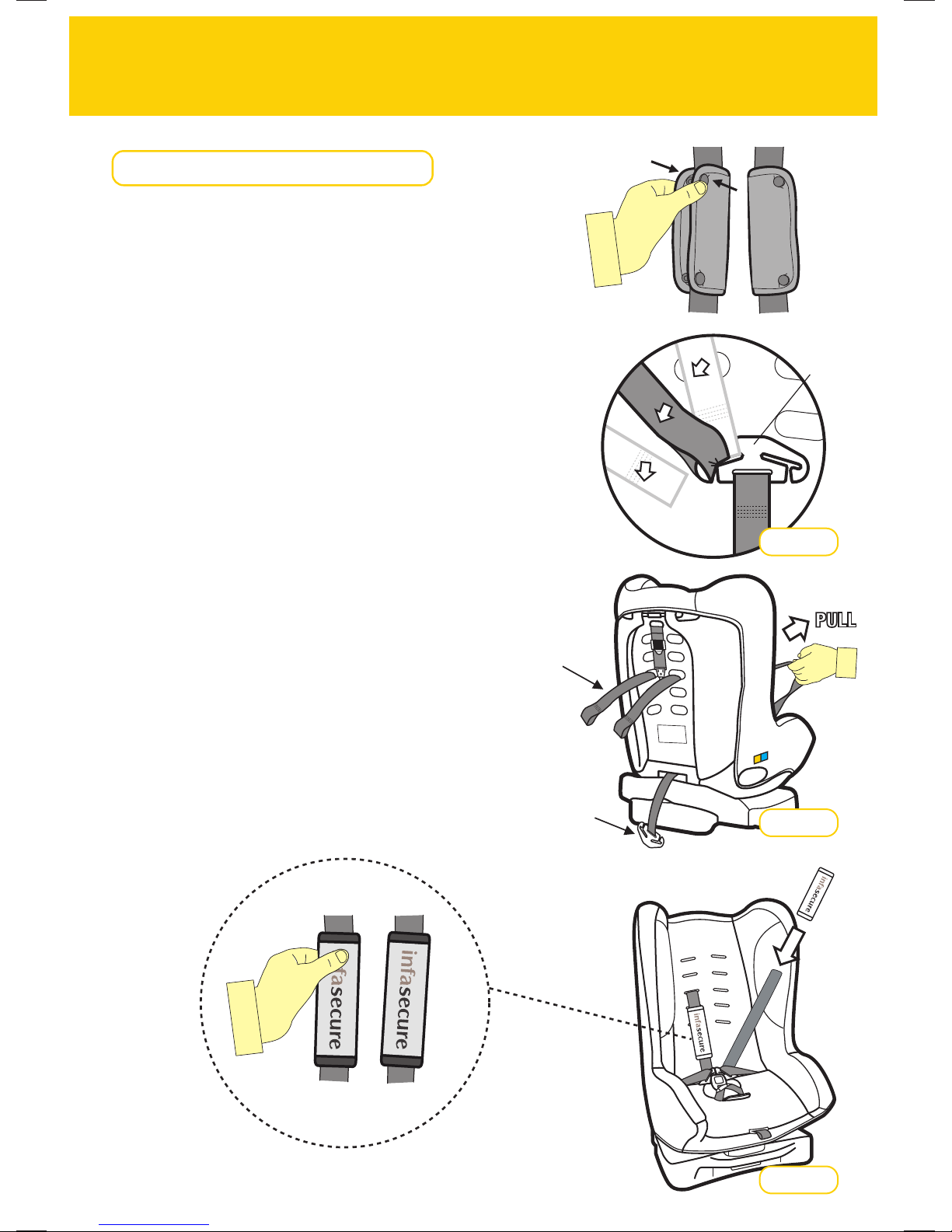

HARNESS SHOULDER STRAPS

BUCKLE ASSEMBLY

HARNESS ADJUSTER

HARNESS ADJUSTMENT STRAP

PILLOW (if supplied)

PADDED INSERT (if supplied)

NOTE: Padded inserts can vary according to model. For detailed description and method of attachment for padded accessories refer to Accessories on page 31.

10.

11.

12.

13.

14.

15.

16.

REARWARD FACING

VIEW A

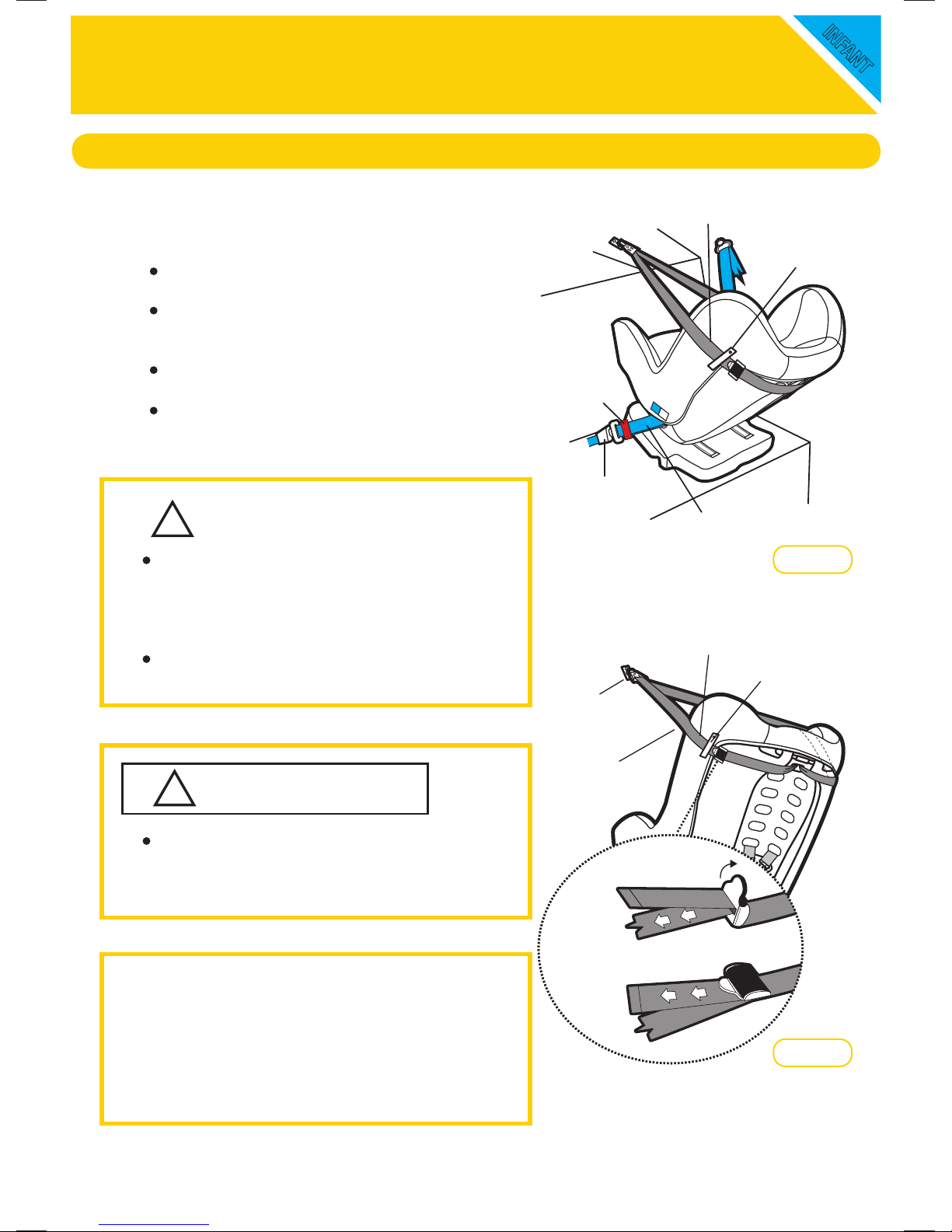

For a vehicle without a xed parcel shelf an extension strap(s) may be needed. If so ring (02) 4728 8080 for nearest supply location. (Refer page 31) Seat belt extenders should not be used if the seat belt is not long enough to secure the child restraint.

To achieve the necessary distribution of deceleration force during a vehicle impact, ensure the infant is seated correctly in the child restraint and the harness is tted and adjusted as per these instructions. Ensure the child restraint and infant are rearward facing. Care and attention should be given to ensure that the infant has adequate ventilation and shading when in the restraint.

IMPORTANT

9 A

Front of Car

Shoulder height markers may

be hidden under a pillow in

the lowest position

INFANT

WITH INBUILT HARNESS

INFANT

WITH INBUILT HARNESS

LOWER

LABEL

(Rearward

Facing)

BABY

(Rearward Facing Mode)



(Rearward

Facing)

LOWER

LABEL

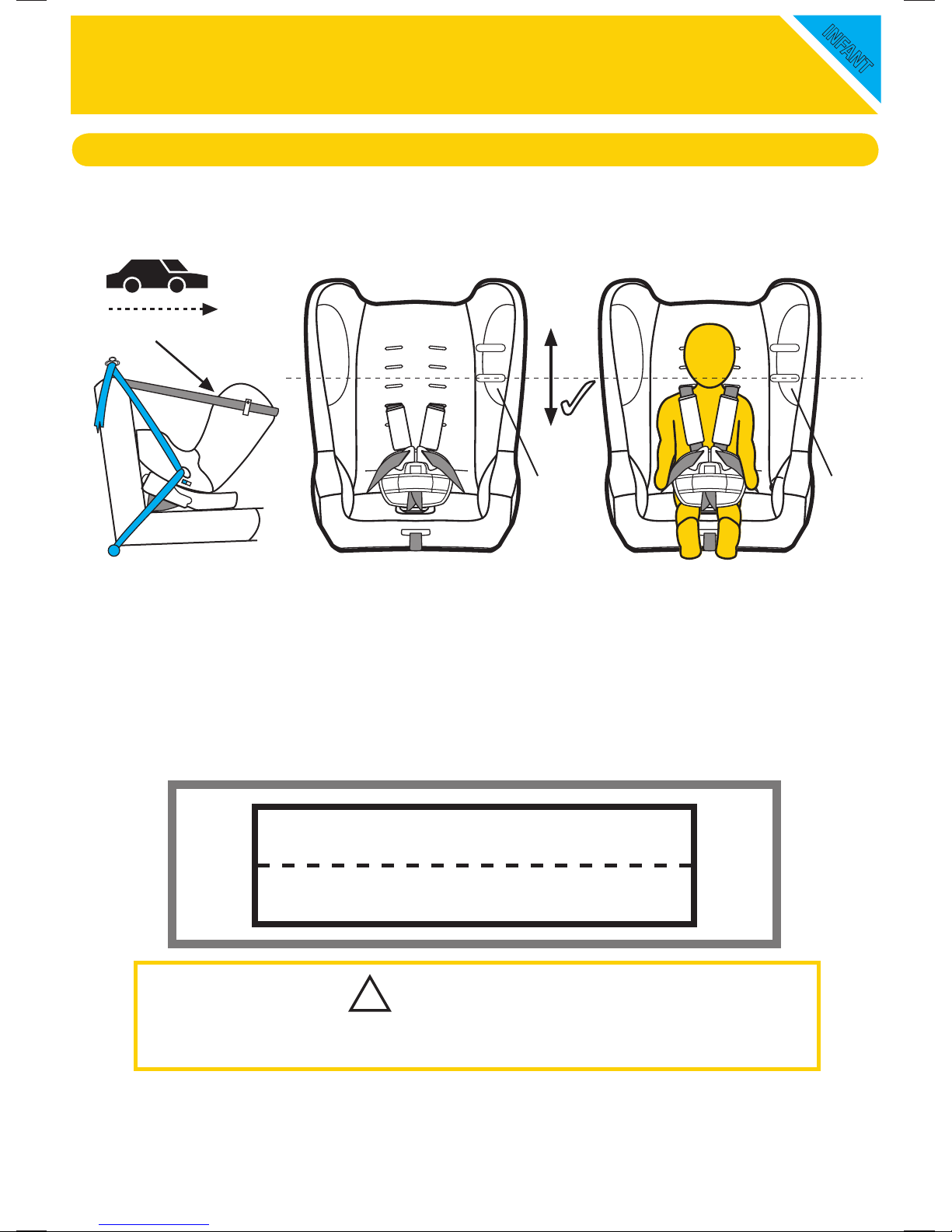

SHOULDER HEIGHT MARKER

VIEW A

LOWER LABEL (Rearward Facing)

To be used only in a rearward-facing position for an infant until their shoulders reach the Lower shoulder height marker (approximately 12 months of age).

Infants are at risk of serious injury if they face forward too early.

If the infants shoulders are below the lower label or if the baby’s neck muscles are unable to support their head, then the infant should remain rear facing. When the child’s shoulder reach the lower label, the child restraint may be turned to face towards the front of the car (refer page 19 Child Seat section).

Front of Car

VIEW A

IMPORTANT

Ensure that you continue to use this child restraint in rearward facing positions whilst the infants shoulders are below this shoulder height marker (Lower label).

INFANT

SEAT

REARWARD

FACING

SHOULDERS BELOW THIS LINE

MUST BE REAR FACING WHEN

Shoulder height markers may be hidden under a pillow in the lowest position

Shoulder height markers are provided on this restraint for a visual indication that the child is safe to travel in this restraint.

Do not turn to forward facing until this child’s shoulder reach the lower label.

INFANT

WITH INBUILT HARNESS

GENERAL

If the baby’s neck muscles are unable to support their head, then the infant should remain rear facing.

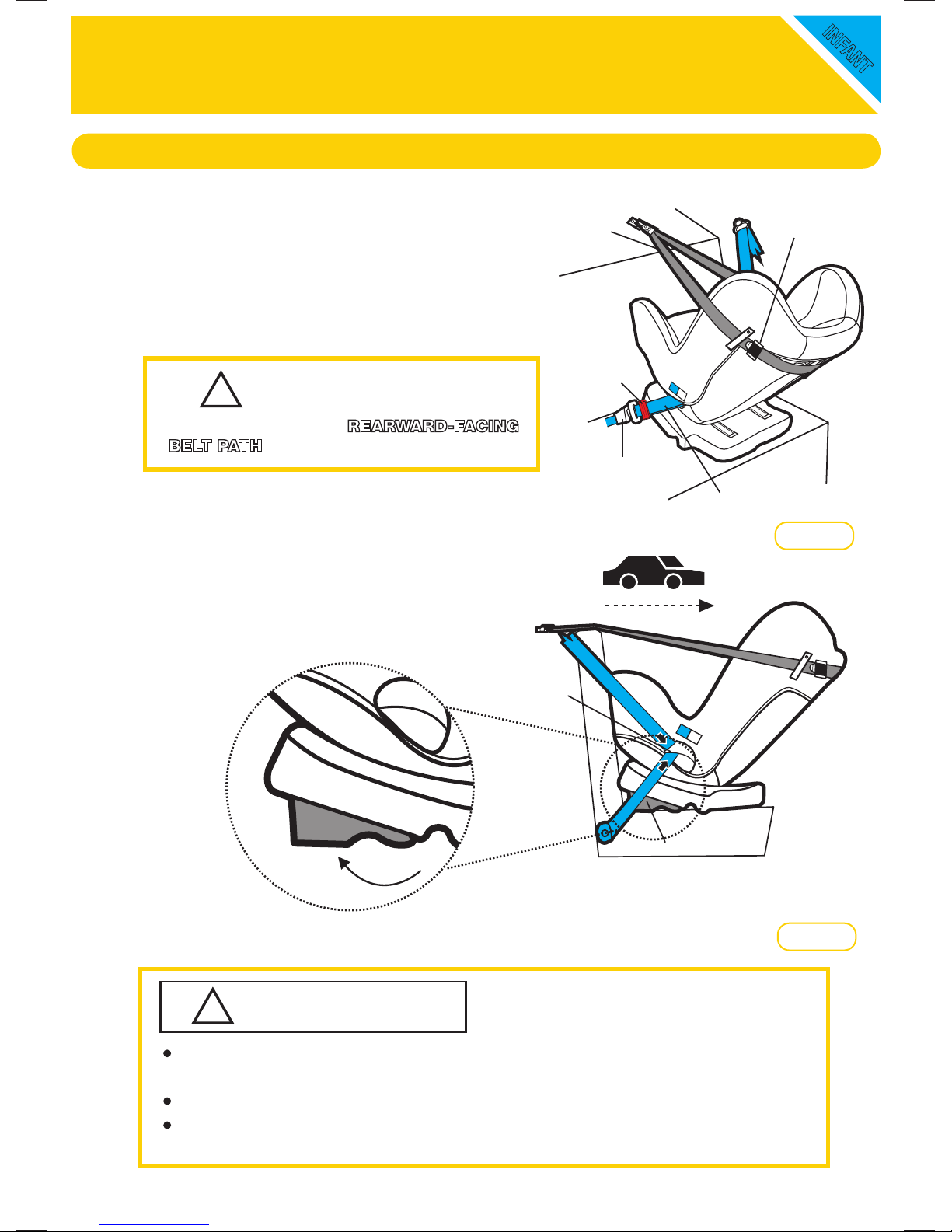

ONLY USE RESTRAINT IN REARWARD-FACING MODE WITH “RECLINE SECTION” SWUNG FORWARD AND RESTRAINT FULLY RECLINED.

Do not use the restraint without the upper anchorage strap correctly attached.

DO NOT USE A REAR-FACING CHILD RESTRAINT WHERE AN AIRBAG IS FITTED IN THE FRONT OF THE SEATING POSITION.

Do not use on any vehicle seat which faces sideways or rearward.

WARNING

The CS4010/CS4410 Child restraint has been designed and tested to meet the joint Australian/New Zealand Standard with an inbuilt anti rebound feature and does not require additional anti rebound bars or mechanisms to fullll these requirements.

The CS4010/CS4410 Child restraint has also been designed to be a compact restraint to enable multiple restraints to be used in the rear of most vehicles.

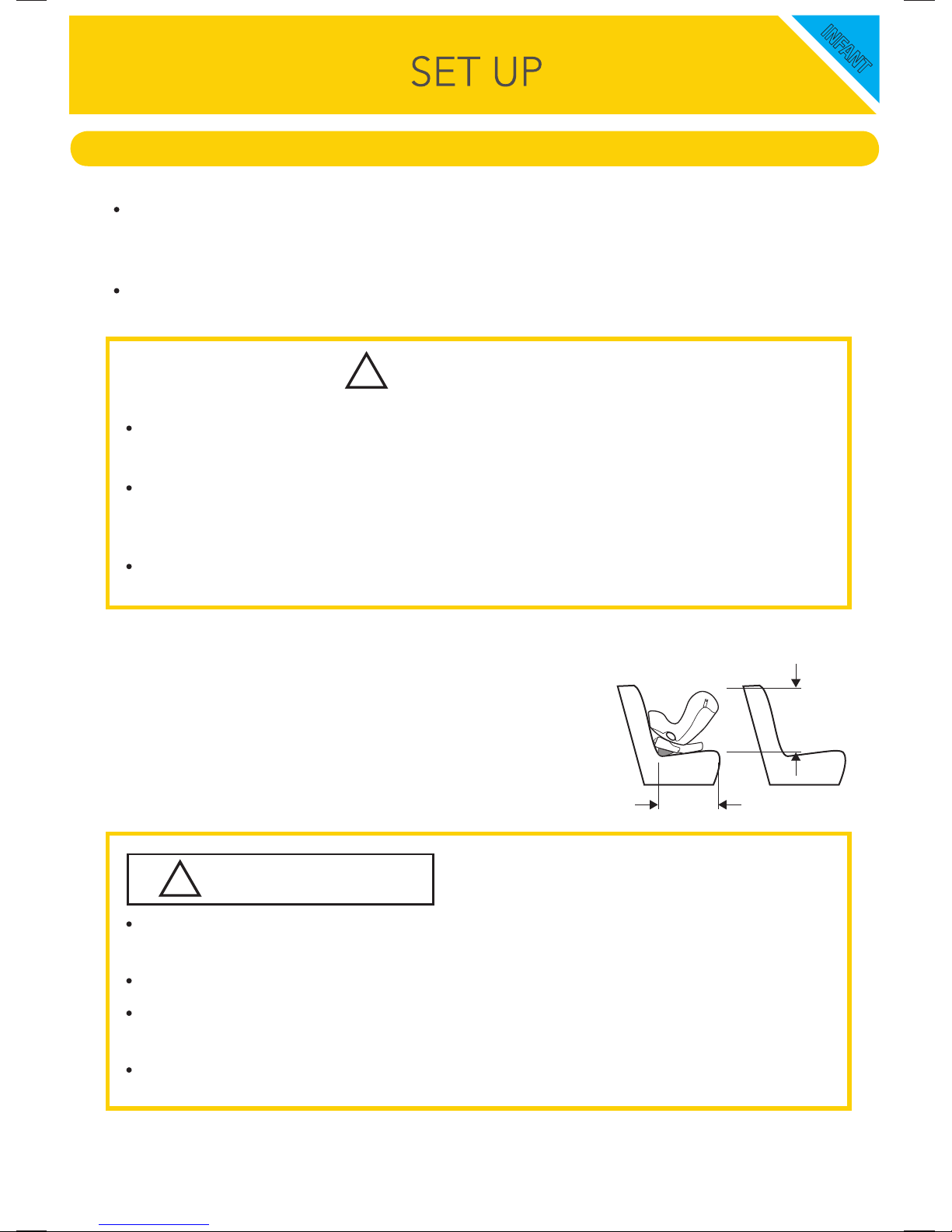

The Purchaser should check the measurement between the front of the seat back of the rear seat and all front seats in the car in which the child restraint is intended to be used, to ensure that the space is sufcient.

Care and attention should be given to ensure that the baby has adequate ventilation and shading when in the restraint.

To achieve the necessary distribution of deceleration forces during a vehicle impact, ensure the child is seated correctly in the child restraint and the harness is tted and adjusted as per these instructions.

Ensure the child restraint and child are rearward facing.

IMPORTANT

590mm

570mm

INFANT

WITH INBUILT HARNESS

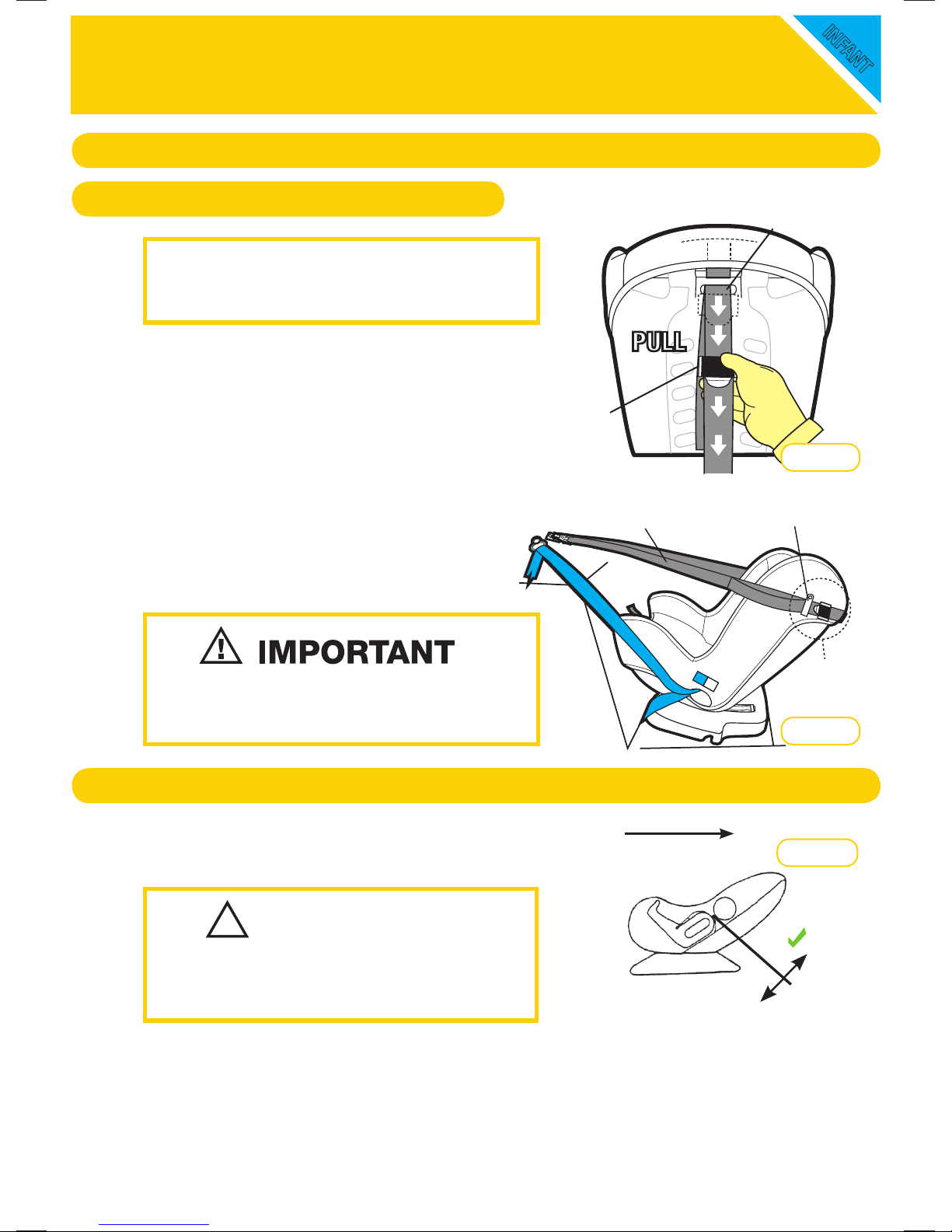

SELECTION OF APPROPRIATE PADDING COMBINATIONS

Determine whether your infant /child requires the additional padding provided with this restraint, to ensure a safe and snug t in the restraint. Refer to page 6 for suggested padding combinations.

- Refer to the shoulder height labels (As shown on pages 9).

- For correct shoulder strap slot height refer to page 12.

IMPORTANT

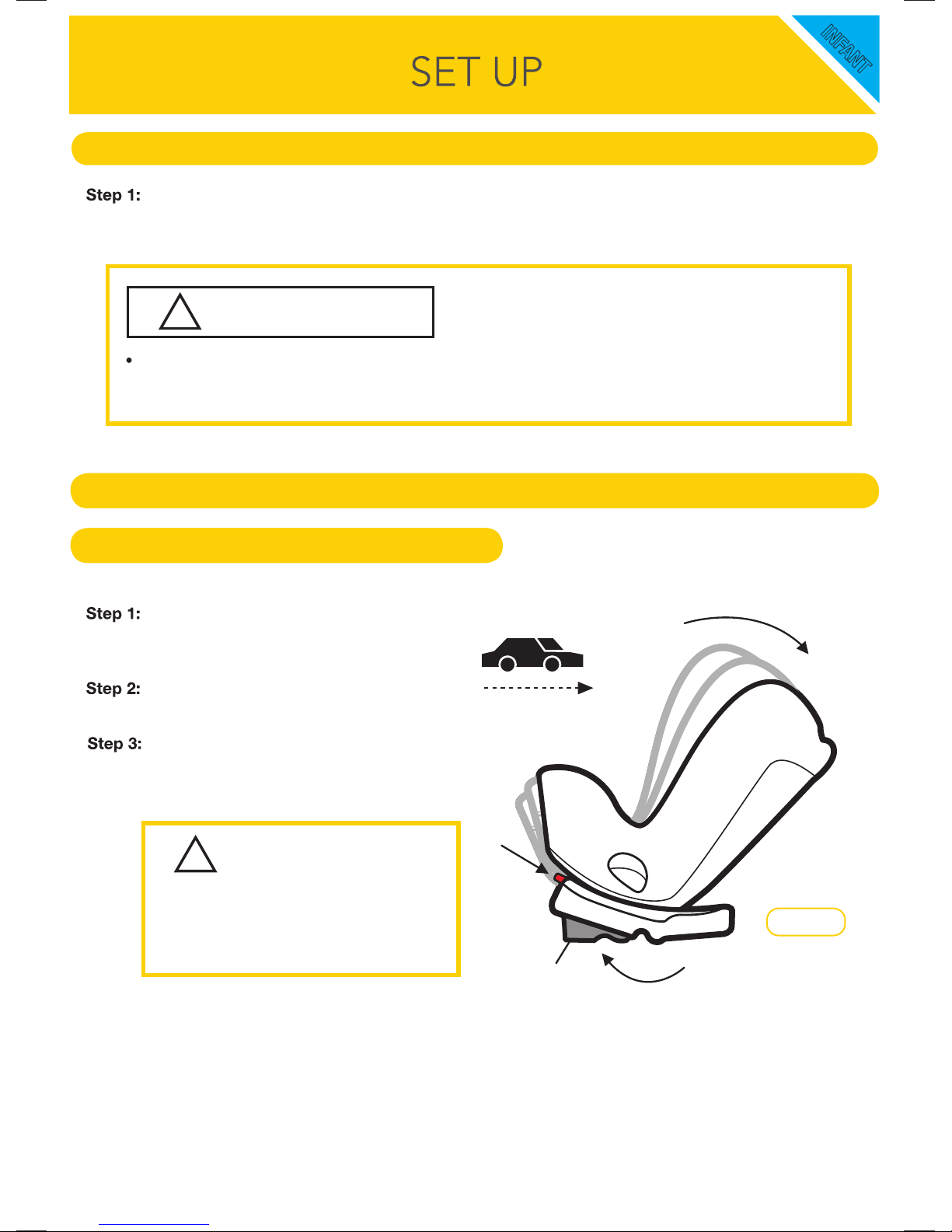

CONVERTING TO INFANT SEAT

At the front of the restraint is a red lever. Pull red lever forward and recline the seat base as far as possible.

Ensure the recline section is swung forward (see Figure 1).

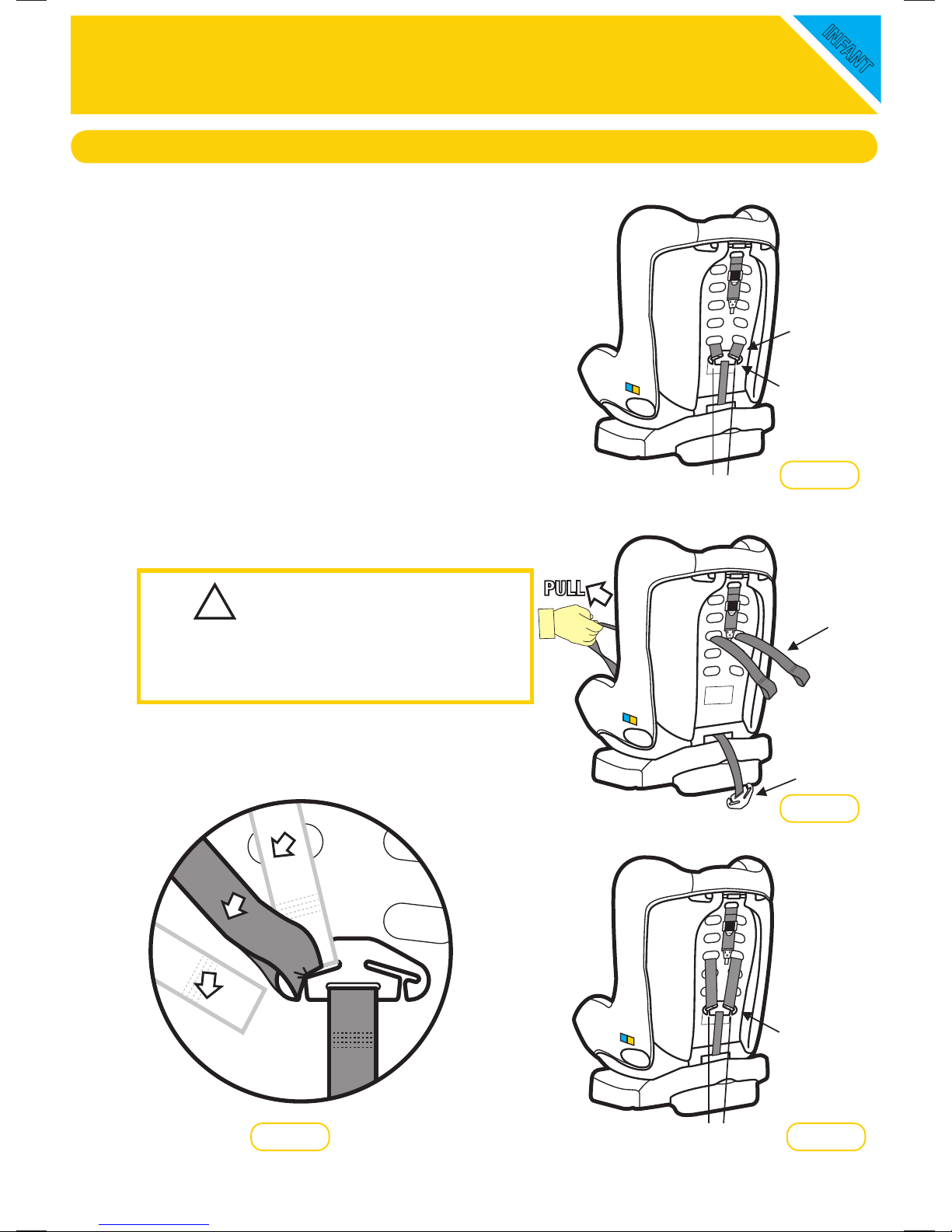

Ensure the In-built harness “Shoulder straps” are positioned in the lower slots.

Figure 1

REAR

FRONT

RED

LEVER

RECLINE

SECTION

Front of Car

To ensure baby’s back is evenly supported, do not put more than one nappy on the baby and make

sure the nappy is not thickly folded at the back.

WARNING

RECLINED POSITION

INFANT

WITH INBUILT HARNESS

SET UP

CORRECT SHOULDER HEIGHT

The correct height for the shoulder straps is very important for the optimum performance of the restraint.

The shoulder slots used in rearward facing position are below the lower shoulder height marker.

With the child correctly sitting in the restraint, check which set of slots (In the plastic shell of the restraint) are level with or just above the infant’s shoulders.

If the harness straps are located in those slots, then the you can proceed with using the restraint (see section “USE” on page 17). If not then adjust the shoulder straps. Refer to “Shoulder slot height”.

Figure 1

IMPORTANT

The shoulder straps must be in the slots which are nearest to the child’s shoulders, but not lower than the child’s shoulders.

Front of vehicle

CONVERTING TO INFANT SEAT

Figure 2

Adjuster location

Adjuster

Figure 3

Upper Anchorage

Strap

Upper Anchorage

Strap Guide

Step 1:

Step 2:

Upper Anchorage

Strap

The location of the Upper Anchorage Straps ‘Adjuster’ is adjustable for ease of installation and ease of use.

Pull adjuster and strap to extend the location of the adjuster assembly (see Figure 2).

Continue to extend until the adjuster has reached the desired location at the side of the restraint (see Figure 3).

Step 3:

Locate the adjuster at the side of the restraint and secure using the Upper Anchorage Strap Guide.

EASE OF USE: It is recommended to position the adjuster at the side of the restraint which is towards the access door (rear passenger side).

ADJUSTER ASSEMBLY LOCATION

Rearward Facing (Type A)

INFANT

WITH INBUILT HARNESS

INSTALLATION

SHOULDER SLOT HEIGHT

Turn the restraint so that the back of the seat is facing you.

Remove each shoulder harness through the gates in the spreader plate (see Figure 1 & 4).

Pull the shoulder harness straps through the shoulder slot holes in the seat body and cover. They are now loose in the front of the seat.

Push the ends of the shoulder harness straps through the appropriate shoulder slot holes in the cover and seat body for the child’s shoulder height.

The shoulder harness straps go directly from the shoulder slot holes to the spreader plate. Thread each shoulder harness strap back onto the metal spreader plate through the gate (see Figure 4).

Step 1:

Step 2:

Step 3:

Step 4:

Step 5:

Figure 1

Figure 2

Figure 3Figure 4

IMPORTANT

The shoulder straps must be in the slots which are nearest to the child’s shoulders, but not lower than the childs shoulders.

HARNESS

STRAPS

HARNESS

STRAPS

METAL

SPREADER

PLATE

METAL

SPREADER

PLATE

GATES

METAL

SPREADER

PLATE

GATES

PULL

INFANT

WITH INBUILT HARNESS

INSTALLATION

Place the child restraint on the vehicle seat. Ensure recline section is swung forward and the restraint is fully reclined with the restraint directly in line with anchorage point.

Make sure upper anchorage strap is as in illustration (Figures 1 and 2) i.e. positioned around restraint back.

Feed adult lap or lap/sash belt through the belt path opening, ensure the seat belt is under the cover & between the layer of foam and the plastic seat base.

Engage the buckle and tongue assembly (listen for a “CLICK”). Check the buckle engagement with a gentle pull.

Step 1:

Step 2:

Step 3:

INSTALLING IN VEHICLE

DO NOT USE REAR FACING CHILD RESTRAINT WHERE AN AIRBAG IS FITTED IN FRONT OF THE SEATING POSITION. Fit the restraint rmly to the car seat. THIS TETHER STRAP MUST ALWAYS BE FITTED WHEN THE CHILD RESTRAINT IS USED IN A VEHICLE.

Figure 2

WARNING

Buckle & Tongue

Assembly

Figure 1

Upper

Anchorage

Strap

Safe Grip

(red belt clamp)

Adjuster

Lap Belt

& Sash Belt

Front of Car

Recline Section

Recline Section (Swung Forward)

& child restraint fully reclined.

Lap Belt &

Sash Belt Passes

Through Here

IMPORTANT

Ensure that you use the REARWARD-FACING

BELT PATH indicators, marked in “blue”.

INFANT

WITH INBUILT HARNESS

INSTALLATION

INSTALLING IN VEHICLE

Push down on the base of the restraint (with knee or hand) whilst pulling the sash section of the vehicle belt rmly up in direction of the blue arrow in Figure 4. (This will tighten the lap belt across the seat base).

Whilst continuing to pull the sash section up, attach the Safe Grip red belt clamp on the sash section ONLY, as close as possible above the buckle tongue assembly. (Refer to Figure 5 and Instruction for installing the Safe Grip red clamp below)

Ensure the excess slack in the sash belt, is fed back towards the seat belt.

Step 4:

Step 5:

Pass lap

and sash belt

through the seat.

Note: Ensure the

belts are under

foam padding.

Buckle & Tongue

Assembly

Lap Belt

& Sash Belt

“CLICK”

PULL

PRESS

SAFE GRIP BELT CLAMP

The Safe Grip (red belt clamp) locks the lap belt to ensure a rm installation, and avoids slack in the lap belt.

To install the Safe Grip (red belt clamp), open it and clamp the “sash section” ONLY of the vehicle seat belt by closing the barrel section of the red belt clamp in the direction of arrow 1 in Figure 5 and then locking with the toggle section by pushing in the direction of arrow 2 in Figure 5 when the Safe Grip (red belt clamp) is secured in place, the lap section is now tightly holding your child restraint in place, independent of the sash section. The Safe Grip (red belt clamp) must be removed when the child restraint is not installed to allow other users to use the seat belt as a lap/sash seat belt. Always keep the Safe Grip (red belt clamp) in pocket provided when not in use.

Figure 3

Figure 4

TOGGLE

SECTION (2)

LAP SECTION

BARREL SECTION (1)

SAFE GRIP (B)

(red belt clamp)

ATTACH TO

SASH SECTION

ONLY

SASH SECTION

BUCKLE (A)

(AND TONGUE)

Figure 5

INFANT

WITH INBUILT HARNESS

INSTALLATION

INSTALLING IN VEHICLE

IMPORTANT

The purchaser should check the measurements between the front of the seat back of the rear seat and all front seats in the car in which the child restraint is intended to be used, to ensure that the space is sufcient. Care and attention should be given to sufcient ventilation and shading of the baby.

FOLLOWING THE INSTALLATION OF THE CHILD RESTRAINT A SMALL AMOUNT OF MOVEMENT IS DEEMED ACCEPTABLE.

Recline Section must always be used in the rearward facing mode (infant position) as shown in Figure 2 (page 14).

Buckle & Tongue

Assembly

Upper

Anchorage

Strap Guide

Upper Anchorage Strap Guide

Upper

Anchorage

Strap

Safe Grip

(red belt clamp)

Lap Belt

& Sash Belt

Connect upper anchorage strap to anchorage tting and adjust rmly.

Tighten till slack is removed.

In certain vehicles an extension strap may be needed.

Do not overtighten upper anchorage strap.

Ensure upper anchorage strap is passed through the Upper Anchorage Strap Guide.

Step 6:

Figure 6

Upper

Anchorage Strap

Anchorage

Point

Adjuster

Figure 7

WARNING

Adjuster

NOTE

Tilt

Pull to Lengthen

Pull to Tighten

INFANT

WITH INBUILT HARNESS

USE

USING INBUILT HARNESS

Ensure the restraint has been installed & setup as per “SET UP” & “INSTALLATION” (refer page 10 & 12).

Lengthen the harness in excess of what is needed before placing the baby in the car seat. To lengthen the harness, push the harness adjuster (G) that is located at the front of the seat (see Figure 2) whilst grasping both shoulder harness straps and pulling out till lengthened to the desired amount. Ensure shoulder straps are pulled equally on each side.

Place baby/child in car seat with legs either side of the crotch strap, place harness over the shoulders and hips and engage the two buckle tongues (CLICK) into buckle. CHECK IT IS PROPERLY ENGAGED. Ensure child is placed centrally in the seat.

Pull harness adjuster strap (H) to take the slack out of the harness until it is a rm but comfortable t (refer Figure 3)

NOTE: If upper anchorage strap has been loosened to allow easier placing of the baby in the restraint, tighten the upper anchorage strap so it has no slack in it. DO NOT TIGHTEN EXCESSIVELY.

Step 1:

Step 2:

Step 3:

Step 4:

(G) Harness

Adjuster

(Under cover)

(H) Harness

Adjuster Strap

Upper Anchorage

Strap

Figure 1

Figure 3

DO NOT LEAVE CHILDREN UNATTENDED IN THE CAR.

Fit the restraint rmly to the car seat. Fit the harness rmly to the child. A loose restraint or harness is dangerous

To ensure baby’s back is evenly supported, do not put more than one nappy on the baby and make

sure the nappy is not thickly folded at the back.

WARNING

PULL TO

TIGHTEN(H)

Figure 2

PULL TO

LENGTHEN

PULL TO

LENGTHEN

PRESS(G)

IMPORTANT

A LOOSE HARNESS IS DANGEROUS.

The Padded Insert/s (if tted) are designed to provide extra support and comfort for small babies. Discontinue use when the insert is a tight t or creates discomfort for larger babies/children.

INFANT

WITH INBUILT HARNESS

USE

TO RELEASE INFANT

FOR EASE OF USE

To release your child from the restraint simply press the harness buckle and carefully remove your child from the seat (refer Figure 1).

No need to disconnect the Upper Anchorage Strap.

To access your baby simply;

- Loosen upper anchorage strap (refer Figure 2).

- Lower strap out of way (refer Figure 3).

Reverse procedure when reseating the baby.

NOTE: If upper anchorage strap has been loosened to allow easier placing of the baby in the restraint, tighten the upper anchorage strap so it has no slack in it. DO NOT TIGHTEN EXCESSIVELY.

Always use the Upper Anchorage Strap and Attachment Clip attached to the Anchor Fitting.

Always ensure the upper anchorage strap is positioned correctly.

Always adjust to remove the slack from the upper Anchorage Strap.

Always use Upper Anchorage Strap Guide

Fit the restraint rmly to the car seat.

WARNING

Upper Anchorage

Strap

LOWER OUT OF WAY

Upper Anchorage

Strap

Upper Anchorage

Strap Guide

Figure 1

Figure 2

Figure 3

To be used in a forward-facing position by children whose shoulders are above the lower shoulder

height marker (approximately 6 months of age) until their shoulders reach the upper shoulder

height marker (approximately 4 years of age).

TO BE USED WITH A LAP-SASH/LAP-ONLY SEAT BELT IN THE FRONT/BACK OF MOST CARS

WITH FORWARD FACING SEATS.

Continue to use this child restraint until the child reaches this limit.

Do not use until child’s shoulders are above the lower shoulder height marker.

Infants are at risk of serious injury if they face forward too early.

Children are at risk of serious injury if they move to a booster seat too early.

Children that have outgrown this restraint are safest in a booster seat until their shoulders reach

the upper shoulder height marker of the booster seat.

INFORMATION & WARNINGS

Use the restraint exactly as shown in the instructions.

Supervision of children is needed because they may be able to undo buckles.

DO NOT LEAVE CHILDREN UNATTENDED IN THE CAR.

Do not alter or modify this restraint.

Repairs must only be done by the manufacturer or agent.

Do not allow the restraint to come into contact with polishes, oils, bleach and other chemicals.

Destroy the restraint if it has been in a severe crash, even if no damage is visible.

Fit the restraint rmly to the car seat.

Fit the harness rmly to the child.

A loose restraint or harness is dangerous.

THIS RESTRAINT IS NOT SUITABLE FOR USE WHERE THE ANCHORAGE STRAP MAY FALL INTO A SPLIT IN THE SEAT BACK. (EG HATCHBACK OR WAGON)

WARNING

CHILD

WITH INBUILT HARNESS

(Forward Facing)

CHILD SEATCHILD SEAT

9 A

VIEW A

IMPORTANT

Front

of Car

CS4010/CS4410

UPPER ANCHORAGE STRAP ADJUSTER

UPPER ANCHORAGE STRAP

ATTACHMENT CLIP

ANCHOR FITTING + ATTACHMENT HARDWARE

SAFE GRIP RED BELT CLAMP (supplied in pocket)

VEHICLE SEAT BELT

“FORWARD-FACING SEAT BELT PATH” MARKER (EACH SIDE OF RESTRAINT - COLOURED YELLOW)

UPPER ANCHORAGE STRAP GUIDE

COMFORT COVER A - SEAT COVER

SHOULDER HEIGHT MARKER

HARNESS SHOULDER STRAPS

BUCKLE ASSEMBLY

HARNESS ADJUSTER

HARNESS ADJUSTMENT STRAP

PILLOW (if supplied)

PADDED INSERT (if supplied)

NOTE: Padded inserts can vary according to model. For detailed description and method of attachment for padded accessories refer to Accessories on page 31.

10.

11.

12.

13.

14.

15.

16.

FORWARD FACING

Shoulder height markers may

be hidden under a pillow in

the lowest position

CHILD

WITH INBUILT HARNESS

Smaller Child from approximately 12 months of age

Do not use as a forward-facing child restraint until the child’s shoulders are above the Lower shoulder height marker (Lower label).

If moving a child from rearward-facing child restraint, to forward facing child restraint the child’s shoulders will need to be inline or above the lower label. If the child’s shoulders are below the lower label or if the baby’s neck muscles are unable to support their head, then the child should remain rearward-facing.

SMALLER TODDLER

LOWER LABEL

When using the inbuilt harness the child’s shoulders must be in-line or above this marker

IMPORTANT

INFANT

SEAT

REARWARD

FACING

SHOULDERS BELOW THIS LINE

MUST BE REAR FACING WHEN

SHOULDER HEIGHT MARKER

CHILD

WITH INBUILT HARNESS

(Using Inbuilt Harness)

LOWER

LABEL

Front of Car

VIEW B



LOWER

LABEL

VIEW A

Shoulder height markers may be hidden under a pillow in the lowest position



CHILD

WITH INBUILT HARNESS

SHOULDER HEIGHT MARKER

UPPER LABEL (Forward Facing)

Continue to use this forward-facing child restraint until the child’s shoulders reach the Upper shoulder height marker (Upper Label).

Children are at risk of serious injury if they move to booster seats too early.

Children that have outgrown the forward-facing child restraint are safest in a booster seat until their shoulders reach the upper shoulder height marker of the booster seat.

For the next child restraint refer to the Restraint Guide on page 5.

VIEW B

TALLER TODDLER

(Using Inbuilt Harness)

IMPORTANT

When the child’s shoulders reach the upper shoulder height marker (Upper Label). Move the child to a booster seat and use with a lap sash seat belt.

CHILD

SEAT

BELOW THIS LINE

SHOULDERS MUST BE

FORWARD

FACING



LOWER

LABEL

LOWER

LABEL

UPPER LABEL

Front of Car

VIEW B

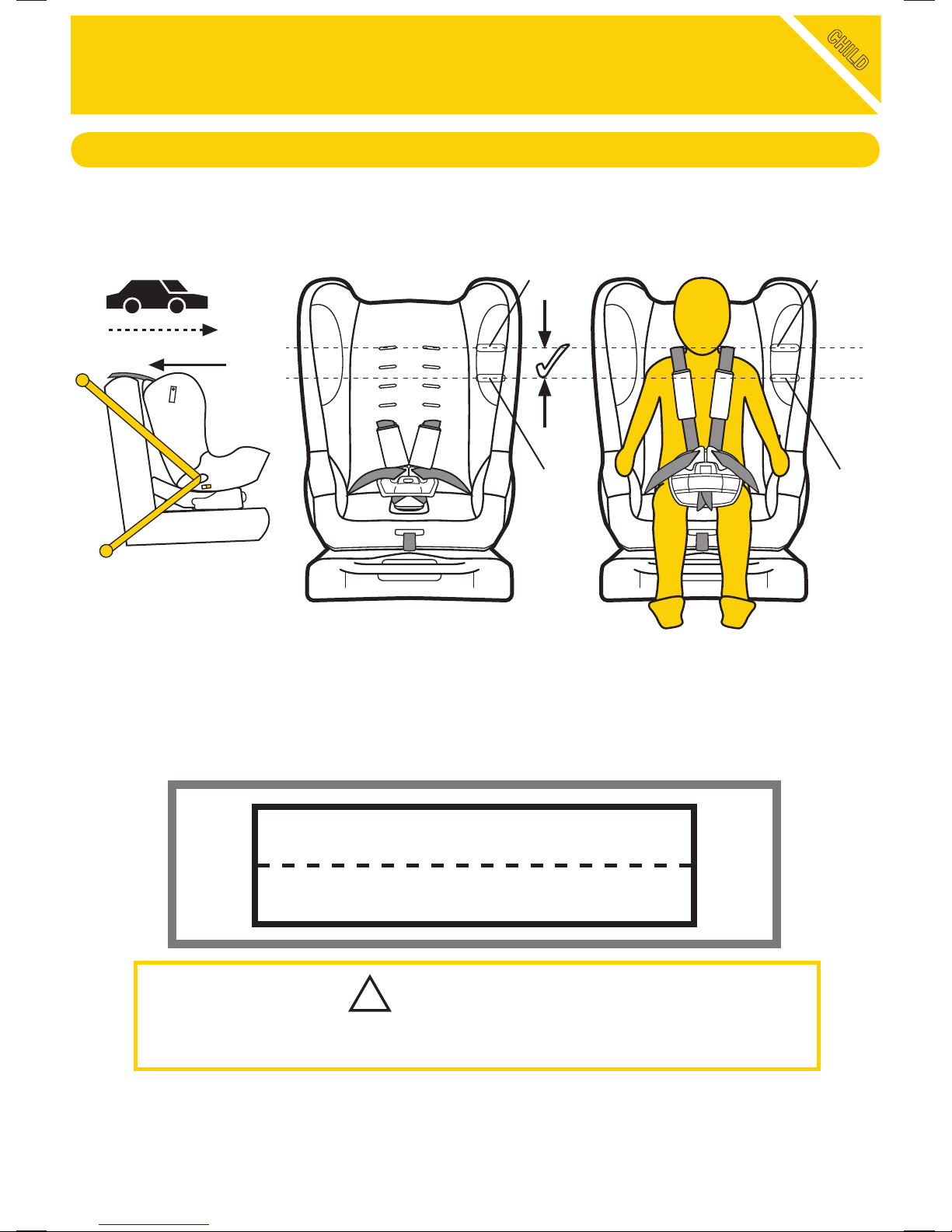

Taller Child to approximately 4 years of age

Do not continue to use the restraint if the child’s shoulder are above the Upper Label.



CHILD

WITH INBUILT HARNESS

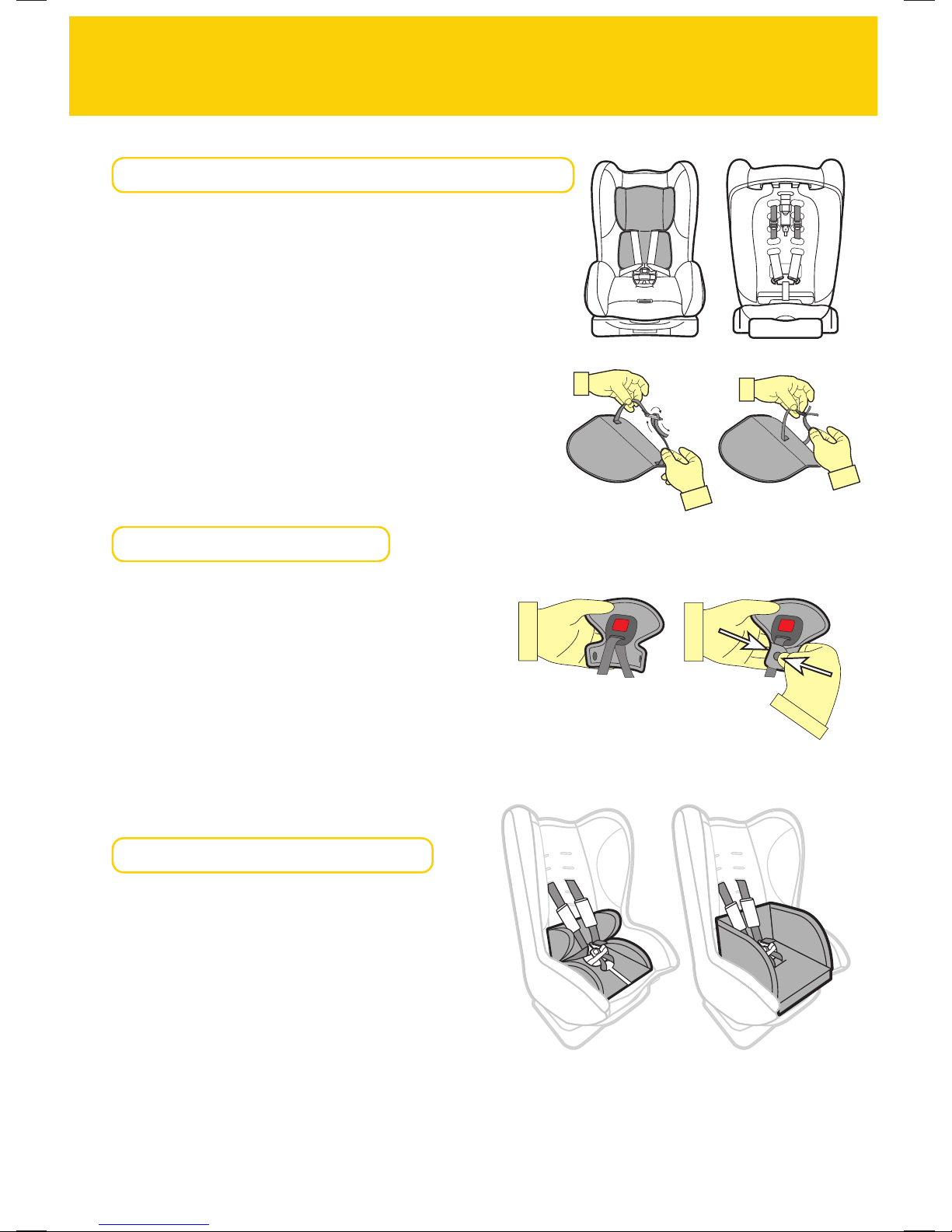

Determine whether your child requires the additional padding provided with this restraint, to ensure a safe and snug t in the restraint. Refer to page 6 for suggested padding combinations.

SELECTION OF APPROPRIATE PADDING COMBINATIONS

Refer to the shoulder height labels

(As shown on pages 21 and 22)

IMPORTANT

CONVERTING TO CHILD SEAT

Ensure the recline section is swung rearward (see Figure 1).

At the front of the restraint is a red lever. Pull red lever forward and slide the seat to obtain the desired upright or reclined angle.

FRONT

Recline

Upright

RED

LEVER

RECLINE SECTION

Front of Car

RECLINED POSITION

ADJUSTER ASSEMBLY LOCATION

PUSH

Pull excess strap through the top section whilst feeding the adjuster section towards the seat (see Figure 2).

Continue to shorten until you have reached the desired position at the rear of the restraint (see Figure 3).

Step 1:

Step 2:

Forward Facing (Type B)

Adjuster

Upper Anchorage Strap

Figure 2

Figure 1

Adjuster

position

Front of Car

Figure 3

CHILD

WITH INBUILT HARNESS

INSTALLATION

CORRECT SHOULDER HEIGHT

The correct height for the shoulder straps is very important for the optimum performance of the restraint. The shoulder strap slots used in forward facing position are the upper and middle positions.

The shoulder strap slots used in Child Seat mode are between the lower and upper shoulder height markers (refer Pages 21 & 22).

IMPORTANT

The shoulder straps must be in the slots which are nearest to the child’s shoulders, but not more than 25mm below the child’s shoulders.

Front of vehicle

25mm

Turn the restraint so that the back of the seat is facing you.

Remove each shoulder harness through the gates in the spreader plate (see Figure 1 & 4).

Pull the shoulder harness straps through the shoulder slot holes in the seat body and cover. They are now loose in the front of the seat.

Push the ends of the shoulder harness straps through the appropriate shoulder slot holes in the cover and seat body for the child’s shoulder height.

The shoulder harness straps go directly from the shoulder slot holes to the spreader plate. Thread each shoulder harness strap back onto the metal spreader plate through the gate (see Figure 4).

Step 1:

Step 2:

Step 3:

Step 4:

Step 5:

SHOULDER SLOT HEIGHT

Figure 1

HARNESS STRAPS

CHILD

WITH INBUILT HARNESS

INSTALLATION

With the child correctly sitting in the restraint, check which set of slots (in the plastic shell of the restraint) are level with but not more than 25mm below the child’s shoulders.

SHOULDER SLOT HEIGHT

IMPORTANT

The shoulder straps must be in the slots which are nearest to the child’s shoulders, but not more than 25mm below the child’s shoulders.

Figure 2

Figure 3

GATES

METAL

SPREADER

PLATE

HARNESS

STRAPS

METAL

SPREADER

PLATE

PULL

Figure 4

Ensure the restraint is set up in child seat mode (refer page 23).

Place the restraint in desired upright or reclined position, with the back against the back of the vehicle seat, directly in line with the anchorage point (refer Figure 1).

IMPORTANT

Ensure that you use the FORWARD-FACING

BELT PATH indicators, marked in “yellow”.

CHILD

WITH INBUILT HARNESS

Feed adult lap or lap/sash belt through the belt path opening, ensure the seat belt is under the cover & between the layer of foam and the plastic seat base.

Engage the buckle and tongue assembly (listen for a “CLICK”). Check the buckle engagement with a gentle pull.

Step 5:

Step 6:

Install the upper anchorage tting as shown on page 3 & 4 of these instructions

Hook the attachment clip to the anchor tting. Ensure there are no twists in the upper anchorage strap (Refer to Figure 2)

Pull to tighten to remove all the slack, from the upper anchorage strap. Do not overtighten as this could cause the restraint to lift off the vehicle seat (Refer to Figure 2)

Always use upper anchorage strap to attach the child restraint to the vehicle.

Do not use the restraint without the upper anchorage strap correctly attached and adjusted.

Do not use on any vehicle seat which faces sideways or rearwards.

IF AN AIRBAG IS FITTED IN THE SEATING POSITION WHERE THE CHILD RESTRAINT IS TO BE FITTED, FOLLOW THE VEHICLE MANUFACTURER’S WARNINGS AND INSTRUCTIONS.

Fit the restraint rmly to the car seat.

WARNING

ADJUSTER

ATTACH

PULL TO

TIGHTEN

Tilt

Pull to lengthen

Pull to tighten

Pass lap

and sash belt

through the seat. Note: Ensure the

belts are under

foam padding.

*Note Harness

not shown

Figure 3

CHILD

WITH INBUILT HARNESS

INSTALLATION

INSTALLING IN VEHICLE

ADJUSTING RECLINE ANGLE

SAFE GRIP BELT CLAMP

The Safe Grip (red belt clamp) locks the lap belt to ensure a rm installation, and avoids slack in the lap belt.

To install the Safe Grip (red belt clamp), open it and clamp the “sash section”ONLY of the vehicle seat belt by closing the barrel section of the red belt clamp in the direction of arrow 1 in Figure 6 and then locking with the toggle section by pushing in the direction of arrow 2 in Figure 6 when the Safe Grip (red belt clamp) is secured in place, the lap section is now tightly holding your child restraint in place, independent of the sash section. The Safe Grip (red belt clamp) must be removed when the child restraint is not installed to allow other users to use the seat belt as a lap/sash seat belt. Always keep the Safe Grip (red belt clamp) in pocket provided when not in use.

NOTE: To adjust the recline angle of the child seat refer to “Converting to Child Seat” on page 23.

Push down on the base of the restraint (with knee or hand) whilst pulling the sash section of the vehicle belt rmly up in direction of the yellow arrow in Figure

5. (This will tighten the lap belt across the seat base).

Whilst continuing to pull the sash section up, attach the Safe Grip red belt clamp on the sash section ONLY as close as possible above the buckle tongue assembly. (Refer to Figure 6 and Instruction for installing the Safe Grip red clamp below)

Ensure the excess slack in the sash belt, is fed back towards the seat belt.

Step 7:

Step 8:

Figure 5

Figure 7

Note: Ensure the

belts are under

cover/foam padding.

Buckle &

Tongue

Assembly

Safe Grip (red belt

clamp)

“CLICK”

Lap and

sash belts

pass across

the base

TOGGLE

SECTION (2)

LAP SECTION

BARREL SECTION (1)

SAFE GRIP (B)

(red belt clamp)

ATTACH TO

SASH SECTION

ONLY

SASH SECTION

BUCKLE (A)

(AND TONGUE)

Figure 6

CHILD

WITH INBUILT HARNESS

USE

USING INBUILT HARNESS

Ensure the restraint has been installed and set up as per “Set Up” and “Installation” (Refer page 23 & 24).

Lengthen the harness in excess of what is needed before placing the child in the car seat. To lengthen the harness, push the harness adjuster (G) that is located at the front of the seat (see Figure 2) whilst grasping both shoulder harness straps and pulling out till lengthened to the desired amount. Ensure shoulder straps are pulled equally on each side.

Place child in car seat with legs either side of the crotch strap, place harness over the shoulders and hips and engage the two buckle tongues (CLICK) into buckle. Check it is properly engaged. Ensure child is placed centrally in the seat.

Pull harness adjuster strap (H) to take the slack out of the shoulder straps, until it is a rm but comfortable t. Ensure buckle is adjusted centrally in relation to the child. Adjust if necessary (see Figure 2).

Step 1:

Step 2:

Step 3:

Step 4:

Step 1:

DO NOT LEAVE CHILDREN UNATTENDED

IN THE CAR.

Fit the harness rmly to the child.

A LOOSE RESTRAINT OR HARNESS

IS DANGEROUS.

TO RELEASE CHILD

WARNING

To release your child from the restraint simply press the harness buckle and carefully remove your child from the seat.

Figure 1

PULL TO

LENGTHEN

PULL TO

LENGTHEN

PRESS(G)

Figure 2

PULL TO

TIGHTEN(H)

Figure 3

TO REMOVE COVER

Step 1: Disengage buckle tongues from the buckle. Step 2: Feed shoulder strap webbing and buckle tongues through the thigh slot holes in the cover. Step 3: Feed buckle through the crotch slot hole of the cover. Step 4: Do steps 1 & 2 from “Replace Harness”.

TO REPLACE COVER

SEAT COVER

Step 1: Slide the harness shoulder straps out through the gates in the metal spreader plate.

Pull the harness shoulder straps through the shoulder slots to the front of the restraint.

Step 2:

Step 3: Once cover is removed, “CLICK” the buckle tongue back into the buckle for safe keeping.

Only use this child restraint with the cover supplied or a manufacturerAuthorised replacement cover with identical shoulder height markers

VERY IMPORTANT

Disengage the buckle and tongues. Push the buckle through the crotch slot in the cover. Pull the cover up and through the shoulder strap webbing and buckle tongues. Do NOT remove the harness from under the seat.

The child restraint cover has been manufactured to meet the Australian Standards requirements for ammability and toxicity to ensure your child's safety. The cover has also been designed to provide your child with comfort and support.

CARE OF RESTRAINT

Use only mild soap and water to clean all parts of the CS4010/CS4410 Child Seat. Do not use chemicals or cleaning agents Cold water only to be used and to be rinsed well Do not dry clean or tumble dry Do not bleach.

IMPORTANT

The restraint has a ame retardant cover which is removable for cleaning. Cleaning instructions are on the care label attached to the cover. If a uffy cover is tted, then washing the cover prior to use will remove excess uff.

The cover has been designed to protect your child when seated in the restraint. Care should be taken if children either eat or drink while in the restraint as some food or drink products may cause damage or marking to the cover. Wash or clean immediately. Do not pull sticky items from covers as the cover may be damaged - soak in water and gently remove.

Only machine wash on gentle cycle (hand washing is recommended). When washing the covers, ensure the hook and loop attachment strips are connected to eliminate other materials or garments being caught. Ensure that the hook and loop attachment strips are free of lint, this will ensure a positive engagement.

COVERS

Use only mild soap and water to clean all webbing, metal and plastic parts of the restraint using a damp cloth. Do not use chemicals or cleaning agents

SEAT

CARE OF RESTRAINT

CLEANING

If sticky liquids such as baby formula, fruit juice, etc. get inside your Harness Buckle, it may become sluggish. An indication of a sluggish Harness Buckle is that you cannot hear a “CLICK” when engaging the Harness Tongues. To restore the Harness Buckle to good working order it needs to be cleaned as follows:

From the underside of the restraint pull each crotch 3-bar slide then turn 3-bar slide and push through each slot to remove the Harness Buckle from the restraint (refer Figure 1).

Place the Harness Buckle under warm (max. 40 degrees Celsius) running water as shown below. Let the water run through the mouth of the buckle for ve minutes. Do not immerse the harness in water (refer Figure 2).

Engage and disengage the Harness Tongues and Buckles several times until a strong audible “CLICK” is heard when inserting the last tongue (refer Figure 3).

If you still cannot hear a strong audible click after engaging the Harness Tongues and Buckle, then repeat

cleaning several times. If the Harness Buckle cannot be returned to its original working condition then contact InfaSecure Customer Service.

Ret the harness buckle to the restraint with the red button facing out and feeding each 3-bar slide through

appropriate slot.

HARNESS BUCKLE

Step 1:

Step 2:

Step 3:

Step 4:

Step 5:

Figure 1

Figure 2

Figure 3

“CLICK”

CARE OF RESTRAINT

Check the upper anchorage attachment clip to ensure plastic retainer clip is still present.

Check the buckles “click” when you engage tongues and is not sluggish or sticky in operation.

Check the harness adjuster is operating.

TYPE A

TYPE B

CHILD SEAT

INFANT SEAT

If required contact Infa Secure for nearest supply location.

Extension straps, not included in this package, may be required for vehicles without a xed parcel shelf.

ACCESSORIES

HEAD PILLOW/ INFANT PILLOW (if tted)

The head pillow/infant pillow (if tted) is designed to provide extra comfort.

Position the bottom of the pillow’s side wings at the top of the child’s shoulders.

Feed the upper and lower pillow straps through the nearest slots.

Thread the strap through the plastic buckle (or tie a knot) and adjust for a rm t, which ever is applicable.

Step 1:

Step 2:

Step 3:

PADDED INSERTS (if tted)

The padded inserts are designed to add extra comfort for baby or child.

Position rmly back into the seating region of the seat.

Pull the buckle & leg straps through the slot or opening on the insert.

Step 1:

Step 2:

BUCKLE PAD (if tted)

The buckle pad is designed to add extra comfort for baby or child.

Position the buckle pad behind the buckle and clip in the front. The release button should be clearly visible.

Step 1:

ACCESSORIES

SHOULDER PADS (if tted)

The shoulder pad is designed to add extra comfort for baby or child.

STANDARD

Separate press-studs and remove the shoulder pads from harness

To attach shoulder pads, ensure press studs face away from the child and re-attach.

Step 1:

Step 2:

SPREADER

PLATE

DELUXE

Turn the restraint so that the back of the seat is facing you.

Remove each shoulder harness through the gates in the spreader plate (refer Figure 1 & 2).

Pull the shoulder harness straps through the shoulder slot holes in the seat body and cover. They are now loose in the front of the seat (refer Figure 2).

To attach shoulder pads, slide the shoulder pad over the harness straps (refer Figure 3).

Rethread harness straps as per Steps 1 to 3 above.

The child restraint with shoulder pads is ready to use.

Step 1:

Step 2:

Step 3:

Step 4:

Step 5:

Figure 1

Figure 3

STANDARD

DELUXE

HARNESS

STRAPS

METAL

SPREADER

PLATE

PULL

Figure 2

ACCESSORIES

SUN HOOD (if tted)

The Sun Hood (if tted) is designed to provide additional sun shade.

Attach the sun hood using the press studs.

Step 1:

SEAT PROTECTOR

FULL LENGTH

(if tted)

The seat protector is designed to protect your car’s seat.

STANDARD

Position the front ap with pockets, at the front of the rear seat and position the mat rearwards to obtain a at t.

FULL LENGTH

Position the front ap with pockets, at the front of the rear seat and position the mat rearwards to obtain a at t. (If required an additional ap has been provided to tuck in between the seat back & cushion)

Position the back section up the seat back and use the plastic buckle & webbing strap to attach around the vehicle seat headrest (if the rear vehicle seat does not have a headrest then the strap could be used to attach around the child seats top tether after you have installed the child seat).

Step 1:

Step 2:

STANDARD

“PRESS”

NOTES

ISSUE: B_1

We reserve the right to alter this product without notice.

INFASECURE PTY LTD

ABN: 52 149 173 660

Head Ofﬁce and Registered Address

110-114 Old Bathurst Rd, Emu Plains, NSW 2750 P.O. Box 487, Emu Plains, NSW 2750

Phone No: 02 4728 8080 Fax: 02 4728 8040

Customer Service

Phone No: 02 4728 8090

www.infasecure.com.au

Refer to website for details

InfaSecure Warranty Details

InfaSecure Pty Ltd warrants this product for twelve months from the date of

purchase against failure due to manufacturing faults or faulty materials. Misuse,

accidental damages, normal wear and tear are not covered by this warranty.

When used for commercial use the period is limited to six months.

“Our goods come with guarantees that cannot be excluded under the Australian

Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of

acceptable quality and the failure does not amount to a major failure.”

Infasecure CS4010, CS4410 Instructions Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
