THANK YOU FOR BUYING A INDESIT PRODUCT.
EN

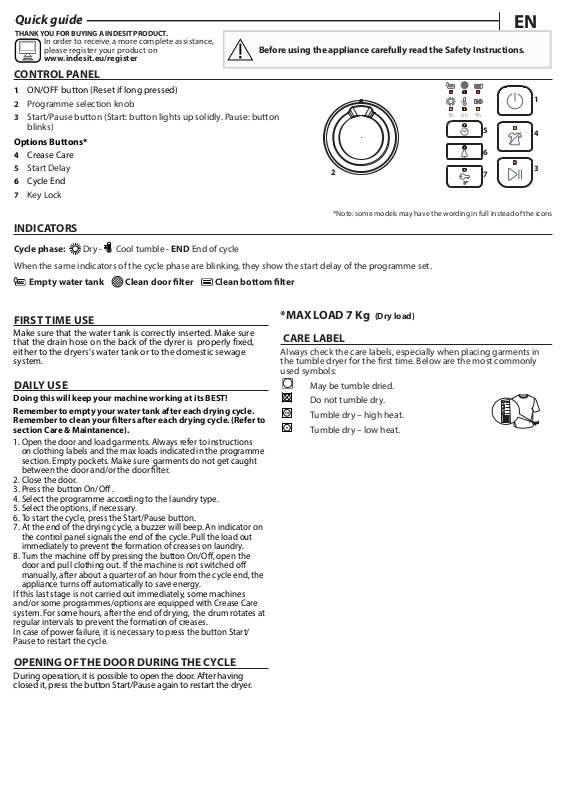

Quick guide
Start delay
Gentle/crease care
Key lock
2
6h3h 9h
3”
2
6h3h 9h
3”
1
3
4
6
7
5
1
3
4
6
7
5
Key lock
In order to receive a more complete assistance,
please register your product on
www.indesit.eu/register
Before using the appliance carefully read the Safety Instructions.
CONTROL PANEL
1 ON/OFF button (Reset if long pressed)
2 Programme selection knob
3 Start/Pause button (Start: button lights up solidly. Pause: button
blinks)
Options Buttons*
4 Crease Care
5 Start Delay
6 Cycle End
7 Key Lock
1
6h3h 9h
5
6
2
7
3”
4
3
INDICATORS
*Note: some models may have the wording in full instead of the icons
Cycle phase: Dry - Cool tumble - END End of cycle
When the same indicators of the cycle phase are blinking, they show the start delay of the programme set.
Empty water tank Clean door lter Clean bottom lter
FIRST TIME USE
Make sure that the water tank is correctly inserted. Make sure
that the drain hose on the back of the dyrer is properly xed,
either to the dryers's water tank or to the domestic sewage
system.
*MAX LOAD 7 Kg (Dry load)
CARE LABEL
Always check the care labels, especially when placing garments in
the tumble dryer for the rst time. Below are the most commonly
used symbols:
DAILY USE
Doing this will keep your machine working at its BEST!
Remember to empty your water tank after each drying cycle.
Remember to clean your lters after each drying cycle. (Refer to
section Care & Maintanence).
May be tumble dried.
Do not tumble dry.
Tumble dry – high heat.
Tumble dry – low heat.
1. Open the door and load garments. Always refer to instructions
on clothing labels and the max loads indicated in the programme
section. Empty pockets. Make sure garments do not get caught
between the door and/or the door lter.
2. Close the door.
3. Press the button On/O .
4. Select the programme according to the laundry type.
5. Select the options, if necessary.
6. To start the cycle, press the Start/Pause button.
7. At the end of the drying cycle, a buzzer will beep. An indicator on
the control panel signals the end of the cycle. Pull the load out
immediately to prevent the formation of creases on laundry.
8. Turn the machine o by pressing the button On/O, open the
door and pull clothing out. If the machine is not switched o
manually, after about a quarter of an hour from the cycle end, the
appliance turns o automatically to save energy.
If this last stage is not carried out immediately, some machines
and/or some programmes/options are equipped with Crease Care
system. For some hours, after the end of drying, the drum rotates at
regular intervals to prevent the formation of creases.
In case of power failure, it is necessary to press the button Start/
Pause to restart the cycle.
OPENING OF THE DOOR DURING THE CYCLE
During operation, it is possible to open the door. After having
closed it, press the button Start/Pause again to restart the dryer.
Page 2
extra
The duration of these programs will depend on the size of the
load, types of textiles, the spin speed used in your washer and
any extra options selected. In machines equipped with display,
the duration of the cycles is shown on the control panel. The
remaining time is constantly checked and adjusted during the
drying cycle to show the best possible estimate.
PROGRAMMES
Mixed kg 4 Time 130'
This programme is ideal for drying cotton and synthetic
fabrics together.
Cottons
Extra Dry kg Max* Time 131'
Programme suitable for drying cotton garments ready to
wear.
Cupboard Dry kg Max* Time 114'
Standard cotton programme, suitable to dry normally
wet cotton laundry. Most ecient programme in terms of
energy consumption for drying cotton laundry. The values on the
Energy Label are based on this programme.
Iron Dry kg Max* Time 96'
Drying for cotton garments intended to make ironing easier,
immediately after the end of the cycle.
Synthetics
Cupboard Dry kg 4 Time 90'
Programme to dry synthetics and put them away directly.
Iron Dry kg 4 Time 94'
Drying suitable for synthetic garments. It is intended to make
ironing easier, immediately after the end of the cycle.
Shirts kg 3 Time 70'
This is a programme for shirts made from cotton or cotton
blend/synthetics
Refresh
A short programme suitable for refreshing bres and
garments by means of fresh air. Do not use with garments
that are still wet. It can be used on with any load size but is
more eective with small loads. The cycle duration is about 20
minutes.
Specials
Delicates kg 2 Time 45'
For drying delicate laundry requiring a gentle treatment.
Wool kg 1 Time 100'
Programme for drying wool clothing. It is advisable to turn
the garments inside out before drying. Leave to dry naturally the
heaviest edges that are still damp.
Sport kg 4 Time 90'
For drying sports garments made of synthetics or cotton
blends.
OPTIONS BUTTONS
These buttons serves to personalise the selected programme
according to personal requirements.
Not all options are available for all programmes. Some options
are incompatible with the ones previously set. The buzzer and/or
blinking indicators will signal the incompatibility. If the option is
available, the option indicator will stay on. Some options may be
kept in the memory of the programme if selected in the previous
drying.
OPTIONS
After selecting the programme, the various options can be
set, if necessary.
Start delay
This option allows you to set the delay of the cycle start. Press
the corresponding button several times to obtain the required
delay. After having reached the max. settable time, the option is
reset by pressing the button again. An indicator on the control
panel signals the time being selected. After having pressed the
button Start/Pause, the machine signals the remaining time for the
cycle start. In case of door opening, after closing, it is necessary to
press the button Start/Pause.
Cycle end
This option activates a prolonged buzzer at the end of the
cycle. Enable it if you are not sure to hear the normal sound at the
end of the cycle. This option remains in memory if selected in the
previous drying.
Key lock
This option makes all machine controls inaccesible, except
the button On/O. When the machine is on:
• to activate the option, keep the button pressed until the
indicator goes on.
• to disable the option, keep the button pressed until the indicator
goes o.
This option remains in memory if selected in the previous drying.
Crease care
This option add a crease treatment at the end of the cycle by
means of a periodic rotation of the drum (duration up to 10 hours).
It is particularly suitable when it is not possible to remove the
laundry as soon as the drying ends. If this option is used together
with the Start Delay, the crease treatment is added also in the
Start Delay phase. This option remains in memory if selected in
the previous drying.
Dry Time
These programmes can be used in order to set the drying time.
Page 3
CARE AND MANTENANCE
EN
Quick guide
AB
1
4
2
3
CD
Unplug the dryer during the cleaning and maintenance
procedures.
Emptying the water tank after each cycle (see Fig. A).
Pull the container out of the dryer and and empty it into a sink
or other suitable drain, then place it back. Do not use the dryer
without having inserted the container back in place.
Cleaning the door lter after each cycle (see Fig. B).
Pull the lter out and clean it by removing the lint from the lter
surface under running water or using a vacuum cleaner. For optimal
performance, dry up all the lters before inserting them back in
place. Do not use the dryer without having reinserted the lter in
place.
Remove the door lter as described below:
1. Open the door and pull upwards.
2. Open the lter and remove lint from all its parts. Replace it
correctly. Ensure it is completely inserted ush with the dryer seal.
Cleaning the bottom lter when the relevant indicator
turns on (see Fig. C)
Pull the lter out and remove the lint from its surface by washing
it under runing water or by using a vacuum cleaner. However,
it is advisable to clean this lter after each cycle to optimise
drying performance. Do not use the dryer without having
inserted the lter in place rst.
Remove the bottom lter and the condenser as described below:
1. Open the bottom door.
2. Take the handle and pull the bottom lter out.
3. Open the rear side of the lter and remove the lint from the
inner surface of the mesh.
4. Clean the bottom lter chamber (there might be residual
water: this is normal).
5a. Approximately every 3 months, clean the condensing unit
(gure D) situated behind the bottom lter.
5b. Lower the levers situated on the sides of the condenser. After
having removed the condenser, clean it under running water.
5c. Place the condenser back in place and lift the levers.
6. Close the rear side of the bottom lter and place it back by
checking it is perfectly integrated in place.
7. Lower the lter handle and close the bottom door.
8. Make sure the air intake is free.
The lters are essential parts for drying. They are intended
to collect the lint formed during drying process. In case
of clogged lters, the air ow inside the dryer would be
seriously aected: the drying times would be longer, the
energy consumption would increase and the dryer could be
damaged. If these procedures are not carried out properly,
the dryer may not start.
TRANSPORT AND HANDLING
Never lift the dryer by holding it at the worktop.
1. Unplug the dryer.
2. Make sure that door and water tank are properly closed.
3. If the drain hose is connected to your sewage system, x the
drain hose on the rear of the dryer again (see Installation Guide).
Power consumption
o-mode (Po) - Watts 0.50
left-on mode (Pl) - Watts 1.00
Programmes Kg kWh Minutes
Eco Cotton*
Eco Cotton
Synthetics 4 1.83 90
* This is the reference programme for the energy label and suitable to
dry normal wet cotton laundry. This is the most ecient programme
in terms of energy consumption for drying wet cotton laundry.
(Standard/Default starting conguration)
7 4.28 114
3.5 2.22 61
PRODUCT DESCRIPTION
1. Water Tank
2. Air Intake
3. Bottom lter and condenser
4. Door lter
Page 4
Malfunction
Possible cause
Solution
The plug is not inserted into the socket.
Insert the plug into the socket.
The door is open.
Close the door.
set or switch the machine o to reset it. Refer to the section Options.
the program.
An appropriate maintenance was not carried
out.
Refer to the section Care & Maintenance and perform the operations
described.
The programme, the time and/or the drying
amount of load inserted into the dryer.
water as possible.
programme.
did not end.
to restart the cycle.
Lights on or ashing
Door lter
Clean the door lter and the bottom one and check whether air
turns o .
Switch the dryer o and unplug it. Open the door immediately and
For instance: F3 and E2
*Note: some models are self-cleaning and not equipped with bottom lter. Please refer to the section Care & Maintenance.
THANK YOU FOR BUYING A INDESIT PRODUCT.
In order to receive a more complete assistance,
please register your product on
www.indesit.eu/register
EN
Quick guide
Before using the appliance carefully read the Safety Instructions.
Memo
Start
delay
Dryness
level
Drying
Time
Crease
Care
Sound
3 sec
DEMO
TROUBLESHOOTING
Before contacting the Service Centre, refer to the table below. Often the malfunctions are minor and can be solved in few minutes
The tumble
dryer does not
The plug is faulty.
Try to plug another appliance in the same socket. Do not use
connecting electrical devices to the socket, as adapters or extensions
turn on.
A power failure occurred. Await the reactivation of the power supply.
For machines equipped with this function: await the end of the delay
Press the button Start/Pause.
Refer to the option section and, if the Key Lock is present, disable it.
Switching the machine o is not enough to disable this option.
Refer to the section programmes and options to nd the programme
and the options most suitable for the type of load.
Carry out a washing cycle with higher spin speed to remove as much
Refer to the programme section to check the max. load for each
In case of power failure, it is necessary to press the button Start/Pause
The tumble
dryer does not
start
The drying
times are very
long
The programme
A time delay for the cycle start was set.
The button Start/Pause was not pressed to start
The function Key Lock was enabled (in case of
machines equipped with this option).
level set are not suitable for the type and the
The garments are too wet.
The dryer may be overloaded.
A power failure occurred might have occurred.
Water tank The water tank is full. Emtpy the water tank. Refer to the section Care & Maintenance.
and/or bottom
lter*
Bottom lter* The bottom lter requires cleaning. Clean the bottom lter. Refer to section Care & Maintanence.
DEMO
The cycle lasts
few minutes.
Failure of the air ow necessary for machine
operation.
Some LEDs ashing at the same time signal a malfunction. Carry out the procedures described in this page.
The dryer is in DEMO mode. The DEMO
Swith the dryer o and unplug it. Open the door immediately and pull landry out, to allow the heat to dissipate.
indicator is on.
Wait for about one hour. Reconnect the dryer to the power supply, load the laundry and restart the drying cycle.
The presence
of wrench
symbol signals a
malfunction.
If the problem still occurs, contact the After-Sales Service Centre and communicate the letters and digits ashing on
The machine sensors detected a failure.
the display e.g.:
First and second horizontal LED of alarm lights.
First vertical LED of option buttons.
intake is free. Carrying out these operations improperly may cause
damages.
Disable the DEMO mode. The following actions must be carried out
in sequence, without breaks. Switch the machine on and then switch
it o again. Press the Start/Pause button until the buzzer is heard.
Switch the machine on again. The “DEMO” indicator ashes and then
pull laundry out, to allow the heat to dissipate. Wait for about 15
minutes. Reconnect the dryer to the power supply, load the laundry
and restart the drying cycle. If the problem still occurs, contact
the After-Sales Service Centre and communicate the letters and
digits ashing on the display.
You can download the Safety Instructions, User Manual, Product Fiche and Energy data by:
• Visiting our website - docs.indesit.eu
• Using QR Code
• Alternatively, contact our After-sales Service (See phone number in the warranty booklet). When
contacting our After-sales Service, please state the codes provided on your product’s identi cation plate.
xxxxxxxxxxxx
xxxx
Loading...
