Operating Instructions
2-DOOR FRIDGE
GBI F
Italiano, 1 English,11
E
Espanol
, 31
P
Portuges, 41
TAN 13 NF
TAN 13 NF PS
TAN 14 NF P
TAN 14 NF PS
Contents
GB
Installation, 12
Positioning and connection
Reversible doors
Français, 21
Description of the appliance, 13
Overall view
Accessories, 14
Start-up and use, 15-16
Starting the appliance
Chiller system
Using the refrigerator to its full potential
Using the freezer to its full potential
Maintenance and care, 17
Switching the appliance off
Cleaning the appliance
Avoiding mould and unpleasant odours
Defrosting the appliance
Replacing the light bulb
Precautions and tips, 18
General safety
Disposal
Respecting and conserving the environment
Troubleshooting, 19
Assistance, 20
Page 2
Installation
∅ 3
mm
! Before placing your new appliance into operation please
GB
read these operating instructions carefully. They contain
important information for safe use, for installation and for
care of the appliance.
! Please keep these operating instructions for future
reference. Pass them on to possible new owners of the
appliance.
Positioning and connection
Positioning
1. Place the appliance in a well-ventilated humidity-free
room.
2. Do not obstruct the rear fan grills. The compressor and
condenser give off heat and require good ventilation to
operate correctly and save energy.
3. Leave a space of at least 10 cm between the top part of
the appliance and any furniture above it, and at least 5
cm between the sides and any furniture/side walls.
4. Ensure the appliance is away from any sources of heat
(direct sunlight, electric stove, etc.).
5. In order to maintain the correct distance between the
appliance and the wall behind it, fit the spacers supplied
in the installation kit, following the instructions provided.
Levelling
1. Install the appliance on a level and rigid floor.
2. If the floor is not perfectly horizontal, adjust the
refrigerator by tightening or loosening the rear feet.

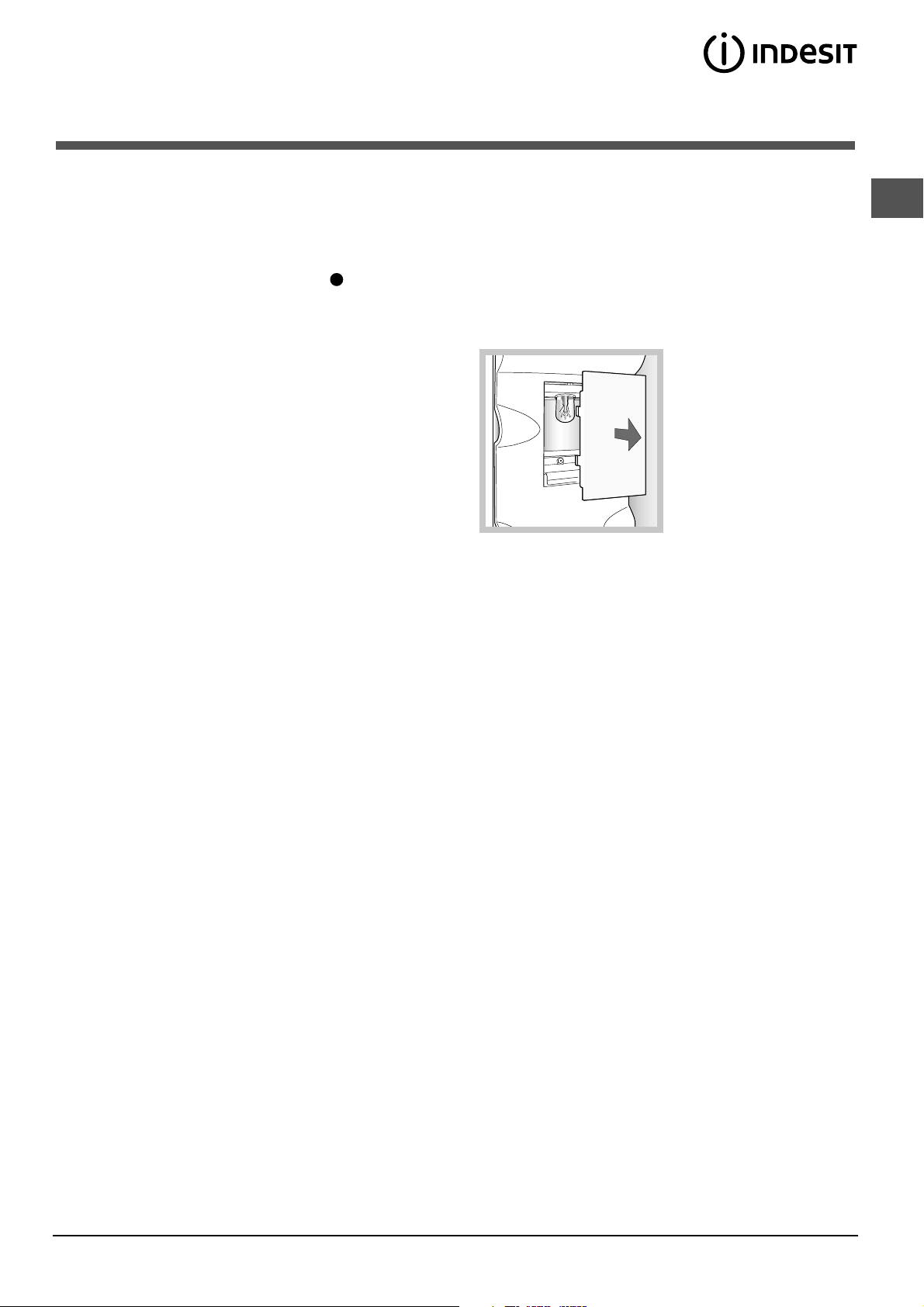

Reversible doors
1
2
3
Electrical connections
After the appliance has been transported, carefully place it
vertically and wait at least 3 hours before connecting it to
the electricity mains. Before inserting the plug into the
electrical socket ensure the following:
• The appliance is earthed and the plug is compliant with
the law.
• The socket can withstand the maximum power of the
appliance, which is indicated on the data plate located on
the bottom left side of the fridge (e.g. 150 W).
• The voltage must be in the range between the values
indicated on the data plate located on the bottom left
side (e.g. 220-240V).
• The socket is compatible with the plug of the appliance.
If the socket is incompatible with the plug, ask an
authorised technician to replace it (
not use extension cords or multiple sockets.
! Once the appliance has been installed, the power supply
cable and the electrical socket must be easily accessible.
! The cable must not be bent or compressed.
! The cable must be checked regularly and replaced by
authorised technicians only (see Assistance).
see Assistance
). Do
4
5
! The manufacturer declines any liability should these
safety measures not be observed.
12
Page 3
Description of the
appliance
Overall view
The instructions contained in this manual are applicable to different model refrigerators. The diagrams may not
directly represent the appliance purchased. For more complex features, consult the following pages.
FREEZER
OPERATION
Knob
FREEZER
compartment
Removable lidded
SHELVES•
shelf with EGG TRAY
GB
REFRIGERATOR
OPERATION
Knob
LAMP
see Maintenance
(
MULTI-USE
VEGETABLE
Levelling FEET
*
FRUIT and
bin
bin
Removable
multipurpose
SHELVES
)
BOTTLE shelf
Varies by number and/or position.
Available only on certain models.
*
13
Page 4
Accessories
GB
MULTI-USE
for a long time and also prevent odours from lingering
in the refrigerator.

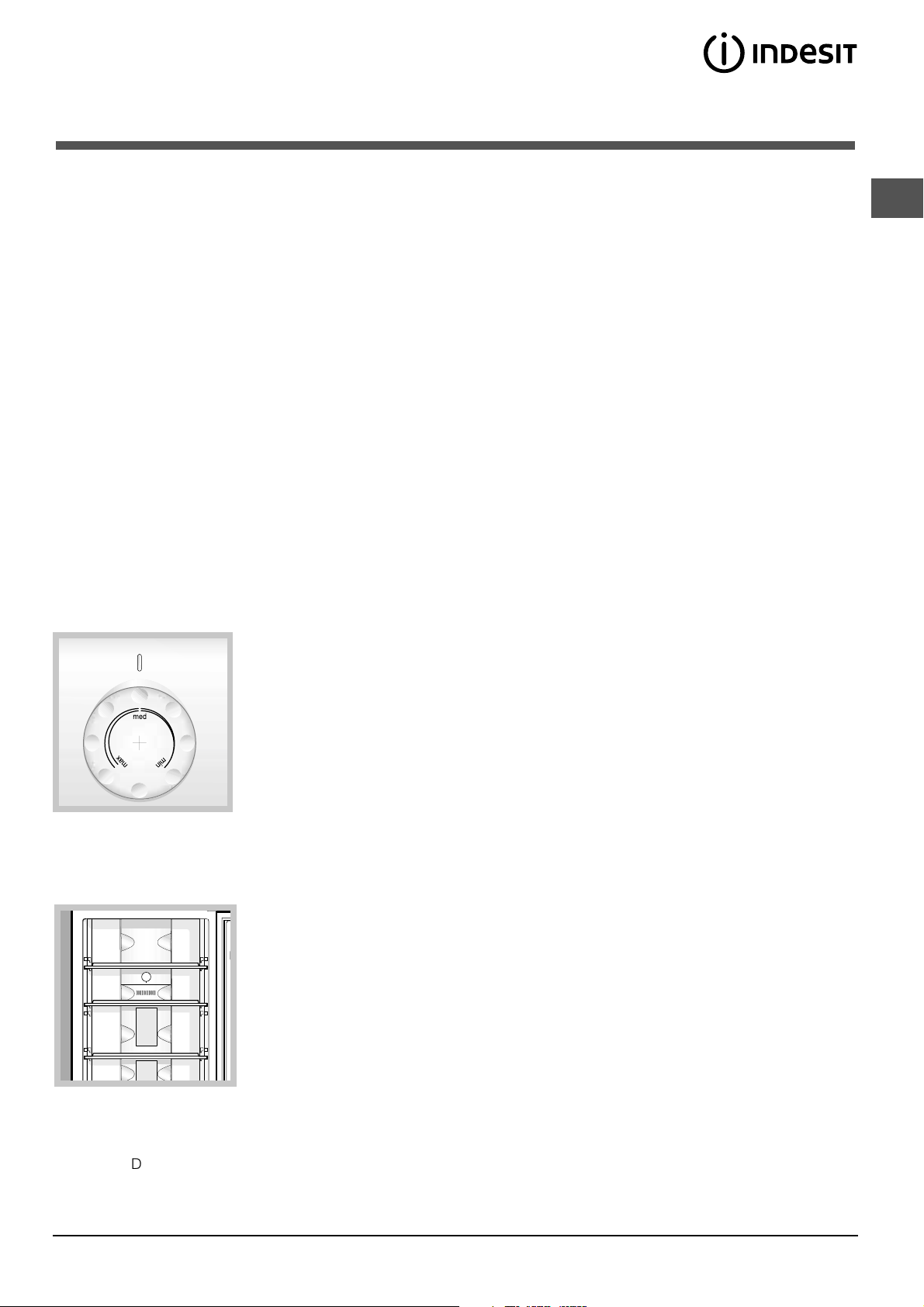

TEMPERATURE
area in the refrigerator.
1. Check that OK appears clearly on the indicator light
2. If the word “OK” does not appear it means that the
1
2
bin: to store food (such as cold meats)
*
see diagram
(
temperature is too high: adjust the REFRIGERATOR
OPERATION knob to a higher (colder) position and
wait approximately 10 hours until the temperature has
stabilised.
).
SHELVES: with or without grill.
Due to the special guides the
shelves are removable and the
height is adjustable (
diagram
of large containers and food.
Height can be adjusted without
complete removal of the shelf.
Indicator light: to identify the coldest
*
vert
noir
consulter la notice
), allowing easy storage
see
:
PLAY ZONE
rack, you can cool several bottles, cans and energy
drinks quickly to have them constantly at hand.
If the “Play Zone” is placed on the glass shelf, you can
store large and medium sized bottles on it simply by
laying the bottle on the flat rack.
wine bottles.
side of the shelf, the rack can be used to store cans (at
the top), energy drinks (in the centre) and other cans
and energy drinks can be rested horizontally on the
remaining part of the shelf.
Play zone rack), make sure they do not touch the back
of the refrigerator interior.
The “Play Zone” can be used just like a normal shelf
(when placed flat) and moved up or down along the
fridge walls together with the rest of the shelf. It can be
washed easily, and is also dishwasher safe. The ideal
position for the Play zone rack is the central shelf.
Thanks to the new “Play Zone” bottle
*
This is ideal for storing
When folded and secured in place on either
When placing cans (onto the
3. Check the indicator light again: if necessary, readjust
it following the initial process. If large quantities of
food have been added or if the refrigerator door has
been opened frequently, it is normal for the indicator
not to show OK. Wait at least 10 hours before
adjusting the REFRIGERATOR OPERATION knob to a
higher setting.
Available only on certain models.
*
14
Page 5
Start-up and use
Starting the appliance
! Before starting the appliance, follow the installation
instructions (
! Before connecting the appliance, clean the
compartments and accessories well with lukewarm
water and bicarbonate.
! The appliance comes with a motor protection control
system which makes the compressor start approximately
8 minutes after being switched on. The compressor also
starts each time the power supply is cut off whether
voluntarily or involuntarily (blackout).
1. Insert the plug into the socket and ensure that the
internal light illuminates ( the FREEZER OPERATION
knob must not be on the
2. Turn the FREEZER OPERATION knob and
REFRIGERATOR OPERATION knob to an average
value. After a few hours you will be able to put food in
the refrigerator.
see Installation
).
position) .
Setting the temperature
The temperature inside the
refrigerator compartment
automatically adjusts itself
according to the position
of the thermostat knob.
min= warmest
max = coldest
We recommend, however,
a medium position.
Using the refrigerator to its full potential
• Place only cold or lukewarm foods in the compartment,
not hot foods (
• Remember that cooked foods do not last longer than
raw foods.
• Do not store liquids in open containers. They will
increase humidity in the refrigerator and cause
condensation to form.
Food hygiene
1. Once you have bought your food, remove all external
packaging made of paper/cardboard or other
wrappers, which could introduce bacteria or dirt
inside your refrigerator.
2. Protect the food, (especially easily perishable items
and those that have a strong smell), in order to avoid
contact between them, thereby removing both the
possibility of germ/bacteria contamination as well as
the diffusion of strong odours inside the fridge.
3. Store all food in such a way as to ensure air can
circulate freely between different items.
4. Keep the inside of your fridge clean, taking care not
to use oxidiser or abrasive products.
5. Remove all food past its expiry date from the
refrigerator.
6. For the correct preservation of food, all easily
perishable items (soft cheeses, raw fish, meat, etc.)
should be stored in the coldest zone of the fridge
compartment, i.e. just above the salad crisper where
the temperature indicator is situated.
see Precautions and tips
).
GB
Chiller system
No Frost
It is recognisable by
aeration cells located on
the back walls of the
compartments.
The No Frost system
circulates cold air
continuously to collect
humidity and prevent ice
and frost formation. The
system maintains an
optimal humidity level in
the compartment,
preserving the original quality of the food, preventing the
food from sticking together and making defrosting a thing
of the past. Do not block the aeration cells by placing
food or containers in direct contact with the refrigerating
back panel. Close bottles and wrap food tightly.
15
Page 6
Using the freezer to its full potential
GB
The temperature inside the
freezer compartment
automatically adjusts itself
according to the position of
the thermostat knob.
= warmest
= coldest
We recommend, however, a
medium position.

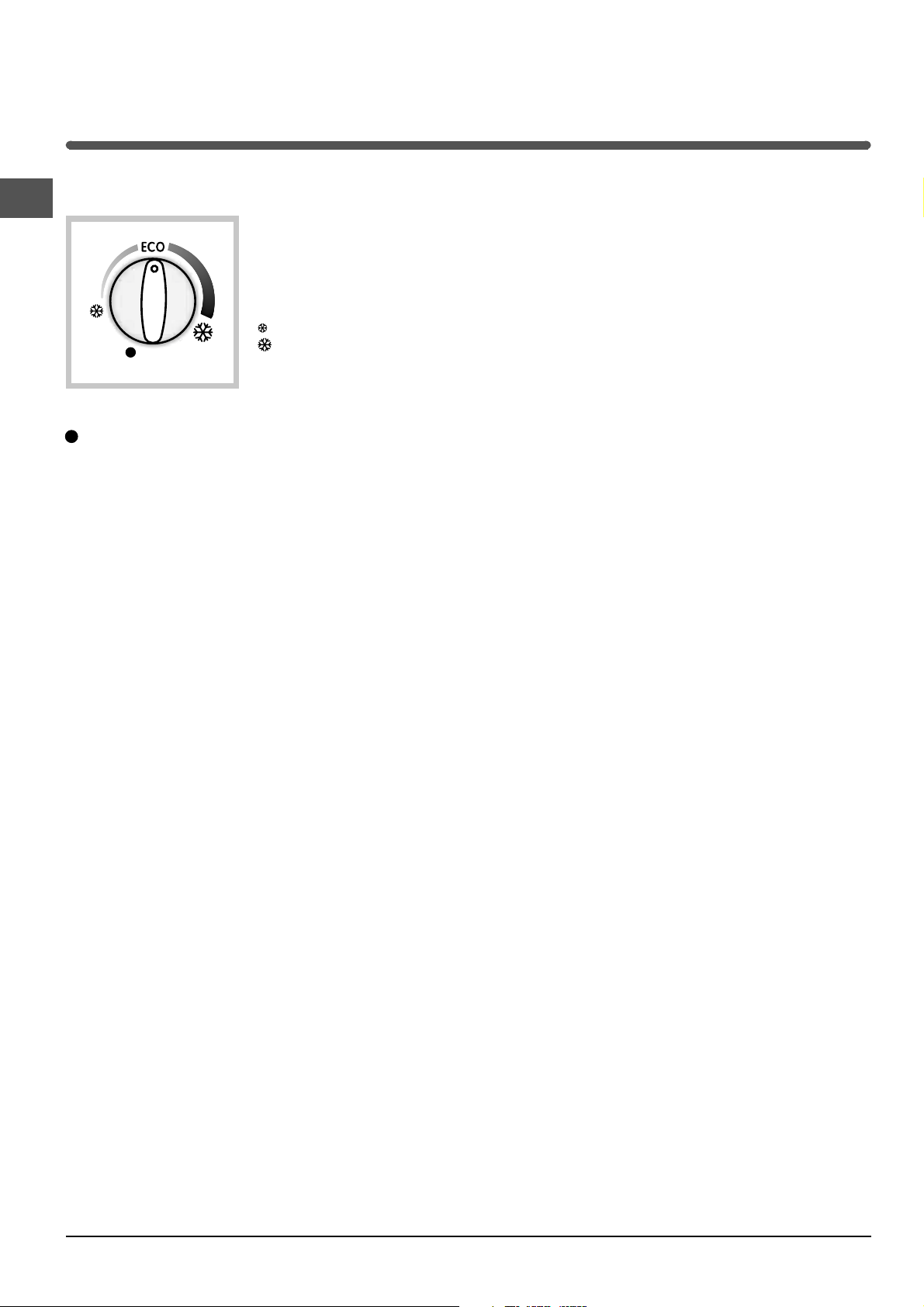

ECO is the optimal temperature for energy saving levels.
switches the appliance off, including the refrigerator.
• Do not re-freeze food that is defrosting or that has
already been defrosted. These foods must be cooked
and eaten (within 24 hours).
• Fresh food that needs to be frozen must not come into
contact with food that has already been defrosted.
Fresh food must be stored in the top FREEZER and
STORAGE compartment where the temperature drops
below -18°C and guarantees rapid freezing.
WARNING: to avoid blocking the air circulation inside
the freezer compartment, it is advisable not to obstruct
the ventilation holes with food or containers.
• Do not place glass bottles which contain liquids, and
which are corked or hermetically sealed in the freezer
because they could break.
• The maximum quantity of food that may be frozen daily
is indicated on the plate containing the technical
properties located on the bottom left side of the
refrigerator compartment (for example: Kg/24h: 4)
! Do not open the door during freezing.
! If there is a power cut or malfunction, do not open the
freezer door. This will help maintain the temperature
inside the freezer, ensuring that foods are conserved for
at least 9 -14 hours.
16
Page 7
Maintenance and care
Switching the appliance off
During cleaning and maintenance it is necessary to
disconnect the appliance from the electricity supply:
1. set the FREEZER OPERATION knob on
2. pull the plug out of the socket
Cleaning the appliance
• The external and internal parts, as well as the rubber
seals may be cleaned using a sponge that has been
soaked in lukewarm water and bicarbonate of soda or
neutral soap. Do not use solvents, abrasive products,
bleach or ammonia.
• The removable accessories may be soaked in warm
water and soap or dishwashing liquid. Rinse and dry
them carefully.
• The back of the appliance may collect dust which can
be removed by delicately using the hose of a vacuum
cleaner set on medium power. The appliance must be
switched off and the plug must be pulled out before
cleaning the appliance.
Replacing the light bulb
GB
To replace the light bulb in the refrigerator compartment,
pull out the plug from the electrical socket. Follow the
instructions below.
Access the light bulb by removing the cover as
indicated in the diagram.
Replace it with a similar light bulb within the power
range indicated on the cover (10W).
Avoiding mould and unpleasant odours
• The appliance is manufactured with hygienic materials
which are odour free. In order to maintain an odour free
refrigerator and to prevent the formation of stains, food
must always be covered or sealed properly.
• If you want to switch the appliance off for an extended
period of time, clean the inside and leave the doors
open.
17
Page 8
Precautions and tips
! The appliance was designed and manufactured in
GB
compliance with international safety standards. The
following warnings are provided for safety reasons and
must be read carefully.
This appliance complies with the following
Community Directives:
- 73/23/EEC of 19/02/73 (Low Voltage) and
subsequent amendments;
-89/336/EEC of 03.05.89 (Electromagnetic
Compatibility) and subsequent amendments;
- 2002/96/CE.
General safety
• The appliance was designed for domestic use inside
the home and is not intended for commercial or
industrial use.
• The appliance must be used to store and freeze food
products by adults only and according to the
instructions in this manual.
• The appliance must not be installed outdoors, even in
covered areas. It is extremely dangerous to leave the
appliance exposed to rain and storms.
• Do not touch the appliance with bare feet or with wet or
moist hands and feet.
• Do not touch the internal cooling elements: this could
cause skin abrasions or frost/freezer burns.
Disposal
• Observe local environmental standards when
disposing packaging material for recycling purposes.
• The European Directive 2002/96/EC on Waste
Electrical and Electronic Equipment (WEEE), requires
that old household electrical appliances must not be
disposed of in the normal unsorted municipal waste
stream. Old appliances must be collected separately
in order to optimise the recovery and recycling of the
materials they contain and reduce the impact on
human health and the environment. The crossed out
“wheeled bin” symbol on the product reminds you of
your obligation, that when you dispose of the
appliance it must be separately collected.
Consumers should contact their local authority or
retailer for information concerning the correct disposal
of their old appliance.
Respecting and conserving the
environment
• Install the appliance in a fresh and well-ventilated
room. Ensure that it is protected from direct sunlight
and do not place it near heat sources.
• Try to avoid keeping the door open for long periods or
opening the door too frequently in order to conserve
energy.
• When unplugging the appliance always pull the plug
from the mains socket, do not pull on the cable.
• Before cleaning and maintenance, always switch off
the appliance and disconnect it from the electrical
supply. It is not sufficient to set the temperature
adjustment knobs on
electrical contact.
• In the case of a malfunction, under no circumstances
should you attempt to repair the appliance yourself.
Repairs carried out by inexperienced persons may
cause injury or further malfunctioning of the appliance.
• Do not use devices or tools other than the special
scraper provided inside the compartments.
• Do not put ice cubes taken directly from the freezer
into your mouth.
• Do not allow children to tamper with the controls or
play with the appliance. Under no circumstance should
they be allowed to sit on the bins or to hang from the
door.
• Keep packaging material out of the reach of children! It
can become a choking or suffocation hazard.
(appliance off) to eliminate all
• Do not fill the appliance with too much food:
cold air must circulate freely for food to be preserved
properly. If circulation is impeded, the compressor will
work continuously.
• Do not place hot food directly into the refrigerator. The
internal temperature will increase and force the
compressor to work harder and will consume more
energy.
• Defrost the appliance if ice forms (
A thick layer of ice makes cold transference to food
products more difficult and results in increased
energy consumption.
• Regularly check the door seals and wipe clean to
ensure they are free of debris and to prevent cold air
from escaping (
see Maintenance
see Maintenance
).
).
18
Page 9
Troubleshooting
If the appliance does not work, before calling for Assistance (
Malfunctions:
The internal light does not
illuminate.
The motor does not start.
The refrigerator and the freezer do
not cool well.
The food inside the refrigerator is
beginning to freeze.
The motor runs continuously.
The appliance makes a lot of noise.
Possible causes / Solutions:
• The plug has not been inserted into the electrical socket, or not far
enough to make contact, or there is no power in the house.
• The appliance comes with a motor protection control (
• The doors do not close properly or the seals are damaged.
• The doors are opened too frequently.
• The TEMPERATURE ADJUSTMENT knob is not in the correct position
• The refrigerator or the freezer have been over-filled.
• The TEMPERATURE ADJUSTMENT knob is not in the correct position.
• The door is not closed properly or is continuously opened.
• The outside ambient temperature is very high.
• The appliance has not been installed on a level surface (
• The appliance has been installed between cabinets that vibrate and
make noise.
• The internal refrigerant makes a slight noise even when the compressor is
off. This is not a defect, it is normal.
see Assistance
), check for a solution from the following list.
see Start-up and use
see Installation).
).
GB
Some of the external parts of the
refrigerator become hot
• These raised temperatures are necessary in order to avoid the formation
of condensation on certain parts of the product.
19
Page 10
Assistance
195051767.01
06/2005 - Xerox Business Services
GB
Before calling for Assistance:
•
Check if the malfunction can be solved on your own (
see Troubleshooting
).
• If after all the checks, the appliance still does not operate or the problem persists, call the nearest Service
Centre
model serial number
Communicating:
• type of malfunction
• appliance model (Mod.)
• serial number (S/N)

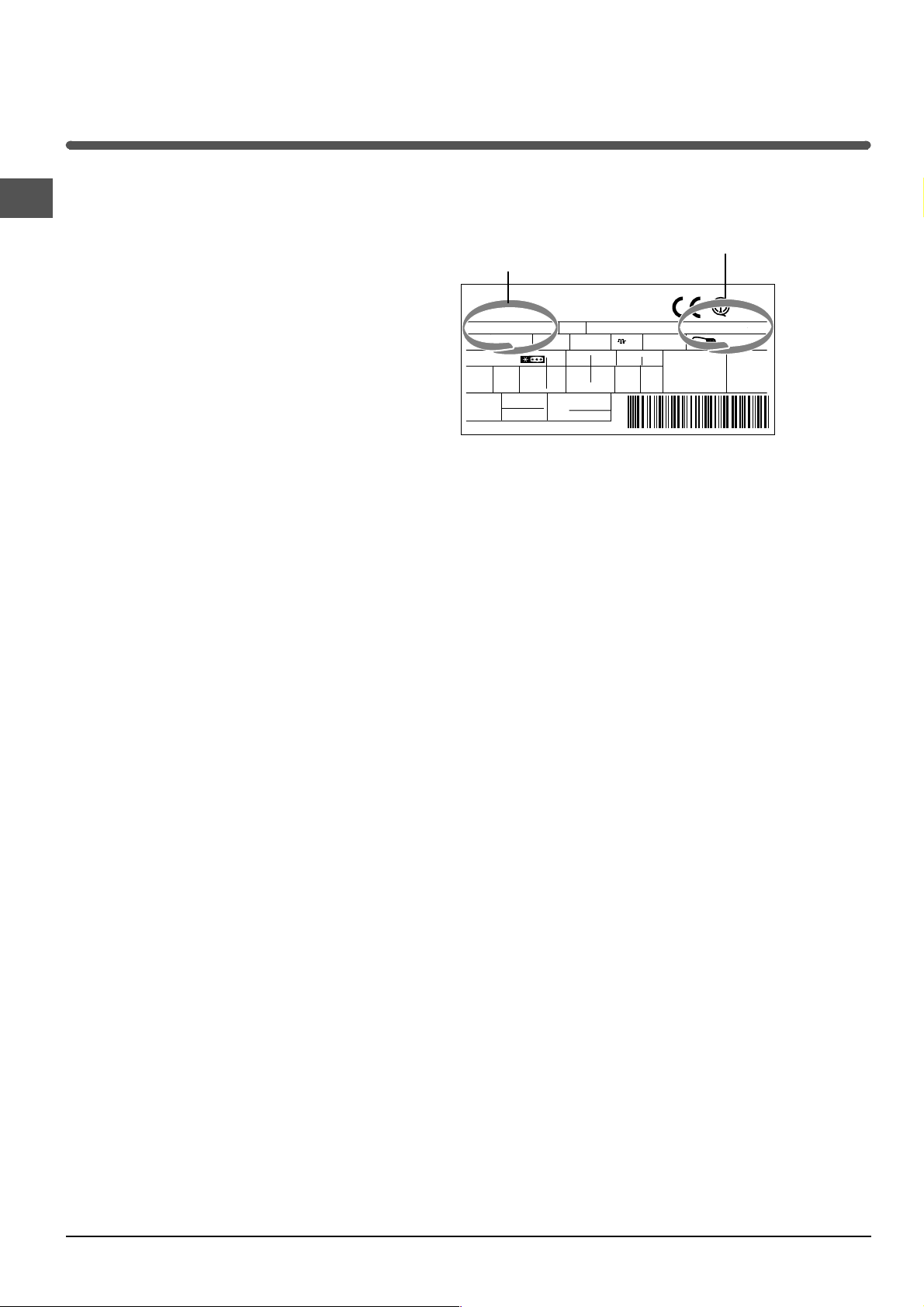

This information can be found on the data
plate located on the bottom left side of the
refrigerator compartment.
Gross
Bruto
Brut
TI
75
Test
P.S-I.
RG 2330
Mod.
220 - 240 V- 50 Hz 150 W
340
Total
Gross
Bruto
Brut
Compr.
R 134 a
Syst.
kg 0,090
Kompr.
Made in Italy 13918
93139180000 S/N 704211801
Net
Util
Utile
Pressure
HIGH-235
LOW 140
Cod.
Gross
Bruto
Brut
Fuse
W
A
Freez. Capac
Poder de Cong
4,0
kg/24 h
Max 15 w
Class
Clase
Classe
N
Never call on unauthorized technicians and always refuse spare parts which are not originals.
20
Page 11
195051767.01
06/2005 - Xerox Business Services
P
52
Loading...
