Indesit TAAN 6 FNF SI, TAN 6 FNF S User Manual

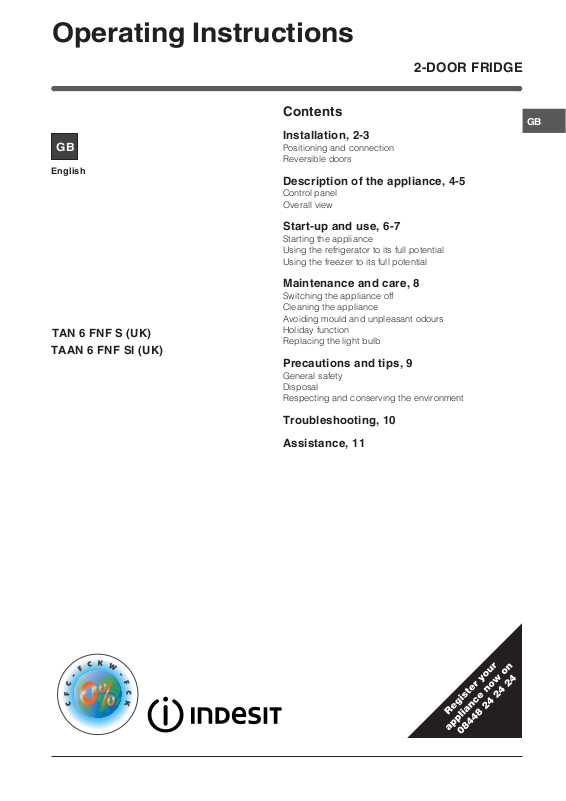

Operating Instructions

2-DOOR FRIDGE

English

TAN 6 FNF S (UK)

TAAN 6 FNF SI (UK)

Contents

Installation, 2-3

Positioning and connection Reversible doors

Description of the appliance, 4-5

Control panel Overall view

Start-up and use, 6-7

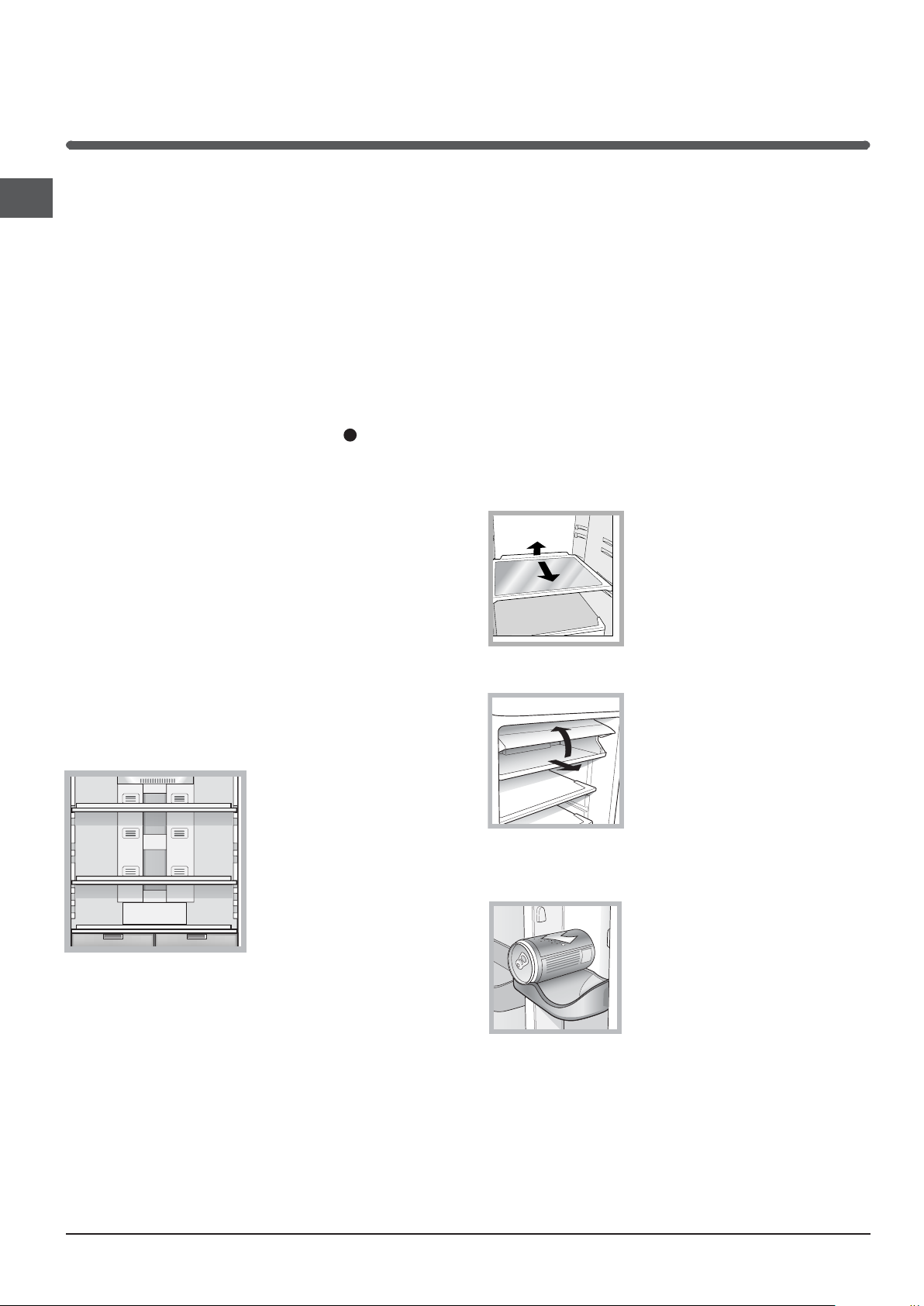

Starting the appliance Using the refrigerator to its full potential Using the freezer to its full potential

Maintenance and care, 8

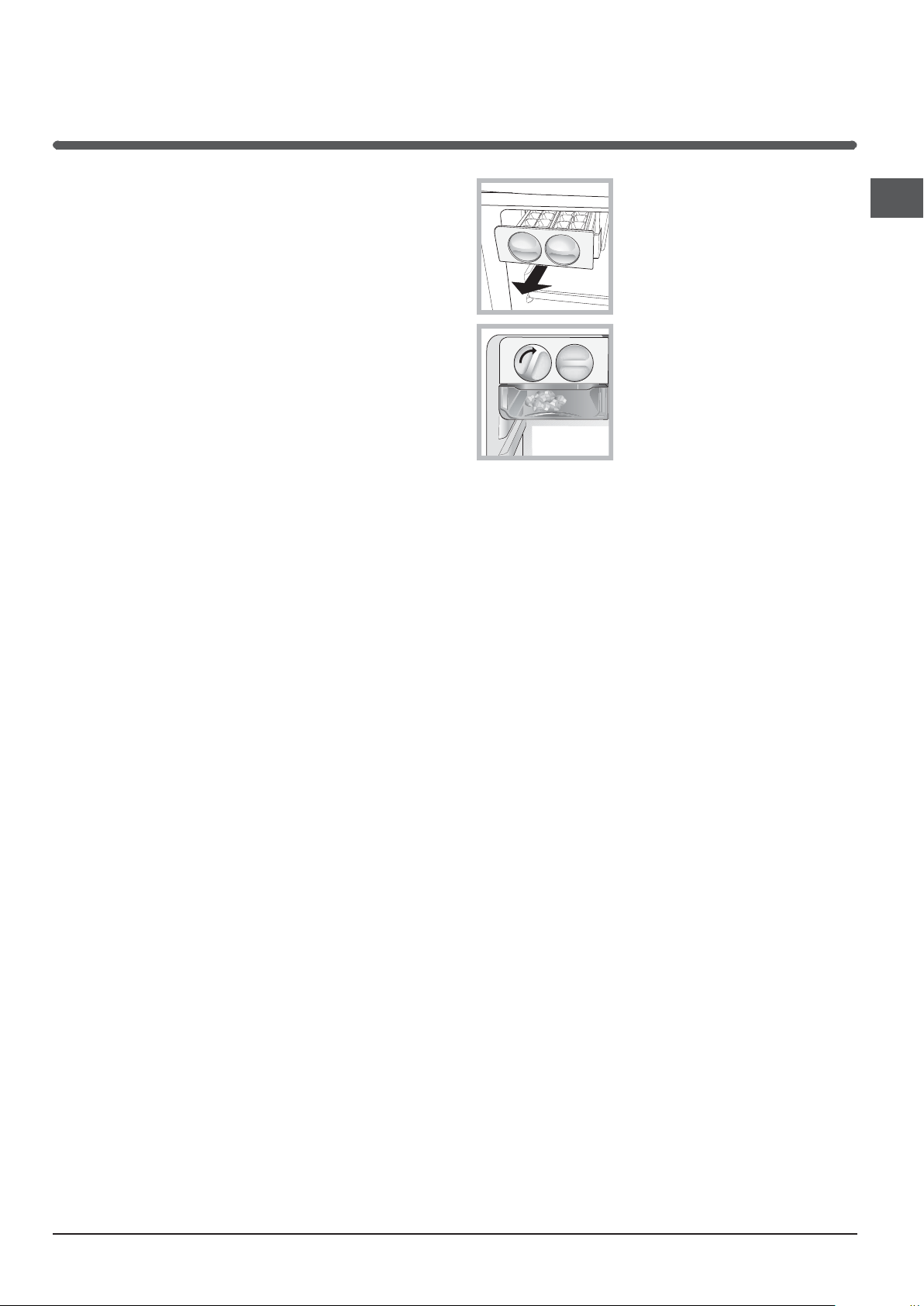

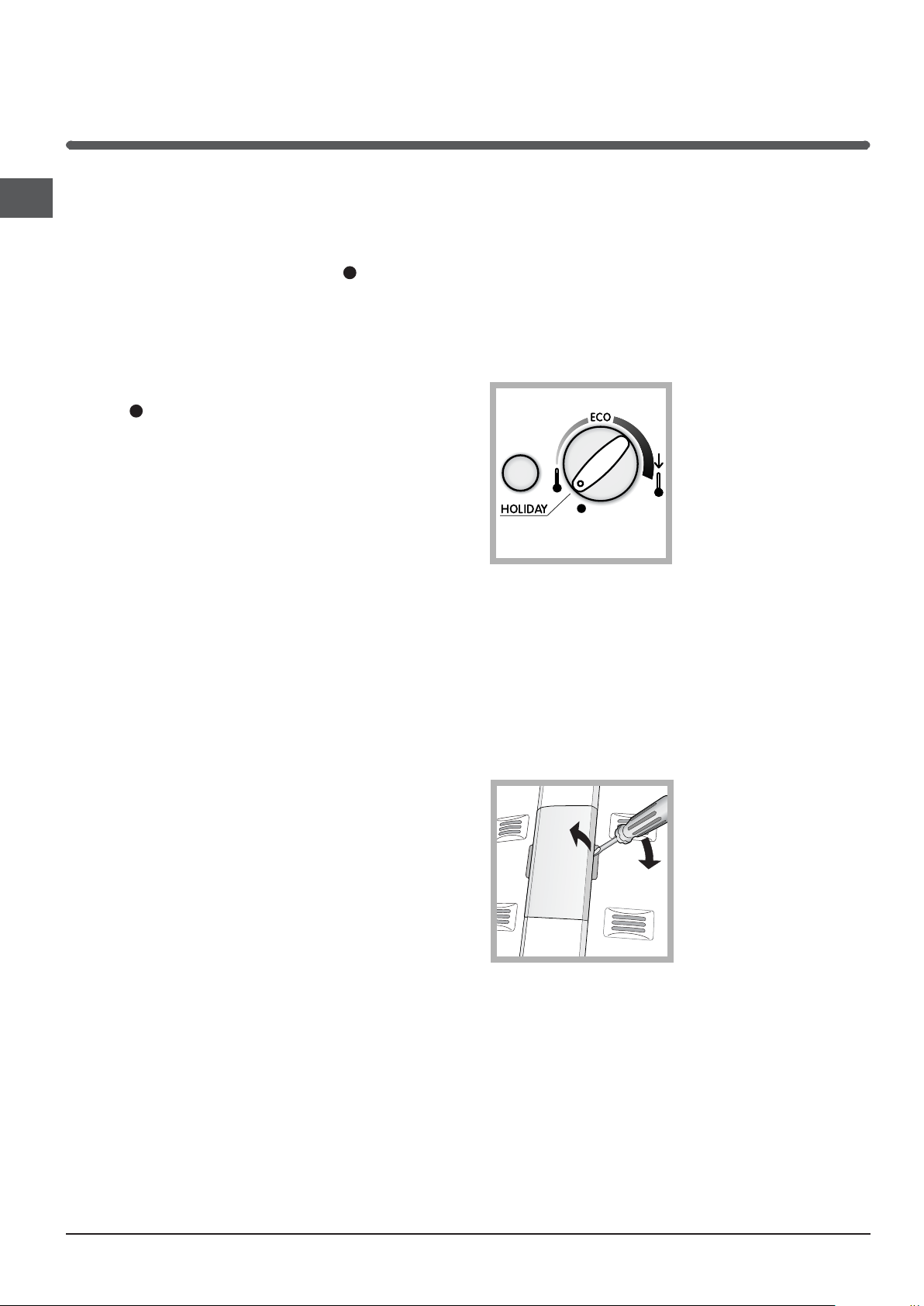

Switching the appliance off Cleaning the appliance Avoiding mould and unpleasant odours Holiday function Replacing the light bulb

Precautions and tips, 9

General safety Disposal Respecting and conserving the environment

Troubleshooting, 10

Assistance, 11

Installation

! Before placing your new appliance into operation please

read these operating instructions carefully. They contain important information for safe use, for installation and for care of the appliance.

! Please keep these operating instructions for future reference. Pass them on to possible new owners of the appliance.

Positioning and connection

Positioning

1. Place the appliance in a well-ventilated humidity-free room.

2. Do not obstruct the rear fan grills. The compressor and condenser give off heat and require good ventilation to operate correctly and save energy.

3. Leave a space of at least 10 cm between the top part of the appliance and any furniture above it, and at least 5 cm between the sides and any furniture/side walls.

4. Ensure the appliance is away from any sources of heat (direct sunlight, electric stove, etc.).

5. In order to maintain the correct distance between the appliance and the wall behind it, fit the spacers supplied in the installation kit, following the instructions provided.

Levelling

1. Install the appliance on a level and rigid floor.

2. If the floor is not perfectly horizontal, adjust the refrigerator by tightening or loosening the rear feet.

Electrical connections

After the appliance has been transported, carefully place it vertically and wait at least 3 hours before connecting it to the electricity mains. Before inserting the plug into the electrical socket ensure the following:

• The appliance is earthed and the plug is compliant with

the law.

• The socket can withstand the maximum power of the

appliance, which is indicated on the data plate located on the bottom left side of the fridge (e.g. 150 W).

• The voltage must be in the range between the values

indicated on the data plate located on the bottom left side (e.g. 220-240V).

• The socket is compatible with the plug of the appliance.

If the socket is incompatible with the plug, ask an authorised technician to replace it ( not use extension cords or multiple sockets.

! Once the appliance has been installed, the power supply cable and the electrical socket must be easily accessible.

see Assistance

Your appliance is supplied with a 13amp fused plug that can be plugged into a 13amp socket for immediate use. Before using the appliance please read the instructions below.

WARNING: THIS APPLIANCE MUST BE EARTHED.

Replacing fuse covers:

When replacing a faulty fuse, a 13amp ASTA approved fuse to BS 1362 should always be used and the fuse cover re-fitted. If the fuse cover is lost, the plug must not be used until a replacement is obtained.

Replacement fuse covers:

If a replacement fuse cover is fitted, it must be of the correct colour as indicated by the coloured marking or the colour that is embossed in words on the base of the plug.

Changing the plug:

Removing the plug

If your appliance has a non-rewireable moulded plug and you should wish to remove it to add a longer cable or to re-route the mains cable through partitions, units etc. please ensure that either:

- The plug is replaced by a fused 13amp rewireable plug bearing the BSI mark of approval.

- The mains cable is wired directly into a 13amp cable outlet, controlled by a switch (in compliance with BS 5733) which is accessible without moving the appliance.

Disposing of the plug

Cut off and dispose of the supplied plug if it does not fit your socket. The cable should be cut as close as possible to the moulded plug. Remove the fuse.

). Do

WARNING: To avoid a shock hazard do not insert the discarded plug into a socket anywhere else.

! The cable must not be bent or compressed.

! The cable must be checked regularly and replaced by

authorised technicians only (see Assistance).

! The manufacturer declines any liability should these safety measures not be observed.

PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR 5 YEAR PARTS GUARANTEE ON 08448 24 24 24

Fitting a new plug

IMPORTANT:

WIRES IN THE MAINS LEAD ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE...

Green and Yellow - Earth

Blue - Neutral

Brown - Live

As the colours of the wires in the mains lead may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

- Connect Green and Yellow wire to terminal marked 'E' or

or coloured Green and Yellow.

- Connect Brown wire to terminal marked 'L' or coloured red or brown.

- Connect Blue wire to terminal marked 'N' or coloured Black or Blue.

Reversible doors

If a 13amp plug (BS 1363) is used it must be fitted with a 13amp fuse. A 15amp plug must be protected by a 15amp fuse, either in the plug or adaptor or at the distribution board.

If you are in any doubt about the electrical supply to your machine, consult a qualified electrician before use.

CE Marking certifies that this appliance conforms to the following EEC directives : Low Voltage Equipment - 73/23/EEC & 93/68 EEC Electromagnetic Compatibility 89/336/EEC, 92/31/EEC & 93/68/EEC

∅ 3

PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR 5 YEAR PARTS GUARANTEE ON 08448 24 24 24

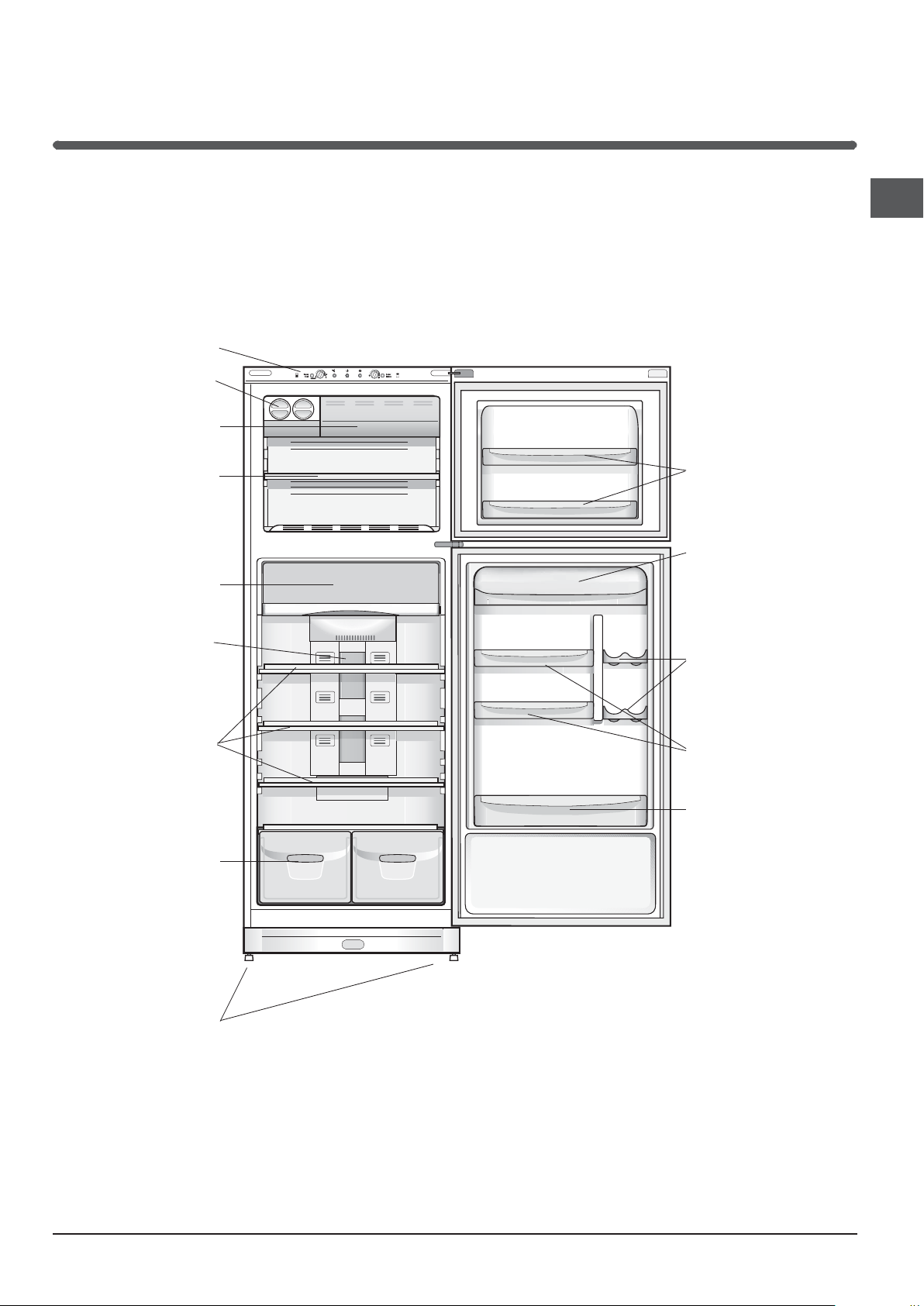

Description of the appliance

Control panel

REFRIGERATOR OPERATION Knob

SUPER COOL

Button

• SUPER COOL (quick cool) to lower the temperature of the refrigerator compartment rapidly. When it is pressed, the SUPER COOL indicator light illuminates (

see Start-up and use

• REFRIGERATOR OPERATION Knob to regulate the temperature of the refrigerator compartment:

warmer

colder.

ECO is the optimal temperature for energy saving levels. HOLIDAY is the holiday function (

and care

switches the refrigerator compartment off.

see Maintenance

SUPER COOL

Indicator light

POWER

Indicator light

SUPER FREEZE

Indicator light

• SUPER FREEZE Yellow indicator light (rapid freezing) illuminates when the SUPER FREEZE button is pressed.

• FREEZER OPERATION Knob to regulate the temperature of the freezer compartment:

warmer.

colder. ECO is the optimal temperature for energy saving levels.

switches the appliance off, including the

refrigerator.

• SUPER FREEZE button (rapid freezing) to freeze fresh food. When it is pressed, the SUPER FREEZE indicator light illuminates (

see Start-up and use

FREEZER OPERATION Knob

SUPER FREEZE

Button

• SUPER COOL Yellow indicator light (rapid cooling) illuminates when the SUPER COOL button is pressed.

• POWER Indicator light illuminates when the appliance is connected to the electricity network.

PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR 5 YEAR PARTS GUARANTEE ON 08448 24 24 24

! The indicator lights are also used to indicate an unusual temperature increase in the freezer compartment (

Troubleshooting

see
