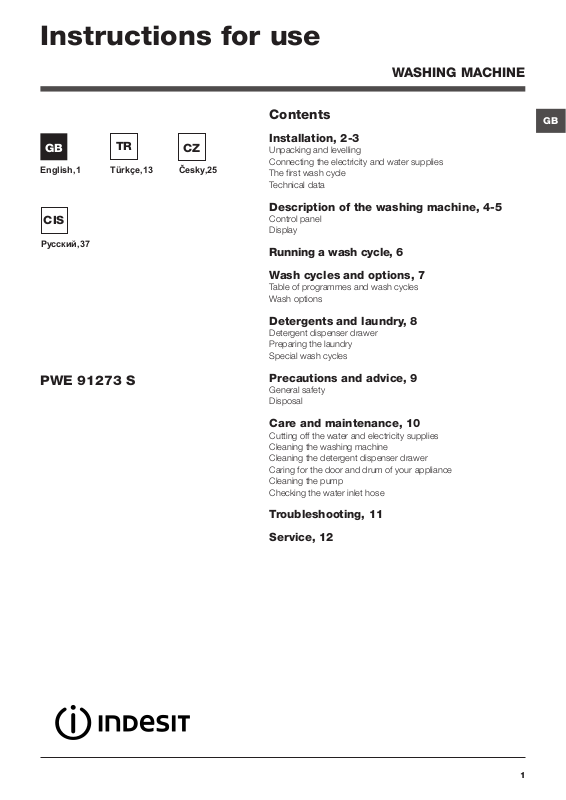

Instructions for use

WASHING MACHINE

English,1

Türkçe,13

CIS

Русский,37

PWE 91273 S

Česky,25

Contents

Installation, 2-3

Unpacking and levelling Connecting the electricity and water supplies The first wash cycle Technical data

Description of the washing machine, 4-5

Control panel Display

Running a wash cycle, 6

Wash cycles and options, 7

Table of programmes and wash cycles Wash options

Detergents and laundry, 8

Detergent dispenser drawer Preparing the laundry Special wash cycles

Precautions and advice, 9

General safety Disposal

Care and maintenance, 10

Cutting off the water and electricity supplies Cleaning the washing machine Cleaning the detergent dispenser drawer Caring for the door and drum of your appliance Cleaning the pump Checking the water inlet hose

Troubleshooting, 11

Service, 12

Installation

! This instruction manual should be kept in a safe place for

future reference. If the washing machine is sold, transferred or moved, make sure that the instruction manual remains with the machine so that the new owner is able to familiarise himself/herself with its operation and features.

! Read these instructions carefully: they contain vital

information relating to the safe installation and operation of the appliance.

Unpacking and levelling

Unpacking

1. Remove the washing machine from its packaging.

2. Make sure that the washing machine has not been damaged during the transportation process. If it has been damaged, contact the retailer and do not proceed any further with the installation process.

3. Remove the 4 protective screws (used during transportation) and the rubber washer with the corresponding spacer, located on the rear part of the appliance (see figure).

Levelling the machine correctly will provide it with stability, help to avoid vibrations and excessive noise and prevent it from shifting while it is operating. If it is placed on carpet or a rug, adjust the feet in such a way as to allow a sufficient ventilation space underneath the washing machine.

Connecting the electricity and water supplies

Connecting the water inlet hose

1. Connect the inlet hose by screwing it to a cold water tap using a 3/4 gas threaded connection (see

figure).

Before performing the connection, allow the water to run freely until it is perfectly clear.

2. Connect the inlet hose to the washing machine by screwing it onto the corresponding water inlet of the appliance, which is situated on the top righthand side of the rear part of the appliance (see figure).

4. Close off the holes using the plastic plugs provided.

5. Keep all the parts in a safe place: you will need them again if the washing machine needs to be moved to another location.

! Packaging materials should not be used as toys for

children.

Levelling

1. Install the washing machine on a flat sturdy floor, without resting it up against walls, furniture cabinets or anything else.

2. If the floor is not perfectly level, compensate for any unevenness by tightening or loosening the adjustable front feet (see figure); the angle of inclination, measured in relation to the worktop, must not exceed 2°.

3. Make sure that the hose is not folded over or bent.

! The water pressure at the tap must fall within the range

of values indicated in the Technical data table (see next page).

! If the inlet hose is not long enough, contact a specialised

shop or an authorised technician.

! Never use second-hand hoses.

! Use the ones supplied with the machine.

Connecting the drain hose

65 - 100 cm

Connect the drain hose, without bending it, to a drain duct or a wall drain situated between 65 and 100 cm from the floor;

alternatively, placed it over the edge of a basin, sink or tub, fastening the duct supplied to the tap (see figure). The free end of the hose should not be underwater.

! We advise against the use of hose extensions; if it is

absolutely necessary, the extension must have the same diameter as the original hose and must not exceed 150 cm in length.

Electrical connections

Before plugging the appliance into the electricity socket, make sure that:

• the socket is earthed and complies with all applicable laws;

! The cable should not be bent or compressed.

! The power supply cable must only be replaced by

authorised technicians.

Warning! The company shall not be held responsible in the event that these standards are not observed.

The first wash cycle

Once the appliance has been installed, and before you use it for the first time, run a wash cycle with detergent and no laundry, using wash cycle number 2.

Technical data

Model

Dimensions

Capacity

PWE 91273 S

width 59.5 cm height 85 cm depth 60 cm

from 1 to 9 kg

• the socket is able to withstand the maximum power load of the appliance as indicated in the Technical data table (see opposite);

• the power supply voltage falls within the values indicated in the Technical data table (see opposite);

• the socket is compatible with the plug of the washing machine. If this is not the case, replace the socket or the plug.

! The washing machine must not be installed outdoors,

even in covered areas. It is extremely dangerous to leave the appliance exposed to rain, storms and other weather conditions.

! When the washing machine has been installed, the

electricity socket must remain within easy reach.

! Do not use extension cords or multiple sockets.

Electrical

connections

Water connections

Spin speed

Test wash cycles

in accordance

with directives

1061/2010 and

1015/2010.

please refer to the technical data plate fixed to the machine

maximum pressure 1 MPa (10 bar) minimum pressure 0.05 MPa (0.5 bar) drum capacity 62 litres

up to 1200 rotations per minute

Programme Programme

This appliance conforms to the following EC Directives:

- 2004/108/EC (Electromagnetic Compatibility)

- 2006/95/EC (Low Voltage)

- 2002/96/EC

: Cotton Standard 60°; : Cotton Standard 40°.

Description of the washing machine

Control panel

ON/OFF

button

WASH

Detergent dispenser drawer

Detergent dispenser drawer: used to dispense

detergents and washing additives (see “Detergents and laundry”).

ON/OFF button: press this briefly to switch the machine on or off. The START/PAUSE indicator light which flashes slowly in a blue colour shows that the machine is switched on. To switch off the washing machine during the wash cycle, press and hold the button for approximately 3 seconds; if the button is pressed briefly or accidentally the machine will not switch off. If the machine is switched off during a wash cycle, this wash cycle will be cancelled.

WASH CYCLE SELECTOR KNOB: used to set the desired wash cycle (see “Table of programmes and wash cycles”).

CYCLE

SELECTOR

KNOB

OPTION

TEMPERATURE

button

START/PAUSE button and indicator light: when the blue indicator light flashes slowly, press the button to start a wash cycle. Once the cycle has begun the indicator light will remain lit in a fixed manner. To pause the wash cycle, press the button again; the indicator light will flash in an amber colour. If the symbol is not illuminated, the door may be opened (wait approximately 3 minutes). To start the wash cycle from the point at which it was interrupted, press the button again.

DOOR LOCKED indicator light: The lit symbol indicates that the door is locked. To prevent any damage, wait until the symbol turns off before opening the door (wait approximately 3 minutes). To open the door while a cycle is in progress, press the START/PAUSE button; if the DOOR LOCKED symbol is switched off the door may be opened.

DISPLAY

SPIN

button

button s and indicator lights

DELAYED START

button

START/PAUSE

button and indicator light

DOOR LOCKED

indicator light

OPTION buttons and indicator lights: press to select the available options. The indicator light corresponding to the selected option will remain lit.

SPIN button: press to reduce or completely exclude the spin cycle; the value appears on the display.

TEMPERATURE button: press to reduce or completely exclude the temperature; the value appears on the display.

DELAYED START button: press to set a delayed start for the selected wash cycle; the delay period appears on the display.

Standby mode

This washing machine, in compliance with new energy saving regulations, is fitted with an automatic standby system which is enabled after about 30 minutes if no activity is detected. Press the ON-OFF button briefly and wait for the machine to start up again.

Consumption in off-mode: 0,5 W Consumption in Left-on: 0,5 W

Display

The display is useful when programming the machine and provides a great deal of information.

The duration of the available wash cycles and the remaining time of a running cycle appear in section A; if the DELAYED START option has been set, the countdown to the start of the selected wash cycle will appear. Pressing the corresponding button allows you to view the maximum spin speed and temperature values attained by the machine during the set wash cycle, or the values selected most recently, if these are compatible with the set wash cycle. The hour-glass flashes while the machine is processing data, depending on the wash cycle and level selected. After a maximum of 10 minutes, the “hour-glass” icon remains lit in a fixed manner and the final amount of time remaining is displayed. The hour-glass icon will then switch off approximately 1 minute after the final amount of time remaining has appeared.

The “wash cycle phases” corresponding to the selected wash cycle and the “wash cycle phase” of the running wash cycle appear in section B:

Main wash

Rinse

Spin Drain

The icons corresponding to “temperature”, “spin” and “delayed start” (working from the left) are displayed in section C. The “temperature” bars indicate the maximum temperature level which may be selected for the set cycle. The “spin” bars indicate the maximum spin level which may be selected for the set cycle. The “delay” symbol , when lit, indicates that the set “delayed start” value has appeared on the display.

Running a wash cycle

1. SWITCH THE MACHINE ON. Press the button; the START/PAUSE indicator light will flash slowly in a blue colour.

2. LOAD THE LAUNDRY. Open the porthole door. Load the laundry, making sure you do not exceed the maximum load value indicated in the table of programmes and wash cycles on the following page.

3. MEASURE OUT THE DETERGENT. Pull out the detergent dispenser drawer and pour the detergent into the relevant compartments as described in “Detergents and laundry”.

4. CLOSE THE DOOR.

5. SELECT THE WASH CYCLE. Use the WASH CYCLE SELECTOR knob to select the desired wash cycle. A temperature and spin speed is set for each wash cycle; these values may be adjusted. The duration of the cycle will appear on the display.

6. CUSTOMISE THE WASH CYCLE. Use the relevant buttons:

Modify the temperature and/or spin

speed. The machine automatically displays the maximum temperature and spin speed values set for the selected cycle, or the most recently-used settings if they are compatible with the selected cycle. The temperature can be decreased by pressing the button, until the cold wash “OFF” setting is reached. The spin speed may be progressively reduced by pressing the button, until it is completely excluded (the “OFF” setting). If these buttons are pressed again, the maximum values are restored.

! If the selected option is not compatible with a previously

selected one, the indicator light corresponding to the first function selected will flash and only the second option will be activated; the indicator light for the option which has been activated will be illuminated.

Note: if the option has been selected, none of the incompatible options may be activated.

! The options may affect the recommended load value

and/or the duration of the cycle.

7. START THE WASH CYCLE. Press the START/ PAUSE button. The corresponding indicator light will turn blue, remaining lit in a fixed manner, and the door will be locked (the DOOR LOCKED symbol will be lit). To change a wash cycle while it is in progress, pause the washing machine using the START/PAUSE button (the START/PAUSE indicator light will flash slowly in an amber colour); then select the desired cycle and press the START/PAUSE button again. To open the door while a cycle is in progress, press the START/PAUSE button; if the DOOR LOCKED symbol is switched off the door may be opened (wait approximately 3 minutes). Press the START/PAUSE button again to restart the wash cycle from the point at which it was interrupted.

8. THE END OF THE WASH CYCLE. This will be indicated by the text “END” on the display; when the DOOR LOCKED symbol switches off the door may be opened (wait approximately 3 minutes). Open the door, unload the laundry and switch off the machine.

! If you wish to cancel a cycle which has already begun,

press and hold the button. The cycle will be stopped and the machine will switch off.

Setting a delayed start.

To set a delayed start for the selected cycle, press the corresponding button repeatedly until the required delay period has been reached. When this option has been activated, the symbol lights up on the display. To remove the delayed start setting, press the button until the text “OFF” appears on the display.

Modify the cycle settings.

• Press the button to enable the option; the indicator light corresponding to the button will switch on.

• Press the button again to disable the option; the indicator light will switch off.

! If the selected option is not compatible with the set

wash cycle, the indicator light will flash and the option will not be activated.

Load balancing system

Before every spin cycle, to avoid excessive vibrations before every spin and to distribute the load in a uniform manner, the drum rotates continuously at a speed which is slightly greater than the washing rotation speed. If, after several attempts, the load is not balanced correctly, the machine spins at a reduced spin speed. If the load is excessively unbalanced, the washing machine performs the distribution process instead of spinning. To encourage improved load distribution and balance, we recommend small and large garments are mixed in the load.

Wash cycles and options

Table of programmes and wash cycles

Max.

Description of the wash cycle

Wash cycles

Daily Programs

Cottons with Pre-wash: extremely soiled whites. 90° 1200

White Cottons: extremely soiled whites. 90° 1200 -

Standard Cotton 60° (1): heavily soiled whites and resistant colours. 60° 1200 -

Standard Cotton 40° (2): heavily soiled whites and delicate colours. 40° 1200 -

Synthetics: heavily soiled resistant colours. 60° 800 -

Synthetics (3): lightly soiled resistant colours. 40° 800 - 6 Jeans 7 Shirts

Mix-Cool 30’: to refresh lightly soiled garments quickly (not suitable for wool, silk and 8

clothes which require washing by hand).

Standard Cotton 20°: heavily soiled whites and delicate colours. 20° 1200 -

Special

Wool: for wool, cashmere, etc. 40° 800 -

Silk/Curtains: for garments in silk and viscose, lingerie. 30° 0 -

12 Duvets 13 Outwear

14 Sport Shoes

Partials

Rinse - 1200 - -

Spin + Drain - 1200 - - - - 9 - - - 16’

The length of cycle shown on the display or in this booklet is an estimation only and is calculated assuming standard working conditions. The actual duration can vary according to factors such as water temperature and pressure, the amount of detergent used, the amount and type of load inserted, load balancing and any wash options selected.

1) Test wash cycle in compliance with directive 1061/2010: set wash cycle with a temperature of 60°C.

This cycle is designed for cotton loads with a normal soil level and is the most efficient in terms of both electricity and water consumption; it should be used for garments which can be washed at 60°C. The actual washing temperature may differ from the indicated value.

2) Test wash cycle in compliance with directive 1061/2010: set wash cycle with a temperature of 40°C.

This cycle is designed for cotton loads with a normal soil level and is the most efficient in terms of both electricity and water consumption; it should be used for garments which can be washed at 40°C. The actual washing temperature may differ from the indicated value.

For all Test Institutes:

2) Long wash cycle for cottons: set wash cycle with a temperature of 40°C.

3) Synthetic program along: set wash cycle 5 with a temperature of 40°C.

Wash options

flash (blue and orange respectively). To end the cycle, press the

Max.

temp.

speed

(°C)

(rpm)

40° 800 40° 600 -

Cold

800 -

water

30° 1000 30° 400 -

30° 600 -

Detergents

Prewash

 

Energy

Wash

  

            



  

   



Fabric

Bleach

softener



- - 2,5 - - - 60’ Max.2



 

paires

Residual

dampness %

Max. load (kg)

9 53 2,86 98 195’ 9 53 2,54 85 180’

9 53 1,37 76 185’

9 53 1,09 92 180’ 4 46 1,03 60 115’ 4 46 0,56 60 100’ 4 - - - 80’ 2 - - - 70’

3 71 0,10 36 30’

9 - - - 175’

2 - - - 90’ 2 - - - 65’

3,5 - 120’

- - - 60’

9 - - - 36’

kWh

Total water lt

consumption

START/PAUSE button or the EASY IRON button. For wash cycles

The “PRIME” technology optimises energy, water and time consumption according to the quantity of garments actually inserted in the machine. Moreover, pressing the button allows for selecting the following options:

- Water: allows for reducing water consumption without having to renounce impeccable results (recommended for heavily soiled garments).

- Energy: automatically selected by “PRIME”, this option reduces energy consumption (recommended for normally soiled garments).

- Time: allows for reducing wash cycle duration (recommended for lightly soiled garments).

! This may only be used in conjunction with wash cycles 1, 2,

, 5 (all three levels) and 6, 7, 8, 9 (- Energy and - Time levels).

Extra Rinse

By selecting this option, the efficiency of the rinse is increased and optimal detergent removal is guaranteed. It is particularly useful for sensitive skin.

! It cannot be used in conjunction with wash cycles 8,

Easy iron

By selecting this function, the wash and spin cycles will be modified in order to reduce the formation of creases. At the end of the cycle the washing machine will perform slow rotations of the drum, while the EASY IRON and START/PAUSE indicator lights will

number 11-13, the machine will end the cycle while the laundry is soaking; the EASY IRON and START/PAUSE indicator lights will flash. To drain the water so that the laundry may be removed, press the START/PAUSE button or the EASY IRON button.

! It cannot be used in conjunction with wash cycles 8, 10, 14,

Stain removal

This function is particularly useful for the removal of stubborn stains. Insert extra compartment 4 (supplied with

the appliance) into compartment

1. When pouring in the bleach, be careful not to exceed the “max” level marked on the central pivot (see figure). To

bleach laundry with no other washing action, pour the bleach into extra compartment 4, select

the “Rinse” cycle and activate the “Stain removal” option . To bleach during a wash cycle, pour in the detergent and any fabric softener you wish to use, select the desired wash cycle and enable the “Stain removal” option. The use of extra compartment 4 excludes the pre-wash.

! It cannot be used in conjunction with wash cycles 1, 6, 8, 10,

11, 12, 13, 14, .

, .

Cycle duration

Detergents and laundry

Detergent dispenser drawer

Successful washing results also depend on the correct dose of detergent: adding too much detergent will not necessarily result in a more efficient wash, and may in fact cause build up on the inside of your appliance and contribute to environmental pollution.

! Do not use hand washing detergents because these

create too much foam.

! Use powder detergent for white cotton garments, for pre-

washing, and for washing at temperatures over 60°C.

! Follow the instructions given on the detergent packaging.

Open the detergent dispenser drawer and pour in the detergent or washing additive, as follows.

Compartment 1: Prewash detergent (powder)

Before pouring in the detergent, make sure that extra compartment 4 has

been removed.

Compartment 2: Washing detergent (powder or liquid)

Liquid detergent should only be poured in immediately prior to the start of the wash cycle.

Compartment 3: Additives (fabric softeners, etc.)

The fabric softener should not overflow the grid.

Extra compartment 4: Bleach Extra compartment 5: we recommend this

compartment is used for liquid detergent.

Cotton Standard 20° (wash cycle 9) ideal for heavily soiled cotton loads. The effective performance levels achieved at cold temperatures, which are comparable to washing at 40°, are guaranteed by a mechanical action which operates at varying speed, with repeated and frequent peaks. Wool:the wool wash cycle of this machine has been tested and approved by The Woolmark Company for the washing of wool containing garments labelled as “hand wash” provided that the garments are washed according to the instructions on the garment label and those issued by the manufacturer of this washing machine. (M1127)

Silk: use special wash cycle 11 to wash all silk garments. We recommend the use of special detergent which has been designed to wash delicate clothes. Curtains: we recommend you fold the curtains and place them in a pillow case or mesh bag. Use wash cycle 11. Duvets: to wash double or single duvets (the weight of which should not exceed 3,5 kg), cushions or clothes padded with goose down such as puffa jackets, use the special wash cycle number 12. We recommend that duvets are placed in the drum with their edges folded inwards (see figure) and that no more than ¾ of the total volume of the drum is used. To achieve the best results, we recommend that a liquid detergent is used and placed inside the detergent dispenser drawer.

Preparing the laundry

• Divide the laundry according to:

- the type of fabric/the symbol on the label

- the colours: separate coloured garments from whites.

• Empty all garment pockets and check the buttons.

• Do not exceed the values listed in the “Table of wash cycles”, which refer to the weight of the laundry when dry.

How much does your laundry weigh?

1 sheet 400-500 g 1 pillow case 150-200 g 1 tablecloth 400-500 g 1 bathrobe 900-1,200 g 1 towel 150-250 g

Special wash cycles

Jeans: turn the garments inside out before washing and

use liquid detergent. Use wash cycle 6. Shirts: use special wash cycle 7 to wash shirts in various fabrics and colours. It guarantees maximum care is taken of the garments and minimises the formation of creases. Mix-Cool 30’: this wash cycle was designed to wash lightly soiled garments quickly: it lasts just 30 minutes and therefore saves both energy and time. By selecting wash cycle 8, it is possible to wash different fabrics (except for wool and silk items) using a cold cycle, up to a maximum load of 3 kg.

Outwear (wash cycle 13): is studied for washing water- repellent fabrics and winter jackets (e.g. Gore-Tex, polyester, nylon); for best results, use a liquid detergent and dosage suitable for a half-load; pre-treat necks, cuffs and stains if necessary; do not use softeners or detergents containing softeners. Stuffed duvets cannot be washed with this

programme.

Sport Shoes (wash cycle 14): is for washing sports shoes; for best results, do not wash more than 2 pairs simultaneously.

Precautions and tips

! This washing machine was designed and constructed

in accordance with international safety regulations. The following information is provided for safety reasons and must therefore be read carefully.

General safety

• This appliance was designed for domestic use only.

• This appliance is not intended for use by persons (including

children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

• Do not touch the machine when barefoot or with wet or

damp hands or feet.

• Do not pull on the power supply cable when unplugging the

appliance from the electricity socket. Hold the plug and pull.

• Do not open the detergent dispenser drawer while the

machine is in operation.

• Do not touch the drained water as it may reach

extremely high temperatures.

• Never force the porthole door. This could damage the safety

lock mechanism designed to prevent accidental opening.

• If the appliance breaks down, do not under any

circumstances access the internal mechanisms in an attempt to repair it yourself.

• Always keep children well away from the appliance while

it is operating.

• The door can become quite hot during the wash cycle.

• If the appliance has to be moved, work in a group of two

or three people and handle it with the utmost care. Never try to do this alone, because the appliance is very heavy.

• Before loading laundry into the washing machine, make

sure the drum is empty.

Disposal

• Disposing of the packaging materials:

observe local regulations so that the packaging may be

re-used.

• The European Directive 2002/96/EC relating to Waste

Electrical and Electronic Equipment (WEEE) states that household appliances should not be disposed of using the normal solid urban waste cycle. Exhausted appliances should be collected separately in order to optimise the cost of re-using and recycling the materials inside the machine, while preventing potential damage to the atmosphere and to public health. The crossed-out dustbin is marked on all products to remind the owner of their obligations regarding separated waste collection. For more information relating to the correct disposal of household appliances, owners should contact their local authorities or appliance dealer.

Care and maintenance

Cutting off the water and electricity supplies

• Turn off the water tap after every wash cycle. This will

limit wear on the hydraulic system inside the washing machine and help to prevent leaks.

• Unplug the washing machine when cleaning it and

during all maintenance work.

Cleaning the washing machine

The outer parts and rubber components of the appliance can be cleaned using a soft cloth soaked in lukewarm soapy water. Do not use solvents or abrasives.

Cleaning the detergent dispenser drawer

To remove the drawer, press lever (1) and pull the drawer outwards (2) (see figure). Wash it under running water; this pro c e d u r e sh o u l d be repeated frequently.

To access the pre-chamber:

1. Take off the cover panel on the front of the machine by first pressing it in the centre and then pus hing downwards on both sides until you can remove it (see

figures).

2. Unscrew the lid by rotating it anti-clockwise (see figure): a little water may trickle out. This is perfectly normal.

3. Clean the inside thoroughly.

4. Screw the lid back on.

5. Reposition the panel, making sure the hooks are securely in place before you push it onto the appliance.

Caring for the door and drum of your appliance

• Always leave the porthole door ajar in order to prevent

unpleasant odours from forming.

Cleaning the pump

The washing machine is fitted with a self-cleaning pump which does not require any maintenance. Sometimes, small items (such as coins or buttons) may fall into the protective pre-chamber at the base of the pump.

! Make sure the wash cycle has finished and unplug the

appliance.

Checking the water inlet hose

Check the inlet hose at least once a year. If there are any cracks, it should be replaced immediately: during the wash cycles, water pressure is very strong and a cracked hose could easily split open.

! Never use second-hand hoses.

Troubleshooting

Your washing machine could occasionally fail to work. Before contacting the Technical Assistance Service (see “ Service”), make sure that the problem cannot be solved easily using the following list.

Problem:

The washing machine does not switch on.

The wash cycle does not start.

The washing machine does not fill with water (the text “H2O” flashes on the display).

The washing machine continuously takes in and drains water.

The washing machine does not drain or spin.

Possible causes / Solutions:

• The appliance is not plugged into the socket fully, or not enough to make contact.

• There is no power in the house.

• The washing machine door is not closed properly.

• The ON/OFF button has not been pressed.

• The START/PAUSE button has not been pressed.

• The water tap has not been opened.

• A delayed start has been set.

• The water inlet hose is not connected to the tap.

• The hose is bent.

• The water tap has not been opened.

• There is no water supply in the house.

• The pressure is too low.

• The START/PAUSE button has not been pressed.

• The drain hose is not fitted at a height between 65 and 100 cm from the floor

(see “Installation”).

• The free end of the hose is under water (see “Installation”).

• The wall drainage system is not fitted with a breather pipe. If the problem persists even after these checks, turn off the water tap, switch the appliance off and contact the Technical Assistance Service. If the dwelling is on one of the upper floors of a building, there may be problems relating to water drainage, causing the washing machine to fill with water and drain continuously. Special antidraining valves are available in shops and help to prevent this inconvenience.

• The wash cycle does not include draining: some cycles require the draining process to be enabled manually.

• The EASY IRON option is enabled: To complete the wash cycle, press the START/PAUSE button (see “Wash cycles and options”).

• The drain hose is bent (see “Installation”).

• The drainage duct is clogged.

The washing machine vibrates a lot during the spin cycle.

The washing machine leaks.

The “option” and START/PAUSE indicator lights flash rapidly and an error code appears on the display (e.g.: F-01, F-..).

There is too much foam.

• The drum was not unlocked correctly during installation (see “Installation”).

• The washing machine is not level (see “Installation”).

• The washing machine is trapped between cabinets and walls (see “Installation”).

• The water inlet hose is not screwed on properly (see “Installation”).

• The detergent dispenser drawer is blocked (for cleaning instructions, see “Care and maintenance”).

• The drain hose is not fixed properly (see “Installation”).

• Switch off the machine and unplug it, wait for approximately 1 minute and then switch it back on again.

If the problem persists, contact the Technical Assistance Service.

• The detergent is not suitable for machine washing (it should display the text “for washing machines” or “hand and machine wash”, or the like).

• Too much detergent was used.

Service

Before contacting the Technical Assistance Service:

• Check whether you can solve the problem alone (see “Troubleshooting”).

• Restart the wash cycle to check whether the problem has been solved.

• If this is not the case, contact an authorised Technical Assistance Centre.

! Always request the assistance of authorised technicians.

Have the following information to hand:

• the type of problem;

• the appliance model (Mod.);

• the serial number (S/N). This information can be found on the data plate applied to the rear of the washing machine, and can also be found on the front of the appliance by opening the door.

Kullanma talimatları

ÇAMAŞIR MAKİNESİ

Türkçe

PWE 91273 S

İçindekiler

Montaj, 14-15

Ambalajdan çıkarma ve yerin tesviye Elektrik ve su baglantılarının yapılması İlk yıkama Teknik veriler

Çamaşır makinesinin tanıtımı, 16-17

Kumanda paneli Ekran

Bir çamaşır çevriminin çalıştırılması, 18

Yıkama çevrim ve seçenekleri, 19

Program ve yıkama çevrimi tablosu Yıkama seçenekleri

Deterjan ve çamaşır, 20

Deterjan dağıtma çekmecesi Çamaşırın hazırlanması Özel yıkama çevrimleri

Önlem ve öneriler, 21

Genel güvenlik Atma

Bakım ve onarım, 22

Su ve elektrik bağlantılarının kesilmesi Çamaşır makinesinin temizlenmesi Deterjan dağıtma çekmecesinin temizlenmesi Kapak ve hazne bakımı Pompanın temizlenmesi Su giriş hortumunun kontrol edilmesi

Sorun giderme, 23

Teknik Servis, 24

Montaj

! Bu montaj kılavuzunu gelecekte referans olarak kullanmak

için güvenli bir yerde tutun. Çamasır makinesi satılırsa, baskasına verilir veya tasınırsa, yeni sahibinin kullanmayı ve özelliklerini ögrenebilmesi için kılavuzun makine ile birlikte bulundugundan emin olun.

! Aşağıdaki talimatları dikkatli bir şekilde okuyun: cihazın

güvenli şekilde montajı ve kullanılması ile ilgili hayati bilgileri içermektedir.

Ambalajdan çıkarma ve yerin tesviye

Ambalajdan çıkarma

1. Çamasır makinesini ambalajından çıkarın.

2. Çamaşır makinesinin nakliye işlemi sırasında hasar görmediğinden emin olun. Hasar görmüşse, satıcınızla temas kurun ve montaj işlemi ile ilgili herhangi bir faaliyette bulunmayın.

3. Koruyucu 4 vidayı (nakliye sırasında kullanılır) ve cihazın arka kısmına yerleştirilen ilgili ara parça ile birlikte lastik contayı çıkarın (şekle bakınız).

Makinenin doğru şekilde dengelenmesi sabitlik sağlayacak, titreşim ve aşırı gürültünün önlenmesine yardımcı olacak ve çalışırken hareket etmesini engelleyecektir. Bir halı veya kilim üzerine yerleştirilirse, ayakları çamaşır makinesinin altında yeterli havalandırma alanı bırakacak şekilde ayarlayın.

Elektrik ve su bağlantılarının yapılması

Su giriş hortumunun bağlanması

1. Giris hortumunu 3/4 gaz vidalı baglantı kullanarak bir soguk su musluguna baglayın (sekle bakınız). Baglantıyı yapmadan önce, iyi c e te miz olana kadar suyun akmasına izin verin.

2. Cihazın arka bölümünün sag üst tarafından yer alan soguk su girisine takarak giris hortumunu baglayın (sekle bakınız).

4. Makine ile birlikte verilen plastik tıpaları kullanarak delikleri kapatın.

5. Bütün parçaları güvenli bir yerde saklayın: Çamaşır makinesinin başka bir yere taşınması gerekirse, onlara ihtiyaç duyacaksınız.

! Ambalaj malzemeleri çocuklar için oyuncak olarak

kullanılmamalıdır.

Tesviye

1. Çamaşır makinesini duvara, dolaba veya başka bir yere dayamadan düz dayanıklı bir zemine yerleştirin.

2. Zemin tam olarak düz degilse, ayarlanabilir ön ayakları sıkarak veya gevseterek egimi giderin (sekle bakınız); mutfak tezgahı ile ilgili olarak ölçülen egim açısı 2°’yi asmamalıdır.

3. Hortumun katlanıp bükülmedigine emin olun.

! Musluktaki su basıncının teknik veri tablosunda gösterilen

değer aralığına uygun olması gerekir (sonraki sayfaya bakınız).

! Giris hortumu yeterli uzunlukta degilse, bayinize veya

yetkili servise danisin.

! Kesinlikle eski hortum kullanmayın.

! Çamaşır makinesi ile birlikte verilenleri kullanın.

Tahliye hortumunun bağlanması

65 - 100 cm

Tahliye hortumunu bükmeden zeminden 65 ila 100 cm yukarıda yer alan pis su borusuna veya duvar tahliyesine bağlayın;

Buna alternatif olarak, makine ile birlikte verilen pis su borusunu musluğa (şekle bakınız) bağlayarak lavabo veya küvetin kenarına yerleştirin. Hortumun serbest kalan ucu suya daldırılmamalıdır.

! Hortum eklerinin kullanımı önermiyoruz; kesinlikle

gerekliyse ek hortum orijinal hortum ile aynı çapta olmalı ve uzunluğu 150 cm. aşmamalıdır.

! Kablo bükülmemeli veya sıkıştırılmamalıdır.

! Güç kablosu ve si sadece yetkili teknisyenler

tarafından degistirilmelidir.

Uyarı! Bu standartlara uyulmaması durumunda sirket sorumlu tutulamaz.

İlk yıkama

Ilk kullanimdan önce programlar tablosundaki 2. Programi kullanarak çamasir olmadan deterjanla bir yikama yapin.

Teknik bilgiler

Elektrik bağlantıları

Cihazı elektrik prizine takmadan önce, aşağıdakilerden emin olun:

• Prizin topraklandıgından ve ilgili mevzuata uygun oldugundan;

• Prizin teknik veri tablosunda gösterilmekte olan maksimum cihaz elektrik yüküne dayanıp dayanamayacagından

(teknik veri tablosuna bakiniz);

• Güç kaynagı voltajının teknik veri tablosunda gösterilen degerlere uygun olup olmadigindan (teknik veri tablosuna bakiniz);

• Elektrik prizinin çamaşır makinesinin şi ile uyumlu olup olmadığından emin olun. Muhafazalı değilse, priz veya şi değiştirin.

! Çamaşır makinesi kapalı alan olsa bile, evin dışına

yerleştirilmemelidir. Cihazın yağmur, fırtına ve diğer hava koşullarına maruz bırakılması son derece tehlikelidir.

! Çamaşır makinesi yerleştirildiğinde, elektrik prizi kolay

ulaşılabilir bir durumda olmalıdır.

Model PWE 91273 S

geniþlik 59,5 cm

Ölçüler

Kapasite 1 - 9 kg

Elektrik baðlantýlarý

Su baðlantýlarý

Sýkma hýzý maksimum dakikada 1200 devire kadar

1061/2010 ve 1015/2010 sayýlý direktiflere göre kontrol programlarý

yükseklik 85 cm derinlik 60 cm

makine üstünde takýlý olan teknik veriler plakasýna bakýnýz.

max. su basýncý 1 MPa (10 bar) min. su basýncý 0,05 MPa (0,5 bar) tambur kapasitesi 62 litre

program

; 60°C Standart Pamuklu.

program

; 40°C Standart Pamuklu.

Bu makina aþaðýda belirtilen AB normlarýna uygundur:

- 2004/108/CE (Elektromanyetik Uyum)

- 2002/96/CE

- 2006/95/CE (Alçak gerilim)

! Uzatma kablosu veya çoklu priz kullanmayın.

+ 33 hidden pages
