Page 1
SERVICE MANUAL
SERVICE MANUAL
Dishwasher 2005
Dishwasher 2005
SEVEN DIGIT
SEVEN DIGIT
DRAFT
G
B
All the parts included in this document are the property of Indesit Company S.p.A.
All rights reserved. This document and the information it contains are supplied without liability for possible errors or omissions; no part of this document can be reproduced, used or copied without written
permission or without being authorised by the terms of a contract clause.
Service Manual
Seven Digit - 2005
Edition
2005.07.08
Language
English
Page 2
G
B
CONTENTS OF THE MANUAL: NOTE FOR THE ENGINEER
This manual is a supporting document for technical personnel. It contains a description of the various
product types, the general operating principle, and indications concerning assistance.
Technical personnel should anyway consult the specific model on
(servicenet.indesitcompany.com) to access data and updates of electrical diagrams, technical
bulletins, and spare parts.
Service Manual
Seven Digit - 2005
Edition
2005.07.08
Language
English
2
Page 3
CONTENTS
1. TYPOLOGY OF PRODUCT 4-6
Legend 4
Interfaces 4
Technical features 5
Energy Label 6
2. FUNCTIONING 7-10
Programs 7
Program Table 8
Function setting 9
New programs 10
Other innovations 11
3. COMPONENTS 12
G
B
4. WIRING DIAGRAMS 13
5. TECHNICAL ASSISTANCE 14-20
Demo Mode 14
Auto Test 14
Rod and Sat Testing cycle 15-17
Fault & Solutions 18
Trouble Shooting 19

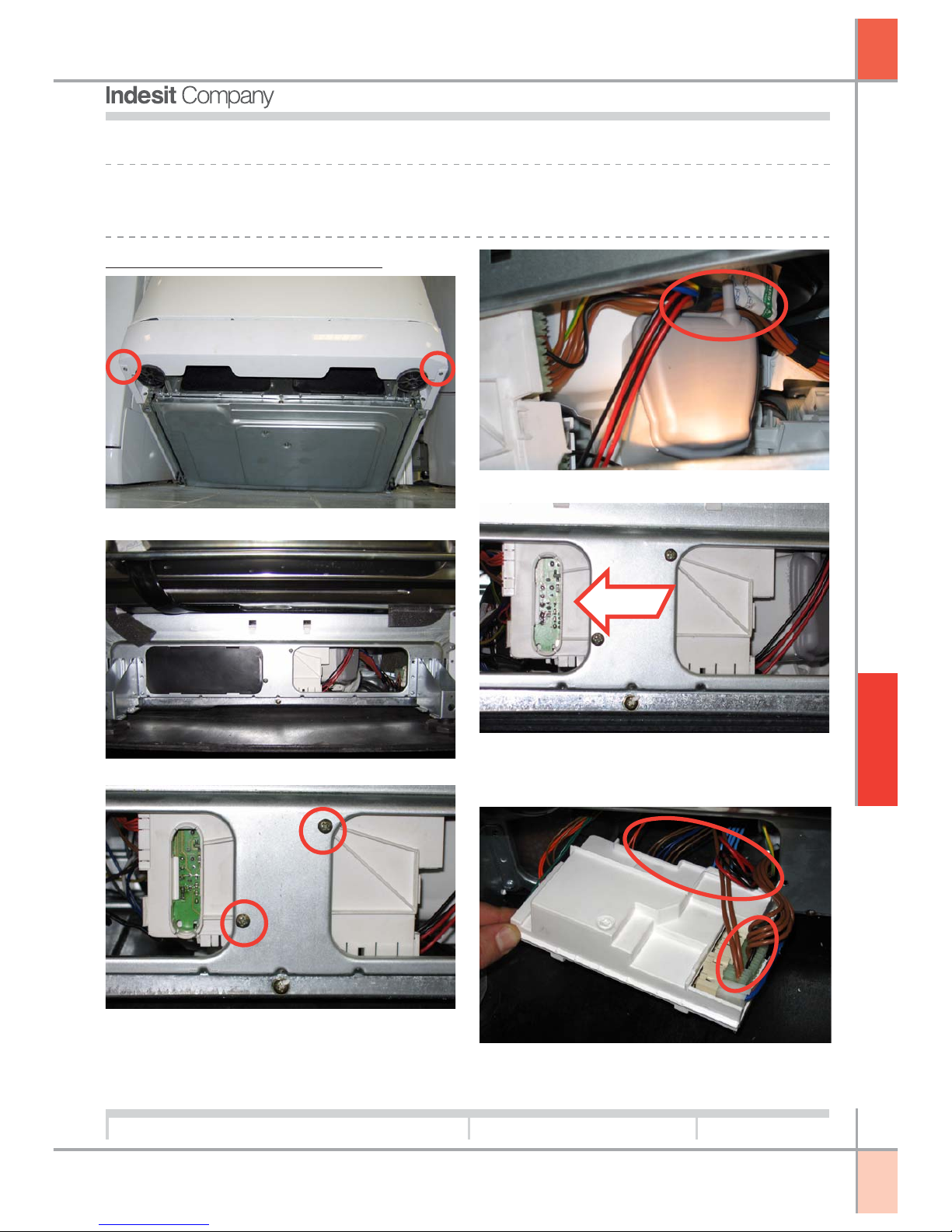

Assembly & Disassembly 20-21

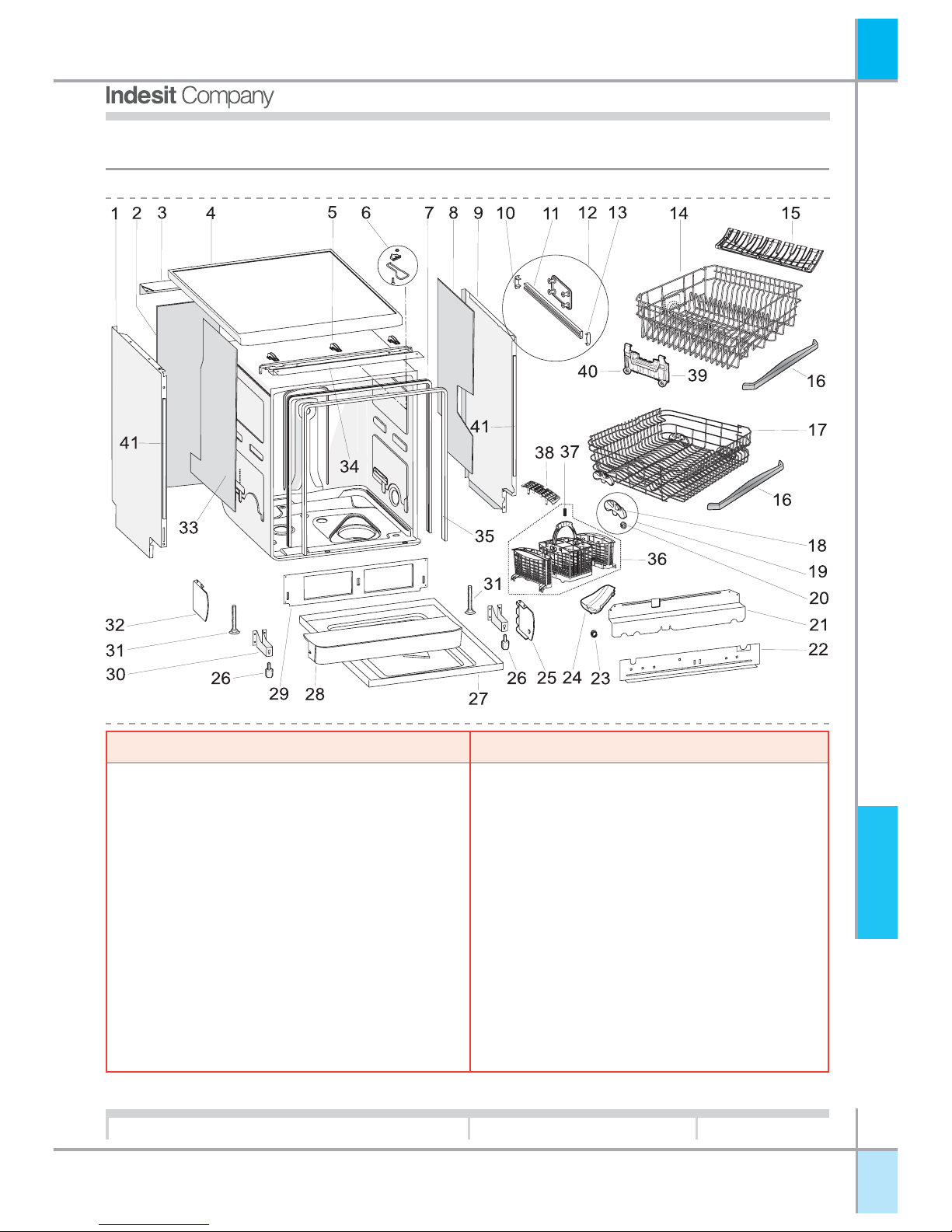

6. EXPLODED VIEW 22-25
7. APPENDIXES 26-28

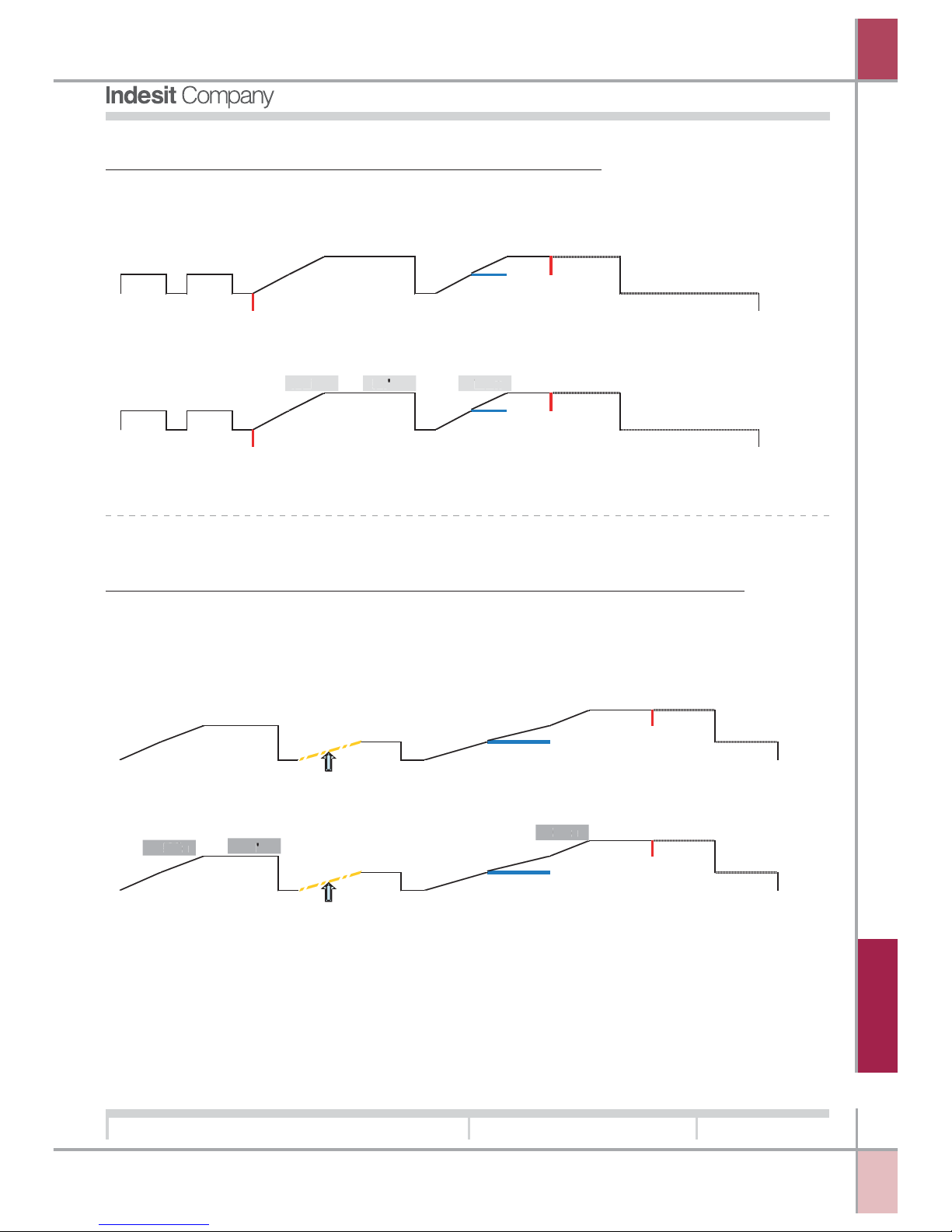

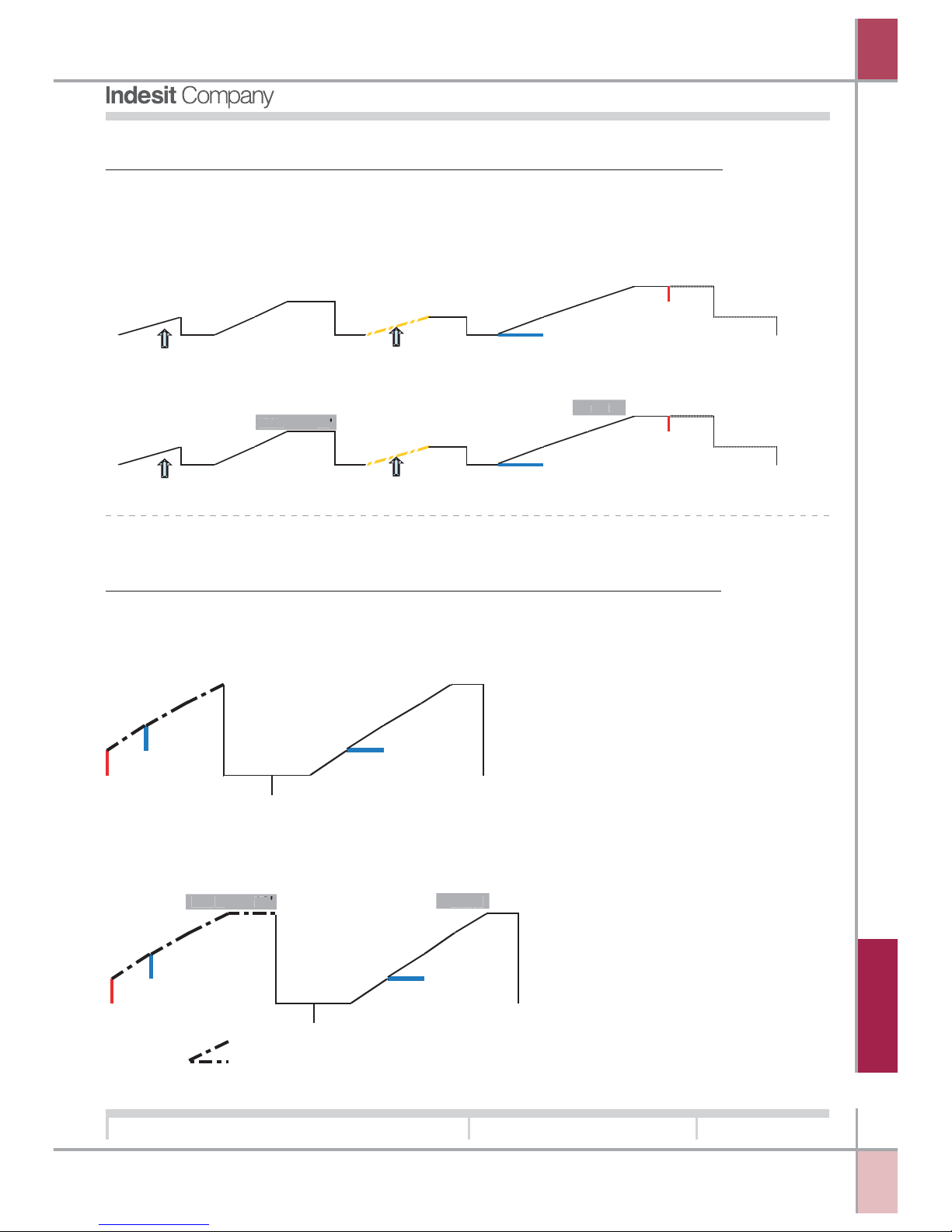

Wash diagrams 26-28
Service Manual
Seven Digit - 2005
Edition
2005.07.08
Language
English
3
Page 4
1. TYPOLOGY OF PRODUCT:
G
B
1.1. LEGEND:
Ariston: LF 70 IT - LF 70 X IT - LF 70 FR - LF 70 EU - LF 70 X EU
LL70XFR
Brand + Interface
L Knob
LL Led
LF Seven Digit
LD LCD
Hotpoint: FDW 70 P - FDW 70 T - FDW 70 G - FDW 75 A
FD
Dimension
F = Full
S = Slim
1.2. INTERFACE:
DW =Dish Washer Interface:
Dimensions:
4 45 cm
6 60 cm
7 Digit60 cm
W
Interface::Colour:
S Silver
IX Inox
Vuoto White
70P
4 Knob
6 Led
7 Digit
8 LCD
Country:
IT Italy
EU Europe
FR France
UK England
DE Germay
TK Turkey
SK Scandinavia
5 Alluminium
Colour:
S Silver
T Sandstone
G Graphite
A Alluminium
YPE
T
3d
3e3f3g
3h
3i
3l
3m
1
3c
3a
3b
1. STAND-BY button
2. PROGRAM selector (button)
3. DISPLAY
3a. PROGRAM led
3b. LACK OF RINSE AID led
3c. LACK OF SALT led
3d. PRE-WASH led
3e. WASH led
3f. RINSES led
3g. DRYING led
32
5
4
7
6
3h. CYCLE PROGRESS leds
3i. 4IN1 led
3l. HALF LOAD led
3m. DELAY TIMER led *
4. DELAY TIMER button*
5. UPPER HALF LOAD button
6. 4IN1 button
7. START/RESET button
Service Manual
Seven Digit - 2005
Edition
2005.07.08
Language
English
4
Page 5
1.3. TECHNICAL FEATURES:
G
B
YPE
T
MODEL: SEVEN DIGIT
Dimensions:
Width: 60 cm
Height: 85 cm
Depth: 60 cm
Water supply:
Maximum pressure: 10 bar
Minimum pressure: 0,5 bar
Power supply:
Tension: 220/230 Volt. (EU) - 230/240 Volt. (UK)
Maximum power absorbed: 2000 Watt.
Service Manual
Seven Digit - 2005
Edition
2005.07.08
Language
English
5
Page 6
1.3. ENERGY LABEL:
Energy
Dishwasher
G
B
YPE
T
Manufacturer
Model
More efficient
Less efficient
Energy consumption
(based on test results for manufacturer’s
standard cycle using coold fill)
Actual consumption will
depend on how the appliance is used
kWh/cycle
ARISTON
LF 70 X EU
A
1.05
Blands
Model
Energy class
Energy consumption Kw/h - normal
cycles
Cleaning performance
A: higher G: lower
Drying performance
A: higher G: lower
Standard place settings
Water consumption cycle
Noise
(dB (A) re 1 pW)
Further information is contained in product
brochures
Norm EN 60456
Washing machine label Directive 95/12/EC
Service Manual
Seven Digit - 2005
B C D E F G
A
B C D E F G
A
12
18
Wash class
Drying class
Max load Kg
Water volume (litres) - normal cycles
Edition
2005.07.08
Language
English
6
Page 7
2. FUNCTIONING:
2.1. PROGRAMS:
2.1.1. PROGRAM SETTING:
Procedura da eseguire:
To set a program, follow this procedure:
a. Select a program by pressing the relative button
until the number of the program chosen appears
on the display.
b. Select other eventual wash options.
c. Start the wash by pressing the START/RESET
button, the machine emits a beep to confirm the order.
REMARK: three acoustic signals and the word “END” on the display communicates the end of the wash
cycle.
G
B
PERATION
O
2.1.2. CHANGING A PROGRAM ALREADY SET:
If a program has mistakenly been selected, it is possible to change it, following this procedure:
a. To reset, press and hold START/RESET button
for 4 seconds, the machine emits one long beep
and three short beeps.
b. Follow the instruction to set a program.
Service Manual
Seven Digit - 2005
Edition
2005.07.08
Language
English
7
Page 8
2.1.3. PROGRAM TABLE:

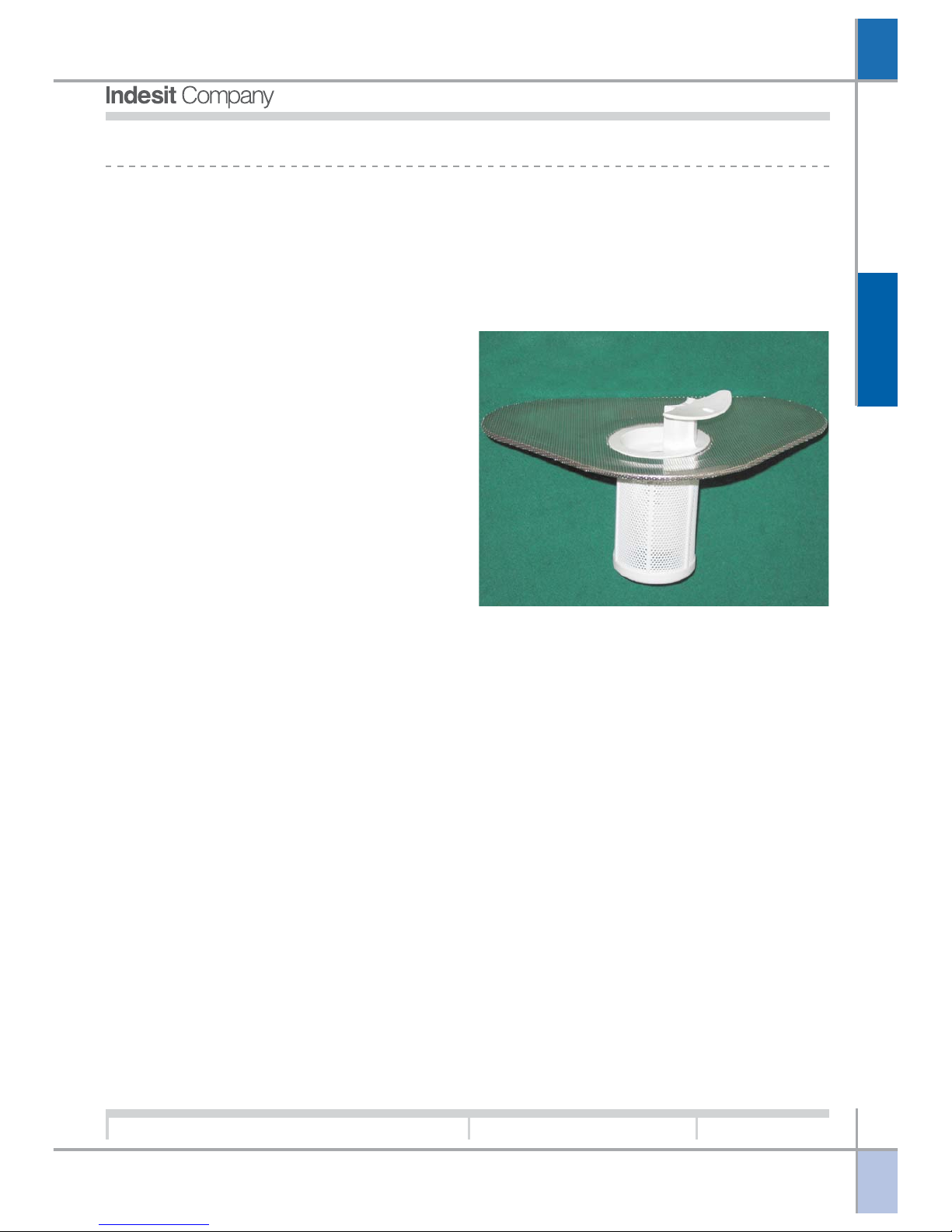

Ariston dishwashers are provided with an automatic system of filter cleaning, which could prolong the
duration of programs.
G
B
Indications to
choose programs
Normally dirty crockery
and pots. Daily standard
program.
An economical wash,
with low energy
consumption, suitable for
crockery and pots.
Very dirty crockery and
pots (suitable for delicate
pieces).
An economical and fast
cycle, suitable for not
very dirty crockery, to be
washed soon after their
use.
An economical and fast
cycle, suitable for delicate
crockery, which is more
sensitive to high
temperatures, soon after
their use.
Programs
Normal
Eco
Intensive
Fast
Stemware
Detergent
(A) = Wash dispenser
(B) = Pre-wash dispenser
powder liquid tablets
30 gr (A) 30 ml (A) 1 (A) • 88'
25 gr (A)
5 gr (B)
30 gr (A)
5 gr (B)
25 gr (A) 25 ml (A) - 24'
25 gr (A) 25 ml (A) 1 (A) • 96'
25 ml (A)
5 ml (B)
30 ml (A)
5 ml (B)
1 (A) • • 145'
1 (A)
(deep
1
dispenser)
Pre-wash Drying
• • 120'
Program
length
(degree of
tolerance + 10%)
PERATION
O
A hygienic cycle to wash
nursing-bottle, teats,
dishes, cups, glasses
and cutlery. Load all the
crockery on the upper
basket only.
Preliminary wash waiting
for the crockery used in
next meal to complete
the load.
Baby
Soaking
Remark
To facilitate the dosage of detergent, it is better to know that:
1 dessert-spoon = 15 gr. of powder = 15 ml of liquid ca.
1 tea-spoon = 5 gr. of powder = 5 ml of liquid ca.
Service Manual
Seven Digit - 2005
20 gr (A) 20 ml (A) - • 60'
12'
Edition
2005.07.08
Language
English
8
Page 9
2.2. FUNCTION SETTING:
DELAY TIMER:
It is possible to delay the start of a program from 1 to 24 hours:
1. Press DELAY TIMER button: at every pressure the display visualizes the time selected and the led
correspondent to the delay selected switches on.
2. Select a program and press START/RESET button: after a “beep”, the countdown begins;
3. When the time is expired, the program starts.
To change the delay and select a shorter time, press DELAY TIMER button. To reset it, press the button
many times until the CYCLE PROGRESS led, relative to the program selected, switches on.
HALF LOAD on the upper basket:
It is used when there are few dishes to be washed to save water, energy, detergent. Before selecting a
program, press HALF LOAD button; the relative LED switches on and the wash cycle starts on the upper
basket only. Halve detergent quantity.
G
B
PERATION
O
It is advisable to use powder detergents.
This function is not compatible with BABY and FAST programs.
4 in 1 option:
To use multifunction tablets (2 in 1, 3 in 1, 4 in 1), press “4 in 1” button. This function increases the total time
of a program of about 10/15 minutes.
This button is not compatible with the following programs: FAST, SOAKING, BABY.
Service Manual
Seven Digit - 2005
Edition
2005.07.08
Language
English
9
Page 10
2.3. NEW PROGRAMS:
Program no. 4 - FAST:
It is like the traditional FAST program, but it does not accept the HALF LOAD and “4 in 1” functions, to
assure detergent melting.
Program no. 6 - BABY:
Seven Digit dishwasher has a new program, called “BABY”; it is a hygienic cycle to wash nursing-bottle,
teats, dishes, cups, glasses, cutlery and all things used by children
The handbook recommends to load crockery on the upper basket, but it is important to know that this cycle
puts on both the basket and it is not compatible with Half Load function. It is advisable to use the upper
basket because of the lower pressure of its wash arm, avoiding that the small and light cutlery used for
children are expelled from the basket.
This program can not be used with multifunction tablets (it does not accept “4 in 1” function) and does not
supply rinse aid.
.
G
B
PERATION
O
4 in 1 option:
It allows the use of multifunction tablets.
The option 4 in 1:
• Does not restrain salt or rinse aid pilot light.
• Does not restrain the supply of rinse aid.
• Does not restrain the regeneration of the resins
During the wash phase:
• It warms water up to reach a temperature of 55°C (in intensive level it reaches a temperature of 63°C).
• The wash cycle is lengthened of 10 minutes (except the intensive).
The hot rinse provides:
• Warm up to 70°C (except for stemware).
• The intensive cycle does not change in the wash phase but selecting the “4 in 1” option modifies only the
hot rinse (it reaches 70°C).
• In the Stemware cycle the “4 in 1” option increases the temperature of the hot rinse from 65°C to 68°C;
the Stemware Cycle does not reach 70°C in order to protect crystal glasses from corrosion (the wash
phase changes like the other cycles).
• The duration of the cycles, after the selection of “4 in 1” option, changes from 12 to 15 minutes.
• The water softener is adjusted to Minimum position; this setting allows a salt consumption equal to 25
gr./cycle.
REMARK: In appendix no. 1 are schematized the present standard features and the ones modified to
permit the selection of “4 in 1” function.
Service Manual
Seven Digit - 2005
Edition
2005.07.08
Language
English
10
Page 11
2.3. OTHER INNOVATIONS:
G
B
-- The electronics of this appliance permits the
board RESET without unplugging the machine.
To reset the appliance, press Power On + P
buttons simultaneously for 5 seconds ca. Now the
electronic board is reset.
- Choosing Half Load option, when the machine
supplies detergent, both the wash-arms run to
check the eventual presence of filters clogged and
to melt the detergent.
- To prevent an erroneous signalling the following
modification has been introduced on this platform:
if the machine does not warm up, before signalling
any problem in the heating circuit, it performs a
control on the pressure switch. If the pressure
switch is in “empty” position, the machine
communicates “FILTER CLOGGED” fault,
otherwise it communicates “PROBLEMS ON
HEATING CIRCUIT” fault.
PERATION
O
Service Manual
Seven Digit - 2005
Edition
2005.07.08
Language
English
11
Page 12
3. COMPONENTS:

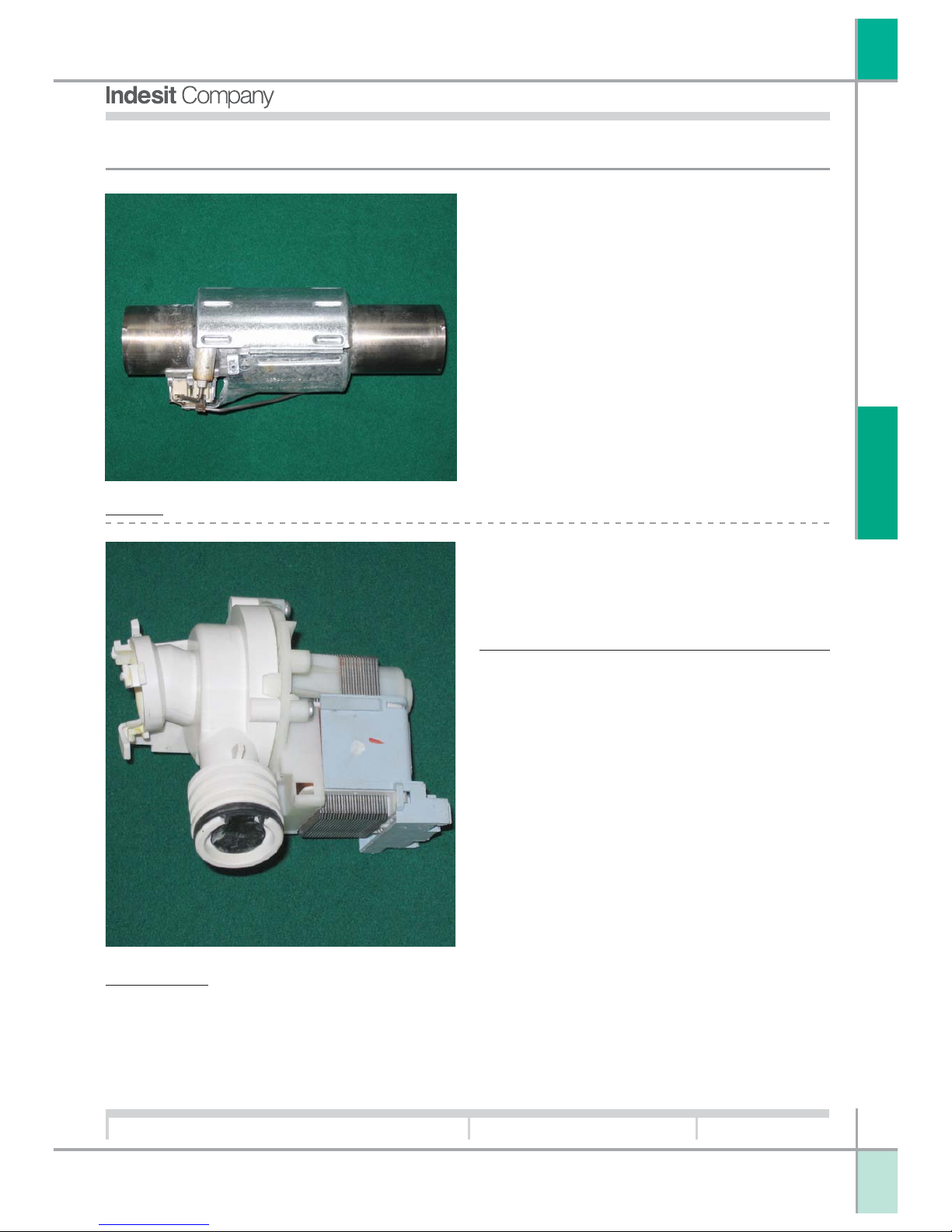

The new heater is 1800 Watt - powered (the old one:
2040 Watt) and operates at a tension equal to 230
Volt and 7,8 Amp, at a resistance equal to 29,4 Ohm.
G
B
Heater
OMPONENTS
C
Moreover the pump is shielded by an automaticrestoration thermal protector, which operates in case
of overheating or blockage of the pump.
There are two types of thermal protector:
15AM211 A on 150° ± 5°C
off 105° ± 15°C
placed in the middle of the coil
7AMO31AS on 120° ± 5°C
off 76° ± 15°C
next to the coil
Drain pump
The drain pump in this machine is connected
independently from the wash motor (the previous
machines had a series connection).
Service Manual
Seven Digit - 2005
Edition
2005.07.06
Language
English
12
Page 13

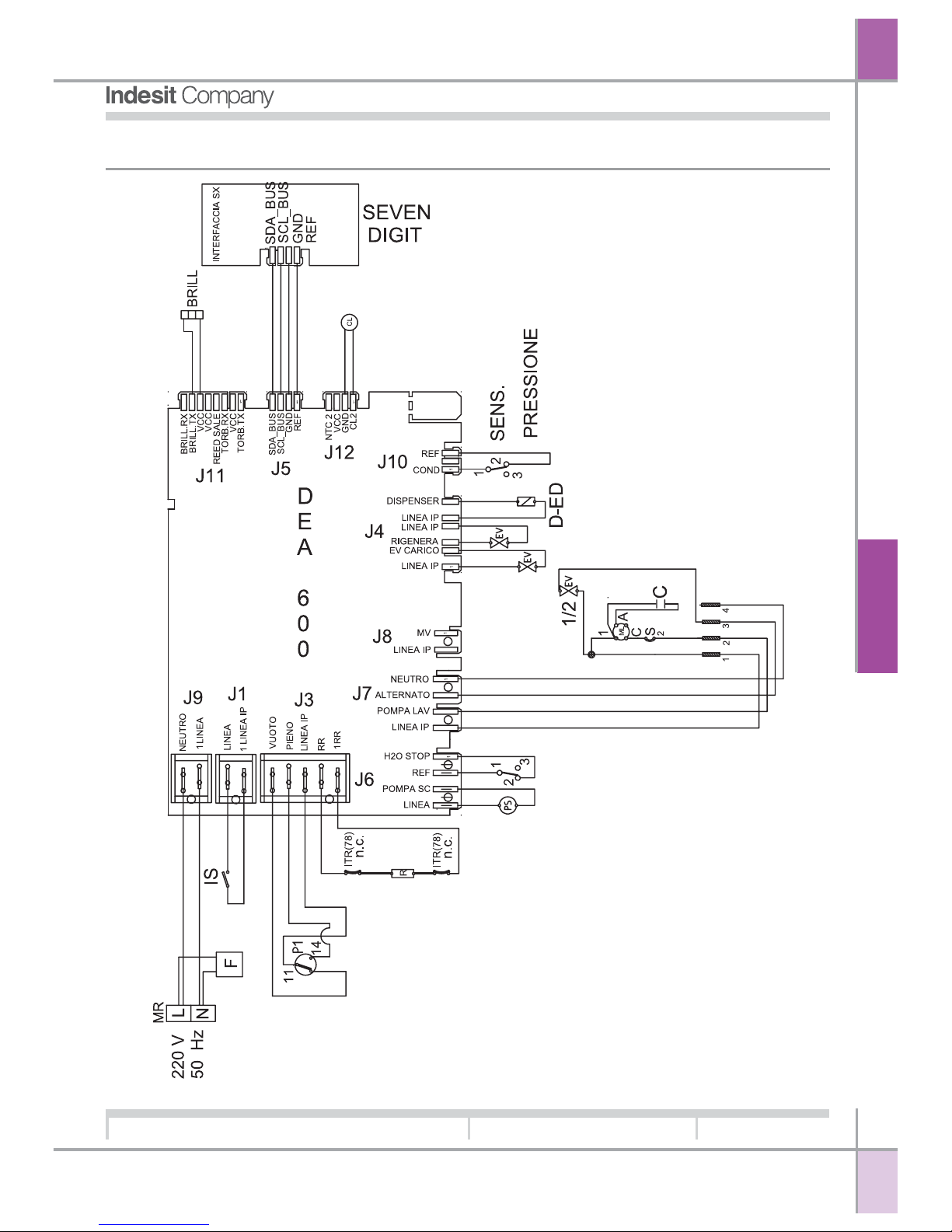

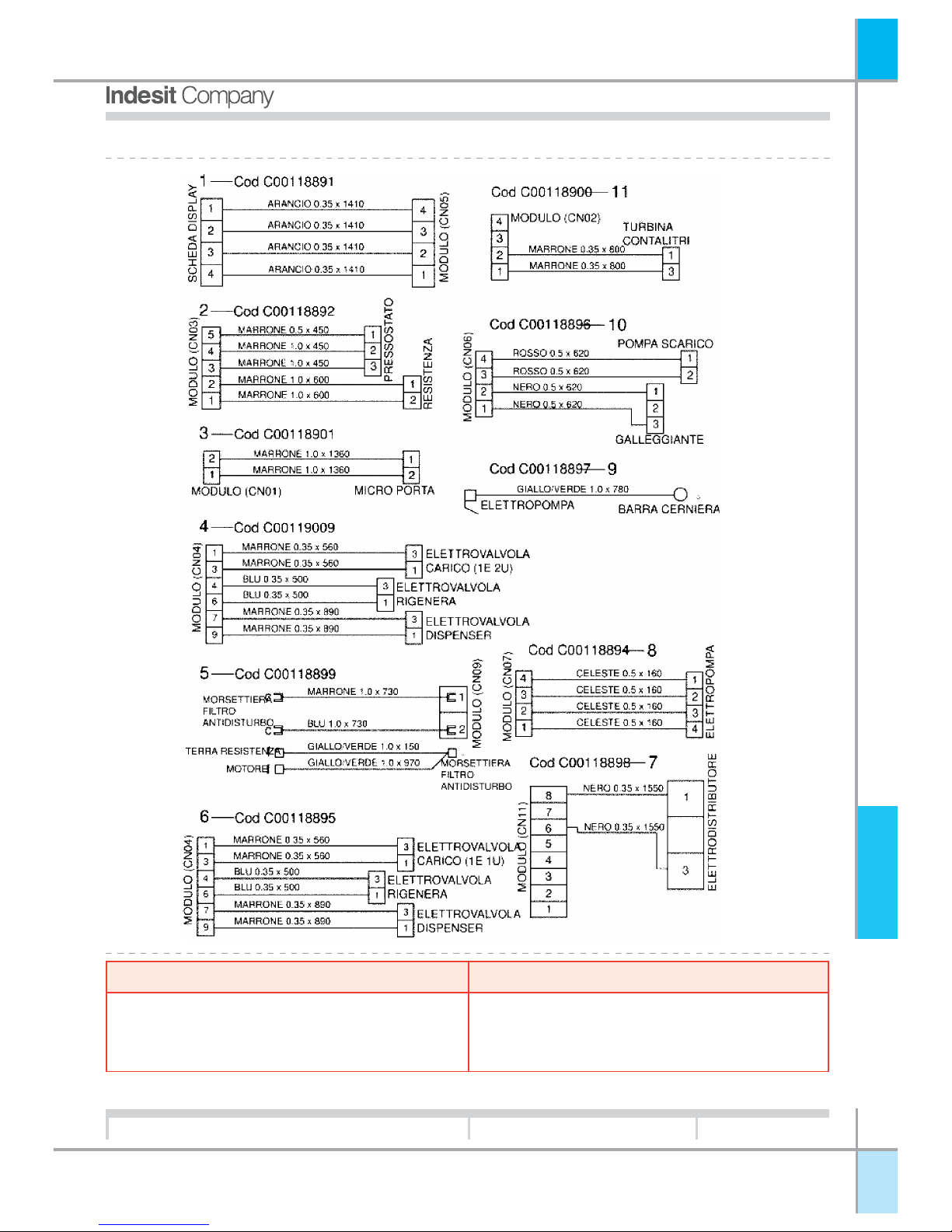

4. WIRING DIAGRAMS AND CONNECTIONS:
G
B
IAGRAMS
D
IRING
W
Service Manual
Seven Digit - 2005
Edition
2005.07.08
Language
English
13
Page 14
5. TECHNICAL ASSISTANCE:
5.1. DEMO MODE:
Seven Digit washing machine is provided with the Demo Mode function. To select it, press and hold Power
On + Start + Delay simultaneously for 5 seconds, with the machine on; the display shows the message
“dOn” to confirm that the function has been selected.
To deselect it, press Start/Reset and Power On simultaneously for 3 seconds; the display shows the
message “dOF” to confirm the de-selection of the function.
G
B
5.2. AUTO TEST:
To start Auto Test, follow this procedure:
1. Switch on the dw, choose program no. 1, switch it off.
2. Switch on the dw, choose program no. 2, switch it off.
3. Switch on the dw, the display will be off to indicate that the function has been selected.
Choose program no. 2 and press Start to start Auto Test SAT (program no. 1 starts the ROD testing, used in
the factory to test the product).
SSISTANCE
A
Service Manual
Seven Digit - 2005
Edition
2005.07.08
Language
English
14
Page 15
5.3. ROD AND SAT TESTING CYCLE:
1. START OF A LONG TESTING CYCLE
2. Drain V + 0 sec.
3. Reading of turbidity sensor and pressure switch in empty state.
3.1. If it read a max turbidity value (clean, connected), it turns on the Rinse Aid led up to the end of
the cycle.
3.2. If it read a min turbidity value (unclean, disconnected), it turns off the Rinse Aid led up to the end
of the cycle.
- If Rinse Aid led remains off, the turbidity sensor does not work or it is disconnected. Probable
defects: faulty or disconnected turbidity sensor, dirty optical tube, faulty/disconnected Rinse Aid
led.
4. Salt led switches on simultaneously to Rinse Aid led (up to the end of the cycle)
- If the Salt led remains off, it does not work
Probable defect: disconnected Salt led, faulty connection.
5. TURBINE-filling of 2 litres, in static phase + (searching of alternated wash position, washing up + down).
- if the Timer does not receive any signal from the turbine, but water is filling the tank, once reached
F static (1,2litri), it activates the wash motor and fills up to reach the F dynamic pressure switch,
for a max time of 153 sec. from the activation of the solenoid valve.
Probable defect: faulty or disconnected turbine.
6. Pause of 10 seconds, checking of HIGH PRESSURE sensor, (it must be off, stand-by position).
- If H.P. sensor is on, the dw is in filter cleaning alarm.
Probable defect: faulty or disconnected H.P.
7. WASH MOTOR activation.
8. TURBINE-filling of 2 litres, in dynamic phase (total 4 lt), (wash motor on).
9. I Checking pressure switch state (V - P), (wash motor on)
9.1. If it is in F (full), filling phase is finished, the dw only washes
9.2. If it is in E (empty), it fills and wash up to reach F pressure switch or a max quantity equal to 8 lt,
- If at 8 lt the pressure switch has not still reached F state, the dw is in filter cleaning alarm.
Probable defect: faulty pressure switch, cables disconnected/inverted.
10. WASH MOTOR on, 1 minute of preparation to filling.
- In case it fills a quantity higher than 8 litres, the dw is in filter cleaning
Probable defect: faulty pressure switch, cables disconnected/inverted.
11. Activation of WASH MOTOR, HEATER, ELECTRO-DISPENSER, (washing up/down) 20".
12. Checking of HIGH PRESSURE sensor 5sec. (it must be on).
- If high pressure sensor is off, the dw is in filter cleaning alarm.
Probable defect: faulty HP sensor - DECANTER spout clogged.
13. WASH + HEATING 1 minute
14. If the dw has selected Half Load, see point 15.
- If the dw has selected the alternated wash, see point 16
15. Section about the control of dw with Half Load (no alternated wash)
15.1 Deactivation of wash pump
G
B
SSISTANCE
A
Service Manual
Seven Digit - 2005
Edition
2005.07.08
Language
English
15
Page 16
15.2 Activation of Half Load solenoid valve
15.3 Activation of wash pump - 90 seconds
15.4 Checking the state of HIGH PRESSURE sensor 15", (washing only on the upper
basket) (it must be off)
- If high pressure sensor is on, Half Load solenoid valve does not work, the dw is in filter cleaning
alarm
Probable defect: faulty Half Load solenoid valve, cables disconnected
15.5 Deactivation of wash pump and Half Load solenoid valve
15.6 See point 17.
16. Section about the control of dw with Alternated Wash (no Half Load)
16.1 Deactivation of wash pump
16.2 Activation of wash motor and heater
16.3 Searching Alternated Wash position (washing only on the upper basket for 90 seconds)
16.4 Checking the state of HIGH PRESSURE sensor 15", (washing only on the upper basket) (it must
be off).
- If high pressure sensor is on, the Alternated Wash does not work, the dw is in filter cleaning
alarm.
Probable defect: faulty Alternated Wash dispenser, cables inverted/disconnected.
16.5 Deactivation of wash pump
16.6 Searching Alternated Wash position (washing up + down)
16.7 See point 17.
17. Heating up to 55°C.
- If pressure switch does not reach empty state within a max time of 4 minutes, the dw goes in drain
time-out .
Probable defect: faulty/disconnected pump, faulty pressure switch /cables inverted.
18. Drain V +15"
- If pressure switch does not reach empty state within a max time of 4 minutes, the dw goes in drain
time-out
Probable defect: faulty/disconnected pump, faulty pressure switch /cables inverted
19. ....START OF SHORT TESTING CYCLE...... CONTINUATION OF LONG TESTING CYCLE...
20. TURBINE-filling of 3 litres, in static phase.
- If the turbine does not send a signal to the timer, but water fills the tank, reached the static F
pressure switch (1,2litri), it activates the wash motor and loads up to reach dynamic F pressure switch, during a max time of 153 sec. from solenoid valve activation.
Probable defect: faulty/disconnected turbine
21. WASH MOTOR activation.
22. TURBINE-filling of 1 litres, in dynamic phase (total 4 lt).
23. Checking pressure switch state (V - P), (wash motor on).
23.1 If it is in F (full), it does not load anymore.
23.2 If it is in E (empty), it loads up to reach F pressure switch or a max quantity of 6 litres.
- If at 6 lt the pressure switch has not still reached F state, the dw is in filter cleaning alarm.
Probable defect: faulty pressure switch, cables disconnected/inverted.
G
B
SSISTANCE
A
Service Manual
Seven Digit - 2005
Edition
2005.07.08
Language
English
16
Page 17
24. WASH MOTOR on, 1 minute of preparation to filling.
- In case it fills a quantity higher than 6 litres, the dw is in filter cleaning
Probable defect: faulty pressure switch, cables disconnected/inverted.
25. Activation 10"sec. of HEATER
26. Activation 10"sec. of ELECTRO-DISPENSER
27. Activation 10"sec. of WASH MOTOR
28. Activation 15"sec. of REGENERATION SOLENOID VALVE
29. Activation V +5"sec. of DRAIN PUMP (V+5" = Empty pressure switch reached + 5 seconds)
- If pressure switch does not reach empty state within a max time of 4 minutes, the dw goes in drain
time-out
Probable defect: faulty/disconnected pump, faulty pressure switch /cables inverted
30. Activation 10"sec. of MOTOR_FAN (if it is present, or there is a pause).
31. Activation 20"sec. of LOADING SOLENOID VALVE + DRAIN PUMP.
32. “Beep” emission, two leds flashes to signal the END OF THE CYCLE.
REMARK: The testing cycle must completely reset as wash cycle does.
G
B
Service Manual
Seven Digit - 2005
Edition
2005.07.08
Language
English
SSISTANCE
A
17
Page 18

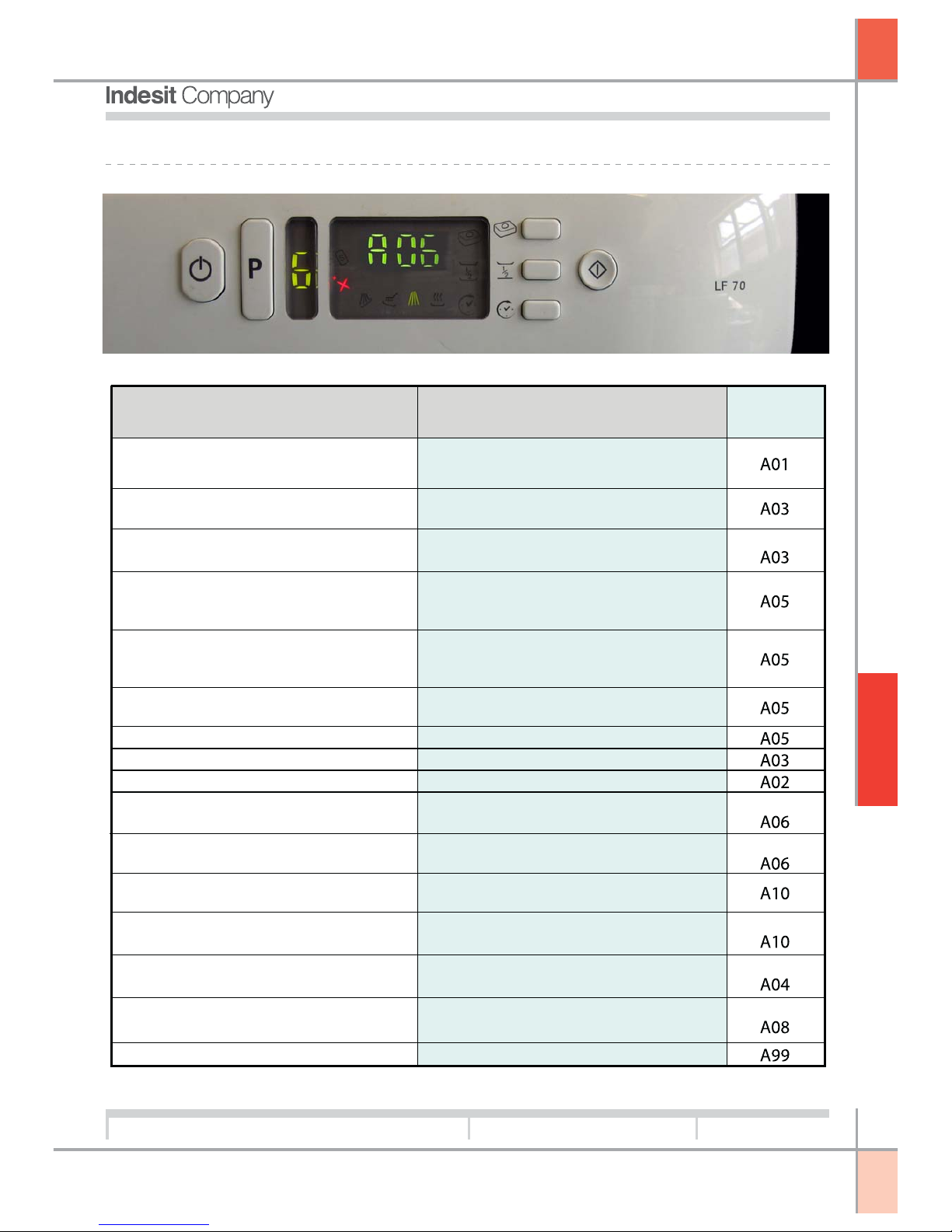

5.3. FAULT ANALISYS AND SOLUTIONS:
POSSIBLE FAULT ALARM ALARM
G
B
Leakage from the hydraulic system (dw
equipped with turbidity sensor, check if red/black
terminals on the connector are shock-circuited)
Faulty drain pump, wires detached or false
contact, drain tube clogged, faulty timer.
Wires detached, faulty drain pump, timer triac
broken.
Wires disconnected or inverted on the
connector or motor or timer, wash motor with
faulty auxiliary start, timer triac broken
Condenser wires detached, faulty/shortcircuited condenser
Drain tube wrongly positioned, outlet too low.
Strap, filter, micro-filter clogged.
Timer not programmed - Wrong keyboard
Faulty SV.
Water tap off, faulty sv, sv wires detached.
Wires disconnected, faulty sv, timer triac broken.
Wires disconnected on timer/heater, faulty
timer, ITR interrupted
OVERFLOW (water leakage/overflow in basin)
(9 sec.)
Max time to reach drain (4 min.; empty pressure
switch) exceeded
Unconformable electrical connection circuit on
DRAIN PUMP (4 min)
Unconformable electrical connection circuit on
PRIMARY STARTER WASH MOTOR
Unconformable electrical connection circuit on
AUXILIARY STARTER WASH MOTOR
Empty PRESSURE SWITCH during wash
phase
Filters clogged
SOFTWARE recognition error
SV broken
Max time (90 sec.) for turbine rotation and full
pressure switch exceeded.
Unconformable electric circuit of LOADING
SOLENOID VALVE (90 sec.)
HEATER RELAY open (9 sec.)
SSISTANCE
A
Heater circuit wires disconnected, faulty timer
relay, heater ITR not calibrated.
Replace timer (faulty NTC).
NTC band detached from its housing or not
calibrated.
Problems on wiring or timer
Service Manual
Seven Digit - 2005
Unconformable HEATER CIRCUIT (9 sec.)
Unconformable THERMISTOR (NTC) CIRCUIT
(no continuity) (9 sec.)
Max time to reach washing phase °T exceeded
(60 min)
No communication
Edition
2005.07.08
Language
English
18
Page 19
5.4. TROUBLE SHOOTING:
G
B
PROBLEM
It does not switch on
It does not fill itself with water
It continuously fills itself with water
The motor does not run
It does not drain
It does not wash well
Loss of current
ANALISYS
- Check the socket.
- Verify if the door closes the safety switch.
- Door micro door-lock
- Display board
- Tap closed or low pressure
- Solenoid valve clogged
- Solenoid valve not supplied
- Solenoid valve broken
- Check motor winding
- Motor terminal box or board
- The motor is not under tension
- Check drain pump
- Drain pump blocked
- Check drain pump tension
- Check wall-drain
- Lack of detergent
- The program is not the right one
- Check earth drain
- Anti-noise filter
Service Manual
Seven Digit - 2005
Edition
2005.07.08
Language
English
SSISTANCE
A
19
Page 20
5.4 ASSEMBLY/DISASSEMBLY:
Demounting the machine, its functional components are the same, therefore we are documenting only the
components which have been modified in their characteristics or in their position inside the machine.
Disassembly of the Main board:
5. Disconnect the cable under the motor room.
G
B
1. Remove two screws fixing the plinth.
2. Remove the plinth.
6. Make the board slide leftwards.
7. Make it go out from the hole on the left.
SSISTANCE
A
3. Using a flat type screwdriver, remove two plastic
cover protecting the motor room.
4. Remove two screws fixing the main board.
Service Manual
Seven Digit - 2005
8. Detach connectors.
Edition
2005.07.08
Language
English
20
Page 21

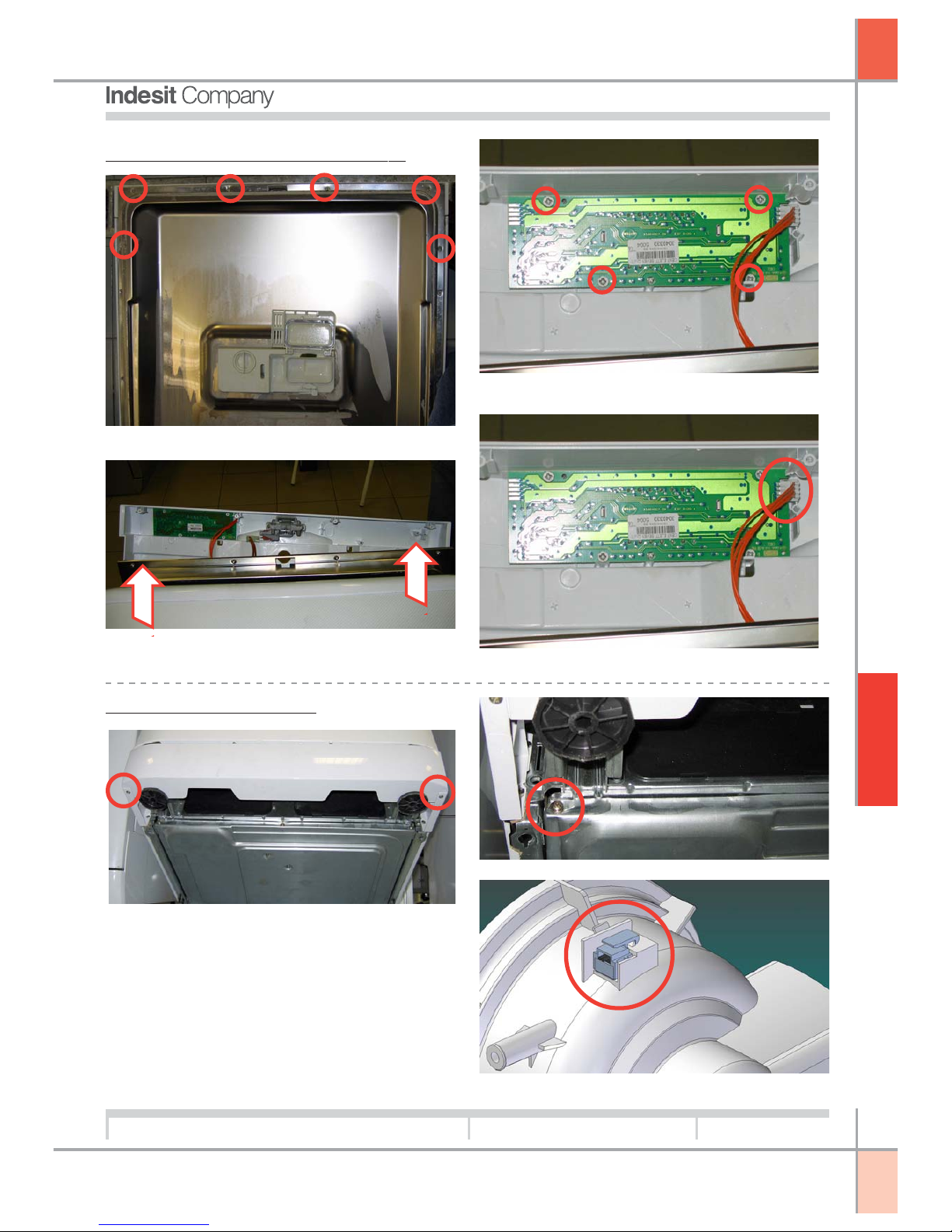

Disassembly of the Display board:
1. Remove the screws around the front panel.
3. Remove two screws fixing the main board.
G
B
2. Unfasten the front panel by pulling it forward
carefully.
Disassembly of the NTC
1. Remove two screws fixing the plinth.
2. Remove the plinth.
3. Remove two screws fixing the sump.
4. Remove the sump.
5. Detach NTC support.
6. Pull out the NTC.
4. Disconnect the cable.
SSISTANCE
A
Service Manual
Seven Digit - 2005
Edition
2005.07.08
Language
English
21
Page 22
6. EXPLODED VIEW:
Cabinet.
G
B
Ref. Item
000 HANDBOOK IT-EN-FR-ES
001 LEFT SIDE PANEL WHITE 27
002 BACK PANEL POLIONDA
003 BACK UPPER SUPPORT ‘LS COM’
004 WHITE TOP EVO3
005 PLUG TO FASTEN SHELF
006 PLUG TO FASTEN ROCKING ARM
007 DOOR GASKET BIMESCOLA
008 RIGHT-SIDE SOUND-ABSORBER
009 RIGHT SIDE PANEL WHITE 27
010 BACK STOPPER BASKET SLIDE EVO3
011 UPPER BASKET SLIDE EVO3
012 PLATE/RAIL ASSY UPPER BASKET
012 CONVEX WHITE EXTERNAL DOOR EVO3
013 FRONT STOPPER BASKET SLIDE EVO3
014 ADJUSTABLE UPPER BASKET ASSY MARKII
015 BLUE FLAP UPPER BASKET EVO3
015 BLUE FLAP BABY CYCLE
015 PINK FLAP BABY CYCLE
016 BASKET HANDLE EVO3
017 LOWER BASKET ASSY EVO3
018 WHEEL BODY LOWER BASKET
019 WHEEL ASSY LOWER BASKET
Service Manual
Seven Digit - 2005
Ref. Item
020 LOWER BASKET WHEEL
021 INTERMEDIATE UPPER SUPPORT
022 UPPER LOWER CROSSBAR ACQUASTOP
023 STOPPER DRAIN TUBE ‘LVS 2000’
024 DEW BASIN INLET TUBE
025 PAD WHITE RIGHT PLINTH EVO3
026 ADJUSTABLE SHAKING-PROOF FOOT
027 TANK BOTTOM BASIN 60CM
028 CONVEX WHITE PLINTH EVO3
029 FRONT LOWER CROSSBAR 60CM NPE
030 FOOT HOLDER TYPE X ‘LVS2000’
031 FOOT 155MM LVS EVIZZATE
032 PAD WHITE LEFT PLINTH EVO3
033 LEFT-SIDE SOUND-ABSORBER
034 FRONT UPPER CROSSBAR
035 FRAME TANK GASKET SUPPORT 60CM
036 COVER FRONT SUPPORT ‘LVS2000’
037 CUTLERY BASKET ASSY ARISTON EVO3
039 GRILL CUTLERY BASKET NEW
040 HANDLE BASKET REGULATION EVO3 ‘NUOVA’
041 UPPER BASKET WHEEL EVO3
042 SIDE SPONGE DOOR L.I.
Edition
2005.07.08
Language
English
XPLODED VIEWS
E
22
Page 23
EXTERNAL DUCT ASSEMBLY.
G
B
Ref. Item
001 EXTERNAL DUCT ASSY (HIDDEN HEATER) EVO3
002 CAP BASKET SLIDE ‘LVS 2000’
003 RING NUT FIXING EXT. DUCT UPPER WASH ARM
004 SUPPLY DISPENSER ASSY EVO3
005 INNER DUCT EVO3
006 GASKET UPPER SPRAYER
007 UPPER BENT SPRAYER ASSY
009 INLET TUBE ACQUASTOP L=1470M
010 SUPPLY CABLE SCHUKO+FILTRO ANTID.
011 CENTRAL FILTER ‘LVS2000’
012 EXTRACTABLE FILTER INOX ‘LVS2000’
013 CYLINDRICAL PLASTIC FILTER
014 POLYESTER MICRO-FILTER
015 RING NUT FIXING SET SUMP ‘LVS2000’
016 DRAIN PUMP V220-240 50HZ EVO3
017 DRAIN PUMP ‘LVS2000’
018 FLOAT SUPPORT OVERFLOW
019 MICRO-SWITCH ACQUASTOP
020 OVERFLOW FLOAT
021 TUBE CLIP PRESSURE SWITCH EVO3
022 PRESSURE SWITCH TUBE LVS EVO3
023 PRESSURE SWITCH 90 71 EVO3
024 ADJUSTABLE WATER SOFTENER EVO3
025 NOZZLE GASKET ‘(LVS/89)’
026 RING NUT SALT ‘NEW ARISTELLA’
027 CAP SALT ‘NEW ARISTELLA’
028 FUNNEL SALT
029 RING GASKET FOR DOUBLE SOLENOID VALVE
Service Manual
Seven Digit - 2005
Ref. Item
029 DOUBLE SOLENOID VALVE EVO3
030 COVER DOUBLE SOLENOID VALVE
033 HALF LOAD SOLENOID VALVE ‘LVS2000’
034 FEMALE SCREW ASSY ‘LVS 2000’
035 ELECTRO-PUMP 1/2CAR. V220 75W-P24
036 SPRING MOTOR SUSPENSION
037 TUBE WATER SOFTENER/CUP L.480MM ‘LVS2000’
038 TUBE SOLENOID VALVE/AIR-BREAK L=850
039 CONNECTOR BASIN OVERFLOW EVO3
040 CONNECTOR GASKET OVERFLOW
041 OVERFLOW BODY EVO3
042 GASKET OR (23,81X2,62) ‘LVS2000’
044 SLEEVE MOTORE UNIT
045 HIGH PRESSURE SENSOR ASSY
046 RING NUT LOWER BASE SUPPORT
047 SUPPORT LOWER MANIFOLD ‘LVS2000’
048 SUPPORT HEATER SLEEVE
049 SLEEVE HEATER MOTOR
050 WASH HEATER W1800 45CM
051 LOWER PLASTIC WASH-ARM 60CM EVO3
052 RING NUT AIR DUCT BODY ‘LVS2000’
053 AIR-BREAK + TURBINE EVO3
099 GREASE KIT AMBLIG.Q.A 1 GR.
099 BAND ELECTRO-PUMP FEMALE SCREW
099 BAND HIDDEN HEATER
099 BAND HYDRAULIC TUBES 2 CABLES
099 BAND SOLENOID VALVES EVO3
Edition
2005.07.08
Language
English
XPLODED VIEWS
E
23
Page 24
DRUM ASSEMBLY.
G
B
Ref. Item
001 INNER DOOR ASSY L.I. MARKII
004 ELECTR. DETERGENT + RINSE AID REED
005 MICRO-SWITCH LOCK UNIT
006 LOCK UNIT DOOR EVO3
007 START BUTTON WHITE 27
008 DISPLAY BOARD SEVEN DIGIT
009 ON-OFF BUTTON WHITE 27
010 FRONT PANEL WHITE 27 SERIGRAPHED LF70IT
011 SOFT-TOUCH ASSY EVO3
014 RIGHT HINGE ITEM ‘LVS2000’
015 HINGE ASSY ‘LVS EVO3’
Service Manual
Seven Digit - 2005
Ref. Item
017 RING NUT HINGE PIN LVS2000 D=6MM
018 HINGE PIN ‘LS615ST’
019 LEFT HINGE ITEM ‘LVS2000’
020 DOOR SPRING EVO3
021 TUBE HINGE SPRING
022 FORK FASTENING DOOR SPRING
023 INNER SPACER CONVEZ DOOR NEW
024 INNER SOUND-ABSORBER DOOR EVO3
099 SCREW FOR CANOE KLIP
099 FIXING SCREW INNER DOOR/ FRONT PANEL
099 FIXING SCREW HOUSING/EXTERNAL DOOR
Edition
2005.07.08
Language
English
XPLODED VIEWS
E
24
Page 25
WIRING EXPLODED VIEW.
G
B
Ref. Item
001 DISPLAY-MODULE WIRING
002 MODULE-PRESSURE SWITCH-HEATER WIRING
003 MODULE-DOOR MICRO-SWITCH WIRING
004 MODULE-SOLENOID VALVE WIRING
005 MODULE-POWER SUPPLY-EARTH WIRING
Service Manual
Seven Digit - 2005
Ref. Item
007 MODULE-ELECTRO-DISPENSER WIRING
008 MODULE-ELECTRO-PUMP WIRING
009 ELECTRO-PUMP-HINGE BAR WIRING
010 MODULE-DRAIN PUMP-FLOAT WIRING
011 MODULE-TURBINE WIRING
Edition
2005.07.08
Language
English
XPLODED VIEWS
E
25
Page 26
7. APPENDIXES:
0
55°55°cc

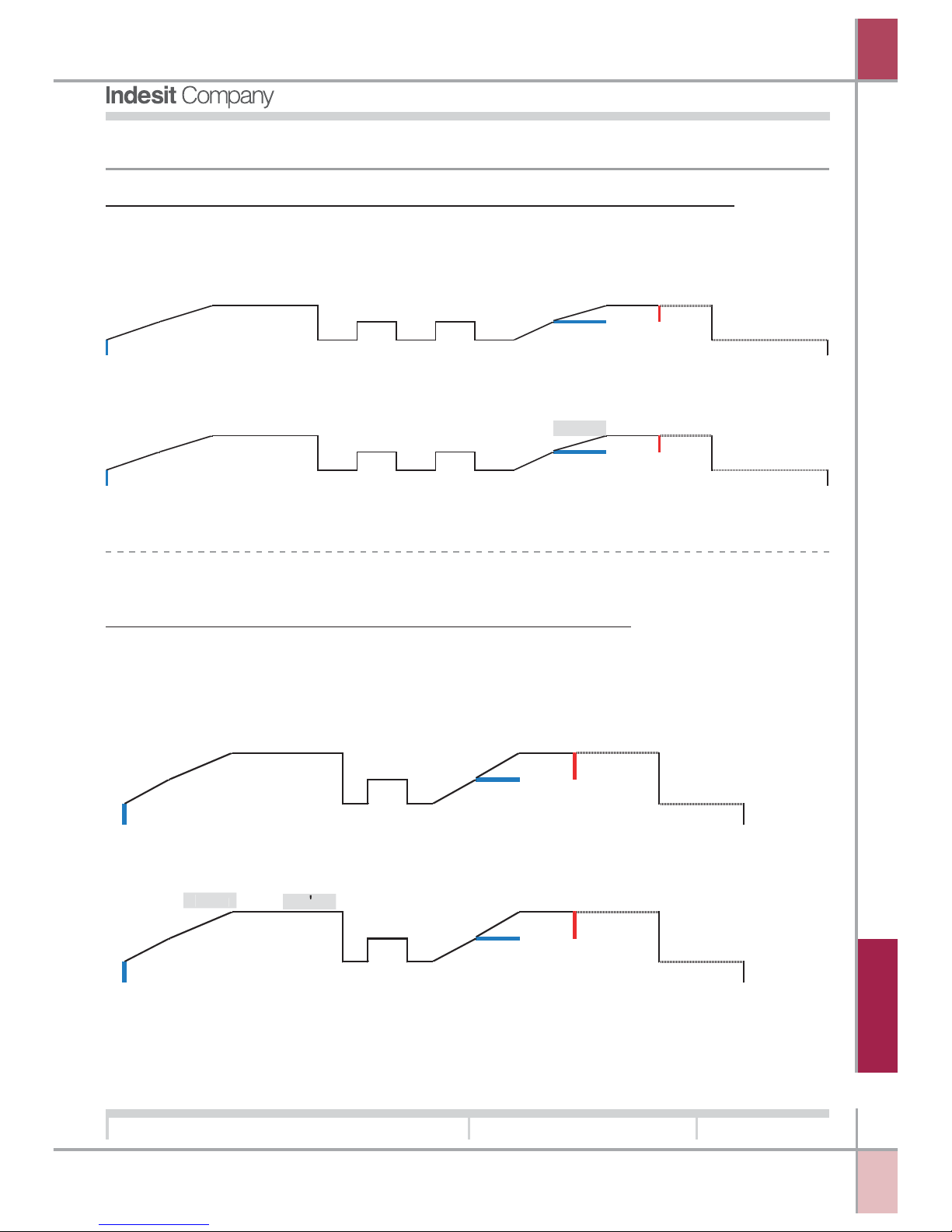

Difference between normal intensive program and “4 in 1” intensive one
Intensive
G
B
64°c
15' 2'+6' 2'+4' 6' 13' brill RIG.
2'+1' 2'
DET resine x4'
15'
66,5°c
5' asc.s/h2o x 5'
asc.s/h2o x 20'
“4 in 1” intensive
64°c
15' 2'+6' 2'+4' 6' brill RIG.
2'+1' 2'
DET resine x4'
15'
70°c
5' asc.s/h2o x 5'
asc.s/h2o x 20'
Difference between normal program and “4 in 1” normal one
Normal
52°c
10'
14' 2'+3' 7'
2'+1' 2'
DET resine 4'
70°c
12'
5' asc.c/h2o x 7'
brill
RIG.
asc.s/h2o x 5'
“4 in 1” normal
55°c
14' 2'+3' 7' brill.
2'+1' 2'
DET resine 4'
Service Manual
Seven Digit - 2005
202
20'
70°c
Edition
2005.07.06
5' asc.c/h2o x 7'
RIG.
asc.s/h2o x 5'
Language
English
PPENDIX
A
26
Page 27
55°55°CC303070°70°
cc
68°68°
cc
1515
55°55°cc
Difference between normal eco program and “4 in 1” one
Eco
G
B
48°c
18' 2'+4' 9' brill. RIG
2' 2'
apertura dispenser LP resine 4'
20' 67°C 5' asc.c/h2o x 5'
asc.s/h2o x 30'
“4 in 1” eco
55°C 30' 70°c
18' 2'+4' brill. RIG
2' 2'
apertura dispenser LP resine 4'
5' asc.c/h2o x 5'
asc.s/h2o x 30'
Difference between normal stemware program and “4 in 1” stemware one
Stemware
52°c
12'
2'+1' 2' 2'
5' 9' RIG
46.2°C
colpi di calore per 3'
6' 6' brill asc.s/h2o x20'c/vent
“4 in 1” stemware
55°c 15'
2'+1' 2' 2'
Service Manual
Seven Digit - 2005
46.2°C
colpi di calore per 3'
6' brill asc.s/h2o x20'c/vent
Edition
2005.07.06
65°c
68°c
5' asc. C/h2o x5'
resine5'
5' asc. C/h2o x5'
RIG
resine5'
Language
English
PPENDIX
A
27
Page 28
55°5
CC
70°70°
cc
55°55°
cc
Difference between normal Auto Duo Wash and “4 in 1”Auto Duo Wash
Auto Duo Wash
65°c
36°C+30''mant
1' 2'+1' 2'
6' colpi di calore per 3'
52°c
11'
5' 14' RIG
45°c
8' asc.s/h2o x20'c/vent
brill resine5'
4' asc. C/h2o x5'
“4 in 1” Auto Duo Wash
70°c
36°C+30''mant
1' 2'+1' 2'
6' colpi di calore per 3'
55°c 15'
11'
45°c
8' asc.s/h2o x20'c/vent
brill resine5'
4' asc. C/h2o x5'
RIG
G
B
Difference between normal Just You program and “4 in 1” Just You one
Just You
11'
1'
1' DET
RIG.
48°C 67°C
9'
50°C
brill
resine 4'
2'
“4 in 1”Just You
1'
1' DET
RIG.
55°C
5°
10'
50°C
resine 4'
brill
70°C
70°70°
2'
Half Load
PPENDIX
A
Service Manual
Seven Digit - 2005
Edition
2005.07.06
Language
English
28
Page 29
G
B
Indesit Company
viale Aristide Merloni, 47
60044 Fabriano - Italy
tel. +39 0732 66 11 - telex 560196 - fax +39 0732 66 2954 - www.indesitcompany.com
Service Manual
Seven Digit - 2005
Edition
2005.07.08
Language
English
Loading...
