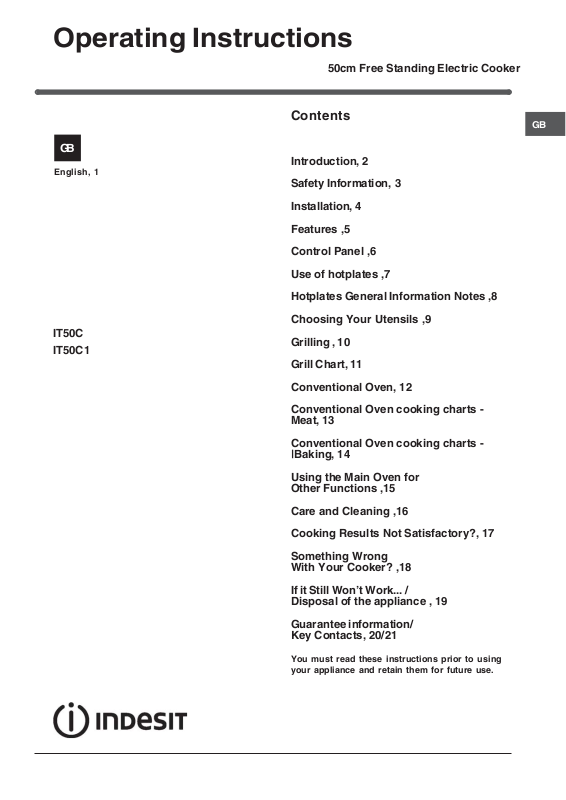

Operating Instructions
50cm Free Standing Electric Cooker
GB
English, 1
IT50C
IT50C1
Contents
GB
Introduction, 2
Safety Information, 3
Installation, 4
Features ,5
Control Panel ,6
Use of hotplates ,7
Hotplates General Information Notes ,8
Choosing Your Utensils ,9
Grilling , 10
Grill Chart, 11
Conventional Oven, 12
Conventional Oven cooking charts Meat, 13
Conventional Oven cooking charts |Baking, 14
Using the Main Oven for
Other Functions ,15
Care and Cleaning ,16
Cooking Results Not Satisfactory?, 17
Something Wrong
With Your Cooker? ,18
If it Still Won’t Work... /
Disposal of the appliance , 19
Guarantee information/
Key Contacts, 20/21
You must read these instructions prior to using
your appliance and retain them for future use.
Introduction
GB
To help you make the best use of your cooker,
PLEASE READ THIS BOOKLET CAREFULLY.
Your new cooker is guaranteed and will give lasting
service.
The guarantee is only applicable if the cooker has
been installed in accordance with the Installation
Instructions.
The cooker is designed specifically for domestic use
and responsibility will not be accepted for use in any
other installation.
When first using the cooker ensure that the room is
well ventilated (e.g. open a window or use an
extractor fan) and that persons who may be
sensitive to the odour avoid any fumes. It is
suggested that any pets be removed from the room
until the smell has ceased. This odour is due to any
temporary finish and also any moisture absorbed by
the insulation.
Technical Characteristics
Main Oven
Dimensions (HxWxD): 34x39x44 cm
Volume: 58 Litres
Max. Oven Power Absorption: 1950 W
Voltage and Frequency
240V~ 50/60Hz
ENERGY LABEL
Directive 2002/40/EC on the label of electric ovens
Norm EN 50304
Declared energy consumption for Natural convection
Class
heating mode: Convectional
When the cooker is first used an odour may be
emitted. This will cease after a period of use.
Our policy is one of continual improvement in design
and development, therefore strict accuracy of
illustrations and descriptions cannot be guaranteed.
* The guarantee is subject to the provisions* The guarantee is subject to the provisions
* The guarantee is subject to the provisions
* The guarantee is subject to the provisions* The guarantee is subject to the provisions
that the appliance:that the appliance:
that the appliance:
that the appliance:that the appliance:
(a) Has been used solely in accordance with the
Users Instruction Book.
(b) Has been properly connected to a suitable
supply voltage as stated on the
rating plate attached to this equipment.
(c) Has not been subjected to misuse or
accident or been modified or repaired by
any person other than the authorised employee or
agent.
(d) Has been correctly installed.
SAFETY ADVICE IN CASE OF A CHIP-PAN FIRE
In the event of a chip pan fire or any other pan fire.
1. TURN OFF THE COOKER APPLIANCE AT THE
WALL SWITCH.
2. COVER THE PAN WITH A FIRE BLANKET OR
DAMP CLOTH, this will smother the flames and
extinguish the fire.
3. LEAVE THE PAN TO COOL FOR AT LEAST 60
MINUTES BEFORE MOVING IT. Injuries are often
caused by picking up a hot pan and rushing
outside with it.
NEVER USE A FIRE EXTINGUISHER TO PUT OUT A
PAN FIRE as the force of the extinguisher is likely to
tip the pan over.
Never use water to extinguish oil or fat fires.
This appliance conforms to the following EEC
Directive:
- 2006/95/
subsequent modifications;
- 2004/108/
Compatibility) and subsequent modifications;
- 93/68/
modifications.
- 2002/96/
--
- 1275/2008/EC (Stand-by/ Off mode)
--
2
EC EC
EC of 12/12/06 (Low Voltage) and
EC EC
ECEC
EC of 15/12/04 (Electromagnetic
ECEC
EECEEC
EEC of 22/07/93 and subsequent
EECEEC
ECEC
EC
ECEC
For your Safety
Please read the precautions below before using
your cooker.
ALWAYS . . .
ALWAYS Remove all packing from inside the oven
and grill compartments before switching on
for the first time.
ALWAYS Understand the controls prior to using the
appliance.
ALWAYS Keep children away from the appliance
when grilling as the surfaces will get
extremely hot during and after use.
ALWAYS Turn controls
cooking and when not in use.
ALWAYS Stand back when opening an oven door to
allow any build up of steam or heat to disperse.
ALWAYS Use dry good quality oven gloves when
removing items from the oven/grill.
ALWAYS Place pans centrally over the hotplate
making sure handles are kept away from
the edge of the hob and cannot become
heated by other hotplate/pans.
ALWAYS Take care to avoid heat/steam burns when
operating the controls.
ALWAYS Turn off the electricity supply at the wall
switch before cleaning and allow the
appliance to cool.
ALWAYS Make sure the shelves are in the correct
position before switching on the oven.
ALWAYS Keep the oven and grill doors closed when
the appliance is not in use.
ALWAYS Take care when removing items from the
grill when the lower oven is on as the
contents will be hot.
ALWAYS Keep the appliance clean, as a build up of
grease or fat from cooking can cause a fire.
ALWAYS Follow the basic principles of food handling
and hygiene to prevent the possibility of
bacterial growth.
ALWAYS Keep ventilation slots clear of obstructions.
ALWAYSl Refer servicing to a qualified appliance
service engineer.
ALWAYS Take care to avoid touching heating
elements inside the oven, as during use
the oven becomes hot.
ALWAYS The appliance must be used by adults only
for the preparation of food, in accordance
with the instructions outlined in this booklet.
Any other use of the appliance (e.g. for
heating the room) constitutes improper use
and is dangerous. The manufacturer may
not be held liable for any damage resulting
from improper, incorrect and unreasonable
use of the appliance.
off off
off when you have finished
off off
NEVER . . .
GB
NEVER Never line the interior of the oven with foil
as this may cause the appliance to
overheat.
NEVER Never leave children unsupervised where
a cooking appliance is installed as all
surfaces will be hot during and after its use.
NEVER Do not allow children or persons who are
not familiar with the appliance to use it,
without supervision.
NEVER Never allow anyone to sit or stand on any
part of the appliance.
NEVER Never store items above the appliance that
children may attempt to reach.
NEVER Never leave anything on the hob surface
when unattended and not in use.
NEVER Never remove the oven shelves whilst the
oven is hot.
NEVER Never heat up unopened food containers
as pressure can build up causing the
container to burst.
NEVER Never store chemicals/food stuffs,
pressurised container in or on the
appliance, or in cabinets immediately
above or next to the appliance.
NEVER Never place flammable or plastic items on
or near the hob.
NEVER Never fill a deep fat frying pan more than
1/3 full of oil, or use a lid.
DO NOT LEAVE UNATTENDED WHILE
COOKING.
NEVER Never operate the grill with the grill door
closed as this will cause the appliance to
overheat.
NEVERl Never use the appliance as a room heater.
NEVER Never use the grill to warm plates.
NEVER Never dry any items on either the hob or
oven doors.
NEVER Never install the appliance next to curtains
or other soft furnishings.
NEVER Never use steam cleaners.
NEVER ! The appliance should not be operated by
people (including children) with reduced
physical, sensory or mental capacities, by
inexperienced individuals or by anyone who
is not familiar with the product. These
individuals should, at the very least, be
supervised by someone who assumes
responsibility for their safety or receive
preliminary instructions relating to the
operation of the appliance.
3
Installation
GB
WARNING – THIS APPLIANCE MUST BEWARNING – THIS APPLIANCE MUST BE
WARNING – THIS APPLIANCE MUST BE
WARNING – THIS APPLIANCE MUST BEWARNING – THIS APPLIANCE MUST BE
EARTHED.EARTHED.
EARTHED.
EARTHED.EARTHED.
Electrical connection
Electric cookers come without a power supply cable.
The cooker is designed to operate on an electricity
supply which conforms to the electrical data shown
on the Rating Plate. The cooker can be connected to
the mains only after removing the back panel of the
cooker itself with a screwdriver.
!!
! The following installation procedure must be
!!
carried out by a qualified electrician. The electrical
installation must comply with the IEE Regulations,
Building & local By-Lays.
For the installation of the feeding cable carry out the
following operations:
1 Open the terminal
board by inserting a
screwdriver into the
side tabs of the cover.
Use the
screwdriver as a
lever by pushing it
down to open the cover
(see diagram).
2 Loosen the cable
clamp screw and
remove it, using a
screwdriver as a lever
(see figure).
3 Remove the wire
contact screws L-Nthen fasten the wires
under the screw heads, respecting
the colour code: Black/Blue (N), Red/Brown
(L) and Bare Wire/Yellow-Green (
).
Positioning the Cooker
The height of the
cooker can be
adjusted by
150 mm
150 mm
650 mm
Moving the Cooker
standing.
Adjacent side walls which project above hob level,
must not be nearer to the cooker than 150mm and
should be protected by heat resistant material.
,
Any overhanging surface or cooker hood should
not be nearer than 650mm.
Before moving your cooker check that it is cool,
and switch off at the cooker control unit.
means of
adjustable feet in
the plinth (900mm
- 915mm). Adjust
the feet by tilting
the cooker from
the side. Then
install the product
into position.
NOTE: This
appliance must
not be fitted on a
platform.
The cooker is
designed to fit
between kitchen
cabinets spaced
500mm apart. The
space either side
need only be
sufficient to allow
withdrawal of the
cooker for
servicing. It can
be used with
cabinets one side
or both as well as
in a corner setting.
It can also be
used free-
z Once the connections have been made, tighten all
the terminal screws fully.
zFasten the supply cable in place with the clamp
and close the cover of the terminal board.
N.B.: the power supply cable must have these minimum
requirements:
Type: H05RR-F
H05VV-F
Section: 3x4 mm
4
2
Movement of your cooker is most easily achieved
by lifting the front as follows:
Open the grill door sufficiently to allow a
comfortable grip on the underside front edge of
the oven roof, avoiding any grill elements.
Note: Note:
Note: Take care in moving the cooker as it is
Note: Note:
heavy. Take care to ensure that any floor covering
is not damaged.
Splashplate optional, apply to Parts Department
(see Back Cover for contact number.)
Features
GB
HOB VENTILATION SLOTS
1200W
Hob Hot Indicators

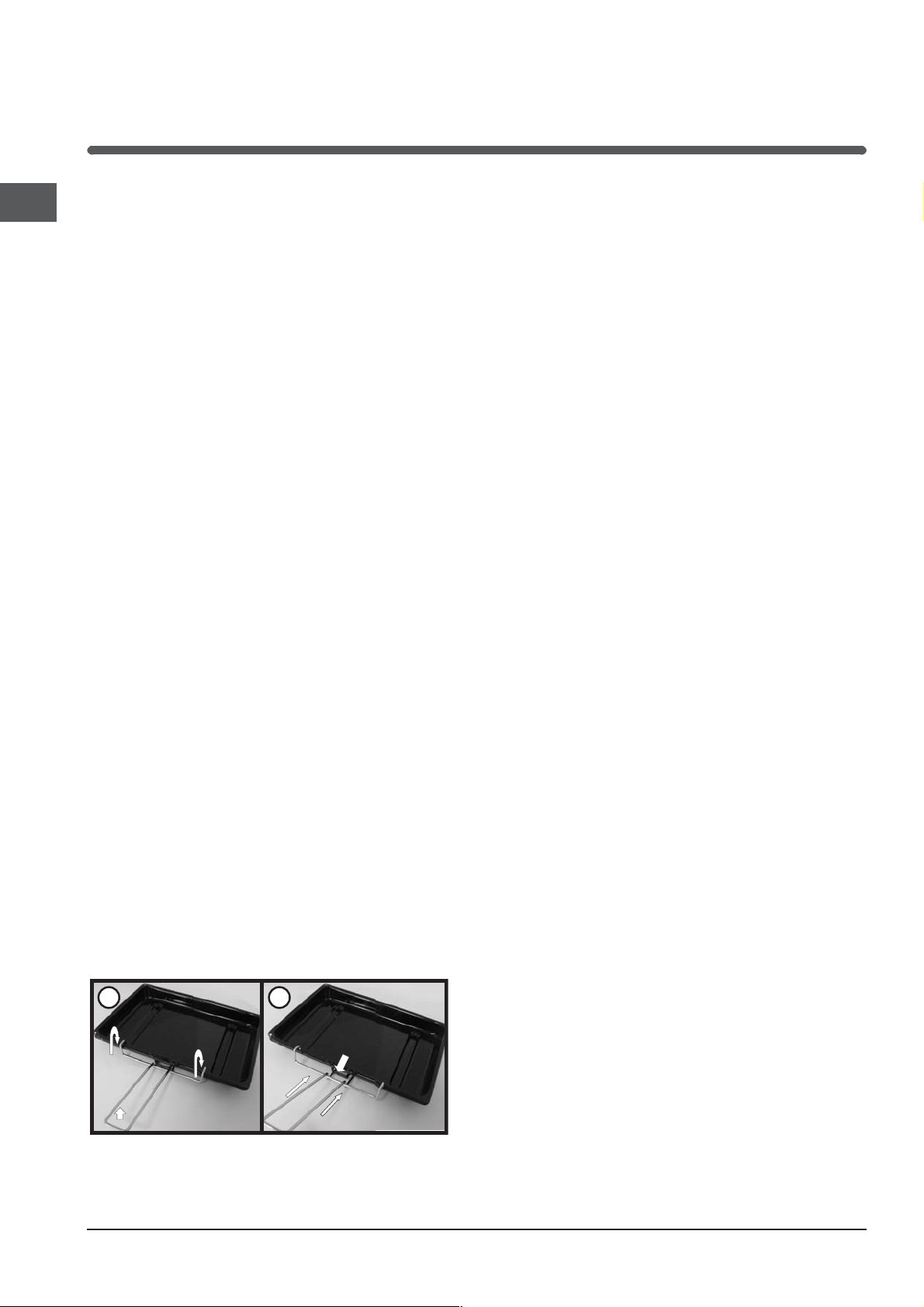

GRILL/MEAT PAN
WITH REMOVABLE
HANDLE AND WIRE
FOOD SUPPORT
GRILL DOOR SWITCH
GRILL DOOR
REMOVABLE
INNER GLASS
DOOR
1700W
GRILL
1200W
1700W
CONTROL
PANEL
MODEL & SERIAL
NUMBER
MAIN OVEN
WIREWORK
SHELF
SUPPORTS
OVEN ROD
SHELVES
5
GB
Control Panel
MAIN OVEN
INDICATOR
MAIN
OVEN
TIMER*
GRILL
INDICATOR
LIGHT
GRILL
Control Knobs
The knobs for the hotplates can be rotated in either
direction to provide variable heat control, the Main
Oven knob can only be rotated clockwise from the
position.
Note: Always ensure that all controls are in the OFF
position, when the appliance is not in use.
OffOff
Off
OffOff
LEFT
FRONT
PLATE
PLATE
INDICATOR
LIGHT
LEFT
REAR
PLATE
RIGHT
REAR
PLATE
RIGHT
FRONT
PLATE
Operating thecontrol when he grill is in use
In common with all cookers having controls sited
above the grill compartment, care must be taken when
setting the controls, due to hot air being emitted from
the grill compartment.
Slow cooking ‘S’
The main oven has a ‘
SS
S’ setting specially designed to
SS
reduce energy usage. Full details of this can be found
in the Slow cooking section of this book.
Timer *
To use the timer, the buzzer must be wound up by
turning the knob one full turn clockwise; then turn it
back to the desired time so that the number of minutes
on the knob matches the reference mark on the panel.
* (only available on certain models)
6
Hotplate
Use of Hotplates
Note:
Under no circumstances should the hob be used
with aluminium foil in contact with the hob surface.
The controls set the hotplates at six pre-set power
levels. Each control can be used to select one of six
temperature settings from a minimum at position 1
to a maximum at position 6.
Do Not leave a hotplate switched on without a pan
as this wastes energy and may shorten the life of
the hotplate.
CONTROL SETTINGS GUIDE
This is provided only as a guide – settings also
depend on the type of pan used and the quality of
food.
Knob Position Type of food
1 To melt butter, chocolate, etc.
1 or 2 To heat food gently.
To keep small amounts of water simmering.
To heat sauces, containing egg yolks and butter.
To simmer: stews, meat, fish, vegetables, fruit.
3 To heat solid and liquid foods.
Keep water boiling.
Thaw frozen vegetables.
Make 2-3 egg omelettes.
4 or 5 To cook foods, just above simmering.
To maintain 'rolling' boil for preserve making.
5 or 6 To seal meat and fry fish.
6 Frying potatoes.
Bringing water to the boil.
Deep fat frying.
Dissolve sugar for preserve making.
Safety requirements for deep fat frying
1. Use a deep pan, large enough to completely
cover the appropriate heating area.
2. Never fill the pan more than one-third full of oil.
3. Never leave oil or fat unattended during the
heating or cooking period.
4. Never try to fry too much food at a time,
especially frozen food. This only lowers the
temperature of the oil or fat too much, resulting in
greasy food.
5. Always dry food thoroughly before frying, and
lower it slowly into the hot oil or fat. Frozen foods,
in particular, will cause frothing and spitting, if
added to quickly.
6. Never heat fat, or fry, with a lid on the pan.
7. Keep the outside of the pan clean and free from
streaks of oil or fat.
Ceramic Hob
CAUTION: IF AT ANY TIME A CRACK IN THE
SURFACE BECOMES VISIBLE, DISCONNECT THE
APPLIANCE IMMEDIATELY FROM THE SUPPLY.
Under no circumstances should the hob be used
with aluminium foil in contact with the hob surface as
damage can occur.
The following boiling plates are located beneath the
decorative circular patterned cooking areas:Front left 6 heat: 1200W
Rear left 6 heat: 1700W
Rear right 6 heat: 1200W
Front right 6 heat: 1700W
The cooking areas change colour when heated
(become red) indicating which heating element is
switched on. The cooking area returns to its original
colour when the heating element is switched
Warning: Warning:
Warning: Even though the cooking area has
Warning: Warning:
returned to its original colour it may still be hot.
The controls for the hotplates can be turned in either
direction.
Turn the control to 6 for fast cooking. To reduce the
heat to cook more slowly or simmer, turn the control
to a lower setting according to the size of the
saucepan and the amount of liquid.
Pans can be placed on the unheated areas of the
panel when cooking is finished and before serving
food. It is inadvisable at any time to leave a heating
element switched on without a pan in position as this
wastes energy, and could make soil or rub-off from
aluminium pans more difficult to remove. To protect
elements against over-heating, safety cut-outs have
been incorporated with each element. After several
minutes with the control at setting 6 the safety cutout switches the element
Off Off
Off and
Off Off
On On
On continuously,
On On
thus preventing any adverse effects that may be
caused by an excessive build-up of heat in the
cooking area.
Off.Off.
Off.
Off.Off.
GB
7
GB
Hotplate
Hotplates General Information Notes
PANS SHOULD
Not be concave (bowed in)
THE BEST COMBINATIONSTHE BEST COMBINATIONS
THE BEST COMBINATIONS
THE BEST COMBINATIONSTHE BEST COMBINATIONS
This table is a general guide to
Not be convex (bowed out)
Not be rimmed
Not be deeply ridged
But essentially Flat
the types of pan suitable for
different types of hobs and
cookers. Remember pans
should be good quality, with
smooth, flat bases. For any
further information refer to
manufacturers’ instructions.
Do NotDo Not
Do Not
Do NotDo Not
Do notDo not
Do not cook directly on the hob surface without
Do notDo not
a cooking utensil, as this will result in
damage to the surface of the hob.
Do notDo not
Do n ot use the hob as a worktop surface as
Do notDo not
damage may occur to the smooth
surface of the hob.
Do notDo not
Do n ot drag or slide utensils on the hob
Do notDo not
surface, as this will cause scratches in
the surface of the hob.
Do notDo not
Do not allow a cooking utensil to come into
Do notDo not
contact with the hob surround.
Do notDo not
Do not place anything between the base of the
Do notDo not
utensil and the ceramic hob, e.g. do not
use asbestos mats, aluminium or wok
stand.
syawlA
✓✓✓✓
Use good quality flat-based
cookware on all electric heat
sources.
Always ensure pans have
clean, dry bases before
use.
Ensure pans match size of
heating area.
Remember good quality pans
retain heat well, so generally
only a low or medium heat is
necessary.
Ensure pan handles are
positioned safely and away
from heat sources.
Always lift pans, do not drag. Drag or slide utensils, along
Always use pan lids except
when frying.
Deal with spillages
immediately but with care.
Aluminium
Stainless steel with single layer copper
base
Stainless steel with sandwich bases of
aluminium and stainless or aluminium
and copper
Enamelled steel
Enamelled aluminium
Enamelled based cast iron
Copper
Toughened glass or ceramic / glass /
pottery
Mild steel, Ferro-magnetic or stainless
with a magnetic sandwich base
Use gauze, metal pan
diffusers, asbestos mats and
stands e.g. Wok stands - they
can cause overheating.
Use utensils with skirts or
rims e.g. buckets and some
kettles.
Use badly dented or distorted
pans.
Leave an element switched
on when not cooking.
Cook food directly on the
ceramic glass.
the hob surface.
Not Recommended
reveN
Ceramic*
With Extra Care
✗✗✗✗
Do notDo not
Do no t leave any utensils, food or combustible
Do notDo not
items on the hob when it is not in use.
Do notDo not
Do not place aluminium or plastic foil, or
Do notDo not
plastic containers on the hob.
Do notDo not
Do not leave the hotplates or cooking areas
Do notDo not
switched
On On
On unless they are being
On On
used. We recommend not to place large
preserving pans or fish kettles across
two heating areas.
Do notDo not
Do no t leave utensils partly covering the
Do notDo not
heated areas. Always ensure that they
are placet centrally over the heated
areas and have the same diameter as
the heating area used.
We recommend not to use a utensil with a base
diameter greater than 25cm (l0ins).
Pressure cookers or other large pans should be
used on the front cooking areas.
Always ensure that saucepan handles are positioned
safely.
8
Loading...
