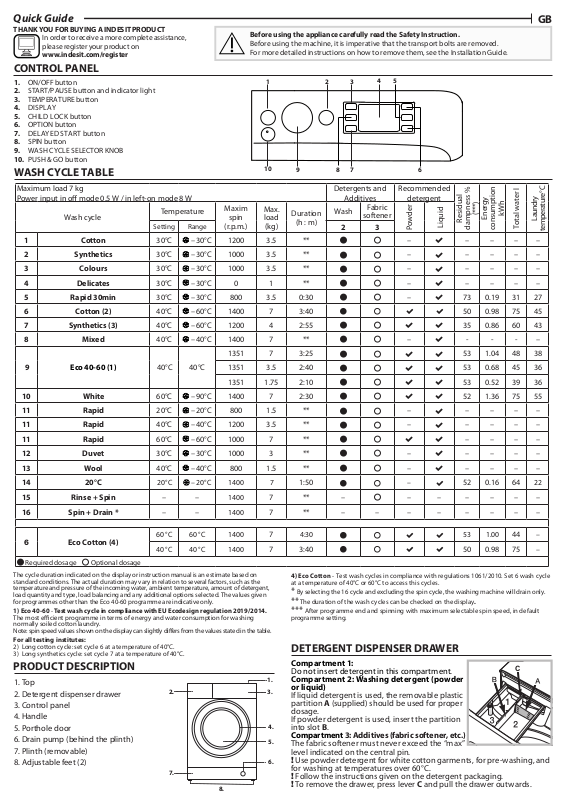

INDESIT BWE 71452 S UK N Daily Reference Guide
Quick Guide
C
THANK YOU FOR BUYING A INDESIT PRODUCT
In order to receive a more complete assistance,
please register your product on
www.indesit.com/register
CONTROL PANEL
1. ON/OFF button
2. START/PAUSE button and indicator light
3. TEMPERATURE button
4. DISPLAY
5. CHILD LOCK button
6. OPTION button
7. DELAYED START button
8. SPIN button
9. WASH CYCLE SELECTOR KNOB
10. PUSH & GO button
WASH CYCLE TABLE
Maximum load 7 kg
Power input in o mode 0.5 W / in left-on mode 8 W
Wash cycle
1 Cotton 30°C
2 Synthetics 30°C
3 Colours 30°C
4 Delicates 30°C
5 Rapid 30min 30°C
6 Cotton (2) 40°C
7 Synthetics (3) 40°C
8 Mixed 40°C
9 Eco 40-60 (1) 40°C 40°C
10 White 60°C
11 Rapid 20°C
11 Rapid 40°C
11 Rapid 60°C
12 Duvet 30°C
13 Wool 40°C
14 20°C
15 Rinse + Spin – –
16 Spin + Drain * – –
Temperature
Setting Range
20°C
Before using the appliance carefully read the Safety Instruction.
Before using the machine, it is imperative that the transport bolts are removed.
For more detailed instructions on how to remove them, see the Installation Guide.
1
Maxim
spin
(r.p.m.)
10
Max.
load
(kg)
9
Duration
(h : m)
– 30°C 1200 3.5 **
– 30°C 1000 3.5 **
– 30°C 1000 3.5 **
– 30°C 0 1 **
– 30°C 800 3.5 0:30
– 60°C 1400 7 3:40
– 60°C 1200 4 2:55
– 40°C 1400 7 **
1351 7 3:25
1351 3.5 2:40
1351 1.75 2:10
– 90°C 1400 7 2:30
– 20°C 800 1.5 **
– 40°C 1200 3.5 **
– 60°C 1000 7 **
– 30°C 1000 3 **
– 40°C 800 1.5 **
– 20°C
1400 7
1400
1400
1:50
7 ** –
7 ** – – – – – – – –
4
2 3
78
Detergents and
Additives
Wash
softener
5
Recommended
detergent
Fabric
2 3
–
–
–
–
–
–
–
–
–
–
–
– – – – – –
Powder
GB
6
(***)
kWh
Residual
Liquid
dampness %
– – – –
– – – –
– – – –
– – – –
73 0.19 31 27
50 0.98 75 45
35 0.86 60 43
- - - –
53 1.04 48 38
53 0.68 45 36
53 0.52 39 36
52 1.36 75 55
– – – –
– – – –
– – – –
– – – –
– – – –
52 0.16 64
Energy
consumption
Total water l
Laundry
temperature °C
22
6
Eco Cotton (4)
60 °C 60 °C 1400
40 °C 40 °C 1400
Required dosage Optional dosage
The cycle duration indicated on the display or instruction manual is an estimate based on
standard conditions. The actual duration may vary in relation to several factors, such as the
temperature and pressure of the incoming water, ambient temperature, amount of detergent,
load quantity and type, load balancing and any additional options selected. The values given
for programmes other than the Eco 40-60 programme are indicative only.
1) Eco 40-60 - Test wash cycle in compliance with EU Ecodesign regulation 2019/2014.
The most ecient programme in terms of energy and water consumption for washing
normally soiled cotton laundry.
Note: spin speed values shown on the display can slightly diers from the values stated in the table.
For all testing institutes:
2) Long cotton cycle: set cycle 6 at a temperature of 40°C.
3) Long synthetics cycle: set cycle 7 at a temperature of 40°C.
PRODUCT DESCRIPTION
1. Top
2. Detergent dispenser drawer
3. Control panel
4. Handle
5. Porthole door
6. Drain pump (behind the plinth)
7. Plinth (removable)
8. Adjustable feet (2)
2.
7.
8.
7
7 3:40
4:30
4)
Eco Cotto n -
at a temperature of 40°C or 60°C to access this cycles.
Test wash cycles in compliance with regulations 1061/2010. Set 6 wash cycle
53 1.00
50 0.98 75
* By selecting the 16 cycle and excluding the spin cycle, the washing machine will drain only.
** The duration of the wash cycles can be checked on the display.
*** After programme end and spinning with maximum selectable spin speed, in default
programme setting.
DETERGENT DISPENSER DRAWER
Compartment 1:
Do not insert detergent in this compartment.
Compartment 2: Washing detergent (powder
1.
or liquid)
3.
If liquid detergent is used, the removable plastic
partition A (supplied) should be used for proper
dosage.
If powder detergent is used, insert the partition
4.
into slot B.
Compartment 3: Additives (fabric softener, etc.)
5.
The fabric softener must never exceed the “max”
level indicated on the central pin.
! Use powder detergent for white cotton garments, for pre-washing, and
6.
for washing at temperatures over 60°C.
! Follow the instructions given on the detergent packaging.
! To remove the drawer, press lever C and pull the drawer outwards.
44
–
–
WASH CYCLES
Follow the instructions on the symbols of the garment’s wash
care label. The value indicated in the symbol is the maximum
recommended temperature for washing the garment.
Cotton
A 30°C cycle for cotton garments. It allows for reducing electricity
consumption for heating the water while guaranteeing good washing
performance. Suitable for lightly soiled garments.
Synthetics
A 30°C cycle for synthetic garments. It allows for reducing electricity
consumption for heating the water while guaranteeing good washing
results. Suitable for lightly soiled garments.
Colours
A 30°C cycle that helps to preserve colours, suitable for cotton or
synthetic coloured garments. It allows for reducing electricity
consumption for heating the water while guaranteeing good washing
results. Suitable for lightly soiled garments.
Delicates
Suitable for washing very delicate garments. It is advisable to turn the
garments inside out before washing them. For best results, use liquid
detergent on delicate garments.
Rapid 30min
For washing lightly soiled garments in a short time. Not suitable for wool,
silk and garments to be washed by hand.
Cotton
Suitable for washing towels, underwear, table cloths, etc. made of
resistant linen and cotton that are moderately to heavily soiled.
Synthetics
Specic for synthetic items. If the dirt is dicult to remove, the temperature
can be increased up to 60° and powder detergent can be used too.
Mixed
A 40°C cycle for washing cotton and synthetic garments together.
Suitable for lightly soiled underwear.
Eco 40-60
For washing normally soiled cotton garments declared to be washable at
40 °C or 60 °C, together in the same cycle. This is the standard cotton
programme and the most ecient in terms of water and energy
consumption.
White
For heavily soiled whites and resistant colours.
Rapid
Allows for varying the garment treatment duration from 20’ to 60’.
- 20’: this cycle refreshes your garments in just 20 minutes.
- 45’: a short cycle designed for washing mixed cotton-synthetic
garments.
- 60’: this cycle is designed to wash moderately soiled resistant cotton
garments at 60°C in an hour, with good washing performance. For
synthetic or mixed garments, the temperature should be lowered to 40°C.
Duvet
For washing clothing padded with goose down, such as double or single
duvets (weighing under 3.5 kg), cushions or down jackets. Duvets should
be loaded into the drum with their edges folded inwards and no more
than ¾ of the total drum volume should be used up. For best results, it is
advisable to use liquid detergent to be poured into the detergent drawer.
Wool - Woolmark Apparel Care - Blue:
The “Wool” wash cycle is approved by the Woolmark
Company for washing wool garments classied as
“hand-washable”, provided that the wash complies with
the instructions appearing on the garment’s label and
with those provided by the manufacturer of this washing
machine. (M1126)
20°C
For washing lightly soiled cotton garments, at a temperature of 20 °C.
Rinse + Spin
Designed for rinsing and spinning.
Spin + Drain
Designed to spin and drain the water.
Eco Cotton
For washing normally soiled cotton garments. At 40°C and 60°C.
DISPLAY
The display is useful when programming the machine and provides a lot
of information.
B
A
C
C (see “Options”)
The duration of the available wash cycles and the remaining time of a
running cycle appear in section A; if the Delayed Start option has been
set, the countdown to the start of the selected cycle will appear.
Pressing the corresponding button allows for viewing the maximum spin
speed and temperature values attained by the machine during the set
wash cycle, or the values selected most recently, if these are compatible
with the set wash cycle.
The hourglass ashes while the machine processes the data on the basis
of the selected cycle. After a maximum of 10 minutes, the icon remains
steady lit and the nal time remaining is displayed. The “hourglass” icon
will then switch o approximately 1 minute after the nal time remaining
has been displayed.
The “washing phases” relative to the selected cycle and the “washing
phase” of the running cycle appear in section B:
Wash
Rinse
Spin
Drain
When lit, the symbol indicates that the set “Delayed Start” value has
appeared on the display.
There are three levels in section C relative to the washing options.
DOOR LOCKED INDICATOR
When lit, the symbol indicates that the door is locked. To prevent any
damage, wait until the symbol turns o before opening the door.
To open the door while a cycle is in progress, press the START/PAUSE
button ; if the symbol is o, the door can be opened.
FIRSTTIME USE
Once the appliance has been installed, and before it is used for the rst
time, run a wash cycle with detergent and no laundry, by setting the
“Auto-Clean” cycle.
DAILY USE
Prepare the laundry by following the suggestions appearing under the
“TIPS AND SUGGESTIONS” section.
Rapid programming
- Press the ON/OFF button ; the START/PAUSE indicator light will
ash slowly green.
- Open the door. Load the laundry while making sure not to exceed the
maximum load quantity indicated in the cycle table.
- Pull out the detergent dispenser drawer and pour the detergent into the
relevant compartments as described in “DETERGENT DISPENSER DRAWER”
section.
- Close the door.
- Press the PUSH & GO button to start the wash cycle.
Traditional programming
- Press the ON/OFF button ; the START/PAUSE indicator light will
ash slowly green.
- Open the door. Load the laundry while making sure not to exceed the
maximum load quantity indicated in the Wash Cycle Table.
- Pull out the detergent dispenser drawer and pour the detergent into the
relevant compartments as described in “DETERGENT DISPENSER DRAWER”
section.
- Close the door.
- Use the WASH CYCLE selector knob to select the desired wash cycle: it
will be associated with a specic temperature and spin speed that can be
modied. The duration of the cycle will appear on the display.
- Modify the temperature and/or spin speed: the machine automatically
displays the maximum temperature and spin speed values set for the
selected cycle, or the most recently-used settings if they are compatible
with the selected cycle. Pressing the button gradually reduces the
temperature down to the cold wash “OFF” setting. Pressing the button
gradually reduces the spin speed until it is completely excluded (“OFF”
setting). Pressing these buttons again restores the maximum values.
- Select the desired options.
- Press the START/PAUSE button to start the wash cycle; the relative
indicator light will light up steady green and the door will lock ( symbol on).
PAUSING A CYCLE
To pause the wash cycle, press the START/PAUSE button again; the
indicator light will ash amber. If the symbol is not lit, the door may be
opened. To start the wash cycle from the point at which it was
interrupted, press the START/PAUSE button again.
OPENING THE DOOR, IF NECESSARY
Once a cycle starts, the symbol turns on to signal that the door cannot
be opened. While a wash cycle is running, the door remains locked. To
open the door while a cycle is under way, for example, to add or remove
garments, press the START/PAUSE button to pause the cycle; the
indicator light will ash amber. If the symbol is not lit, the door may be
opened. Press the START/PAUSE button again to continue the cycle.
CHANGING A RUNNING WASH CYCLE
To change a wash cycle while it is in progress, pause the washing machine
using the START/PAUSE button (the relative indicator light will ash amber),
then select the desired cycle and press the START/PAUSE button again.
! To cancel a cycle that has already begun, press and hold the ON/OFF
button. The cycle will be stopped and the machine will switch o.
END OF THE CYCLE
This will be indicated by the word “END” on the display; when the
symbol switches o, the door may be opened. Open the door and switch
Loading...
