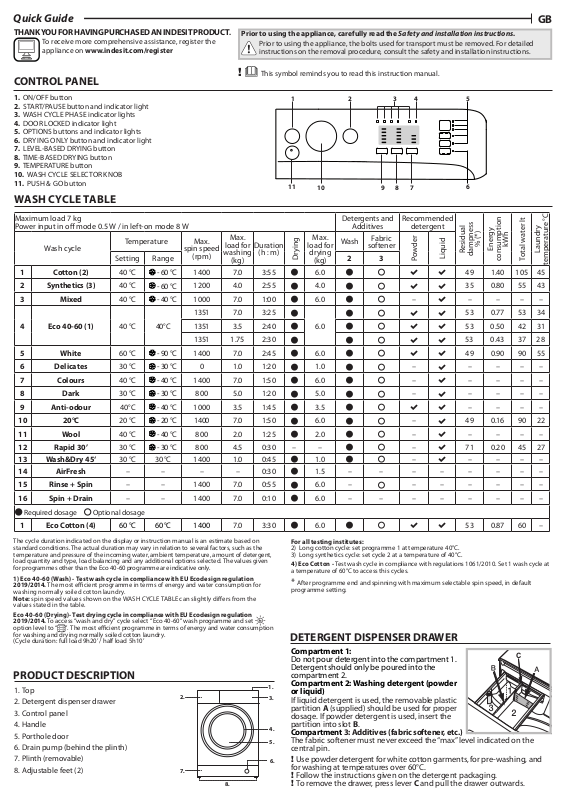

Quick Guide
C
THANK YOU FOR HAVING PURCHASED AN INDESIT PRODUCT.
To receive more comprehensive assistance, register the
appliance on www.indesit.com/register
GB
Prior to using the appliance, carefully read the Safety and installation instructions.
Prior to using the appliance, the bolts used for transport must be removed. For detailed
instructions on the removal procedure, consult the safety and installation instructions.
CONTROL PANEL
! This symbol reminds you to read this instruction manual.
1. ON/OFF button
2. START/PAUSE button and indicator light
3. WASH CYCLE PHASE indicator lights
4. DOOR LOCKED indicator light
5. OPTIONS buttons and indicator lights
6. DRYING ONLY button and indicator light
7. LEVEL-BASED DRYING button
8. TIME-BASED DRYING button
9. TEMPERATURE button
10. WASH CYCLE SELECTOR KNOB
11. PUSH & GO button
WASH CYCLE TABLE
Maximum load 7 kg
Power input in o mode 0.5 W / in left-on mode 8 W
Wash cycle
Temperature
Setting Range 2 3
1 Cotton (2) 40 °C
2 Synthetics (3) 40 °C
3 Mixed 40 °C
- 60 °C
- 60 °C
- 40 °C
Max.
spin speed
(rpm)
1400 7.0 3:55
1200 4.0 2:55
1000 7.0 1:00
Max.
load for
washing
(kg)
Duration
(h : m)
1351 7.0 3:25
4 Eco 40-60 (1) 40 °C 40°C
1351 3.5 2:40
1351 1.75 2:30
5 White 60 °C
6 Delicates 30 °C
7 Colours 40 °C
8 Dark 30 °C
9 Anti-odour 40°C
10 20°C 20 °C
11 Wool 40 °C
12 Rapid 30’ 30 °C
- 90 °C
- 30 °C
- 40 °C
- 30 °C
- 40 °C
- 20 °C
- 40 °C
- 30 °C
1400 7.0 2:45
0 1.0 1:20
1400 7.0 1:50
800 5.0 1:20
1000 3.5 1:45
1400 7.0 1:50
800 2.0 1:25
800 4.5 0:30 – –
13 Wash&Dry 45‘ 30 °C 30 °C 1400 1.0 0:45
14 AirFresh – – – – 0:30
15 Rinse + Spin – – 1400 7.0 0:55
16 Spin + Drain – – 1400 7.0 0:10
Required dosage Optional dosage
1 Eco Cotton (4) 60 °C 60 °C 1400 7.0 3:30
The cycle duration indicated on the display or instruction manual is an estimate based on
standard conditions. The actual duration may vary in relation to several factors, such as the
temperature and pressure of the incoming water, ambient temperature, amount of detergent,
load quantity and type, load balancing and any additional options selected. The values given
for programmes other than the Eco 40-60 programme are indicative only.
1) Eco 40-60 (Wash) - Test wash c ycle in compliance with EU Ecodesign regulation
2019/2014. The most ecient programme in terms of energy and water consumption for
washing normally soiled cotton laundry.
Note: spin speed values shown on the WASH CYCLE TABLE can slightly diers from the
values stated in the table.
Eco 40-60 (Dr ying)2019/2014
option level to
for washing and drying normally soiled cotton laundry.
(Cycle duration: full load 9h20’ / half load 5h10’
Test drying cycle in compliance with EU Ecodesign regulation
. To access “wash and dry” cycle select “Eco 40-60” wash programme and set
“ ”.
The most ecient programme in terms of energy and water consumption
PRODUCT DESCRIPTION
1. To p
2. Detergent dispenser drawer
3. Control panel
4. Handle
5. Porthole door
6. Drain pump (behind the plinth)
7. Plinth (removable)
8. Adjustable feet (2)
2.
7.
8.
1
11
load for
Drying
10
Max.
drying
(kg)
6.0
4.0
6.0
6.0
6.0
1.0
6.0
5.0
3.5
6.0
2.0
1.0
1.5 – – – – – – – –
6.0 –
6.0 – – – – – – – –
6.0
For all testing institutes:
2) Long cotton cycle: set programme 1 at temperature 40°C.
3) Long synthetics cycle: set cycle 2 at a temperature of 40°C.
4) Eco Cotton -
a temperature of 60°C to access this cycles.
* After programme end and spinning with maximum selectable spin speed, in default
programme setting.
2 3
9
Detergents and
Additives
Wash
Fabric
softener
4
7
8
Recommended
detergent
Powder
–
5
6
% (*)
Residual
dampness
Liquid
49 1.40 105 45
35 0.80 55 43
– – – –
53 0.77 53 34
53 0.50 42 31
53 0.43 37 28
–
–
–
–
–
–
–
– – – – – –
Test wash cycle in compliance with regulations 1061/2010. Set 1 wash cycle at
49 0.90 90 55
– – – –
– – – –
– – – –
– – – –
49 0.16 90 22
– – – –
71 0.20 45 27
– – – –
53 0.87 60 –
DETERGENT DISPENSER DRAWER
Compartment 1:
Do not pour detergent into the compartment 1.
Detergent should only be poured into the
compartment 2.
Compartment 2: Washing detergent (powder
1.
or liquid)
3.
If liquid detergent is used, the removable plastic
partition A (supplied) should be used for proper
dosage. If powder detergent is used, insert the
partition into slot B.
4.
Compartment 3: Additives (fabric softener, etc.)
The fabric softener must never exceed the “max” level indicated on the
5.
central pin.
! Use powder detergent for white cotton garments, for pre-washing, and
6.
for washing at temperatures over 60°C.
! Follow the instructions given on the detergent packaging.
! To remove the drawer, press lever C and pull the drawer outwards.
kWh
Energy
consumption
Total water lt
Laundry
temperature °C
Page 2
WASH CYCLES
Follow the instructions on the symbols of the garment’s wash
care label. The value indicated in the symbol is the maximum
recommended temperature for washing the garment.
Cotton: suitable for washing towels, underwear, table cloths,
etc. made of resistant linen and cotton that are moderately to heavily soiled.
Synthetics: specic for synthetic items. If the dirt is dicult to remove, the
temperature can be increased up to 60° and powder detergent can be used too.
Mixed: for washing lightly to normally soiled resilient garments in cotton,
linen, synthetic bres and mixed bres.
Eco 40-60: for washing normally soiled cotton garments declared to be
washable at 40 °C or 60 °C, together in the same cycle. This is the standard
cotton programme and the most ecient in terms of water and energy
consumption.
White: suitable for resistant linen and cotton that are heavily soiled.
Delicates: use programme 6 to wash very delicate garments. It is
advisable to turn the garments inside out before washing them. For best
results, use liquid detergent on delicate garments.
When selecting an exclusively time-based drying function, a drying cycle is
performed at the end of the wash cycle that is particularly delicate, thanks
to light handling and appropriate temperature control of the water jet.
The recommended durations are:
1 kg of synthetic garments --> 150 min
1 kg of synthetic and cotton garments --> 180 min
1 kg of cotton garments --> 180 min
The degree of dryness depends on the load and fabric composition.
Colours: for washing coloured cotton garments. This programme is
optimised to keep colours bright even after repeated washing.
Dark: use programme 8 to wash dark-coloured garments. This
programme is designed to maintain dark colours over time. We
recommend using a liquid detergent for the best results when washing
dark-coloured garments.
When you select the drying function, at the end of the washing cycle the
machine will automatically perform a delicate drying cycle that preserves the
colours of the garments. The display will show the level “ ”. Max. load: 5 kg.
Antidour: use programme 9 for washing garments with bad odours (e.g.
smoke, sweat, fried food). The programme is designed to remove bad
odours while preserving the fabric bres. Synthetics fabrics or mixed
loads should be washed at 40°.
20°C: for washing lightly soiled cotton garments, at a temperature of 20 °C.
Wool - Woolmark Apparel Care - Blue:
The “Wool” wash cycle is approved by the Woolmark
Company for washing wool garments classied as
“hand-washable”, provided that the wash complies with
the instructions appearing on the garment’s label and
with those provided by the manufacturer of this washerdryer. (M1318)
Rapid 30’: this programme is designed to wash lightly soiled garments at
30° (excluding wool and silk) with a 4.5 kg maximum load in a short time:
it only lasts 30 minutes and allows for saving time and energy.
Wash&Dry 45’: select programme 13 for washing and drying lightly soiled
garments (Cotton and Synthetic) in a short time. This cycle may be used to
wash and dry a laundry load of up to 1 kg in just 45 minutes. To achieve
optimum results, use liquid detergent and pre-treat cus, collars and stains.
AirFresh: ideal cycle to refresh garments and remove bad odours, in
particular smoke, from cotton and synthetic items in 30’ (max. 1.5 kg)
without the washing phase.
Rinse + Spin: designed for rinsing and spinning.
Spin + Drain: designed to spin and drain the water.
Eco Cotton: for washing normally soiled cotton garments at 60°C.
WASH CYCLE PHASE INDICATOR LIGHTS
Once the desired wash cycle has been selected and has begun, the
indicator lights switch on one-by-one to indicate which phase of the cycle
is currently in progress.
Wash
Rinse
Spin/ Drain
Drying
END End of Wash Cycle
DOOR LOCKED INDICATOR
When lit, the symbol indicates that the door is locked. To prevent any
damage, wait until the symbol turns o before opening the door.
To open the door while a cycle is in progress, press the START/PAUSE
button; if the indicator light is o, the door can be opened.
FIRSTTIME USE
Once the appliance has been installed, and before it is used for the rst
time, run a wash cycle with detergent and no laundry, by setting the
“Auto-Clean” cycle.
DAILY USE
Prepare the laundry by following the suggestions appearing under the
“TIPS AND SUGGESTIONS” section.
Rapid programming
- Turn the washer-dryer on by pressing the ON/OFF button. All the
indicator lights will light up for a few seconds, then only the lights
corresponding to the settings for the selected wash cycle will remain lit;
the START/PAUSE indicator light will also ash.
- Open the door. Load the laundry while making sure not to exceed the
maximum load quantity indicated in the cycle table.
- Pull out the detergent dispenser drawer and pour the detergent into the
relevant compartments as described in “DETERGENT DISPENSER DRAWER
section”.
- Close the door.
- Press the PUSH & GO button to start the wash cycle.
Traditional programming
- Turn the washer-dryer on by pressing the ON/OFF button. All the
indicator lights will light up for a few seconds, then only the lights
corresponding to the settings for the selected wash cycle will remain lit;
the START/PAUSE indicator light will also ash.
- Open the door. Load the laundry while making sure not to exceed the
maximum load quantity indicated in the Wash Cycle Table.
- Pull out the detergent dispenser drawer and pour the detergent into the
relevant compartments as described in “DETERGENT DISPENSER
DRAWER” section.
- Close the door.
- Set the WASH CYCLE knob to the desired cycle.
- Modify the temperature and/or spin: pressing the button allows for
gradually reducing the temperature down to the cold wash level ( ). If
this button is pressed again, the maximum values are restored.
- Set the drying cycle if necessary.
- Select the desired options.
- Press the START/PAUSE button to start the wash cycle; the relative
indicator light will light up steady green and the door will lock ( indicator
light on).
PAUSING A CYCLE
To pause the wash cycle, press the START/PAUSE button again; the
indicator light will ash amber. If the indicator light is not lit, the door
may be opened. To start the wash cycle from the point at which it was
interrupted, press the START/PAUSE button again.
OPENING THE DOOR, IF NECESSARY
Once a cycle starts, the indicator light turns on to signal that the door
cannot be opened. While a wash cycle is running, the door remains
locked. To open the door while a cycle is under way, for example, to add
or remove garments, press the START/PAUSE button to pause the
cycle; the indicator light will ash amber. If the indicator light is not lit,
the door may be opened. Press the START/PAUSE button again to
continue the cycle.
CHANGING A RUNNING WASH CYCLE
To change a wash cycle while it is in progress, pause the washer-dryer
using the START/PAUSE button (the relative indicator light will ash
amber), then select the desired cycle and press the START/PAUSE
button again.
! To cancel a cycle that has already begun, press and hold the ON/OFF
button. The cycle will be stopped and the machine will switch o.
END OF THE CYCLE
Once the cycle terminates the END indicator light will light up; when the
indicator light switches o, the door may be opened. Open the door,
unload the laundry and switch o the machine. If you do not press
ON/OFF button, the washer-dryer will switch o automatically after
about 10 minutes.
OPTIONS
- If the selected option is not compatible with the set wash cycle, the
indicator light will ash and the option will not be activated.
- If the selected option is not compatible with another previously
selected option, the indicator light will ash accompanied by a buzzer
(3 beeps), and only the latter option will be activated; the indicator
light corresponding to the activated option will turn on.
Delay Timer
This timer delays the start time of the wash cycle by up to 9 hours.
Press the button repeatedly until the indicator light corresponding to the
desired delay time switches on. The fourth time the button is pressed, the
function will be disabled.
N.B. Once the START/PAUSE button has been pressed, the delay time
can only be modied by decreasing it until launching the set programme.
Press this button to reduce the spin speed.
Extra rinse
By selecting this option, the eciency of the rinse is increased and
optimal detergent removal is guaranteed. It is particularly useful for
sensitive skin.
Temperature
Each wash cycle has a pre-dened temperature. To modify the
temperature, press the button.
Page 3
Setting the drying cycle
Fabric
type
Load type
Max.
load
(kg)
Cupboard
Hanger Iron
Cotton
Clothing of different
sizes, Terry towels
6 255 230 200
Synthe-
tics
Sheets, Shirts, Pyjamas, socks, etc.
4 220 200 190
Wool
Knitwear, Pullovers.
etc.
2 210 190 180
Two dierent types of drying are possible: time-based and level-based.
Press the TIME-BASED DRYING button to set the desired drying
duration: 40’- 90’- 120’ - 150 ’- 180’.
When the button is pressed for the rst time, the selected time will be
the minimum time allowed for the set cycle.
When the machine has started the drying phase, press the TIMEBASED DRYING button again to reduce the drying duration that was
set previously. The indicator lights will show the new drying duration
selected and the time remaining will consider the time that has elapsed.
Press the LEVEL-BASED DRYING button to set the desired drying level:
Cupboard : suitable for laundry which can be put back in a cupboard
without being ironed.
Hanger : ideal for clothes which do not need to be dried fully.
Iron : suitable for clothes which will need ironing afterwards. the
remaining dampness softens creases, making them easier to remove.
If your laundry load to be washed and dried is much greater than the
maximum stated load (see adjacent table of wash cycles), perform the
wash cycle, and when the cycle is complete, divide the garments into
groups and put some of them back in the drum. At this point, follow the
instructions provided for a “Drying only” cycle. Repeat this procedure
for the remainder of the load. A cooling-down period is always added to
the end of each drying cycle.
Note: if all the drying indicator lights are o, the machine will not
perform the drying cycle.
Table of drying times (guideline values)
Drying only
Press button to perform the drying-only cycle. After selecting the
desired cycle (compatible with the type of garments), press button to
exclude the washing phase and start the drying phase at the maximum
level for the selected cycle. The drying level and duration can be set and
changed by pressing the drying buttons , .
(Not compatible with cycles 13 and 14).
PUSH & GO
To start the PUSH & GO cycle press and hold the button for 2 seconds.
The indicator lights up to show that the cycle has started. The wash and
drying cycle is ideal for cotton or synthetic fabrics, as it washes them at
a temperature of 30° and a maximum spin speed of 1000 rpm. During
the drying cycle the maximum temperature is 60°C. At the end of the
cycle the residual humidity will be the same as for the “ ” level. Max
recommended load 3 kg. (Cycle duration 215’).
How does it work?
1. Load the laundry (cotton and/or synthetic garments) and close the door.
2. Pour the detergent and/or additives.
3. Start the cycle by pressing and holding the PUSH & GO button for 2
seconds. The relevant indicator light will turn green and the door will lock
(the DOOR LOCKED symbol is lit).
NB: starting the cycle through the PUSH & GO button activates an
automatic non-customisable wash and drying cycle recommended for
cotton and synthetic fabrics.
4. The automatic cycle can be used only for washing, excluding the drying
phase. Press the PUSH & GO button and then the drying button : the
drying icon of the “ ” level will switch o. Maximum load for washingonly is 4 kg (Cycle duration 45’). The cycle cannot be customised further.
To open the door while an automatic cycle is under way, press the START/
PAUSE button. If the DOOR LOCKED symbol is o, the door may be
opened only during the washing phase. Press the START/PAUSE button
again to restart the wash cycle from the point at which it was interrupted.
5. Once the programme is nished, the END indicator light turns on.
TIPS AND SUGGESTIONS
Divide the laundry according to:
Type of fabric (cotton, mixed bres, synthetics, wool, garments to be
hand-washed). Colour (separate coloured garments from whites, wash new
coloured garments separately). Delicates (small garments – such as nylon
stockings – and items with hooks – such as bras: insert them in a fabric bag).
Empty the pockets:
Objects such as coins or lighters can damage the washer-dryer and the
drum. Check all buttons.
Follow the dosage recommendation / additives
It optimizes the cleaning result, it avoids irritating residues of surplus detergent
in your laundry and it saves money by avoiding waste of surplus detergent.
Use low temperature and longer duration
The most ecient programmes in terms of energy consumption are
generally those that perform at lower temperatures and longer duration.
Observe the load sizes
Load your washing machine up to the capacity indicated in the
“Wash Cycle Table” table to save water and energy.
Noise and remaining moisture content
They are inuenced by the spinning speed: the higher the spinning speed
in the spinning phase, the higher the noise and the lower the remaining
moisture content.
CARE AND MAINTENANCE
Before performing cleaning and maintenance, switch the washer-dryer o
and disconnect it from the mains power. Do not use ammable liquids to
clean the washer-dryer. Clean and maintain your washer-dryer periodically
(at least 4 times per year).
Disconnect the water and power supplies
Close the water tap after every wash. This will limit wear on the hydraulic
system inside the washer-dryer and help to prevent leaks.
Unplug the washer-dryer when cleaning it and during all maintenance
work.
Clean the washer-dryer
The outer parts and rubber components of the appliance can be cleaned
using a soft cloth soaked in lukewarm soapy water. Do not use solvents or
abrasives.
The washer-dryer has a “Auto-clean” cycle for its internal parts; it must be
run without any load in the drum.
To optimise this cycle, it is possible to use either detergent (10% of the
quantity specied for lightly soiled garments) or special additives to clean
the washer-dryer. We recommend running a cleaning cycle every 40 wash
cycles.
To start the cycle press buttons and simultaneously for 5
seconds.
The cycle will start automatically and will run for about 70 minutes. To
stop the cycle, press the START/PAUSE button.
Clean the detergent dispenser drawer
Wash it under running water; this operation should be repeated frequently.
Care for the door and drum
Always leave the porthole door ajar in order to prevent unpleasant odours
from forming.
Clean the pump
The washer-dryer is tted with a auto-cleaning pump that does not
require any maintenance. Small items (such as coins or buttons) may
sometimes fall into the protective pre-chamber situated at the base of the
pump.
! Make sure the wash cycle has ended and unplug the appliance.
To access the pre-chamber:
1. remove the cover panel on the front of the machine by rst pressing it
in the centre then pushing downwards on both sides to extract it;
2. loosen the drainage pump cover by turning it anti-clockwise: it is
normal for some water to leak out;
3. clean the inside thoroughly;
4. screw the cover back on;
5. put the panel back in place, making sure the hooks slot in place before
pushing the panel onto the appliance.
Check the water inlet hose
Check the water inlet hose at least once a year. If it is cracked or broken, it
must be replaced: during wash cycles, the high pressure of the water
could suddenly split the hose open.
! Never use hoses that have already been used.
LOAD BALANCING SYSTEM
Before every spin cycle, to avoid excessive vibrations before every
spin and to distribute the load in a uniform manner, the drum rotates
continuously at a speed which is slightly greater than the washing
rotation speed. If, after several attempts, the load is not balanced
correctly, the machine spins at a reduced spin speed. If the load is
excessively unbalanced, the washer-dryer performs the distribution
process instead of spinning. To encourage improved load distribution and
balance, we recommend small and large garments are mixed in the load.
ACCESSORIES
Contact our Technical Assistance Service to check whether the following
accessories are available for this washer-dryer model.
Stacking kit
With this accessory you can secure the tumble dryer to the upper part of
your washer-dryer to save space and facilitate loading and unloading of
the tumble dryer.
TRANSPORT AND HANDLING
Do not lift the washer-dryer by gripping it from the upper section.
Unplug the appliance and close the water tap. Check that the door and
detergent dispenser drawer are tightly closed. Detach the lling hose
from the water tap then detach the drain hose. Empty all the water
remaining in the hoses and secure the latter so that they do not get
damaged during transport. Apply the transport bolts back on. Repeat, in
reverse order, the transport bolt removal procedure described in the
“Health & Safety and Installation Guides”.
Page 4
TROUBLESHOOTING
The washer-dryer may occasionally fail to work. Before contacting the Technical Assistance Service, make sure that the problem cannot be easily solved
using the following list.
Anomalies Possible causes / Solution
The washer-dryer does not
start.
The wash cycle does not start.
The machine does not ll with
water or the indicator light
for the rst wash cycle stage
ashes rapidly.
The washer-dryer
continuously loads and
unloads water.
The washer-dryer does not
drain or spin.
The washer-dryer vibrates a
lot during the spin cycle.
The washer-dryer leaks.
The “Options” lights and the
START/PAUSE indicator light
ash while one of the wash
cycle progress and DOOR
LOCKED lights are lit in a xed
manner.
There is too much foam.
The PUSH & GO function does
not activate.
The washer-dryer does not
dry.
The appliance is not plugged into the socket, or not suciently to make contact.
There is no power in the house.
The washer-dryer door is not closed properly.
The ON/OFF button has not been pressed.
The START/PAUSE button has not been pressed.
The water tap has not been opened.
The water inlet hose is not connected to the tap.
The hose is bent.
The water tap has not been opened.
There is no water supply in the house.
The pressure is too low.
The START/PAUSE button has not been pressed.
The drain hose is not tted between 65 and 100 cm from the oor.
The free end of the hose is immersed in water.
The wall drainage system does not have a breather pipe.
If the problem persists even after these checks, turn o the water tap, switch the appliance o and contact the
Technical Assistance Service. If the home is on one of the upper oors of a building, there may be problems relating
to back-siphonage, causing the washer-dryer to ll with water and drain continuously. Special anti-siphon valves
are available in shops and help to prevent this inconvenience.
The cycle does not include drainage: with certain cycles it must be started manually.
The drain hose is bent.
The drainage duct is clogged.
The drum was not unlocked correctly during installation.
The washer-dryer is not level.
The washer-dryer is tucked between furniture cabinets and the wall.
The water inlet hose is not screwed on properly.
The detergent dispenser drawer is obstructed.
The drain hose is not properly attached.
Switch o the machine and unplug it, wait for approximately 1 minute and then switch it back on again.
If the problem persists, contact the Technical Assistance Service .
The detergent is not suitable for machine washing (it should be marked with “for washing machine use” or “hand
wash and machine wash” or similar).
Too much detergent was used.
After switching on the machine, a control other than PUSH & GO was activated.
The appliance is not plugged into the socket, or not enough to make contact.
There has been a power failure.
The appliance door is not shut properly.
All the drying indicator lights are o.
You can download the Safety Instructions, Product Fiche and Energy data by:
• Visiting our website - http://docs.indesit.eu
• Using QR Code
• Alternatively, contact our After-sales Service (See phone number in the warranty booklet). When
contacting our After-sales Service, please state the codes provided on your product’s identication plate.
• For User’s Repair & Maintenance Information visit www.indesit .com
The model information can be retrieved using the QR-Code reported in the energy label. The label also includes
the model identier that can be used to consult the portal of the registry at https://eprel.ec.europa.eu
xxxxxxxxxxxx
xxxx
Loading...
