Page 1

Fridge-freezer combined

Instructions for installation and use

B 339 NF P

Page 2

Fridge-freezer

Instructions for installation and use

Combined

To maintain the EFFICIENCY and SAFETY of this appliance, we recommend:

- use only the MANUFACTURER Service

- use only ORIGINAL Spare Parts

Page 3

Safety - a good habit to get into.

ATTENTION Read your manual carefully since it contains instructions which will ensure safe installation, use and maintenance of your appliance. Your Refrigerator is built to International safety standards (EN60) ans has been awarded the European approval mark (IMQ) for compliance with UK electrical safety requirements. It also meets the EC standards on the prevention and elimination of readio interference (EC directive 87/308 - 02.06.89).

1. This appliance is designed to be used indoors and under no circumstances should it be installed outside even if protected by a roof. Leaving the appliance exposed to the rain and whether is exceedingly dangerous.

2. The appliance should be used only by adults and exclusively for storing foodstuffs in compliance with the instructions provided in this manual. Under no circumstances should children be allowed to operate, or tamper with, this product.

3. Do not attempt to operate or handle this appliance when barefoot, or with wet hands or feet.

4. It is highly recommended that you do not operate this appliance by connecting it to the power supply with extensions or multiple socket plugs. If the refrigerator has been installed between two cabinets, make sure that the supply chord is not dangerously crimped or trapped beneath a heavy object.

5. Never pull the cable or the appliance to remove the plug from the socket; this is exceedingly dangerous.

6. Do not touch the internal cooling elements, especially if

your hands are wet, since you could burn or hurt yourself.

7. Before doing any cleaning, disconnect the appliance from the electricity (by pulling out the plug or turning off the general switch in your home); it is not sufficient to place the temperature regulation knob on to cut off the power.

8. Before disposing of your old appliance, remember to break or remove the lock as a safety measure to protect children who might lock themselves inside the appliance when playing. In addition, if the appliance is a new one with a lock, keeo the key out of the reach of small children.

9. If your appliance is not operating properly, read the chapter entitled, “Trouble Shooting”, which might help you resolve the problem, before calling an after-sales service centre. Do not attempt to repair the appliance by tampering with the internal components.

10. If the power supply cord must be replaced, please contact one of our Customer Service Centers. In some cases, the connections are made using special terminals and in others a special tool must be used to access the connections.

11. Do not use electric appliances inside the compartment for food storage, if these are not those recommended by the manufacturer.

12. At the end of the functional life of your appliance – containing cyclopentane gas in the insulation foam and perhaps gas R600a (isobutane) in the refrigeration circuit – the latter should made safe before being sent to the dump. For this operation, please contact your dealer or the Local Organisation in charge of waste disposal.

Installation

Proper installation of the appliance is essential to ensure the best and most efficient performance of your appliance.

Ventilation

The compressor and condenser generate heat and, therefore, need to be ventilated properly. Rooms with less than perfect ventilation are not very suited for installation of the appliance. Therefore, it should be installed in a room with an opening (window or French window) that provide the appropriate amount of air re-circulation. It is also important that the room not be too humid. During installation, make sure not to cover or obstruct the grates that allow for proper ventilation of the appliance. For proper ventilation of the appliance, you must leave:

- a space of at least 10 cm between the top part and any cabinets above it;

- a space of at least 5 cm between the sides of the appliance and any adjacent cabinets/walls.

Away from Heat

Avoid positioning the appliance in a place where it is directly exposed to sunlight or near an oven, cook top or the like.

Levelling

The floor should be perfectly level; if not, you can adjust the feet at the front of the appliance.

Earthing

Before making the electrical connection, check that the voltage shown on the data plate, that you will find on the bottom left hand side of the appliance next to the crisper, corresponds to that of your home and that the socket is earthed in compliance with all current electrical regulations. If the system is not earthed, the manufacturer declines all liability for consequent damages or losses. Do not use adapters or multiple sockets.

Position the appliance in such a way that you can access the socket where it is plugged in.

Check the power load

The electrical socket must support the maximum power load of the appliance shown on the data plate (on the bottom left hand side of the appliance next to the crisper).

Before plugging the appliance to the mains

Stand the appliance upright and wait at least 3 hours before plugging the appliance into the mains to ensure proper performance.

Page 4

Electrical connection

Your appliance is now supplied with a 13 amp fused plug that can be plugged into a 13 amp socket for immediate use. Before using the appliance please read the instructions below.

WARNING - THIS APPLIANCE MUST BE EARTHED. THE FOLLOWING OPERATIONS SHOULD BE CARRIED OUT BY A QUALIFIED ELECTRICIAN.

Replacing the fuse:

When replacing a faulty fuse, a 13 amp ASTA approved fuse to BS 1362 should always be used, and the fuse cover refitted. If the fuse cover is lost, the plug must not be used until a replacement is obtained.

As the colours of the wires in the mains lead may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: Connect Green & Yellow wire to terminal marked “E” or

or coloured Green or Green & Yellow.

Connect Brown wire to terminal marked “L” or coloured Red. Connect Blue wire to terminal marked “N” or coloured Black. If a 13 amp plug (BS 1363) is used it must be fitted with a 13 amp fuse. A 15 amp plug must be protected by a 15 amp fuse, either in the plug or adaptor or at the distribution board. If you are in any doubt about the electrical supply to your machine, consult a qualified electrician before use.

Replacement fuse covers:

If a replacement fuse cover is fitted, it must be of the correct colour as indicated by the coloured marking or the colour that is embossed in words on the base of the plug. Replacements can be obtained directly from your nearest Service Depot.

Removing the plug:

If your appliance has a non-rewireable moulded plug and you should wish to remove it to add a cable extension or to re-route the mains cable through partitions, units etc., please ensure that either:

- the plug is replaced by a fused 13 amp re-wireable plug bearing the BSI mark of approval or:

- the mains cable is wired directly into a 13 amp cable outlet, controlled by a switch, (in compliance with BS 5733) which is accessible without moving the appliance.

Disposing of the plug:

Ensure that before disposing of the plug itself, you make the pins unusable so that it cannot be accidentally inserted into a socket. Instructions for connecting cable to an

alternative plug:

Important: the wires in the mains lead are coloured in accordance with the following code:

Green & Yellow - Earth Blue - Neutral Brown - Live

How to connect an alternative plug:

The wires in this mains lead are coloured in accordance with the following code: BLUE “NEUTRAL” (“N”) BROWN “LIVE” (“L”) GREEN AND YELLOW “EARTH” (“E”)

GREEN & YELLOW

BROWN

BLUE

13 ampere fuse

CROSS-BAR CORD GRIP

Disposing of the appliance:

When disposing of the appliance please remove the plug by cutting the mains cable as close as possible to the plug body and dispose of it as described above.

Page 5

A Closer Look

Temperature regulator knob for the fridge

compartment

This knob allows you to adjust the fridge temperature on different positions;

Temperature regulator knob for the freezer

compartment

This knob allows you to adjust the freezer temperature on different positions:

the fridge is off;

least cold; coldest

ECO optimal temperature at low consumption levels.

Red alarm lamp

When this red pilot lamp comes on, the freezer is not operating correctly and the temperature is rising too much

Green lamp

When lit, it indicates that the appliance is connected to the electricity network

Rapid freezing lamp

This yellow pilot lamp comes on when you press the rapid freezing button "F"

the fridge and freezer are off; least cold; coldest

ECO optimal temperature at low consumption levels.

You can adjust the knob from position to position

according to your requirments.

Remember that you can also interrupt the operation of the whole appliance (fridge included) by setting the knob on position " ".

Rapid freezing button

When pressed (the yellow "D" pilot lamp comes on), it allows you to freeze fresh food

B C D E

Page 6

A Closer Look

Removable shelf with egg compartment

Removable door shelf for food products

Removable door shelf for bottles

Ice tray

Adjustable feet

Compartments for

storing

Compartment for storing

and freezing

Drain system for the elimination of defrost

water

Removable shelves which can be positioned at

different levels

Light

Fruit and vegetable

drawers

Page 7

How to Start the Appliance

NOTICE After the appliance has been delivered, stand it in the upright position and wait approximately 3 hours before connecting it to the electrical outlet to guarantee that it operates properly.

Before placing foodstuffs in the refrigerator or freezer, clean the interior well with warm water and baking soda.

Motor protection delay

This model is provided with a motor protection control system. Therefore, if the compressor does not start immediately upon installation, do not worry as it will start automatically after approximately 8 minutes. This is also what will happen every time the power supply is interrupted, both due to a power failure or should you switch it off yourself (to clean or defrost your freezer, for example).

After having plugged the appliance in, make sure that pilot lamp "C" is lit. If not, make sure that the freezer knob "E" is not

on position "

Refrigerator compartment

Set knob "A" onto a medium position and you can place food in the fridge after only a few hours.

Freezer compartment

Set knob "E" onto a medium position and press button "F" for rapid freezing (yellow pilot lamp "D" will come on). When the freezer has reached the optimum temperature, the red alarm lamp "B" will come off. Press button "F" again; yellow lamp "D" off. Now you can place frozen food in the freezer.

How to use the refrigerator compartment...

Storing Food in the Refrigerator Compartment

Food Storage Time Location in the Refrigerator

Wrapped meat and cleaned fish (use plastic wrap or pack in plastic bags)

Fresh cheese 3 or 4 days

Eggs 1 month In special egg rack on door.

Butter, margarine On any shelf.

Cooked or precooked food (placer in air-tight containers and when cool store in refrigerator)

Sausages, salami, sandwich meats in general, fresh pasta, custards,puddings, chocolates, cream pastries, bread, dry pastries, red tomatoes

Bottled products, milk, drinks, yoghurt On special door shelves.

Fruits and legumes In vegetable crisper.

2 or 3 days

3 or 4 days On any shelf.

On the shelf above the vegetable crisper (which is the coldest area).

What Not to Store in the Refrigerator

Garlic (transmits odour), onions and leeks. Bananas (they will turn black). Citrus fruits. Potatoes and root vegetables (store in dark, dry places).

Page 8

The temperature inside the refrigerator compartment automatically adjusts itself according to the position of the temperature regulator knob.

= least cold = coldest

We recommend, however, a medium position.

Air in the refrigerator circulates naturally so that colder, heavier air tends to descend towards the bottom. This is why meat and cheese should be stored just above the crisper. Please follow our instructions carefully on maximum storage time: any food, even the freshest, will not remain edible for any extended amount of time. Contrary to popular belief, cooked foods do not store any longer than raw food. The practical removable shelves (Fig. 1), whose height can be adjusted thanks to special guides, allow you to insert even large containers and larger sized foods. The innovative shape of the shelves allows you to adjust their height without having to remove them completely. Remember to cool hot food before storing, otherwise the temperature inside the appliance will increase, causing the compressor to work harder and use more energy. Do not place liquids in containers without covering them because this will lead to an increase in the level of moisture within the refrigerator, causing the formation of frost.

- Be careful not to place containers (plastic or glass), food or other objects in direct contact with the cooling area of the back wall of the refrigerator. This could harm the food, increase energy consumption and facilitate the formation of condensate (on food, containers, etc.).

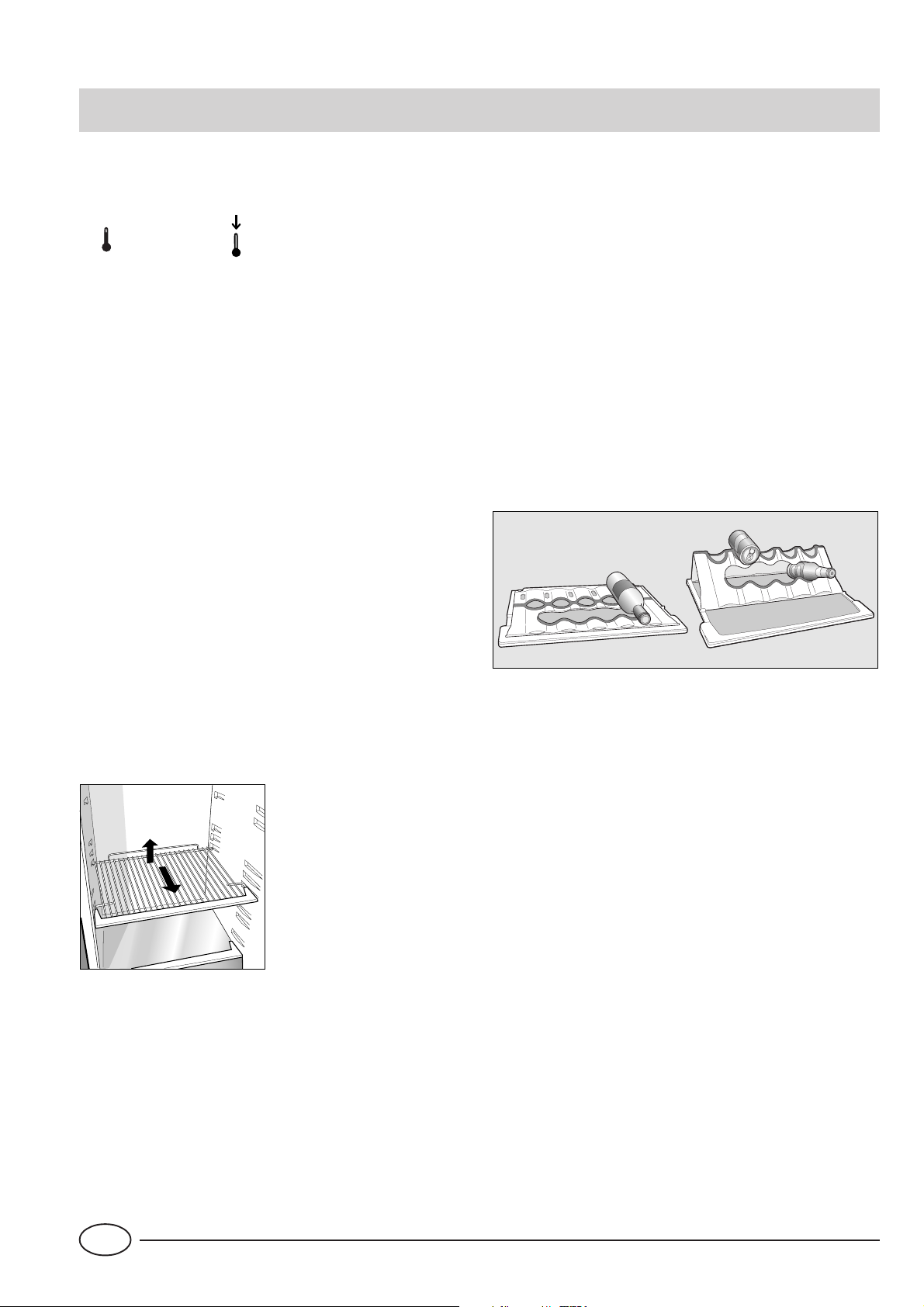

Play Zone (Fig. 2)

Thanks to the new “Play Zone” bottle rack, you can cool several bottles, cans and energy drinks quickly to have them constantly at hand. If the “Play Zone” is placed on the glass shelf, you can store large and medium sized bottles on it simply by laying the bottle on the flat rack. This is ideal for storing wine bottles. When folded and secured in place on either side of the shelf, the rack can be used to store cans (at the top), energy drinks (in the centre) and other cans and energy drinks can be rested horizontally on the remaining part of the shelf. When placing

cans (onto the Play zone rack), make sure they do not touch the back of the refrigerator interior.

The “Play Zone” can be used just like a normal shelf (when placed flat) and moved up or down along the fridge walls together with the rest of the shelf. It can be washed easily, and is also dishwasher safe. The ideal position for the Play

zone rack is the central shelf.

Fig. 2

Fig. 1

Page 9

How to use the freezer compartment...

For the preparation of food to be frozen, please consult a specialized manual.

Food that has be thawed, even partially, must not be refrozen: you must cook it in order to consume it (within 24 hours) or to freeze it once again. When freezing fresh foods, remember that they should not touch other previously frozen or deep frozen foods. Place the food that you wish to freeze in the top compartment "M" where the temperature will fall below -18°C, which is ideal for freezing food properly. Remember that proper conservation depends on the speed of freezing. The maximum amount of food you can freeze per day is indicated on the data plate situated inside the refrigerator compartment. The first time, or after the freezer has been inactive, you can only freeze food after having let the appliance function at maximum and the red lamp "B" has come off. When the appliance is already on, freezing can be done in two ways:

1. for small quantities, less than the maximum capacity indicated on the data plate, just press the freezing button “F” (yellow lamp “D” lit) and insert the food to be frozen. After 24 hours, or once the optimum temperatures have been reached, the rapid freezing function will switch itself off automatically (yellow lamp “D” off).

2. For large quantities of food to be frozen (up until the maximum load indicated on the data plate), keep the freezing button “F” pressed down until the yellow lamp starts flashing quickly. After 24 hours, the yellow lamp will stop flashing (permanently lit); you can now insert the food to be frozen. After 24 hours, the button will switch itself off automatically (yellow lamp off).

During the freezing process, avoid opening the door of the freezer. In order to freeze and then thaw foods optimally, it is recommended that you divide food into small portions so that they freeze quickly and uniformly. The packages should be clearly marked with the content and the date they were frozen. In order to obtain a larger amount of space in the freezer compartment, you can remove the central drawer, and place the food directly onto the evaporator plate. Make sure that, after having inserted the load, the door closes correctly. Do not open the freezer door in the event of a power failure or malfunction. This precaution will slow the rise in temperature within the compartment. If the door is not opened, frozen and fast-frozen foods will remain in their current state for approximately 9-14 hours. Do not place full bottles in the freezer: they could easily burst because all liquids increase in volume when they freeze.

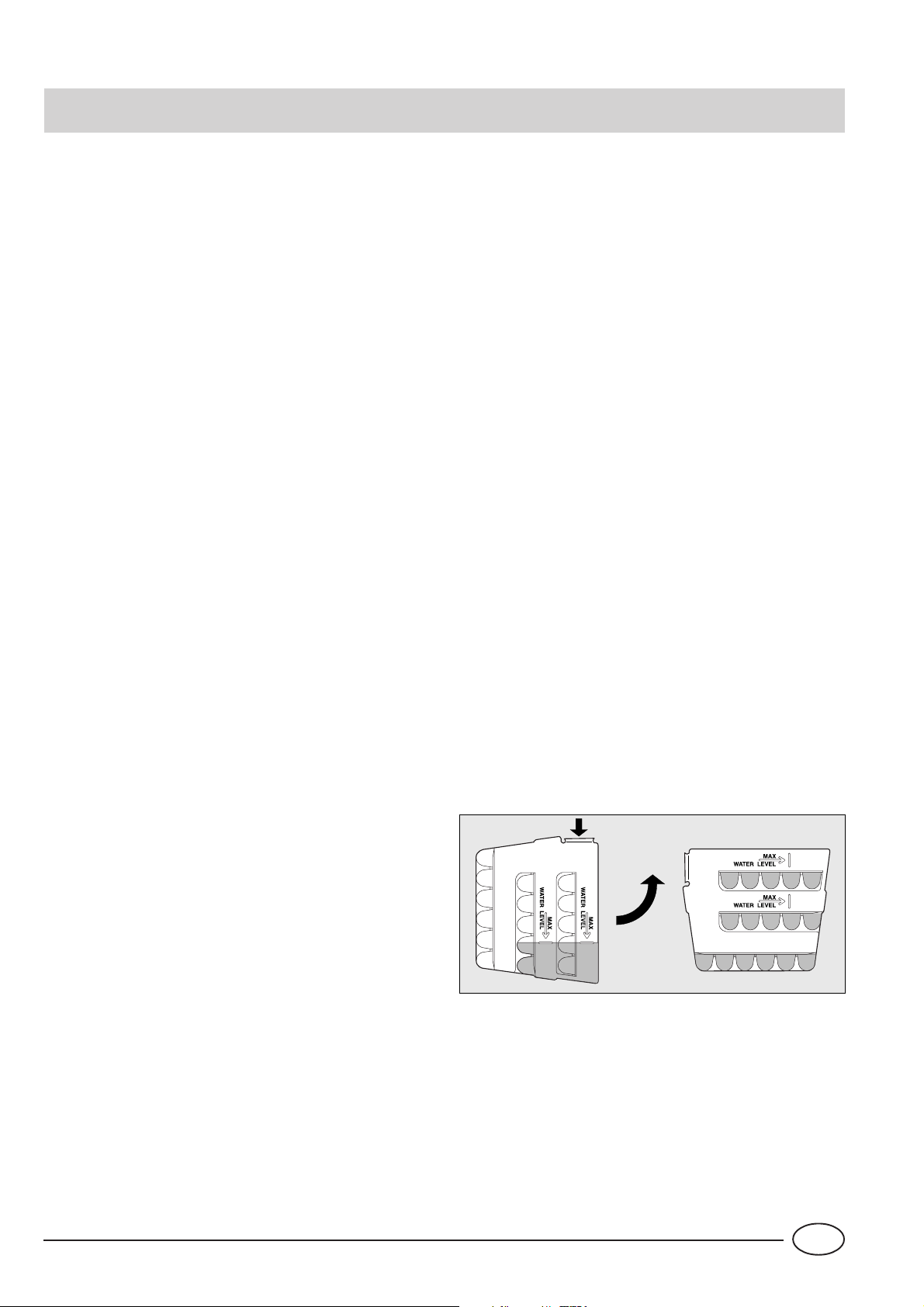

Ice trays

This new concept of ice trays is an exclusive patent. The fact that they are situated on the inner door of the freezer compartment ensures greater ergonomics and cleanliness: the ice no longer comes into contact with the food placed inside the freezer compartment; furthermore, the dripping of the water during filling is avoided (a lid to cover up the hole after filling with water is also provided).

Instructions for use (Fig. 3) Fill up the tray with water via the special hole up to the level indicated (MAX WATER LEVEL), taking care not to exceed it: inserting more water than is necessary will lead to the formation of ice which could obstruct the exit of the ice cubes. If you have used an excessive amount of water, you will have to wait until the ice has melted, empty out the tray and re-fill it with water. Once you have filled the ice tray up with water through the hole indicated, turn it by 90 °. Thanks to the connected compartments, the water fills up the special shapes, after which you can cover the hole up with the special cap and place the ice tray in the inner door of the freezer compartment. Once the ice has formed, all you need to do is to knock the tray against a hard surface so that the ice cubes come away from their housing and come out of the same hole used to fill the tray with water. To make it easier for the ice cubes to come out, wet the outside of the tray. WARNING: every time you fill up the ice tray with water , make sure that the same is completely empty and that there are no traces of ice left inside it. The minimum time required for ice to form well is approximately 8 hours.

Fig. 3

Page 10

Energy Saving Tips

- Install the appliance correctly

This means that the appliance should be installed away from heat sources or direct sunlight in a well ventilated room.

- Correct temperature settings

Set the refrigerator or freezer temperature knob to one of the medium settings. Very low temperatures will not only consume a great deal of energy but will neither improve or lengthen the storage life of the food. Excessively low temperature may in fact spoil vegetables, cold meats and cheese.

- Do not overfill your appliance

Remember that proper storage of food requires good air circulation. Overfilling your appliance will prevent this circulation and overwork the compressor.

- Shut the doors

Open your appliance only when strictly necessary; remember that every time you open the door most of the cold air will be lost. The motor will have to run, and consume energy, to restore the correct temperature.

- Check the door seals

keep the gaskets clean and soft so that they fit closely against the door to ensure that no cold air is lost.

- Never store hot foods

A container of hot food in the refrigerator will increase the temperature significantly; allow food to cool to room temperature before storing.

- Check your appliance for build up of ice

Remember to check the walls of the freezer for frost; when the frost becomes too thick, defrost the freezer immediately (See “Maintenance Instructions”).

Page 11

Guide to Using the Freezer

Meat and Fish

Food Wrapping

Beef Roast Tinfoil 2 / 3 9 / 10 Not required.

Lamb Tinfoil 1 / 2 6 Not required.

Pork Roast Tinfoil 1 6 Not required.

Veal Roast Tinfoil 1 8 Not required.

Veal/Pork Chops

Veal/Lamb Cutlets

Minced Meat

Heart and Liver Plastic Baggies 3 Not required.

Each piece wrapped in cling wrap and then in tinfoil (4 to 6 slices)

In aluminium containers covered with cling

wrap.

Tenderising

(days)

Freshly

minced

Storage

(months)

6 Not required.

2 Slowly in refrigerator.

Thawing Time

Sausages Cling Wrap or Tinfoil 2 As necessary.

Chicken and Turkey Tinfoil 1 / 3 9 Very slowly in refrigerator.

Duck and Goose Tinfoil 1 / 4 6 Very slowly in refrigerator.

Pheasant, Partrige and

Wild Duck

Hare and Rabbit Tinfoil 3 / 4 6 Very slowly in refrigerator.

Venison Tinfoil or Cling Wrap 5 / 6 9 Very slowly in refrigerator.

Large Fish Tinfoil or Cling Wrap 4 / 6 Very slowly in refrigerator.

Small Fish Plastic Baggies 2 / 3 Not required.

Crustaceans Plastic Baggies 3 / 6 Not required.

Shellfish

Tinfoil 1 / 3 9 Very slowly in refrigerator.

Store in salted water in aluminium containers or plastic containers.

3 Very slowly in refrigerator.

Boiled Fish Tinfoil or Cling Wrap 12 In hot water.

Fried Fish Plastic Baggies 4 / 6 Directly in pan.

Page 12

Fruits and Vegetables

Food Preparation

Apples and Pears Peel and cut into slices. 2’

Apricots, Peaches, Cherries and Plums

Strawberries Blackberries and

Raspberries

Cooked Fruit Cut, cook and strain.

Fruit Juice Wash, cut and crush.

Cauliflower

Cabbage and Brussel Sprouts

Peas Shell and wash. 2’ Plastic Baggies 12 Not required.

Peel and pit. 1’ / 2’

Rinse and fry.

Remove leaves, cut head into small pieces and blanch in water and a little lemon

juice.

Wash and cut into small

pieces.

Blanching

Time

2’ Plastic Baggies 12 Not required.

1’ / 2’ Plastic Baggies 10 / 12 At room temperature.

Wrapping

In Containers (cover with syrup)

In Containers (cover with sugar)

In Containers (add 10% sugar)

In Containers (sugar to taste)

Storage

(months)

10 / 12

Thawing Time

In refrigerator very slowly.

French Beans Wash and slice if required. 2 Plastic Baggies 10 / 12 Not required.

Carrots, Peppers and Turnips

Mushrooms and Asparagus

Spinach Wash and mince. 2’ Plastic Baggies 12 At room temperature.

Vegetable for Soups

Various Foods Preparation

Bread Plastic Baggies 4

Cakes Plastic Baggies 6

Cream Plastic Containers 6

Butter

Peel, wash and slice if necessary.

Wash, peel and cut up. 3’ / 4’

Wash and cut up in small

pieces.

3’ / 4’ Plastic Baggies 12 Not required.

3’

Blanching

Time

Plastic Baggies or Containers

Wrapping

In original wrapping or tinfoil

6 At room temperature.

6 / 7 Not required.

Storage

(months)

6 In refrigerator.

Thawing time

At room temperature and in the oven.

About 10 minutes at room temperature,

cook at 100/200°C.

At room temperature or in refrigerator.

Boiled Food or Vegetable Soup

Eggs

Plastic or Glass Containers

Freeze without shells in small containers

3 / 6

At room temperature or in hot water.

At room temperature or in refrigerator.

Page 13

Keeping Your Appliance in Shape

Before doing any cleaning, disconnect the appliance from the electricity (by pulling out the plug or turning off the general switch in your home).

Defrosting

WARNING: do not damage the refrigeration circuit. Do not use mechanical devices or other tools to speed up the defrosting process, unless they have been recommended by the manufacturer.

How to Defrost the Refrigerator

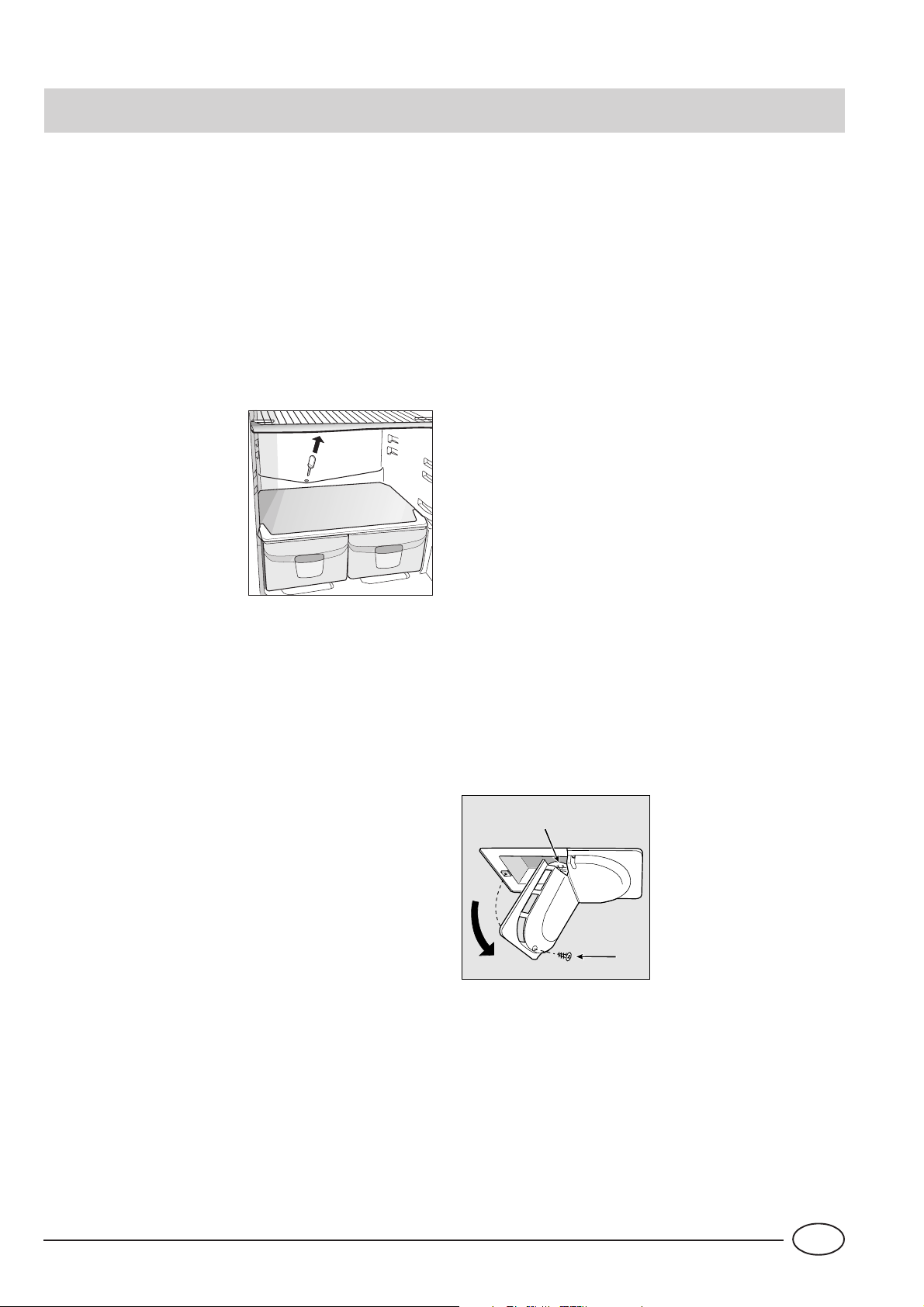

This appliance defrosts automatically and the water is channeled to the back toward the drain installed for this purpose (fig. 3). Here, the heat produced by the compressor will make it evaporate. The only thing you must do is to periodically check and clean the hole of the drain, which is located behind the vegetable crispers, so that the water drains properly.

Fig. 3

How to defrost the freezer compartment.

There is no need to defrost the freezer since the “ventilated cold air” cooling system prevents the formation of frost and ice on the walls.

Cleaning and maintenance

Always unplug the appliance from the mains before cleaning.

- Your appliance is manufactured with hygienic odourless materials. To preserve these characteristics, always use sealed containers for strong smelling foods to avoid the formation of odours that are difficult to remove.

- Use only a water and bicarbonate solution: Clean the internal and exterior of your appliance with a sponge soaked with a warm water and sodium bicarbonate solution, which is also a good disinfectant. If you do not have any sodium bicarbonate at home, use neutral detergent.

- What not to use: Do not use abrasive detergents, bleach or detergents containing ammonia. Never use solvent based products.

- Dishwashable: All the removable parts can be cleaned by soaking in hot soapy water or detergent. If you own a dishwasher, you may wash these parts in the dishwasher. Remember to dry thoroughly before replacing them.

- What about the back panel? Dust may deposit on the back panel and affect the proper running of the appliance. To remove dust, vacuum away the dust very carefully using the appropriate vacuum cleaner accessory.

- Discontinued use of the appliance: If the appliance is not in use for any length of time, remember to clean the interior and dry thoroughly, leaving the doors open to prevent the formation of bad odours and mould.

- Replacing the light bulb. When replacing the light of the refrigerator compartment unplug the unit from the power supply and chang the used lamp with another one of not more than 15 W. For access ti lamp "A", remove the centre screw "B" at the back of the lamp cover, as indicated in fig. 4.

Fig. 4

Page 14

Is There a Problem?

The refrigerator does not function.

Have you checked whether:

• The main switch for the electricity to the apartment or home has been turned off;

• The plug is properly inserted in the outlet;

• The outlet is adequate; try inserting the plug into another

outlet in the room.

The motor does not start

Have you checked whether:

· 8 minutes have passed since you switched the

appliance on? This model is in fact provided with a motor protection control system which means that it will only start approximately 8 minutes after being switched on.

The refrigerator and the freezer do not cool properly.

Have you checked whether:

• The doors do not close well or the seals are faulty;

• The doors are left open too long;

• The thermostat knob is not on the proper setting;

• The refrigerator or freezer is overfilled.

There is water on the bottom of the refrigerator.

Have you checked whether:

• The hole for draining the water from the frost is clogged (see fig. 3).

If after all the checks, the appliance still does not operate or the problem persists, call the nearest Service Centre and inform them of: the type of problem, the abbreviation of the model name (Mod.) and the relative numbers (S/N) written on the rating plate located at the bottom left next to the vegetable crisper (see examples in the figures below).

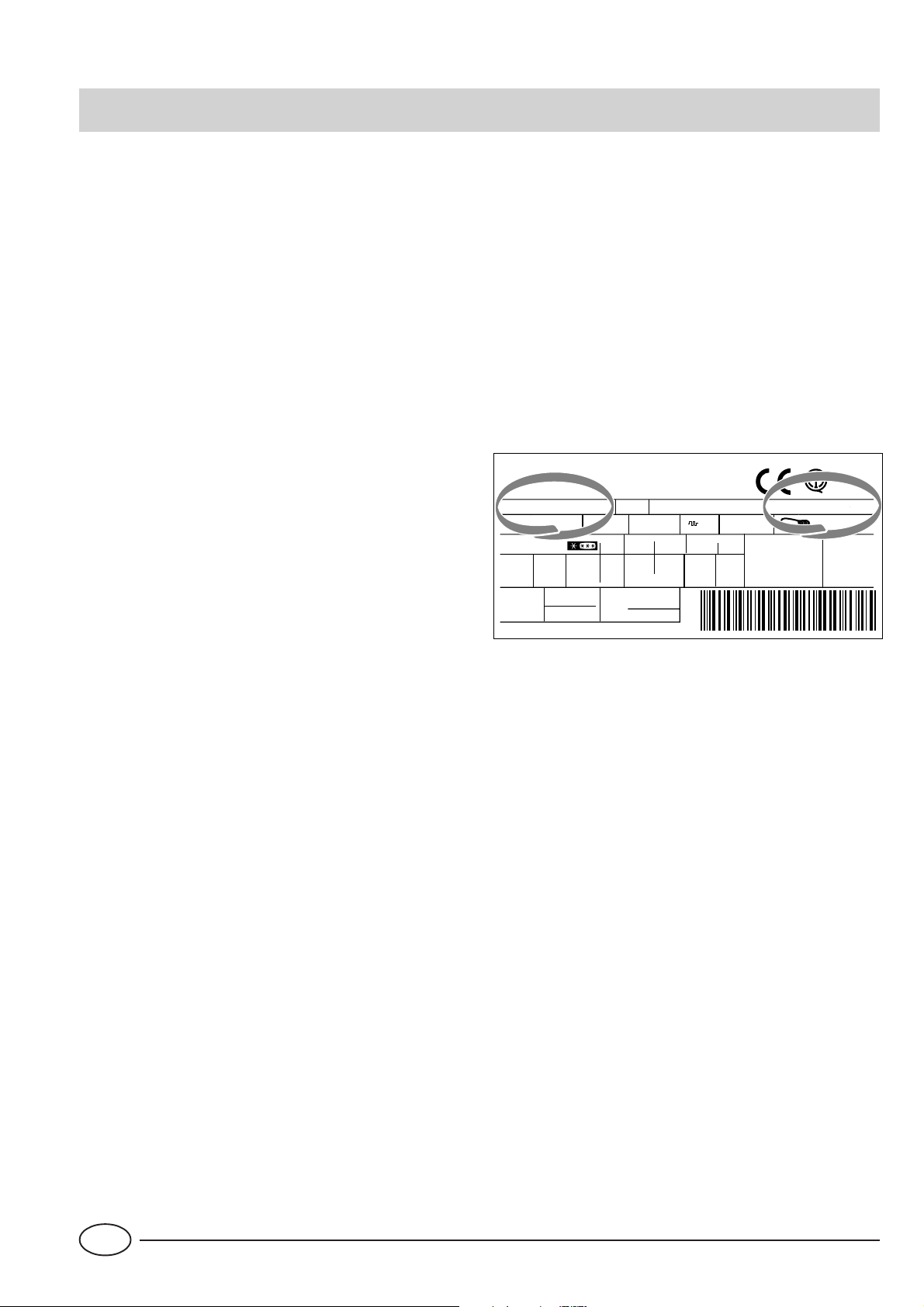

93139180000 S/N 704211801

Cod.

Gross Bruto Brut

Fuse

A Freez. Capac Poder de Cong

kg/24 h

4,0

Max 15 w

Class

Clase

Classe

Test P.S-I.

Net Util Utile

Pressure HIGH-235

LOW 140

RG 2330

Mod.

220 - 240 V- 50 Hz 150 W

340

Total Gross

Bruto Brut

Compr.

Syst.

Kompr.

Made in Italy 13918

Gross Bruto Brut

R 134 a kg 0,090

The food in the refrigerator becomes too cold.

Have you checked whether:

• The thermostat knob is on the proper setting;

• The food is in contact with the back wall - which is the

coldest part.

The motor runs continuously.

Have you checked whether

· the freezer switch has been pressed (yellow lamp lit or flashing);

• The doors are not closed well or have remained open too long;

• The ambient temperature is too high;

• The thermostat knob is not on the proper setting.

The appliance makes too much noise.

The gas refrigerant produces a slight noise even when the compressor is not running (this is not a defect). “No Frost” refrigerators have a fan which circulates cold air in the appliance. This fan makes a slight noise which is quite normal for this “No-frost” refrigerators.

Have you checked whether:

• The refrigerator is level.

• The appliance was installed between cabinets or objects

that vibrate and make noise.

Never call on unauthorized technicians and always refuse spare parts which are not originals.

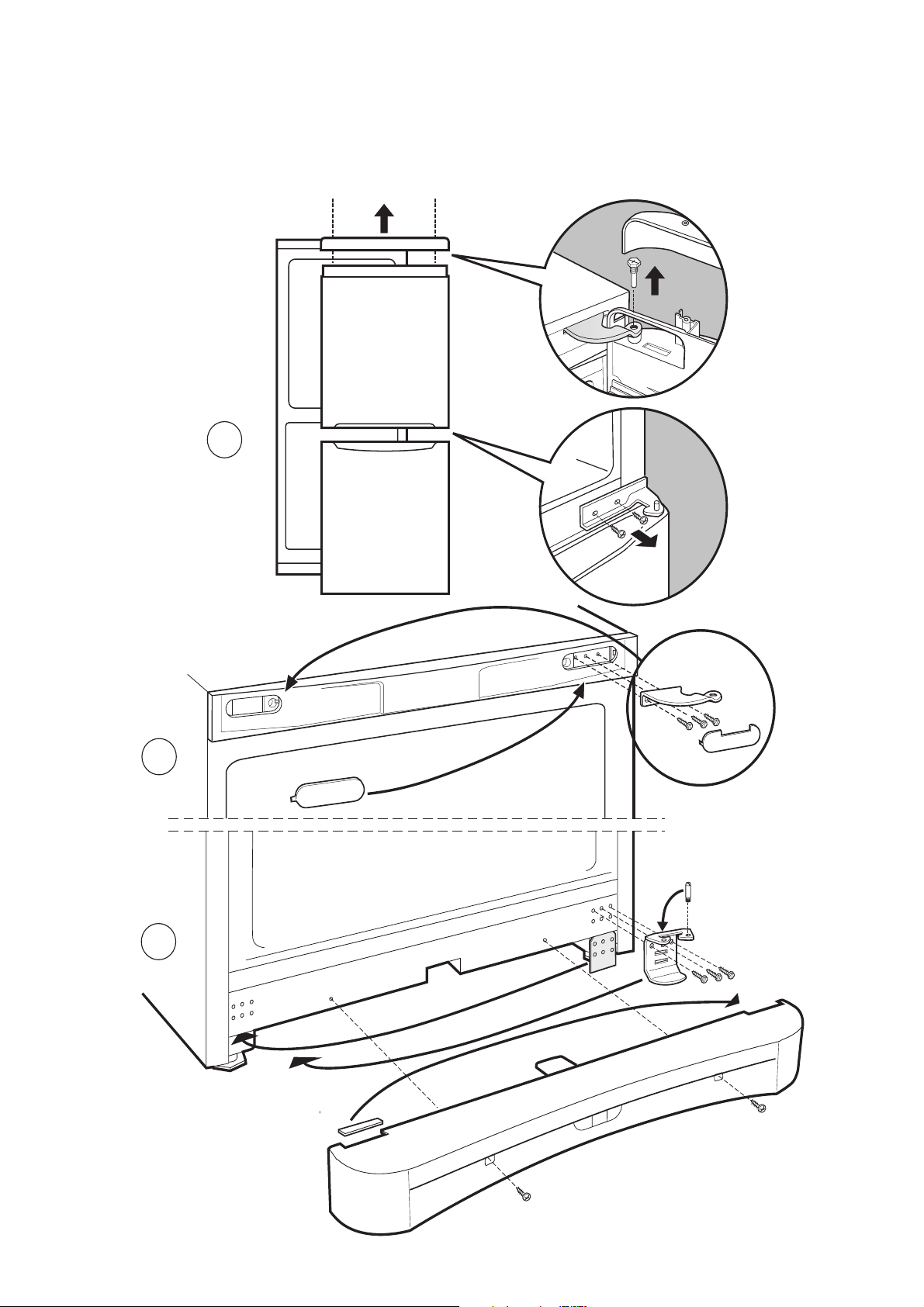

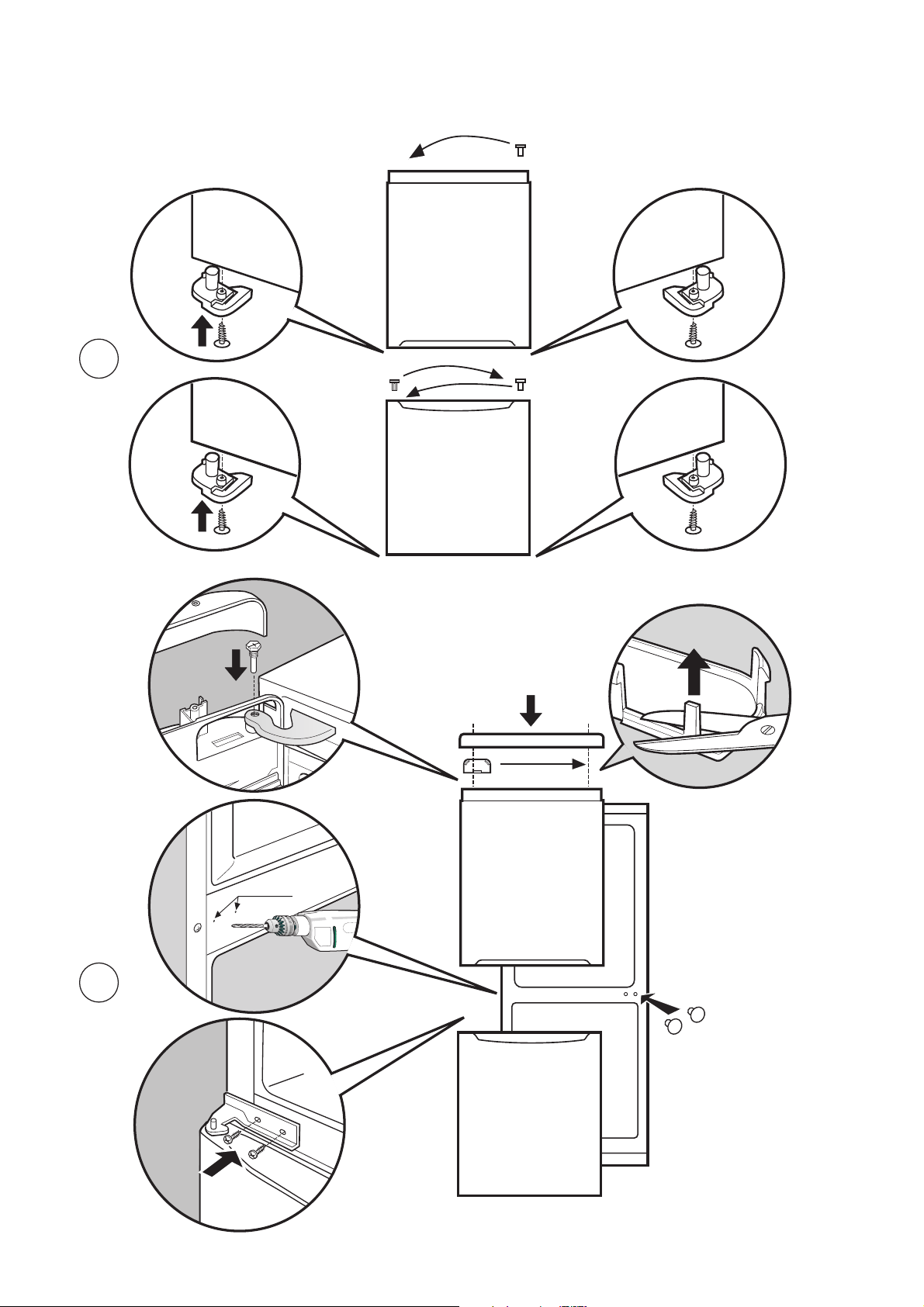

Page 15
