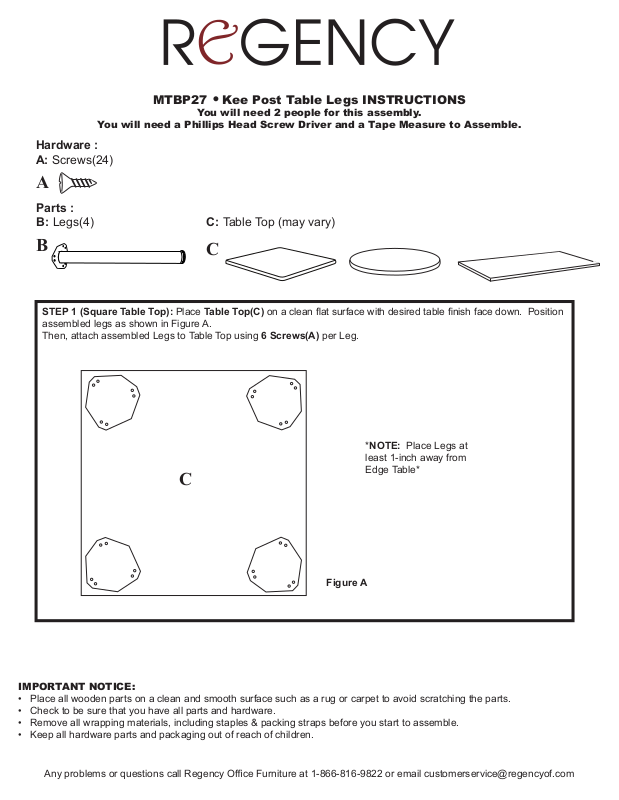

Inbox Zero W004956618 Installation & Assembly

You will need a Phillips Head Screw Driver and a Tape Measure to Assemble.

Hardware :
A: Screws(24)

A

Parts :
B: Legs(4)

MTBP27

You will need 2 people for this assembly.

Kee Post Table Legs INSTRUCTIONS

·

C: Table Top (may vary)

B

STEP 1 (Square Table Top): Place Table Top(C) on a clean at surface with desired table nish face down. Position
assembled legs as shown in Figure A.
Then, attach assembled Legs to Table Top using 6 Screws(A) per Leg.

C

*NOTE: Place Legs at
least 1-inch away from
Edge Table*

C

Figure A

IMPORTANT NOTICE:

• Place all wooden parts on a clean and smooth surface such as a rug or carpet to avoid scratching the parts.

• Check to be sure that you have all parts and hardware.

• Remove all wrapping materials, including staples & packing straps before you start to assemble.

• Keep all hardware parts and packaging out of reach of children.

Any problems or questions call Regency O󰀩ce Furniture at 1-866-816-9822 or email [e-mail]

MTBP27

You will need 2 person(s) for this assembly.

You will need a Phillips Head Screw Driver and a Tape Measure to Assemble.

STEP 1 (Round Table Top): Place Table Top(C) on a clean at surface with
desired table nish face down. Using a tape measure, position assembled legs
at an equal distance from one another as shown in Figure B. Then, attach the
assembled Legs to Table Top using 6 Screws(A) per Leg.

EQUAL

Kee Post Table Legs INSTRUCTIONS

·

*NOTE: Place Legs at
least 1-inch away from
Edge Table*

EQUAL

STEP 1 (Rectangle Table Top): Place Table Top(C) on a clean at surface with desired table nish face
down. Position assembled legs as shown in Figure C. Then, attach assembled Legs to Table Top using 6
Screws(A) per Leg.

C

EQUAL

C

EQUAL

Figure B

*NOTE: Place Legs at
least 1-inch away from
Edge Table*

Figure C

STEP 2: Using 2 people, ip the table over and adjust leveling glides accordingly.

Any problems or questions call Regency O󰀩ce Furniture at 1-866-816-9822 or email [e-mail]
