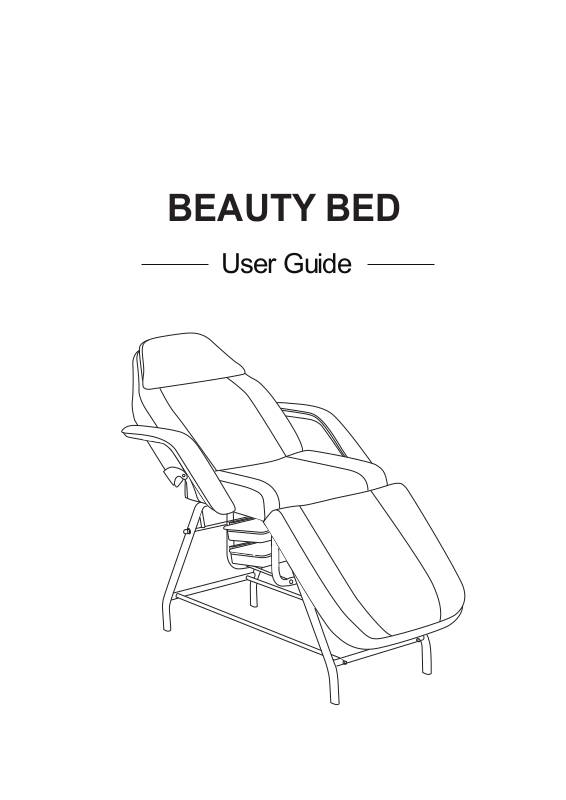

BEAUTY BED
User Guide
PRODUCT MANUAL
ATTENTION!
Armrest
PLEASE READ THESE INSTRUCTIONS BEFORE USING THIS DEVICE
Seat Cushion with
Backrest & Headrest
Drawer Stand
Bracket
Drawer Stand Support
Hand Lever
Plastic Drawer
Bracket Support
NOTICE：
If your package is missing parts or you are having issues with assembly, please call us directly.
Our customer service team will address any questions or concerns you may have.Have this manual open and ready
for reference.
SAFETY：
To reduce risk of injury when assembling & & using the bed, follow these precautions:
Read all of these instructions before assembling and using your salon bed.
Do not over-extend the bed(maximum weight capacity 0~330lbs), creating the risk of falls or tipping the bed, and its
occupant over, resulting in injury.
Do not sit on the backrest,otherwise the stainless steel sheet on one side will distort and the bed couldn't be used
as normal.
OTHER ITEMS YOU WILL NEED ( not included )
Hand Tools:
Sturdy box
1
PART LIST
A B C D
Seat Cushion with
Backrest & Headrest
E
Bracket Hand Lever Long Aluminum SheetShort Aluminum Sheet
1PCS
Drawer Stand
F
2PCS
Short Clamp
Slot on Leg Cushion
1PCS 1PCS
G H
1PCS
I J K L
2PCS
Drawer Stand Support Bracket Support Armrest
2PCS
2PCS
Long Clamp
Slot on Backrest
1PCS2PCS 2PCS
2PCS
Plastic Drawer
PART LIST
M N O P
M8x25
4PCS 4PCS
Q R S
M8x25
10PCS
φ8
10PCS
M8x40
4PCS
T
φ8
10PCS
U V W
M8x12
4PCS
M12
4PCS
φ12
4PCS
φ12
4PCS
M4x25
4PCS
2
1
O
D
O
2
C
Putting (A) upside down.Using 4*(O) to assemble (C) on leg cushion,and assemble (D) on backrest.
Attention: Please install clamp slots in the direction of arrow.
B
I
P
S
R
Q
Put (B) on (A),using (S) (R),4*(Q) to assemble (B).Insert (I) into screw holes on (B),using 4*(P) to assemble (B)and (I).
Attention: Small gasket is inside, large gasket is outside.The side with the tracks is facing inward.(P) is pre-installed in (I).
3
3
Q
S
R
E
Insert (E) on (A),aligns screw holes,using (S) (R) 6*(Q) to assemble(E),make sure holes toward each holes.
Attention: Small gasket is inside, large gasket is outside.
4
W
H
W
G
R
F
Using (S)(R) 2*(T) to assemble(F) on (E).Put (F) into slot of (C)&(D),put (C) on (G),(D) on (H),using 4*(W) to assemble.
Attention: Please aligns screw holes.
S
T
4
5
J
N
M
6
Put (J) in the middle of (E) and aligns screw holes.Using 4*(M) 4*(N) to assemble.
F
K
L
F
Turn the bed upside down,hang the springs on the hooks.Insert (K) into (A) and put (L) in (B).
5
