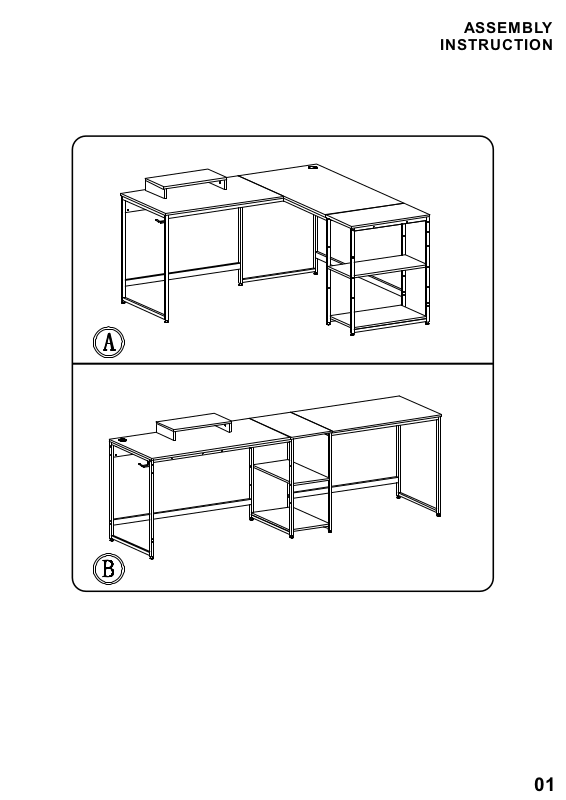

A
SSEMBLY
INSTRUCTION
01

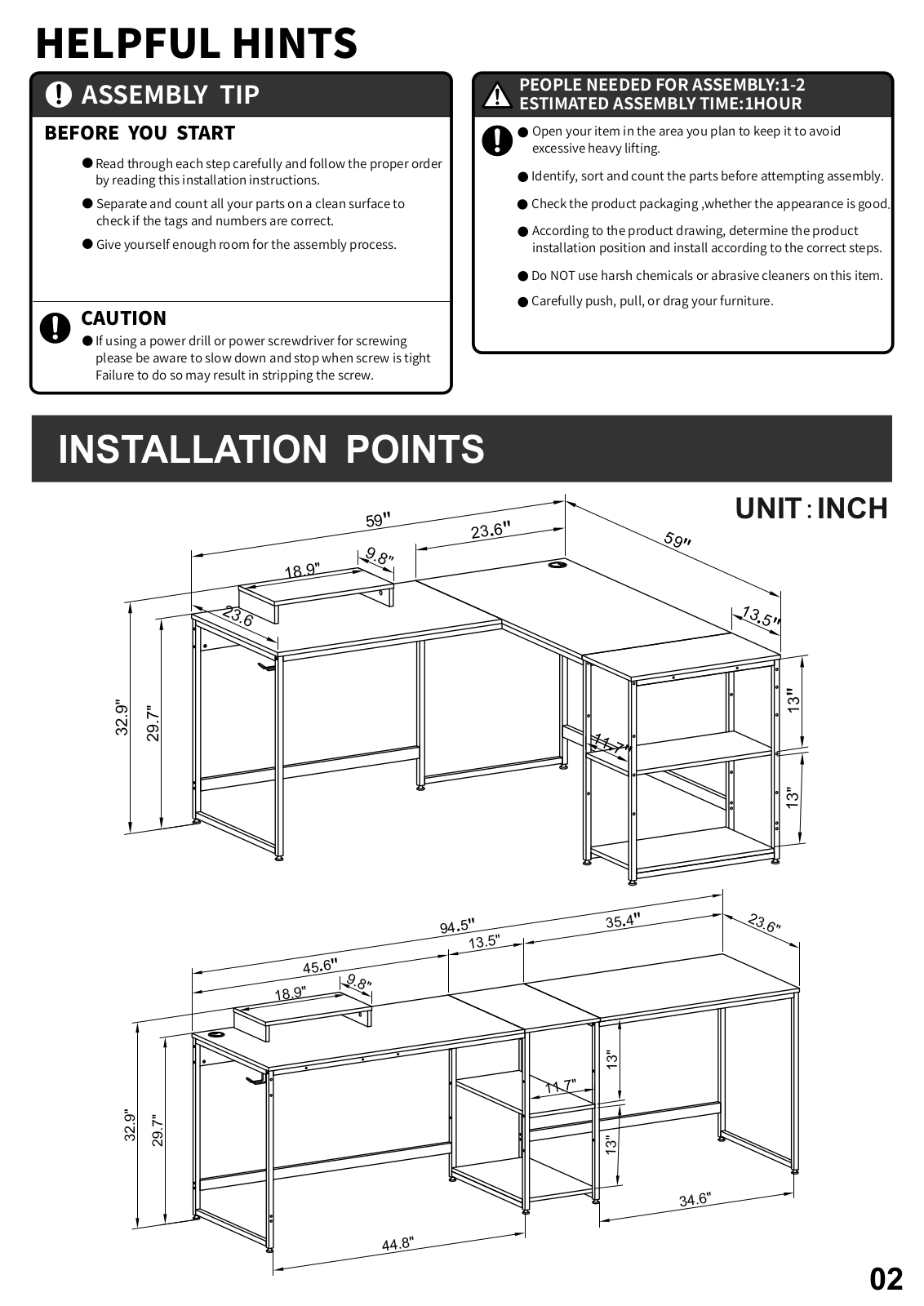

HELPFUL HINTS
ASSEMBLY TIP
BEFORE YOU START
Read through each step carefully and follow the proper order
by reading this installation instructions.
Separate and count all your parts on a clean surface to
check if the tags and numbers are correct.
Give yourself enough room for the assembly process.
CAUTION
If using a power drill or power screwdriver for screwing
please be aware to slow down and stop when screw is tight
Failure to do so may result in stripping the screw.
INSTALLATION POINTS
59"
23.6"
PEOPLE NEEDED FOR ASSEMBLY:1-2
ESTIMATED ASSEMBLY TIME:1HOUR
Open your item in the area you plan to keep it to avoid
excessive heavy lifting.
Identify, sort and count the parts before attempting assembly.
Check the product packaging ,whether the appearance is good.
According to the product drawing, determine the product
installation position and install according to the correct steps.
Do NOT use harsh chemicals or abrasive cleaners on this item.
Carefully push, pull, or drag your furniture.
UNIT:INCH
59"
45.
6"
94.5"
1
1.7"
13.5"
13"
35.4"
02

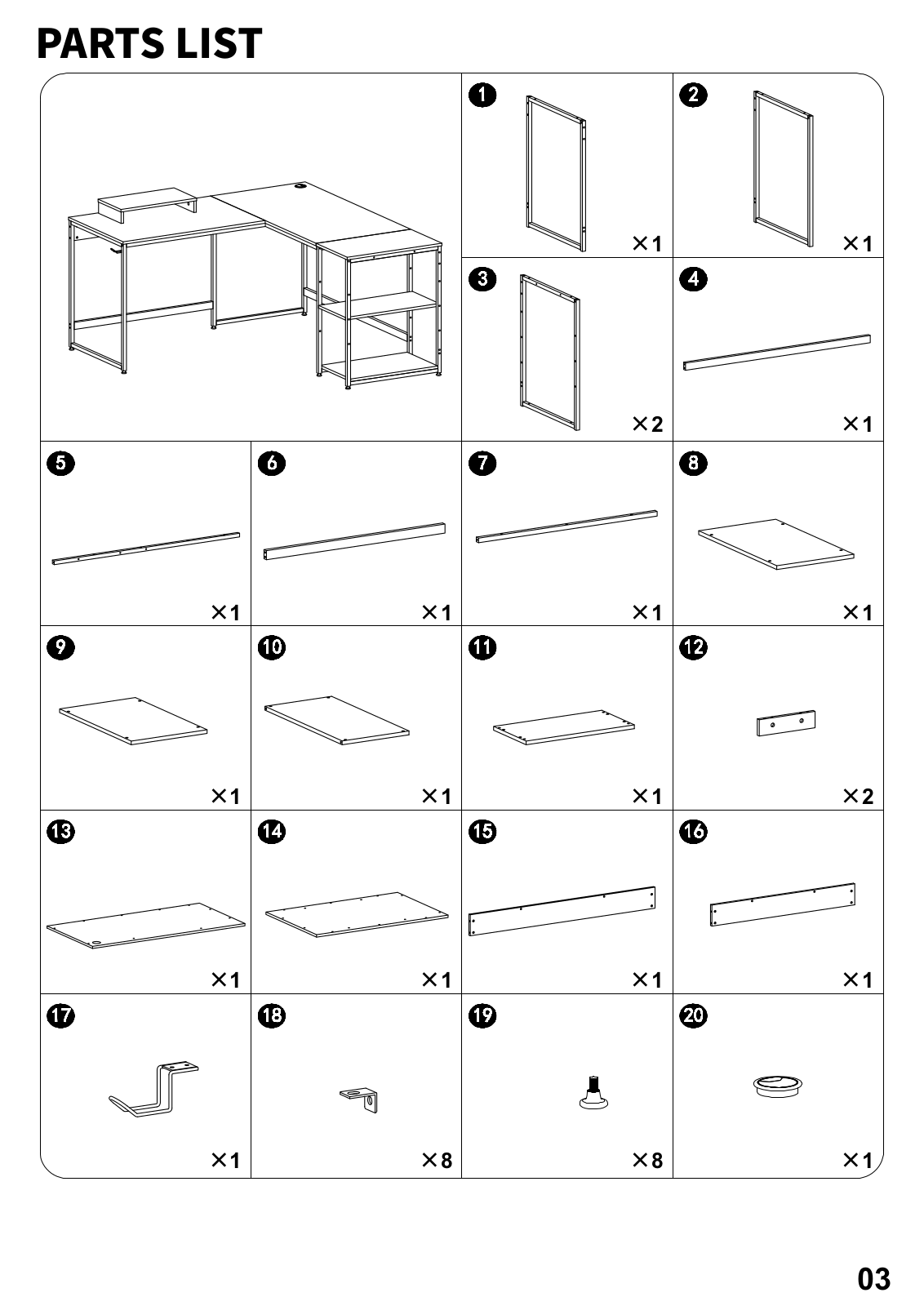

PARTS LIST
×1×1
×2 ×1
×1 ×1 ×1 ×1
×1 ×1
×1
×1 ×2
×1 ×1×1
×1 ×8 ×1×8
03

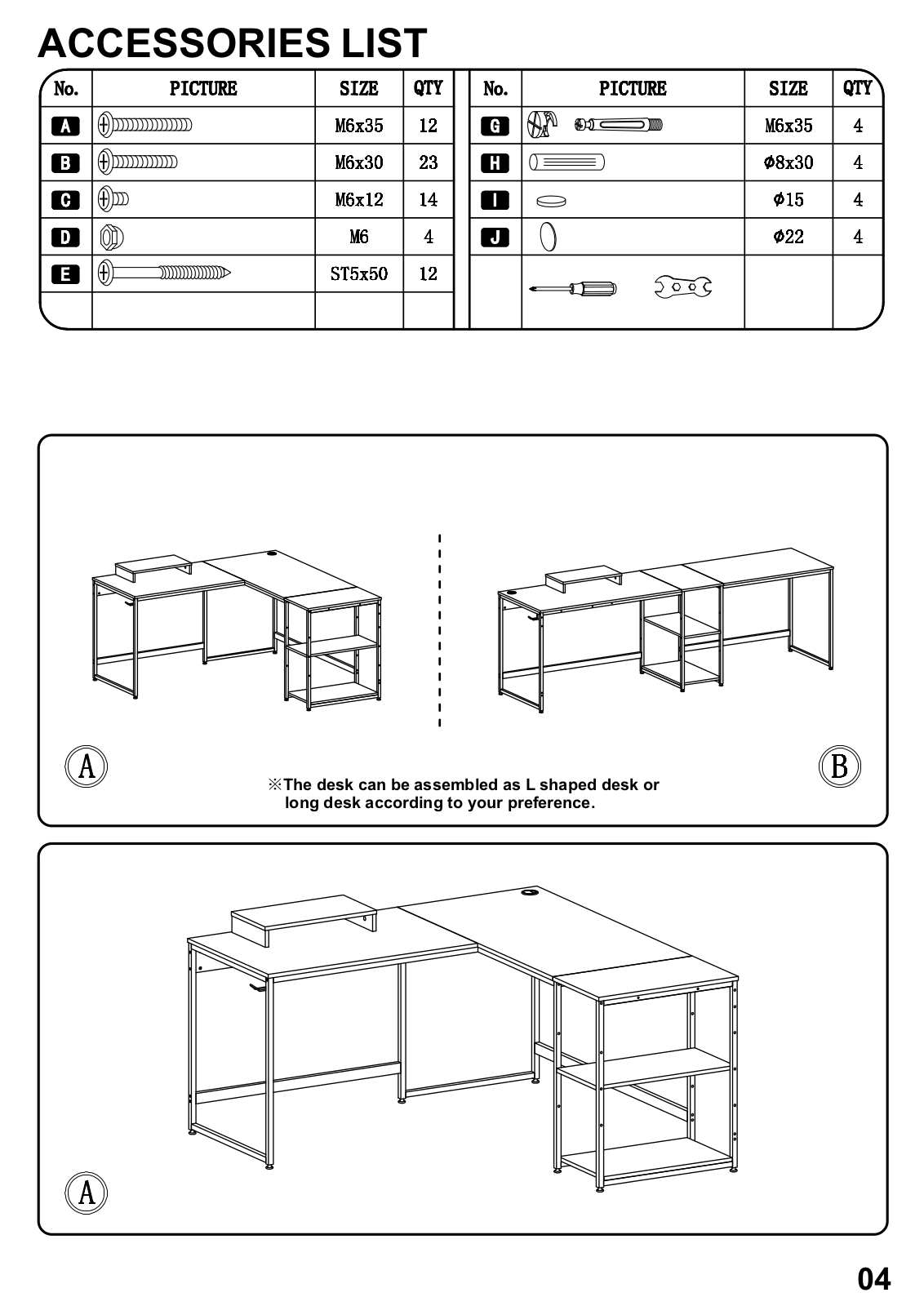

ACCESSORIES LIST

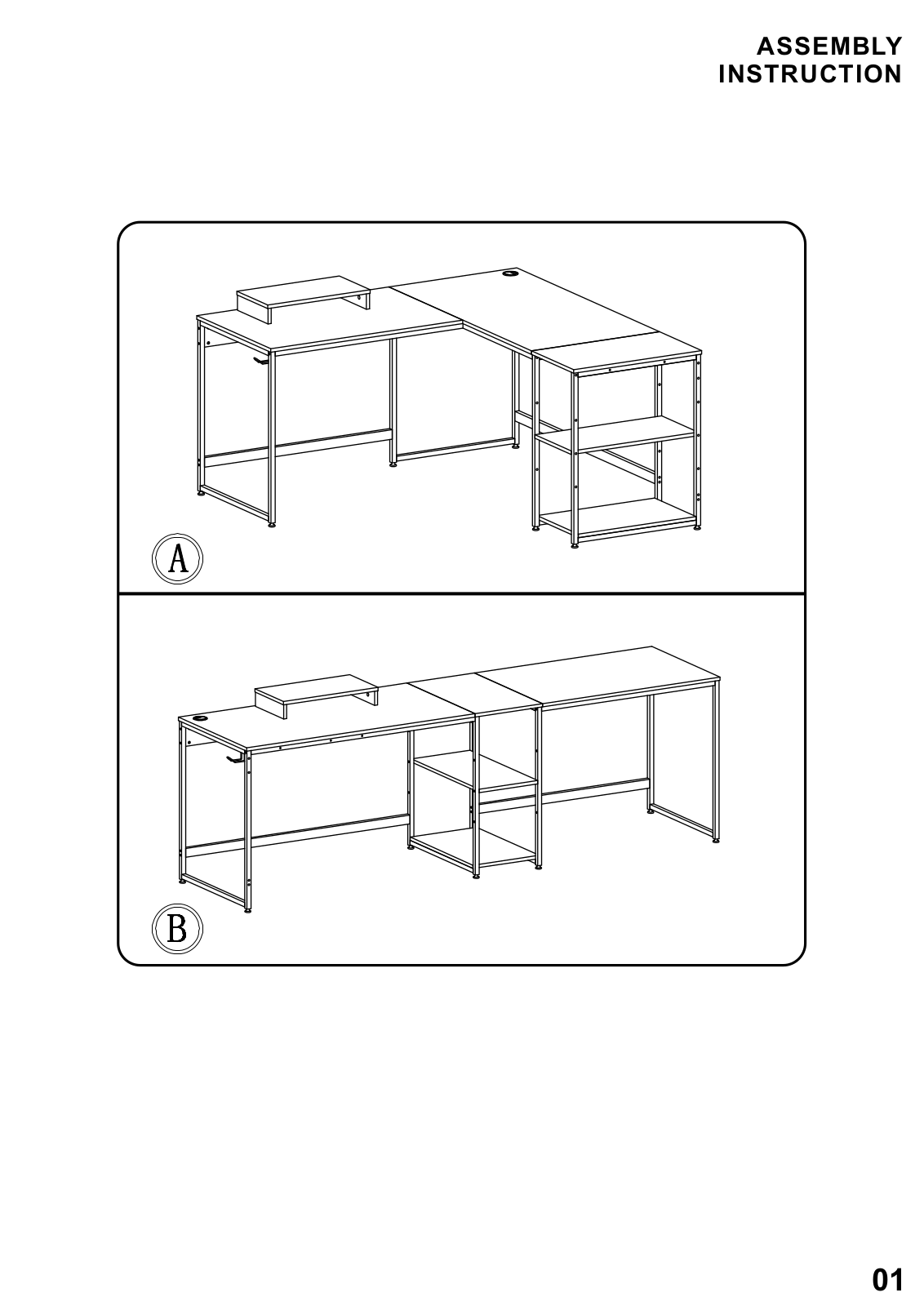

※The desk can be assembled as L shaped desk or
long desk according to your preference.
04

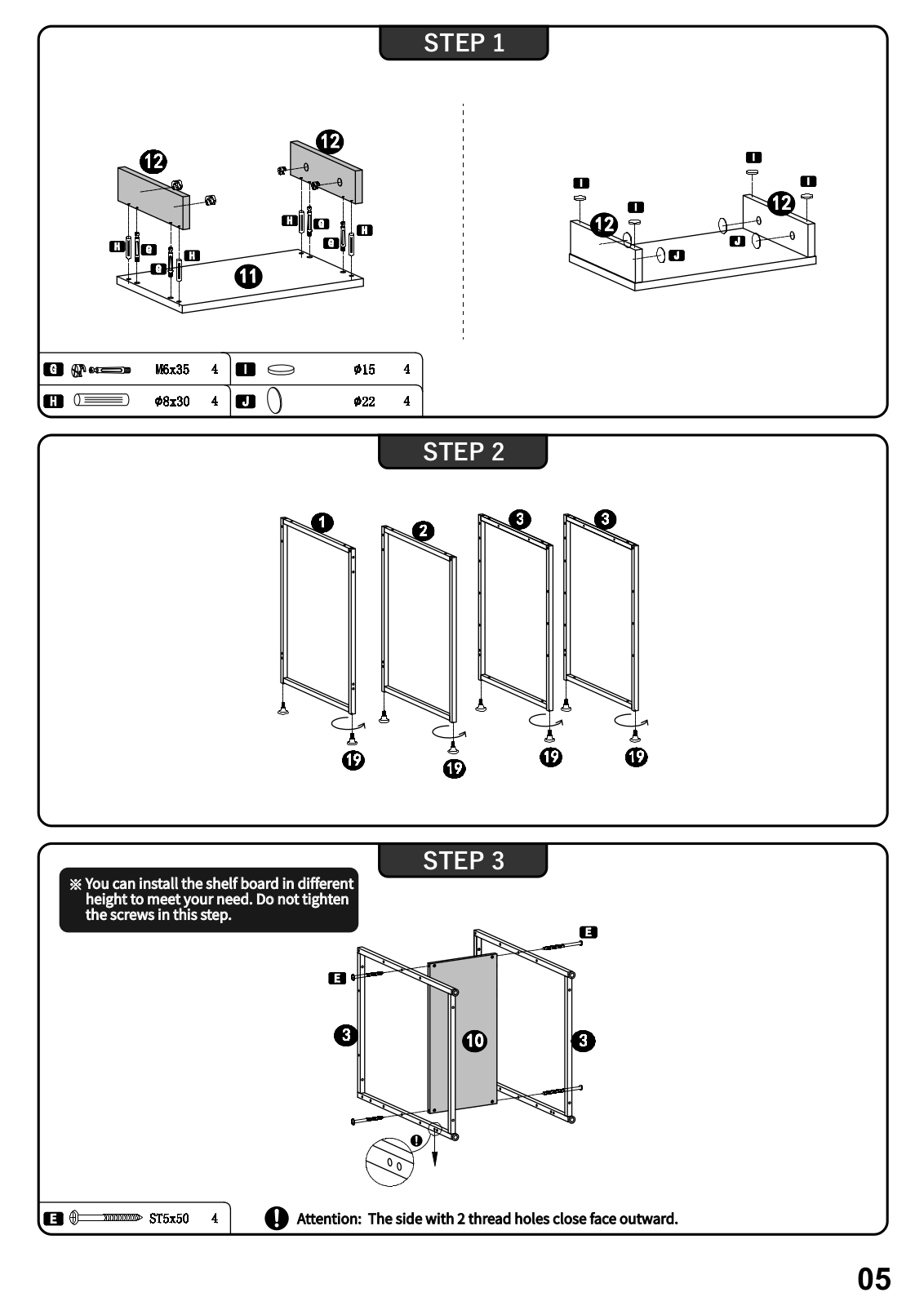

STEP 1
STEP 2
You can install the shelf board in different
※
height to meet your need. Do not tighten
the screws in this step.
Attention: The side with 2 thread holes close face outward.
STEP 3
05
※ Please make sure correct screws are used
in different parts.
Do not tighten the screws in this step.

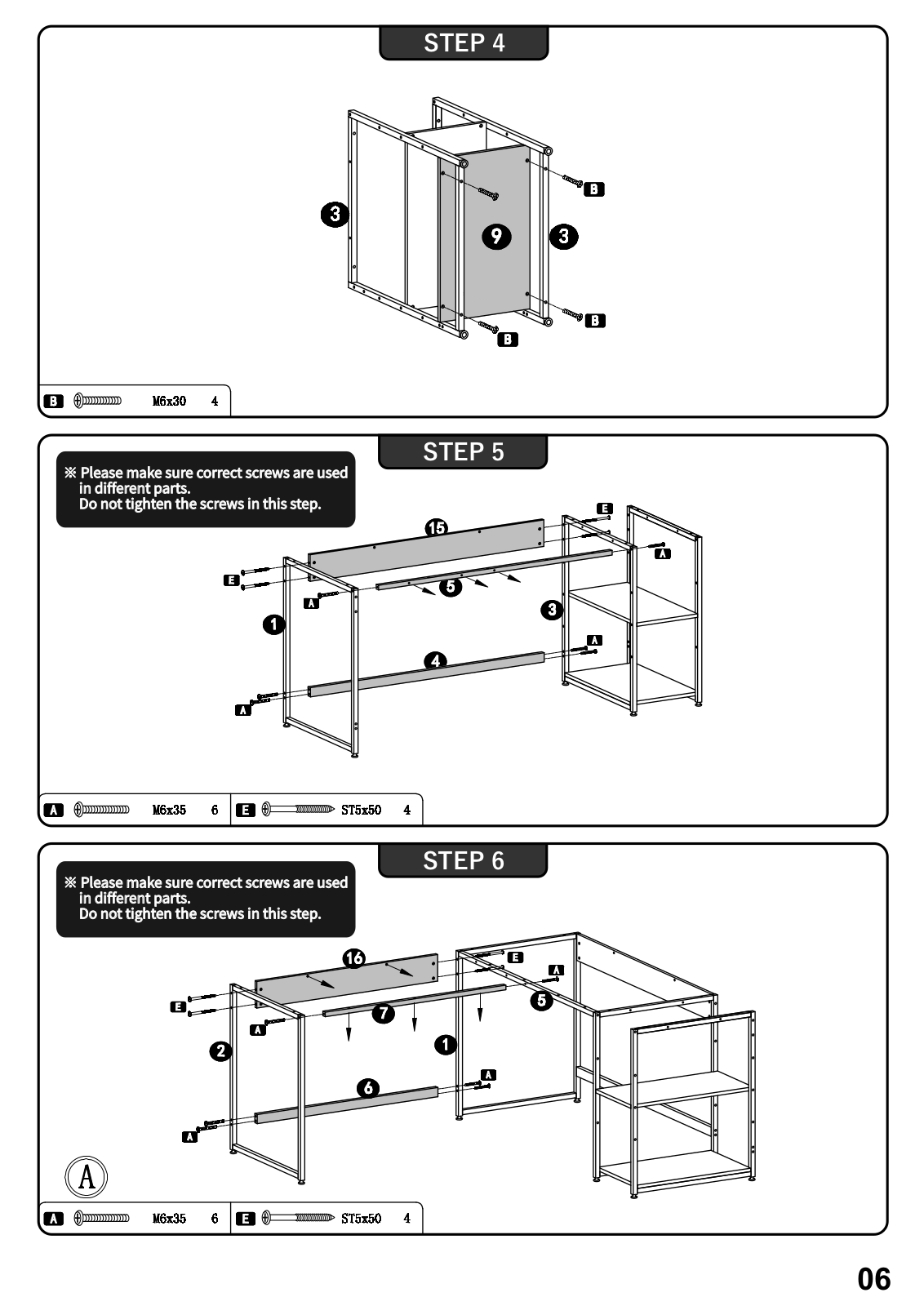

STEP 4
STEP 5
Attention: Please make sure correct screws
is used in different parts.
※ Please make sure correct screws are used
Do not tighten the screws in
in different parts.
this step
Do not tighten the screws in this step.
STEP 6
06

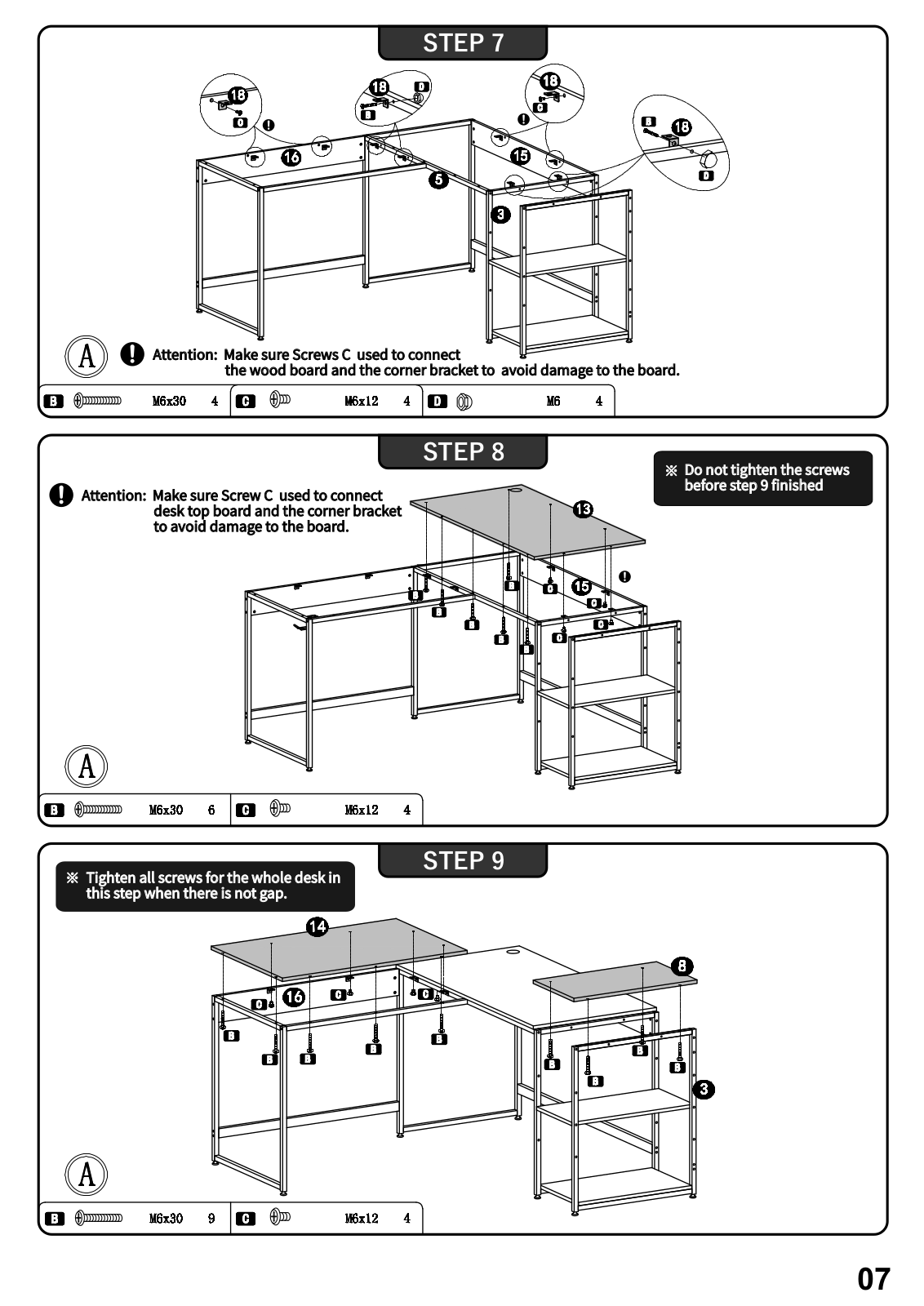

STEP 7
Attention: Make sure Screws C used to connect
the wood board and the corner bracket to avoid damage to the board.
Attention: Make sure Screw C used to connect
desk top board and the corner bracket
to avoid damage to the board.
STEP 8
Do not tighten the screws
※
before step 9 finished
Tighten all screws for the whole desk in
※
this step when there is not gap.
STEP 9
07

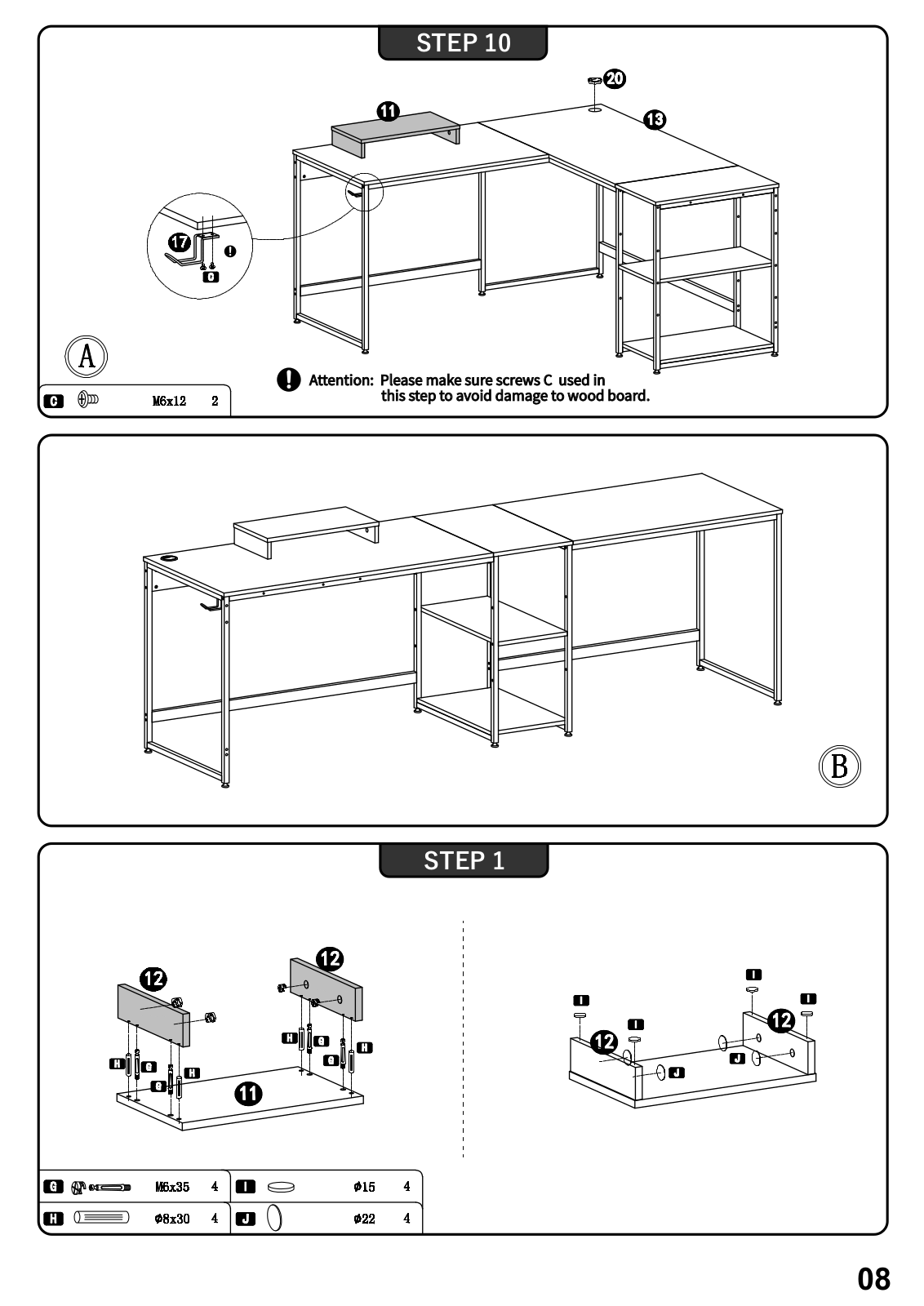

STEP 10
Attention: Please make sure screws C used in
this step to avoid damage to wood board.
STEP 1
08
You can install the shelf board in different
※
height to meet your need. Do not tighten
the screws in this step.

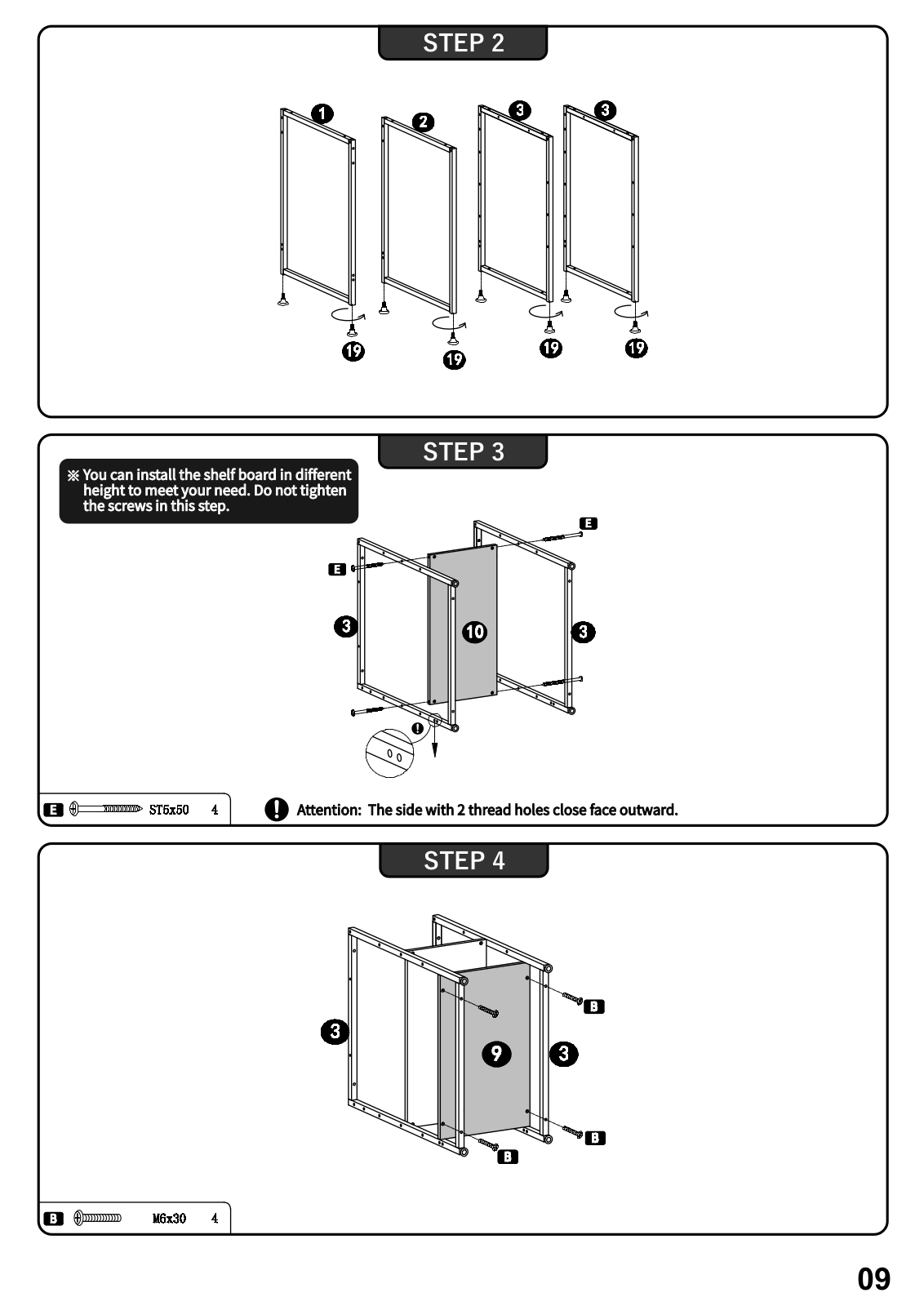

STEP 2
STEP 3
Attention: The side with 2 thread holes close face outward.
STEP 4
09
Attention: Please make sure correct screws
is used in different parts.
※ Please make sure correct screws are used
Do not tighten the screws in
in different parts.
this step
Do not tighten the screws in this step.

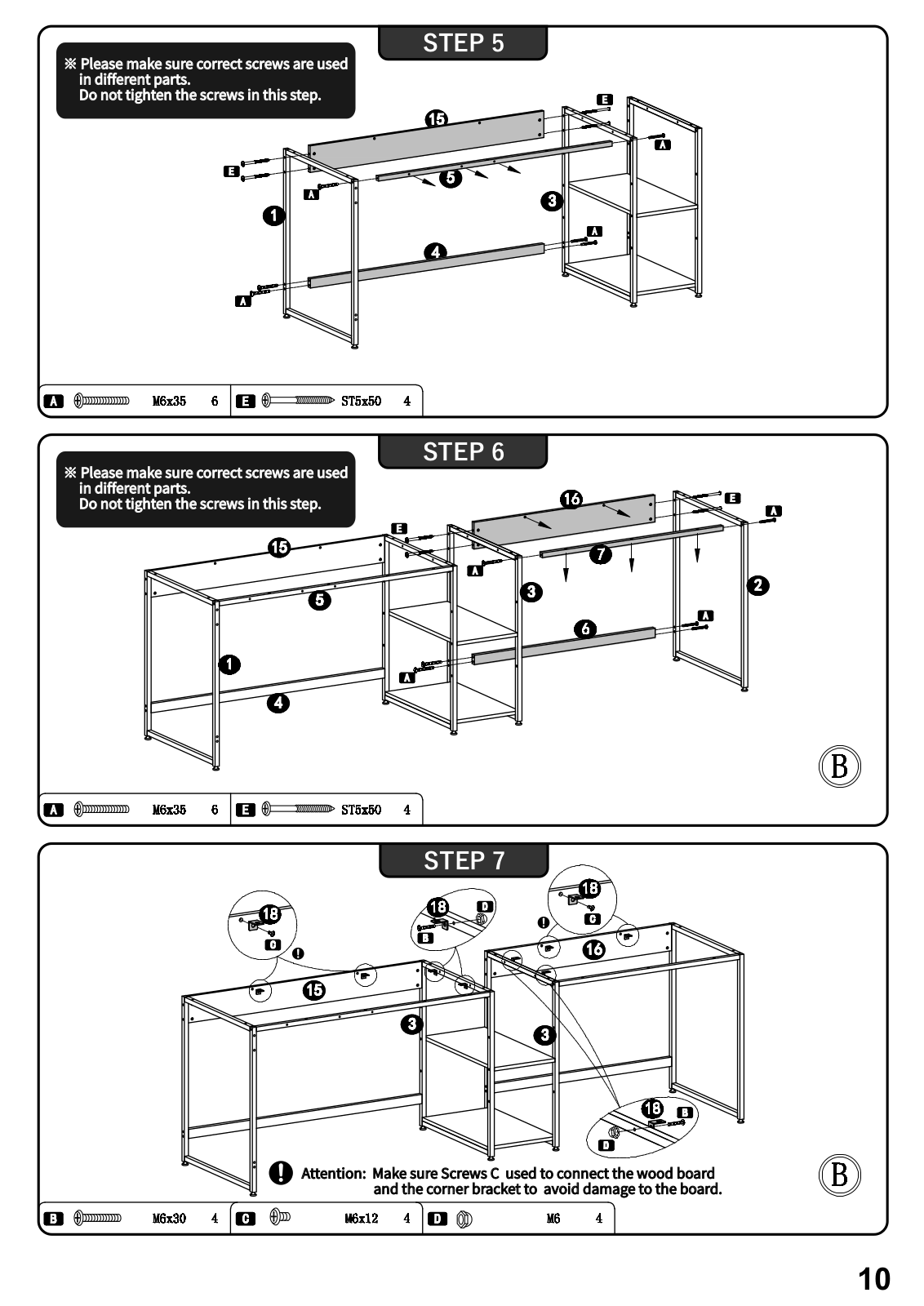

STEP 5
Attention: Please make sure correct screws
is used in different parts.
※ Please make sure correct screws are used
Do not tighten the screws in
in different parts.
this step
Do not tighten the screws in this step.
STEP 6
STEP 7
Attention: Make sure Screws C used to connect the wood board
and the corner bracket to avoid damage to the board.
10
Do not tighten the screws
※
before step 9 finished

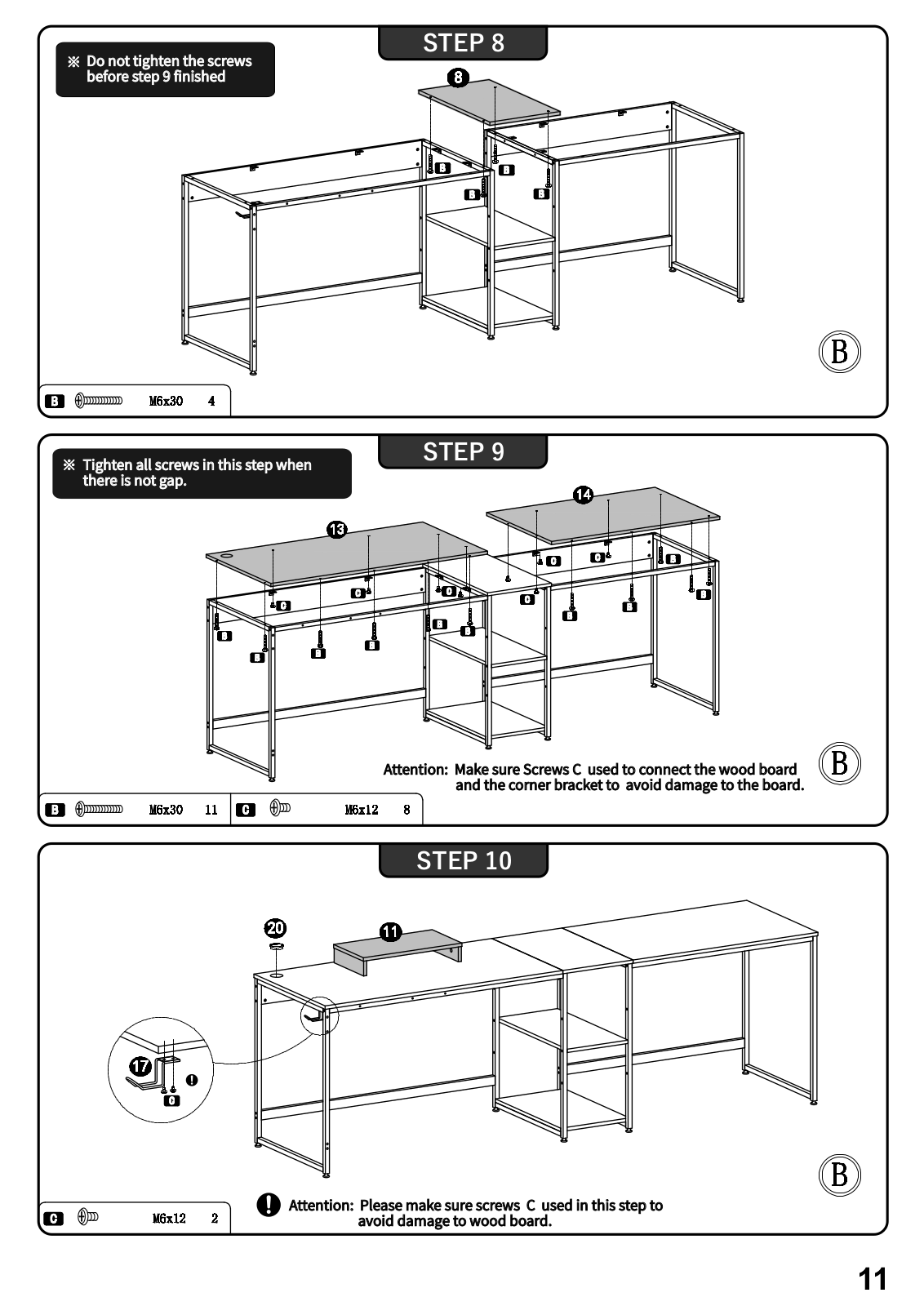

STEP 8
Tighten all screws in this step when
※
there is not gap.
STEP 9
Attention: Make sure Screws C used to connect the wood board
and the corner bracket to avoid damage to the board.
STEP7
STEP 10
Attention: Please make sure screws C used in this step to
avoid damage to wood board.
11
