INSTRUCTION MANUAL
0
/
1

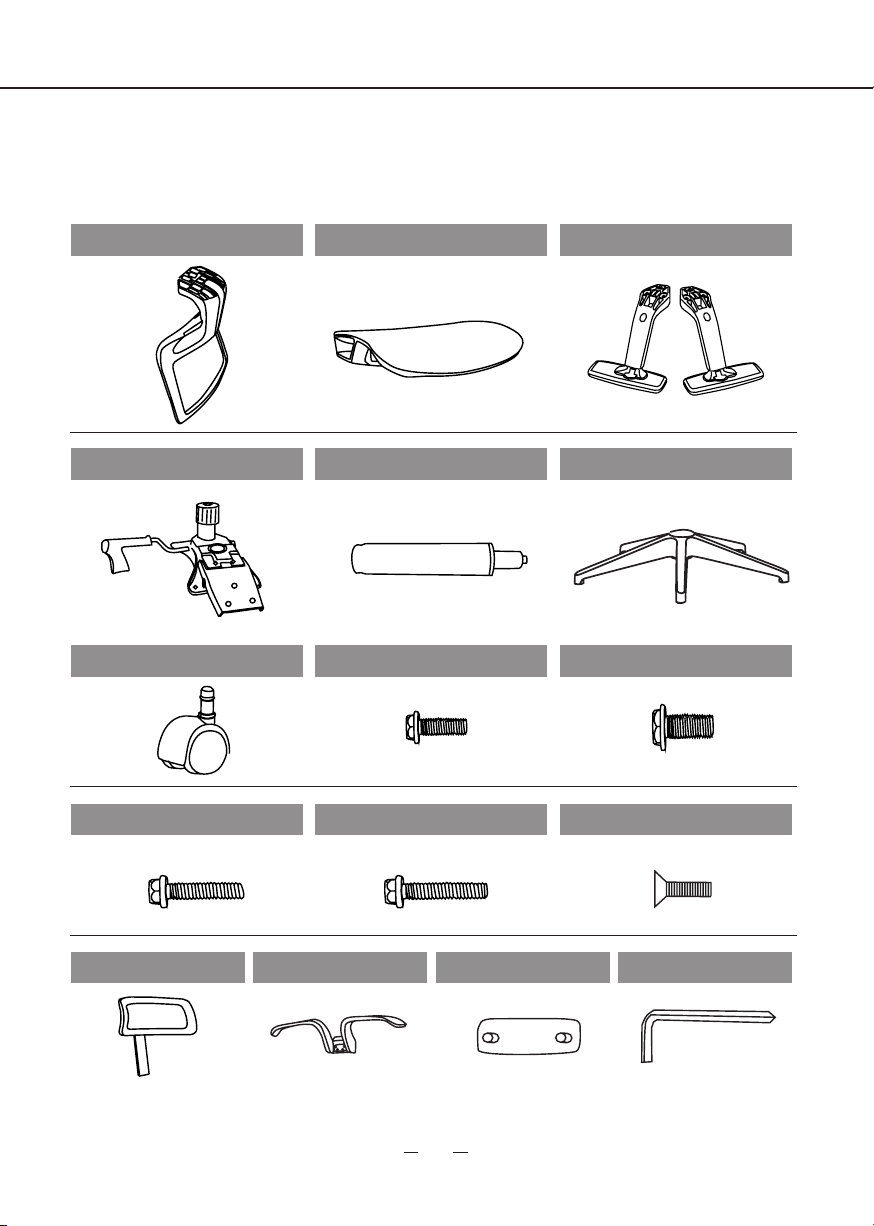

PACKAGE LIST
(1) Back Cushion x1
(4) Seat Plate x1
(7) Casters x5
(10) Bolts M6x25mm x3
(2) Seat Cushion x1
(5) Gas Lift x1
(8) Bolts M6x14mm x5
(11) Bolts M6x30mm x5
(3) Arms x2
(6) Star Base x1
(9) Bolts M8x25mm x4
Bolts M5x16mm x3
(12)
(14) Hanger x1(13) Headrest x1
*Note: One extra screw for each model is included in the package. In addition, the decorative piece also
added one more. Ensure that our customers do not experience the lack of accessories.
(15) Decorative Piece x2
2
(16) Wrench x1
0
2
/
ASSEMBLY INSTRUCTION

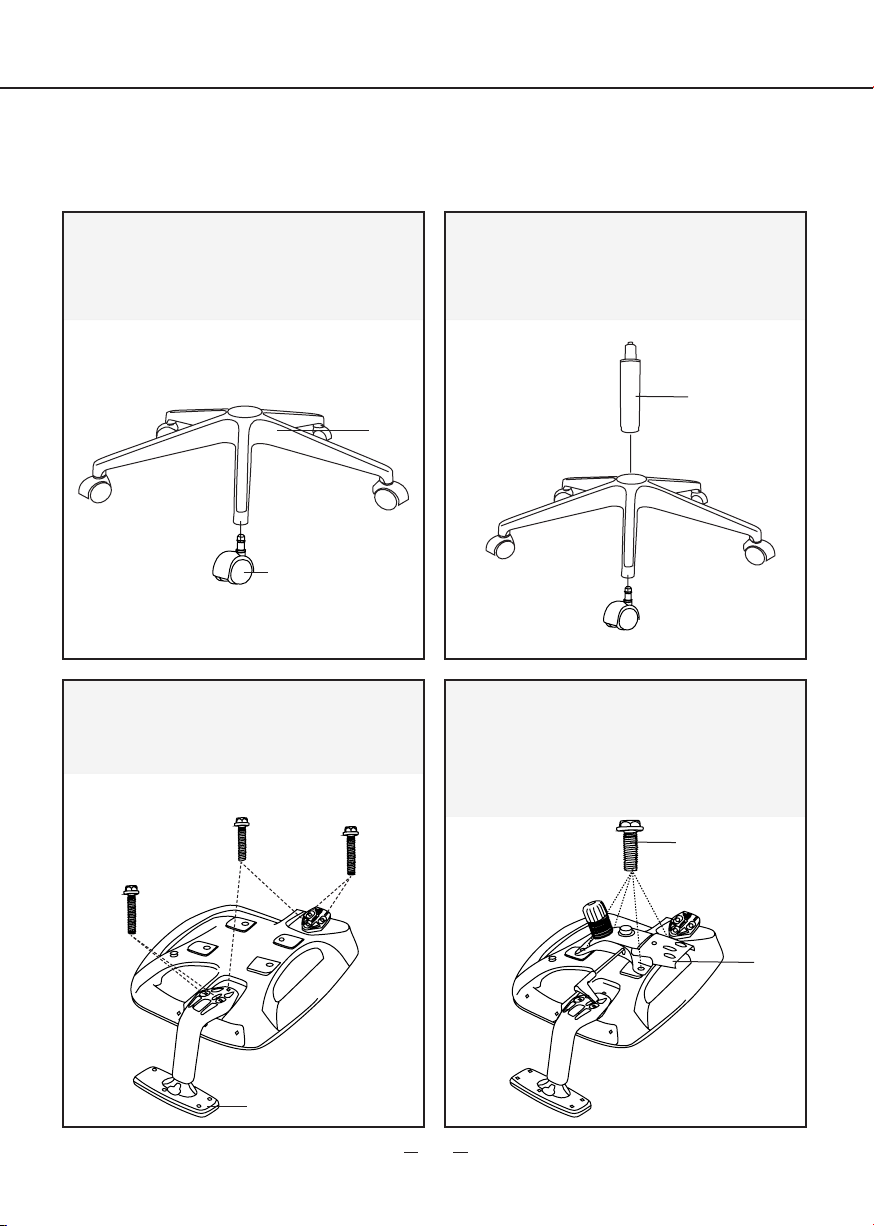

Step 1: Turn the Star Base (6) upside
down, then press the Casters (7) into
the holes at the end of each base leg.
(6)
(7)
Step 3: Attach the Arms (3) to the seat
cushion with two M6x25mm bolts (10)
and four M6x30mm bolts (11) , using
the Wrench.
*Note: Arm rests are labeled with an "L" (left) or "R"
(right) to show which sides they should be placed
on.
(10)
(11)
Step 2: Turn the Star Base upright
and insert the Gas Lift (5) into the
center hole of the Star Base.
(5)
Step 4:
bottom of the seat cushion, make sure that
the front of the seat plate is facing the front
of the seat cushion. Attach the seat plate to
the seat cushion using four M6x14mm bolts
(8), tighten all the bolts with the wrench.
Align the Seat Plate (4) to the
(8)
(11)
(4)
(3)
3
0
2
/
ASSEMBLY INSTRUCTION

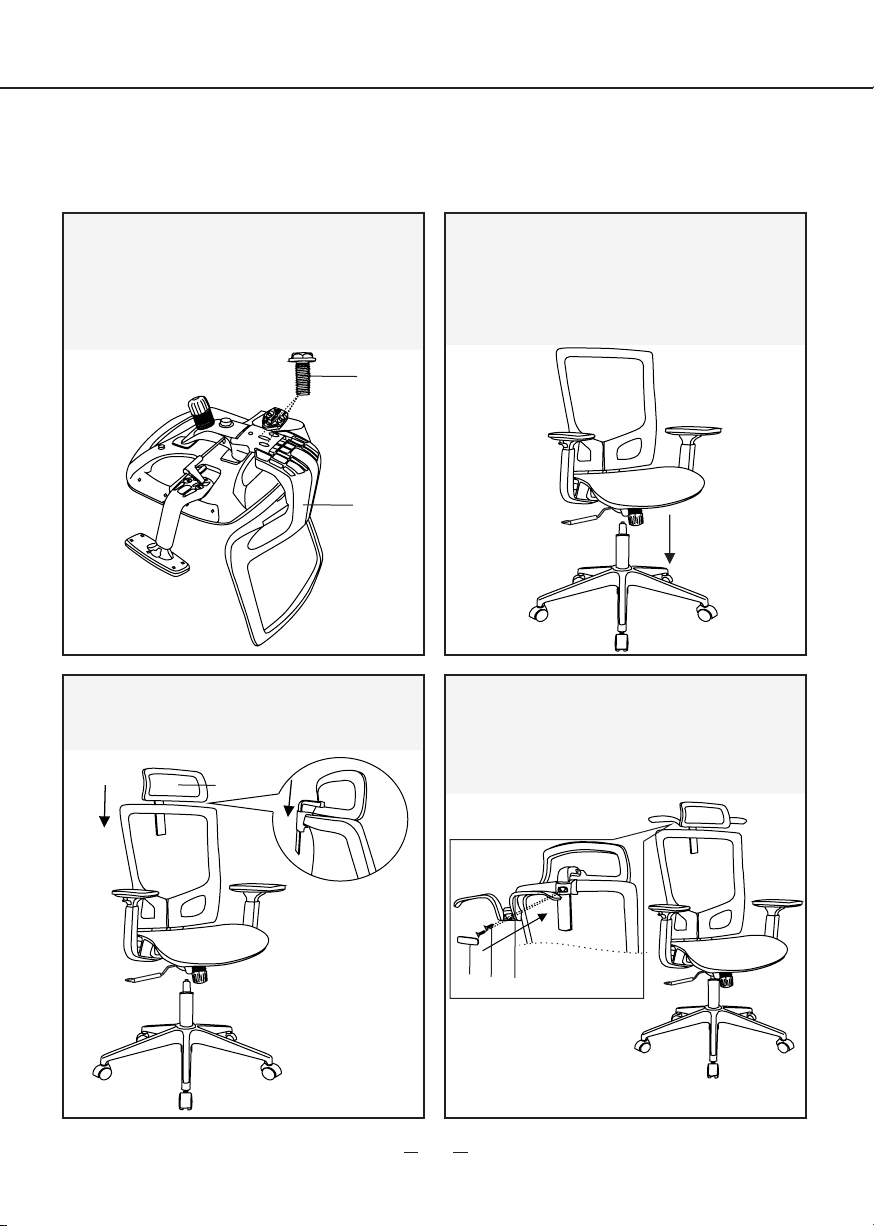

Step 5: Attach the Back Cushion (1)
to the seat cushion, Insert the back
cushion to the seat plate, and using
three M8x25mm bolts (9), tighten all
bolts with the wrench.
(9)
(1)
Step 7: Insert the Headrest (13) to the
top of back cushion.
(13)
Step 6: Turn the seat cushion upright
and align the center hole of the seat
plate over the lift, then push the seat
cushion down onto the lift rmly until
the connection is secure.
Step 8:
of the Headrest, and using two M5x16mm
bolts (12), tighten all bolts with the wrench.
Buckle the Decorative Piece (15) to cover the
screw holes.
Attach the Hanger (14) to the back
(15) (12) (14)
4
0
2
/
ASSEMBLY INSTRUCTION

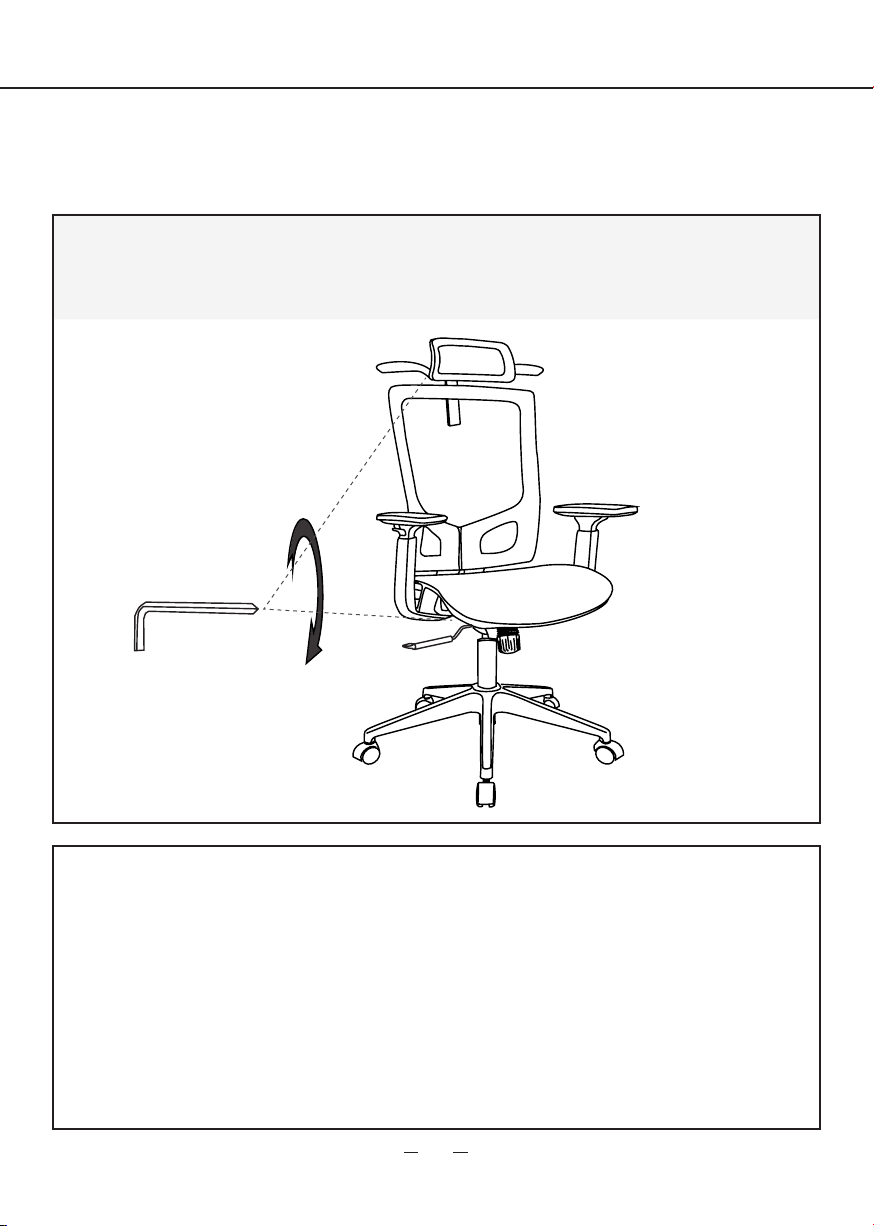

Step 9:
Adjust the balance , then fully tighten all the bolts on each side.
(100%)
Congratulations!You’ve assembled
your chair.
5
0
1
2
/
3

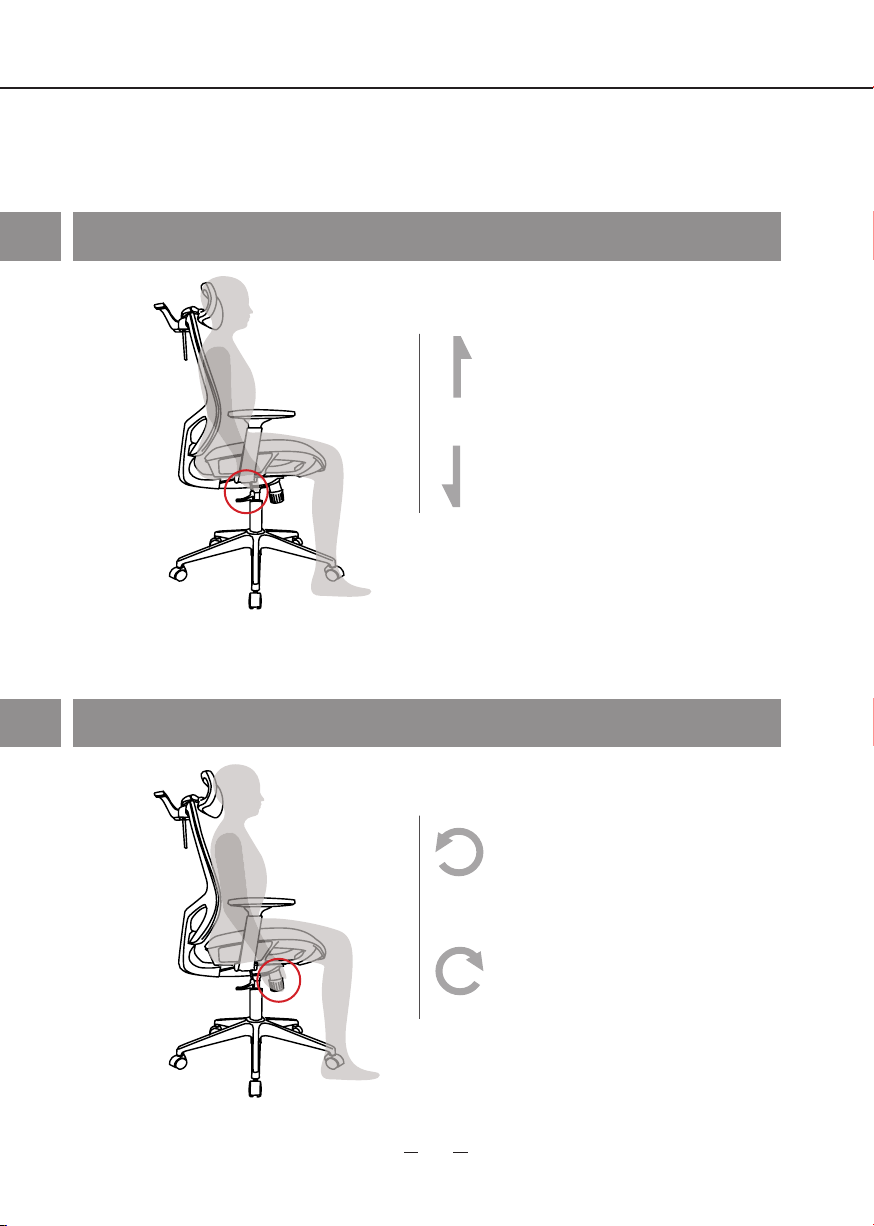

Seat Height: Paddle-shaped lever on right side
*
At the proper height, your feet should rest flat on the floor.
Tilt Tension: Long stem under the seat cushion with knob
INSTRUCTIONS FOR USE
To raise:
While taking your weight off chair,
lift lever up.
To lower:
While seated, lift lever up.
To increase tension:
+
While seated, turn knob forward
(toward + sign).
To decrease tension:
_
While seated, turn knob
backward (toward - sign).
*
Set the tilt tension to control the resistance you feel when leaning back.
6
0
3
/
3

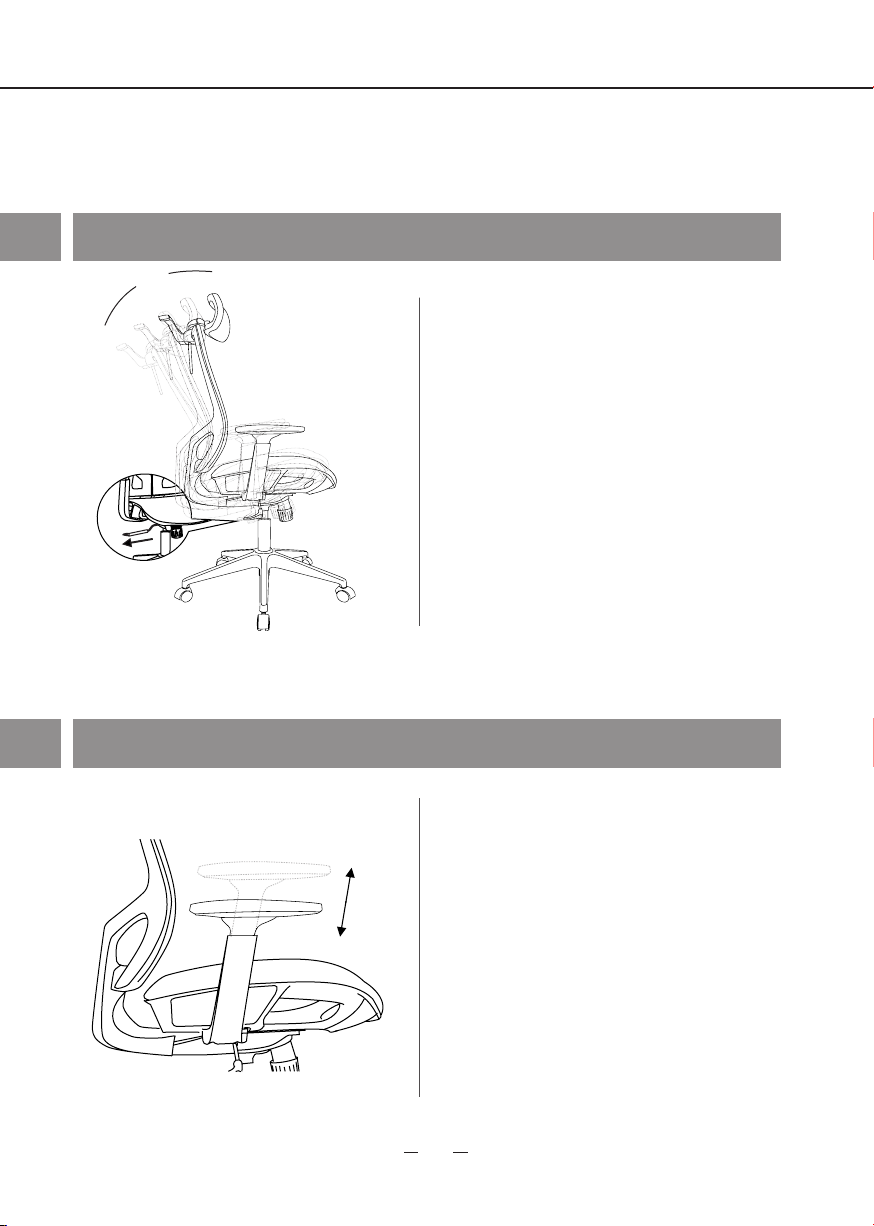

Tray Function: 3 angles can be locked
INSTRUCTIONS FOR USE
112°
90°
120°
(The lift function and the angle lock function are the same handle. When using the
*
angle lock, the handle must be pulled out to be used.)
1D Multi-Function Armrest
4
Lock to 90°:
When you work, you can adjust it to the
most comfortable angle.
Lock to 112°:
The angle of the second lock. It is
convenient for you to choose the angle
that suits you.
Lock to 120°:
When you read, you can adjust it to this
angle.
Up and down
7
